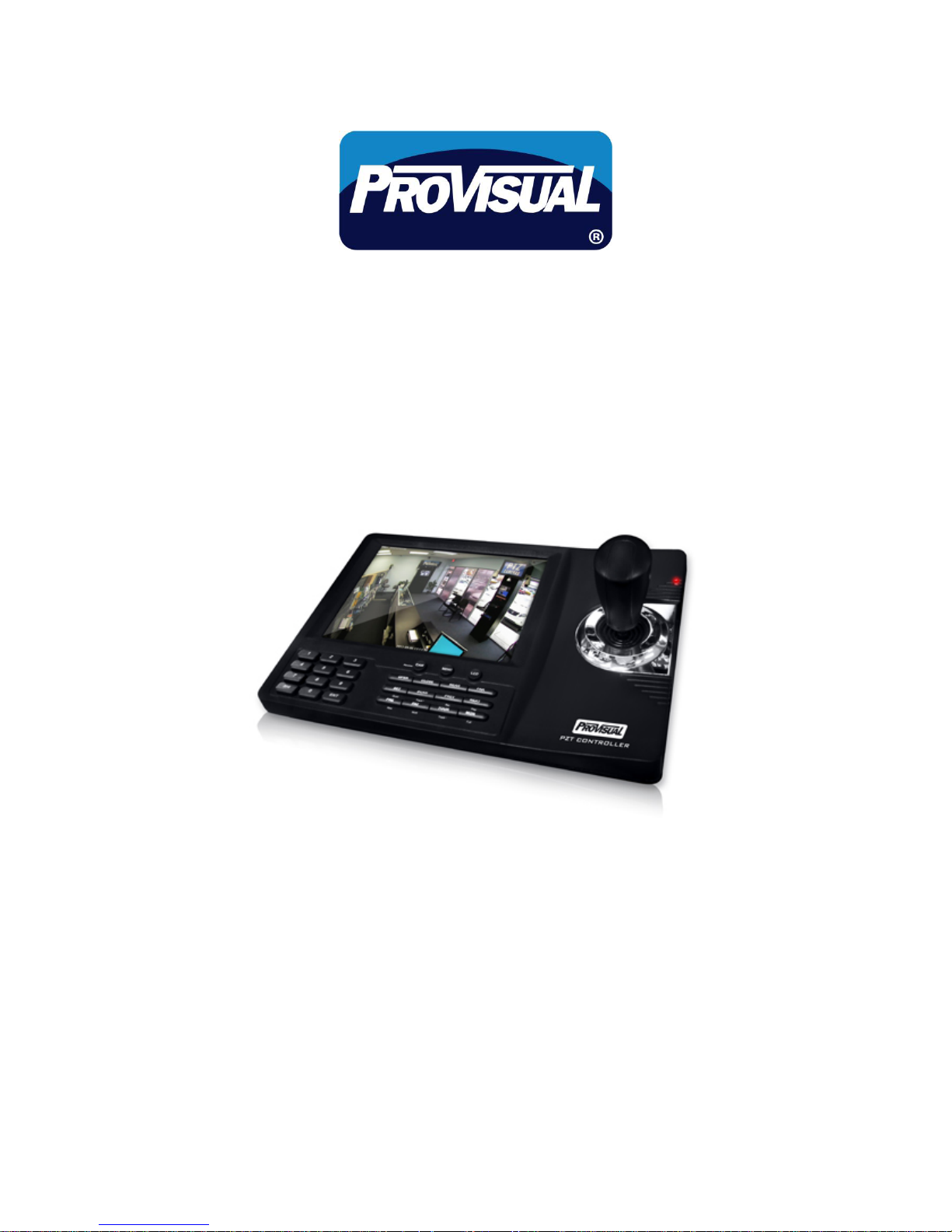

PTZ-501C
ProVisual PTZ Keyboard Controller
User Manual
www.provisualusa.com
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
2 | P a g e
Contents
1 - Summary ......................................................................................................................................................................................... 3
1.1 - Notice ............................................................................................................................................................................................ 3
1.2 - Function And Characteristic ......................................................................................................................................................... 3
1.3 - Technical Data............................................................................................................................................................................... 3
2 - Keyboard Connection ...................................................................................................................................................................... 3
2. 2 - Connect Matrix ............................................................................................................................................................................ 4
2. 3 - Direct Connect With Dome ................................................................................................ .......................................................... 4
2.1 - Interface instruction ..................................................................................................................................................................... 3
2.4 - Keyboard Connections In The System .......................................................................................................................................... 5
3 - Operation Instruction ...................................................................................................................................................................... 6
3.1 - Electrify ........................................................................................................................................................................................ 7
3.2 - TFT Display Screen ...................................................................................................................................................................... 7
3. 3 - Navigation Keys Controls Dome ................................................................................................................................ .................. 7
3. 4 - Rigger The Aim Dome .................................................................................................................................................................. 7
3.5 - Dome Lens Control ....................................................................................................................................................................... 7
3.6 - Set Dome Function ........................................................................................................................................................................ 8
3.6.1 Pre-set ........................................................................................................................................................................................... 8
3.6.2 - Pattern........................................................................................................................................................................................ 8
3.6.3 - Cruise ......................................................................................................................................................................................... 8
3.7 - Call Dome Main Menu .................................................................................................................................................................. 8
3.8 - Matrix Control .............................................................................................................................................................................. 8
3.8.1 - Call Matrix Main Menu ............................................................................................................................................................. 8
3.8.2 - Confirm After Program ............................................................................................................................................................. 8
3.8.3 - Change Object Monitor ............................................................................................................................................................. 8
4 - Keyboard Control ............................................................................................................................................................................ 8
4.1 - Keyboard Parameter Setup .......................................................................................................................................................... 9
4.1.1 - Dome ID Setup ................................................................................................ ........................................................................... 9
4.1.2 - Keyboard Baud Rate Setup...................................................................................................................................................... 10
4.2 - Dome Setup ................................................................ ................................................................................................................. 10
4.2.1 - Preset Setup.............................................................................................................................................................................. 10
4.2.2 - Dome Scan Setup...................................................................................................................................................................... 11
4.2.3 - Pattern Setup ........................................................................................................................................................................... 12
4.2.4 - Tour Setup ................................................................................................................................................................................ 12
4.3 - Protocol Setup ............................................................................................................................................................................. 13
4.3.1 - Pelco Matrix Model .................................................................................................................................................................. 13
4.3.2 - Dome Control Model ................................................................................................................................................................ 13
4.4 - System Setting ............................................................................................................................................................................. 14
4.5 - Exit The Keyboard Menu ........................................................................................................................................................... 14
5 - Appendix ........................................................................................................................................................................................ 15

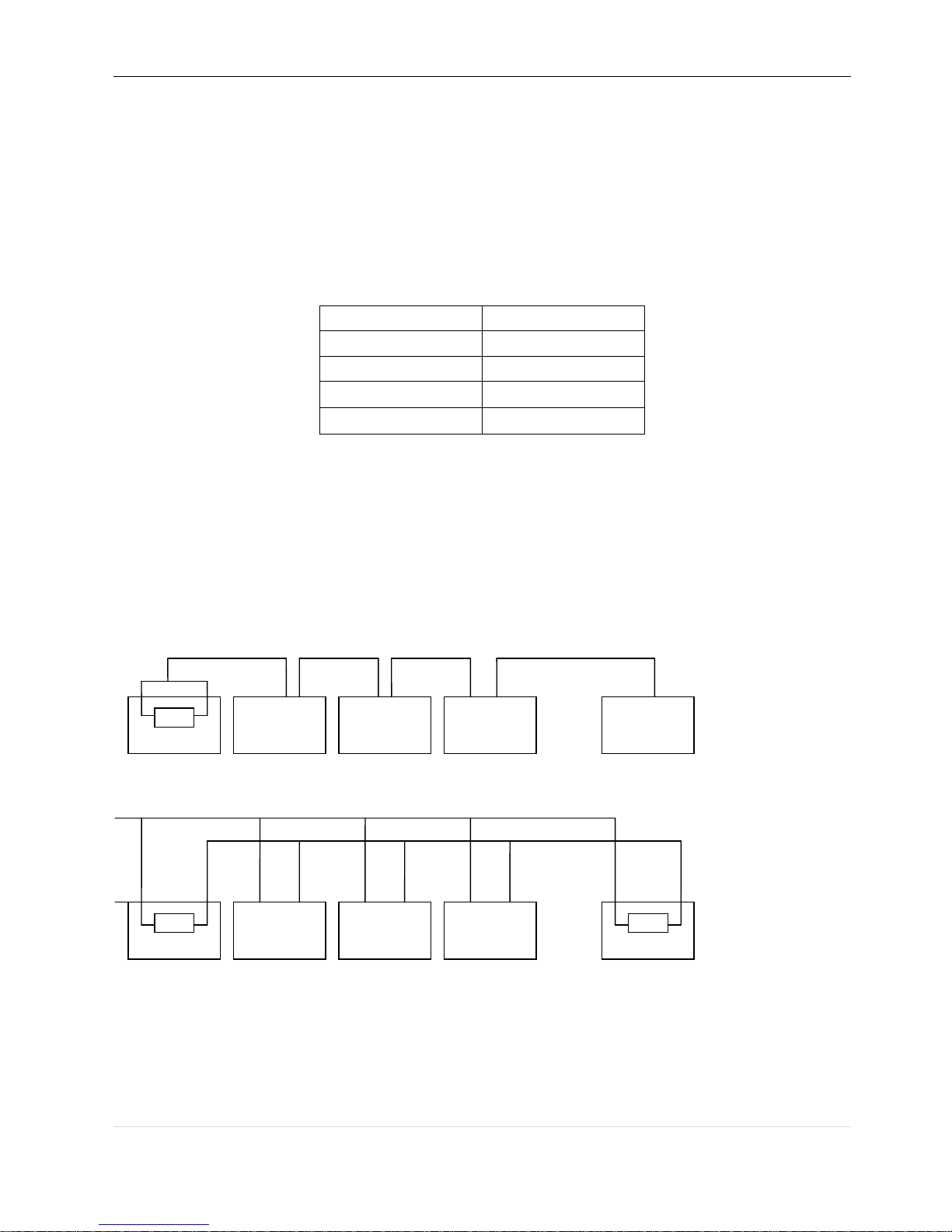

5.1 - RS485 Bus General Knowledge .................................................................................................................................................. 15
5.2 - Keyboard Shortcut Instruction ................................................................................................................................................... 17
6 - Keyboard Menu Index ................................................................................................................................................................... 18
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
3 | P a g e
1 - Summary
The keyboard is a universal keyboard of security monitoring series, which can control the ball-type integrated camera of all kinds
protocols matrix, which has been equipped with the navigation key which can control the revolving of the camera and the zoom
magnification of lens; with the LCD screen and the function of back-light, which can display the current operation order the control
protocol name the current dome ID the current monitor ID and the state of joysticks. The user can control the CCTV system more easily
with the joystick and the LCD screen.
1.1 - Notice
Please read the manual carefully and reserve it.
Please advert to the notice in manual.
Please don't place the keyboard in the moist place.
1.2 - Function And Characteristic
Rs485 Bus Line and a keyboard can connect 31 domes at most in the direct control mode.
Can be compatible with all kinds of protocols.
Can control the Iris Focus and Zoom.
Can set and call the preset, run the scanning the pattern and the tour.
Can control the matrix and through which can control the dome indirectly.
Equipped with the navigation key and the larger LCD screen.
Video out/ in and display
Infrared ray emission, emission the same data & content as RS485
1.3 - Technical Data
► Electrical character
Input voltage：12V - 36V DC
Rating current：500mA (12V DC)
Rating power：6.5W
► Communicate character
Communicate interface：RS485×1
Communicate frequency：2400, 4800, 9600, 19200bps
► Operational environment
Operating temperature：0°C~50°C
Relative humidity less than：90%
► Physical property
L × W × H: 305mm × 210mm × 130mm
2 - Keyboard Connection

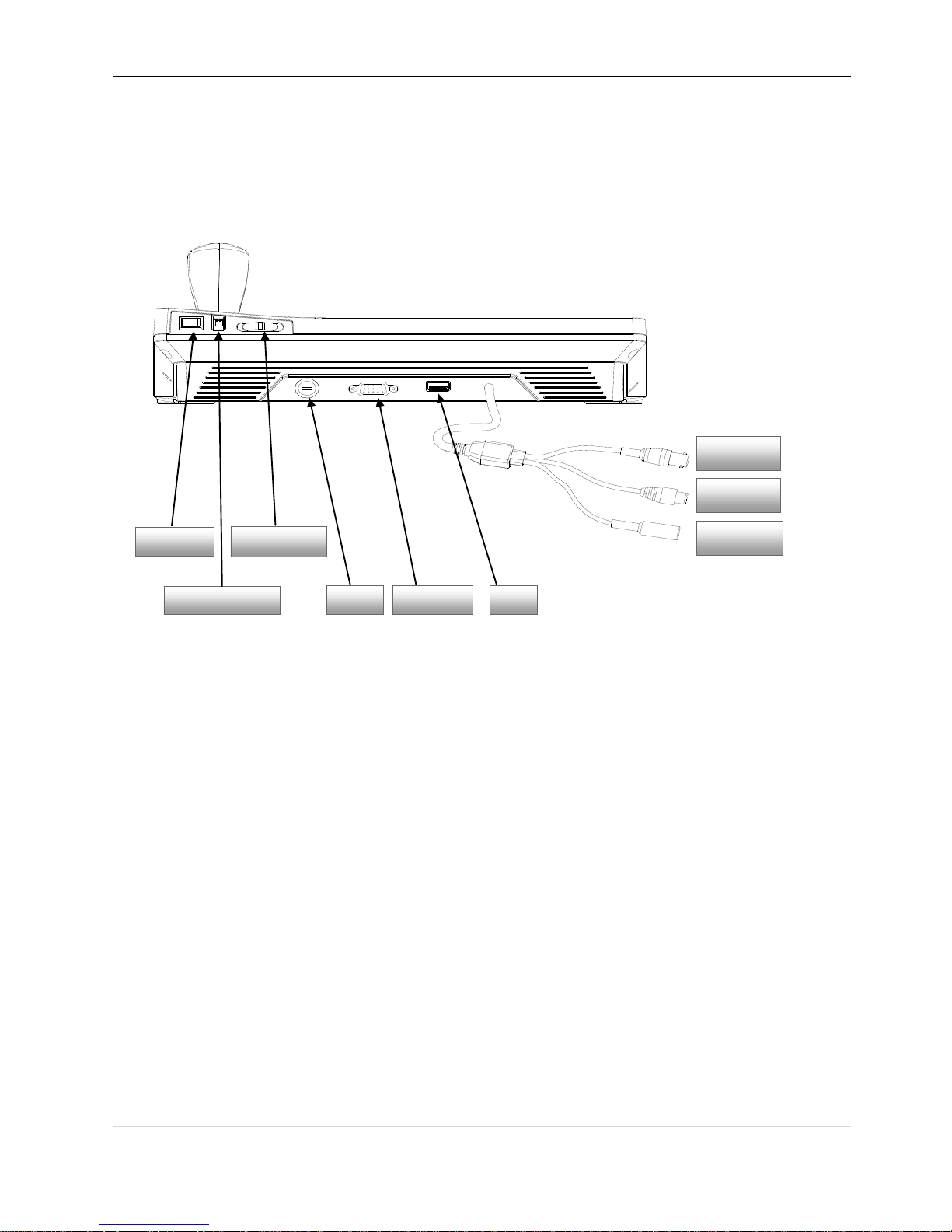

There is interface on the back of the keyboard, which equipped with kinds of communication like RS485, VGA Output, Video Out, and
USB as figure 2-1.1
2.1 - Interface instruction
RS422 and RS485 interfaces are on the 6 bit ribbon cable connection of the keyboard.RS485 (A+B-) can connect with the dome when the
keyboard controls the dome directly: RS485 A+B-can connects with DVR or other keyboards when the keyboard controls the dome by
matrix.
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
4 | P a g e
With VGA input, the keyboard can working with a display; can connect with DVR, PC ECT. The max input resolutions 1280X720,
1024X768, 800X600,
USB Interface, use to connect with the PC. By this connect way, the keyboard can working as an aim object.
Video interface used for camera
2. 2 - Connect Matrix
Can control the PELCO CM6700, CM6800 matrix. Follow are the connection way of matrix PELCO CM6700, to show the steps of
connection. Cover board of CM6700 matrix has the interface of RS422 (REMOTE KEYBOARD(s)), connect it to the RS422 on the
keyboard, longest distance is 1200m

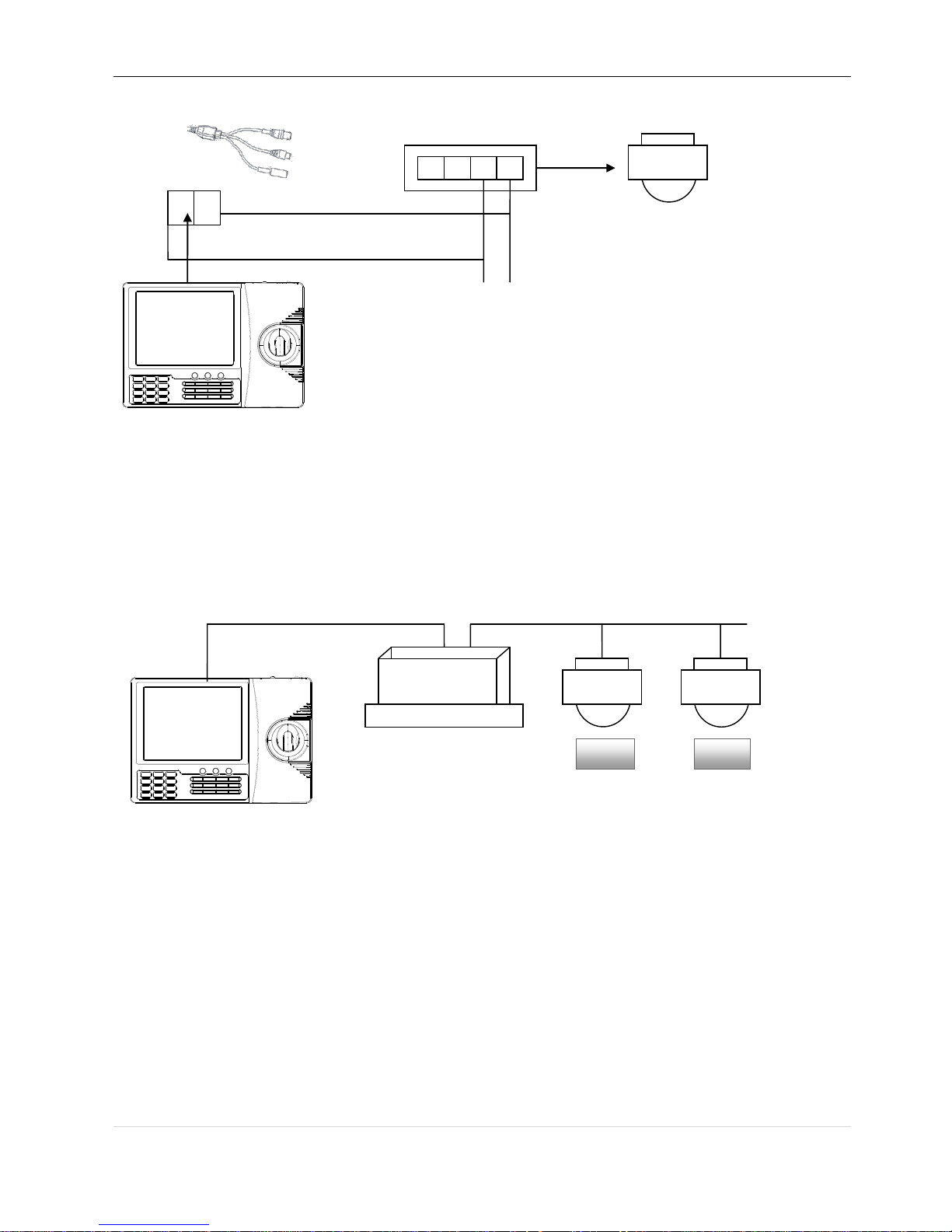

2. 3 - Direct Connect With Dome
Keyboard connects the Dome with RS485.The RS485 interface of the Dome is on the commutator of the Dome. Press the metal button in
the hanging frame, open the commutator, will find a 4bit power jack, follow the surface instruction to find RS485 (A+, B-) follow the
instruction. Maybe a different connects way when come from different manufacturer.
485 Match ON/OFF
Figure 2-1.1
Video Input
RS485
Power Input
Display Screen
LOCK
VGA Input
USB
ON/OFF
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
5 | P a g e
12V A+ B-
A+ B-

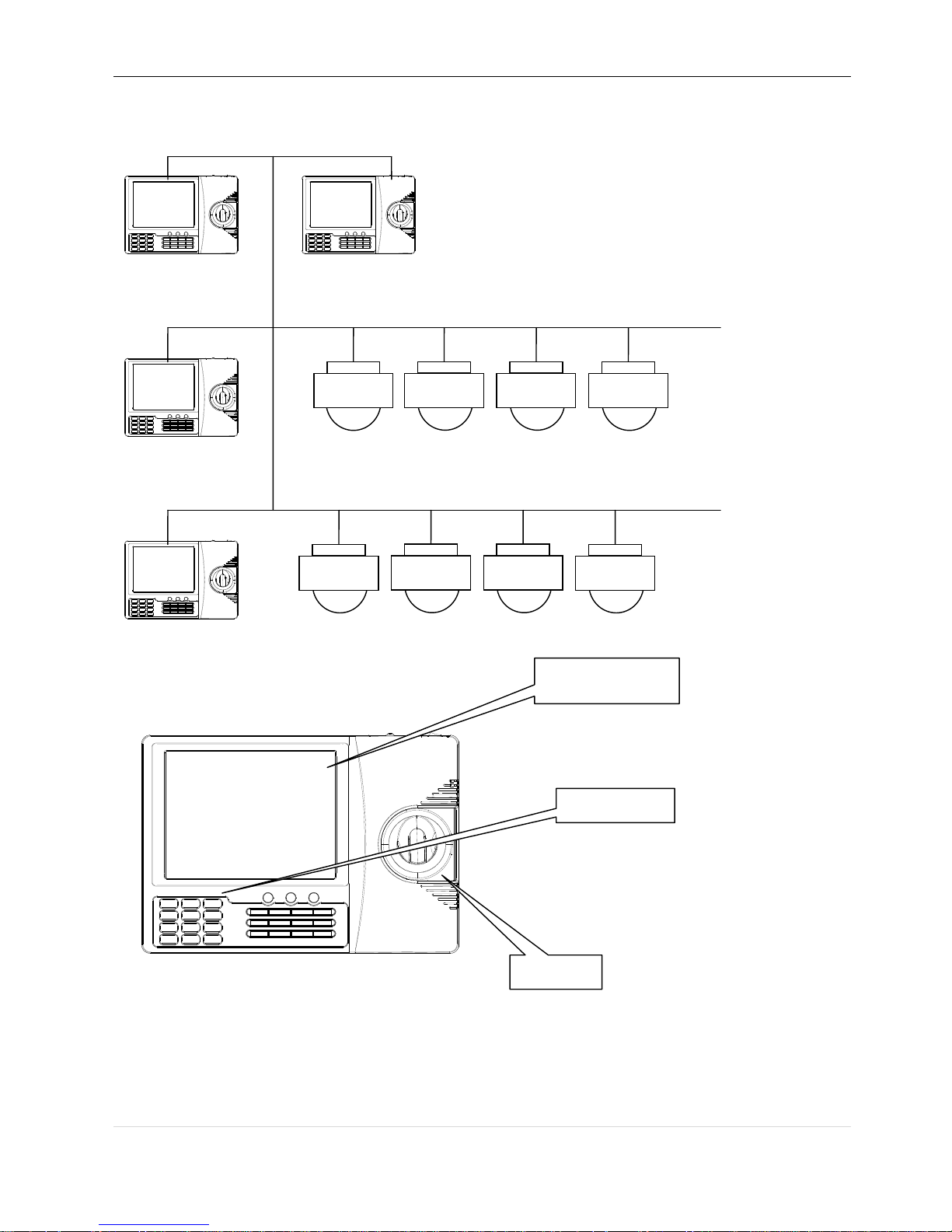

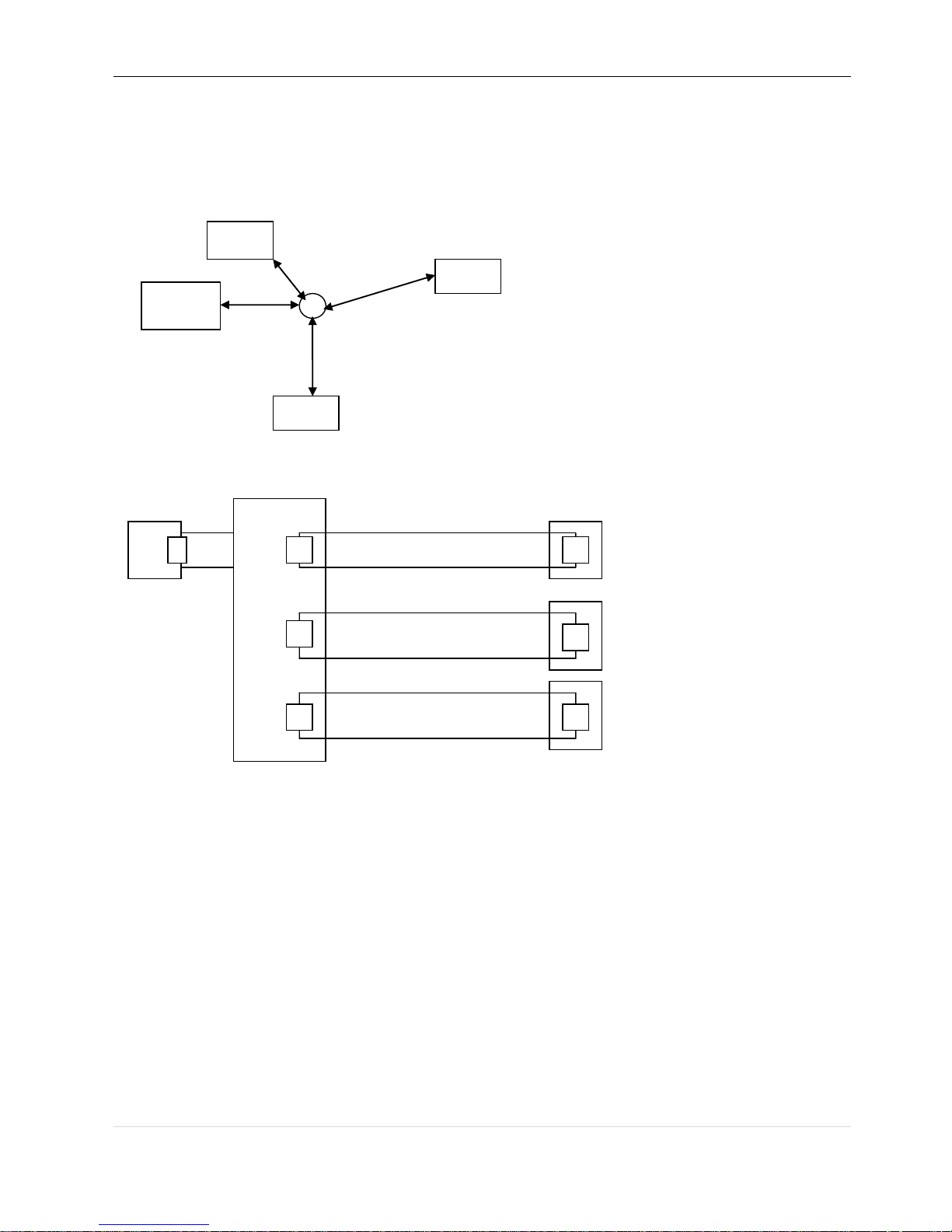

2.4 - Keyboard Connections In The System
Indirect control the dome when connect with matrix (as figure 2-4.1). Contrariwise will control the domes directly, Parallel connect the
keyboard and dome to the bus of RS-485,all the keyboard can control any dome among them, under this way, the add of the main keyboard
should be “1” and baud rate should be 9600bps (as figure 2-4.2)
Keyboard
Caution
1- The max quantity of master equip and be charged equip controlled by a RS485 bus is 32, so when use the keyboard to control direct the
max dome quantity is 31.
2- Max quantity keyboard in a system is 4; also the 4 keyboards should be different ID.
Matrix
Figure 2-3.1
Dome
DC 12V-36V
Dome 1
Dome2
Figure 2-4.1
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
6 | P a g e
3 - Operation Instruction
Attention please because different system have some different special operation ways, so should consider the actual requirement when
operation in some special systems.
TFT display screen
Keys Zone
Joystick
Figure 2-4.2
Keyboard 1
Keyboard 2
Keyboard 3
Dome 1
Dome 2
Dome 3
Dome 4
Keyboard 4
Dome 5
Dome 6
Dome 7
Dome 8
Figure 3-1.1
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
7 | P a g e
3.1 - Electrify
Keyboard will self-check, and press MENU to display the detail information about the Baud rate, Protocol and camera ID.
Attention
3.2 - TFT Display Screen
TFT screen display content：aim dome, aim monitor add baud rate etc. At the bottom of the content will show the keyboard information, as
follows figure show. When operation, TFT back light will on, and will off 15s after stop the operation.
Figure 3-1.2
3. 3 - Navigation Keys Controls Dome
Two main function of the navigation key, control the dome turn around; setup the aimed object’s menu.
For menu setup: UP is for the upper menu, DOWN for the next menu, RIGHT for the sub menu or save the setup, RIGHT for exit.
Direct proportion between the speed of the Dome and the lean angle of the navigation keys, large lean angle, faster rotation speed.
3. 4 - Rigger The Aim Dome
【N】+【CAM】
【N】for Number, input the serial number of the Dome, Press【CAM】key to rigger the add of the aim dome
3.5 - Dome Lens Control
● Zoom：
Press 【TELE】, multiple accretions.
Press 【WIDE】key, multiple minish
● Focus：
Press【FAR 】key focus for far objects.
Press【NEAR】key focus for vicinity objects.
Normally, Zoom and focus will be adjust auto by the dome, and with the【FAR 】【 NEAR】 to realize the manual zoom and focus
● Iris：
Press【OPEN】key, manual Iris accretion,
Press【CLOSE】key, manual Iris minish,
Keyboard
Keyboard
Camera
Monitor
Protocol
Baudrate ：
Navigation key should be nil when keyboard is self-checking
V 1.00
ID：001
ID：001
ID：001
：Pelco-d
2400bps
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
8 | P a g e
3.6 - Set Dome Function
3.6.1 - Preset
Pre set：【 SET】+【N】 + 【PRESET】
Adjust preset：【 N 】+【PRESET】
【N】for the number of the pre-set.
3.6.2 - Pattern
●Design path setup：【 SET】+【N 】+【PATTERN】+path+【SET】+ 0 +【 PATTERN】
●Press【SET】key, input the number of design scan (1-4), press【PATTERN】key, enter the path setup state, when ending press 【SET】
key first, then press【0】key, then 【PATTERN】key,
●Starting the design scan：【 N】+【PATTERN】input the design scan number (1-4), press【PATTERN】key to starting,
●Startup pattern：【 N】+【PATTERN】to input the scan no. (1-4), Press【PATTERN】, startup the pattern.
3.6.3 - Cruise
Starting： 【N】 +【TOUR 】/【TOUR】 cruise number first, then 【TOUR】key, starting the cruise.
Direct press the 【TOUR】 key when the system only has one cruise.
3.7 - Call Dome Main Menu
【9】+【5】+【PRESET】： Input 95,press【PRESET】key, aim Dome, menu will display on the monitor.
3.8 - Matrix Control
3.8.1 - Call Matrix Main Menu
【SHIFT】+【SET】： Call the main menu, the menu will display on the object monitor. How to use the keyboard
Setting the matrix? Please refers the matrix operate manual.
3.8.2 - Confirm After Program
【ENTER】： after the matrix is programmed, press【ENTER】, reflects confirm after program.
As for the detail program, please refer to the matrix operation manual.
3.8.3 - Change Object Monitor
【N】+【MON】Input the monitor ID, then press MON the image and the menu of the dome that you controlled by keyboard will display
in the object monitor
4 - Keyboard Control
• Keyboard control
Turn on the power and press 【MENU】, the system information will display as (4.1-1) and press again, the information will
disappear. You can do all the operation during this time.
Press【MENU】 and hold 2s, and call the main menu. All the sub menu setting needs enter the main menu. After entering the
main menu, press the Figure key and or use the joystick to select the menu.
1. Keyboard setup
2. Dome setup
3. Protocol select
4. System setup
5. Exit menu
Figure 4.1-1
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
9 | P a g e
• Save setting
After finishing the setting, press the 【ENTER】keyboard to save; TFT will display “Success”.
• Back previous menu
Press 【PREV】keyboard, or turn the joystick to left, it will back to previous menu1
4.1 - Keyboard Parameter Setup
4.1.1 - Dome ID Setup
1 - Enter the main menu
TFT will display (picture4.1.1-1)
Figure 4.1.1-1
2 - Press【1】to selects the keyboard setting as TFT (Picture4.1.1-2)
Figure 4.1.1-2
3 - Press【1】again will show the picture (Picture4.1.1-3)
Figure 4.1.1-3
4 - Press【1】to select the ID Setting (Picture4.1.1-4)
Figure 4.1.1-4
Use the Number. Keys on the keyboard to select the camera ID in the range (1-64); and then press the 【Enter】to save, the screen will
display Success as picture (4.1.1-5).
Figure 4.1.1-5
If the NO you input outside the range1~64, it will display Error as picture (4.1.1-6)...
Figure 4.1.1-6
1. Keyboard setup
2. Dome setup
3. Protocol select
4. System setup
5 .Exit menu
1. Set KB ID(1-64):-
2. Set Baudrate:2400bps
3. Joy calibrate
4. About keyboard
1. Set KB ID (1-64):
1. Set KB ID (1-64):-
Success
Error
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
10 | P a g e
5 - Press 【PREV】or use the shake toward to LEFT to back to previous menu.
4.1.2 - Keyboard Baud Rate Setup
Enter the main menu as the TFT picture (4.1.1-1) show.
Press【1】will show on the TFT as picture (4.1.1-2)
Press【2】select the Baud Rate setting, as Picture (4.1.2-1)
Figure 4.1.2-1
2400bps \ 4800bps \ 9600bps \ 19200bps is available, you can select the Baud rate you need and press the 【ENTER】 to save. If you
operate success, the screen will show “Success”.
Press 【PREV】or use the shake toward to LEFT to back to previous menu.
Warning：
4.1.3 - Information Display
Enter the menu, TFT will display as 4.1.1-2press 【4】, TFT will display as (figure 4.1.4-1).
Figure 4.1.4-1
Press【PREV】 or use the joystick turn LEFT back to previous menu. The keyboard menu will display all the keyboard setting
information; include the keyboard model, keyboard ID, Protocol and the Baud rate.
4.2 - Dome Setup
4.2.1 - Preset Setup
Enter the main menu as picture (4.1.1-1) and press【2】 to enter the dome setting menu as picture (4.2.1-1). This part you can set the
follow function: Preset, Scan, Pattern, and Tour.
Figure 4.2.1-1
Press【1】 enter the dome Preset function setting as picture (4.2.1-2).
Figure 4.2.1-2
2. Set Baudrate: 2400bps (4800bps/9600bps/19200bps)
If connect to the matrix, it must select the 9600bps. And is multi keyboard to work, it must
use 9600bps or 19200bps
Version: 1.00
KB ID: 001
Protocol: Pelco-d
Baudrate: 2400bps
1. Set dome preset
2. Set dome scan
3. Set dome pattern
4. Set dome tour
1. Save preset
2. Show preset
3. Clear preset
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
11 | P a g e
Item 1: Save preset: item 2: Show the preset; Item 3: clear the preset
Press【1】 enter the preset, you can input the preset NO as picture (4.2.1-3) show
Figure 4.2.1-3
After enter the preset menu you can use navigate key control the dome directly, and input the preset NO to save as the picture 4.2.1-4 show.
And on the TFT screen will display SUCCESS.
Figure 4.2.1-4
Press【Prev】back to previous men.
Warning：
Press【2】enter the “Show the preset” menu as picture 4.2.1-5
Figure 4.2.1-5
Input the Preset NO and press the 【ENTER】to call it, and the TFT will display “Success”. Use the navigate
Key or 【PREV】 back to previous menu.
Press【3】 enter the “clear the Preset” to clear preset information as picture 4.2.1-6 show.
Figure 4.2.1-6
Input the PRESET NO which you want to clear, and press the Enter to clear it, and it will show “Success" and back to previous men.
4.2.2 - Dome Scan Setup
Enter the menu like picture (4.1.1-1)
Press【2】 enter the dome setting menu as the picture (4.2.1-1).
Press【2】again to enter the dome scan setting as picture 4.2.2-1.
Figure 4.2.2-1
Dome scan setting include the: Left limit, Right Limit and Run scan
Press【1】 to set the Left limit as picture 4.2.2-2 show.
Preset num:
(1-128)
Press PREV to back
Success!
While enter the dome preset menu, the keyboard navigate keyboard can directly
control the dome and lens control zone also can control the dome’s lens.
Preset num:
(1-128)
Press PREV to back
Preset num:
(1-128)
Press PREV to back
1. Set left limit
2. Set right limit
3. Run scan
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
12 | P a g e
Figure 4.2.2-2
While enter the dome limit setting menu, move the dome to the suitable position, and press 【Enter】to save and will show “Success" and
back to previous menu.
Select the item 2 to set the Right limit, and do the same as the left limit setting,
Back to the menu and press【3】to operate the Run Scan.
Warning：
4.2.3 - Pattern Setup
Enter the menu as the picture (4.1.1-1)
Press【2】 enter the dome setting menu as the picture (4.2.1-1);
And then press【3】 enter the pattern setting as picture 4.2.3-1 show
.
Figure 4.2.3-1
After enter the menu, the system need input the pattern information you want, you can put in the NO1~4 and
Press the 【ENTER】. The mouse will skip to the next item auto to set the second patter you need. If you already have it, you can skip it
and select the 【3】 to run the pattern directly.
Pattern setting：After enter the pattern setting menu, move the dome do the suitable position and press the 【1】 to start record the scan
track. The screen will display “Start ……, like the picture4.2.3-2. Press “0” to finish the scan record and the screen will show “Success”
and back to the previous menu.
Figure 4.2.3-2
Warning：
4.2.4 - Tour Setup
Press【2】 enter the dome setting menu, as the picture 4.2.1-1 show,
And then press【4】enter the tour setting as the picture 4.2.4-1 show.
Figure 4.2.4-1
After enter the menu, you need input the TOUR information, the range you can put is 1~6, and press the 【ENTER】. The mouse will
Press ENTER sure
Press PREV to back
After entering the dome scan menu, the keyboard can directly control the dome and lens
control zone also can control the dome’s lens.
1. Pattern num:
2. Set pattern
3. Run pattern
Press 1 to start
Press 0 to start
Press PREV to back
After entering the dome pattern, the keyboard can directly control the dome and lens control
zone also can control the dome’s lens.
1. Tour num:
2. Insert preset
3. Run tour
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
13 | P a g e
auto skip to the second TOUR setting. If you have already set it, you can skip it. And it will show the “Success” and back to the previous
menu.
Select the Item 2 as picture (4.2.4-2), you need input the tour preset, and in the second item you need put in
the speed information, the range is (1-127); In the third item you need input the time how long it need to stop, the range is (1-255). After
finishing the entire step, press the 【ENTER】 and will display “Success “and back to previous menu.
Figure 4.2.4-2
Press【3】Run the TOUR
Warning：
4.3 - Protocol Setup
Enter the menu as picture (4.1.1-1), Press 【3】enter the Protocol setting as picture (4.3-1)
4.3.1 - Pelco Matrix Model
Press【1】 enter the PELCO Matrix model as the picture (4.3.1-1);
And then press the【ENTER】 to select the Protocol and back to previous menu.
Figure 4.3.1-1
4.3.2 - Dome Control Model
Press 【2】enter the dome control model as the picture (4.3.2-1).
According to the user’s need, select the suitable PROTOCOL and back to the previous menu.
Figure 4.3.2-1
1. Preset num:
2. Speed :
3. DWell :
Insert the tour cannot work now
1. Matrix
2. Dome
1. Pelco Matrix
1. Factory
2. Pelco-P
3. Pelco-d
Figure 4.3-1
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
14 | P a g e
4.4 - System Setting
(Can select the key 4) as picture 4.4
Figure 4.4
Instruction：
1. System choice
2. Buzzer function choose
3. Screen save setting (Unit：second, set as 0 means cancel the screen save)
4. Back light adjust
5. USB model mode
6. Picture brightness adjust
7. Picture contrast
8. Picture color
9. Language
10. System initialization
4.5 - Exit The Keyboard Menu
Enter the menu as picture (4.2.1-1) and press the 【5】to exit the menu.
1. System mode：
2. Buzzer：
3. Key time/s：
4. LCD Backlight：
5. USB Mode：
6. Brightness：
7. Contrast：
8. Saturation：
9. Language
10. Init System：
Press PREV to back
PAL/NTSC
ON/OFF
000~255
000~100
Mouse/PCKEY/NONE
000~255
000~255
000~255
CHN/ENG
ON/OFF
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
15 | P a g e
5 - Appendix
5.1 - RS485 Bus General Knowledge
● RS485 Bus General Character
According to RS485 industrial standards, RS485 Bus is of half-duplexed data transmission cables with characteristic impedance as 120.
The maximum load capacity is 32 unit loads (including main controller and controller equipment)
● Distance of RS485 Bus Transmission
While use the 0.56mm (24AWG) twisted cable as the communication, the farthest distance it can reach as follow based on the different
Baud rate：
Baud rate
Max. distance
2400bps
1800M
4800bps
1200M
9600bps
800M
19200bps
600M
If user selects thinner cables, or installs the dome in an environment with strong electromagnetic interference, or connects lots of
equipment to the RS485 Bus, the maximum transmitting distance will be decreased. To increase the maximum transmitting distance, do
the contrary.
● Connection and Terminal Resistance
The RS485 standards require a daisy-chain connection between the equipment. There must be termination resistance with 120
impedance at both ends of the connection (refer to picture 4-1.1).Please refer to picture 4-1.2 for simple connection But “D” should not
exceed 7m.
………..
1# 2# 3# 4# 32#
Figure 4-1.1
A+
D B A+ B-
…………
1# 2# 3# 4# 32#
Figure 4-1.2
● Problems in practical use
In some circumstances user adopts a star configuration in practical connection. The termination resistors must be connected to the
two equipments that are father away from each other, such as equipment1# and 15# (refer to picture 4-1.3). As the star configuration is not
in conformity with the requirements of RS485 standards, problems such as signal reflections, lower anti-interference performance arise
120Ω
120Ω
120Ω
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
16 | P a g e
when the cables are long in the connection. The reliability of control signals are decreased with the phenomena that the dome dose not
responds to or just responds at intervals to the controller, or dose continuous operation without stop.
In such circumstances the factory will recommends the usage of Rs485 distributor. The distributor can change the star configuration
connection to the mode of connection stipulated in the RS485standards. The new connection achieves reliable data transmission (refer to
picture 4-1.4
Figure 4-1.3
Figure 4-1.4
120 Ω
2#
B-
120Ω
120Ω
120Ω
A+
1#
3#
32#
1#
6#
Master equipment
15#
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
17 | P a g e
5.2 - Keyboard Shortcut Instruction
WORKING
MODE
SHORTCUT
OPERATION
OBJECT
FUNCTION
DIRECT
CONTROL
MODE
【POWER】
Keyboard
ON/OFF
【MENU】
Keyboard
System information display
【N】+【CAM】
High speed dome
Input Dome ID, press 【CAM】to select object
dome.
【TELE】
High speed dome
Press【TELE】, increase the multiple of lens
【WIDE】
High speed dome
Press【WIDE】, reduce the multiple of lens
【FAR】
High speed dome
Press【FAR】, far focus
【NEAR】
High speed dome
Press【NEAR】, near focus
【CLOSE】
High speed dome
Press【CLOSE】, reduce iris
【OPEN】
High speed dome
Press【OPEN】, increase Iris
【SET】+【N】+【PRESET】
High speed dome
Adjust the image to object position, Press【SET】to
input the preset, and press【PRESET】to set the
preset
【N】+ 【PRESET】
High speed dome
Input preset ID, press【Preset】to call the preset
【SET】+【1】+【SCAN】
High speed dome
Adjust the image to object position, press Set to
input【1】, then press Scan to set【scan】left limit.
【SET】+【2】+【SCAN】
High speed dome
Adjust the image to object position, press Set to
input【2】, then press【Scan】 to set scan right limit.
【1】+【SCAN】
High speed dome
Input 【1】, press 【Scan】 to run scan.
【SET】+【N】+【PATTERN】
High speed dome
Press 【Set】to input pattern number, press【Pattern】
to record pattern path.
【SET】+【0】+【PATTERN】
High speed dome
Press【SET】 and input0, Press【PATTERN】to save
path
【N】+【PATTERN】
High speed dome
Input the pattern path(1-4),Press 【PATTERN】to
start pattern
【N】+ 【TOUR】/【TOUR】
High speed dome
Input the TOUR NO, press 【TOUR】 or directly
press【TOUR】to start the Tour
【9】+【5】+【PRESET】
High speed dome
Input 95 and press【Preset】to call the menu
PELCO
MATRIX
MODE
【SHIFT】+ 【SET】
Matrix
Press【SHIFT】and 【SET】to call the matrix menu
【PREV】
Matrix
Press 【PREV】skip to the previous dome, hold on
2sec on【PREV】to continuously skip the sixteen
domes of connection matrix forwards
【NEXT】
Matrix
Press 【NEXT】skip to the previous dome, hold on
2sec on【NEXT】to continuously skip the sixteen
domes of connection matrix backwards
【Stop】
Matrix
Stop switch
【ENTER】
Matrix
After program, press【Enter】to confirm.
【N】+ 【MON】
Matrix
Input monitor ID, press【Cam】 to select object
monitor
Note：【PRE】=【PRESET】 【PAT】=【PATTERN】 【SHI=SHIFT】 【ENT=【ENTER】
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com
18 | P a g e
6 - Keyboard Menu Index
1. Set KB ID(1-64):-
2. Set Baudrate:2400bps
3. Joy calibrate
4. About keyboard
1. Set dome preset
2. Set dome scan
3. Set dome pattern
4. Set dome tour
1. Matrix
2. Dome
1. Keyboard setup
2. Dome setup
3. Protocol setup
4. System setup
5. Exit menu
1. System mode：
2. Buzzer：
3. Key time/s：
4. LCD Backlight：
5. USB Mode：
6. Brightness：
7. Contrast：
8. Saturation：
9. Language
10. Init System：
Press PREV to back
PAL/NTSC
ON/OFF
000~255
000~100
Mouse/Pckey/none
000~255
000~255
000~255
CHN/ENG
ON/OFF
1. Set left limit
2. Set right limit
3. Run scan
1. Save preset
2. Show preset
3. Clear preset
1. Pattern num:
2. Set pattern
3. Run pattern
1. Tour num:
2. Insert preset
3. Run tour
1. Pelco Matrix
1. Factory
2. Pelco-p
3. Pelco-d
Preset num: (1-128)
Press PREV to back
Preset num: (1-128)
Press PREV to back
Preset num: (1-128)
Press PREV to back
Press ENTER sure
Press PREV to back
Press ENTER sure
Press PREV to back
Press 1 to start
Press 0 to start
Press PREV to
1. Preset num:
2. Speed :
3. Well :
Keyboard V1.00
Keyboard ID：001
Camera ID：001
Monitor ID：001
Protocol : Pelco-d
Baudrate : 2400bps
Loading...
