1
2MP Network Camera User Manual
1 Introduction
This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It
adopts state of the art video processing chips. It utilizes most advanced technologies, such as
video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to
ensure this system more stable and reliable.
This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an ideal
choice for surveillance sites with middle or high risks.
Main Features
ICR auto switch, true day/night
3D DNR, digital WDR
ROI coding
Support smart phone, iPad, remote monitoring

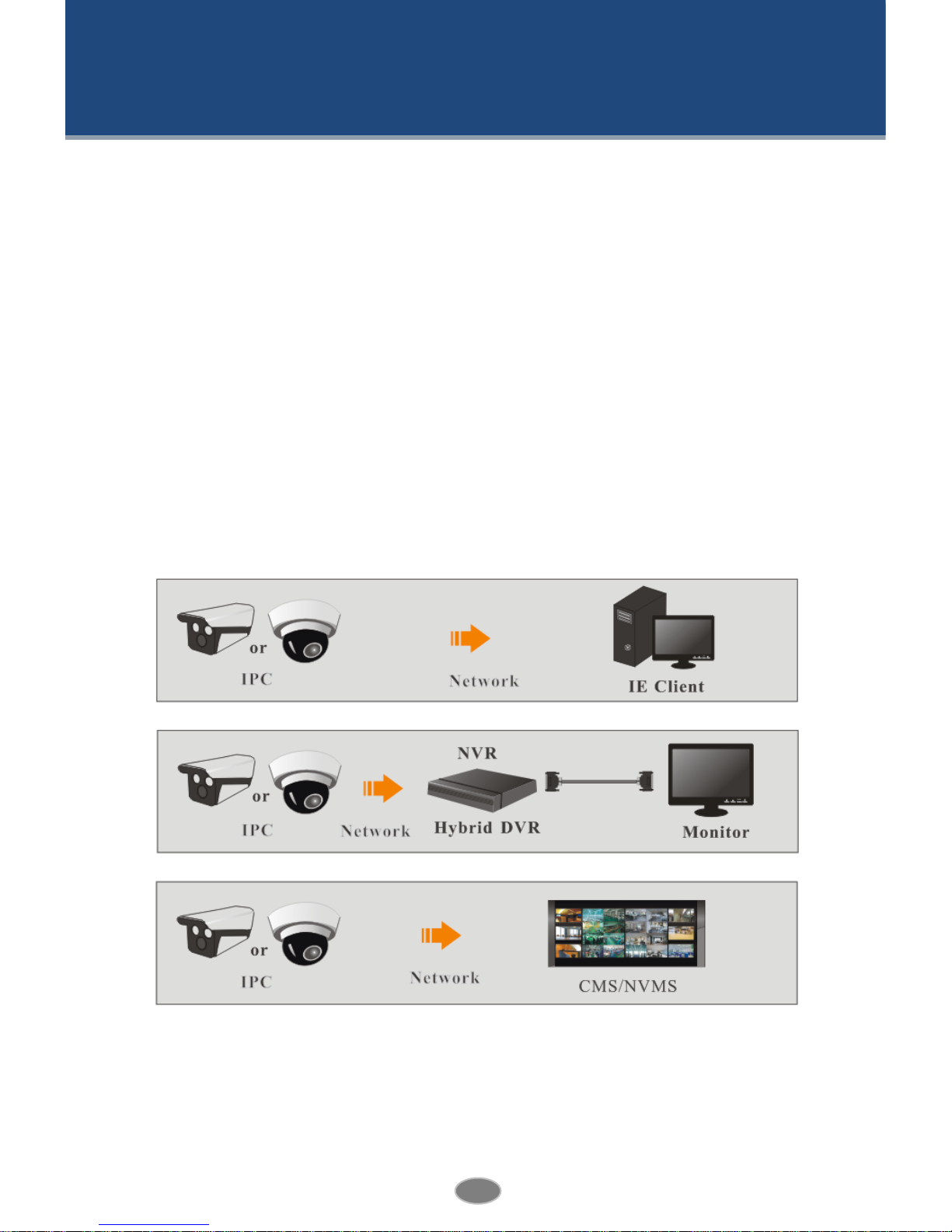

Surveillance Application
Page 6
2
2MP Network Camera User Manual
2 IE Remote Access
You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example. The
details are as follows:
2.1 LAN
In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access
through IE browser.
2.1.1 Access through IP-Tool
Network connection:

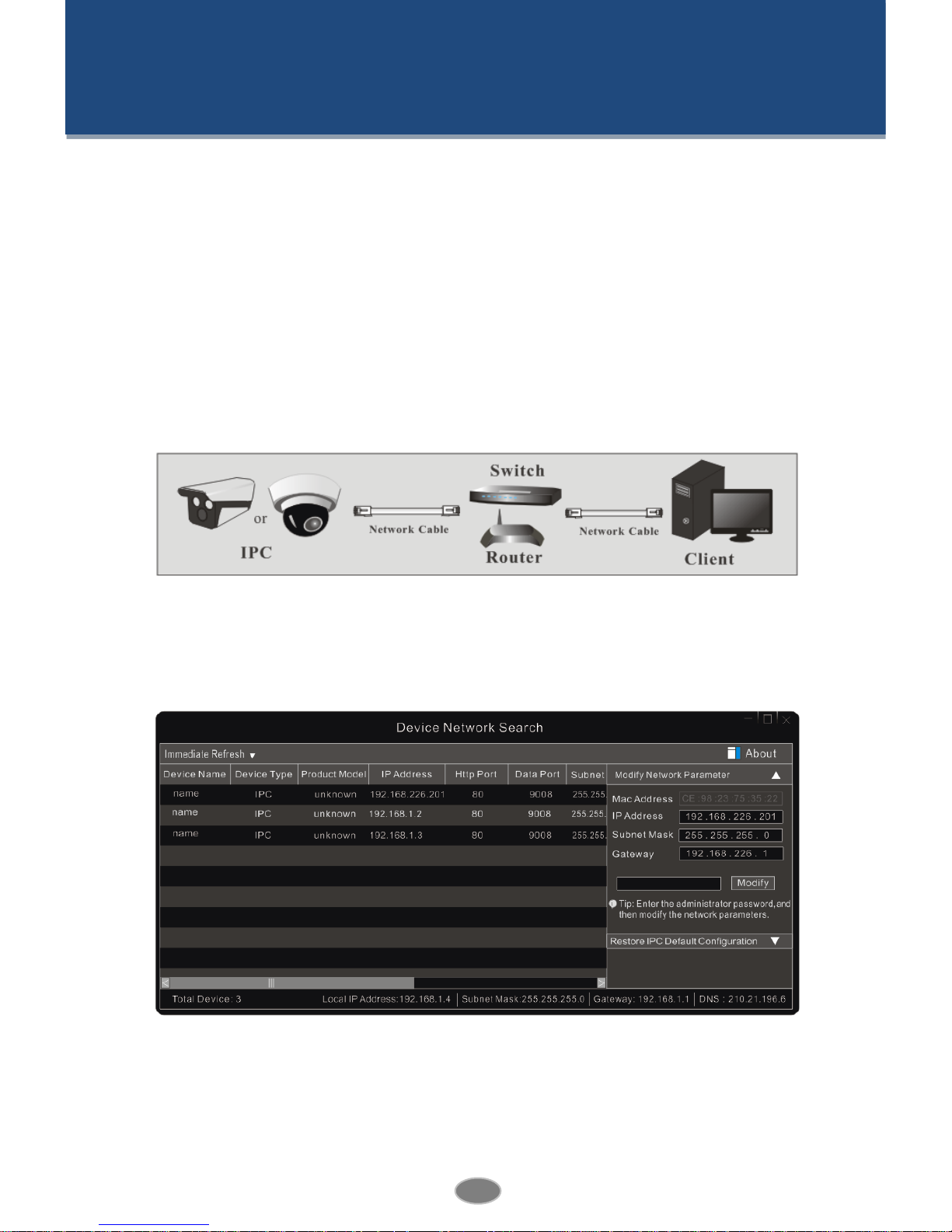

① Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the
PC from the CD.
② Double click the IP-Tool icon on the desktop to run this software as shown below:
③ Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the
information of the camera listed in the above table to show the network information on the right
hand. Modify the IP address and gateway of the camera and make sure its network address is
in the same local network segment as the computers. Please modify the IP address of your
Page 7
3
2MP Network Camera User Manual
device according to the practical situation.

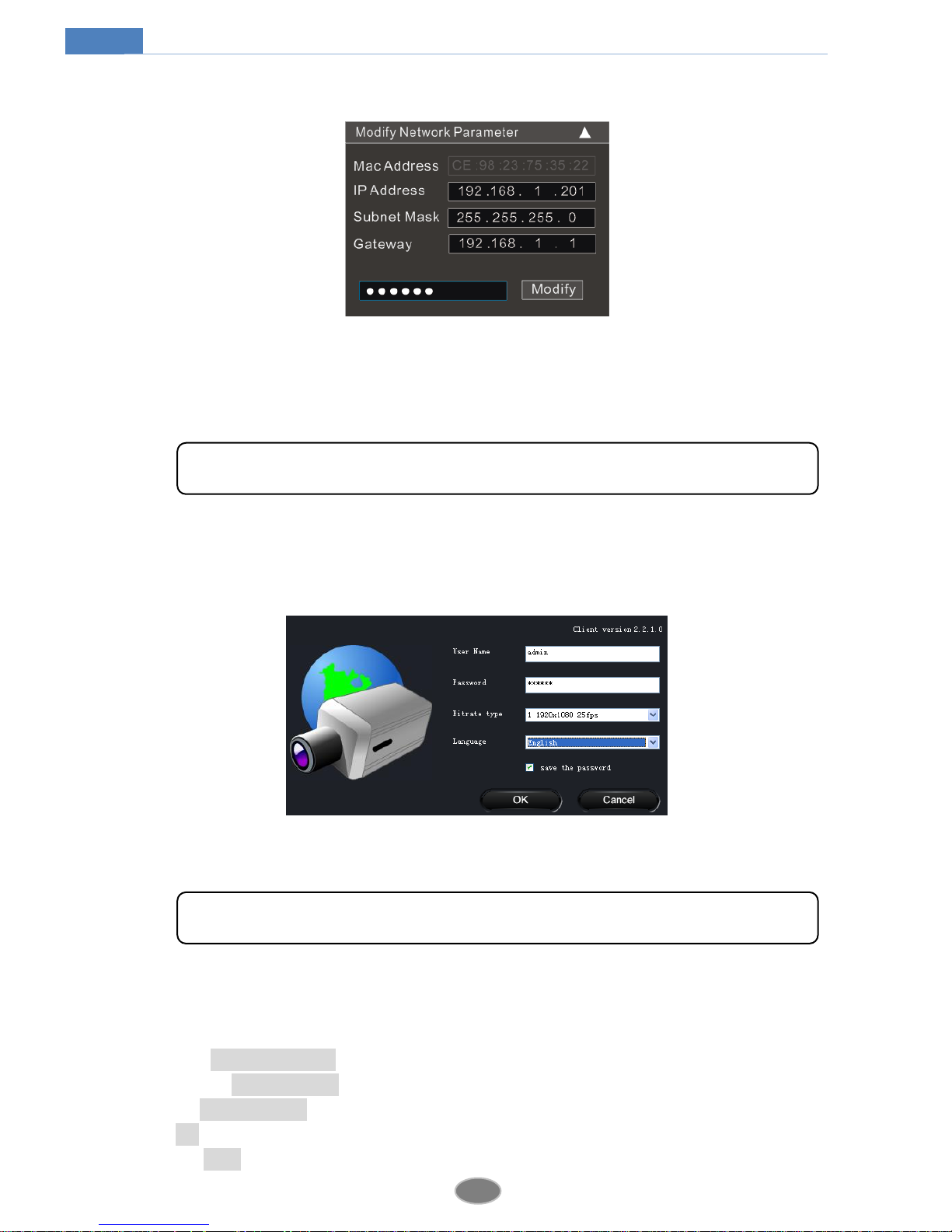

For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera
shall be changed to 192.168.1.X. After modification, please input the password of the
administrator and click “Modify” button to modify the setting.
④ Double click the IP address and then the system will pop up the IE browser to connect IPCAM. IE browser will auto download the Active X control. After downloading, a login window
will pop up as shown below.
Input the username and password to log in.
2.1.2 Directly Access through IE
The default network settings are as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
The default password of the administrator is “123456”.
The default username is “admin”; the default password is “123456”.
Page 8
4
2MP Network Camera User Manual
You may use the above default settings when you log in the camera for the first time. You may
directly connect the camera to the computer through network cable.

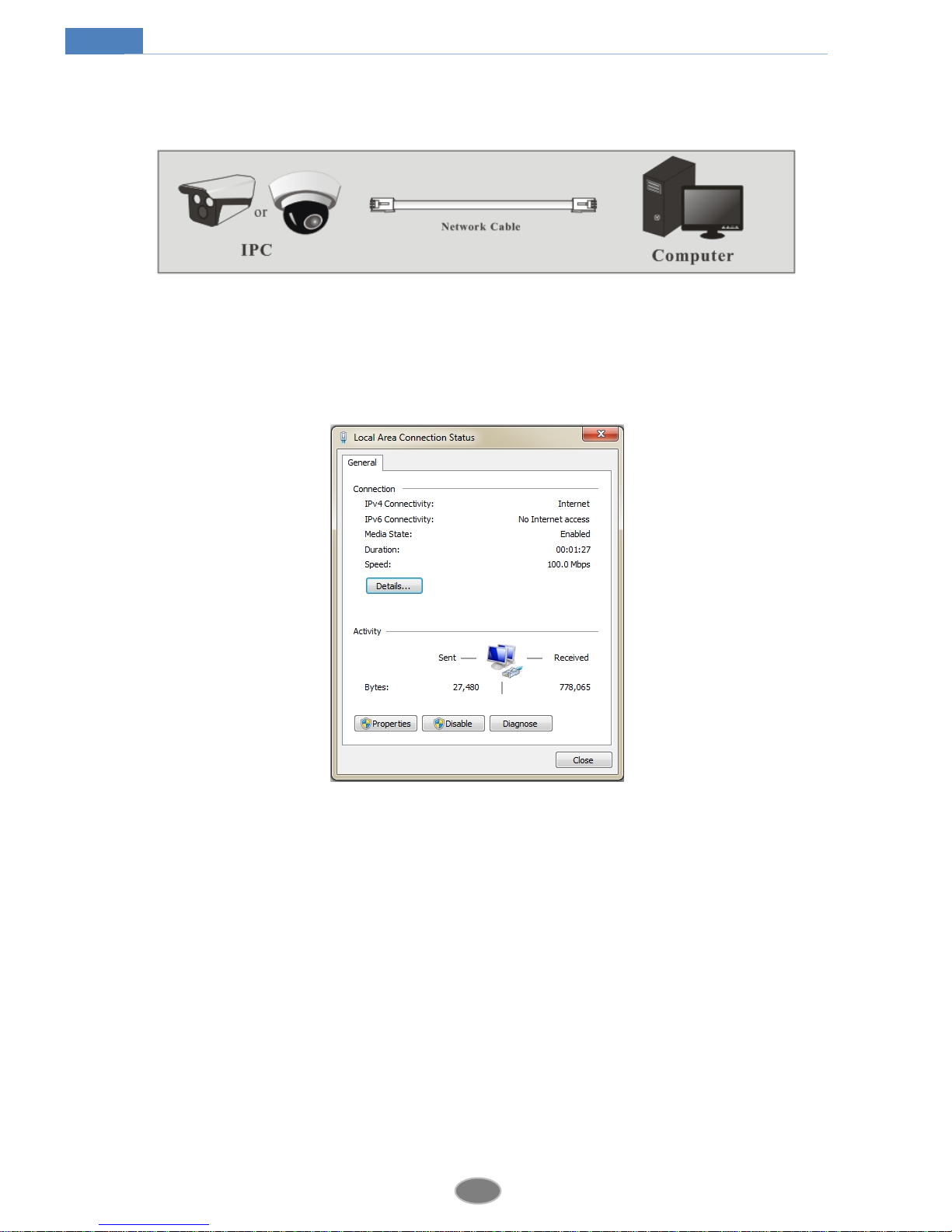

① Manually set the IP address of the PC and the network segment should be as the same as the
default settings of the IP camera. Open the network and share center. Click “Local Area
Connection” to pop up the following window.
Select “Properties” and then select internet protocol according to the actual situation (for
example: IPv4). Next, click “Properties” button to set the network of the PC.
Page 9

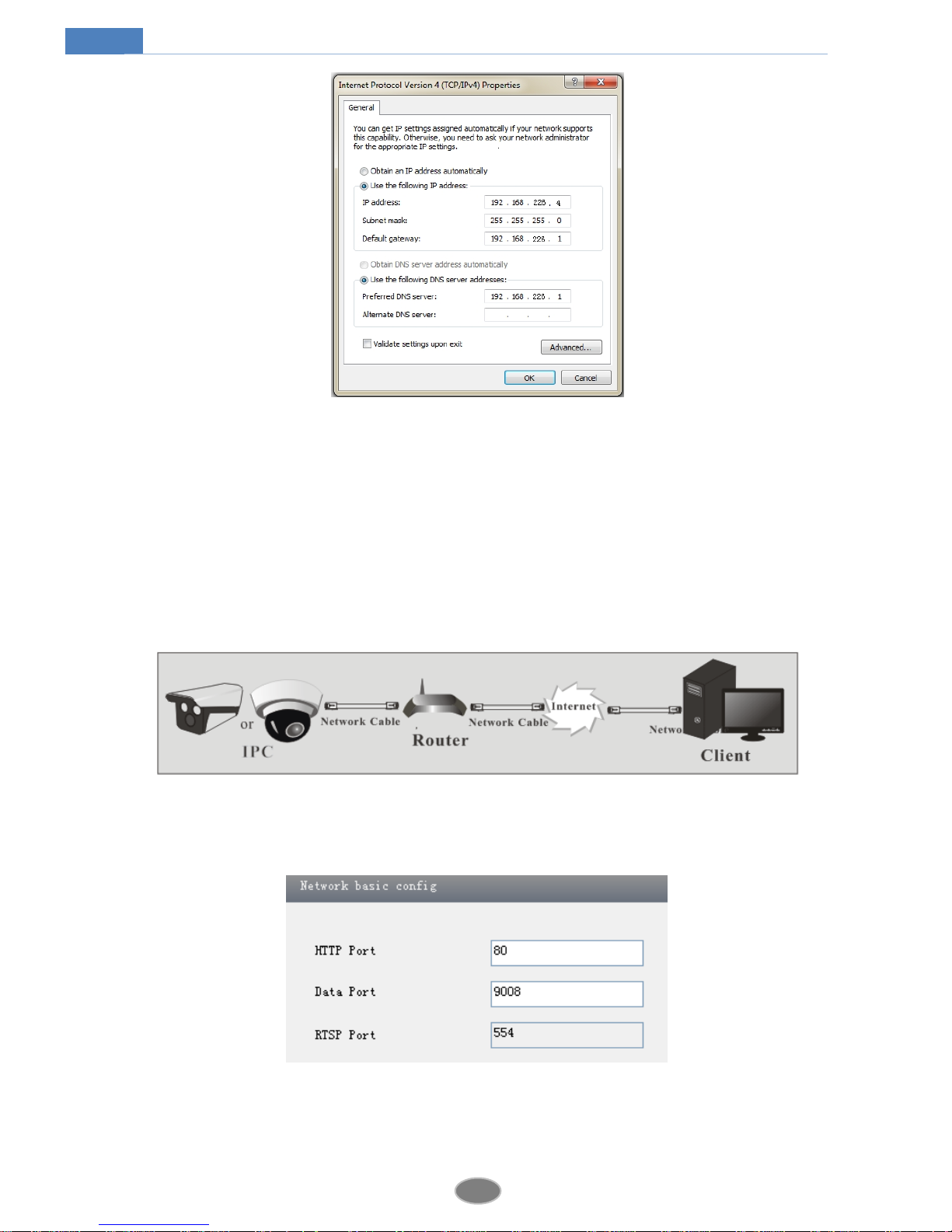

5
2MP Network Camera User Manual
② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser
will download Active X control automatically.
③ After downloading Active X control, the login dialog box will pop up.
④ Input the default username and password and then enter to view.
2.2 WAN
Access through the router or virtual server

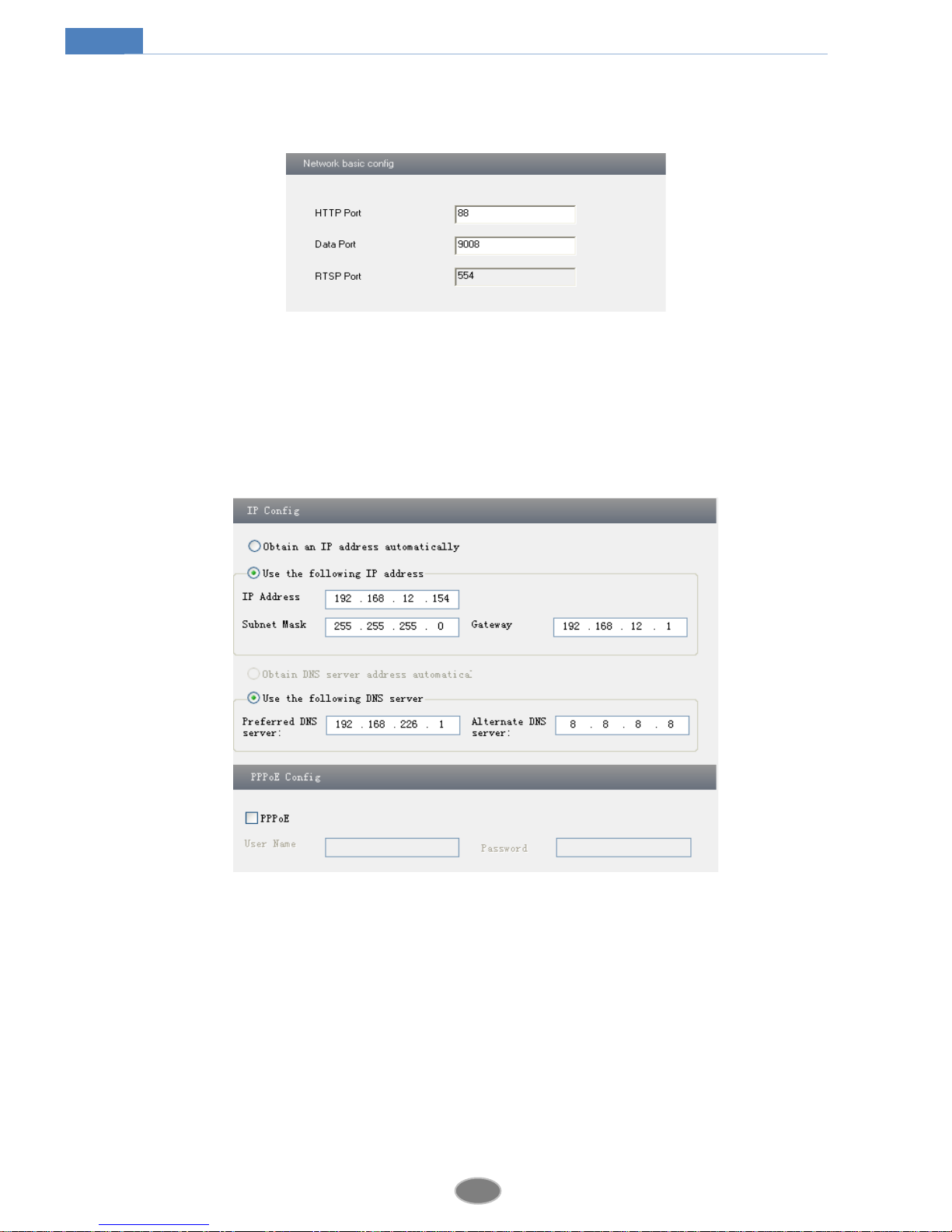

① Make sure the camera is well connected via LAN and then log in the camera via LAN and
go to ConfigNetwork ConfigPort menu to set the port number.
Port Setup

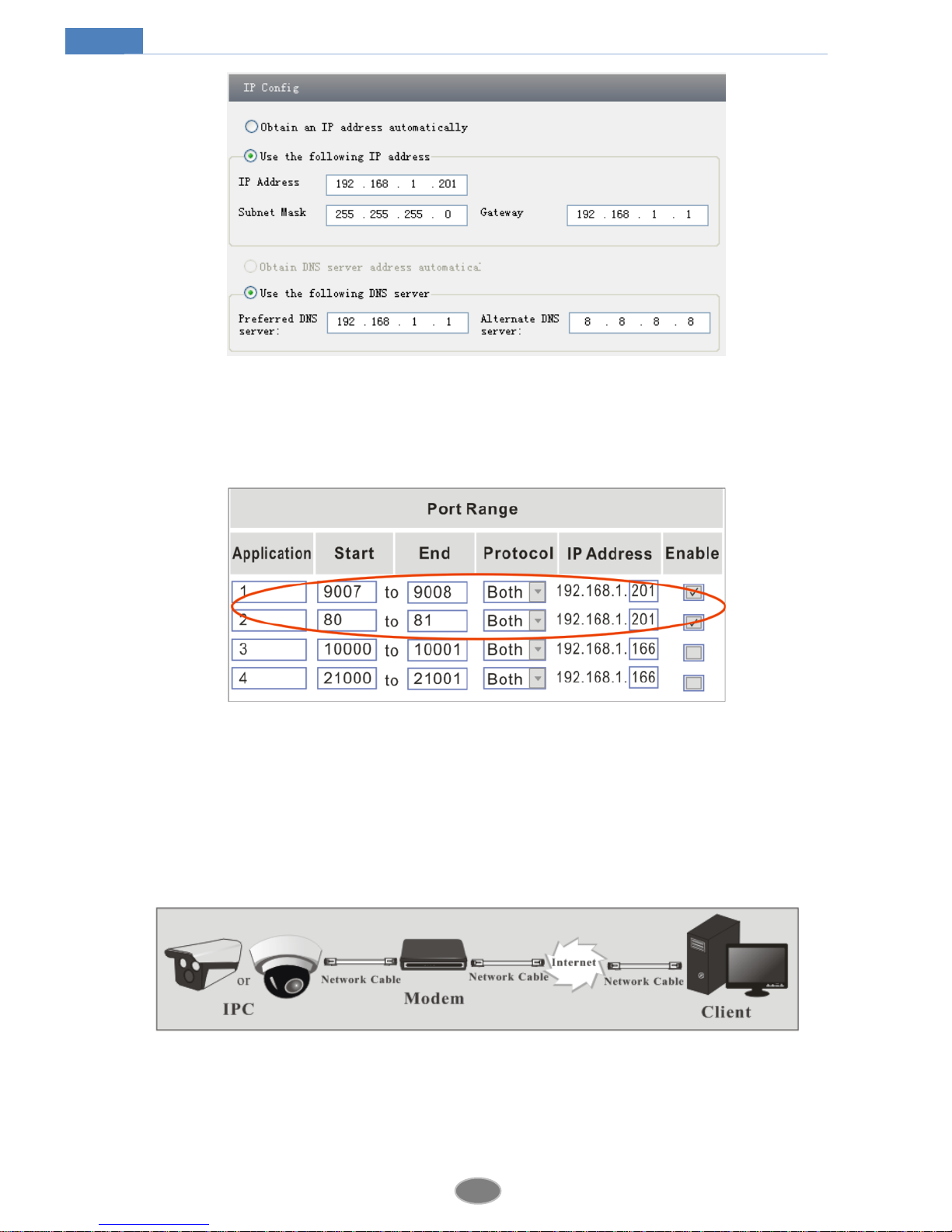

② Go to Config Network ConfigIP Address menu to modify the IP address.
Page 10
6
2MP Network Camera User Manual
IP Setup
③ Go to the router’s management interface through IE browser to forward the IP address and
port of the camera in the “Virtual Server”.
Router Setup
④ Open the IE browser and input its WAN IP and http port to access.
Access through PPPoE dial-up
Network connection
You may access the camera through PPPoE auto dial-up. The setting steps are as follow:
① Go to ConfigNetwork ConfigPort menu to set the port number.
② Go to Config Network ConfigIP Address menu. Check “PPPoE” and then input the user
name and password which you can get from your internet service provider.
Page 11

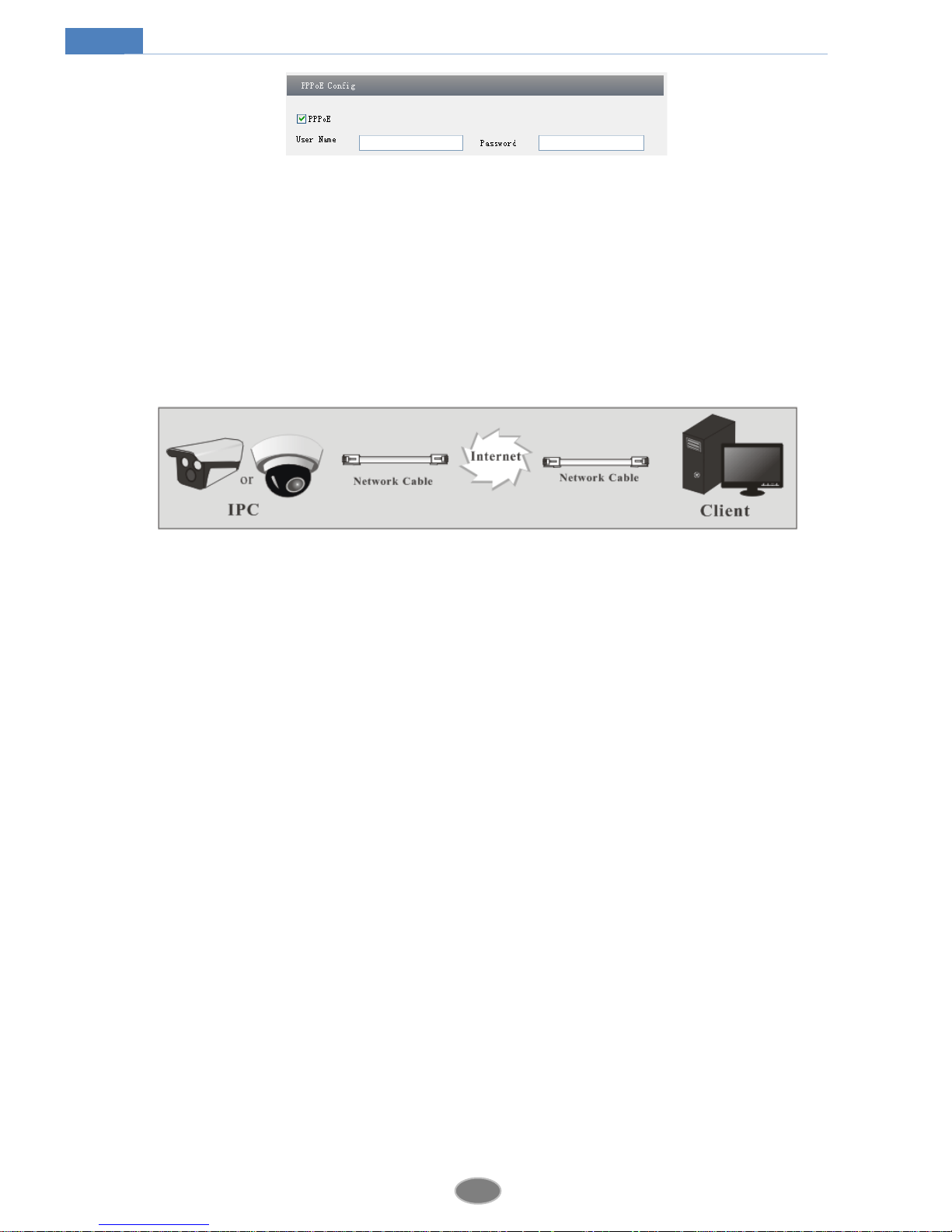

7
2MP Network Camera User Manual

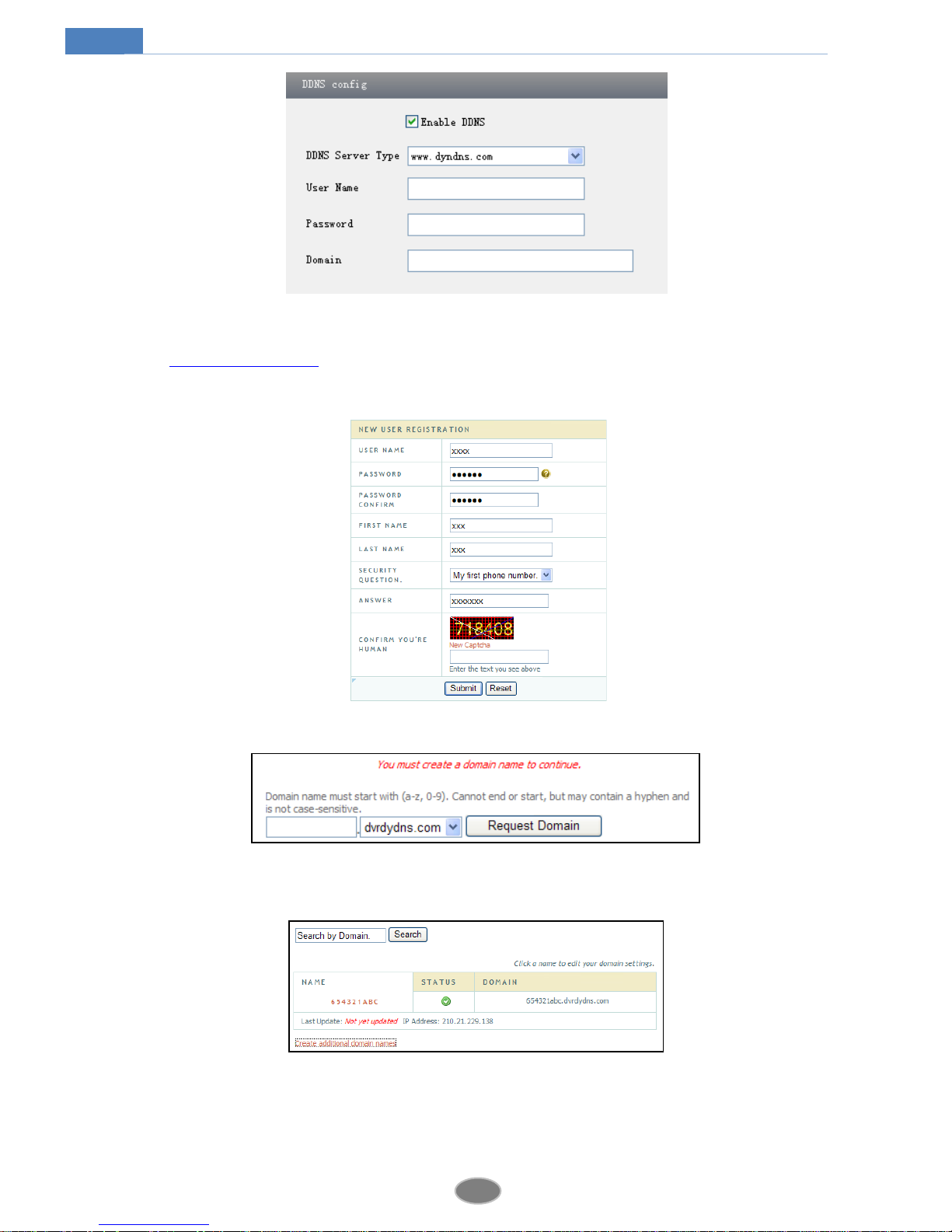

③ Go to Config Network ConfigDDNS Config menu. Before you configure the DDNS,
please apply for a domain name first. Please refer to 4.4.5 DDNS Configuration for detail
information.
④ Open the IE browser and input the domain name and http port to access.
Access through static IP
Network connection
The setting steps are as follow:
① Go to ConfigNetwork ConfigPort menu to set the port number.
② Go to Config Network ConfigIP Address menu to set the IP address. Check “Use the
following IP address” and then input the static IP address and other parameters.
③ Open the IE browser and input its WAN IP and http port to access.
Page 12
8
2MP Network Camera User Manual
3 Remote Preview

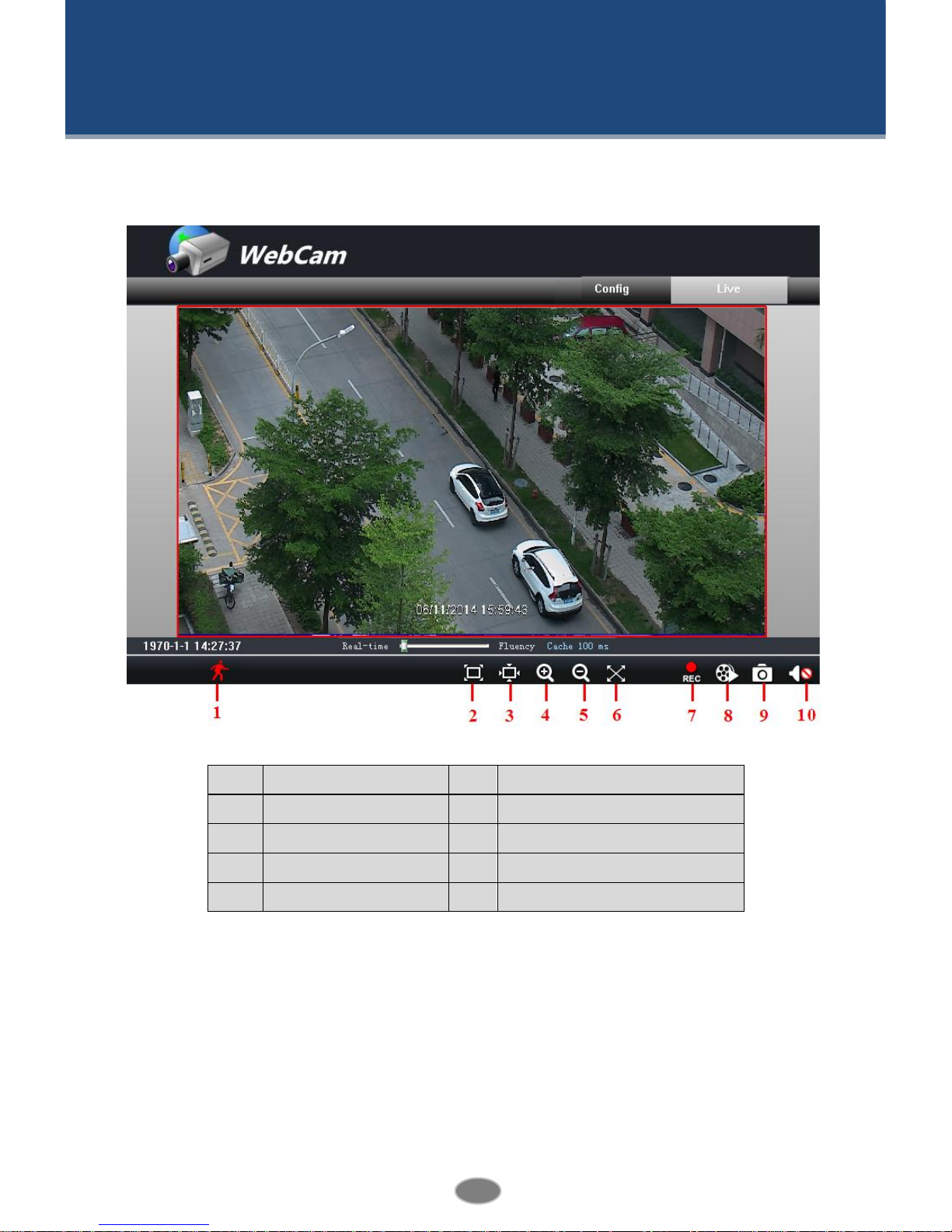

3.1 The Remote Preview Interface
When
motion
detection alarm is triggered, the people icon will turn red.
Right click to pop up a pull-down list as shown below:
1
People icon
6
Full screen
2
Fix size
7
Start recording
3
Actual size
8
Playback
4
Zoom in
9
Snap
5
Zoom out
10
Enable audio
Page 13
9
2MP Network Camera User Manual
Stream: Three streams are optional.
Turn off the live: Click this item to close present live preview.
Enable audio: Open the volume.
Full screen: The live preview picture will be full-screen display. Double click or click right
mouse to return to the previous interface.
Online user: Display the current user connecting to the device.
System information: Display the device information: device name, firmware version,
software build date, kernel version and hardware version.
3.2 Playback

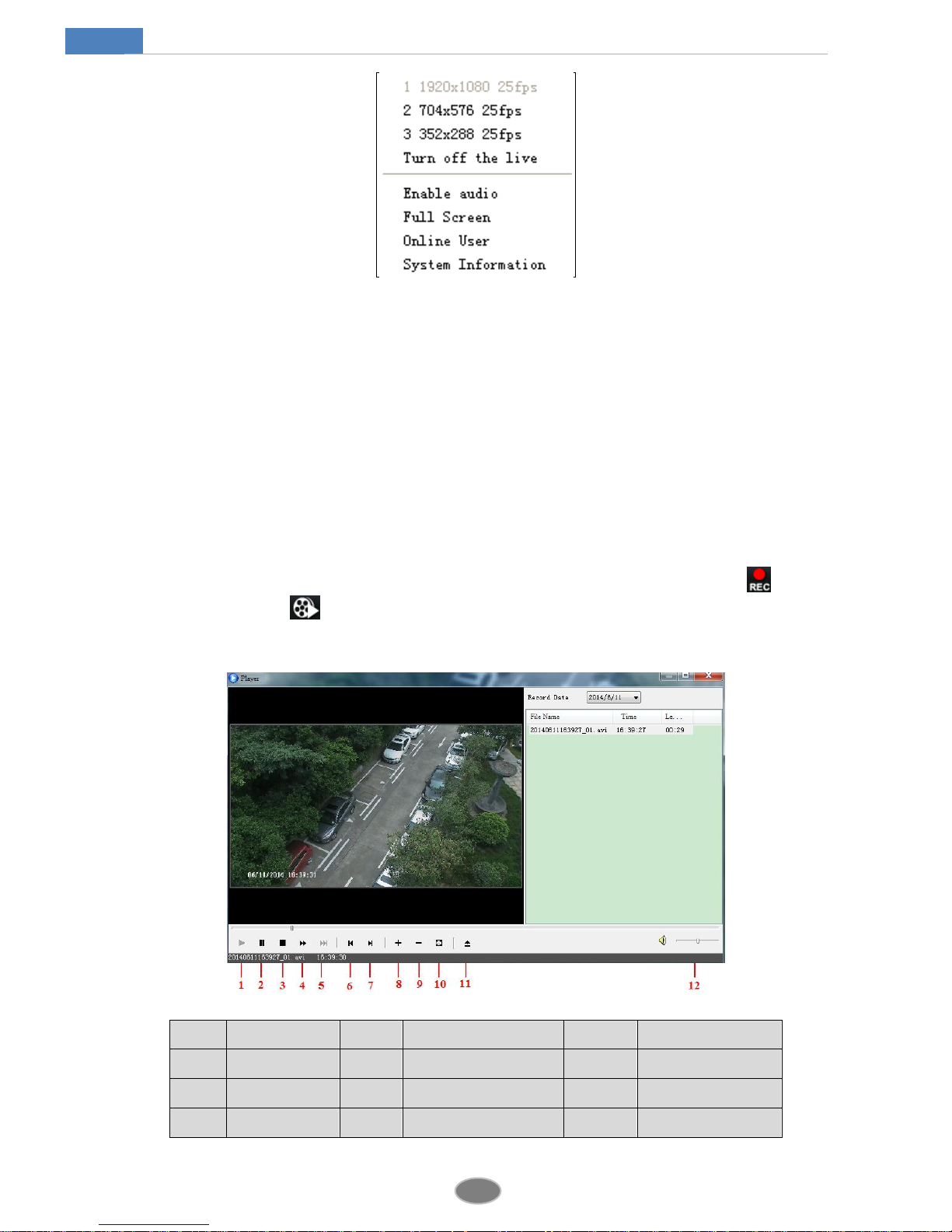

Before you play the record files, please make sure you have recorded. You can click button
to record. Then click button to pop up a video player. Double click the record file to play
the video as shown below.
1
Play
5
Next frame
9
Zoom out
2
Pause
6
The previous file
10
Full screen
3
Stop
7
The next file
11
Path
4
Forward
8
Zoom in
12
Volume
Page 14
10
2MP Network Camera User Manual
3.3 Snap Pictures

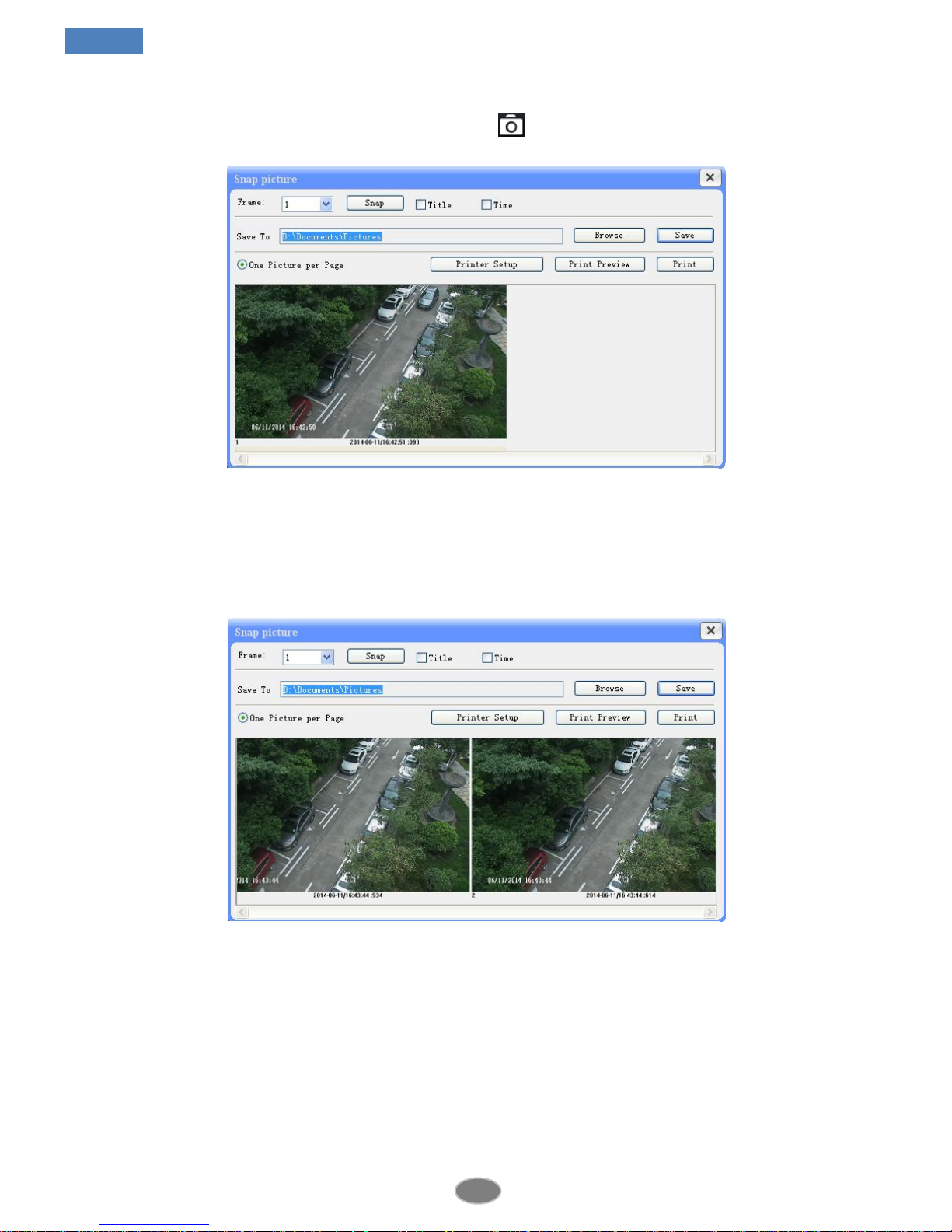

Select the picture number, and then click “Snap” icon as shown below:
Single Snap
Snap multiple pictures:
Select the picture number from Frame pull down list box, such as 2, and check “Title” and
“Time” to show capture title and time on the snap pictures simultaneously.
Multi-picture Snap
Page 15
11
2MP Network Camera User Manual
4 Remote Live Surveillance
Functions of remote configurations include: System Configuration, Video Configuration,
Alarm Configuration, Network Configuration and Advanced Configuration. You should
select the menu on the left, and then set up the relative parameters.
4.1 System Configuration
The “System configuration” includes two submenus: Basic Information and Date & Time.
4.1.1 Basic Information
In the “Basic Information” interface, you can set up the device name and can also check the
relative information of the server.
4.1.2 Date & Time
Setting steps:

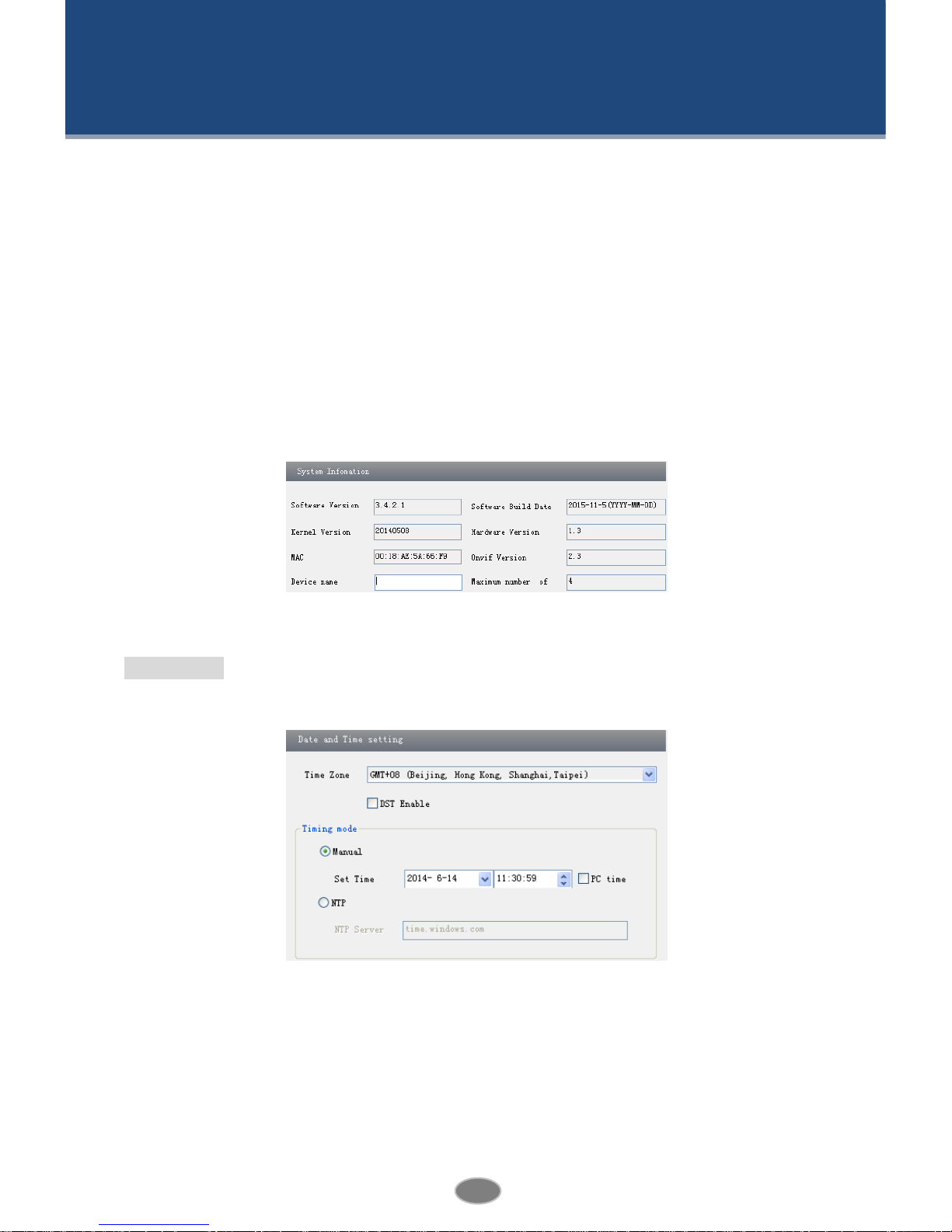

1. Go to System ConfigDate & Time menu as shown below.
2. Set time zone.
3. Enable DST mode as required.
4. Set time. You may set time manually or enable NTP.
4.2 Video Configuration
Camera Configuration includes five submenus: Camera, Video Stream, OSD Config, Video
Page 16
12
2MP Network Camera User Manual
Mask and ROI Config.

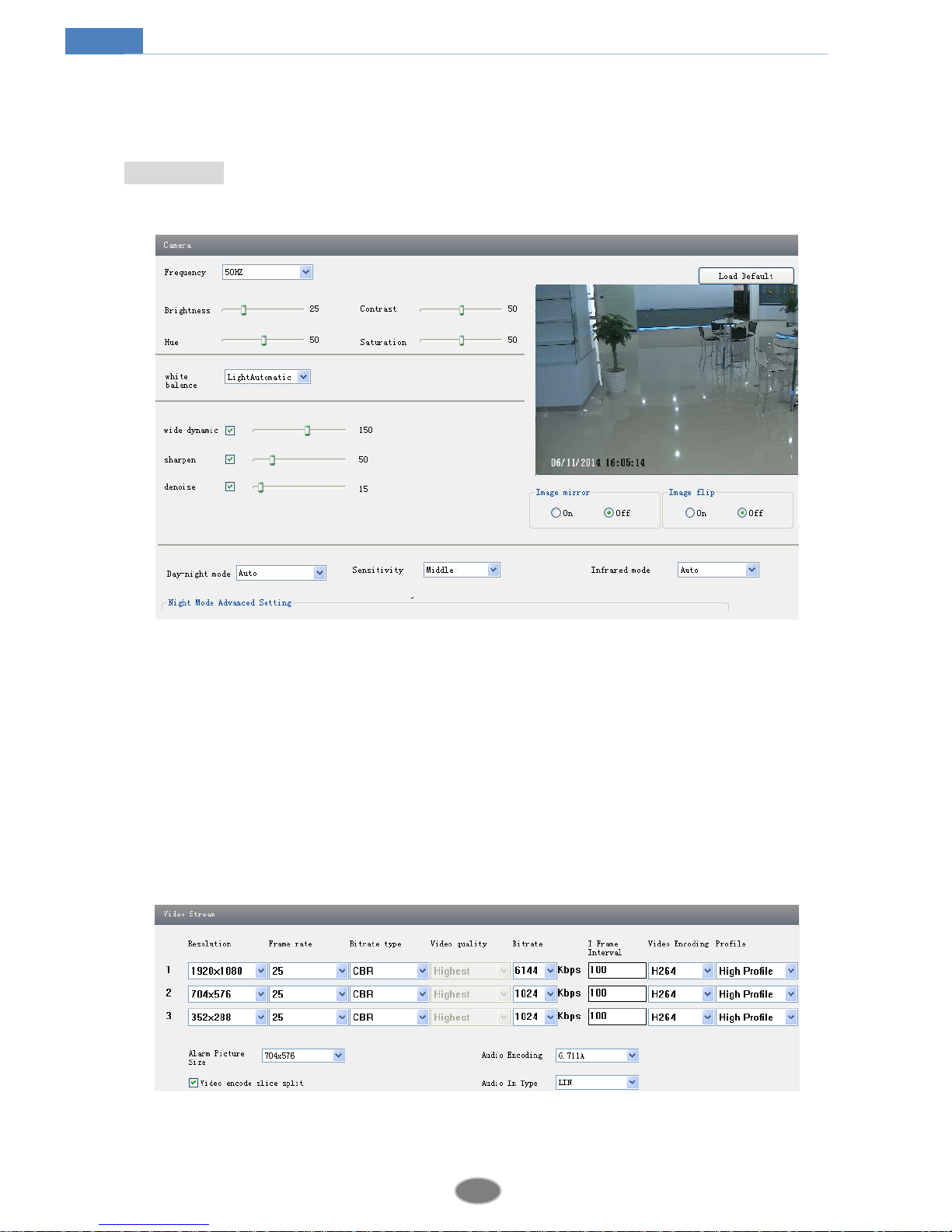

4.2.1 Camera
Setting steps:
1.Go to “Video Configuration” “Camera” interface as shown below.
2. You may adjust frequency, brightness, contrast, hue and saturation of the picture.
3. Select white balance mode.
4. Wide dynamic, sharpen and denoise are adjustable.
5. Set day-night mode, sensitivity, infrared mode and exposure type.
6. You may enable the image mirror and image overturn function.
7. Press the “Save” button to save the settings.
4.2.2 Video Stream
Go to “Video configuration” “Video Stream” to see an interface as shown below.
Three video streams can be adjustable.
Resolution: The higher the resolution is, the clearer the image is.
Page 17
13
2MP Network Camera User Manual
Frame rate: The higher the frame rate is, the more fluency the video is. However, more storage
room will be taken up.
Bitrate type: Including CBR and VBR. CBR means that no matter how changeable the video
resources are, the compression bitrate keeps constant. This will not only facilitate the image
quality better in a constant bitrate but also help to calculate the capacity of the recording. VBR
means that the compression bitrate can be adjustable according to the change of the video
resources. This will help to optimize the network bandwidth.
Video Quality: When VBR is selected, you need to choose image quality. The higher the image
quality you choose, the more bitrate will be required.
Bitrate: Please choose it according to the actual network situation.
I Frame interval: It is recommended to use the default value. If the value is over high, the
read speed of the group of pictures will be slow resulting in the quality loss of the video.
Video encoding profile: Baseline and main profile are optional. Baseline profile is mainly
used in interactive application with low complexity and delay. Main profile is mainly used for
higher coding requirement.
Alarm picture size: Please select it according to the actual situation.
Video encode slice split: If enabled, you may get more fluency image even though using the
low-performance PC.
Audio Encoding: G.711A and G.711U are selectable.
Audio In Type: MIC and LIN are selectable.
4.2.3 OSD Configuration

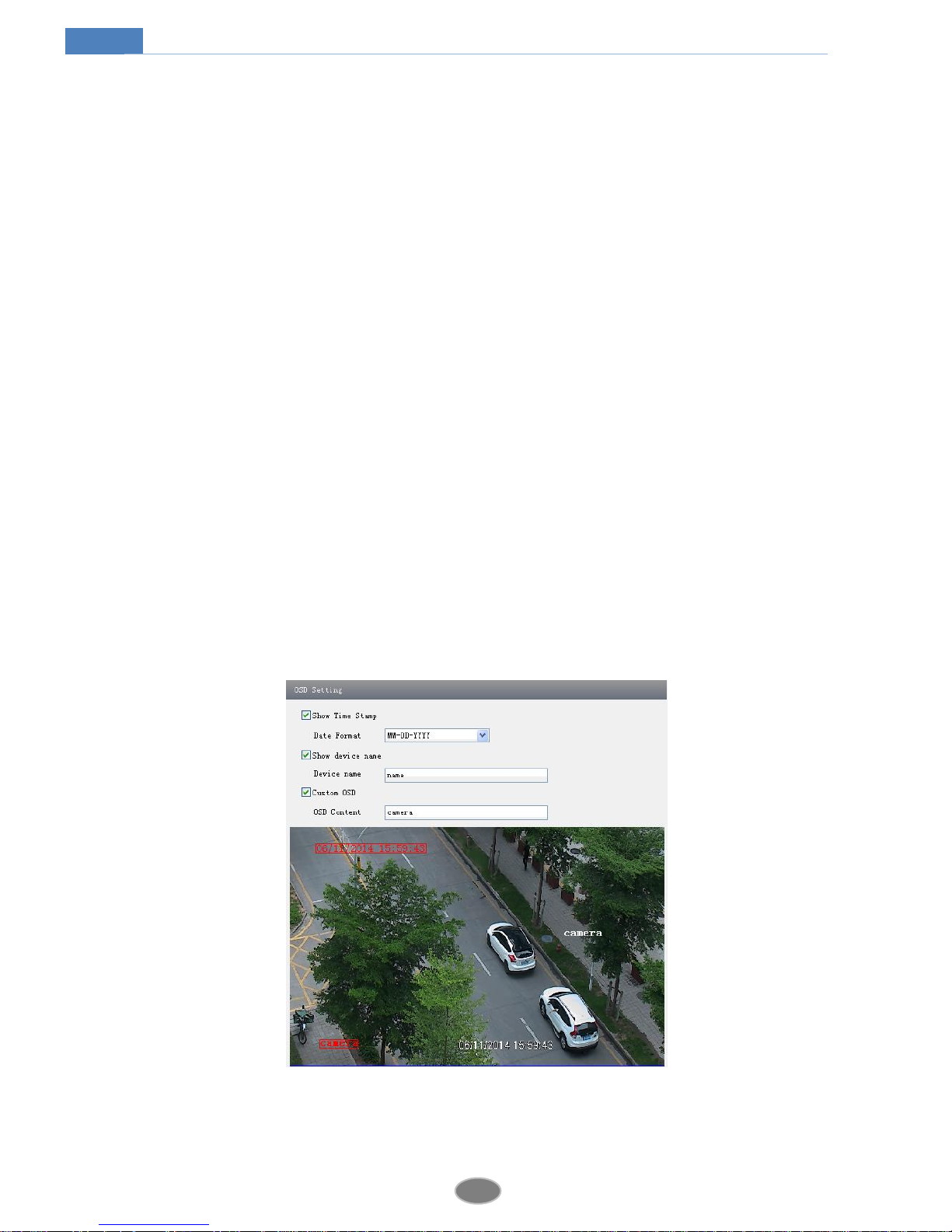

Go to “Video Config” “OSD Config” menu to display the interface as shown below.
You may set time stamp, device name and custom OSD here. Drag the time stamp and custom
OSD to set their position. Then press the “Save” button to save the settings.
Page 18
14
2MP Network Camera User Manual

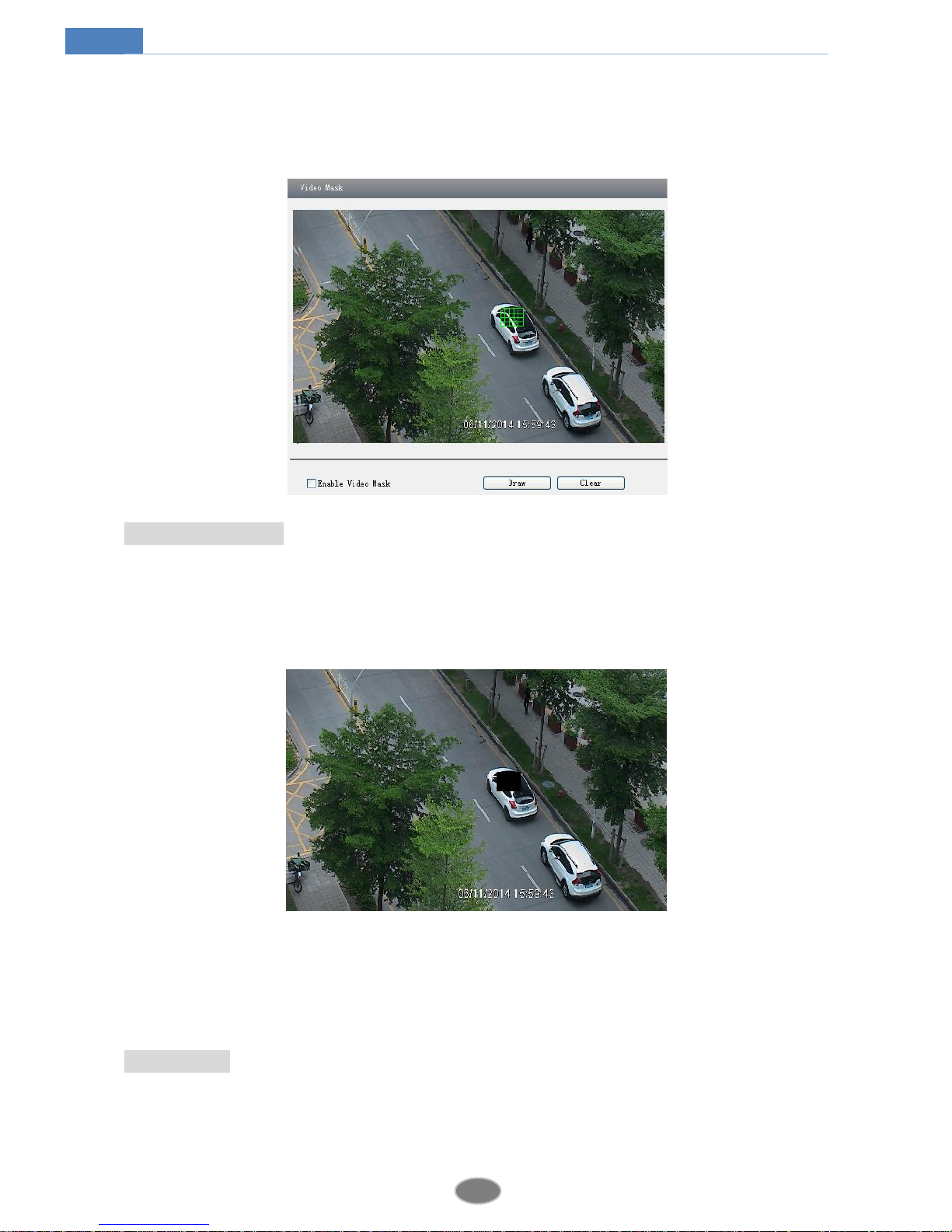

4.2.4 Video Mask
Go to “Video Config” “Video Mask” menu to display the interface. You can set 4 mask
areas at most.
To set up video mask
1. Enable video mask.
2. Click “Draw” button and then drag the mouse to draw the video mask area.
3. Click “Save” button to save the settings.
4. Return to the live to see the following picture.
Clear the video mask:
Go to video mask menu and then click “Clear” button to delete the current video mask area.
4.2.5 ROI Configuration

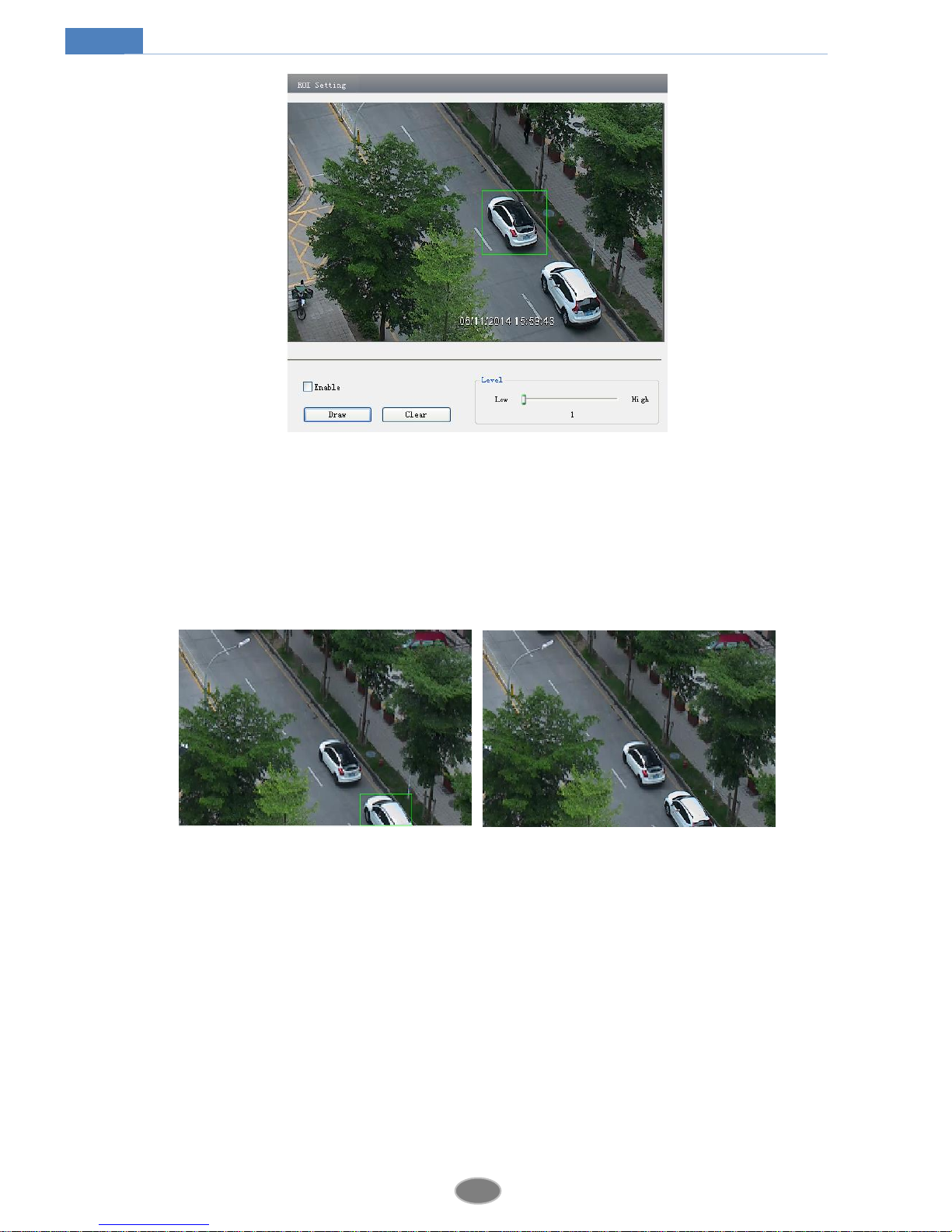

To set up ROI
1. Go to Video ConfigROI Config menu.
Page 19
15
2MP Network Camera User Manual
2. Check “Enable” and then click “Draw” button.
3. Drag the mouse to set the ROI area.
4. Set the level.
5. Click “Save” button to save the settings.
Now, you will see the selected ROI area is clearer than other areas especially in low bitrate
condition.
4.3 Alarm Configuration
Alarm configuration includes four submenus: Motion Detection Area, Motion Detection
Trigger, Motion Detection Schedule and Alarm Server.

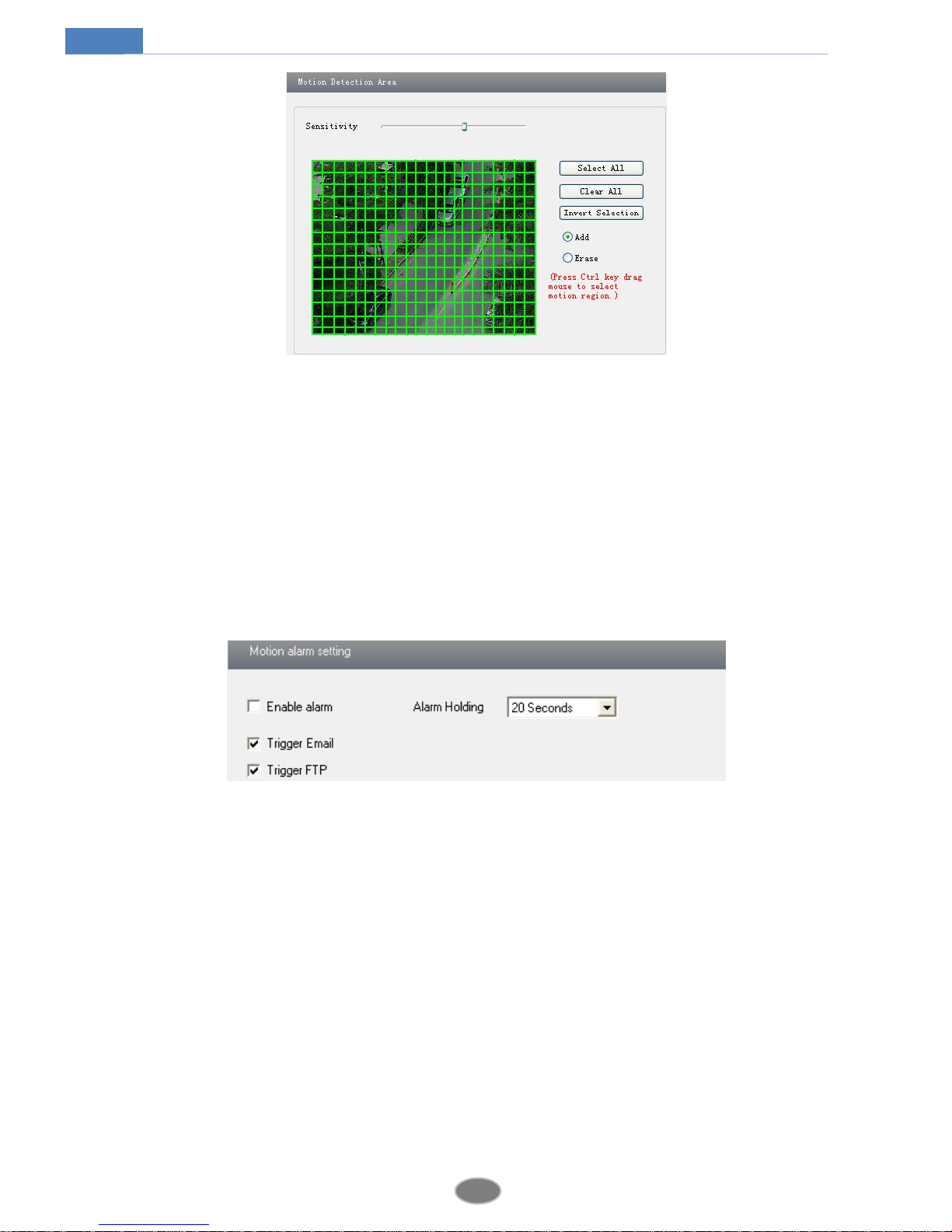

4.3.1 Motion Detection Area
1. Go to “Alarm configuration” “Motion Detection Area” to see an interface as below.
2. Move the “Sensitivity” scroll bar to set up the motion trace sensitivity.
3. Check the “Add”, press the “Ctrl” button and move mouse to select the motion detection area.
Select “Erase” and move the mouse to clear all motion detection area.
4. Press the “Save” button to save the settings.
Page 20
16
2MP Network Camera User Manual
4.3.2 Motion Detection Trigger
1. Go to “Alarm Configuration” “Motion Detection Trigger” to display an interface as shown
below.
2. Check “Enable alarm” check box. Then all functions under this interface will be activated.
3. Trigger Email: Check “Attach picture” and the triggered snap pictures will be sent into the
address.
4. Trigger FTP: Check “Uploading picture”. Then the triggered snap pictures will be sent into
FTP server address. Please refer to FTP configuration chapter for more details.
5. Press the “Save” button to save the settings.
4.3.3 Motion Detection Schedule

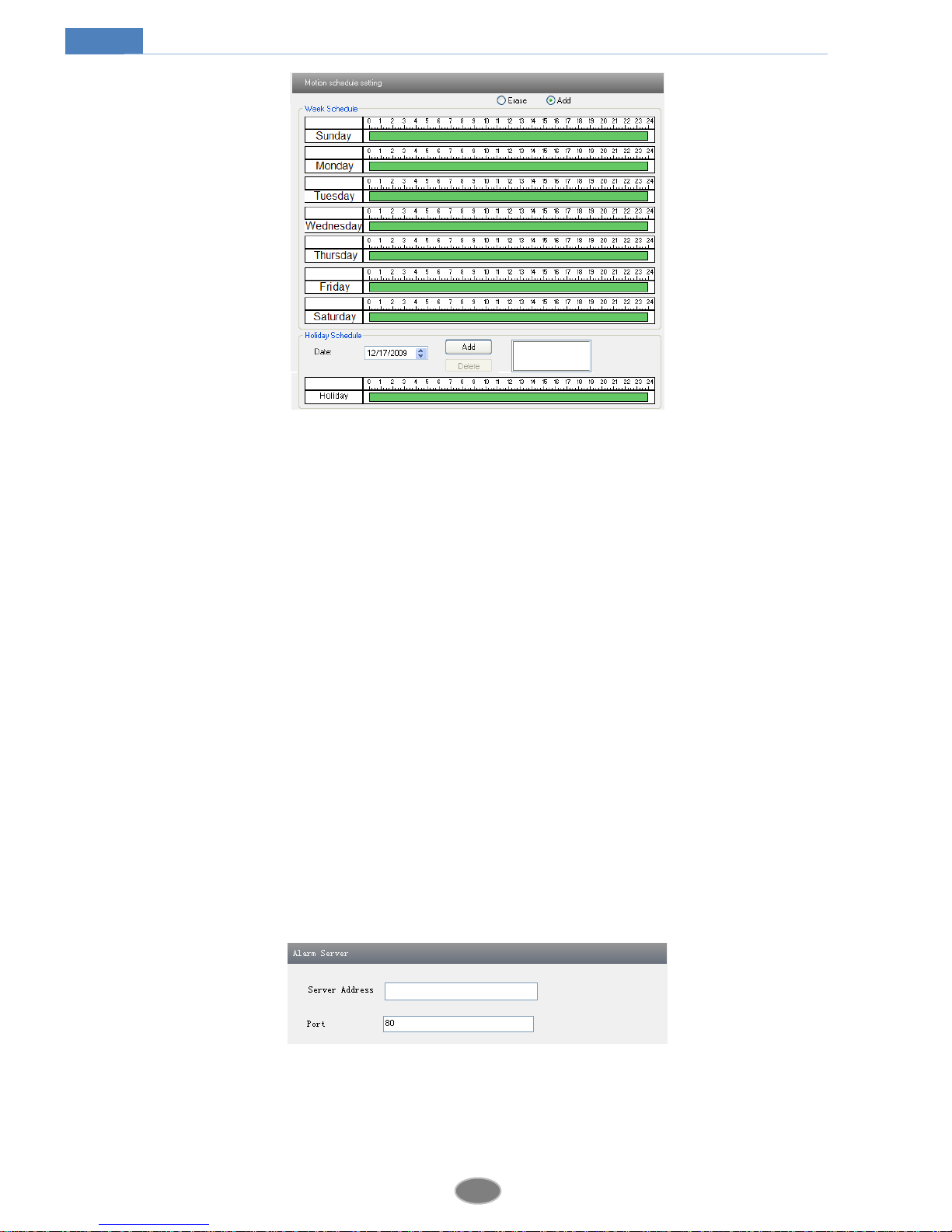

Go to “Alarm configuration” “Motion Detection schedule” interface as shown below.
Page 21
17
2MP Network Camera User Manual
Week schedule
You can set the alarm time from Monday to Sunday for alarm every day in one week.
Add: Add the schedule for a special day.
Erase: Delete holiday schedule.
Day schedule
You can set alarm time for alarm in some time of special day, such as holiday.
1. Select a date at the “Date” pull down list, press “Add” button to add that date to the list box
on the right side and then move the scroll bar to set the schedule of that day.
2. Select a date in the list box on the right side, and press “Erase” to remove the schedule on
that day.
Press the “Save” button to save the settings.
Note: Holiday schedule is prior to Week schedule.
4.3.4 Alarm Server
Go to “Alarm configuration” “Alarm Server” interface as shown below.
You may input the alarm server address and port. When the alarm happens, the camera will
automatically transfer the alarm event to the alarm server. If the alarm server is not used, there
is no need for you to configure here.
4.4 Network Configuration
Network configuration includes nine submenus: Port, IP Address, Server Configuration, IP
Notify, DDNS Config, RTSP, UPNP, Mail configuration and FTP.
Page 22
18
2MP Network Camera User Manual
4.4.1 Port
1. Go to “Network config” “Port” to see the interface as shown below.
2. Input port number for IE access in the “HTTP Port” textbox.
3. Input the port number for audio & video transmission in the “Data Port” textbox.
4.4.2 IP Address
1. Go to “Network Configuration” “IP Address”.
There are two options for IP setup: obtain an IP address auto by DHCP protocol and use the
following IP address. You may choose one of options as required.
Use the following IP address: display the IP address, subnet mask, gateway and DNS of the
device.
PPPoE: User needs to input the user name and password for dial-up internet.
Firstly, log in IE clients and then enter user name and password of PPPoE, save the setting and
exit. Secondly, set up IP address change notice. Thirdly, connect with Modem. Then the device
will dial up internet automatically.
Press the “Save” button to save the settings.
Page 23
19
2MP Network Camera User Manual
4.4.3 Server Configuration

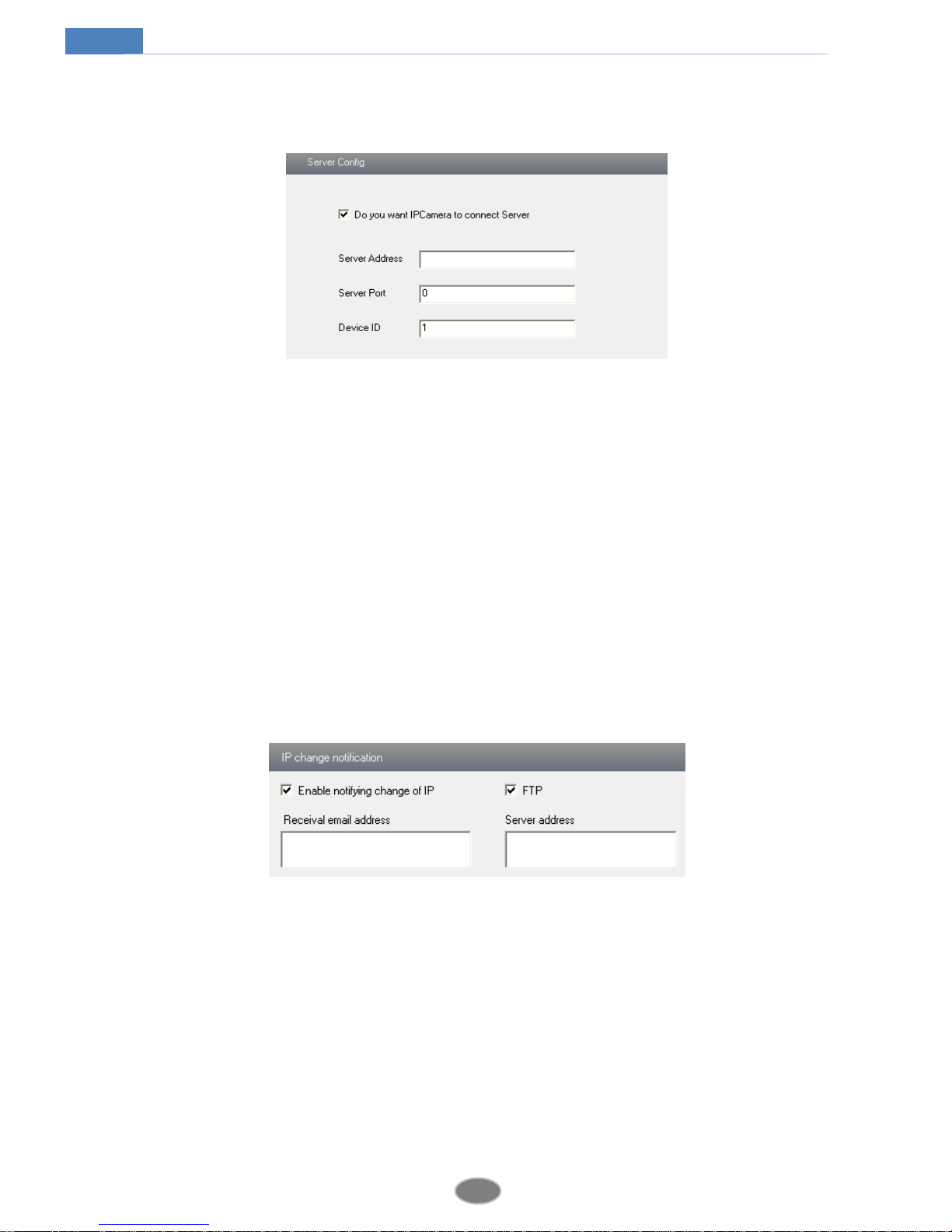

Go to “Network Configuration” “Server Config”.
1. Check “Do you want IP Camera to connect Server”.
2. Check the IP address and port of the transfer media server in the CMS/NVMS. Then enable
the auto report in the CMS/NVMS when adding a new device. Next, self-define the device ID
and input the remaining information of the device in the CMS/NVMS.
3. Input the above-mentioned server IP, server port and device ID in the responding boxes.
4. Click “Save” button to save the settings.
4.4.4 IP Notify
1. Go to “Network Configuration” “IP Notify” to see a tab as shown below.
2. If the “Enable notifying change of IP” is selected, when the IP address of the device is
changed, a new IP address will be sent to the appointed mailbox automatically; If “FTP” is
selected, when the IP address of the device was changed, a new IP address will be sent to FTP
server.
4.4.5 DDNS Configuration
1. Go to “Network Configuration” “DDNS Configuration” tab as shown below.
Page 24
20
2MP Network Camera User Manual
2. Apply for a domain name. Take WWW. dvrdydns.com for example.
Input www.dvrdydns.com in the IE address bar to visit its website. Then click “Registration”
button to register as shown below.
Create domain name.
After you successfully request your domain name, you will see your domain in the list.
3. Select the server type and then input the username, password and domain name you apply
for in the DDNS configuration interface.
4. Click “Save” button to save the settings.
Page 25
21
2MP Network Camera User Manual
4.4.6 RTSP

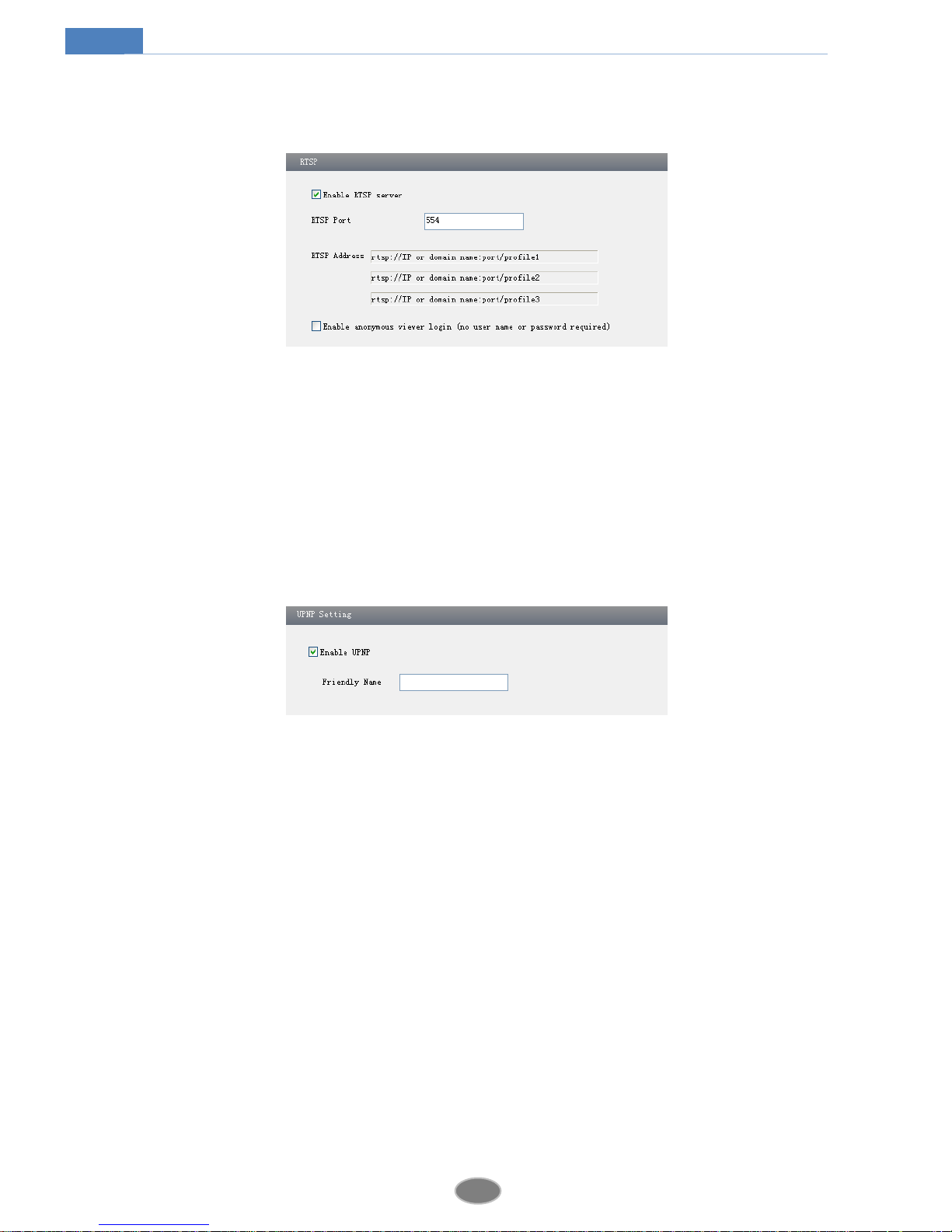

Go to “Network Configuration” “RTSP” interface as shown below.
1. Select “Enable RTSP server”.
2. RTSP Port: Access Port of the streaming media. The default number is 554.
3. RTSP Address: The RTSP address you need to input in the media player.
4. You can also choose to enable anonymous viewer login.
4.4.7 UPNP
Go to “Network Configuration” “UPNP” interface as shown below.
Select “Enable UPNP” and then input friendly name.
Then double click “Network” icon on the desktop of the PC to see an icon with the friendly
name and IP address of the camera. You may quickly access the device by double clicking this
icon.

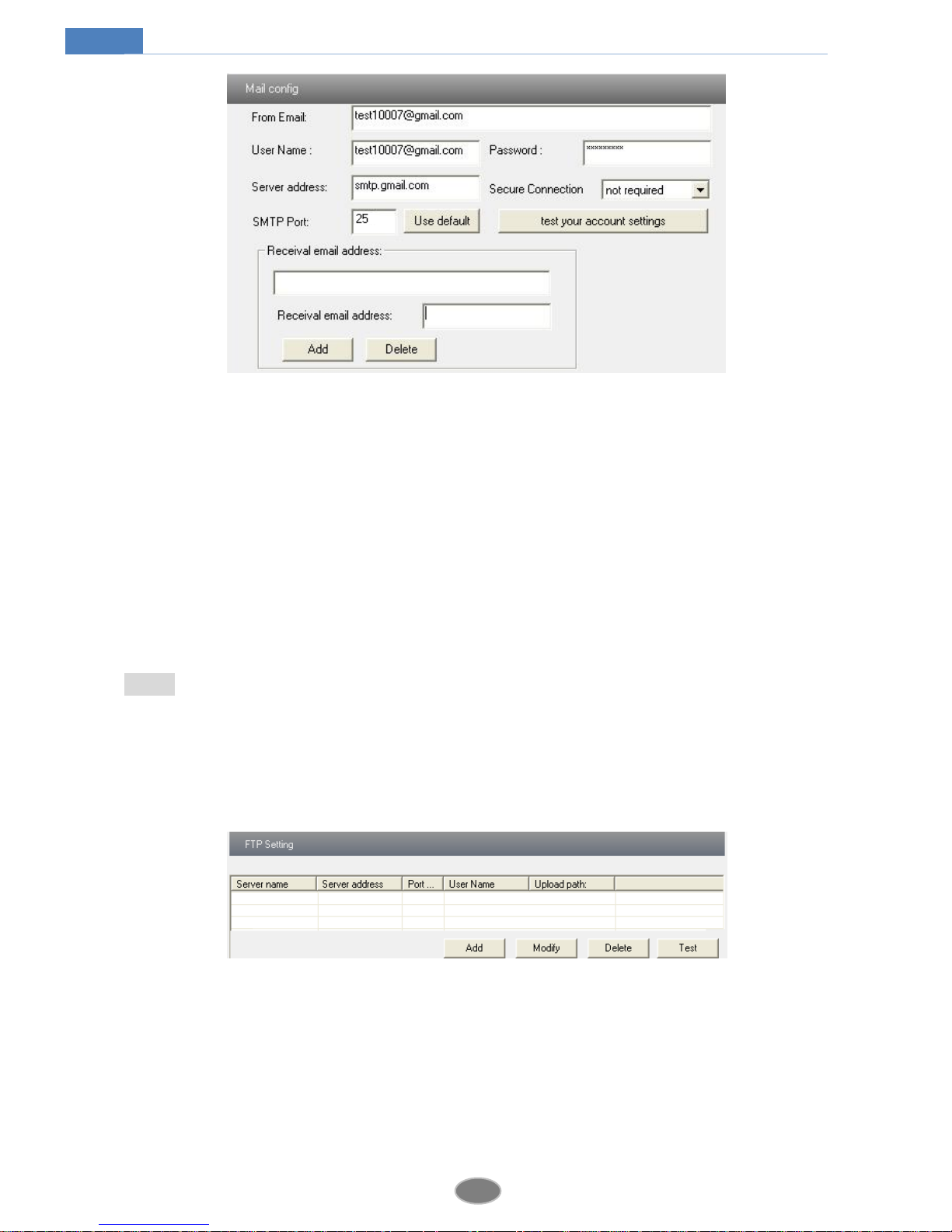

4.4.8 Mail configuration
Go to “Network Configuration” “Mail configuration” interface.
Page 26
22
2MP Network Camera User Manual
1. From Email: sender’s e-mail address.
2. User name and password: sender’s user name and password.
3. Server address: SMTP name of sender.
4. Select the secure connection type at the Secure Connection pull down list according to user’
actual needs.
5. Receival email address list: add email address into the list.
6. Receival email address: receiver’s e-mail address
7. After all parameters set up, you can click “Test your account settings”. If email sent
successful, a “Test Successful” window will pop up, if not, users can try other email addresses
or check the setting.
Notice: If you change the static IP into PPPoE and select mailbox, there will be an e-mail sent
to your mail box for notifying a new IP address.
4.4.9 FTP Setting
Go to Network ConfigurationFTP Setting interface as shown below.

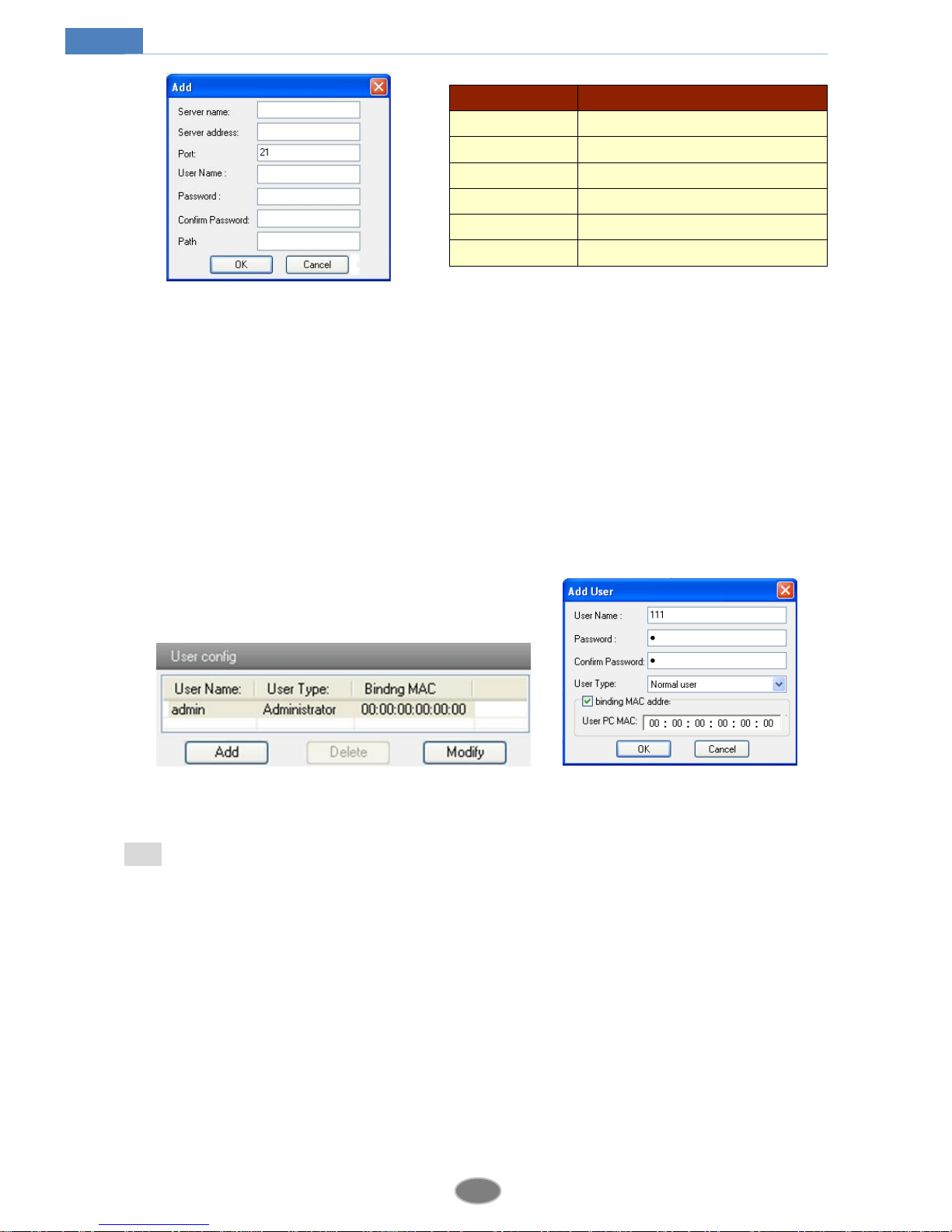

1. Add: Click Add button to input FTP server’s server name, address, port number, user name,
password, and upload path, click OK to confirm the setting.
2. Modify: Click this button to change some information of the FTP server.
3. Delete: Select certain FTP account. Click this button to delete this account.
4. Test: Select certain FTP account. Click this button to test its validity.
Please refer to the following table for parameters and instructions of FTP configuration.
Page 27
23
2MP Network Camera User Manual
4.5 Advanced Configuration
Advanced configuration includes five submenus: User Configuration, Security Configuration,
Configure Backup & Restore, Reboot and Upgrade.
4.5.1 User Configuration
Go to Advanced configurationUser Configuration interface.
Add user:
1. Clicking “Add” button pops up “Add user” dialog box.
User Configuration Add User
Note: After binding physical address to the IP-CAM, you can access the device on this PC in
network only. If the MAC address is “00:00:00:00:00:00”, it means the camera can be
connected to any computers.
2. Input user name in “User Name” textbox (only letters).
3. Input characters in “Password” and “Confirm Password” textbox (letters or numbers).
4. Input the MAC address of the PC in “Binding MAC address” textbox.
5. Click “OK” button and then the new added user will display in the user list.

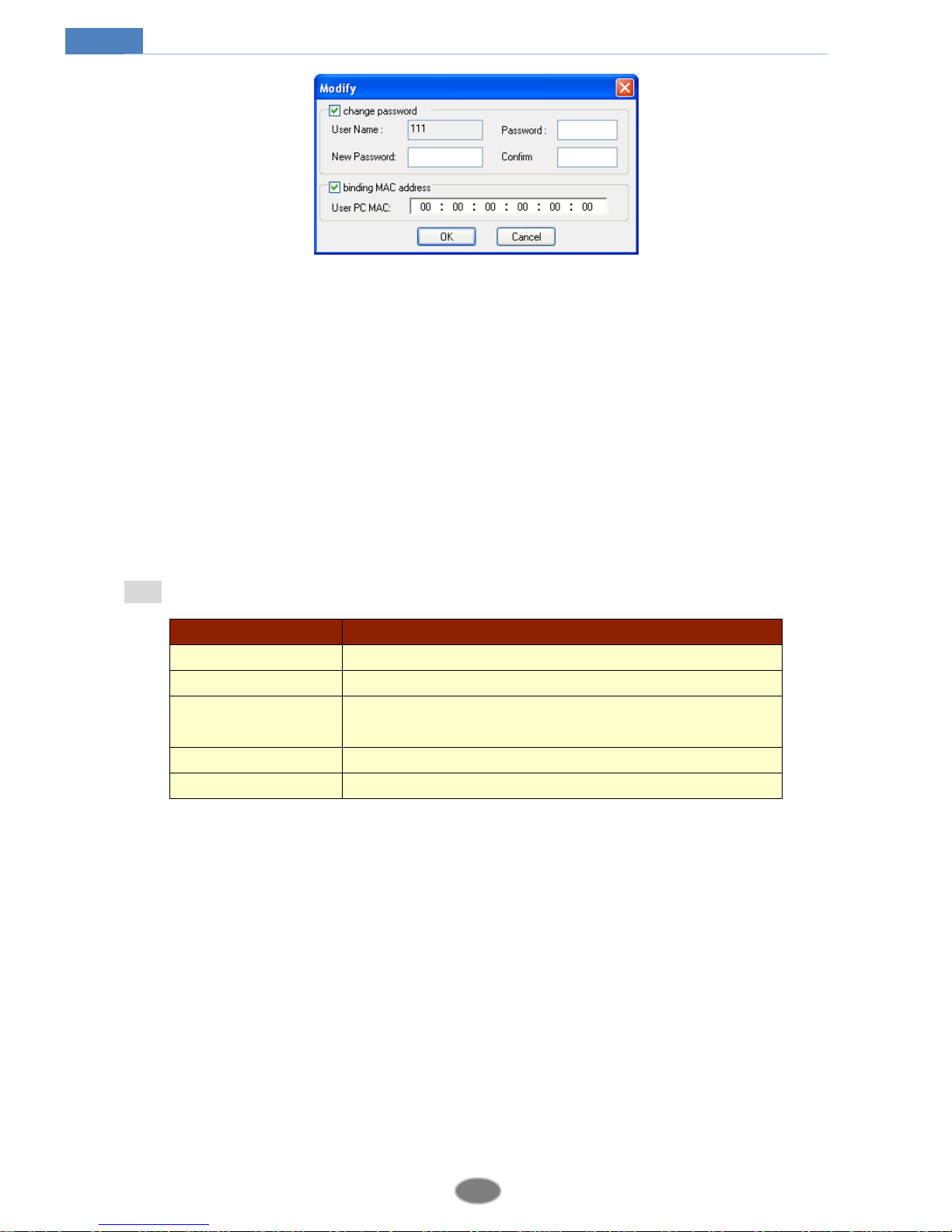

Modify user:
1. Select the user which needs to modify password and physical address in the user
configuration list box.
2. Clicking “Modify” button will pop up “Modify user” dialog box as shown below.
Parameter
Meaning
Server name
The name of the FTP server
Server address
The address of the FTP server
Port
The port number of the FTP server
User name
The user name of the FTP server
Password
The password of the FTP server
Path
The save path for FTP files
Page 28
24
2MP Network Camera User Manual
Modify User
3. Input original password of this user in the “Password” text box.
4. Input new password in the “New password” and “Confirmation” text box.
5. Input computer’s physical address which is used to access the server in the “User PC MAC”
text box.
6. Click “OK” button to modify password and binding MAC address successfully.
Delete user:
1. Select the user which needs to delete in the user configuration list box.
2. Clicking “Delete” button will pop up a confirm dialog box. Then click “OK” to delete the
user.
Note: The default super administrator cannot be deleted.
4.5.2 Security Configuration

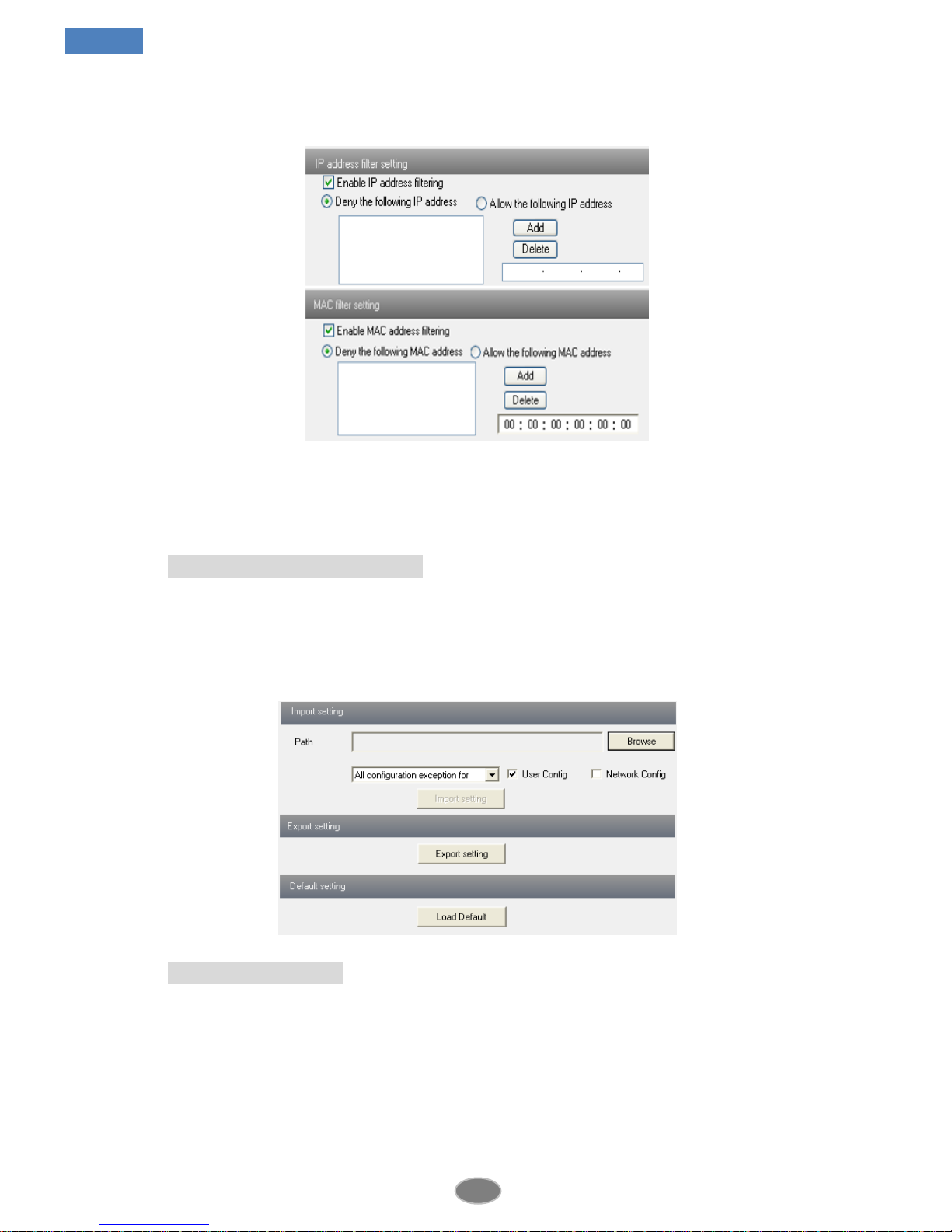

1. Go to Advanced ConfigurationSecurity Configuration to see a tab shown below.
2. Check “Enable IP address” check box, select “Deny the following IP address”, input IP
address in the IP address list box and click “Add” button. Then this IP address will display in
the list box; the operation step of “Allow the following IP address” is the same with “Deny the
following IP address”
3. Select the IP address which needs to be deleted from the IP address list box and click “Delete”
button to delete that IP address.
4. Check “Enable MAC address” check box, select “Deny the following IP address”, input
MAC address in the MAC address list box and click “Add” button. Then this MAC address will
display in the list box; the operation step of “Allow the following MAC address” is the same
with “Deny the following IP address”.
5. Select the MAC address which needs to be deleted from the MAC address list box and click
Parameter
Meaning
User Name
User name to operate the logon client end
User Type
Type of users, normal user, advanced user and super administrator
Binding MAC address
The MAC addresses of user access the server which should set up
according to actual MAC address of server.
Password
Password to log in the client terminal
Confirm Password
Password to log in the client terminal
Page 29
25
2MP Network Camera User Manual
“Delete” button to delete that MAC address.
6. Click “Save” button to save the above setting.
4.5.3 Configure Backup & Restore
Go to Advanced configurationConfigure Backup & Restore Interface.
Import & Export Configuration:
You can import or export the setting information from PC or to device.
1. Click “Browse” to select save path for import or export information on PC.
2. You can import or export all setting information to PC, but those two settings “User
Configuration” and “Network Configuration” are exceptional.
Default Configuration
Click “Load default” button to restore all system settings to the default status.
4.5.4 Reboot
Go to Advanced configuration—Reboot to see an interface as shown below.
Click “Reboot” button to reboot the device.
Page 30

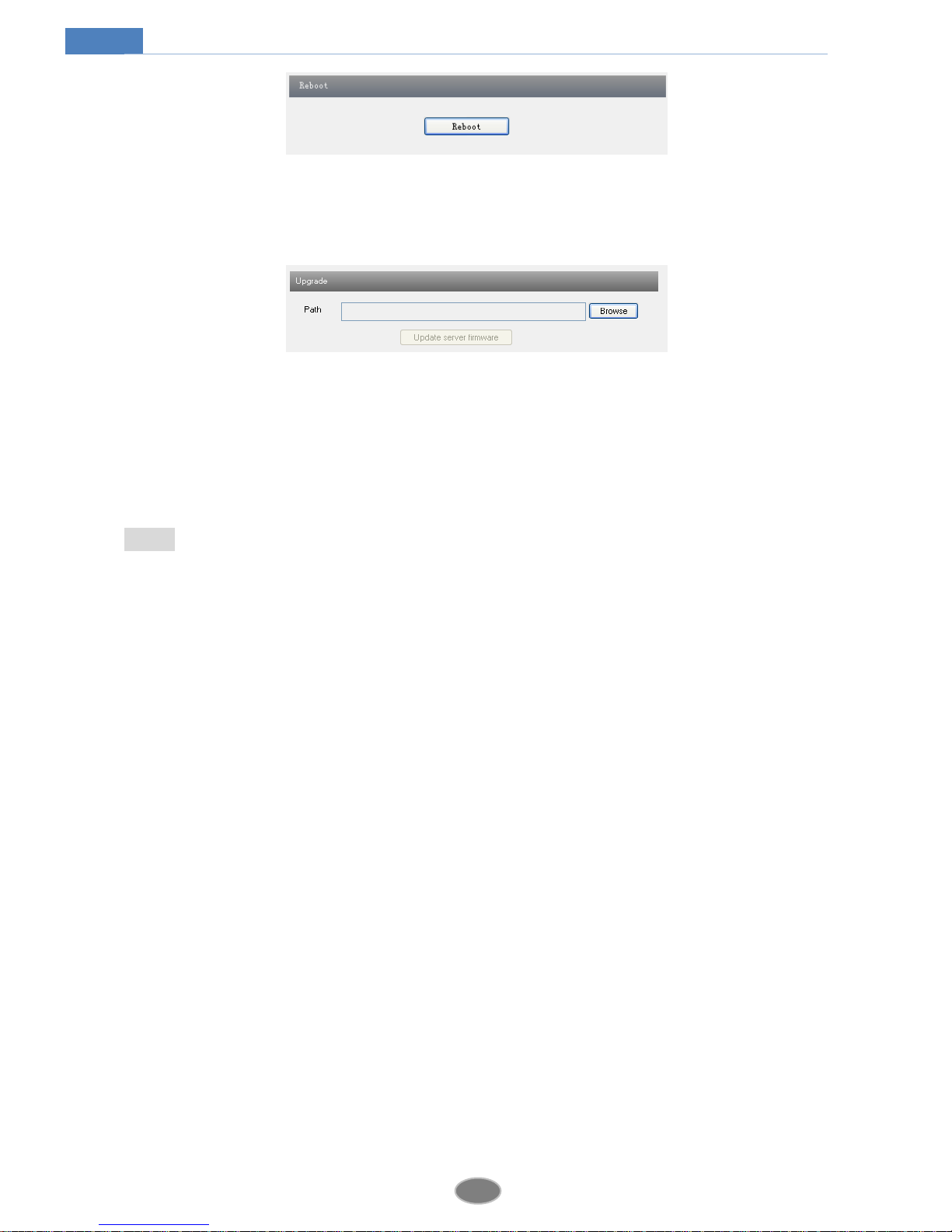

26
2MP Network Camera User Manual
4.5.5 Upgrade
Go to Advanced Configuration—Upgrade interface as shown below.
1. Click “Browse” button to select the save path of the upgrade file.
2. Click “Upgrade server firmware” button to start upgrading the application program.
3. The device will restart automatically.
4. After you successfully update the software, click “OK” button to close IE and then re-open
IE to connect IP-CAM.
Notice: You can’t disconnect to PC or close the IP-CAM during upgrade.
Page 31
27
2MP Network Camera User Manual
Appendix
Appendix 1 Q & A
Q: How to find my password if I forget it?
A：Reset the device to the default factory settings.
Default IP: 192.168.226.201
User name: admin
Password: 123456
Q：Fail to connect devices through IE browser, why?
A: Network is not well connected. Please check the connection and make sure it is connected
well.
B: IP is not available. Reset the valid IP.
C: Web port number has been revised: contact administrator to get the correct port number.
D: Exclude the above reasons. Recover default setting by IP-Tool.
Note: Default IP: 192.168.226.201，mask number: 255.255.255.0
Q：IP tool cannot search devices, why?
A：It may be caused by the anti-virus software in your computer. Please exit it and try to
search device again.
Q：IE cannot download ActiveX control. How can I do?

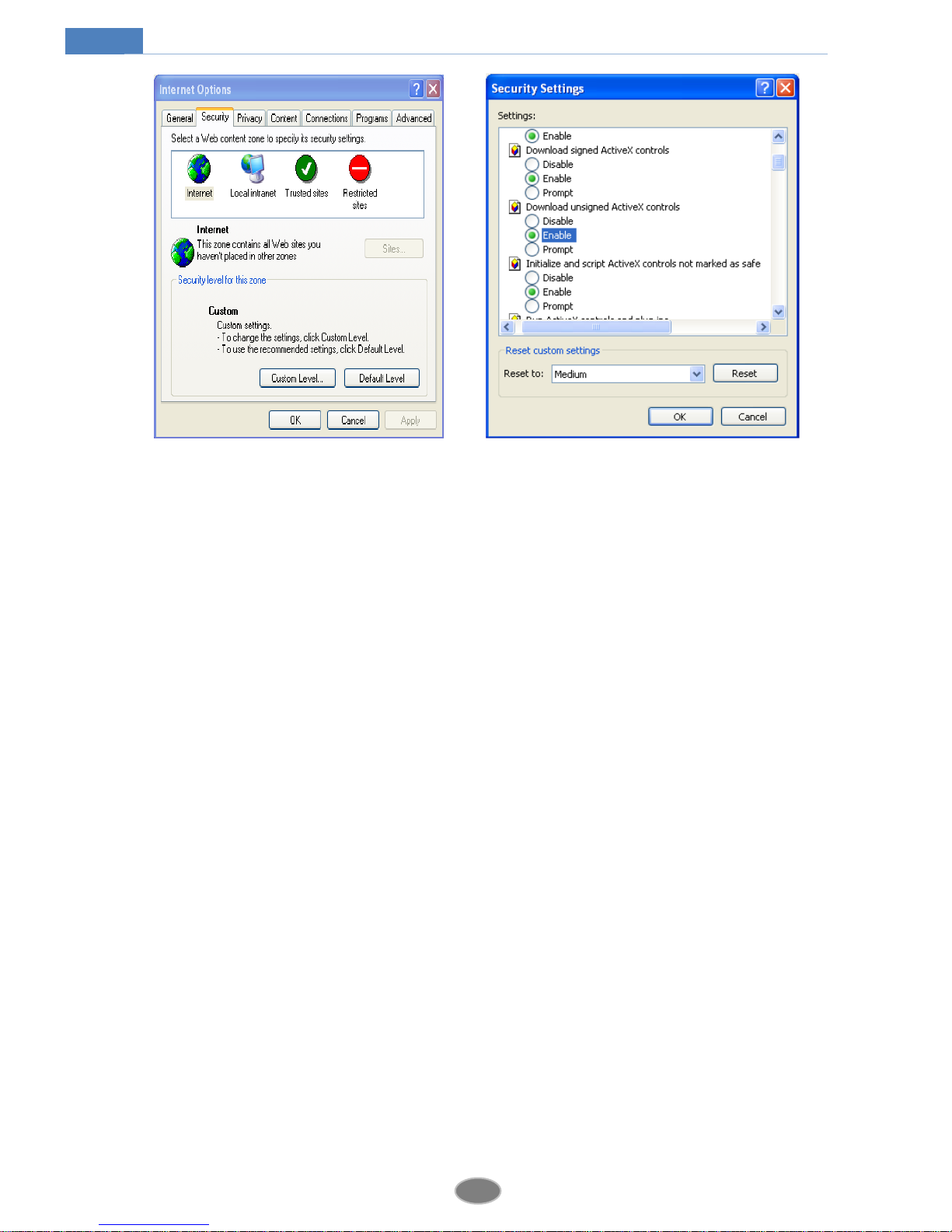

a. IE browser blocks ActiveX. Please do setup as below.

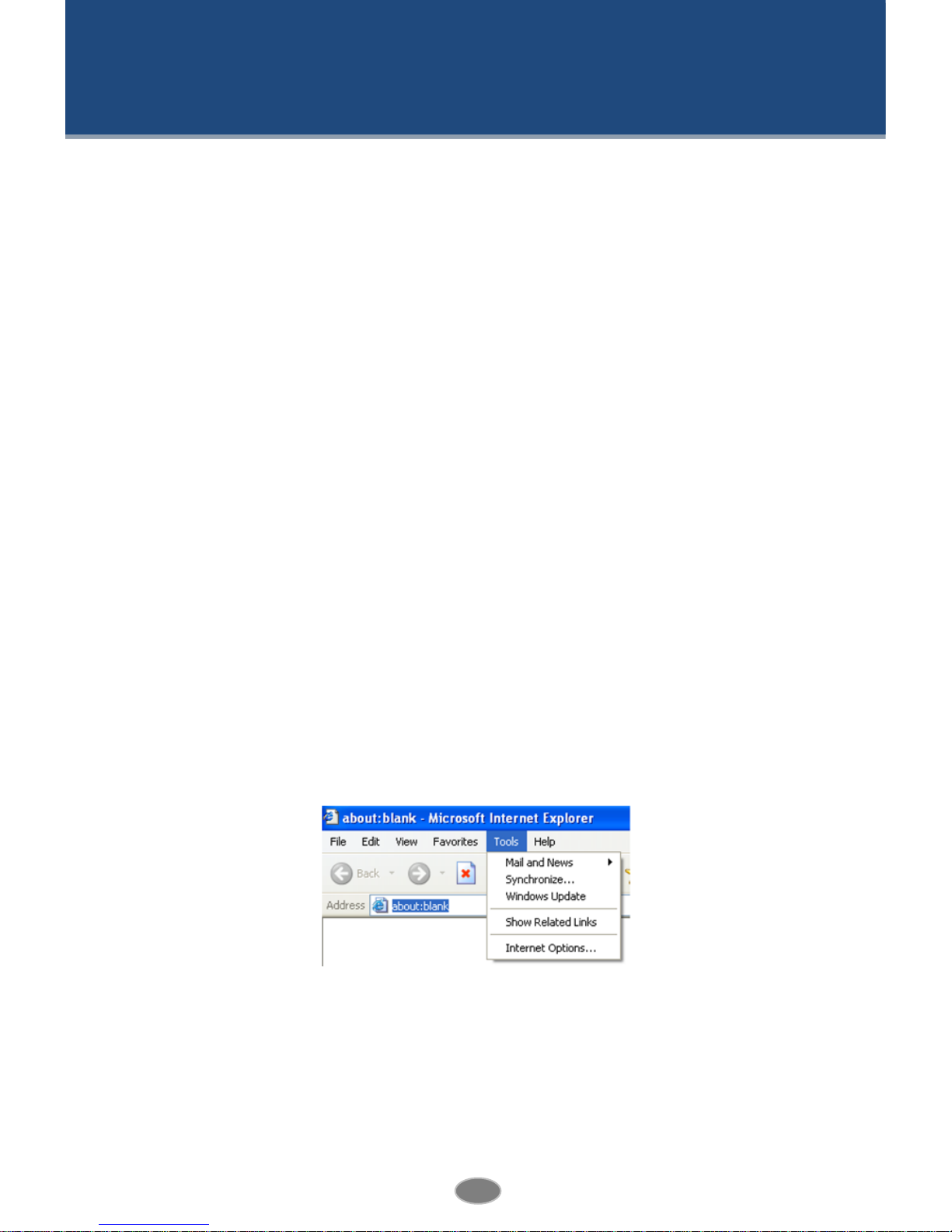

① Open IE browser. Click Tools-----Internet Options….
② Select Security------Custom Level….
③ Enable all the sub options under “ActiveX controls and plug-ins”.
Page 32
28
2MP Network Camera User Manual
④ Then click OK to finish setup.
b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them.
Q：No sound can be heard, why?
A：Audio input device is not connected. Please connect and try again.
B: Audio function is not enabled at the corresponding channel. Please check AUDIO item to
enable this function.
Page 33
29
2MP Network Camera User Manual
Appendix 2 Specifications
Specification /Model
CBN2030-F36 - IR Water-proof Bullet Network Camera
Camera
Image Sensor
1/2.7＂CMOS
Image Size
1920×1080
Electronic Shutter
1/25s~1/100000s
Auto Iris
Fixed Iris
Min. llumination
[email protected], AGC ON: 0 lux with IR
Lens
[email protected], angle of view: 77°
Lens Mount
M12
Day&Night
ICR
WDR
Digital WDR
Digital NR
3D DNR
Angle Adjustment
Any angle
Video Compression
H.264/MJPEG
H.264 Type
Baseline profile/main profile/high profile
Video Bit Rate
128Kbps~6Mbps
Resolution
1080P, 720P, D1, CIF, 480×240
Main Stream
60Hz: 1920×1080(1~30fps)/1280×720(1~30fps)
50Hz: 1920×1080(1~25fps)/ 1280×720(1~25fps)
Image Settings
Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable
through client or web browser
ROI
Support
Interfaces
Network
RJ45
Auido
MIC IN×1
Fucntion
Remote Monitoring
IE browser, CMS remote control
Online Connection
Support simultaneous monitoring for up to 4 users and multi-stream transmission
Network Protocol
TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol
ONVIF, GB-T/28181-2011
Storge
Network remote storage
Smart Alarm
Motion alarm
Others
IR Distance
10~20 m
Protection Grade
IP66
Power
DC12V/PoE
Power Consumption
< 3.5W(ICR OFF); < 6W(ICR ON)
Opterating
Environment
Temperature: -20°C~50°C; Humidity: 10%~90%
Dimension (mm)
Ø64mm×183mm
Weight（net）
366g
Installation
Wall mounting; pendent mounting
Page 34
30
2MP Network Camera User Manual
Specification /Model
CBN2048-VF2812 - IR Water-proof Bullet Network Camera
Camera
Image Sensor
1/2.7＂CMOS
Image Size
1920×1080
Electronic Shutter
1/25s~1/100000s
Auto Iris
Fixed Iris
Min. llumination
[email protected], AGC ON: 0 lux with IR
Lens
[email protected], angle of view: 89°~34°
Lens Mount
Ø14
Day&Night
ICR
WDR
Digital WDR
Digital NR
3D DNR
Angle Adjustment
Any angle
Video Compression
H.264/MJPEG
H.264 Type
Baseline profile/main profile/high profile
Video Bit Rate
128Kbps~6Mbps
Resolution
1080P, 720P, D1, CIF, 480×240
Main Stream
60Hz: 1920×1080(1~30fps)/1280×720(1~30fps)
50Hz: 1920×1080(1~25fps)/ 1280×720(1~25fps)
Image Settings
Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable
through client or web browser
ROI
Support
Interfaces
Network
RJ45
Auido
MIC IN×1
Fucntion
Remote Monitoring
IE browser, CMS remote control
Online Connection
Support simultaneous monitoring for up to 4 users and multi-stream transmission
Network Protocol
TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol
ONVIF, GB-T/28181-2011
Storge
Network remote storage
Smart Alarm
Motion alarm
Others
IR Distance
30~50 m
Protection Grade
IP66
Power
DC12V/PoE
Power Consumption
< 3.5W(ICR OFF); < 6.5W(ICR ON)
Opterating
Environment
Temperature: -20°C~50°C; Humidity: 10%~90%
Dimension (mm)
Ø109mm×284mm
Weight（net）
1042g
Installation
Wall mounting; pendent mounting
Page 35
31
2MP Network Camera User Manual
Specification /Model
CDVN2002-F36 - IR Water-proof Dome Network Camera
Camera
Image Sensor
1/2.7＂CMOS
Image Size
1920×1080
Electronic Shutter
1/25s~1/100000s
Auto Iris
Fixed Iris
Min. llumination
[email protected], AGC ON: 0 lux with IR
Lens
[email protected], angle of view: 77°
Lens Mount
M12
Day&Night
ICR
WDR
Digital WDR
Digital NR
3D DNR
Angle Adjustment
Any angle
Video Compression
H.264/MJPEG
H.264 Type
Baseline profile/main profile/high profile
Video Bit Rate
128Kbps~6Mbps
Resolution
1080P, 720P, D1, CIF, 480×240
Main Stream
60Hz: 1920×1080(1~30fps)/1280×720(1~30fps)
50Hz: 1920×1080(1~25fps)/ 1280×720(1~25fps)
Image Settings
Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable
through client or web browser
ROI
Support
Interfaces
Network
RJ45
Auido
MIC IN×1
Fucntion
Remote Monitoring
IE browser, CMS remote control
Online Connection
Support simultaneous monitoring for up to 4 users and multi-stream transmission
Network Protocol
TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol
ONVIF, GB-T/28181-2011
Storge
Network remote storage
Smart Alarm
Motion alarm
Others
IR Distance
10~20 m
Protection Grade
IP66
Power
DC12V（PoE power supply optional）
Power Consumption
< 3 W(ICR OFF); < 5W(ICR ON)
Opterating
Environment
Temperature: -20°C~50°C; Humidity: 10%~90%
Dimension (mm)
Ø87mm×108mm
Weight（net）
427g
Installation
Pendent mounting (wall mounting available with junction box and bracket)
Page 36
32
2MP Network Camera User Manual
Specification /Model
CDVN2030-VF2812 - Water-proof Dome Network Camera
Camera
Image Sensor
1/2.7＂CMOS
Image Size
1920×1080
Electronic Shutter
1/25s~1/100000s
Auto Iris
Fixed Iris
Min. llumination
0.05lux@ F1.2, AGC ON: 0 lux with IR
Lens
[email protected], angle of view: 89°~34°
Lens Mount
Ø14
Day&Night
ICR
WDR
Digital WDR
Digital NR
3D DNR
Angle Adjustment
Pan: 0°~360°; Tilt: 0°~77°; Rotation: 0°~360°
Video Compression
H.264/MJPEG
H.264 Type
Baseline profile/main profile/high profile
Video Bit Rate
128Kbps~6Mbps
Resolution
1080P, 720P, D1, CIF, 480×240
Main Stream
60Hz: 1920×1080(1~30fps)/1280×720(1~30fps)
50Hz: 1920×1080(1~25fps)/ 1280×720(1~25fps)
Image Settings
Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. adjustable
through client or web browser
ROI
Support
Interfaces
Network
RJ45
Auido
MIC IN×1
Fucntion
Remote Monitoring
IE browser, CMS remote control
Online Connection
Support simultaneous monitoring for up to 4 users and multi-stream transmission
Network Protocol
TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol
ONVIF, GB-T/28181-2011
Storge
Network remote storage
Smart Alarm
Motion alarm
Others
IR Distance
20~30 m
Protection Grade
IP66&IK10
Power
DC12V/PoE
Power Consumption
< 3 W(ICR OFF); < 5.5W(ICR ON)
Opterating
Environment
Temperature: -20°C~50°C; Humidity: 10%~90%
Dimension (mm)
Ø150mm×114mm
Weight（net）
956g
Installation
Pendent mounting (wall mounting available with junction box and bracket)
Loading...
