Provision ISR MC-392AHD37+, DL-92AHD37+, IV-390AHD37+, DS-392AHD37+ User Manual

1080P Pro 4 in 1 Series
Hidden Camera
1
Contents
1) CAUTIONS
2 ) Product Introduction
2.1 Camera Introduction
3)
Menu Setup
4) Product Installation
5) Technical Specification
4.1 General Notes
4.2 Installation Tools and Information
4.3 Setting the Video Output Type
4.4 Installation Method
4.5 Connections
4.6
OSD Control
2 3
1 CAUTIONS
1. To avoid the risk of electric shock, do not open or maintain the machine by yourself, please consult a professional.
2. To prevent fire or shock, use the power after safety certification. the input voltage, current, voltage polarity
and operating temperatures must meet the require­ments of this camera.
3. Please note the operating temperature and environ-
mental requirements of the camera, avoid too low
or too high temperatures. General operating tempera­ture range of -10°C ~ +50°C (Fahrenheit temperature
is 14°F ~ 122°F). Avoid flooding and rain, minimize dust and moisture erosion; otherwise camera would be
damaged.
4. Cameras in use should avoid direct sunlight, glare,
otherwise the sensor will be damaged.
5. Do not touch the sensor surface. If any foreign
objects are visible, use a cotton swab or lens cleaner to wipe it, if it is difficult to remove, a neutral detergent diluted with water would be useful. Do not use
corrosive solution.
6. In order to make the camera work smoothly and
obtain a satisfactory image, the power cord and video connection can not be too long. Otherwise, the increase of line loss will lead to inadequate operating
voltage of the camera or inadequate video signal.
7. To prevent camera damage and personal injury, do not place camera on unstable objects, brackets,or bases.
8. Do not place camera near a radiator or other heating devices.
4 5
2 Product Introduction
2.1 Camera Introduction
PROVISION-ISR’s new series of cameras have adopted a high performance CMOS image sensor which
provides HD resolution and supports high resolution video output. The cameras support video transmission distance of around 400M base on Rg59 standard coaxial cable. This series can support AHD/TVI/CVI/CVBS 960H analog output.
2.2 Product Features
● Coaxial cable with BNC connector
● DIP Switch
● Auto Day/Night (ICR)
● Auto Defog, HBLC, BLC
● Digital WDR, 2D/3D NR
● Motion Detection, Privacy Mask
AHD/TVI/CVI/CVBS Signal Selectable (by jumper)
3 Menu Setup
AHD/TVI: Click on “Iris+” button from the DVR’s PTZ interface to call the OSD Menu. Use the PTZ interface to scroll through the menu and “Iris+” to confirm.
CVI: Click “
” button from the DVR’s PTZ interface,
then click “ ” and press “Enter” to call the OSD Menu.
4 Product Installation
4.1 General Notes
1. Make sure the unit is powered off before installation.
2. Check if power supply voltage is consistent with
electric voltage to prevent damages to the device.
3. Do not use in environments exceeding temperature limitations, and maintain good ventilation to prevent
risk of fire or electric shock.
4. The installation and maintenance of this product
should be professional, please do not in any way
remove or modify the equipment; only use the
6 7
required accessories from the manufacturers. Issues
caused by unauthorized repair are your responsibility.
4.2 Installation Tools and Information
Prepare the required engineering data and instructions.
Before installing please prepare the following tools and instrumentation: A straight or a Phillips-head screwdriver,
multi-meter, scissors, needle nose pliers, tape measure, pencil.
4.3 Setting the Video Output Type
The camera supports AHD/TVI/CVI/CBVS video output.
Choosing the output type is done by setting a DIP switch
on the cable as illustrated:
4.4 Installation Method
1. Check if all equipment is in tact.
2. Mounting bracket or base:
• If you are installing on a cement wall, use the expansion screw holes and then mount the bracket or
base.
• If you are installing on a wooden wall, use the self-tapping screws to mount
3. Mounting the camera
a. Dome Camera
Adjust the lens position to aim at the monitoring points and present a clear picture. Manually fix lens location and adjust the hemisphere cover. Re-examine the
screen whether the character meets your requirements.
Tighten the hemisphere cover.
b. Bullet Camera
Adjust the body so the lens aim at the monitoring points
and presents a clear picture. Tighten the screws to ensure camera will not move.
Installation method above is for reference only.
Note: The wall needs to bear at least 3 times the weight of bracket and camera.
ON
1
HD CVI AnalogAHD HD TVI
2 1 21 2 1 2
ONON ON
8 9

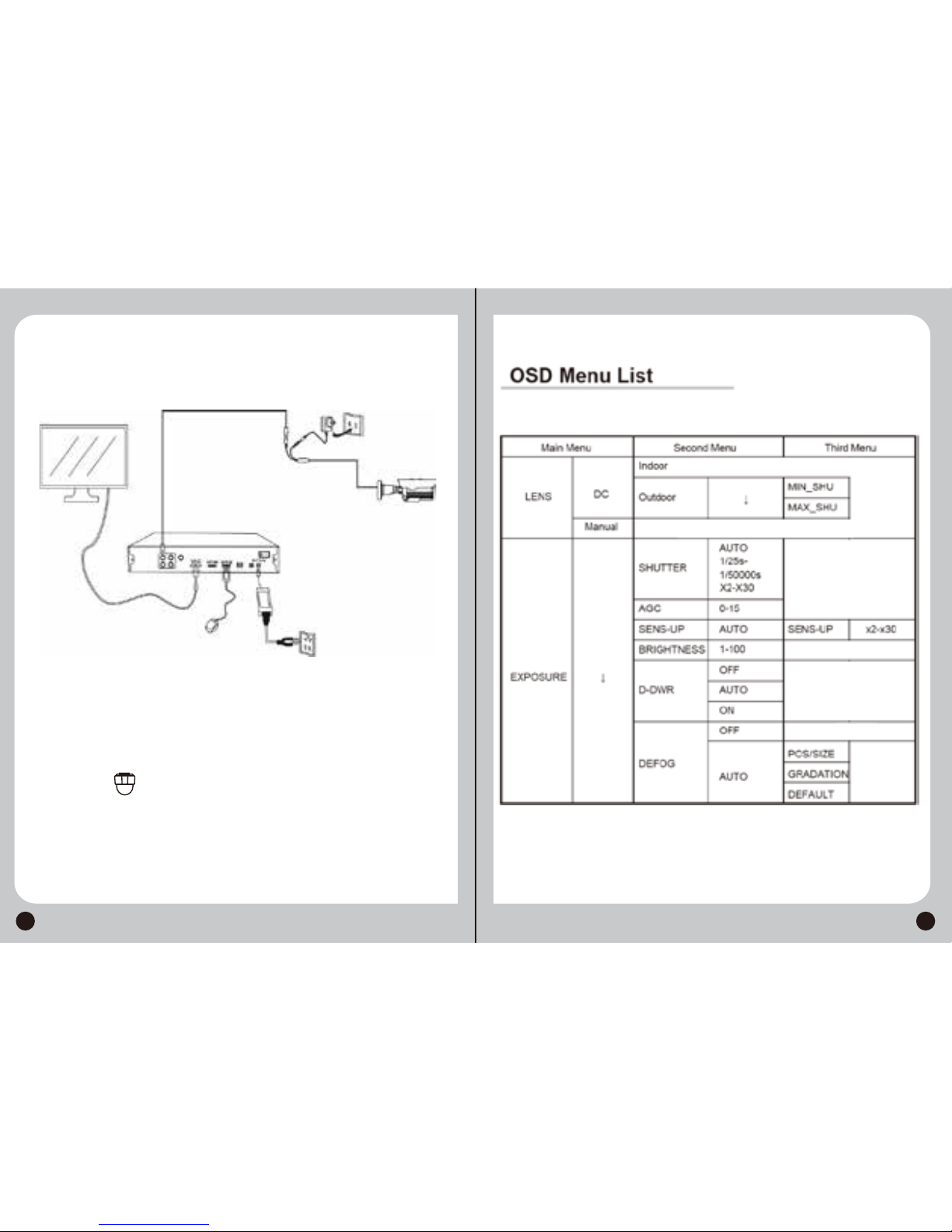

4.5 Connections
Connection as show in the figure below
4.6 OSD Control
The OSD control is available by CoC (Control over Coax) only. If your AHD/TVI/CVI DVR supports this function*, use the DVR’s PTZ interface to press on “Iris+” or “ ” to open the OSD menu. Navigate through the OSD menu using the PTZ
direction arrows.
* Notice: CoC function works no more than 200M by Rg59 coaxial cable
* All of Provision-ISR’s DVRs support CoC Starting from version 3.4.4
10 11
12 13
4 in 1 Pro Hidden camera (1080P)
MC-392AHD37+ / DL-392AHD37+
DS-392AHD37+ / IV-390AHD37+
Specifications:
Model
Image Sensor
Effective Pixels
Scanning System
Resolution
Min. Illumination
Day & Night
IR LED
OSD Menu
Backlight Compensation
S/N Ratio
White Balance
Noise Reduce
Video Output
Defog
Privacy Mask
Motion Detection
D-Effect
Lens
Power
Operation temp.
Dimension
Net Weight
Model
Image Sensor
Effective Pixels
Scanning System
Resolution
Min. Illumination
Day & Night
IR LED
OSD Menu
Backlight Compensation
S/N Ratio
White Balance
Noise Reduce
Video Output
Defog
Privacy Mask
Motion Detection
D-Effect
Lens
Power
Operation temp.
Dimension
Net Weight
MC-392AHD37+
N/A
35*35*10mm
90g
DL-392AHD37+
N/A
Ø90*55mm
210g
DS-392AHD37+
N/A
Ø125x50mm
85g
1/3" 2.0MP Sensor
1984(H)×1225(V)
Progressive
Digital:1920×1080P, Analog:960H
0.01Lux
EXT, Color, B&W, AUTO
Available by CoC Only
OFF/BLC/HSBLC
≥60dB (AGC Off)
AWB, ATW, AWC (Push), Indoor, Outdoor, Manual
3D-DNR (For Analog HD), 2D-DNR (For Analog)
AHD/TVI/CVI/CVBS (Signal Selectable by DIP switch)
Off/On
Off/On (4 Areas)
Off/On (4 Areas)
Freeze, Mirror, Negative Image
3.7mm Pinhole
DC12V±10%, ~72mA DC12V±10%, ~212mA
-10°C~+50°C (14°F~122°F)
1/3" 2.0MP Sensor
1984(H)×1225(V)
Progressive
Digital:1920×1080P, Analog:960H
0.01Lux
EXT, Color, B&W, AUTO
Available by CoC Only
OFF/BLC/HSBLC
≥60dB (AGC Off)
AWB, ATW, AWC (Push), Indoor, Outdoor, Manual
3D-DNR (For Analog HD), 2D-DNR (For Analog)
AHD/TVI/CVI/CVBS (Signal Selectable by DIP switch)
Off/On
Off/On (4 Areas)
Off/On (4 Areas)
Freeze, Mirror, Negative Image
3.7mm Pinhole
DC12V±10%, ~72mA
-10°C~+50°C (14°F~122°F)
IV-390AHD37+
0Lux (IR On)
18pcs(10m)
104*60*66mm
94g
