PROVISION-ISR
All “S” Series IP Cameras
I1-390IPS36
DI-390IPS36
I1-330IPS36
DI-330IPS36
User Manual
All rights reserved
Provision-ISR
®
Notes on Safety
Please refer to the technical specs to choose the correct power supply. Do not use power
supply with higher/lower rating than specified.
Do not attempt to disassemble the camera; in order to prevent electric shock, do not
remove any screws or covers.
There are no user-serviceable parts inside. Please contact the nearest service center as
soon as possible if there is any technical failure.
Avoid incorrect operation, shock vibration or heavy weight pressing which can damage
to the camera.
Do not use corrosive detergent to clean the camera. If necessary, please use a soft dry
cloth to wipe dirt; for tough contamination, use neutral detergent. Any cleanser for high
grade furniture is applicable.
Avoid aiming the camera directly towards extremely bright objects such as the sun as it
may damage the image sensor.
Please follow the installation instructions of the camera
Do not operate the camera in case temperature, humidity or power supply are exceeding
the limited stipulations.
Keep away from any heat sources such as radiators, heat registers, stoves, etc.
Do not expose the product to the direct airflow of an air conditioner.
When this product is in use, the relevant contents of Microsoft, Apple and Google will be
involved in. The pictures and screenshots in this manual are only used to explain the usage
of our product. The ownerships of trademarks, logos and other intellectual properties
related to Microsoft, Apple and Google belong to the above-mentioned companies.
All pictures and examples used in the manual are for reference only.
Table of Contents
1 Introduction ................................................................................................................... 1
2 IE Remote Access ........................................................................................................... 2
2.1 LAN .................................................................................................................. 2
2.1.1 Access through IP Manager Software ..................................................... 2
2.1.2 Directly Access through IE ..................................................................... 4
2.2 WAN ................................................................................................................. 6
3 Remote Preview ............................................................................................................. 8
3.1 Remote Live-view Interface.............................................................................. 8
4 Remote Live Surveillance .............................................................................................. 9
4.1 System Configuration ....................................................................................... 9
4.1.1 Basic Information .................................................................................... 9
4.1.2 Date & Time .......................................................................................... 10
4.1.3 Local Configuration .............................................................................. 10
4.2 Image Configuration ....................................................................................... 10
4.2.1 Display Configuration ........................................................................... 10
4.2.2 Video Stream ......................................................................................... 12
4.2.3 OSD Configuration ............................................................................... 13
4.2.4 Video Mask ........................................................................................... 13
4.2.5 ROI Configuration ................................................................................ 14
4.3 Alarm Configuration ....................................................................................... 15
4.3.1 Motion Detection .................................................................................. 15
4.3.2 Alarm Server ......................................................................................... 17
4.4 Network Configuration ................................................................................... 17
4.4.1 TCP/IPv4............................................................................................... 17
4.4.2 Port ........................................................................................................ 18
4.4.3 Central Server (Auto Report Server) ..................................................... 19
4.4.4 DDNS Configuration ............................................................................ 19
4.4.5 SNMP .................................................................................................... 20
4.4.6 RTSP ..................................................................................................... 21
4.4.7 UPNP .................................................................................................... 22
4.4.8 Mail configuration ................................................................................. 22
4.4.9 FTP Setting ........................................................................................... 23
4.5 Security Configuration .................................................................................... 23
4.5.1 User Configuration ................................................................................ 23
4.5.2 Online Video User ................................................................................. 25
4.5.3 Block and Allow List ............................................................................ 25
4.6 Maintenance .................................................................................................... 26
4.6.1 Backup & Restore ................................................................................. 26
4.6.2 Reboot Device ....................................................................................... 27
4.6.3 Upgrade ................................................................................................. 27
4.6.4 Log ........................................................................................................ 27
IPC “S Series” User Manual
5 Search ........................................................................................................................... 28
Appendix ................................................................................................................................ 29
Appendix 1: Q & A ............................................................................................................... 29
1
IPC “S Series” User Manual
1 Introduction
Main Camera Features:
ICR auto switch - true day/night
3D DNR
Digital WDR
ROI coding
Support Smart Phone/Tablet remote monitoring (Android and iOS platforms only)
Surveillance Application
2
IPC “S Series” User Manual
2 IE Remote Access
You may connect the IPC via LAN or WAN. This manual will use IE browser (6.0) for example:
2.1 LAN
In LAN, there are two ways to access IPC:
1) access through IP Manager Software
2) Directly access through IE browser.
2.1.1 Access through IP Manager Software
Network connection:
① Make sure the PC and IPC are connected to the LAN and the IP Manager is installed in the
PC from the CD or from Provision-ISR’s website.
② Run the IP Manager on the designated PC:
3
IPC “S Series” User Manual
③ Modify the IPC’s IP address. The default IP address of this camera is 192.168.226.201. Click
on the empty square to “tick” mark the desired IPC from the list (as seen in the below table).
Click on “Batch set net” and input the desired parameters to modify the IP address, subnet mask
and gateway of the camera and make sure the network address is in the same local network
segment as the computer. You can change the IP address of more than 1 camera in one go by
using the “batch set NET” action.
For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera
shall be changed to 192.168.1.X. After modification, please input the password of the
administrator and click “Modify” button to modify the setting.
④ Double click on the camera line and the IP manager will pop up the IE browser to
automatically connect to the IPC. For the first use – you will have to install the camera ActiveX
plugin. After downloading and installing the plugin, a login window will pop up as shown below.
The default login credentials are “admin” & “123456”.
4
IPC “S Series” User Manual
Input the username and password to log in. If you input the wrong password for the first time,
you shall wait for 10 seconds and then input the right password.
2.1.2 Directly Access through IE
The default network settings are as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
You may use the above default settings when you log in the camera for the first time. You may
directly connect the camera to the computer through network cable.
① Manually set the IP address of the PC. The network segment should be as the same as the
default settings of the IP camera (192.168.226.x). Open the network and sharing center. Click
“Local Area Connection” to pop up the following window.
The default username is “admin”; the default password is “123456”.
5
IPC “S Series” User Manual
Click on “Properties” and select internet protocol according to the actual situation (for example:
IPv4). Next, click “Properties” button to set the network of the PC.
② Open the IE browser, input the default address of the IPC and confirm. For the first use –
you will have to install the camera ActiveX plugin.
③ After downloading and installing the plugin, a login window will pop up as shown below.
④ Input the default username and password and then enter to view.
6
IPC “S Series” User Manual
2.2 WAN
Access through the router or virtual server
① Make sure the camera is properly connected via LAN and then log in the camera via LAN.
Go to ConfigNetwork Port menu and set the port values.
② Go to Config Network TCP/IPv4 menu to modify the IP address. (Can be done via IP
Manager tool as well)
③ Go to the router’s management interface through IE browser to forward the IP address and
port of the camera in the “Virtual Server”.
7
IPC “S Series” User Manual
Router Setup
④ Open the IE browser and input its WAN IP and http port to access. (For example:
192.168.1.201:81)
Access through PPPoE dial-up
Network connection

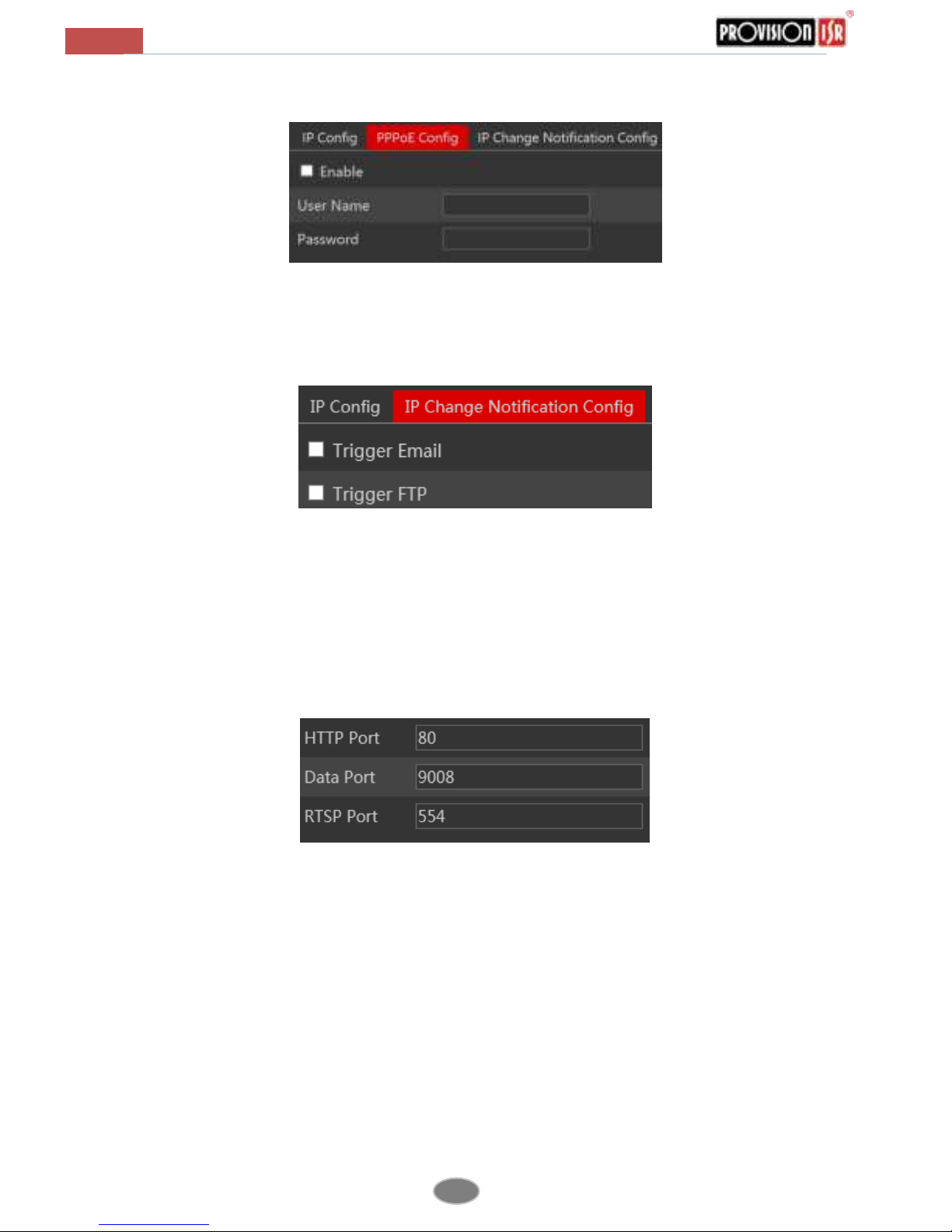

You may access the camera through PPPoE auto dial-up. The setting steps are as follow:
① Go to ConfigNetwork Port menu to set the port number.
② Go to Config Network TCP/IPv4PPPoE Config menu. Check “Enable” and input the
user name and password (Provided by your internet service provider).
③ Go to Config Network DDNS menu. Before you configure the DDNS, please apply
for a domain name first. Please refer to the DDNS Configuration for detailed information.
④ Open the IE browser and input the domain name and http port to access.
8
IPC “S Series” User Manual
Access through static IP
Network connection
The setting steps are as follow:
① Go to ConfigNetwork ConfigPort menu to set the port values.
② Go to Config Network ConfigIP Address menu to set the IP address. (Can be done via
IP Manager Tool as well). Check “Use the following IP address” and then input the static IP
address and other parameters.
③ Open the IE browser and input its WAN IP and http port to access.
3 Remote Preview
3.1 Remote Live-view Interface
After you log in, you will see the following window.
9
IPC “S Series” User Manual
The following table shows the interface’s icon descriptions:
Icon
Description
Icon
Description
Motion alarm indicator
Start/stop live view
Original size
Snap
Appropriate size
Start/stop record
Auto
Digital zoom in
Full screen
Digital zoom out
When motion detection alarm is triggered, the motion icon will turn red.
In full screen mode, right click is used to exit.
4 Remote Live Surveillance
4.1 System Configuration
The “System Configuration” holds three submenus: Basic Information, Date & Time and Local
Configuration.
4.1.1 Basic Information
Shows the IPC information including Hardware & Firmware versions and MAC address
10
IPC “S Series” User Manual
4.1.2 Date & Time
Go to ConfigSystemDate and Time.
You can select the time zone and DST as required.
Click “Date and Time” to set the time keeping mode out of 3 options:
1) Synchronize with NTP server – Time keeping by NTP.
2) Synchronize with computer time – the IPC will take the time from the computer
system time.
3) Set manually: Manually configure time and date.
4.1.3 Local Configuration
Go to ConfigSystemLocal Config. You can set the storage path of the captured pictures
and video records.
4.2 Image Configuration
Image Configuration includes five submenus: Display, Video/Audio, OSD, Video Mask and
ROI Config.
4.2.1 Display Configuration
Many parameters of the camera can be set in display configuration interface such as
brightness, contrast, Hue, saturation, WDR, DNR, Etc.
11
IPC “S Series” User Manual
Brightness: Set the brightness level.
Contrast: Set the color difference between the brightest and darkest parts.
Hue: Set the total color degree of the image.
Saturation: Set the degree of color purity. The purer the color is, the livelier the image is.
WDR: Wide dynamic range brightens the dark areas and darkens the bright areas in order to
provide a clear image without burnt pixels. When there are both very bright and very dark
areas simultaneously in the field of view, WDR balances the brightness level of the whole
image and provide clear images with details.
Sharpness: Set the sharpness levels of the image
Noise Reduction: Decrease the noise levels of the image. Increasing the value will increase the
noise reduction effect but it will reduce the image resolution.
White Balance: Adjust the color temperature according to the environment.
Frequency: Choose 50HZ or 60HZ.
Day/night Mode: Choose the operation mode as needed.
Sensitivity: Relates to the Day/Night mode and will set the sensitivity to light before changing
the work mode automacially.
Infrared-Mode: On – IR will be on. Off – IR will be off. Auto – The camera will decide of the
IR LED status
Image Mirror: Reverse the video image horizontally.
Image Flip: Turn the video image vertically.
12
IPC “S Series” User Manual
4.2.2 Video Stream
Click on ConfigImageVideo/Audio.
In this interface, you can set the resolution, frame rate, bitrate type and video quality.
Three video streams can be adjustable.
Resolution: The higher the resolution is, the bigger the image is.
Frame rate: The higher the frame rate is, the more fluent the video will. However, more storage
room and bandwidth will be required.
Bitrate type: Including CBR and VBR. CBR means that the video compression bitrate will
always be kept constant. This will not only facilitate better image quality but will also help to
calculate the capacity of the recording. VBR means that the compression bitrate can be
adjustable according to the change of the video resources. This will help to optimize the network
bandwidth.
Video Quality: If VBR is selected, you will need to choose image quality. The higher the image
quality you choose, the more bitrate will be required.
Bitrate: Please choose it according to the actual network situation. The higher the bitrate –
the better is the image quality (less compression)
I Frame interval: It is recommended to use the default value.
Video encoding profile: Baseline and main profile are available. Baseline profile is mainly
used in interactive application with low complexity and delay. Main profile is mainly used for
higher coding requirement.
Stream of snapping photos: Please set according to the requirement.
Video encode slice split: If enabled, you may get more fluency image even though using the
low-performance PC, but this may result in poorer image quality
Watermark: If selected, you can input the watermark theme. You may check the watermark
when playing back the local record in the search interface, lest the record files is tampered.
13
IPC “S Series” User Manual
4.2.3 OSD Configuration
Go to ConfigImageOSD:
You may set the time stamp, device name and free OSD here. After enabling the desired display
and entering the content, drag it on the live video to set their position. Press the “Save” button
to save the settings.
4.2.4 Video Mask
Go to ConfigImageVideo Mask. You can set 4 mask areas at most.
To set up video mask:
1. Open video mask settings.
2. Click “Draw Area” button and then drag the mouse to draw the video mask area.
3. Click “Save” button to save the settings.
4. Return to the live to see the following picture.
14
IPC “S Series” User Manual
Clear the video mask:
Go to video mask menu and then click “Clear” button to delete the current video mask area.
4.2.5 ROI Configuration
To set up ROI
1. Go to Video ConfigROI Config menu.
2. Check “Enable” and then click “Draw Area” button.
3. Drag the mouse to set the ROI area.
4. Set the level.
5. Click “Save” button to save the settings.
Now, you will see the selected ROI area is clearer than other areas especially in low bitrate
condition.
15
IPC “S Series” User Manual
4.3 Alarm Configuration
Alarm configuration includes two submenus: Motion Detection and Alarm Server.
4.3.1 Motion Detection
To set motion detection:
1. Go to ConfigAlarmMotion Detection to set motion detection alarm.
Mark “Enable Alarm” check box to activate motion based alarm. Choose alarm holding time
and set alarm trigger options.
Trigger Email: Email address needs to be set first in the Mail config interface. The triggered
snap pictures and event will be sent into those addresses.
Trigger FTP: The triggered snap pictures will be sent into FTP server address. Please refer to
FTP configuration chapter for more details.
2. Set motion detection area and sensitivity. Click “Area and Sensitivity” tab to see the
following sub-menu.
16
IPC “S Series” User Manual
Move the “Sensitivity” scroll bar to set the sensitivity.
Select “Add” and click “Draw” button. Click and drag the mouse on the video area to mark the
motion detection area; Select “Erase” and move the mouse to clear motion detection area.
Click “Save” to save the settings.
3. Set the schedule of the motion detection. Click “Schedule” tab to set the schedule of the
motion detection.
17
IPC “S Series” User Manual
Week schedule
Set the alarm time for each day of the week. Each bar means one day of a week; full length
means 24 hours. Red means selected area. Blank means unselected area.
“Add”: Add schedule markings.
“Erase”: Delete schedule markings.
Holiday Schedule
Set the date on the left and then click “add”. Add/erase schedule markings as described above
Day schedule
You can add holidays with special schedules.
Set the date and press “Add” button to add it to the box on the right, then move the scroll bar
to set the schedule of that day.
Select a date in the list box on the right side, and press “Delete” to remove the schedule on that
day.
Press the “Save” button to save the settings.
Note: Holiday schedule have higher priority to Week schedule.
4.3.2 Alarm Server
Not spplicable for this model
4.4 Network Configuration
4.4.1 TCP/IPv4
Go to ConfigNetworkTCP/IPv4.
There are two ways for network connection.
IP address: There are two options for IP setup – “Obtain an IP address automatically”
(DHCP) or “use the following IP address” (Manual Input). Please choose one.
18
IPC “S Series” User Manual
Use PPPoE: Enter the user name and password provided by your ISP.
You can choose either of the network connection. If you use PPPoE to connect, you will get a
dynamic WAN IP address. This IP address will change frequently. You may use the function
of IP change notification.
Trigger Email: when the IP address of the device is changed, a new IP address will be sent to
the appointed mailbox automatically. (Email must be configured)
Trigger FTP: when the IP address of the device is changed, a new IP address will be sent to
FTP server.
4.4.2 Port
Go to ConfigNetworkPort. HTTP, Data and RTSP ports can be set.
HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied.
Data Port: The default data port is 9008. Can be changed if required.
RTSP Port: The default port is 554. Can be changed if required.
19
IPC “S Series” User Manual
4.4.3 Central Server (Auto Report Server)
This function is mainly used for connecting to network video management systems.
1. Check “Enable”.
2. Check the IP address and port of the CMS’s transfer media server. Enable the auto report in
the CMS. Next, input the remaining information of the device in the CMS. The system will auto
assign a device ID. Please check it in the CMS.
3. Input the above-mentioned server address, server port and device ID in the responding boxes.
Click “Save” button to save the settings.
4.4.4 DDNS Configuration
If your camera is set to use PPPoE as its default network connection, DDNS should be set for
network access. Before you set the DDNS, please make sure you have registered a domain name
on the DDNS server.
1. Go to ConfigNetwork DDNS.
2. Apply for a domain name. Take www.dvrdyndns.com for example. Input
www.dvrdydns.com in the IE address bar to visit its website. Then click “Registration” button.
20
IPC “S Series” User Manual
Create domain name.
After you successfully request your domain name, you will see your domain in the list.
3. Input the username, password, domain you apply for in the DDNS configuration interface.
4. Click “Save” button to save the settings.
4.4.5 SNMP
To get camera status, parameters and alarm information and remotely manage the camera, you
can set the SNMP function. Before using the SNMP, please download the SNMP software and
set the parameters of the SNMP, such as SNMP port, trap address.
1. Go to ConfigNetworkSNMP.
21
IPC “S Series” User Manual
2. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable
SNMPv3) according to the version of the SNMP software you download.
3. Set the “Read SNMP Community”, “Write SNMP Community”, “Trap Address”, “Trap Port”
and so on. Please make sure the settings are the same as that of your SNMP software.
Note: Please use the different version in accordance with the security level you required. The
higher the version is, the higher the level of the security is.
4.4.6 RTSP
Go to ConfigNetworkRTSP.
22
IPC “S Series” User Manual
1. Select “Enable”.
2. RTSP Port: Access port of the streaming media. The default number is 554.
3. RTSP Address: Showing the RTSP address you need to input in the media player.
4. Check “Allow anonymous login” to allow RTSP stream without authentication.
4.4.7 UPNP
If you enable this function, you can quickly access the camera via LAN and you don’t need to
configure port mapping when the camera is connected to the WAN via the router.
Go to ConfigNetworkUPnP:
Select “Enable UPNP” and then input friendly name.
After you enable it and set the UPnP name, you will see the UPnP name by clicking “Network”
on the desktop of your computer which is in the same local area network. Then double click
this name to access the camera quickly.
4.4.8 Mail configuration
If you need to trigger E-mail when an alarm occur or if the IP address was changed, please set
the E-mail here first.
Go to ConfigNetwork Email.
23
IPC “S Series” User Manual
Sender Address: sender’s e-mail address;
User name and password: sender’s user name and password;
SMTP Address: The SMTP IP address or host name.
Select the secure connection type at the pull down list according to the mail server configuration.
SMTP Port: The SMTP port.
Send Intervals: Set it as needed.
Click “Test Account Setting” to test the account.
Receiver email address: receiver’s e-mail address;
4.4.9 FTP Setting
After setting the FTP server, the captured pictures of any alarm will be uploaded to the FTP
server.
Go to ConfigNetwork FTP.
To Add FTP:
Server Name: The name of the FTP.
Server Address: The IP address or domain name of the FTP.
Upload Path: The path of uploading the files.
Port: The port of the FTP.
Use Name and Password: The username and password are used to login the FTP.
4.5 Security Configuration
4.5.1 User Configuration
Go to ConfigSecurity.
24
IPC “S Series” User Manual
Add user:
1. Click “Add” button to open the following box.
2. Input user name in “User Name” box.
3. Input letters and/or numbers in “Password” and “Confirm Password” textbox.
4. Choose the user type.
5. Input the MAC address of the PC in “Binding MAC address” textbox in case needed.
After binding physical address to the IPC, you can access the device using this PC only. If the
MAC address is “00:00:00:00:00:00” it means that the IPC can be connected to by any
computer.
6. Click “OK” button and the newly added user will displayed in the user list.
Modify user:
1. Select the user you wish to modify from the user configuration list box.
2. Click on the “Modify” button.
25
IPC “S Series” User Manual
3. Input old password.
4. Input new password in the “New password” and “Confirm Password” text boxes.
5. Mark “Bind MAC” and input the computer’s MAC address if required.
6. Click “OK” button to modify user’s password.
Delete user:
1. Select the user you want to delete in the user configuration list box.
2. Click “Delete” button to delete the user.
Note: The default super administrator cannot be deleted.
4.5.2 Online Video User
Go to ConfigSecurityOnline User. You can view the users who are currently connected to
the camera.
4.5.3 Block and Allow List
Go to ConfigSecurityBlock and Allow Lists.
26
IPC “S Series” User Manual
Setting steps are as follows:
1) Check “Enable IP address filtering” check box.
2) Select “Block/Allow the following IP address” as desired, input the IP address in the
IP address list box and click “Add” button.
3) After you set the IP address or MAC address, the system will block or allow the user
as specified.
4.6 Maintenance
4.6.1 Backup & Restore
Go to ConfigMaintenanceBackup & Restore.
27
IPC “S Series” User Manual
Import & Export Setting:
You can import or export the setting information from PC or to device.
1. Click “Browse” to select save path for import or export information on PC.
2. Click “Import Setting” or “Export Setting” button.
Default Setting
Click “Load default” button to restore all system settings to factory settings.
4.6.2 Reboot Device
Go to ConfigMaintenanceReboot.
Click “Reboot” button to reboot the device.
4.6.3 Upgrade
Go to ConfigMaintenanceUpgrade. In this interface, you can upgrade the system.
1. Click “Browse” button to select the save path of the upgrade file.
2. Click “Upgrade” button to start upgrading the application program.
3. The device will restart automatically.
4. After you have successfully updated the software, click “OK” button to close IE and then re-
open IE to connect.
Caution! Do not disconnect the PC or the IPC during the upgrade process.
4.6.4 Log
To query and export log
1. Go to ConfigMaintenanceOperation Log.
2. Select the main type, sub type, start and end time.
3. Click “Query” to view the operation log.
4. Click “Export” to export the operation log.
You can export and view the run log by clicking ConfigMaintenanceRun Log.
28
IPC “S Series” User Manual
5 Search
You can play the local video record through the search interface. Before playing, please set the
storage path of the video record in the local configuration interface and make sure there are
record files. After that, click “Search” tab on the menu toolbar.
Choose the date and the start time and end time and then click “Search” button to search the
record files. Double click the record file to play the record.
The descriptions of the buttons on the playback interface are as follows.
Button
Description
Play button. After pausing the video, click this button to
continue playing.
Pause button.
Stop button.
Speed down.
Speed up.
Enable/Diable watermark.
Full screen. Click it to display full screen. Double click to exit
full screen.
29
IPC “S Series” User Manual
Appendix
Appendix 1: Q & A
Q: How to recover my password if I forget it?
A：Reset the device to the default factory settings by using the IP Manager Tool.
Default IP: 192.168.226.201
User name: admin
Password: 123456
Q: I fail to connect through IE browser, why?
A: Network is not well connected. Please check the connection and make sure it is connected
well.
B: IP is not available. Change settings to valid IP.
C: Web port has been revised: contact administrator to get the correct port number.
D: Exclude the above reasons. Recover default setting by IP Manager Tool.
Note: Default IP: 192.168.226.201，mask number: 255.255.255.0
Q：IP tool cannot search devices, why?
A：It may be caused by anti-virus or firewall software in your computer. Please diable it and
try to search again.
Q：IE cannot download ActiveX control. How can I do?
a. IE browser blocks ActiveX. Please try as below.
① Open IE browser. Click Tools-----Internet Options….
② Select Security------Custom Level….
③ Enable all the sub options under “ActiveX controls and plug-ins”.
30
IPC “S Series” User Manual
④ Click OK to finish setup.
b. Other plug-ins or anti-virus blocks ActiveX. Please disable it and try again.
Loading...
