1 Introduction
1.1 Summarization
This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It
adopts state of the art video processing chips. It utilizes most advanced technologies, such as
video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to
ensure this system more stable and reliable. This unit consists of two parts: the IP-CAM
device and central management software (short for CMS). The CMS centralizes all devices
together via internet or LAN and establishes a sound surveillance system to realize unified
management and remote operation to all devices in one network.
This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an ideal
choice for surveillance sites with middle or high risks.
Main Features
ICR auto switch, true day/night
3D DNR, digital WDR
ROI coding
PoE power supply
Support smart phone, iPad, remote monitoring
Support P2P (NET Traversal)
Page 2
Economy IP Camera User Manual
2 IE Remote Access
IP-CAM can be connected through LAN or WAN. Here only take IE browser (6.0) for example.
The details are as follows:
2.1 LAN
In LAN, there are two ways to access IP-CAM: 1. Access through IP-Tool; 2. Directly access
through IE browser.
2.1.1 Access through IP-Tool
① Make sure the PC and IP-CAM are connected to the LAN and the IP-Tool is installed in the
PC from the CD.
② Double click the IP-Tool icon on the desktop to run this software as shown below:
③ Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the
information of the camera listed in the above table to show the network information on the right
hand. Modify the IP address and gateway of the camera and make sure its network address is
in the same local network segment as the computer’s. Please modify the IP address of your
device according to the practical situation.
For example, the IP address of your computer is 192.168.13.4. So the IP address of the camera
Page 3
Economy IP Camera User Manual
shall be changed to 192.168.13.X. After modification, please input the password of the
administrator and click “Modify” button to modify the setting.
④ Double click the IP address and then the system will pop up the IE browser to connect IP-
CAM. IE browser will auto download the Active X control. After downloading, a login window
will pop up as shown below.
Input the username and password to log in.
2.1.2 Directly Access through IE
The network service is default as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
You may use the above default settings when you log in the camera for the first time.
① Manually set the IP address of the PC and the network segment should be as the same as the
default settings of the IP camera. Open the network and share center. Click “Local Area
Connection” to pop up the following window.
The default password of the administrator is “123456”.
The default username is “admin”; the default password is “123456”.
Page 4
Economy IP Camera User Manual
Select “Property” and then select internet protocol according to the actual situation (for example:
IPV4). Next, click “Property” button to set the network of the PC.
② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser
will download Active X control automatically.
③ After downloading Active X control, the login dialog box will pop up.
④ Input the default username and password and then enter to view.
2.2 WA N
Take access the camera by the router or virtual server for example.
① Make sure the camera is well connected via LAN and then log in the camera via LAN and
Page 5
Economy IP Camera User Manual
go to the Config
Network ConfigPort menu to set up the port number.
② Go to Config
Network ConfigWired menu to modify the IP address.
③ Go to the router’s management interface through IE browser to forward the IP address and
port of the camera in the “Virtual Server”.
Port Setup IP Setup
Router Setup
④ Open the IE browser and input its WAN IP and http port to access.
Page 6
Economy IP Camera User Manual
3 Remote Preview
3.1 The Remote Preview Interface
Remote Preview
When motion detection alarm is triggered, the people icon turns red.
Right click to pop up a pull-down list as shown below:
Stream: Three streams are optional.
Turn off the live: Click this item will close present live preview.
Full screen: The live preview picture will full-screen display.
Double click or click right mouse to return to the previous
interface.
Online user: Display the current user connecting to the device.
System information: Display the device information: device
name, firmware version, software build date, kernel version and
hardware version.
3.2 Record Playback
Before you play the record files, please make sure you have recorded. You make click
button to record. Then click button to pop up a video player. Double click the record file
to play the video as shown below.
1
People icon
4
Zoom in
7
Start recording
2
Fix size
5
Zoom out
8
Playback
3
Actual size
6
Full screen
9
Snap
Page 7
Economy IP Camera User Manual
1 Play 5 Next frame 9 Zoom out
2 Pause 6 The previous file 10 Full screen
3 Stop 7 The next file 11 Path
4 Forward 8 Zoom in 12 Volume
3.3 Snap Pictures
Select the picture number, and then click “Snap” icon as shown below.
Single Snap
User can snap multiple pictures. Select the picture number from Frame pull down list box, such
as 2, and check “Title” and “Time” to show capture title and time on the snap pictures
simultaneously.
Page 8
Economy IP Camera User Manual
Multi-picture Snap
Click “Browse” to set saving path. Click “Save” to save pictures to HDD on the computer;
Click “Printer setup” to set the printer and print the snap pictures; drag the scroll bar to view all
snapped pictures.
Page 9
Economy IP Camera User Manual

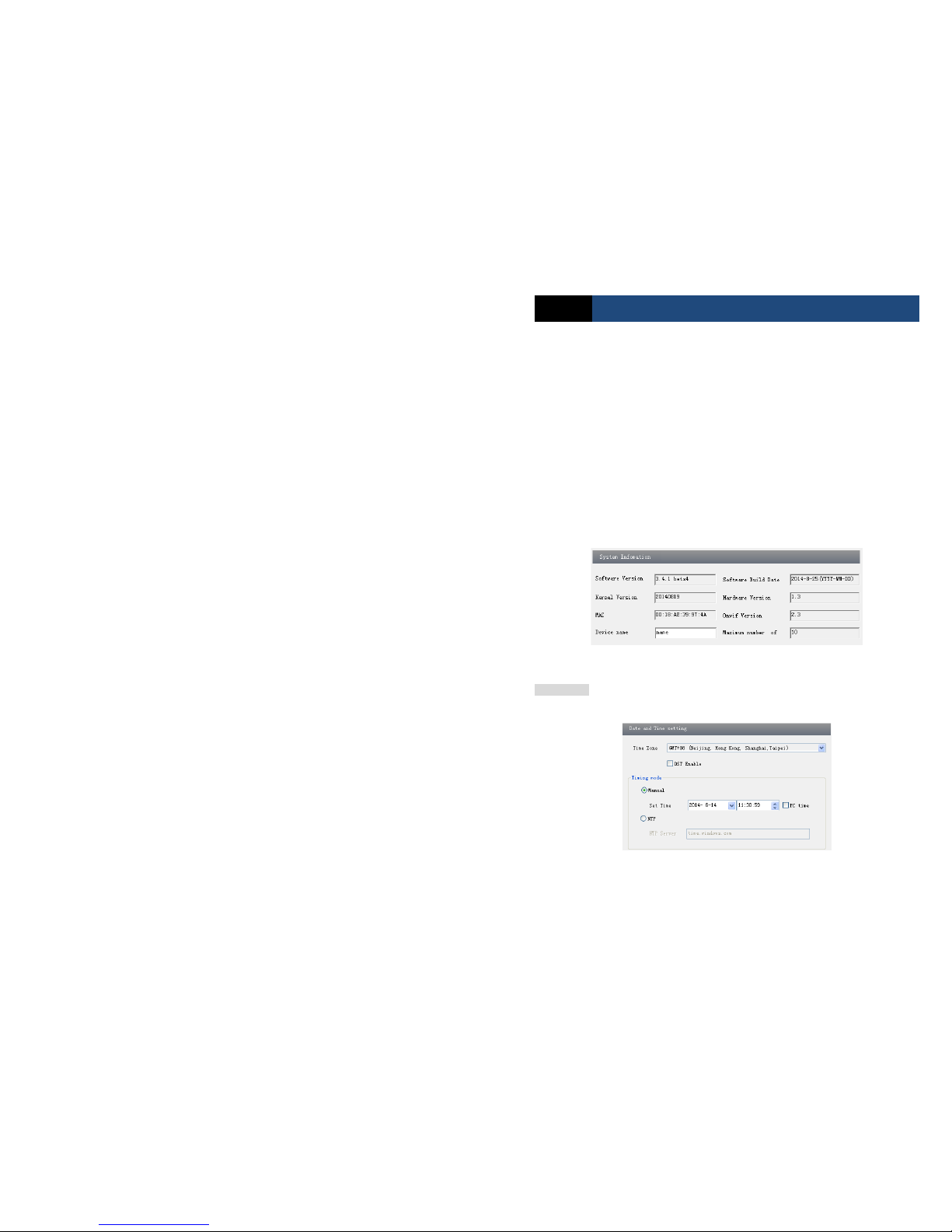

4 Remote Live Surveillance
Functions of remote configurations include: System Configuration, Video Configuration,
Alarm Configuration, Network Configuration and Advanced Configuration. User should firstly
select the menu on the left, and then set the relative parameters. When a user set the parameters
of a certain device, other users can not set this device.
4.1 System Configuration
The “System configuration” includes three submenus: Basic Information, Date & Time and SD
card.
4.1.1 Basic Information
Go to ConfigBasic information menu as shown below. In the basic information interface,
user can set up the device name and check the relative information of the server.
4.1.2 Date & Time Configuration
Setting steps:
1. Go to “System Configuration” “Date & Time”.
2. Set time zone.
3. Enable DST mode as required.
4. Set time. You may set time manually or enable NTP.
Page 10
Economy IP Camera User Manual
4.1.3 SD Card (Availability Depends on Model)
1. Go to “System Configuration” “SD Card” as shown below:
The first time you used the SD card, you should click “Format SD card”.
Click “Eject card” to stop writing data to SD card. Then the SD card can be ejected safely.
4.2 Video Configuration
Camera Configuration includes five submenus: Camera Configuration, Video Stream, OSD
Config, Video Mask and ROI Config.
4.2.1 Camera Configuration
Setting steps:
1. Go to “Video Configuration” “Camera” interface as shown below.
2. You may adjust frequency, brightness, contrast, hue and saturation of the picture.
Note: Using of SD card function should be coordinated with motion alarm.
When alarm is triggered, the system will automatically snap picture a nd save the
picture into SD card.
Page 11
Economy IP Camera User Manual
3. Select white balance mode.
4. Wide dynamic, sharpen and denoise are adjustable.
5. You can also set day-night mode and enable the image mirror and image overturn function.
6. Press the “Save” button to save the settings.
4.2.2 Video Stream
Go to “Video configuration” “Video Stream” to see an interface as shown below.
Three video streams can be adjustable.
Resolution: The higher the resolution is, the clearer the image is.
Frame rate: The higher the frame rate is, the more fluency the video is. However, more storage
room will be taken up.
Bitrate type: Including CBR and VBR. CBR means that no matter how changeable the video
resources are, the compression bitrate keeps constant. This will not only facilitate the image
quality better in a constant bitrate but also help to calculate the capacity of the recording. VBR
means that the compression bitrate can be adjustable according to the change of the video
resources. This will help to optimize the network bandwidth.
Video Quality: When VBR is selected, you need to choose image quality. The higher the image
quality you choose, the more bitrate will be required.
Bitrate: Please choose it according to the actual network situation.
I Frame interval: It is recommended to use the default value. If the value is over high, the
read speed of the group of pictures will be slow resulting in the quality loss of the video.
Video encoding profile: Baseline, main and high profile are optional. Baseline profile is
mainly used in interactive application with low complexity and delay. Main/high profile is
mainly used for higher coding requirement.
Alarm picture size: Please select it according to the actual situation.
Video encode slice split: If enabled, you may get more fluency image even though using the
low-performance PC.
4.2.3 OSD Configuration
Go to “Video Config” “OSD Config” menu to display the interface as shown below.
You may set time stamp, device name and custom OSD here. Drag the time stamp and custom
OSD to set their position. Then press the “Save” button to save the settings.
Page 12
Economy IP Camera User Manual
4.2.4 Video Mask
You can set 4 mask areas at most.
To set up video mask
1. Enable video mask and select mask color.
2. Click “Draw” button and then drag the mouse to draw the video mask area.
3. Click “Save” button to save the settings.
4. Return to the live to see the following picture.
Page 13
Economy IP Camera User Manual
Clear the video mask:
Go to video mask menu and then click “Clear” button to delete the current video mask area.
4.2.5 ROI Configuration
To set up ROI
1. Go to ConfigROI Config menu.
2. Check “Enable” and then click “Draw” button.
3. Drag the mouse to set the ROI area.
4. Set the level.
5. Click “Save” button to save the settings.
Now, you will see the selected ROI area is clearer than other areas especially in low bitrate
condition.
Page 14
Economy IP Camera User Manual
4.3 Alarm Configuration
Alarm configuration includes three submenus: Motion Detection Area, Motion Detection
Trigger and Motion Detection Schedule.
4.3.1 Motion Detection Area
1. Go to “Alarm configuration” “Motion Detection Area” to see an interface as shown below.
2. Move the “Sensitivity” scroll bar to set up the motion trace sensitivity.
3. Check “Add”, press the “Ctrl” button and move mouse to select the motion detection area;
Select “Erase” and move the mouse to clear all motion detection area.
4. Press the “Save” button to save the settings.
4.3.2 Motion Detection Trigger
1. Go to “Alarm Configuration” “Motion Detection Trigger” to display an interface as shown
below.
Page 15
Economy IP Camera User Manual
2. Check “Enable alarm” check box. Then motion based alarm is activated.
3. Set alarm holding time.
4. Set alarm trigger options.
Trigger Snap: If selected, the system will snap images on an alarm and save them in SD card.
Trigger Email: If the email and attach picture checkbox is checked (Email address shall be set
first in the Mail config interface), the triggered snap pictures and event will be sent into those
address.
Trigger FTP: If “Uploading picture” is checked, the triggered snap pictures will be sent into
FTP server address. Please refer to FTP configuration chapter for more details.
5. Press the “Save” button to save the settings.
4.3.3 Motion Detection Schedule
Go to “Alarm configuration” “Motion Detection schedule” interface as shown below.
Week schedule
User could set the alarm time from Monday to Sunday for alarm everyday in one week.
Note: The lengthwise means one day of a week; the rank means 24 hours of a day. Click on the
pane to set the alarm hours. Green means selected area. Blank means unselected area.
Add: Add the schedule for a special day.
Erase: Delete holiday schedule.
Day schedule
User could set alarm time for alarm at a certain time of special day, such as holiday.
1. Select a date at the “Date” pull down list, press “Add” button to add that date to the list box
on the right side and then move the scroll bar to set the schedule of that day.
2. Select a date in the list box on the right side, and press “Erase” to remove the schedule on
that day.
Press the “Save” button to save the settings.
Note: Holiday schedule is prior to Week schedule.
Page 16
Economy IP Camera User Manual
4.4 Network Configuration
Network configuration includes eight submenus: Port, Wired, Server Configuration, IP Notify,
DDNS Config, RTSP, UPnP, Mail Setting and FTP.
4.4.1 Port
1. Go to “Network config” “Port” to see the interface as shown below.
2. Input port number for IE access in the “HTTP Port” textbox.
3. Input the port number for audio & video transmission in the “Data Port” textbox.
4.4.2 Wired
1. Go to “Network Configuration” “Wired” to see a tab shown below.
2. There are two options for IP setup: obtain an IP address auto by DHCP protocol and use the
following IP address. You may choose one of options as required.
3. Use the following IP address: display the IP address, subnet mask, gateway and DNS of the
device.
Page 17
Economy IP Camera User Manual
4. PPPoE: User needs to manual input the user name and password for dial-up internet.
Firstly, log in IE clients and then enter user name and password of PPPoE, save the setting and
exit. Secondly, set up IP address change notice. Thirdly, connect with Modem. Then the device
will dial up internet automatically.
5. Press the “Save” button to save the settings.
4.4.3 Server Configuration
Go to “Network Configuration” “Server Config”.
1. Check “Do you want IP Camera to connect Server”.
2. Check the IP address and port of the transfer media server in the CMS/NVMS. Then enable
the auto report in the CMS/NVMS when adding a new device. Next, self-define the device ID
and input the remaining information of the device in the CMS/NVMS.
3. Input the above-mentioned server IP, server port and device ID in the relevant boxes.
4. Click “Save” button to save the settings.
4.4.4 IP Notify
1. Go to “Network Configuration” “IP Notify” to see a tab as shown below.
2. If the “Enable notifying change of IP” is selected, when the IP address of the device is
changed, a new IP address will be sent to the appointed mailbox automatically; If “FTP” is
selected, when the IP address of the device is changed, a new IP address will be sent to FTP
Page 18
Economy IP Camera User Manual
server.
4.4.5 DDNS Configuration
1. Domain name Registration （http://provision-isr-dns.com）
Note: DDNS is used to register for a hostname with
DDNS username and password.
Provision ISR now allows you to use our mint DDNS server in order to
create a virtual address for your DVR/NVR/IP-Camera on the internet.
Each account is limited to 35 different addresses using your preferred
domain name address instead of using IP addresses. Follow the steps
below to register your DVR's name and to configure your DVR to use
Provision ISR's Mint DDNS server.
(a) To register a domain with Provision-ISR DDNS server follow these steps:
1) Visit our website:
http://provision-isr-dns.com
and register for a domain name
by clicking "Registration"
2) Fill in the registration form, then click
"Submit"
3) Fill in the host name you want to apply for
and press "Request Domain" (for example
"home")
Page 19
Economy IP Camera User Manual
4) If there is no problem with the domain registration you will see the following
message: “Your domain was successfully created.”
If you do not see this message, the domain name you requested is already in use and you
will be requested to provide an alternate domain name (please note: domain name is
sometimes called host name).
You can create up to 35
domain records under a
single account
5) The domain name is
added at the beginning
of your DVR's address, for example the domain "home" will appear as
home.provision-isr-dns.com.

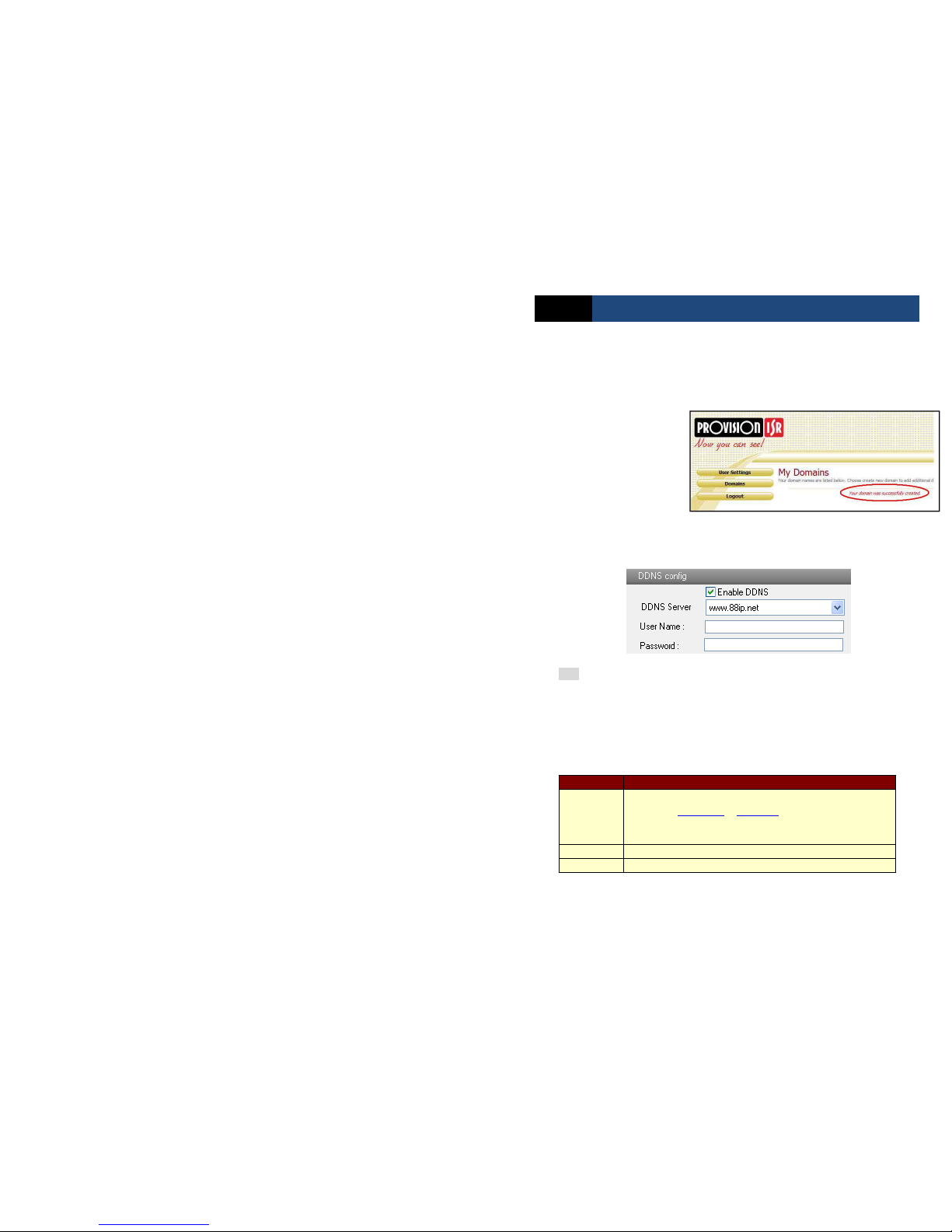

1. Enter into "Network Configuration""DDNS Configuration" tab as below:
Note: The steps to band a domain name for video surveillance server are as follows.
Firstly, register a user name and a password to log on the website of service supplier, and
then apply for a domain name online for the server. After that, users can visit the server
through inputting the domain name at IE terminal.
2. Press the "Save" button to save the settings.
Please refer to the following table for parameters and instructions of DDNS configuration.
Parameter Meaning
DDNS server
Address of the website which provided by domain name supplier. The
optional: www.dns2p.net ， www.88ip.net ，www.meibu.com ，
www.dyndns.com，www.no-ip.com，www.3322.org and mintdns
type.
User name
Log in the website of domain name supplier
Password
Log in the website of domain name supplier
1. Apply the Domain Name (Take dns2p for example)
(1) Register in the Web
Page 20
Economy IP Camera User Manual
Register dialog box
Step 1: Fill in the blank of IE address with ‘www.dns2p.com’.
Step 2: Click to enter the website.
Step 3: Click "New User" in the right of homepage to register. For example: User ID is ‘abc’,
and password is ‘123456’. The register dialog display as above.
(2) Login
Step 1: Return to homepage after registering successfully.
Step 2: Click "Account Manager" on the right of homepage to login.
Step 3: Input the username and password with the information that you have registered.
Step 4: Click "Enter" key after filling in the textbox.
Log in
(3) Domain Setup
Step 1: Click "Domain Management" on the left to set the domain.
Domain setup
Step 2: Input the domain in the textbox. For example, you set ‘IP-CAMERA’ as the domain.
Step 3: Click "Submit" button, the system will pop up a dialog box to show that the domain is
added successfully.
Note: Time of probationary period is one month. If user wants to use it continuatively
Page 21
Economy IP Camera User Manual
after one month, please Step 4: click "Buy Now" in the right of homepage to pay for it.
2. Setup in the IP-CAMERA
⑴ DOMAIN
Domain is set in ‘1. Apply the Domain Name’. According to the example above, the
domain is ‘WWW. IP-CAMERA.dns2p.com’.
⑵ USER ID
Username of registered which is set in ‘(1) Register in the Web’. According to the
example above, user ID is ‘abc’.
⑶ PAS S WO R D
Password is set in ‘(1) Register in the Web’. According to the example above, password
is ‘123456’.
Note: If the connection fails, press the "INFO" button. Now the system will display:
‘DDNS NONE’. Then you need to check network and information above and try again.
3. Application
Connect IP-CAMERA to the Network Client.
Step 1: After popping up the login interface, fill in "Server" textbox with ‘*.dns2p.com’ to
visit the Network Client of the IP-CAMERA. The domain set in ‘(3
) Domain Setup’.
According to the example above, fill in "Server" textbox with ‘IP-CAMERA.dns2p.com’.
Step 2: Click "save" button to save the above setting.
4.4.6 RTSP

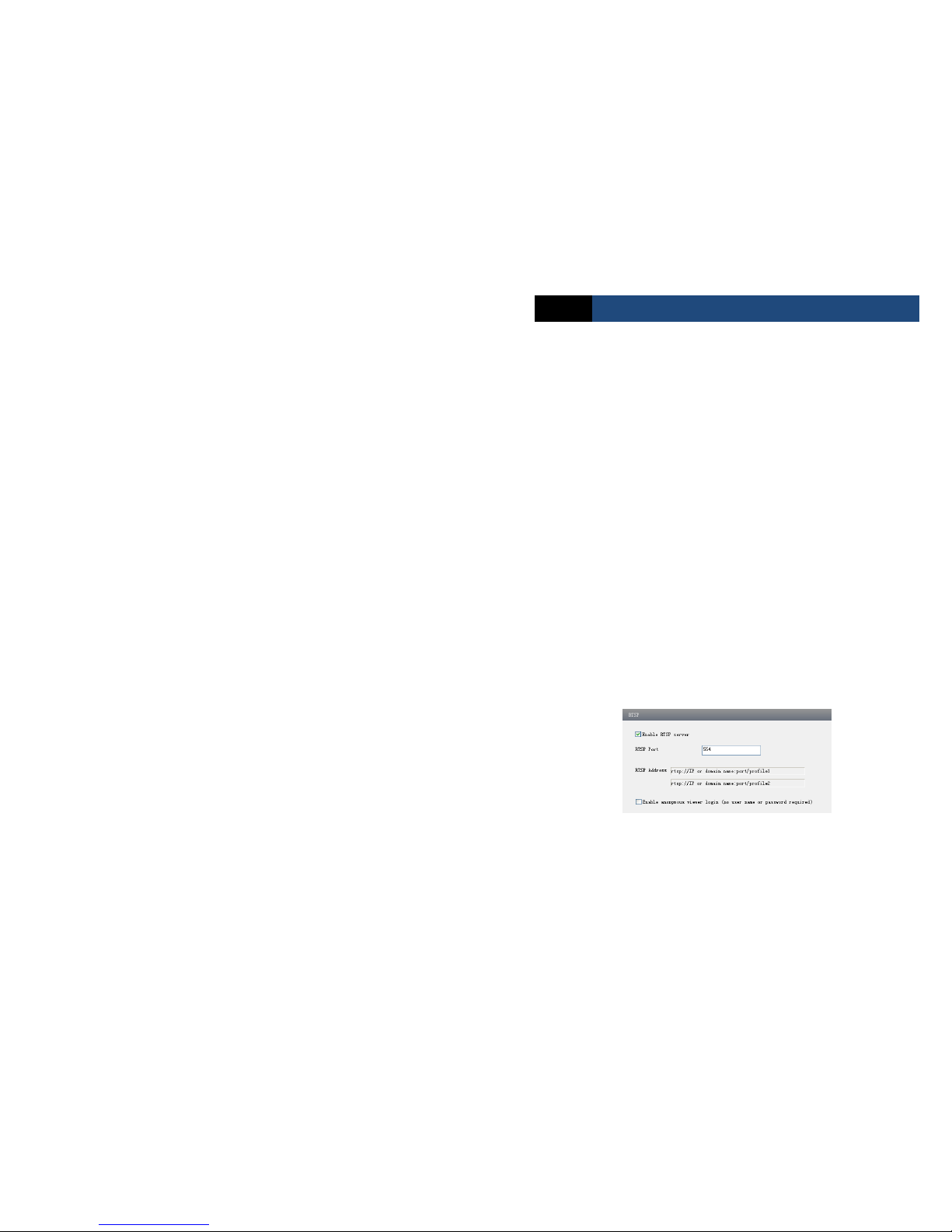

Go to “Network Configuration” “RTSP” interface as shown below.
1. Select “Enable RTSP server”.
2. RTSP Port: Access Port of the streaming media. The default number is 554.
3. RTSP Address: The RTSP address you need to input in the media player.
4. You can also choose to enable anonymous viewer login.
Page 22
Economy IP Camera User Manual
4.4.7 UPnP
Go to “Network Configuration” “UPnP” interface as shown below.
Select “Enable UPnP” and then input friendly name.
Then double click “Network” icon on the desktop of the PC to see an icon with the friendly
name and IP address of the camera. You may quickly access the device by double clicking this
icon.
4.4.8 Mail Setting
Go to “Network Configuration” “Mail Setting” interface.
1. From Email: Sender’s e-mail address.
2. User name and password: Sender’s user name and password.
3. Server address: SMTP name of sender.
4. Select the secure connection type at the Secure Connection pull down list according to user’
actual needs.
5. Receival email address list: Add email address into the list.
6. Receival email address: Receiver’s e-mail address.
7. After all parameters set up, you can click “Test your account settings”. If email sent
successful, a “Test Successful” window will pop up, if not, users can try other email addresses
or check the setting.
Notice: If you change the static IP into PPPoE and select mailbox, there will be an e-mail sent
to your mail box for notifying a new IP address.
Page 23
Economy IP Camera User Manual
4.4.9 FTP
Go to Network ConfigurationFTP interface as shown below.
1. Add: Click Add button to input FTP server’s server name, address, port number, user name,
password, and upload path, click OK to confirm the setting.
2. Modify: Click this button to change some information of the FTP server.
3. Delete: Select s certain FTP account and click this button to delete this account.
4. Test: Select a certain FTP account and click this button to test its valid or not.
Please refer to the following table for parameters and instructions of FTP configuration.
4.5 Advanced Configuration
Advanced configuration includes four submenus: User Configuration, Security Configuration,
Configure Backup & Restore, Reboot and Upgrade.
4.5.1 User Configuration
Go to “User Configuration” interface.
Add user:
1. Clicking “Add” button pops up “Add User” dialog box.
Parameter Meaning
Server name
The name of the FTP server
Server address
The address of the FTP server
Port
The port number of the FTP server
User name
The user name of the FTP server
Password
The password of the FTP server
Path
The save path for FTP files
Page 24
Economy IP Camera User Manual
User Configuration Add User
Note: After binding physical address to the IP-CAM, you can access the device on this PC in
network only. If the MAC address is “00:00:00:00:00:00” which means it can be connected to
any computers.
2. Input user name in “User Name” textbox (only letters).
3. Input characters in “Password” and “Confirm Password” textbox (letters or numbers).
4. Input the MAC address of the PC in “Binding MAC address” textbox.
5. Click “OK” button and then the new added user will display in the user list.
Modify user:
1. Select the user which needs to modify password and physical address in the user
configuration list box.

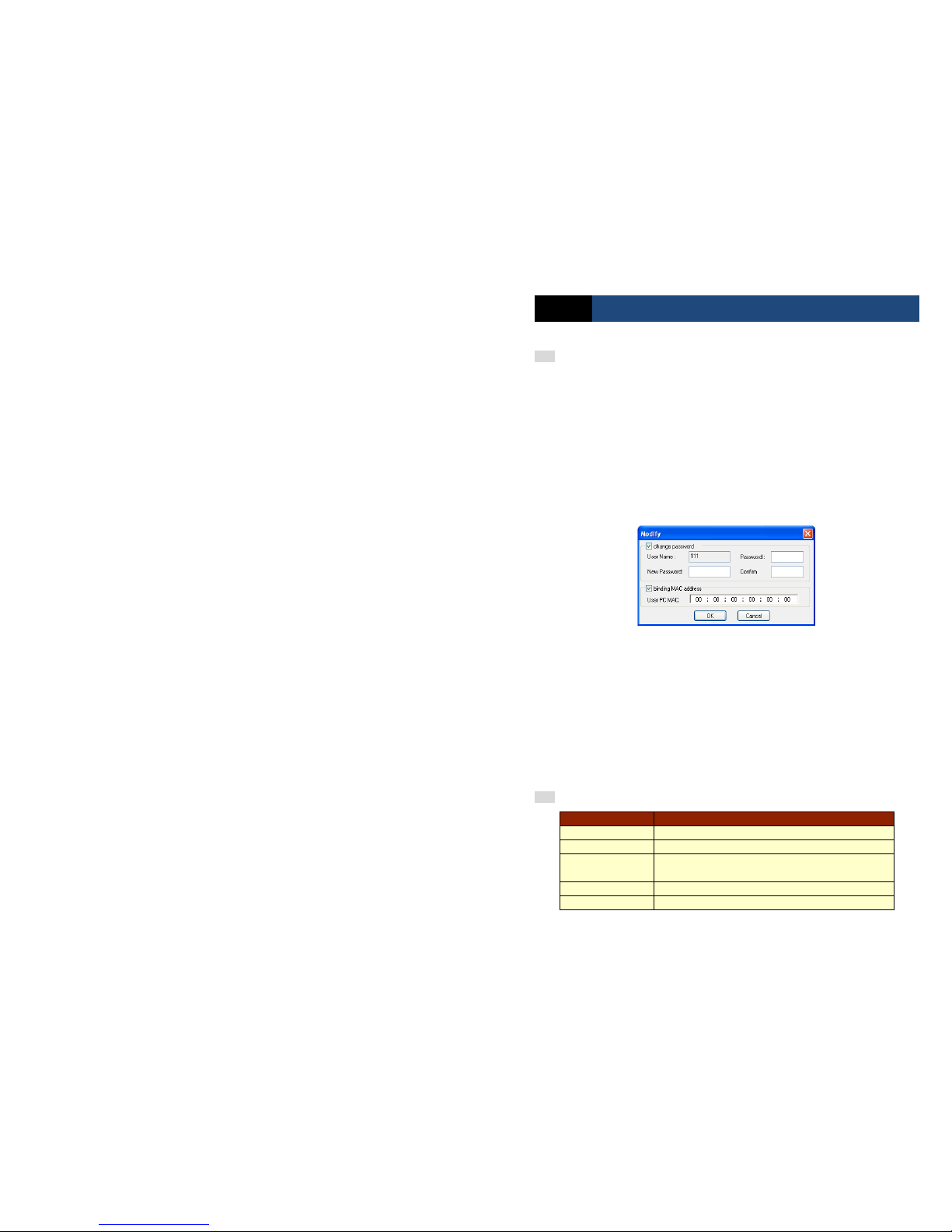

2. Clicking “Modify” button will pop up “Modify user” dialog box as shown below.
Modify User
3. Input original password of this user in the “Password” text box.
4. Input new password in the “New password” and “Confirmation” text box.
5. Input computer’s physical address which is used to access the server in the “User PC MAC”
text box.
6. Click “OK” button to modify password and binding MAC address successfully.
Delete user:
1. Select the user which needs to delete in the user configuration list box.
2. Clicking “Delete” button will pop up a confirm dialog box. Then click “OK” to delete the
user.
Note: The default super administrator cannot be deleted.
Parameter Meaning
User Name User name to operate the logon client end
User Type Type of users, normal user, advanced user and super administrator
Binding MAC address
The MAC addresses of user access the server which should set up
according to actual MAC address of server.
Password Password to log in the client terminal
Confirm Password Password to log in the client terminal
Page 25
Economy IP Camera User Manual
4.5.2 Security Configuration
1. Go to Advanced ConfigurationSecurity Configuration to see a tab shown below.
2. Check “Enable IP address” check box, select “Deny the following IP address”, input IP
address in the IP address list box and click “Add” button. Then this IP address will display in
the list box; the operation step of “Allow the following IP address” is the same with “Deny the
following IP address”.
3. Select the IP address which needs to be deleted from the IP address list box and click “Delete”
button to delete that IP address.
4. Check “Enable MAC address” check box, select “Deny the following IP address”, input
MAC address in the MAC address list box and click “Add” button. Then this MAC address will
display in the list box; the operation step of “Allow the following MAC address” is the same
with “Deny the following IP address”.
5. Select the MAC address which needs to be deleted from the MAC address list box and click
“Delete” button to delete that MAC address.
6. Click “Save” button to save the above setting.
4.5.3 Configure Backup & Restore
Go to Advanced configurationConfigure Backup & Restore Interface.
Import & Export Configuration:
You can import or export the setting information from PC or to device.
1. Click “Browse” to select save path for import or export information on PC.
2. You can import or export all setting information to PC, but those two settings “User
Configuration” and “Network Configuration” are exceptional.
Page 26
Economy IP Camera User Manual
Default Configuration
Click “Load default” button to restore all system settings to the default status.
4.5.4 Reboot Device
Go to Advanced configuration—Reboot device to see an interface as shown below.
Click “Reboot device” button to reboot the device.
4.5.5 Upgrade

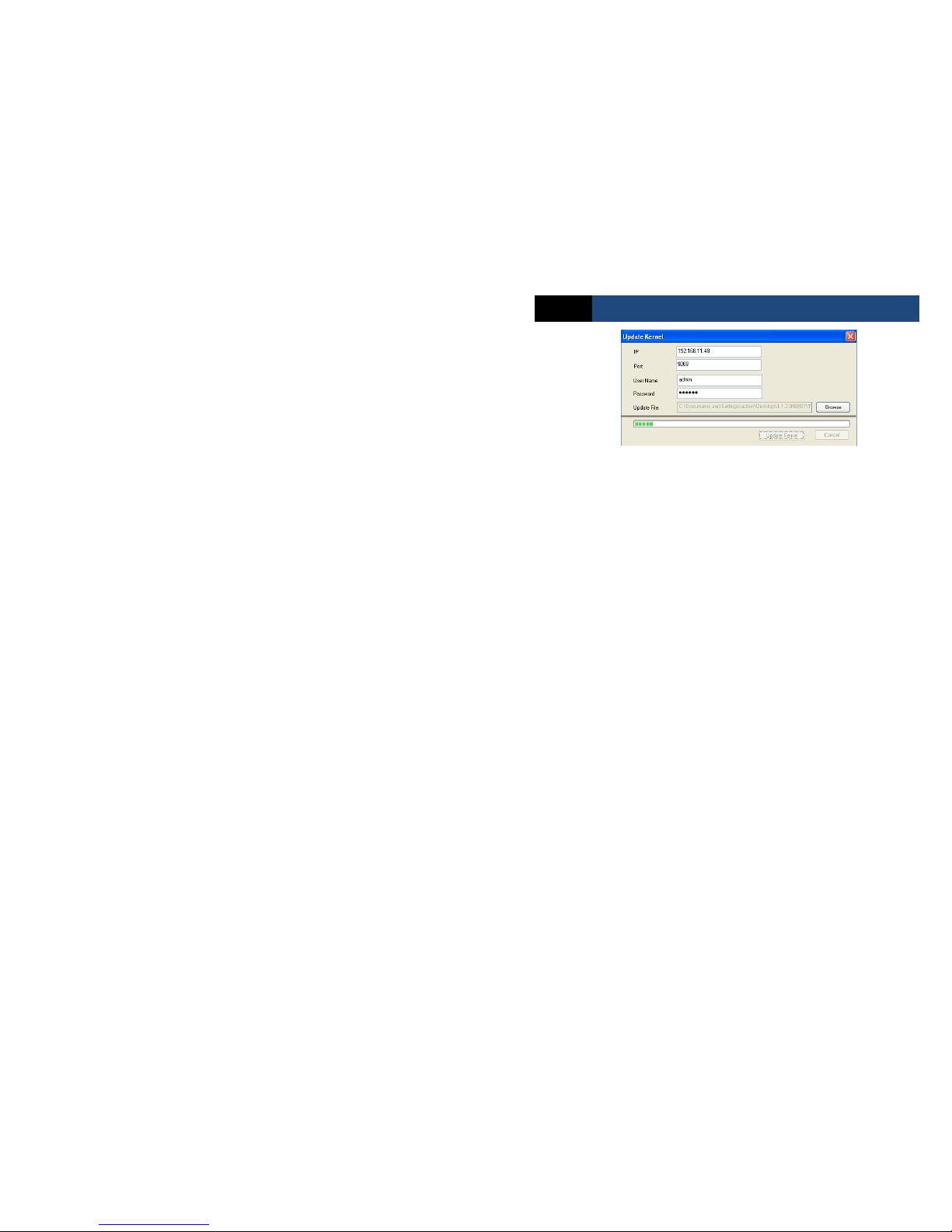

Go to Advanced Configuration—Upgrade interface as shown below.
1. Click “Browse” button to select the save path of the upgrade file.
2. Click “Upgrade server firmware” button to start upgrading the application program.
3. The device will restart automatically. After you successfully update the software, click “OK”
button to close IE and then re-open IE to connect IP-CAM.
Notice: You can’t disconnect to PC or close the IP-CAM during upgrade.
Page 27
Economy IP Camera User Manual
6 Mobile Surveillance
This IP-CAM supports mobile surveillance by phones with Windows mobile, iPhone,
Android and Blackberry OS. Please check the operation system version of mobile before
use; and connect the IP-CAM to Internet.
6.1 Network Configuration
Access device via LAN
Step 1: Connect device via wireless router. Then checkmark DHCP both in router and
device to automatically acquire IP address or enter the IP address manually.
Step 2: Use WIFI function in your mobile phone to connect the wireless router.
Note: Make sure your phone network and device network are in the same network
segment on LAN.
Step 3: Add the IP address and port in the mobile phone surveillance client.
Access device via 3G network
Step 1: Set the device network. Please enter Main MenuSetupNetwork tab.
If you use PPPoE to connect device, please enable PPPoE and input username and
password received from you ISP in network tab. Then click “Apply”. You can enter Main
MenuInformationNetwork tab to see the IP address. If you want to utilize dynamic
domain name, please apply for a domain name in a DNS server supported by the device.
If you have a static WAN IP address, please enter Main MenuSetupNetwork tab
to input your IP address, gateway and port.
If you use LAN IP address, please enter Main MenuSetupNetwork tab to input
your IP address, gateway and port and then forward IP address and port number in virtual
server setup of the router or virtual server(If you has enabled the UPnP function in both
the device and router, you can skip this step). Port forwarding setting may be different in
different routers and servers. Please refer to the router’s manual for details. After you
forward your LAN IP address and port, please check the WAN IP address in the router or
server.
Step 2: Add the WAN IP address or domain
name in mobile phone surveillance client.
6.2 By Phones with iPhone OS
Install through Iphone.
Step 1: Open App Store software as shown in the
figure on the left.
Page 28
Economy IP Camera User Manual

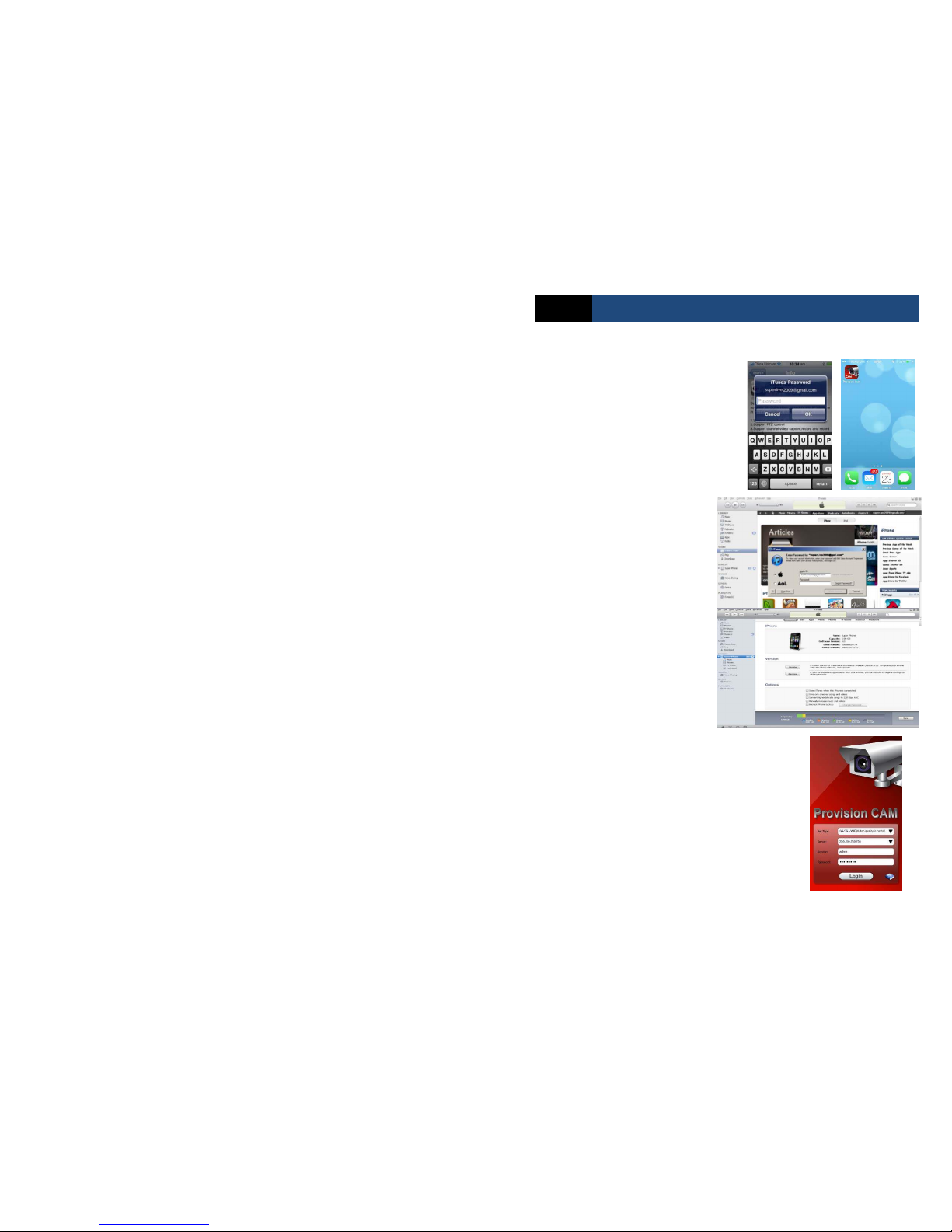

Step2: Search “Provision Cam” and click “Free” button as shown in the figure on the right.
Step 3: Click “Install App” button as shown in
the figure on the left.
Step 4: Input iTunes Store password and then
click “OK”. The software will be installed
automatically.
Install Software through PC
Step 1: Install iTunes store in PC
and then login.
Step 2: Connect iPhone and PC.
Step 3: Search and select “Provision
Cam”.
Step 4: Click “Download” button.
Step 5: Input username and password.
Step 6: Synchronously apply "Provision
Cam" software to iPhone/iPad.
"Provision Cam" Instruction
1. Login
Step 1: Choose network type. There are two network
connection ways: 3G/3G +WIFI, enhanced video quality.
This network supports main stream and sub stream. The
real-time image will be displayed by using sub stream.
3G, normal video quality compared to the former network
type.
Step 2: Input server, account and password.
Page 29
Economy IP Camera User Manual
Server: WAN IP address (or domain name) plus HTTP port of the device. For example:
210.21.183:89 or 123.dvrdydns.com:89.
Note: The default http port of the device is 80. If modified, use the modified port.
Account and Password: The login account and password of the device. The default
account is admin and the default password is 123456.
Step 3: Click【Login】button to access the device.
2. Main Interface
There are many buttons in the main interface, such as,
screen mode, favorite channel, snap, record,
open/close audio, talk, PTZ., etc.
：Image view button. The pictures snapped in
the live will be checked by clicking this button.
：Playback button. Click this button to enter
into playback interface.
：Settings button. Click this button to set local
configuration (Some can also support remote configuration).

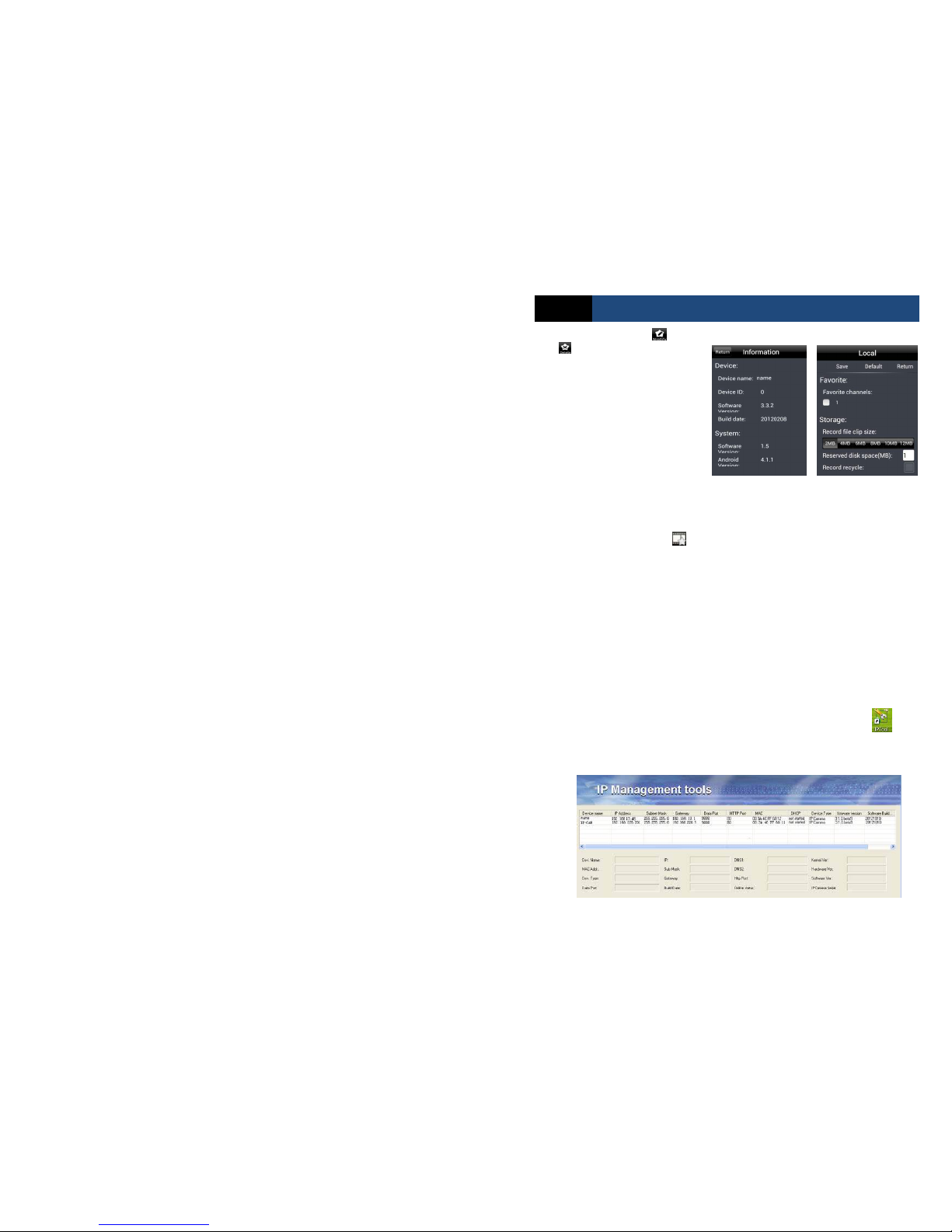

：Information button. Click this button to check lots of information including local
information, device information, network information, etc.
：Server list button. Click this button to add server list.
：Help button. Help you know about the use of this software quickly.
：CMS button. Make you preview the live image of multi-devices.
：Log off button. Click this button to return to the login interface.
：Screen mode button. You can choose 1，4，6，8，
9，13 or 16 screen display mode.
：Favorite channel display button. If you save your favorite channel in the favorite
server list, clicking this button will directly play all favorite channels you have saved.
：Snap button. Choose the channel and click this button to capture the channel
image.
：Local record button. Choose the channel and click this button to start recording.
： Open/Close audio. Choose the channel and click this button to open/close the
Page 30
Economy IP Camera User Manual
audio of this channel.
：Open/Close talk. Click this button to pop up the servers which support talk
function. Select the device to start talking.
：Set video parameter button. Select the channel and click this button to set the
video parameters including brightness, hue, saturation and contrast.
：PTZ button. Click this button to pop up PTZ control panel.
：Choose bitrate priority or quality priority according to
your network condition.
Channel indicator instruction:
：Video loss ： Schedule recording ：Others
：Sensor alarm ：Motion alarm
：Motion /sensor alarm based recording or manual recording
3. Server list
Click button to pop
up the following picture.
Add device: Click
“Add” button in the top right
corner to pop up a dialog box as
shown in the following left
picture. Input the relative
information of the device and
click “Save” button.
Delete device: Click
button behind the device name to delete this device.
Edit device: Click button behind the device name to edit the information of this device.
Backup & restore: It is recommended to click “Backup” button to reserve the
information of all devices. Then you can click “Restore” button to restore all device
information after you re-install the client or delete the device uncarefully.
indicates the device has been connected;
indicates the device is connecting;
indicates the device is not connected.
4. Live Preview
Once you access the device, the system will automatically display the screen mode in
Page 31
Economy IP Camera User Manual
accordance with the channel number of the device
Note: The maximum number of channels which can be connected are nine after
login.
1. Click “Screen mode” button to select channel as shown in Fig 1.
2. When there is video playing in a screen, you can switch the channel by long
pressing the screen as shown in Fig 2.
3. When no video is playing in a screen, click this screen to choose channel as
shown in Fig 3.
4. When the single channel is playing, you can zoom in/out the image by swiping
you finger up and down as shown in Fig 4.
5. When the single channel is playing, the channel can be switched by swiping
your finger left or right as shown in Fig 5.
6. When multi channels are playing, drag one channel screen to the other channel
screen. This will make these two channels change the position of each other.
Fig 1
Fig 2 Fig 3
Page 32
Economy IP Camera User Manual
Fig 4 Fig 5
5. CMS Function
This function makes multi-device managements and
preview come true.
Step 1: Click to enable CMS function. When this
icon turns green, it means this function is enabled.
Step 2: Click to choose channel as shown in the
right picture. After you choose the channel, click “ok”, the
system will display the related image automatically.
If channels have been added into the group, you can see the
images by clicking the group name.
On viewing the group channel images, click button and
select channels to check other channel images.
Click “ Exit CMS” to exit C MS mode and r eturn to the mai n
interface of the device.
6. Favorite Channel/Group
There are two kinds of favorite channels: favorite
channels of the device and favorite group of CMS.
Favorite channels of the device
Step 1: Click to enter into device management list.
Click the device name to extend channel. Enlighten the
channels to save favorite channels as shown in the
following picture on the left.
Step 2: Return to the main interface and click
button to play the favorite channels.
Favorite groups of CMS
Page 33
Economy IP Camera User Manual
Enable CMS function and enlighten the group to save the favorite groups as shown in the
following picture on the right.
Then click button to play. Only one favorite group can be collected.
：Color means the channel or group has been collected. Grey means the channel
or group isn’t collected.
7. Playback Interface
Click “Playback” button to enter the playback interface.
Then click “Search” button to search the file. To play the
record by click this file name.
8. Image View
Click button to view the captured pictures.
9. Settings Interface
In this interface, you can configure the local settings.
10. Information Interface
In this interface, you can view system information.
7.3
By Phones with Android
Software Installation
Step 1: Run “Play Store” (or Google
market) program.
Step 2: Search “Provision Cam”.
Page 34
Economy IP Camera User Manual
Step 3: Press “Install” button.
Step 4: Install the software subject
to the notes. Once the downloading
is done, the software will install
automatically
Login Menu
Step 1: Configure the network of
your device and mobile phone.
Step 2: Input the WAN IP address/domain name and port of
your device in the sever column. The port should be HTTP port
of your device. The default http port of the device is 80. If you
have changed your http port, please enter the new port here. For example:
210.21.228.183:89 or 123.dvrdydns.com:89.
Step 3: Input the account and
password of your device. The
default account name is admin and
the default password is 123456.
Step 4: Check “Remember Server”
to save the setting. When you login
next time, you can click button
to select this server for quick access.
Main Menu Live View
PTZ
Snap
Record
Tal k
Enable/disable audio
Hide
Playing favorite channel
The first picture
The previous
Next picture
The last picture
Zoom in
Zoom out
Delete
Page 35
Economy IP Camera User Manual
Record Playback:
Click “Playback” in the main menu interface to enter playback interface. Then choose the
channel you want to playback. This will take you to see the record file. Click this file to
play.
Server List:
In the main menu interface, click “Server list” to see the
above picture on the left hand.
Add Server: Click button to pop up a window as shown
in the above picture on the right hand. Enter the name, server,
user and password of the device you want to add. Then click
“Save” button to save the server. When you log in next time,
you can choose and quickly access this server by clicking the
little triangle button in the server column.
Pause/Play
Stop
Forward
Backward
Page 36
Economy IP Camera User Manual
Modify Server: Click
button to modify the server information. Delete Server: Click
button to delete the server
information.
Settings:
In the main menu interface, click
“Settings” to enter the settings
interface where you can configure
local settings. Click “Local” to
enter local settings interface. In this
interface, you can set favorite
channel and storage.
Favorite Channel:
Check the favorite channels and click “Save” button to save these channels. Then go
into live interface and click button to play these favorite channels.
Storage: Setup the relevant parameters of mobile video.
Information View: view the DVR/NV R basic information a s shown in the picture o n the
right.
7 IP-Tool
Updating through IP-Tool
Note: Do not cut off power supply and internet when updating. If the device is unable
to start because of the failure of upgrade, it needs to retrofit.
Acquire the IP-Tool from the supplier and then double click the IP-Tool icon to run
this software. Then the device can be searched; if the device can’t be searched, please
check whether the PC and the device connect to the network or not.
Page 37
Economy IP Camera User Manual
Click the device to check its detail information as shown below:
When upgrading the software and kernel, the IP address of PC and device should be at
the same network segment. If the network segment is different, user should change the IP
address by right clicking the device and then select “network setup”. Modify IP address
dialog box will appear as follows:
Modify IP address and click OK button to exit the dialog box. After that, IP-Tool will
display the new IP address.
Upgrade Software
Select the device; right click “Update software”. Click “Update” to start upgrading，the
progress bar will display as below. When upgrading, please do not disconnect PC and the
device and make sure the power is on.
Page 38
Economy IP Camera User Manual
After finishing upgrading, a massage box will pop up as below:
Click OK button to exit the update dialog box, and then the device will restart
automatically. Select the device and right click it to select “Update kernel”. This will bring
up a dialog box as below:
Input the relevant information and click “Browse” button to choose your update file. After
that, click “Update Kernel” button to start updating. When upgrading, do not disconnect
PC to device and make sure the power is on. The update progress bar will display as
below:
Page 39
Economy IP Camera User Manual
After finishing upgrading, a message box will pop up. After a while, the device will restart
automatically.
Page 40
Economy IP Camera User Manual
8 Q & A
1. Q: How to find my password if I forget it?
A：Hold and press the default hole with spicula to reset.
Default IP: 192.168.226.201
User name: admin
Password: 123456
2. Q：Fail to connect devices through IE browser, why?
A: Network doesn’t connect well. Please check the connection and make sure it
connected well.
B: IP is not available. Reset the valid IP.
C: Web port number has been revised: contact administrator to get the correct port
number.
D: Exclude the above reasons. Recover default setting by long pressing the default hole.
Note: Default IP: 192.168.226.201，mask number: 255.255.255.0
3. Q：IP tool cannot search devices, why?
A：It may be caused by the anti-virus software in your computer. Please exit it and try
to search device again.
4. Q：IE cannot download ActiveX control. How can I do?
a. IE browser blocks ActiveX. Please do setup following below.
① Open IE browser. Click Tools-----Internet Options….
② Select Security------Custom Level….Refer to Fig 4-1
③ Enable all the sub options under “ActiveX controls and plug-ins”. Refer to Fig 4-2
Page 41
Economy IP Camera User Manual
Fig 4-1 Fig 4-2
④ then click ok to finish setup.
b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them.
5. Q：No sound can be heard, why?
A：Without connect audio input device. Please connect and try again.
B: Without enable audio function at the corresponding channel. Please check AUDIO
item to enable this function.
6. Q：Why doesn’t the device connect to wireless?
A: Check the statues of wireless router. Please make sure the router is open
B: Check the router and the device port. Please make the router setup is matched with
device port.
7. Q: How to do when the device is unable to start normally on upgrading?
If the device is unable to start normally when upgrading, please rename the files
suffixed with .tar as updatepack.tar and copy it to the root directory of SD card. Restart
the device and then the device will upgrade automatically from the SD card. After
finishing upgrading, the user can search the IP address of IP Cam in the IP Tool.
Loading...
