1080P Eco - 4 in 1 Series
USER MANUAL
1
Contents
1) CAUTIONS
2 ) Product Introduction
2.1 Camera Introduction
2.2 Product Features
3)
Menu Instruction
4) Product Installation
5) Technical Specification
4.1 General Notes
4.2 Installation Tools and Information
4.3 Installation Method
4.4 Connections
4.5 OSD Control
2 3
1 CAUTIONS
1. To reduce the risk of electric shock, do not open the
machine and maintain by yourself, please consult a
professional service person.
2. To prevent fire or shock hazard, use the power after
safety certification, the input voltage, current, voltage
polarity and operating temperature must meet the
requirements of this camera.
3. Please note the operating temperature and environmental requirements of the camera, avoid too low or too
high temperature. General operating temperature range
of -20°C ~ +50°C (Fahrenheit temperature is 14°F ~
122°F). Avoid flooding and rain, minimize dust and
moisture erosion, otherwise camera would be damaged.
4. Cameras in use should avoid direct sunlight, glare,
otherwise the sensor will be damaged.
5. Do not touch the sensor surface, if any foreign objects
exits, a cotton swab or lens paper can be used to wipe,
if it is difficult to remove, a neutral detergent diluted with
water would be useful. Do not use corrosive solution.
6. In order to make the camera work smoothly and
obtain asatisfactory image, the power cord and video
connection can not be too long, otherwise the increase
of line loss will lead to the inadequate magnitude of the
operating voltage of the camera or video signal
Inadequate.
7. In order to prevent the camera from falling, please
do not place the camera on an unstable bracket, base
or other unstable objects. Otherwise it will lead to
injury, at the same time, the camera will be damaged.
8. The camera cannot be placed near the radiator or
heating resistor.
4 5
2 Product Introduction
2.1 Camera Introduction
PROVISION-ISR’s new series of cameras are adopted
CMOS image sensor with high performance, which
provides mega pixel resolution and supports HD video.
Moreover, it supports monitoring signals coaxial
transmission. Transmission distance can reach more
than 300M based on 75-3 coaxial cable. The series
can support both AHD/CVBS 960H output as well as
realize high speed, long distance and real time video
transmission.
2.2 Product Features
● Coaxial cable with BNC connector
● Jumper Terminal
● Auto Day/Night (ICR)
● BLC
● 2D-DNR
● AHD/CVI/TVI/CVBS Signal Selectable
3 Menu Setup
AHD/TVI: Click on “Iris+” button from the DVR’s PTZ
interface to call the OSD Menu. Use the PTZ interface
to scroll through the menu and “Iris+” to confirm.
CVI: Click “
►” button from the DVR’s PTZ interface,
then click “ ” and press “Enter” to call the OSD Menu.
4 Product Installation
4.1 General Notes
1. Make sure the unit is powered off before installation.
2. Check if power supply voltage is consistent with
electric voltage to prevent damages to the device.
3. Do not use in environments exceeding temperature
limitations, and maintain good ventilation to prevent
risk of fire or electric shock.
4. The installation and maintenance of this product
should be professional, please do not in any way
remove or modify the equipment; only use the
6 7
required accessories from the manufacturers. Issues
caused by unauthorized repair are your responsibility.
4.2 Installation Tools and Information
Prepare the required engineering data and instructions.
Before installing please prepare the following tools and
instrumentation: A straight or a Phillips-head screwdriver,
multi-meter, scissors, needle nose pliers, tape measure,
pencil.

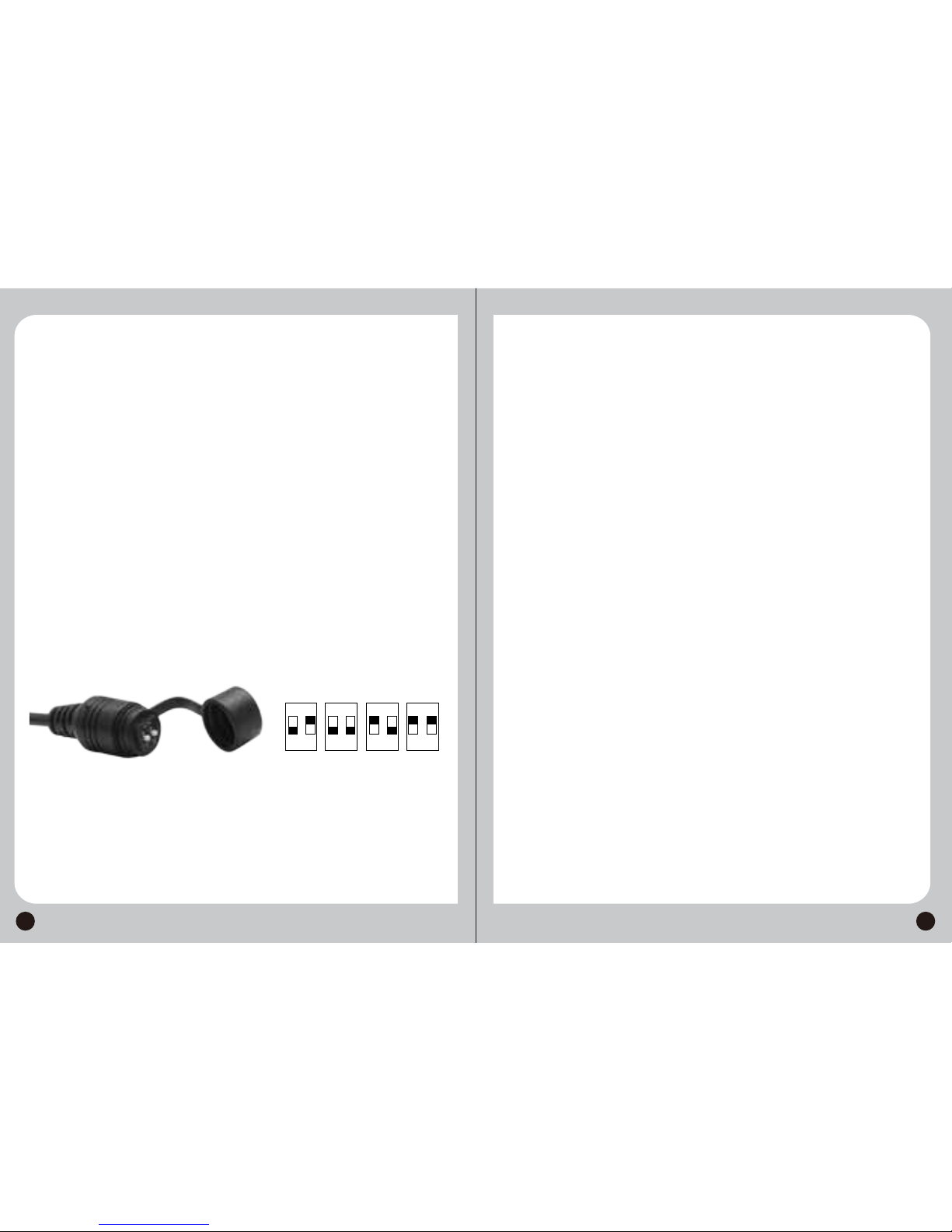

4.3 Setting the Video Output Type
The camera supports AHD/TVI/CVI/CBVS video output.
Choosing the output type is done by setting a DIP switch
on the cable as illustrated:
4.4 Installation Method
1. Check if all equipment is in tact.
2. Mounting bracket or base:
• If you are installing on a cement wall, use the
expansion screw holes and then mount the bracket or
base.
• If you are installing on a wooden wall, use the
self-tapping screws to mount
3. Mounting the camera
a. Dome Camera
Adjust the lens position to aim at the monitoring points
and present a clear picture. Manually fix lens location
and adjust the hemisphere cover. Re-examine the
screen whether the character meets your requirements.
Tighten the hemisphere cover.
b. Bullet Camera
Adjust the body so the lens aim at the monitoring points
and presents a clear picture. Tighten the screws to
ensure camera will not move.
Installation method above is for reference only.
Note:
The wall needs to bear at least 3 times the
weight of bracket and camera.
ON
1
HD CVI AnalogAHD HD TVI
2 1 21 2 1 2
ONON ON
8 9
4.4 Connection
Connection as shown in the figure below
4 OSD:
Main Menu Second Menu Third Menu
Brightness 1~20
Exposure Mode Globe
BLC
AWB
RGAIN 1~8
BGAIN 1~8
Auto
Color
B/W
Contrast 1~10
Sharpness 1~10
Color Gain 1~10
DNR 1~10
Format PAL/NTSC
Language
Reset
Save-Exit
Exit
English/Chinese
AE
WB
MWB
Day / Night
Video Se�ngs
4.6 OSD Control
The OSD control is available by CoC (Control over
Coax) only. If your AHD/TVI/CVI DVR supports this
function*, use the DVR’s PTZ interface to press on
“Iris+” or “ ” to open the OSD menu.
Navigate through the OSD menu using the PTZ
direction arrows.
* Notice: CoC function works no more than 200M by Rg59 coaxial cable
* All of Provision-ISR’s DVRs support CoC Starting from version 3.4.4
10 11
5 Specifications:
PRO-AHD camera (1080P)
DI-390AHDE36+ / DI-390AHDEVF+
I3-390AHDE36+ / I4-390AHDEVF+
Model
Image Sensor
Effective Pixels
Scanning System
Resolution
Min. Illumination
Day & Night
IR LED
OSD Menu
Backlight Compensation
S/N Ratio
White Balance
Noise Reduce
Video Output
Defog
Privacy Mask
Motion Detection
D-Effect
Lens
Power
Operation temp.
Dimension
Net Weight
DI-390AHDE36
15 LED (15m)
3.6mm
104*70.8*93.2mm
269g
DI-390AHDEVF
36 LED (25m)
2.8-12mm
129.5*90*119mm
476g
I3-390AHDE36
36 LED (25m)
3.6mm
206.5*67.6*68.5mm
380g
1/3" 2MP Sensor
1928(H)×1088(V)
Internal Sync
Digital:1920×1080P, Analog:960H
0.1Lux / (0Lux IR On)
EXT, Color, B&W
Available by CoC Only
On/Off
≥48dB (AGC Off)
Auto / Manual
2D-DNR
AHD / CVI / TVI / CVBS (Signal Selectable by DIP Switch)
Not Available
Not Available
Not Available
Not Available
DC12V±10%, ~280m ADC12V±10%, ~360mA DC12V±10%, ~360m ADC12V±10%, ~380mA
-20°C~+50°C (14°F~122°F)
I4-390AHDEVF
42 LED (35m)
2.8-12mm
286*77*85.6mm
836g
