Proview MH462su User Manual

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

1

English

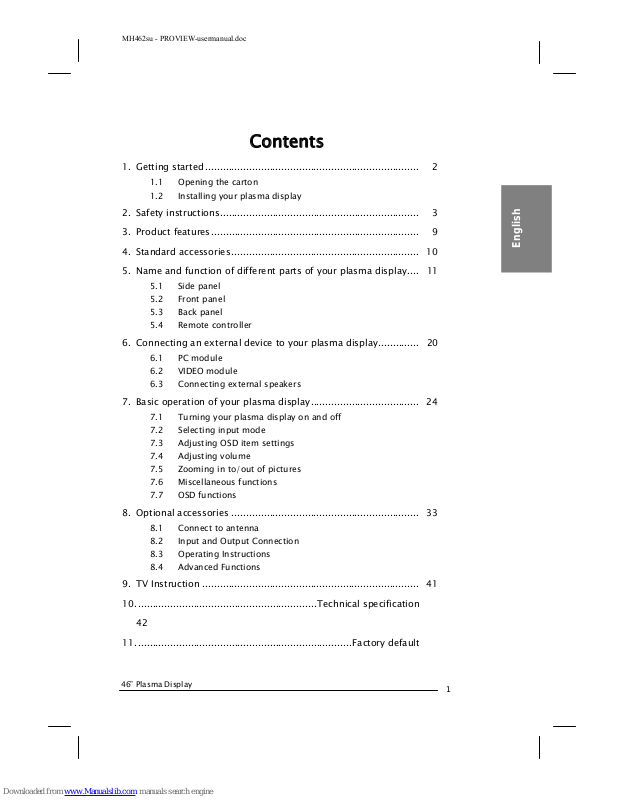

Contents

1. Getting started ......................................................................... 2

1.1 Opening the carton

1.2 Installing your plasma display

2. Safety instructions.................................................................... 3

3. Product features....................................................................... 9

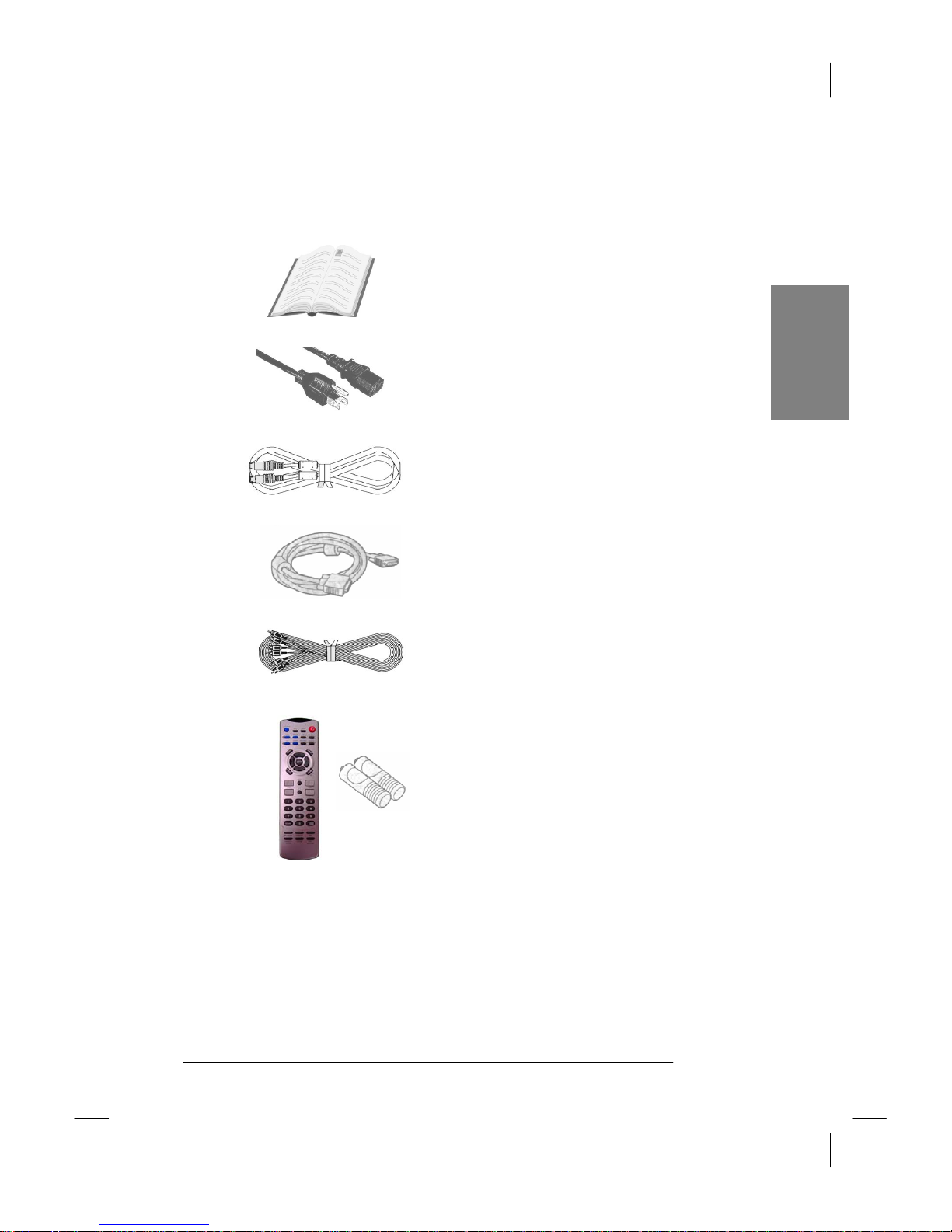

4. Standard accessories ................................................................ 10

5. Name and function of different parts of your plasma display.... 11

5.1 Side panel

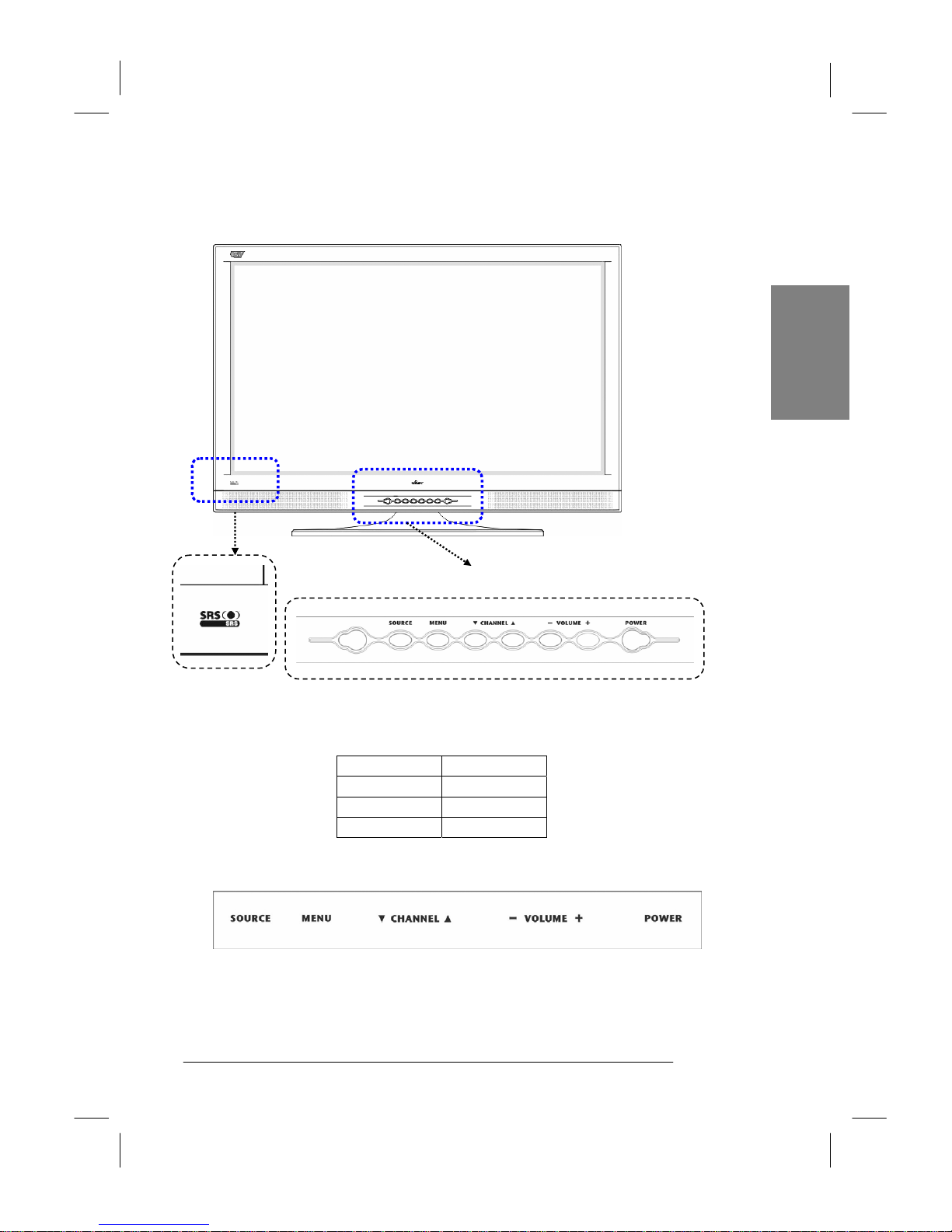

5.2 Front panel

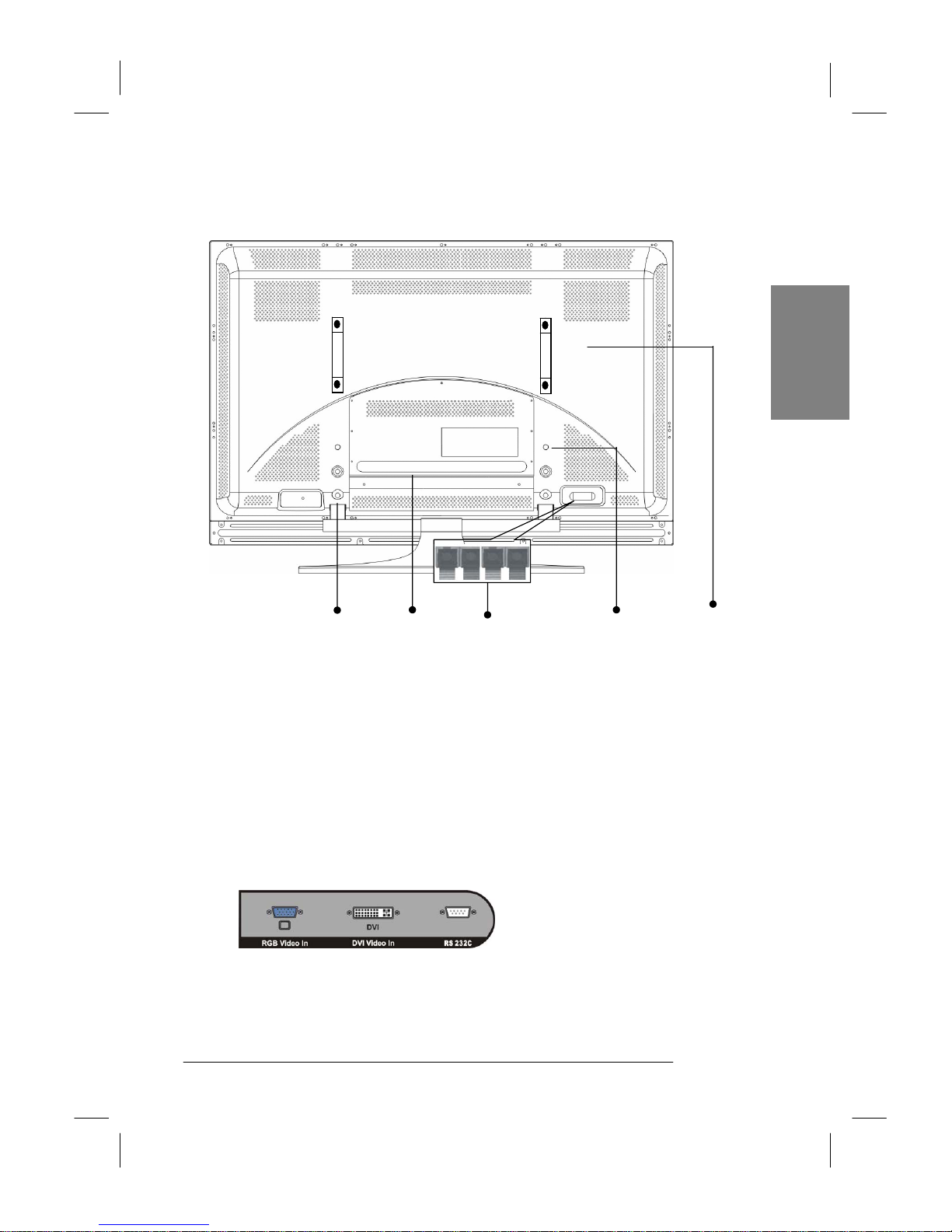

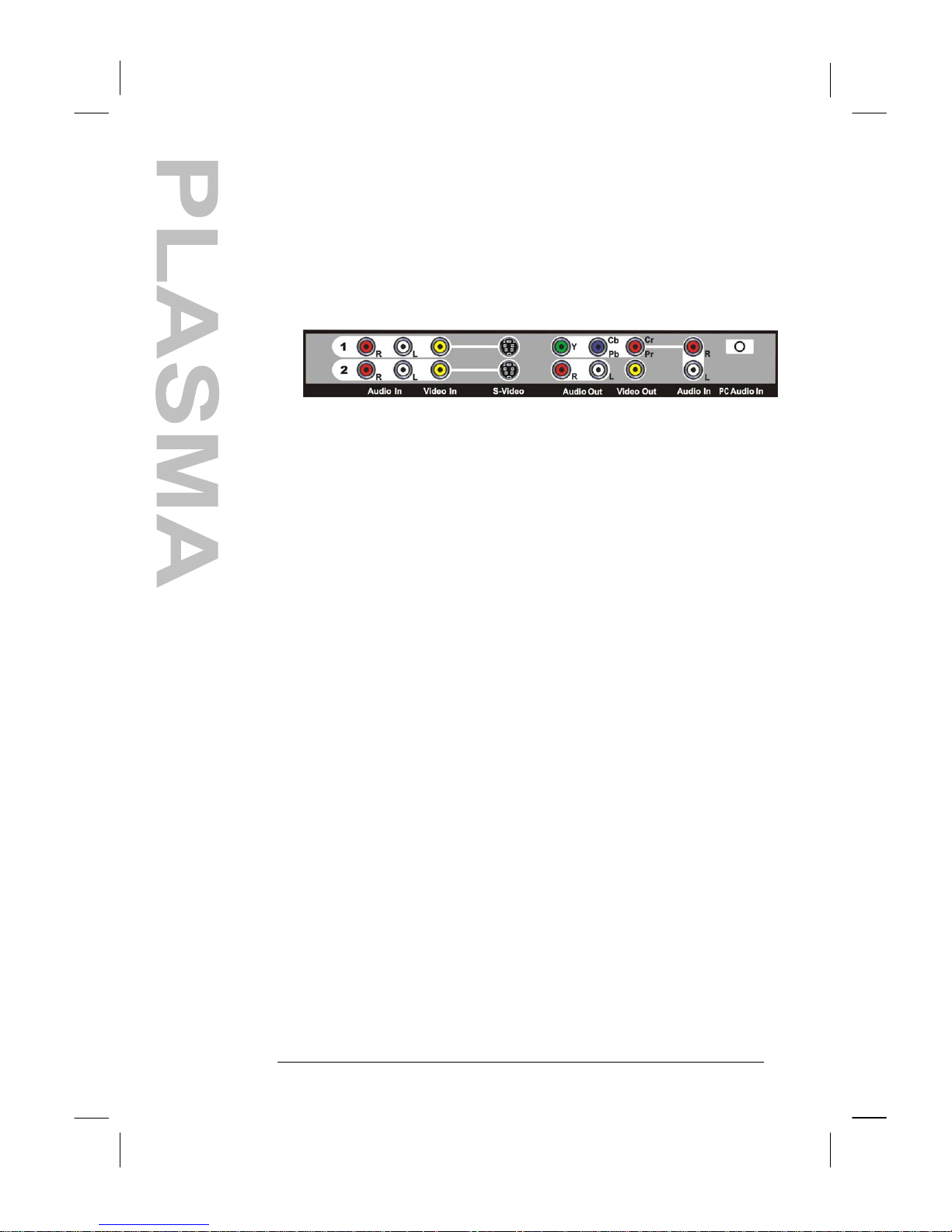

5.3 Back panel

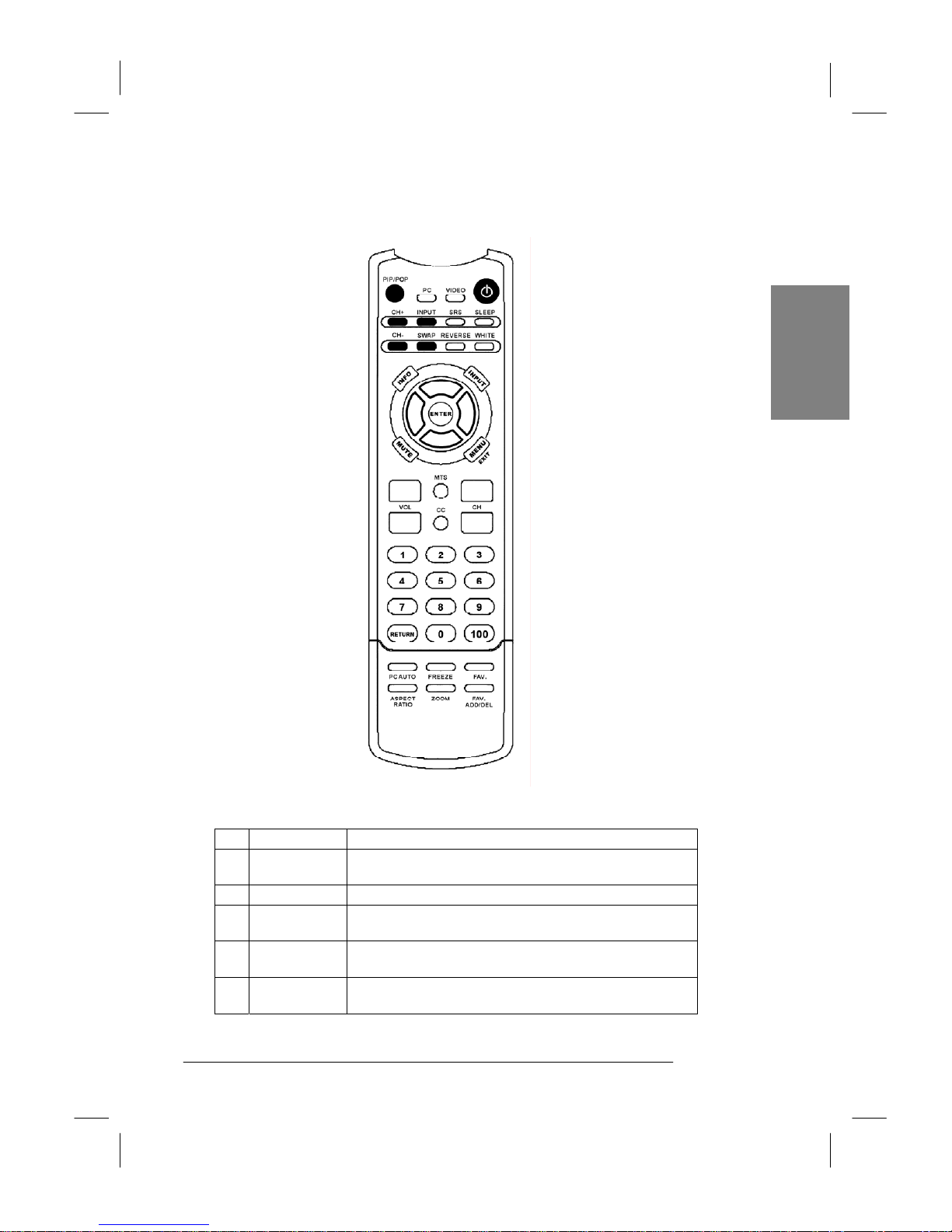

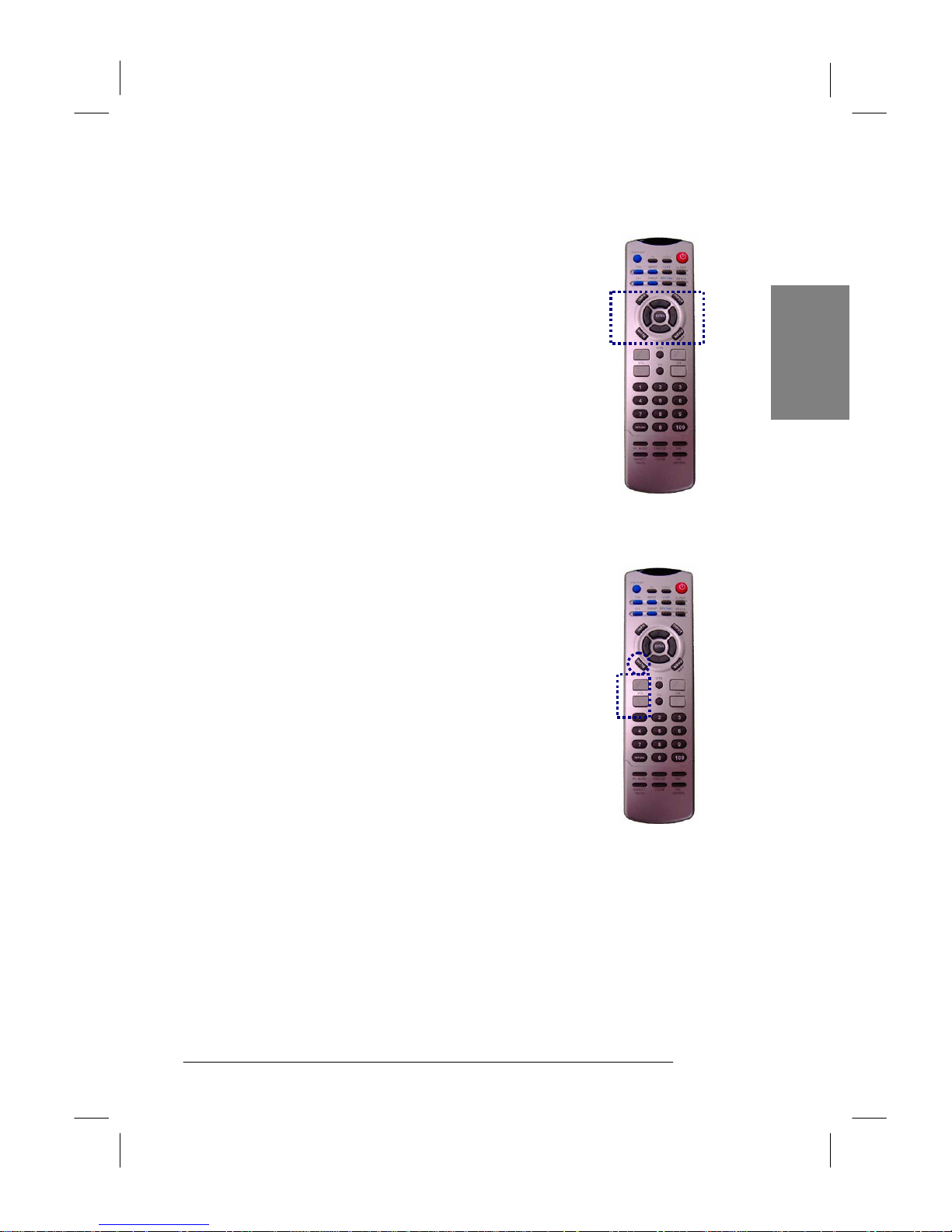

5.4 Remote controller

6. Connecting an external device to your plasma display.............. 20

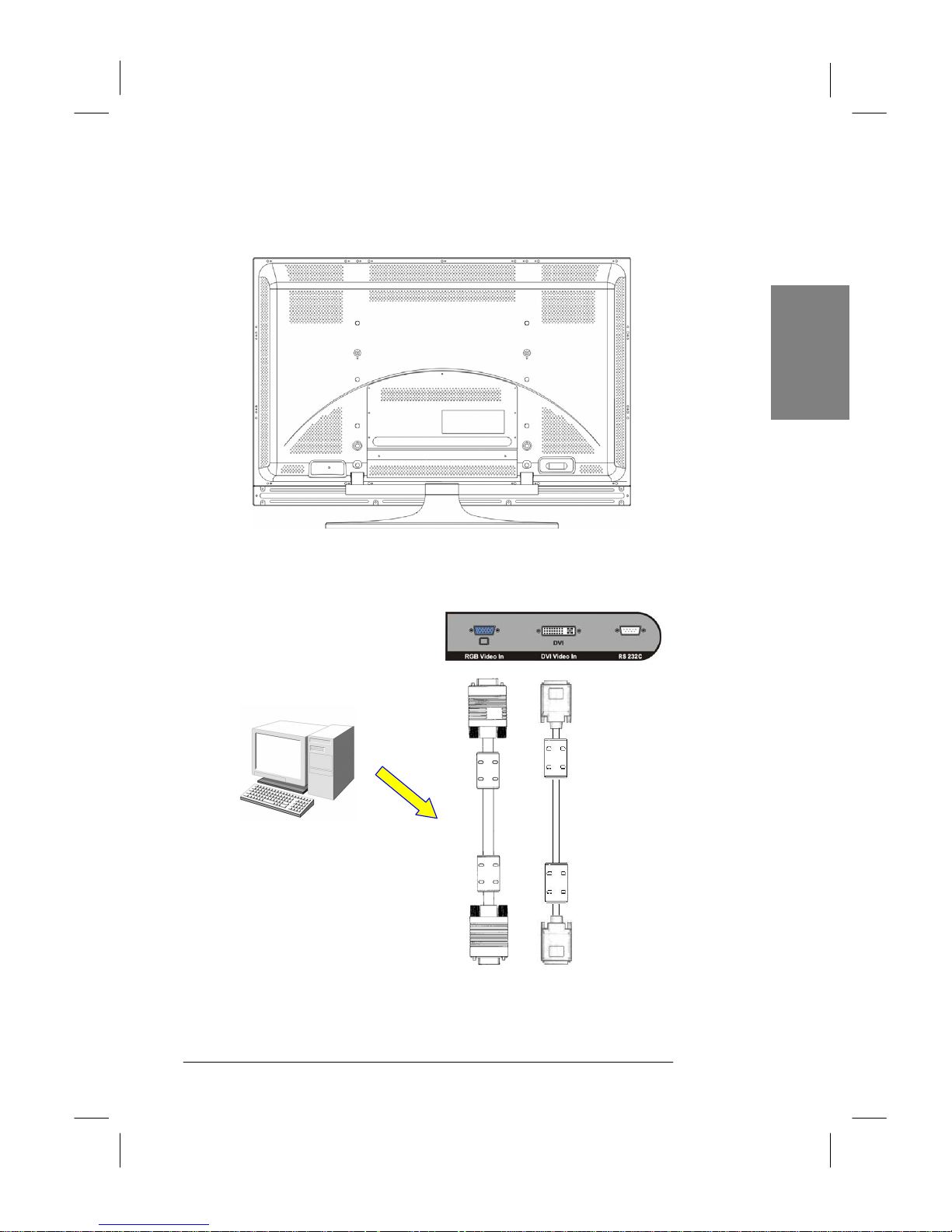

6.1 PC module

6.2 VIDEO module

6.3 Connecting external speakers

7. Basic operation of your plasma display..................................... 24

7.1 Turning your plasma display on and off

7.2 Selecting input mode

7.3 Adjusting OSD item settings

7.4 Adjusting volume

7.5 Zooming in to/out of pictures

7.6 Miscellaneous functions

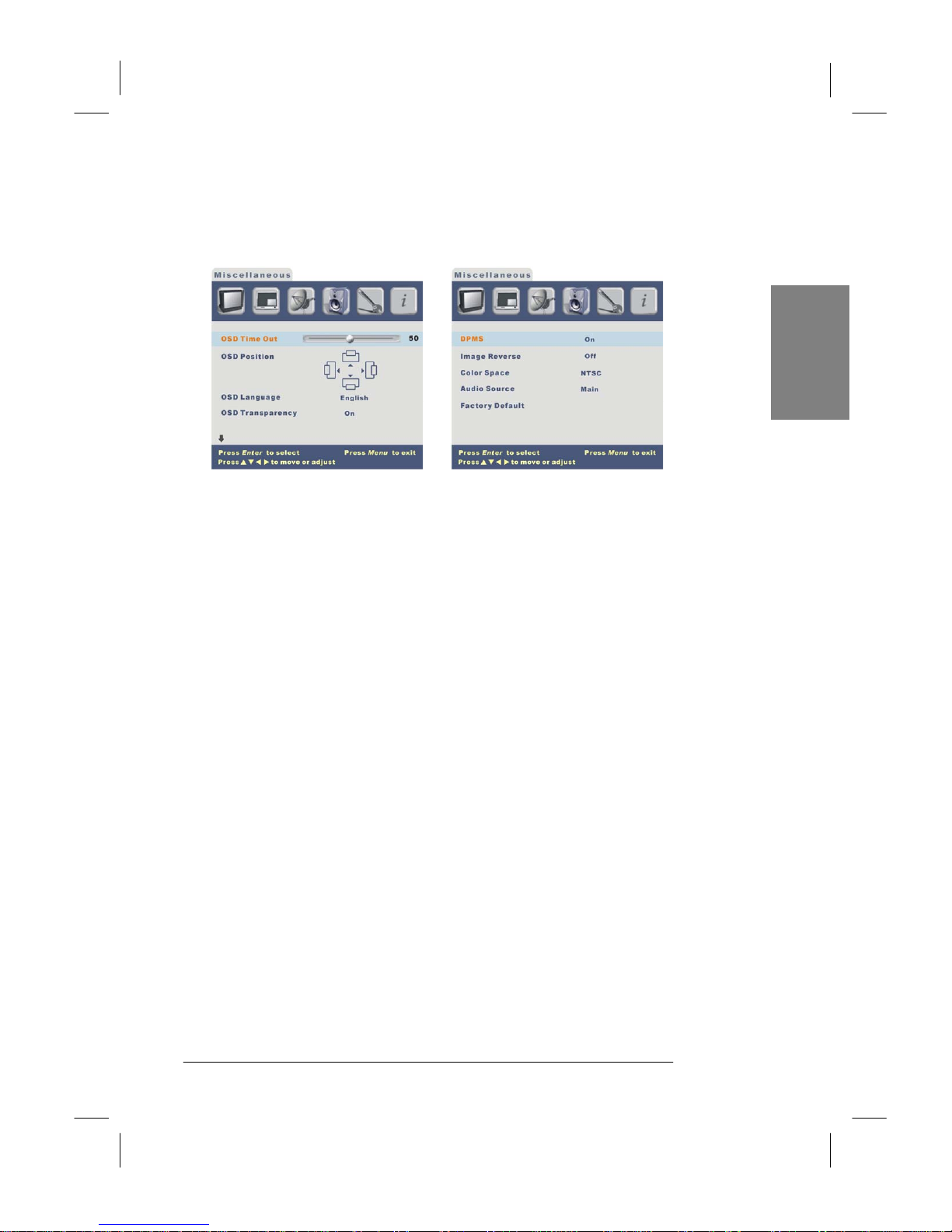

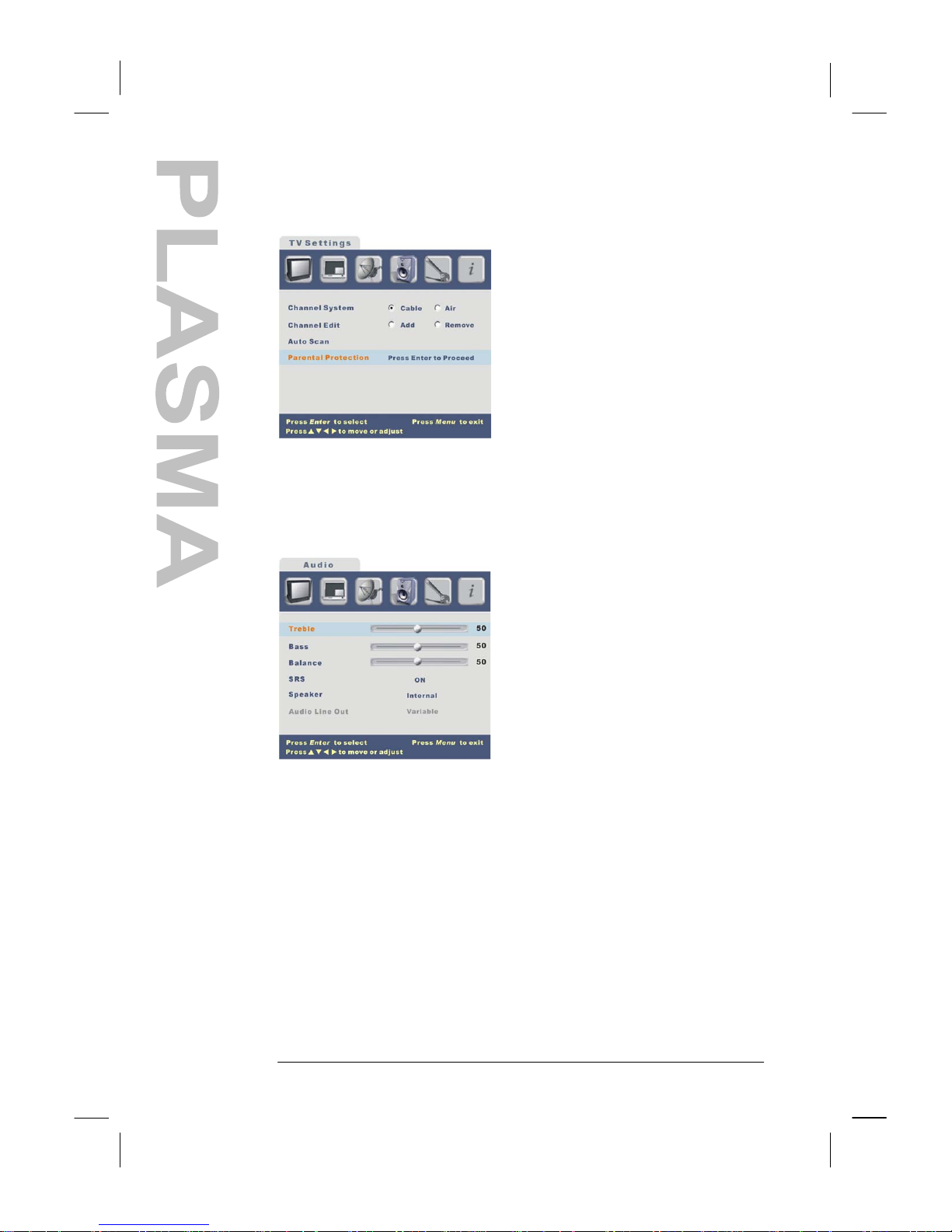

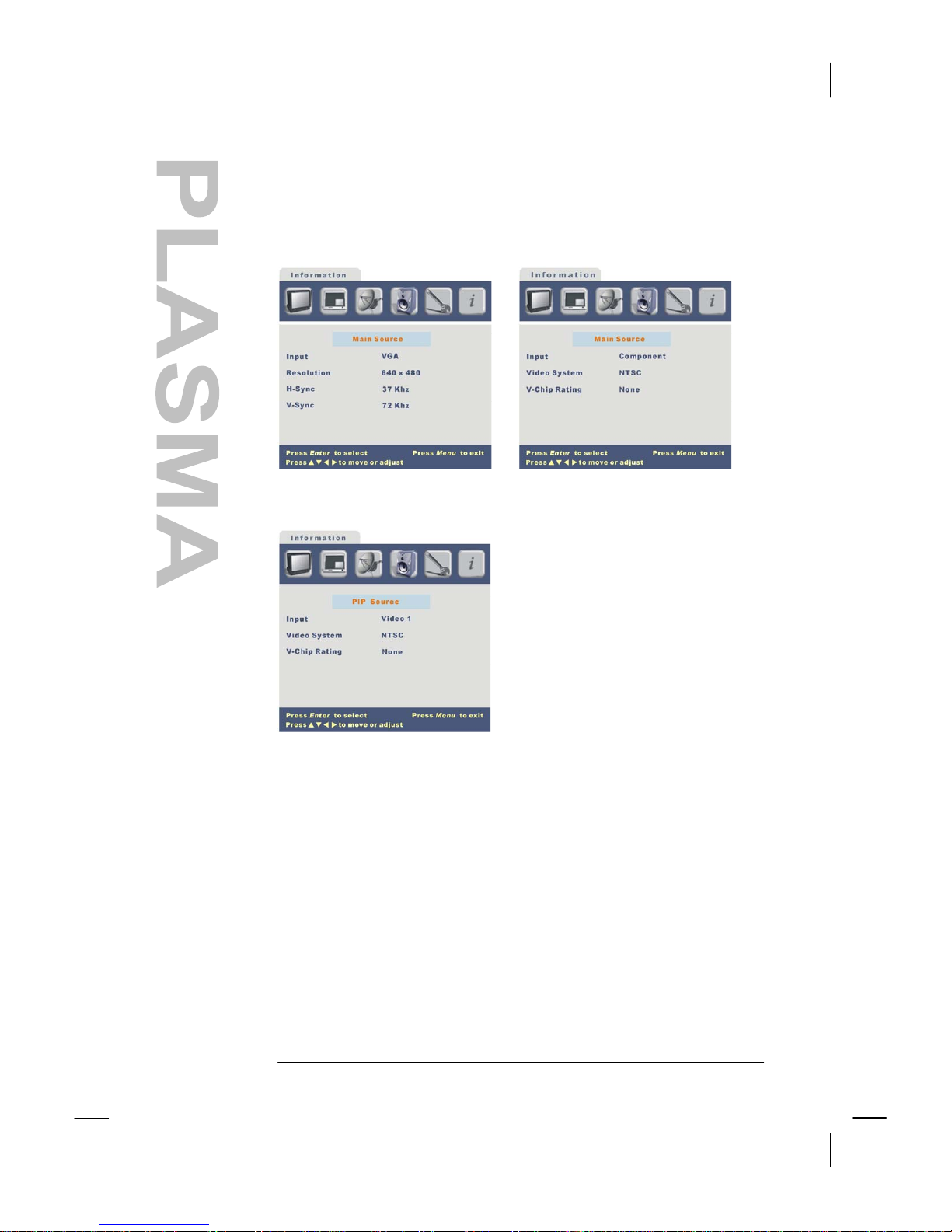

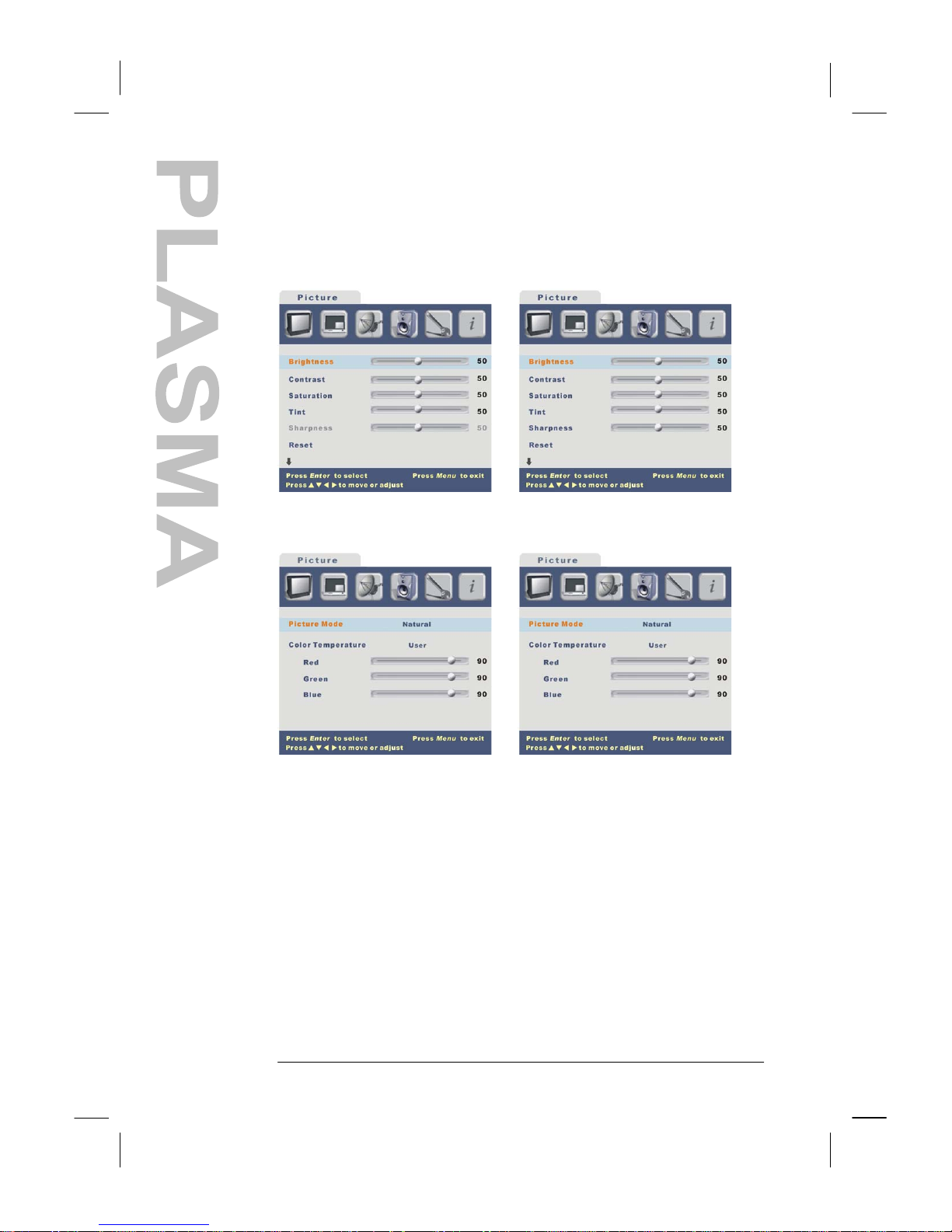

7.7 OSD functions

8. Optional accessories ................................................................ 33

8.1 Connect to antenna

8.2 Input and Output Connection

8.3 Operating Instructions

8.4 Advanced Functions

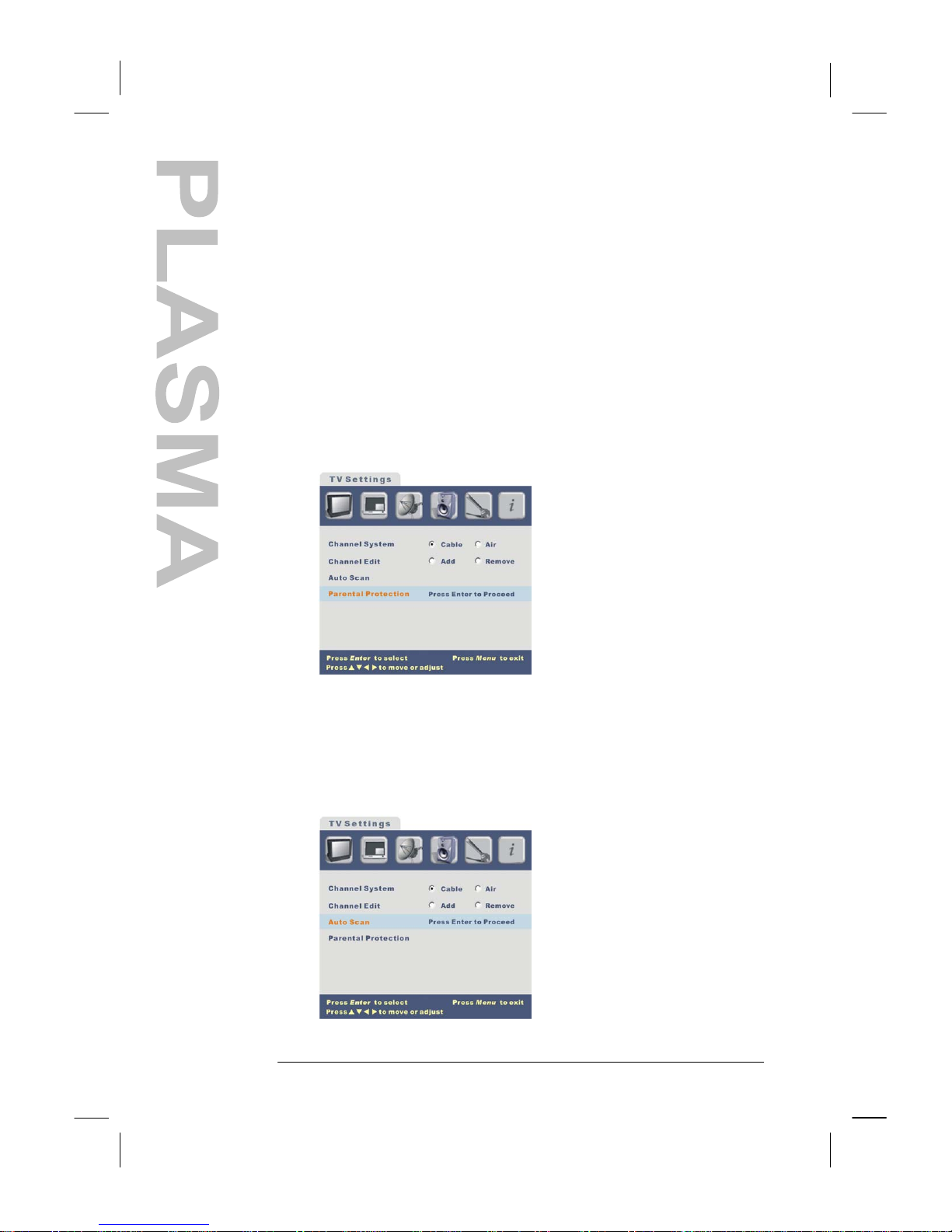

9. TV Instruction .......................................................................... 41

10..............................................................Technical specification

42

11.......................................................................... Factory default

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

2

43

12................... Cleaning your plasma display and troubleshooting

44

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

3

English

1.

Getting started:

Your plasma display is a 46” WVGA (wide-screen VGA resolution) plasma
display. It is ultra slim, high picture quality, super flat and emits no radiation. It
has been tested to comply with the EMI Class B, UL and CSA safety standards
and is suitable for both commercial and home use.
Your plasma display is a highly delicate electronic device. Follow the instructions
below to maintain the proper performance of your plasma display.

1.1 Opening the carton:

y Inside the carton, you will find your plasma display and the standard

accessories. Operational accessories, if any, will be packed in separate
boxes.

y Your plasma display is about 37kg in weight. As it is quite big, we

recommend you to carry it with two people.

y The protective glass and glass filter are located on the front of your

plasma display. They are fragile and can easily be scratched. Handle
with care. Do not place your plasma display with the glass downward,
unless protected with soft padding.

y Check if your plasma display is damaged and if any accessories are

missing from the carton.

y Carry your plasma display by the handles located at the back.

1.2 Installing your plasma display:

y Read this manual carefully before installing your plasma display.
y This plasma display consumes about 340-350W of electricity, which is

higher than regular CRT TVs. Connect it to an independent power
source. If it needs an extension cord, please contact your technicians
for an extension cord that can resist higher voltage. Do not use
ordinary extension cords to prevent hazards.

y Put your plasma display on a flat and solid surface to prevent it from

falling . Keep the back of your plasma display away from the wall to
ensure good ventilation.

y Fumes, moisture and dust will shorten the life of electronic parts. Do

not install your plasma display in the kitchen or bathroom.

y Install your plasma display with the lower edge level. Improper

installation of your plasma display, such as turning it on end, will cause
damage to electronic parts due to bad internal ventilation.

y Avoid displaying a still picture for a long time to extend the life of your

plasma display.

y Your plasma display must be installed by your dealer or technicians of

our authorized dealers; otherwise, you may not be eligible for our full
warranty service.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

4

2.

Safety instructions:

Your plasma display has been tested to comply with various safety standards for
ordinary uses. Improper use or operation of your plasma display may cause electric
shock or fire. You must follow the safety instructions below during installing, using
and maintaining your plasma display in order to prevent damage to the unit. Read
the following safety instructions carefully before use.

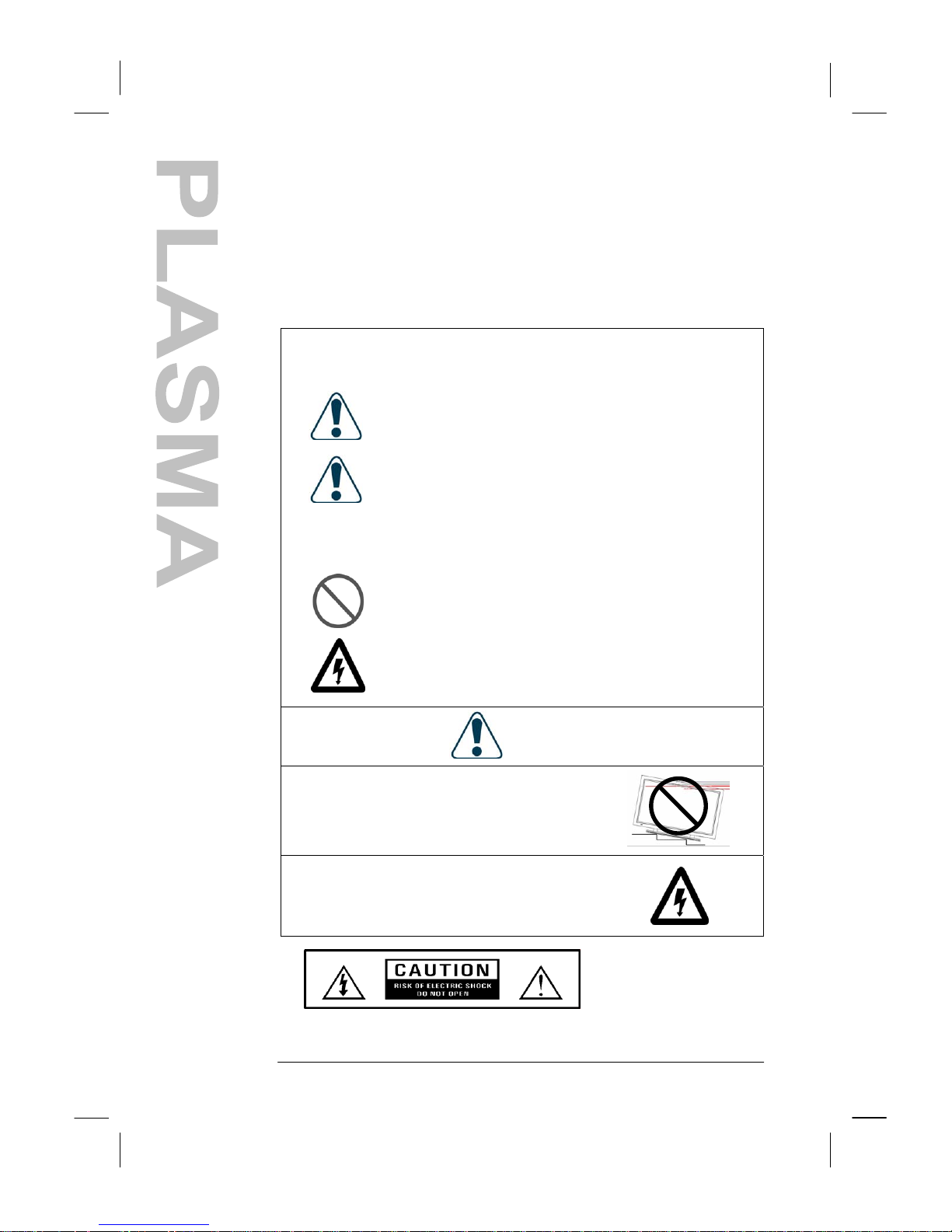

To ensure that you can use your plasma display properly and to prevent physical and
property damage, we have used the following symbols in this manual.

Warning------ Mistakes due to negligence may cause physical

or even life-threatening injuries.

Caution------- Mistakes due to negligence may cause physical

or material damage.

Examples of warning and caution messages:

Prohibition symbol

RISK OF ELECTRIC SHOCK—warning (caution) symbol.

Warning

Place plasma display only on a flat and solid surface.

Placing plasma display on unstable surface may risk the
plasma display falling.

Connect plasma display to correct voltage.

Improper voltage may cause fire or electric shock.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

5

English

Do not expose plasma display to wet locations.

* Do not use plasma display in places containing water.

* Prevent water from entering plasma display by

avoiding placing it near windows or outdoors to avoid
fire or electric shock.

* Disconnect plasma display from power source and

contact your dealer immediately when water enters
plasma display. Continuing use of plasma display may
cause fire or electric shock.

Warning

Do not put water containers or small metal articles

on top of plasma display.

Do not put glasses containing liquid, decorative plants,
cosmetics or chemical liquids or small metal articles on
top of plasma display. It may cause a short circuit and
fire or electric shock when liquid spills into plasma
display.

Do not damage power cord.

Do not damage or modify power cord. Pressure, heat and pulling
may damage power cord and cause fire or electric shock.

Do not modify or open plasma display.

Modification of plasma display may cause fire or electric shock.
Do not open plasma display, it may cause fire or electric shock.
Contact your dealer for service or adjustment.

Warning

Do not use plasma display under the following condition.

If smoke or a strange smell comes out of plasma display,
disconnect it from power source immediately and contact your
dealer after the smoke stops. Continuing use of plasma display
may cause fire or electric shock. Do not repair it on your own.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

6

Do not drop plasma display or damage its case.

When the plasma display’s case is damaged after falling, it
may cause damage to its internal parts. Disconnect it from
power source immediately and contact your dealer for service.
Continuing use of plasma display may cause fire or electric
shock.

Warning

Do not touch power source during thunderstorms.

It may cause electric shock.

Caution

Keep plasma display out of fumes and steam.

It may cause fire or electric shock.

Keep plasma display out of dust and moisture.

It may cause fire or electric shock.

Handle with care.

Disconnect all cords and cables fromplasma display before
moving it. Make sure to carry it with at least 2 people.

Keep power cord away from heat sources.

It may cause fire or electric shock if the cord jacket melts.

Hold the plug when disconnecting from power
source.

Pulling the wire may damage the power cord and cause
fire or electric shock.

Hold the plug

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

7

English

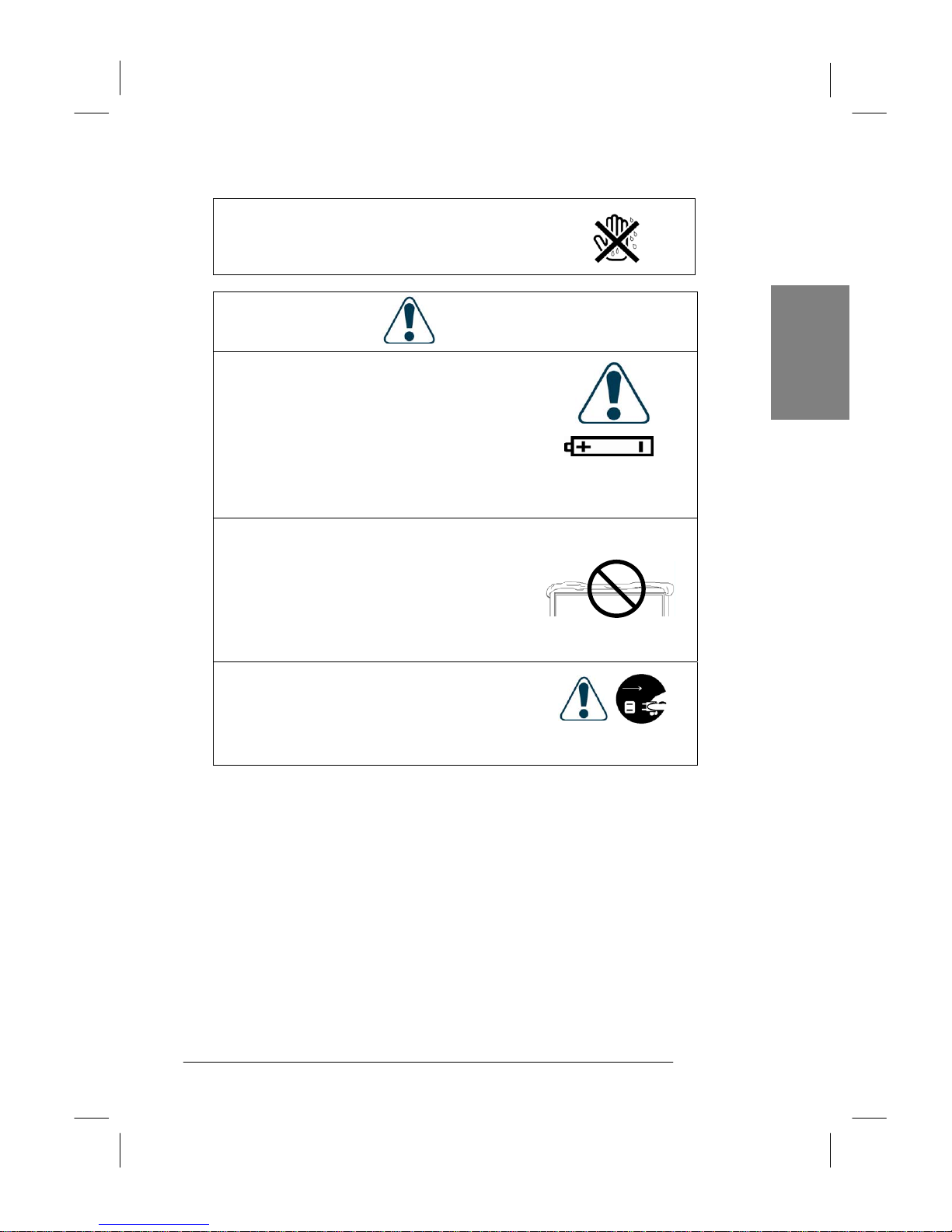

Do not touch plug with wet hands.

It may cause electric shock.

Caution

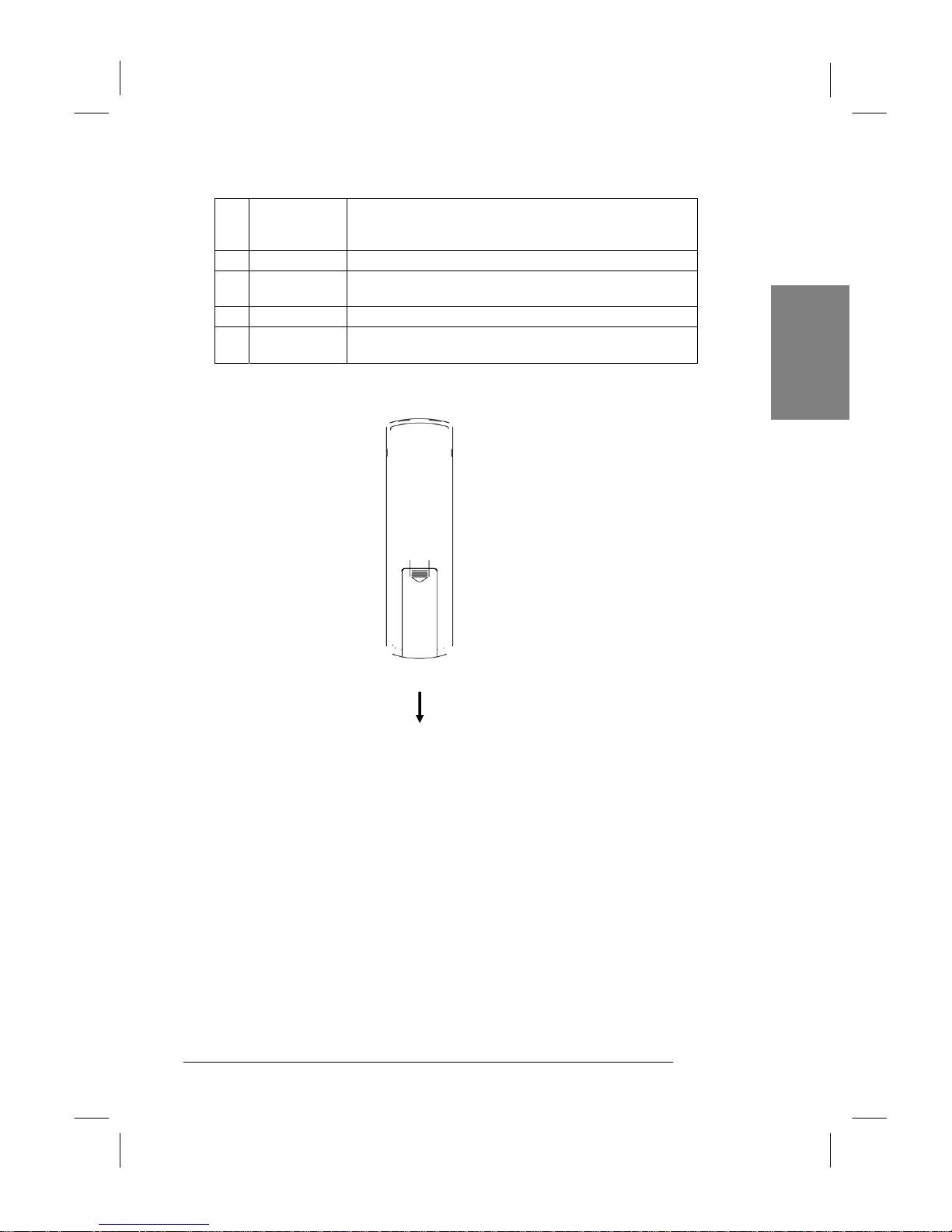

Install remote control batteries correctly.

Install batteries according to the polarity as indicated
inside the battery compartment by (+) and (-) marks.
Incorrect battery installation may cause leaking of battery
fluid or battery explosion. Chemicals of battery fluid may
cause physical injuries or contaminate remote control. Do
not recharge batteries that come with plasma display to
prevent hazard.

Do not cover vent.

When vent is covered, heat inside plasma display may
cause fire. Contact with hot case may burn your skin.
Place plasma display in places with good ventilation and
do not cover it with table cloth, blanket or cleaning
cloth.

Disconnect plasma display from power source.

For safety reasons, disconnect plasma display from power
source when not in use for a long time.

Disconnect from

power source

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

8

1. Read this manual and all safety instructions carefully before use.

2. Keep this manual for future reference.

3. Pay attention to the warnings on the plasma display and in this manual.

4. Operate the plasma display according to the instructions in this manual.

5. Disconnect the plasma display from the power source before cleaning.
Clean the unit with a wet cloth. Do not use chemicals or detergents in any
form.

6. Use only the accessories recommended by the original manufacturer. Use
of other accessories may cause hazard.

7. Keep the plasma display away from water. Condensation will take place
inside the plasma display when moving it from a cooler to a hotter
environment; allow condensation to evaporate before turning the power on.
Otherwise it may cause fire, electric shock or other hazards.

8. Do not place the plasma display on an unstable cart, rack or table. The
plasma display may fall on the ground and damage. Follow the instructions
of the manufacturer and use the rack recommended by manufacturer as
instructed to install the plasma display.

9. Avoid stopping cart abruptly when the plasma display is on the cart. Pull
the cart gently and slowly. Avoid pulling cart over uneven surface.
Otherwise the plasma display may fall on the ground and suffer damage.

10. Vents are located at the back of the plasma display to ensure the reliable
operation of the plasma display. Do not block or cover the vents. Make
sure that the vents are free from obstruction when placing the plasma
display on a bed, couch, rug or furniture of similar surface. Do not put the
plasma display in a rack or bookshelf, unless there is good ventilation. Put
the plasma display in a proper location as instructed by the manufacturer.

Keep the plasma display at least 10cm away from any furniture to

ensure good ventilation.

11. Connect the plasma display to a power source with voltage exactly the
same as indicated. If you are not sure about the voltage of the power
source, contact your dealer or the local power company.

12 The plasma display is designed for use on a 3-prong power source. Connect

the plasma display only to a grounded power source. Ask a qualified
electrician to have your power outlet modified if it does not fit the plug. Do
not remove the grounding pin on the plug.

13. Plug in the power cord properly. Keep power cord out of passageway and
avoid heavy objects pressing on top. Fix the power cord properly at doors,
plugs, power outlet and socket.

14. Disconnect the power cord from the power outlet when there is a
thunderstorm or the plasma display will not be used for a long time.
Remove the CATV cable to prevent damage due to power surge.

15. Do not overload the power outlet to which the plasma display is connected.
Use of extension cords or sockets that come with other appliances can
cause fire or electric shock due to overload.

16. Do not put objects into the plasma display’s vents. It may cause fire or

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

9

English

electric shock due to high voltage inside the plasma display or short circuit
of parts. Do not allow liquid to enter the plasma display.

17. To avoid risk of electric shock or other hazard, do not remove cover (or
back). Refer servicing to qualified service personnel. Do not repair the
plasma display on your own.

18. If the plasma display does not work properly, adjust it by following this
user manual. It may take a longer time for qualified service personnel to fix
damage caused by improper adjustments.

19. Disconnect the plasma display from the power source and contact qualified
service personnel immediately under any of the following circumstances:

y Either the power cord or plug is damaged.
y Liquid or a foreign object enters the plasma display.
y The plasma display is exposed to rain.
y The plasma display falls on the ground and suffers damage.
y There is a critical change in the function of the plasma display.

20. Make sure that only genuine parts or equivalent parts can be used on the
plasma display. Use of unqualified parts may cause fire, electric shock or
other hazard.

21. The plasma display must be inspected and tested by qualified service
personnel after servicing to ensure normal operation.

22. Keep the plasma display at least one foot away from any heat source, such
as radiators, electric heaters, electric cookers or other appliances (including
stereo amplifiers).

23. When connecting other equipment to the plasma display, such as a VCR or
PC, turn the power off before connecting to avoid electric shock.

24. Use only the connection cable designed for the plasma display to avoid
electric shock.

25. The required voltage for the plasma display is 100-120VAC/50-60Hz and
220-240VAC/50-60Hz. Connect the plasma display to a power source with
voltage exactly the same as indicated. Use only the power cord provided by
the dealer to ensure safety and EMC compliance.

26. Use different power cords for different voltage settings. Contact your
dealer for details.

27. Operating environment:

y Temperature: 32

o

F to 104oF (0

o

C to 40 oC)

y Relative humidity: 20% to 85%, no condensation condition.
y Pressure: 800 to 1100hPa

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

10

3

.

Product features:

Your plasma display uses a slim design at only 9.8cm thick. Its excellent picture
quality is perfect for multimedia applications.

1. Multiple inputs:

Your plasma display comes with different input modules as shown below.

y PC module: RGB (D-sub 15-pin), DVI, and RS-232 (D-sub 9-pin male)

inputs.

y VIDEO module: CVBS (RCA) x 2, S-video (DIN 4-pin) x 2 and composite

(RCA) inputs; audio (R/L) and CVBS (RCA) x 1 outputs for connecting
with DVD players, HDTV (480P/720P/ 1080i) and TV signals (NTSC, PAL
and SECAM systems).

y Resolution for PC module: SXGA (1280X1024), 60Hz.

2. Power management: Equipped with energy saving functionality.

3. Fan-free design: Your plasma display has been design to reduce energy
consumption, so there is no cooling fan inside. As a result, you will not be
disturbed by the noise of a cooling fan.

4. Miscellaneous:

y PIP/POP function: It allows you to display pictures from different sources in

six different picture-in-picture (PIP) or picture-on-picture (POP) modes.

y Includes a pair of high-definition built-in speakers (7W+7W). You can

purchase a pair of external speakers (15W+15W) to enjoy better sound.

y Three EQ options allow you to adjust the sound for the best effect.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

11

English

4.

Standard accessories:

User’s Manual x 1

Power cord x 1

NB:
Cord specification is subject to change
according to local requirements.

S-video cable x 1

D-sub 15pin cable x 1

AV-cable x 1

Remote controller x 1

UM-4 batteries x 2

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

12

5

.

Name and function of different parts of your
plasma display:

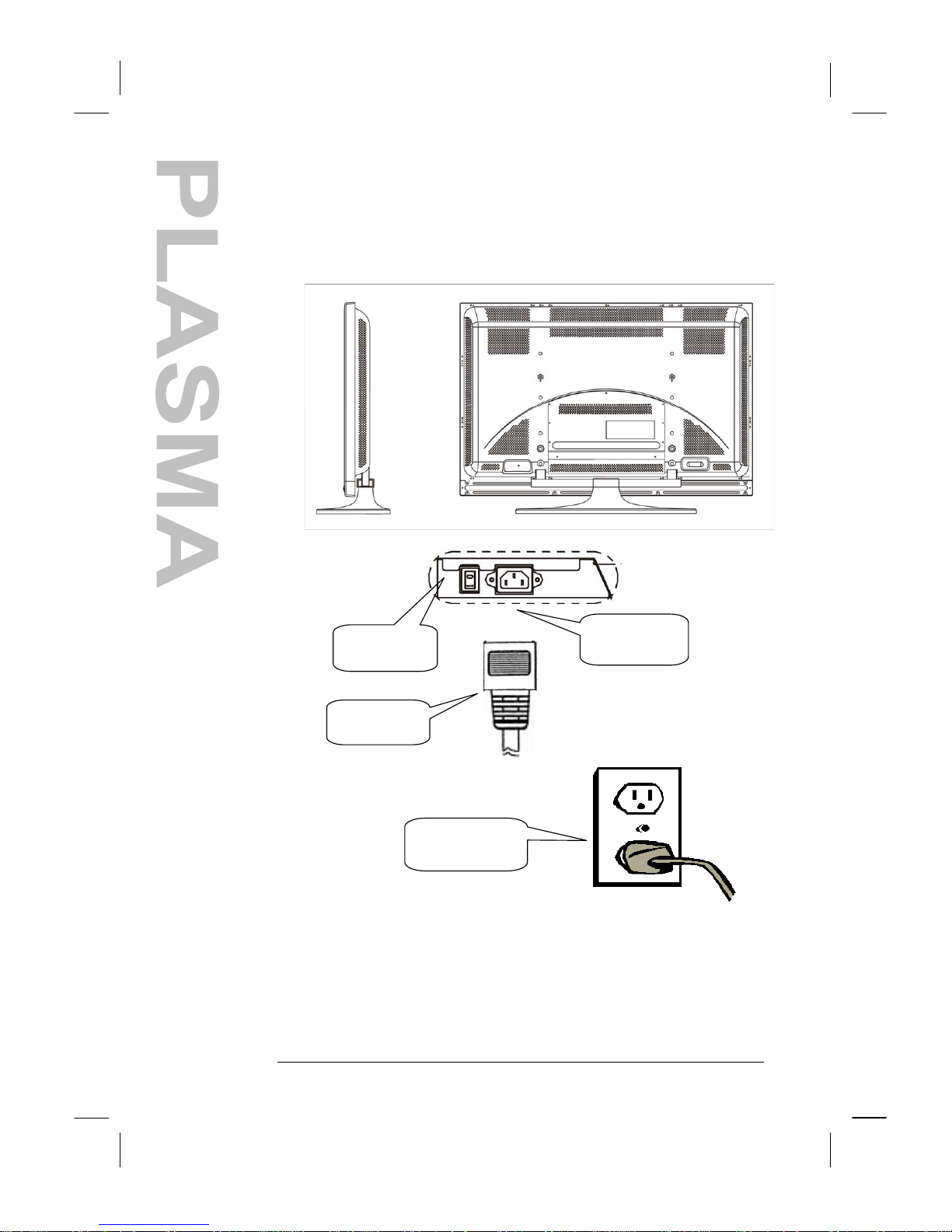

5.1 Side:

y Connect the included power cord to the power socket on the right hand

side of the plasma display. Then, connect the plug of the power cord to a
power source.

y Press the power switch (0: Off, 1: On) to turn the plasma display on.

When the red indicator light is on, your plasma display is in the standby
mode.

Power switch

Power cord

Power socket

Power outlet

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

13

English

5.2 Front:

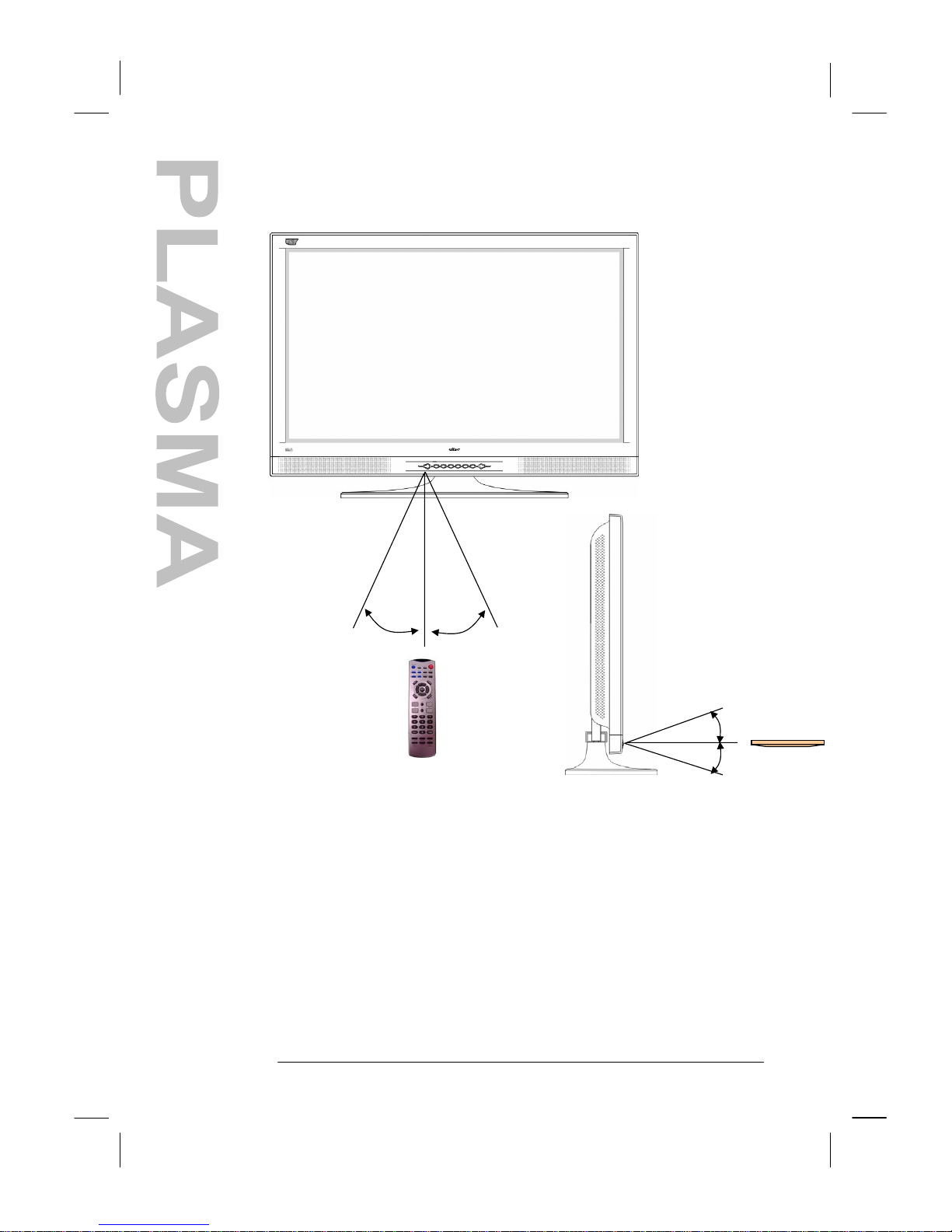

1. Remote control receiver: Receives signals from the remote control. The
power indicator inside indicates the status of your plasma display.

Indicator Status

Red Standby Mode

Green Power ON

Blinking Sleep Mode

2. Control buttons:

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

14

Button Function
POWER Press this button to turn your plasma display on and off.
SOURCE Press this button to select an input source (sequence of inputs

varies when input modules are different)

A. PC: VGAÆDVI (cyclical)
B. PC + Video

Video 1ÆVideo 2ÆComponentÆVGAÆDVI (cyclical)

MENU Press this button to bring up the OSD menu and select OSD

menus according to the following sequence:
PictureÆDisplayÆTV
SettingÆAudioÆMiscellaneousÆInformation

VOLUME+/- A. Press these buttons to select an item to the left or right in

OSD mode.

B. Press these buttons to adjust volume in display mode: -

reduce volume; + increase volume.

CHANNEL/ A. Press these buttons to select an item above or below in

OSD mode.

B. Press these buttons to change the channel in TV mode: 

channel up;  channel down.

Is the trademark of SRS Labs, Inc.

This product has been licensed to use the SRS technology product by the
SRS Labs, Inc.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

15

English

5.3 Rear View:

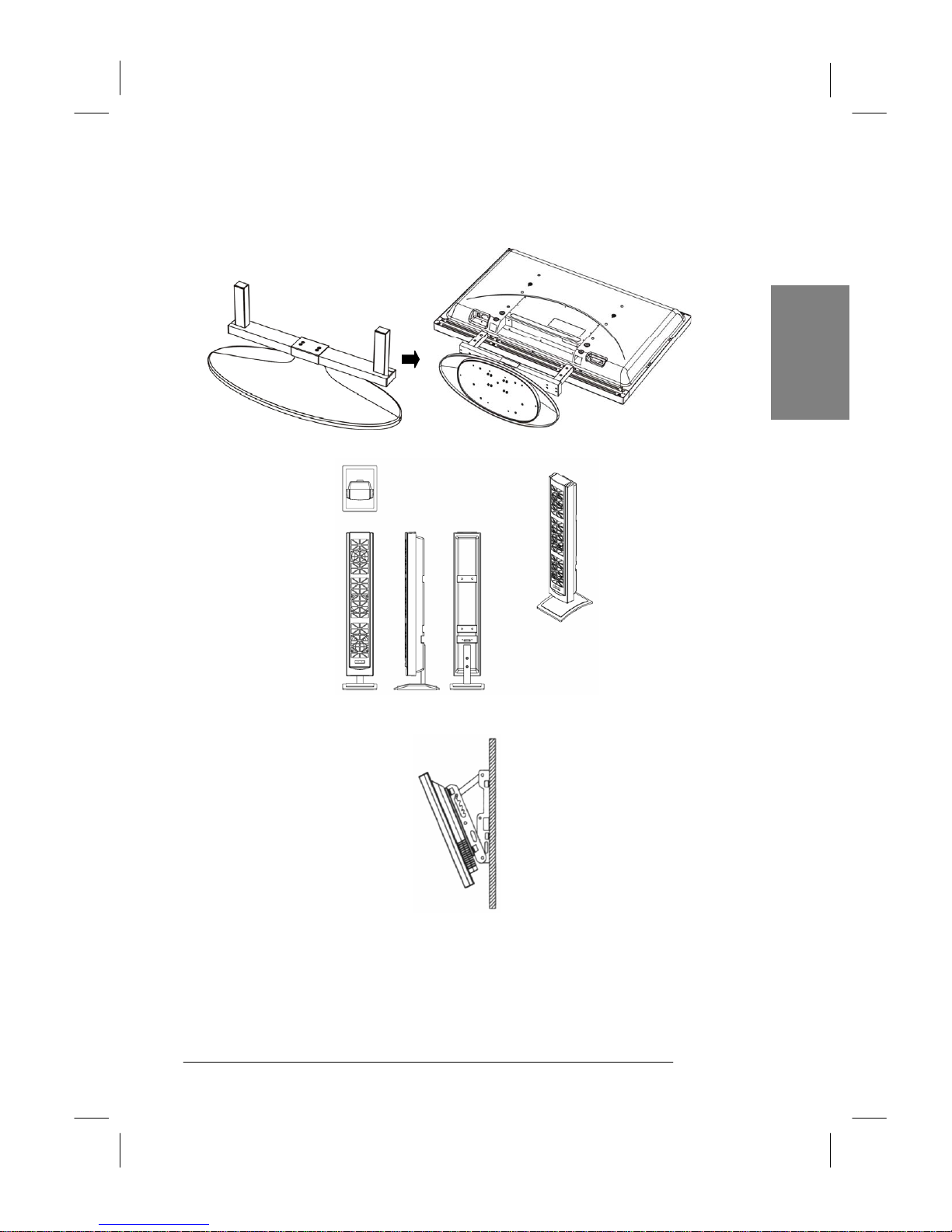

(1) Leg attachment holes (4): Affix the legs with the screws included.

(2) Speaker terminals: You can connect a pair of external speakers to the

terminals (red for positive and black for negative). Speaker specifications:
10W (8) - 15W (4) (L+R channels). Impedance: 4-8.

(3) Wall mount rack attachment holes (4): Install the wall mount rack with the

screws included. (NB: The wall mount rack is an optional accessory.)

(4) Handles: Carry your plasma display by the handles. Remove handles from

your plasma display for wall mount installation.

(5) Signal I/O terminals: Allow users to connect input and output devices to

the plasma display. Terminals may be different according to the input
modules on your plasma display.

PC module

A. D-SUB: Allows users to connect the plasma display to the D-sub 15-pin

port (analog output) on the VGA card and use the plasma display as a

PC monitor.

(5)

(2)

(3)

(1)

(4)

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

16

B. DVI: Allows user to connect to the DVI-I port (digital output) on the

VGA card and use the plasma display as a PC monitor.

C. RS-232C: D-sub 9-pin male port for firmware update.

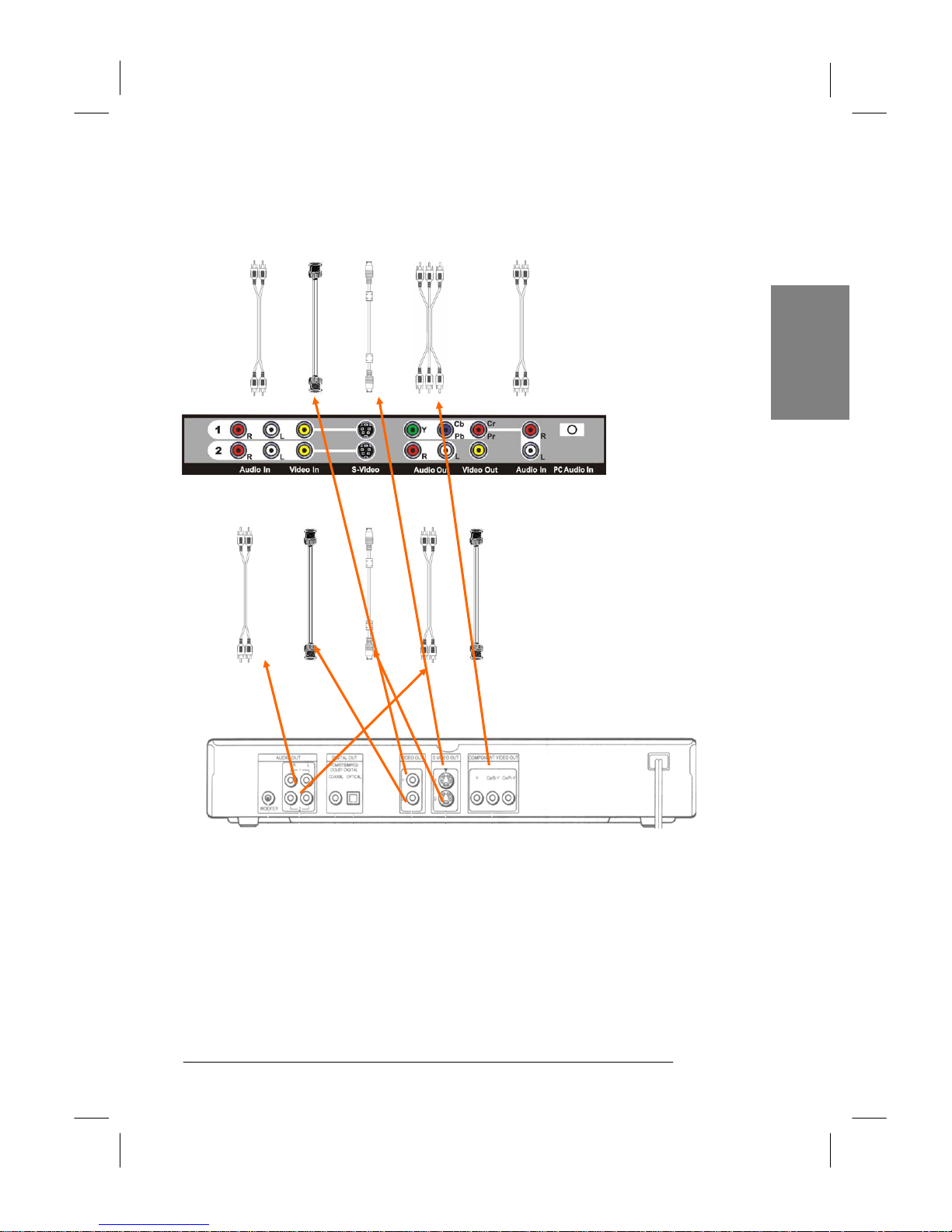

Video Module

(A) (B) (C)

(D) (E)

(F)

(G) (H) (I) (J) (K)

A. Audio In: Audio input terminals for connecting the audio output of a

video system. They are shared with audio input of Video In and

S-Video.

B. Video In: Composite input terminals (RCA) for connecting video

systems with composite outputs.

C. S-Video: Y/C separated video input terminal (DIN 4-pin) for

connecting video systems with an S-video output.

D. Y/CbPb/CrPr: Component input terminals (RCA) for connecting

video systems with component outputs.

E. Audio In: Audio input terminals for connecting the audio output of the

component outputs of a video system.

F. Phone Jack: Stereo input terminal for connecting output signals of a

sound card of the PC (VGA/DVI).

G. Audio In: Audio input terminals for connecting the audio output of a

video system. They are shared with audio input of Video In and

S-Video.

H. Video In: Composite input terminals (RCA) for connecting video

systems with composite outputs.

I. S-Video In: Y/C separated video input terminal (DIN 4 -pin) for

connecting video systems with an S-video output.

J. Audio Out: Audio output terminals for connecting the audio input of

any audio or audiovisual device.

K. Video Out: Composite output terminals of signals form Video In and

TV for connecting other monitors.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

17

English

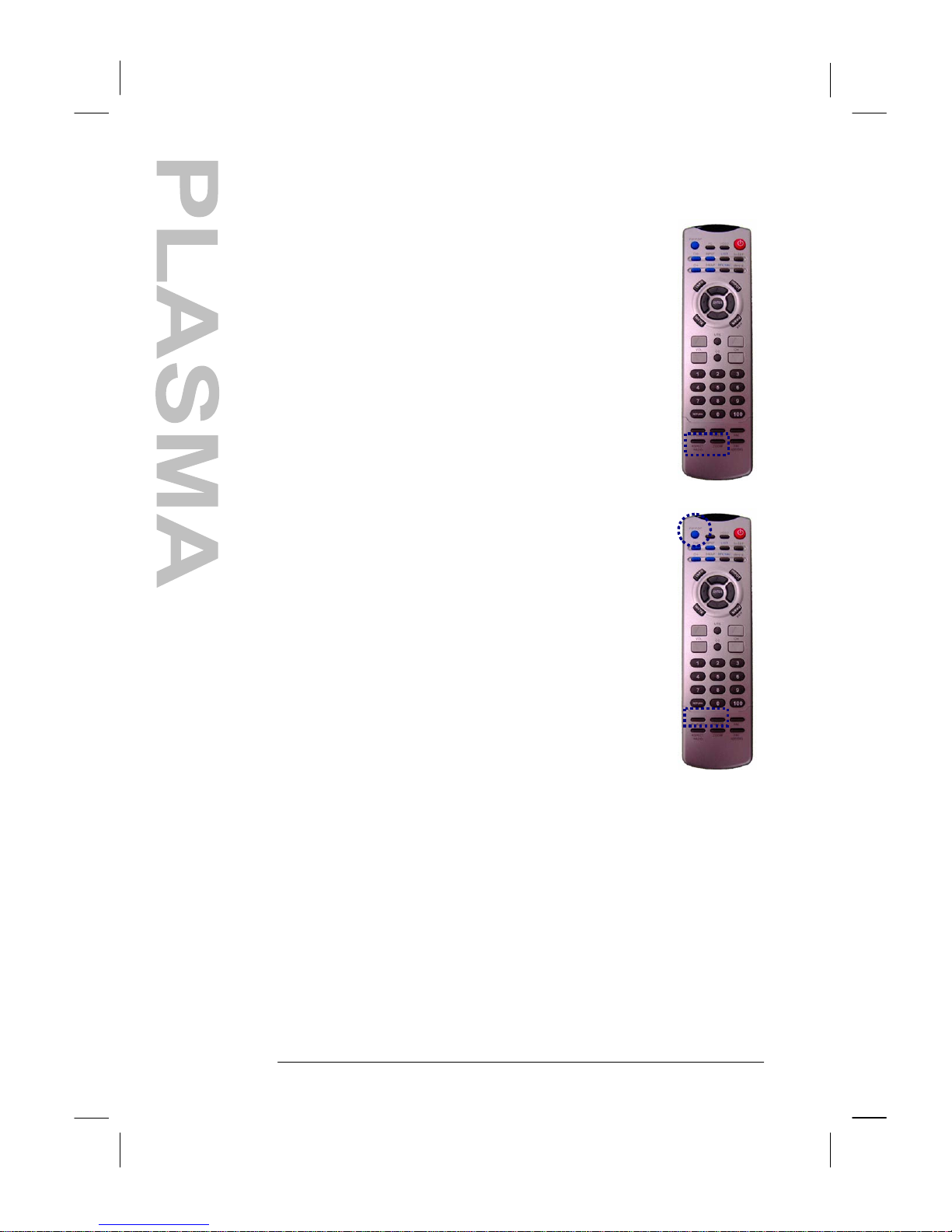

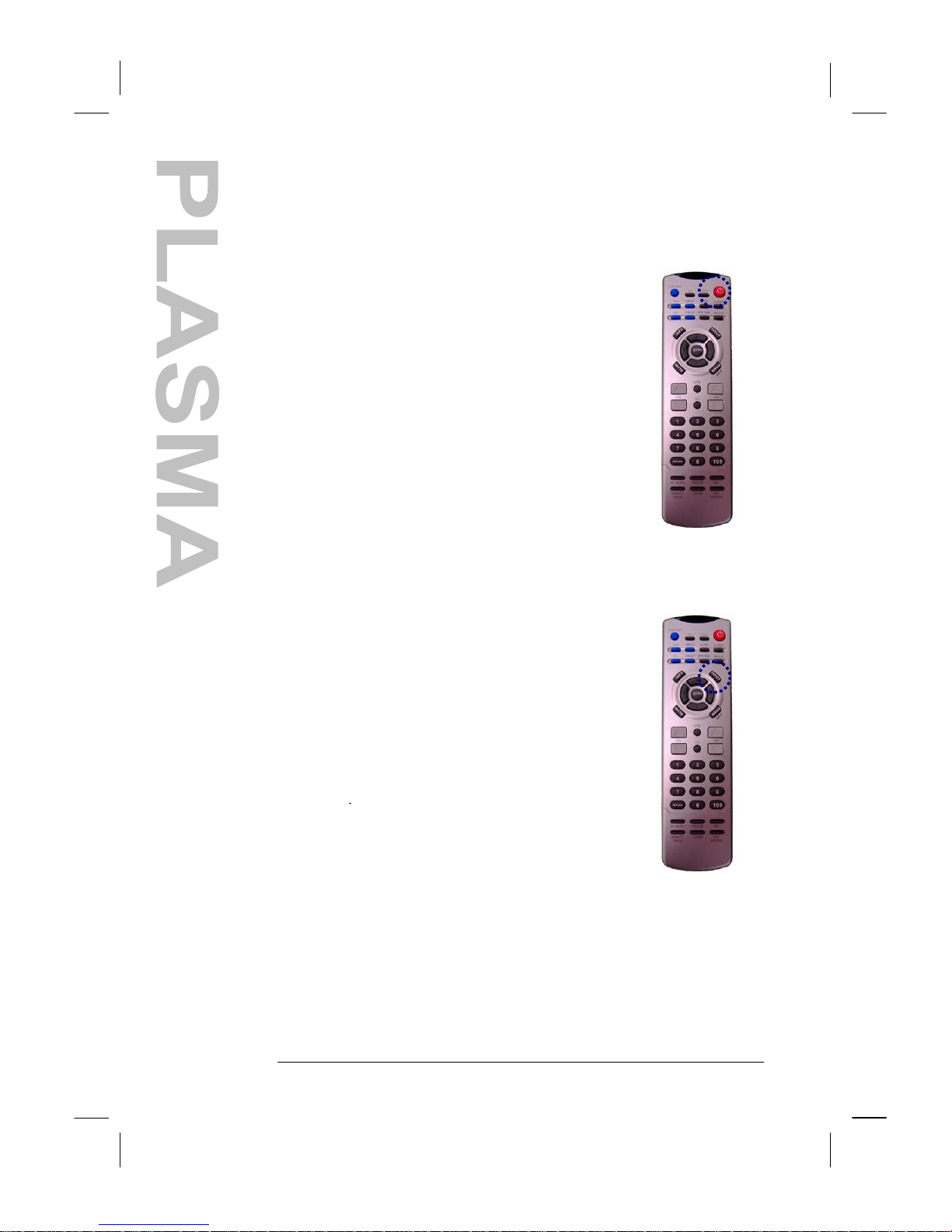

5.4 Remote control

Buttons and their functions:

No. Button Function

1

POWER

Press this button to turn your plasma display on and off (in
standby mode)

2

PIP/POP

Press this button to turn PIP or POP function on and off.

3

CH+

Press this button to view the next TV channel in the
sub-frame.

4

CH-

Press this button to view the previous TV channel in the
sub-frame.

5

INPUT

Press this button to select an input source for the
sub-frame.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

18

6

SWAP

Press this button to swap between the sources of the main
frame and the sub-frame.

7

VIDEO

Press this button to select Video input source.
Video 1ÆVideo 2ÆComponent (cyclical)
(sequence of inputs varies when input modules are
different)

8

PC

Press this button to select PC input source.
VGAÆDVI (cyclical)

9

SRS

Press this button to toggle Surround Sound

10

SLEEP

Press this button to set timer off.

11

REVERSE

When a static image is being displayed on the screen for a
long period of time, use the “REVERSE” feature to
prevent screen burn-in and protect your screen.

12

WHITE

Press this button to set the color of your plasma display to
white (for removing residue image on the screen after
displaying a still picture for a long time).

13

INPUT

Press this button to select an input source.

14

INFO

Press this button to display the current input source and
display mode.

15

MUTE

Press this button to mute the speakers. Press this button
again to resume.

16

ENTER

Press , ,  or  button to move the highlight bar to
the desired menu and adjust settings. Press ENTER to
save settings.

17

MENU/EXIT

Press MENU button to bring up the OSD menu. Press ,
,  or  button to move the highlight bar to the

desired menu and adjust settings. Press EXIT to quit the
OSD menu.

18

▲/▼

Press these buttons to select OSD items above and below
the current selection point.

19 /

Press these buttons to select an OSD item to the left and
right of the current selection point.

20

CH▲/▼

Press these buttons to view the next or previous TV
channel.

Note: Tuner module must be installed.
21 VOL/ Press these buttons to adjust volume.
22

Numeric keys

Press these buttons to select a channel.

23

M/T/S

Press these buttons to select the audio channel of SAP

programs.

Note: Tuner module must be installed.

24

CC

Press this button to close caption.

Note: Unavailable for Taiwan area.

25

PC AUTO

Press this button to activate auto adjustment (phase,

V-sync and H-sync) if there is a display problem in PC

mode after timing change.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

19

English

26

FREEZE

Press button to freeze display on the screen (not the input
source). Press button again to resume display. You may
need to wait for 1 minute before the display resumes.

27

FAV.

Press button to bring up your favorite channels.

28

FAV.

ADD/DEL

Press button to add or delete a channel from the favorite
channel list.

29

ZOOM

Press button to zoom in on an image.

30

ASPECT

RATIO

Press button to select screen size: Pixel to Pixel, 4:3
Output, Panoramic, Letter Box or Full Screen.

Battery installation:

y Slide out the battery cover as shown above.
y Insert the two batteries (UM4) making sure their polarities are as indicated by (+)

and (-) marks inside the battery compartment.

y Replace the cover back on the remote control.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

20

Effective range of remote control:

y Point the remote control at the signal receiver (power indicator) on the front

panel of your plasma display.

y Do not block the signal receiver (power indicator) on the front panel of your

plasma display.

y The effective range of remote control is 10M, 30° left and right and 20° up and

down, as shown above.

Notes for remote control maintenance:

y Avoid impact, falling or dropping of remote controller. Keep remote controller

dry and away from heat source.

y Do not clean remote controller with volatile solvents (e.g. benzene or thinner).
y Check battery level when remote controller does not work properly.

Upper

20



Lower

20



10M Front

Right

Left

30



30



46” Plasma Display

MH462su - PROVIEW-usermanual.doc

21

English

6

.

RGB 2 (DVI)

RGB 1 (D-SUB)

Connecting an external device to your plasma
display:

6.1 PC module:

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

22

y The PC module is designed for connecting the plasma display to a

VGA card in a PC to make it a PC monitor.

D-SUB (15-pin): Connect to the analog RGB output interface on the

VGA card. (Select VGA from INPUT)

DVI: Connect to the DVI-I digital RGB output interface on the VGA

card. (Select DVI from INPUT)

Notes:

1. The DVI port on your plasma display is for connecting to the DVI-I
port on the VGA card. No analog signal is available from this port.

2. The RS-232 port on your plasma display is for firmware update by
professionals. It should not be used for communication purposes.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

23

English

6.2 VIDEO module:

y Functions of the D-SUB, DVI and RS-232 ports are the same as that of

the PC module.

y Component (Y/PbCb/PrCr) terminals: For connecting video systems

with component outputs (e.g. DVD players and HDTV tuners).

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

24

Connect the audio output port of device to Audio In. (Select
Component from INPUT)

y S-Video: For connecting video systems with S-video output (e.g. VCRs,

V8 cameras and DVD players). Connect the audio output port of device
to Audio In. (Select Video1/Video 2 from INPUT)

y Video In: For connecting video systems with Video (CVBS) outputs

(e.g. VCRs, VCD players and DVD players). Connect the audio output
port of device to Audio In. (Select Video1/Video 2 from INPUT)

y Video Out: For connecting to other TV or monitor. Connect it to the

Video Input of these devices.

6.3 Connecting external speakers:

y Press and hold the clip on the terminal and plug the speaker cable into the

terminal (remove the jacket). Release the clip.

Optional speakers for
your plasma display

Back of your plasma display

Speaker cables

Speaker terminals

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

25

English

y Pull the cable gently to make sure that it will not come out.

Notes:

1. The connection of both channels (L+R) is the same.

2. Set Speaker to External Speaker in the OSD menu when a pair of
external speakers is connected. (See 7.7.2 for details)

3. Use the standard speaker cable that comes with your plasma display.
We will not guarantee the EMI safety if other speaker cables are used.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

26

7.

Basic operation:

7.1 Turning your plasma display on and off (when your plasma

display is in standby mode):

y Press the POWER button to turn your plasma

display on. The power indicator will turn from
red into green.

y Press the POWER button again to turn your

plasma display off.

Note:

Power indicator will blink for a few seconds
before turning from green into red (standby
mode).

7.2 Selecting input mode:

y Press the INPUT button and the INPUT OSD

menu will appear on the screen.

y Press INPUT several times to select the desired

input source. Sequence of input sources (may be
different with different input modules):
VGA: D-SUB analog input from the PC module.
DVI: DVI digital input from the PC module.

1. PC module:

VGAÆDVI

2. PC + Video modules:

Video 1ÆVideo2ÆComponent ÆVGAÆDVI

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

27

English

7.3 Adjusting OSD item settings:

y You can adjust an OSD item with the following seven

buttons: MENU, EXIT, , , ,  and ENTER.

y Press the MENU button to bring up the OSD menu.

Press / to select the following submenus:

PictureÆDisplayÆTV SettingÆAudioÆMiscellaneous

ÆInformation

y Press / to move the selection point up and down.
y Press / to move the selection point left and right and

to adjust the setting of an item.

y Press EXIT button to exit OSD menu.

Note:

You can adjust the OSD time out from the Miscellaneous
menu. The OSD menu will turn off automatically if there
is no button action before timeout.

7.4 Adjusting volume:

y You can adjust the volume of the speakers with the

following three buttons: VOL+, VOL-, and MUTE.

y Press and hold VOL+ button to increase volume. Press

and hold VOL- button to reduce volume.

y Press MUTE button to mute the speakers (turn speakers

off). Press MUTE button again to resume speaker
output.

y Miscellaneous audio settings (e.g. treble, bass and

balance) must be done from the OSD menu or front
panel controls.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

28

7.5 Zooming in to/out of pictures:

y You can adjust the screen size with the following two

buttons: ASPECT RATIO and ZOOM.

y Press ASPECT RATIO to change the screen size.

Note:

1. You can select “Fit to Screen” or “Original Size”
(1:1) in PC mode.

2. You can select Pixel to Pixel, 4:3 Output, Panoramic,
Letter Box or Full Screen in Video mode.

y Press and hold ZOOM to zoom in and return to normal.

7.6 Miscellaneous functions:

y Press AUTO to activate auto adjustment (phase,

V-sync and H-sync) if there is a display problem in PC
mode after timing change.

y Press FREEZE to freeze display on the screen (not the

input source). Press button again to resume display.

Note:
FREEZE will only freeze the display on the screen,

and the playback system will continue playing.

y Press and hold PIP/POP to switch from and to:

Sub-frame (small)ÆFrame (medium) (Frame (big)
(Double Screen (full screen) (Double screen (16:9)
(Multiple screen)

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

29

English

7.7 OSD functions:

1. Summary of OSD menu:

[PC]

Picture Display

TV

Settings

Audio Miscellaneous Information

Brightness Aspect Ratio Treble OSD Time Out

Contrast PIP Size Bass OSD Position

Saturation PIP Position SRS OSD Language

Tint Reset Balance

OSD

Transparency

Sharpness Clock Speaker DPMS

Reset Phase Audio Line Out Image Reverse

Picture Mode Position Color Space

Color

Temperature

Audio Source

User R Factory Default

User G

User B

[AV]

Picture Display

TV

Settings

Audio Miscellaneous Information

Brightness

Video

System

Channel

System

Treble OSD Time Out

Contrast Aspect Ratio

Channel

Edit

Bass OSD Position

Saturation PIP Size

Auto

Scan

SRS OSD Language

Tint PIP Position

Parental

Protection

Balance

OSD

Transparency

Sharpness Speaker DPMS

Reset Audio Line Out Image Reverse

Picture Mode Color Space

Color

Temperature

Audio Source

User R Factory Default

User G

User B

Note:

There are six submenus in total in each of the PC and Video modules. Settings in
each module are slightly different.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

30

2. OSD submenus:

(1) Picture menu:

[PC-1] [VIDEO-1]

[PC-2] [VIDEO-2]

y When connecting your plasma display using the D-sub 15-pin (VGA analog)

port, you can only adjust the following items: Brightness, Contrast,
Saturation, Tint, Reset, Picture Mode and Color Temperature.

y You can reset the Brightness, Contrast, Saturation and Tint settings to the

factory default. If you have selected “User” in the Color Temperature setting,
you can adjust the brightness of Red, Green and Blue separately.

y When connecting your plasma display to a video system via the VIDEO

module, you can adjust the following items: Brightness, Contrast, Saturation,
Tint, Sharpness, Reset, Picture Mode and Color Temperature.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

31

English

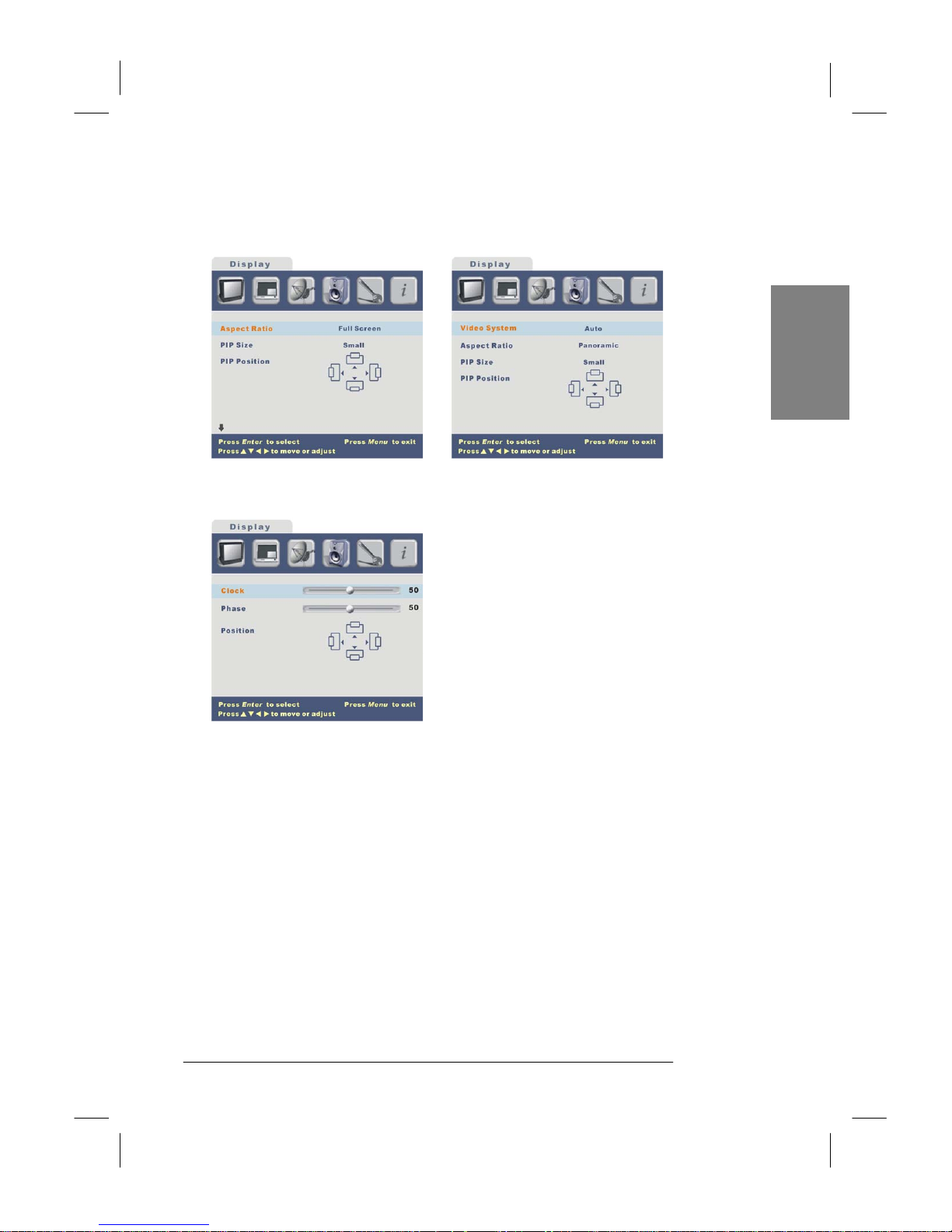

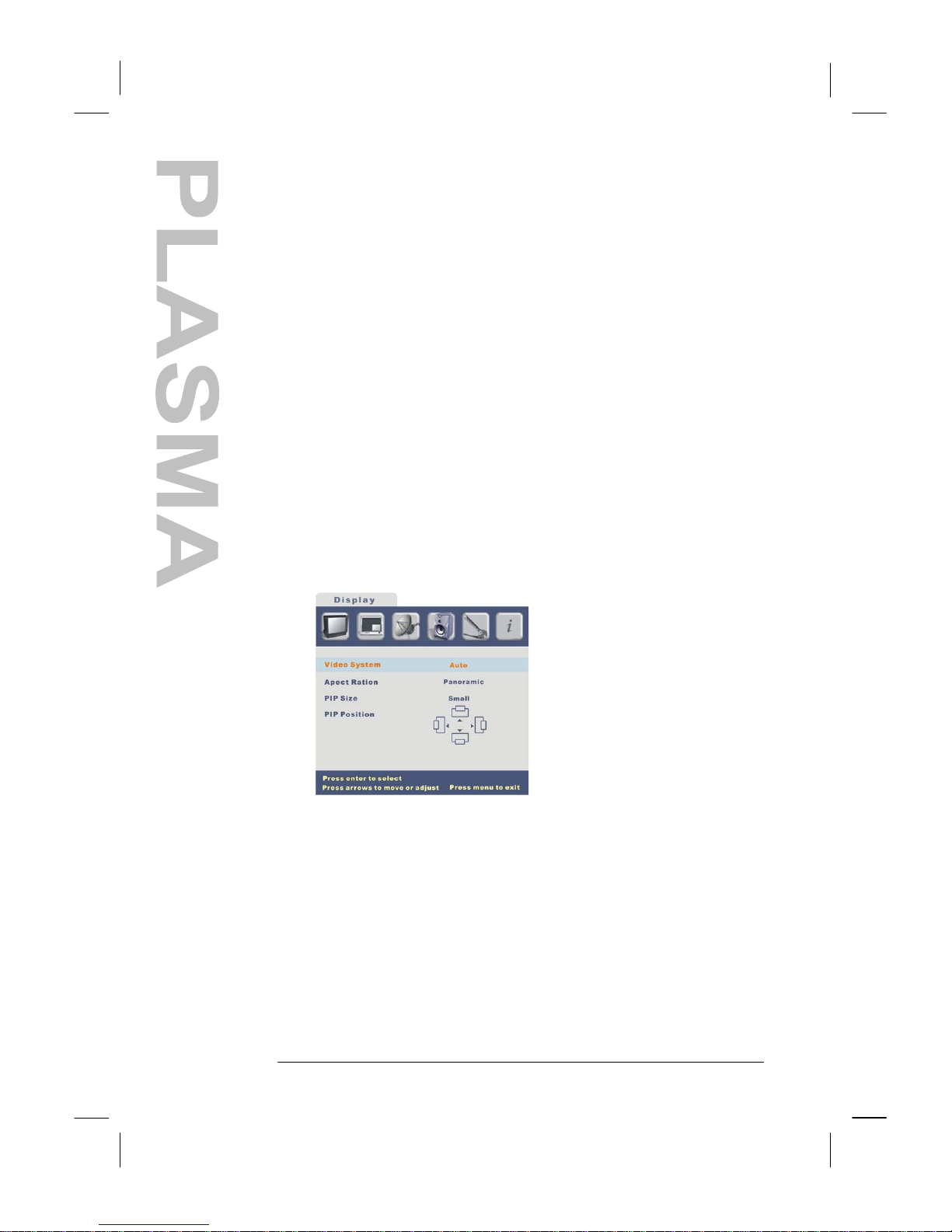

(2) Display menu:

[PC-1] [VIDEO-1]

[PC-2]

y When connecting your plasma display via the PC module, you can adjust the

following items: Aspect Ratio, PIP Size, PIP Position, Clock, Phase and
Position.

y When connecting your plasma display via the video module, you can adjust

the following items: Video System, Aspect Ratio, PIP Size and PIP Position.

y There are five display mode options. You can select the one that best suits

the format of the source signal by pressing the Aspect Ratio button. These
five options are: Pixel to Pixel, 4:3 Output, Panoramic, Letter Box and Full
Screen.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

32

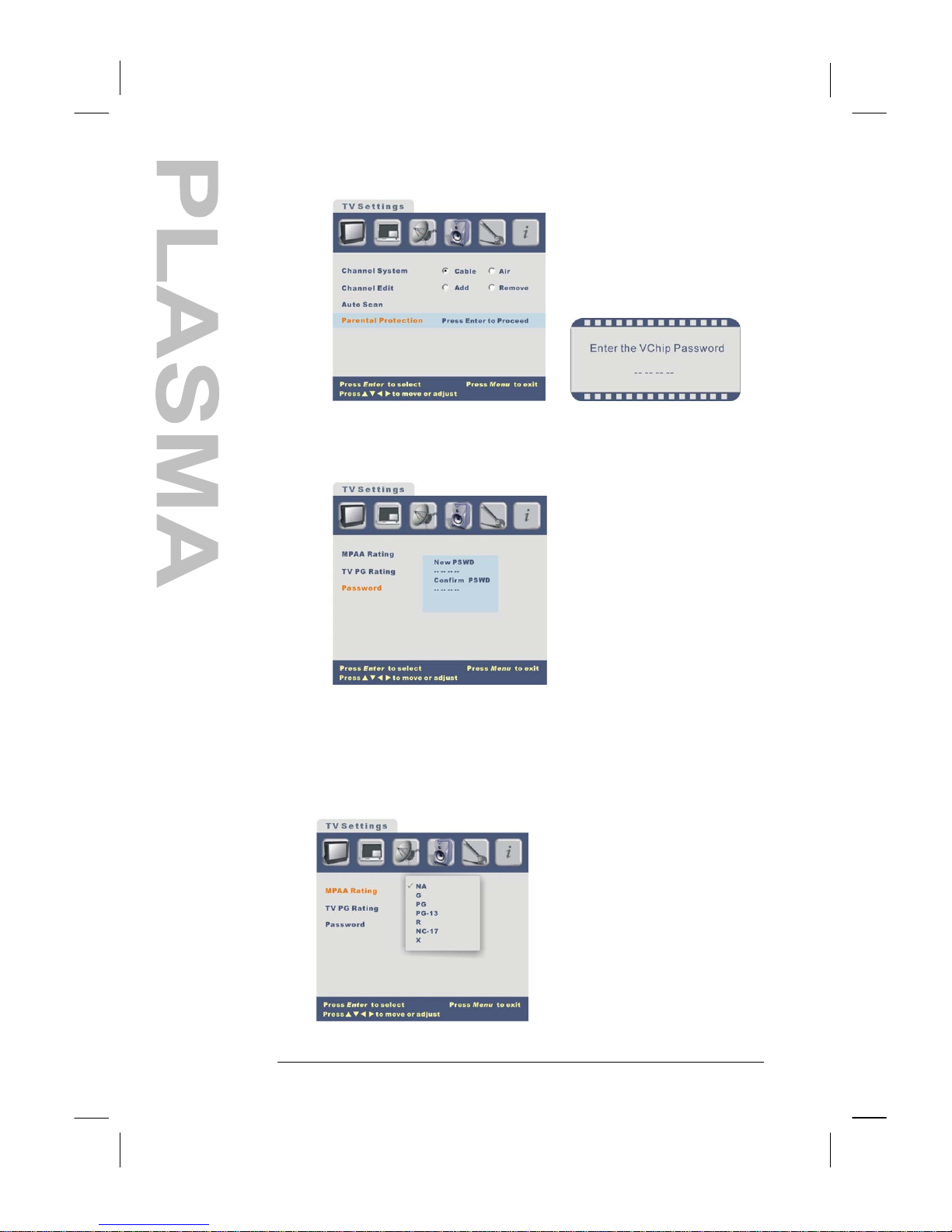

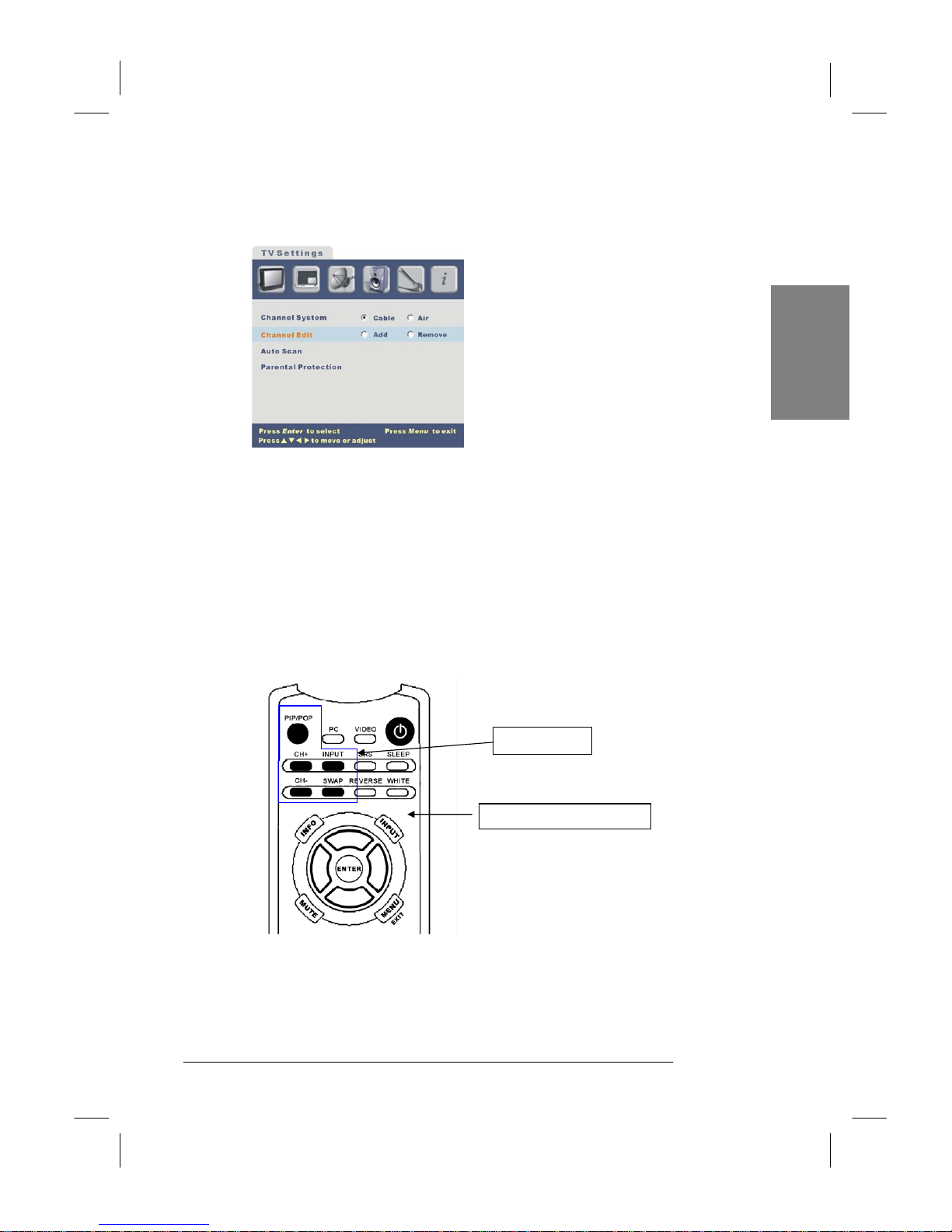

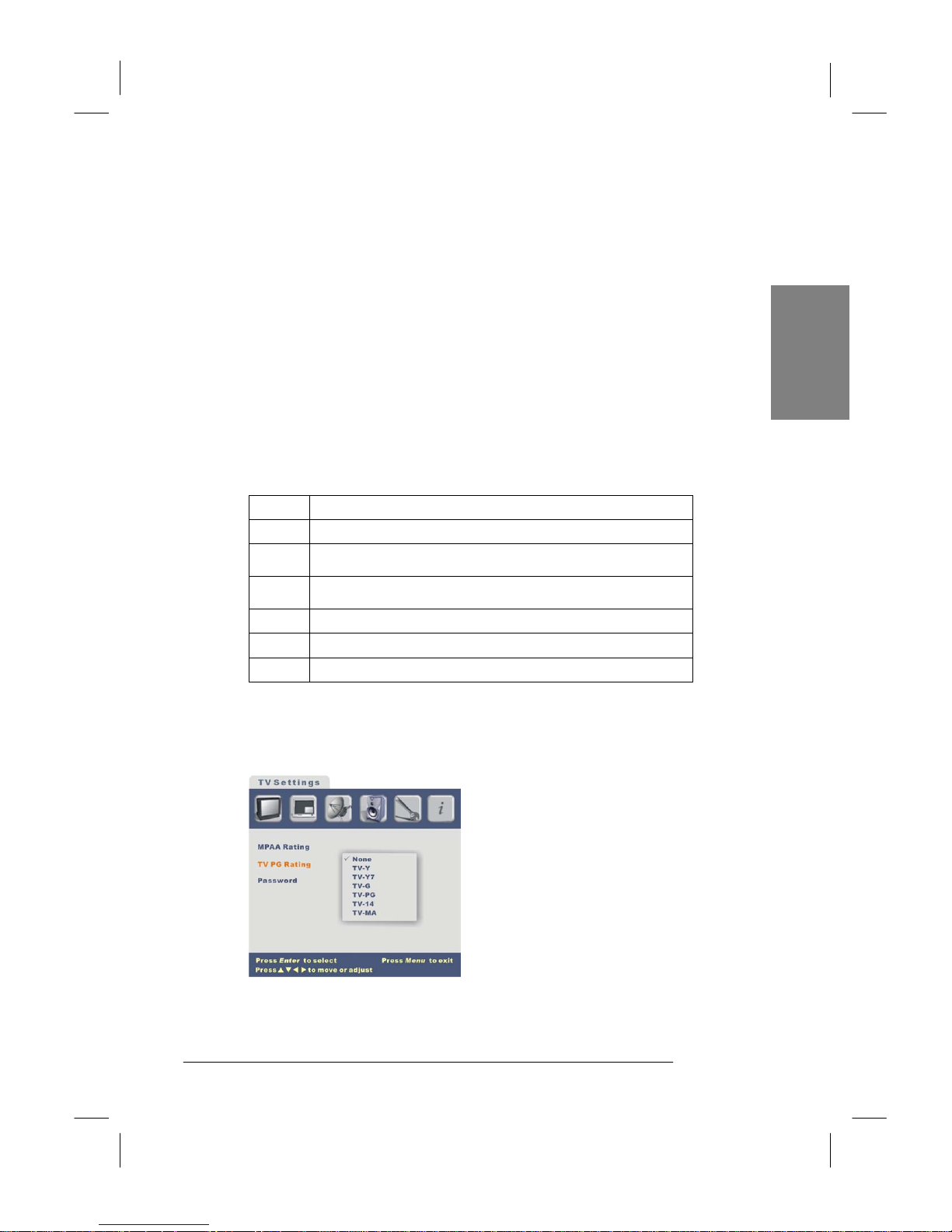

(3) TV Settings menu:

y You must install a TV module before you can adjust the TV items, including

Channel System, Channel Edit, Auto Scan and Parental Protection (available
only in the USA).

(4) Audio menu:

y Items in the Audio Menu are the same for both PC and video module. These

settings are: Treble, Bass, Balance, SRS, Speaker and Audio Line Out.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

33

English

(5) Language and screen saver menu:

[PC & Video - page1] [PC & Video - page2]

y Items in this menu include OSD Time Out, OSD Position, OSD Language,

OSD Transparency, DPMS (PC Only), Image Reverse, Color Space, Audio
Source and Factory Default.

y You can select the OSD language using the Language setting.
y Image Reverse is a screen saver to protect screen from damage after

displaying a still picture for a long time.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

34

(6) Information:

[PC] [Video - page1]

[PIP/POP - page2]

y When connecting your plasma display via the PC module, you can adjust the

resolution, H-sync. and V-sync. from this page. If the PIP function is on, the
input and system of sub-frame will be displayed.

y When connecting your plasma display via the Video module, the input and

system will be displayed. If the PIP function is on, the input and system of
sub-frame will be displayed.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

35

English

8

.

TV Instructions:

8.1 Connect to antenna:

¾ When using 75 coaxial cable: Connect directly to the VHF/UHF

terminal of the tuner.

¾ When using 300 parallel feed line: First connect to a 300 to 75

converter, then connect to the VHF/UHF terminal of the tuner.

8.2 Input and Output Connection:

¾ VHF/UHF: Connect antenna or CATV 75Ω coaxial cable to receive

TV/CATV signal.

75 Coaxial Cabele

Finger Tight

UHF Antenna

Mixe

r

300 Parallel Feed Line

300→75 Convertor

UHF Antenna

Mixe

r

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

36

8.3 Operating Instructions:

1. Setting channel and memory:

¾ After installing antenna, please use remote control in accordance with the

following steps to scan all TV channels available for watching.

(1) Select TV output:

y Continuously press remote control INPUT button, and select in sequence.

Video 1ÆVideo2ÆComponentÆVGAÆDVIÆTV

(2) System Select:

y Press MENU, select TV Setting and execute (Press/ to select, Press

/ to execute).

y Based on source of signal, set Channel System Selection as Cable (TV) or

Air; this Selection should be set up before channel scanning.

(3) Channel Scan Memory:

y Select Auto Scan Selection and press  and Enter to execute. The Menu

enters channel search status; upon completion of channel scan, it will stay on
the channel of scan start.

y Upon completion of channel search, the channel list is stored in memory.

Press CH  or CH  to view channels in sequence.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

37

English

(4) Channel Edit:

y Add or remove currently selected channels from the Channel List.

(5) Bilingual Select:

y Switch using remote control MTS Key; select Stereo, Sap, or Mono output.

2. PIP/POP Setting:

¾ Press PIP/POP on remote control to enter PIP/POP Mode.

This mode provides a variety of PIP/POP screens, press PIP/POP to cycle
through according to the following sequence.

PIP(Small)ÆPIP(Medium)ÆPIP(Large)ÆPOPÆPOP(16:9)ÆMulti POP
ÆOff

POP INPUT Switchove

r

PIP Buttons

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

38

¾ Change source of input signal for PIP screen (Input):

Press the INPUT button in the PIP section to change the input source, repeat
to cycle through input sources. To change the input source in POP mode, use
the POP INPUT button as shown above.

¾ PIP TV Channel Select (CH+ / CH-):

When in PIP mode, you may press CH+/- in the PIP section to adjust the
channel.

¾ PIP/POP Exchange (SWAP):

When in PIP/POP mode, you may press SWAP to exchange the PIP/POP
screens.

¾ Change PIP size under PIP Mode:

When in PIP mode, you may press the Menu button to enter PIP Size
Selection on Display page, and set PIP size to Large, Medium or Small. Also
without entering the OSD, directly press PIP/POP button on remote control
to change PIP size.

¾ Change PIP position under PIP Mode:

When in PIP Mode, you may press the Menu button to enter PIP Position
Selection on Display page, then press Up, Down, Right, Left to change PIP
position. Also without entering the OSD, directly press Up, Down, Right,
Left Key on remote control to change PIP position.

¾ Other:

To switch to a TV channel previously entered into the “FAV” group, add “F”
before the channel number; for example, for Channel 8 enter F 8. When using
CH+ / CH- to change the channel, the “F” notation will appear on the screen.
The maximum number of channels in the favorite channel group is 125.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

39

English

8.4 Advanced Functions:

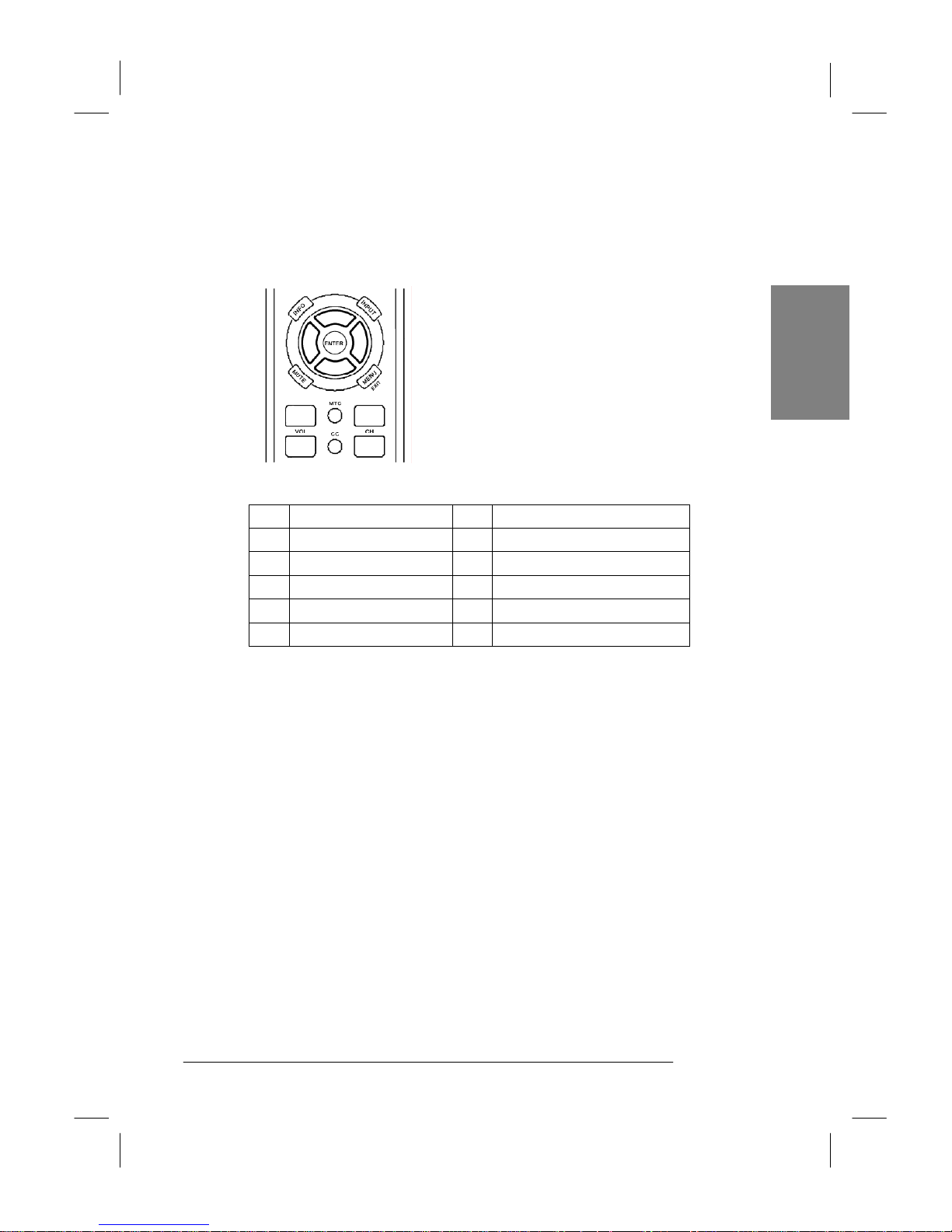

1. Setting Close Caption:

¾ Press “CC” on the remote control.

¾ Close Caption item description:

Item Content Item Content

CC1 Show the first subtitle T1 Show the 1st subtitle message

CC2 Show the second subtitle T2 Show the 2nd subtitle message

T3 Show the 3rd subtitle message

T4 Show the 4th subtitle message

OFF Hide the subtitle

2. Setting TV Rating:

¾ Activate the V-CHIP function.

y Highlight the Parental Protection icon and press “” key & “Enter” key to

access.

y First, the password must be entered. Please input the password that was

previously set; the default initial password is “1234” . See the figure
below.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

40

y If the password is correct, the V-Chip setting OSD page will be displayed.
y Change password: highlight “Password” item then press the “Enter”

button. You may change the password and save it. See the figure below.

y V-Chip Control: Press “/” to choose between two kinds of rating.

3. MPAA Rating:

¾ Highlight the MPAA Rating rating icon, and press the “Enter” button. The

MPAA Rating page is as shown below.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

41

English

¾ Using up / down key (/), select the desired rating items and press “Enter”

to store the setting .

Note:

y If the user chooses the “PG-13” setting, then the ratings “R”, “NC-17”, “X”

beyond “PG-13” will be set to “Block” automatically.

y MPAA Rating system description:

RATING DESCRIPTION

G General Audience (Appropriate for all ages)

PG

Parental Guidance Suggested (Some material may not be suitable for
children)

PG-13

Parental Strongly Cautioned (Some material may be inappropriate for
children under 13)

R Restricted (Under 17 requires accompanying parent or adult guardian)

NC-17 Not intended for anyone 17 and under

X X rated (For adult only)

4. US TV Rating:

¾ Highlight the TV PG Rating icon, and press “Enter” to enter. The US TV

Rating page is as shown below.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

42

¾ Using up / down key (/), select the desired rating items and press “Enter”

to store the setting.

Note:

y US TV Rating system description:

RATING

FV

(Fantasy

Violence)

V

(Violence)S (Sexual

Situation)

L

(Adult

Language)

D

(Sexually

Suggestive

Dialog)

TV-Y
(All children)

TV-Y7 (Direct to
Older Children)

X

TV-G (General
Audience)

TV-PG
(Parental Guidance
Suggested)

X X X X

TV-14
(Parents Strongly
Cautioned)

X X X X

TV-MA (Mature
Audience Only)

X X X

Note: “X” indicates Content Rating can be set.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

43

English

9

.

Optional accessories:

External
Speakers

Wall-mount rack
0°-20°, adjustable

Installation

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

44

10 .

Technical Specification:

Display area

1007mm (width) x 567.4mm (height)

Aspect ratio

16 : 9

Dimensions 1138mm (width) x 748mm (height) x 98mm (depth) (excl.

stand and handles)

Weight

37kg (excl. stand)

Resolution

852 (Horizontal) x 480 (Vertical) pixels
(Each pixel includes R/G/B dots)

Pixel pitch

1.182mm (horizontal) x 1.182mm (vertical)

Colors

16.7 Mega (256 grade for each of R/G/B)

Gray tone

256 (R/G/B @ 8bit)

Viewable angle

Over 160°, both horizontal and vertical

Sound effect

SRS

Power supply

100-120VAC/220-240VAC, 50Hz/60Hz

Power consumption

330W (general)

Input terminals PC module

D-Sub 15-pin (analog RGB input)
DVI Connector (digital-TMDS input)
D-Sub 9-pin (RS-232 terminal)

Video module

S-Video IN: Mini DIN 4-pin x 2
CVBS IN: RCA x 2
CVBS OUT: RCA x 1
Component Y/Pb(Cb)/Pr(Cr): RCA x 3
Audio IN: RCA x 2 (L/R channels)

Phone Jack:

∅ 3.5mm x 1

Safety Standards

CE, FCC, UL, C-UL, TUV and CCC

Standard accessories

Remote controller x 1; UM4 batteries x 2; AV cable x 1;
D-sub cable x 1; S-video cable x 1; power cord x 1; and
user’s manual x 1

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

45

English

11.

Factory default:

Your plasma display is ready to receive 17 kinds of input signals as shown in the table below:

Factory default signals (RGB mode)

NO

Resolution
Horizontal

Horizontal
Frequency

(KHz)

Vertical

Frequency

(Hz)

Dot Clock
Frequency

(MHz)

Remark

1 720×400 31.47 70.08 28.32 DOS

2 640×400 37.90 85.00 31.50 VESA

3 640×480 31.50 60.00 25.18 DOS

4 640×480 35.00 67.00 30.24 Mac.(SOG)

5 640×480 37.50 75.00 31.50 VESA

6 640×480 37.86 72.81 31.50 VESA

7 640×480 43.30 85.00 36.00 VESA

8 800×600 35.16 56.25 36.00 VESA

9 800×600 37.90 60.32 40.00 VESA

10 800×600 46.90 75.00 49.50 VESA

11 800×600 48.08 72.19 50.00 VESA

12 800×600 53.70 85.00 56.25 VESA

13 832×624 49.00 74.00 57.27 Mac.(H+V)

14 1024×768 48.40 60.00 65.00 VESA

15 1024×768 56.50 70.00 75.00 VESA

16 1024×768 60.00 75.00 78.75 VESA

17 1024×768 68.70 85.00 94.50 VESA

18 1280×1024 64.00 60.00 108.00 VESA

＊ If the signal source is out of the range of your plasma display, the message

“Signal Out of Range” will be displayed on the screen.

＊ You can confirm the format of signals from the Information Menu under the

OSD menu.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

46

12 .

Cleaning and trouble shooting:

12.1 Cautions:

1. Disconnect your plasma display from the power source before cleaning it.

2. Do not use chemicals, such as benzene, thinner or alcohol, to clean the
case, screen filter or remote controller of your plasma display, as this
could damage the coating on these articles.

12.2 Cleaning the case and remote controller:

1. Clean them with a soft cloth.

2. If the case or remote controller is very dirty, clean it with diluted neutral
detergent. Dampen a cloth with diluted detergent, wipe the dirt off and dry
the shell or remote controller with a soft cloth. Make sure liquid does not
enter inside your plasma display.

12.3 Cleaning the screen:

1. Wipe the screen gently with a soft cloth.

2. There is a fragile protective glass in front of the screen. Do not allow
sharp objects to scratch it. Do not press or hit the glass. If the glass is very
dirty, dampen a cloth with diluted neutral detergent, wipe the dirt off
gently and dry the glass with a soft cloth.

12.4 Troubleshooting:

Before sending your plasma display to be serviced, please check your plasma
display and the devices connected to it according to the instructions below.
Send your plasma display to be serviced only if you cannot eliminate the
trouble.

Problem Troubleshooting

Unable to turn it on.
(indicator is dead)

y Check the power plugs on the outlet and your plasma

display to see if they are securely connected.

Message “No Input Signal”
appears on the screen.

y Check if the audio cables are securely connected.
y Check if you have turned the video system or PC on.
y Check if you have selected the correct input source in

the OSD menu.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

47

English

Remote controller does not
work properly.

y Check if you have installed the batteries according to the

polarity marks as shown in the battery compartment.

y Check if the batteries are dead (replace with new

batteries).

y Check if the remote controller is out of range.
y Check if you have pointed the remote controller toward

the receiver when operating it.

y Check if the receiver is blocked.

* See Chapter 7 for details about remote controller

operation.

Blinking dots or lines on the
screen.

y Check if the audio/video components are affected by

radio or electromagnetic interference, such as a running
car, a running train, a high voltage cable, a neon light or
other possible sources of interference.

The color or picture quality
is poor.

y Check picture settings, such as Brightness, Contrast and

Color.
* See OSD Functions in 7.7 for details about picture

quality adjustments.

Incorrect frame position and
size.

y Check frame position and size settings.

Improper display or color
errors.

y Check video cable connections for loose or incorrect

connections.

y If you are using the PC module, adjust the resolution

from your PC. Incorrect resolution settings will affect
picture quality in PC mode.

No sound from the external
speakers.

y Check speaker cable connection.
y Check if your plasma display is in MUTE mode.
y Check the audio cable connection of your input device.

Power indicator blinks.

y Check cable connections.
y Check if your plasma display is in sleep mode.

Unable to receive signals
from the input device, and
the message “Signal Out of
Range” appears on the
screen.

y Select the correct format of input signals.

* See Chapter 10 Factory Default for details.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

48

Your Proview Plasma/LCD Display will be repaired or replaced in accorda nce with the terms of this
warranty, at Proview’s option, if it proves to be defective in material or workmanship under normal use,
during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”)
of original consumer purchase of the product. This warranty is good only to the original purchaser of the
product and effective only when used in the Unit ed States, including Alaska, Hawaii, and U.S. Territories.

WARRANTY PERIOD:

• LABOR and PARTS: 1 YEAR from the Date of Purchase. Your unit will be repaired or
replaced with a new, substitute model or factory r econditioned unit, at Proview’s option. If
repaired, parts used in the repair may be new or remanufactured. Replacement Units and
Repair Parts are warranted for the remaining portion of the original unit’s warranty period.

• EFFECTIVE DATE OF WARRANTY: Your warranty period begins on the date of sale to the
original consumer/end user. KEEP THE DATED BILL OF SALE OR PROOF OF DELIVERY as
evidence of the purchase date. You will be required to submit a legible copy of your bill of
sale or proof of delivery when requesting warranty service.

THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT
IS LIMITED IN DURATION TO THE EXPRESSED WARRANTY PERIOD ABOVE. NEITHER THE
MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING
WITHOUT LIMITATION, LOST PROFITS, LOST OR CORRUPTED PROGRAMMING OR DATA, OR
ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do

not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an
implied warranty lasts, so the above exclusion or limitation may not apply to you. This warranty gives
you specific legal rights and you may also have other rights that vary from state to state.
CONCERNING PIXEL FUNCTIONALITY: Your Plasma/LCD Television contains about one million
individual pixels. These Televisions typically contain a s mall num ber of pixels that do not function
normally. Your display has been inspected and is in compliance with manufacturer’s specifications,
indicating that any pixel defects do not effect the operation or use of your display.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

• Damage caused in shipping or transit

• Image burn-in (Plasma Only)

• Service required as a result of improper installation, including incorrect or insufficient AC

supply (please consult the owner’s manual for power supply requirements)

• Installation or repair of antenna systems, cable converters, cable company supplied

equipment, or other components in a video system

• Setup or adjustment on consumer controls, or damage caused by improper adjustments

• Damage caused by other system component s

• Any panel that has been modified or incorporated into any other product

• Replacement of batteries on the remote control.

• Damage (including cosmetic damage), failure, loss or personal injury due to misuse, abuse,

negligence, improper maintenance or storage, or to acts of nature or other causes beyond
our control. (Causes beyond our control include but are not limited to lightning strike, power
surges, power outages and water damage.)

• Repair or replacement of warranted parts by other tha n Proview authorized service centers.

• Units purchased or serviced outside of the coverage area.

• Product where the original factory serial numbers have been removed defaced or changed in

any way.

• Product sold and lab eled as “as is, where is” or similar disclaimer.

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

49

English

The cost of repair or replacement under these excluded circumstances shall be borne by the
consumer.
FOR SERVICE:
Before you call for warranty service, check your operating guide under the “troubleshooting”
section, this may help you avoid a service call.

For warranty service information, please contact the Proview Customer Service Center telephone number
(see below). When calling for service, please have your product model number, serial number and
the date of purchase or the date of original installation available. If a replacement unit is
required, under some circumstances you may be asked to provide a reserve deposit to the Pro vie w
Service Center against a credit card number as assurance for advanced shipment. Your credit card will
not be charged if you return the defective unit within 30 working days. If a replacement unit is received,
please use the carton and packaging from that unit in returning the defective unit to the Proview®
Brand Service Center. Parts and service in accordance with the Proview warranty are Proview’s
responsibility and will be provided without charge. Other service requirements will be at the owner’s
expense. If you have problems in obtaining satisfactory warranty service, write or call the Proview
Customer Service Center. Service may be provided by independently owned and operated service
organizations. To assure proper credit and avoid unnecessary charges, you must obtain a Proview
Return Authorization before returning any product to the Proview Service Center. Contact the Customer
Interactive Center for details.
In-Home Service (for screen sizes over 20” only): Please retain dated bill of sale or delivery ticket
as evidence of the Date of Purchase for proof of warranty, and submit a copy of the bill of sale to the
service person at the time warranty service is provided.

Please call (877 532-8176) to locate you’re nearest

Proview Authorized Service Center, or

Visit our website at:

Http: //www.proview.net/service/index.htm

CONTACT THE PROVIEW CUSTOMER SERVICE CENTER BY TELEPHONE OR MAIL:
To obtain customer assistance, product information or Service lo cations by phone:
(877 532-8176), Mon–Fri 7am–8 pm CT and Sat 8am–5 pm CT

To obtain customer assistance, product informati on or Service locations by Mail:

Proview Customer Service Center
P.O. Box 192
Lincolnshire, IL. 60069-9998

IMPORTANT PRODUCT REGISTRATION INFORMATION:

It is important to register this or any Proview product. Registering will allow us to reach you promptly
should we discover a safety or reliability issue that can affect your product. To register please visit
www.proview.net/service/ce/reg.htm and fill in your information. Registration is completely optional.
Failure to register this product will not affect your warranty. Your Proview product will be repaired or
replaced in accordance with the terms of this warranty, at the option of Proview, if it proves to be
defective in material or workmanship under normal use and conditions during the warranty period
(“warranty period”) listed below effective from the date of original consumer purchase of the product
(“date of purchase”). This warranty is good only to the original purchaser of the product and effective
only when used in the United States, including Alaska, Hawaii and U.S. territories.

P/NO : (NEED P#)

46” Plasma Display

MH462su - PROVIEW-usermanual.doc

50

25-02-0-01-01
