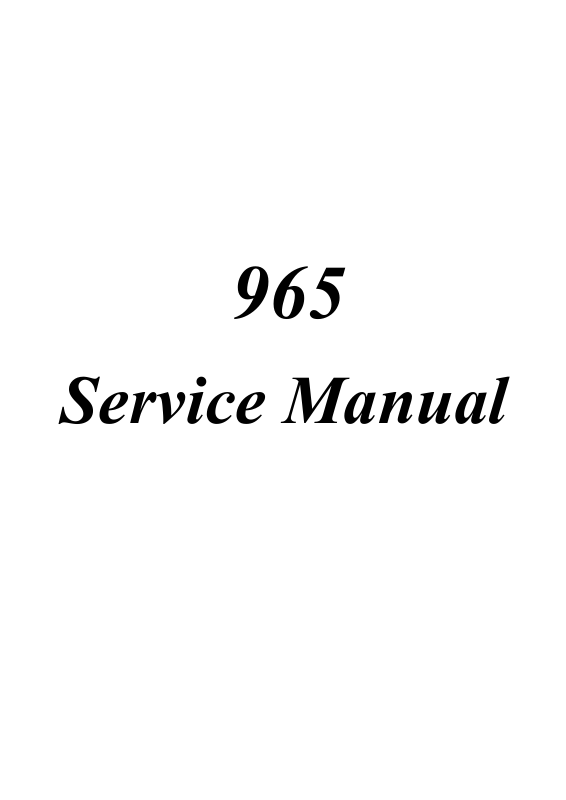

Proview 965 Service Manual

965

Service Manual

TABLE OF CONTENTS

SERVICE WARNING

A. IMPORTANT SAFETY INSTRUCTION

B. SPECIFICATIONS

C. TIMING CHART

D. CONTROL LOCATION

E. CONDUCTION VIEW

F. ADJUSTMENT PROCEDURE

G. TROUBLE SHOOTING HINTS

H. REPLACEMENT PARTS LIST

I. BLOCK DIAGRAM

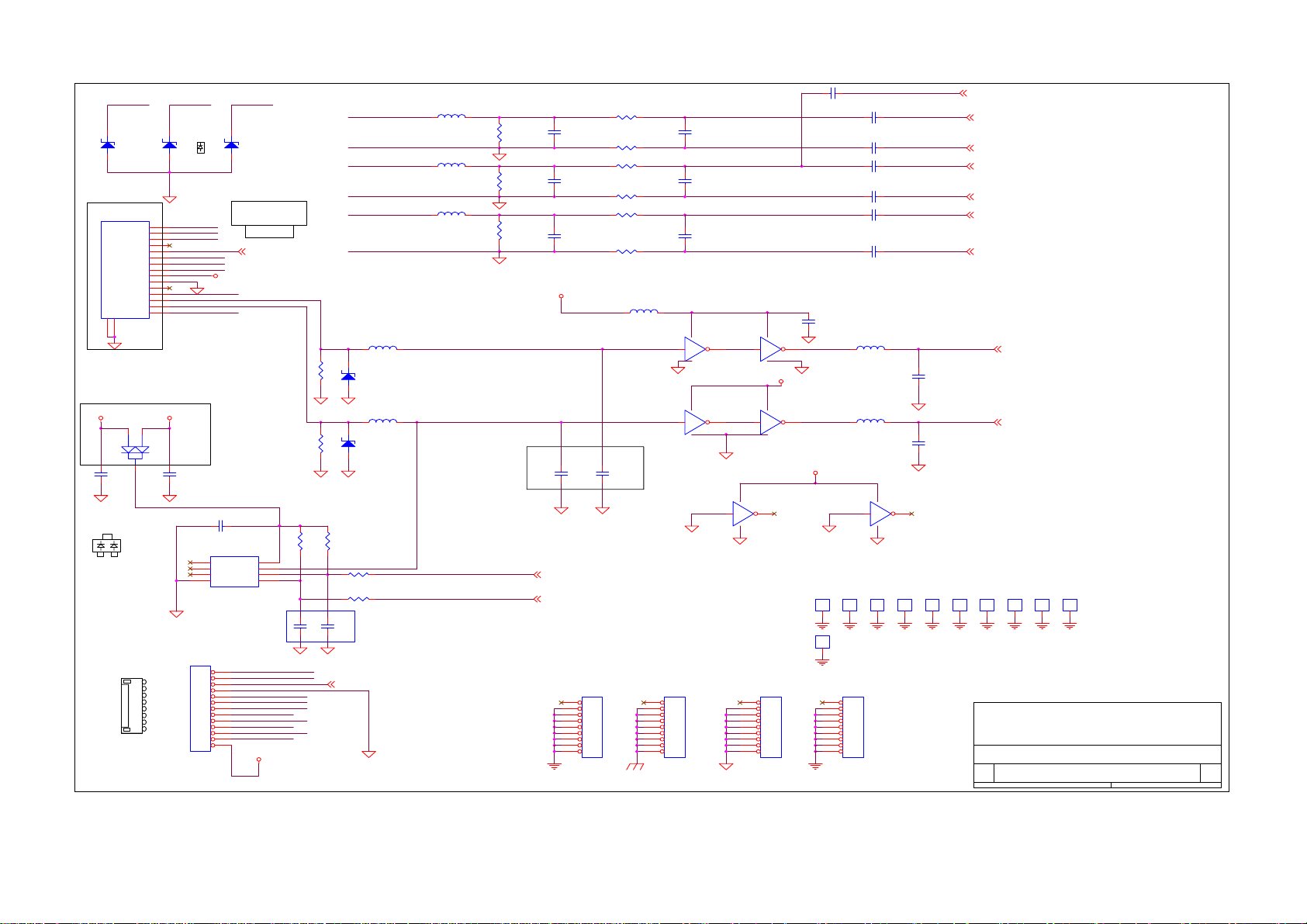

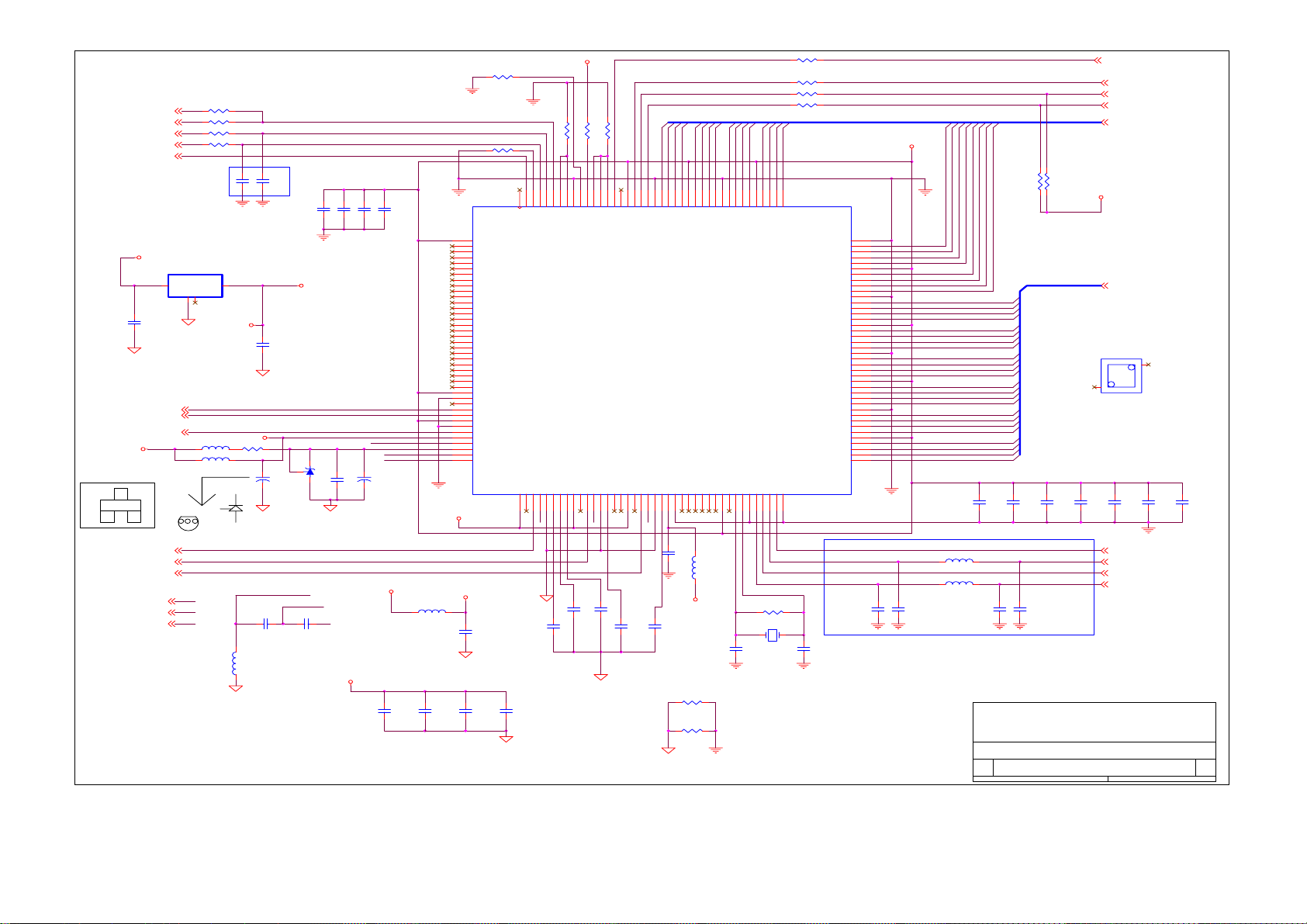

J. SCHEMATIC DIAGRAM

···········································································

···········································

··········································································

·············································································

···································································

·····································································

·························································

························································

·······················································

········································································

·······························································

13

18

19

1

1

2

3

5

6

8

9

WARNING

To prevent from fire or shock hazard,do not expose monitor to any rain or any form of water.High voltage is

inside the monitor so please do not remove the back cover of the cabinet if you are not a qualified
monitor engineer.Contact the local dealer or the nearest

Proview

A. IMPORTANT SAFETY INSTRUCTION

Prior to using this service manual,please ensure that you have carefully followed all the procedures outlined in
the user's manual for this product.

1. Read all of these instructions.

2. Save these instructions.

3. Follow all warnings and instructions a marked on the product.

4. Unplug this product from the wall outlet before cleaning.Do not use liquid cleaners or aerosol

cleaners, use a damp cloth for cleaning.

5. Do not use this product near water.

6. Do not place this product on an unstable cart,stand or tablle.The product may fall,causing serious

damage to the product.

7. Slots and openings in the cabinet and the back or bottom are provided for ventilation,to ensure
reliable operation of the product and to protect it from overheating,those openings must not be
blocked or covered.The openings should never be blocked by placing the product on a bed,sofa, rug,
or other similar surface.This product should not be placed in a built-in installation less proper
ventilation is provided.

8. This products should be operated from the type of power source indicated on the marketin label.
If you are not sure of the type of power available, consult your dealer or local power company

9. This product is equipped with a 3-wire grounding type plug,a plug having a third (grounding)
pin.This plug will only fit into a grounding-type power outlet.This is a safety feature,if you are
unable to insert the plug into the outlet,contact your electrician to replace your obsolete outlet.Do
not defeat the purpose of the grounding-type plug.

10. Do not allow anything to rest on the power cord.Do not locate this product where persons will walk
on the cord.

11. If an extension cord is used with this product,make sure that the total of the ampere ratings on the
product plugged into the extension cord to the waplugged into outlet does not exceed 15 ampere.

12. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock.Never spill liquid
of any kind on the product.

13. Do not attempt to service this product yourself,as opening or removing covers may expose you to
dangerous voltage points or other risks.Refer all servicing to service personnel.

14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions.

a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally,when the operating instructions are followed.Adjust

only those controls that are covered by the operating instructions since improper adjustment of
other controls may result in damage and will often require extension work by a qualified
technician to restore the product to normal operation.

e. If the product has been dropped or the cabinet has been damaged.

f.

If the product exhibits a distinct change in performance,indicating a need for service.

branch office if you need help.

B. SPECIFICATIONS

Maximum Resolution

1.

Recommend Resolution

2.

Synchronization Range

3.

Horizontal
Vertical

Active Display Area

4.

Dot Pitch

5.

Support display colors

6.

Contrast Ratio (Typical)

7.

Luminance of White

8.

Bandwidth

9.

User Control

10.

OSD Function

11.

View Angle

12.

Horizontal
Vertical

Power Source

13.

Power Consumption (max.)

14.

Connection Type

15.

Input Signal

16.

Video
Sync.

Color Temperature

17.

Dimension (WxHxD)

18.

Monitor Weight

19.

Base Operation

20.

Tilt

Power Saving

21.

ON
STAND BY
OFF

Signal Connector Pin Assignment

22.

Pin No. 1. Red 9. 5VDC

2. Green 10. Sync. Grou nd

3. Blue 11. Ground

4. Ground 12. SDA (For DDC)

5. Self Test 13. Horizontal Sync.

6. Red Ground 14. Vertical Sync.

7. Green Ground 15. SCL (For DDC)

8. Blue Ground

Audio signal

23.

1280 x 1024 @ 75Hz
1280 x 1024 @ 60Hz

31 – 80 KHz
60 – 75 Hz
376mm x 301mm

0.294 x 0.294 mm

16.7M
600 : 1
250cd/m²
135MHz
4 Key Switch
Brightness, Conrast, H-Pos, V-Pos, H. Size, Phase, Color Select,
Auto, Reset, Language, OSD Adjust, Exit

85 , 85 Degrees
85 , 85 Degrees
100 – 240 Vac, 60 / 50 Hz
60W
15 Pin D Type

Analog R.G.B. , 0.7Vp-p / 75 Ohms
TTL level,positive or negative polarity

Cool (9300°K) / Warm (6500°K)
500x460x215mm

8.7Kg

0° / + 15

＜ 60W
＜ 5W
＜ 5W

3.5Φ stereo phone jack
2+2W 8Ω Speaker

°

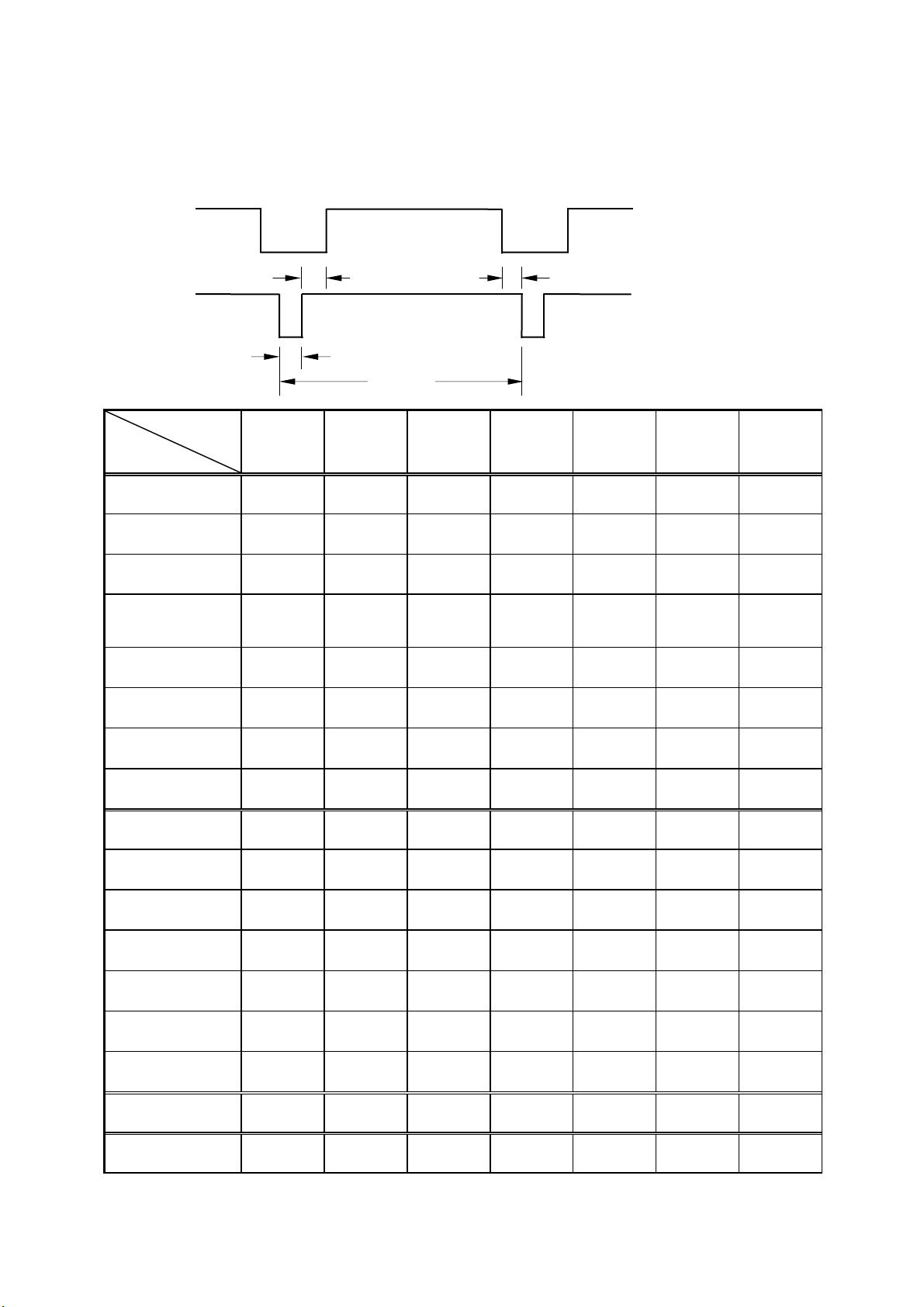

C.TIMING CHART

(

)

(Hz)

Video

Back porch Active display Front porch

Sync.

Sync-width
Total

Preset

Modes

VGA

720X400

VGA

640X480

VESA

640X480

VESA

640X480

VESA

800X600

VESA

800X600

VESA

800X600

Pixel clock

MHz

H-Frequency

(KHz)

H-Total (µ

H-Active Display (µs)

H-Blanking (µs)

Front Porch (µs)

H-Sync-width (µs)

H-Back Porch (µs)

V-Frequency

V-Total
(ms)

V-Active Display (ms)

s)

28.325 25.175 31.500 31.500 36.000 40.000 50.000

31.472 31.469 37.861 37.500 35.156 37.879 48.077

31.774 31.778 26.413 26.667 28.444 26.400 20.800

25.419 25.422 20.317 20.317 22.222 20.000 16.000

6.355 6.356 6.095 6.349 6.222 6.400 4.800

0.635 0.636 0.762 0.508 0.667 1.000 1.120

3.813 3.813 1.270 2.032 2.000 3.200 2.400

1.906 1.907 4.063 3.810 3.556 2.200 1.280

70.1 59.94 72.81 75.0 56.25 60.3 72.2

14.267 16.683 13.735 13.333 17.778 16.579 13.853

12.710 15.253 12.678 12.800 17.067 15.840 12.480

V-Blanking (ms)

V-Front Porch (ms)

V-Sync-width (ms)

V-Back Porch (ms)

H/V Sync. Polarity

Interlace

1.557 1.430 1.057 0.533 0.711 0.739 1.373

0.413 0.318 0.238 0.027 0.028 0.026 0.770

0.064 0.064 0.079 0.080 0.057 0.106 0.125

1.080 1.049 0.740 0.427 0.626 0.607 0.478

－ ＋ － － － － － － ＋ ＋ ＋ ＋ ＋ ＋

NONE NONE NONE NONE NONE NONE

NONE

Preset

Modes

Pixel clock (MHz)

H-Frequency (KHz)

H-Total (µs)

H-Active Display (µs)

H-Blanking (µs)

Front Porch (µs)

H-Sync-width (µs)

H-Back Porch (µs)

V-Frequency (Hz)

V-Total (ms)

VESA

800X600

49.500 65.000 75.000 78.750 108.00 135.00

46.875 48.363 56.476 60.023 63.981 97.976

21.333 20.677 17.707 16.660 15.630 12.540

16.162 15.754 13.563 13.003 11.852 9.481

5.172 4.923 4.053 3.657 3.778 3.022

0.323 0.369 0.320 0.203 0.444 0.119

1.616 2.092 1.813 1.219 1.037 1.067

3.232 2.462 1.920 2.235 2.296 1.837

75.0 60.0 70.1 75.0 60.0 75.0

13.333 16.666 14.272 13.328 16.661 13.329

VESA

1024X768

VESA

1024X768

VESA

1024X768

VESA

1280X1024

VESA

1280X1024

V-Active Display (ms)

V-Blanking (ms)

V-Front Porch (ms)

V-Sync-width (ms)

V-Back Porch (ms)

H/V Sync. Polarity

Interlace

12.800 15.880 13.599 12.795 16.005 12.804

0.533 0.786 0.673 0.533 0.656 0.525

0.021 0.062 0.053 0.017 0.016 0.013

0.064 0.124 0.106 0.050 0.047 0.038

0.448 0.600 0.513 0.466 0.594 0.475

＋ ＋ － － － － ＋ ＋

NONE NONE NONE NONE NONE NONE

＋ ＋ ＋ ＋

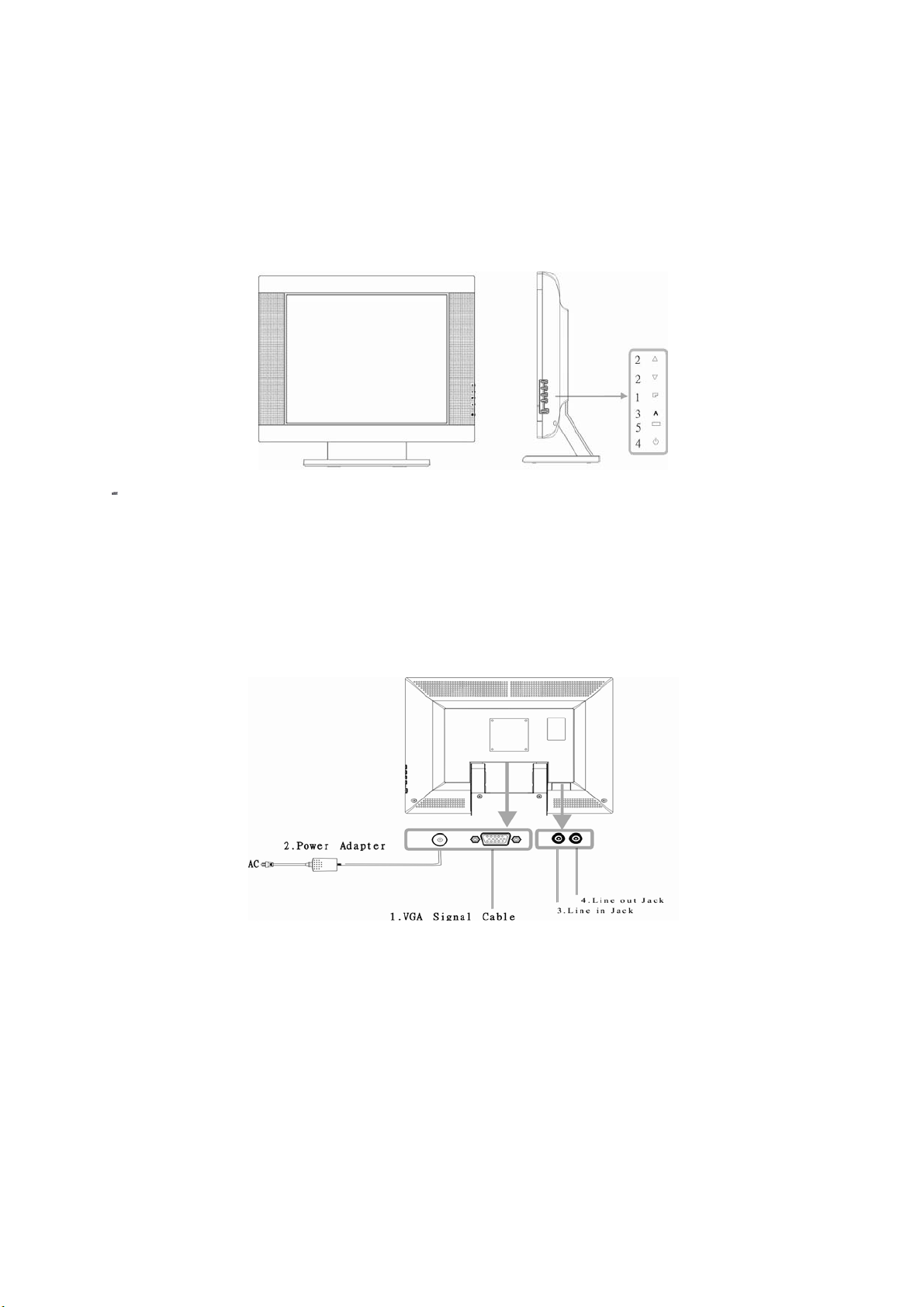

D. CONTROL LOCATION

Font control panel

1. Menu Button 4. Power Button

2. Select Button 5. LED (Power Display)

3. Auto Button

Rear panel

1. VGA Signal Cable

2. Power jack

3. Line in jack

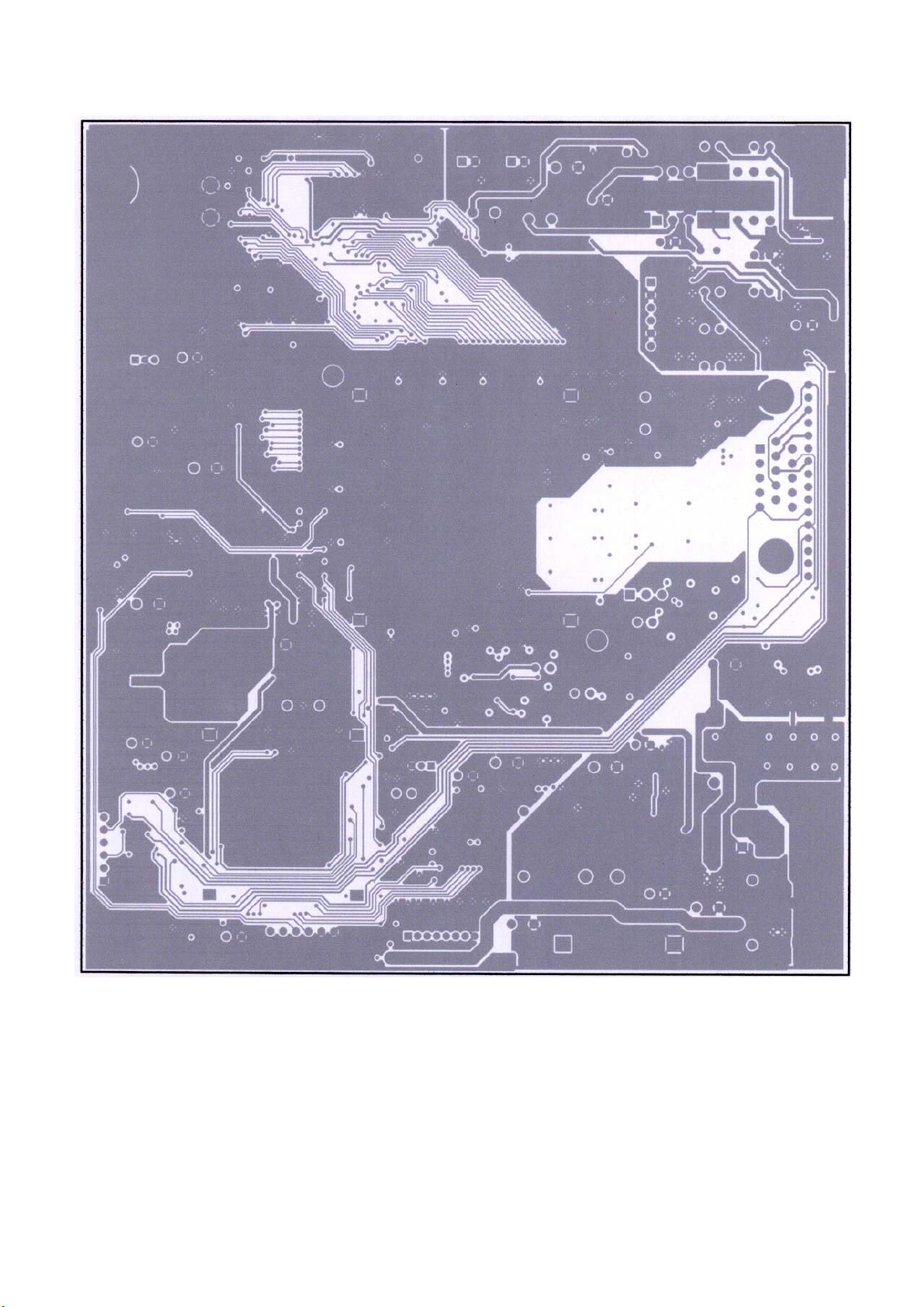

E. CONDUCTION VIEW

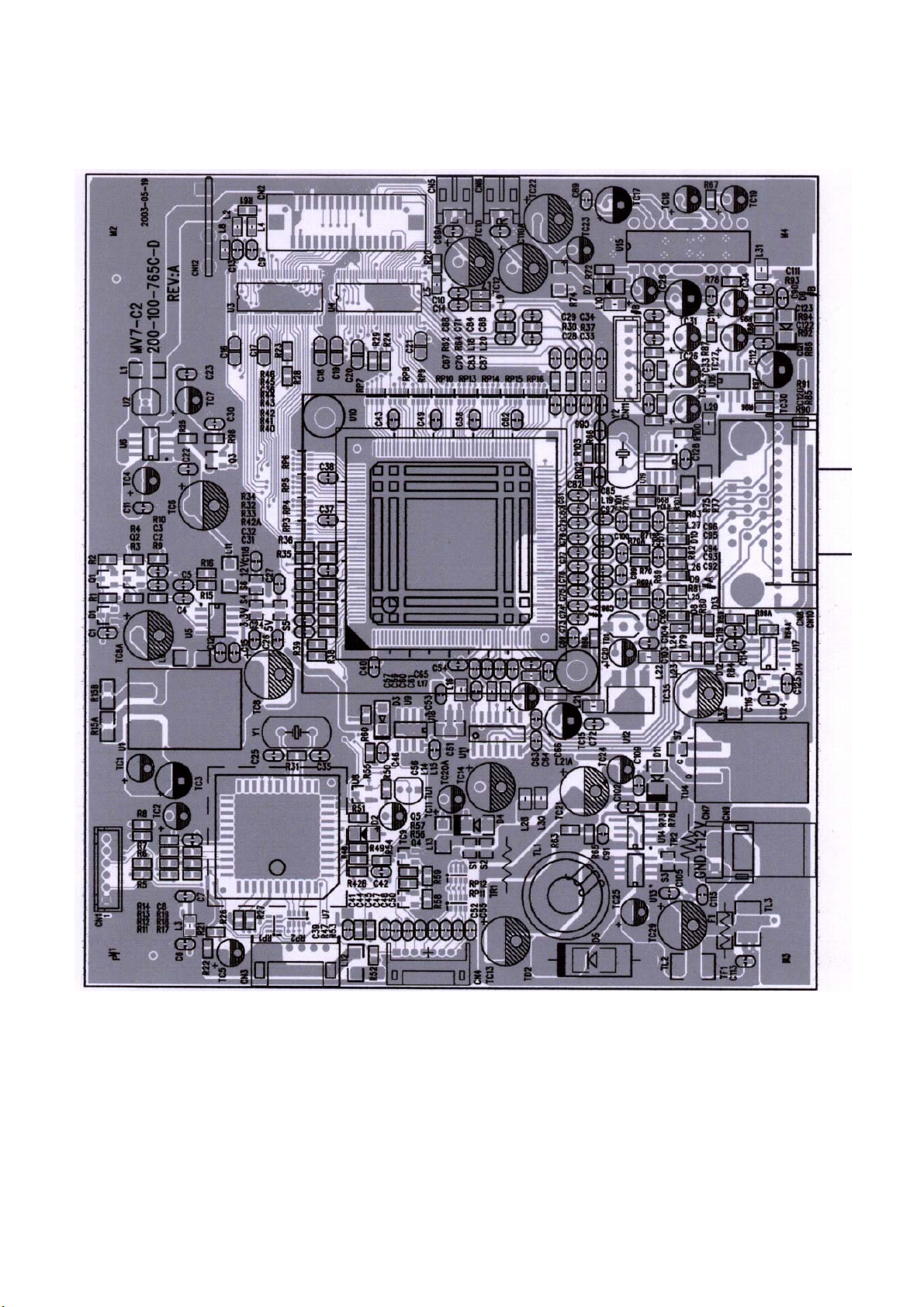

MAIN BOARD (Component Side)

MAIN BOARD (Solid Side)

ITEM

g

rogram Menu.

B+
Check

A

F. ADJUSTMENT PROCEDURE

﹟Test Meter

﹡Test Point
﹫Pattern

﹟Digital Voltmeter
﹡CN7
﹫Crosshatch Pattern
(31.5KHz,640x480)

Operation

1. Plug power cable into the adapter, check adapter

power indicator light up green.

2. Make sure the voltage of the power plug (

on the main

to the value shown at right.

PCB

CN7

Check
Value

12.0V
±0.2V

)

Power Savin
Check

B

Into Factory
mode

C

Auto mode
Check

D

White
Balance
Adjust

E

OSD

F

Language
Setting

﹟Wattmeter
﹟PC or Pattern
generator
﹫Crosshatch Pattern
(31.5KHz,640x480)

﹟PC or Pattern
generator
﹫Crosshatch Pattern
(31.5KHz,640x480)

﹟PC or Pattern
generator
﹫Crosshatch Pattern
(1024x768/60Hz)

﹟

PC or Pattern
generator
﹫White Pattern
(1024x768/60Hz)

﹟

PC or Pattern
generator

1. Unplug the signal cable into the monitor.

2. Turn the power switch of the monitor

ON

.

3. Check monitor power indicator light up orange.

4. Make sure the wattmeter value shown at right.

5.

will be display “

OSD

NO SIGNAL

” Picture.

1. Hold ‹ key,then turn the power switch of the
monitor

OFF

.

2. Hold › key,then turn the power switch of the

monitor

ON

.

3. You can into factory adjustment mode.

1. Press and relese the

menu.

OSD

2. Move the

OSD

to the

MENU

knob to activate the

function,press

AUTO

MENU

key auto adjuat display mode to its utmost

performance according to

VGA

setting.

3. In the event of the display image needs further
adjustment

1. Move the

2. set color is 9300

OSD

to the

K

using the

°

COLOR

(

mode

AUTO COLOR).

,Check the value

OSD

shown at right.

Y = 220±0.1FL x = 0.283±0.01 y = 0.297±0.01

3. set color is 6500

K

using the

°

,Check the value

OSD

shown at right.
Y = 220±0.1FL x = 0.313±0.01 y = 0.329±0.01

1. Move the

OSD

to the

LANGUAGE

mode

.

2. You can choose one of the eight language you need.

<

2.5W

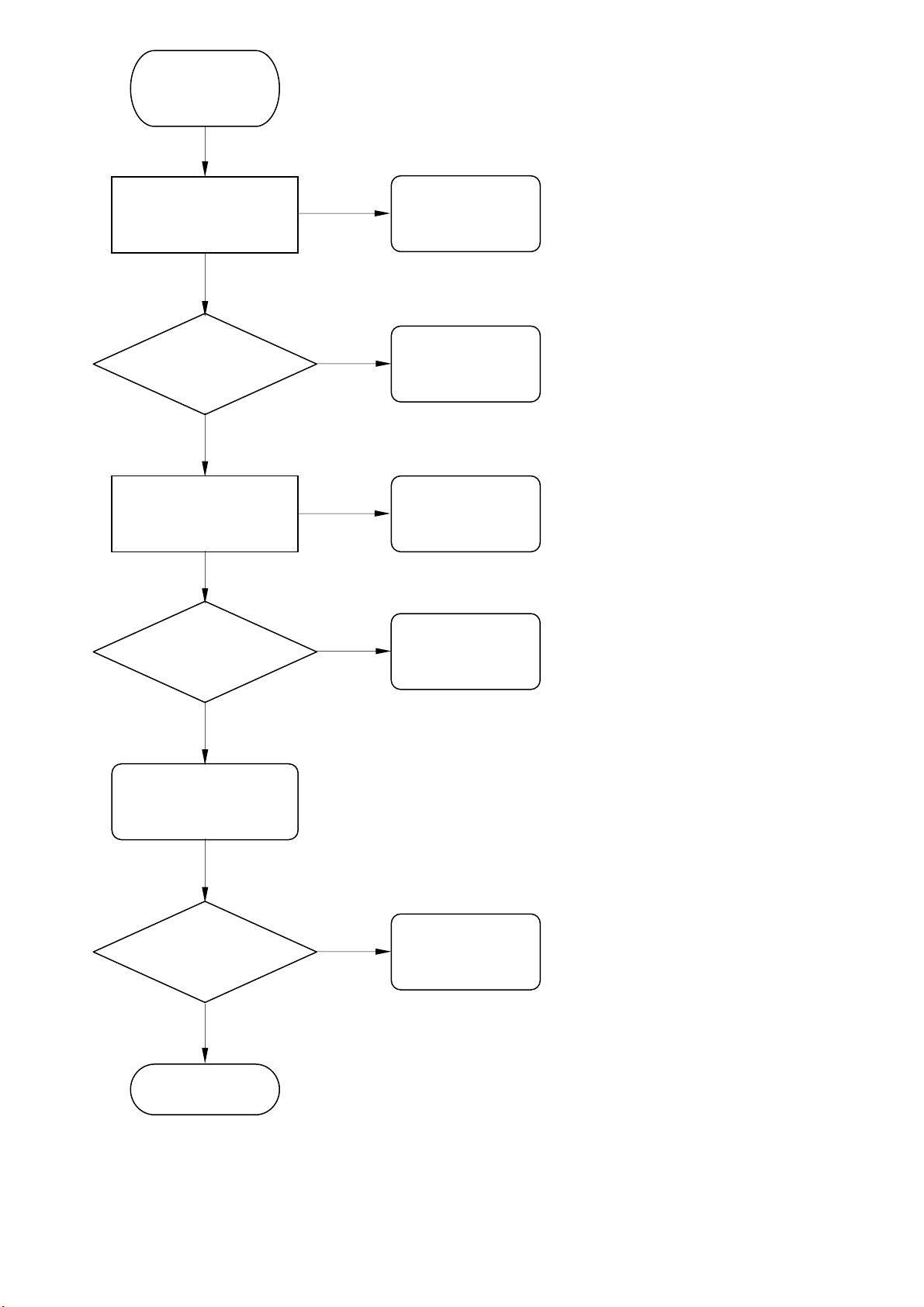

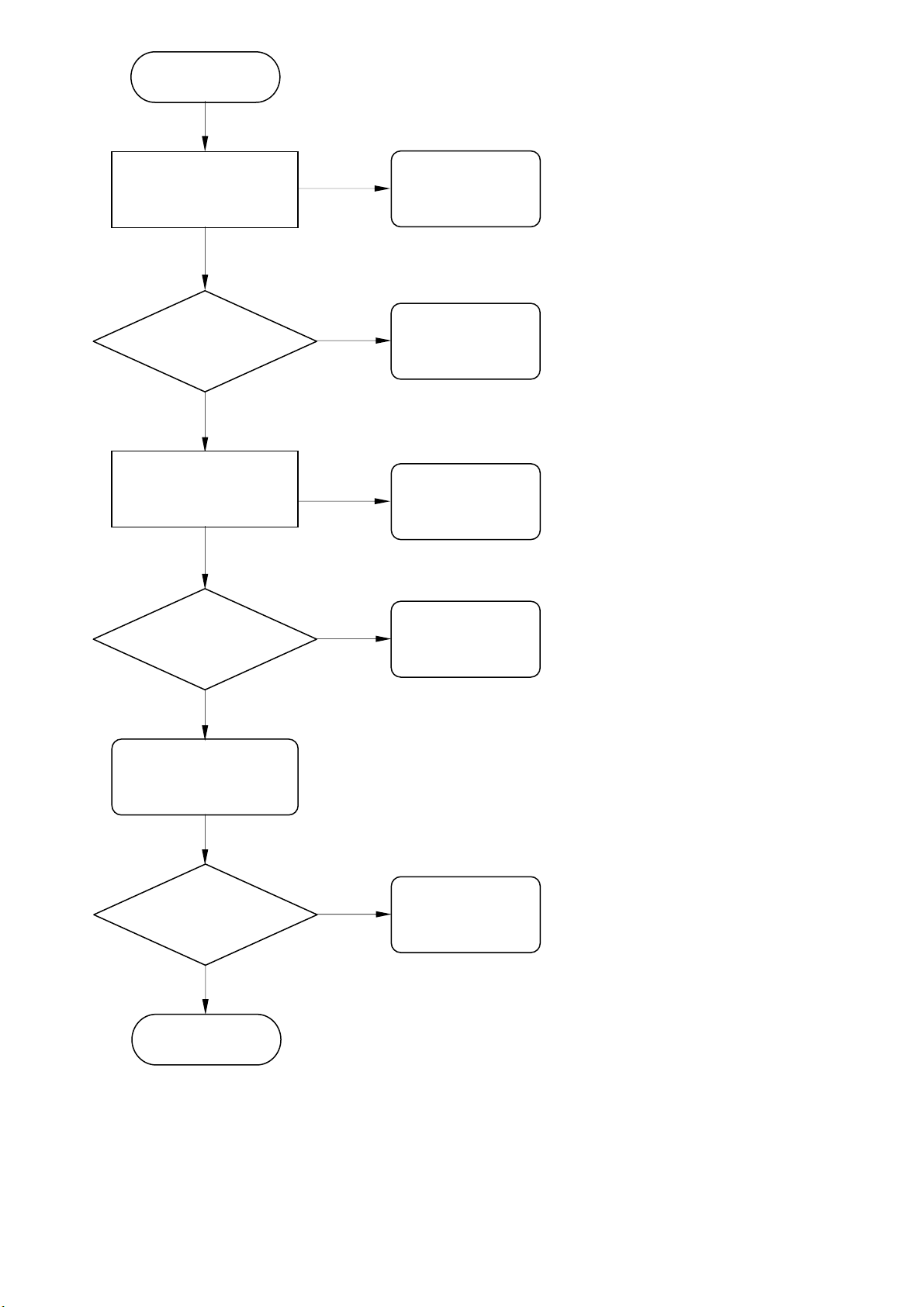

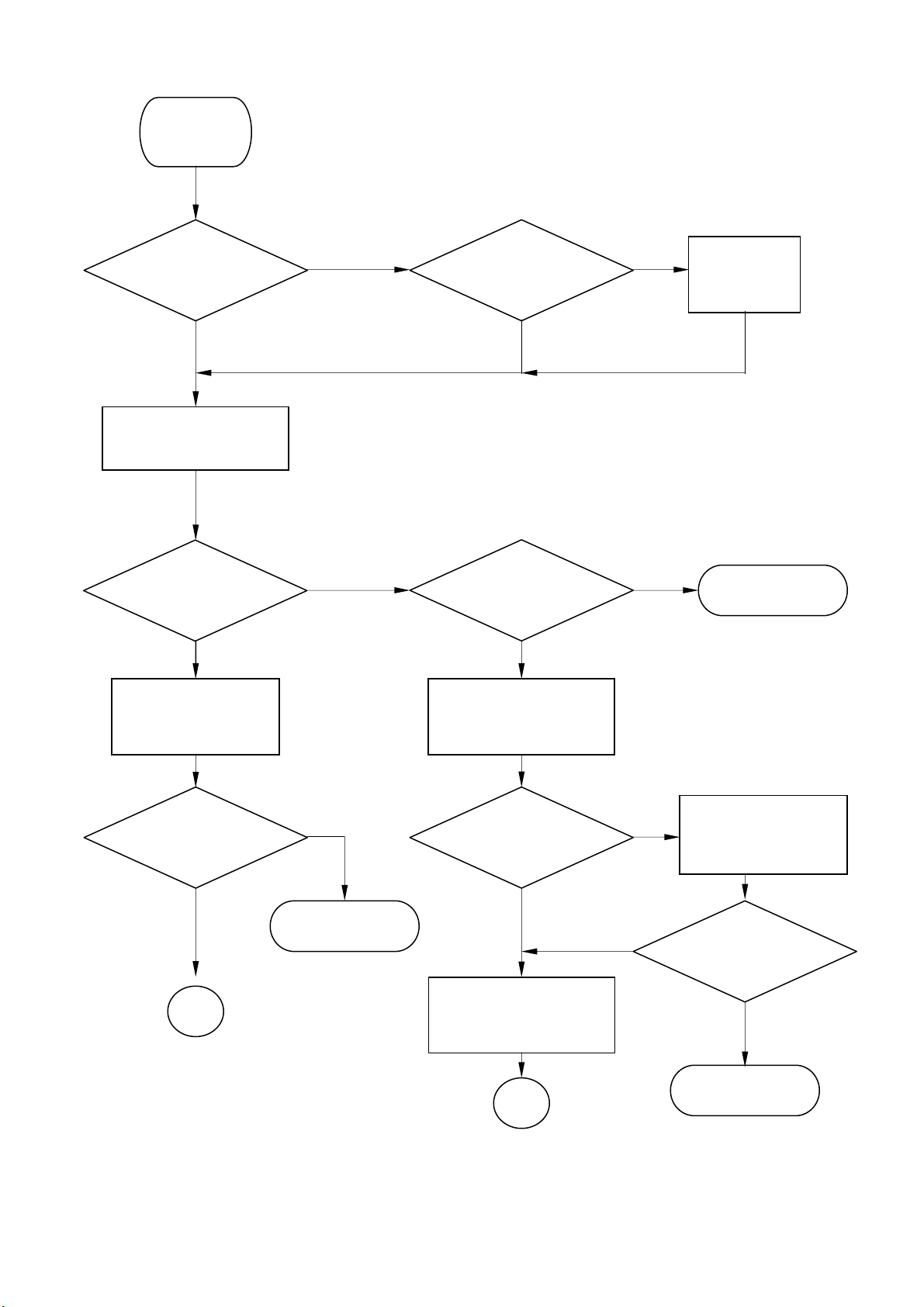

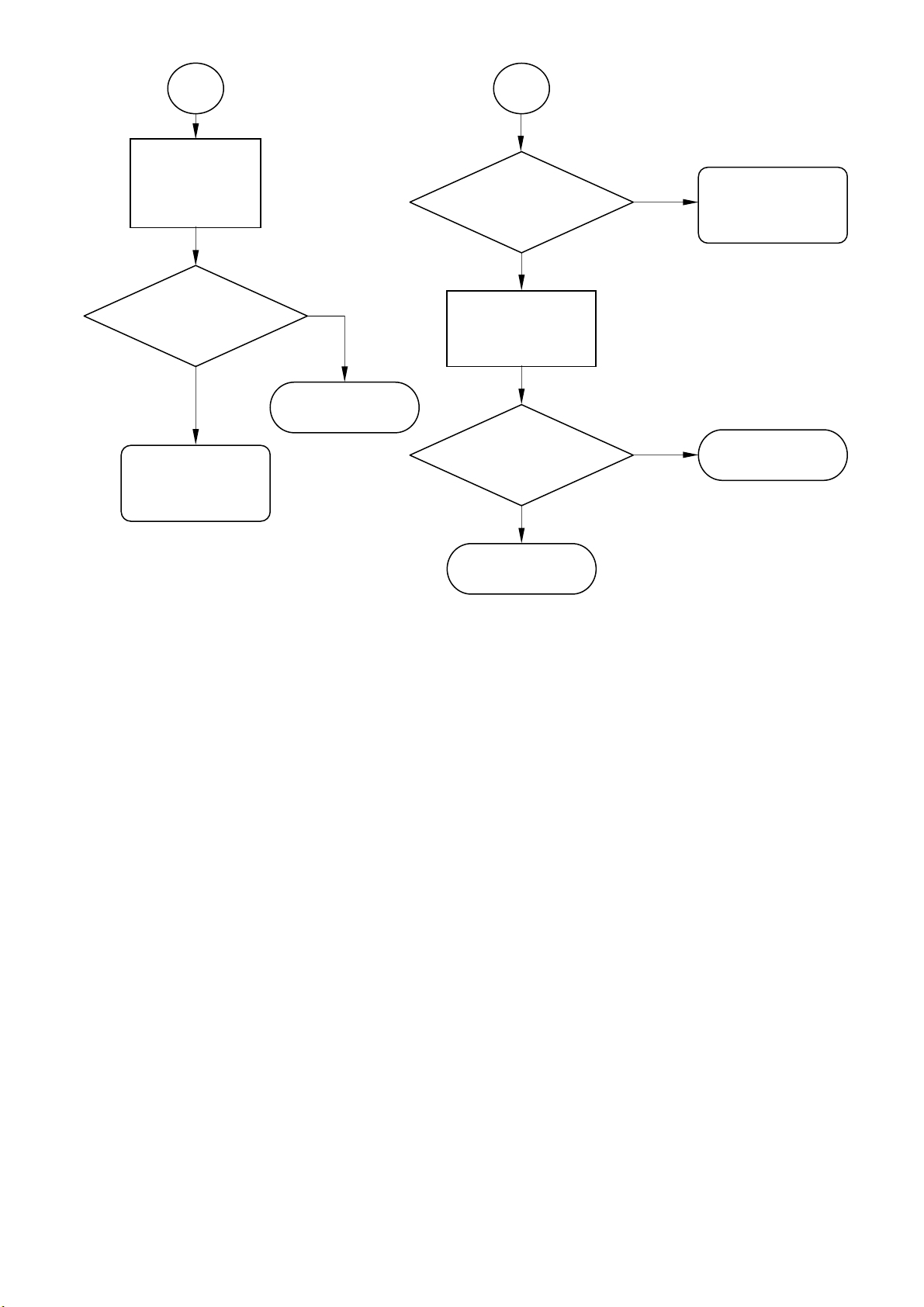

G. TROUBLE SHOOTING HINTS

NO NO

YES YES

No Display

( Black )

LED ON ?

Power

adapter ?

Change
adapter

Push the power

ON/OFF switch

YES YES

LED Color

change ?

NO NO

High Voltage !

Check main

board

Back light

ON?

Check the CN1/Pin1

of Inverter

To Step 2

U10/Pin141

NO

YES

YES

NO NO

YES

Hi / Lo under

push power

A

+12V ?

To Step 2

Check

F1(Fuse) of inverter

Make sure the
connection of
Inverter is fine

Display ?

Nice Job !

B

NO

A

Check the

connection of

YES

YES

NO

YES

NO

CN8 cable

Display ?

Nice Job !

Change the
main board

B

Hi / Lo under

push power

Change the

Inverter

Display ?

Change the

main board

Nice Job !

To Step 2

Step 2

NO

YES

NO

YES

YES

Check the main

board 12V ?

+5.0 V ?

U13,U14,R65

Check the main

board U10 /

YES

Pin 146 ?

Check

F1,D5

Check

Check

U10

NO

H/V input

Signal ?

Check

YES

H/V Signal

NO

YES

Display ?

Nice Job !

Change

U11

Change

Signal Cable

No display

(White)

NO

Check the main

board 5V ?

YES

NO

+3.3V ?

YES

NO

Check the main

YES

YES

board

H/V Input

Signal ?

U11/Pin14 ?

3.3V Circuit

Check

U13,U14

Check

U1,U13

Check

Change

U11

NO

Check

H/V Signal

NO

YES

Display ?

Nice Job !

Change

Signal Cable

H. REPLACEMENT PARTS LIST

NO Parts No. Description Part Location Q’ty

1 002-001-TCO9 TCO99 Statement 1

2 002-001-CEPOV-B CE Statement 1

3 002-L00-865A User Manual 1

4 003-101-TCO9 TCO99 Label for Carton 1

5 005-500-965C 965 Carton For PROVIEW Logo 1

6 153-001-TCO99 TCO99 Label for Panel 1

7 153-U00-0565M Back Label 1

8 153-U00-0565 Back Label 1

9 170-005-LCD5 PE Bag 1

10 170-000-0848C PE Bag 0.07mm 14*30.5cm 1

11 170-005-VM541 PE Bag 300*200mm 1

12 631-003-0004 Audio Cable 1650mm PC99 577C 1

003-002-0848-AM

13

14 003-002-0848-A Carton Label 70*40mm 1

15 160-001-AY765 Polyfoam Stand ASM Top 1

16 160-002-AY765 Polyfoam Stand ASM Bottom 1

17 160-003-AY765 Polyfoam for Panel R 1

18 160-004-AY765 Polyfoam for Panel L 1

19 153-007-0765 Back Label (Audio) 1

20 002-G01-0567-A Warranty card 1

21 846-120-E0AL-A Adapter 60W 12V / 5A 1

22 631-003-A011-2C

23 153-001-TCO99 All Series TCO99 Label for Panel 1

24 170-005-LCD7 LCD PE Bag

25 705-590-950C CMO 19" LM190EN02-L01 LVDS 1

26 200-100-765C-B M/B For 765C REV:A 1

27 281-031-11004 RES 110ohm +-1% 1/10W 0603 SMD 1

28 281-031-20014 SMD R 2K 1% 0603 1

29 281-031-21504 SMD R0603 215ohm 1% 1

30 281-031-68014 SMD R 6.8K 0603 1% 1

31 281-035-0R04 RES 0ohm 5% 1/10W 0603 SMD 16

32 281-035-1014 RES 100ohm 5% 1/10W 0603 SMD 3

33 281-035-1024 RES 1K 5% 1/10W 0603 SMD 4

34 281-035-1034 RES 10K 5% 1/10W 0603 SMD 18

35 281-035-1044 RES 100K 5% 1/10W 0603 SMD 6

36 281-035-1054 RES 1M 5% 1/10W 0603 SMD 1

37 281-035-1814 RES 180ohm +-5% 1/10W 0603 SMD 1

38 281-035-2224 RES 2.2K 5% 1/10W 0603 SMD 1

39 281-035-2234 RES 22K 5% 1/10W 0603 SMD 4

40 281-035-3304 RES 33ohm 5% 1/10W 0603 SMD 19

41 281-035-3314 RES 330 5% 1/10W 0603 SMD 3

42 281-035-4724 RES 4.7K 5% 1/10W 0603 SMD 6

Carton Label 70*40mm 1

3.5∮ Audio Cable 180cm

1

43 281-035-4734 RES 47K 5% 1/10W 0603 SMD 2

44 281-035-5114 RES 510 5% 1/10W 0603 SMD 2

45 281-035-7504 SMD R 75 ohm 0603 3

46 281-045-0R04 RES 0 ohm +-5% 1/8W 0805 SMD 5

47 281-075-1014 RES 100ohm 5% 1/4W 1206 SMD 1

48 282-103-2454 RES-NET 10Kohm 5% SMD 8P4R 1

49 282-330-2454 RES-NET 33ohm 5% SMD 8P4R 14

50 381-151-032554 SMD CC 150PF 25V NPO 0603 +-5% 1

51 381-220-032554 SMD CC 22pF 25V NPO 0603 14

52 381-221-032554 NPO 220PF/25V +-5% 0603 SMD 4

53 381-301-032554 SMD CC NPO 25V 300PF 5% 0603 1

54 382-103-032564 SMD CC 0.01uF/25V X7R 0603 +-10% 9

55 382-393-032564 SMD CC 0.039uF/25V X7R 0603 1

56 382-472-032564 Y5V 0.1u/25V +80%-20% 0603 3

57 385-104-032584 IC DC TO DC IC.AIC1578(SMD) 66

58 385-105-041684 Y5V 1uF/16V +80%-20% 0805 3

59 385-334-032584 Y5V 0.33u/25V +80%-20% 0603 2

60 481-LCC-0440 SOCKET 44PIN PLCC 1

61 506-0AI-CY33 AIC1117CY-33 3.3V 900mA SMD 1

62 506-0CS-5828 LVD (8bit 56pin)TSSOP 2

63 506-2AI-C1578 IC DC TO DC IC.AIC1578(SMD) 1

64 506-524-LC21 Memory IC 24LC21 SMD 1

65 506-5NM-24C16 24C16 SO8 Memory IC SMD 1

66 506-774-LCX14 74LCX SOIC14 HI Speed TTL SMD 1

67 506-800-358D LM358D SO8 OP AMP IC 1

68 506-A00-2257-S IC PT2257-S 1

69 506-RXX-7809 SMD TO263 78T09A/UTC 1

506-SMA-SCOTVP2

70

71 506-XAT-C1084 Adj. Regulator ATC1084CM TO263 1

72 518-02N-3904 NPN 2N3904S(SMD) 5

73 518-1CE-9435 MOSFET CE9435A S08 2

74 528-2BA-T54C SMD Diode BAT54C SOT23 1

75 528-ASZ-5248B SMD Zener 18V PEC MMSZ5248B 1

76 528-R1N-4148 Diode 1N4148 SOT-34 SMD 1

77 529-350-09R1 Zener Diode 9.1V 1

78 558-352-5000 SMD Fuse 1206 24V 5A 1

79 630-030-B000 FTC-W30P+1.25mm 1

80 780-103-3000 SMD Bead SBK160808300Y0603 30Ω 8

81 780-103-3000B FBM-10-160808-300T/KTNG Core 3

82 780-104-6010 FB 0805/600ohm 100mHZ 6

83 780-107-121K50 Bead 120ohm 1206 5A FBM-11 5

84 780-112-8000 SMD Bead 6A 80ohm 1812 1

85 281-035-1224 RES 1.2K 5% 1/10W 0603 SMD 1

86 381-681-032554 SMD CC 680PF25V NPO 0603 +-5% 1

MRT Scaler IC MASCOTVP2 1

87 506-XXP-2781 IC P2781/Pules Core SOIC-8 1

88 381-682-032564 SMD CAP 6800PF 25V NPO 0603 1

89 281-035-2204 RES 22ohm 5% 1/10W 0603 SMD 1

90 003-H03-ALL9 All ICT OK Label 8*8MM(White) 1

851-00M-AY765-S2

91

92 120-001-M780 LCD BM780IC 296Pin 1

93 210-330-0256 R-CF. 33 ohm 1/2W +-5% 1

94 531-110-49US 11.0592MHZ HC 49US Crystal 1

95 531-120-49US 12MHZ HC 49US CRYSTAL 30PPM 1

96 630-002-1008 Base 2pin JWT A2001 PITCH=2mm 2

97 630-008-C001 JST 1.5mm Header ZR S8B-ZR 1

98 745-330-2072 Choke 5A 33uH 20% 1

99 409-001-0201 DC Power Jack 1

100409-005-1101 Phone Jack SCJ-374R5*2 1

101 630-006-1008 JWT A2001 PITCH 2.00mm 1

102630-006-1009 Base 6P 1

103630-015-1001 HI DEN R/A 15PIN 1

104200-K01-AU01 Phone Jack Board 1

105151-001-C7Y30 Rear Cabinet 532C Audio 1

106121-005-AY765-A Audio Brackey 1

107123-005-AY765 Shield Cover T=0.3mm 1

108100-006-3062 Screw R3*6mm TP+ISO 6

109100-008-3012 Screw R3*8mm TP1. 2

110 107-008-3032 B M3xL8 4

111 107-008-3073 B 3*8 TP4 2

112 151-A00-C8AS4 Glass 877C 1

113 154-016-AY565-A Cover OSD Knob 532C 1

114 154-012-AY565 OSD Knob 5326 ABS HB 1

154-03R-Y8AS4-A

115

116 154-03L-Y8AS4-A Decoration Net L 1

117 154-002-AY565-A Knob OSD D4 AV/TV 1

118 154-007-AY566 R/C Tuner Module Cover 532C 1

119 610-151-15TM-2 Signal cable 1.5M UL20276 White Color 1

120600-151-0400 Power cord,150cm, Black Color

121 151-707-AY565 Stand Front Cover 5326 H 1

122110-3R0-20644

123110-3R0-20641 Screw 4.6*4 M3.0mm 1

124151-710-AY765 Stand Base 532C 1

125151-711-AY765 Stand Base Cover 532C 1

126151-704-AY765 AY765 Stand Base Cover 1

127151-717-AY565 Stand Front Cover (532C) 1

128151-718-AY565 Stand Rear Cover (532C) 1

129154-015-AY565 Cover Code 532C 1

130101-005-3033 Screw M3*5 10

MRT VP2 M/B FPR 765 DIP For EMI 1

Decoration Net R 1

Screw M3*H6*Φ5.0mm

2

131 106-010-3073 Screw M3*10 TP4 5

132107-006-3032 LT380M B M3xL6 3

133108-S10-4032 B/WS M4*10 ISO 4

134111-014-0200 Rubber Washer 20*7*2.5 4

135121-002-AY565 Bracket Rotate T:3 1

136121-003-AY565 Bracket Rotate SPCC T:3mm 1

137123-004-AY765 Base Cover SECC T=3.0mm 1

138126-014-AY765 AY765 Hinge T=1.5 1

139003-H01-LCD LCD CPU Label 15mmx15mm 1

140104-006-3032 Screw R/W3*6mm ISO. 79203061 1

141 105-008-3012 Screw T3*8mm TP1 5

142105-010-3013 T 3*10 TP1 2

143107-010-3073 B 3*10 TP4 10

144103-006-3033A Screw F3*6 2

123-004-AY865A-D

145

146121-001-AY865-A Rear Bracket AV/TV SECC 1

147126-016-ALP9 Aluminum foil L300*W30mm 2

148126-030-ALP7 Aluminum foil W30*L900mm 2

149126-030-ALP1 Aluminum foil 80*16mm 2

150126-030-ALP3 Aluminum foil 120*30mm 4

151 126-020-ALP2 Aluminum foil L300*W20mm 2

152131-030-2120 D –sub screw 2

153506-1SM-89516 SYNCMOS SM89516C25J 44Pin PLCC 1

154631-006-7013C SIRE HARDNESS 6PIN 2.0 190mm+ Core 1

155631-006-7014-T AY865 100mm 2.0 24AWG 1

631-008-G005-WA

156

157650-003-0081 Cable Tie ALT-0.85S 1

158650-004-1231 PRO98 Cable Tie 4.0*123mm 1

159824-003-AY765L Speaker Box 20*40 2W 8ohm.(L) 1

160824-003-AY765R Speaker Box 20*40 2W 8ohm.(R) 1

161 760-300-0026 LCD Ferrite Core K5A 16*5*9mm 2

162831-B10-0300 Conductor pad 10*20mm 3

163831-B15-0300 Conductor pad L20*W15*H15mm 7

164831-B105-0306 Conductor pad L20*W10*H5mm 1

165200-701-AY565 MAG AY565 Key Board 1

166401-170-0200 Tact Switch HOR (H=5mm) 5

167520-005-5302 LT5302 23 DIP 1

168630-008-C001 JST 1.5mm Header ZR 1

169232-R01-505T DIP WR-C-5W 0.010ohm 5% 1

170330-100-16275 EC 10uF 16V H7mm 10

171 330-100-25275 EC. 10uF/25V Elec.radial 5*7 1

172330-101-16275 EC.100uF/16V Elec.radial 6*7 5

173330-102-06205 MINI EC 1000uF/6.3V TP SK 1

174330-220-16275 EC. 22uF/16V Elec.radial 5*11 2

LCD Frame LG/SANYO 1

AY765 260mm Core+Braid & GND 1

175330-220-25275 E.CAP 22UF/25V 6X7mm 105C 2

176330-470-16275 EC. 47uF/16V Elec.radial 5*7 3

177330-471-16205 E.CAP 470UF/16V +-20% 105C 9

178504-000-MCP101 Reset IC MCP101-450HI/TO TO92 1

179504-A00-8227 Audio AMT IC TA8227P/UTC 1

180520-007-L431 Diode TL431CLP TC92 1

181 522-030-B340-T SCHTTKY SB340 T 1

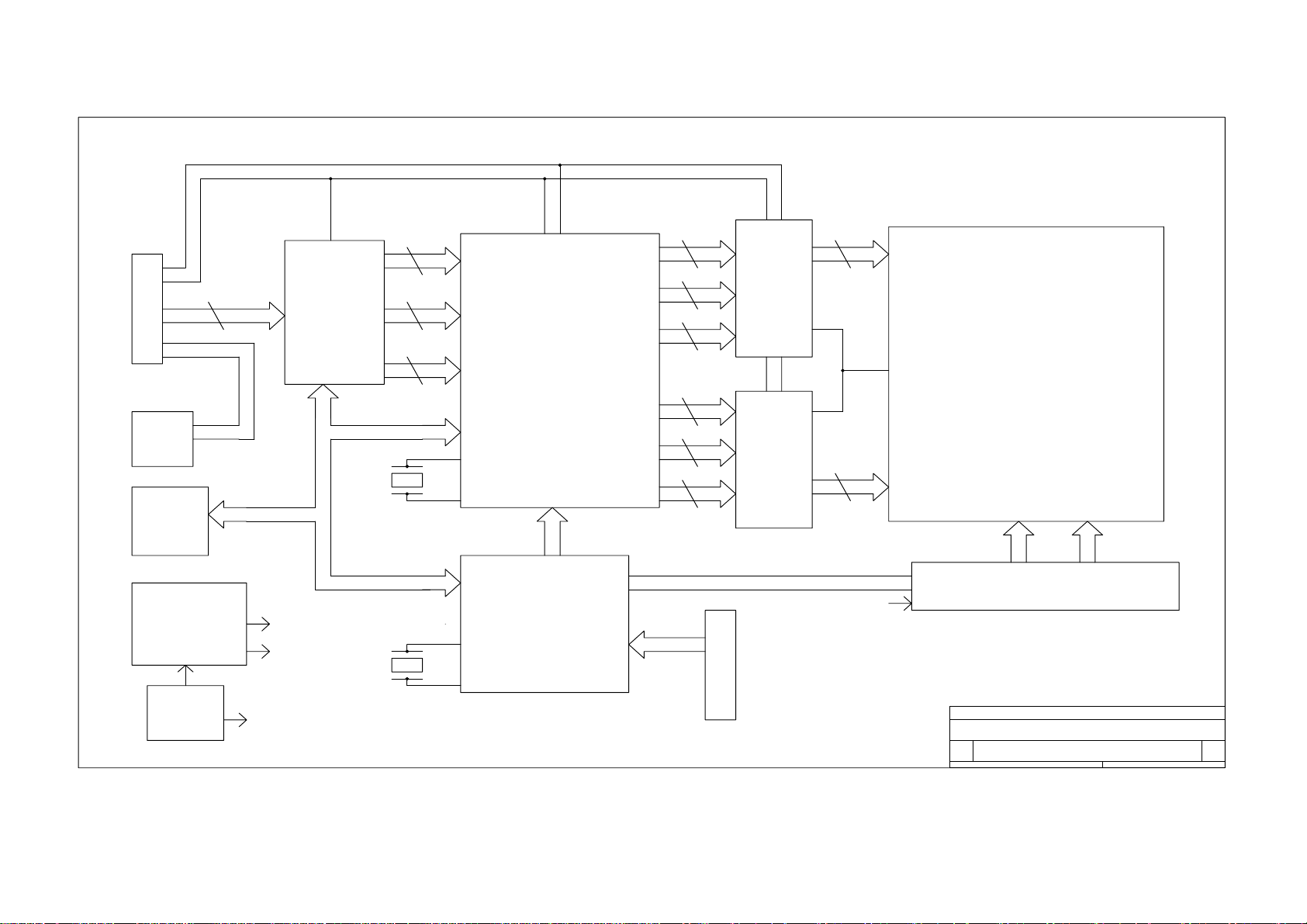

I. BLOCK DIAGRAM

VSYNC
HSYNC

VGA-IN
12PIN

C
O
N
N
E
N
T

3 {R.G.B}

DDC-SDA
DDC-SCL

ADC

8 R0~R7

8 G0~G7

8 B0~B7

SCALER

8 RA0~RA7

8 GA0~GA7

8 BA0~BA7

LVDS

10 EVEN

LCD PANEL(LVDS)

D-DE

LVDS

D.D.C

24C21

EEPROM

24C16

EEPROM

POWER

SWITCH POWER

SUPPLY AND

REGULATOR

12V

POWER

ADAPTER

CRYSTAL

12M HZ

MCU

SCL

3V

CRYSTAL

5V

12M HZ

12V

8 RB0~RB7

8 GB0~GB7

8 BB0~BB7

8PIN

FUNCTION KEY

10 ODD

HI VOLTAGE

INVERTER

BLK-ON/OFFSDA
BRIGHTNESS

12V

C
O
N
N
E
N
T

Title

BLOCK DIAGRAM

Size Document Number Rev

B

ORION

Date: Sheet

11Tuesday, October 23, 2001

B

of

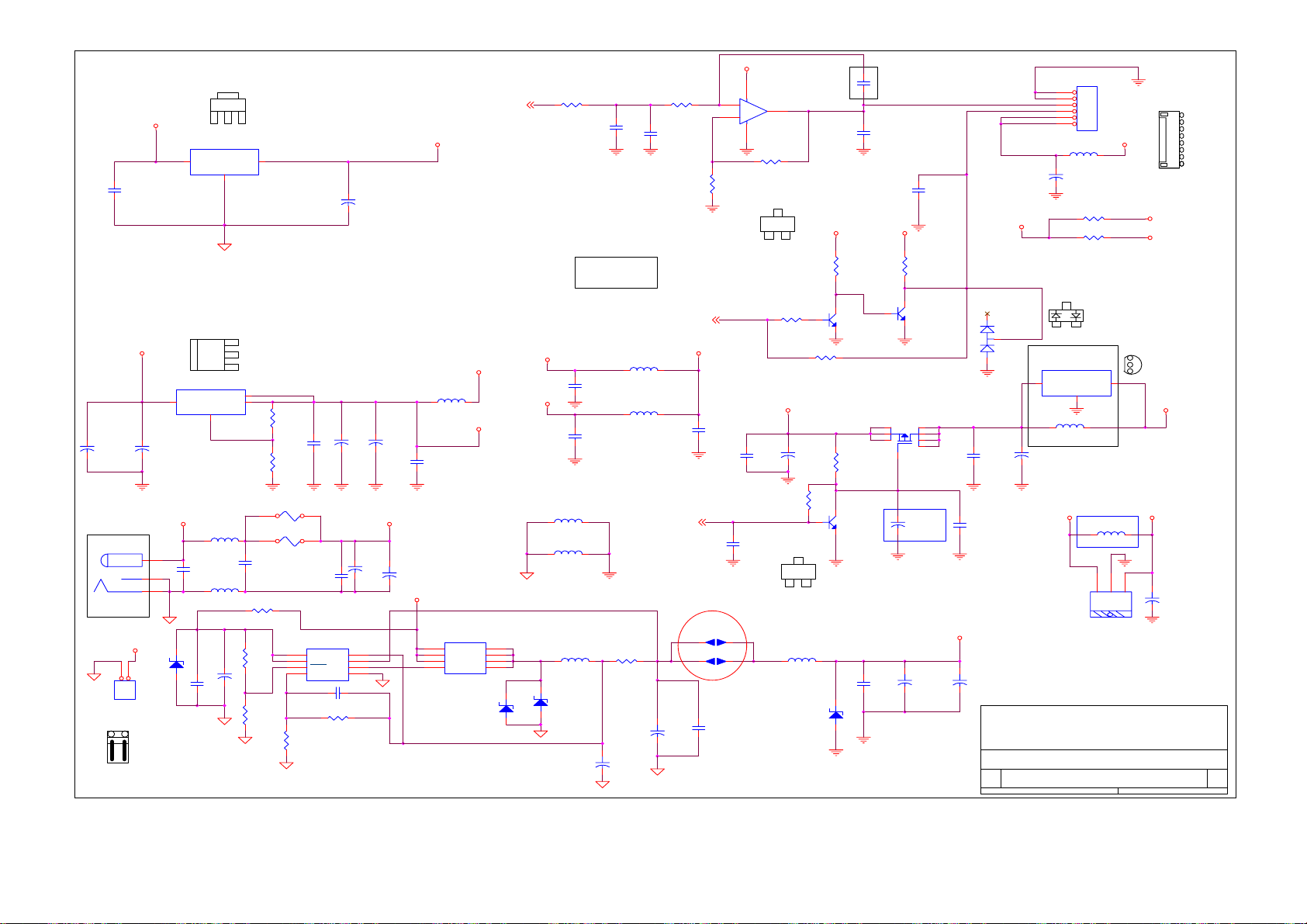

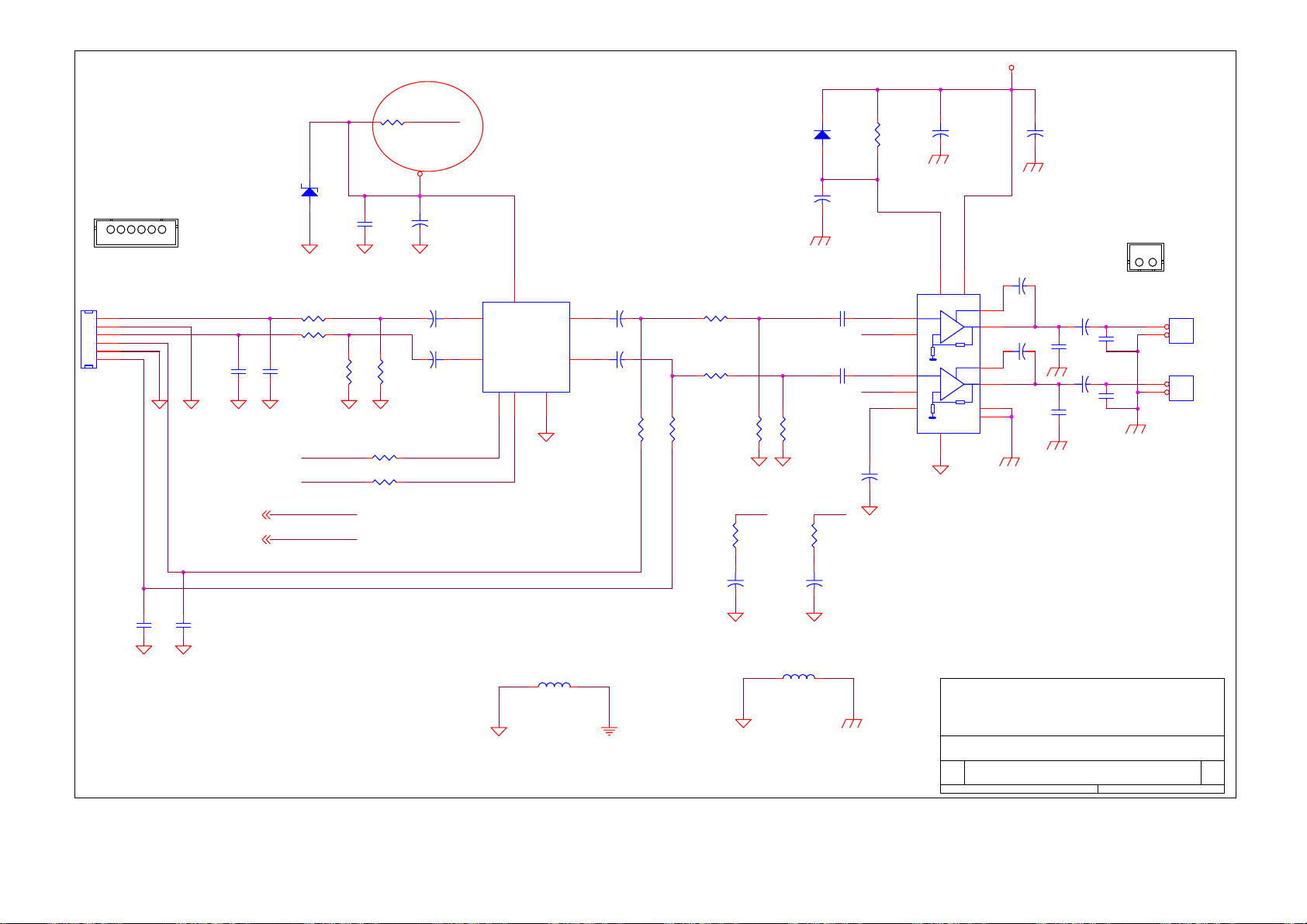

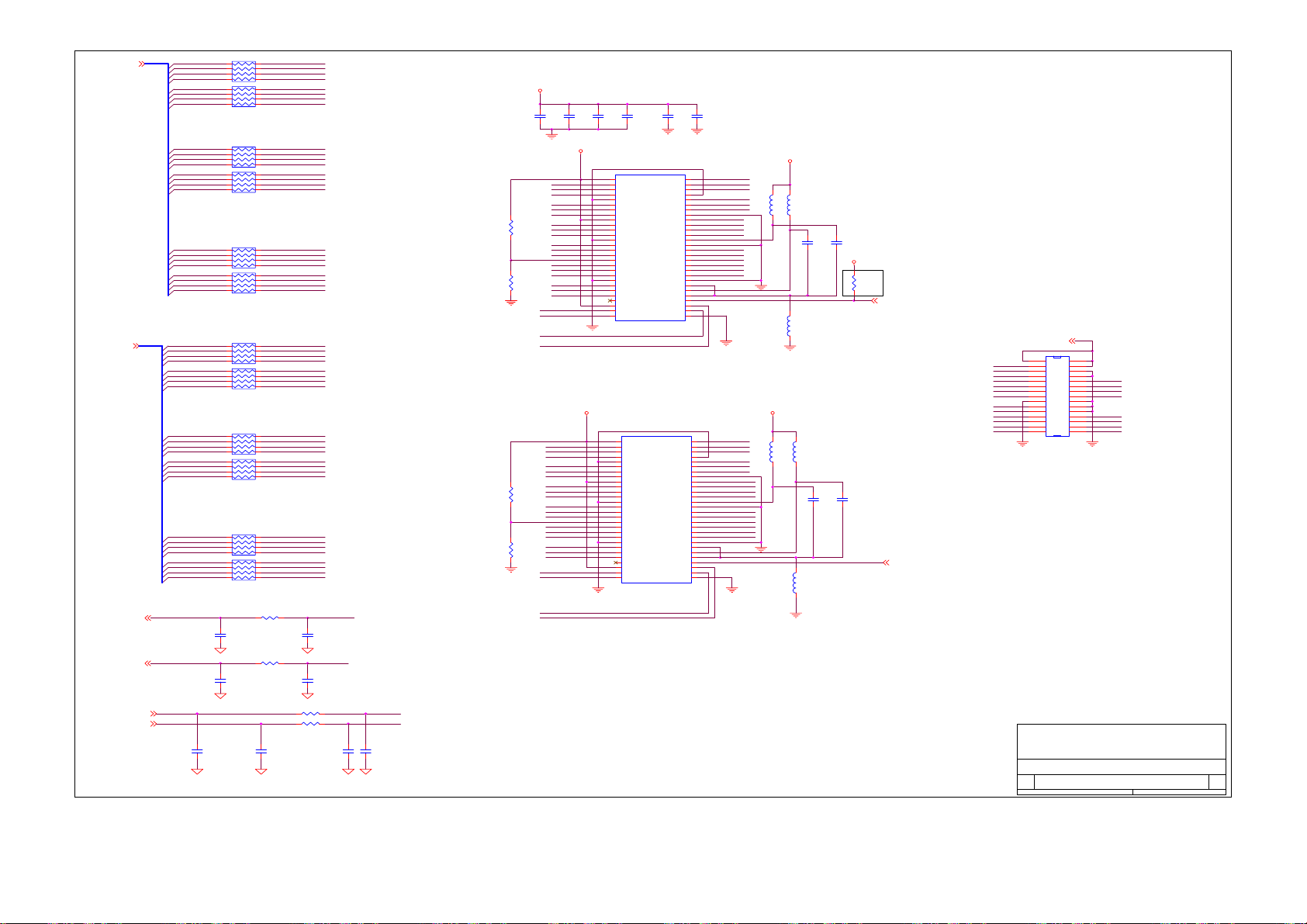

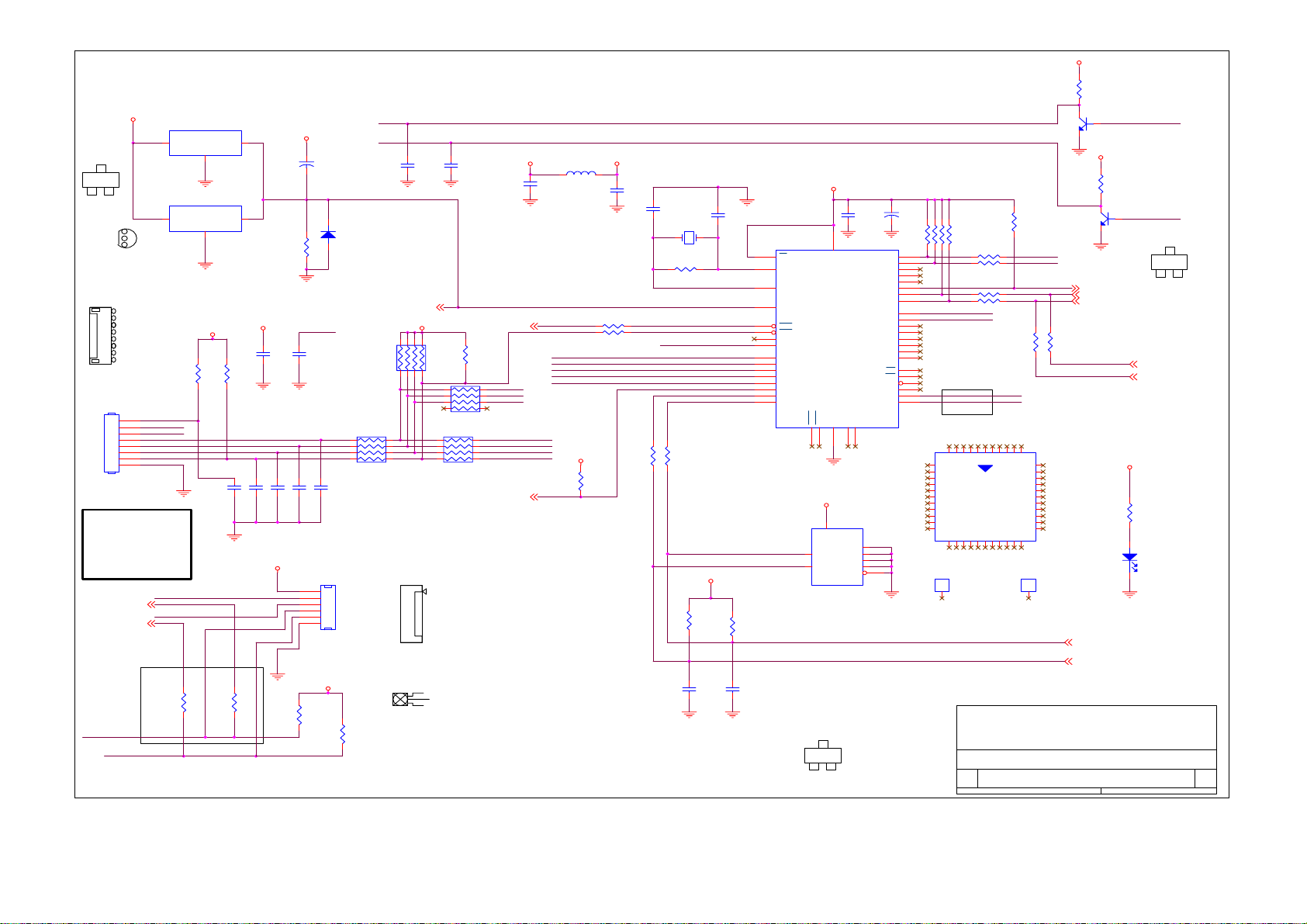

J. SCHEMATIC DIAGRAM

NP

D-SUB15PIN-90@

CN8

VCC

1

BAT54C

3

RED BLUEGREEN

D10

2 1

2 1

NP

1

RED

2

GREEN

3

BLUE

4

NC

5

GND

6

GND

7

GND

8

GND

9

VCC

10

GND

11

NC

12

MID1

13

HSYNC

14

VSYNC

15

MID3

GND

GND

17

16

VGA-VDD

231

D14

BAT54C-SOT23

C124

0.1u

2

1

90@

13

D9

D0603

RED
GREEN
BLUE

TESTMCU
RED­GREEN­BLUE-

SDA-VGA

SCL-VGA

C125

0.1u

1
2
3
4 5

NP

1
2
3
4
5
6
7
8

9
10
11
12
13

CN10

D8

2 1

NP

53412

VGA-VDD

C116

0.1u

U17

NC
NC

VCLK
NC
VSS SDA

24LC21-SO8

Top view

987610

14 13 12 1115

TESTMCU 3

HSYNC
VSYNC

8

VCC

7
6

SCK

TESTMCU

VSYNC
HSYNC

BLUE-

BLUE

GREEN-

GREEN

RED-

RED

VGA-VDD

SCL-VGA
SDA-VGA

R89A

47K

C119

22p

HSYNC

R80

10K

2 1

VSYNC

R79

10K

2 1

R84A

47K

C114

22p

TESTMCU 3

NP

R84 33

R89 33

BLUE

BLUE-

GREEN

GREEN-

RED

RED-

D13

NP

D12

L24

100

L23

100

L25

FBM-10-160808-300T

L26

FBM-10-160808-300T

L27

FBM-10-160808-300T

VSYNC-VCLK

SCL-VGA

SDA-VGA

R81
75

R82
75

R83
75

OPTION

C106
NP

C107
NP

C108
NP

VDD

C63
22p

SCL-VGA 3

SDA-VGA 3

R69 0

C98

R69A 0

NP

R70 0

R70A 0

C100
NP

R71 0

C101

R71A 0

L16

0R

NP

147

9 8

U11D

POWER
VDD 3.3V

11 10

74LVC14-SOP14

U11B

147

3 4

13 12

74LVC14-SOP14

C64
22p

M1

1
2
3
4
5
6
7
8
9

NP

GND-EARTH GND-PWRGND-DIG GND-DIG

M4

1
2
3
4
5
6
7
8
9

NP

147

5 6

U11E

147

74LVC14-SOP14

VDD-IN

U11F

147

74LVC14-SOP14

U11C

74LVC14-SOP14

M3

1
2
3
4
5
6
7
8
9

NP

C99

C74 0.01u

NP

C92 0.01u

C77 0.01u

C95 0.01u

C79 0.01u

C97 0.01u

C56

SOGI

0.1u
L15
0

L14
0

SOGI 2

PA-BLUE 2

BI_ 2

PA-GREEN 2

GI_ 2

PA-RED 2

RI_ 2

PA-HSYNC 2

C59
NP

PA-VSYNC 2

C57
NP

VDD-IN

U11A

147

1 2

74LVC14-SOP14

J1

1

1

NP

NP

1

1

J11

GND-DIGGND-DIGGND-DIG GND-DIGGND-DIGGND-DIG GND-DIGGND-DIGGND-DIGGND-DIG

1

NP

1

1

1

NP

1

1

J6

1

NP

NP

1

1

J8

J7

1

1

1

NP

NP

1

1

J10

J9

1

NP

NP

1

J5

J4

J3

J2

GND-DIG

M2

1
2
3
4
5
6
7
8
9

NP

Proview Electronics (Taiwan) Co., LTD.

6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O.C.
Tel: [phone] Fax: [phone]

Title

VGA INPUT

Size Document Number Rev

200-100-765C (MV7-C2) A

Date: Sheet

Wednesday, October 16, 2002

1

NP

1

6

of

1

VDD-ANA-PLL

A
3

1

C

L18 0R

L20 0R

C83

NP

BRIGHTNESS0

TO INVERTER ON/OFF

RGB-B23

RGB-B20

RGB-B19

RGB-B18

RGB-B21

RGB-B22

RGB-A7
RGB-A6
RGB-A5
RGB-A4

RGB-A3
RGB-A2
RGB-A1
RGB-A0

RGB-A15
RGB-A14
RGB-A13
RGB-A12

RGB-A11
RGB-A10
RGB-A9
RGB-A8

RGB-A23
RGB-A22
RGB-A21
RGB-A20

RGB-A19
RGB-A18
RGB-A17
RGB-A16

C88

NP

Proview Electronics (Taiwan) Co., LTD.

Title

Size Document Number Rev

Date: Sheet

157

156

SDA

SCS#

BIN+

BIN-

BI_

C93

0.004700u

VDD

LVDS-POWER

R4310K

R3910K

R3310K

RGB-B7

RGB-B3

RGB-B6

RGB-B4

RGB-B0

RGB-B2

RGB-B5

RGB-B1

RGB-B15

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

SCL

RST

OE1

CPV

CPH2

PWM0

PWM1

DCVSS

STV3/<GPIO1>

STV1/<GBIO0>

OE3/<CONFIG3>

OE2/<CONFIG2>

DCVSS

DCVDD

LCD_VBL

LCD_VDD

RED_OUTB_7

RED_OUTB_6

RED_OUTB_5

INV2/<LCD_VEE>

DOBVSS

DOBVDD

RED_OUTB_4

RED_OUTB_3

RED_OUTB_2

RED_OUTB_1

RED_OUTB_0

U10

MVP II

GNDAB

BCLP

VTOP

VBOT

VCCAG

Reserved

GIN+

GIN-

GNDAG

GCLP

TOUTP

TOUTM

VCCAR

Reserved

RI+

RI-

GNDAR

RCLP

ADVDD

ADVSS

GPIO2/<OSD_FSW>

GPIO1/<OSD_CLK>

GPIO0/<OSD_R>

STH1/<OSD_G>

STH8/<OSD_B>

LP/<OSD_I>

DCVDD

GI_

RI_

C81

L19

0.1u

BE0603

C94

0.01u

C75

C96

0.01u

0.004700u

GND-VGA

C80

0.004700u

VDD

C85

22p

R75

BE0805

R77

R32

10K

RESET3

SCL3

SDA3

IRQ-3

SOGI1

VDD-ANA-PLL

BI_1

GI_1

RI_1

U18

3

2

C

A

BI_

GI_

RI_

R42A NP

R42 33

R41 33

R40 33

AIC1722-33CX

VOUTVIN

GND1

GND

2134

1

R

BE0805L21

BE0805L21A

R

VDD-IN

NP

VDD-IN

R68 180

C

A

L17

C31

22p

BE0603

GND-PLL

C65

150p

C32

22p

C61

0.1u

TC20A
10uF/16V

1

TL431-TO92

CP

C66

0.039000u

VDD-IN

VDD-IN

2 3

R38

10K

C58

C43

C49

C62

0.1u

0.1u

0.1u

0.1u

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

GND-PLL

TC20
10uF/16V

Vref
CP
CZ

Vref

TD1

C69

0.1u

36
37
38
39
40

VDD-ANA

160

159

158

IRQ#

CAP_HREF/AGNDP
CAP_HSYNC/AVDDP

TVCLK/CLKOUT
CAP_VSYNC/AVDDC
BLU_INB_0/RXCN
BLU_INB_1/RXCP
BLU_INB_2/AGNDC
BLU_INB_3/AVDD0
BLU_INB_4/RX0N
BLU_INB_5/RX0P
BLU_INB_6/AGND0
BLU_INB_7/GND0
GRN_INB_0/VDD0
GRN_INB_1/AVDD1
GRN_INB_2/RX1N
GRN_INB_3/RX1P
GRN_INB_4/AGND1
GRN_INB_5/GND1
GRN_INB_6/VDD1
GRN_INB_7/AVDD2
RED_INB_0/RX2N
RED_INB_1/RX2P
RED_INB_2/AGND2
RED_INB_3/GND2
RED_INB_4/VDD2
RED_INB_5/DGND
RED_INB_6/DGND
RED_INB_7/DVDD
DVDD
DVSS
DTEST
VGA_VSYNC
VGA_HSYNC
VCCD
DGND
SOGIN
VCCA
AGND
VREF
CP
CZ

VCCAB

Reserved

414243444546474849505152535455565758596061626364656667686970717273747576777879

VDD-ANA

VDD-ANA-PLL

CZ

L22

BE0805

VDD-ANA

C104

0.1u

VDD-ANA

C76

C73

C78

C103

0.1u

0.1u

0.1u

0.1u

MCU RESET3

VCC

C53

0.1u

PA-VSYNC1
PA-HSYNC1

2

R

PA-BLUE1

PA-GREEN1

PA-RED1

GRN_OUTB_7

SHC/<RESERVED>

RGB-B14

128

RGB-B13

127

GRN_OUTB_6

XTAL

RGB-B12

RGB-B11

RGB-B10

126

125

124

123

DOBVDD

GRN_OUTB_5

GRN_OUTB_4

GRN_OUTB_3

XTALI

DIBVSS

RLS/<DISP_DE>

POL/<DISP_VSYNC>

R66 1M

Y2

12MHZ-49US

R44 33

R34 NP

R45 33

R46 33

RGB-B8

RGB-B9

122

121

GRN_OUTB_2

GRN_OUTB_1

GRN_OUTB_0

CPH1/<SHCLK>

INV1/<DISP_HSYNC>

DCVSS

80

BLU_OUTB_7
BLU_OUTB_6
BLU_OUTB_5
BLU_OUTB_4

DOBVDD
BLU_OUTB_3
BLU_OUTB_2
BLU_OUTB_1
BLU_OUTB_0

RED_OUTA_7
RED_OUTA_6
RED_OUTA_5
RED_OUTA_4

RED_OUTA_3
RED_OUTA_2
RED_OUTA_1
RED_OUTA_0

GRN_OUTA_7
GRN_OUTA_6
GRN_OUTA_5
GRN_OUTA_4

DOBVDD

GRN_OUTA_3
GRN_OUTA_2
GRN_OUTA_1
GRN_OUTA_0

BLU_OUTA_7
BLU_OUTA_6
BLU_OUTA_5
BLU_OUTA_4

DOBVDD
BLU_OUTA_3
BLU_OUTA_2
BLU_OUTA_1
BLU_OUTA_0

GND-DIG

C86

22p

DOBVSS

DOBVSS

DCVDD

DCVSS

DOBVSS

VDD

120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81

C87

NP

BE0805

1/22

LVDS-PWRDN

VDDCTRL

TO INVERTER ADJ

TO PANEL VDD

BL-ON0

BRIGHTNESS0 5

LVDS-PWRDN 4

VDDCTRL 5

BL-ON0 5

RGB-B[0..23] 4

RGB-B16

RGB-B17

R36NPR35

NP

VDD

RGB-A[0..23] 4

P4

2

1

951HEATSINK-A

C38

C82

0.1u

6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O.C.
Tel: [phone] Fax: [phone]

C37

C36

C40

0.1u

0.1u

0.1u

0.1u

DISP-HSYNC 4

SHCLK 4

DISP-VSYNC 4

DISP-DE 4

C84

NP

SCALER

200-100-765C (MV7-C2) A

Wednesday, October 16, 2002

2

C54

C60

0.1u

0.1u

6

of

MCP-810

V

G

1

2

3

1

90@

8

CN4

JST-S8B-ZR

PROVIEW KEY PAD --OK

TxD

VCC

R

V
R
G

RESET-V6300TO92

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

1.Power

2.LED O

3.LED G

4.DOWN-

5.UP

6.MENU

7.AUTO

8.GND

SCL-VGA1

SDA-VGA1

RxD

U8

3 2

VCC RESET

NP

TU1

R52

10K

OSD_AUTO
LED_G
LED_O
MENU
SW_RIGHT
SW_LEFT
POWER

R6

33

1

3

VCC

VCC

R57

330

3

Q5

2

2N3904

VCC

3

2

TESTMCU 1
TUNER-SDA 6

TUNER-SCL 6

R11

33

MCU-W78E62B-PLCC

SCL 2

SDA 2

MCU-LEDG

1

R56

330

Q4

1

MCU-LEDO

2N3904

C

132

B

E

SDA 2

SCL 2

VCC

R60

330

D3

21

NP

6

of

3

4 5

2

VCC

GND

OUT

LED_G

0.1u
C47

1 8
2 7
3 6
4 5

RP1 NP

RP2 33X4

R53
NP

ROT_PB0
ROT_PB6
ROT_LF

OSD_MENU

18

OSD_SW_RIGHT

27

OSD_SW_LEFT

36

OSD_POWER

45

MCU RESET2

VCC

C6

0.1u

IRQ-2

IROUT

VCC-MCU

L3

BE0805

VDD

R51 33
R47 NP

R42B
NP

C7

0.1u
C35

R48
33

22p

Y1

11.059MHz-49US

R31 NP

RESET

ROT_PB0

R49
33

C25
22p

OSD_POWER
OSD_SW_LEFT
OSD_SW_RIGHT
OSD_MENU
OSD_AUTO

35

21

20

10

14
15
16
17

2
3
4
5
6
7
8
9

VDD

R54

4.7K

R55

4.7K

U7

EA/VP

X1

X2

PLCC44-SOCKET

RESET

INT0 / P3.2
INT1 / P3.3
T0 / P3.4
T1 / P3.5

P1.0 / T2
P1.1 / T2EX
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7

VCC-MCU

INT2 / P4.3

INT3 / P4.2

1

12

VCC

8

6

SCL

5

SDA

U9

24LC16B-SO8

TC2
10uF/16V

C8

0.1u

4422

VCCVSS

P4.1

23

34

VCC

VSS

A0
A1
A2

WP

P4.0

AD0 / P0.0
AD1 / P0.1
AD2 / P0.2
AD3 / P0.3
AD4 / P0.4
AD5 / P0.5
AD6 / P0.6
AD7 / P0.7

A8 / P2.0

A9 / P2.1
A10 / P2.2
A11 / P2.3
A12 / P2.4
A13 / P2.5
A14 / P2.6
A15 / P2.7

P3.7/ RD
P3.6 / WR

PSEN

P3.1 / TXD

P3.0 / RXD

4
1
2
3
7

43
42
41
40
39
38
37
36

24
25
26
27
28
29
30
31

19
18
32
33

ALE

13
11

R27
10K

ROT_PB6
ROT_LF

TxD
RxD

6

7
8
9
10
11
12
13
14
15
16
17

1819202122232425262728

P1

1

NP

1

SCL

SDA

C42

C46

22p

22p

C

3

12

B

E

VCC

GND

TC9

NP

0.1u
C45

RESET

21

RESETVCC

GND

R50
NP

D2

NP

1 2

RESET2

10KX4

RP12

VCC

1 8

2 7

3 6

VCC

IROUT

R61

C39

NP

C41

0.1u

0.1u

1 8
2 7
3 6
4 5

RP1133X4

C55

C44

0.1u

0.1u

C48

C52

C50

0.1u

0.1u

0.1u

VCC

CN1

6

SCL

SDA

TxD

RxD

R7

33

6

5

5

4

4

3

3

2

2

1

1

JWT-A2001WV2-06

VCC

R8

R5

NP

1

6

3

1

NP

LED_G

LED_OLED_O

R17

10K

R19

R18

R26

10K

10K

10K

R58 1K
R59 1K

R12 NP
R13 NP

MCU-LEDO
MCU-LEDG

TESTMCU

R14

33

PROVIEW FOR LCD COLOR ANALYZER (CHROMA 7120)

P2

12345

4041424344

39
38
37
36
35
34
33
32
31
30
29

P3

1

NP

1

Proview Electronics (Taiwan) Co., LTD.

6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O.C.
Tel: [phone] Fax: [phone]

Title

MCU

Size Document Number Rev

200-100-765C (MV7-C2) A

Date: Sheet

Wednesday, October 16, 2002

BB-->>RB

RGB-A[0..23]2

RGB-B[0..23]2

RB-->>BB

DISP-VSYNC2

DISP-HSYNC2

BA

BA-->>RA

GA

RA

RA-->>BA

SHCLK2

DISP-DE2

BB

GB

RB

RGB-A16
RGB-A17
RGB-A18
RGB-A19

RGB-A20
RGB-A21
RGB-A22
RGB-A23

RGB-A8
RGB-A9
RGB-A10
RGB-A11

RGB-A12
RGB-A13
RGB-A14
RGB-A15

RGB-A0
RGB-A1
RGB-A2
RGB-A3

RGB-A4
RGB-A5
RGB-A6
RGB-A7

RGB-B16
RGB-B17
RGB-B18
RGB-B19

RGB-B20
RGB-B21
RGB-B22
RGB-B23

RGB-B8
RGB-B9
RGB-B10
RGB-B11

RGB-B12
RGB-B13
RGB-B14
RGB-B15

RGB-B0
RGB-B1
RGB-B2
RGB-B3

RGB-B4
RGB-B5
RGB-B6
RGB-B7

RP16 33X4

RB7

18

RB6

27

RB5

36

RB4

45

RB3

18

RB2

27

RB1

36

RB0

45

RP15 33X4

RP14 33X4

GB7

18

GB6

27

GB5

36

GB4

45

GB3

18

GB2

27

GB1

36

GB0

45

RP13 33X4

RP10 33X4

BB7

18

BB6

27

BB5

36

BB4

45

BB3

18

BB2

27

BB1

36

BB0

45

RP9 33X4

RP8 33X4

RA7

18

RA6

27

RA5

36

RA4

45

RA3

18

RA2

27

RA1

36

RA0

45

RP7 33X4

RP6 33X4

GA7

18

GA6

27

GA5

36

GA4

45

GA3

18

GA2

27

GA1

36

GA0

45

RP5 33X4

RP4 33X4

BA7

18

BA6

27

BA5

36

BA4

45

BA3

18

BA2

27

BA1

36

BA0

45

RP3 33X4

R37 0R

C34

NP

R30 0R

C29

NP

C67

NP

C70

NP

C33

NP

C28

NP

R62 33

R64 33

D-SHCLK2

D-DE2

C71

22p

D-VSYNC

D-HSYNC

C68

22p

VDD

C20

C19

0.1u

0.1u

VDD

RA7
RA5
GA0

GA1
GA2
GA6

GA7

R28

GA3

NP

GA4

GA5
BA0
BA6

BA7
BA1
BA2

R23

BA3

0

BA4
BA5

D-HSYNC
D-VSYNC

D-DE2

D-SHCLK2

VDD

RB7
RB5
GB0

GB1
GB2
GB6

GB7
GB3

R29

GB4

NP

GB5
BB0
BB6

BB7
BB1
BB2

BB3

R24

BB4

0

BB5

D-HSYNC
D-VSYNC

D-DE2
D-SHCLK2

C17

C18

0.1u

0.1u

A PORT TO CMO M170E1 first pixel EVEN

A PORT TO CMO M170E4 first pixel ODD

U3

1

VCC

2

TXIN5

3

TXIN6

4

TXIN7

5

GND

6

TXIN8

7

TXIN9

8

TXIN10

9

VCC

10

TXIN11

11

TXIN12

12

TXIN13

13

GND

14

TXIN14

15

TXIN15

16

TXIN16

17
18
19
20
21
22
23
24
25
26
27
28 29

TXCLKOUT-

R_FB

TXCLKOUT+

TXIN17
TXIN18
TXIN19
GND
TXIN20
TXIN21
TXIN22
TXIN23
VCC
TXIN24
TXIN25 GND

DS90C383-QSOP56

U4

1

VCC

2

TXIN5

3

TXIN6

4

TXIN7

5

GND

6

TXIN8

7

TXIN9

8

TXIN10

9

VCC

10

TXIN11

11

TXIN12

12

TXIN13

13

GND

14

TXIN14

15

TXIN15

16

TXIN16

17

R_FB

18

TXIN17

19

TXIN18

20

TXIN19

21

GND

22

TXIN20

23

TXIN21

24

TXIN22

25

TXIN23

26

VCC

27

TXIN24

28 29

TXIN25 GND

DS90C383-QSOP56

TXIN27

LVDS GND

TXOUT0­TXOUT0+
TXOUT1-

TXOUT1+
LVDS VCC
LVDS GND

TXOUT2-

TXOUT2+

TX OUT3-

TX OUT3+

LVDS GND

PLL GND
PLL VCC
PLL GND

PWR DWN

TXCLKIN

TXIN26

LVDS GND

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+
LVDS VCC
LVDS GND

TXOUT2-

TXOUT2+

TXCLKOUT-

TXCLKOUT+

TX OUT3­TX OUT3+
LVDS GND

PWR DWN

C16

TXIN4
TXIN3
TXIN2

GND
TXIN1
TXIN0

TXIN27

PLL GND
PLL VCC
PLL GND

TXCLKIN

TXIN26

C21

0.1u

0.01u

VDD

56

RA4

55

RA3

54

RA2

53

RA1

52
51

RA0
RA6

50
49
48

RXE0-

47

RXE0+

46

RXE1-

45

RXE1+

44
43
42

RXE2-

41

RXE2+

40

RXEC-

39

RXEC+

38

RXE3-

37

RXE3+

36
35
34
33
32
31
30

RB4

56

TXIN4
TXIN3
TXIN2

GND
TXIN1
TXIN0

RB3

55
54

RB2

53
52

RB1

51

RB0

50

RB6

49
48

RXO0-

47

RXO0+

46

RXO1­RXO1+

45
44
43
42

RXO2-

41

RXO2+

40

RXOC-

39

RXOC+

38

RXO3-

37

RXO3+

36
35
34
33
32
31
30

BE0603

VDD

L8

L9

BE0603

L2

BE0603

L4

BE0603

L7

BE0603

L5

BE0603

C13

C9

0.1u

0.1u

VDD

R20

10K

LVDS-PWRDN 2

LCDVDD5

CON3

1

2

1

2

3

4

D-DE

RXE2-

RXE2+

RXEC-

RXEC+

RXE3-

RXE3+

RXO0­RXO0+
RXO1­RXO1+
RXO2+
RXO2-

C14

C10

0.1u

0.1u

LVDS-PWRDN 2

Proview Electronics (Taiwan) Co., LTD.

Title

Size Document Number Rev

Date: Sheet

3

4

5

6

5

6

7

8

7

8

9

10

10

12

12

14

14

16

16

18

18

20

20

22

22

24

24

26

26

28

28

30

30

FTC-W30P

6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O.C.
Tel: [phone] Fax: [phone]

RXE1+

9

RXE1-

11

11

RXE0+

13

13

RXE0-

15

15

17

17

19

19

21

21

RXO3+

23

23

25

RXO3-

25

27

RXOC+

27

29

RXOC-

29

OUTPUT

200-100-765C (MV7-C2) A

Wednesday, October 16, 2002

6

of

4

Close to
MASCOTV.

TC3
100uF/16V

OPVCC

SOT-223

AIC1117CY33

3

1

VCC

C72

0.1u

2

GI

O

U13 AIC1117CY33

VOUTVIN

ADJ

1

VDD-ANA-PLL

23

TC15

BRIGHTNESS02

R10 100K

C3

1u

R9

100K

C2

1u

100uF/16V

JP1 5V
JP2 3.3V

VCC

TC1
22uF/16V

MASCOT
V Core
logic and
digital

3

I

2

O

O

G

AIC1084-33CM

U1

ADJ

1

VOUT1

VOUTVIN

output

4

1

4
23

R15A

110

R15B

C15

0.1u

215

TC8A
NC

TC8
1000uF/16V

VDD

L6

BE1206

3V3

C12

0.1u

VCC

3V3

C26

0.1u

C24

0.1u

1A

L10
NP

3.3VCC

5VCC

L11
BE1206

BL-ON02

VCC-P

1A

1A1A

C27

0.1u

84

3

+

2

-

R16

2.2K

DEFAULT = 0

BL-ON0

U5A

LM358-SO8

1

1K

R15

C

1

B

C22

0.1u

3

2

R4

1K

VCC-P

E

2N3904

TC6

470uF/16V

VCC

R3

4.7K

Q2

1

R2

NP

11/12

C4

NP

C5

1u

INV-BRIGHT-CTL

C1

INV-ON-OFF

12VIN-A

JST-2.0-6PIN

CN3

TC5

10uF/25V

6
5
4
3
2
1

12VIN/19VIN

BE1206L12

1

90@

6

0.1u

VCC

OPVCC

R21 NP

R22 0

R1

4.7K

1

1N4148SOT-23

ICBE-TO92

L1

NP

TC4

10uF/16V

3

XXX

U2

OI

G

2

3

3

1

2N3904

2

3

1

R25

4.7K

Q1

2

U6
Si9435-SO8

4

11/12

8
72
6
5

1 2

LCDVDD-A

C11

D1
NP

3

0.1u

12VIN-A

I
G
O

31

VCC

12VIN-A

LCDVDD

CN9

DC-JACK

12VIN

1

2

CN7

WAFE-1X2PIN-3.96MM-90@

12

+12VGND

1

3

2

12VIN/19VIN

D11
18V

2 1

TL2

HCB4532K-800T60

C113

0.1u

TL3

HCB4532K-800T60

TC24

C109

0.1u

22uF/16V

TF1

FUS1206-3A~5A

F1

FUS1206-3A~5A

C115

0.1u

TR2 33 1/2W

R76

10K

R73
10K

AIC1578-SO8

U14

1

VIN

2

DUTY

3

SHDN

4

FB

C91 300p

R63

2K_1%

C105

0.1u

8

CS+

7

CS-

6

DRI

5

GND

R65 6.2K_1%

TC25

22uF/25V

12V

TC29

+

470uF/25V

R98

B

C

1

L13

BE1206

0

3

1

Q3

2

NP

TC7

NP

C23

0.1u

9V 12V/19V

L32

NP

BE1206

3

2

E

VCC

C51

0.1u

D4

5.1V

2 1

TC11

+

10uF/16V

TC14

+

470uF/16V

Proview Electronics (Taiwan) Co., LTD.

6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O.C.
Tel: [phone] Fax: [phone]

Title

POWER SUPPLY

Size Document Number Rev

200-100-765C (MV7-C2) A

Date: Sheet

Wednesday, October 16, 2002

TU4

UTC7809

213

TC35

+

GIO

470uF/25V

6

of

5

L30

BE0805

L28

BE0805

12V

U13

1
2
3
4

S1
S2
S3
G

Si9435-SO8

D4
D3
D2
D1

SB340

8
7
6
5

2 1

VCC-ST

D5

TD2

2 1

TL1

47UH@3ADIP

NP

TC13

+

470uF/16V

TR1

0.02-1/4W

VDDCTRL2

TC21

+

470uF/16V

S1

2 1

S2

2 1

C102

0.1u

DEFAULT = 0

C30

0.1u

VCCA

BASE6

CN11

A9V

9/100=0.1A

R74
R1206-100

D6

1

6

2 1

ZD9.1V

C112

0.1u

C120

220p

R90 22K

R91 22K

TUNER-SDA

TUNER-SCL

R86
100K

R96 33

LINL

6

6

5

5

LINR

4

4

LOUTL

3

3

2

2

LOUTR

1

1

C121

220p

R97 33

TUNER-SDA

TUNER-SCL

C123

220p

TUNER-SDA3

TUNER-SCL3

C122

220p

R85
100K

VCC6

A9V

TC30

+

100uF/16V

TC32
10uF/16V

+

+

TC33
10uF/16V

1

8

LOUTL

LOUTR

U16

PT2257-S

LIN

RIN

4

SDA

6

VDD

SCL

5

L29 0 (0805)

ROUT

3

LOUT

GND

R72
330

GND-EARTH

1 2

D7
1N4148

TC28

10uF/16V

GND-EARTH

U15

NF1

NF2

SVR

+

TA8227P

7

6

8

9

10

TC18

IN1

IN2

SVR

SGND PGND

TC26
10uF/16V

+

2

VR_L

R87

22K

+

TC27
10uF/16V

VR_R

R92
10K

R94
10K

R88

22K

R93
100K

R95
100K

7

C111

0.1u

C90

0.1u

47uF/16V

NF1 NF2

TC34

47uF/16V

R67
510

+

TC19

47uF/16V

R78
510

+

L31 0 (0805)

GND-DIGGND_AUD

GND_AUD GND-EARTH

A9V

+

TC23
22uF/16V

TC22

+

470uF/16V

GND-EARTH

TC31
100uF/16V

3

2

12

13

11
5

+

TC17
100uF/16V

+

C110

0.33u

C89

TC12
470uF/16V

+

LOUT-SP

TC10
470uF/16V

+

ROUT-SP

14

1

VS1

+

OUT1

-

VS2

+

OUT2

-

0.33u

4

2.00mm

C110A
NP

C89A
NP

GND-EARTH

12

CN6

1
2

BASE2

CN5

1
2

BASE2

GND-EARTH

TA8227P: VCC(max):18V

Proview Electronics (Taiwan) Co., LTD.

6F, NO.1, Pau-Sheng Rd., Yung-Ho City,
Taipei County, Taiwan R.O.C.

Tel: [phone] Fax: [phone]

Title

AUDIO TA8227P

Size Document Number Rev

200-100-765C (MV7-C2) A

Date: Sheet

Wednesday, October 16, 2002

6

6

of

Memu
