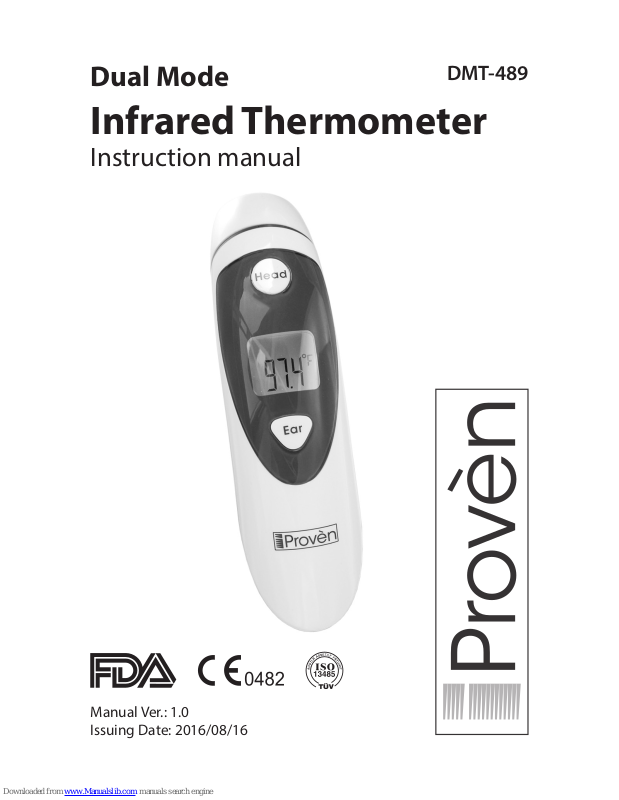

Page 1
Dual Mode
Infrared Thermometer
Instruction manual
Manual Ver.: 1.0
Issuing Date: 2016/08/16
DMT-489
Page 2
- 2 -
Thank you for choosing the iProvèn Dual Mode Digital Infrared Thermometer.
With its unique technology, the Dual Mode Infrared Thermometer DMT-489 can
be used for measuring the body temperature in two dierent ways. You can either
measure the body temperature from the forehead by using the Head-mode or from
the eardrum by using the Ear-mode. The Ear-mode can also be used to measure the
ambient temperature. The Ear mode is suitable for children older than six months and
adults. The Head mode is suitable for people of all ages.
To ensure accurate and stable measurements the thermometer performs a self-test
every time it starts up.
The eardrum and the forehead radiate infrared heat. This thermometer accurately
measures the body temperature as it scans the infrared heat radiated from the forehead and the ears.
Please read the instructions carefully in order to perform measurements in the most
accurate way. Body temperature measurements will NOT be valid or accurate if they
are not performed in accordance with the instructions given in this manual.
Please keep these instructions handy for later reference.
It is our passion
to develop high quality products that can easily be operated by every home user and
provide the best tailored education accompanying the products. We love to help you
get the most out of the product and be more vvhealth aware.
Our products are selected, developed and continually improved to meet our clinical
standards of quality, durability and consistency, without compromising simplicity for
any home user.
In order to make sure that what we deliver is exactly what you need, we welcome your
feedback. So if you have any issues, questions or recommendations, you would greatly
help us when you share your thoughts with us. Visit www.iproven.com
iProvén - Professional care brought home
iProvén is a Masena Invest company
Page 3
- 3 -
Symbol Description
Electrical waste materials should be
sent to dedicated collection points for
recycling.
Warning
Device damage or injuries may be
the result of incorrect usage of this
product. Please follow the instructions
of this manual carefully.
Notice
Incorrect usage or damage of the product may lead to inaccurate readings.
Contents
1. Safety instructions and precautions ..............................................4
2. Purpose ......................................................................................................4
2.1 Description .............................................................................................5
3. Setup instructions .................................................................................6
3.1 First use .................................................................................................... 6
3.2 Replacing Batteries .............................................................................6
4. Operating instructions ........................................................................6
4.1 How to get accurate measurements ............................................ 6
4.2 How to use the Head-mode ........................................................... 7
4.3 How to use the Ear-mode.................................................................7
4.4 Memory retrieval .................................................................................8
4.5 ˚C / ˚F switch ..........................................................................................8
4.6 Automatic power o ..........................................................................8
5. Measurement results ............................................................................ 8
5.1 Ear-mode/ Ambient temperature mode .................................... 9
5.2 Head-mode ............................................................................................9
5.3 Out-of-range temperatures ............................................................9
6. Cleaning .....................................................................................................9
7. Storage .......................................................................................................10
8. Troubleshooting .................................................................................... 10
9. Technical Information ..........................................................................11
10. Warranty .................................................................................................. 12
Page 4
- 4 -
1. Safety instructions and precautions
• The ear measuring function is not suitable for children under 6 months. In this
case we recommend using the Forehead-mode or a rectal digital thermometer
with a exible tip such as the iProven DTK-117A.
• The device is not intended to serve as a continuous monitoring device.
• This device is not waterproof. Please keep it away from water or other liquids.
Cleaning and disinfection procedures should follow the instructions specied in
the cleaning section.
• Please do not use the product if the temperature sensor of the thermometer
shows any sign of damage. Do not try to repair the product if it is damaged.
Please contact your supplier.
• The use of this thermometer is not intended to replace appropriate medical
supervision.
• This thermometer consists of high quality, precise parts. The product is not designed to be impact or shock resistant. Avoid dropping the product or subjecting
it to intense shock or vibration.
• Do not twist the thermometer or the temperature sensor.
• Remove the batteries if the thermometer will not be used for longer than three
months.
Warning!
This item is not intended to replace insight from a doctor, pharmacist, or other
licensed health-care expert. You ought not to utilize this item for self-diagnosis or
for dealing with an illness. Get in touch with your health-care supplier quickly if you
think that you have a clinical issue.
Attention:
Electromagnetic interference: this thermomometer contains sensitive electronic
components and should not be used under conditions with electromagnetic interference (such as in the immediate vicinity of mobile phones or microwaves).
Please dispose of the used products and batteries in accordance with local regulations and requirements.
2. Purpose
This thermometer is intended for measuring your own or somebody else’s body
temperature. It can measure the body temperature from the forehead and from the
eardrum. Although the thermometer has undergone clinical tests and is considered
safe and highly accurate, it is intended for non-professional home use only.
Page 5
- 5 -

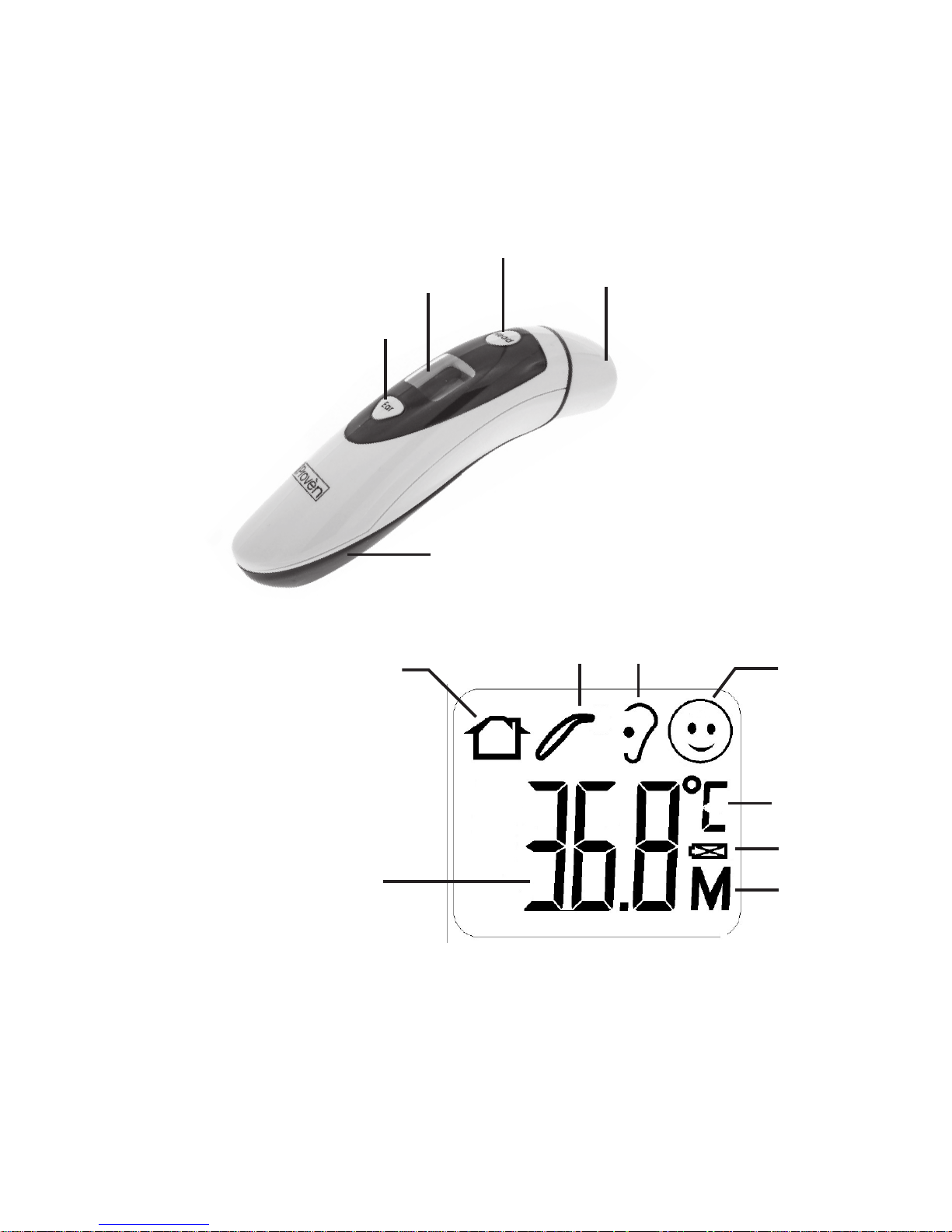

2.1 Description
1. Infrared sensor: (Take o the cover before detecting the eardrum temperature.)
2. Head-button: starts measurement of forehead temperature.
3. Ear-button: starts measurement of eardrum temperature.
4. LCD display
5. Battery cover
1. Ambient temperature
2. Ready for measurement
3. ˚C / ˚F
4. Memory
5. Head-function
6. Ear-function
7. Battery
8. Digits
1
1
5
5
62
2
3
3
4
4
7
8
Page 6
- 6 -
3. Setup instructions
3.1 First use
When using this product for the rst time, the battery protection tab must be
removed. Remove this plastic tab by gently pulling it out of the battery compartment.
3.2 Replacing Batteries
To replace the batteries, follow these instructions:
9. Release the battery cover by gently sliding it down.
10. Take o the battery cover.
11. Replace the AAA-type batteries in accordance to the depicted polarity.
12. Replace the battery cover and make sure the four pins of the cover are in the
gaps.
13. Close the battery cover by sliding it upward until you hear a click.
4. Operating instructions
4.1 How to get accurate measurements
To ensure accurate measurements, follow these instructions:
1. Please make sure that the temperature sensor is absolutely clean.
2. Please make sure that the device is used in a closed room where there is
no strong breeze or draft.
3. Coverage of the forehead and the ears by hair or a hat will make the forehead
and the ear warmer; therefore make sure that the forehead or the ear has not
been covered during 5 minutes prior to the measurement.
4. Please make sure the forehead is dry and clean before measurement to prevent
the sensor from getting stained.
5. Before measuring the ear temperature, please clean the ear canal.
6. Please be aware that intense emotions and exertion before taking a
measurement can aect the accuracy of the reading.
7. If the thermometer is transferred from one environmental condition to another
that has a dierent ambient temperature, it is suggested to wait at least 30
minutes to get the thermometer adjust itself to the new conditions in order to
get the most accurate reading.
8. Do not hold the thermometer in your hands unnecessarily as it is highly sensitive
to heat. Holding the unit for more than 3 minutes can result in inaccurate
measurements.
Page 7
- 7 -

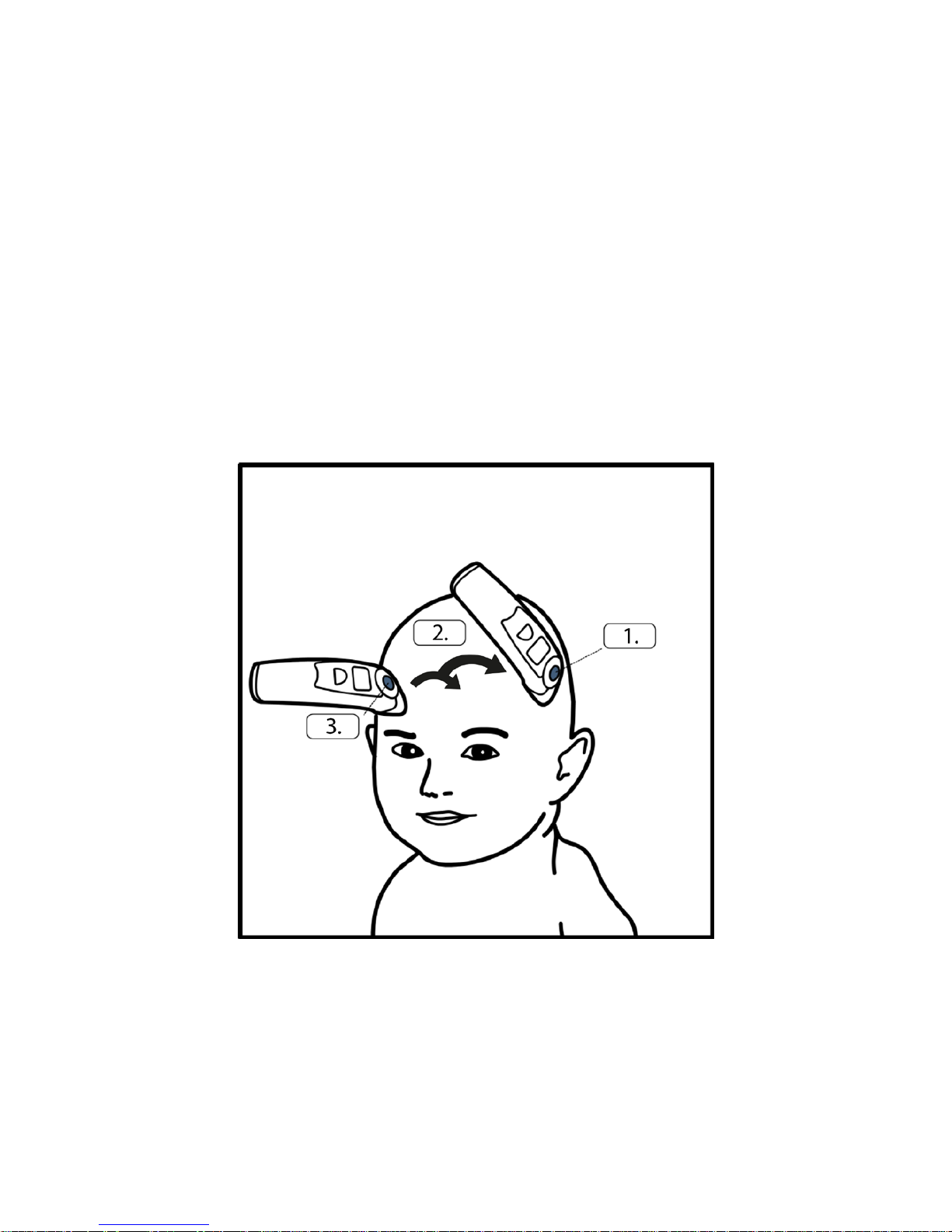

4.2 How to use the Head-mode
To measure the body temperature from the forehead, follow these instructions:
1. Point the thermometer sensor toward the temple.
2. Keep some space between the sensor and the skin (approx. 1/4 inch, 0,5 cm).
3. First measure your temple, then the spot between your eyebrows and then the
other temple while holding the head button.
4. Release the head button and take the thermometer o the forehead.
5. Read the temperature from the screen.
Page 8
- 8 -
4.3 How to use the Ear-mode
To measure the body temperature from the eardrum, follow these instructions:
1. Take o the sensor cover to expose the sensor probe.
2. Pull the ear backward and upward.
3. Gently insert the sensor into the ear canal.
4. Make sure the sensor points in the direction of the eardrum itself.
5. Press the Ear button once.
6. A beep indicates the measurement is successful.
7. Read the temperature from the display.

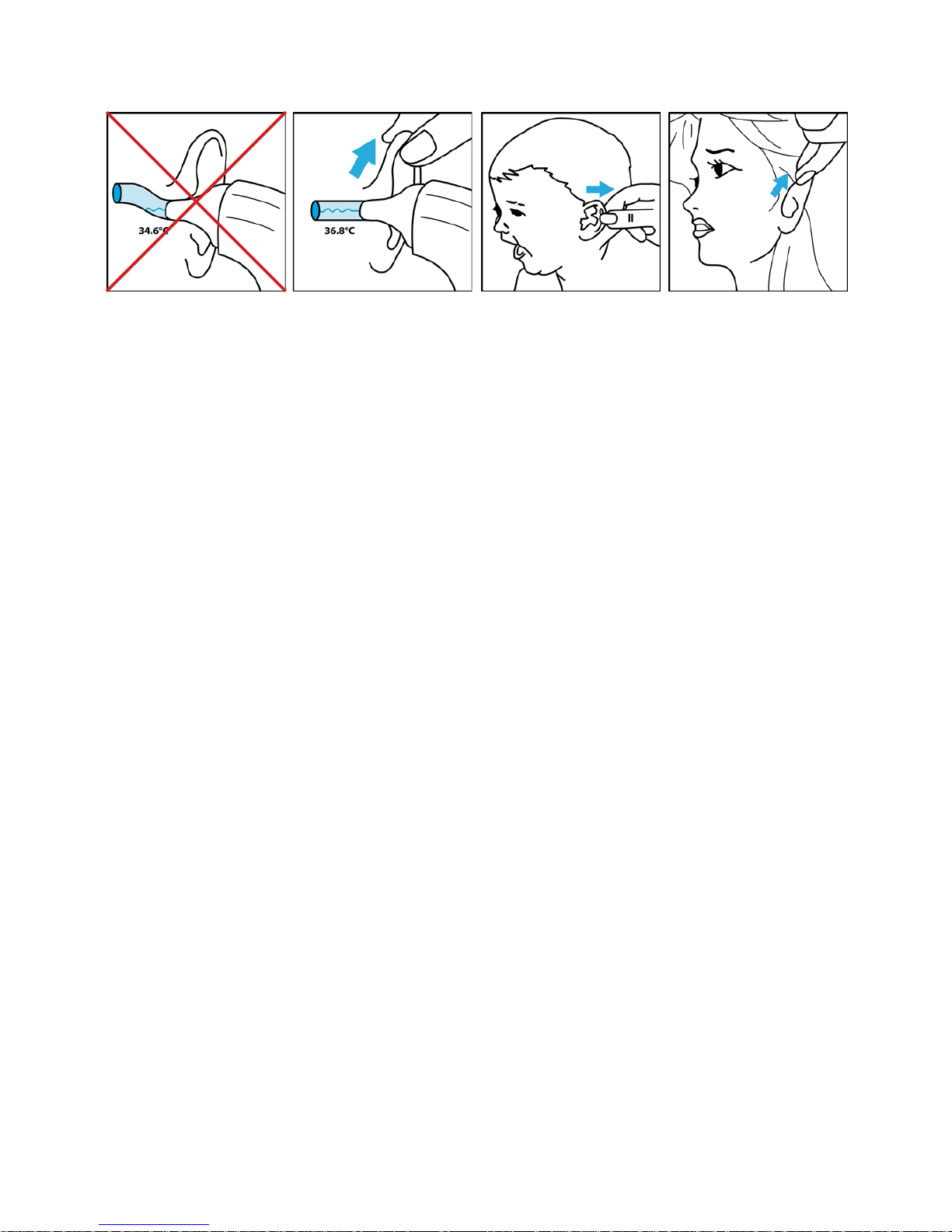

The most accurate measurement will be obtained when the sensor probe has a direct
view of the eardrum (image 2).
Straighten the ear canal by tugging the ear upward and backward to get the most
accurate measurement (image 2).
To measure your own temperature, wrap your free hand around the back of your head
and pull your ear upward and backward (image 4).
Aged between 6 and 12 months
Pull the ear backward (image 3).
Aged 1 year and older
Pull the ear upward and backward (image 4).
4.4 Memory retrieval
Each time successful measurement is performed the measurement data is stored in the
thermometer memory. The thermometer memory has a capacity of 20 sets of data.
To retrieve stored data sets follow these instructions:
1. Make sure the thermometer is o. If it shows anything on the display, leave the
buttons untouched for 10 seconds.
2. Press and hold the Ear-button for 4 seconds until the display shows “- - -M”.
3. Press the Ear-button once to get the last measurement in the display.
Page 9
- 9 -
4. Press the Ear-button once more to get to data set 2.
5. The data consists of the measured temperature and the saved type of
measurement as shown by the accompanying symbols.
6. To shut down the thermometer press the Head-button once.
4.5 ˚C / ˚F switch
To switch between Celsius and Fahrenheit follow these instructions:
1. Make sure the thermometer is o. If it shows anything on the display, leave the
buttons untouched for 10 seconds.
2. Press and hold the Ear-button for 10 seconds until the display shows “- - -˚C” or
“- - -˚F”.
3. Release the Ear-button.
4. Press the Ear-button once to switch from ˚C to ˚F or from ˚F to ˚C.
5. Wait 5 seconds for the thermometer to save the setting and shut o.
4.6 Automatic power o
If the buttons are left untouched for 10 seconds the thermometer will automatically
shut down.
5. Measurement results
Body temperatures between 36.0˚C and <37.6˚C or 96.8˚F and <99.7˚F are considered
normal body temperatures.
When normal body temperature is measured; one beep will sound and the display will
light green. The measured temperature is shown on the display.
Body temperatures between 37.6˚C <42.2˚C or 99.7˚F <108˚F are considered fever.
When the measurement is in this temperature range, the fever alarm will sound;
7 beeps will sound and the display will light red. The measured temperature is shown
on the display.
5.1 Ear-mode/ Ambient temperature mode
In Ear-mode/ Ambient temperature mode the temperature measurement range is
0.0˚C - 100.0˚C or 32˚F - 212˚F. After any successful measurement between 0.0˚C <
37.6˚C or 32˚F < 99.7˚F one beep will sound and the display will light green. When the
measurement is between 37.6˚C and <100.0˚C or 99,7˚F <212˚F, the fever alarm will
sound; 7 beeps will sound and the display will light red. The measured temperature is
shown on the display.
Page 10
- 10 -
5.2 Head-mode
In head-mode the temperature measurement range is 0.0˚C - 100.0˚C or 32˚F - 212˚F.
After any measurement between 32˚C and < 37.6˚C or 89.6˚F and < 99.7˚F one beep
will sound and the display will light green. When the measurement is between 37.6˚C
and < 42.2˚ or 99.7˚F and <108˚F, the fever alarm will sound; 7 beeps will sound and
the display will light red. The measured temperature is shown on the display.
5.3 Out-of-range temperatures
Temperature measurements that are outside the measurement ranges will result in
error codes L˚ or H˚ on the display, accompanied by three beeps and the display
lighting red for three seconds.
“ L˚ ”: Measurement is below 32.0˚C or 89.6˚F in Head-mode or below 0.0˚C or 32˚F
in Ear-mode/ Ambient temperature mode. Please make sure you are following the
instructions on how to get accurate measurements.
“ H˚ “: Measurement is exceeding 42.2˚C or 108˚F in Head-mode or over 100.0˚C or
212˚F in Ear-mode / Ambient temperature mode. Please make sure you are following
the instructions on how to get accurate measurements.
6. Cleaning
• Regularly clean the thermometer with a damp cloth.
• Do not use alcohol or benzine for cleaning.
• Prevent the sensor from getting stained by cleaning the ears before using the
Ear-mode.
• Prevent the sensor from getting stained by cleaning and drying before using the
Head-mode.
• Caution: This thermometer is not waterproof! Do not expose this thermometer
to water or any other liquid.
7. Storage
• Store this thermometer at room temperature; the most accurate temperature
measurement is obtained when the thermometer has been exposed to the same
ambient temperature as the user for at least 30 minutes.
• Always store this thermometer in the enclosed soft case to prevent it from
collecting dust or getting unhygienic.
8. Troubleshooting
Error: Display shows “ ER1” + backlight is red + 3 beeps sound.
Meaning: Ambient temperature dropped below 10˚C/ 50˚F or exceeded 40˚C/ 104˚F.
Page 11
- 11 -
Desired action: Please store the thermometer at room temperature.
Error: Display shows “ ERC” + backlight is red + 3 beeps sound .
Meaning: EEPROM data reading error or the correcting process is not nished.
Desired action: Please contact your supplier.
Error: Display shows low-voltage signal (not blinking).
Meaning: The battery voltage is below 2.61V±2%.
Desired action: Please replace the batteries according to the instructions.
Other signals:
“ L˚ ”: Measurement is below 32.0˚C or 89.6˚F in Head-mode or below 0.0˚C or 32˚F
in Ear-mode/ Ambient temperature mode. Please make sure you are following the
instructions on how to get accurate measurements.
“ H˚ “: Measurement is exceeding 42.2˚C or 108˚F in Head-mode or over 100.0˚C or
212˚F in Ear-mode / Ambient temperature mode. Please make sure you are following
the instructions on how to get accurate measurements.
9. Technical Information
Model: Dual Mode Infrared Thermometer DMT-489
Applicable regulations and laws: ASTM 1965/EN12470-5/GB/T 19146-2010
Temperature units: ˚C/˚F, adjustable
Measurement range Forehead-mode: 0.0˚C-100.0˚C / 32.0˚F-212.0˚F
Measurement range Ear-mode: 0.0˚C-100.0˚C / 32.0˚F-212.0 ˚F
Precision: ±0.2˚C /±0.4˚F
Display resolution: 0.1˚C/0.1˚F
Latency Time: 1 second
Sound: Volume≧50 dB (Distance from dB Volume sensor to thermometer is 10cm)
Automatic shutdown function: ±10s
Low-voltage display function: low-voltage sign shows when the voltage is below
2.51V±0.15V
Memory function: capacity of 20 data sets
Current consumption: I stand-by<2μA; I working<0.5mA; I Buzzer on<2mA;
I backlight<15mA
LED backlight specications: ≧1.2cd/m2
Operational conditions: ASTM 10˚C-40˚C (50˚F-104˚F)/15-95%RH
Operational atmospheric pressure range: 860hPa to 1060hPa
Battery: Two 1.5V AAA type batteries
Battery life: ≧3000 measurements
Accuracy (for clinical test): maximum allowable error for clinical test=
Terror = T1-Tref + T2-Tref 2 ≦0.3˚C/0.6˚F (for 95%) (T1 and T2 represent temperature
value for thermometer under test; Tref represents the constant reference temperature).
Page 12
- 12 -
10. Warranty
What does this limited warranty cover? This Limited Warranty covers any defects in
material or workmanship under normal use during the Warranty Period.
What will we do to correct problems? iProvèn will either replace the product or
repair the Product at no charge, using new or refurbished replacement parts.
How long does the coverage last? The Warranty Period for this iProvèn product is 730
days from the date of purchase. A replacement product or product part assumes the
remaining warranty of the original product purchase.
What does this limited warranty not cover? This Limited Warranty does not cover
batteries and packaging neither any problem that is caused by: conditions,
malfunctions or damage not resulting from defects in material or workmanship.
What do you have to do? To obtain warranty service, please contact iProvén customer
support: www.iproven.com
2015-2016. All rights reserved.
iProvèn owns and reserves the rights comprised
in the copyright of this document. No part of
this document may be changed, copied, reproduced, or imitated in any form or by any means
without prior written consent of iProvèn. All
statements, information, and recommendations
in this document are provided “AS IS” without
warranties, guarantees or representations of any
kind, either express or implied. The information
in this document is subject to change without
notice. iProvèn reserves the right of nal interpretation of this document.
Version: DMT-489 20160816
WAREHOUSE
Beaverton, Oregon
9450 SW Gemini Dr
Beaverton, OR 97008-7105
Phone: 1-503-974-0913
HEADQUARTERS
Ebweg 12D
2991 LT Barendrecht
The Netherlands
Phone: +31(0)84-8838876
Loading...
