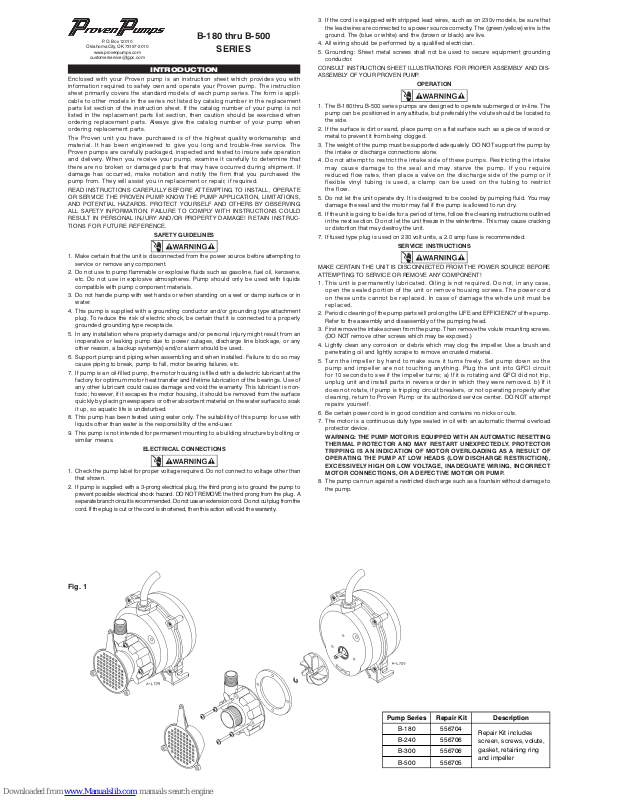

Page 1
P. O. Box 12010
Oklahoma City, OK 73157-2010
www.provenpumps.com
B-180 thru B-500
SERIES
Enclosed with your Proven pump is an instruction sheet which provides you with
information required to safely own and operate your Proven pump. The instruction
sheet primarily covers the standard models of each pump series. The form is applicable to other models in the series not listed by catalog number in the replacement
parts list section of the instruction sheet. If the catalog number of your pump is not
listed in the replacement parts list section, then caution should be exercised when
ordering replacement parts. Always give the catalog number of your pump when
ordering replacement parts.
The Proven unit you have purchased is of the highest quality workmanship and
material. It has been engineered to give you long and trouble-free service. The
Proven pumps are carefully packaged, inspected and tested to insure safe operation
and delivery. When you receive your pump, examine it carefully to determine that
there are no broken or damaged parts that may have occurred during shipment. If
damage has occurred, make notation and notify the firm that you purchased the
pump from. They will assist you in replacement or repair, if required.
READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL, OPERATE
OR SERVICE THE PROVEN PUMP. KNOW THE PUMP APPLICATION, LIMITATIONS,
AND POTENTIAL HAZARDS. PROTECT YOURSELF AND OTHERS BY OBSERVING
ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD
RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
SAFETY GUIDELINES
1. Make certain that the unit is disconnected from the power source before attempting to
service or remove any component.
2. Do not use to pump flammable or explosive fluids such as gasoline, fuel oil, kerosene,
etc. Do not use in explosive atmospheres. Pump should only be used with liquids
compatible with pump component materials.
3. Do not handle pump with wet hands or when standing on a wet or damp surface or in
water.
4. This pump is supplied with a grounding conductor and/or grounding type attachment
plug. To reduce the risk of electric shock, be certain that it is connected to a properly
grounded grounding type receptacle.
5. In any installation where property damage and/or personal injury might result from an
inoperative or leaking pump due to power outages, discharge line blockage, or any
other reason, a backup system(s) and/or alarm should be used.
6. Support pump and piping when assembling and when installed. Failure to do so may
cause piping to break, pump to fall, motor bearing failures, etc.
7. If pump is an oil-filled pump, the motor housing is filled with a dielectric lubricant at the
factory for optimum motor heat transfer and lifetime lubrication of the bearings. Use of
any other lubricant could cause damage and void the warranty. This lubricant is nontoxic; however, if it escapes the motor housing, it should be removed from the surface
quickly by placing newspapers or other absorbent material on the water surface to soak
it up, so aquatic life is undisturbed.
8. This pump has been tested using water only. The suitability of this pump for use with
liquids other than water is the responsibility of the end-user.
9. This pump is not intended for permanent mounting to a building structure by bolting or
similar means.
ELECTRICAL CONNECTIONS
1. Check the pump label for proper voltage required. Do not connect to voltage other than
that shown.
2. If pump is supplied with a 3-prong electrical plug, the third prong is to ground the pump to
prevent possible electrical shock hazard. DO NOT REMOVE the third prong from the plug. A
separate branch circuit is recommended. Do not use an extension cord. Do not cut plug from the
cord. If the plug is cut or the cord is shortened, then this action will void the warranty.

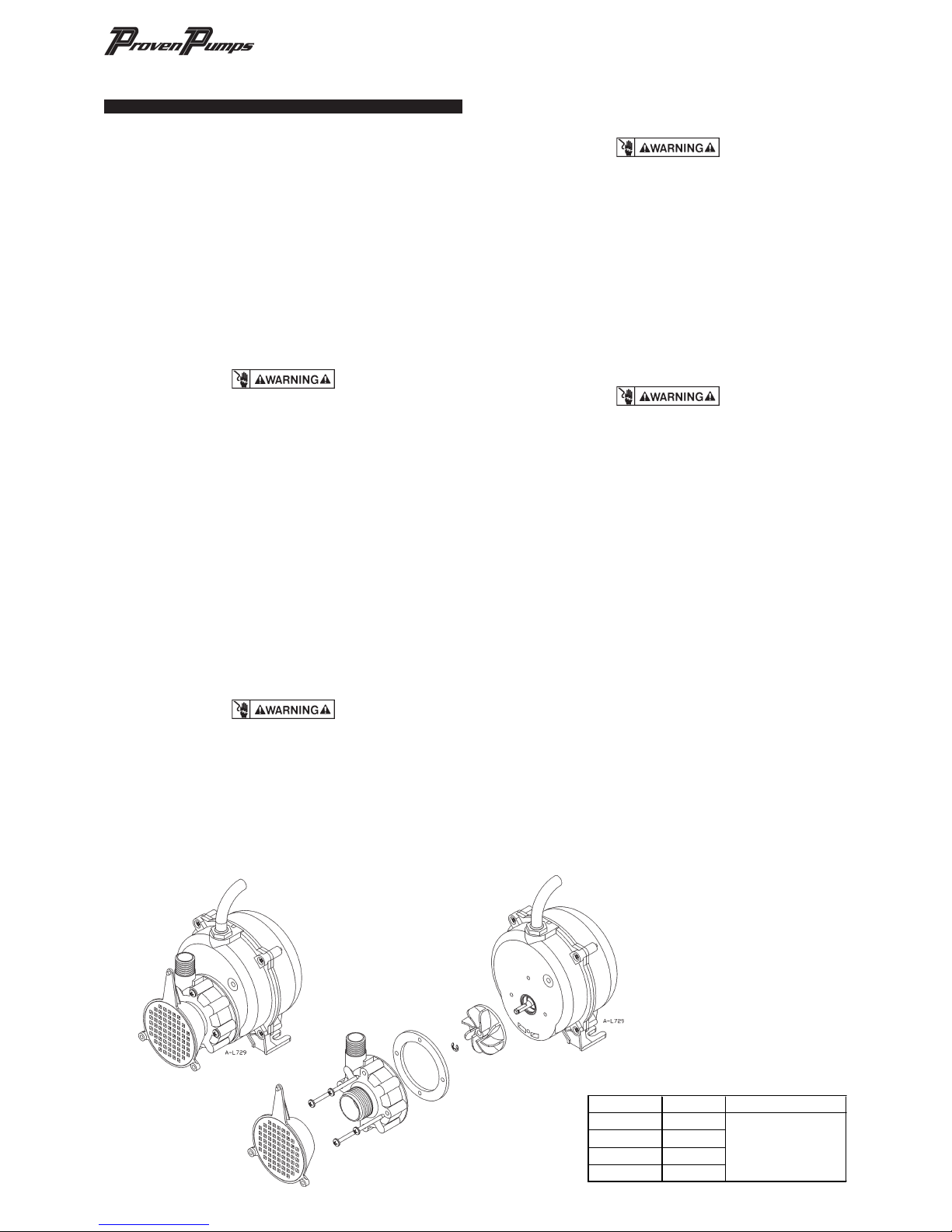

Fig. 1
INTRODUCTION
3. If the cord is equipped with stripped lead wires, such as on 230v models, be sure that
the lead wires are connected to a power source correctly. The (green/yellow) wire is the
ground. The (blue or white) and the (brown or black) are live.
4. All wiring should be performed by a qualified electrician.
5. Grounding: Sheet metal screws shall not be used to secure equipment grounding
conductor.
CONSULT INSTRUCTION SHEET ILLUSTRATIONS FOR PROPER ASSEMBLY AND DISASSEMBLY OF YOUR PROVEN PUMP.
OPERATION
1. The B-180 thru B-500 series pumps are designed to operate submerged or in-line. The
pump can be positioned in any attitude, but preferably the volute should be located to
the side.
2. If the surface is dirt or sand, place pump on a flat surface such as a piece of wood or
metal to prevent it from being clogged.
3. The weight of the pump must be supported adequately. DO NOT support the pump by
the intake or discharge connections alone.
4. Do not attempt to restrict the intake side of these pumps. Restricting the intake
may cause damage to the seal and may starve the pump. If you require
reduced flow rates, then place a valve on the discharge side of the pump or if
flexible vinyl tubing is used, a clamp can be used on the tubing to restrict
the flow.
5. Do not let the unit operate dry. It is designed to be cooled by pumping fluid. You may
damage the seal and the motor may fail if the pump is allowed to run dry.
6. If the unit is going to be idle for a period of time, follow the cleaning instructions outlined
in the next section. Do not let the unit freeze in the wintertime. This may cause cracking
or distortion that may destroy the unit.
7. If fused type plug is used on 230 volt units, a 2.0 amp fuse is recommended.
SERVICE INSTRUCTIONS
MAKE CERTAIN THE UNIT IS DISCONNECTED FROM THE POWER SOURCE BEFORE
ATTEMPTING TO SERVICE OR REMOVE ANY COMPONENT!
1. This unit is permanently lubricated. Oiling is not required. Do not, in any case,
open the sealed portion of the unit or remove housing screws. The power cord
on these units cannot be replaced. In case of damage the whole unit must be
replaced.
2. Periodic cleaning of the pump parts will prolong the LIFE and EFFICIENCY of the pump.
Refer to the assembly and disassembly of the pumping head.
3. First remove the intake screen from the pump. Then remove the volute mounting screws.
(DO NOT remove other screws which may be exposed.)
4. Lightly clean any corrosion or debris which may clog the impeller. Use a brush and
penetrating oil and lightly scrape to remove encrusted material.
5. Turn the impeller by hand to make sure it turns freely. Set pump down so the
pump and impeller are not touching anything. Plug the unit into GFCI circuit
for 10 seconds to see if the impeller turns; a) If it is rotating and GFCI did not trip,
unplug unit and install parts in reverse order in which they were removed. b) If it
does not rotate, if pump is tripping circuit breakers, or not operating properly after
cleaning, return to Proven Pump or its authorized service center. DO NOT attempt
repairs yourself.
6. Be certain power cord is in good condition and contains no nicks or cuts.
7. The motor is a continuous duty type sealed in oil with an automatic thermal overload
protector device.
WARNING: THE PUMP MOTOR IS EQUIPPED WITH AN AUTOMATIC RESETTING
THERMAL PROTECTOR AND MAY RESTART UNEXPECTEDLY. PROTECTOR
TRIPPING IS AN INDICATION OF MOTOR OVERLOADING AS A RESULT OF
OPERATING THE PUMP AT LOW HEADS (LOW DISCHARGE RESTRICTION),
EXCESSIVELY HIGH OR LOW VOLTAGE, INADEQUATE WIRING, INCORRECT
MOTOR CONNECTIONS, OR A DEFECTIVE MOTOR OR PUMP.
8. The pump can run against a restricted discharge such as a fountain without damage to
the pump.
3XPS6HULHV 5HSDLU.LW 'HVFULSWLRQ
%
%
%
%
5HSDLU.LWLQFOXGHV
VFUHHQVFUHZVYROXWH
JDVNHWUHWDLQLQJULQJ
DQGLPSHOOHU
Page 2
PROBLEM
Pump fails to run.
Pump runs but no fluid flows.
Flow rate is low.
Pump starts and stops pumping.
CORRECTIVE ACTION
1. Be sure correct voltage is available.
2. Clean impeller.
3. Replace pump.
1. Lower the height.
2. Clean or replace.
3. Open the valve.
4. Purge to eliminate air.
5. Refill.
6. Pump inlet must be below liquid level (flooded).
1. Be sure correct voltage is available.
2. Clean impeller.
3. Clean plumbing.
4. Replace with larger plumbing.
5. Lower the height.
1. Clean impeller and screen.
2. Replace pump.
3. Be sure correct voltage and frequency is supplied to pump.
PROBABLE CAUSES
1. No electricity or low voltage.
2. Impeller clogged.
3. Motor has open circuit.
1. Discharge height too great.
2. Inlet screen clogged.
3. Discharge valve closed.
4. Air trapped in pump.
5. No water in reservoir.
6. Pump inlet located above liquid level.
1. Low voltage.
2. Impeller clogged.
3. Inlet or discharge plumbing restricted.
4. Discharge plumbing undersized.
5. Discharge height too great.
1. Impeller or inlet screen clogged.
2. Defect in motor.
3. Incorrect voltage or frequency.
©Copyright 2003
Form 998234 02/2003
LIMITED WARRANTY
Your Proven product is guaranteed to be in perfect condition when it leaves our Factory. It
is warranted against defective materials and workmanship for a period of 12 months (90
day warranty on Models: BPLA, 360, 361, 365, 366, 370 and 371) from date of purchase
by the user. No warranty on brush wear, impeller or cam in Models BPLA, 360, 361, 365,
366, 370 and 371.
Any product that should fail for either of the above two reasons and is still within the
warranty period will be repaired or replaced at the option of Proven as the sole remedy of
buyer. For our customers in the CONTINENTAL UNITED STATES: Please return the defective unit, postage paid, to the factory at 301 North MacArthur Blvd., Oklahoma City, OK
73127-6616. All defective product returned under warranty will be fully inspected to determine the cause of failure before warranty is approved.
For our customers located elsewhere; it is not economical, due to duties and freight, to
return the pump to the factory for inspection. Please return the defective unit to any authorized distributor or dealer with a brief written explanation of the problem. If there are no
apparent signs of customer abuse, unit will be repaired or replaced. If dispute arises over
replacement of the pump, the distributor or dealer is to segregate such items and hold for
inspection by a representative of Proven Pumps or notify factory with details of the problem for factory disposition and settlement of warranty claim.
DISCLAIMER: THE FOREGOING WARRANTY IS AN EXCLUSIVE WARRANTY IN LIEU OF
ANY OTHER EXPRESS WARRANTIES. ANY IMPLIED WARRANTIES (INCLUDING, BUT
NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE) TO THE EXTENT EITHER APPLIES TO A PUMP SHALL BE
LIMITED IN DURATION TO THE PERIODS OF THE EXPRESS WARRANTIES GIVEN ABOVE.
Warranty will be VOID if any of the following conditions are found:
1. Sealed motor housing opened.
2. Product connected to voltage other than indicated on nameplate.
3. Cord cut off to a length less than three feet.
4. Pump allowed to operate dry (fluid supply cut off).
5. Pump used to circulate anything other than fresh water, light oils, or other mild liquids at
approximately room temperature.
6. Product abuse by customer.
For Parts or Repair, please contact........................................................................ 1.888.572.9933
For Technical Assistance, please contact ............................................................ 1.888.956.0000
www.provenpumps.com
TROUBLESHOOTING INFORMATION
Any oral statements about the product made by the seller, the manufacturer, the
representatives or any other parties, do not constitute warranties, shall not be
relied upon by the user and are not part of the contract for sale. Sellers and
manufacturers only obligation, and buyers only remedy, shall be the replacement and/or repair by the manufacturer of the product as described above. NEITHER
SELLER NOR THE MANUFACTURER SHALL BE LIABLE FOR ANY INJURY, LOSS
OR DAMAGE, DIRECT, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT
NOT LIMITED TO INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR LOST PROFITS,
LOST SALES, INJURY TO PERSON OR PROPERTY, OR ANY OTHER INCIDENTAL
OR CONSEQUENTIAL LOSS), ARISING OUT OF THE USE OR THE INABILITY TO
USE THE PRODUCT AND THE USER AGREES THAT NO OTHER REMEDY SHALL
BE AVAILABLE TO IT. Before using, the user shall determine the suitability of the
product for the intended use, and user assumes all risk and liability whatsoever
in connection therewith.
Some states and countries do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damages, so the
above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state
and country to country.
The National Electric Code (in the USA) and similar codes in other countries
require a Ground Fault Circuit Interrupter (GFCI) to be installed in the branch
circuit supplying fountain equipment rated above 15 volts. We recommend each
pump be used with a GFCI.
