Page 1
PLTV-32C
32" Liquid Crystal Display
User’s Manual
OMPLTV32C.book Page i Thursday, June 2, 2005 9:07 AM
Page 2
ii
Protron PLTV-32C Liquid Crystal Display User’s Manual.
© 2005 Protron Digital Corporation. All rights reserved.
Under copyright law, this manual may not be reproduced in any form, in whole or in part,
without the prior written consent of Protron Digital Corporation.
Disclaimer
Protron Digital Corporation has reviewed this manual and provides it only as a guide to
operation. All statements, technical information, and recommendations in this manual and in
any guides or related documents are believed reliable, but the accuracy and completeness
thereof are not guaranteed or warranted, and they are not intended to be, nor should they be
understood to be, representations or warranties concerning the products described.
Specifications are subject to change without notice.
Trademarks
Protron is a registered trademark of Prosonic Group Corporation.
is a trademark of SRS Labs, Inc. WOW technology is incorporated under license from
SRS Labs, Inc.
is a trademark of BBE Sound, Inc. BBE technology is incorporated under license from BBE
Sound, Inc.
Protron Digital Corporation
2133 S. Green Privado
Ontario, CA 91761
Printed in China
OMPLTV32C.book Page ii Thursday, June 2, 2005 9:07 AM
Page 3
iii
Product Cautions
TO PREVENT POSSIBLE DANGER, ELECTRIC SHOCK, AND OTHER INJURIES WHEN
HANDLING YOUR DISPLAY, PLEASE BE AWARE OF OF ALL WARNINGS AND SAFETY
PRECAUTIONS LISTED BELOW.
Never spill any liquid of any kind on the display.
Never insert anything into the display, where objects can come into contact with
high voltage nodes or damage internal components.
Do not attempt to service the display yourself. Opening or removing covers
exposes high voltage nodes and other hazards. Refer all servicing to qualified
service personnel.
Do not touch the display or antenna during thunderstorms. Unplug the display
during thunderstorms or if it will not be used for extended periods. Failure to
do so may result in electric shock or fire.
Before cleaning the display, unplug it from the wall. Use a damp cloth for
cleaning. Never use liquid or aerosol cleaners.
To prevent overheating and ensure reliable operation, place the display only in
a well ventilated location. Avoid cramped or inadequately ventilated locations.
Place the display at least 10 cm (4") from walls or other objects. Always keep the
vent clean. Never place the display upside down.
Note: Read all safety and operating instructions before operating your new display.
OMPLTV32C.book Page iii Thursday, June 2, 2005 9:07 AM
Page 4
iv
Conformity and Compliance
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception (this can be
determined by turning the device off and on), the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
To comply with the limits for an FCC Class B computing device, the user should use the shielded
signal cable and power cord supplied with the unit. The FCC warns that changes or modifications
of the unit not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Radio Frequency Interference Statement
Warning:
This is a Class B product. In a domestic environment this product may cause radio interference, in
which case the user may be required to take adequate measures.
Canadian DOC Notice for Class B Computing Devices
This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital
apparatus as set out in the Radio Interference Regulations of the Canadian Department of
Communications.
CE Marking and Declaration of Conformity
This device complies with the requirements of related European standards, which include the
following:
• Emission: EN 55022, EN 61000-3-2, EN 61000-3-3
• Immunity: EN 50082-1
• Safety: EN 60950 Low-Voltage Directive (73/23/EEC)
OMPLTV32C.book Page iv Thursday, June 2, 2005 9:07 AM
Page 5
v
Tab le o f C o n t en t s
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your New Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Setting Up the Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connecting to a TV Signal Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Connecting to Composite Video Output Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting to S-Video Output Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Connecting to Component Video Output Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting to a Peripheral Audio System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Connecting to a Video Input System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting to a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operating the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Turning the Display On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selecting the Video and Audio Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selecting the Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Accessing the On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your Display for the First Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting up Television Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the Remote Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Configuring the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TV Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PC Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Picture-In-Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Channel Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Parental Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
General Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Supported VGA Timing Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
OMPLTV32C.book Page v Thursday, June 2, 2005 9:07 AM
Page 6
vi
OMPLTV32C.book Page vi Thursday, June 2, 2005 9:07 AM
Page 7
1
Introduction
Congratulations on purchasing your new Protron 32" Liquid Crystal Display!
You can use your new display as a television, in a home theater system, or even as a computer
monitor. With component, composite, and S-Video video inputs, you can connect numerous
devices to your display, including DVD players, VCRs, HDTV receivers, video game systems,
camcorders, and so on. And with video and audio output, you can connect your display to a
home stereo system with a subwoofer, or even record what is displayed on the screen.
The progressive scan and interlaced component video inputs on your display give you the highest
quality video available, allowing you to view crystal-clear DVDs and HDTV. With a resolution of
1366 × 768, your display gives you plenty of high-resolution screen real estate when connected
to a computer.
Features
• 32" viewable display area
• Analog TV tuner with coaxial input
• Progressive scan component video input
• Interlaced component video input
• 3 composite video inputs
• S-Video input
• 6 audio inputs, one for each video input
• Composite video output
• Audio output with subwoofer output
• VGA and DVI computer video inputs
• 1/8" stereo audio input jack for computer audio
• 1366 × 768 resolution
• Wide viewing angle
• Digital character smoothing
• Versatile, functional, and user-friendly On-Screen Display (OSD)
• VESA DPMS-compliant power saving—automatically turns off the display after a
configurable period of inactivity
• Windows 95/98/2000/XP Plug and Play compliant
• Conforms to VESA standards and supports the DDC1 and DDC2B specifications.
OMPLTV32C.book Page 1 Thursday, June 2, 2005 9:07 AM
Page 8
2

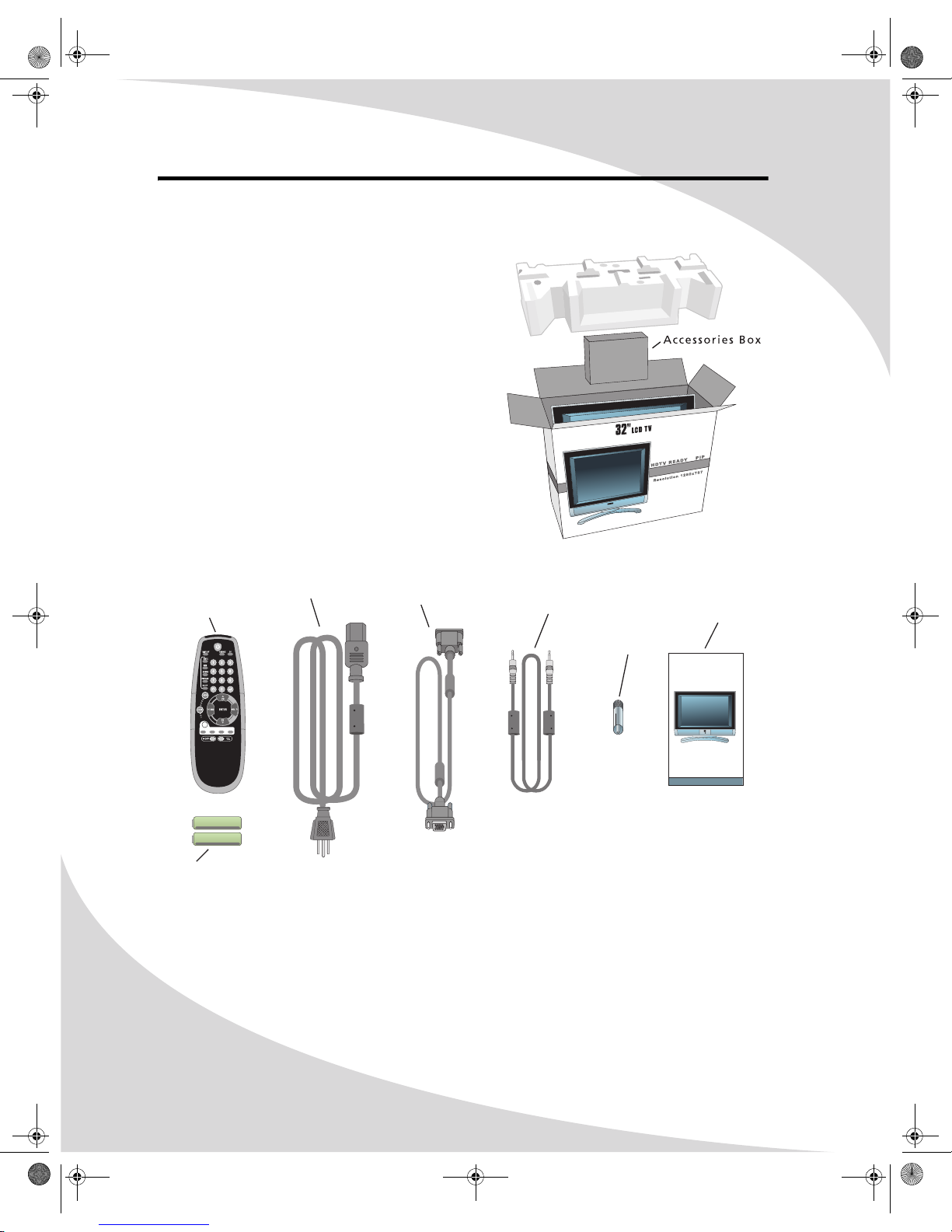

Unpacking Your New Display
Before using your new display, you should unpack
the contents of the box and check to make sure
everything is present and undamaged.
To unpack the display:
1. Set the box upright near the intended display
location.
2. Open the top set of flaps.
3. Remove the styrofoam pad from the top of the
display.
4. Remove the accessories box from behind the
display and set it aside.
5. Lift the display out of the box and set it aside.
The accessories box should contain the items
indicated below. If any items are missing or
damaged, contact the seller immediately.
Remote Control
Power Cord
VGA Cable
PC Audio Cable
Coax-to-RCA
Adapter
User's Manual
2 × AAA Battery
OMPLTV32C.book Page 2 Thursday, June 2, 2005 9:07 AM
Page 9
3

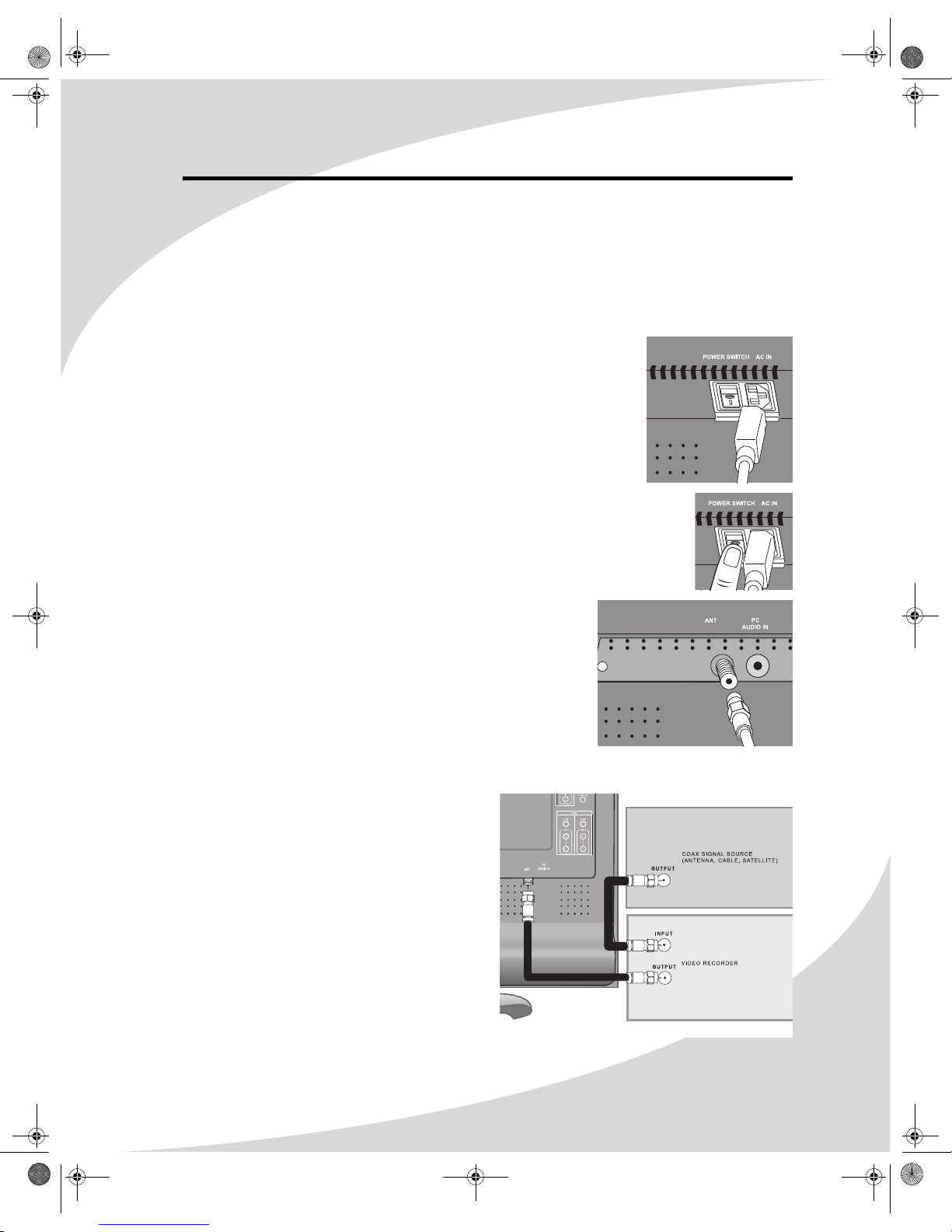

Setting Up the Display
The display requires a stable, level, and clean surface near a power outlet, 10 cm (4") away from
walls or other large objects. The rear ventilation grid should be unobstructed, and the display
should not be exposed to water or heat. Before setting up the display, prepare such a space.
To set up the display:
1. Remove the protective plastic bag and plastic screen protector from
the display.
2. Remove the power cord from the accessories box, insert the
appropriate end into the power (AC IN) connector on the bottom of
the display, and then insert the other end into a free power outlet.
3. Turn on the power switch on the bottom of the display.
Connecting to a TV Signal Source
A TV signal may come from a cable box, satellite receiver,
antenna, or similar device.
To connect a TV signal source to the display:
1. Remove the coax-to-RCA adapter from the Accessories Box
and insert it into the antenna (ANT) jack on the bottom of
the display.
2. Connect a coax cable between the adapter and TV signal
source (for example, a cable box, satellite receiver, or antenna).
Note: If you would like to be able to record
the TV signal with a VCR, DVD
recorder, or similar device, connect
the TV signal source to the input of
the recording device with one cable,
then connect the output of the
recording device to the ANT jack on
the display with another cable.
OMPLTV32C.book Page 3 Thursday, June 2, 2005 9:07 AM
Page 10
SettingUptheDisplay
4

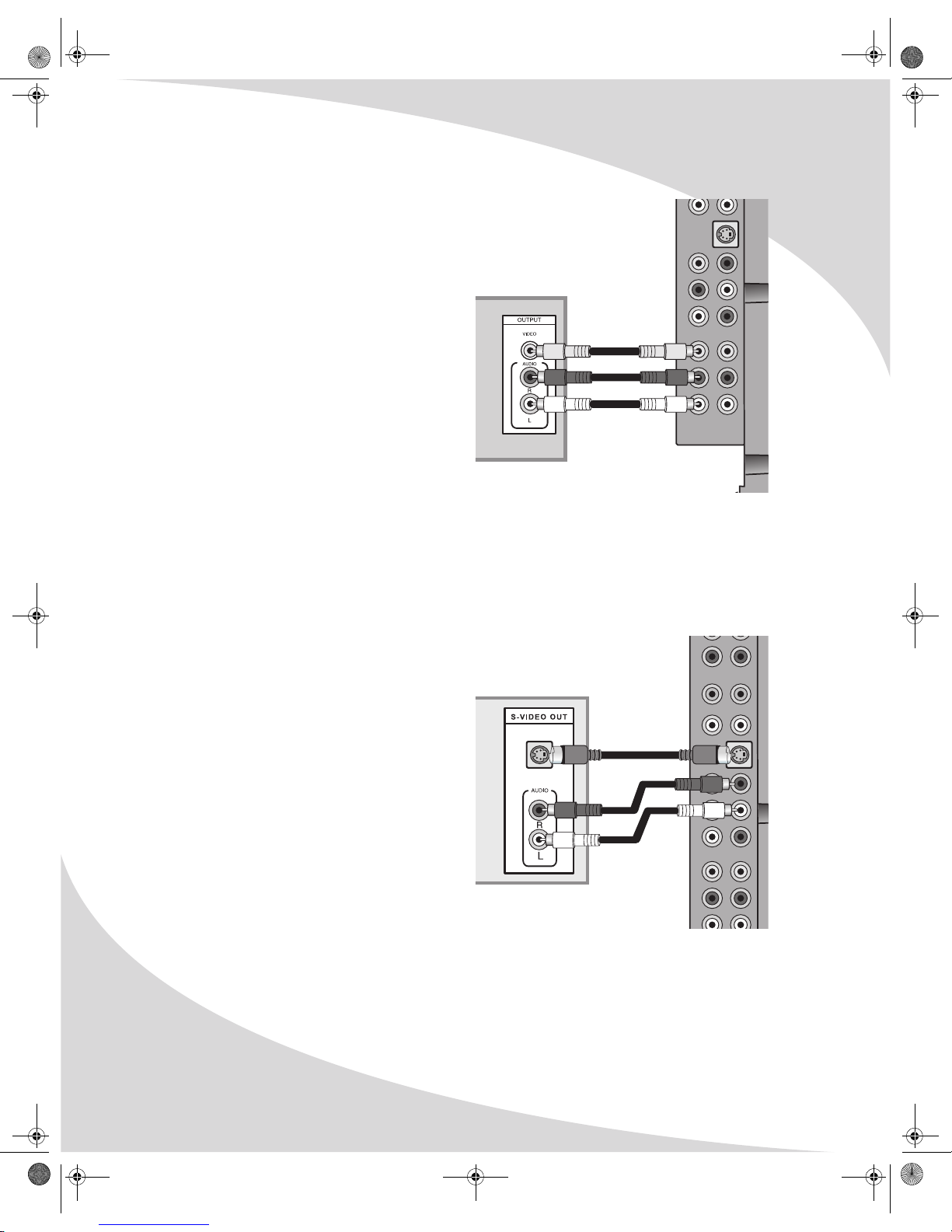

Connecting to Composite Video Output Devices
Many video devices, such as VCRs, DVD players,
video game systems, and camcorders, have
composite video outputs. Composite video uses
one RCA cable to transmit video information and
generally provides lower quality than S-Video
and component video (see below).
To connect a composite video source to the
display:
1. Using an RCA cable, connect the composite
video output (yellow) on the source device to
the corresponding jack in one of the three
composite video blocks on the display
(AV1IN, AV2IN, or AV3IN).
2. Using two RCA cables, connect the right (red)
and left (white) audio outputs on the source
to the corresponding jacks in the same
composite video block used above.
Connecting to S-Video Output Devices
Many video devices that have composite video outputs also have S-Video outputs. S-Video uses a
single four-wire cable to transmit video information. Two of the wires are used to transmit video.
Because it splits the video signal into two components, S-Video generally provides higher quality
than composite video, but lower quality than component video (see below).
Note: The pins used in S-Video connectors are
somewhat fragile. Take care to avoid
bending the pins, as a bent or broken pin
can cause loss of color information or
total signal loss.
To connect an S-Video source to the display:
1. Using an S-Video cable, connect the S-Video
output on the source device to the S-Video
jack on the display.
2. Using two RCA cables, connect the right (red)
and left (white) audio outputs on the source
to the corresponding jacks in the S-Video
block on the display.
OMPLTV32C.book Page 4 Thursday, June 2, 2005 9:07 AM
Page 11
Setting Up the Display
5
Connecting to Component Video Output Devices
High-quality video devices, such as HDTV
receivers and high-end DVD players, have
component video outputs. Component video
uses three RCA connections to transmit video
information. Because the information is split into
three signals, component video offers higher
quality than composite video and S-Video.
Note: There are two component video signal
types: progressive scan and interlaced.
When connecting a progressive scan
signal, use the Y, Pb, and Pr inputs. When
connecting an interlaced signal, use the
Y, Cb, and Cr inputs.
To connect a component video source to the
display:
1. Using three RCA cables, connect the three
component video outputs to the corresponding jacks in one of the two component video
blocks on the display:
If you are connecting a progressive scan video signal, use the Y, Pb, and Pr inputs.
If you are connecting an interlaced video signal, use the Y, Cb, and Cr inputs.
2. Using two RCA cables, connect the right (red) and left (white) audio outputs on the source to
the corresponding jacks in the same component video block used above.

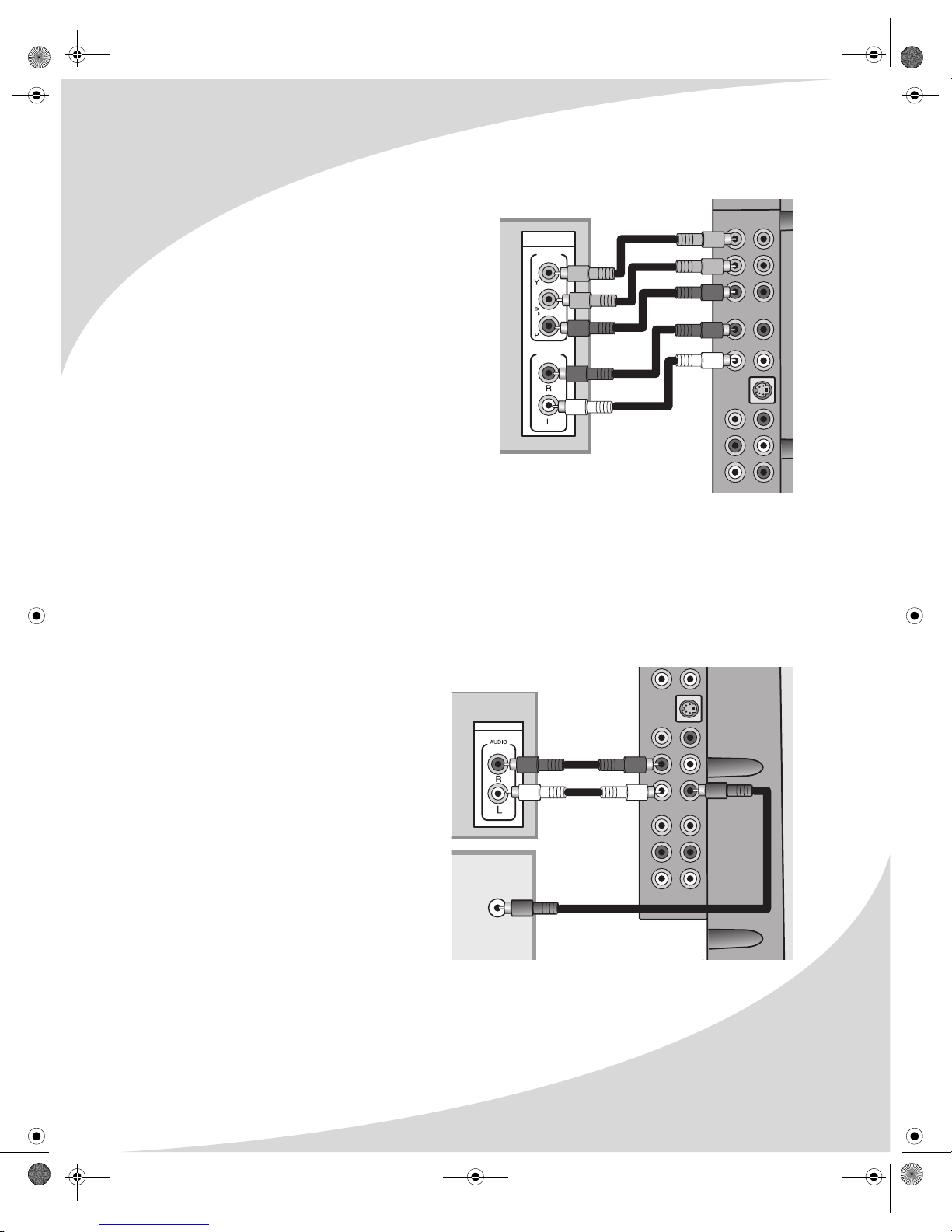

Connecting to a Peripheral Audio System
Your display has audio outputs that may
be used to play the display’s audio on a
peripheral system, such as a stereo
system or a home theater system. In
addition, there is a subwoofer output
that can be used to fill out the bass.
To connect the display to a
peripheral audio system:
1. Using two RCA cables, connect the
right (red) and left (white) audio
outputs in the output block on the
display (AV OUT) to the
corresponding inputs on your audio
system.
2. (OPTIONAL) If you have a subwoofer,
connect a third RCA cable from the
SUBWOOFER output on the display to the subwoofer’s input.
AUDIO
VIDEO
OUTPUT
r
AUDIO IN
AUDIO IN
STEREO
SYSTEM
SUBWOOFER
OMPLTV32C.book Page 5 Thursday, June 2, 2005 9:07 AM
Page 12
SettingUptheDisplay
6
Connecting to a Video Input System
There is a composite video output on the display
that may be used to transmit the currently
displayed video to other video input devices,
such as video recorders or other displays.
To connect the display to a video input
system:
1. Using an RCA cable, connect the composite
video output (yellow) in the output block on
the display (AV OUT) to the corresponding
jack on the video input system.
2. Using two RCA cables, connect the right (red)
and left (white) audio outputs in the AV OUT
block to the corresponding inputs on the
video input system.
Connecting to a PC
Your display can be used as a computer monitor for any computer with a VGA or DVI video
output. In addition, the computer’s audio output can be connected to the display and played
through the display’s speakers.
To connect a PC to the display:
1. Set the video resolution on the computer to 1280 × 1024 or less before connecting to the
display.
In Windows, right-click on the desktop and
select Properties to bring up the Display
Properties window. Select the Settings tab.
Adjust the Screen resolution as needed,
select Apply, then select OK.
INPUT
VIDEO
AUDIO
OMPLTV32C.book Page 6 Thursday, June 2, 2005 9:07 AM
Page 13
Setting Up the Display
7
In Mac OS X, select
System Preferences
under the Apple menu.
Open the Displays panel
and select the Display
tab. Select the desired
resolution from the list.
2. If your computer has a
DVI output, connect a DVI cable between the
DVI output on the computer and the DVI
input on the bottom of the display.
If your computer has a VGA output only,
connect the VGA cable included in the
Accessories Box between the VGA output on
the computer and the VGA input on the
display.
3. (OPTIONAL) Using the audio cable included
in the Accessories Box, connect the
computer’s audio output (LINE OUT) to the
audio input on the bottom of the display
(PC AUDIO IN).
DVI
VGA
OMPLTV32C.book Page 7 Thursday, June 2, 2005 9:07 AM
Page 14
8
Operating the Display
Turning the Display On and Off
There is a power switch on the bottom of the display and a power button on top. The power
switch is used to cut off power completely, whereas the power button turns the screen off but
allows the remote to continue working.
To turn the display on:
1. If the power light on the front of the display is off, turn on the power switch on the bottom
of the display.
2. Press the POWER button.
To turn the display off:
1. Press the POWER button.
2. If the display will be unused for an extended period of time, turn off the power switch on the
bottom of the display and disconnect the power.
Selecting the Video and Audio Source
The signal source may come from any of the input blocks on the sides or bottom of the display.
The SOURCE button cycles through these.
To change the audio/video source:
1. Press the SOURCE button until the correct source is selected.
The SOURCE button cycles through the following sources:
•TV
•VGA
•DVI
•S-Video
•AV 1
•AV 2
•AV 3
• Component 1
• Component 2
To switch the audio/video source directly to TV:
1. Press the TV button on the remote.
Adjusting the Volume
The audio volume may be adjusted from the remote or the top of the display.
To change the volume:
1. Press the VOL and VOL buttons.
OMPLTV32C.book Page 8 Thursday, June 2, 2005 9:07 AM
Page 15
Operating the Display
9
Selecting the Channel
The channel may be selected from the remote or the top of the display.
To change the channel:
1. Ensure the source is set to TV.
2. Press the CH and CH buttons.
To change to a particular channel directly:
1. Ensure the source is set to TV.
2. Enter the desired channel number on the remote’s keypad.
3. Press ENTER.
Accessing the On-Screen Display
The On-Screen Display allows you to configure the operation of the display. You can change
video and audio settings, activate and configure picture-in-picture (PIP) and closed captioning,
select television channels, control access to mature programming, and configure other general
display behavior. See “Configuring the Display” on page 13 for more information.
To access the OSD:
1. Press the MENU button.
OMPLTV32C.book Page 9 Thursday, June 2, 2005 9:07 AM
Page 16
10
Using Your Display for the First Time
When you turn on your LCD for the first time, you will need to set up the display for proper
operation by scanning the television spectrum for available channels.
Setting up Television Channels
Once the television signal is connected to the display, if you are connecting directly to a wall jack
or antenna, you should scan the signal spectrum to weed out channels with insufficient signal
strength. This will make it much easier to navigate through the channels.
To scan the signal spectrum:
1. Turn the display on using the POWER button.
2. Press the MENU button to bring up the On-Screen
Display (OSD).
3. Press the VOL button until the Channel Settings menu
shows.
4. Press the ENTER button to enter the menu.
5. Press the ENTER button again to enter the System submenu.
6. Press the CH and CH buttons until the appropriate
system is highlighted, then press the ENTER button to
select it.
7. Press MENU to return to the previous menu.
8. Press CH until the Auto Scan sub-menu is highlighted
and then press ENTER to select it. The display will
automatically scan all television channels for those with
a signal. You can press MENU at any time to stop the
process.
TV PARAMETERS
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
HUE
COLOR TEMP
FORMAT
100
50
50
50
50
ENTER
4 : 3 FULL
: Select MENU : Exit ENTER : Enter
SYSTEM
AUTO SCAN
CH. EDIT
CHANNEL SETTINGS
ENTER
ENTER
ON OFF
: Select MENU : Exit ENTER : Enter
CHANNEL SETTINGS
SYSTEM
AUTO SCAN
CH. EDIT
ANTENNA
CABLE
CABLE-IRC
CABLE-HRC
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 10 Thursday, June 2, 2005 9:07 AM
Page 17
11
Using the Remote Control
The remote control can be used to control every aspect of the display’s operation and includes
more functionality than the controls on top of the display.
The following is a list of all buttons on the remote and their functions:
Button Function
Turns the display on and off
Sets the signal source directly to TV
Selects the signal source: TV, VGA, DVI, S-Video, AV 1, AV 2, AV 3, Component 1,
or Component 2
Displays current source and television channel information
Keypad Used to enter numbers on the display and to select the television channel
Mutes the audio
Selects the television audio channel: Mono, Stereo, or SAP
OMPLTV32C.book Page 11 Thursday, June 2, 2005 9:07 AM
Page 18
Using the Remote Control
12
Note: To use a universal remote with your display, program the remote to control any NEC
television.
Selects the sound enhancement mode: Off, SRS (surround sound), or BBE
Adjusts the display color: Soft, Standard, Cool, or User-Defined
Sets the display sleep timer. The timer can be turned off or set to 10, 20, 30, 60,
90, or 120 minutes.
Switches to the channel number entered via the keypad
Returns to the previous channel
Brings up the On-Screen Display
Switches between the two display formats: 16:9 (wide-screen) and 4:3
Selects the highlighted item or confirms the current adjustment
Selects the television channel
Adjusts the audio volume
Turns PIP on and off
When PIP is active, selects the signal source used for the secondary PIP window
When PIP is active, adjusts the position of the secondary PIP window
When PIP is active, swaps the primary and secondary sources
When PIP is active, freezes the primary PIP screen
Turns V-Chip protection on and off
Turns closed captioning on and off
Button Function
OMPLTV32C.book Page 12 Thursday, June 2, 2005 9:07 AM
Page 19
13
Configuring the Display
The On-Screen Display (OSD) allows you to configure the operation of the LCD. You can change
video and audio settings, activate and configure picture-in-picture (PIP) and closed captioning,
select television channels, control access to mature programming, and configure other general
display behavior.
To use the OSD:
1. Press the MENU button on the remote or the top of the display.
2. Once the OSD appears, use the VOL and VOL buttons to navigate the menus represented
by icons at the top of the OSD.
3. Press the ENTER button to select the desired menu.
4. Use the CH and CH buttons to navigate the menu items.
5. Press the ENTER button to select the desired item.
6. If “ENTER” is displayed next to the item name, a sub-menu will appear upon pressing ENTER.
Repeat steps 4 and 5 to navigate the sub-menu.
7. If the selected item is an adjustable parameter, use VOL and VOL to adjust the
parameter and then press ENTER to accept.
8. Press MENU to return to the previous menu and, finally, exit the OSD.
TV Parameters
The TV Parameters menu allows you to change the video
options used while watching television. You can adjust the
following parameters.
Brightness
Sets the brightness of the display image.
Contrast
Sets the variation between light and dark colors.
Sharpness
Sets the image sharpness.
Saturation
Sets the saturation of color in the display image.
Hue
Sets the intensity of color in the display image.
TV PARAMETERS
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
HUE
COLOR TEMP
FORMAT
100
50
50
50
50
ENTER
4 : 3 FULL
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 13 Thursday, June 2, 2005 9:07 AM
Page 20
Configuring the Display
14
Color Temp
A sub-menu that sets the color temperature used. The
options are 6500K, 7500K, 9300K, and a user-defined
setting.
To set the user-defined color temperature, select the
USER option and adjust the levels of red, green, and
blue to be used to produce white.
Format
Controls the picture format. The options are 4:3 and Full
(16:9—widescreen).
PC Parameters
The PC Parameters menu allows you to change the video
options used with a VGA or DVI video source. You can adjust
the following parameters.
Brightness
Sets the brightness of the display image.
Contrast
Sets the variation between light and dark colors.
Auto
When turned on, automatically adjusts the image
position.
Auto Color
When turned on, automatically adjusts the color balance of the image.
Set Image
A sub-menu that controls PC video transmission
parameters:
• Clock—Sets the clock frequency used.
• Phase—Controls the phase offset used.
• H Position—Adjusts the horizontal position of the
image.
• V Position—Adjusts the vertical position of the
image.
TV PARAMETERS
BRIGHTNESS
CONTRAST
SHARPNESS
SATURATION
HUE
COLOR TEMP
FORMAT
6500
7500
9300
USER
255
255
255
: Select MENU : Exit ENTER : Enter
FULL
4:3
PC PARAMETERS
YES NO
YES NO
4 : 3 FULL
100
50
50
BRIGHTNESS
CONTRAST
AUTO
AUTO COLOR
SET IMAGE
COLOR TEMP
FORMAT
SHARPNESS
: Select MENU : Exit ENTER : Enter
ENTER
ENTER
PC PARAMETERS
BRIGHTNESS
CONTRAST
AUTO
AUTO COLOR
SET IMAGE
COLOR TEMP
FORMAT
SHARPNESS
50
12
49
62
CLOCK
PHASE
H POSITION
V POSITION
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 14 Thursday, June 2, 2005 9:07 AM
Page 21
Configuring the Display
15
Color Temp
A sub-menu that sets the color temperature used. The
options are 6500K, 7500K, 9300K, and a user-defined
setting.
To set the user-defined color temperature, select the
USER option and adjust the levels of red, green, and
blue to be used to produce white.
Format
Controls the picture format. The options are 4:3 and Full
(16:9—widescreen).
Sharpness
Sets the image sharpness.
Audio Settings
The Audio Settings menu allows you to change the way
audio is played, including volume, equalization, and other
sound processing. You can change the following settings.
Volume
Controls the audio volume.
Mute
Mutes the audio.
Bass
Adjusts the volume of bass in the audio.
Tre b l e
Adjusts the volume of treble in the audio.
Balance
Sets the relative volumes of the left and right speakers.
PC PARAMETERS
BRIGHTNESS
CONTRAST
AUTO
AUTO COLOR
SET IMAGE
COLOR TEMP
FORMAT
SHARPNESS
6500
7500
9300
USER
255
255
255
: Select MENU : Exit ENTER : Enter
FULL
4:3
AUDIO SETTINGS
VOLUME
MUTE
BASS
TREBLE
BALANCE
MTS
SURROUND
BBE
8
16
16
0
: Select MENU : Exit ENTER : Enter
ENTER
ON OFF
ON OFF
ON OFF
OMPLTV32C.book Page 15 Thursday, June 2, 2005 9:07 AM
Page 22
Configuring the Display
16
MTS
A sub-menu that selects the MTS (Multichannel
Television Sound) channel played back while watching
television. The options are Mono, Stereo, and SAP
(Secondary Audio Programming).
Surround
Turns surround sound on and off.
BBE
Turns BBE, an audio enhancement algorithm, on and off.
Picture-In-Picture
PIP allows you to watch video from two sources simultaneously, though only one source can be the
television signal. The table below gives all possible combinations.
Primary Video Source
Secondary
Video
Source TV VGA DVI S-Video AV 1 AV 2 AV 3
Comp. 1Comp.
2
TV •• •
VGA • ••••••
DVI •• ••••••
S-Video •• •
AV 1 •• •
AV 2 •• •
AV 3 •• •
Comp. 1 ••
Comp. 2 • •••••
AUDIO SETTINGS
VOLUME
MUTE
BASS
TREBLE
BALANCE
MTS
SURROUND
BBE
MONO
STEREO
SAP
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 16 Thursday, June 2, 2005 9:07 AM
Page 23
Configuring the Display
17
The Picture-In-Picture menu allows you to turn on PIP and
change the mode, source, and position of PIP. The following
parameters may be set:
PIP Position
A sub-menu that controls the position of the secondary
video window when PIP is turned on. Use the four
direction options repeatedly to move the window
around the screen.
Freeze
When PIP is on, freezes the main window.
PIP Size
A sub-menu that sets the size and type of the PIP
window. The options are as follows:
• Off—Turns PIP off
• Small—Small PIP window
• Medium—Medium PIP window
• Large—Large PIP window
• PBP—Splits the screen in half, uses one half for the
primary video, and uses the other for the secondary
video
• POP—Reduces the size of the primary video window
and places a small PIP window outside the main window
PICTURE-IN-PICTURE
PIP POSITION
FREEZE
PIP SIZE
ENTER
ENTER
ON OFF
: Select MENU : Exit ENTER : Enter
PICTURE-IN-PICTURE
PIP POSITION
FREEZE
PIP SIZE
PIP Position
H POS: 85 V POS: 20
UP
DOWN
LEFT RIGHT
: Select MENU : Exit ENTER : Enter
PICTURE-IN-PICTURE
PIP POSITION
FREEZE
PIP SIZE
OFF
SMALL
MEDIUM
LARGE
PBP
POP
: Select MENU : Exit ENTER : Enter
1
PBP POPSMALL MEDIUM LARGE
2
11
1
1
2
2
2
2
OMPLTV32C.book Page 17 Thursday, June 2, 2005 9:07 AM
Page 24
Configuring the Display
18
Channel Settings
The Channel Settings menu allows you to select which
television channels are available for viewing, manually or
automatically. It contains the following menu items.
System
A sub-menu that sets the type of television signal source
in use. The options are as follows:
• Antenna—A standard television antenna
• Cable—A cable TV signal
• Cable-IRC—A type of cable signal primarily used on
the east coast of the US
• Cable-HRC—A type of cable signal primarily used on
the west coast of the US
Auto Scan
When selected, automatically scans all television
channels for valid signals and makes unavailable any channels with insufficient signal
strength.
Ch. Edit
A sub-menu that allows you to manually add and delete
available channels. Select ADD to make the current
channel available and DELETE to make it unavailable.
SYSTEM
AUTO SCAN
CH. EDIT
CHANNEL SETTINGS
ENTER
ENTER
ON OFF
: Select MENU : Exit ENTER : Enter
CHANNEL SETTINGS
SYSTEM
AUTO SCAN
CH. EDIT
ANTENNA
CABLE
CABLE-IRC
CABLE-HRC
: Select MENU : Exit ENTER : Enter
CHANNEL SETTINGS
SYSTEM
AUTO SCAN
CH. EDIT
ADD
DELETE
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 18 Thursday, June 2, 2005 9:07 AM
Page 25
Configuring the Display
19
Parental Controls
The Parental Controls menu allows you to control access to
television content based on industry maturity ratings. In
addition, you can activate and configure closed captioning.
The following menu items are available.
Note: The V-Chip will not function when the signal source
is set to Component 2.
V-Chip Loc k
When turned on, blocks access to mature television and
movie content, based on the MPAA and TV PG ratings
selected below, unless the viewer enters a password (set
below).
Set Password
Sets the V-Chip password. To change the password, enter
the current password followed by the new password.
The factory-default password is '1234'.
MPAA Rating
A sub-menu that sets the MPAA (Motion Picture
Association of America) rating level the V-Chip will block
without a password. The V-Chip will block all levels
above that selected. The options are as follows:
• NA—All ratings unblocked
• G—General audiences (all ages)
• PG—Parental guidance suggested (some material
may not be suitable for children)
• PG-13—Parents strongly cautioned (some material
may be inappropriate for children under 13)
• R—Restricted (minors under 17 require an accompanying parent or adult guardian)
• NC-17—No one under 17 admitted
• X—Adults only (no one under 17 admitted)
PARENTAL CONTROLS
V-Chip Lock
Set Password
MPAA Rating
TV PG Rating
CC CONTROL
MODE
DISPLAY
ON OFF
ON OFF
ENTER
ENTER
ENTER
ENTER
ENTER
: Select MENU : Exit ENTER : Enter
PARENTAL CONTROLS
V-Chip Lock
Set Password
MPAA Rating
TV PG Rating
CC CONTROL
MODE
DISPLAY
Enter Old User's Passwords
0~9 : Setting User's Passwords
: Select MENU : Exit ENTER : Enter
PARENTAL CONTROLS
V-Chip Lock
Set Password
MPAA Rating
TV PG Rating
CC CONTROL
MODE
DISPLAY
NA
G
PG
PG-13
R
NC-17
X
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 19 Thursday, June 2, 2005 9:07 AM
Page 26
Configuring the Display
20
TV PG Rating
A sub-menu that sets the TV PG rating level the V-Chip
will block without a password. The V-Chip will block all
levels above that selected. In addition, specific types of
mature content can be blocked for some of the ratings.
For example, programs rated TV-7 with violent content
can be blocked. The options are as follows:
• NONE—All ratings unblocked
• TV-Y—All children
• TV-Y7—Children 7 years and older. Violent content
can be blocked (see below).
• TV-G—General audience
• TV-PG—Parental guidance suggested. Violence,
sexual content, foul language, and suggestive dialog
can be blocked (see below).
• TV-14—Parents strongly cautioned. Violence, sexual
content, foul language, and suggestive dialog can be
blocked (see below).
• TV-MA—Mature audience only. Violence, sexual
content, and foul language can be blocked (see
below).
Upon selection of a rating, a second menu will appear if
specific content types can be blocked (see the example
to the right).
CC Control
Turns closed captioning on and off. Closed captioning displays the dialog of the current
program on the screen so it may be read.
Mode
A sub-menu that sets the mode used for closed
captioning. The options are as follows:
Note: Closed captioning must be turned on for this
menu to be active.
• CC1—The most-used closed caption channel
• CC2—Usually used for foreign language translations
• CC3
• CC4
• TEXT1—Text channels usually used for other channel
information
•TEXT2
•TEXT3
•TEXT4
PARENTAL CONTROLS
V-Chip Lock
Set Password
MPAA Rating
TV PG Rating
CC CONTROL
MODE
DISPLAY
NONE
TV Y
TV - Y7
TV - G
TV - PG
TV - 14
TV - MA
: Select MENU : Exit ENTER : Enter
PARENTAL CONTROLS
V-Chip Lock
Set Password
MPAA Rating
TV PG Rating
CC CONTROL
MODE
DISPLAY
VIOLENCE
Sexual Content
Foul Language
Suggestive Dia
: Select MENU : Exit ENTER : Enter
PARENTAL CONTROLS
V-Chip Lock
Set Password
MPAA Rating
TV PG Rating
CC CONTROL
MODE
DISPLAY
CC1
CC2
CC3
CC4
TEXT1
TEXT2
TEXT3
TEXT4
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 20 Thursday, June 2, 2005 9:07 AM
Page 27
Configuring the Display
21
The CC1–4 modes are generally used for dialog captions and display only a few lines of text
at the bottom of the screen. The TEXT1–4 modes are generally used for information and
scroll text across the entire screen.
Display
Controls how closed caption text is displayed on the
screen. The options are as follows:
Note: Closed captioning must be turned on for this
menu to be active.
• Box—Displays white text in a black box, blocking
out the video
• Shadow—Displays black text directly on the video
General Settings
The General Settings menu contains general display settings,
such as OSD options and timeouts. It contains the following
menu items.
OSD Timeout
A sub-menu that sets the timeout for the OSD. The
options are 10, 20, and 30 seconds.
PARENTAL CONTROLS
V-Chip Lock
Set Password
MPAA Rating
TV PG Rating
CC CONTROL
MODE
DISPLAY
BOX
SHADOW
: Select MENU : Exit ENTER : Enter
MODE: CC1–4
DISPLAY: BOX
MODE: TEXT1–4
DISPLAY: BOX
MODE: CC1–4
DISPLAY: SHADOW
MODE: TEXT1–4
DISPLAY: SHADOW
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ON OFF
: Select MENU : Exit ENTER : Enter
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
10 SEC
20 SEC
30 SEC
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 21 Thursday, June 2, 2005 9:07 AM
Page 28
Configuring the Display
22
OSD Position
A sub-menu that controls the position of the OSD on the
screen. Use the four direction controls to move the OSD
to the desired position.
OSD Language
A sub-menu that selects the language used for the OSD.
The options are English, French, and Spanish.
Sleep Timer
A sub-menu that activates and sets a sleep timer that
automatically puts the display into standby mode when
there is no activity for a specified period. The timer may
be turned off or set to 10, 20, 30, 60, 90, or 120 minutes.
Display Info
Press ENTER to show information about the display:
• Source—The currently selected signal source
• Resolution—The resolution of the image on the
display
• H Sync—The horizontal sync frequency
• V Sync—The vertical sync frequency (frame/field
rate)
• Version—The version of the firmware currently
installed on the display
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
UP
DOWN
LEFT RIGHT
OSD Position
H Pos: 0 V Pos: 0
: Select MENU : Exit ENTER : Enter
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
ENGLISH
FRENCH
SPANISH
: Select MENU : Exit ENTER : Enter
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
OFF
10 Min
20 Min
30 Min
60 Min
90 Min
120 Min
: Select MENU : Exit ENTER : Enter
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
SOURCE
RESOLUTION
H SYNC
V SYNC
VERSION
TV
720x240
49KHz
60Hz
26A1NP1Y-V1.10-NB
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 22 Thursday, June 2, 2005 9:07 AM
Page 29
Configuring the Display
23
All Reset
Resets all options to factory-default settings.
Deinterlace
A sub-menu that controls how the display deinterlaces
interlaced video before displaying it on the screen. The
following options may be set (note that there are two
pages to the sub-menu—select NEXT to advance to the
next page):
• DCDI—Processes the deinterlaced image to produce
smooth images without staircasing
• CCS—Removes “false color” artifacts caused by
improper signal separation in low-cost video devices
• Film Mode—Removes artifacts from 2:2 and 3:2
pulldown material
• Fleshtone—Improves skin tone in program
material
• Motion—Removes motion-related artifacts from
program material by comparing sections of the
image from field to field. The section size can be set
via this sub-menu. There are three options: small,
medium, and large.
DCDI
CCS
FILM MODE
NEXT
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
ON OFF
ON OFF
ON OFF
: Select MENU : Exit ENTER : Enter
GENERAL SETTINGS
OSD Timeout
OSD Position
OSD Language
Sleep Timer
Display Info
All Reset
Deinterlace
PREV
FLESHTONE
MOTION
ENTER
ON OFF
: Select MENU : Exit ENTER : Enter
OMPLTV32C.book Page 23 Thursday, June 2, 2005 9:07 AM
Page 30
24
Troubleshooting
Symptom Possible Cause Resolution
No picture
(power
indicator does
not light up)
Power cord not
securely connected
Make sure the power cord is firmly inserted into the
socket and outlet.
Power switch is off Turn on the power switch.
Power outlet is off
or not working
Try plugging a different device into the outlet and see if
it turns on. If not, turn on the outlet or use a different
outlet.
No picture
(power
indicator is
red)
The display is in
power-saving mode
If in VGA or DVI mode, press a key on the keyboard or
move the mouse. Otherwise, press a button on the
remote.
The display is off Press the POWER button on the remote or on top of the
display.
No picture
(power
indicator is
green)
No signal Make sure the proper source is selected. If there is still
no picture, check the signal cable(s) and signal source.
Contrast or
brightness too low
Adjust the contrast and/or brightness until picture
appears.
Unclear or
noisy picture
Signal cable(s) not
securely connected
Make sure the signal cable(s) are firmly connected.
Poor TV signal Check the TV signal. If using an antenna, adjust the
position for better signal. If using cable or satellite TV,
contact your service provider.
No sound Audio cable(s) not
securely connected
Make sure the audio signal cable(s) are firmly
connected.
Headphones
plugged in
Unplug the headphones.
Audio muted Unmute the audio by pressing the MUTE button on the
remote.
Display is too
dark or too
bright
Contrast or
brightness too low
or too high
Adjust the contrast and/or brightness to desired setting.
Display not
centered
Position incorrectly
adjusted in OSD
Adjust H Position and V Position in the Set Image submenu under the PC Parameters menu in the OSD.
vibrating
Signal cable(s) not
securely connected
Make sure the signal cable(s) are firmly connected.
Power voltage too
high or too low
Check the power source to make sure it matches the
display specification. Try a different power outlet on a
different circuit.
OMPLTV32C.book Page 24 Thursday, June 2, 2005 9:07 AM
Page 31
Troubleshooting
25
Note: Further troubleshooting information can be found on the Protron website at
www.protronusa.com.
Support Information
Do not return this product to your retailer until you have performed the steps laid out in
the Easy Setup Instructions and contacted the customer service center. Merchandise may not
be returned to Protron without a return form authorization.
Before contacting Protron customer service, please record the following information, which may
be found on the back of your display:
• Model Number
• Serial Number
• Date of Manufacture
The Protron customer service center may be contacted 24 hours a day, 7 days a week at the
following number:
1-888-257-8899
After-image
remains on
screen after
display is
turned off
Inherent LCD
characteristics
This is characteristic of an LCD. The after-image will
disappear after a few minutes.
Distorted
Display format set
incorrectly
Check that the correct Format is selected in the TV
Parameters or PC Parameters menu in the OSD.
“Out of
Range”
message on
screen
VGA or DVI input
signal is not in a
supported mode
Adjust the resolution and refresh rate on the PC to
match a supported mode, listed under “Specifications”
on page 26.
Red, green,
blue, or white
dots on screen
Inherent LCD
characteristics
This is characteristic of an LCD and will not cause a
malfunction.
Remote
control not
functioning
Batteries inserted
improperly
Make sure the batteries are inserted and oriented
properly.
Batteries low on
energy
Replace the batteries.
A button is stuck Jog any stuck buttons on the remote to unstick them.
Obstacle between
remote and display
Remove the obstacle.
The remote is too
far from the display
Move closer to the display.
Symptom Possible Cause Resolution
OMPLTV32C.book Page 25 Thursday, June 2, 2005 9:07 AM
Page 32
26
Specifications
General
Dimensions 33.07"W × 25.83"H × 9.09"D
Weight 45.54lbs
Panel Type Active Matrix TFT LCD
Screen Size 32" widescreen (16:9)
Color Range 24 bits (16.7 million colors)
Max. Resolution 1366 × 768
Pixel Pitch 0.51075mm (H) × 0.51075mm (V)
Sync Range Horizontal: 30–80kHz
Vertical: 50–75Hz
Contrast Ratio 800:1
Brightness
500 cd/m
2
Viewing Angle Vertical: +/–85°
Horizontal: +/–85°
Response Time Rise: 12ms
Fall: 12ms
Inputs 1 × progressive scan component video (RCA)
1 × interlaced component video (RCA)
3 × composite video (RCA)
1 × S-Video
6 × stereo audio (RCA)
1 × SVGA (15-pin D-Sub)
1 × DVI-D (single link)
1 × stereo audio line in, 0 dBV nominal (1/8" TRS)
Outputs 1 x composite video (RCA)
1 × stereo audio (RCA)
1 × subwoofer (RCA)
1 × headphone (1/8" TRS)
TV Tuner NTSC-M, CATV, 181 channels
TV Formats Supported SDTV: 480i
EDTV: 480p
HDTV: 720p, 1080i
TV Audio MTS (mono, stereo, SAP), SRS, BBE
Parental Controls V-Chip (TV PG, MPAA)
Picture-In-Picture PIP, PBP, POP
Closed Captioning CC1–4, TEXT1–4
Speakers 2 × 10W
Plug and Play Compliance VESA DDC1, DDC2B
Power Supply 100–240VAC, 50–60Hz
Power Consumption 232W max.
Storage Temperature 0 to 60°C
Operating Temperature 5 to 35°C
OMPLTV32C.book Page 26 Thursday, June 2, 2005 9:07 AM
Page 33
Specifications
27
Supported VGA Timing Modes
Display Resolution Vertical Frequency
(Refresh Rate)
Horizontal
Frequency
640 × 480 60Hz 31.5kHz
72Hz 37.9kHz
75Hz 37.5kHz
85Hz 43.3kHz
720 × 400 85Hz 37.9kHz
800 × 600 56Hz 35.1kHz
60Hz 37.9kHz
48.4kHz
70Hz 56.5kHz
72Hz 48.1kHz
75Hz 46.9kHz
60.0kHz
85Hz 53.7kHz
68.7kHz
1280 × 1024 75Hz 80.0kHz
OMPLTV32C.book Page 27 Thursday, June 2, 2005 9:07 AM
Page 34
28
Limited Warranty
Protron warrants this product to be free from manufacturing defects in material and
workmanship under normal use for the period listed at the bottom of this section.
How to obtain service:
• Call the Protron Customer Support line at 1-888-257-8899. If the issue cannot be resolved
over the phone, a service tag number will be issued, and the nearest authorized Protron
Service Center will be identified for you.
• For televisions with screen sizes of 26" or less, you will be requested to bring your unit
into the authorized service center and pick up when repairs are complete.
• For televisions with screen sizes 27" and above, you may request in-home service from an
authorized Protron Service Center, provided that your television is located within the
geographic territory covered by an authorized Protron Service Center. If in-home service
is not available in your area, you must take your television to the Service Center location
at your own expense, or pay for the additional cost that the Service Center may charge to
transport your television to and from your home.
• Proof of purchase in the form of a bill of sale or receipted invoice with product name,
model and/or serial #, which provides evidence that the product is within the warranty
period, must be presented to obtain warranty service.
This warranty does not cover:
• Physical or cosmetic damages.
• Damage caused by abuse and/ or neglect.
• Ordinary adjustments as outlined in the owners manual that can be performed by the
customer.
• Damage to equipment not properly connected to the product.
• Any cost incurred in shipping the product for repair.
• Signal reception problems caused by external antenna, cable systems or interference.
• Incompatibility due to a change in TV/CATV broadcast systems after the product was sold.
• Batteries.
• Images burnt on to the screen.
• Initial installation and related adjustments.
• Power surge and/or damage by lightning.
• Force majeure or uncontrollable external force damage.
• Product shipped for service with inadequate packaging or packaging materials.
What we will do:
• Protron will reimburse an authorized Protron Service Center the labor charges to repair
your television.
• Protron will reimburse an authorized Protron Service Center for the new, or at our
discretion, refurbished replacement parts required to repair your television.
OMPLTV32C.book Page 28 Thursday, June 2, 2005 9:07 AM
Page 35
Limited Warranty
29
This warranty is void if:
• Product is used in a commercial application or rental.
• Damaged through misuse, negligence or abuse.
• Modified or repaired by anyone other than authorized PROTRON service center.
• Damaged because it is improperly connected to any other equipment.
• If the original proof of purchase cannot be supplied.
• If the identifiable markings on the TV such as Serial # are defaced, unrecognizable, or
missing.
• The product is used outside the country in which it was originally sold.
This warranty is not transferable and only applies to the original purchase. Any implied
warranties, including the warranty of merchantability, are limited in duration to the period of
this expressed warranty and no warranty whether expressed or implied shall apply to the
product thereafter. Under no circumstance shall PROTRON be liable for any loss or consequential
damage arising out of the use of this product. This warranty gives specific legal right. However,
you may have other rights that may vary from state/province to state/province. Some state/
province do not allow limitations on implied warranties or exclusions of consequential damage.
Therefore these restrictions may not apply to you.
26" and below: 1 year parts/labor Depot Warranty
27" and above: 1 year parts/labor In-home Warranty
OMPLTV32C.book Page 29 Thursday, June 2, 2005 9:07 AM
Page 36
Protron Digital Corporation
http://www.protronusa.com/
PLTV-32C
OMPLTV32C
OMPLTV32C.book Page 30 Thursday, June 2, 2005 9:07 AM
Loading...
