Protron LT32C1M1 Schematic

Ya Hsin Industrial Co., Ltd.

Service Manual

Model Name: LT32C1M1

Revision: 1.00
Date: 16-Apr.-2006

32" Color TFT LCD Television (NTSC)

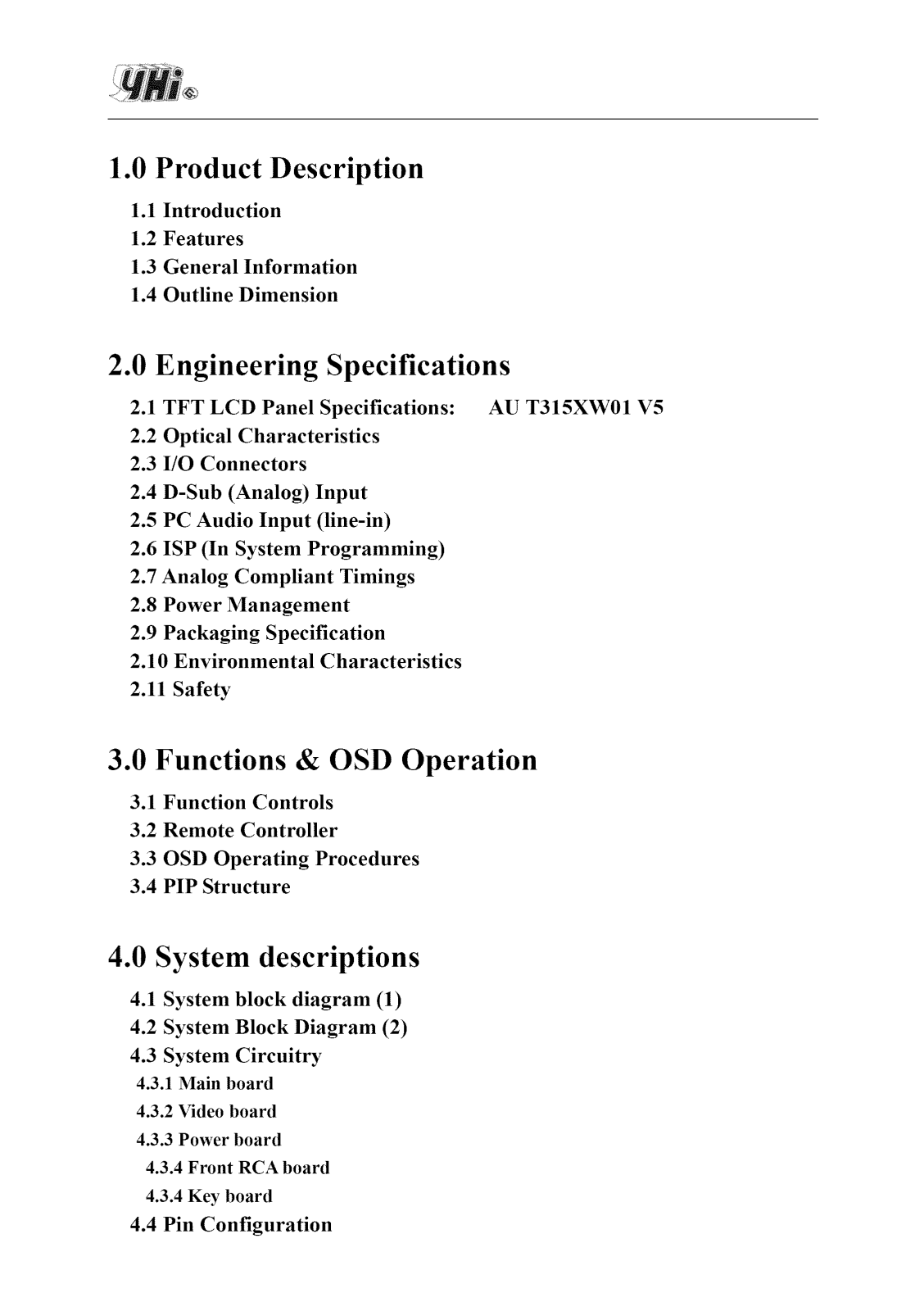

1.0 Product Description

1.1 Introduction

1.2 Features

1.3 General Information

1.4 Outline Dimension

2.0 Engineering Specifications

2.1 TFT LCD Panel Specifications:

2.2 Optical Characteristics

2.3 I/O Connectors

2.4 D-Sub (Analog) Input

2.5 PC Audio Input (line-in)

2.6 ISP (In System Programming)

2.7 Analog Compliant Timings

2.8 Power Management

2.9 Packaging Specification

2.10 Environmental Characteristics

2.11 Safety

AU T315XW01 V5

3.0 Functions & OSD Operation

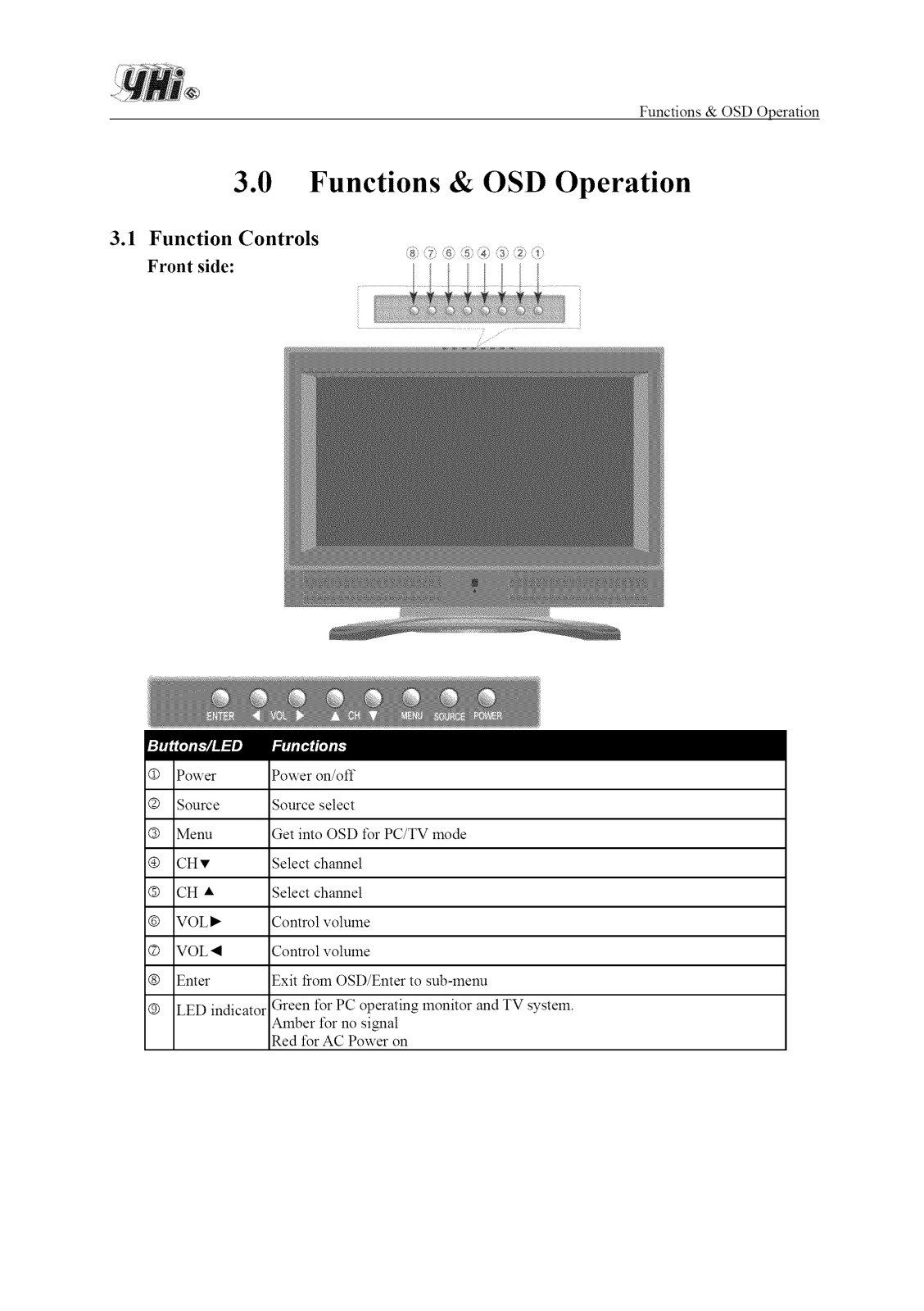

3.1 Function Controls

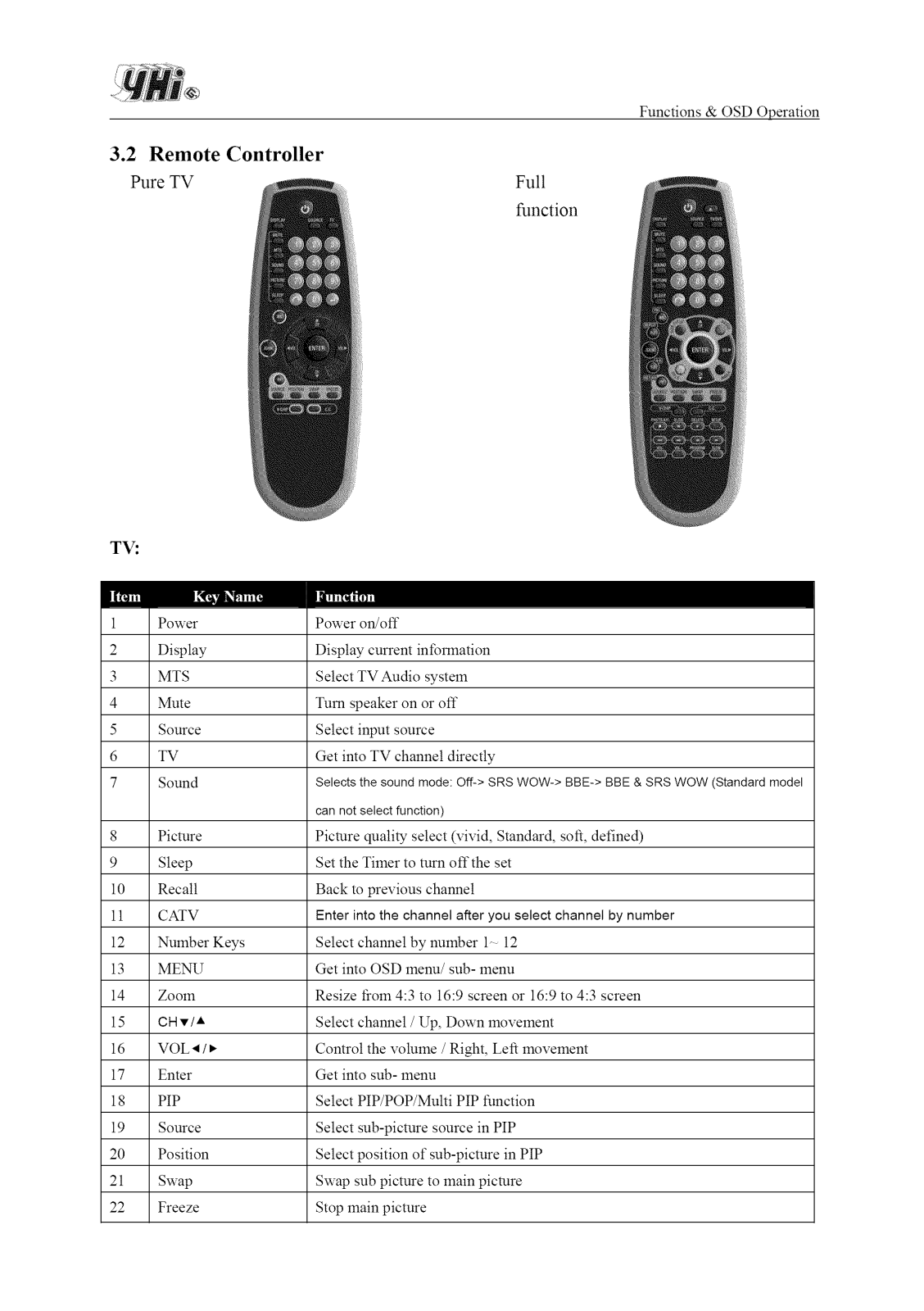

3.2 Remote Controller

3.30SD Operating Procedures

3.4 PIP Structure

4.0 System descriptions

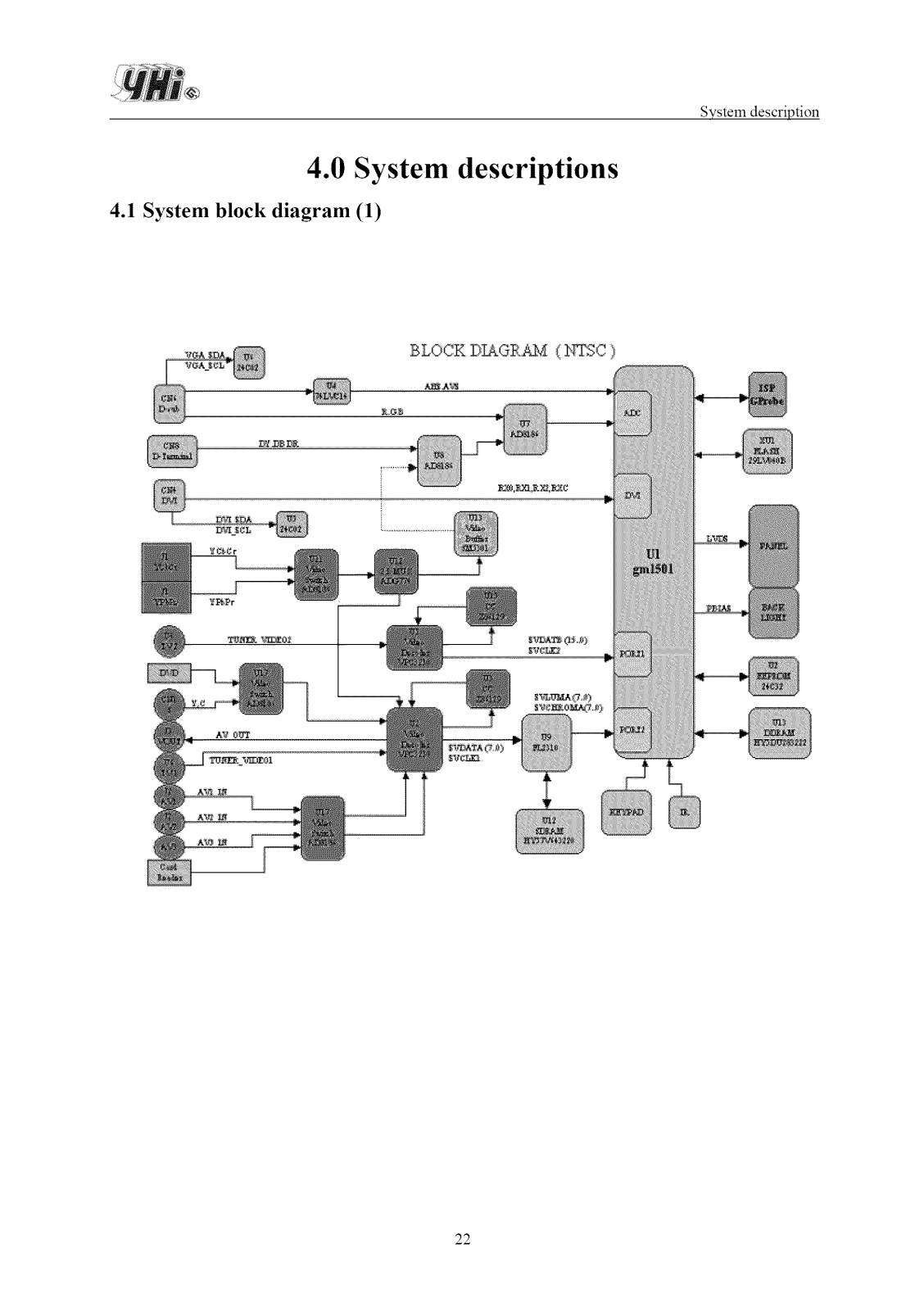

4.1 System block diagram (1)

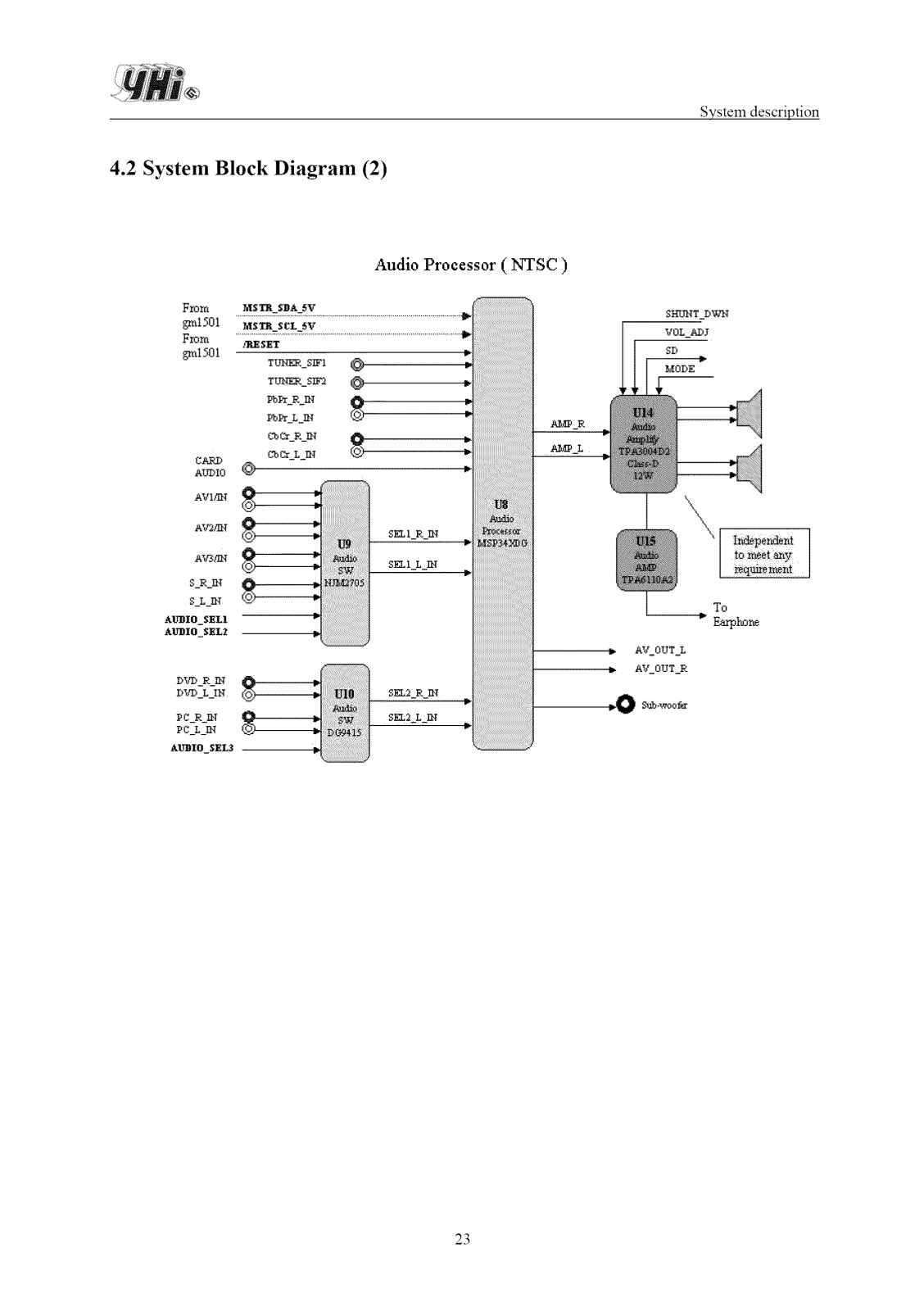

4.2 System Block Diagram (2)

4.3 System Circuitry

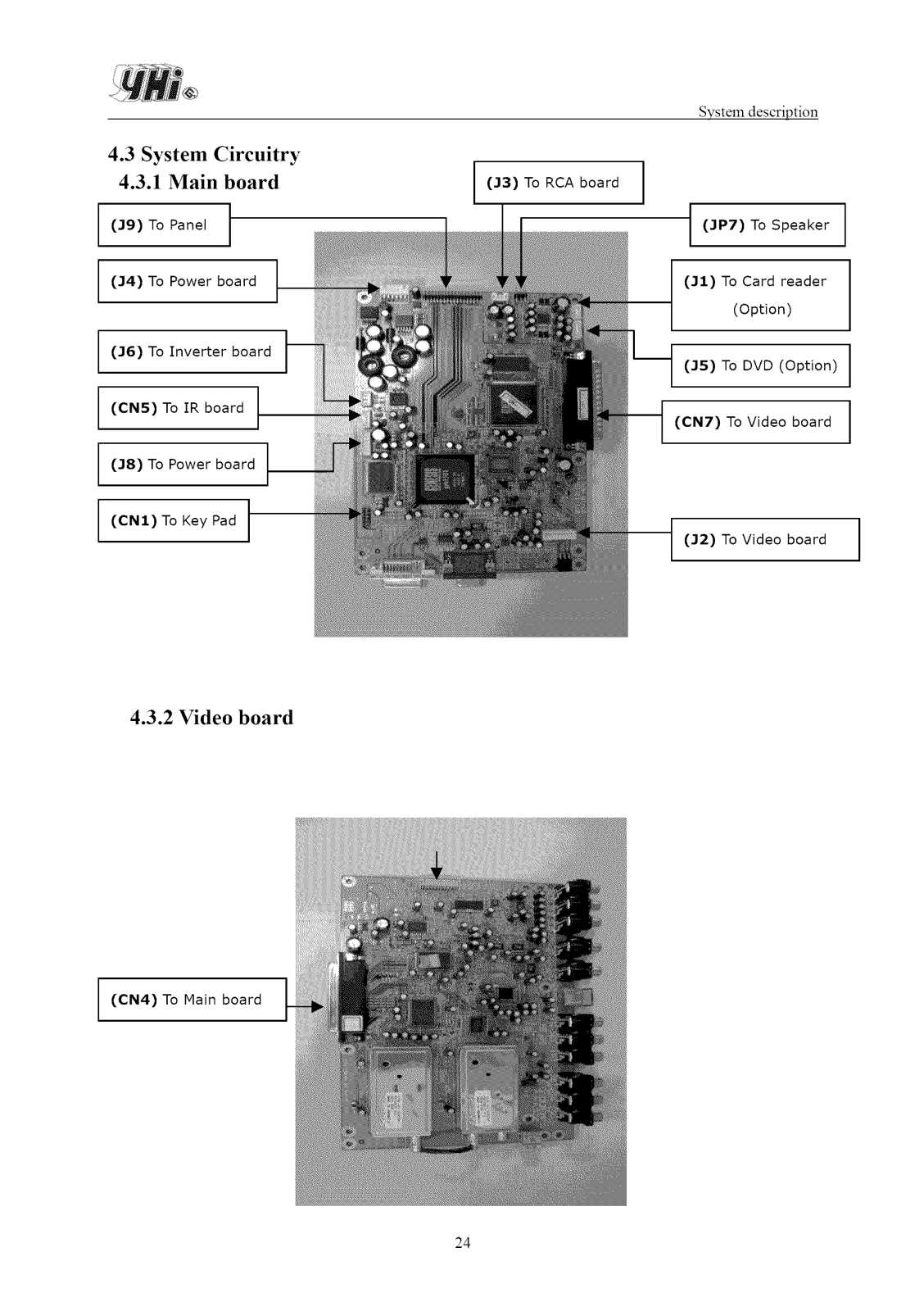

4.3.1 Main board

4.3.2 Video board

4.3.3 Power board

4.3.4 Front RCA board

4.3.4 Key board

4.4 Pin Configuration

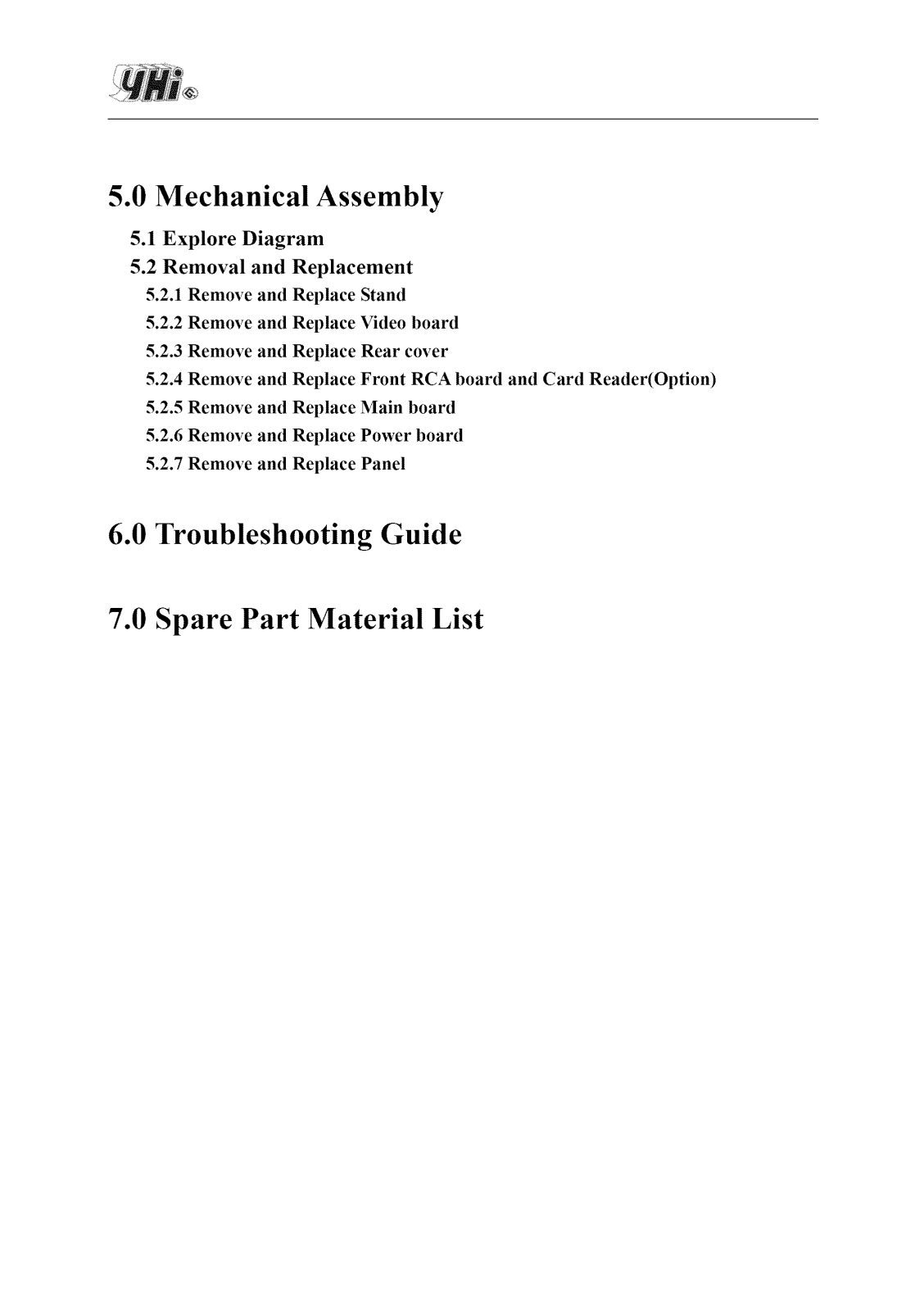

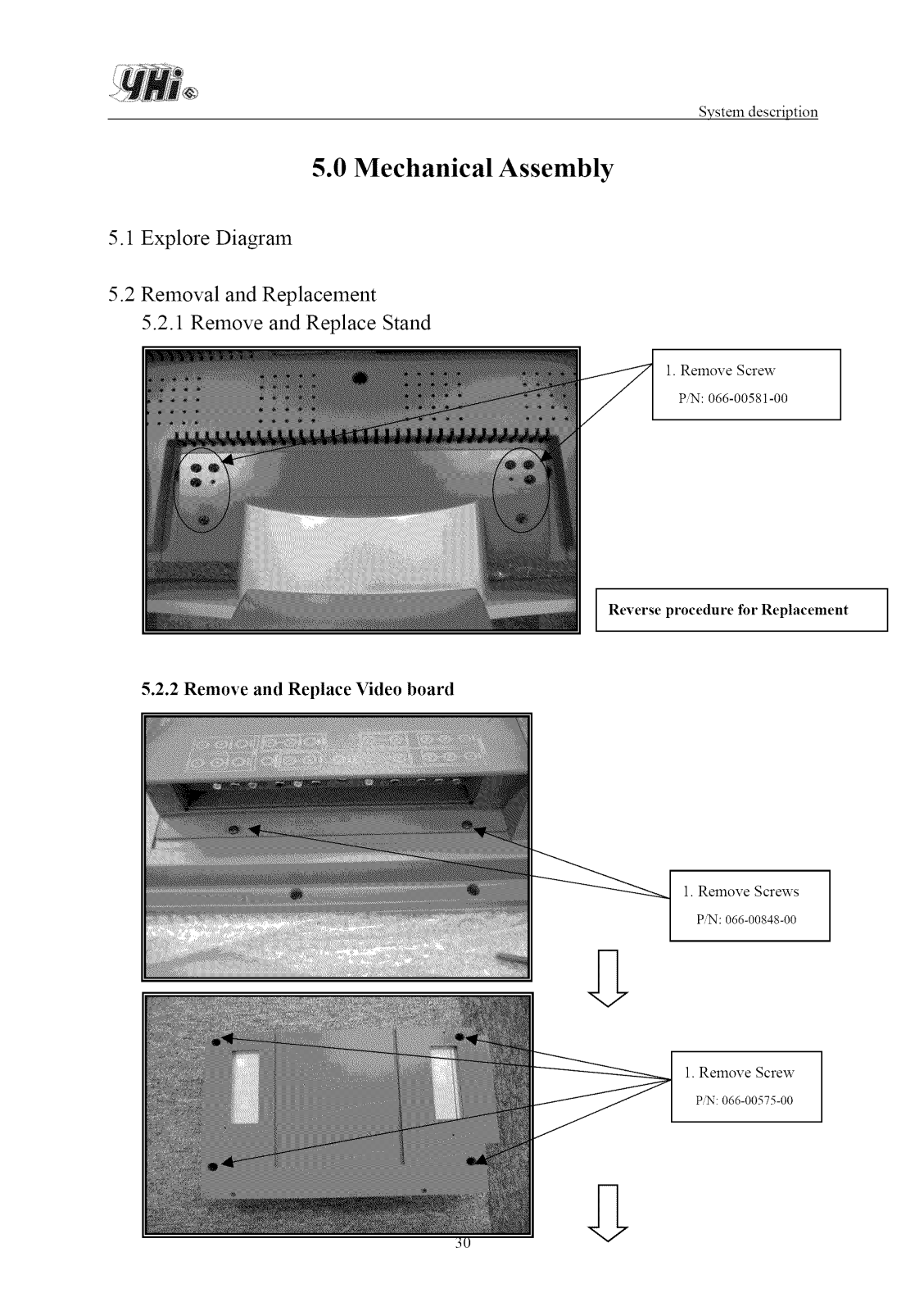

5.0 Mechanical Assembly

5.1 Explore Diagram

5.2 Removal and Replacement

5.2.1 Remove and Replace Stand

5.2.2 Remove and Replace Video board

5.2.3 Remove and Replace Rear cover

5.2.4 Remove and Replace Front RCA board and Card Reader(Option)

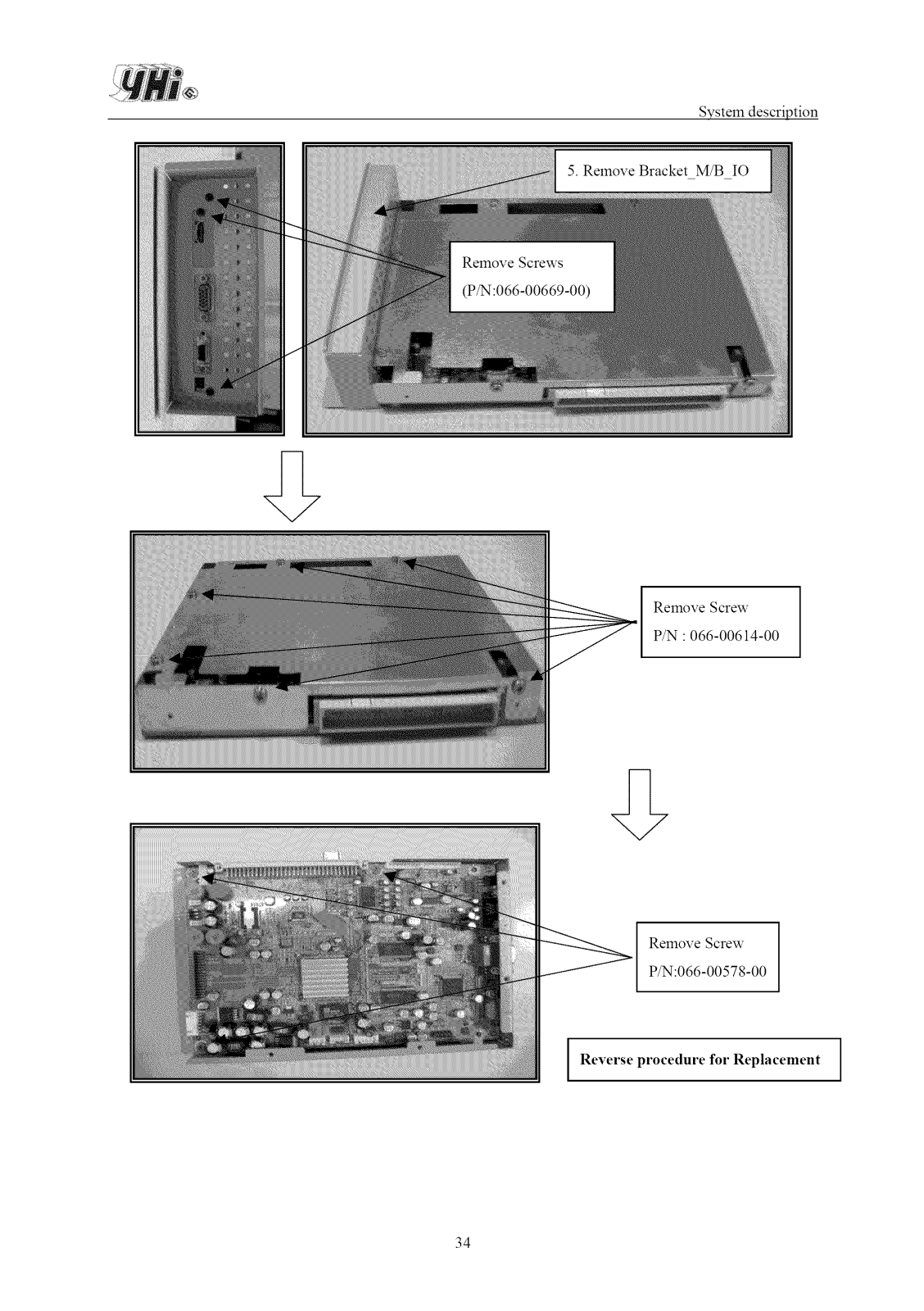

5.2.5 Remove and Replace Main board

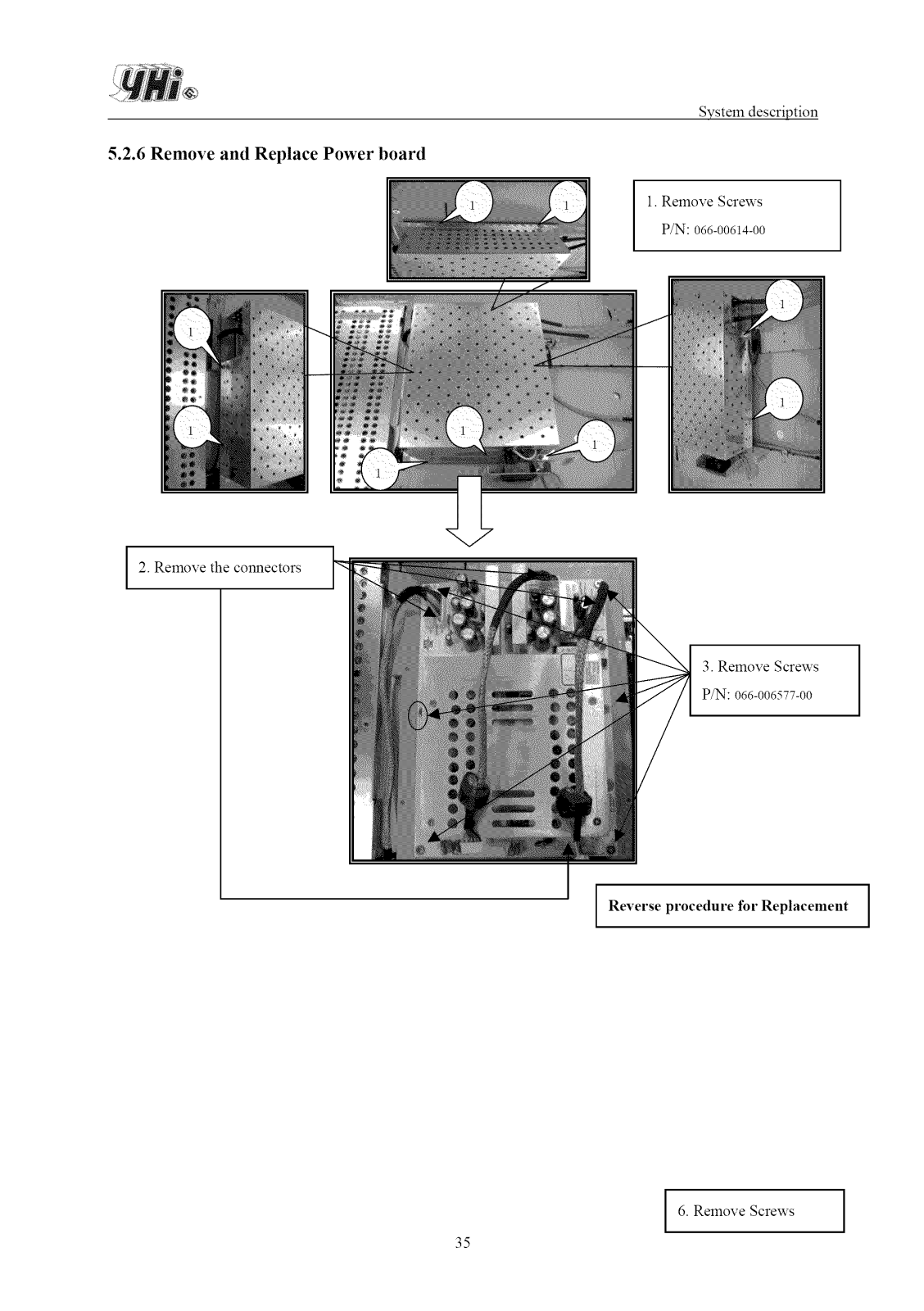

5.2.6 Remove and Replace Power board

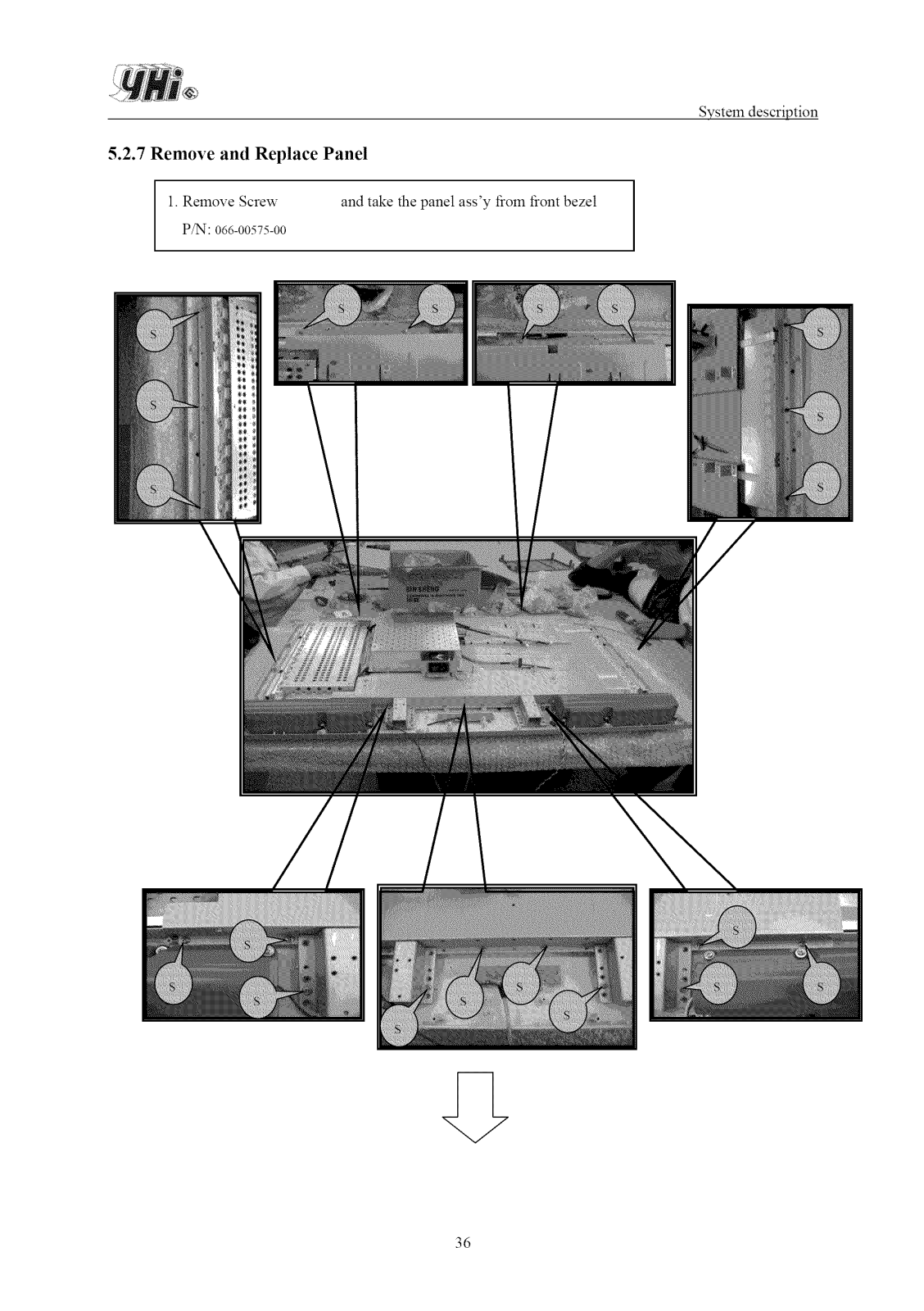

5.2.7 Remove and Replace Panel

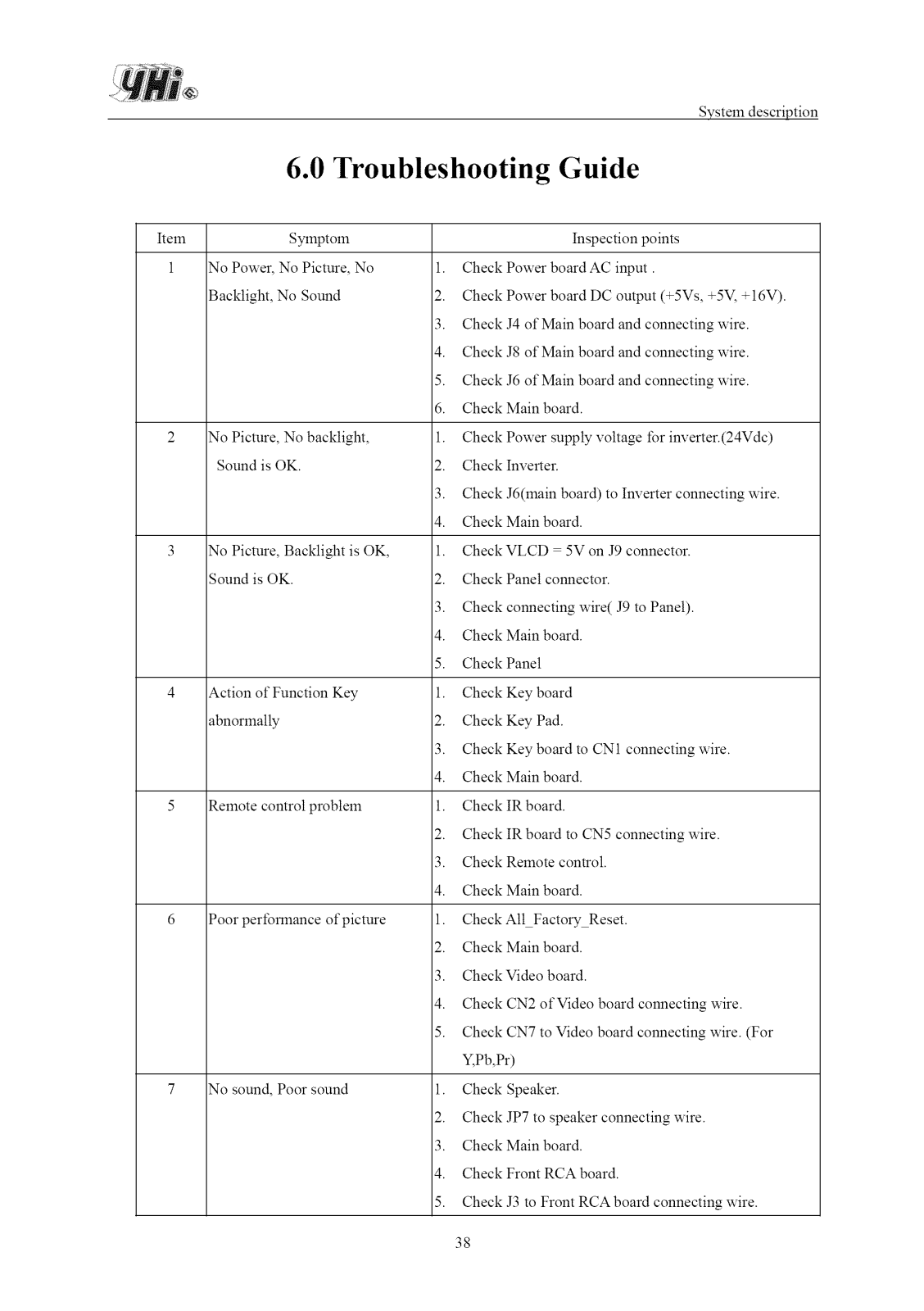

6.0 Troubleshooting Guide

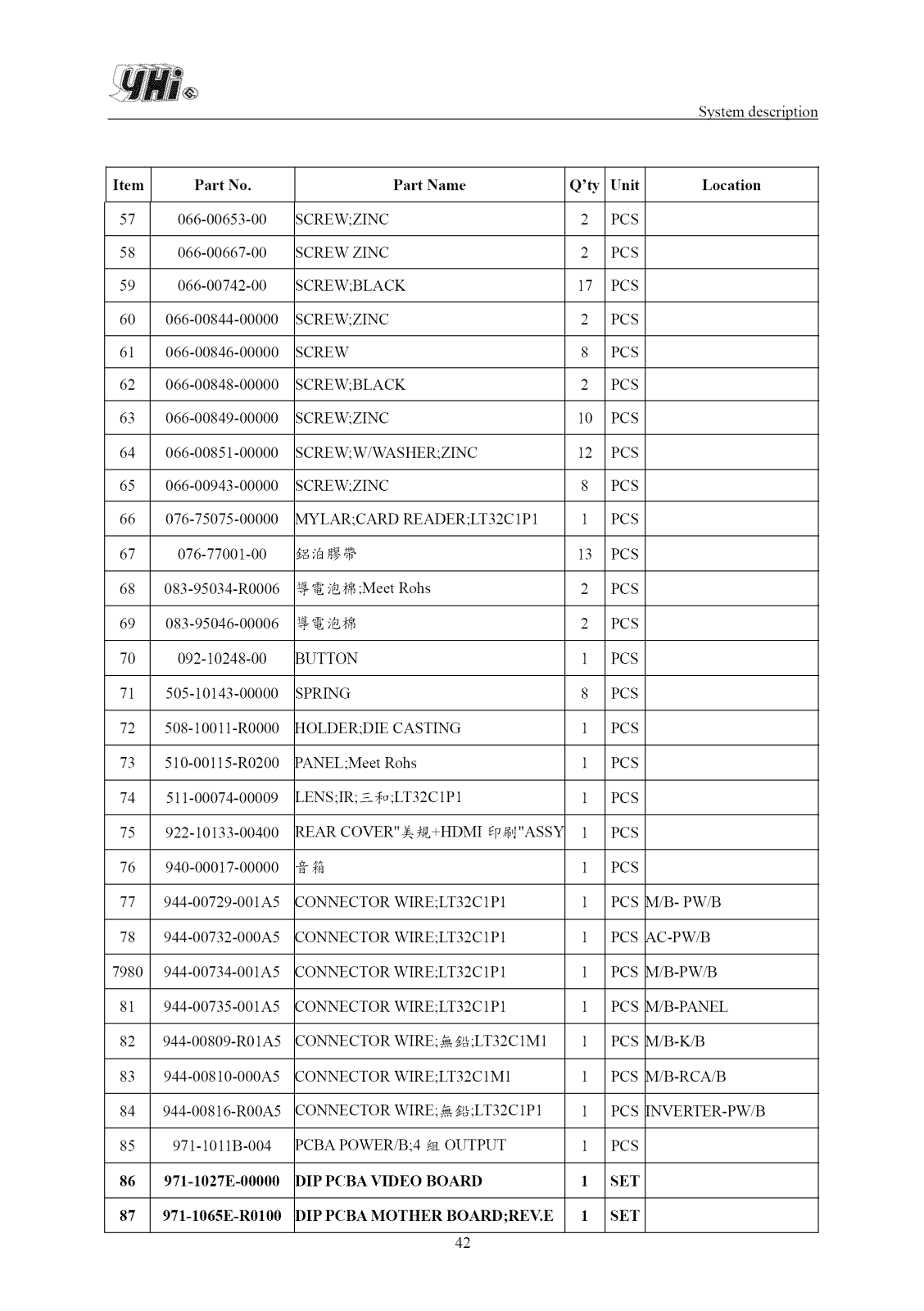

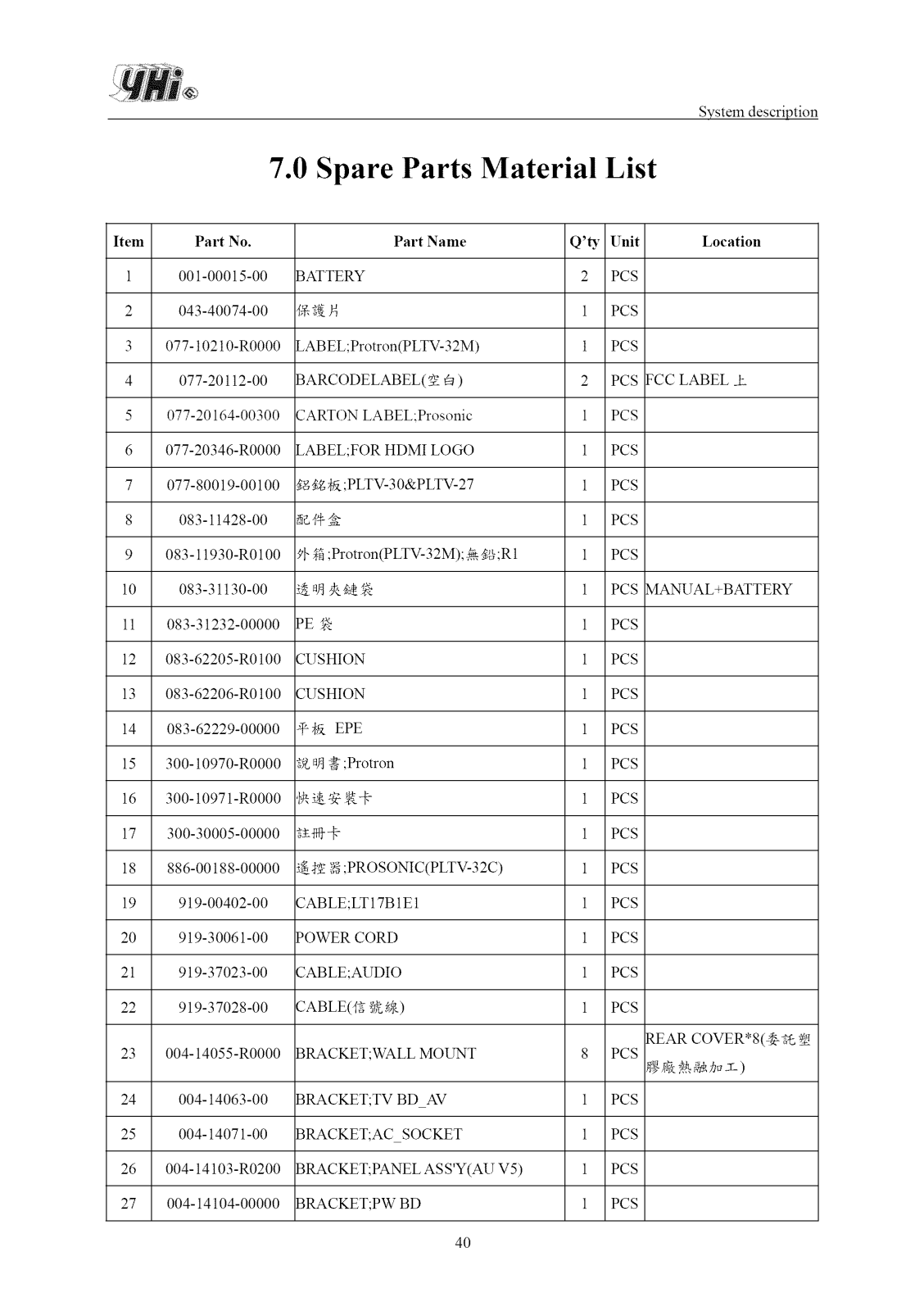

7.0 Spare Part Material List

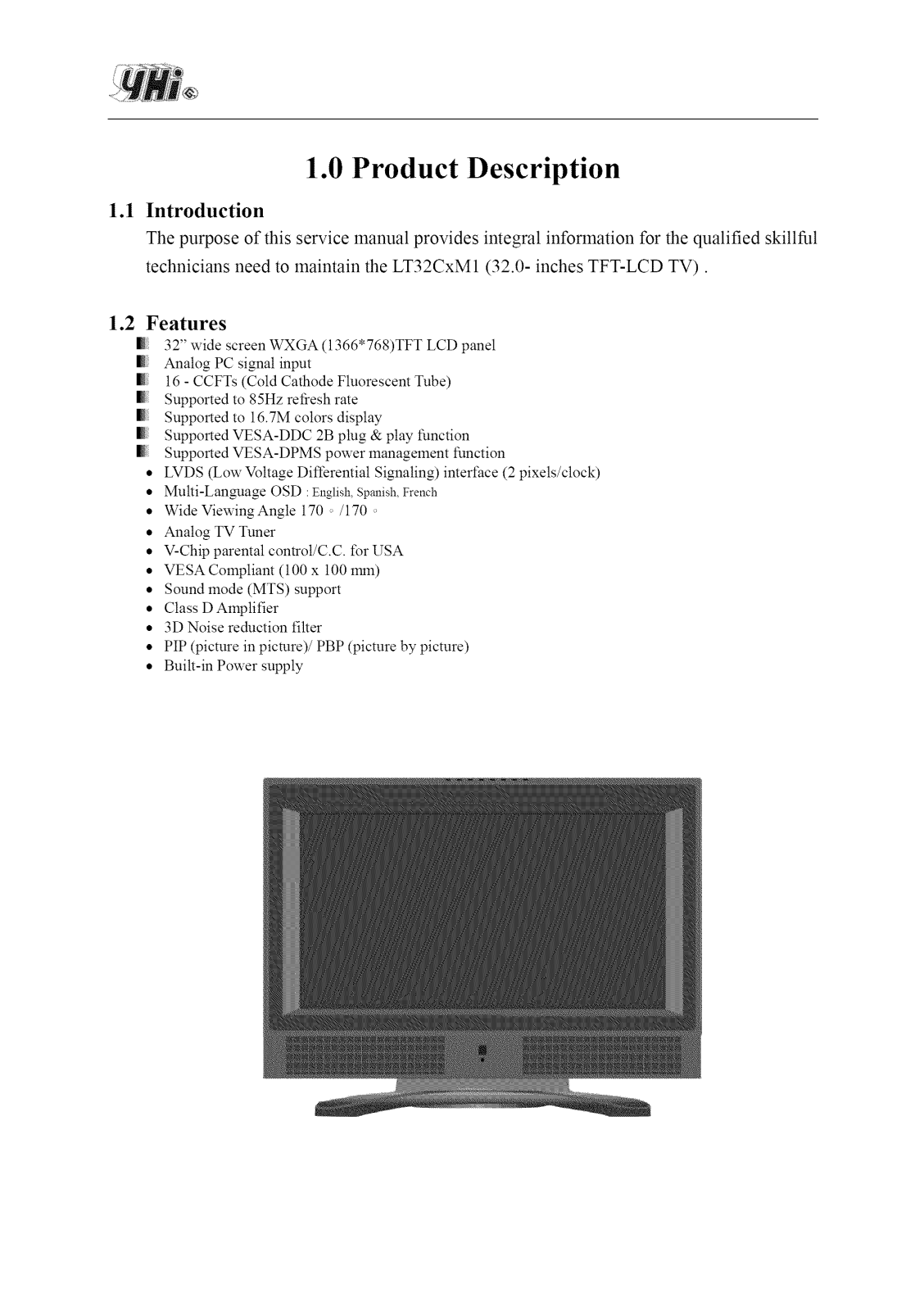

1.0 Product Description

1.1

Introduction

The purpose of this service manual provides integral information for the qualified skillful
technicians need to maintain the LT32CxM1 (32.0- inches TFT-LCD TV).

1.2 Features

[ 32" wide screen WXGA (1366*768)TFT LCD panel

Analog PC signal input

16 - CCFTs (Cold Cathode Fluorescent Tube)

Supported to 85Hz refresh rate
Supported to 16.7M colors display
Supported VESA-DDC 2B plug & play function

Supported VESA-DPMS power managelnent function

• LVDS (Low Voltage Differential Signaling) interfiace (2 pixels/clock)

• Multi-Lan_age OSD : English, Spanish, French

• Wide Viewing Angle 170 /170

• Analog TV Tuner

• V-Chip parental control/C.C, for USA

• VESACompliant (100 x 100 lrnn)

• Soundmode (MTS) support

• Class D Amplifier

• 3D Noise reduction filter

• PIP (picture in picture)/PBP (picture by picture)

• Built-in Power supply

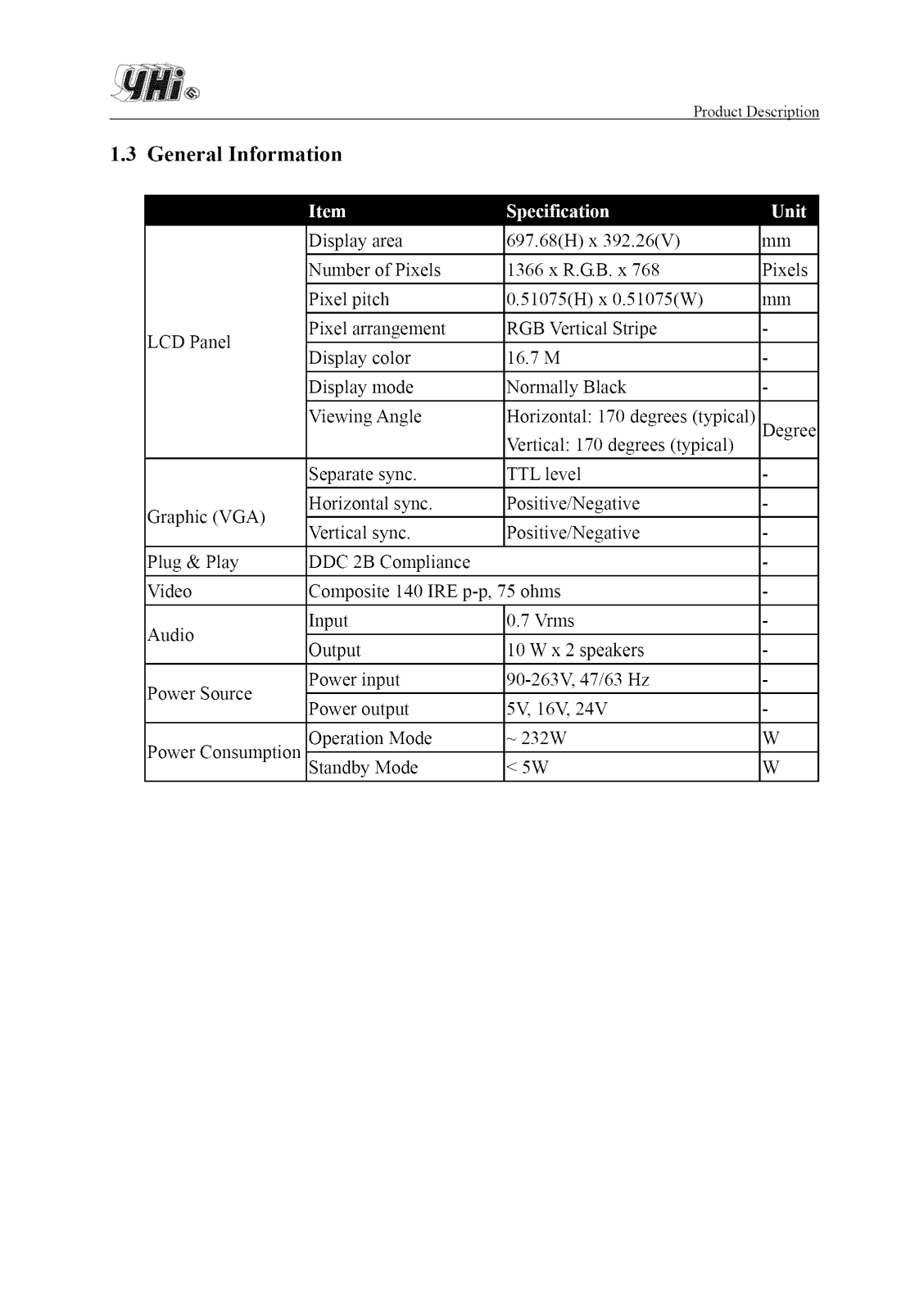

1.3 General Information

Product Description

Display area 697.68(H) x 392.26(V)
Number of Pixels 1366 x R.G.B. x 768 Pixels

Pixel pitch 0.51075(H) x 0.51075(W) mm

LCD Panel

Graphic (VGA)

Plug & Play DDC 2B Compliance
Video Composite 140 IRE p-p, 75 ohms

Audio

Power Source

Power Consumption

Pixel arrangement RGB Vertical Stripe
Display color 16.7 M
Display mode Normally Black
Viewing Angle Horizontal: 170 degrees (typical)

Vertical: 170 degrees (typical)

Separate sync. TTL level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative

Input 0.7 Vrms
Output 10 W x 2 speakers
Power input 90-263V, 47/63 Hz

Power output 5V, 16V, 24V
Operation Mode - 232W W
Standby Mode < 5W W

Degree

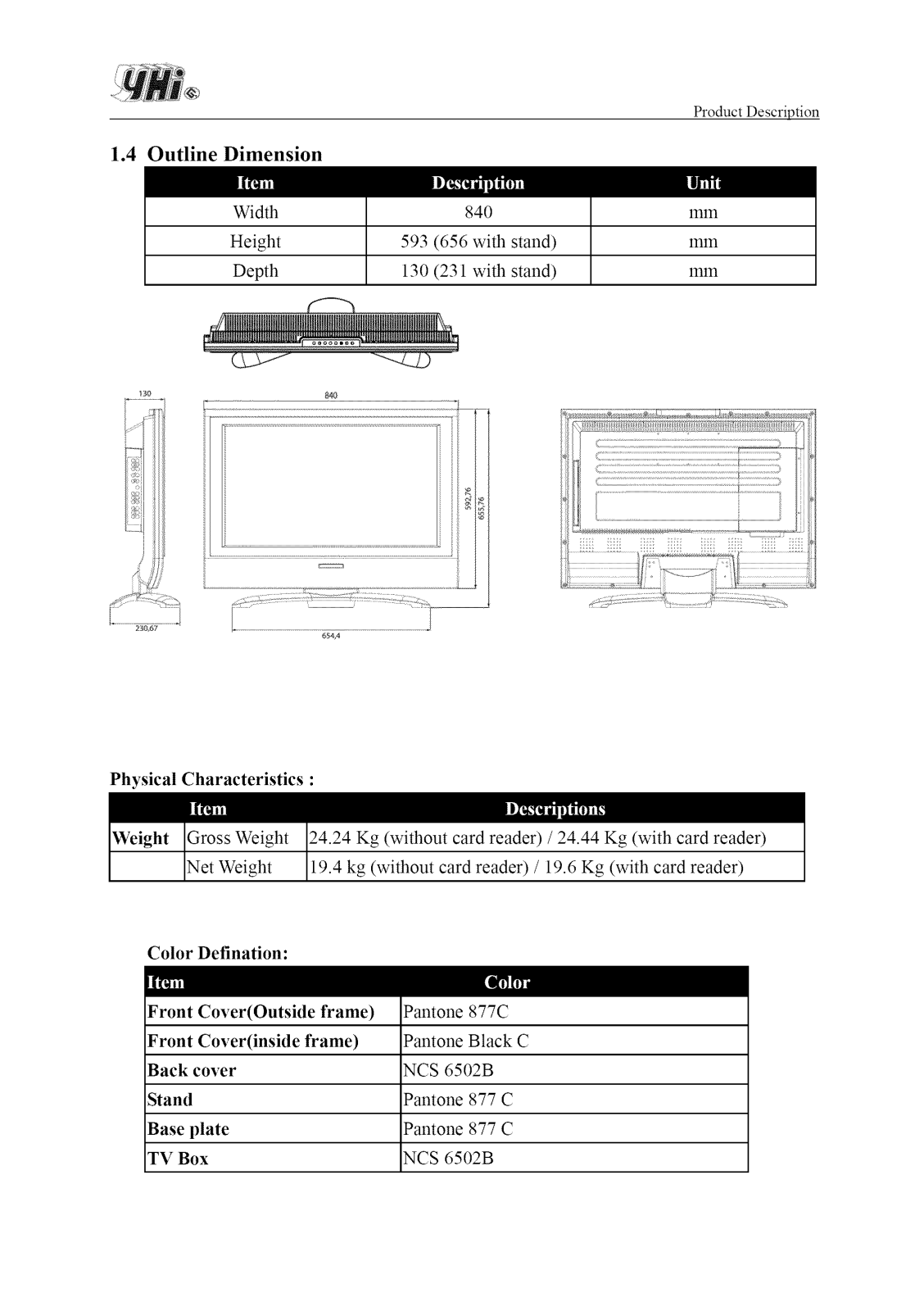

1.4 Outline Dimension

Product Description

130

230,37

Width 840

Height 593 (656 with stand)

Depth 130 (231 with stand)

¢II[IHN$$$N[H[!$$$Nn$1$11$@I$$1N!N$%

................. 84_ ...............................................................................................................

654,4

111111

111111

111111

Physical Characteristics :

Weight Gross Weight 24.24 Kg (without card reader) / 24.44 Kg (with card reader)

Net Weight 19.4 kg (without card reader) / 19.6 Kg (with card reader)

Color Defination:

Front Cover(Outside flame)
Front Cover(inside frame)

Back cover
Stand

Base plate
TV Box

Pantone 877C
Pantone Black C
NCS 6502B

Pantone 877 C
Pantone 877 C
NCS 6502B

Engineering Specifications

2.0 Engineering Specifications

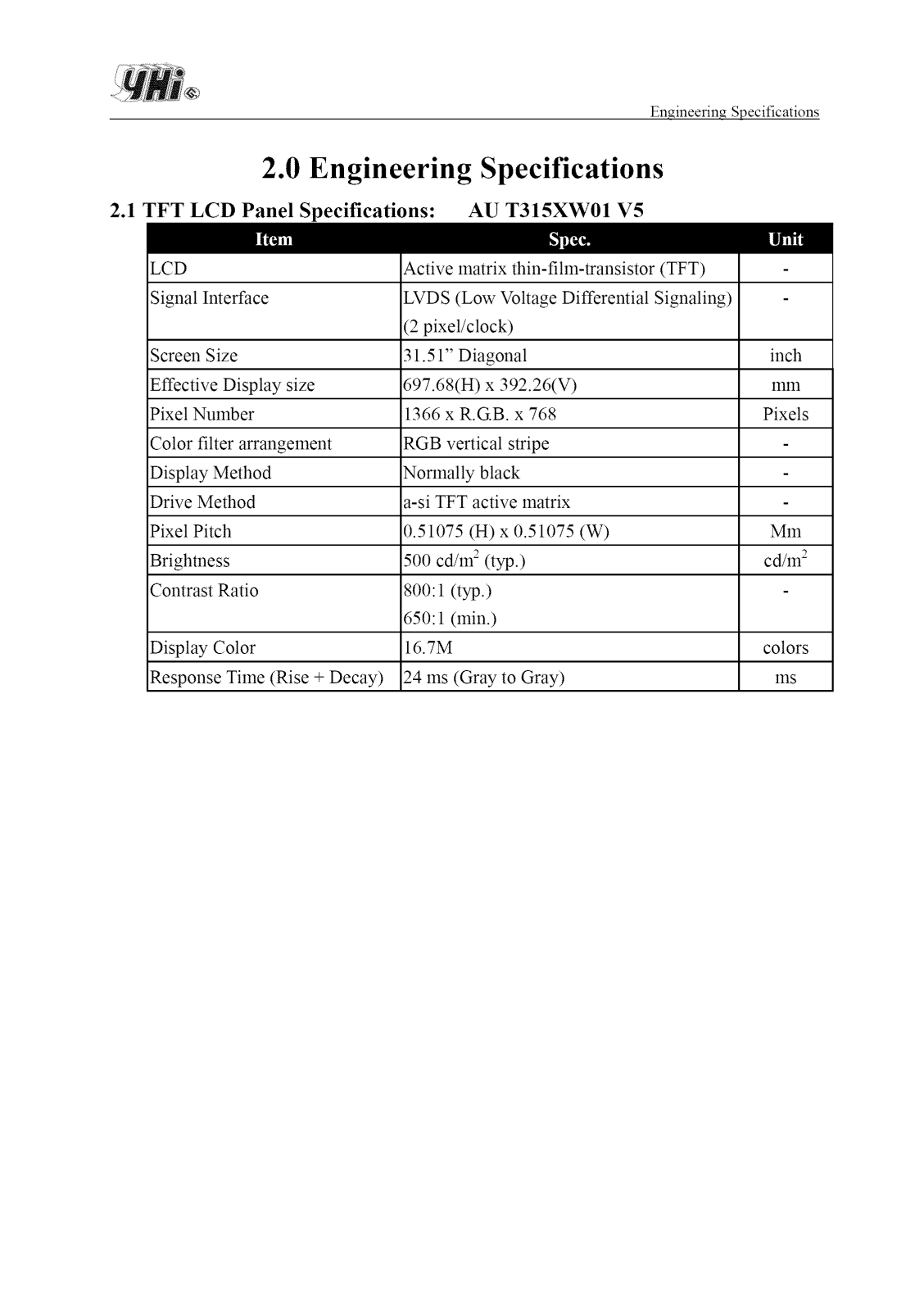

2.1 TFT LCD Panel Specifications: AU T315XW01 V5

LCD Active matrix thin-film-transistor (TFT)

Signal Interface LVDS (Low Voltage Differential Signaling)

(2 pixel/clock)

Screen Size 31.51" Diagonal inch
Effective Display size 697.68(H) x 392.26(V) mm

Pixel Number 1366 x R.G.B. x 768 Pixels
Color filter arrangement RGB vertical stripe

Display Method Normally black
Drive Method a-si TFT active matrix

Pixel Pitch 0.51075 (H) x 0.51075 (W) Mm
Brightness 500 cd/m 2(typ.) cd/m 2

Contrast Ratio 800:1 (typ.)

650:1 (min.)
Display Color 16.7M colors
Response Time (Rise + Decay) 24 ins (Gray to Gray) ins

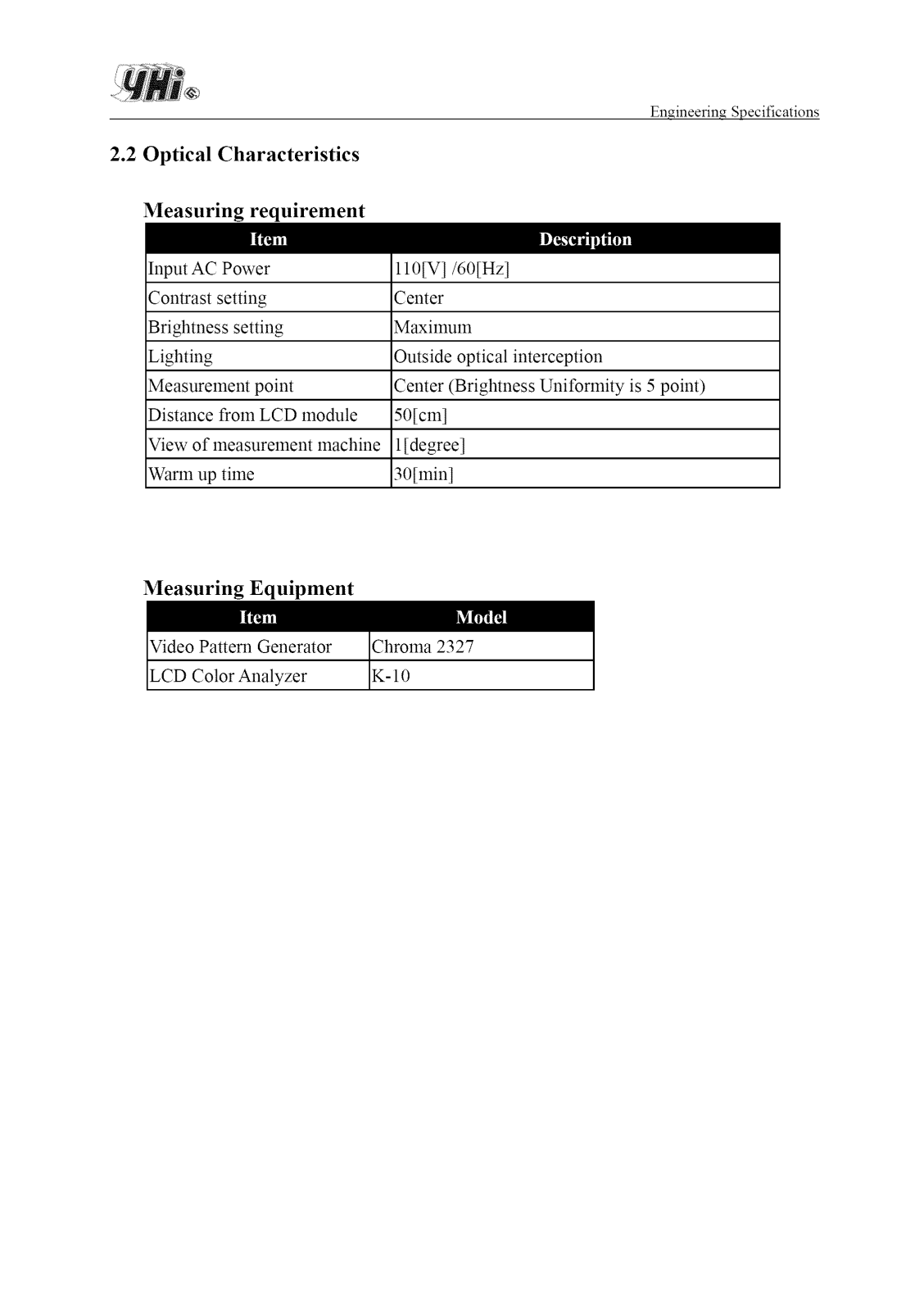

2.2 Optical Characteristics

Measuring requirement

Engineerin_ Specifications

Input AC Power
Contrast setting
Brightness setting

Lighting
Measurement point

Distance from LCD module
View of measurement machine

Warm up time

110[v]/60[Hz]

Center
Maximum

Outside optical interception
Center (Brightness Uniformity is 5 point)

50[cm]

1[degree]

30[mini

Measuring Equipment

Video Pattern Generator Chroma 2327
LCD Color Analyzer K- l0

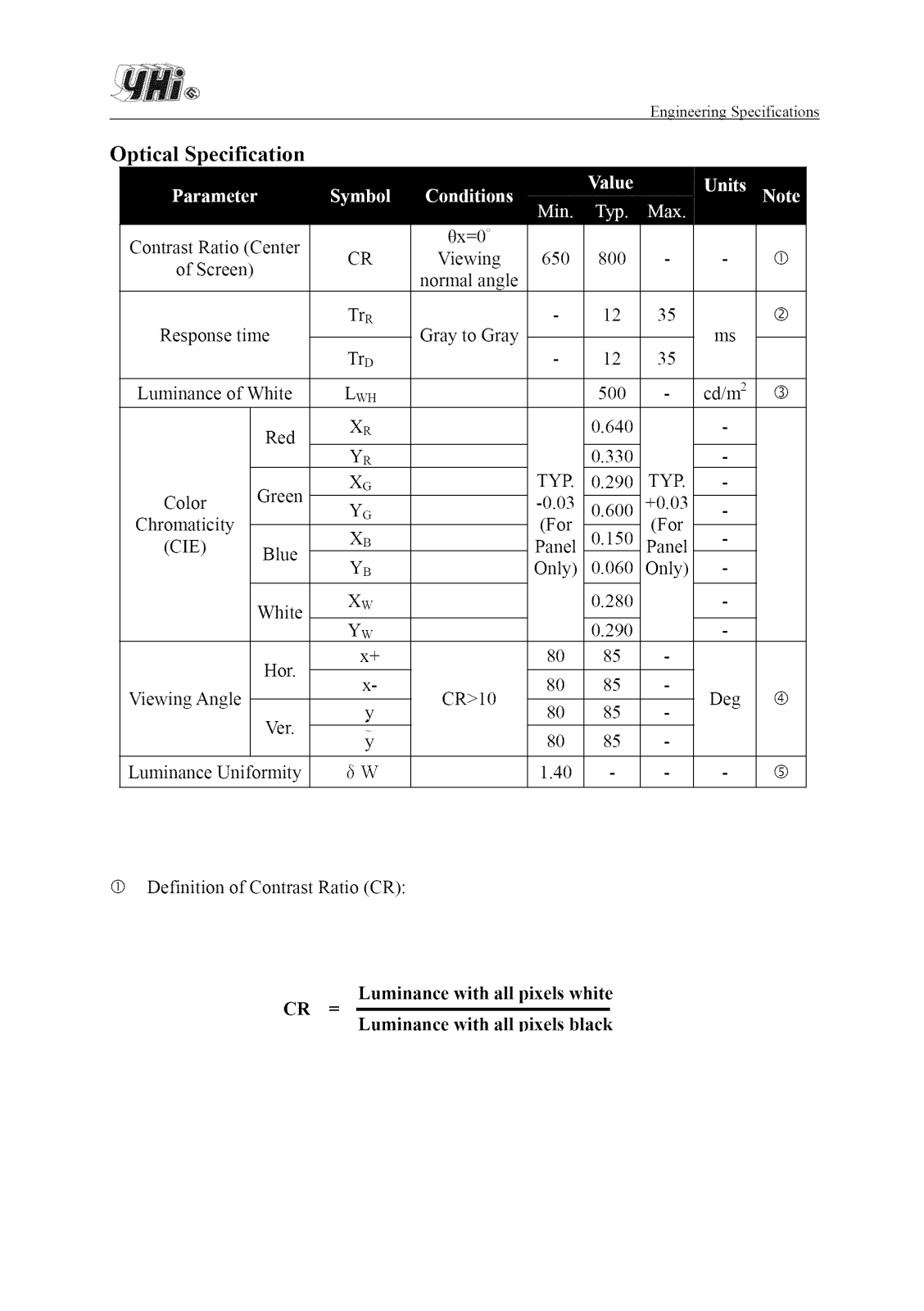

0 _tical Specification

Engineering Specifications

Contrast Ratio (Center

of Screen)

Response time

Luminance of White

Red

Chr°C°nlatricitY(cIE)_rl_e_

White

Viewing Angle

Hor.

CR

TFR

TED

LWH

XR
YR

Xc_
Yc_
XB
YB

Xw
Yw

x+

X-

y

Ox=O

Viewing

normal angle

Gray to Gray

CR>10

Ver.

y

Luminance Uniformity

O Definition of Contrast Ratio (CR):

CR =

Luminance with all pixels white
Luminance with all oixels black

Engineering Specifications

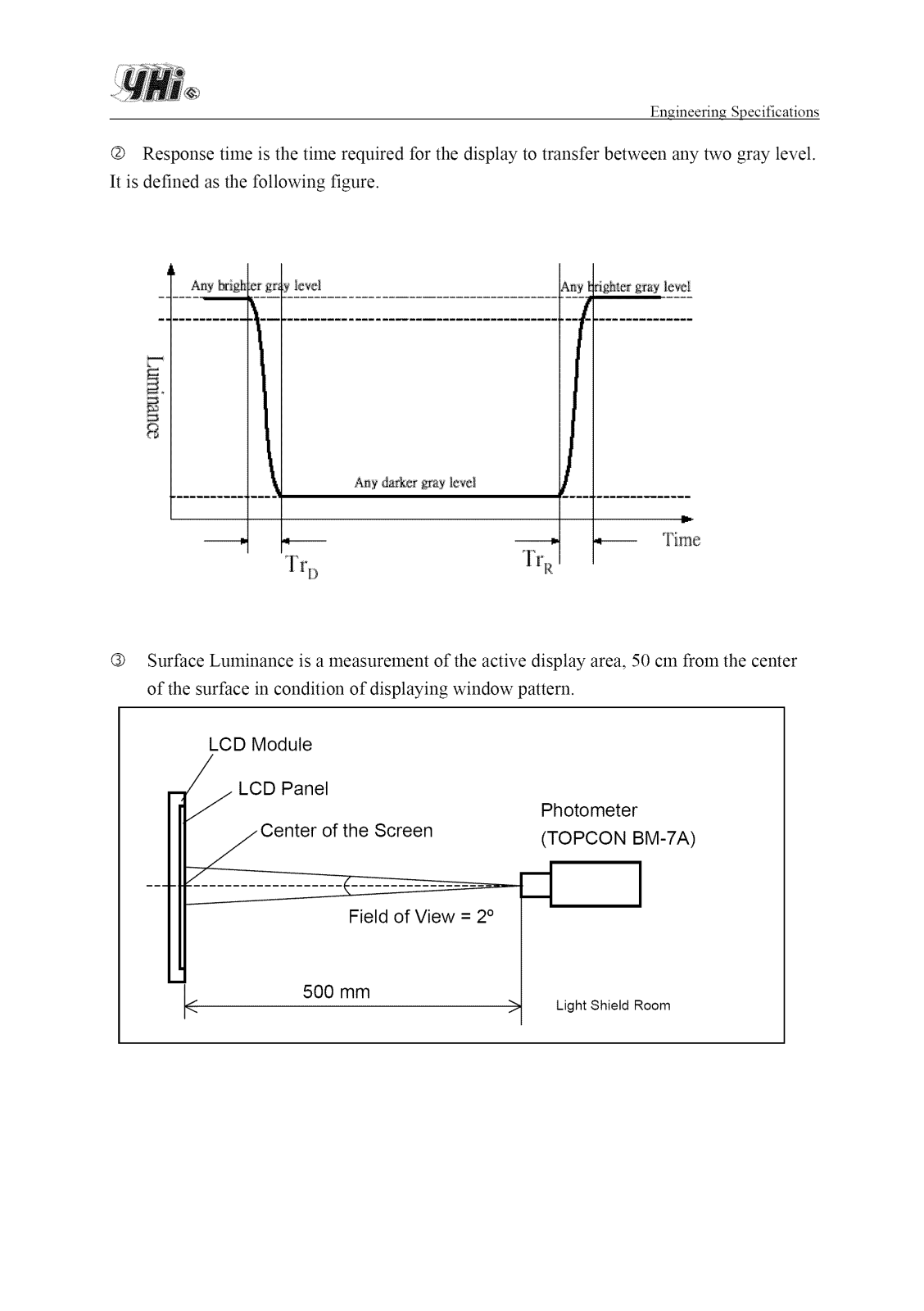

® Response time is the time required for the display to transfer between any two gray level.

It is defined as the following figure.

A.y _i_h

Anydarker graylevel

[ fightergray level

IJ,

T:rl_ TrR

®

Surface Luminance is a measurement of the active display area, 50 cm from the center
of the surface in condition of displaying window pattern.

LCD Module

LCD Panel

of the Screen

Field of View = 2°

< 500 mm

Photometer
(TOPCON BM-7A)

Light Shield Room

En_ineerin_ Specifications

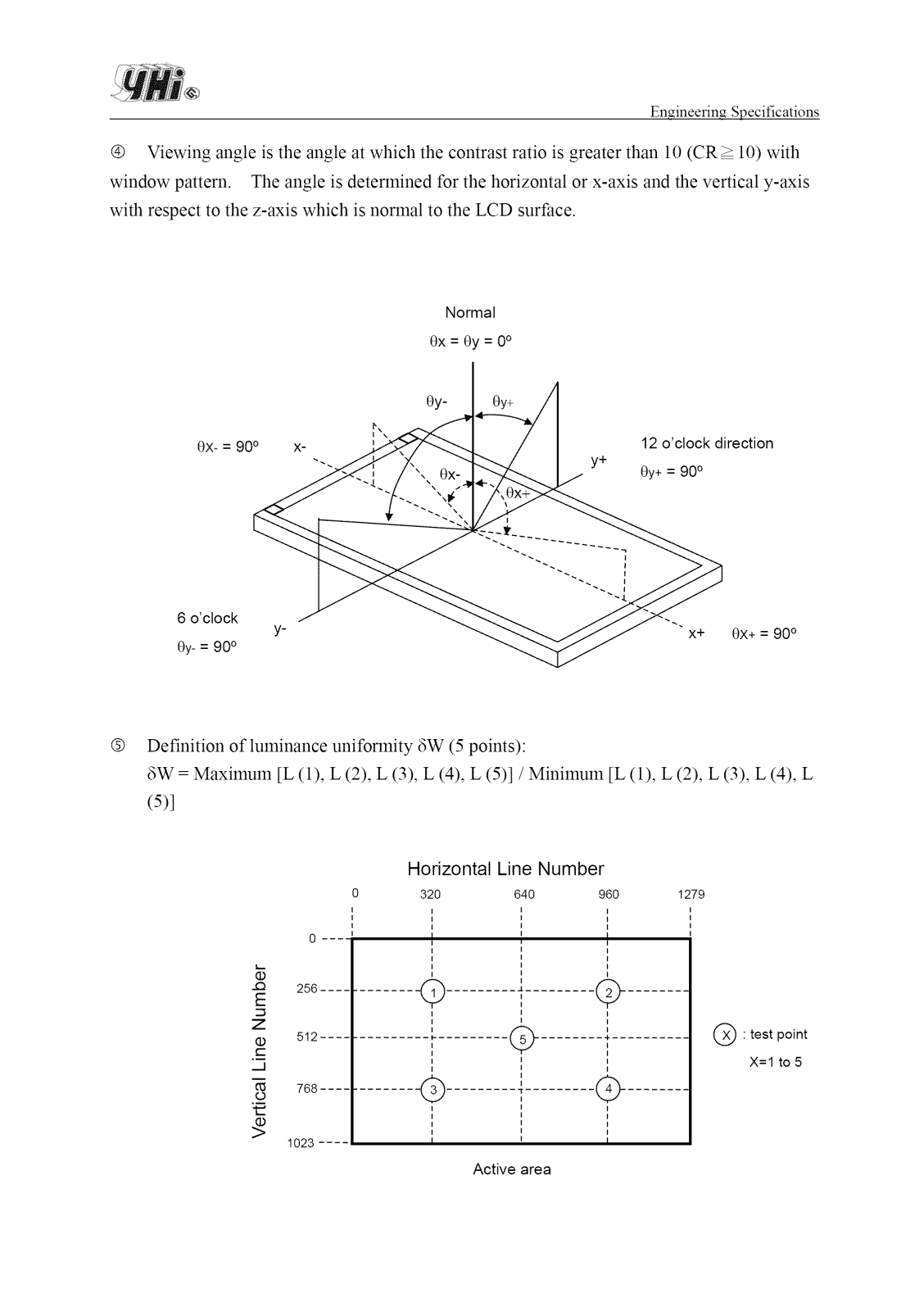

(b Viewing angle is the angle at which the contrast ratio is greater than 10 (CR> 10) with
window pattern. The angle is determined for the horizontal or x-axis and the vertical y-axis

with respect to the z-axis which is normal to the LCD surface.

Normal

0x = 0y = 0°

0y- 0y+

0X- = 90 ° X-

6 o'clock

Y- x+ 0X+= 90°

0y- = 90°

®

Definition of luminance uniformity 8W (5 points):

12 o'clock direction

Oy+ = 90 °

8W = Maximum [C (1), C (2), C (3), C (4), C (5)] / Minimum [L (1), C (2), C (3), C (4), C

(5)]

Horizontal Line Number

0

320 640

960

1279

0 ---

..{3 256 ....

m

Z

(1) 5!2 ....

t-

J

_i 768 ....

0

1023 ....

()

()

I

4>

I

I

Active area

I

I

(>

Q

I

: test point

X=l to 5

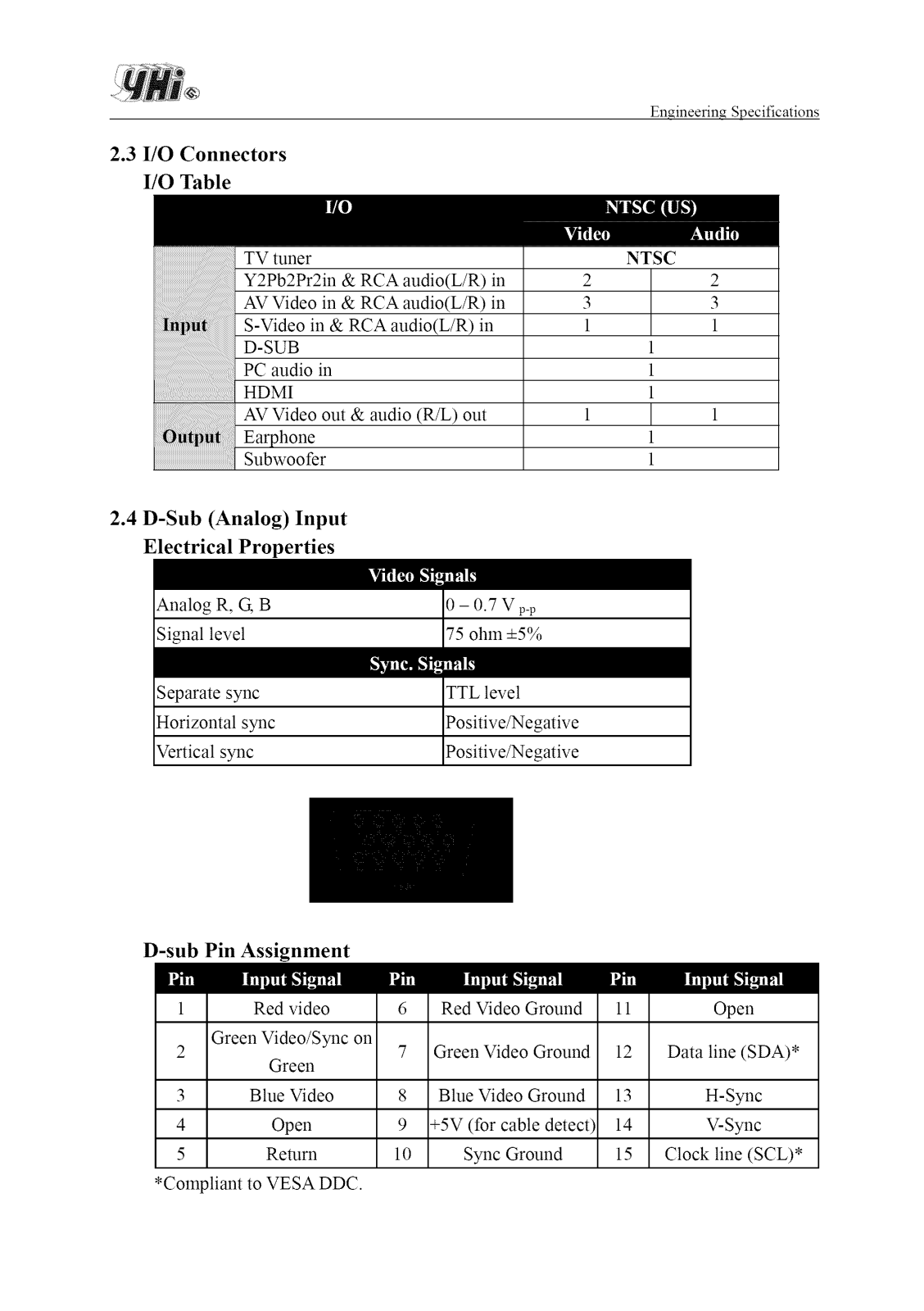

2.3 I/O Connectors

I/O Table

Y2Pb2Pr2in & RCA audio(L/R) in
AV Video in & RCA audio(L/R) in

S-Video in & RCA audio(L/R) in

D-SUB
PC audio in
HDMI

AV Video out & audio (R/L) out
Earphone

Subwoofer

2.4 D-Sub (Analog) Input
Electrical Properties

En_ineerin_ Specifications

NTSCTV tuner

2 2
3 3

1 1

1
1

1

Analog R, G, B

Signal level

Separate sync
Horizontal sync
Vertical sync

D-sub Pin Assignment

Red video

Green Video/Sync on

2

Green

-- 0.7 Vp_p

75 ohm 4-5%

TTL level
Positive/Negative

Positive/Negative

Red Video Ground

7 Green Video Ground

Open

12 Data line (SDA)*

3 Blue Video

4 Open

5 Return

*Compliant to VESA DDC.

8 Blue Video Ground
9 +5V (for cable detect)

10 Sync Ground

13 H-Sync
14 V-Sync

15 Clock line (SCL)*

En_ineerin_ Specifications

2.5 PC Audio Input (line-in)

Input Voltage 0.7 Vp_p (typical)
Output Power l0 W per channel

2.6 ISP (In System Programming)

- Only for Engineering BIOS update through 4-pin connector, operated by authorized
technician.

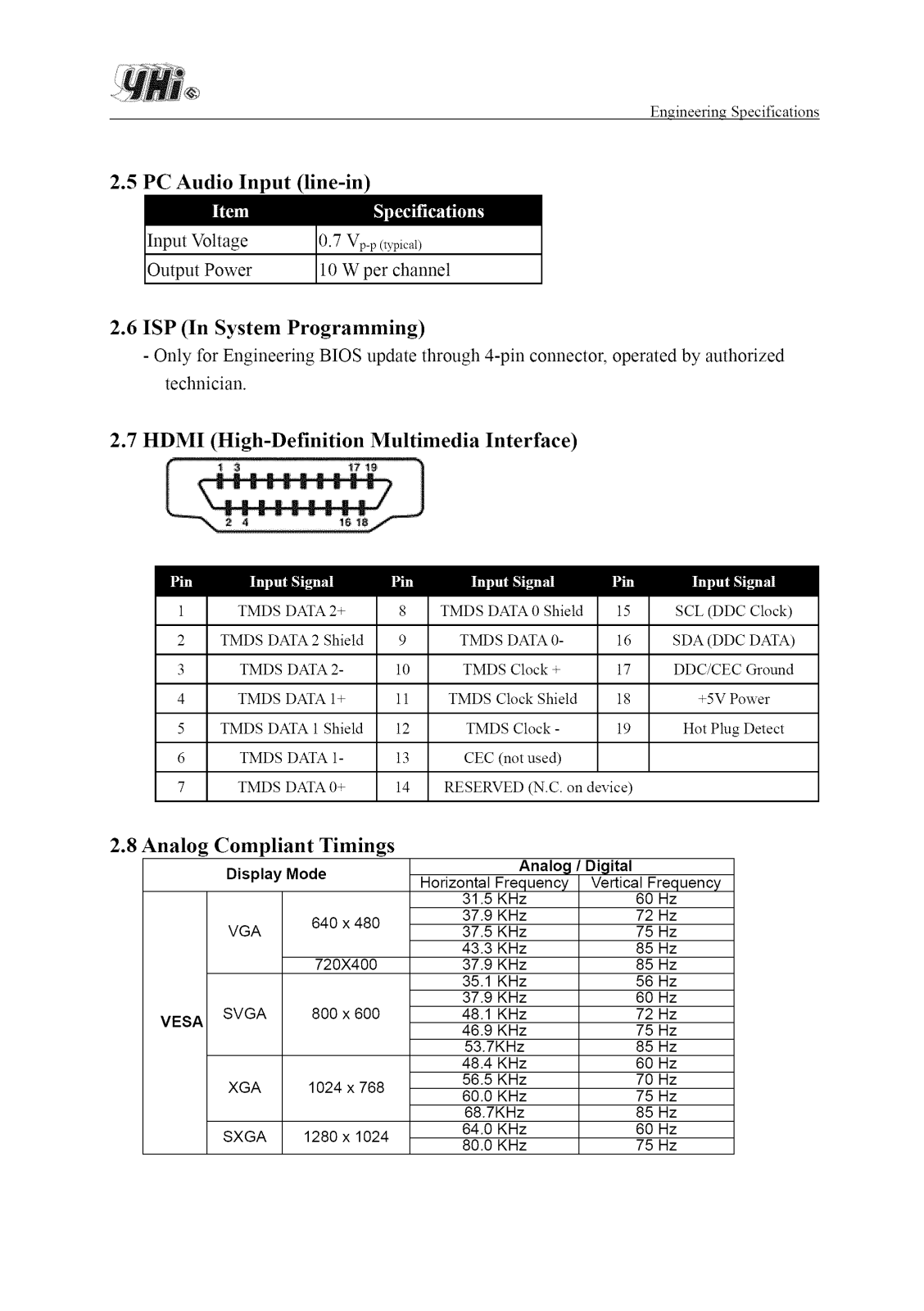

2.7 HDMI (High-Definition Multimedia Interface)

TMDS DATA 2+

2

TMDS DATA 2 Shield
3
4
5
6

7

TMDS DATA 2-

TMDS DATA 1+

TMDS DATA 1 Shield

TMDS DATA 1-

TMDS DATA 0+

2.8 Analog Compliant Timings

Display Mode

640 x 480

720X400

800 x 600

1024 x 768

1280 x 1024

VESA

VGA

SVGA

XGA

SXGA

TMDS DATA 0 Shield

9 TMDS DATA 0- 16
10 TMDS Clock + 17
11 TMDS Clock Shield 18
12 TMDS Clock- 19

13 CEC (not used)
14 RESERVED (N.C. on device)

Analog / Digital

Horizontal Frequency Vertical Frequency

31.5 KHz 60 Hz

37.9 KHz 72 Hz

37.5 KHz

43.3 KHz

37.9 KHz

35.1 KHz

37.9 KHz

48.1 KHz

46.9 KHz

53.7KHz

48.4 KHz

56.5 KHz

60.0 KHz

68.7KHz

64.0 KHz

80.0 KHz

75 Hz
85 Hz

85 Hz
56 Hz

60 Hz
72 Hz

75 Hz
85 Hz

60 Hz
70 Hz

75 Hz
85 Hz

60 Hz
75 Hz

SCL (DDC Clock)

SDA (DDC SAra)

DDC/CEC Ground

+5V Power

Hot Plug Detect

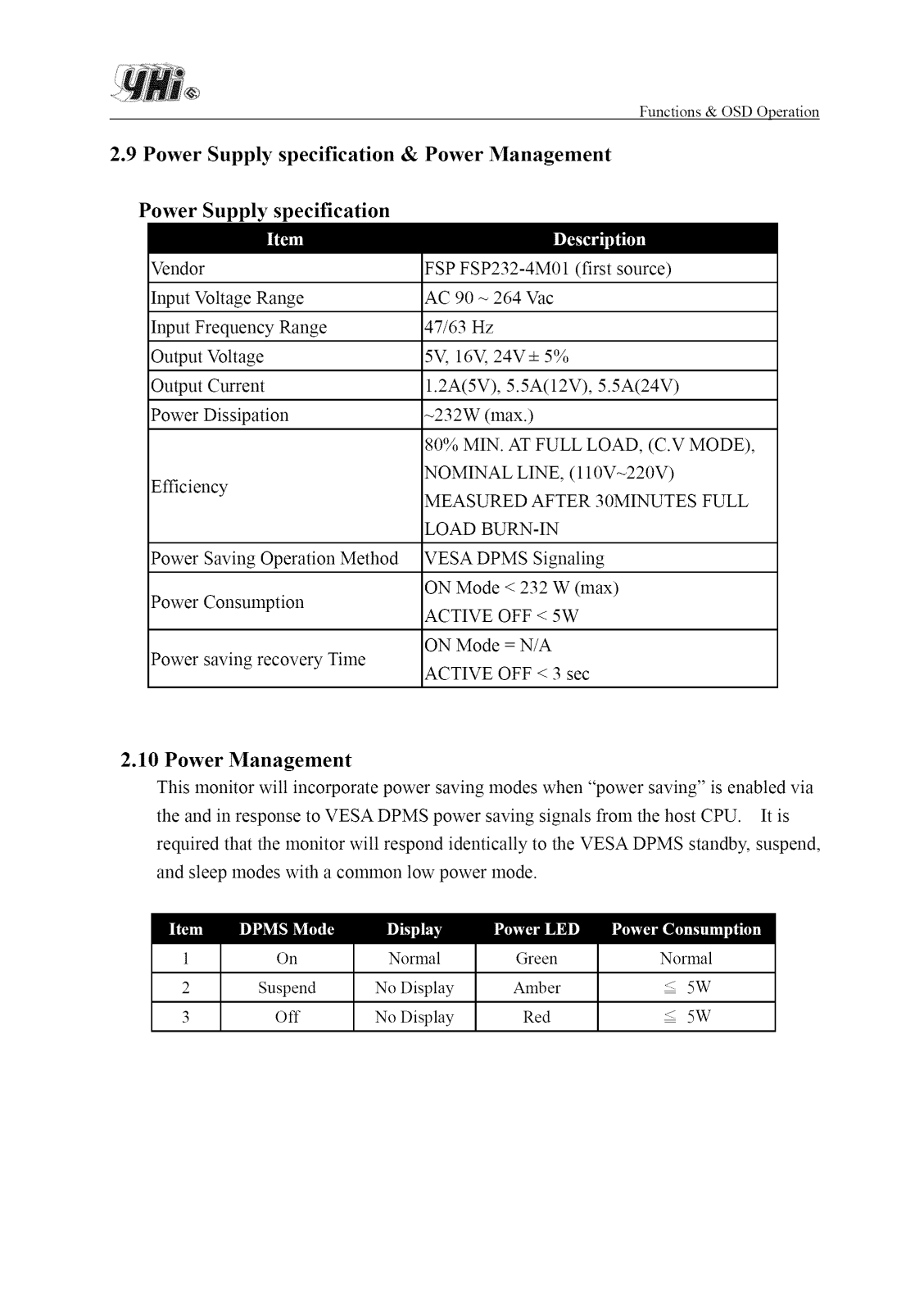

2.9 Power Supply specification & Power Management

Power Supply specification

Functions & OSD Operation

Vendor

Input Voltage Range
Input Frequency Range

Output Voltage
Output Current
Power Dissipation

Efficiency

Power Saving Operation Method

Power Consumption

Power saving recovery Time

FSP FSP232-4M01 (first source)
AC 90 - 264 Vac

47/63 Hz
5V, 16V, 24V+ 5%

1.2A(5V), 5.5A(12V), 5.5A(24V)

-232W (max.)
80% MIN. AT FULL LOAD, (C.V MODE),

NOMINAL LINE, (110V-220V)
MEASURED AFTER 30MINUTES FULL

LOAD BURN-IN
VESA DPMS Signaling

ON Mode < 232 W (max)
ACTIVE OFF < 5W

ON Mode = N/A
ACTIVE OFF < 3 sec

2.10 Power Management

This monitor will incorporate power saving modes when "power saving" is enabled via
the and in response to VESA DPMS power saving signals from the host CPU. It is
required that the monitor will respond identically to the VESA DPMS standby, suspend,
and sleep modes with a common low power mode.

1

2
3

On Normal Green Normal

Suspend No Display Amber < 5W

Off No Display Red < 5W

Functions & OSD Operation

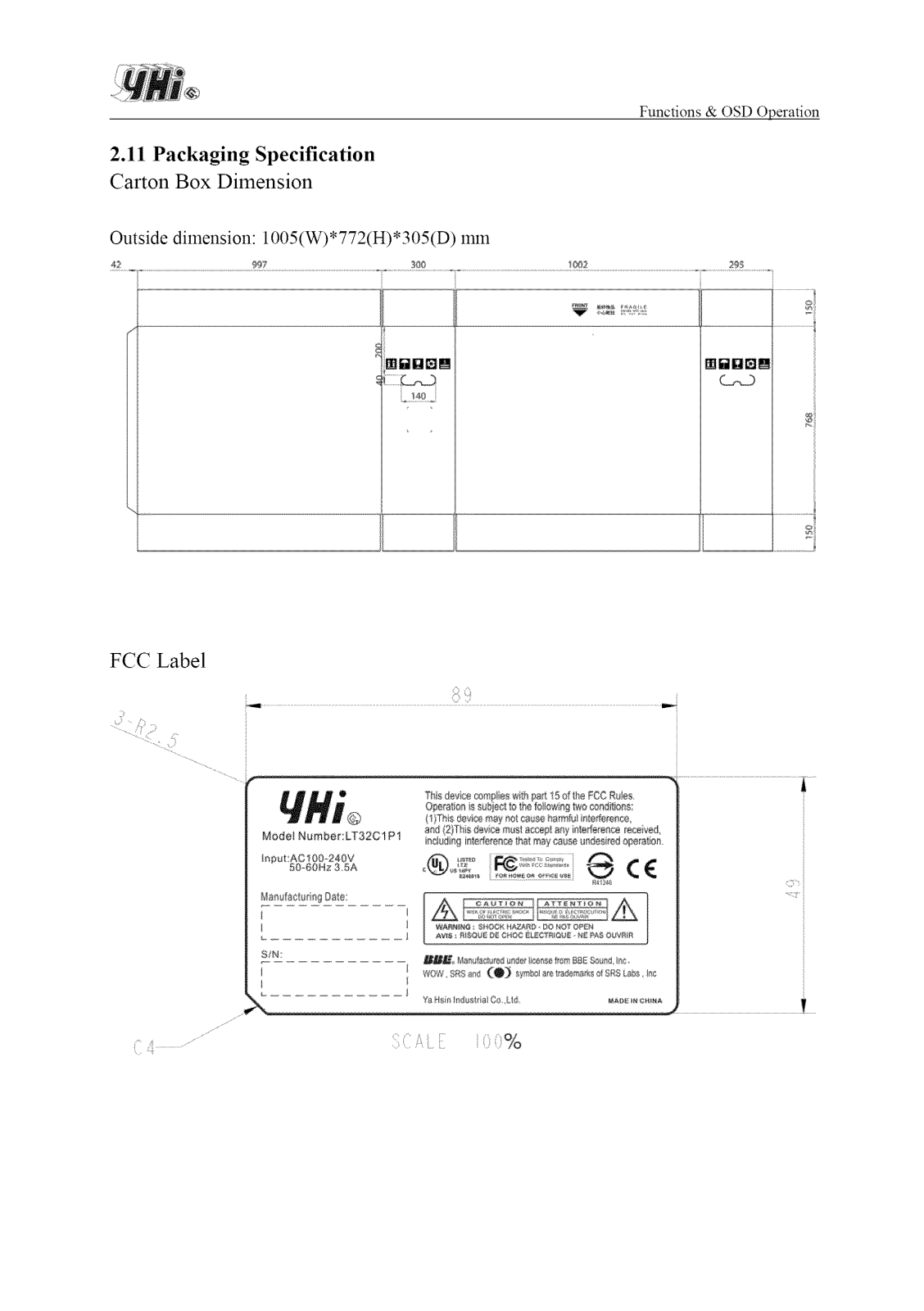

2.11 Packaging Specification
Carton Box Dimension

Outside dimension: 1005(W)*772(H)*305(D) mm

42 997 SO0 _ 29_

C,_9

...................... !

FCC Label

©

Model Number:LT32C1Pl

h'_#ut:AC_00-240V

50-60Hz 3 5A

_@{s_fact_r_g ONe

............................. J

SIN:

I I

I I

.............................. J

{1)This device may rw_tcausehsrm_u _tede_'ece,

®

A

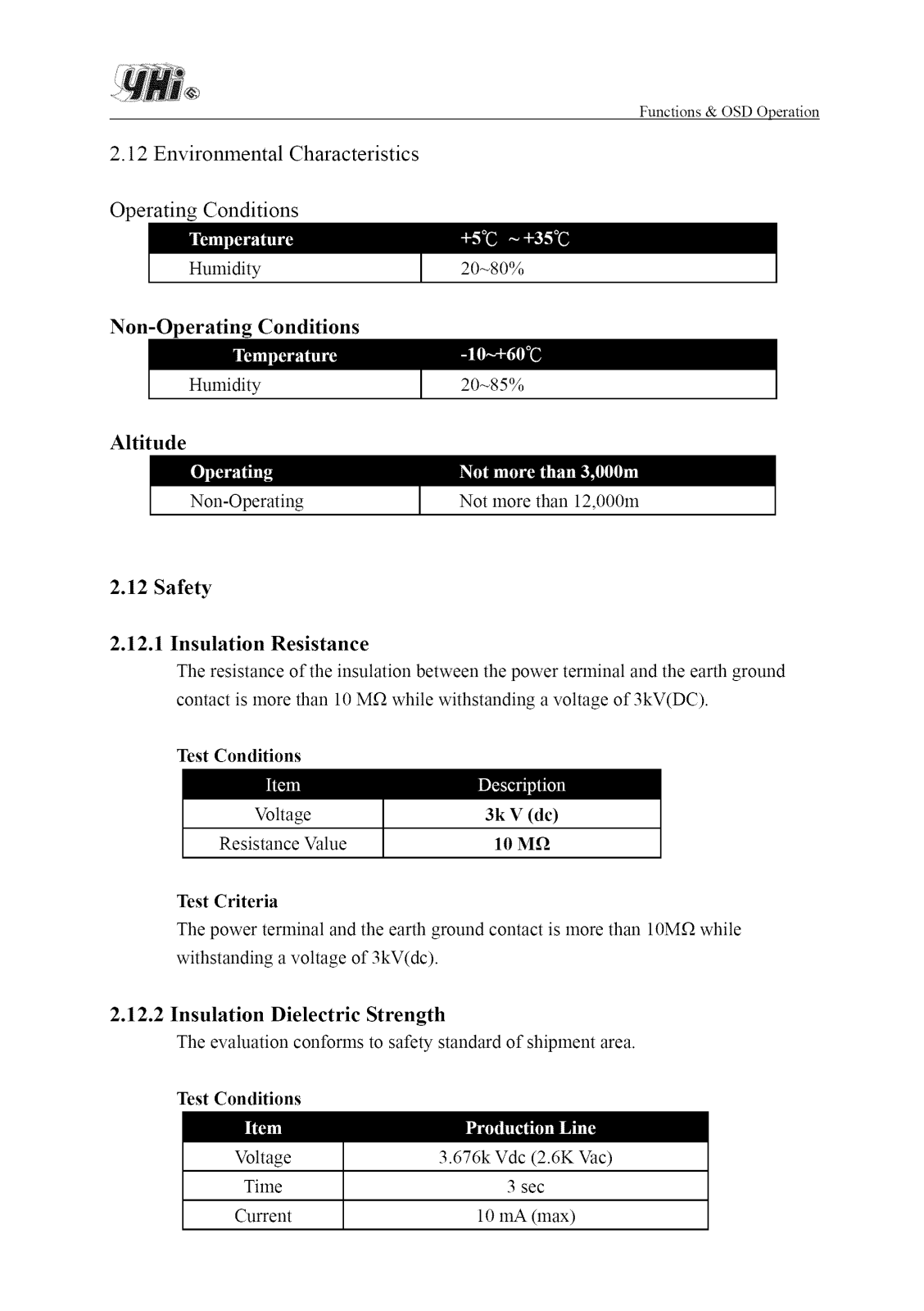

2.12 Environmental Characteristics

Operating Conditions

Functions & OSD Operation

Humidity

Non-Operating Conditions

Humidity

Altitude

Non-Operating

2.12 Safety

2.12.1 Insulation Resistance
The resistance of the insulation between the power terminal and the earth ground

contact is more than 10 MR while withstanding a voltage of 3kV(DC).

20-80%

20-85%

Not more than 12,000m

Test Conditions

Voltage 3k V (dc)

Resistance Value 10 M_

Test Criteria
The power terminal and the earth ground contact is more than 10M_ while

withstanding a voltage of 3kV(dc).

2.12.2 Insulation Dielectric Strength
The evaluation conforms to safety standard of shipment area.

Test Conditions

Voltage 3.676k Vdc (2.6K '_ac)

Time 3 sec

Current 10 iliA (max)

Test Criteria
There is no breakdown of the insulators or short circuits when applying a 2.6kVac

and 2.6k "¢ac for duration of lnaxilnum 3 sec between the metallic chassis and the

input power supply active and neutral terminals connected together.

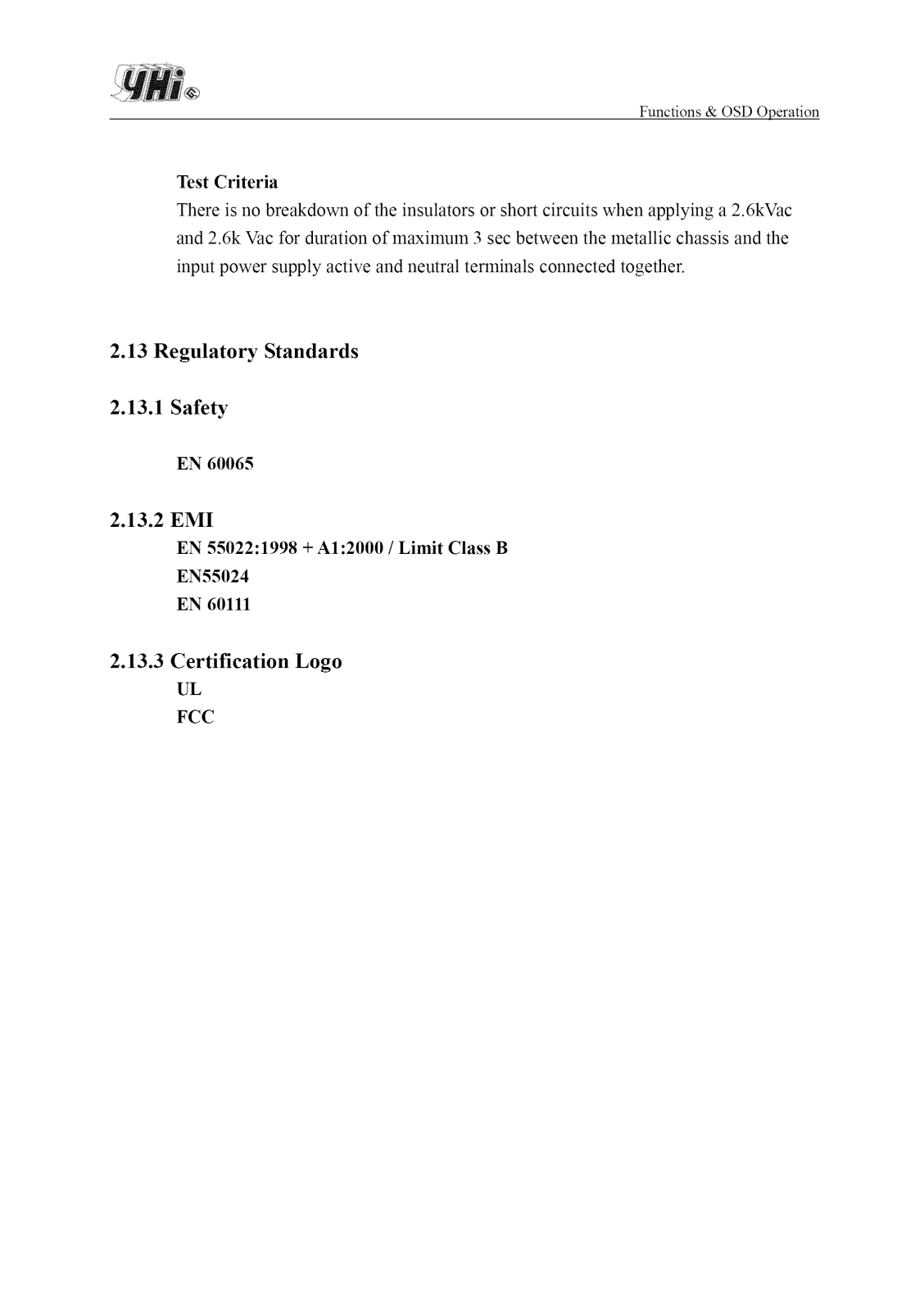

2.13 Regulatory Standards

2.13.1 Safety

EN 60065

2.13.2 EMI
EN 55022:1998 + Al:2000 / Limit Class B

Functions & OSD Operation

EN55024
EN 60111

2.13.3 Certification Logo
UL

FCC

3.1

Function Controls

Front side:

Functions & OSD Operation

3.0 Functions & OSD Operation

r_ 24

Power Power on/off

(2) Source Source select
® Menu Get into OSD t\_r PC/TV mode

® CH • Select channel
® CH • Select channel

® VOL I_ Control volume
© VOL _ Control volume
® Enter Exit fiom OSD/Enter to sub-menu

® LED indicator (heen for PC operating monitor and TV system.

Amber t\_r no siNlat
Red t\_rAC Power on

Back side:

3onnecting to the Video component! output terminal of the video output device

_,udio input terminal connecting to the audio output terminal of the video output device.
(_J) Y2Pb2Pr2
@ Y2Pb2Pr2 Audio
@ S-video
@ S-video Audio
:'7_ Sub-woofer

Video out

!_) Audio out
fil!" AV in 1

;1!_ AVaudio 1
;1'_ AV in 2

_:!" AV audio 2
$1_ AV audio 3

3 AV in 3
$1!_ Headphone

Sonnecting to the Video component2 output terminal of the video output device

_,udio input terminal connecting to the audio output terminal of the video output device.

'_IC S-video input terminal connecting to the S-output terminal of the video output device.

_,udio input terminal connecting to the audio output terminal of the video output device.

Sonnects the sub-woofer audio in

_'ideo output terminal connecting to the input terminal of the video input device

The video output sources are AVI,AV2,AV3 and TV)

_udio output terminal connecting to the input terminal of the audio input device

The audio output sources are AVl, AV2, AV3, 73/)

To connect the AV1 video source.

To connect the audio out of AV1 source

To connect the AV2 video source.

To connect the audio out of AV2 source

To connect the audio out of AV3 source

To connect the AV3 video source

To connect headphone

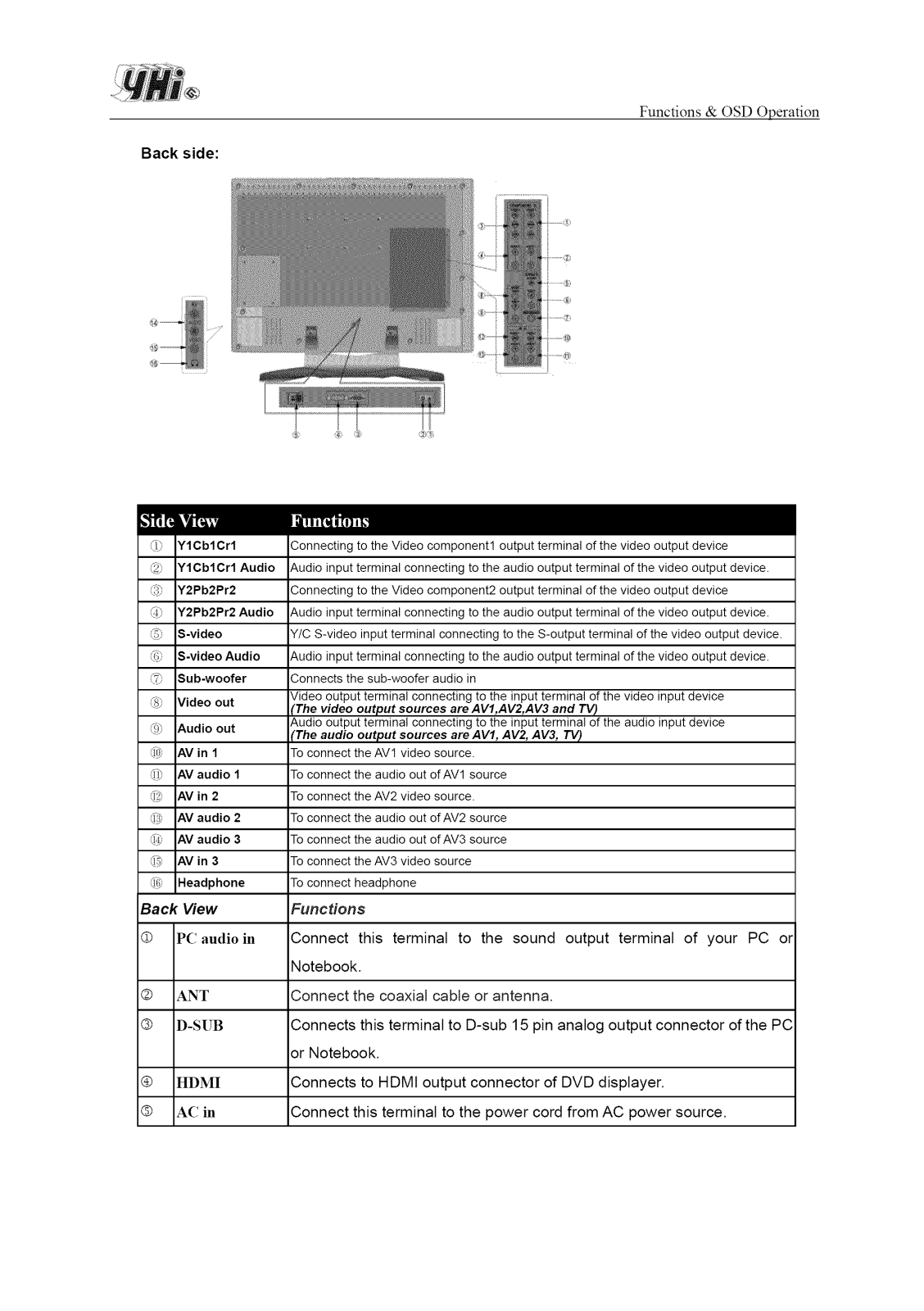

Back View Functions

Functions & OSD Operation

q:) PC audioin Connect this terminal to the sound output terminal of your PC or

Notebook.

(2) ANT Connect the coaxial cable or antenna.
® D-SUB Connects this terminal to D-sub 15 pin analog output connector of the PC

3r Notebook.

® HDMI Connects to HDMI output connector of DVD displayer.
® AC in Connect this terminal to the power cord from AC power source.

3.2 Remote Controller
Pure TV Full

TV:

Functions & OSD Operation

function

Power Power on/off

2 Display Display current inforlnation
3 MTS Select TV Audio system
4 Mute Turn speaker on or off
5 Source Select input source
6 TV Get into TV channel directly

7 Sound Selectsthe soundmode:Off->SRSWOW->BBE->BBE& SRSWOW(Standard model

cannot selectfunction)

8 Picture Picture quality select (vivid, Standard, soft, defined)
9 Sleep Set the Timer to turn off the set

10 Recall Back to previous channel
11 CATV Enter intothe channel after you select channel by number

12 Number Keys Select channel by nmnber 1 12
13 MENU Get into OSD menu/sub- menu

14 Zoom Resize fiom 4:3 to 16:9 screen or 16:9 to 4:3 screen
15 CHv/A Select channel / Up, Down lnovelnent

16 VOL •/* Control the volume / Right, Left movelnent
17 Enter Get into sub- menu

18 PIP Select PIP/POP/Multi PIP function

19 Source Select sub-picture source in PIP
20 Position Select position of sub-picture in PIP
21 Swap Swap sub picture to main picture
22 Freeze Stop main picture

Functions& OSDOperation

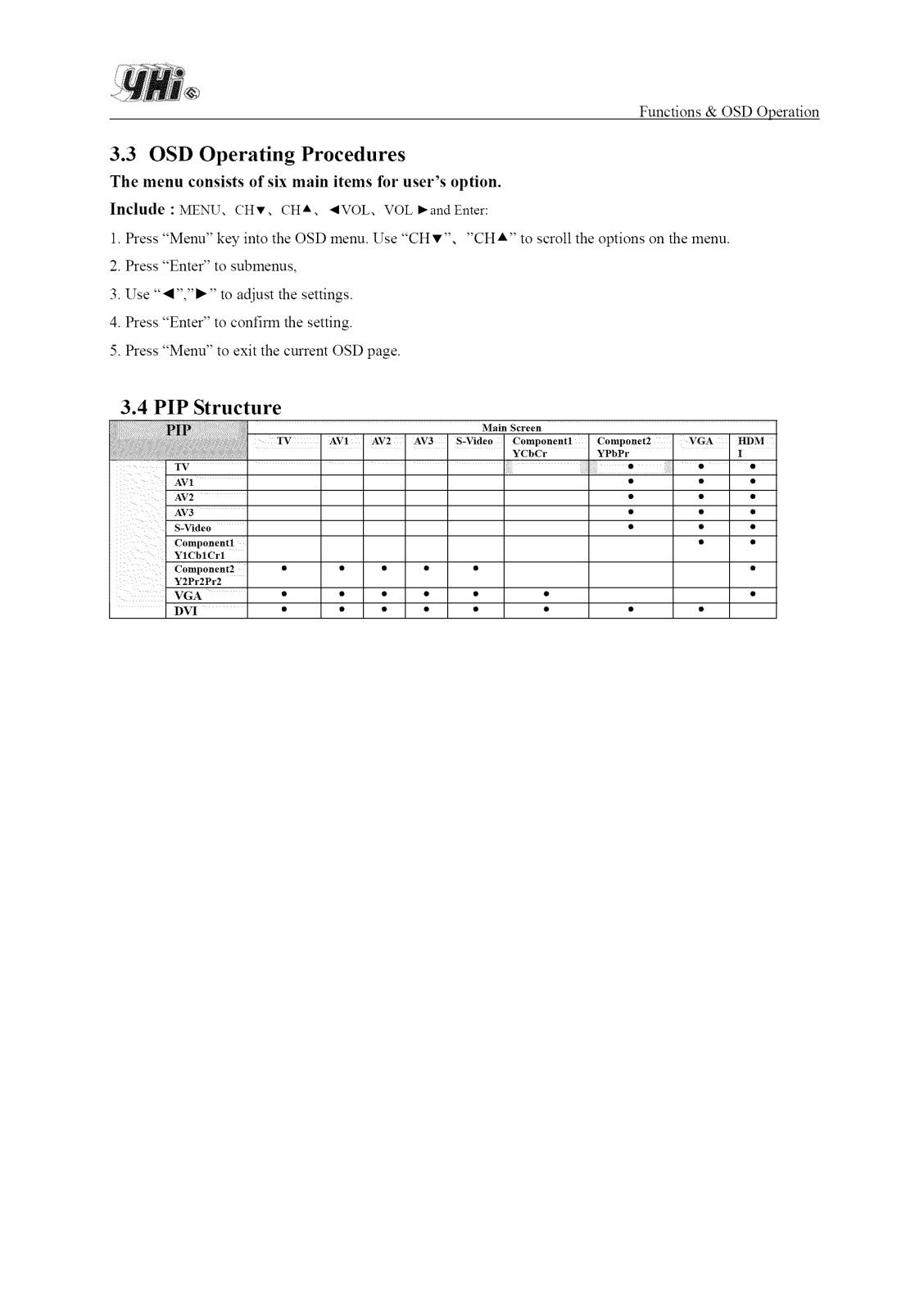

3.30SD Operating Procedures

The menu consists of six main items for user's option.

Include : MENU, CHv, CH A, 4VOL, VOL I_and Enter:

1. Press "Menu" key into the OSD menu. Use "CHv", "CHA" to scroll the options on the menu.

2. Press "Enter" to submenus,

3. Use "4","D,-" to adjust the settings.

4. Press "Enter" to confirm the setting.

5. Press "Menu" to exit the current OSD page.

3.4 PIP Structure

Main Screen

i_il i I

Z I

TV . AV1 . AV2 . AV3 . S-Video Componentt Componet2 . VGA . HDM

TV ..... • • ' •

AV1 • • •
AV2 • • •

i

AV3 • • •
S-Video • • •

Componentl • •
Y1CblCrl

[ Component2

Y2Pr2Pr2

i

i VGA
] DVI

YCbCr YPbPr I

4.0 System descriptions

4.1 System block diagram (1)

System description

BLOCK D_GRAM (I_SC)

22

4.2 System Block Diagram (2)

System description

Audio Processor ( NTSC )

iiiiiiii:ii_ii_!i!!iiii_!i!ii!i_iiiii!i_iiiii!ii!ii!ii!ii!ii!ii!ii!i!_

iiiiii

23

4.3 System Circuitry

4.3.1 Main board

System description

(J3) To RCA board

(J9) To Panel

(34) To Power board

(J6) To Inverter board

(CNS) To IR board

(J8) To Power board

I

(CN1) To Key Pad I

(JP7) To Speaker

(J1) To Card reader

(Option)

(J5) To DVD (Option)

(CN7) To Video board

(J2) To Video board

4.3.2 Video board

(CN4) To Main board

24

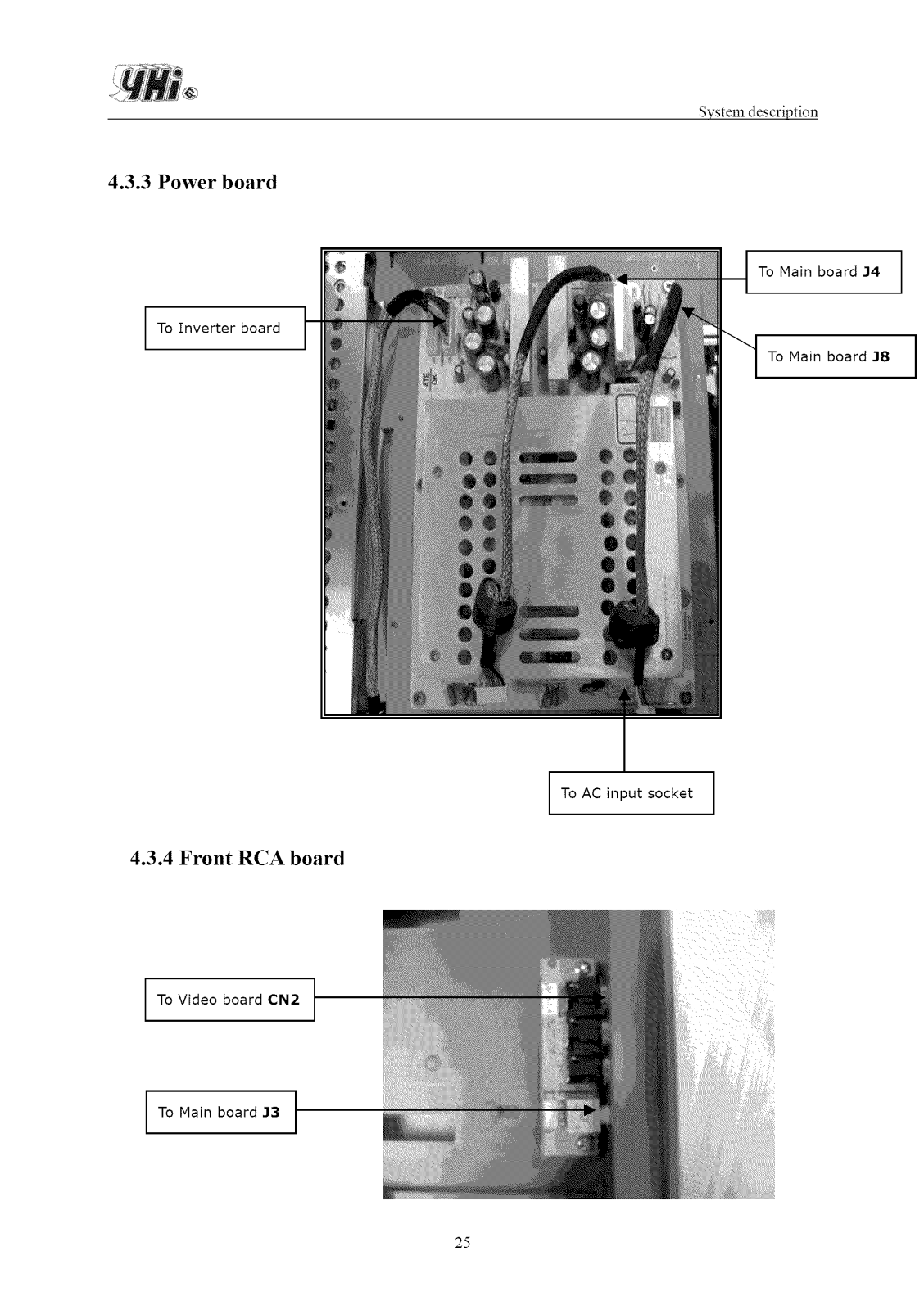

4.3.3 Power board

To Inverter board

System description

To Main board J4

To Main board J8

I

4.3.4 Front RCA board

To Video board CN2 I

I To Main board .13 ]

I

To AC input socket I

I

25

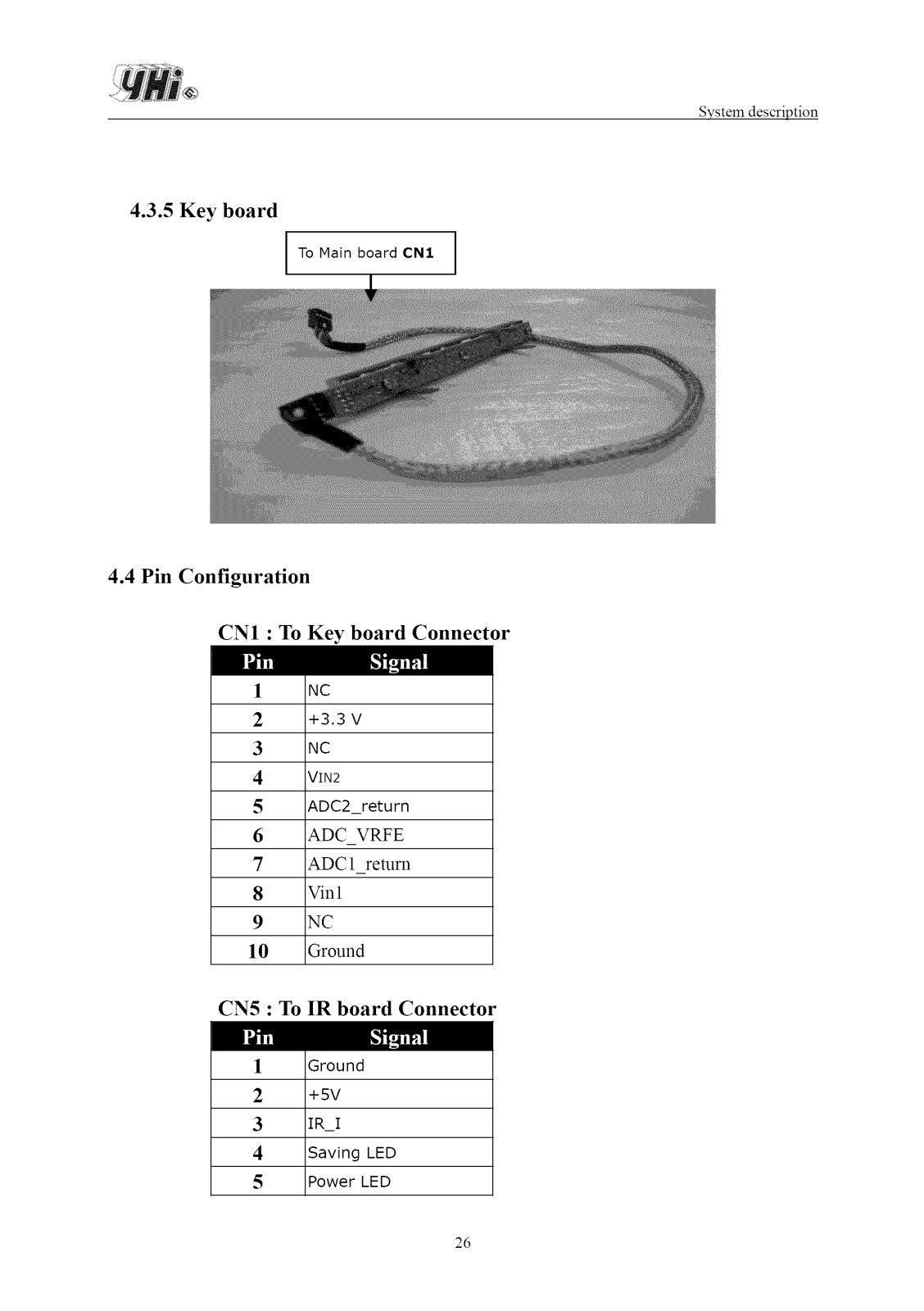

4.3.5 Key board

Systemdescription

To Main board CN1

4.4 Pin Configuration

CN1 : To Key board Connector

1 NC

2 +3.3 V

3 NC

4 VIN2

5 ADC2_return

6 ADC VRFE
7 ADC1 return

8 Vinl
9 NC

10 Ground

CN5 : To IR board Connector

1 Ground

2 +5v

3 IR_I
4 Saving LED

5 Power LED

26

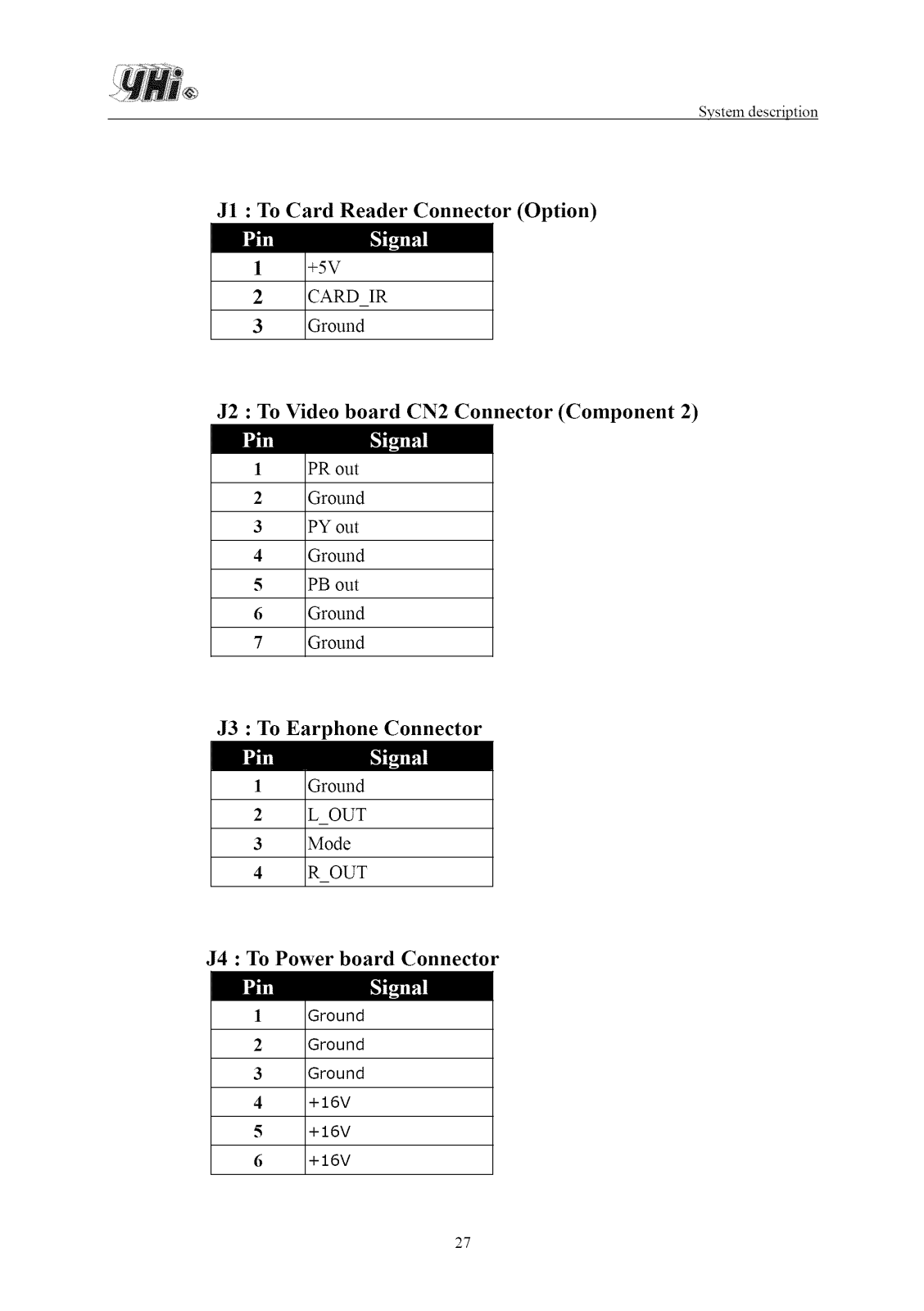

J1 : To Card Reader Connector (Option)

1 +5v

2 CARD IR
3 Ground

J2 : To Video board CN2 Connector (Component 2)

1 PR out
2 Ground

3 PY out
4 Ground

System description

5 PB out
6 Ground

7 Ground

J3 : To Earphone Connector

1 Ground

2 L OUT
3 Mode

4 R OUT

J4 : To Power board Connector

1 Ground
2 Ground

3 Ground
4 +16V

5 +16V
6 +16V

27

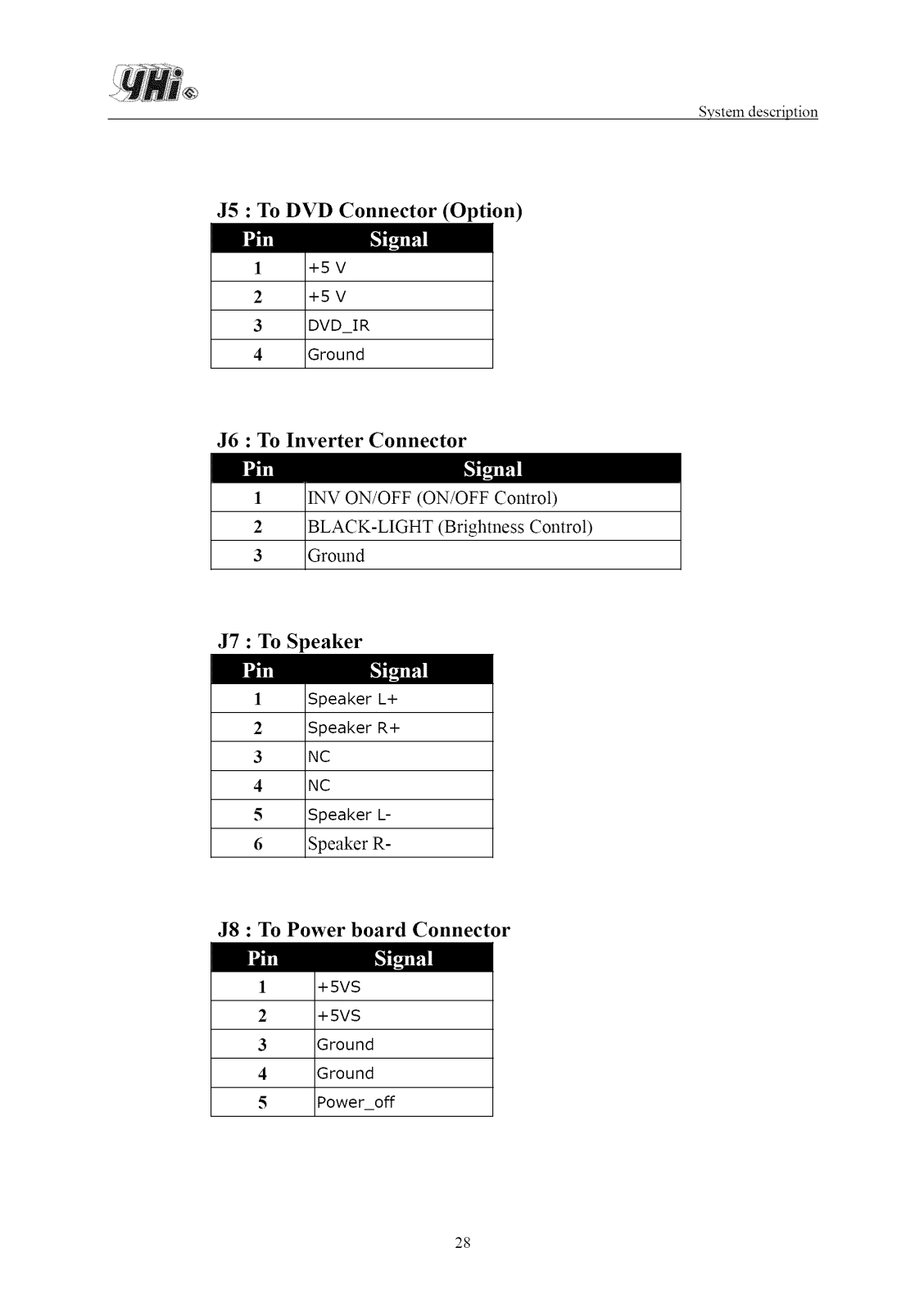

J5 : To DVD Connector (Option)

1 +5V
2 +5V

3 DVD_IR
4 Ground

J6 : To Inverter Connector

Systemdescription

1
2

3

1NV ON/OFF (ON/OFF Control)
BLACK-LIGHT (Brightness Control)

Ground

J7 : To S _eaker

1 Speaker L+

2 Speaker R+

3 NC
4 NC

5 Speaker L-

6 Speaker R-

J8 : To Power board Connector

1 +5VS
2 +5VS

3 Ground
4 Ground
5 Power_off

28

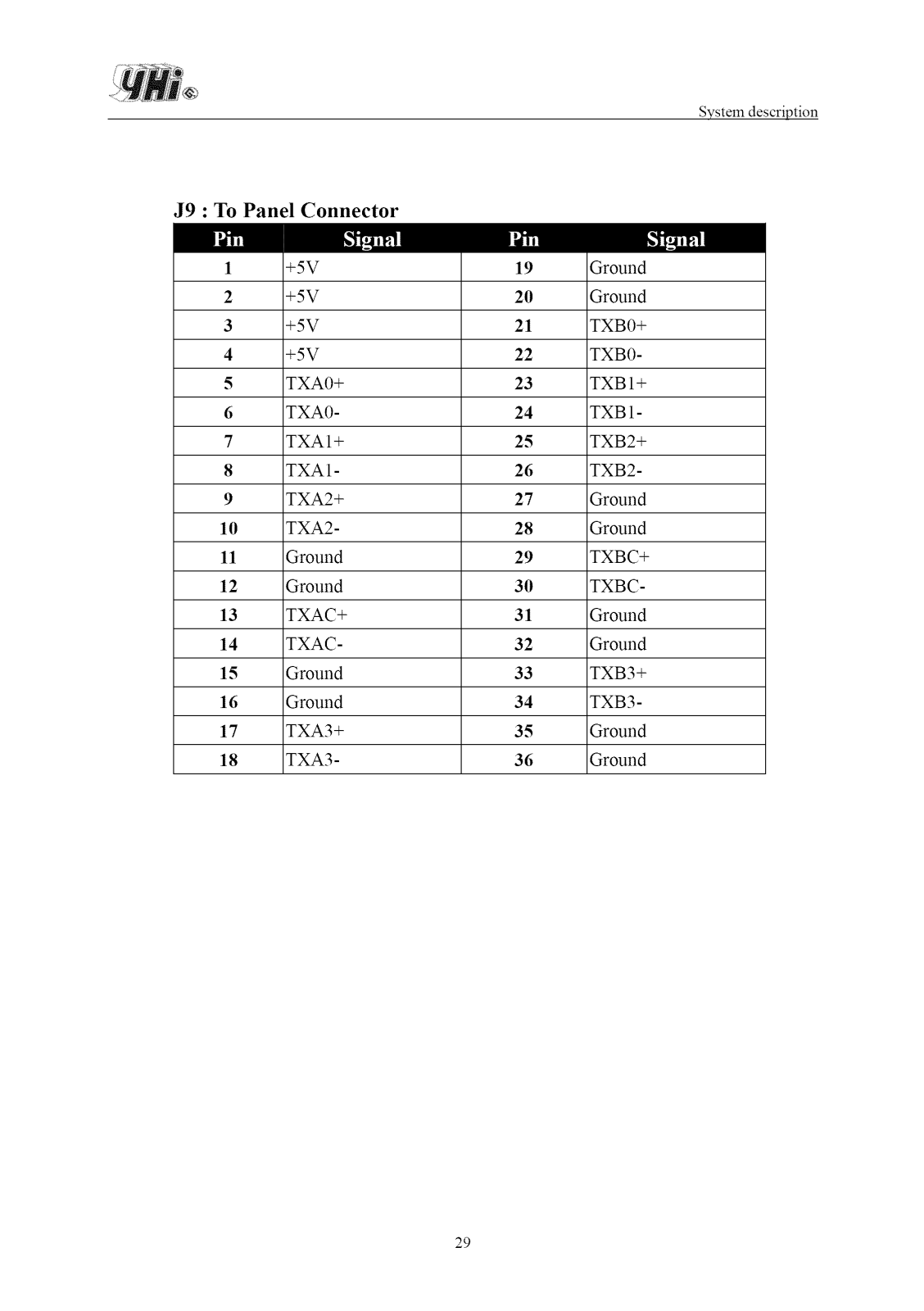

J9 : To Panel Connector

System description

10

12
13

14
15

16

11

1
2

3
4

5
6

7
8

9

+5V
+5V

+5V
+5V

TXA0+
TXA0-

TXAI+
TXA1-

TXA2+
TXA2 -

Ground
Ground

TXAC+
TXAC -

Ground
Ground

20
21

22
23

24
25

26
27

28
29

30
31

32
33

34

19

Ground
Ground

TXB0+
TXB0-

TXBI+
TXB 1-

TXB2+
TXB2-

Ground
Ground

TXBC+
TXBC-

Ground
Ground

TXB3+
TXB3-

17
18

TXA3+
TXA3-

35
36

Ground
Ground

29

5.0 Mechanical Assembly

5.1 Explore Diagram

5.2 Removal and Replacement

5.2.1 Remove and Replace Stand

Systemdescription

1. Remove Screw
PN: 066-00581-00

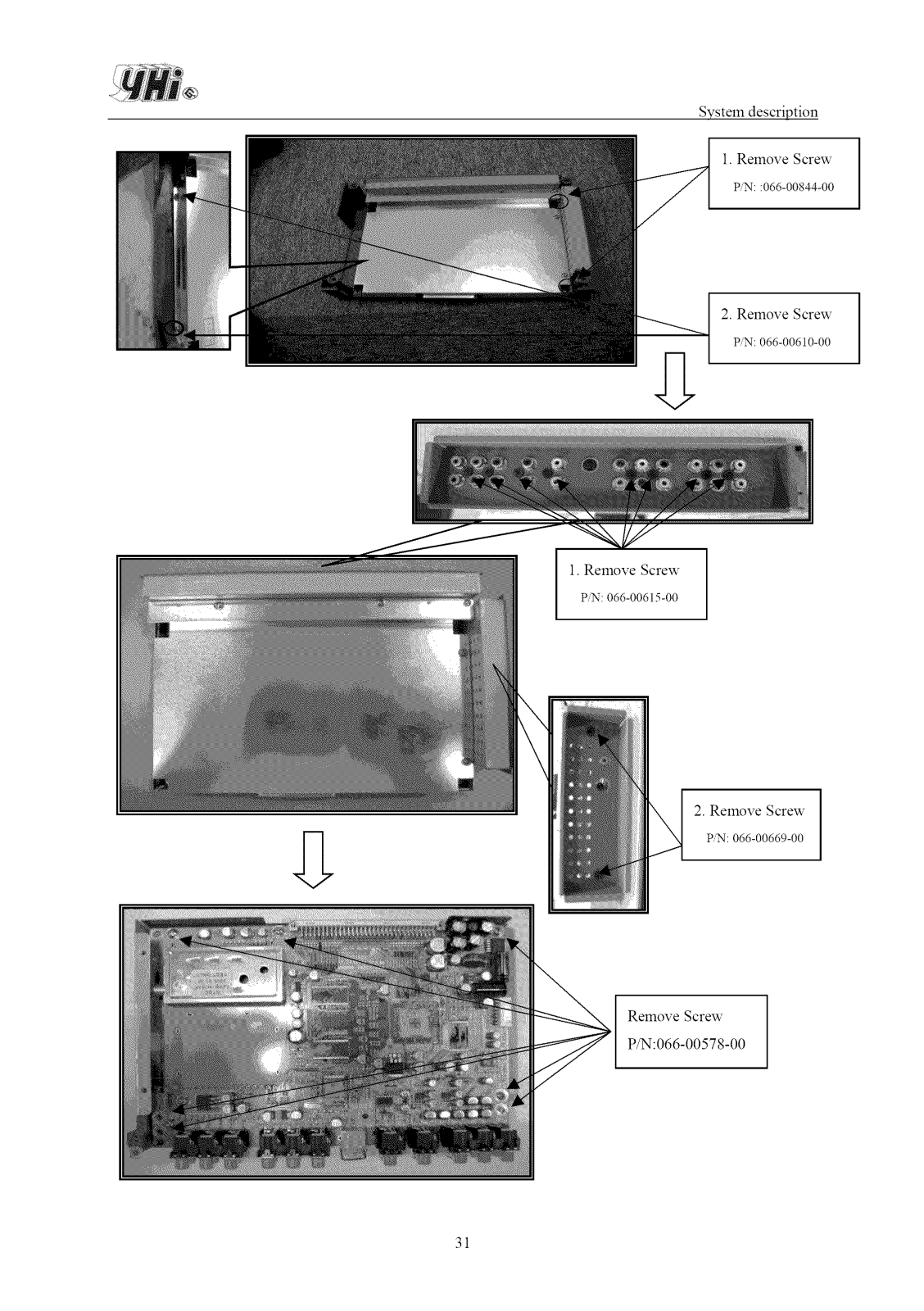

5.2.2 Remove and Replace Video board

Reverse procedure for Replacement

1. Remove Screws

P _',_:066-00848-00

1. Remove Screw
PN: 066-00575-00

System description

1. Remove Screw

PiN: :066-00844-00

2. Remove Screw

PiN: 066-00610-00

1. Remove Screw

PN: 066-00615-00

Remove Screw
P/N:066-00578-00

2. Remove Screw

PiN: 066-00669-00

31

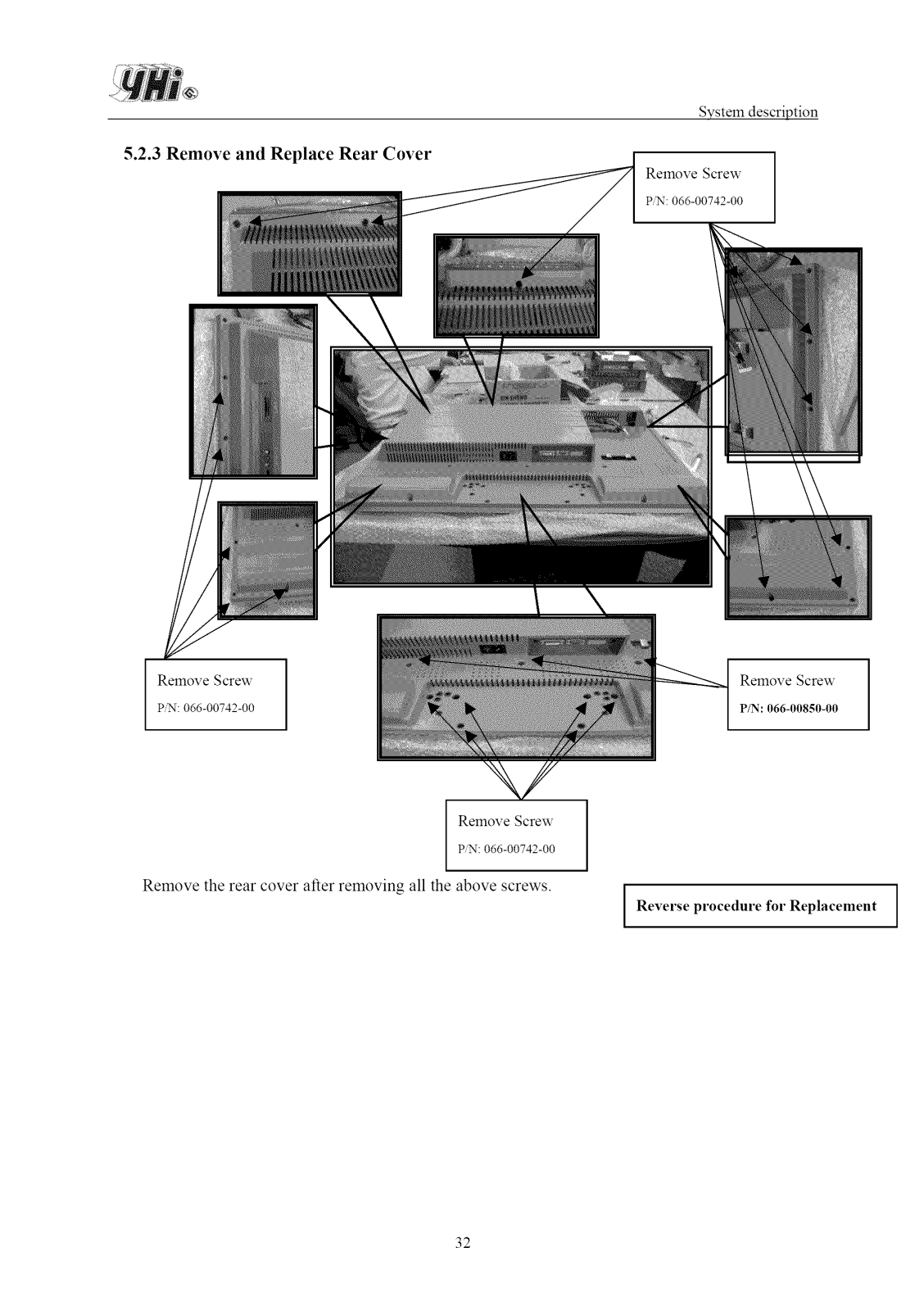

5.2.3 Remove and Replace Rear Cover

System description

Relnove Screw
PN: 066-00742-00

Remove Screw
PN: 066-00742-00

Remove Screw

PiN: 066-00742-00

Remove the rear cover after removing all the above screws.

P/N: 066-00850-00

Remove Screw I

I Reverse procedure for Replacement

32

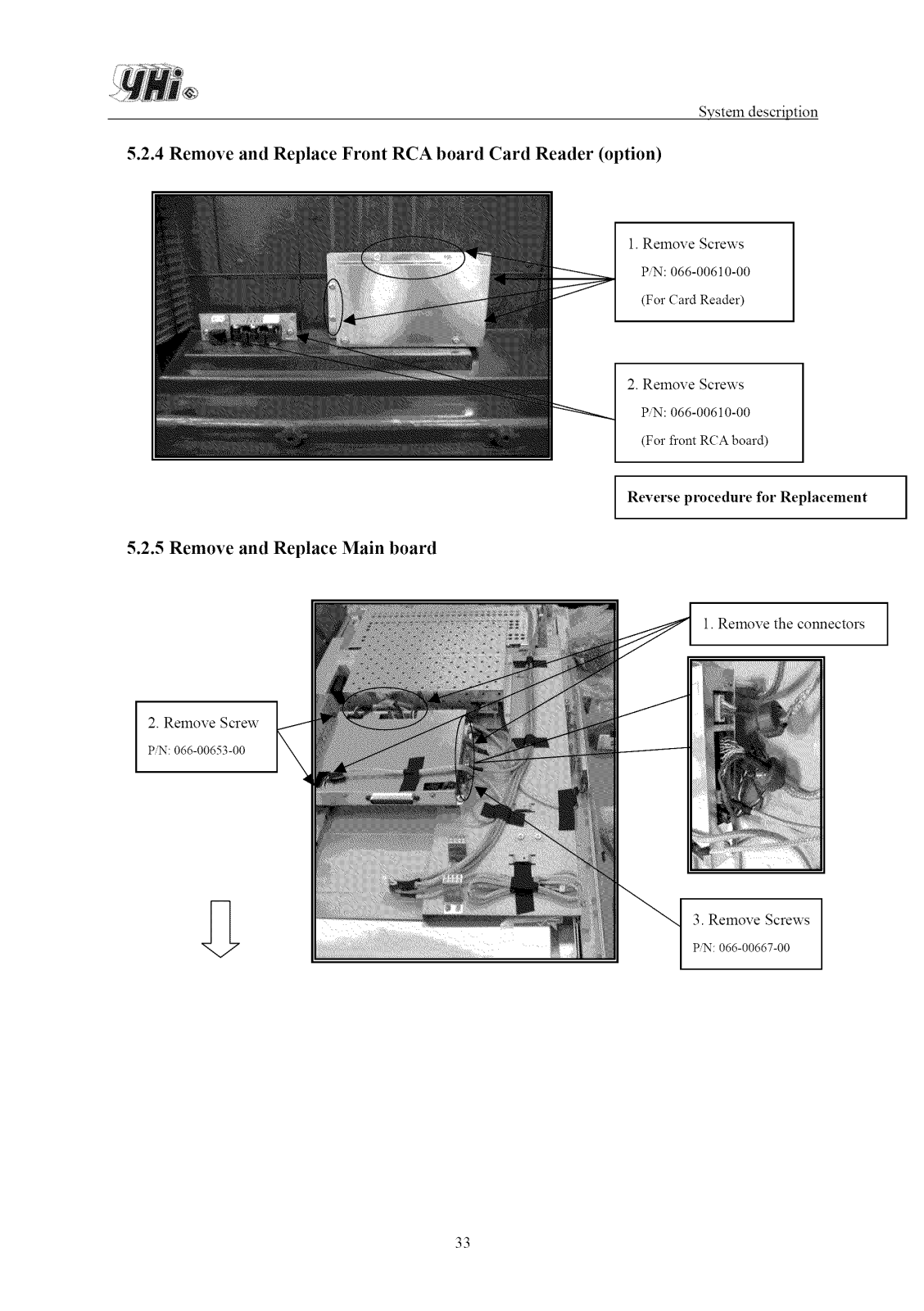

5.2.4 Remove and Replace Front RCA board Card Reader (option)

1. Remove Screws

2. Remove Screws

Reverse procedure for Replacement

5.2.5 Remove and Replace Main board

System description

PN: 066-00610-00

(For Card Reader)

PN: 066-00610-00
(For front RCA board)

2. Remove Screw

P'N: 066-00653-00

1. Remove the connectors

3. Remove Screws

PiN: 066-00667-00

33

Systemdescription

RemoveScrew
P/N:066-00614-00

RemoveScrew
P/N:066-00578-00

34

I Reverse procedure for Replacement

5.2.6 Remove and Replace Power board

System description

1. Remove Screws
P/N: 066-00614-00

I 2. Remove the connectors

3. Remove Screws
P/N: 066-006577-00

Reverse procedure for Replacement I

35

6. Remove Screws

I

5.2.7 Remove and Replace Panel

System description

1. Remove Screw

P/N: 066-00575-00

and take the panel ass'y fiom fiont bezel

36

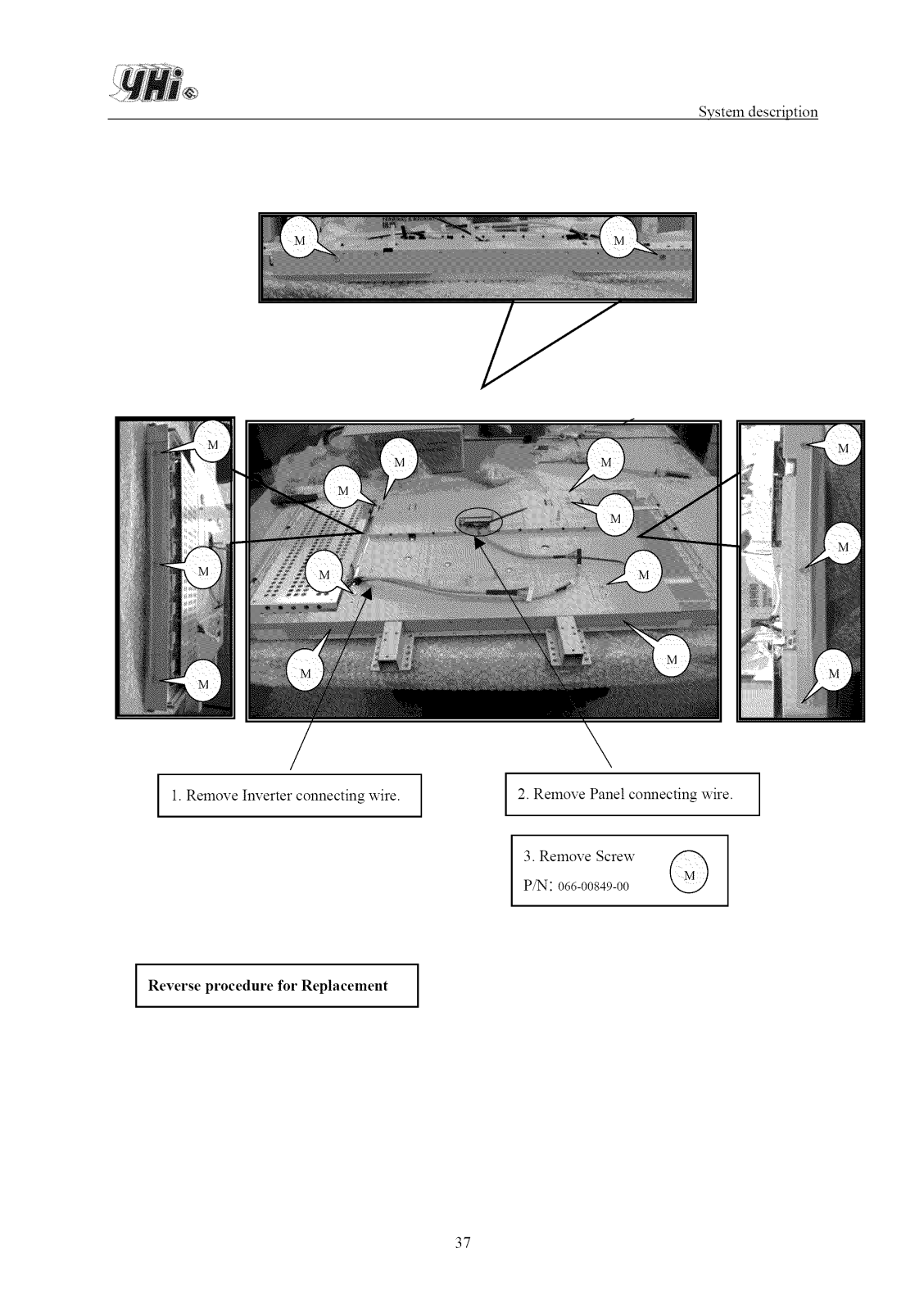

Systemdescription

1.RemoveInverterconnectingwire.

Reverse procedure for Replacement [

37

2.RemovePanelconnectingwire.

P/N: 066-00849-00

I 3. Remove Screw

6.0 Troubleshooting Guide

System description

Item

1

Symptom

No Power, No Picture, No
Backlight, No Sound

No Picture, No backlight,

Sound is OK.

No Picture, Backlight is OK,
Sound is OK.

Inspection points

1. Check Power board AC input.

2. Check Power board DC output (+SVs, +SV, +16V).

3. Check J4 of Main board and connecting wire.

4. Check J8 of Main board and connecting wire.

5. Check J6 of Main board and connecting wire.

6. Check Main board.

1. Check Power supply voltage for inverter.(24Vdc)

2. Check Inverter.

3. Check J6(main board) to Inverter connecting wire.

4. Check Main board.

1. CheckVLCD 5Von J9 connector.

2. Check Panel connector.

3. Check connecting wire( J9 to Panel).

4. Check Main board.

5. Check Panel

Action of Function Key
abnormally

Remote control problem

Poor performance of picture

No sound, Poor sound

1. Check Keyboard

2. Check Key Pad.

3. Check Key board to CN1 connecting wire.

4. Check Main board.

1. Check IRboard.

2. Check IR board to CN5 connecting wire.

3. Check Remote control.

4. Check Main board.

1. Check AltFactory Reset.

2. Check Main board.

3. Check Video board.

4. Check CN2 of Video board connecting wire.

5. Check CN7 to Video board connecting wire. (For
Y,Pb,Pr)

1. Check Speaker.

2. Check JP7 to speaker connecting wire.

3. Check Main board.

4. Check Front RCAboard.

5. Check J3 to Front RCA board connecting wire.

38

Systemdescription

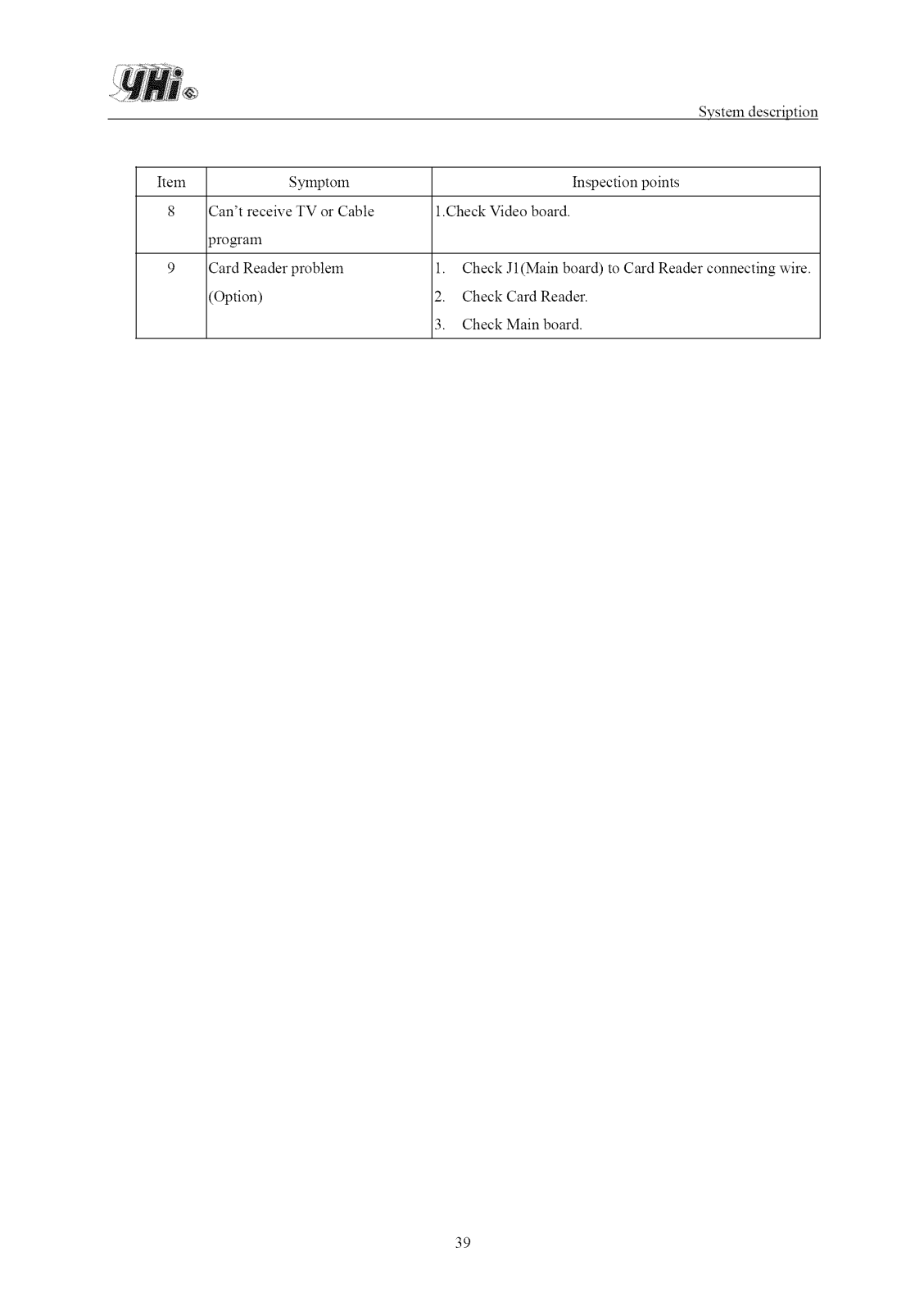

Item Symptom Inspectionpoints

8 Can'treceiveTVorCable 1.CheckVideoboard.

program

9 CardReaderproblem 1. CheckJ1(Mainboard)toCardReaderconnectingwire.

(Option) 2. CheckCardReader.

3. CheckMainboard.

39

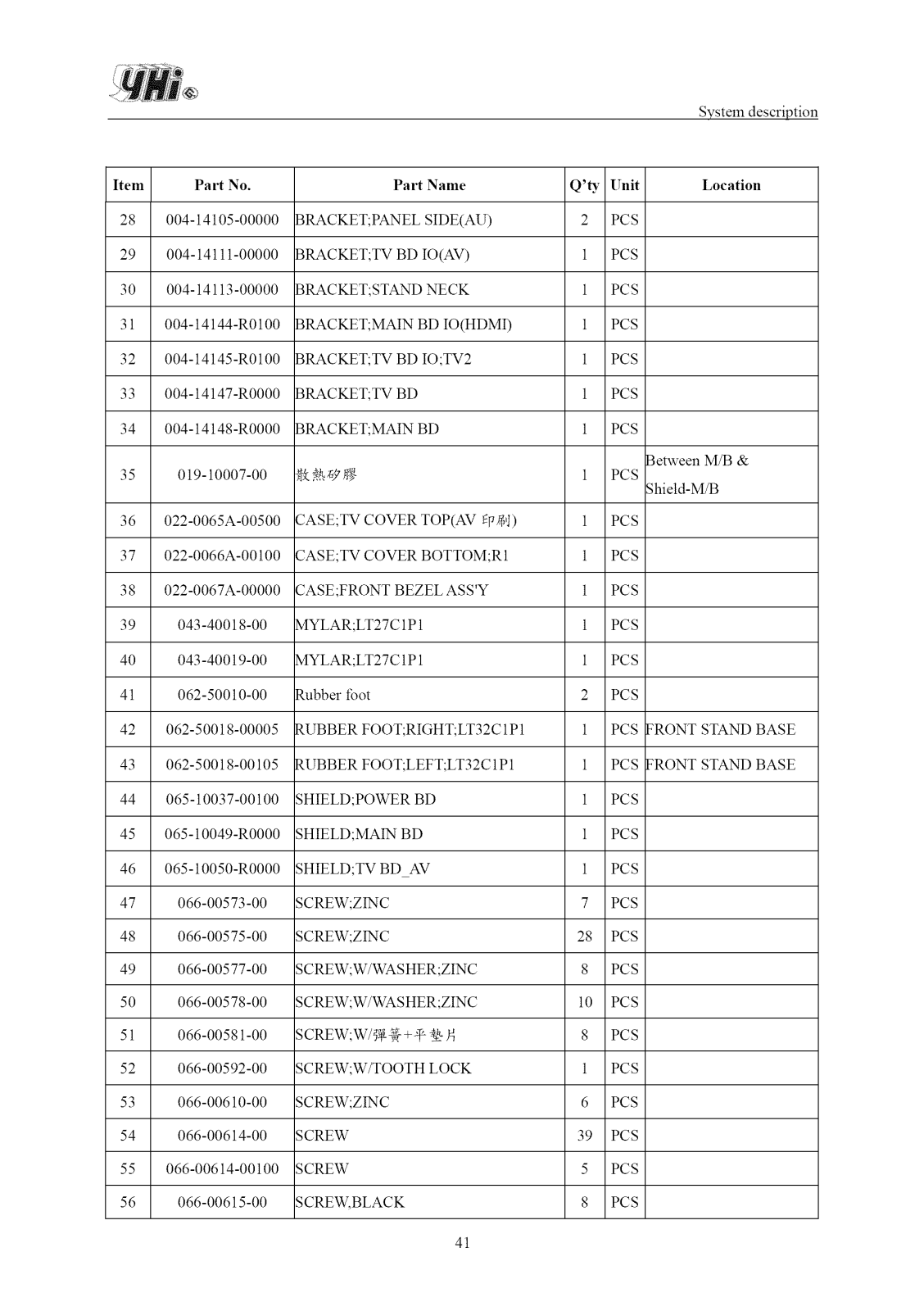

7.0 Spare Parts Material List

System description

Dem Part No.

1 001-00015-00

2 043-40074-00

3 077-102t0-R0000

4 077-20112-00

5 077-20164-00300

6 077-20346-R0000

7 077-80019-00100

8 083-11428-00

9 083-11930-R0100

10 083-31130-00

11 083-31232-00000

12 083-62205-R0100

13 083-62206-R0100

Part Name

BATTERY

LABEL;Protron(PLTV-32M)

BARCODELABEL(_ _ )

CARTON LABEL:Prosonic

LABEL;FOR HDMI LOGO

gg_g+_;PLTV-30&PLTV-27

_I",}_;Protron(PLTV-32M); _ _a;R 1

PE

CUSHION

CUSHION

Q'D" Unit Location

2 PCS

1 PCS

1 PCS

2 PCS FCC LABEL

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS MANUAL+BATTERY

1 PCS

1 PCS

1 PCS

14 083-62229-00000

15 300-10970-R0000

16 300-10971-R0000

17 300-30005-00000

18 886-00188-00000

19 919-00402-00

20 919-30061-00

21 919-37023-00

22 919-37028-00

23 004-14055-R0000

24 004-14063-00

25 004-14071-00

26 004-14103-R0200

_,_ EPE

_SL_)]_ ;Protron

_2 _ ;PROSONIC(PLTV-32C)

CABLE;LT17B1E1

POWER CORD

CABLE;AUDIO

CABLE(_S _;_[,*g.)

BRACKET;WALL MOUNT

BRACKET;TV BD AV

BRACKET;AC SOCKET

BRACKET;PANEL ASS'Y(AU V5)

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

REAR COVER*8(_%

8 PCS

1 PCS

1 PCS

1 PCS

27 004-14104-00000

BRACKET;PW BD

1 PCS

40

Systemdescription

hem PartNo.

28 004-14105-00000
29 004-14111-00000

30 004-14113-00000
31 004-14144-R0100

32 004-14145-R0100
33 004-14147-R0000
34 004-14148-R0000

35 019-10007-00

36 022-0065A-00500

37 022-0066A-00100

38 022-0067A-00000

39 043-40018-00

Part Name

BRACKET;PANEL SIDE(AU)

BRACKET;TV BD IO(AV)

BRACKET;STAND NECK

BRACKET;MAIN BD IO(HDMI)

BRACKET;TV BD IO;TV2

BRACKET;TV BD

BRACKET;MAIN BD

CASE;TV COVER TOP(AV _p_q)

CASE;TV COVER BOTTOM;R1

CASE;FRONT BEZEL ASS'Y

MYLAR;LT27C 1P1

Q'O- [;nit

2 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

1 PCS

Location

Between M/B &
Shield-M/B

40 043-40019-00

41 062-50010-00

42 062-50018-00005

43 062-50018-00105

44 065-10037-00100

45 065-10049-R0000

46 065-10050-R0000

47 066-00573-00

48 066-00575-00

49 066-00577-00

50 066-00578-00

51 066-00581-00

52 066-00592-00

53 066-00610-00

MYLAR;LT27C 1P1

Rubber foot

RUBBER FOOT;RIGHT;LT32C 1P1

RUBBER FOOT;LEFT;LT32C 1P1

SHIELD;POWER BD

SHIELD;MAIN BD

SHIELD;TV BD AV

SCREW;ZINC

SCREW;ZINC

SCREW;W/WASHER;ZINC

SCREW;W/WASHER;ZINC

SCREW;W/_ _ +_ _ )4

SCREW;W/TOOTH LOCK

SCREW;ZINC

1 PCS

2 PCS

1 PCS FRONT STAND BASE

1 PCS FRONT STAND BASE

1 PCS

1 PCS

1 PCS

7 PCS

28 PCS

8 PCS

10 PCS

8 PCS

1 PCS

6 PCS

54 066-00614-00

55 066-00614-00100

56 066-00615-00

SCREW

SCREW

SCREW, BLACK

39 PCS

5 PCS

8 PCS

41

Systemdescription

Item PartNo.

57 066-00653-00
58 066-00667-00

59 066-00742-00
60 066-00844-00000
61 066-00846-00000
62 066-00848-00000
63 066-00849-00000

64 066-00851-00000
65 066-00943-00000
66 076-75075-00000

67 076-77001-00
68 083-95034-R0006

69 083-95046-00006

PartName Q'D Unit

SCREW;ZINC 2 PCS

SCREW ZINC 2 PCS

SCREW;BLACK 17 PCS

SCREW;ZINC 2 PCS

SCREW 8 PCS

SCREW;BLACK 2 PCS

SCREW;ZINC 10 PCS

SCREW;W/WASHER;ZINC 12 PCS

SCREW;ZINC 8 PCS

MYLAR;CARD READER;LT32C 1P1 1 PCS

_g,_ _ ga 13 PCS

_ _g}g ;Meet Rohs 2 PCS

g_;g}g 2 PCS

Location

70 092-10248-00
71 505-10143-00000

72 508-10011-R0000
73 510-00115-R0200
74 511-00074-00009
75 922-10133-00400

76 940-00017-00000
77 944-00729-001A5
78 944-00732-000A5

7980 944-00734-001A5

81 944-00735-001A5

82 944-00809-R01A5

83 944-00810-000A5

84 944-00816-R00A5

BUTTON 1 PCS

SPRING 8 PCS

HOLDER;DIE CASTING 1 PCS

PANEL;Meet Rohs 1 PCS

LENS;IR;£_g_;LT32C 1P 1 1 PCS

REAR COVER"C; _g+HDMI _p_,J"ASSY 1 PCS

1 PCS

CONNECTOR WIRE;LT32C 1P1

CONNECTOR WIRE;LT32C 1P1

CONNECTOR WIRE;LT32C 1P1

CONNECTOR WIRE;LT32C 1P1

CONNECTOR WIRE; _ _'_,_;LT32C 1M 1

CONNECTOR WIRE;LT32C1M1

CONNECTOR WIRE; _ _a ;LT32C 1P 1

1 PCS M/B- PW/B

1 PCS AC-PW/B

1 PCS M/B-PW/B

1 PCS M/B-PANEL

1 PCS M/B-K/B

1 PCS M/B-RCA/B

1 PCS INVERTER-PW/B

85 971-1011B-004

86 971-1027E-00000

87 971-1065E-R0100

PCBA POWER/B;4 )__OUTPUT

DIP PCBA VIDEO BOARD

DIP PCBA MOTHER BOARD;REV.E

42

1 PCS

1 SET

1 SET

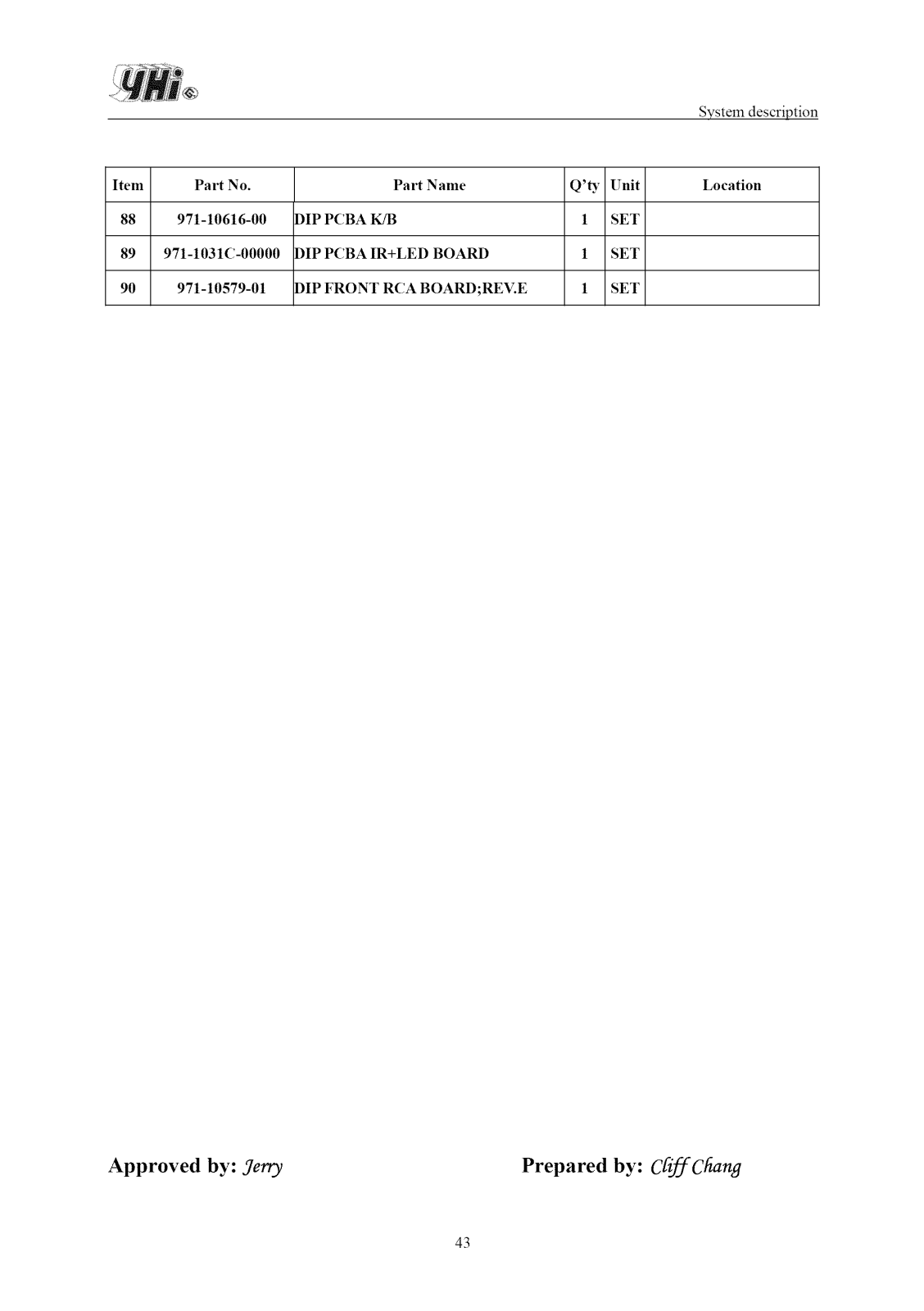

Systemdescription

Item Part No.

88 971-10616-00

89 971-1031C-00000

90 971-10579-01

Part Name

DIP PCBA K/B

DIP PCBA IR+LED BOARD

DIP FRONT RCA BOARD;REV.E

Q'D Unit

1 SET

1 SET

1 SET

Location

Approved by: Jerry Prepared by: C{iffChang

43
