PROTOSx PX-249 User Manual

1

1

24

9

1

2

3

4

5

6

9

10

11

12

13

14

General Specifi cations

Operating Temperature 32° to 131°F (0° to 55°C)

Storage Temperature 13° to 185°F (-25° to 85°C)

Relative Humidity 5% to 95%, non-condensing

Environment Air No corrosive gases permitted

Mounting/Orientation
Restrictions

35mm DIN rail/None

Vibration conforms to EN 60068-2-6

Shock conforms to EN 60068-2-27, EN 60068-2-29

Noise Immunity conforms to EN 61000-6-2/ EN61000-6-4

Protection Class IP20

Weight 70g

Dimensions (WxHxD) 12 x 100 x 68.8 mm (0.47 x 3.94 x 2.71 in)

Agency Approvals UL File No. E157382, CE

PX-249 Output Terminal Specifi cations

Outputs Per Terminal 16

Commons Per Terminal Field wired

Output Type Sinking

Output Data Bytes Used 2-bytes

Output Power Source

Requires external 24VDC power
source

Current Consumption (from load
voltage)

Typ. 35mA + load

Operating Voltage 24VDC ( -15%/+20%)

Maximum Load Current

0.5A per channel (Short Circuit
Protected)

On Voltage Drop 0.12 VDC @ 0.5A

Maximum Leakage Current 75μA

Maximum Inrush Current 3.5A

Maximum Short-circuit voltage 36V

Load Type Resistive, inductive, lamp

Current Consumption (from I/O
Bus)

Typ. 45mA

Reverse Voltage Protection Yes, DC only

Electrical Isolation 500V

ms

(I/O bus/fi eld potential)

Heat Dissipation 1W max

Off/On Response 0.45μs

On /Off Response 3.3μs

Adjacent Mounting on Bus
Terminals with Power Contact

Yes, DC only

Adjacent Mounting on Bus
Terminals without Power Contact

No

Passes Terminal Bus Power Yes

Passes PE Bus No

Status Indicators 16, indicates output is on

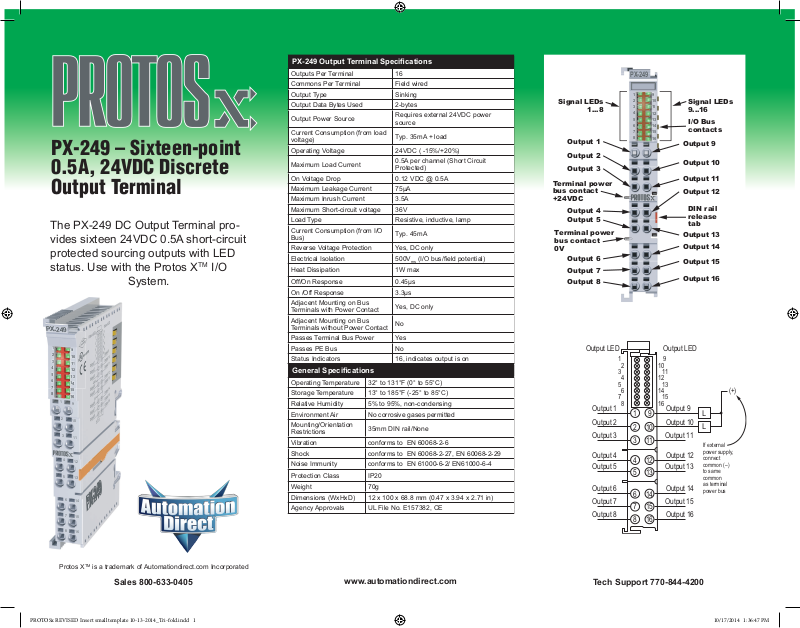

PX-249 – Sixteen-point

0.5A, 24VDC Discrete
Output Terminal

The PX-249 DC Output Terminal pro­vides sixteen 24VDC 0.5A short-circuit
protected sourcing outputs with LED
status. Use with the Protos X

PX-249

1

9

2

10

3

11

4

12

5

13

6

14

7

15

8

16

1

9

2

10

3

11

4

12

5

13

6

14

7

15

8

16

Protos XTM is a trademark of Automationdirect.com Incorporated

System.

TM

I/O

www.automationdirect.com

Signal LEDs

1...8

Output 1

Output 2

Output 3

Terminal power
bus contact
+24VDC

Output 4
Output 5

Terminal power
bus contact
0V

Output 6

Output 7

Output 8

Output LEDOutput LED

Output 1Output 9

Output 2Output 10

Output 3

Output 4Output 12
Output 5

Output 6Output 14

Output 7

Output 8Output 16

Tech Support 770-844-4200Sales 800-633-0405

1

3

5

7

2

4

6

8

PX-249

1

2

3

4

5

6

7

8

1

2 10

3

4 12

5

6 14

7

8 16

11

13

15

9

9

10

11

12

13

14

15

16

10

12

14

16

9

11

13

15

Output 11

Output 13

Output 15

Signal LEDs

9...16

I/O Bus
contacts

Output 9

Output 10

Output 11

Output 12

DIN rail
release
tab

Output 13

Output 14

Output 15

Output 16

L

L

If external
power supply,
connect
common (–)
to same
common
as terminal
power bus

(+)

PROTOSx REVISED Insert small template 10-13-2014_Tri-fold.indd 1 10/17/2014 1:36:47 PM

MOUNTING

Firmly pull DIN Rail Release Tab
to unlatch unit from rail.

Where applicable, rotate Locking
Wheel to unlock Bus Coupler

r

For system assembly, rst attach a bus coupler by
snapping onto 35mm DIN rail and securing into posi­tion using the DIN rail locking wheel (where applicable)
located on the left side of the coupler. To add a bus
terminal, insert unit onto right side of bus coupler using
the tongue and groove at the top and bottom of the
unit, pressing gently until it snaps onto the DIN rail.
A proper connection cannot be made by sliding the
units together on the DIN rail. When correctly installed,

no signicant gap can be seen between the attached

units. Bus connection is made through the six slide
contacts located on the upper right side of the units.
Add up to 64 bus terminals per bus coupler, including a
bus end terminal.

Insert unit using tongue and groove
molded guide and press gently until
it becomes firmly seated on DIN rail.

Where applicable, rotate Locking
Wheel to lock Bus Coupler

Align tab with
molded guide

ra.

REMOVAL

A locking mechanism prevents individual units from
being pulled off. For bus terminal removal, pull the

orange DIN rail release tab rmly to unlatch the unit

from the rail. If attached to other terminal units, slide
unit forward until released. For bus couplers with
locking wheels, release the DIN rail locking wheel, then

pull rmly on DIN rail release tab.

WARNING

To minimize the risk of potential safety problems, you
should follow all applicable local and national codes
that regulate the installation and operation of your
equipment. These codes vary from area to area and it is
your responsibility to determine which codes should be
followed, and to verify that the equipment, installation,
and operation are in compliance with the latest revision
of these codes.

Equipment damage or serious injury to
personnel can result from the failure to follow all
applicable codes and standards. We do not guaran­tee the products described in this publication are
suitable for your particular application, nor do we
assume any responsibility for your product design,
installation, or operation.

If you have any questions concerning the instal­lation or operation of this equipment, or if you need
additional information, please call Technical Support at
770-844-4200.

This publication is based on information that was
available at the time it was printed. At AutomationDirect.
com® we constantly strive to improve our products and
services, so we reserve the right to make changes to
the products and/or publications at any time without
notice and without any obligation. This publication may
also discuss features that may not be available in
certain revisions of the product.

WIRING CONNECTION

Wire connection is made through a spring clamp style
terminal. This terminal is designed for a single-conductor

solid or stranded wire. Wire connection is made by rmly

pushing the screwdriver into the screwdriver slot, inserting
the wire into the wire slot and removing the screwdriver,
locking the wire into position.

Screwdrive
Slot

IMPORTANT

For complete assembly instructions and compatibility
between terminals see the PX-USER-M manual available
for free download at www.automationdirect.com.

PROTOSx REVISED Insert small template 10-13-2014_Tri-fold.indd 2 10/17/2014 1:36:51 PM

HOT SWAP NOT PERMITTED

Always remove power from the system before inserting or
removing bus terminals or couplers as failure to do so could
cause malfunction or damage to the terminals, couplers or
other connected devices.

Document Name Edition/Revision Date

PX-249-DS 1st ED. 9/15/2014

Copyright 2014, AutomationDirect.com Incorporated/All Rights Reserved Worldwide.

www.automationdirect.comSales 800-633-0405

Wiring Specications

Connection Type Spring Clamp Terminals

Wire Gauge / Wire Cross Section 28-14 AWG / 0.08 - 2.5mm

Screwdriver Width

Wire Stripping Length 8mm

Tech Support 770-844-4200

Wire Slot

2

2.5mm (0.10) such as our
TW-SD-MSL-2
