Proton Pulse I Instruction Manual

Pulse I Glow plug Ignition Unit

(Notice : the ignition keeps for 20 seconds and automatically
stopped for saving electricity. Resume ignition is available by
pressing start button again.)

INSTRUCTION MANUAL

Thank you for purchasing Proton Control System's product. The
Pulse ignition of Pulse 1 provides good performance with high
efficiency. Also for easy engine starting regardless weather
condition and kinds of plugs, 3 steps of ignition levels are
selectable and the plug in type power supplying makes easily
applying for engines in large cowl likes scale model, helicopter and
it installed up side down.

Features

- Large capacity
Sometimes not enough capacity of one-cell (1.2 V) starter causes
engine-starting failure at the flying field. Pulse 1 can be the
solution because power source of Pulse 1 is 7.2 ~ 12 V and these
batteries are general in RC as battery pack for electric car (6 cells

7.2V) and starter battery (12V). Their high voltage and large
capacity provide long ignition time.

PROTON

CONTROL SYSTEMS

182-4 Dodang-dong Wonmi-ku Bucheon-city Kyounggi-do South Korea, 420-806
tel : [phone]~7, fax : [phone], e-mail : [e-mail]

4 1

- Pulse Ignition
Pulse 1 takes pulse ignition. The efficiency is 50 % better than
general glow starters. Also it prolongs total ignition time.

- Receptacle for easy apply
It is hard to plug in glow starters to the engines for scale air plane
(they have large cowls), helicopter and the engines installed upside
down. Because Pulse 1 is connected by receptacle installed on
fuselage, there is no difficult to start engines in any type of models.

- 3 Step igniting levels (Hot, Medium, Cold)
Strong ignition is required starting engine at cold weather and some
type of plugs. Pulse 1 is selectable ignition level and it makes sure
staring engine at any condition.

Specification

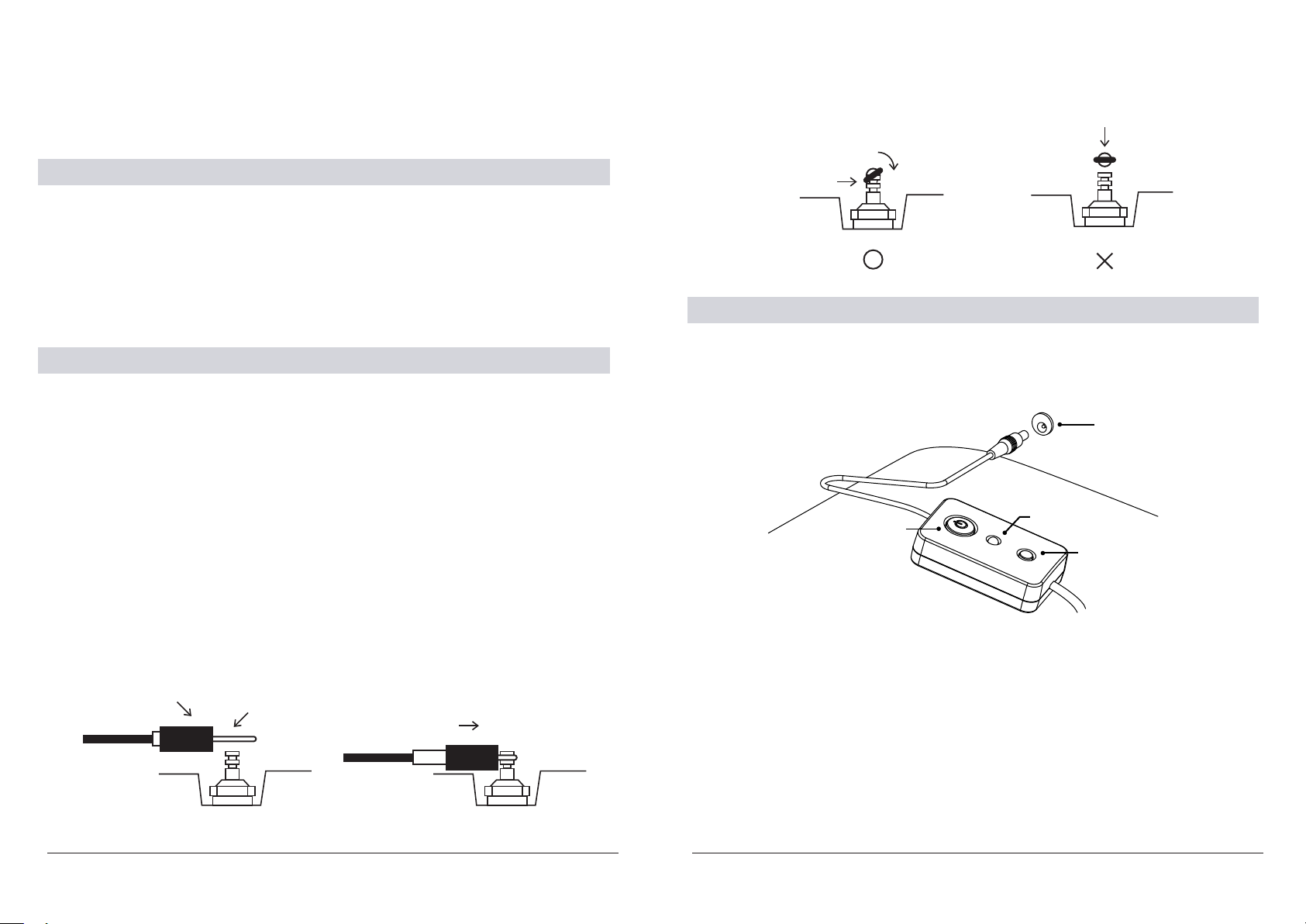

Tip! : U spring can be easily placed on the gloove by locking one
side of U spring then pressing another side as below.

pressing

pressing

locking

Input voltage
Current drain
Size
Weight

: 7.2 V (6 cells battery pack), 12 V battery
: 4 mA (Standby), 1.3 ~ 1.5 A (Ignition)
: 65 X 40 X 18 mm (2.56" X 1.57" X 0.71")
: Pulse 1 : 40.5 g (1.43 oz),
receptacle : 12.7 g (0.45oz)

Contents

: Pulse 1 X 1, receptacle X 1, 12V terminals X 2

Installation

- Pulse 1
a. Connect Pulse 1 with 7.2 V battery pack.
(Notice : For 12V battery, terminals are included in the package.)

- Receptacle Assembly
a. Make 13 mm (0.51") hole in fuselage.
b. Placed the DC jack on the hole and fixed with nut.
(Notice : applying Locktite TM on bolt and nut helps preventing
loosing by engine vibration)
c. Grounding black wire on the engine flange by fastening mounting
bolt.
d. Placed U spring of anode red wire on the top of glow plug and
press till placed it on the groove and sliding silicon tube till fixed
it.

silicon tube

U spring

sliding to fix

Front View

Operation

a. Plug in Pulse 1 to receptacle on fuselage.
(Warning : keep away pulse1 from the propeller for preventing
tangled with plug wire)

receptacle

start button

b. Pressing small button for selecting ignition level according to
temperature and kinds of plugs. (blue : cold, green : medium,
red : hot)
(Notice : hot ignition level is useful at cold weather and cold
type plug but this hot ignition can reduce lifespan of plug.
Is it possible, starting engine at cold or medium level.)
c. Ignition by pressing start button (blinking LED) and starting
engine.

LED indicator

select button for
ignition level

to battery
( 7.2 - 12 V )
