Proton HD P1-E-7020, HD P1-F-7015, HD P1-E-7015, HD P1-T-7015, HD P1-T-7020 Operation Manual
...
OPERATIONS MANUAL
FOR INDUSTRIAL CURTAINS
PROTON HEAT DOOR P1
ErP
2015
05010416
Water heating
Electric heating
Without heating
www.protongroup.org
Safety precautions
Construction and dimensions
Technical parameters
Installation
EN
RU
CONTENTS
Maintenance guide for industrial curtains PROTON HEAT DOOR P1:
1. Introduction ...........................................................................................................................................................
2. Safety precautions .............................................................................................................................................
3. General information ...........................................................................................................................................
4. Dimensions ............................................................................................................................................................
5. Construction .........................................................................................................................................................
6. Technical characteristics .................................................................................................................................
7. Installation ............................................................................................................................................................
8. Connection of heat medium ...........................................................................................................................
9. Control elements ................................................................................................................................................
10. Wiring control elements ..................................................................................................................................
11. Reference information ....................................................................................................................................
3
4
5
6
7
8
10
11
12
13
15
2
1. INTRODUCTION
The company PROTON GROUP LLC thanks you for choosing
industrial curtains PROTON HEAT DOOR P1.
This manual is an integral part of the product and must
always accompany it, and should be transferred to the user.
To provide proper wiring and application of the industrial
curtain, please, study this manual thoroughly before
installation.
We recommend keeping the manual safe in order to address
it during operation and maintenance.
The user should strictly follow safety instructions while
installing, using and servicing the unit.
The access to the unit must be restricted for unauthorized
and unqualified personnel. The appropriate training of the
maintenance sta should be provided.
The manufacturer disclaims any responsibility for damage
caused by wrong installation and misuse of the unit.
The manufacturer disclaims any responsibility for damage
done by people who didn’t study the manual.
The manufacturer preserves the right to introduce any
amendments to the manual without prior notification.
The manufacturer preserves the right to alter the
construction which doesn’t impact its functioning and basic
technical parameters.
The industrial curtain is intended only and exclusively to be
installed and used for purposes which it has been designed.
Any misuse or noncompliance with the manufacturer’s
instructions may lead to property damages, personnel injuries
or death. The user has to take measures to eliminate
possibilities of wrong operation of the curtain.
3
2. SAFETY PRECAUTIONS
Before any actions connected with the air curtains, please, study
this manual to provide safety.
Installation and connection of the equipment to pipelines and
networks must be performed by qualified personnel only,
having appropriate access.
During installation, start-up, repair and maintenance of the
industrial curtain follow the safety rules.
Install the industrial curtain on a firm base or surface, which
can stand its weight filled with water.
Use screws appropriate for the material which the base is
made of.
Check correctness of wiring of the system, accordance of the
heat medium parameters with the parameters indicated on
the rating plate as well as leak proof of joints before filling in
the heat medium.
Avoid substances and impurities in the heat medium causing
copper corrosion.
Check compliance of parameters of the electrical supply
network indicated on the industrial curtain’s rating plate
before connecting to the power supply.
Check grounding. Prohibit the use of the equipment without
grounding as it may cause property damages, personnel
injuries and death.
Current network which feeds the curtain’s motor and controls
must be additionally protected by a fuse to prevent
consequences of shunt fault.
Thermal protection of fan motor is built-in and works in a
standalone mode.
While unit operating under low temperatures, the user must
-t
provide protection of the water heat exchanger or use heat
medium with special additives preventing copper corrosion.
To prevent defrosting of the industrial curtain’s heat
exchanger when circulation of the heat medium is stopped
during a heating period under outdoor temperatures lower
than 0°C, you need to drain the heat medium from the heat
exchanger and blow it o by compressed air.
4
3. GENERAL INFORMATION
PROTON HD P1-T-7015
P – industrial curtainP – industrial curtain
ErP
2015
PROTON HEAT DOOR P1
This is an industrial curtain of high eciency. The products of this series are used to create a barrier in
form of a powerful air stream, which covers door and gateways in buildings where maintenance of
constant climatic conditions is required. The air curtains PROTON HEAT DOOR P1 successfully solve the
problem of heat losses in buildings by cutting o cold or hot outdoor air, and prevent access of dust,
insects, gases, etc. The air curtains are a reliable and valuable solution for energy saving and
separation of climate.
Construction of the air curtains allows to mount them as modules choosing appropriate angle of
curtains installation, and revolving louvers direct the air into the needed area. Wide range of heating
options makes decision-making easier in any buildings.
1– single-phase motor1– single-phase motor
T – water heating
T – water heating
E – electric heating
E – electric heating
F – without heating
F – without heating
70 – distance of air stream70 – distance of air stream
15 – length 1500 mm
15 – length 1500 mm
20 – length 2000 mm
20 – length 2000 mm
Heating curtains with water heating
Heating curtains apply hot water as a heat medium. They are very ecient and powerful, save money
and require low overhead and operating costs.
Electric heating
These air curtains apply electric heating elements as a heat medium. The advantage of this equipment
is that it is easy and simple to install. Electric curtains are optimal solution for buildings where there is
no hot water supply and its use is unreasonable.
Without heating
Curtains without heating are designed for cutting o outdoor air in doorways of the conditioned
buildings, refrigerators, where ingress of outdoor air is undesirable. This type of curtains is very
eective for preventing access of dust, insects, gases, etc.
5

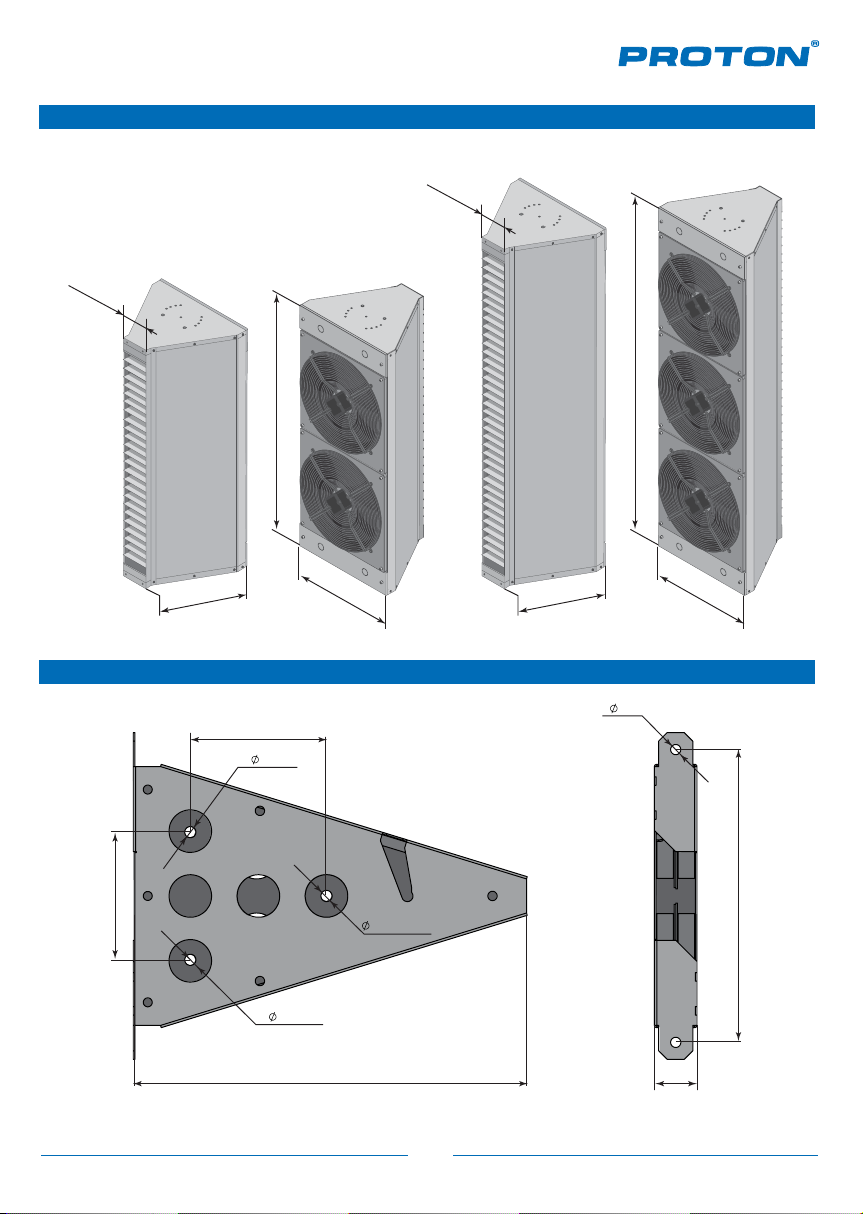

4. DIMENSIONS
Dimensions of industrial curtain PROTON HEAT DOOR P1
100
1500
100
2000
560
590
Dimensions of a mounting console СM HD
160
13.2
150
13.2
462
560
590
12
344
13.2
50
6
