DRONIUM 3X
DRONE WITH LIVE STREAMING CAMERA
Page 2
Page 3
Thank you for your purchase of Protocol’s Dronium 3X Drone
with Live Streaming Camera. You are about to experience
the best of what remote control flight has to offer. We strongly
recommend that you take the time to read this manual
thoroughly. It contains many tips and instructions on how to
get the most out of this aircraft and maintain it for a long life.
As with any aircraft, this is a precision flying machine.Treat it
well and enjoy all the fun it has to offer, flight after flight.
THANK YOU.
Page 4
01 Safety & Precautions
02 Parts
04 Remote Battery & Blade Guard Installation
05 Charging the Drone
06 Start-Up Procedure
08 Operation
10 Tips on 360° Flips
12 Speed Modes
13 Trim Adjustment
14 Troubleshooting
15 Flying Outdoors
16 Shooting Photo/Video
17 Replacement Parts & Limited Warranty
TABLE OF CONTENTS
Page 5
SAFETY WARNINGS
• Read and follow instructions on how to synchronize and calibrate
electronics before each flight.
• To prevent damage to people or property, always avoid contact with
other objects while in flight.
• Inspect aircraft prior to each flight and do not fly if damaged.
• Never expose product or any of its electronic parts to moisture, water,
or heat sources.
• To prevent overheating, allow battery a cool-down period
before recharging.
• To prolong engine life, allow a cool-down period between flights.
• Use only the charger and/or charging cable that is suplied with
this item.
• Do not strike, cut, or pierce the internal battery or subject it to
hard impacts.
• Do not mix old and new batteries or mix different types of batteries.
• Never attempte to modify function of vehicle or controller or attempt
repairs using parts other then those supplied by Protocol. Spare parts
are available at www.ProtocolNY.com
HAVE FUN, BUT SAFETY FIRST!
THIS DEVICE USES COMPONETS THAT OPERATE AT HIGH SPEEDS.
AS WITH ANY SUCH DEVICE, USE CAUTION TO OPERATE SAFELY.
FAILURE TO FOLLOW ANY OF THESE GUIDELINES MAY RESULT IN BODILY
INJURY OR DAMAGE TO PERSONAL OR PUBLIC PROPERTY.
1
Page 6

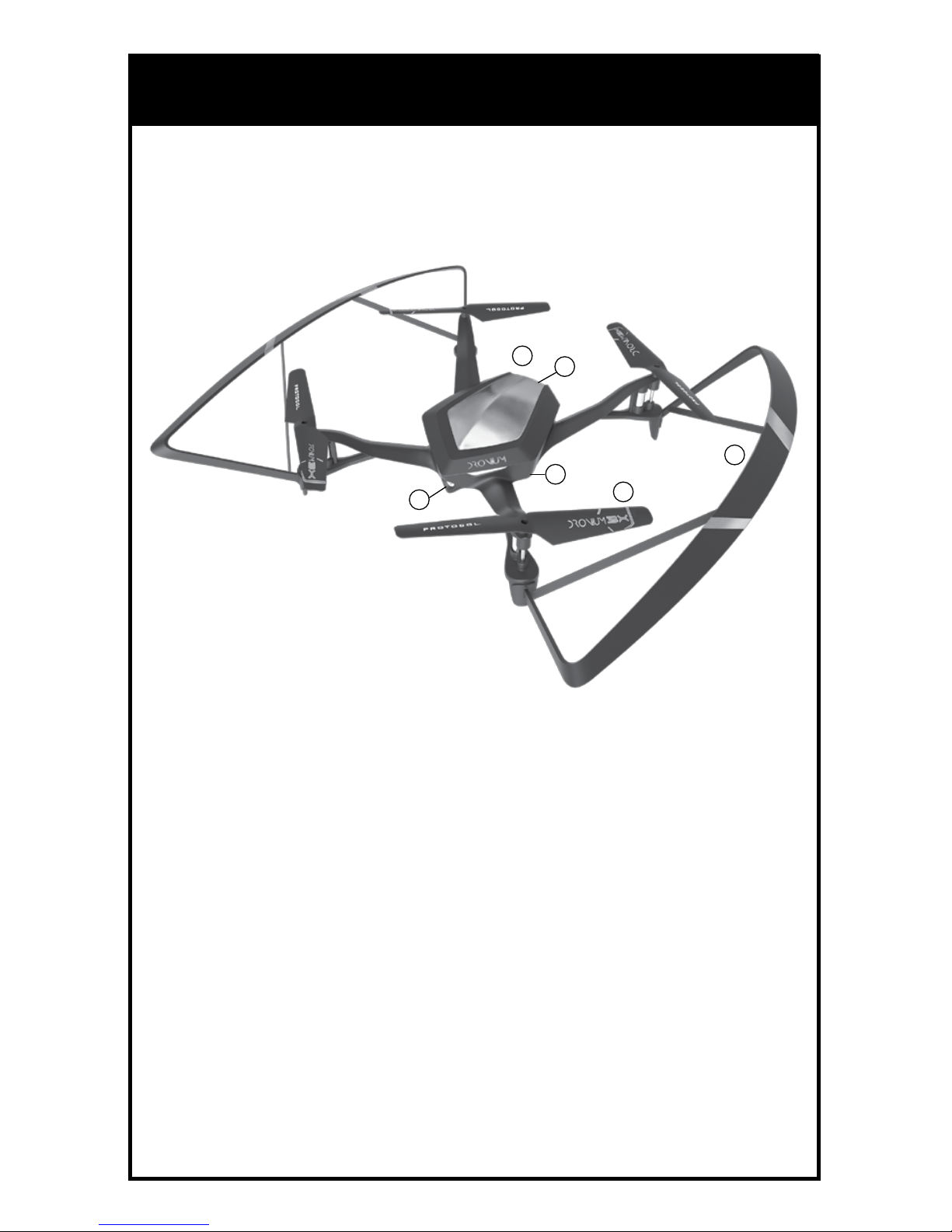

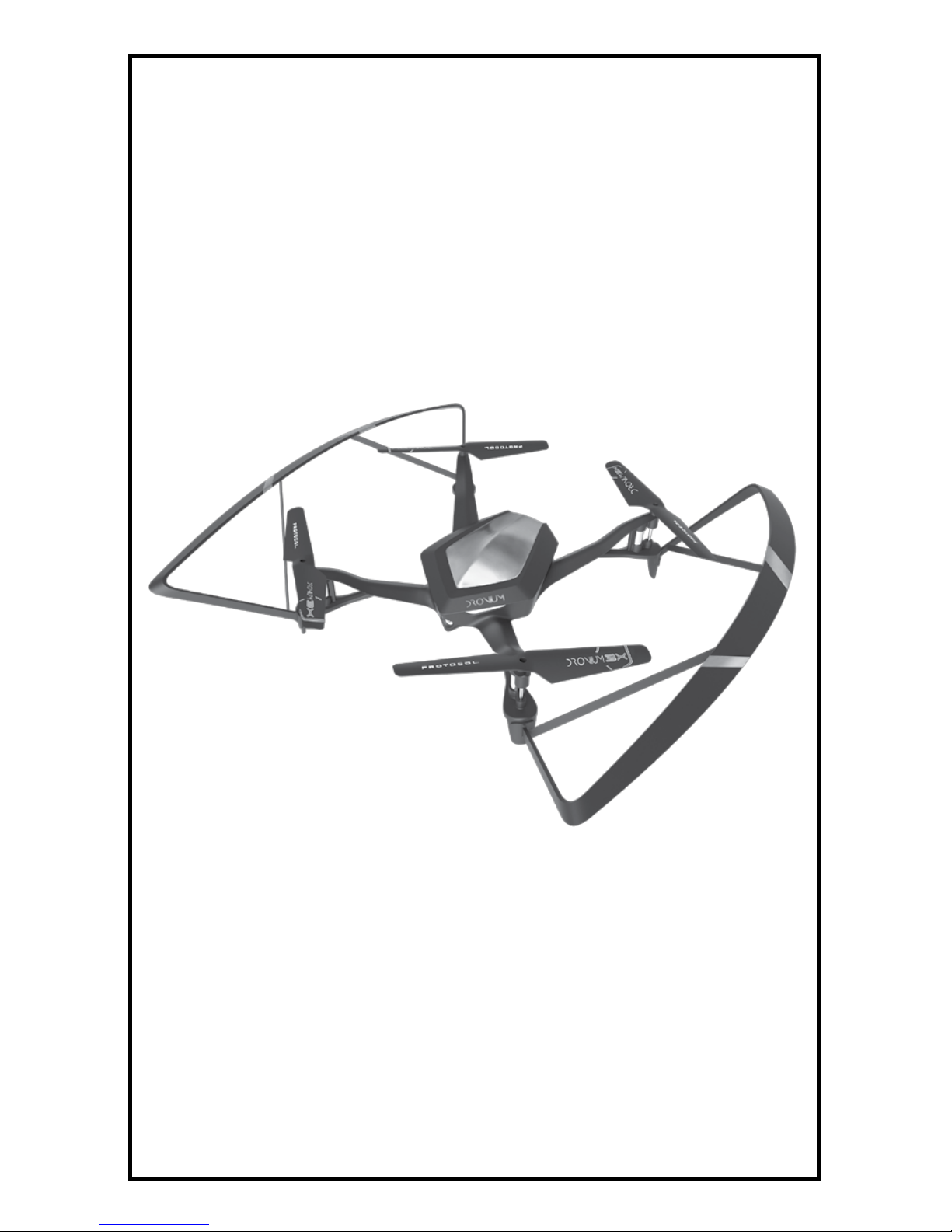

PARTS
DRONE
1. Canopy
2. Blade Guard
3. Blade
4. Battery Compartment
5. Camera
6. ON/OFF Switch
5
3
2
4
1
2
6
Page 7

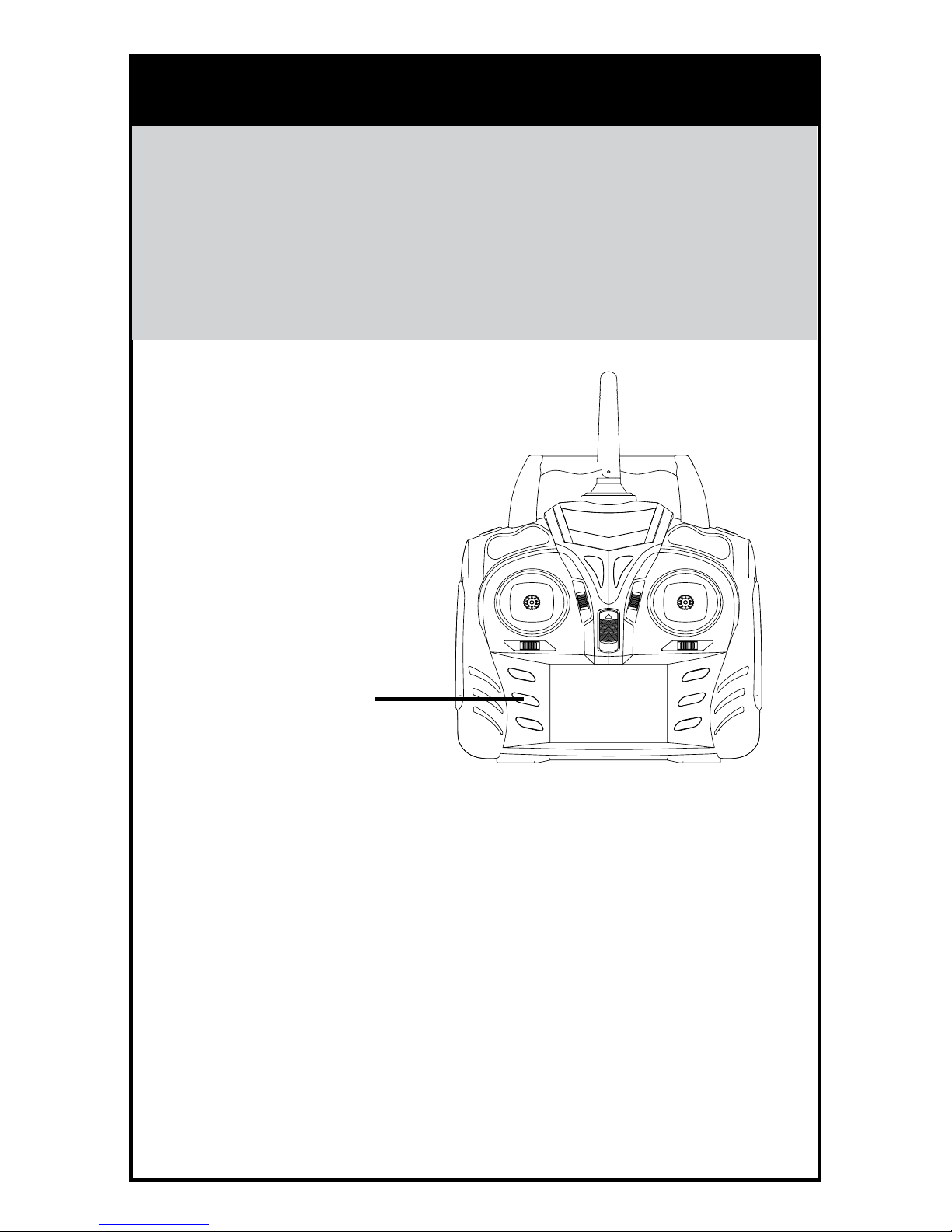

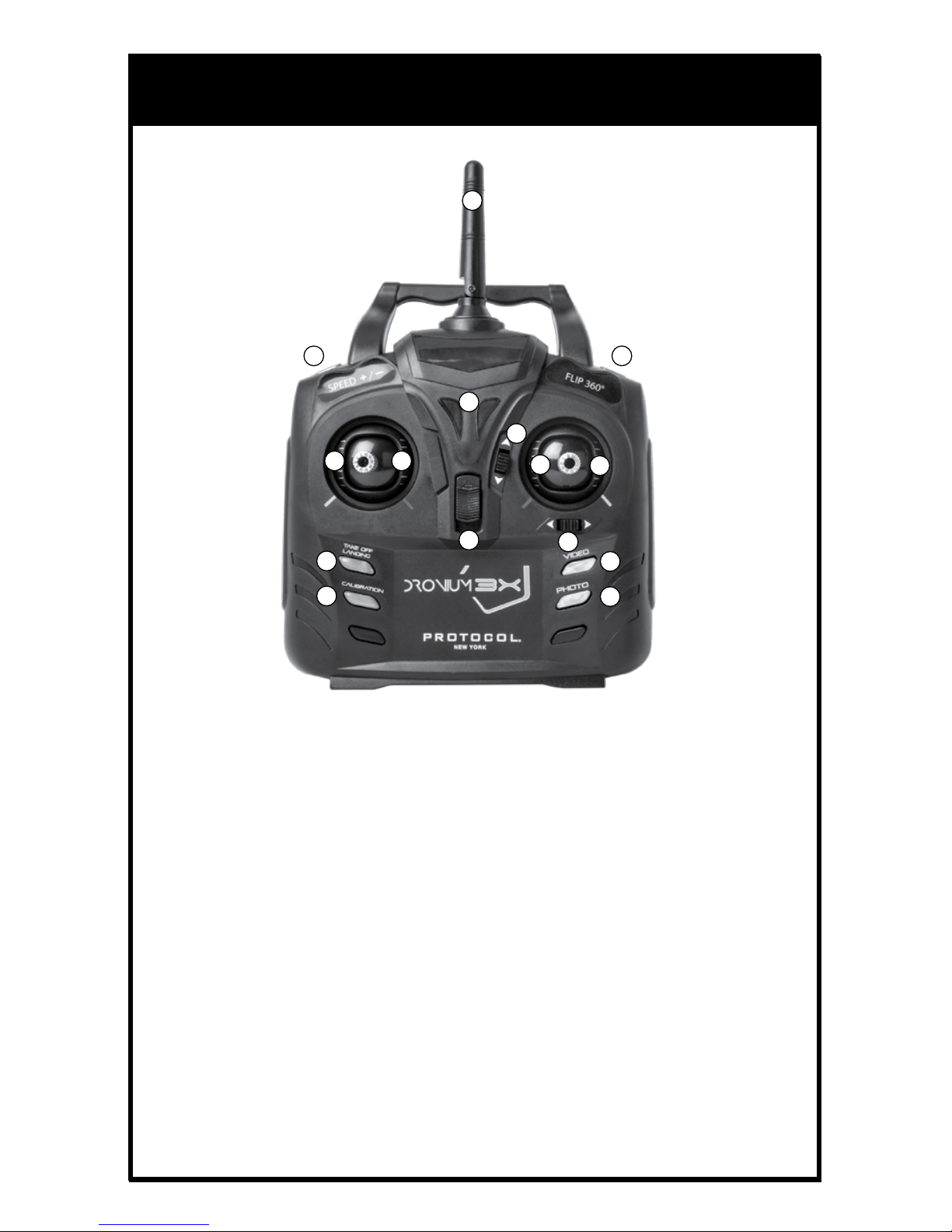

REMOTE
1. 2.4G Antenna
2. Power Switch
3. Trim Forward/Backward
4. Flip 360°
5. Forward/Backward
6. Bank Left/Right
7. Video
8. Photo
9. Trim Bank Left/Right
10. Indicator Light
11. Throttle
12. Turn Left/Right
13. Speed Mode Selector
14. Take Off/Landing
15. Calibration
SPARE PARTS INCLUDED
- Replacement Blades
- Blade Guards
- Screwdriver
PARTS
14
15
1
13
2
4
10
3
6
5
9
7
8
3
11 12
Page 8

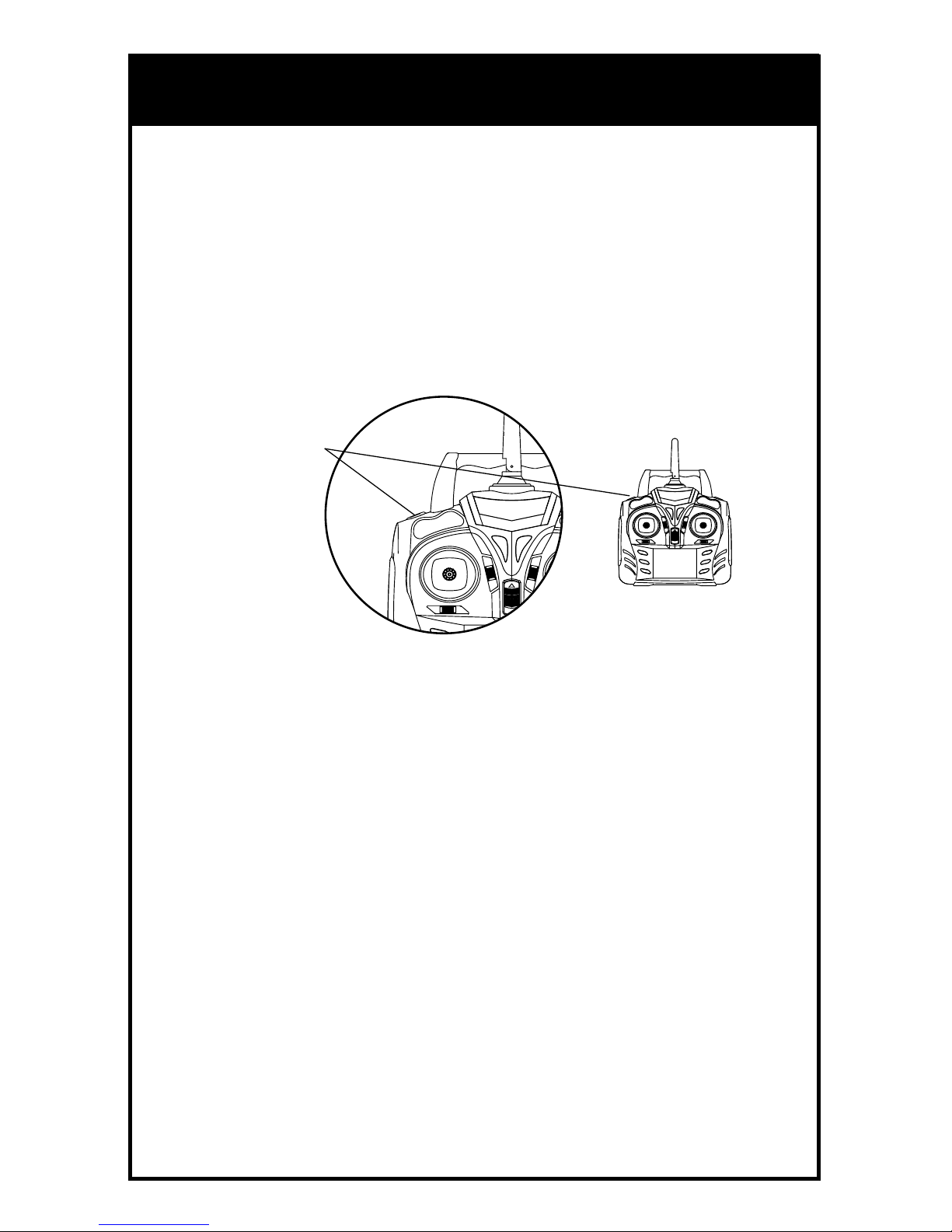

INSTALLING THE BLADE GUARD
If not already installed, install the included blade guards by snapping them in
and tightening the screws. Make sure the blade guards are secure and snug.
NOTE:
Loose blade guards may interfere
with propeller movement and cause
a crash. If the drone crashes, double
check to make sure the blade guard
is not loose. If it is, re-tighten
before flying.
Battery cover

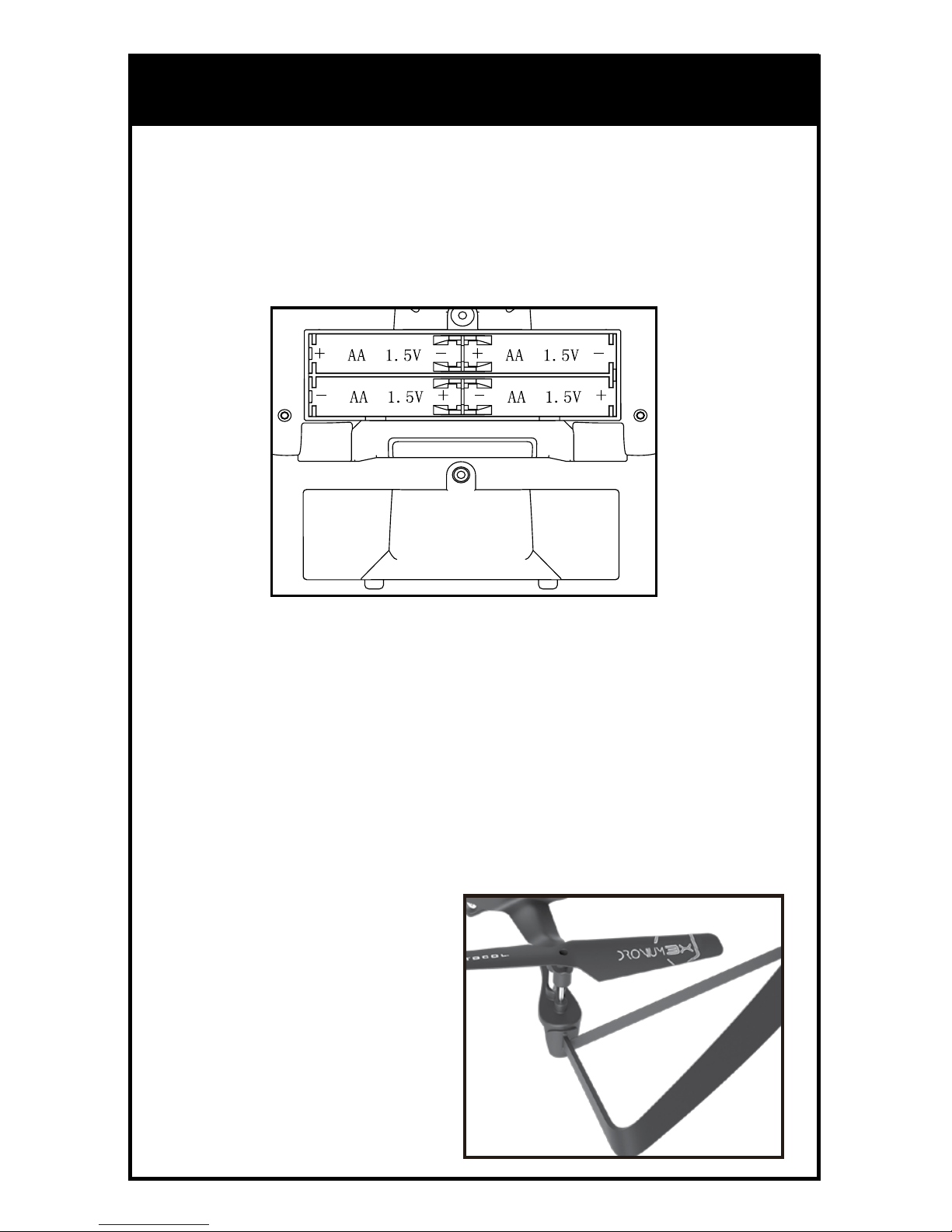

REMOTE BATTERY AND BLADE GUARD INSTALLATION
1. Install batteries carefully.
2. Do not mix old and new batteries.
3. Do not mix different types of batteries.
Unscrew and remove battery cover from controller. Insert 4 x ‘AA’ batteries
according to indicated polarities. Replace and screw back in battery cover.
4
Page 9

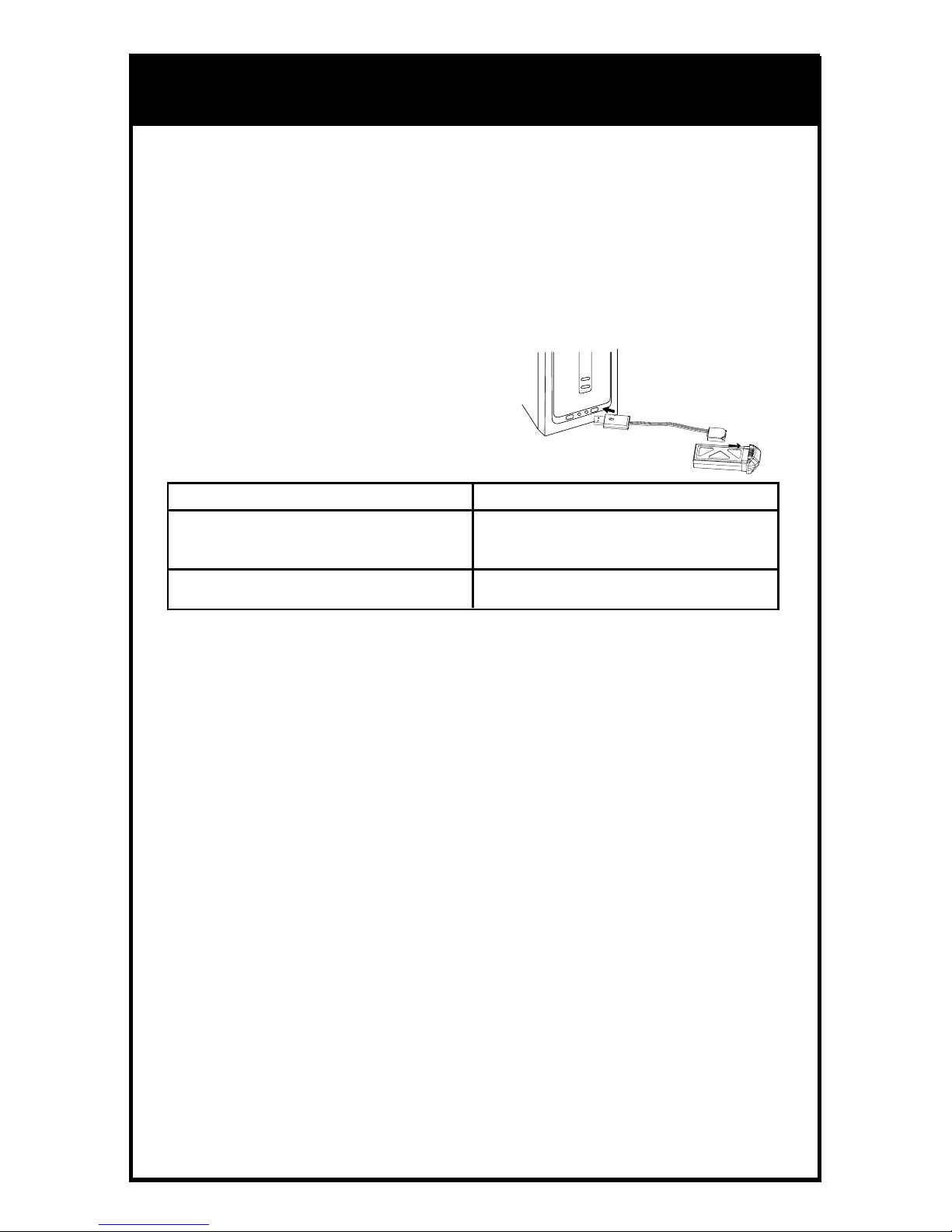

CHARGING THE DRONE BATTERY
1. Make sure the drone is turned off.
2. Pull out the cartridge battery from the drone.
3. Connect the USB charging cable to the battery.
4. Plug the charger into a USB port. The USB light will turn off while charging
and will turn on once fully charged.
5. Plug the battery back into the drone and close the battery cover.
Charging time: 150 minutes --- Flying time: approximately 12-15 minutes
CAUTION WHEN CHARGING
1. When charging, place product on a dry, well-ventilated surface and keep
away from heat sources.
2. Always use adult supervision while charging.
3. In order to increase battery longevity, avoid repeat charging and excessive
discharging.
4. As battery temperature is high immediately after flight, charge after cooling
down for higher efficiency.
5. Do not strike or subject battery to hard impacts or sharp surfaces.
6. Do not use any other charger than that which is supplied with this item.
7. Do not use or leave battery near a heat source such as fire or space heater;
exposure to heat may result in reduced performance or in some cases
dangerous conditions.
8. If battery is left in charging state for an extended period of time after being
fully charged, the battery may automatically discharge.
9. Never leave the battery unattended during charging.
10. Do not disassemble battery.
11. Do not submerge battery in water.
5
DO NOT CHARGE OVERNIGHT OR BEYOND
THE CHARGING TIME STATED. DO NOT LEAVE
BATTERY UNATTENDED.
*Battery: Li-Po, 3.7V, 1800mAh
Lights are steady Power is over 70% - will perform flips
Lights slowly flash once every 2 seconds
Power is under 70% - will continue to fly
but will no longer perform flips –
approximately 8-9 minutes left of flight time
Lights quickly flash twice every second Power is under 20% - approximately
2 minutes left of flight time
BATTERY SIGNALS
If you purchased extra batteries, allow the engines to cool between flights in order
to prolong engine life.
Page 10
START-UP PROCEDURE
NOTE:
1. While the drone is in process of synchronizing or calibrating, the lights
will flash quickly. When the process is completed, the lights will go
steady. This is your indication that the process is completed.
2. If after 30 seconds, it has not recognized the drone, turn off the controller
and repeat Start-Up procedure.
3. If the Dronium 3X is unsteady in flight, it may not have been able to
calibrate properly. Power down both drone and remote and restart
pre-flight procedure, including re-calibration of the altitude sensor.
4. For the Altitude Sensor to calibrate properly, the drone must be
synchronized already, but the engines not spinning yet. You cannot
calibrate while the propellers are turning. You have to calibrate before
you start the engines.
Before flying, the drone and transmitter must be turned on in sequence and
synchronized. Once synchronized, you must press the calibration button so the
Altitude Sensor can set properly.
1. Turn on the drone and place it on an even surface. The white lights on the
drone are at the front and the red are at the back.
2. Turn on the remote control.
3. Both indicators on the drone and the remote will flash while they are syncing.
4. Push the throttle up and then down to sync. You will hear two beeps and the
lights will go steady.
5. Next, you must calibrate the Altitude Sensor. Press the calibration button
once. Lights will flash quickly and will go steady when finished. Your drone
is now synchronized, calibrated, and in stand-by mode awaiting Engine
Idle command.
6
Page 11
START-UP PROCEDURE
TO CALIBRATE ALTITUDE SENSOR
Press the calibration button once
BEFORE STARTING THE ENGINES,
CALIBRATE THE ALTITUDE SENSOR.
DO THIS BEFORE EACH FLIGHT –
EVERY TIME!
Calibration Button*
* Press once to calibrate. Lights will flash quickly during calibration and then
go steady when completed. Don’t worry if you press it again as it will simply
recalibrate again.
NOTE:
The Altitude Sensor assists pilots by stabilizing altitude fluctuations. This
stabilizing technology reduces, but does not eliminate all fluctuations. The
drone may drift upwards or downwards somewhat during flight. This is normal.
Manual adjustments to altitude are part of the normal piloting process.
STARTING THE ENGINE:
After synchronizing and calibrating the drone, move the throttle and direction
sticks to the lower left and lower right corners (green lines) and release to go
into Idle mode. The blades will rotate but the drone will not lift.
7
Page 12
NOTE:
- The engine will shut off if you choose to hold the throttle down for 3 seconds.
- Emergency Shut Off: When in flight,
pull the throttle and direction stick to
the center at the same time (red lines)
and the drone will shut off.
* The drone may drift a bit, especially in the first
30 seconds until the altitude sensor gets a good fix on the position.
Some drift is normal.

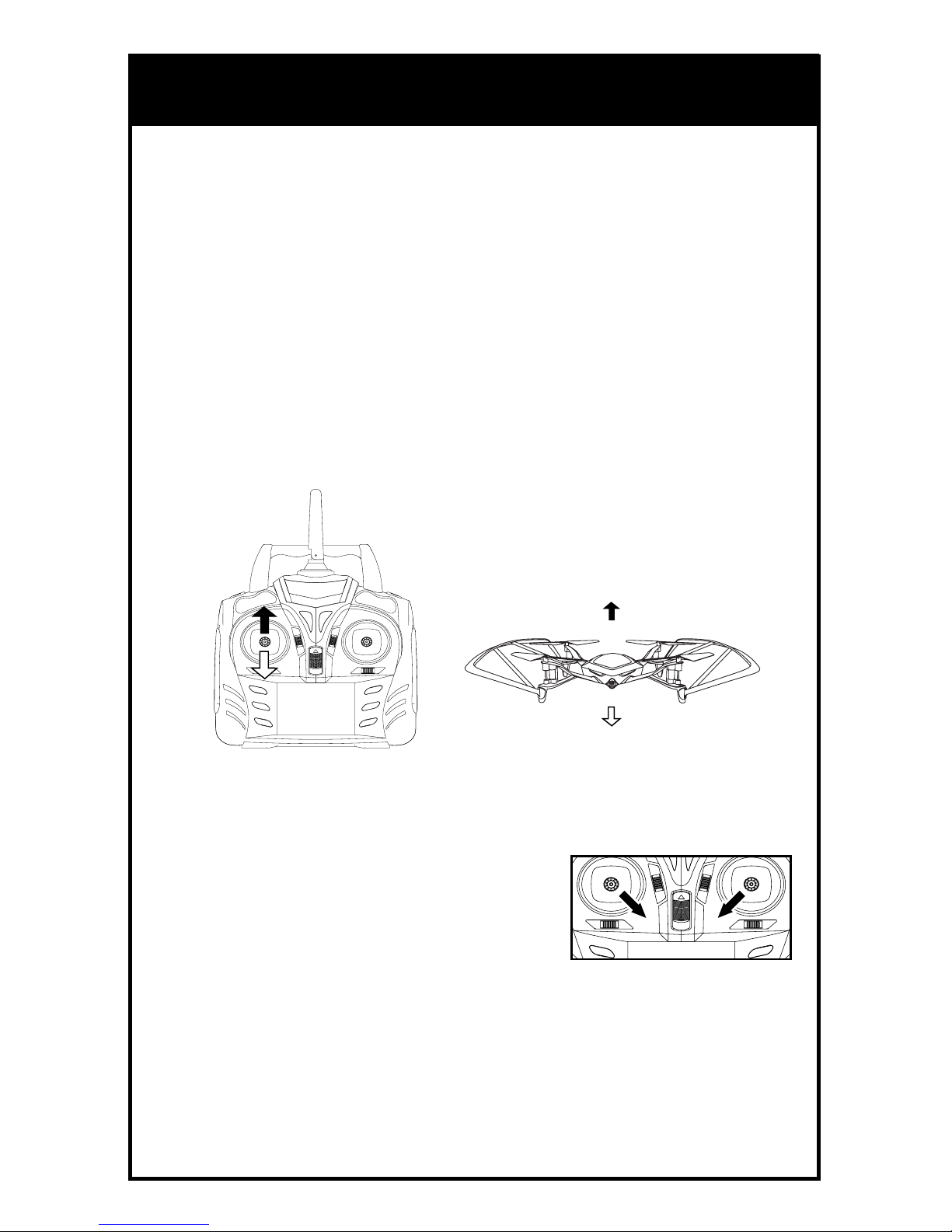

OPERATION: FLYING THE DRONE

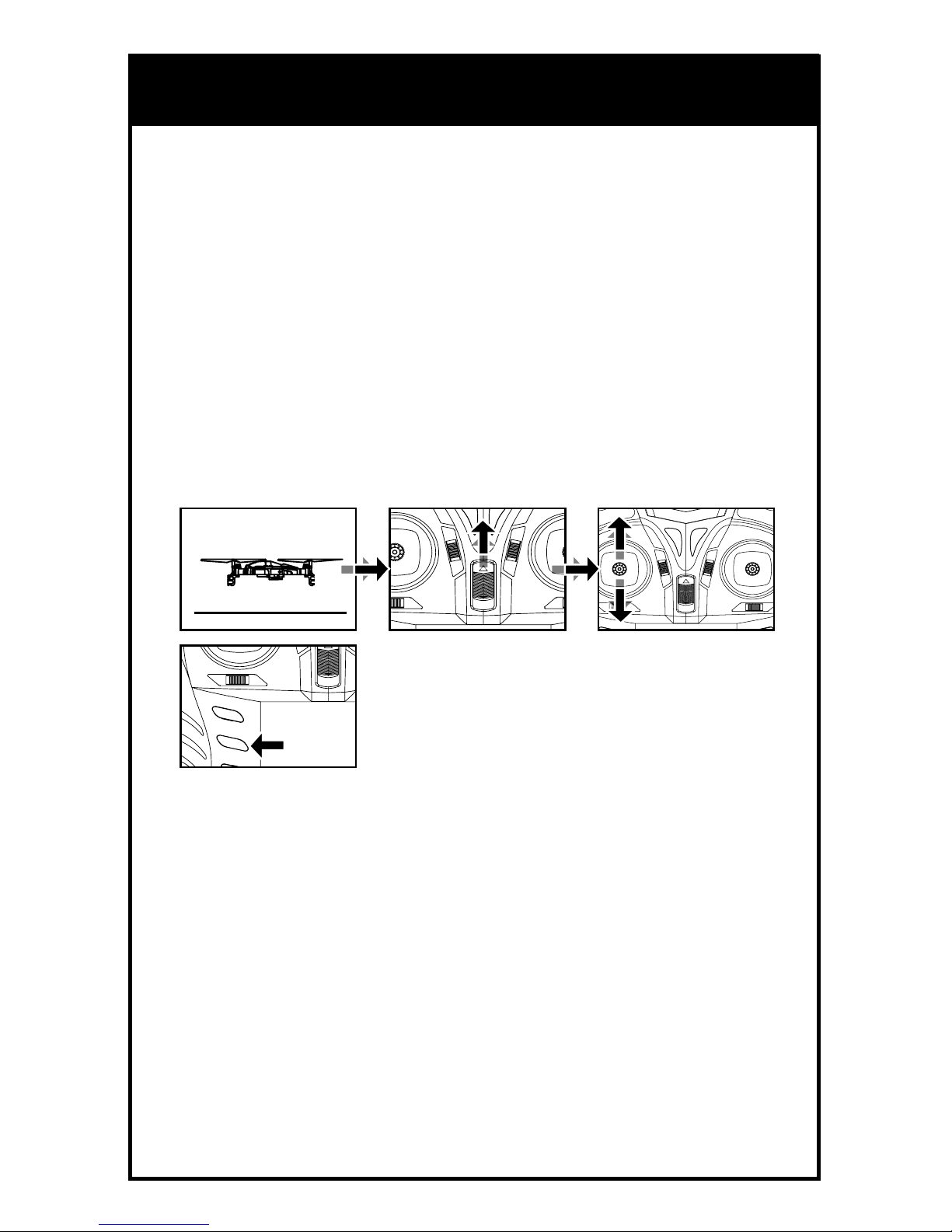

TAKE–OFF:
1. Press the take off button. The remote will beep and the drone will hover a
few feet off the ground. Then gently advance the throttle to a desired height
and release. The drone will hover at that height.*
OR
2. From Idle mode, gently advance the throttle up to a desired height and
release. The drone will hover at that height.*
LANDING:
1. Press the landing button to lower the drone to the ground.
OR
2. Push down on the throttle until the drone is on the ground.
UP
DOWN
8
Page 13

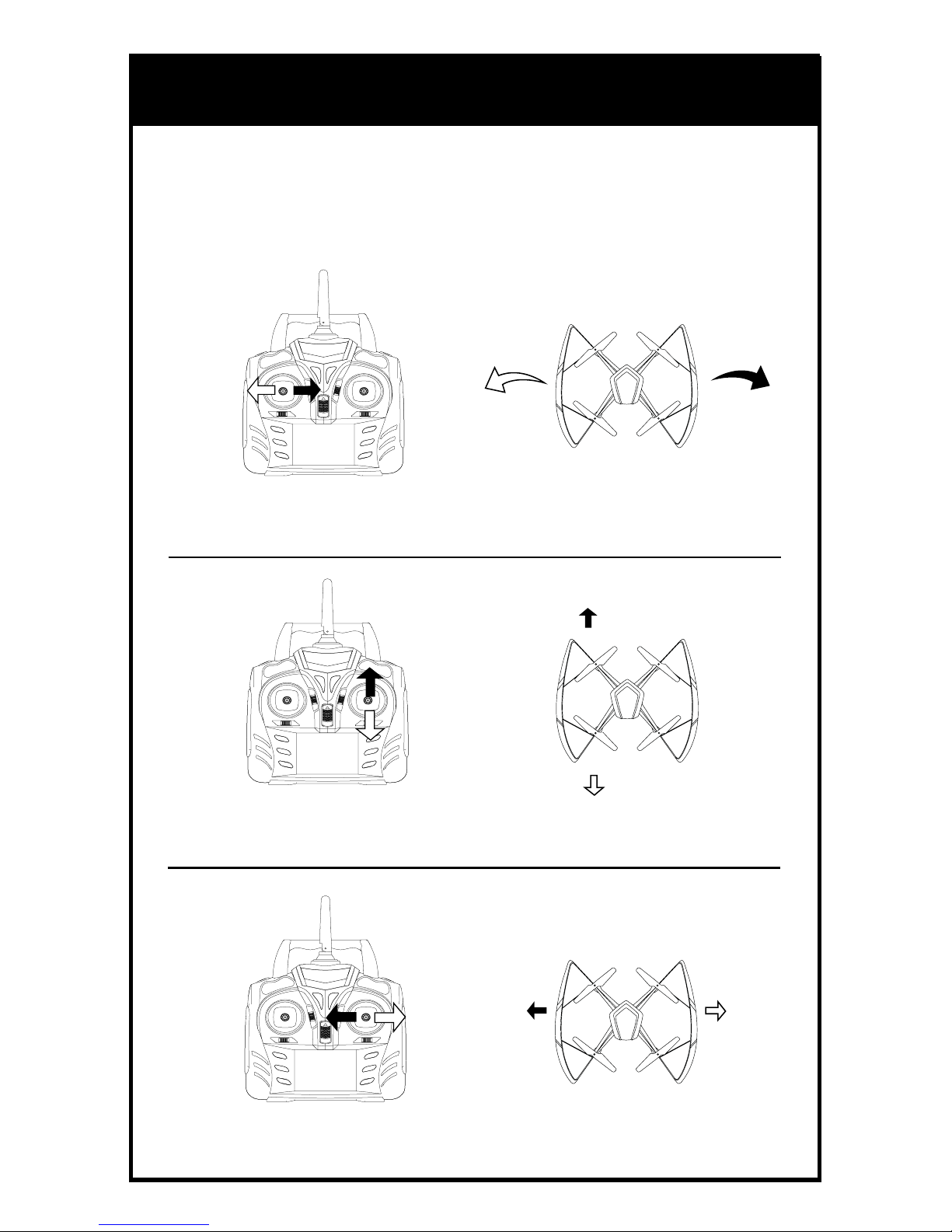

FORWARD
OPERATION: FLYING THE DRONE
Pull the throttle left or right,
the drone turns to the left or right.
Push the direction lever up or down,
the drone flies forward or backward.
Pull the direction lever to the left or right,
the drone banks to the left or right.
FIRST TIME FLYERS!!! TAKE YOUR TIME! GO SLOW!
Practice hovering until you are comfortable with flight before attempting any
other maneuvers. Make small movements letting the stick return to the center.
If you start to lose control, don’t panic. Just press land.
LEFT ROTATION RIGHT ROTATION
BACKWARD
RIGHT MOVEMENTLEFT MOVEMENT
9
Page 14

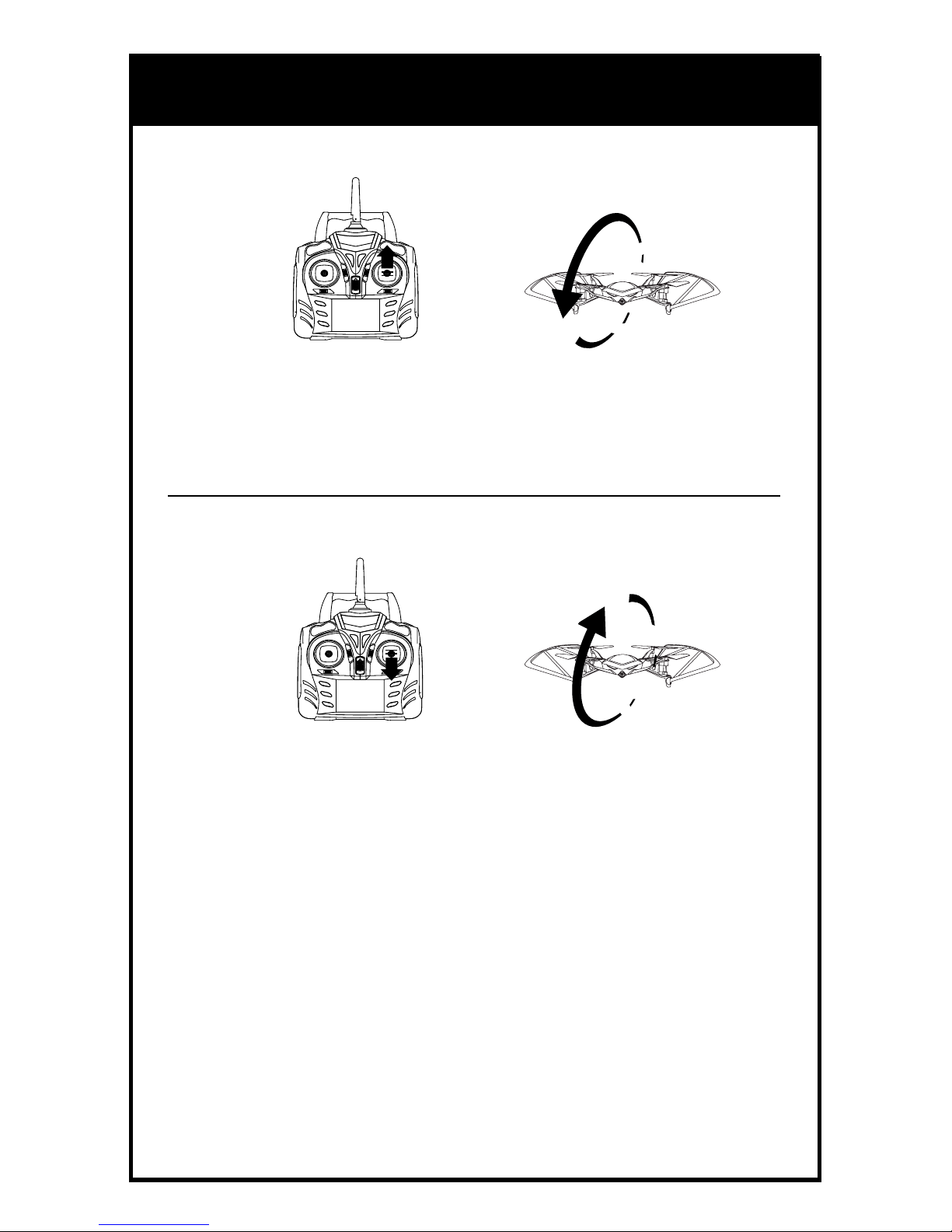

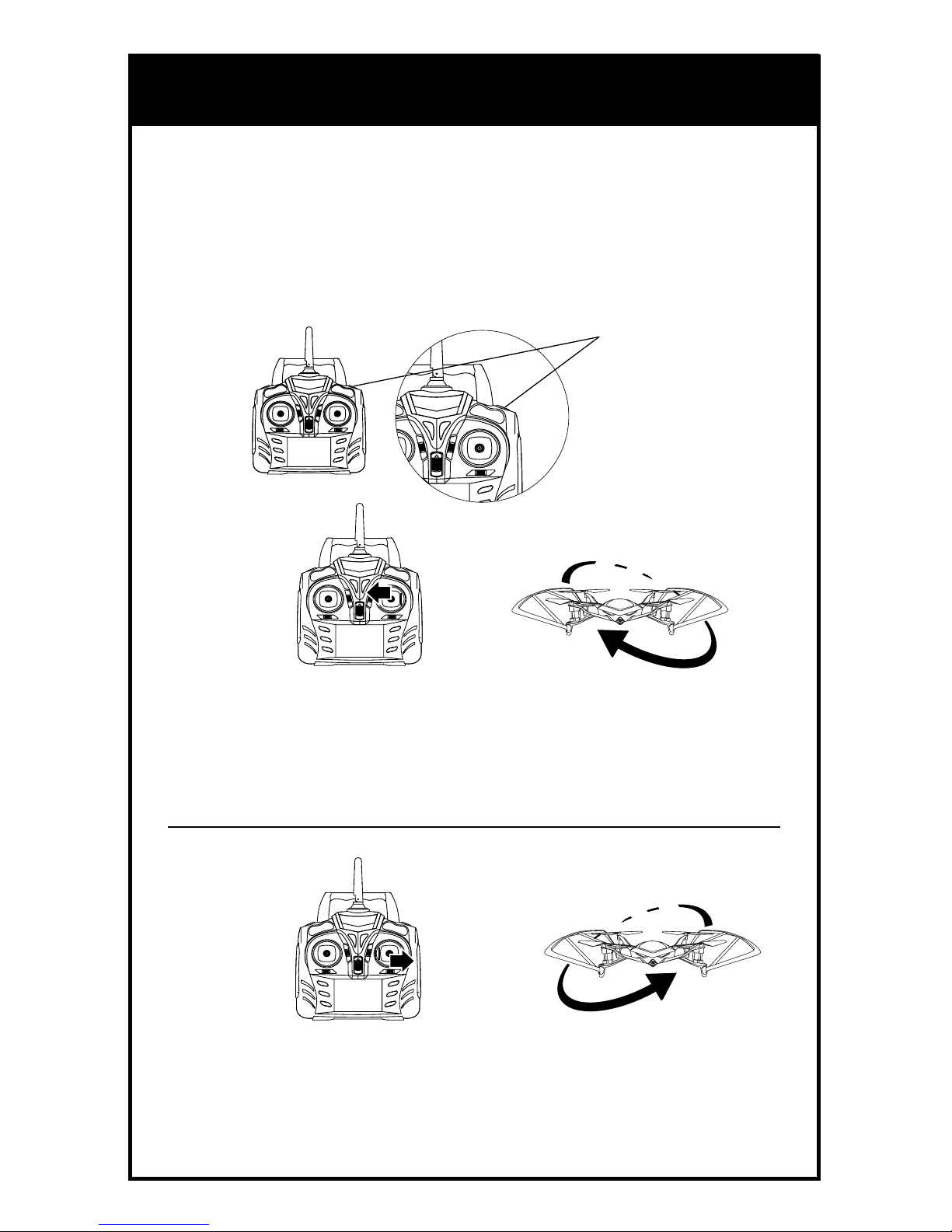

TIPS ON 360° FLIPS
Once you have become skilled with the basics of drone flight, you can try some
advanced maneuvers. At a height of at least 10 feet, press the Flip Mode button
and move the direction lever in any desired direction to execute the flip. The
remote will beep quickly when you are in stunt mode and will stop beeping once
you have executed the flip.
*The drone will flip when battery power is over 70% and the lights on the drone
are steady.
LEFT 360° FLIP
Push the direction stick to the left and the drone will perform a 360° flip in
that direction.
RIGHT 360° FLIP
Push the direction stick to the right and the drone will perform a 360° flip in
that direction.
STUNT BUTTON
10
Page 15
OPERATION: FLYING THE DRONE
FORWARD 360° FLIP
Push the direction stick forward and the drone will perform a 360° flip in
that direction.
BACKWARD 360° FLIP
Push the direction stick backward and the drone will perform a 360° flip in
that direction.
11
Page 16
SPEED MODES
The Dronium 3X features multiple speed modes. Choose the speed based on
flight experience and level of comfort. At higher speeds, the drone will pitch
more than at lower speeds. Dronium 3X is quite fast at its highest speed
and requires more piloting skills to fly competently. For safety take time to
develop advanced skills by practicing at lower speeds first. Press the Speed
+/- button to change the speed mode. The remote control indicator will beep
once at slowest speed mode and multiple times as speed mode
is increased.
SPEED BUTTON
12
Page 17

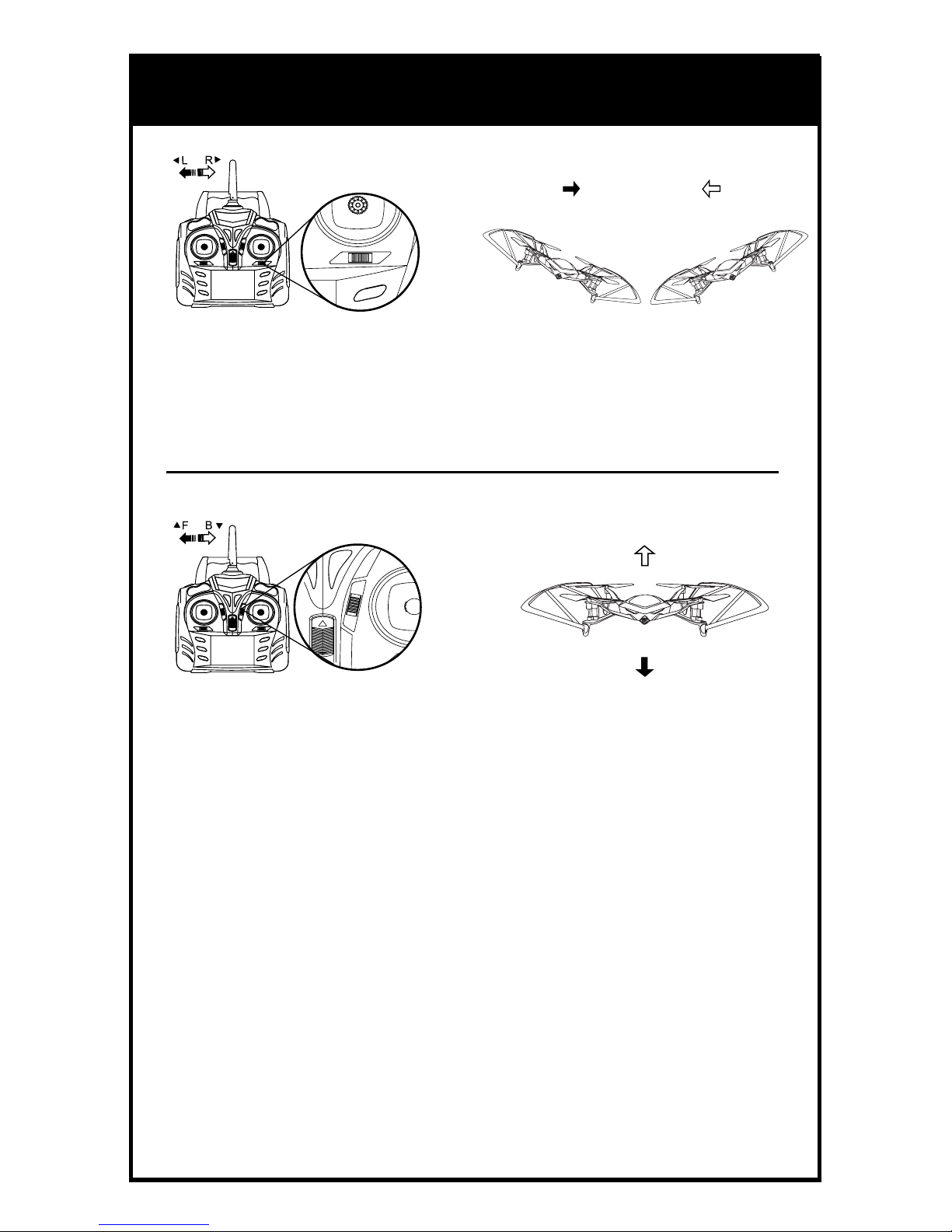

TRIM ADJUSTMENT
SIDEWAYS TRIM
When the drone drifts to the left or right side unintentionally, you can correct it by
pressing the trim button in the opposite direction until it evens out.
FORWARD/BACKWARD TRIM
When the drone drifts forward/backward unintentionally, you can correct it by
pressing the trim button in the opposite direction until it evens out.
*NOTE: Trim adjustments are designed to counter drifts not caused by wind.
RIGHT MOVEMENTLEFT MOVEMENT
FORWARD
BACKWARD
13
Page 18
TROUBLESHOOTING
POSSIBLE CAUSESYMPTOM POTENTIAL SOLUTION
Dronium 3X
does not
respond
1. Communication between
controller and aircraft was not
synchronized during set up
2. Battery power depleted on
aircraft, controller or both.
1. To synchronize, turn on aircraft
first, place it on level ground, and
then turn on controller.
2. Charge aircraft and/or replace
batteries in controller.
Response to
control inputs
intermittent or
erratic
1. Controller battery power
nearly depleted.
1. Replace batteries in controller.
Dronium 3X
will not hover
or strafe
correctly
1. The aircraft was not
on level ground during
synchronization.
2. Trim settings are incorrect.
1. Re-synchronize aircraft
and controller.
2. Recalibrate the Altitude Sensor.
3. Reset the trim buttons on the
controller and re-trim flight controls.
*Allow 15 minutes to pass between full flights as this will give the motors a chance
to cool down. Failure to do so could wear out and shorten the life of the motors.

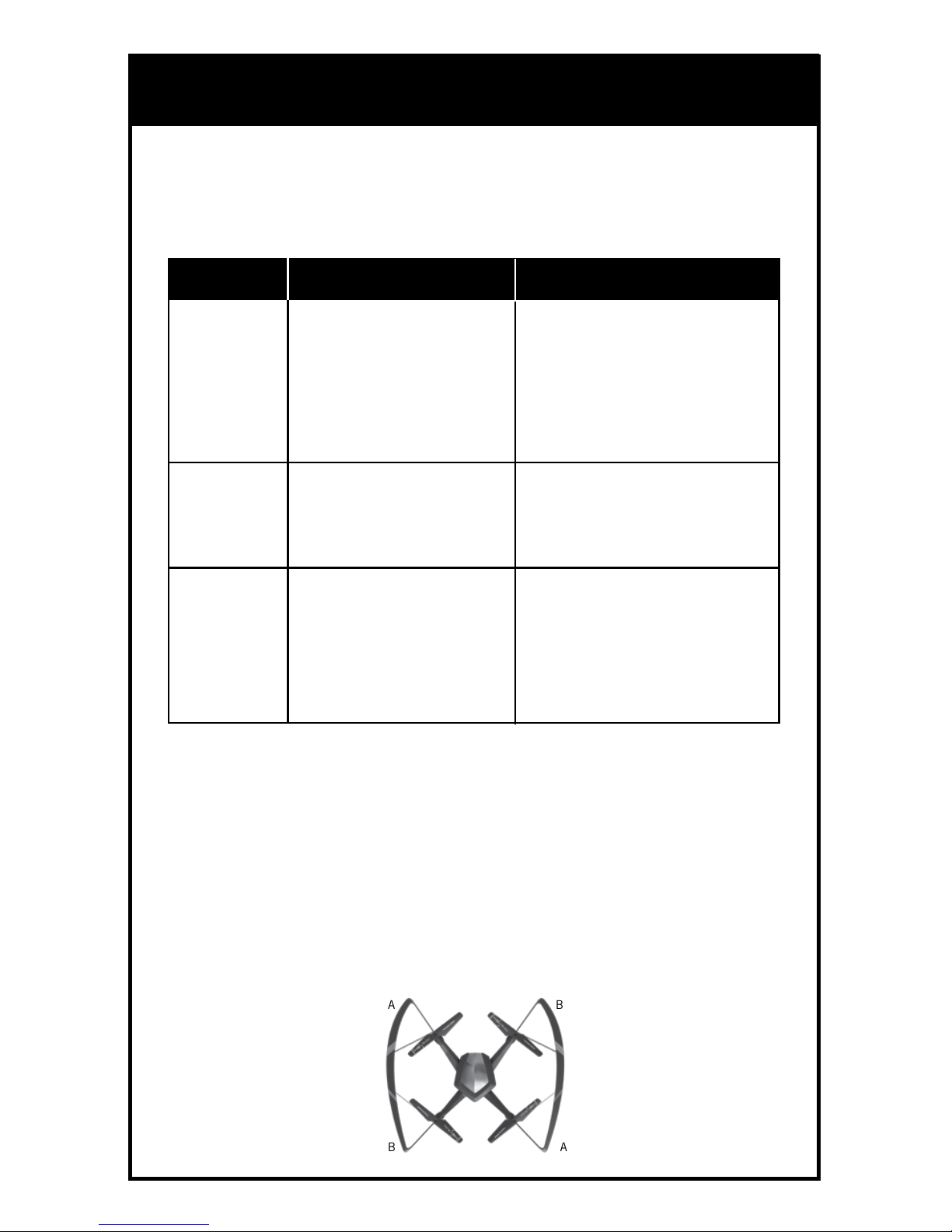

HOW TO CHANGE THE BLADES
- All drones have two rotors that spin clockwise and two rotors that spin
counter-clockwise.
- Make sure to place the blades on the correct axis or they will not spin
correctly and the drone will not lift.
- Each blade is marked on its underside with A or B. There may be a
number after the letter but you can ignore the number.
- Make sure to follow the graphic below to see where to place the blades.
14
CAMERA/FRONT
A B
AB
Page 19
FLYING OUTDOORS
HOW TO PREVENT FLY AWAYS
To prevent “fly-away” situations (where drones seem to fly away out of
control) it is important to first test and practice within close range before
letting the drone fly too far away.
Each drone is designed to turn off the engines if the radio signal is lost.
It is important to know and test the range of your drone before flying. We
recommend turning on and syncing the drone and walking away while
testing the engines. Keep walking and testing until it is obvious when you
reach the point where the signal is not controlling the drone. This will be
the control limit for the conditions in which you are flying. Distance does
vary somewhat based on environmental and weather conditions, so testing
the limit is advised. Fly in a range that is good for easy visual operation of
the drone.
IF YOU CAN’T SEE YOUR DRONE, THEN YOU CAN’T CONTROL
YOUR DRONE.
* Fly-aways are not covered by warranty as they are overwhelmingly caused
by pilot error.
15
Page 20
SHOOTING PHOTO/VIDEO
1. The memory card comes pre-inserted into the camera.
SHOOTING PHOTOS AND VIDEO
1. Turn on the drone and sync.
2. Photo: Push the Photo button and the camera will take a photo. The lights
on the drone will flash once as it’s taking the picture.
3. Video: Push the Video and the camera will begin to record. The lights on
the camera will flash continuously while recording. Push the Video button
again and the camera will stop recording.
4. Press the memory card to unlock and remove. Plug it into the USB card
reader. Then plug the card reader into the USB port of your computer. If you
are using Windows, the USB will come up on the removable drive. If you are
using OS, then the USB will come up as “Untitled”.
5. Open the drive and then open the Video or Photo folders to access the .AVI
or JPEG files.
6. .AVI movies can be played in several different formats including Quicktime,
Windows Media Player, and RealPlayer.
WARNING: Never remove the card from the video camera while the drone is
turned on.
16
Page 21
REPLACEMENT PARTS
Thank you for your purchase of Protocol’s Dronium 3X Drone with Live Streaming
Camera. We know that accidents can sometimes happen and that is why we offer
spare parts kits on our website: www.ProtocolNY.com.
At Protocol, we’re dedicated to bringing you innovative and well-designed
products that make living fun and easy. We stand behind all of our products
and warrant this to be free from defects in workmanship and materials for 30
days from the date of purchase. The warranty does not cover transportation
damage, misuse, accident, or similar events. Specific legal rights pertaining
to this warranty may vary by state.
For service claims or questions please consult our website
www.ProtocolNY.com.
LIMITED WARRANTY
17
Page 22
Loading...
