2 BACnet/LonWorks Setup for ProtoNode RER/LER .......................................................................................... 6
2.1Installation steps for the customer ................................................................................................................ 6
2.2Record Identification Data ............................................................................................................................. 6
2.3Configure the DIP Switches ............................................................................................................................ 6
2.3.1 Setting the Node/ID Device Instance (DIP Switch A0 – A7) for BACnet MS/TP, BACnet/IP, and Metasys
N2 ……………………………………………………………………………………………………………………………………………………………6
2.3.2 Setting the Serial Baud Rate (DIP Switch B0 – B3) for BACnet MS/TP and Metasys N2 ProtoNodes ....... 7
2.3.3 Using S0 – S3 bank of DIP Switches to select and load Configuration Files for ENVI and Love Controller
……………………………………………………………………………………………………………………………………………………………7
3 Interfacing the ProtoNode to ENVI and Love Controller ............................................................................... 10
3.1ProtoNode RER and LER component layout with the cover removed ......................................................... 10
3.2Wiring Connections to ProtoNode RER and LER for the ENVI and Love Controller ..................................... 11
3.2.1 Connecting ENVI Modbus RTU Boilers to the ProtoNode’s RS-485 ........................................................ 12
3.2.2 Biasing the Modbus RS-485 Network..................................................................................................... 12
3.2.3 End of Line Termination Switch for the Modbus RS-485 port on the ProtoNode ................................... 13
3.3Wiring the ProtoNode RER to RS-485 Field Protocol ................................................................................... 14
3.4Wiring the ProtoNode LER Field Port to a LonWorks network .................................................................... 15
3.5Power-Up the ProtoNode RER or LER .......................................................................................................... 15
4 Commissioning the ProtoNode LER on a LonWorks network ........................................................................ 16
4.1Commissioning the ProtoNode LER on a LonWorks network ...................................................................... 16
4.1.1 Instructions to Upload XIF File From the ProtoNode LER Using FS GUI Web Server .............................. 16
5 Connect the ProtoNode’s Web GUI to Setup IP Address for BACnet/IP or Modbus TCP ............................... 18
5.1Connect the PC to the ProtoNode via the Ethernet port ............................................................................. 18
5.2Use the ProtoNode Web GUI to Connect to the ProtoNode ....................................................................... 19
5.3Set IP Address for BACnet/IP or Modbus TCP via GUI ................................................................................. 19
6 Chipkin Automation’s CAS BACnet Explorer for validating the Protonode in the field on a BACnet MS/TP or
6.2.1 CAS BACnet MS/TP Setup ....................................................................................................................... 22
6.2.2 CAS BACnet BACnet/IP Setup ................................................................................................................. 22
Appendix A. Troubleshooting Tips ....................................................................................................................... 23
Appendix A.1. Check Wiring and Settings ................................................................................................................ 23
Appendix A.2. Take Log With Our FieldServer Utilities............................................................................................ 23
Appendix A.3. LED Diagnostics for Modbus RTU Communications between the ProtoNode and the ENVI and the
Love Controller ........................................................................................................................................................ 26
A.3.1 ProtoNode RER and LER LEDs .................................................................................................................... 26
Appendix B. Vendor Information ......................................................................................................................... 27
Appendix B.1. ENVI and Love Controller Modbus RTU COM Settings ..................................................................... 27
Appendix B.2. ENVI Modbus RTU Mappings to BACnet MS/TP, BACnet IP, Metasys and LonWorks ..................... 27
Appendix B.3. Love Controller Modbus RTU Mappings to BACnet MS/TP, BACnet IP, Metasys N2 ....................... 28
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 4 of 38
Appendix B.4. DIP switch settings for ENVI and Love Controllers to support Metasys N2 and Modbus TCP and
BACnet for the Love Controller................................................................................................................................ 29
Appendix C. Reference ......................................................................................................................................... 37
Appendix C.1.1. Compliance with UL Regulations ............................................................................................ 37
Appendix D. Limited 2 year Warranty .................................................................................................................. 38
Figure 13: ProtoNode power pin outs ......................................................................................................................... 15
Figure 14: Sample of Fserver.XIF file being generated ................................................................................................ 17
Figure 15: Ethernet port location of ProtoNode ......................................................................................................... 18
Figure 16: FST Web GUI screen ................................................................................................................................... 19
Figure 17: FST Web GUI IP Address settings screen .................................................................................................... 20
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 5 of 38
1
2
The BTL Mark on the ProtoNode RER is a symbol that indicates to everyone that a
product has passed a series of rigorous tests conducted by an independent laboratory
which verifies that the product correctly implements the BACnet features claimed in
the listing. The mark is a symbol of a high-quality BACnet product. Go to
http://www.bacnetinternational.net/btl/ for more information about the BACnet
Testing Laboratory.
LonMark International is the recognized authority for certification, education, and
promotion of interoperability standards for the benefit of manufacturers, integrators
and end users. LonMark International has developed extensive product certification
standards and tests to provide the integrator and user with confidence that products
from multiple manufacturers utilizing LonMark devices work together. FieldServer
Technologies has more LonMark Certified gateways than any other gateway
manufacturer, including the ProtoCessor, ProtoCarrier and ProtoNode for OEM
applications and the full featured, configurable gateways.
1 INTRODUCTION
ProtoNode is an external, high performance Building Automation multi-protocol gateway that has been
preprogrammed for Harsco’s ENVI boiler control system and the Love Boiler controller to support BACnet®1MS/TP,
BACnet/IP, Metasys®2 N2 by JCI, Modbus TCP, and LonWorks®3. Configurations for the various protocols are
stored within the ProtoNode and are selectable via DIP switches for fast and easy installation. It is not necessary to
download any configuration files to support the required applications.
This document provides the necessary information to facilitate installation of the ProtoNode.
1.1 BTL Mark – BACnet Testing Laboratory
1.2 LonMark Certification
BACnet is a registered trademark of ASHRAE
Metasys is a registered trademark of Johnson Controls Inc.
3 4
LonWorks is a registered trademark of Echelon Corporation
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 7 of 38
B0 B1 B2 B3
Baud
B0
B1
B2
B3
9600
On
On
On
Off
19200
Off
Off
Off
On
38400
On
On
Off
On
57600
Off
Off
On
On
76800
On
Off
On
On
S0 S1 S2 S3
DIP switches A0 – A7 can also be used to set the MAC Address for BACnet MS/TP and BACnet/IP
Figure 1: A0 – A7 DIP Switches
Please refer to Appendix B.3 for the full range of addresses to set Node-ID/Device Instance.
NOTE: When setting DIP Switches, please ensure that power to the board is OFF.
2.3.2 Setting the Serial Baud Rate (DIP Sw itch B0 – B3) for BACnet MS / TP and Metasys
N2 ProtoNodes
DIP Switches B0 – B3 can be used to set the serial baud rate to match the baud rate provided by the
Building Management System for BACnet MS/TP.
Metasys N2 is always defaulted to 9600 baud and the B bank is disabled.
Figure 2: B0 – B3 DIP Switches
2.3.2.1 Bau d Rate DIP S wit ch S election
2.3.3 Using S 0 – S3 bank of DIP Switches to select an d load Configuration Files for ENVI
and L ove Controller
The S bank of DIP switches, S0 - S3 is used to select and load a configuration file from a group of
pretested/preloaded configuration files which are stored in the ProtoNode RER FPC-N34-103-126-0710
(BACnet MS/TP, BACnet/IP, Modbus TCP, Metasys N2) and the ProtoNode LER FPC-N35-103-401-0771
(LonWorks).
Figure 3: S0 – S3 DIP Switches
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
The following chart describes S0 - S3 DIP Switch configuration settings for the ENVI’s 1 through 16 boilers
applications to support BACnet MS/TP and BACnet/IP on a ProtoNode RER (Part # FPC-N34-103-126-
0710).
Support for 1 through 16 ENVI’s to Metasys N2 or Modbus TCP see Appendix B.2
Support for 1 Love Controller to support BACnet MS/TP, BACnet/IP, Metasys N2 or Modbus TCP
see Appendix B.2
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 13 of 38

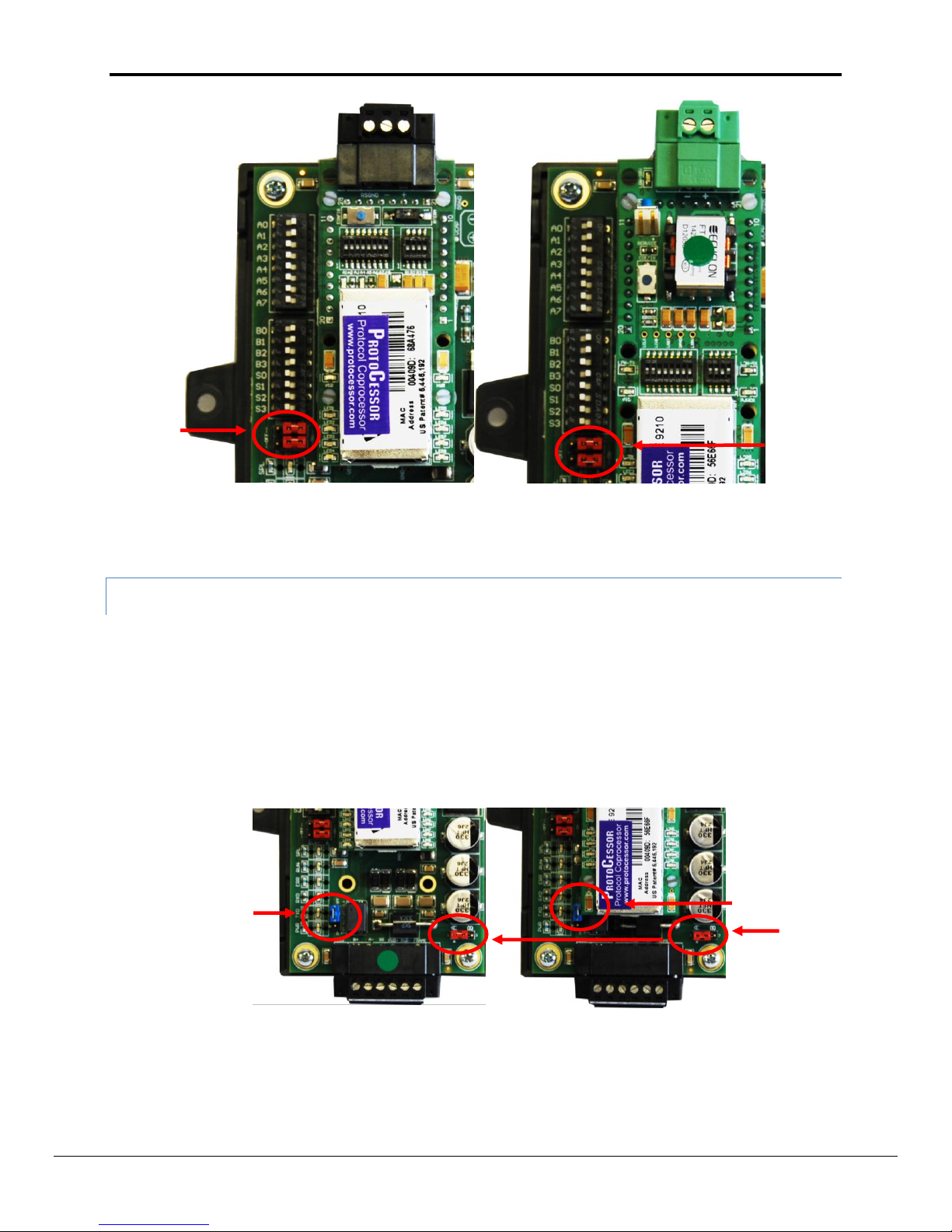

RS-485 Bias Switch
RS-485 Bias Switch
Modbus RS-485 EOL Switch
Modbus RS-485 EOL Switch
Leave in A Position
Figure 8: Modbus RS-485 Biasing Switch on the ProtoNode N34 (left) and ProtoNode N35 (left).
3.2.3 End of Line Termination Switch for the Modbus R S - 485 p o r t on the ProtoNode
On long RS-485 cabling runs, the RS-485 trunk must be properly terminated at each end.
If the ProtoNode is placed at one of the ends of the trunk, you turn the Blue RS-485 End-of- Line
Terminating switch to ON position.
On short cabling runs which most of the ENVI applications are, the EOL switch does not to need to be
turned ON. The default setting for this Blue EOL switch is OFF.
All ways leave the single Red Jumper in the A position.
Figure 9: Modbus RS-485 End-Of-Line Termination Switch on the ProtoNode N34 (left) and ProtoNode N35 (right)
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 14 of 38
End-of-Line Switch
3.3 Wi r i ng t h e P rotoNode RER to R S - 4 8 5 Field Protocol
Connection from ProtoNode RER to BACnet MS/TP and Metasys N2 networks
Connect BACnet MS/TP or N2 RS485 to the 3-pin RS485 connector on ProtoNode RER as shown below.
Figure 10: Connection from ProtoNode to RS-485 BMS Field Protocol –BACnet MS/TP or Metasys N2
See Section 4 for information on connecting the ProtoNode RER to BACnet/IP or Modbus TCP network.
If the ProtoNode is the last device on the BACnet MS/TP or Metasys N2 RS-485 trunk, then enable the
End-of-line termination needs to be enabled. The default is off.
Figure 11: End-of-line termination on from ProtoNode to RS-485 BMS Field Protocol
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Apply power to the device. Ensure that the power supply used complies with the specifications provided in
Appendix C.1. Ensure that the cable is grounded using the “Frame-GND” terminal. The ProtoNode is factory set to
accept both 9-30VDC and 12-24 VAC.
Voltage Pin outs
Figure 13: ProtoNode power pin outs
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 16 of 38
LonWorks Service Pin
4 COMMISSIONING T H E P R O T O N O D E LER ON A LONWORKS NETWORK
Commissioning may only be performed by the LonWorks administrator.
4.1 Co m missioning the ProtoNode L E R o n a LonWorks network
To commission the ProtoNode LER LonWorks port, insert a small screwdriver in the commissioning hole on the
face of the LER’s enclosure to access the Service Pin. See the illustration on the ProtoNode LER as to which way to
toggle the screw driver during commissioning.
If an XIF file is required, see steps Section 4.4.1 to generate XIF
4.1.1 Instructions to Upload XIF File From t h e P ro toNo de LER Using FS GUI Web Server
Connect a standard cat5 Ethernet cable between the PC and ProtoNode
The Default IP Address of the ProtoNode is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and the
ProtoNode are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx network
For Windows XP:
Go to > >
Right-click on Local Area Connection > Properties
Highlight >
For Windows 7:
Go to > >
> >
Right-click on Local Area Connection > Properties
Highlight >
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 18 of 38
Ethernet Port
5 CONNECT THE PR OTONOD E ’ S W E B GUI TO SETUP IP A D D R E S S FOR BACNET/IP O R
MO D B US T CP
5.1 Co n n e c t t he PC to the ProtoNode via the Ethernet port
Figure 15: Ethernet port location of ProtoNode
Connect a standard CAT5 Ethernet cable (straight through or cross) between the PC and ProtoNode
The Default IP Address of the ProtoNode is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and the
ProtoNode are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx network
Go to > >
Right-click on Local Area Connection > Properties
Highlight >
Select: Use the following IP address
Click twice
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 19 of 38
5.2 Us e t h e ProtoNode Web GUI to Connect to t h e ProtoNode
Open PC web browser; enter the default IP address of the ProtoNode 192.168.1.24, to determine if the
ProtoNode is up and communicating.
Figure 16: FST Web GUI screen
5.3 Se t I P Ad d r e s s for BACnet/IP or Modbus TCP via GUI
Open a PC web browser, enter the default IP address of the ProtoNode 192.168.1.24 and connect to the
ProtoNode.
From the GUI main home page, click on setup and then Network Settings to enter the Edit IP Address
Settings menu.
Modify the IP address (N1 IP address field) of the ProtoNode Ethernet port.
If necessary, change the Netmask (N1 Netmask field).
Type in a new Subnet Mask.
If necessary, change the IP Gateway (Default Gateway field).
Type in a new IP Gateway.
Note: If the ProtoNode is connected to a router, the IP Gateway of the ProtoNode should be set to the IP
address of the router that it is connected to.
Reset ProtoNode.
Unplug Ethernet cable from PC and connect it to the network hub or router.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 21 of 38
6 CHIPKIN AUT O MAT I ON’S CAS BACNET EXPLORER FOR VAL I D A T ING THE PROTONODE
IN THE FIELD ON A BACNET MS/T P OR BACNET/IP NETWORK
Chipkin Automation has extended to Harsco and their customers a free complementary 2 week fully functional
copy of CAS BACnet Explorer that can be used to validate BACnet MS/TP and/or BACnet/IP communications of the
ProtoNode in the field without having to have the BMS Integrator on site. A Serial or USB to RS-485 converter is
needed to test BACnet MS/TP.
6.1 Do wnloading C hipk in Automation’s CAS Explorer and Requ esting an Activation Key
To request a 2 week complementary BACnet CAS key, go to http://app.chipkin.com/activation/twoweek/
and fill in all the information. Enter Vendor Code “harsco12”. Once completed, the key will be sent to the
email address that was submitted. From this email from Chipkin Automation, the long key will need to be
copied and pasted into the CAS key activation page.
Go to Chipkin Automation’s web site, download, and install the CAS BACnet Explorer to your PC
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 22 of 38
6.2 CAS BACnet S e t u p
These are the instructions to set CAS Explorer up for the first time on BACnet MS/ST and BACnet/IP.
6.2.1 CAS BACnet M S / TP Setup
Using the Serial or USB to RS-485 converter, connect it to your PC and the 3 Pin BACnet MS/TP connector
on the ProtoNode RER.
In CAS Explorer, do the following:
o Click on settings
o Check the BACnet MSTP box and uncheck the BACnet IP and BACnet Ethernet boxes.
o Set the BACnet MSTP MAC address to 0.
o Set the BACnet MSTP Baud Rate to 38400.
o Click Ok.
o On the bottom right-hand corner, make sure that the BACnet MSTP box is green.
o Click on discover.
o Check all 4 boxes.
o Click Send.
6.2.2 CAS BACnet B ACnet/IP S e t u p
See Section 4.1 to set the IP address and subnet of the PC that will be running the CAS Explorer.
Connect a straight through or cross Ethernet cable from the PC to the ProtoNode.
In CAS Explorer, do the following:
o Click on settings
o Check the BACnet IP box and uncheck the BACnet MSTP and BACnet Ethernet boxes.
o In the “Select a Network Device” box, select the network card of the PC by clicking on it.
o Click Ok.
o On the bottom right-hand corner, make sure that the BACnet IP box is green.
o Click on discover.
o Check all 4 boxes.
o Click Send.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 23 of 38
Ethernet Port
Appendix A. Troubleshooting Tips
Appendix A.1. Check Wiring and Settings
No COMS on Modbus RTU side. If TX/RX is not flashing rapidly then there is a COM issue on the Modbus
side and you need to check the following things:
o Visual observations of LEDs on ProtoNode. See Appendix A.3
o Check baud rate, parity, data bits, stop bits
o Check Modbus device address
o Verify wiring
Field COM problems.
o Visual observations of LEDs on ProtoNode. See Appendix A.3
o Visual dipswitch settings (using correct baud rate and device instance)
o Verify IP address setting
o Verify wiring
If the problem still exists, a log needs to be taken and sent to FieldServer. See Appendix A.2
Appendix A.2. Take Log With Our FieldServer Utilities
Once the log is complete, email it to support@protocessor.com. The log will allow us to rapidly diagnose
the problem.
Make sure the FieldServer utilities are loaded on the PC.
Disable any wireless Ethernet adapters on the PC/Laptop.
Disable firewall and virus protection software.
Connect a standard cat5 Ethernet cable between the PC and ProtoNode.
The Default IP Address of the ProtoNode is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and the
ProtoNode are on different IP Networks, assign a static IP Address to the PC on the 192.168.1.xxx network
For Windows XP:
Go to > >
Right-click on Local Area Connection > Properties
Highlight >
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 24 of 38
Type in the ProtoNode IP address
Default IP Address is 192.168.1.24
Press here to retrieve the IP address.
Locate where the log is saved on the PC
For Windows 7:
Go to > >
> >
Right-click on Local Area Connection > Properties
Highlight >
For Windows XP and Windows 7, select: Use the following IP address
Click twice
Double click on the FST Diag Utility.
Step 1: Select a Field Server IP Address.
The IP address can be entered manually or selected by clicking on button 1 using the Utility.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 25 of 38
Select a log type.
Press the Take Log button.
Step 2: Take a Log
Press the Take Log button. While the Utility runs a few DOS prompts will flash across the monitor. Don't
click or type anything in to these DOS prompts. This step may take a few minutes depending on the
chosen Log Type and computer speed. When the Utility is finished you will be presented with a log of
events that have occurred.
Step 3: Send Log
Click the “Send Log” button located near the bottom of the dialog. The following dialog should appear.
Push the ‘Locate Folder’ button to launch explorer and have it point directly at the correct folder. The file
upload.zip must be sent to support@fieldserver.com.
Step 4: Close the Program
Press the exit button when the log is completed
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 26 of 38
Light
Description For ProtoNode RER and LER
RTC
Unused
RUN
The RUN LED will start flashing 20 seconds after power indicating normal operation.
ERR
The SYS ERR LED will go on solid 15 seconds after power up. It will turn off after 5 seconds. A steady red
light will indicate there is a system error on the ProtoNode LER. If this occurs, immediately report the
related “system error” shown in the error screen of the RUI interface to FieldServer Technologies for
evaluation.
RX
The RX LED will flash when a message is received on the ProtoNode port.
TX
The TX LED will flash when a message is sent on the ProtoNode port.
PWR
This is the power light and should show steady green at all times when the ProtoNode is powered.
Appendix A.3. LED Diagnostics for Modbus RTU Communications between the ProtoNode and the ENVI
and the Love Controller
Please see the diagram below for LED Locations
A.3.1 ProtoNode RER a n d L E R LEDs
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 29 of 38
ProtoNode RER
ProtoCarrier DIP Switches
ProtoCessor DIP Switches (Remove Cover)
Profile - FPC-N34-103-126-0710
S0
S1
S2
S3
A1
A2
A3
A4
A5
A6
A7
A8
Metasys N2 1 ENVI
Off
Off
Off
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 2 ENVI
On
Off
Off
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 3 ENVI
Off
On
Off
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 4 ENVI
On
On
Off
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 5 ENVI
Off
Off
On
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 6 ENVI
On
Off
On
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 7 ENVI
Off
On
On
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 8 ENVI
On
On
On
Off
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 9 ENVI
Off
Off
Off
On
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 10 ENVI
On
Off
Off
On
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 11 ENVI
Off
On
Off
On
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 12 ENVI
On
On
Off
On
On
Off
Off
Off
Off
Off
Off
Off
Metasys N2 13 ENVI
Off
Off
On
On
On
Off
Off
Off
Off
Off
Off
Off
S Bank DIP Switches
A1 and A2 DIP Switches
Appendix B.4. DIP switch settings for ENVI and Love Controllers to support Metasys N2 and Modbus TCP
and BACnet for the Love Controller
Note: The lid on top of the ProtoNode has to be removed in order to select the A Bank of DIP switches. Pull on
the lid while holding the on to the 6 pin Phoenix connector. Please do not hold the wall mount tabs as these
are designed to break off if not required!
To set select these configurations, open the ProtoNode and select the A bank of switches (A1 or A2) on
the small ProtoCessor module that sits on top of the ProtoCarrier (inside the ProtoNode).
ProtoCessor A1 DIP switch starts on the bottom of the A bank of DIP switches below.
ProtoCessor A3-A8 DIP switches are disabled.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 37 of 38
ProtoNode RER
ProtoNode LER
Electrical
Connections
One 6-pin Phoenix connector, one RS-485
+/- ground port, power +/- frame ground
port
One 3-pin RS-485 Phoenix connector, one
RS-485 +/- ground port
One Ethernet-10/100 Ethernet port
One 6-pin Phoenix connector, one RS-485
+/- ground port, power +/- frame ground
port
One Ethernet 10/100 BaseT port
One FTT-10 LonWorks port
Approvals:
Pending CE (EN55022;EN55024; EN60950), UL916, Pending FCC Class A Part 15, DNP3
Conformance Tested, OPC Self-tested for Compliance, RoHS Compliant, CSA 205 Approved
BTL Marked
LonMark Certified
Power
Requirements
Multi-mode power adapter: 9-30VDC or 12 - 24VAC
Physical
Dimensions
11.5 cm L x 8.3 cm W x 4.1 cm H (4.5 x 3.2 x 1.6 in.)
Weight:
0.2 kg (0.4 lbs)
Operating
Temperature:
-40°C to 75°C (-40°F to167°F)
Surge Suppression
EN61000-4-2 ESD EN61000-4-3 EMC EN61000-4-4 EFT
Humidity:
5 - 90% RH (non-condensing)
(Specifications subject to change without notice)
Appendix C. Reference
Appendix C.1. Specifications
Appendix C.1.1. Compliance w i t h UL R e g u l a t i o n s
For UL compliance, the following instructions must be met when operating the ProtoNode.
The units shall be powered by listed LPS or Class 2 power supply suited to the expected operating
temperature range.
The interconnecting power connector and power cable shall:
Comply with local electrical code.
Be suited to the expected operating temperature range.
Meet the current and voltage rating for the ProtoNode/Net
Furthermore, the interconnecting power cable shall:
Be of length not exceeding 3.05m (118.3”)
Be constructed of materials rated VW-1 or FT-1 or better
If the unit is to be installed in an operating environment with a temperature above 65 °C, it should be
installed in a Restricted Access Area requiring a key or a special tool to gain access
This device must not be connected to a LAN segment with outdoor wiring.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
Harsco Industrial Patterson-Kelley ProtoNode Startup Guide Page 38 of 38
Appendix D. Limited 2 year Warranty
FieldServer Technologies warrants its products to be free from defects in workmanship or material
under normal use and service for two years after date of shipment. FieldServer Technologies will repair
or replace any equipment found to be defective during the warranty period. Final determination of the
nature and responsibility for defective or damaged equipment will be made by FieldServer Technologies
personnel.
All warranties hereunder are contingent upon proper use in the application for which the product was
intended and do not cover products which have been modified or repaired without FieldServer
Technologies approval or which have been subjected to accident, improper maintenance, installation or
application, or on which original identification marks have been removed or altered. This Limited
Warranty also will not apply to interconnecting cables or wires, consumables or to any damage resulting
from battery leakage.
In all cases FieldServer Technology’s responsibility and liability under this warranty shall be limited to
the cost of the equipment. The purchaser must obtain shipping instructions for the prepaid return of
any item under this warranty provision and compliance with such instruction shall be a condition of this
warranty.
Except for the express warranty stated above, FieldServer Technologies disclaims all warranties with
regard to the products sold hereunder including all implied warranties of merchantability and fitness
and the express warranties stated herein are in lieu of all obligations or liabilities on the part of
FieldServer Technologies for damages including, but not limited to, consequential damages arising out
of/or in connection with the use or performance of the product.
ProtoCessor 1991 Tarob Court Milpitas, California 95035 USA Web: www.protocessor.com
