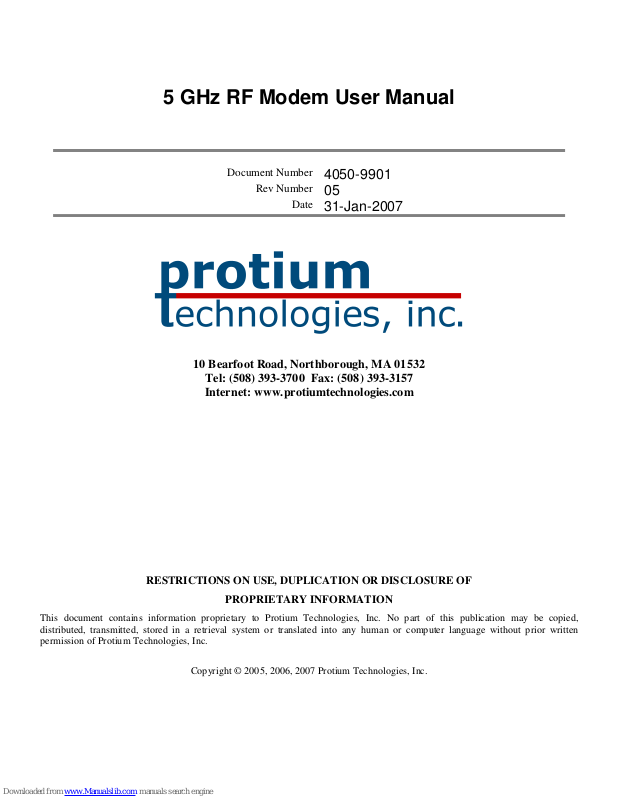

Protium 4050, 4050R User Manual

5 GHz RF Modem User Manual

Document Number

Rev Number

Date

10 Bearfoot Road, Northborough, MA 01532

Tel: [phone] Fax: [phone]
Internet: www.protiumtechnologies.com

4050-9901
05
31-Jan-2007

RESTRICTIONS ON USE, DUPLICATION OR DISCLOSURE OF

PROPRIETARY INFORMATION

This document contains information proprietary to Protium Technologies, Inc. No part of this publication may be copied,
distributed, transmitted, stored in a retrieval system or translated into any human or computer language without prior written
permission of Protium Technologies, Inc.

Copyright © 2005, 2006, 2007 Protium Technologies, Inc.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Revision History

Rev Date Author Comments
01 16-Aug-2005 M. Smutek / R. Hughes Preliminary version
02 14-Nov-2005 M. Smutek Revisions & additional commands
03 17-Jan-2006 M. Smutek / R. Hughes Additional commands and updates, MIB, licenses,

warranty, installation & configuration

04 07-Feb-06 M. Smutek / R. Hughes Glossary. RF radiation warning. Miscellaneous

clarifications and editorial corrections.

05 30-Jan-07 M. Smutek / R. Hughes Updates including addition of Model 4050R rack

mount unit, data sharer, local management user
accounts, SNMPv3, configuration defaults, and
changes to local management commands.

Rev No: 05

5 GHz RF Modem 31-Jan-2007 2 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

FCC COMPLIANCE STATEMENT

Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at the user’s expense.

WARNING

RF EXPOSURE HAZARD

Rev No: 05

Under certain operational circumstances and when connected to a typical high
gain directional antenna, this equipment is capable of producing RF radiation
exposure in excess of the limits defined in FCC 47CFR 1.1310, Table 1.
Personnel working in the vicinity of an energized antenna should ensure that they
maintain a distance of at least 4.2 feet (1.28 meters) from the antenna in the
direction of maximum gain. All antenna maintenance activities should be
performed only when the associated RF Modem transmit power has been muted.

5 GHz RF Modem 31-Jan-2007 3 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

NOTICE

Protium Technologies, Inc. has made every effort to ensure that the instructions
contained in this document are adequate and free of errors or omissions. Protium
Technologies, Inc. will, if necessary, explain issues that may not be covered by
this document. Protium Technologies, Inc.’s liability for any errors in this
document is limited to the correction of errors and the aforementioned advisory
services.

This document has been prepared for professional and properly trained personnel
and the customer assumes all responsibility when using this document. Protium
Technologies, Inc. welcomes customer comments as part of the process of
continual development and improvement of the documentation. Please submit
your comments to Protium Technologies, Inc. at the following address:

Protium Technologies, Inc.
10 Bearfoot Road
Northborough, MA 01532
Phone: [phone]
Facsimile: 508-393-3157

To allow for the introduction of design improvements, specifications are subject
to change without notice.

Rev No: 05

5 GHz RF Modem 31-Jan-2007 4 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

Table of Contents

1 Introduction........................................................................................................................................ 8

1.1 System Overview ......................................................................................................................... 8

1.2 Features ........................................................................................................................................ 8

2 Installation and Configuration ......................................................................................................... 9

2.1 General Installation and Operating Considerations ..................................................................... 9

2.1.1 Antenna ................................................................................................................................. 9

2.1.2 Site Planning......................................................................................................................... 9

2.1.3 Cooling.................................................................................................................................. 9

2.1.4 Shielding and Grounding...................................................................................................... 9

2.2 Configuration Procedure ............................................................................................................ 10

2.2.1 Account & Password Setup................................................................................................. 10

2.2.2 Radio Configuration ........................................................................................................... 10

2.2.3 Data Channel Configuration .............................................................................................. 11

2.2.4 Remote Management Port Configuration ........................................................................... 14

2.3 Factory Configuration ................................................................................................................ 17

3 Monitoring Operation ..................................................................................................................... 18

3.1 Activity Indicators...................................................................................................................... 18

3.1.1 Transmit Activity Indicator ................................................................................................. 18

3.1.2 Receive Activity Indicator ................................................................................................... 18

3.1.3 Data Error Indicator........................................................................................................... 18

3.2 Alarms ........................................................................................................................................ 18

3.2.1 System Alarms..................................................................................................................... 19

3.2.2 Data Alarms ........................................................................................................................ 19

3.2.3 Transmit Alarms.................................................................................................................. 19

3.2.4 Receive Alarms.................................................................................................................... 19

3.3 Status .......................................................................................................................................... 19

4 Local Craft Interface....................................................................................................................... 21

4.1 Craft Interface Terminal Port ..................................................................................................... 21

4.2 Commands.................................................................................................................................. 21

4.2.1 accounts Login Accounts .................................................................................................... 21

4.2.2 agc Automatic Gain Control............................................................................................... 21

4.2.3 agcstatus Status................................................................................................................... 21

4.2.4 alarms Display Alarms ....................................................................................................... 22

4.2.5 apc Automatic Power Control ............................................................................................ 22

4.2.6 channel Select Data Channel.............................................................................................. 22

4.2.7 clear Clear Screen .............................................................................................................. 22

4.2.8 clock Clock Mode................................................................................................................ 22

4.2.9 config Configuration........................................................................................................... 23

4.2.10 dash Dash Variation ........................................................................................................... 23

4.2.11 delaccount Delete Login Account ....................................................................................... 23

4.2.12 dhcp DHCP Enable............................................................................................................. 23

4.2.13 dhcpinfo DHCP Information............................................................................................... 24

5 GHz RF Modem 31-Jan-2007 5 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

4.2.14 dns Domain Name Server ................................................................................................... 24

4.2.15 gateway Network Gateway ................................................................................................. 24

4.2.16 help / ? Help........................................................................................................................ 25

4.2.17 hostname Hostname ............................................................................................................ 25

4.2.18 ident Identify ....................................................................................................................... 25

4.2.19 ifinfo Ethernet Interface Information.................................................................................. 25

4.2.20 interface Interface Driver ................................................................................................... 25

4.2.21 interleave Interleave Data Blocks....................................................................................... 26

4.2.22 ip Internet Protocol Address............................................................................................... 26

4.2.23 linestat Display Serial Line Status...................................................................................... 26

4.2.24 loghost Loghost Address ..................................................................................................... 26

4.2.25 loop Loopback Mode........................................................................................................... 27

4.2.26 mac Media Access Control (MAC) Address ....................................................................... 27

4.2.27 mod Modulation .................................................................................................................. 27

4.2.28 multipoint Multipoint Handshaking.................................................................................... 28

4.2.29 mute Mute the RF output..................................................................................................... 28

4.2.30 netconfig Network Configuration Summary ....................................................................... 28

4.2.31 netflash Update Software via the Network.......................................................................... 28

4.2.32 netmask Network Mask ....................................................................................................... 29

4.2.33 newaccount Create Login Account ..................................................................................... 30

4.2.34 passwd Set Passwords......................................................................................................... 30

4.2.35 rsl Received Signal Level .................................................................................................... 30

4.2.36 rslthr RSL Alarm Threshold................................................................................................ 30

4.2.37 rtsenable Data Sharer RTS Enable or Disable................................................................... 30

4.2.38 rxfreq Receive Frequency ................................................................................................... 31

4.2.39 sharer Data Sharer Available............................................................................................. 31

4.2.40 sharerout Data Sharer Output Selection ............................................................................ 31

4.2.41 speed Set Interface Speed.................................................................................................... 32

4.2.42 stats Error Correction Statistics ......................................................................................... 32

4.2.43 syslog System Logging ........................................................................................................ 33

4.2.44 temp Temperature ............................................................................................................... 33

4.2.45 tempthr Temperature Alarm Thresholds............................................................................. 33

4.2.46 testmode Test LEDs, Fans, Relays...................................................................................... 34

4.2.47 timeserver Time Server ....................................................................................................... 34

4.2.48 txfreq Transmit Frequency.................................................................................................. 34

4.2.49 txpower Transmit Power Level ........................................................................................... 35

4.2.50 uptime System Uptime......................................................................................................... 35

4.2.51 version Version ................................................................................................................... 35

5 SNMP - Simple Network Management Protocol .......................................................................... 36

5.1 Overview .................................................................................................................................... 36

5.2 MIBs........................................................................................................................................... 36

5.3 SNMP Tools............................................................................................................................... 36

5.4 Account Management ................................................................................................................ 36

5.4.1 Creating a User................................................................................................................... 37

5.4.2 Changing a User’s Pass Phrases........................................................................................ 39

5 GHz RF Modem 31-Jan-2007 6 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

5.4.3 Deleting a User ................................................................................................................... 39

6 Specifications.................................................................................................................................... 40

7 Connectors........................................................................................................................................ 42

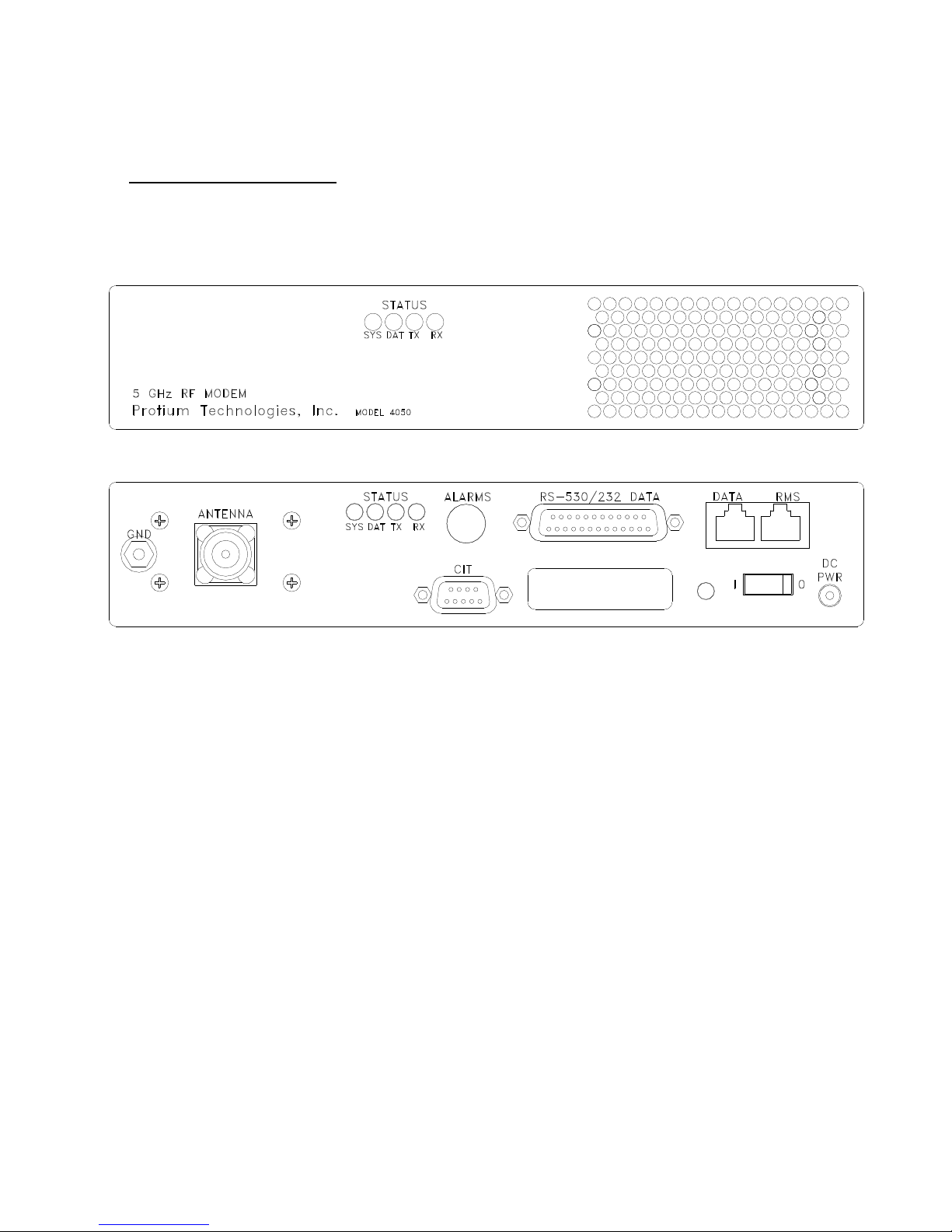

7.1 Front & Rear Panels ................................................................................................................... 42

7.1.1 Remote Unit ........................................................................................................................ 42

7.1.2 Rack-mount Unit ................................................................................................................. 43

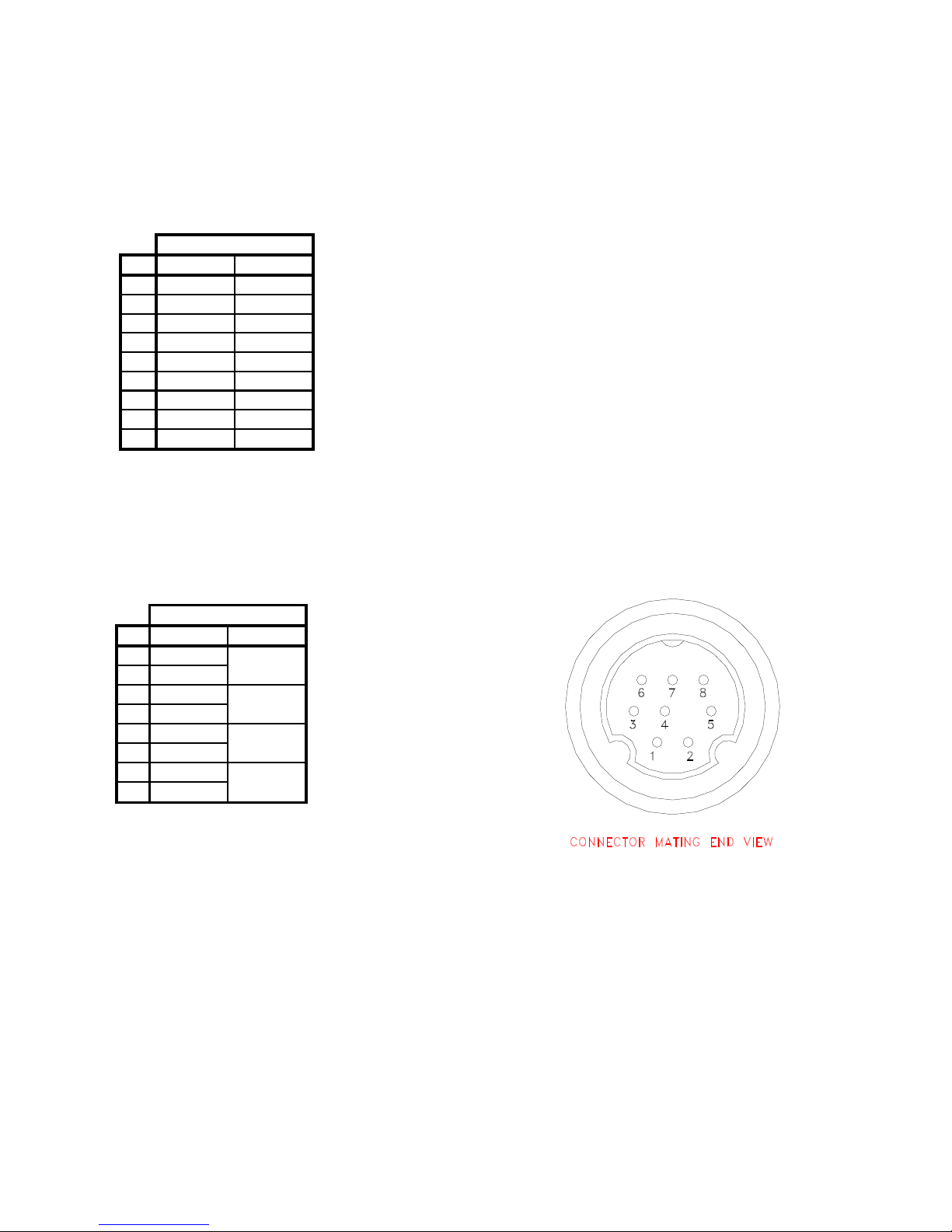

7.2 Pin-out Tables ............................................................................................................................ 44

7.2.1 Data Port ............................................................................................................................ 44

7.2.2 Craft Interface Terminal (CIT) Port ................................................................................... 45

7.2.3 Alarm Relays....................................................................................................................... 45

7.2.4 Ethernet............................................................................................................................... 46

7.2.5 Power .................................................................................................................................. 46

8 Software Licenses............................................................................................................................. 47

8.1 Open Source Software................................................................................................................ 47

8.2 Protium Technologies, Inc. Software License ........................................................................... 47

9 Warranty and Service Information ............................................................................................... 48

Appendix A Protium Technologies, Inc. MIBs .................................................................................... 49

A.1 Protium Technologies, Inc. Enterprise MIB .............................................................................. 49

A.2 Protium Technologies, Inc. Model 4050 MIB ........................................................................... 50

Appendix B Software Licenses .............................................................................................................. 65

B.1 Protium Technologies, Inc. Proprietary Software License ........................................................ 65

B.2 GNU General Public License, Version 2 ................................................................................... 67

B.3 GNU Library General Public License, Version 2 ...................................................................... 73

Appendix C GLOSSARY ....................................................................................................................... 82

5 GHz RF Modem 31-Jan-2007 7 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

1 Introduction

1.1 System Overview

The Models 4050 and 4050R are 5 GHz full-duplex Radio Frequency (RF) modems with link speeds of 64 and
128 Kbps. Data formats are synchronous serial, asynchronous serial, and 10Base-T Ethernet. The Model 4050R is
intended for rack mount applications and includes a two port data sharing feature. The Model 4050 is typically
used as an embedded modem or in standalone applications.

1.2 Features

Radio

• 5 GHz operation (5.091 – 5.101 and 5.140 – 5.150 GHz)

• Transmit power: 1W up to 50°C

• Occupied bandwidth: 100 KHz @ 64 Kbps, 200 KHz @ 128 Kbps

• Sensitivity: -98 dBm @ 64 Kbps, -96 dBm @ 128 Kbps

• Dynamic range: 70 dB

• Point-to-point

• Point-to-multipoint (TX keyed by RTS)

Modem

• Link speed: 64 or 128 Kbps (automatically set by data interface)

• Error correction: Reed-Solomon

• Interleave depth: 0 to 6

Data Interfaces

• Serial: synchronous or asynchronous (software selectable)

• Synchronous speeds: 64 or 128 Kbps

• Synchronous clock: internal, external, or looped (software selectable)

• Asynchronous speeds: 300 – 19200 bps

• Interface: EIA-232 and EIA-530 (software selectable)

• DB-25F connector (DCE)

• Two port data sharer (modem 4050R)

• Ethernet 10Base-T (layer 2, protocol independent)

Management

• Local serial port (9600, 8N1)

• DE-9F (DCE)

• Command line interface

• Password protected (three authorization levels)

• Alarm status LEDs (front and rear panels, four each)

• Alarm contact closures (solid-state, four form A)

• Ethernet 10Base-T management port

• DHCP capable

• SNMP V3

5 GHz RF Modem 31-Jan-2007 8 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

2 Installation and Configuration

2.1 General Installation and Operating Considerations

2.1.1 Antenna

Avoid operating the transmitter without a proper termination on the RF connector. Although the modem is
designed to withstand such operation, undesired interference to other RF systems may occur.

A typical installation will require the use of a high gain antenna. Proper alignment of the antenna is critical to
ensuring an error-free link. During the alignment process, an
(CIT) will display near real-time receive signal strength and may be used to “peak” the antenna positioning.

This equipment produces RF radiation when connected to a typical high gain directional antenna. Personnel
working in the vicinity of an energized antenna should ensure that they maintain a distance of at least 4.2 feet
(1.28 meters) from the antenna in the direction of maximum gain. See the caution statement at the beginning of
the manual.

The RF Modem is shipped with the transmitter set in the “mute” condition. This is done to prevent inadvertent
transmission on an unauthorized frequency. All operating parameters, including an estimate of the minimum
necessary transmit power, should be programmed into the modem before un-muting the transmitter.

rsl

command from the Craft Interface Terminal

Do not exceed +10 dBm input power at the antenna terminal of the RF Modem or damage to the unit may result.

2.1.2 Site Planning

As with any wireless link, proper system and path planning is essential to ensuring error-free operation. Such
planning should take into consideration path clearances from obstructions, interference from nearby radiators,
multi-path reflections and fading. A system signal strength margin of at least 20 dB above the rated receiver
threshold is standard practice.

When installing multiple modems in the same general location, ensure that they are all transmitting within the
same sub-band to prevent interference and desensitization.

2.1.3 Cooling

Install the RF Modem so that adequate airflow can be maintained through the rear and side or front vents. If
airflow is restricted, the modem internal temperature may rise above the preset thermal shutdown temperature.

2.1.4 Shielding and Grounding

When the DB-25F connector is used for the RF Modem EIA-530/232 data I/O, ensure that a good quality shielded
cable is used and that the cable shield is electrically terminated to the cable connector shells.

A grounding stud is provided on the rear panel. A ground braid should be attached to this lug and connected to a
local earth ground to prevent static charge build-up on the modem, antenna and associated cabling.

5 GHz RF Modem 31-Jan-2007 9 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

2.2 Configuration Procedure

2.2.1 Account & Password Setup

Access to the local management port requires logging in with an account name and corresponding password. As
shipped from the factory, there is a single account name of “admin”. Any other accounts required may be created
after first logging in with the “admin” account.

There are two types of accounts: administrator and operator. An administrator account has access to all
configuration settings and information displays while an operator account has some limitations on what is
available to display and change. The type of account is specified when any new account is created.

Only administrators may create new accounts or delete existing accounts.

2.2.1.1 Initial logon

When the local management port is first accessed, enter “admin” as the account name and simply press ‘enter’ or
‘return’ when prompted for the password. There initially is no password and a new password must be set before
proceeding. The system will automatically prompt for a new password and will not proceed until that is done
successfully.

Note: once the password is set, there is no way to subsequently access the management functions without a
password. Set the password carefully and do not forget it. It is impossible to recover from a lost password unless
there is at least one administrative account available with a known password.

It is suggested that the ‘admin’ account never be used for day-to-day management of the system and instead be
reserved for emergency access in the event other administrative passwords are lost.

2.2.1.2 Account creation

After logging in for the first time, it is suggested that additional accounts be created immediately and that the new
accounts be used for normal day-to-day management.

A new account is created using the

newaccount

command and specifying an account name and account type. For

example, the following command will create a new administrative account with the name “accountname”:

>

newaccount accountname admin

See the description of the
are

accounts

to list all accounts,

newaccount

command for more details. Additional account management commands

delaccount

for deleting accounts, and

passwd

for changing the password on

an existing account.

You may wish to log off the “admin” account and use the new account for any additional configuration.

2.2.2 Radio Configuration

A configuration summary with all of the important configuration settings for the radio and the data interface may
be displayed with the

2.2.2.1 Dash Setting

The modems come in two configurations known as “dash one” and “dash two.” The “dash one” modems transmit
at a lower frequency than they receive while the “dash two” modems are the reverse. One modem of each type is
required to form a link.

config

command.

5 GHz RF Modem 31-Jan-2007 10 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

IMPORTANT: The dash setting corresponds to a physical configuration internal to the modem and should not be
changed.

2.2.2.2 Receive Frequency

The receive frequency should be set with the command:

>

rxfreq ffff.f

The receive frequency of each modem must equal the transmit frequency of the other modem in the link. The
frequency is specified in 0.1 MHz steps.

2.2.2.3 Transmit Frequency

The transmit frequency should be set with the command:

>

txfreq ffff.f

The transmit frequency of each modem must equal the receive frequency of the other modem in the link. The
frequency is specified in 0.1 MHz steps.

2.2.2.4 Transmit Power

The transmit power should be set with the command:

>

txpower nn.n

The transmit power level is specified in dBm, adjustable in 0.5 dB steps.

2.2.2.5 RSL Threshold

The RF Modem has a programmable Receive Signal Level (RSL) threshold detector that may be used to evaluate
link margin. When the receive signal level drops below the programmed threshold, the RX alarm will be set. This
threshold is set at the factory to a default value of –110 dBm to minimize the chance of inadvertent RSL alarms
during initial system setup. The user should set the RSL alarm threshold so that RSL alarm events are generated at
an appropriate level depending on the actual operating conditions.

The RSL threshold should be set with the command:

>

rslthr –nn.n

The threshold value is specified in dBm.

2.2.2.6 Mute

The modem is configured at the factory with mute on. Mute should not be turned off until the frequency and
power settings are set correctly and an appropriate antenna (or load) is attached to the antenna connector.

2.2.3 Data Channel Configuration

2.2.3.1 Channel Selection

The modems may be configured to carry either full-duplex serial or Ethernet traffic. Only one type of traffic can
be carried at a time and both ends of the link must be set to the same selection. Configure the channel with the
command

>

channel serial

5 GHz RF Modem 31-Jan-2007 11 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

or

>

channel ethernet

as desired.

2.2.3.2 Serial Port

The DB-25 connector carries the serial data traffic. It may be configured through the software for either
synchronous or asynchronous operation at a variety of speeds, and for either EIA-530 or EIA-232 drivers and
receivers.

The serial port should be properly configured before connecting to external equipment.

2.2.3.2.1 Speed

Serial data may be either synchronous at 64 or 128 Kbps, or asynchronous at 300 to 19200 bps. The speed
selection automatically determines whether the protocol is synchronous or asynchronous.

Both ends of the link must be set to the same speed.

The speed and protocol may be set to 64 or 128 Kbps synchronous with the command:

>

speed 64

or

>

speed 128

The speed and protocol may be set to 300 to 19200 bps asynchronous with the command:

>

speed 300

where the 300 may be replaced with 600, 1200, 2400, 4800, 9600, 14400, or 19200 as desired.

2.2.3.2.2 Clock Source

Synchronous serial mode requires the use of a data clock for both receive data and transmit data. The receive data
clock is always derived from the received signal and is provided by the modem. The transmit clock, however,
may be provided by one of three sources. With the clock set to internal, the modem supplies a clock at 64 Kbps or
128 Kbps depending on the speed setting. With the clock set to external, the customer equipment supplies a 64 or
128 Kbps clock that should match the speed setting. With the clock set to loop, the receive clock is also used for
the transmit side.

The clock mode of the modem at each end of the link must be configured appropriately depending on the clock
mode of the customer equipment to which it is attached. For example, if the customer equipment is generating the
transmit clock, the modem must use the external clock mode. On the other hand, if the customer equipment is
expecting the clock to be provided by the modem, then the modem must be set to internal clock mode. Each end
of the link may be configured independently to use internal, external, or looped clock, except that using looped
mode at both ends of the link is not recommended.

The clock source may be set with one of the commands:

>

clock int

or

>

clock ext

5 GHz RF Modem 31-Jan-2007 12 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

or

>

clock loop

2.2.3.2.3 Interface Type

The serial interface may use either EIA-232 or EIA-530 drivers and receivers. Either type of interface may be
used with both synchronous and asynchronous data.

Each end of the link may be configured independently.

The interface type may be configured with the command

>

interface 232

or

>

interface 530

2.2.3.3 Data Sharer

The rack-mount unit (4050R) includes a built in data sharer function where two separate EIA-530/232 ports are
provided, designated ports A and B.

At any given time one of the ports will be the ‘selected’ port. The currently selected port depends on the status of
the request-to-send (RTS) line on the two ports. If only one port has RTS asserted, that port will be the selected
port. If both ports, or neither port, has RTS asserted, then port A is given priority and will be the selected port.
The RTS line from either port may be enabled or disabled if desired.

Transmitted data (TD) and the external transmit clock (TSET) used in synchronous mode are always taken from
the selected port. The remote and local loopback signals (RL and LL) are also taken from the selected port. Clear­to-send (CTS) will only be asserted on the selected port.

The system may be configured to send receive data to both ports or to the selected port only. The data-set-ready
(DSR), receive clock (RSET), and data-carrier-detect (DCD) are always present on both ports.

2.2.3.3.1 RTS Enable

Enable the RTS signal on one or both ports as required. If a port is unused and has no cable connected, it is
strongly recommended that the corresponding RTS signal be disabled. The RTS enable may be set with one of the
following commands:

> rtsenable a

or

> rtsenable b

or

> rtsenable both

2.2.3.3.2 RX Data Output

Enable sharer data output on both ports or only on the selected port, as desired, with one of the following
commands:

> sharerout selected

5 GHz RF Modem 31-Jan-2007 13 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

or

> sharerout both

2.2.3.4 Ethernet Data Port

The Ethernet data port requires no configuration. When the Ethernet channel is selected, the link speed is
automatically set to 128 Kbps.

The Ethernet data port attempts to transport any valid Ethernet packet it receives to the other end of the link. No
assumption is made about higher layer protocols and, in particular, there is not even the assumption that Internet
Protocol (IP) is used. The Ethernet data port needs no IP address, netmask, or default gateway.

Since the modem link is slower than the Ethernet network, packets may arrive at the port faster than they can be
transmitted across the link. In this case the modem will buffer and transmit as many packets as possible but some
packets may be lost. This is consistent with ethernet’s “best effort” deliver policy. If guaranteed delivery is
required, a higher layer protocol such as Transmission Control Protocol (TCP) will assure delivery even when
there is packet loss due to congestion or mis-matched link speeds.

2.2.4 Remote Management Port Configuration

The Ethernet Remote Management System (RMS) port is used for Simple Network Management Protocol
(SNMP), software updates, system message logging, and setting the system clock. All of these functions are
optional and, if they are unused, the port may be left un-configured and unconnected.

If any of these features are desired, it may be necessary to configure the port before it is connected to the local
network. Failure to properly configure the port may cause the port to not operate and/or interfere with the
operation of other devices on the local network.

A network configuration summary may be displayed with the

netconfig

command.

2.2.4.1 DHCP

The IP parameters of the interface may be automatically configured using a Dynamic Host Configuration Protocol
(DHCP) server on the local network. The DHCP server will typically configure the IP address and netmask,
default gateway, and Domain Name Servers (DNS).

To enable use of a DHCP server, use the command:

>

dhcp on

To disable the use of a DHCP server, use the command:

>

dhcp off

2.2.4.2 IP Address / Netmask

Each device on the local network requires a unique IP address. If the IP address and netmask are configured with
DHCP, the manual IP address and netmask are not used.

To set the IP address, use the command

>

ip aaa.bbb.ccc.ddd

where aaa.bbb.ccc.ddd is the desired IP address in the usual “dotted quad” format.

To set the netmask, use the command

5 GHz RF Modem 31-Jan-2007 14 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

>

netmask aaa.bbb.ccc.ddd

where aaa.bbb.ccc.ddd is the desired netmask in the usual “dotted quad” format.

2.2.4.3 Default Gateway

When the local network includes one or more routers connecting to other networks, a default gateway should be
specified to indicate which is the most likely router to handle traffic to arbitrary IP addresses.

If DHCP is enabled, this manual setting is not used.

To set the default gateway, use the command

>

gateway aaa.bbb.ccc.ddd

where aaa.bbb.ccc.ddd is the IP address of the default router in the usual “dotted quad” format.

2.2.4.4 DNS Servers

If either the timeserver or loghost (see following) are specified by name rather than IP number then a DNS is
needed to resolve the name.

If DHCP is enabled, then the DNS may be set automatically. However, if DHCP is disabled or if it does not
designate a DNS server, then the manual setting will apply.

Two DNS server may be specified, in which case the secondary server is used in the event the primary server is
unavailable.

To set the DNS server use the commands:

>

dns pri aaa.bbb.ccc.ddd

>

dns sec eee.fff.ggg.hhh

2.2.4.5 Timeserver

The modem does not have real-time clock hardware that will allow it to maintain a time reference when powered
off. However, during its startup procedure it will attempt to contact a timeserver on the network to set its clock to
the actual time. The time is only used for message logging and other diagnostic purposes and a correct time is
merely a convenience. Consequently, the availability of a timeserver is completely optional.

The factory set timeserver is us.pool.ntp.org, which refers to a collection of public timeservers generally available
on the Internet. A DNS server must be available to resolve that timeserver name into an IP address.

The protocol used to set the time is NTP (network time protocol). Any NTP server may be used as a timeserver.

To change the timeserver use the command:

>

timeserver aaa.bbb.ccc.ddd

or

>

timeserver hostname.domainname

where aaa.bbb.ccc.ddd is the IP address of the timeserver in the usual “dotted quad” format, or
hostname.domainname is the hostname and domain name. Note that there is no default domain name so it must be
explicitly specified with the hostname.

5 GHz RF Modem 31-Jan-2007 15 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

2.2.4.6 Loghost

The modem can send system log messages to a specified loghost. This feature is mainly intended for debugging
purposes and a loghost is completely optional. Normally only error messages and a limited number of startup
messages are logged.

The “syslog” protocol is used to send the messages. Any host system with a syslog facility may be used to collect
the messages. Most Unix and Linux system have syslog capability and there are both free and commercial syslog
programs for Windows.

Specifying the loghost with an IP number of 0.0.0.0 or with a name of “none” disables the syslog messages. The
system is configured at the factory with the syslog messaging disabled.

To set a loghost use the command

>

loghost aaa.bbb.ccc.ddd

or

>

loghost hostname.domainname

where aaa.bbb.ccc.ddd is the IP address of the loghost in the usual “dotted quad” format, or
hostname.domainname is the hostname and domain name of the loghost. Note that there is no default domain
name so it must be explicitly specified with the hostname.

5 GHz RF Modem 31-Jan-2007 16 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

2.3 Factory Configuration

The modems are set at the factory to the following standard configuration:

Dash.....................................as indicated on the label

Mute ....................................on (no output)

TX Frequency

-1 ......................................5096.0 MHz

-2 ......................................5145.0 MHz

RX Frequency

-1 ......................................5145.0 MHz

-2 ......................................5096.0 MHz

Modulation ..........................on

TX Power ............................+14 dBm

Interleave .............................0

RSL Threshold ....................-110 dBm

Temp Alarm Threshold ....... 50°C

Channel................................serial

Speed ................................... 64 Kbps synchronous

TX Clock

-1 ......................................looped

-2 ......................................internal

Interface...............................EIA-530

Mode....................................point-to-point

Loopback .............................off

Administrator account .........admin (no password)

Hostname.............................hostname

DHCP ..................................on

IP .........................................0.0.0.0

Netmask...............................255.255.255.0

Gateway...............................0.0.0.0

DNS

primary .............................0.0.0.0

secondary .........................0.0.0.0

Timeserver...........................us.pool.ntp.org

Loghost................................0.0.0.0

Modem 4050R only:

Rev No: 05

Rtsenable ............................. both

SharerOut.............................both

5 GHz RF Modem 31-Jan-2007 17 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

3 Monitoring Operation

3.1 Activity Indicators

When there is serial data present at the EIA-530/232 data port, the TX and RX status LEDs flash to indicate the
presence of transmitted and received data respectively.

Each LED flashes when the first data is detected and continues to flash at a predetermined rate as long as data is
being detected. In synchronous mode, only changes in the data are detected so that a continuous stream of a single
character will not cause the LED to flash.

In addition the DAT status LED flashes to indicate a data error has been detected.

Note: the status LEDs flash to indicate the corresponding activity but will be on solid to indicate an alarm. Refer
to the following section for more information on alarms.

3.1.1 Transmit Activity Indicator

The TX status indicator flashes when data input is present at the EIA-530/232 port whether or not this data is
transmitted. Certain conditions, such as if loopback is on or the radio is muted, will prevent the data from being
transmitted even though the TX indicator is flashing.

3.1.2 Receive Activity Indicator

The RX status indicator flashes when data output is present at the EIA-530/232 port.

3.1.3 Data Error Indicator

The DAT status indicator flashes whenever an uncorrectable error occurs in the received data. This indicates a
block of data was corrupted beyond what is correctable by the error correction algorithm. This is not normal and
these events should be extremely rare in a normally operating link.

3.2 Alarms

The modem detects various abnormal conditions and generates an alarm to alert operators to the condition. The
alarm conditions are grouped in to four categories: system, data, transmit, and receive alarms. Each category is
associated with a status LED on the front and rear panels and with a solid-state relay contact closure. The specific
conditions that generate each alarm are described below.

The system alarm status LED is green and is normally illuminated. It is extinguished when there is a system alarm
or when any of the other alarm categories are asserted. Thus a no-alarm condition is easily identified by the green
system LED on the panel being illuminated. Conversely, an alarm condition is easily identified by the green status
LED being extinguished.

The other three alarm categories have a corresponding amber status LED that illuminates when an alarm condition
is detected. Multiple alarm conditions may be present so more than one alarm LED may be illuminated.

Each of the four alarm categories also has a corresponding solid-state relay contact closure. The system alarm
contact closure is normally closed while the other three contact closures are normally open.

5 GHz RF Modem 31-Jan-2007 18 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

The alarm status may be examined with the
alarm, if any. The
is now cleared.

alarm

command will also indicate the cause of any transient alarm that may have occurred but

3.2.1 System Alarms

High Modem Temperature The temperature on the modem board exceeds the set high temperature

threshold. The factory set threshold is 50°C but may be independently
adjusted as desired.

High RF Temperature The temperature of the RF module exceeds the set high temperature

threshold. The factory set threshold is 50°C but may be independently
adjusted as desired.

High PA Temperature The temperature of the transmitter power amplifier exceeds the set high

temperature threshold. The factory set threshold is 50°C but may be
independently adjusted as desired.

3.2.2 Data Alarms

No Frame Lock The modem is not able to achieve frame lock on the incoming data. No

frame lock may indicate a poor receive signal or mismatched
configuration settings between the two ends of the link.

3.2.3 Transmit Alarms

Muted The transmitter is muted because of a configuration problem or a

transmit synthesizer problem.

Synthesizer Out of Lock The transmit synthesizer is out of lock. This may indicate an

unconfigured or misconfigured transmitter, or a hardware failure.
No Transmit Power No transmit power is detected.
Low Transmit Power The detected transmit power reading is less than 80% of its nominal

value.

alarm

command that displays the specific condition generating an

3.2.4 Receive Alarms

Synthesizer Out of Lock The receive synthesizer is out of lock. This may indicate an unconfigured

or misconfigured receiver, or a hardware failure.
AGC Out of Lock The automatic gain control system is not able to achieve a suitable

receive signal level.
Low RSL The receive signal level is below the set threshold level. The RSL is not a

measured value but is inferred from the AGC system. The threshold level

may be set by the administrator and should be set to an appropriate value

depending on the expected operating conditions.

3.3 Status

Useful status information may also be displayed by various commands including
and

ifinfo

The

rsl

antenna positioning when installing the system.

5 GHz RF Modem 31-Jan-2007 19 of 84

.

command continuously displays near real-time receive signal strength and may be used to “peak” the

rsl, stats, temp, linestat,

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

The

stats

command displays statistics about the performance of the Forward Error Correction (FEC)

mechanism. This information may be helpful in evaluating the quality of the RF link and the operating margin.

The

temp

command displays the current and peak temperatures measured in the RF module, the power amplifier,

and the processor/modem.

The

linestat

command displays the current status of the modem control signals on the EIA-530/232 data

port(s).

The

ifinfo

command displays current information about the ethernet ports, including hardware address, IP

address, and some performance statistics.

See the description of each command below for details.

5 GHz RF Modem 31-Jan-2007 20 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

Rev No: 05

4 Local Craft Interface

4.1 Craft Interface Terminal Port

The modem has a Craft Interface Terminal (CIT) port that is used to configure it and monitor its operation. The
user interface is a text-based “command line” style so that it is compatible with most laptop Personal Computers
(PCs) and Personal Digital Assistants (PDAs). Terminal emulator software such as “HyperTerminal” or
equivalent is required for the PC or PDA.

The physical interface is 9600 baud serial with a 9 pin female D-sub connector (DE-9F). The connector is
configured as Date Communication Equipment (DCE) so a straight thru cable is used to connect to a typical PC or
PDA.

In the following descriptions the authorization designation “RO” indicates the command is “read only” meaning
the current value can be displayed but not changed. The designation “RW” indicates the command is “read /
write” and the value can be both displayed and changed.

When a command is entered without an optional parameter, the current value is displayed. When the command is
entered with a parameter, the value will be changed to the specified value.

In the following usage descriptions, ptional parameters are shown enclosed in square brackets [ ]. Alternative
parameters are shown in angle brackets < > and separated by a vertical bar. Unless otherwise noted, only one of
the alternatives should be entered. Neither the angle brackets nor the vertical bar should be entered as part of the
command.

4.2 Commands

4.2.1 accounts Login Accounts

Usage: accounts

Authorization: Operator RO; Administrator RO

Display a list of existing login account names and the account type.

4.2.2 agc Automatic Gain Control

Usage: agc

Authorization: Operator N/A; Administrator RO

Display the AGC on/off setting.

4.2.3 agcstatus Status

Usage: agcstatus

Authorization: Operator RO; Administrator RO

Display information about the operation of the agc function. Probably only useful
to the factory for debugging purposes.

5 GHz RF Modem 31-Jan-2007 21 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

4.2.4 alarms Display Alarms

Usage: alarms

Authorization: Operator RO; Administrator RO

Display alarm conditions, if any. Alarms that have been asserted since the last
time this command was issued but are now de-asserted will be marked as
“cleared.” This feature allows transient alarm condition to be “remembered” and
more easily identified.

4.2.5 apc Automatic Power Control

Usage: apc

Authorization: Operator N/A; Administrator RO

Display the APC on/off setting. Note: this setting is normally ‘off.’

4.2.6 channel Select Data Channel

Usage: channel [<serial|ethernet>]

Authorization: Operator RW; Administrator RW

Rev No: 05

With no argument, displays the current data channel. Otherwise sets the data
channel to the specified value.

The modem may carry either serial data or 10Base-T Ethernet data. A link speed
of 128 Kbps is automatically selected when Ethernet traffic is being carried.

4.2.7 clear Clear Screen

Usage: clear

Authorization: Operator RW; Administrator RW

Clear terminal screen.

4.2.8 clock Clock Mode

Usage: clock [<int|ext|loop>]

Authorization: Operator RW; Administrator RW

Display or set the clock mode.

The clock mode is only applicable to synchronous communications. The
synchronous transmit data may be aligned to a clock provided by the modem
(“internal” clock), by the Data terminal Equipmemt (DTE) (“external” clock), or
by the receiver (“looped-back” clock). The proper choice of clock mode depends
on the requirements of the DTE.

With no argument, display the current clock mode. With an argument, set the
clock mode to “int,” “ext,” or “loop.”

5 GHz RF Modem 31-Jan-2007 22 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

4.2.9 config Configuration

Usage: config

Authorization: Operator RO; Administrator RO

Show current configuration settings summary.

4.2.10 dash Dash Variation

Usage: dash [<1|2>]

Authorization: Operator RO; Administrator RW

Display or set “dash” variation.

There are two variations for the RF modem: one transmits on a higher frequency
and receives on a lower frequency, and the other is the opposite. A link consists
of one modem of each variation so that the receive frequency of each one can be
tuned to the transmit frequency of the other. These two variations are called
“dash one” and “dash two.”

A modem may be physically changed in the field from dash one to dash two, or
vice versa, by following a specified procedure. After physically changing the
modem, this command must be used to properly configure the software.

Rev No: 05

Note: this change requires opening the unit and may invalidate the warranty.
Please consult the factory before making this change.

With no argument, display the current dash number setting. With an argument of
“1” or “2” set the dash number as specified. When the dash number is changed, if
there are valid transmit and receive frequencies set, then the frequencies are
swapped so that the same frequencies are retained in their correct subbands.

4.2.11 delaccount Delete Login Account

Usage: delaccount name

Authorization: Operator N/A; Administrator RW

Delete the named login account. Deleted accounts can not be undeleted, however
they can be recreated although the password will be reset when the account is
created.

4.2.12 dhcp DHCP Enable

Usage: dhcp [<0|1>] [<n|y|off|on>]

Authorization: Operator RO; Administrator RW

With no argument displays the current DHCP enable setting. Otherwise sets the
DHCP enable to the specified value.

DHCP is a protocol that permits an Ethernet device to have its IP port
configuration set automatically. When DHCP is enabled, at startup the modem
will request IP configuration information from a DHCP server. If DHCP is

5 GHz RF Modem 31-Jan-2007 23 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

enabled the customer is responsible for providing a DHCP server that will supply
the necessary configuration information or the Ethernet port will not work.

If DHCP is disabled, the IP number, netmask, gateway, and DNS configuration
must be set manually.

Note: the 0/1 refers to the RMS Ethernet port (0) or the payload Ethernet port (1).
Although there is a setting for the payload port, it is not used. The default port is
0, however, so entering a 0 or 1 is unnecessary and is only documented for the
sake of completeness.

4.2.13 dhcpinfo DHCP Information

Usage: dhcpinfo

Authorization: Operator RO; Administrator RO

Display ethernet interface information resulting from DHCP configuration. The
information includes IP address, network and netmask values, broadcast address,
gateway address, domain, domain name server, MAC address, and lease time.

If DHCP is not enabled or was not successful in configuring the interface, a
message will be printed indicating no information is available.

Rev No: 05

4.2.14 dns Domain Name Server

Usage: dns [<pri|sec>] [nnn.nnn.nnn.nnn]

Authorization: Operator RO; Administrator RW

With no argument, displays the IP address of the domain name server(s).
Otherwise sets the domain name server address to the specified value.

A domain name server, or DNS, is required for the RMS Ethernet port to locate
other networked systems by name. It is possible to set a primary and a secondary
name server. If not specified, primary is the default.

If DHCP is enabled, the DNS should be set automatically.

A DNS setting is optional. If it is not needed, an IP number of 0.0.0.0 may be
entered.

4.2.15 gateway Network Gateway

Usage: gateway [<nnn.nnn.nnn.nnn|hostname.domain>]

Authorization: Operator RO; Administrator RW

With no argument, displays the default IP gateway. Otherwise sets the default
gateway to the specified value.

To communicate beyond the local network, the IP communication must go
through an IP router. This command allows a default router to be specified to
handle any communication beyond the local network.

5 GHz RF Modem 31-Jan-2007 24 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

The gateway may be specified as a “dotted quad” IP number (nnn.nnn.nnn.nnn)
or as a hostname (and domain). If specified as a hostname, a DNS server must be
available to resolve the name into an IP number.

4.2.16 help / ? Help

Usage: help [<radio|datalink|network|admin|all>]

Usage: ? [<radio|datalink|network|admin|all>]

Authorization: Operator RO; Administrator RO

Display brief help information about available commands. Help without an
argument displays the top level help screen. With an argument, displays help
screen for commands related to a specific topic:

radio radio configuration and performance
datalink data channel configuration
network network configuration
admin administrative commands

4.2.17 hostname Hostname

Usage: hostname [hostname]

Rev No: 05

Authorization: Operator RO; Administrator RW

With no argument, displays the network hostname for this modem. Otherwise
sets the hostname to the specified value.

4.2.18 ident Identify

Usage: ident

Authorization: Operator RO; Administrator RO

Display product identification information.

4.2.19 ifinfo Ethernet Interface Information

Usage: ifinfo [<eth0|eth1>]

Authorization: Operator RO; Administrator RO

Display current ethernet interface information including hardware address (MAC
address), IP address if any, status, and statistics.

4.2.20 interface Interface Driver

Usage: interface [<232|530>]

Authorization: Operator RO; Administrator RW

Display or set the interface driver/receiver type.

The interface drivers and receivers may be configured to either EIA-232 (single
ended) or EIA-530 (differential) standards. Either style of driver may be used
with either the asynchronous or synchronous protocol.

5 GHz RF Modem 31-Jan-2007 25 of 84

This document and information contained herein is subject to the restrictions set forth on the title page

.

CONFIDENTIAL Protium Technologies, Inc. 4050-9901

4.2.21 interleave Interleave Data Blocks

Usage: interleave [<0|1|2|3|4|5|6>]

Authorization: Operator RO; Administrator RW

With no argument, displays the current interleave depth. Otherwise set the
interleave depth to the specified value.

Data blocks may be interleaved to improve the error performance in the presence
of certain kinds of noise and interference. The optimum interleave depends on
the characteristics of the noise and interference and is selecting the optimum
interleave depth is beyond the scope of this document.

Increasing the interleave depth increases the latency of the link.

Depth of 0 and 1 are equivalent and mean interleaving is off.

4.2.22 ip Internet Protocol Address

Usage: ip [<0|1>] [nnn.nnn.nnn.nnn]

Authorization: Operator RO; Administrator RW

With no argument, display the current manual IP address. Otherwise, set the
manual IP address to the specified value.

Rev No: 05

The IP address is required for the RMS Ethernet port to communicate. If DHCP
is disabled then the IP address must be set manually using this command. A
unique address must be assigned to each device on the network.

If DHCP is enabled, this setting is ignored. The value reported here DOES NOT
represent the IP address established by the DHCP server.

Note: the 0/1 refers to the RMS Ethernet port (0) or the payload Ethernet port (1).
Although there is an IP address setting for the payload port, it is not used. The
default port is 0, however, so entering a 0 or 1 is unnecessary and is only
documented for the sake of completeness.

4.2.23 linestat Display Serial Line Status

Usage: linestat

Authorization: Operator RO; Administrator RO

Display the status of the modem control signals on the EIA-530/232 port(s).

4.2.24 loghost Loghost Address

Usage: loghost [<nn.nn.nn.nn|hostname.domain>]

Authorization: Operator RO; Administrator RW

With no value specified, display the current setting of the loghost. Otherwise set
the loghost to the specified value. The loghost may be specified as a “dotted
quad” IP address, or as a hostname and domain. The change will take effect when
the system is restarted.

5 GHz RF Modem 31-Jan-2007 26 of 84
