5 GHz RF Modem User Manual
Document Number
Rev Number
Date
181 Cedar Hill, Marlborough, MA 01752
Tel: (508) 229-3666 Fax: (508) 229-3667
Internet: www.protiumtechnologies.com
4050-9901
04
07-Feb-2006
RESTRICTIONS ON USE, DUPLICATION OR DISCLOSURE OF
PROPRIETARY INFORMATION
This document contains information proprietary to Protium Technologies, Inc. No part of this publication may be copied,
distributed, transmitted, stored in a retrieval system or translated into any human or computer language without prior written
permission of Protium Technologies, Inc.
Copyright © 2005, 2006, Protium Technologies, Inc.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Revision History
Rev Date Author Comments
01 16-Aug-2005 M. Smutek / R. Hughes Preliminary version
02 14-Nov-2005 M. Smutek Revisions & additional commands
03 17-Jan-2006 M. Smutek / R. Hughes Additional commands and updates, MIB, licenses,
warranty, installation & configuration
04 07-Feb-06 M. Smutek / R. Hughes Glossary. RF radiation warning. Miscellaneous
clarifications and editorial corrections.
Rev No: 04
5 GHz RF Modem 07-Feb-2006 2 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
FCC COMPLIANCE STATEMENT
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at the user’s expense.
WARNING
RF EXPOSURE HAZARD
Rev No: 04
Under certain operational circumstances and when connected to a typical high
gain directional antenna, this equipment is capable of producing RF radiation
exposure in excess of the limits defined in FCC 47CFR 1.1310, Table 1.
Personnel working in the vicinity of an energized antenna should ensure that they
maintain a distance of at least 4.2 feet (1.28 meters) from the antenna in the
direction of maximum gain. All antenna maintenance activities should be
performed only when the associated RF Modem transmit power has been muted.
5 GHz RF Modem 07-Feb-2006 3 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
NOTICE
Protium Technologies, Inc. has made every effort to ensure that the instructions
contained in this document are adequate and free of errors or omissions. Protium
Technologies, Inc. will, if necessary, explain issues that may not be covered by
this document. Protium Technologies, Inc.’s liability for any errors in this
document is limited to the correction of errors and the aforementioned advisory
services.
This document has been prepared for professional and properly trained personnel
and the customer assumes all responsibility when using this document. Protium
Technologies, Inc. welcomes customer comments as part of the process of
continual development and improvement of the documentation. Please submit
your comments to Protium Technologies, Inc. at the following address:
Protium Technologies, Inc.
181 Cedar Hill Street
Marlborough, MA 01752
Phone: 508-229-3666
Facsimile: 508-229-3667
To allow for the introduction of design improvements, specifications are subject
to change without notice.
Rev No: 04
5 GHz RF Modem 07-Feb-2006 4 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
Table of Contents
1 Introduction........................................................................................................................................ 8
1.1 System Overview ......................................................................................................................... 8
1.2 Features ........................................................................................................................................ 8
2 Installation and Configuration ......................................................................................................... 9
2.1 General Installation and Operating Considerations ..................................................................... 9
2.1.1 Antenna ................................................................................................................................. 9
2.1.2 Site Planning......................................................................................................................... 9
2.1.3 Cooling.................................................................................................................................. 9
2.1.4 Shielding and Grounding...................................................................................................... 9
2.2 Configuration Procedure .............................................................................................................. 9
2.2.1 Password Setup..................................................................................................................... 9
2.2.2 Radio Configuration ........................................................................................................... 10
2.2.3 Remote Management Port Configuration ........................................................................... 13
2.3 Factory Configuration ................................................................................................................ 16
3 Monitoring Operation ..................................................................................................................... 17
3.1 Alarms ........................................................................................................................................ 17
3.1.1 System Alarms..................................................................................................................... 17
3.1.2 Data Alarms ........................................................................................................................ 17
3.1.3 Transmit Alarms.................................................................................................................. 17
3.1.4 Receive Alarms.................................................................................................................... 18
3.2 Status .......................................................................................................................................... 18
4 Local Craft Interface....................................................................................................................... 19
4.1 Craft Interface Terminal Port ..................................................................................................... 19
4.2 Commands.................................................................................................................................. 19
4.2.1 alarms Display Alarms ....................................................................................................... 19
4.2.2 channel Select Data Channel.............................................................................................. 19
4.2.3 clear Clear Screen .............................................................................................................. 20
4.2.4 clock Clock Mode................................................................................................................ 20
4.2.5 config Configuration........................................................................................................... 20
4.2.6 dash Dash Variation ........................................................................................................... 20
4.2.7 dhcp DHCP Enable............................................................................................................. 21
4.2.8 dns Domain Name Server ................................................................................................... 21
4.2.9 gateway Network Gateway ................................................................................................. 21
4.2.10 help / ? Help........................................................................................................................ 22
4.2.11 hostname Hostname ............................................................................................................ 22
4.2.12 ident Identify ....................................................................................................................... 22
4.2.13 interface Interface Driver ................................................................................................... 22
4.2.14 interleave Interleave Data Blocks....................................................................................... 22
4.2.15 ip Internet Protocol Address............................................................................................... 23
4.2.16 loghost Loghost Address ..................................................................................................... 23
4.2.17 loop Loopback Mode........................................................................................................... 24
4.2.18 mac Media Access Control (MAC) Address ....................................................................... 24
5 GHz RF Modem 07-Feb-2006 5 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
4.2.19 mod Modulation .................................................................................................................. 24
4.2.20 multipoint Multipoint Handshaking.................................................................................... 24
4.2.21 mute Mute the RF output..................................................................................................... 25
4.2.22 netconfig Network Configuration Summary ....................................................................... 25
4.2.23 netmask Network Mask ....................................................................................................... 25
4.2.24 passwd Set Passwords......................................................................................................... 26
4.2.25 rsl Received Signal Level .................................................................................................... 26
4.2.26 rslthr RSL Alarm Threshold................................................................................................ 26
4.2.27 rxfreq Receive Frequency ................................................................................................... 26
4.2.28 speed Set Interface Speed.................................................................................................... 27
4.2.29 stats Error Correction Statistics ......................................................................................... 27
4.2.30 status Status ........................................................................................................................ 28
4.2.31 temp Temperature ............................................................................................................... 28
4.2.32 tempthr Temperature Alarm Thresholds............................................................................. 28
4.2.33 testmode Test LEDs, Fans, Relays...................................................................................... 28
4.2.34 timeserver Time Server ....................................................................................................... 28
4.2.35 txfreq Transmit Frequency.................................................................................................. 29
4.2.36 txpower Transmit Power Level ........................................................................................... 29
4.2.37 uptime System Uptime......................................................................................................... 29
4.2.38 version Version ................................................................................................................... 30
4.3 Privileged Commands ................................................................................................................ 30
4.3.1 Netflash Update Software via the Network ......................................................................... 30
4.3.2 Syslog System Logging........................................................................................................ 30
4.3.3 agc Automatic Gain Control............................................................................................... 31
4.3.4 apc Automatic Power Control ............................................................................................ 31
4.3.5 atten Attenuation Setting..................................................................................................... 31
4.3.6 dev Deviation Setting .......................................................................................................... 31
4.3.7 dev128 Deviation Calibration 128 Kbps ............................................................................ 31
4.3.8 dev64 Deviation Calibration 64 Kbps ................................................................................ 32
4.3.9 pwrcal TX Power Calibration............................................................................................. 32
4.3.10 pwrdet TX Power Detector Reading ................................................................................... 32
4.3.11 rslcal RSL Calibration ........................................................................................................ 32
4.3.12 tcxo TCXO Calibration ....................................................................................................... 32
5 Specifications.................................................................................................................................... 33
6 Connectors........................................................................................................................................ 34

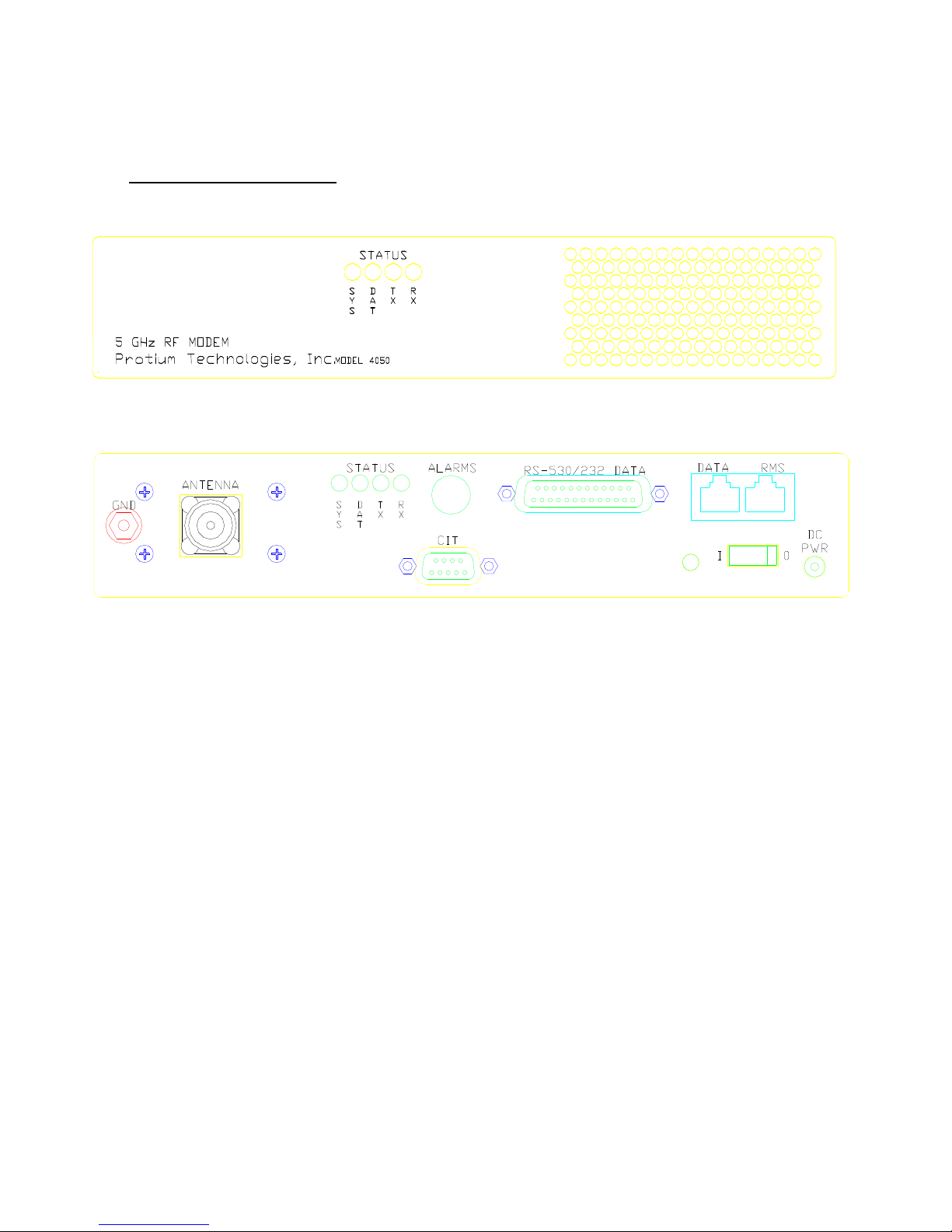

6.1 Front & Rear Panels ................................................................................................................... 34
6.2 Pin-out Tables ............................................................................................................................ 35
6.2.1
Data Port ................................................................................................................................ 35
6.2.2 Craft Interface Terminal (CIT) Port ................................................................................... 36
6.2.3 Alarm Relays....................................................................................................................... 36
6.2.4 Ethernet............................................................................................................................... 37
6.2.5 Power .................................................................................................................................. 37
7 Software Licenses............................................................................................................................. 38
7.1 Open Source Software................................................................................................................ 38
7.2 Protium Technologies, Inc. Software License ........................................................................... 38
5 GHz RF Modem 07-Feb-2006 6 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
8 Warranty and Service Information ............................................................................................... 39
Appendix A Protium Technologies, Inc. Model 4050 MIB ................................................................. 40
Appendix B Software Licenses .............................................................................................................. 54
B.1 Protium Technologies, Inc. Proprietary Software License ........................................................ 54
SOFTWARE LICENSE AGREEMENT
.................................................................................................... 54
B.2 GNU General Public License, Version 2 ................................................................................... 56
B.3 GNU Library General Public License, Version 2 ...................................................................... 62
Appendix C GLOSSARY ....................................................................................................................... 71
5 GHz RF Modem 07-Feb-2006 7 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
1 Introduction
1.1 System Overview
The Model 4050 is a 5 GHz full-duplex Radio Frequency (RF) modem with link speeds of 64 and 128 Kbps. Data
formats are synchronous serial, asynchronous serial, and 10Base-T Ethernet.
1.2 Features
Radio
• 5 GHz operation (5.091 – 5.101 and 5.140 – 5.150 GHz)
• Transmit power: 1W up to 50°C
• Occupied bandwidth: 100 KHz @ 64 Kbps, 200 KHz @ 128 Kbps
• Sensitivity: -98 dBm @ 64 Kbps, -96 dBm @ 128 Kbps
• Dynamic range: 70 dB
• Point-to-point
• Point-to-multipoint (TX keyed by RTS)
Modem
• Link speed: 64 or 128 Kbps (automatically set by data interface)
• Error correction: Reed-Solomon
• Interleave depth: 0 to 6
Data Interfaces
• Serial: synchronous or asynchronous (software selectable)
• Synchronous speeds: 64 or 128 Kbps
• Synchronous clock: internal, external, or looped (software selectable)
• Asynchronous speeds: 300 – 19200 bps
• Interface: EIA-232 and EIA-530 (software selectable)
• DB-25F connector (DCE)
• Ethernet 10Base-T (layer 2, protocol independent)
Management
• Local serial port (9600, 8N1)
• DE-9F (DCE)
• Command line interface
• Password protected (three authorization levels)
• Alarm status LEDs (front and rear panels, four each)
• Alarm contact closures (solid-state, four form A)
• Ethernet 10Base-T management port
• DHCP capable
• SNMP (v1 and v3)
5 GHz RF Modem 07-Feb-2006 8 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
2 Installation and Configuration
2.1 General Installation and Operating Considerations
2.1.1 Antenna
Avoid operating the transmitter without a proper termination on the RF connector. Although the modem is
designed to withstand such operation, undesired interference to other RF systems may occur.
A typical installation will require the use of a high gain antenna. Proper alignment of the antenna is critical to
ensuring an error-free link. During the alignment process, an
(CIT) will display near real-time receive signal strength and may be used to “peak” the antenna positioning.
This equipment produces RF radiation when connected to a typical high gain directional antenna. Personnel
working in the vicinity of an energized antenna should ensure that they maintain a distance of at least 4.2 feet
(1.28 meters) from the antenna in the direction of maximum gain. See the caution statement at the beginning of
the manual.
The RF Modem is shipped with the transmitter set in the “mute” condition. This is done to prevent inadvertent
transmission on an unauthorized frequency. All operating parameters, including an estimate of the minimum
necessary transmit power, should be programmed into the modem before un-muting the transmitter.
rsl
command from the Craft Interface Terminal
Do not exceed +10 dBm input power at the antenna terminal of the RF Modem or damage to the unit may result.
2.1.2 Site Planning
As with any wireless link, proper system and path planning is essential to ensuring error-free operation. Such
planning should take into consideration path clearances from obstructions, interference from nearby radiators,
multi-path reflections and fading. A system signal strength margin of at least 20 dB above the rated receiver
threshold is standard practice.
When installing multiple modems in the same general location, ensure that they are all transmitting within the
same sub-band to prevent interference and desensitization.
2.1.3 Cooling
Install the RF Modem so that adequate airflow can be maintained through the rear and side vents. If airflow is
restricted, the modem internal temperature may rise above the preset thermal shutdown temperature.
2.1.4 Shielding and Grounding
When the DB-25F connector is used for the RF Modem EIA-530/232 data I/O, ensure that a good quality shielded
cable is used and that the cable shield is electrically terminated to the cable connector shells.
A grounding stud is provided on the rear panel. A ground braid should be attached to this lug and connected to a
local earth ground to prevent static charge build-up on the modem, antenna and associated cabling.
2.2 Configuration Procedure
2.2.1 Password Setup
As shipped from the factory, the default passwords are trivial and not secure. It is strongly suggested that the
passwords be changed before the system is deployed.
5 GHz RF Modem 07-Feb-2006 9 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
To change passwords, log in to the system as the administrator by typing the default administrator password
“admin” at the password prompt.
2.2.1.1 Operator Password
The operator password allows the operator to configure and test the data port. Configuration settings for the radio
and the network may be displayed but not changed.
The initial operator password is “oper”. The operator or the administrator may change it using the password
command:
>
passwd oper
2.2.1.2 Administrator Password
The administrator password allows the administrator to configure all of the modem including the data port, radio
and network.
The initial administrator password is “admin”. The administrator may change it using the password command:
> passwd admin
The administrator may also change the operator password (and the spare password).
2.2.1.3 Spare Password
The spare password is equivalent to the administrator. It is intended as an extra password that may be used in the
event that the administrator password is lost.
The initial spare password is “spare”. The administrator may change it using the password command:
>
passwd spare
2.2.1.4 Privileged Password
The privileged password is intended for use by a service technician. It allows access to all the operator and
administrative commands plus commands for updating the software and examining various factory-set
parameters.
The initial privileged password is “Volpe.DOT.”. The privileged user may change the password using the
command:
>
password wheel
The privileged user may also change the operator, administrator, and spare passwords as shown above.
2.2.2 Radio Configuration
A configuration summary with all of the important configuration settings for the radio and the data interface may
be displayed with the
2.2.2.1 Dash Setting
config
command.
The modems come in two configurations known as “dash one” and “dash two.” The “dash one” modems transmit
at a lower frequency than they receive while the “dash two” modems are the reverse. One modem of each type is
required to form a link.
5 GHz RF Modem 07-Feb-2006 10 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
Modems with odd serial numbers are set at the factory to “dash one” and those with even serial numbers are set to
“dash two.”
IMPORTANT: The dash setting corresponds to a physical configuration internal to the modem and should not be
changed.
2.2.2.2 Receive Frequency
The receive frequency should be set with the command:
>
rxfreq ffff.f
The receive frequency of each modem must equal the transmit frequency of the other modem in the link. The
frequency is specified in 0.1 MHz steps.
2.2.2.3 Transmit Frequency
The transmit frequency should be set with the command:
>
txfreq ffff.f
The transmit frequency of each modem must equal the receive frequency of the other modem in the link. The
frequency is specified in 0.1 MHz steps.
2.2.2.4 Transmit Power
The transmit power should be set with the command:
>
txpower nn.n
The transmit power level is specified in dBm, adjustable in 0.5 dB steps.
2.2.2.5 RSL Threshold
The RF Modem has a programmable Receive Signal Level (RSL) threshold detector that may be used to evaluate
link margin. When the receive signal level drops below the programmed threshold, the RX alarm will be set. This
threshold is set at the factory to a default value of –110 dBm to minimize the chance of inadvertent RSL alarms
during initial system setup. The user should set the RSL alarm threshold so that RSL alarm events are generated at
an appropriate level depending on the actual operating conditions.
The RSL threshold should be set with the command:
>
rslthr –nn.n
The threshold value is specified in dBm.
2.2.2.6 Mute
The modem is configured at the factory with mute on. Mute should not be turned off until the frequency and
power settings are set correctly and an appropriate antenna (or load) is attached to the antenna terminal.
2.2.2.6.1 Data Channel Configuration
5 GHz RF Modem 07-Feb-2006 11 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
2.2.2.7 Channel Selection
The modems may be configured to carry either full-duplex serial or Ethernet traffic. Only one type of traffic can
be carried at a time and both ends of the link must be set to the same selection. Configure the channel with the
command
>
channel serial
or
>
channel ethernet
as desired.
2.2.2.8 Serial Port
The DB-25 connector carries the serial data traffic. It may be configured through the software for either
synchronous or asynchronous operation at a variety of speeds, and for either EIA-530 or EIA-232 drivers and
receivers.
The serial port should be properly configured before connecting to external equipment.
2.2.2.8.1 Speed
Serial data may be either synchronous at 64 or 128 Kbps, or asynchronous at 300 to 19200 bps. The speed
selection automatically determines whether the protocol is synchronous or asynchronous.
Both ends of the link must be set to the same speed.
The speed and protocol may be set to 64 or 128 Kbps synchronous with the command:
>
speed 64
or
>
speed 128
The speed and protocol may be set to 300 to 19200 bps asynchronous with the command:
>
speed 300
where the 300 may be replaced with 600, 1200, 2400, 4800, 9600, 14400, or 19200 as desired.
2.2.2.8.2 Clock Source
Synchronous serial mode requires the use of a data clock for both receive data and transmit data. The receive data
clock is always derived from the received signal and is provided by the modem. The transmit clock, however,
may be provided by one of three sources. With the clock set to internal, the modem supplies a clock at 64 Kbps or
128 Kbps depending on the speed setting. With the clock set to external, the customer equipment supplies a 64 or
128 Kbps clock that should match the speed setting. With the clock set to loop, the receive clock is also used for
the transmit side.
The clock mode of the modem at each end of the link must be configured appropriately depending on the clock
mode of the customer equipment to which it is attached. For example, if the customer equipment is generating the
transmit clock, the modem must use the external clock mode. On the other hand, if the customer equipment is
expecting the clock to be provided by the modem, then the modem must be set to internal clock mode. Each end
of the link may be configured independently to use internal, external, or looped clock, except that using looped
mode at both ends of the link is not recommended.
5 GHz RF Modem 07-Feb-2006 12 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
The clock source may be set with one of the commands:
>
clock int
or
>
clock ext
or
>
clock loop
2.2.2.8.3 Interface Type
The serial interface may use either EIA-232 or EIA-530 drivers and receivers. Either type of interface may be
used with both synchronous and asynchronous data.
Each end of the link may be configured independently.
The interface type may be configured with the command
>
interface 232
or
>
interface 530
2.2.2.9 Ethernet Port
The Ethernet data port requires no configuration. When the Ethernet channel is selected, the link speed is
automatically set to 128 Kbps.
The Ethernet data port attempts to transport any valid Ethernet packet it receives to the other end of the link. No
assumption is made about higher layer protocols and, in particular, there is no assumption that Internet Protocol
(IP) is used. The Ethernet data port needs no IP address, netmask, or default gateway.
Since the modem link is slower than the Ethernet network, packets may arrive at the port faster than they can be
transmitted across the link. In this case the modem will buffer and transmit as many packets as possible but some
packets may be lost. This is consistent with ethernet’s “best effort” deliver policy. If guaranteed delivery is
required, a higher layer protocol such as Transmission Control Protocol (TCP) will assure delivery even when
there is packet loss due to congestion or mis-matched link speeds.
2.2.3 Remote Management Port Configuration
The Ethernet Remote Management System (RMS) port is used for Simple Network Management Protocol
(SNMP), software updates, system message logging, and setting the system clock. All of these functions are
optional and, if they are unused, the port may be left un-configured and unconnected.
If any of these features are desired, the port should be properly configured before being connected to the local
network. Failure to properly configure the port may cause the port to not operate and/or interfere with the
operation of other devices on the local network.
A network configuration summary may be displayed with the
netconfig
command.
5 GHz RF Modem 07-Feb-2006 13 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
2.2.3.1 DHCP
The IP parameters of the interface may be automatically configured using a Dynamic Host Configuration Protocol
(DHCP) server on the local network. The DHCP server will typically configure the IP address and netmask,
default gateway, and Domain Name Servers (DNS).
To enable use of a DHCP server, use the command:
>
dhcp on
To disable the use of a DHCP server, use the command:
>
dhcp off
2.2.3.2 IP Address / Netmask
Each device on the local network requires a unique IP address. If the IP address and netmask are configured with
DHCP, the manual IP address and netmask are not used.
To set the IP address, use the command
>
ip aaa.bbb.ccc.ddd
where aaa.bbb.ccc.ddd is the desired IP address in the usual “dotted quad” format.
To set the netmask, use the command
>
netmask aaa.bbb.ccc.ddd
where aaa.bbb.ccc.ddd is the desired netmask in the usual “dotted quad” format.
2.2.3.3 Default Gateway
When the local network includes one or more routers connecting to other networks, a default gateway should be
specified to indicate which is the most likely router to handle traffic to arbitrary IP addresses.
If DHCP is enabled, this manual setting is not used.
To set the default gateway, use the command
>
gateway aaa.bbb.ccc.ddd
where aaa.bbb.ccc.ddd is the IP address of the default router in the usual “dotted quad” format.
2.2.3.4 DNS Servers
If either the timeserver or loghost (see following) are specified by name rather than IP number then a DNS is
needed to resolve the name.
If DHCP is enabled, then the DNS may be set automatically. However, if DHCP is disabled or if it does not
designate a DNS server, then the manual setting will apply.
Two DNS server may be specified, in which case the secondary server is used in the event the primary server is
unavailable.
To set the DNS server use the commands:
>
dns pri aaa.bbb.ccc.ddd
>
dns sec eee.fff.ggg.hhh
5 GHz RF Modem 07-Feb-2006 14 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
2.2.3.5 Timeserver
The modem does not have real-time clock hardware that will allow it to maintain a time reference when powered
off. However, during its startup procedure it will attempt to contact a timeserver on the network to set its clock to
the actual time. The time is only used for message logging and other diagnostic purposes and a correct time is
merely a convenience. Consequently, the availability of a timeserver is completely optional.
The factory set timeserver is us.pool.ntp.org, which refers to a collection of public timeservers generally available
on the Internet. A DNS server must be available to resolve that timeserver name into an IP address.
The protocol used to set the time is NTP (network time protocol). Any NTP server may be used as a timeserver.
To change the timeserver use the command:
>
timeserver aaa.bbb.ccc.ddd
or
>
timeserver hostname.domainname
where aaa.bbb.ccc.ddd is the IP address of the timeserver in the usual “dotted quad” format, or
hostname.domainname is the hostname and domain name. Note that there is no default domain name so it must be
explicitly specified with the hostname.
2.2.3.6 Loghost
The modem can send system log messages to a specified loghost. This feature is mainly intended for debugging
purposes and a loghost is completely optional. Normally only error messages and a limited number of startup
messages are logged.
The “syslog” protocol is used to send the messages. Any host system with a syslog facility may be used to collect
the messages. Most Unix and Linux system have syslog capability and there are both free and commercial syslog
programs for Windows.
Specifying the loghost with an IP number of 0.0.0.0 or with a name of “none” disables the syslog messages. The
system is configured at the factory with the syslog messaging disabled.
To set a loghost use the command
>
loghost aaa.bbb.ccc.ddd
or
>
loghost hostname.domainname
where aaa.bbb.ccc.ddd is the IP address of the loghost in the usual “dotted quad” format, or
hostname.domainname is the hostname and domain name of the loghost. Note that there is no default domain
name so it must be explicitly specified with the hostname.
5 GHz RF Modem 07-Feb-2006 15 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
2.3 Factory Configuration
The modems are set at the factory to the following standard configuration:
Dash.....................................as indicated on the label
Mute ....................................on (no output)
TX Frequency
-1 ......................................5093.0 MHz
-2 ......................................5147.0 MHz
RX Frequency
-1 ......................................5147.0 MHz
-2 ......................................5093.0 MHz
Modulation ..........................on
TX Power ............................+27 dBm
Interleave .............................0
RSL Threshold ....................-110 dBm
Temp Alarm Threshold ....... 50°C
Channel................................serial
Speed ................................... 64 Kbps synchronous
TX Clock
-1 ......................................looped
-2 ......................................internal
Interface...............................EIA-530
Mode....................................point-to-point
Loopback .............................off
Operator password............... oper
Administrator password ......admin
Spare password....................spare
Hostname.............................protium
DHCP ..................................on
IP .........................................0.0.0.0
Netmask...............................255.255.255.0
Gateway...............................192.168.0.1
DNS
primary .............................192.168.0.1
secondary .........................0.0.0.0
Timeserver...........................us.pool.ntp.org
Loghost................................0.0.0.0
Rev No: 04
5 GHz RF Modem 07-Feb-2006 16 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
3 Monitoring Operation
3.1 Alarms
The modem detects various abnormal conditions and generates an alarm to alert operators to the condition. The
alarm conditions are grouped in to four categories: system, data, transmit, and receive alarms. Each category is
associated with a status LED on the front and rear panels and with a solid-state relay contact closure. The specific
conditions that generate each alarm are described below.
The system alarm status LED is green and is normally illuminated. It is extinguished when there is a system alarm
or when any of the other alarm categories are asserted. Thus a no-alarm condition is easily identified by the green
system LED on the panel being illuminated. Conversely, an alarm condition is easily identified by the green status
LED being extinguished.
The other three alarm categories have a corresponding amber status LED that illuminates when an alarm condition
is detected. Multiple alarm conditions may be present so more than one alarm LED may be illuminated.
Each of the four alarm categories also has a corresponding solid-state relay contact closure. The system alarm
contact closure is normally closed while the other three contact closures are normally open.
The alarm status may be examined with the
alarm, if any. The
is now cleared.
alarm
command will also indicate the cause of any transient alarm that may have occurred but
3.1.1 System Alarms
High Modem Temperature The temperature on the modem board exceeds the set high temperature
threshold. The factory set threshold is 50°C but may be independently
adjusted as desired.
High RF Temperature The temperature of the RF module exceeds the set high temperature
threshold. The factory set threshold is 50°C but may be independently
adjusted as desired.
High PA Temperature The temperature of the transmitter power amplifier exceeds the set high
temperature threshold. The factory set threshold is 50°C but may be
independently adjusted as desired.
3.1.2 Data Alarms
No Frame Lock The modem is not able to achieve frame lock on the incoming data. No
frame lock may indicate a poor receive signal or mismatched
configuration settings between the two ends of the link.
3.1.3 Transmit Alarms
Muted The transmitter is muted because of a configuration problem or a
transmit synthesizer problem.
Synthesizer Out of Lock The transmit synthesizer is out of lock. This may indicate an
unconfigured or misconfigured transmitter, or a hardware failure.
No Transmit Power No transmit power is detected.
Low Transmit Power The detected transmit power reading is less than 80% of its nominal
value.
alarm
command that displays the specific condition generating an
5 GHz RF Modem 07-Feb-2006 17 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
3.1.4 Receive Alarms
Synthesizer Out of Lock The receive synthesizer is out of lock. This may indicate an unconfigured
or misconfigured receiver, or a hardware failure.
AGC Out of Lock The automatic gain control system is not able to achieve a suitable
receive signal level.
Low RSL The receive signal level is below the set threshold level. The RSL is not a
measured value but is inferred from the AGC system. The threshold level
may be set by the administrator and should be set to an appropriate value
depending on the expected operating conditions.
3.2 Status
Rev No: 04
Useful status information may also be displayed by various commands including
rsl, stats
, and
temp
.
The
rsl
command continuously displays near real-time receive signal strength and may be used to “peak” the
antenna positioning when installing the system.
The
stats
command displays statistics about the performance of the Forward Error Correction (FEC)
mechanism. This information may be helpful in evaluating the quality of the RF link and the operating margin.
The
temp
command displays the current and peak temperatures measured in the RF module, the power amplifier,
and the processor/modem.
See the description of each command below for details.
5 GHz RF Modem 07-Feb-2006 18 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
4 Local Craft Interface
4.1 Craft Interface Terminal Port
The modem has a Craft Interface Terminal (CIT) port that is used to configure it and monitor its operation. The
user interface is a text-based “command line” style so that it is compatible with most laptop Personal Computers
(PCs) and Personal Digital Assistants (PDAs). Terminal emulator software such as “HyperTerminal” or
equivalent is required for the PC or PDA.
The physical interface is 9600 baud serial with a 9 pin female D-sub connector (DE-9F). The connector is
configured as Date Communication Equipment (DCE) so a straight thru cable is used to connect to a typical PC or
PDA.
In the following descriptions the authorization designation “RO” indicates the command is “read only” meaning
the current value can be displayed but not changed. The designation “RW” indicates the command is “read /
write” and the value can be both displayed and changed.
When a command is entered without an optional parameter, the current value is displayed. When the command is
entered with a parameter, the value will be changed to the specified value.
In the following usage descriptions, ptional parameters are shown enclosed in square brackets [ ]. Alternative
parameters are shown in angle brackets < > and separated by a vertical bar. Unless otherwise noted, only one of
the alternatives should be entered. Neither the angle brackets nor the vertical bar should be entered as part of the
command.
4.2 Commands
4.2.1 alarms Display Alarms
Usage: alarms
Authorization: Operator RO; Administrator RO
Display alarm conditions, if any. Alarms that have been asserted since the last
time this command was issued but are now de-asserted will be marked as
“cleared.” This feature allows transient alarm condition to be “remembered” and
more easily identified.
4.2.2 channel Select Data Channel
Usage: channel [<serial|ethernet>]
Authorization: Operator RW; Administrator RW
With no argument, displays the current data channel. Otherwise sets the data
channel to the specified value.
The modem may carry either serial data or 10Base-T Ethernet data. A link speed
of 128 Kbps is automatically selected when Ethernet traffic is being carried.
5 GHz RF Modem 07-Feb-2006 19 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
4.2.3 clear Clear Screen
Usage: clear
Authorization: Operator RW; Administrator RW
Clear terminal screen.
4.2.4 clock Clock Mode
Usage: clock [<int|ext|loop>]
Authorization: Operator RW; Administrator RW
Display or set the clock mode.
The clock mode is only applicable to synchronous communications. The
synchronous transmit data may be aligned to a clock provided by the modem
(“internal” clock), by the Data terminal Equipmemt (DTE) (“external” clock), or
by the receiver (“looped-back” clock). The proper choice of clock mode depends
on the requirements of the DTE.
With no argument, display the current clock mode. With an argument, set the
clock mode to “int,” “ext,” or “loop.”
Rev No: 04
4.2.5 config Configuration
Usage: config
Authorization: Operator RO; Administrator RO
Show current configuration settings summary.
4.2.6 dash Dash Variation
Usage: dash [<1|2>]
Authorization: Operator RO; Administrator RW
Display or set “dash” variation.
There are two variations for the RF modem: one transmits on a higher frequency
and receives on a lower frequency, and the other is the opposite. A link consists
of one modem of each variation so that the receive frequency of each one can be
tuned to the transmit frequency of the other. These two variations are called
“dash one” and “dash two.”
A modem may be physically changed in the field from dash one to dash two, or
vice versa, by following a specified procedure. After physically changing the
modem, this command must be used to properly configure the software.
With no argument, display the current dash number setting. With an argument of
“1” or “2” set the dash number as specified. When the dash number is specified,
whether or not it is changed, the transmit and receive frequencies are set to zero.
This is a precaution so the user must explicitly set the frequencies to ensure they
are appropriate to the current variation.
5 GHz RF Modem 07-Feb-2006 20 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
4.2.7 dhcp DHCP Enable
Usage: dhcp [<0|1>] [<n|y|off|on>]
Authorization: Operator RO; Administrator RW
With no argument displays the current DHCP enable setting. Otherwise sets the
DHCP enable to the specified value.
DHCP is a protocol that permits an Ethernet device to have its IP port
configuration set automatically. When DHCP is enabled, at startup the modem
will request IP configuration information from a DHCP server. If DHCP is
enabled the customer is responsible for providing a DHCP server that will supply
the necessary configuration information or the Ethernet port will not work.
If DHCP is disabled, the IP number, netmask, gateway, and DNS configuration
must be set manually.
Note: the 0/1 refers to the RMS Ethernet port (0) or the payload Ethernet port (1).
Although there is a setting for the payload port, it is not used. The default port is
0, however, so entering a 0 or 1 is unnecessary and is only documented for the
sake of completeness.
Rev No: 04
4.2.8 dns Domain Name Server
Usage: dns [<pri|sec>] [nnn.nnn.nnn.nnn]
Authorization: Operator RO; Administrator RW
With no argument, displays the IP address of the domain name server(s).
Otherwise sets the domain name server address to the specified value.
A domain name server, or DNS, is required for the RMS Ethernet port to locate
other networked systems by name. It is possible to set a primary and a secondary
name server. If not specified, primary is the default.
If DHCP is enabled, the DNS should be set automatically.
A DNS setting is optional. If it is not needed, an IP number of 0.0.0.0 may be
entered.
4.2.9 gateway Network Gateway
Usage: gateway [<nnn.nnn.nnn.nnn|hostname.domain>]
Authorization: Operator RO; Administrator RW
With no argument, displays the default IP gateway. Otherwise sets the default
gateway to the specified value.
To communicate beyond the local network, the IP communication must go
through an IP router. This command allows a default router to be specified to
handle any communication beyond the local network.
5 GHz RF Modem 07-Feb-2006 21 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
The gateway may be specified as a “dotted quad” IP number (nnn.nnn.nnn.nnn)
or as a hostname (and domain). If specified as a hostname, a DNS server must be
available to resolve the name into an IP number.
4.2.10 help / ? Help
Usage: help [<radio|datalink|network|admin|all>]
Usage: ? [<radio|datalink|network|admin|all>]
Authorization: Operator RO; Administrator RO
Display brief help information about available commands. Help without an
argument displays the top level help screen. With an argument, displays help
screen for commands related to a specific topic:
radio radio configuration and performance
datalink data channel configuration
network network configuration
admin administrative commands
4.2.11 hostname Hostname
Usage: hostname [hostname]
Rev No: 04
Authorization: Operator RO; Administrator RW
With no argument, displays the network hostname for this modem. Otherwise
sets the hostname to the specified value.
4.2.12 ident Identify
Usage: ident
Authorization: Operator RO; Administrator RO
Display product identification information.
4.2.13 interface Interface Driver
Usage: interface [<232|530>]
Authorization: Operator RO; Administrator RW
Display or set the interface driver/receiver type.
The interface drivers and receivers may be configured to either EIA-232 (single
ended) or EIA-530 (differential) standards. Either style of driver may be used
with either the asynchronous or synchronous protocol.
4.2.14 interleave Interleave Data Blocks
Usage: interleave [<0|1|2|3|4|5|6>]
Authorization: Operator RO; Administrator RW
With no argument, displays the current interleave depth. Otherwise set the
interleave depth to the specified value.
5 GHz RF Modem 07-Feb-2006 22 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Data blocks may be interleaved to improve the error performance in the presence
of certain kinds of noise and interference. The optimum interleave depends on
the characteristics of the noise and interference and is selecting the optimum
interleave depth is beyond the scope of this document.
Increasing the interleave depth increases the latency of the link.
Depth of 0 and 1 are equivalent and mean interleaving is off.
4.2.15 ip Internet Protocol Address
Usage: ip [<0|1>] [nnn.nnn.nnn.nnn]
Authorization: Operator RO; Administrator RW
With no argument, display the current manual IP address. Otherwise, set the
manual IP address to the specified value.
The IP address is required for the RMS Ethernet port to communicate. If DHCP
is disabled then the IP address must be set manually using this command. A
unique address must be assigned to each device on the network.
If DHCP is enabled, this setting is ignored. The value reported here DOES NOT
represent the IP address established by the DHCP server.
Rev No: 04
Note: the 0/1 refers to the RMS Ethernet port (0) or the payload Ethernet port (1).
Although there is an IP address setting for the payload port, it is not used. The
default port is 0, however, so entering a 0 or 1 is unnecessary and is only
documented for the sake of completeness.
4.2.16 loghost Loghost Address
Usage: loghost [<nn.nn.nn.nn|hostname.domain>]
Authorization: Operator RO; Administrator RW
With no value specified, display the current setting of the loghost. Otherwise set
the loghost to the specified value. The loghost may be specified as a “dotted
quad” IP address, or as a hostname and domain. The change will take effect when
the system is restarted.
Specifying the loghost with an IP number of 0.0.0.0 or with a name of “none”
disables the syslog messages. The system is configured at the factory with the
syslog messaging disabled
The modem will send system error messages to the specified remote loghost on
UDP port 514 using the “syslog” protocol. Use of this feature is completely
optional, although it may be useful for monitoring or troubleshooting since a
system console is not provided.
Any host system with a syslogd facility may be used to collect the messages.
Most Unix and Linux system have syslogd capability and there are both free and
commercial syslogd programs for Windows. (See, for example,
http://www.kiwisyslog.com.)
5 GHz RF Modem 07-Feb-2006 23 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
4.2.17 loop Loopback Mode
Usage: loop [<0|1|n|y|off|on>]
Authorization: Operator RW; Administrator RW
Display or set the current loopback mode.
With no argument, displays the current loopback setting. With an argument of 0,
n, or “off” sets the loopback to off. With an argument of 1, y, or “on” sets the
loopback mode to on.
There are three loopback functions: local, remote, and traffic. Local loopback
connects the serial data port output (RD) to the serial port input (TD). This is
useful for testing the data interface lines, receivers, and drivers.
Remote loopback connects the
4.2.18 mac Media Access Control (MAC) Address
Usage: mac [<0|1>]
Authorization: Operator RO; Administrator RO
Display the Ethernet port MAC address.
Rev No: 04
Every Ethernet device is required to have a unique MAC or “hardware” address.
This address is assigned by the manufacturer and is set at the factory.
The RMS and payload Ethernet ports have separate MAC addresses. The 0 or 1
will select which is displayed. If not specified, the RMS port (0) is displayed.
4.2.19 mod Modulation
Usage: mod [<0|1|n|y|off|on>]
Authorization: Operator RO; Administrator RO
With no argument, displays the current modulation setting. With an argument of
0, n, or “off” sets the modulation to off. With an argument of 1, y, or “on” sets
the loopback mode to on.
4.2.20 multipoint Multipoint Handshaking
Usage: multipoint [<0|1|n|y|off|on>]
Authorization: Operator RW; Administrator RW
With no value specified, display the current multipoint setting. Otherwise, set the
multipoint setting to the specified value. Multipoint on indicates point-tomultipoint mode; multipoint off indicates point-to-point mode.
The modems support point-to-point and point-to-multipoint communication
modes. In point-to-multipoint mode, only one of the multipoint modems may
transmit at any given time. This is controlled by the RTS (request-to-send)
control line at the EIA-530/-232 DB-25 port.
5 GHz RF Modem 07-Feb-2006 24 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
When a multipoint modem has permission to transmit, it should assert RTS and
wait for the modem to respond by asserting CTS (clear-to-send).
In multipoint mode the RF transmitter will be unmuted when RTS is asserted
and, after delay to allow the link to be established, CTS will be asserted to
indicate it is okay to send data. The transmitter will be muted when RTS is
negated.
Arbitration among the multipoint modems for access to the link is a higher level
network function and the responsibility of the customer.
Multipoint mode does not affect the operation of the receiver. The receiver is on
whether or not the multipoint modems is transmitting and all multipoint modems
may receive simultaneously.
4.2.21 mute Mute the RF output
Usage: mute [<0|1|n|y|off|on>]
Authorization: Operator RO; Administrator RW
Display or set the mute state.
With no argument, displays the current mute setting. With an argument of 0, n, or
off sets the mute to “off” (enables RF output). With an argument of 1, y, or on
sets the mute to “on” (disables RF output).
Rev No: 04
4.2.22 netconfig Network Configuration Summary
Usage: netconfig
Authorization: Operator RO; Administrator RO
Display the current network configuration summary.
4.2.23 netmask Network Mask
Usage: netmask [<0|1>] [nnn.nnn.nnn.nnn]
Authorization: Operator RO; Administrator RW
With no value specified, display the current network mask. Otherwise set the
network mast to the specified value. The change will take effect when the system
is restarted.
The IP address consist of a “network” portion and a “host” portion. The network
mask defines how much of the address is used for each one. A typical value for
the network mask is 255.255.255.0.
If DHCP is enabled, this setting is ignored. The value reported here DOES NOT
represent the network mask established by the DHCP server.
Note: the 0/1 refers to the RMS Ethernet port (0) or the payload Ethernet port (1).
Although there is a network mask setting for the payload port, it is not used. The
default port is 0, however, so entering a 0 or 1 is unnecessary and is only
documented for the sake of completeness.
5 GHz RF Modem 07-Feb-2006 25 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
4.2.24 passwd Set Passwords
Usage: passwd <oper|admin|spare>
Authorization: see text
Change login passwords.
There are three user accounts: operator, administrator, and spare. The account is
automatically identified by the password that is used to log in.
The operator account may change only the operator password; the administrator
and the spare account may change any of the passwords.
The administrator and spare accounts are equivalent. It is suggested the spare
account be used only as a backup in case the other passwords are lost.
The factory passwords are “oper”, “admin”, and “spare”. They are obviously not
secure and should be changed. New passwords are subjected to specified
complexity tests and must meet the specified requirements or will be rejected.
4.2.25 rsl Received Signal Level
Usage: rsl
Rev No: 04
Authorization: Operator RO; Administrator RO
Display the current received signal level.. This display is updated continuously
until the return/enter key is pressed.
4.2.26 rslthr RSL Alarm Threshold
Usage: rslthr [-nnn.n]
Authorization: Operator RO; Administrator RW
Display or set the received signal level alarm threshold.
If the RSL falls below the specified value, a low received signal alarm is
declared.
Without an argument, display the current RSL threshold.
With a numeric argument, sets the RSL alarm threshold to -nnn.n dBm.
4.2.27 rxfreq Receive Frequency
Usage: rxfreq [ffff.f]
Authorization: Operator RO; Administrator RW
Display or set the receive frequency.
With no argument, display the current receive frequency.
With a numeric argument, set the frequency to “ffff.f” MHz. The frequency may
be specified in 0.1 MHz (100 KHz) steps. The minimum and maximum
frequency depends on the dash variation of the modem:
5 GHz RF Modem 07-Feb-2006 26 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
DASH MINIMUM MAXIMUM
-1 5140.0 MHz 5150.0 MHz
-2 5091.0 MHz 5101.0 MHz
4.2.28 speed Set Interface Speed
Usage: speed [<300|600|1200|2400|4800|9600|19200|64|128>]
Authorization: Operator RW; Administrator RW
Display or set the interface speed.
With no argument, display the current interface speed.
With an argument, set the interface speed to the specified value. If the specified
speed is “64” or “128” then the speed is set to 64,000 or 128,000 bits per second
respectively and the protocol is set to synchronous. If the specified speed is 300 –
19200, the protocol is set to asynchronous.
If the speed is 128 Kbps synchronous, the link speed is also set to 128 Kbps. In
all other cases the link speed is set to 64 Kbps.
Rev No: 04
4.2.29 stats Error Correction Statistics
Usage: stats [<0|clr>]
Authorization: Operator RO; Administrator RW
With no argument, displays the error correction statistics. With an argument of
zero or “clr” resets the statistics counters to zero.
The display includes the following information:
Elapsed seconds: 0 Seconds since the counters were last cleared. This time
continues to increment whether or not a link is
established.
Total bytes: 0 Total bytes processed. This counts actual payload data
in synchronous serial mode. In asynchronous serial
and Ethernet modes this counter include “filler” bytes
transmitted when there is no real data.
Corrected bytes: 0 The number of bytes corrected by the error correction
logic.
Total blocks: 0 The total number of block processed by the error
correction logic. A block contains up to 200 actual
data bytes.
Errored blocks: 0 The number of blocks that had a detected error.
Uncorrected blks: 0 The number of blocks that had uncorrectable errors.
Corrected blocks: 0 The number of blocks that had corrected errors.
5 GHz RF Modem 07-Feb-2006 27 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
If there are any corrected blocks, a table is printed indicating how many blocks
had one error, how many had two errors, and so forth.
4.2.30 status Status
Usage: status
Authorization: Operator RO; Administrator RO
Display information about the operation of the modem.
4.2.31 temp Temperature
Usage: temp
Authorization: Operator RO; Administrator RO
Display the temperature of the modem, the RF module, and the power amplifier.
4.2.32 tempthr Temperature Alarm Thresholds
Usage: tempthr [<rf|pa|modem>] [nn]
Authorization: Operator RO; Administrator RW
Rev No: 04
If the temperature argument (nn) is absent, display the current temperature alarm
thresholds. Otherwise sets the temperature alarm threshold to nn°C.
If one or more of the identifiers “rf”, “pa”, or “modem” is present the command
applies only to the specified subsystem(s). If none is specified, the command
applies to all subsystems.
An excessive temperature reading in the RF module, the power amplifier, or the
modem board will generate a system alarm condition. The factory set threshold
for the alarm is 50°C but this may be changed with this command.
4.2.33 testmode Test LEDs, Fans, Relays
Usage: testmode [<0|1|n|y|off|on>]
Authorization: Operator RW; Administrator RW
With no argument, display the current state of the test mode. Otherwise set the
test mode on or off as specified.
When the test mode is on, all the front and rear panel status LEDs will be turned
on, both fans will be turned on, and the alarm relays will be inverted.
The operation of the modem will be unaffected. If it is operational it will
continue to operate when test mode is on. Note, however, that the inverted state
of the alarm relays may externally affect the operation of the modem.
4.2.34 timeserver Time Server
Usage: timeserver [<nn.nn.nn.nn|hostname.domain>]
Authorization: Operator RO; Administrator RW
5 GHz RF Modem 07-Feb-2006 28 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
With no value specified, display the current setting of the time server. Otherwise
set the time server to the specified value. The change will take effect when the
system is restarted.
The time server may be specified as a “dotted quad” IP address, or as a hostname
and domain.
When the system is started, it will attempt to contact the specified time server
using Network Time Protocol (NTP) in order to set the modem’s internal time
and date. An accurate time and date is optional and not necessary for the
modem’s operation but it may be useful for timestamping messages in various
system logs.
If the timeserver is not specified, or if the attempt to contact the timeserver is not
successful, the modem’s time and date starts at 00:00 on 1-Jan-1970.
4.2.35 txfreq Transmit Frequency
Usage: txfreq [ffff.f]
Authorization: Operator RO; Administrator RW
Display or set the transmit frequency.
Rev No: 04
With no argument, display the current transmit frequency.
With a numeric argument, set the frequency to “ffff.f” MHz. The frequency may
be specified in 0.1 MHz (100 KHz) steps. The minimum and maximum
frequency depends on the dash variation of the modem:
DASH MINIMUM MAXIMUM
-1 5091.0 MHz 5101.0 MHz
-2 5140.0 MHz 5150.0 MHz
4.2.36 txpower Transmit Power Level
Usage: txpower [nn.n]
Authorization: Operator RO; Administrator RW
Display or set the current transmit power setting.
With no argument, displays the current transmit power setting. With a numeric
argument, sets the transmit power level to nn.n. The power level is specified in
dBm. Although tenths of a dBm may be specified on the command line, the
power level will be set to the next lower 0.5 dBm setting. The maximum power
level is 30.0 dBm.
4.2.37 uptime System Uptime
Usage: uptime
Authorization: Operator RO; Administrator RO
5 GHz RF Modem 07-Feb-2006 29 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
Display the system “uptime” – the time since the modem was first started. Also
displays the modem’s current time (“wall” time) which will only be meaningful
if it has been successfully set using a timeserver. See the timeserver command
description.
Processor loading information is also shown but it is generally uninteresting.
4.2.38 version Version
Usage: version
Authorization: Operator RO; Administrator RO
Display the version of the software modules in the modem.
4.3 Privileged Commands
There is a set of privileged commands reserved for use by trained technicians and other knowledgeable users.
These commands are available by logging in with a special password. These commands should be used with care.
The password should be treated accordingly.
4.3.1 Netflash Update Software via the Network
Usage: netflash <IP[ filename]|http://website/filename>
Authorization: Privileged
Update the user interface and operating system software.
This command will read a new software file over the RMS network connection.
If the file is successfully downloaded as determined by checksum, the new file
will be written to the program FLASH memory and will be run the next time the
system is started.
Note: there is only one program area. If the wrong program is loaded, or if the
process of writing the file to FLASH is interrupted, the modem is likely to
become non-functional the next time it is started and must be returned to the
factory for reprogramming.
The source of the update may be specified as an IP number, in which case a
TFTP server with the update file will be expected. If the filename is not
specified, a file name of “image.bin” is assumed. The TFTP server must be
provided by the customer and may be on a local network or even an appropriately
configured laptop computer.
Alternatively, the update may be specified as a URL and loaded from a web
server. From time to time Protium Technologies, Inc. may make software updates
available on its web server for downloading via the Internet.
4.3.2 Syslog System Logging
Usage: syslog [<none|info|debug>]
Authorization: Privileged
5 GHz RF Modem 07-Feb-2006 30 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
With no argument, display the current system logging level. Otherwise, set the
specified system logging level.
Multiple arguments may be specified, in which case each argument is applied in
the order given. For example,
syslog none debug
will clear all optional logging and then enable logging of debug messages.
The modem sends system messages to a syslog host if one is specified. When a
host is specified, the messages are sent using the “syslog” UDP protocol to port
514. Syslog messages are categorized in to multiple levels based on the severity
of the condition and the importance of the message. The “info” and “debug” log
level messages are optional and are disabled by default. All other messages levels
are considered error messages and are always enabled.
The “info” and/or “debug” log levels may be useful for debugging is certain
limited circumstances but should otherwise be off.
4.3.3 agc Automatic Gain Control
Usage: agc
Rev No: 04
Authorization: Privileged
Display the AGC on/off setting.
4.3.4 apc Automatic Power Control
Usage: apc
Authorization: Privileged
Display the APC on/off setting.
4.3.5 atten Attenuation Setting
Usage: atten
Authorization: Privileged
Display the current attenuation setting.
4.3.6 dev Deviation Setting
Usage: dev
Authorization: Privileged
Display the current deviation setting.
4.3.7 dev128 Deviation Calibration 128 Kbps
Usage: dev128
Authorization: Privileged
5 GHz RF Modem 07-Feb-2006 31 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Display the calibrated deviation setting for 128 Kbps link speed.
4.3.8 dev64 Deviation Calibration 64 Kbps
Usage: dev64
Authorization: Privileged
Display the calibrated deviation setting for 64 Kbps link speed.
4.3.9 pwrcal TX Power Calibration
Usage: pwrcal
Authorization: Privileged
Display the calibrated TX power setting.
4.3.10 pwrdet TX Power Detector Reading
Usage: pwrdet
Authorization: Privileged
Display the current reading from the transmit power detector.
Rev No: 04
4.3.11 rslcal RSL Calibration
Usage: rslcal
Authorization: Privileged
Display the RSL calibration value.
4.3.12 tcxo TCXO Calibration
Usage: tcxo
Authorization: Privileged
Display the TCXO calibration value.
5 GHz RF Modem 07-Feb-2006 32 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
5 Specifications
Rev No: 04
System
Frequency Range 5091 - 5150 MHz
T/R Spacing 54 or 49 MHz
Capacity 64/128 kb/s
Occupied Bandwidth 100/200 kHz
Modulation Type Modified Duobinary CPM
Forward Error Correction Reed-Solomon
Interleaving Selectable 0 - 6
Link Acquisition Time Less than 5 seconds
Power Supply 20 to 60 VDC, either polarity
Power Consumption <30 Watts
System Gain @10-6 BER 128/126 dB
Operating Modes Full/half Duplex
Transmitter
Transmitter Source Fully Synthesized
Frequency Tolerance < 2.5 ppm
Tuning Steps 0.1 MHz
Output Power 30 dBm
Power Adjustment Range >20 dB, 1 dB Steps
Spectral Compliance NTIA Spectrum Manual, Ch. 5
Tx Mute <-50 dBm
Receiver
Receiver Source Fully Synthesized
Frequency Tolerance <2.5 ppm
Tuning Steps 0.1 MHz
Rx Threshold @ 10-6 BER -98/-96 dBm
Dynamic Range > 70 dB
Maximum Input (without damage) +10 dBm
Residual BER <1x10
Interfaces
Data EIA-530, EIA-232 (DB-25F, DCE) or IEEE 802.3 (RJ-45)
SNMP IEEE 802.3 (RJ-45)
Local Craft Interface Terminal (CIT) EIA-232, 9600 bps (DE-9F, DCE)
Alarms 8 pin mini-DIN, 4 form A contact pairs
Antenna Type N
Unit Management and Diagnostics
Local CIT Command line interface
SNMP Version 1 and 3
Physical Characteristics
Unit Size 1.8"H x 9.5"W x 12"D
Weight 5.0 lb.
Environmental
Temperature Range 0 - 50°C, 0 – 70°C Reduced Tx Power
Humidity 0 - 95% non-condensing
Shock per IEC-68-2-27
Vibration per IEC-68-2-6
EMC
Immunity per IEC 61000-4-2,3,5,6
Emissions Compliant with FCC Part 15, Class A Devices
-10
5 GHz RF Modem 07-Feb-2006 33 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
6 Connectors
6.1 Front & Rear Panels
Rev No: 04
5 GHz RF Modem 07-Feb-2006 34 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
6.2 Pin-out Tables
6.2.1 Data Port
EIA-530EIA-232
PIN NAME SOURCE FUNCTION PIN NAME SOURCE FUNCTION Pairing
1 FG Chassis Ground 1 SHIELD Shield Ground
2 TD DTE Transmit Data to Modem 2 TD(A) DTE Transmit Data to Modem 14
3 RD DCE Receive Data from Modem 3 RD(A) DCE Receive Data from Modem 16
4 RTS DTE Request to Send to Modem 4 RTS(A) DTE Request to Send to Modem 19
5 CTS DCE Clear to Send from Modem 5 CTS(A) DCE Clear to Send from Modem 13
6 DSR DCE Data Set Ready from Modem 6 DCR(A) DCE DCE Ready from Modem 22
7 SG Signal Ground 7 SG Signal Ground
8 DCD DCE Receive Line Signal Detect from Modem 8 RLSD(A) DCE Receive line Signal Detect from Modem 10
9 9 RSET(B) DCE Receive Clock from Modem 17
10 10 RLSD(B) DCE Receive Line Signal Detect from Modem 8
11 11 TSET(B) DTE Terminal Timing Clock to Modem 24
12 12 TSET(B) DCE Transmit Clock from Modem 15
13 13 CTS(B) DCE Clear to Send from Modem 5
14 14 TD(B) DTE Transmit Data to Modem 2
15 TC DCE Transmit Clock from Modem 15 TSET(A) DCE Transmit Clock from Modem 12
16 16 RD(B) DCE Receive Data from Modem 3
17 RC DCE Receiver clock from Modem 17 RSET(A) DCE Receive Clock from Modem 9
18 LL DTE Loopback to Modem 18 LL DTE Local Loopback to Modem
19 19 RTS(B) DTE Requect to Send to Modem 4
20 DTR DTE Data Terminal Ready to Modem 20 DTR(A) DTE DTE Ready to Modem 23
21 21
22 22 DCR(B) DCE DCE Ready from Modem 6
23 23 DTR(B) DTE DTE Ready to Modem 20
24 TCE DTE External Transmit Clock to Modem 24 TSET(A) DTE Terminal Timing Clock to Modem 11
25 25 TM DCE Test Mode
NOTE 1: The RF modem is DCE and drives those signals that originate in the DCE
5 GHz RF Modem 07-Feb-2006 35 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
6.2.2 Craft Interface Terminal (CIT) Port
EIA-232
PIN NAME ORIG
1 DCD DCE
2 RD DCE
3 TD DTE
4 DTR DTE
5 SG
6 DSR DCE
7 RTS DTE
8 CTS DCE
9 RI DCE
NOTE 1: The RF modem is DCE and drives those signals that originate in the DCE
Rev No: 04
6.2.3 Alarm Relays
ALARMS
PIN NAME STATE*
4 SYS1
6 SYS2
3 DAT1
1 DAT2
2 TX1
5 TX2
8 RX1
7 RX2
*Indicates contact status during normal operation
NOTE 1: Mating connector is male.
NC
NO
NO
NO
5 GHz RF Modem 07-Feb-2006 36 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
6.2.4 Ethernet
There are two 10Base-T Ethernet ports, one for management and one for carrying data. Both ports will autonegotiate for either full- or half-duplex.
The connectors are standard RJ-45 wired as Media Dependent Interface Crossover (MDIX). The management
port may be connected directly to a PC with a straight-through type CAT-5 cable provided the modem and PC
networking parameters are configured appropriately.
A connection to a switch or hub may need a crossover type CAT-5 cable unless the switch or hub has auto-MDIX
capability or an “uplink” port available.
6.2.5 Power
DC POWER
PIN NAME POLARITY
Center V1 + or -
Sleeve V2 - or +
NOTE 1: Mating connector is 2.5 mm x 5.5mm x 11mm female
NOTE 2: Both pins are isolated from chassis ground.
NOTE 3: Input voltage 24 to 48 VDC
5 GHz RF Modem 07-Feb-2006 37 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
7 Software Licenses
7.1 Open Source Software
The operating system used by the Model 4050 is uClinux 2.4. This is derived from the Linux 2.4 kernel, which is
copyrighted by Linus Torvalds and others and licensed under the GNU General Public License (GPL) Version 2.
The C library used in the system is uClibc, which is licensed under the GNU Library General Public License
(LGPL) Version 2.
The GNU General Public License and Library General Public License themselves are copyrighted by the Free
Software Foundation.
The port of uClinux to the Xilinx Microblaze processor is primarily the work of John Williams,
jwilliams@itee.uq.edu.au, and most (if not all) of that work is copyrighted by him. These modifications to the
kernel are derivative work and are consequently also licensed under the GNU GPL V2.
Device drivers, which are also generally considered to be part of the kernel, are claimed to be derivative works
thereof and, as such, come under the GNU GPL V2 license. This includes the device drivers written or modified
by Protium Technologies, Inc. for the Xilinx SPI peripheral and for a specialized character device peripheral.
Other device drivers are copyrighted by their respective authors, most notably by John Williams who is
responsible for modifying the device drivers for the Microblaze peripherals, by Xilinx, and by others.
Standard Linux application programs provided with the system are copyrighted and licensed individually and
separately from the kernel. Each application source directory should be consulted for the copyright and software
license terms that apply to that application package.
Copies of the GNU General Public License and the GNU Library General Public License are reproduced in
Appendix B for the reader’s convenience. These are provided for reference only. The definitive licenses are those
that accompany the source code.
Source code is available to legitimate owners of Model 4050 hardware in accordance with the GNU GPL, LGPL,
and other applicable licenses. Requests for source code may be sent to Protium Technologies, Inc., 181 Cedar Hill
Street, Marlborough, MA 01752.
7.2 Protium Technologies, Inc. Software License
The various applications embedded in to the equipment that specifically operate and manage the Model 4050,
including the command line user interface application, are original works and are Copyright 2005, 2006 by
Protium Technologies, Inc. and are licensed in binary form for use only with the Model 4050 RF Modem.
The Protium Technologies, Inc. Software License is located in Appendix B1.
5 GHz RF Modem 07-Feb-2006 38 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
8 Warranty and Service Information
Protium Technologies, Inc.’s standard warranty is one year from the date of delivery, provided that the warranty
labels have not been broken. Breaking the seals or opening the modem without the expressed, written consent of
Protium Technologies, Inc. will automatically void the warranty.
Protium Technologies, Inc.’s liability for a warranty failure applies only to the equipment provided by Protium
Technologies, Inc. and excludes all other remedies, including, without limitation, incidental consequential
damages. Protium Technologies, Inc. is not responsible for any lost data, revenue, or any consequential damages
associated with a warranty or non-warranty failure.
In the event of a defect in or failure of the Protium Technologies, Inc. product, the customer shall contact Protium
Technologies, Inc. regarding the warranty claim. Protium Technologies, Inc. warrants to rework or repair the
product at the Protium Technologies, Inc. facility in Marlborough, Massachusetts once it has been properly
returned by the customer.
To process a warranty claim please contact Protium Technologies, Inc. at the following location:
Protium Technologies, Inc.
181 Cedar Hill Street
Marlborough, MA 01752
Phone: 508-229-3666
Facsimile: 508-229-3667
warranty@protiumtechnologies.com
5 GHz RF Modem 07-Feb-2006 39 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
Appendix A Protium Technologies, Inc. Model 4050 MIB
PROTIUMTECH-PRODUCTS-MODEL4050-MIB DEFINITIONS ::= BEGIN
IMPORTS
MODULE-IDENTITY, OBJECT-TYPE, Integer32 FROM SNMPv2-SMI
SnmpAdminString FROM SNMP-FRAMEWORK-MIB
protiumTechProducts FROM PROTIUMTECH-MIB
;
protiumTechModel4050 MODULE-IDENTITY
LAST-UPDATED "200510270000Z"
ORGANIZATION "Protium Technologies, Inc."
CONTACT-INFO
"Protium Technologies, Inc.
181 Cedar Hill Street
Marlborough MA 01752
508-229-3666
snmp-mib@protiumtechnologies"
DESCRIPTION
"MIB objects for the agent module of the Model 4050 RF Modem"
REVISION "200510270000Z"
DESCRIPTION "First draft"
::= { protiumTechProducts 1 }
--
-- top level structure
-protiumTechSystem OBJECT IDENTIFIER ::= { protiumTechModel4050 1 }
systemInfo OBJECT IDENTIFIER ::= { protiumTechSystem 1 }
systemConfig OBJECT IDENTIFIER ::= { protiumTechSystem 2 }
systemStatus OBJECT IDENTIFIER ::= { protiumTechSystem 3 }
systemStats OBJECT IDENTIFIER ::= { protiumTechSystem 4 }
protiumTechAlarms OBJECT IDENTIFIER ::= { protiumTechModel4050 2 }
alarmInfo OBJECT IDENTIFIER ::= { protiumTechAlarms 1 }
alarmConfig OBJECT IDENTIFIER ::= { protiumTechAlarms 2 }
alarmStatus OBJECT IDENTIFIER ::= { protiumTechAlarms 3 }
alarmStats OBJECT IDENTIFIER ::= { protiumTechAlarms 4 }
protiumTechRadio OBJECT IDENTIFIER ::= { protiumTechModel4050 3 }
radioInfo OBJECT IDENTIFIER ::= { protiumTechRadio 1 }
radioConfig OBJECT IDENTIFIER ::= { protiumTechRadio 2 }
radioStatus OBJECT IDENTIFIER ::= { protiumTechRadio 3 }
radioStats OBJECT IDENTIFIER ::= { protiumTechRadio 4 }
radioCalibration OBJECT IDENTIFIER ::= { protiumTechRadio 5 }
protiumTechModem OBJECT IDENTIFIER ::= { protiumTechModel4050 4 }
modemInfo OBJECT IDENTIFIER ::= { protiumTechModem 1 }
modemConfig OBJECT IDENTIFIER ::= { protiumTechModem 2 }
modemStatus OBJECT IDENTIFIER ::= { protiumTechModem 3 }
modemStats OBJECT IDENTIFIER ::= { protiumTechModem 4 }
protiumTechInterfaces OBJECT IDENTIFIER ::= { protiumTechModel4050 5 }
interfacesInfo OBJECT IDENTIFIER ::= { protiumTechInterfaces 1 }
interfacesConfig OBJECT IDENTIFIER ::= { protiumTechInterfaces 2 }
interfacesStatus OBJECT IDENTIFIER ::= { protiumTechInterfaces 3 }
interfacesStats OBJECT IDENTIFIER ::= { protiumTechInterfaces 4 }
protiumTechManagement OBJECT IDENTIFIER ::= { protiumTechModel4050 6 }
protiumTechPersistantConfig OBJECT IDENTIFIER ::= { protiumTechModel4050 7 }
protiumTechTestModes OBJECT IDENTIFIER ::= { protiumTechModel4050 8 }
5 GHz RF Modem 07-Feb-2006 40 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
--
-- system objects
--
productIdentity OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..64))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Identification of the Protium Technologies product."
::= { systemInfo 1 }
productModelNumber OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..12))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Model number of the Protium Technologies product."
::= { systemInfo 2 }
productDescription OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..64))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Description of the Protium Technologies product."
::= { systemInfo 3 }
productManufacturer OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..64))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Manufacturer of the Protium Technologies product."
::= { systemInfo 4 }
serialNumber OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..12))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Serial number of this particular system."
::= { systemInfo 5 }
embeddedSoftwareVersion OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..24))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Version number of the embedded software. The format is flexible but
is generally of the form <major>.<minor>.<revision> where major, minor,
and revision are numeric fields. The major version identifies significant
changes if capabiltiy or functionality. The minor version indicates
a less significant change in functionality. The revision generally
indicates a fix or improvement to existing functionality."
::= { systemInfo 6 }
modemSoftwareVersion OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..24))
MAX-ACCESS read-only
STATUS current
Rev No: 04
5 GHz RF Modem 07-Feb-2006 41 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
DESCRIPTION
"Version number of the embedded software. The format is flexible but
is generally of the form <major>.<minor>.<revision> where major, minor,
and revision are numeric fields. The major version identifies significant
changes if capabiltiy or functionality. The minor version indicates
a less significant change in functionality. The revision generally
indicates a fix or improvement to existing functionality."
::= { systemInfo 7 }
radioSoftwareVersion OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..24))
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Version number of the embedded software. The format is flexible but
is generally of the form <major>.<minor>.<revision> where major, minor,
and revision are numeric fields. The major version identifies significant
changes if capabiltiy or functionality. The minor version indicates
a less significant change in functionality. The revision generally
indicates a fix or improvement to existing functionality."
::= { systemInfo 8 }
panelLEDS OBJECT-TYPE
SYNTAX BITS { sysLED(0), dataLED(1), txLED(2), rxLED(3) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Status of the front and real panel LED indicators. The system LED
is normally on; the other LEDs are normally off."
::= { systemStatus 1 }
relayContacts OBJECT-TYPE
SYNTAX BITS { sysRelay(0), dataRelay(1), txRelay(2), rxRelay(3) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Status of the relay contacts. The system contact is
normally closed (1); the other contacts are normally open."
::= { systemStatus 2 }
coolingFans OBJECT-TYPE
SYNTAX BITS { fan1(0), fan2(1) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Status of the cooling fans. The numbers of fans in operation
is temperature dependent."
::= { systemStatus 3 }
currentAlarms OBJECT-TYPE
SYNTAX BITS { summary(0), modemTemp(1), rfTemp(2), paTemp(3),
linkDown(4),
txSynthOOL(5), txMuted(6), txNoPower(7), txLowPower(8),
rxSynthOOL(9), rxAgcOOL(10), rxLowRsl(11) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"A collection of status bits indicating alarm conditions. The alarms are:
summary inclusive OR of all the other alarms
modemTemp the modem temperature exceeds the alarm threshold
rfTemp the RF module temperature exceeds the alarm threshold
Rev No: 04
5 GHz RF Modem 07-Feb-2006 42 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
paTemp the PA module temperature exceeds the alarm threshold
linkdown there is no frame lock on the receiver
txSynthOOL the TX frequency synthesizer is out of lock
txMuted the transmitter is muted
txNoPower no power is detected at the transmitter
txLowPower the transmitter power out is abnormally low
rxSynthOOL the RX frequency synthesizer is out of lock
rxAgcOOL the receiver automatic gain control has excessive error
rxLowRsl the receiver signal level is below the alarm threshold"
::= { alarmStatus 1 }
--
-- radio objects
-radioMuteSetting OBJECT-TYPE
SYNTAX INTEGER { mute(0), unmute(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Desired unmute setting."
::= { radioConfig 1 }
radioDashVariation OBJECT-TYPE
SYNTAX INTEGER { undefined(0), txlow(1), txhigh(2) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Value of 1 indicates radio transmits in the low subband and
receives in the high subband. A value of 2 indicates the radio
transmits in the high subband and receives in the low subband.
A value of zero indicates the radio has not been configured. An
unconfigured radio will not transmit at all."
::= { radioConfig 2 }
radioTxFrequencySetting OBJECT-TYPE
SYNTAX Integer32
UNITS "KHz"
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Transmit frequency in KHz."
::= { radioConfig 3 }
radioRxFrequencySetting OBJECT-TYPE
SYNTAX Integer32
UNITS "KHz"
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Reveiver frequency in KHz."
::= { radioConfig 4 }
radioTxPowerSetting OBJECT-TYPE
SYNTAX Integer32
UNITS "cBm"
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Transmit output power in cBm (centibels referred to 1 mW)."
::= { radioConfig 5 }
Rev No: 04
5 GHz RF Modem 07-Feb-2006 43 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
radioRslAlarmThreshold OBJECT-TYPE
SYNTAX Integer32
UNITS "cBm"
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Low received signal alarm threshold in cBm (centibels referred to 1 mW)."
::= { radioConfig 6 }
radioTempAlarmThreshold OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"High temperature alarm threshold of the radio module in degrees C."
::= { radioConfig 7 }
powerAmpTempAlarmThreshold OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"High temperature alarm threshold of the power amplifier in degrees C."
::= { radioConfig 8 }
muteState OBJECT-TYPE
SYNTAX INTEGER { unmuted(0), mutedByOper(1), mutedByConfigErr(2),
mutedBySynthUnlocked(3), mutedForReconfig(4),
mutedByRTS }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Actual mute state. The value is 1 if the radio is muted by operator
command; the value is 2 if the operator has attempted to unmute the
radio but it is prevented by mis-configuration (probably illegal TX
frequency); the value is 3 if the frequency is okay but the synthesizer
is out of lock; the value is 4 if the radio is temporarily muted while
it is being reconfigured; the value is 5 if configured for multi-point
and the request-to-send (RTS) line on the serial port is negated."
::= { radioStatus 1 }
txSynthLocked OBJECT-TYPE
SYNTAX INTEGER { unlocked(0), locked(1) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Transmit synthesizer lock state"
::= { radioStatus 2 }
rxSynthLocked OBJECT-TYPE
SYNTAX INTEGER { unlocked(0), locked(1) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Receive synthesizer lock state"
::= { radioStatus 3 }
receivedSignalLevel OBJECT-TYPE
SYNTAX Integer32
Rev No: 04
5 GHz RF Modem 07-Feb-2006 44 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
UNITS "cBm"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Receive signal level in centibels referred to 1 mW."
::= { radioStatus 4 }
txAttenuationSetting OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Transmitter attenuation setting."
::= { radioStatus 5 }
txDeviationSetting OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Transmitter deviation setting."
::= { radioStatus 6 }
radioTemperature OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Temperature of the radio module in degrees C."
::= { radioStatus 7 }
powerAmpTemperature OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Temperature of the power amplifier in degrees C."
::= { radioStatus 8 }
peakRadioTemperaure OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Peak temperature of the radio module in degrees C."
::= { radioStats 7 }
peakPowerAmpTemperature OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Peak temperature of the power amplifier in degrees C."
::= { radioStats 8 }
deviation64K OBJECT-TYPE
SYNTAX Unsigned32(0..1023)
Rev No: 04
5 GHz RF Modem 07-Feb-2006 45 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Deviation calibration setting for 64K link speed."
::= { radioCalibration 1 }
deviation128K OBJECT-TYPE
SYNTAX Unsigned32(0..1023)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Deviation calibration setting for 128K link speed."
::= { radioCalibration 2 }
tcxoCalSetting OBJECT-TYPE
SYNTAX Unsigned32(0..1023)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"TCXO calibration setting."
::= { radioCalibration 3 }
txAttenOffset OBJECT-TYPE
SYNTAX Integer32(-32..31)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Transmit power calibration setting."
::= { radioCalibration 4 }
rslCalOffset OBJECT-TYPE
SYNTAX Integer32(-32..31)
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Inferred receive signal level calibration setting."
::= { radioCalibration 5 }
--
-- protiumTechModem objects
--
interleave OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Interleave factor: 0 through 6. Both 0 and 1 are no interleave"
::= { modemConfig 1 }
clearRsStats OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Clears Reed-Soloman statistics counters when read. Always reads 0."
::= { modemConfig 2 }
modemTempAlarmThreshold OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
Rev No: 04
5 GHz RF Modem 07-Feb-2006 46 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"High temperature alarm threshold of the modem module in degrees C."
::= { modemConfig 3 }
frameLocked OBJECT-TYPE
SYNTAX INTEGER { unlocked(0), locked(1) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Receive frame lock state"
::= { modemStatus 1 }
modemTemperature OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Temperature of the modem board in degrees C."
::= { modemStatus 3 }
peakModemTemperature OBJECT-TYPE
SYNTAX Integer32
UNITS "degrees C"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Peak temperature of the modem board in degrees C."
::= { modemStatus 4 }
totalKBytes OBJECT-TYPE
SYNTAX Counter32
UNITS "KBytes"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of kilobytes processed by the R-S decoder
(using the computer science definition of 1024 bytes
per kilobyte)."
::= { modemStats 1 }
correctedBytes OBJECT-TYPE
SYNTAX Counter32
UNITS "bytes"
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of bytes corrected by the R-S decoder."
::= { modemStats 2 }
totalBlocks OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder."
::= { modemStats 3 }
Rev No: 04
5 GHz RF Modem 07-Feb-2006 47 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
erroredBlocks OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that had errors."
::= { modemStats 4 }
uncorrectedBlocks OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that had uncorrectable errors."
::= { modemStats 5 }
correctedBlocks OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that had corrected errors."
::= { modemStats 6 }
errorHistogram OBJECT IDENTIFIER ::= { modemStats 7 }
blocksWithOtherErrs OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that had
an unknown number of corrected errors. This should not
happen."
::= { errorHistogram 0 }
blocksWith1Errs OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that
had 1 corrected error byte."
::= { errorHistogram 1 }
blocksWith2Errs OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that
had 2 corrected error bytes."
::= { errorHistogram 2 }
blocksWith3Errs OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that
5 GHz RF Modem 07-Feb-2006 48 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
had 3 corrected error bytes."
::= { errorHistogram 3 }
blocksWith4Errs OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that
had 4 corrected error bytes."
::= { errorHistogram 4 }
blocksWith5Errs OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that
had 5 corrected error bytes."
::= { errorHistogram 5 }
blocksWith6Errs OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of blocks processed by the R-S decoder that
had 6 corrected error bytes."
::= { errorHistogram 6 }
--
-- interfacesConfig objects
--
baudrate OBJECT-TYPE
SYNTAX Unsigned32
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Asynchronous: 300 | 600 | 1200 | 2400 | 4800 | 9600 | 14400 | 19200
Synchronous: 64 | 128"
::= { interfacesConfig 1 }
serialMode OBJECT-TYPE
SYNTAX INTEGER { synchronous(0), asynchronous(1) }
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Serial port protocol. This is read-only because it is set
implicitly by the baudrate"
::= { interfacesConfig 2 }
interfaceType OBJECT-TYPE
SYNTAX INTEGER { EIA530(0), EIA232(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Interface driver type"
::= { interfacesConfig 3 }
Rev No: 04
5 GHz RF Modem 07-Feb-2006 49 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
clockSource OBJECT-TYPE
SYNTAX INTEGER { internal(0), external(1), looped(2) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Synchronous serial clock source"
::= { interfacesConfig 4 }
--
-- protiumTechPersistantConfig objects
--
hostname OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..32))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"hostname of the processor"
::= { protiumTechPersistantConfig 1 }
dnsServer1 OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"dotted quad of our primary DNS server"
::= { protiumTechPersistantConfig 2 }
dnsServer2 OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"dotted quad of our secondary DNS server"
::= { protiumTechPersistantConfig 3 }
defaultGateway OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"dotted quad of our default gateway"
::= { protiumTechPersistantConfig 4 }
timeserver OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(0..64))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"host name (or IP number) of an ntp timeserver"
::= { protiumTechPersistantConfig 5 }
mgmtPortDhcpEnable OBJECT-TYPE
SYNTAX INTEGER { disabled(0), enabled(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"If enabled, use DHCP to configure the management ethernet port"
::= { protiumTechPersistantConfig 6 }
mgmtPortIPV4Address OBJECT-TYPE
Rev No: 04
5 GHz RF Modem 07-Feb-2006 50 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
SYNTAX IpAddress
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"dotted quad of management ethernet port if manually configured"
::= { protiumTechPersistantConfig 7 }
mgmtPortNetmask OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"dotted quad of netmask for management ethernet port if manually configured"
::= { protiumTechPersistantConfig 8 }
mgmtPortHwAddress OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(6))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Hardware MAC address for management ethernet port"
::= { protiumTechPersistantConfig 9 }
dataPortDhcpEnable OBJECT-TYPE
SYNTAX INTEGER { disabled(0), enabled(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"If enabled, use DHCP to configure the management ethernet port"
::= { protiumTechPersistantConfig 10 }
dataPortIPV4Address OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"dotted quad of payload ethernet port if manually configured"
::= { protiumTechPersistantConfig 11 }
dataPortNetmask OBJECT-TYPE
SYNTAX IpAddress
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"dotted quad of netmask for payload ethernet port if manually configured"
::= { protiumTechPersistantConfig 12 }
dataPorthardwareAddress OBJECT-TYPE
SYNTAX OCTET STRING (SIZE(6))
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Hardware MAC address for payload ethernet port"
::= { protiumTechPersistantConfig 13 }
--
-- testModes objects
--
panelLedTM OBJECT-TYPE
SYNTAX INTEGER { normal(0), on(1) }
Rev No: 04
5 GHz RF Modem 07-Feb-2006 51 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Test all panel LEDs. All Leds are forced on."
::= { protiumTechTestModes 1 }
alarmRelayTM OBJECT-TYPE
SYNTAX INTEGER { normal(0), on(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Test all alarm relays. Alarm relay states are inverted."
::= { protiumTechTestModes 2 }
coolingFansTM OBJECT-TYPE
SYNTAX INTEGER { normal(0), on(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Test both cooling fans. Both fans are forced on."
::= { protiumTechTestModes 3 }
loopbackTM OBJECT-TYPE
SYNTAX INTEGER { off(0), local(1), remote(2), locrem(3), traffic(4) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Local loopback loops the interface receivers to the
drivers. No modem functions are exercised.
Remote loopback loops the received bit stream back to
the transmitter. Symbol decoding and encoding are
exercised; Interleaving and error correction are not.
Traffic loopback loops the local interface input to
the local output. Serialization, deserialization,
framing, interleaving, and error correction are all
exercised; symbol encoding and decoding are not."
::= { protiumTechTestModes 4 }
rfLoopbackTM OBJECT-TYPE
SYNTAX INTEGER { off(0), on(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Attempt RF loopback. Sets the receiver to the same
frequency as the transmitter and set the transmitter
to minimum power (maximum attenuation). Leakage may
allow the radio to receive its own signal. Maybe."
::= { protiumTechTestModes 5 }
modulationTM OBJECT-TYPE
SYNTAX INTEGER { normal(0), off(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Disable modulation and output a CW carrier."
::= { protiumTechTestModes 6 }
disableAgcTM OBJECT-TYPE
SYNTAX INTEGER { normal(0), disabled(1) }
MAX-ACCESS read-write
STATUS current
Rev No: 04
5 GHz RF Modem 07-Feb-2006 52 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
DESCRIPTION
"Disable receiver automatic gain control."
::= { protiumTechTestModes 7 }
disableApcTM OBJECT-TYPE
SYNTAX INTEGER { normal(0), disabled(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Disable the transmitter temperature compensated
power control."
::= { protiumTechTestModes 8 }
disableRfModuleTM OBJECT-TYPE
SYNTAX INTEGER { normal(0), disabled(1) }
MAX-ACCESS read-write
STATUS current
DESCRIPTION
"Communication with the RF module is disabled. The SPI bus
to the PIC processor will not be used. The RF module remains
in its current state."
::= { protiumTechTestModes 9 }
END
Rev No: 04
5 GHz RF Modem 07-Feb-2006 53 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
Appendix B Software Licenses
B.1 Protium Technologies, Inc. Proprietary Software License
SOFTWARE LICENSE AGREEMENT
PLEASE READ THIS SOFTWARE LICENSE AGREEMENT CAREFULLY BEFORE DOWNLOADING OR
USING THE SOFTWARE.
Single User License Grant: Protium Technologies, Inc. ("Protium") and its suppliers grant to Customer
("Customer") a nonexclusive and nontransferable license to use the Protium software ("Software") in object code
form solely on a single central processing unit owned or leased by Customer or otherwise embedded in equipment
provided by Protium.
Customer may make one (1) archival copy of the Software provided Customer affixes to such copy all copyright,
confidentiality, and proprietary notices that appear on the original.
EXCEPT AS EXPRESSLY AUTHORIZED ABOVE, CUSTOMER SHALL NOT: COPY, IN WHOLE OR IN
PART, SOFTWARE OR DOCUMENTATION; MODIFY THE SOFTWARE; REVERSE COMPILE OR
REVERSE ASSEMBLE ALL OR ANY PORTION OF THE SOFTWARE; OR RENT, LEASE, DISTRIBUTE,
SELL, OR CREATE DERIVATIVE WORKS OF THE SOFTWARE. Customer agrees that aspects of the
licensed materials, including the specific design and structure of individual programs, constitute trade secrets
and/or copyrighted material of Protium. Customer agrees not to disclose, provide, or otherwise make available
such trade secrets or copyrighted material in any form to any third party without the prior written consent of
Protium. Customer agrees to implement reasonable security measures to protect such trade secrets and
copyrighted material. Title to Software and documentation shall remain solely with Protium.
LIMITED WARRANTY. Protium warrants that for a period of sixty (60) days from the date of shipment from
Protium: (i) the media on which the Software is furnished will be free of defects in materials and workmanship
under normal use; and (ii) the Software substantially conforms to its published specifications. Except for the
foregoing, the Software is provided AS IS. This limited warranty extends only to Customer as the original
licensee. Customer's exclusive remedy and the entire liability of Protium and its suppliers under this limited
warranty will be, at Protium’s option, repair, replacement, or refund of the Software if reported (or, upon request,
returned) to the party supplying the Software to Customer. In no event does Protium warrant that the Software is
error free or that Customer will be able to operate the Software without problems or interruptions.
This warranty does not apply if the software (a) has been altered, except by Protium, (b) has not been installed,
operated, repaired, or maintained in accordance with instructions supplied by Protium, (c) has been subjected to
abnormal physical or electrical stress, misuse, negligence, or accident, or (d) is used in hazardous activities.
DISCLAIMER. EXCEPT AS SPECIFIED IN THIS WARRANTY, ALL EXPRESS OR IMPLIED
CONDITIONS, REPRESENTATIONS, AND WARRANTIES INCLUDING, WITHOUT LIMITATION, ANY
IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE,
ARE HEREBY EXCLUDED TO THE EXTENT ALLOWED BY APPLICABLE LAW. IN NO EVENT WILL
PROTIUM OR ITS SUPPLIERS BE LIABLE FOR ANY LOST REVENUE, PROFIT, OR DATA, OR FOR
5 GHz RF Modem 07-Feb-2006 54 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
SPECIAL, INDIRECT, CONSEQUENTIAL, INCIDENTAL, OR PUNITIVE DAMAGES HOWEVER
CAUSED AND REGARDLESS OF THE THEORY OF LIABILITY ARISING OUT OF THE USE OF OR
INABILITY TO USE THE SOFTWARE EVEN IF PROTIUM OR ITS SUPPLIERS HAVE BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES. In no event shall Protium's or its suppliers' liability to Customer,
whether in contract, tort (including negligence), or otherwise, exceed the price paid by Customer. The foregoing
limitations shall apply even if the above-stated warranty fails of its essential purpose. SOME STATES DO NOT
ALLOW LIMITATION OR EXCLUSION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES.
The above warranty DOES NOT apply to any beta software, any software made available for testing or
demonstration purposes, any temporary software modules or any software for which Protium does not receive a
license fee. All such software products are provided AS IS without any warranty whatsoever.
This License is effective until terminated. Customer may terminate this License at any time by destroying all
copies of Software including any documentation. This License will terminate immediately without notice from
Protium if Customer fails to comply with any provision of this License. Upon termination, Customer must destroy
all copies of Software.
Subject software, including technical data, is subject to U.S. export control laws, including the U.S. Export
Administration Act and its associated regulations, and may be subject to export or import regulations in other
countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the
responsibility to obtain licenses to export, re-export, or import Software.
This License shall be governed by and construed in accordance with the laws of the Commonwealth of
Massachusetts, United States of America, as if performed wholly within the state and without giving effect to the
principles of conflict of law. If any portion hereof is found to be void or unenforceable, the remaining provisions
of this License shall remain in full force and effect. This License constitutes the entire License between the parties
with respect to the use of the Software.
Restricted Rights - Protium's software is provided to non-DOD agencies with RESTRICTED RIGHTS and its
supporting documentation is provided with LIMITED RIGHTS. Use, duplication, or disclosure by the
Government is subject to the restrictions as set forth in subparagraph "C" of the Commercial Computer Software Restricted Rights clause at FAR 52.227-19. In the event the sale is to a DOD agency, the government's rights in
software, supporting documentation, and technical data are governed by the restrictions in the Technical Data
Commercial Items clause at DFARS 252.227-7015 and DFARS 227.7202. Manufacturer is Protium
Technologies, Inc., 181 Cedar Hill St, Marlborough, MA 01752.
5 GHz RF Modem 07-Feb-2006 55 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
B.2 GNU General Public License, Version 2
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.
59 Temple Place, Suite 330, Boston, MA 02111-1307 USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General Public
License is intended to guarantee your freedom to share and change free
software--to make sure the software is free for all its users. This
General Public License applies to most of the Free Software
Foundation's software and to any other program whose authors commit to
using it. (Some other Free Software Foundation software is covered by
the GNU Library General Public License instead.) You can apply it to
your programs, too.
When we speak of free software, we are referring to freedom, not
price. Our General Public Licenses are designed to make sure that you
have the freedom to distribute copies of free software (and charge for
this service if you wish), that you receive source code or can get it
if you want it, that you can change the software or use pieces of it
in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if you
distribute copies of the software, or if you modify it.
For example, if you distribute copies of such a program, whether
gratis or for a fee, you must give the recipients all the rights that
you have. You must make sure that they, too, receive or can get the
source code. And you must show them these terms so they know their
rights.
We protect your rights with two steps: (1) copyright the software, and
(2) offer you this license which gives you legal permission to copy,
distribute and/or modify the software.
Also, for each author's protection and ours, we want to make certain
that everyone understands that there is no warranty for this free
software. If the software is modified by someone else and passed on, we
want its recipients to know that what they have is not the original, so
that any problems introduced by others will not reflect on the original
authors' reputations.
5 GHz RF Modem 07-Feb-2006 56 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Finally, any free program is threatened constantly by software
patents. We wish to avoid the danger that redistributors of a free
program will individually obtain patent licenses, in effect making the
program proprietary. To prevent this, we have made it clear that any
patent must be licensed for everyone's free use or not licensed at all.
The precise terms and conditions for copying, distribution and
modification follow.
GNU GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains
a notice placed by the copyright holder saying it may be distributed
under the terms of this General Public License. The "Program", below,
refers to any such program or work, and a "work based on the Program"
means either the Program or any derivative work under copyright law:
that is to say, a work containing the Program or a portion of it,
either verbatim or with modifications and/or translated into another
language. (Hereinafter, translation is included without limitation in
the term "modification".) Each licensee is addressed as "you".
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of
running the Program is not restricted, and the output from the Program
is covered only if its contents constitute a work based on the
Program (independent of having been made by running the Program).
Whether that is true depends on what the Program does.
1. You may copy and distribute verbatim copies of the Program's
source code as you receive it, in any medium, provided that you
conspicuously and appropriately publish on each copy an appropriate
copyright notice and disclaimer of warranty; keep intact all the
notices that refer to this License and to the absence of any warranty;
and give any other recipients of the Program a copy of this License
along with the Program.
You may charge a fee for the physical act of transferring a copy, and
you may at your option offer warranty protection in exchange for a fee.
2. You may modify your copy or copies of the Program or any portion
of it, thus forming a work based on the Program, and copy and
distribute such modifications or work under the terms of Section 1
above, provided that you also meet all of these conditions:
a) You must cause the modified files to carry prominent notices
stating that you changed the files and the date of any change.
b) You must cause any work that you distribute or publish, that in
whole or in part contains or is derived from the Program or any
part thereof, to be licensed as a whole at no charge to all third
parties under the terms of this License.
c) If the modified program normally reads commands interactively
when run, you must cause it, when started running for such
Rev No: 04
5 GHz RF Modem 07-Feb-2006 57 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
interactive use in the most ordinary way, to print or display an
announcement including an appropriate copyright notice and a
notice that there is no warranty (or else, saying that you provide
a warranty) and that users may redistribute the program under
these conditions, and telling the user how to view a copy of this
License. (Exception: if the Program itself is interactive but
does not normally print such an announcement, your work based on
the Program is not required to print an announcement.)
These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the Program,
and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works. But when you
distribute the same sections as part of a whole which is a work based
on the Program, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote it.
Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or
collective works based on the Program.
In addition, mere aggregation of another work not based on the Program
with the Program (or with a work based on the Program) on a volume of
a storage or distribution medium does not bring the other work under
the scope of this License.
3. You may copy and distribute the Program (or a work based on it,
under Section 2) in object code or executable form under the terms of
Sections 1 and 2 above provided that you also do one of the following:
a) Accompany it with the complete corresponding machine-readable
source code, which must be distributed under the terms of Sections
1 and 2 above on a medium customarily used for software interchange; or,
b) Accompany it with a written offer, valid for at least three
years, to give any third party, for a charge no more than your
cost of physically performing source distribution, a complete
machine-readable copy of the corresponding source code, to be
distributed under the terms of Sections 1 and 2 above on a medium
customarily used for software interchange; or,
c) Accompany it with the information you received as to the offer
to distribute corresponding source code. (This alternative is
allowed only for noncommercial distribution and only if you
received the program in object code or executable form with such
an offer, in accord with Subsection b above.)
The source code for a work means the preferred form of the work for
making modifications to it. For an executable work, complete source
code means all the source code for all modules it contains, plus any
associated interface definition files, plus the scripts used to
control compilation and installation of the executable. However, as a
5 GHz RF Modem 07-Feb-2006 58 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
special exception, the source code distributed need not include
anything that is normally distributed (in either source or binary
form) with the major components (compiler, kernel, and so on) of the
operating system on which the executable runs, unless that component
itself accompanies the executable.
If distribution of executable or object code is made by offering
access to copy from a designated place, then offering equivalent
access to copy the source code from the same place counts as
distribution of the source code, even though third parties are not
compelled to copy the source along with the object code.
4. You may not copy, modify, sublicense, or distribute the Program
except as expressly provided under this License. Any attempt
otherwise to copy, modify, sublicense or distribute the Program is
void, and will automatically terminate your rights under this License.
However, parties who have received copies, or rights, from you under
this License will not have their licenses terminated so long as such
parties remain in full compliance.
5. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify or
distribute the Program or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Program (or any work based on the
Program), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying
the Program or works based on it.
6. Each time you redistribute the Program (or any work based on the
Program), the recipient automatically receives a license from the
original licensor to copy, distribute or modify the Program subject to
these terms and conditions. You may not impose any further
restrictions on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties to
this License.
7. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot
distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not distribute the Program at all. For example, if a patent
license would not permit royalty-free redistribution of the Program by
all those who receive copies directly or indirectly through you, then
the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Program.
If any portion of this section is held invalid or unenforceable under
any particular circumstance, the balance of the section is intended to
apply and the section as a whole is intended to apply in other
circumstances.
Rev No: 04
5 GHz RF Modem 07-Feb-2006 59 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system, which is
implemented by public license practices. Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot
impose that choice.
This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.
8. If the distribution and/or use of the Program is restricted in
certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Program under this License
may add an explicit geographical distribution limitation excluding
those countries, so that distribution is permitted only in or among
countries not thus excluded. In such case, this License incorporates
the limitation as if written in the body of this License.
9. The Free Software Foundation may publish revised and/or new versions
of the General Public License from time to time. Such new versions will
be similar in spirit to the present version, but may differ in detail to
address new problems or concerns.
Each version is given a distinguishing version number. If the Program
specifies a version number of this License which applies to it and "any
later version", you have the option of following the terms and conditions
either of that version or of any later version published by the Free
Software Foundation. If the Program does not specify a version number of
this License, you may choose any version ever published by the Free Software
Foundation.
10. If you wish to incorporate parts of the Program into other free
programs whose distribution conditions are different, write to the author
to ask for permission. For software which is copyrighted by the Free
Software Foundation, write to the Free Software Foundation; we sometimes
make exceptions for this. Our decision will be guided by the two goals
of preserving the free status of all derivatives of our free software and
of promoting the sharing and reuse of software generally.
NO WARRANTY
11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY
FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN
OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES
PROVIDE THE PROGRAM "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS
TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE
PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,
REPAIR OR CORRECTION.
5 GHz RF Modem 07-Feb-2006 60 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING
WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR
REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES,
INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED
TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY
YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER
PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
END OF TERMS AND CONDITIONS
Rev No: 04
5 GHz RF Modem 07-Feb-2006 61 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
B.3 GNU Library General Public License, Version 2
GNU LIBRARY GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1991 Free Software Foundation, Inc.
675 Mass Ave, Cambridge, MA 02139, USA
Everyone is permitted to copy and distribute verbatim copies
of this license document, but changing it is not allowed.
[This is the first released version of the library GPL. It is
numbered 2 because it goes with version 2 of the ordinary GPL.]
Preamble
The licenses for most software are designed to take away your
freedom to share and change it. By contrast, the GNU General Public
Licenses are intended to guarantee your freedom to share and change
free software--to make sure the software is free for all its users.
This license, the Library General Public License, applies to some
specially designated Free Software Foundation software, and to any
other libraries whose authors decide to use it. You can use it for
your libraries, too.
When we speak of free software, we are referring to freedom, not
price. Our General Public Licenses are designed to make sure that you
have the freedom to distribute copies of free software (and charge for
this service if you wish), that you receive source code or can get it
if you want it, that you can change the software or use pieces of it
in new free programs; and that you know you can do these things.
To protect your rights, we need to make restrictions that forbid
anyone to deny you these rights or to ask you to surrender the rights.
These restrictions translate to certain responsibilities for you if
you distribute copies of the library, or if you modify it.
For example, if you distribute copies of the library, whether gratis
or for a fee, you must give the recipients all the rights that we gave
you. You must make sure that they, too, receive or can get the source
code. If you link a program with the library, you must provide
complete object files to the recipients so that they can relink them
with the library, after making changes to the library and recompiling
it. And you must show them these terms so they know their rights.
Our method of protecting your rights has two steps: (1) copyright
the library, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the library.
Also, for each distributor's protection, we want to make certain
that everyone understands that there is no warranty for this free
library. If the library is modified by someone else and passed on, we
Rev No: 04
5 GHz RF Modem 07-Feb-2006 62 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
want its recipients to know that what they have is not the original
version, so that any problems introduced by others will not reflect on
the original authors' reputations.
Finally, any free program is threatened constantly by software
patents. We wish to avoid the danger that companies distributing free
software will individually obtain patent licenses, thus in effect
transforming the program into proprietary software. To prevent this,
we have made it clear that any patent must be licensed for everyone's
free use or not licensed at all.
Most GNU software, including some libraries, is covered by the ordinary
GNU General Public License, which was designed for utility programs. This
license, the GNU Library General Public License, applies to certain
designated libraries. This license is quite different from the ordinary
one; be sure to read it in full, and don't assume that anything in it is
the same as in the ordinary license.
The reason we have a separate public license for some libraries is that
they blur the distinction we usually make between modifying or adding to a
program and simply using it. Linking a program with a library, without
changing the library, is in some sense simply using the library, and is
analogous to running a utility program or application program. However, in
a textual and legal sense, the linked executable is a combined work, a
derivative of the original library, and the ordinary General Public License
treats it as such.
Because of this blurred distinction, using the ordinary General
Public License for libraries did not effectively promote software
sharing, because most developers did not use the libraries. We
concluded that weaker conditions might promote sharing better.
However, unrestricted linking of non-free programs would deprive the
users of those programs of all benefit from the free status of the
libraries themselves. This Library General Public License is intended to
permit developers of non-free programs to use free libraries, while
preserving your freedom as a user of such programs to change the free
libraries that are incorporated in them. (We have not seen how to achieve
this as regards changes in header files, but we have achieved it as regards
changes in the actual functions of the Library.) The hope is that this
will lead to faster development of free libraries.
The precise terms and conditions for copying, distribution and
modification follow. Pay close attention to the difference between a
"work based on the library" and a "work that uses the library". The
former contains code derived from the library, while the latter only
works together with the library.
Note that it is possible for a library to be covered by the ordinary
General Public License rather than by this special one.
GNU LIBRARY GENERAL PUBLIC LICENSE
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
Rev No: 04
5 GHz RF Modem 07-Feb-2006 63 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
0. This License Agreement applies to any software library which
contains a notice placed by the copyright holder or other authorized
party saying it may be distributed under the terms of this Library
General Public License (also called "this License"). Each licensee is
addressed as "you".
A "library" means a collection of software functions and/or data
prepared so as to be conveniently linked with application programs
(which use some of those functions and data) to form executables.
The "Library", below, refers to any such software library or work
which has been distributed under these terms. A "work based on the
Library" means either the Library or any derivative work under
copyright law: that is to say, a work containing the Library or a
portion of it, either verbatim or with modifications and/or translated
straightforwardly into another language. (Hereinafter, translation is
included without limitation in the term "modification".)
"Source code" for a work means the preferred form of the work for
making modifications to it. For a library, complete source code means
all the source code for all modules it contains, plus any associated
interface definition files, plus the scripts used to control compilation
and installation of the library.
Activities other than copying, distribution and modification are not
covered by this License; they are outside its scope. The act of
running a program using the Library is not restricted, and output from
such a program is covered only if its contents constitute a work based
on the Library (independent of the use of the Library in a tool for
writing it). Whether that is true depends on what the Library does
and what the program that uses the Library does.
1. You may copy and distribute verbatim copies of the Library's
complete source code as you receive it, in any medium, provided that
you conspicuously and appropriately publish on each copy an
appropriate copyright notice and disclaimer of warranty; keep intact
all the notices that refer to this License and to the absence of any
warranty; and distribute a copy of this License along with the
Library.
You may charge a fee for the physical act of transferring a copy,
and you may at your option offer warranty protection in exchange for a
fee.
2. You may modify your copy or copies of the Library or any portion
of it, thus forming a work based on the Library, and copy and
distribute such modifications or work under the terms of Section 1
above, provided that you also meet all of these conditions:
a) The modified work must itself be a software library.
b) You must cause the files modified to carry prominent notices
stating that you changed the files and the date of any change.
c) You must cause the whole of the work to be licensed at no
Rev No: 04
5 GHz RF Modem 07-Feb-2006 64 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
charge to all third parties under the terms of this License.
d) If a facility in the modified Library refers to a function or a
table of data to be supplied by an application program that uses
the facility, other than as an argument passed when the facility
is invoked, then you must make a good faith effort to ensure that,
in the event an application does not supply such function or
table, the facility still operates, and performs whatever part of
its purpose remains meaningful.
(For example, a function in a library to compute square roots has
a purpose that is entirely well-defined independent of the
application. Therefore, Subsection 2d requires that any
application-supplied function or table used by this function must
be optional: if the application does not supply it, the square
root function must still compute square roots.)
These requirements apply to the modified work as a whole. If
identifiable sections of that work are not derived from the Library,
and can be reasonably considered independent and separate works in
themselves, then this License, and its terms, do not apply to those
sections when you distribute them as separate works. But when you
distribute the same sections as part of a whole which is a work based
on the Library, the distribution of the whole must be on the terms of
this License, whose permissions for other licensees extend to the
entire whole, and thus to each and every part regardless of who wrote
it.
Thus, it is not the intent of this section to claim rights or contest
your rights to work written entirely by you; rather, the intent is to
exercise the right to control the distribution of derivative or
collective works based on the Library.
In addition, mere aggregation of another work not based on the Library
with the Library (or with a work based on the Library) on a volume of
a storage or distribution medium does not bring the other work under
the scope of this License.
3. You may opt to apply the terms of the ordinary GNU General Public
License instead of this License to a given copy of the Library. To do
this, you must alter all the notices that refer to this License, so
that they refer to the ordinary GNU General Public License, version 2,
instead of to this License. (If a newer version than version 2 of the
ordinary GNU General Public License has appeared, then you can specify
that version instead if you wish.) Do not make any other change in
these notices.
Once this change is made in a given copy, it is irreversible for
that copy, so the ordinary GNU General Public License applies to all
subsequent copies and derivative works made from that copy.
This option is useful when you wish to copy part of the code of
the Library into a program that is not a library.
4. You may copy and distribute the Library (or a portion or
Rev No: 04
5 GHz RF Modem 07-Feb-2006 65 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
derivative of it, under Section 2) in object code or executable form
under the terms of Sections 1 and 2 above provided that you accompany
it with the complete corresponding machine-readable source code, which
must be distributed under the terms of Sections 1 and 2 above on a
medium customarily used for software interchange.
If distribution of object code is made by offering access to copy
from a designated place, then offering equivalent access to copy the
source code from the same place satisfies the requirement to
distribute the source code, even though third parties are not
compelled to copy the source along with the object code.
5. A program that contains no derivative of any portion of the
Library, but is designed to work with the Library by being compiled or
linked with it, is called a "work that uses the Library". Such a
work, in isolation, is not a derivative work of the Library, and
therefore falls outside the scope of this License.
However, linking a "work that uses the Library" with the Library
creates an executable that is a derivative of the Library (because it
contains portions of the Library), rather than a "work that uses the
library". The executable is therefore covered by this License.
Section 6 states terms for distribution of such executables.
When a "work that uses the Library" uses material from a header file
that is part of the Library, the object code for the work may be a
derivative work of the Library even though the source code is not.
Whether this is true is especially significant if the work can be
linked without the Library, or if the work is itself a library. The
threshold for this to be true is not precisely defined by law.
If such an object file uses only numerical parameters, data
structure layouts and accessors, and small macros and small inline
functions (ten lines or less in length), then the use of the object
file is unrestricted, regardless of whether it is legally a derivative
work. (Executables containing this object code plus portions of the
Library will still fall under Section 6.)
Otherwise, if the work is a derivative of the Library, you may
distribute the object code for the work under the terms of Section 6.
Any executables containing that work also fall under Section 6,
whether or not they are linked directly with the Library itself.
6. As an exception to the Sections above, you may also compile or
link a "work that uses the Library" with the Library to produce a
work containing portions of the Library, and distribute that work
under terms of your choice, provided that the terms permit
modification of the work for the customer's own use and reverse
engineering for debugging such modifications.
You must give prominent notice with each copy of the work that the
Library is used in it and that the Library and its use are covered by
this License. You must supply a copy of this License. If the work
during execution displays copyright notices, you must include the
copyright notice for the Library among them, as well as a reference
Rev No: 04
5 GHz RF Modem 07-Feb-2006 66 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
directing the user to the copy of this License. Also, you must do one
of these things:
a) Accompany the work with the complete corresponding
machine-readable source code for the Library including whatever
changes were used in the work (which must be distributed under
Sections 1 and 2 above); and, if the work is an executable linked
with the Library, with the complete machine-readable "work that
uses the Library", as object code and/or source code, so that the
user can modify the Library and then relink to produce a modified
executable containing the modified Library. (It is understood
that the user who changes the contents of definitions files in the
Library will not necessarily be able to recompile the application
to use the modified definitions.)
b) Accompany the work with a written offer, valid for at
least three years, to give the same user the materials
specified in Subsection 6a, above, for a charge no more
than the cost of performing this distribution.
c) If distribution of the work is made by offering access to copy
from a designated place, offer equivalent access to copy the above
specified materials from the same place.
d) Verify that the user has already received a copy of these
materials or that you have already sent this user a copy.
For an executable, the required form of the "work that uses the
Library" must include any data and utility programs needed for
reproducing the executable from it. However, as a special exception,
the source code distributed need not include anything that is normally
distributed (in either source or binary form) with the major
components (compiler, kernel, and so on) of the operating system on
which the executable runs, unless that component itself accompanies
the executable.
It may happen that this requirement contradicts the license
restrictions of other proprietary libraries that do not normally
accompany the operating system. Such a contradiction means you cannot
use both them and the Library together in an executable that you
distribute.
7. You may place library facilities that are a work based on the
Library side-by-side in a single library together with other library
facilities not covered by this License, and distribute such a combined
library, provided that the separate distribution of the work based on
the Library and of the other library facilities is otherwise
permitted, and provided that you do these two things:
a) Accompany the combined library with a copy of the same work
based on the Library, uncombined with any other library
facilities. This must be distributed under the terms of the
Sections above.
b) Give prominent notice with the combined library of the fact
Rev No: 04
5 GHz RF Modem 07-Feb-2006 67 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
that part of it is a work based on the Library, and explaining
where to find the accompanying uncombined form of the same work.
8. You may not copy, modify, sublicense, link with, or distribute
the Library except as expressly provided under this License. Any
attempt otherwise to copy, modify, sublicense, link with, or
distribute the Library is void, and will automatically terminate your
rights under this License. However, parties who have received copies,
or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
9. You are not required to accept this License, since you have not
signed it. However, nothing else grants you permission to modify or
distribute the Library or its derivative works. These actions are
prohibited by law if you do not accept this License. Therefore, by
modifying or distributing the Library (or any work based on the
Library), you indicate your acceptance of this License to do so, and
all its terms and conditions for copying, distributing or modifying
the Library or works based on it.
10. Each time you redistribute the Library (or any work based on the
Library), the recipient automatically receives a license from the
original licensor to copy, distribute, link with or modify the Library
subject to these terms and conditions. You may not impose any further
restrictions on the recipients' exercise of the rights granted herein.
You are not responsible for enforcing compliance by third parties to
this License.
11. If, as a consequence of a court judgment or allegation of patent
infringement or for any other reason (not limited to patent issues),
conditions are imposed on you (whether by court order, agreement or
otherwise) that contradict the conditions of this License, they do not
excuse you from the conditions of this License. If you cannot
distribute so as to satisfy simultaneously your obligations under this
License and any other pertinent obligations, then as a consequence you
may not distribute the Library at all. For example, if a patent
license would not permit royalty-free redistribution of the Library by
all those who receive copies directly or indirectly through you, then
the only way you could satisfy both it and this License would be to
refrain entirely from distribution of the Library.
If any portion of this section is held invalid or unenforceable under any
particular circumstance, the balance of the section is intended to apply,
and the section as a whole is intended to apply in other circumstances.
It is not the purpose of this section to induce you to infringe any
patents or other property right claims or to contest validity of any
such claims; this section has the sole purpose of protecting the
integrity of the free software distribution system which is
implemented by public license practices. Many people have made
generous contributions to the wide range of software distributed
through that system in reliance on consistent application of that
system; it is up to the author/donor to decide if he or she is willing
to distribute software through any other system and a licensee cannot
impose that choice.
Rev No: 04
5 GHz RF Modem 07-Feb-2006 68 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
This section is intended to make thoroughly clear what is believed to
be a consequence of the rest of this License.
12. If the distribution and/or use of the Library is restricted in
certain countries either by patents or by copyrighted interfaces, the
original copyright holder who places the Library under this License may add
an explicit geographical distribution limitation excluding those countries,
so that distribution is permitted only in or among countries not thus
excluded. In such case, this License incorporates the limitation as if
written in the body of this License.
13. The Free Software Foundation may publish revised and/or new
versions of the Library General Public License from time to time.
Such new versions will be similar in spirit to the present version,
but may differ in detail to address new problems or concerns.
Each version is given a distinguishing version number. If the Library
specifies a version number of this License which applies to it and
"any later version", you have the option of following the terms and
conditions either of that version or of any later version published by
the Free Software Foundation. If the Library does not specify a
license version number, you may choose any version ever published by
the Free Software Foundation.
14. If you wish to incorporate parts of the Library into other free
programs whose distribution conditions are incompatible with these,
write to the author to ask for permission. For software which is
copyrighted by the Free Software Foundation, write to the Free
Software Foundation; we sometimes make exceptions for this. Our
decision will be guided by the two goals of preserving the free status
of all derivatives of our free software and of promoting the sharing
and reuse of software generally.
NO WARRANTY
15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO
WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW.
EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR
OTHER PARTIES PROVIDE THE LIBRARY "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE
LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME
THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.
16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN
WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY
AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU
FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE
LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING
RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A
FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF
SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
Rev No: 04
5 GHz RF Modem 07-Feb-2006 69 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
DAMAGES.
END OF TERMS AND CONDITIONS
Rev No: 04
5 GHz RF Modem 07-Feb-2006 70 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
Appendix C GLOSSARY
BERT Bit-Error Rate Test. A test to determine the BER.
BER Bit-Error Rate. The ratio of the number of incorrect bits received to the total number of bits received.
The bit-error rate is usually expressed in scientific notation such as 1.0 x 10-6 or 1.0E-6.
Bit Binary “digit.” A bi-valued entity representing the smallest unit of information and generally
represented by zero (“0”) or one (“1”).
bps Bits Per Second.
byte Eight bits.
dB Decibel. The ratio of two power levels expressed as ten times the base 10 logarithm of the ratio.
dBm An absolute power measurement expressed as decibels relative to one milliwatt.
CIT Craft Interface Terminal. A generic text-based terminal with an EIA-232 serial interface used for
local management functions. This may be a dedicated text terminal, a personal computer with
terminal emulator software, or a Personal Digital Assistant (PDA) with serial port and terminal
emulator software.
DCE Data Communications Equipment. The communication equipment, such as a modem, involved in a
communication channel. Contrast with DTE.
DNS Domain Name Server. A network server that provides a service to map network domain names to IP
network addresses.
DHCP Dynamic Host Configuration Protocol. A network protocol used to automatically (and dynamically)
configure an IP network port.
DTE Date Terminal Equipment. The end node equipment involved in a communication channel. The DTE
is the source and/or destination for the information sent over the communication channel. Contrast
with DCE.
EIA Electronic Industries Alliance.
FCC Federal Communications Commission.
FEC Forward Error Correction. A means by which errors that corrupt a message sent through a
communication channel may be corrected. In FEC, redundant information is added to the message at
the sender and processed at the receiver so that the original message may be recovered intact in spite
of certain errors.
GHz Gigahertz. A frequency of 1,000,000,000 cycles per second.
GPL GNU General Public License. A license agreement for open-source software (copyrighted by the Free
Software Foundation).
IP Internet Protocol.
Kbps Kilobits per second.
LGPL GNU Library General Public License. A license agreement for open-source software (copyrighted by
the Free Software Foundation). The LGPL is typically used for libraries and other software “building
blocks.”
5 GHz RF Modem 07-Feb-2006 71 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
MDIX Media Dependent Interface - Crossover. An Ethernet port connection using twisted pair cabling
where a null-modem (or crossover) function is inherent in the pin assignments in the connector.
MIB Management Information Base. The database of values, parameters, and events managed by SNMP
for an entity (device).
MHz Megahertz. A frequency of 1,000,000 cycles per second.
NTP Network Time Protocol. An network protocol that allows real-time clocks to be synchronized via the
network. Often used to synchronize local clocks to a standard reference.
RMS Remote Management System. A generic reference to software used to manage (configure, monitor,
and troubleshoot) the equipment remotely via a network connection.
RO Read Only. A read-only value may be displayed but not changed.
RF Radio Frequency.
RSL Received Signal Level. The received signal power usually expressed in dBm.
RW Read-Write. A read-write value may be displayed and changed.
SNMP Simple Network Management Protocol. A common protocol for managing devices via a network that
is anything but simple.
SNR Signal-to-Noise Ratio, expressed in dB.
TCP Transmission Control Protocol. TCP is a layered protocol based on the Internet Protocol as its
underlying protocol. TCP is connection and stream oriented. It provides for reliable communication
over packet-switched networks by using flow control, packet retransmission, and other techniques.
5 GHz RF Modem 07-Feb-2006 72 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
CONFIDENTIAL Protium Technologies, Inc. 4050-9901
Rev No: 04
5 GHz RF Modem 07-Feb-2006 73 of 73
This document and information contained herein is subject to the restrictions set forth on the title page
.
Loading...
