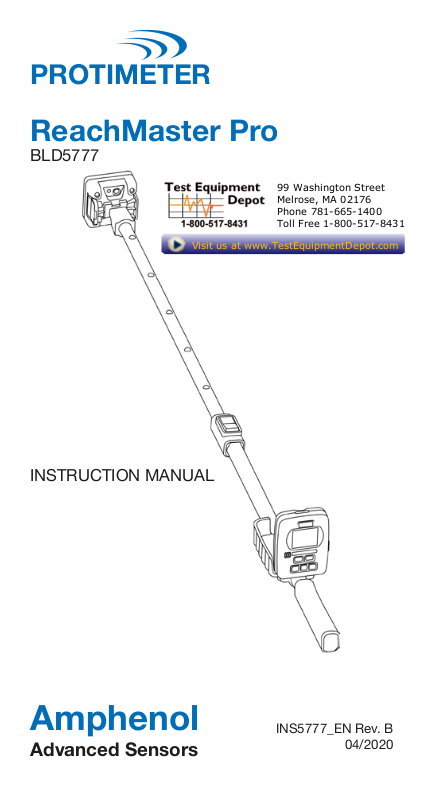

Page 1
ReachMaster Pro
PROTIMETER
Amphenol
Advanced Sensors
BLD5777
Visit us at www.TestEquipmentDepot.com
INSTRUCTION MANUAL
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
INS5777_EN Rev. B
04/2020
Page 2
Contents
Quick Start Guide
Sensor and Display Display Module
...................................4
1. Introduction
1.1 Display Module ......................................................................5
1.1.1 Display Module Battery Replacement & Installation ......... 6-7
1.2 Sensor Module .................................................................. 7-8
1.2.1 Battery & Abrasion Plate Replacement ........................... 8-10
.......................................................................5
2. Safety Considerations ....................................................10
3. Product Components and Accessories:
4. Starting the Device (Turning ON and OFF):
5. ReachMaster Pro Modes
5.1 Measurement Mode ............................................................14
5.2 Feature Settings ..................................................................14
5.2.1 Changing Language ............................................................14
5.2.2 Changing Brightness ...........................................................15
5.2.3 Buzzer ON-OFF: ..................................................................15
5.2.4 Setting Auto Off Time: .........................................................15
5.2.5 Sensor Sl.NO: ......................................................................15
5.2.6 Calibration ...........................................................................16
5.2.7 About ...................................................................................16
......................................... 13-16
................ 10-11
.................12
6. Care and Maintenance ..................................................16
7. Technical Specifications: ..............................................17
7.1 Operating Conditions: .........................................................17
7.2 MeasurementSpecications: ..............................................17
7.3 PhysicalSpecications: ......................................................17
7.3.a Power for sensor module .........................................17
7.3.b Power for display module .........................................17
7.3.c Gross weight .............................................................17
7.4 Regulatory Compliance:
7.5 User interface:
7.5.a Display
7.5.bApplicationproles ...................................................17
..........................................................17
.........................................................................17
.......................................................................17
Protimeter ReachMaster Pro Instruction Manual | 3
Page 3
Quick Start Guide
ReachMaster Pro has a sensor unit and display unit assembled on a telescopic handle for remote access.
Before getting started, the sensor module and display
module should be turned ON. For this, pull off the battery
insulatorassembledasarststepfromboththesensorand
display modules.
Sensor Module
a. Power ON Key : Press this Key to turn the sen-
sor module on.
b. Status LED: A multi-color LED is provided to indi-
cate the state of the sensor unit.
Display Module
a. Power ON Key
i. Press this key to turn the display unit on.
ii. The same key is also used as an Enter option,
and to make selection from the menu.
b. Settings Key :Tochangethedevicecongura-
tion, press this key to go to Settings Menu.
c. Up/Increment Key :
i. Press this key to navigate through the user
menu in Settings.
ii. The same key is also used to increase the incre-
ment of the sensitivity scale in the measurement
screen.
iii. When in measurement mode, press and hold for
2 seconds to enable sensitivity.
d. Down/Decrement Key :
i. Press this key to navigate through the user
menu in Settings.
ii. When in measurement screen, the same key
is also used to decrease the increment of the
sensitivity scale
iii. When in measurement mode, press and hold for
2 seconds to enable sensitivity..
e. Ref/Hold/Back Key :
i. When in the measurement screen, press and
hold for 2 seconds to enter Ref Mode.
ii. Press to freeze/unfreeze reading in the measure-
ment screen.
iii. Press to go back to the previous menu when in
settings/ref screen.
4 | INS5777A - 04/2020
Page 4
1. Introduction
The Protimeter ReachMaster Pro is a non-invasive moisture
measurement device placed on an extendable pole to enable
easy access to remote areas. The sensor unit is mounted
on the tip of the telescopic pole, communicates with the
display unit mounted close to the handle with a docking
arrangement.
1.1 Display Module
The display unit has a 2” screen to display the measurements
from the sensor unit.
A USB port is available to allow the user to update device
softwareintheeld,wheneverthereisanupdateavailable.
An off-the-shelf USB mini-B cable can be used for the
upgrade.
For notification of software updates, please register your
ReachMaster Pro at www.registeryourmeter.com.
The keypad on the display allows the user to easily change
the sensitivity while in measurement.
Protimeter ReachMaster Pro Instruction Manual | 5
Page 5
1.1 Display Module (cont.)
The display unit can be angularly adjusted from 0° to 90° for
better viewing experience during measurement.
1.1.1 Display Module Battery Replacement & Installation
6 | INS5777A - 04/2020
Page 6
1.1.1 Display Module Battery Replacement (cont.)
4 X AA 1.5V alkaline batteries are to be installed in the
battery compartment at the back of the device as shown
intheabovegure.Polaritiesaremarkedinthebattery
compartment. Care needs to be taken to install the batteries
in the right direction according to the markings. Replace the
battery cover after installation.
1.2 Sensor Module
Protimeter ReachMaster Pro Instruction Manual | 7
Page 7
1.2 Sensor Module (cont.)
The sensor unit can be turned ON using the power button,
asshownintheabovegure.Thesensorunitautomatically
turns off when the battery is low, or when it is not connected
to display unit for more than 2 minutes or if the connected
display unit is turned off.
The status LED turns red to indicate the battery low
condition. Once the low battery is indicated, the user needs
to replace the battery as soon as possible; otherwise, the
sensor will turn OFF automatically.
A USB port is available to allow for software upgrades. A
USB mini-B cable can be used for upgrading, as with the
display unit. Once the program is loaded, remove the battery
cover and disconnect the batteries to restart the unit.
For notification of software updates, please register your
ReachMaster Pro at www.registeryourmeter.com.
Sensing area is built with an abrasion plate, which can be
replaced when worn out. Wear-out indication is provided
for every 0.5mm. It is advised to replace the abrasion plate
when the 1mm mark is reached. The user may continue to
use the device with the same abrasion plate based on the
application.
1.2.1 Battery & Abrasion Plate Replacement
The sensor module is powered with 2 X AA 1.5V alkaline
batteries. Units are shipped with batteries installed.
To replace the batteries, remove the screws to open the
battery compartment.
8 | INS5777A - 04/2020
Page 8
1.2.1 Battery & Abrasion Plate Replacement (cont.)
Replace the batteries, looking at the polarity markings
provided on the battery cover, and then close the cover with
the screws.
The abrasion plate should be replaced when 1mm mark is
reached. Four screws need to be removed to replace the
abrasion plate, as shown below.
Protimeter ReachMaster Pro Instruction Manual | 9
Page 9
1.2.1 Battery & Abrasion Plate Replacement (cont.)
2. Safety Considerations
► Battery: Do not charge the battery, as the supplied
batteries are primary alkaline cell. Also, dispose of the
batteries according to practices recommended by the
battery manufacturer.
► Calibration: It is recommended to calibrate the device
on each use to adapt to the measuring environment.
► Battery Replacement: Use recommended batteries for
replacement.
3. Product Components and Accessories:
Protimeter ReachMaster Pro has a replaceable abrasion pad,
which can be purchased separately when worn out.
10 | INS5777A - 04/2020
Page 10
3. Product Components and Accessories (cont.)
Protimeter ReachMaster Pro has a replaceable abrasion pad
which can be purchased seperately when worn out.
Below is a list of spare parts that can be ordered seperately:
Part No. Description
BLD5777-D
BLD5777-S
Display Unit
(with screws)
Sensor Unit
(with screws)
BLD5777-P Extension Pole
BLD5777-HD
BLD5777-HS
BLD5777-D-CAP
BLD5777-S-CAP
Hinge for Display
(with screws)
Hinge for Sensor
(with screws)
Battery Cap for
Display
Battery Cap for
Sensor
BLD5777-A
Abrasion Plate Kit
(with screws)
Protimeter ReachMaster Pro Instruction Manual | 11
Page 11
4. Starting the Device (Turning ON and OFF):
Prior to initial use, ensure that the battery insulators are
pulled off.
Note: The battery status is indicated on the display unit (for
both sensor and display units). When low battery is indicated,
replace the batteries.
To switch ON, press the power button
and display units.
Switch the sensor unit ON and look for LED indications. LED
indication starts with green, and then turns to blue during
initialization. Once initialized, the LED will blink blue for every
second, indicating that the sensor is turned on and is waiting
for connection to the display unit. Once the sensor unit is
turned on and initialized, turn the display unit on.
The display unit goes to the measurement mode by default.
Once the display unit is turned ON and initialized, the
connectivity symbol
that the connectivity is not established yet. When connect-
ed, the connectivity
device is ready for use. If the sensor is placed on a surface,
the display unit will display the reading that the sensor unit
measures.
can be seen blinking. This means
symbol will stop blinking. Now, the
on both the sensor
12 | INS5777A - 04/2020
Page 12
Measurement Display Indication Progress Bar
<60 ---
≤60 but <170 Non-Invasive value DRY GREEN
≥170 but <200 Non-Invasive value RISK YELLOW
≥200 but <999 Non-Invasive value WET RED
≥999 999 WET RED
5. ReachMaster Pro Modes
The Protimeter ReachMaster Pro is used to scan the roof and
oorformoistureindifferentmaterials.
5.1 Measurement mode:
Measurement Mode is the default mode while the device is
turned ON.
The measured value will be displayed on the screen in this
mode, and the background color and beeper will change to
indicate the moisture level.
Protimeter ReachMaster Pro Instruction Manual | 13
Page 13
5.1 Measurement Mode (cont.)
A special feature to change the measurement sensitivity
helps the device measure better in different materials. Press
and hold
while in measurement for 2 seconds to
enable the sensitivity keys. Once the sensitivity is enabled,
an indication will be seen on screen. Press either
to increase the sensitivity or to decrease the
sensitivity, based on need after enabling the sensitivity.
Example:Tozeroinonthewettestareastondthe
source of moisture, decrease the sensitivity to extend the
measurement range.
If a comparison needs to be made on surfaces, the reference
mode can be used. During measurement, press and hold
the
for 2 seconds to allow the unit to enter reference
mode, taking the current measurement as the base. Further
measurement will be a comparison from the base.
Example: To compare a known dry area with other areas in
the building, take a reference reading from the dry area and
compare the new readings without having to manually record
the referenced dry reading.
5.2 Feature Settings
ReachMaster Pro provides an option to enable, disable or
change features like, including buzzer, display brightness,
data transmission rate, etc. At any point of time when the
unit is turned ON, if the
button is pressed, the unit will
enter the Settings screen.
If any setting needs to be changed or adjusted, the function/
parameter can be selected by scrolling through the menu
using
or and then pressing .
5.2.1 Changing Language
In the Settings menu, select LANGUAGE by navigating with
or keys. Press to select the language (language
will be highlighted). Change the language using or
keys and when the desired language is highlighted, press
to select it.
14 | INS5777A - 04/2020
Page 14
5.2.2 Changing Brightness
The backlight brightness can be increased or decreased by
selecting the Brightness menu and pressing
. Brightness
can be changed in 10 levels using or key. Press
toconrmandexit.
5.2.3 Buzzer ON-OFF:
The user can turn the buzzer ON or OFF based on the need.
If the user needs an audible indication for each key press, or
during different functionality switching, the buzzer should be
turned ON. This can be done by entering the edit mode and
then using
or keys.
5.2.4 Setting Auto Off Time:
The user can set the time to automatically turn OFF if
the device in idle condition. This can be set in minutes. A
maximum of 6 minutes can be set for the device to turn off
in idle condition. To do this, enter edit mode, as mentioned
earlier, and use
or keys to change the Auto OFF
Time.
5.2.5 Sensor Sl.NO:
This is a factory set parameter. The sensor module in the
device is paired with the display unit with the serial number
entered here. This is only changed if the sensor module
alone in the device is changed for some reason, which is a
rare scenario. If user has not changed the sensor module in
eld,itisbetternottoenterintothismenu.
Sl. No can be entered by changing each digit using or
key and pressing toconrmandjumptothenext
digit. Once the last digit is set, it will automatically go back
conrmingtheserialnumber.Inthemiddleofsettingthis
number if is pressed, this setting will not be applied.
Protimeter ReachMaster Pro Instruction Manual | 15
Page 15
5.2.6 Calibration
The unit can be calibrated for every use to adapt to the
required environment. Look for instructions on the screen
during calibration and follow the same.
5.2.7 About
About provides information related to the device, such as
modelnumber,pairedsensordetails,rmwareversions,
calibration status, etc.
There are two pages in the screen that can be accessed by
pressing
and .
6. Care and Maintenance
The Protimeter ReachMaster Pro is a remote moisture
measurement system that will provide many years of reliable
service if the following points are observed:
► When not in use, keep the ReachMaster Pro instrument in
the package provided. Store the package in a stable, dustfree environment, and keep it out of direct sunlight
► If the instrument is to be stored for more than four weeks,
or if the low battery power symbol appears on the display,
remove the batteries from the instrument.
► Check the condition of the ReachMaster Pro abrasion
plate on a regular basis, and replace them if they become
worn or damaged. The abrasion plate has markings to indicate the level of wear-out. It is recommended to replace the
plate once wear-out reaches 1mm marking.
16 | INS5777A - 04/2020
Page 16
7. Technical Specifications:
7.1 Operating Conditions:
Temperature: 0°C to 50°C
RH: 0 to 95% non-condensing
7.2 Measurement Specifications:
Non-invasive moisture measurement:
Measurement depth: minimum of 70mm (increases with material
specication)
Reading: instantaneous reading 60 to 999ppm, surface moisture is
not adversely affected.
7.3 Physical Specifications:
7.3.a Power for sensor module
Batteries: 1.5V X 2 Alkaline ~ 2700mAH
Battery level indication on Display unit and a battery low LED
indication on Sensor unit.
7.3.b Power for display module
Batteries: 1.5V X 4 Alkaline ~ 2700mAH
Battery level indication on display.
7.3.c Gross weight
Instrument only: 24.7oz (700g)
7.4 Regulatory Compliance:
CE, RoHS, ETL
7.5 User interface:
7.5.a Display
Graphical LCD
Size: 2”
Resolution: 176 X 220
Backlight (with adjustable brightness)
7.5.b User application profiles
Sticky memory last used application settings
Protimeter ReachMaster Pro Instruction Manual | 17
Page 17
Notes:
18 | INS5777A - 04/2020
Page 18
Notes:
Protimeter ReachMaster Pro Instruction Manual | 19
Page 19
Amphenol
Advanced Sensors
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com
©2020 Amphenol Thermometrics, Inc. All rights reserved.
Technical content subject to change without notice.
INS5777 Rev B
04/2020
Loading...
