Protimeter MMS2 Instruction Manual
1. Introduction
The Protimeter Moisture Measurement System2 (Protimeter MMS2) is a
powerful and versatile instrument for measuring and diagnosing dampness in
buildings and building materials. This product enables building surveyors and
other practitioners to measure moisture levels of building elements such as
walls, floors and building environments simply by switching between the five
different modes of operation. In this way, a detailed understanding of the
moisture condition of the property can be obtained.
2. Safety Considerations
• Caution note for the WME pins - The Pin Moisture measurement pins are
extremely sharp and the instrument should be handled with due care. The
pins should be covered with the cap provided with the unit when the
function is not in use.
• IR temperature measurement - Please note that the readings are indicative
readings outside the measurement range of the IR temperature mode and
the accuracy of the measurement is not guaranteed outside the range.
• Calibration of unit - The accuracy specifications of the product are valid
for one year after the date of calibration, and the product requires
recalibration after this period.
Laser pointers are effective tools when used properly, but the following
considerations must be observed when using laser pointers:
• Never look directly into the laser beam.
• Never point a laser beam at a person.
• Do not aim the laser beam at reflective surfaces.
• Never view a laser beam using an optical instrument, such as binoculars
or a microscope.
2. Safety Considerations (cont.)
INS8800 Rev. C 1
Page 8
Protimeter MMS2 Instruction Manual
• Do not allow children to use laser pointers unless under the supervision of
an adult.
• Use only laser pointers meeting the following criteria:
• Labeled with FDA certification stating “DANGER: Laser Radiation”
for Class 3R lasers or “CAUTION: Laser Radiation” for Class 2
lasers.
• Classified as Class 2 or 3R according to the label. Do not use Class 3b
or Class 4 products.
• Operates at a wavelength between 630 nm and 680 nm.
• Has a maximum output less than 5 mW, the lower the better.
3. Product Components and Accessories
The MMS2 instrument measures the different parameters in the buildings:
room temperature, room humidity, building material moisture, surface
moisture and surface temperature (contact and non-contact method). To
measure all the above mentioned parameters, MMS2 uses different sensors,
along with a variety of accessories for convenient measurements. The

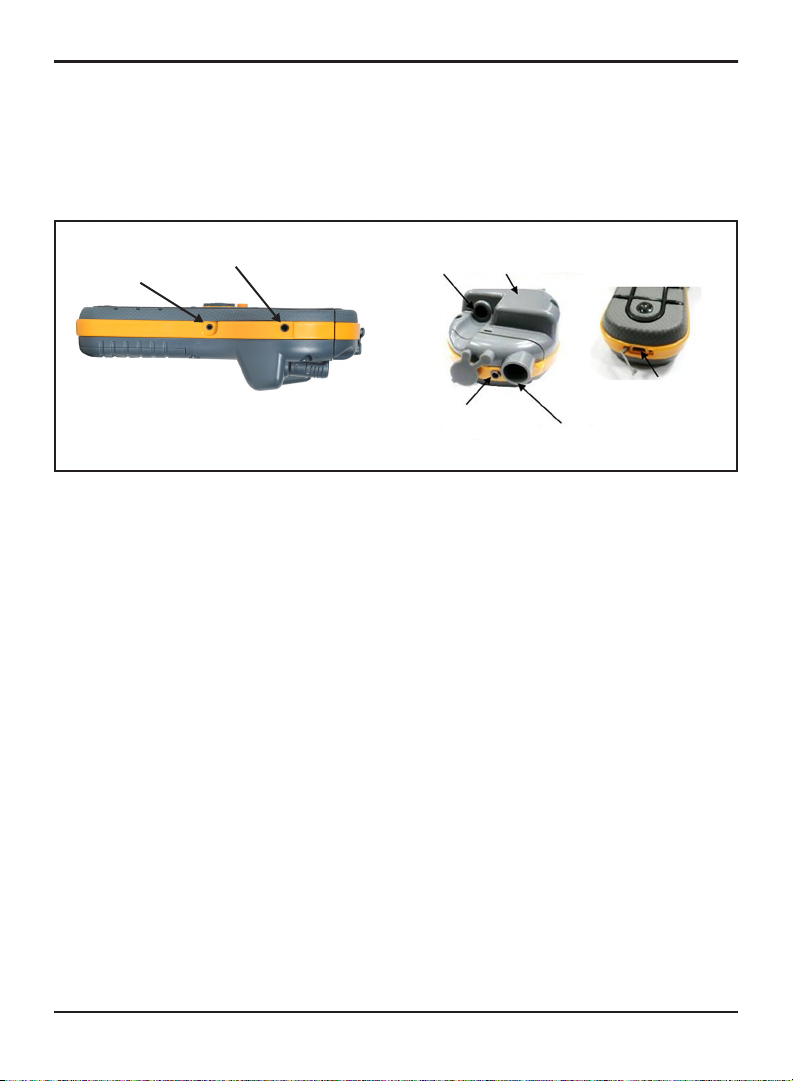

following external connections are found on the instrument (see Figure 1 on
page 3):
A - This edge connection socket is for use with a Hygrostick
Short Quikstick probe.
B - This jack connection socket is for use with a moisture probe, deep wall
probes or a Hammer electrode.
C - This jack connection socket is for use with the Direct Contact Surface
Temperature Sensor.
2 INS8800 Rev. C
®
Quikstick or
Page 9
Protimeter MMS2 Instruction Manual
3. Product Components and Accessories (cont.)
D - This USB socket is for connection to a PC when using the optional MMS2
logging software.
B
C
Laser
Non-contact Surface Temperature Sensor (IR)
Figure 1: Connections for Probes and Sensors
Search Mode Sensor
A
D
• The Hygrostick (POL4750), Quikstick (POL8750) and Short Quikstick
(POL8751) probes measure relative humidity (%RH) and ambient air
temperature in rooms or materials. They can be connected to the MMS2
instrument either directly or by means of the extension lead.
• The surface temperature sensor is used when investigating condensation
situations.
• The moisture probe is used to obtain percent moisture content values in
wood or wood moisture equivalent (WME) values in other nonconductive materials.
• Multiple probe types are available, including hammer probes and deep
wall probes.
INS8800 Rev. C 3
Page 10
Protimeter MMS2 Instruction Manual
3.1 Switching the MMS2 ON and OFF
Prior to initial use, ensure that a 9V battery is correctly inserted in the battery
compartment.
Note: The battery status is indicated by an icon on the display. When
the LOW BATTERY message appears, replace the battery.
To switch the MMS2
Note: The MMS2 switches OFF automatically after 2 minutes if no activity is
ON, press the power button momentarily.
observed, unless the default settings are changed (see Section 4.7c,
“Auto Off”, on page 17 for instructions).
To switch the instrument
OFF immediately, press and hold for at least
3 seconds. Once has been depressed for 3 seconds or more, the text string
SWITCHING OFF THE DEVICE appears on the display. When is released, the
text string disappears and the unit switches
OFF.
Whenever the battery voltage falls below the threshold value, the LOW
BATTERY message appears. If the battery voltage falls below the operating
level, the instrument prompts with the message:
LOW BATTERY
SWITCHING OFF THE DEVICE
4 INS8800 Rev. C
Page 11
Protimeter MMS2 Instruction Manual
4. MMS2 Modes
The Protimeter MMS2 can be used to detect and measure moisture in
non-conductive solid materials such as wood, drywall and masonry. The
MMS2 can measure the different parameters in building applications: room
temperature, room relative humidity, surface temperature with contact and
non-contact method, qualitative measurements and precise and localized
moisture content measurements in wood or WME values in materials other
than wood.
4.1 Pin Moisture Meter - Selection and Use
Navigate to SELECT MODE -> PIN MOISTURE METER and press to select the
Pin Moisture Meter mode. Connect the moisture probe, deep wall probe, or
Hammer electrode into socket B of the MMS2 instrument.
The instrument can now be used to take actual
%MC (moisture content)
readings in wood and %WME readings in non-conductive solid materials other
than wood by placing the moisture probe pins in firm contact with the surface
as shown in Figure 2 on page 6. The measured value is displayed and the
progress bar indicates whether the material is in a DRY, AT RISK or WET
condition.
Table 1: MC Readings and Progress Indicators
MC%WME Display Indication Progress Bar
<7.8 ---.-
>7.8 but <17 MC%WME value DRY
>17 but <20 MC%WME value RISK
>20 MC%WME value WET
Note: The MMS2 has the capability to show %MC value for 8 wood types.
INS8800 Rev. C 5
Green
Yellow
Red
Page 12
Protimeter MMS2 Instruction Manual
4.1 Pin Moisture Meter - Selection and Use (cont.)
When the instrument is in Pin Moisture Meter mode, by default it displays
WME WOODTYPE A (see the Protimeter wood calibration chart).
Use the up and down buttons / to navigate between different
wood types. From Wood Type B to Wood Type H, if MC% is greater than
ABOVE FIBER SAT will be displayed as the wood status, otherwise the
30.0,
wood status will not be displayed. When using the built-in pins, the operator
should make firm contact on the surface. It is not necessary or recommended
to push the pins deeply below the surface.
Figure 2: Using the Pin Moisture Meter
6 INS8800 Rev. C
Page 13
Protimeter MMS2 Instruction Manual
4.1a Using Auxiliary Deep Well Moisture Probes in Measure Mode
To take sub-surface readings in masonry, the deep wall probes should be used
instead of the standard moisture probe. To use the deep wall probes, drill two
1/4” (6 mm) diameter clearance holes, spaced 2-3 in. (50-75 mm) apart, to the
required depth. Push the two deep wall probes into the holes and press and
hold the tips firmly against the bottom of the holes. Ensure that the probes are
connected to socket B and measure the %WME value as described in
Section 4.1, “Pin Moisture Meter - Selection and Use”, on page 5.
Note: The most convenient way to take sub-surface readings in wood is by
using an optional Hammer Electrode.
4.1b Detecting Hygroscopic Salts
The Protimeter MMS2 instrument can be used as a basic salts detector when
used with the moisture probe, filter papers and distilled water (not included).
Moisten the filter paper with the water and take a reference reading across it
with the moisture probe. Then place the moistened filter paper against the
surface of interest and hold in place for 30 seconds. Remove the paper and
place the pins of the moisture probe across the paper again and observe the
reading. Compare this reading with the original reference reading. If the
difference is more than 20 points, there is significant salts contamination that
may warrant further investigation.
INS8800 Rev. C 7
Page 14
Protimeter MMS2 Instruction Manual
4.2 Pinless Moisture Meter — Selection and Use
Navigate to SELECT MODE -> PINLESS MOISTURE METER and press to
select the Pinless Moisture Meter mode.
The instrument can be used to take relative moisture readings in solid,
homogenous materials (such as walls and floors) by holding the surface of the
sensor bulge against the surface (see Figure 3 below). Relative readings
ranging from 60-999 appear on the LCD together with a progress bar that
indicates whether the material is in a
Note: When holding the meter at the bottom, away from any objects, it
should not show any reading.
DRY, AT RISK or WET condition.

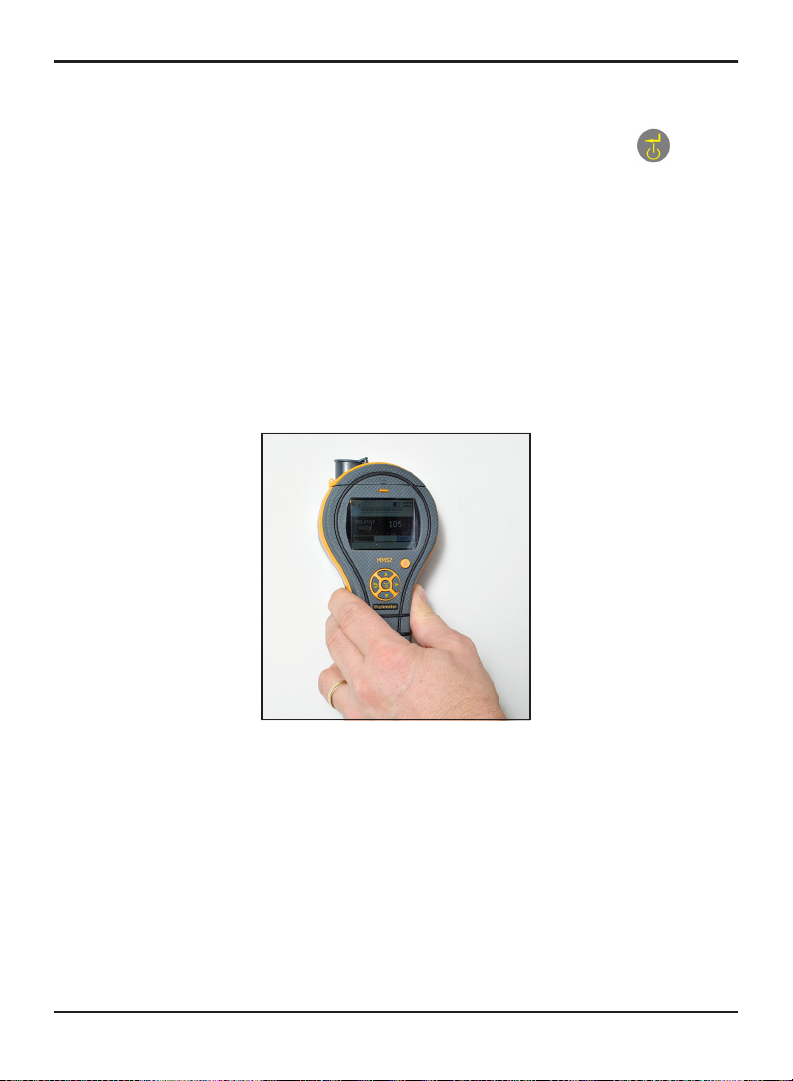

Figure 3: Taking Relative Moisture Readings
8 INS8800 Rev. C
Page 15
Protimeter MMS2 Instruction Manual
4.2 Pinless Moisture Meter — Selection and Use (cont.)
As reliable readings are obtained only if the sensor bulge is in direct contact
with the surface, the Search mode is not suitable for surveying textured
finishes. The nominal depth of penetration is up to19 mm (3/4”) in dense,
homogeneous materials. Readings taken through low-density coverings
(carpets, polystyrene tiles, etc.) will not be representative of the moisture level
in the substrate itself. When using the MMS2 in Pinless mode, it is
recommended that no attachments are connected. This practice will minimize
reading errors and the potential for electromagnetic interference with other
electronic equipment. When the Pinless Moisture Meter mode is selected, the
device will display the surface moisture in terms of Wood Moisture
Equivalent count.
Note: Place the MMS2 on the surface, but do not slide it. Sliding will wear
out the back of the meter, as well as possibly mark the wall.
Table 2: Aquant Indicators
Aquant Display Indication Progress Bar
<60 ----
>60 but <170 Aquant value
>170 but <200 Aquant value
>200 but <999 Aquant value
>999 999
DRY Green
RISK Yellow
WET Red
WET Red
INS8800 Rev. C 9
Page 16
Protimeter MMS2 Instruction Manual
4.2 Pinless Moisture Meter — Selection and Use (cont.)
In Search mode, the device has the capability to give comparative
measurement.
Note: If metal is present below the surface, the MMS2 may give a false
positive.
Comparative measurement helps in measuring whether the surface
moisture/material is wetter or dryer than the Reference surface/ material. If
the surface moisture/material is wetter than the reference surface/ material,
then the progress bar is red, or if it’s dryer, then the progress bar is green.
This method takes four steps:
1. Select Pinless Moisture meter under the Main Menu.
2. Place the device on the material which has been chosen as the reference
material.
3. Press the right arrow button for two seconds to store the reading as
reference reading.
4. Now if the device is placed on any material, it indicates whether the
material is wetter or dryer than the reference material.
4.3 Hygrometer - Selection and Use
Navigate to SELECT MODE -> HYGROMETER and press to select the
Hygrometer mode.
To use the Protimeter MMS2 as a Hygrometer (see Figure 4 on page 11),
connect the Hygrostick, Quikstick or Short Quikstick probe into socket
either directly or indirectly with the extension lead.
10 INS8800 Rev. C
A
Page 17
Protimeter MMS2 Instruction Manual
4.3 Hygrometer - Selection and Use (cont.)
Relative humidity and temperature measurements are made with the
Hygrostick, Quikstick or Short Quikstick probe, and the MMS2 instrument
uses these values to calculate a range of psychometric readings. When using
the MMS2 to measure the conditions in air, the humidity probe is normally
connected directly to the instrument. However, when it is impractical or
awkward to use the instrument in this way, the extension lead may be used to
connect the Hygrostick, Quikstick or Short Quikstick to the instrument.
Typically, the extension lead will be used when taking readings from probes
that have been embedded in structures such as walls and floors.

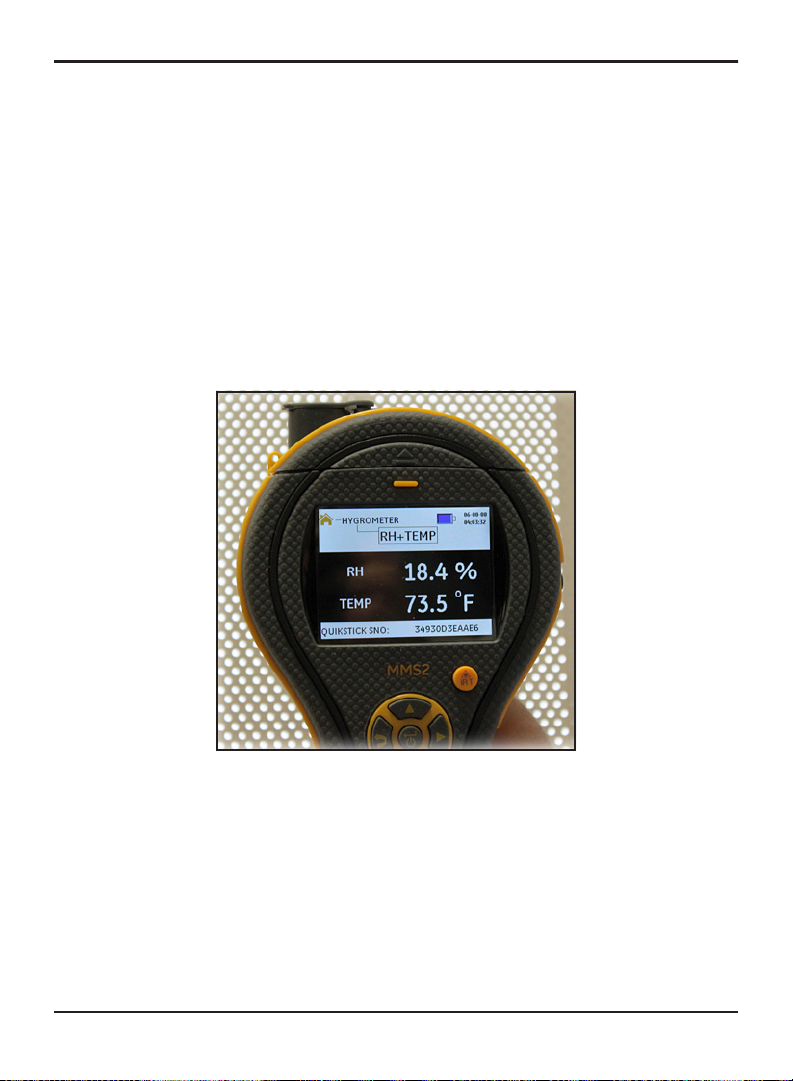

Figure 4: MMS2 as a Hygrometer
Note: For best response time, do not store the MMS2 in excessively hot or
cold locations, such as in a vehicle.
INS8800 Rev. C 11
Page 18
Protimeter MMS2 Instruction Manual
4.4 Psychrometrics - Selection and Use
Navigate to SELECT MODE -> PSYCHROMETRICS and press to select the
Psychrometrics mode.
Connect the Hygrostick, Quikstick or Short Quikstick probe into socket
A.
The following parameters are displayed in this mode:
4.4a Dew Point
Navigate to SELECT MODE -> PSYCHROMETRICS -> DEW POINT and press
to get the Dew Point reading.
4.4b Grains per Pound/Grams per Kilogram
Navigate to SELECT MODE -> PSYCHROMETRICS -> GRAMS PER KILOGRAM/
GRAINS PER POUND and press to get the Mixing Ratio reading.
4.4c Enthalpy
Navigate to SELECT MODE -> PSYCHROMETRICS -> ENTHALPY and press to
get the Enthalpy reading.
4.4d Vapor Pressure
Navigate to SELECT MODE -> PSYCHROMETRICS -> VAPOR PRESSURE and press
to get the Vapor Pressure reading.
Note: Change the units in Settings (see page 16) to obtain both metric and
non-metric equivalents.
12 INS8800 Rev. C
Page 19
Protimeter MMS2 Instruction Manual
4.5 Condensator
The Condensator Mode enables the user to assess the risk of condensation
occurring on surfaces or to confirm whether or not condensation is present on
a surface.
The MMS2 can be used as a Condensator using two modes:
4.5a Surface Temperature Probe (Contact Based) - Selection
and Use
Navigate to SELECT MODE -> SURFACE TEMPERATURE PROBE and press to
select the Surface Temperature Probe mode.
In this mode, the MMS2 measures the surface temperature using an external
Surface Temperature probe inserted into socket
surface to be assessed. In addition to the Surface Temperature probe, connect
a Humidity probe into socket A for the MMS2 to show the Condensation
status.
TDIFF is a useful function when investigating condensation, as it tells the user
how many degrees a surface temperature is above or below the prevailing dew
point temperature.
C and making contact with the
4.5b Surface Temperature IR (Non-Contact Based) - Selection
and Use
In this mode, the MMS2 measures surface temperature using IR technology
Connect a humidity probe into socket A.
Hold the button to enable the IR Thermometer. Release the button and
press it again within 1 second to enable the
will indicate the area on the surface where the measurement is being taken
(see Figure 5 on page 14).
INS8800 Rev. C 13
LASER pointer. The LASER pointer
Page 20
Protimeter MMS2 Instruction Manual
4.5b Surface Temperature IR (Non-Contact Based) - Selection
and Use (cont.)

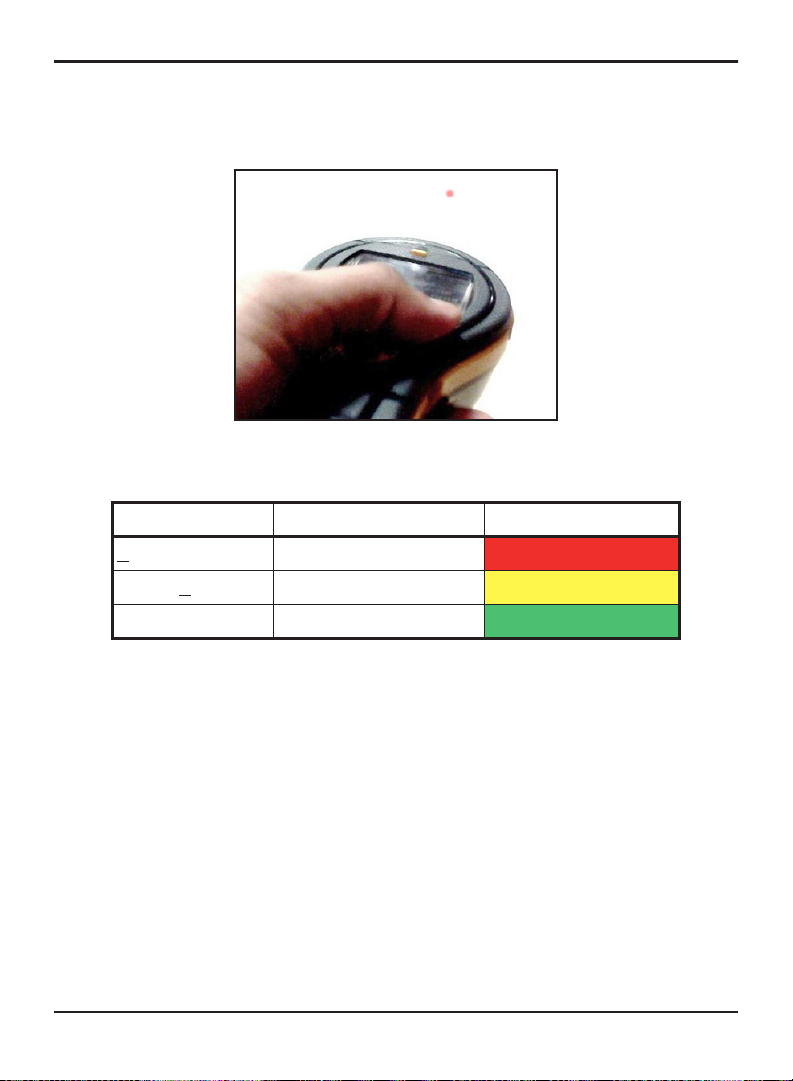

Figure 5: LASER Pointer
Table 3: TDIFF Readings
T. DIFF (DEGC) Condensation Status Progress Bar
<0 Condensation
>0 but <3 Risk of Condensation
>3 No Condensation
Red
Yellow
Green
14 INS8800 Rev. C
Page 21
Protimeter MMS2 Instruction Manual
4.6 Logging - Selection and Use
The MMS2 supports both continuous and manual logging.
4.6a Manual Logging
If is pressed at any of the measurement screens, the data and Timestamp at
that instant will be logged and a RECORD SAVED message will be displayed on
the bottom bar.
4.6b Continuous Logging
Continuous logging is used to sample and store data continuously. Continuous
logging is enabled either by setting logging parameters through the Keypad or
through a PC using MMS2 Logging Software. (see Section 4.7g, “Set Logging
Parameters (Optional PC Logging Software Required)”, on page 19.)
After the logging parameters are saved, logging starts after the START AFTER
minutes have elapsed. The logging icon is displayed on the top right
corner of the screen while logging is active.
When logging is in progress, an option to stop logging is provided under the
SETTINGS menu. Logging can be stopped either by selecting SELECT MODE ->
SETTINGS -> STOP LOGGING in the instrument, by clicking STOP LOGGING in
the MMS2 Logging Software or when the instrument is turned OFF.
INS8800 Rev. C 15
Page 22
Protimeter MMS2 Instruction Manual
4.7 Settings - Selection and Use
The Protimeter MMS2 instrument has a range of user-selectable features.
Navigate to
SELECT MODE -> SETTINGS and press to configure the
MMS2. The following options are available for configuring:
4.7a Set Units
MMS2 has the option to select between METRIC and NON METRIC units.
Navigate to
Unit options. Use / to navigate between the options available, and
press to save the desired units.
Table 4 below shows how the units and the parameters measured appear in
metric and non-metric units.
Temperature °C °F
Dew Point °C °F
Mixing Ratio g/kg g/lb
Enthalpy kJ/kg BTU/lb
Vapor Pressure kPa inHg
Surface Temperature °C °F
T. Diff °C °F
Ambient Dew Point °C °F
SELECT MODE -> SETTINGS -> UNITS and press to open the
Table 4: Metric and Non-Metric Units for Parameters
Metric Non-Metric
16 INS8800 Rev. C
Page 23
Protimeter MMS2 Instruction Manual
4.7b Date and Time
Navigate to SELECT MODE -> SETTINGS -> DATE AND TIME and press to
change the date and time. Use to navigate to the required field. Then, use
/ to increment/decrement the value in that box.
After entering the required date and time, press to set the date and time.
The new date and time are displayed at the top right corner of the screen. Date
and time can also be set up by connecting to a PC and using the optional
MMS2 logging software.
4.7c Auto Off
The MMS2 will switch OFF automatically after auto switch off time, if no
activity/key press is observed. Navigate to SELECT MODE -> SETTINGS ->
AUTO OFF and press to configure the Auto off time. Use / to
navigate between 0 to 6 minutes and press to set the Auto off time. To
disable the Auto off feature, set the Auto switch off time to 0.
Note: During continuous logging operation, auto switch off time is
considered to be the display turnoff time.
4.7d Set Brightness
Navigate to SELECT MODE -> SETTINGS -> SET BRIGHTNESS and press to
set the Brightness level. Use / to navigate between the different
brightness levels (1 to 10) and press to set the desired brightness.
(Brightness level 2 is the default setting.)
INS8800 Rev. C 17
Page 24
Protimeter MMS2 Instruction Manual
4.7e Buzzer On-Off
This option is used to switch the Buzzer ON/OFF. When the Buzzer is ON:
• Any key press will make a beep sound.
• In WME/Aquant mode, a RISK/WET condition will be alerted.
• Instrument turn ON/OFF will be indicated
Navigate to
switch the Buzzer on/off.
Use / to navigate between the on and off options and press to
save the desired configuration.
SELECT MODE -> SETTINGS -> BUZZER ON-OFF and press to
4.7f Calibration
The Calibration option is unavailable to the user.
18 INS8800 Rev. C
Page 25
Protimeter MMS2 Instruction Manual
4.7g Set Logging Parameters (Optional PC Logging Software
Required)
Navigate to SELECT MODE -> SETTINGS -> SET LOGGING and press to set
the following logging parameters:
• Start After: minutes after which logging should start (0 to 999).
• Sampling Interval: sampling interval in minutes (1 to 60).
• End After: minutes after which logging should stop after sampling begins
(1 to 999).
• Job Number: 1 to 255
Use to navigate to the required box. Then, use / to increment
or decrement the value in that box and press to save the entered logging
parameters.
Note: You can also set up and conduct logging via the optional PC
software.
INS8800 Rev. C 19
Page 26
Protimeter MMS2 Instruction Manual
5. Diagnostic Procedure Guidelines
When diagnosing dampness in buildings, three key criteria must be
considered, as outlined in Table 5 below.
Table 5: Diagnostic Criteria
Item Criteria Notes
1 Is a wall or other
building element in
a safe air-dry
condition?
2 Is the surface
temperature of a
wall or other
building element
above or below the
dew point?
3 Is a wall surface or
other building
element
contaminated with
hygroscopic salts
or other conductive
material?
Air-dry is the moisture content that is normal
and safe (from moisture-related deterioration or
decay) in buildings. When the Protimeter
MMS2 moisture meter modes are selected,
measured values are identified as
DRY, AT RISK
or WET.
Dew point is the temperature at which a given
quantity of air becomes saturated (100% RH)
and forms dew, or condensation. If a surface is
colder than the dew point, condensation occurs.
When the Protimeter MMS2 Condensator Mode
is selected to measure TDIFF (the proximity of
a surface to the dew point) the instrument
identifies either a NO CONDENSATION condition,
an AT RISK condition, or a CONDENSATION
occurring condition.
Artificially high moisture meter readings may
be obtained either in material that has been
heavily contaminated by hygroscopic salts or in
materials that are conductive by nature. The
presence or absence of nitrates and chlorides
should be established when investigating
suspected rising dampness situations in
particular.
20 INS8800 Rev. C
Page 27
Protimeter MMS2 Instruction Manual
5. Diagnostic Procedure Guidelines (cont.)
Item 1: The Search and Measure modes (pinless and pin) should be used in
combination to map out the extent of a moisture problem and to distinguish
between surface and sub-surface moisture. The profile of readings obtained
will give insight into the potential cause (e.g., condensation, lateral ingress or
rising dampness) of a moisture-related problem.
Far greater insight will be obtained from moisture readings taken in a
methodical manner than from those taken in a random manner. When testing
walls, the user should start by taking readings at the lower levels and move up
the wall in regular steps of 4-6 in. (10-15 cm). When high subsurface relative
readings are obtained in the Search mode, the user is strongly recommended
to quantify these values in %WME terms by using the deep wall probes in the
Measure mode. If the depth of clearance holes is increased incrementally by a
nominal 0.4 in. (10 mm) at a time, the moisture profile through the wall can be
established.
Item 2: Condensation related moisture problems are common. When assessing
the risk of condensation, or confirming its existence, the proximity of the
actual temperature of the surface under investigation to the dew point must be
established. The TDIFF measurement in CONDENSATOR mode tells the user
how many degrees the temperature of a surface is above or below the dew
point.
As many condensation situations are transient, TDIFF readings should be taken
in a methodical and regular manner, similar to moisture meter readings in
materials. Ambient RH and temperature values should also be taken to assess
the moisture condition of the room as a whole. Dwellings and working
environments generally have an RH from 40% to 60%, so there may be cause
to investigate environments that register RH values outside this range.
INS8800 Rev. C 21
Page 28
Protimeter MMS2 Instruction Manual
5. Diagnostic Procedure Guidelines (cont.)
Item 3: Two hygroscopic salts, chlorides and nitrates, may build up on the
surface of walls where rising dampness or wicking occurs. As groundwater
moves through the wall and migrates to the surface, salts tend to accumulate
where the rate of evaporation of this water is greatest. The salts themselves
are non-conductive, but when mixed with a small amount of moisture a highly
conductive solution is formed. The presence (or absence) of such salts should
therefore be established when rising dampness is suspected by using the
Protimeter MMS2 in Measure mode as described. When required, the
Protimeter Salts Analysis Kit (part number BLD4900) can be used to identify
the relative concentrations of nitrates and chlorides.
In summary, effective dampness diagnosis is a process that draws on the
knowledge and expertise of the surveyor. The Protimeter MMS2 kit enables
the user to investigate moisture levels in materials and environments from
various perspectives that, in turn, permits a more thorough and reliable
judgment as to the cause of dampness related problems.
6. Calibration Checking
Check the moisture meter Measure Mode by holding the pins of the moisture
probe across the exposed wires of the calibration check device (Calcheck).
The WME value of correctly calibrated instruments is 17-19. Instruments that
register values outside this range should be returned to Protimeter for
servicing.
Note: Search mode can be checked against a stable area of wall. For
comparative purposes, humidity and ambient temperature conditions
should be stable and consistent.
Working Hygrostick, Quikstick and Short Quikstick probes can be checked
against reference probes and/or over standard salt solutions.
22 INS8800 Rev. C
Page 29
Protimeter MMS2 Instruction Manual
7. Care and Maintenance
The Protimeter MMS2 is a precision-built electronic instrument that will
provide many years of reliable service if the following points are observed:
• When not in use, keep the MMS2 instrument and its accessories in the
factory carry case. Store the case in a stable, dust-free environment and
keep it out of direct sunlight.
• If the instrument is to be stored for more than four weeks or if the low
battery power symbol appears on the display, remove the batteries from
the instrument.
• When using the MMS2 in Search mode, do not slide the bulge across
surfaces, as this may lead to rapid instrument case wear. The instrument
should be lifted and placed in position to prevent such wear.
• Check the condition of the MMS2 accessories on a regular basis, and
replace them if they become worn or damaged.
• To preserve their calibration characteristics, Hygrostick probes should not
be exposed to saturated environments. If this is unavoidable, Hygrostick
probes should be replaced on a regular basis and their calibration should
be checked frequently.
INS8800 Rev. C 23
Page 30
Protimeter MMS2 Instruction Manual
8. Displaying the MMS2 Information
Go to SELECT MODE -> VERSION to view the MMS2 information. The
following information will be provided:
• Firmware version
• Date of build
• Device Model and Serial number
• Calibration date/status: Tair-RH-WME-Ts, Aquant, IR, surface
temperature
• Battery status
24 INS8800 Rev. C
Page 31
Protimeter MMS2 Instruction Manual
9. Technical Specifications
9.1 Operating Conditions
Operating Temperature Range
Instrument Only: 0°C - 50°C
Humidity: 0 to 95% non-condensing
9.2 Measurement Specifications
9.2a Humidity Measurement
Hygrostick Data (Nominal)
Relative Humidity
Range: 30% to 40% RH, Accuracy: ±3% RH at 68°F (20°C)
Range: 41% to 98% RH, Accuracy: ±2% RH at 68°F (20°C)
Temperature
Range: 14°F to 122°F (-10°C to 50°C), Accuracy: ±0.6°F (±0.3°C)
Short Quikstick Data (Nominal)
Relative Humidity
Range: 0% to 10% RH, Accuracy: ±3% RH at 68°F (20°C)
Range: 10% to 90% RH, Accuracy: ±2% RH at 68°F (20°C)
Range: 90% to 100% RH, Accuracy: ±3% RH at 68°F (20°C)
Temperature Range
Range: 14°F to 122°F (-10°C to 50°C), Accuracy: ±0.6°F (±0.3°C)
INS8800 Rev. C 25
Page 32
Protimeter MMS2 Instruction Manual
9.2b Moisture Measurement
For Integrated and Remote Pin probes
Integrated pins
Strong and reliable integrated WME pins with cap,
No effect on readings by surface moisture
Pin (% WME) 8% to 100%, readings over 30% are relative
Non-invasive (RF)
Up to 3/4” (15 mm) deep, 60 to 999 (relative),
Tolerance: ±10 relative scale
9.2c Surface Temperature
Thermistor Based Remote Non-Integrated Probe
Range: -4°F to 176°F (-20°C to +80°C)
Accuracy: ±2.7°F (±1.5°C)
IR Based — With 12:1 (D:S) Ratio — With Laser Pointer
Range: 14°F to 122°F (-10°C to 50°C)
Accuracy: ±3.6°F (±2°C) @77°F (25°C)
26 INS8800 Rev. C
Page 33
Protimeter MMS2 Instruction Manual
9.3 Physical Specifications
9.3a Power
Battery
9V Alkaline 550mAH
Battery Life visual indication on LCD
9.3b Size (H x W x D)
7.5 in. x 3.7 in. x 2.2 in. (19.1 cm x 9.4 cm x 5.6 cm)
9.3c Gross Weight
Instrument only: 9.17 oz (260 g)
9.3d Maximum Needle Depth
For WME Pins 0.4 in. (10 mm)
9.3e Buzzer
Audible buzzer for Key tone, WME/Aquant Measurement
9.4 Regulatory Compliance
CE, RoHS, ETL
9.5 User Interface
9.5a Keypad
Plastic/silicone keypad for easy navigation between different user menus on
the unit, separate key for IR operation (non-contact based surface
measurement)
INS8800 Rev. C 27
Page 34
Protimeter MMS2 Instruction Manual
9.5b Display
Graphical LCD
Size: 2.4Ӭ
Color: 256 bits
Resolution: 320 x 240 dpi
Backlight (with adjustable brightness)
9.5c Language
Multiple language support
9.5d User Application Profiles
Sticky memory last used application settings
9.5e PC Interface
USB interface:
mini B type USB port on instrument
PC Interface features:
Firmware Upgrade in field
User specific instrument setup
Data Logging setup
Stored data retrieval
9.5f Data Logging
RH-Tair-Ts-WME-Aquant Data logging
Easy user setup through Keypad
Samples with Date and Time stamp:
Manual logging — 8000 samples
Continuous logging — 6100 samples
28 INS8800 Rev. C
Page 35
Page 36
A
Customer Support Centers
U.S.A .
Amphenol Thermometrics, Inc.
967 Windfall Road
St. Marys, Pennsylvania 15857, USA
T: +1 814-834-9140
www.protimeter.com
U.K.
Amphenol Thermometrics (U.K.) Limited
Crown Industrial Estate Priorswood Road
Taunton, TA2 8QY, UK
T: +44 1823 335 200
mphenol
Advanced Sensors
www.amphenol-sensors.com
©2014 Amphenol Thermometrics, Inc. All rights reserved.
Technical content subject to change without notice.
INS8800 Rev. C
June 2014
Loading...
