Complete, Accurate Moisture Measurement
in Concrete Floor Slabs
Protimeter Flooring Kits
PROTIMETER
For use with ASTM Standard F2170 www.moistureinconcrete.com
Page 2
Choose Between 2 Flooring Kits
The Protimeter MMS2 and HygroMaster 2 Flooring Kits allow ooring inspectors to take moisture
measurements in concrete oor slabs using the relative humidity in-situ probe method. The in-situ humidity
test is being adopted worldwide and is considered the most accurate way for contractors and inspectors
to ensure that moisture levels in concrete slabs meet the recommended requirements prior to installing a
oor covering.
Moisture levels in oor slabs are critical to understand, as excessive moisture can lead to catastrophic and
expensive oor failures. Global standards are in place, such as ASTM F2170.
Measurements Include:
• In-situ relative humidity and temperature -
Required for ASTM F2170 standard
• Relative humidity and temperature in the
ambient conditions - Required for ASTM F2170
standard
• Surface temperature - Required for ASTM
F2170 standard
• Data logging
• Non-invasive instant moisture evaluation used
prior to in-situ RH moisture test (MMS2 only)
• Pin type moisture measurement, evaluating
wood oor materials (MMS2 only)
MMS2 BLD8800-FL
2 | Protimeter MMS2 Flooring Kit
HygroMaster 2 BLD7750-FL
Page 3

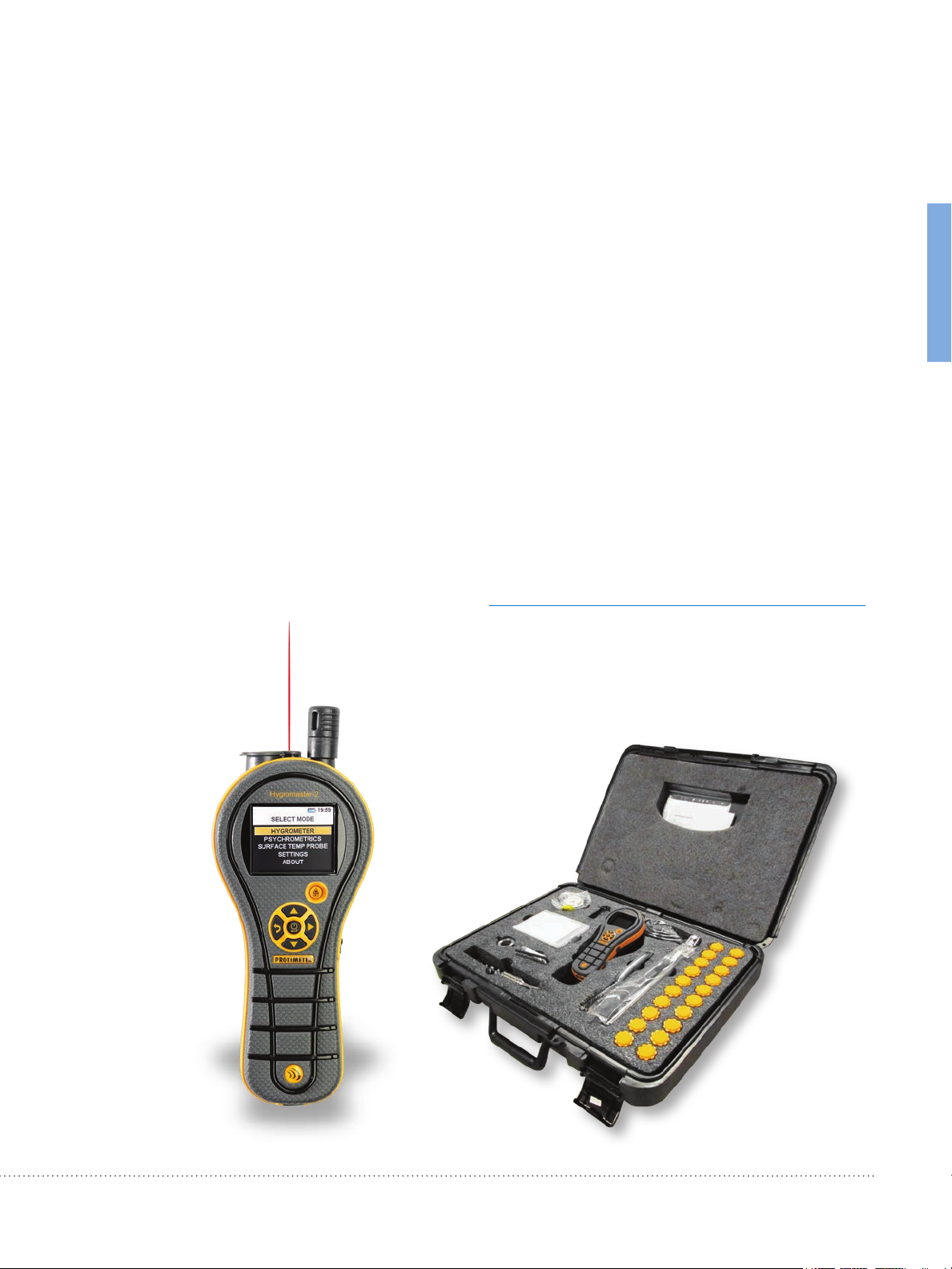

MMS2 | All-in-One Hygrometer and Moisture Meter
Hygromaster 2 | Simple to Use Thermo-Hygrometer
The Protimeter MMS2 and HygroMaster 2 are the industry’s most advanced all-in-one moisture meters.
With its ergonomic, 4-in-1 design, the MMS2 allows for one-handed operation to measure moisture on and below
the surface, as well as in ambient air and humidity and in concrete oor slabs. The MMS2 also incorporates instant
moisture measurement using pin and non-invasive techniques to provide accurate readings in wooden oors and
reference reading in concrete oor slabs.
The Hygromaster 2 is the latest in handheld hygrometry technology. It features outstanding performance with a
simple and easy to use interface with multiple Psychometric calculations and a non-contact surface IR temperature
probe.
Both meters feature a non-contact infrared (IR) thermometer to measure surface temperature and calculate dewpoint.
Features
• Pin moisture measurement (MMS2 only)
• Non-invasive moisture measurement (MMS2 only)
• Ambient relative humidity and temperature measurement
• Equilibrium humidity measurement in concrete oors
• Psychrometric calculations
• Laser pointer surface non-contact temperature
measurement
• Data logging
• Firmware upgradable
Benets
• Easy-to-use with simple user interface
• One instrument with all oor moisture testing
capabilities
• Durable construction with a 2 year warranty
• Free technical support
Protimeter Flooring Kits | 3
Page 4
Flooring Kits Components

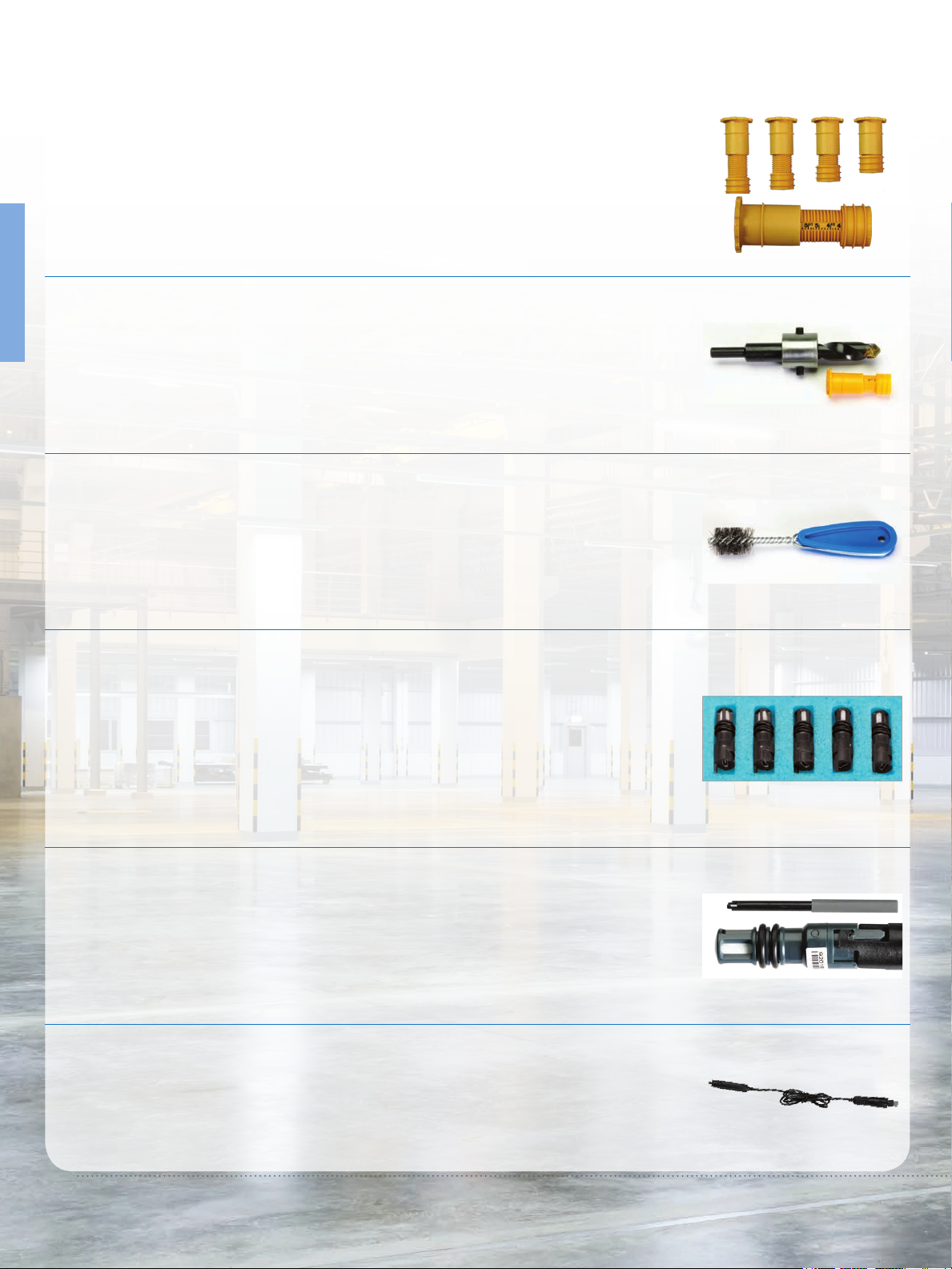

20 Adjustable Humidity Sleeves
For insertion into the concrete slabs allowing measurement in slabs at 40% depth of concrete.
Sleeves adjustable from 4” (101mm) to 6” (153mm) slab thicknesses. Patent Pending.
Part Number - BLD4650-20
Carbide-Tipped Spiral Masonry 3/4” (19mm) Drill Bit and Drill Stop
Drill the correct depth holes into the concrete slab.
Part Number - Drill - BLD34DR, Drill stop collar - BLD34DRCLR Part Number - Allen key for
stop collar - BLD34DRCLR-K
Wire Cleaning Brush
Clean out the drilled hole. Recommend using in conjunction with a properly ltered industrial
grade vacuum.
Part Number - BLD4653

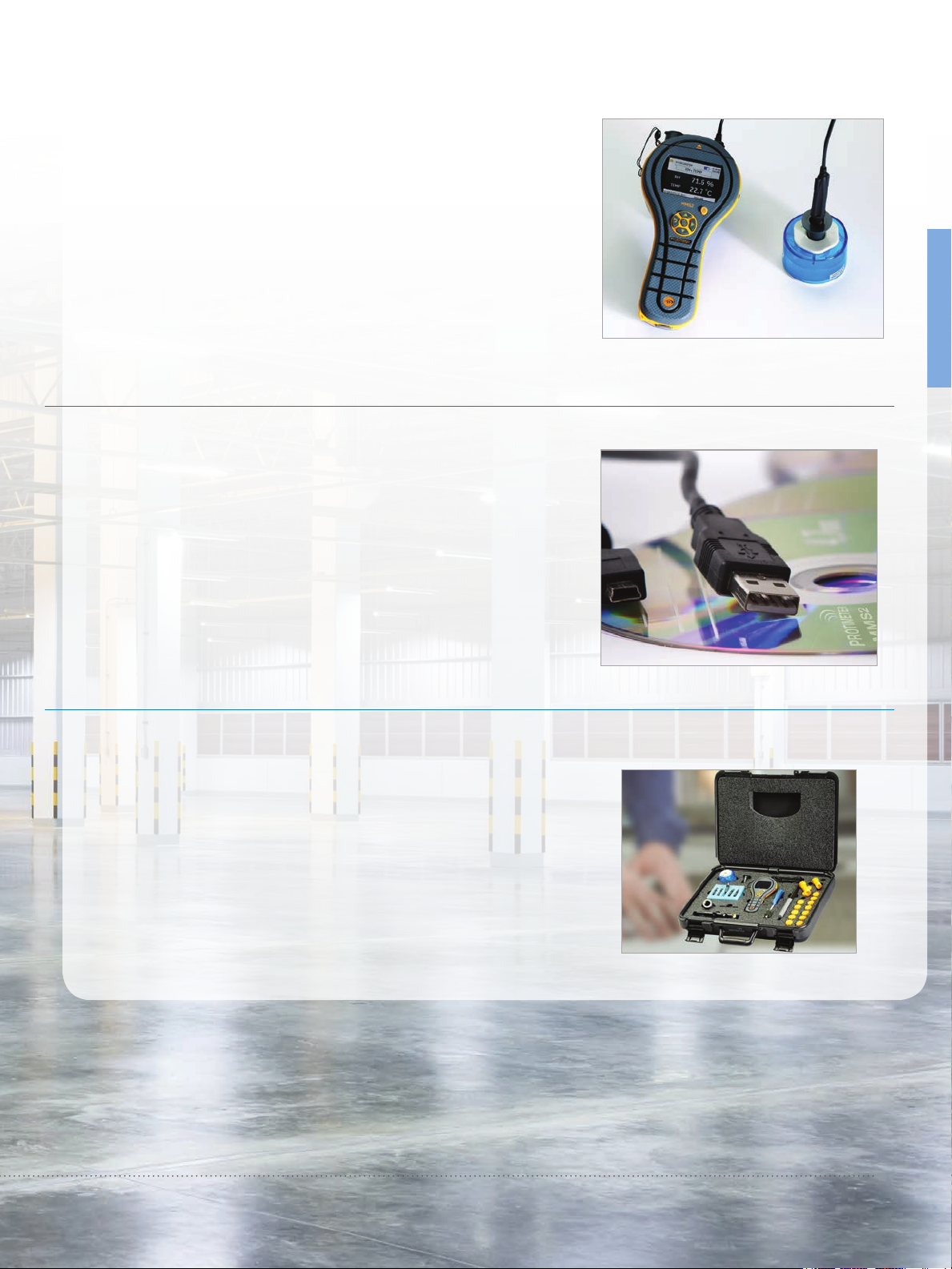

5 Protimeter Mini Hygrostick Probes
These small probes are placed into the humidity sleeve that is inserted into the concrete slab
and allow you to measure the %RH and temperature to the exact standard. Protimeter’s Mini
Hygrostick sensor is specically designed for the harsh environments found in concrete.
Protimeter’s EMD sensor performance and reliability is unmatched in the market with over 20
years of use in this application. Comes complete with NIST Traceable Calibration Certicate.
Part Number - BLD4755-5
Mini Hygrostick Insertion and Extraction Tool
For placing and removing the sensors in and out of the sleeves.
Part Number - BLD4755-EX
Mini Hygrostick Extension Lead
Connects the MMS2 meter to the mini Hygrostick.
Part Number - BLD5806
4 | Protimeter Flooring Kits
Page 5
Flooring Kits Components
Salts Calibration Test Bottle and Adapter
Allows users to check the humidity probe calibration at 75% RH.
Part Number - BLD4790
Adapter Part Number - BLD4790-AD
Data Cable and Software
Store up to 8,000 readings with time-and-date stamping from all instrument
functions with the push of a button, making record keeping easy and simple.
Part Number - BLD7758
Rugged Carrying Case
Secures your ooring kit in one durable, easy to carry case.
Part Number - BLD5916
(replacement case only)
Protimeter Flooring Kits | 5
Page 6

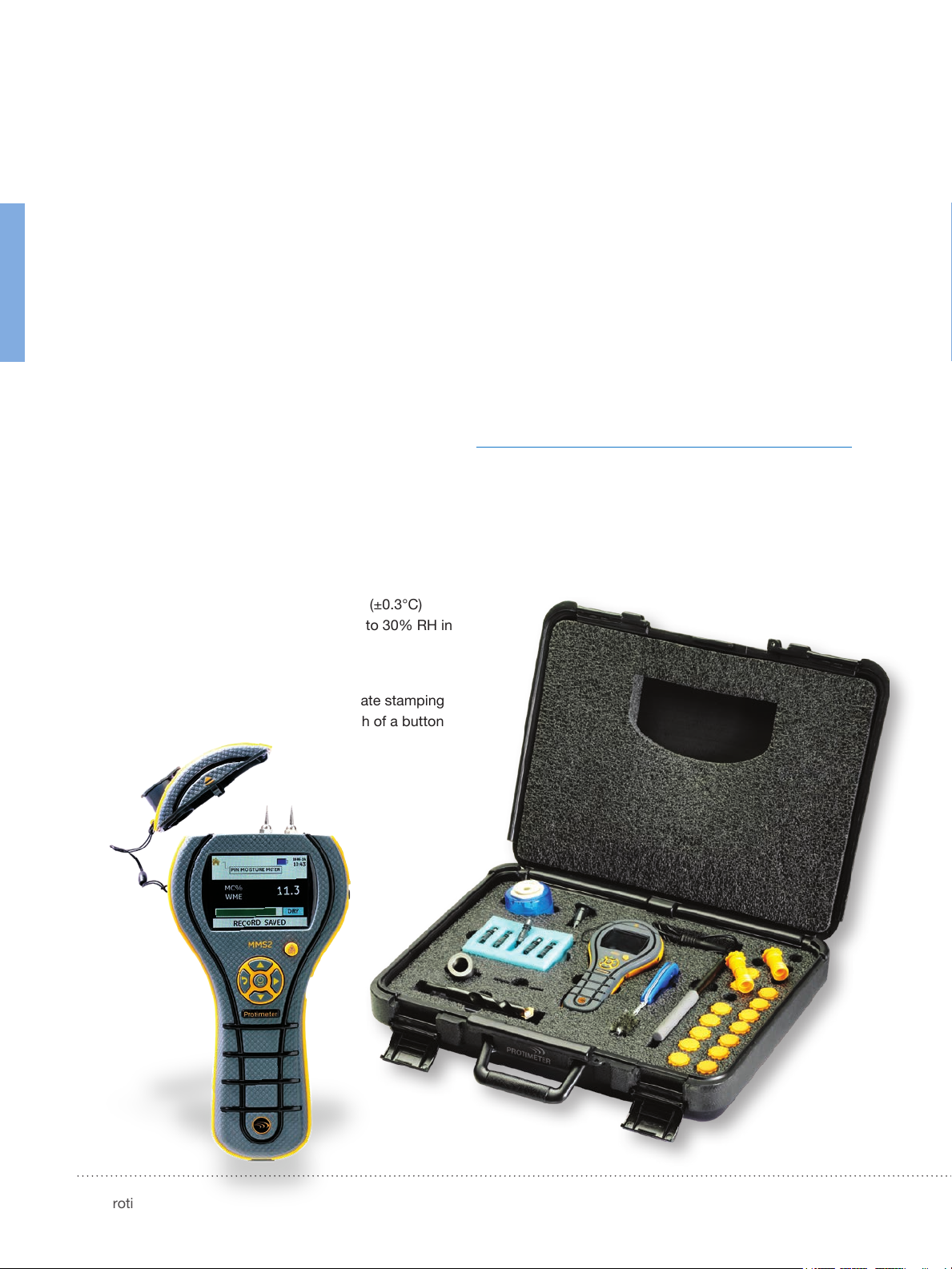

MMS2 Specifications
Moisture Measurement Range
• Pin (% WME) 8% to 99, readings over 30% are relative
• Non-invasive (RF) up to 3/4 in (19 mm) deep, 60 to
1000 (relative)
IR Surface Temperature Probe Range
• 15°F to 120°F (-10°C to 50°C)
Infrared Surface Temperature Range
• IR Based – With 12:1 (D:S) Ratio.
• Range -4°F to 176°F (-20°C to 80°C)
• Accuracy ±3.6°F (±2°C)
Mini Hygrostick Data (Nominal)
• Package of 5 included
• 30% to 40% RH (±3% RH) at 68ºF (20ºC)
• 41% to 98% RH (±2%) at 68ºF (20ºC)
• Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
Quikstick (Used for Ambient Readings)
• 0% to 10% RH, ±3% RH at 68°F (20°C)
• 11% to 90% RH, ±2% RH at 68°F (20°C)
• 91% to 100% RH, ±3% RH at 68°F (20°C)
• Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
• Nominal response 30% to 90% and back to 30% RH in
45 seconds @ 68°F (20°C)
Gross Weight
• 10 oz. (283 gms)
Dimensions (LxWxH)
• 7.5 in x 3.7 in x 2.2 in (190.5 mm x 94 mm x 56 mm)
Maximum Needle Depth
• 0.4 in (10 mm)
Display
• Color LCD
Batteries (Included)
• 1 x 9V
Warranty
24 months on mechanical or manufacturing defects.
Does not include wearing of parts or accessories.
For more details, including a demonstration video, go to
www.mms2meter.com.
Data Storage
• Store up to 8,000 results with time-and-date stamping
from all instrument functions with the push of a button
6 | Protimeter Flooring Kits
Page 7
HygroMaster 2 Specifications
Gross Weight
• 8 oz (277 gms)
Dimensions (LxWxH)
• 7 in x 3.2 in x 1.5 in (178 mm x 81 mm x 38 mm)
Display
• 2” TFT color display, 176 x 220, 256K color
Batteries (Included)
• 9V Alkaline
Mini Hygrostick Data (Nominal)
• Package of 5 included
• 30% to 40% RH (±3% RH) at 68ºF (20ºC)
• 41% to 98% RH (±2%) at 68ºF (20ºC)
• Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
Plug in Temperature Probe Surface Temperature
Probe
• Range 32°F to 158°F (0°C to 70°C)
• Accuracy at 77°F (25°C) +/- 1.3°F (0.7°C)
Infrared Surface Temperature Range
• IR Based – With 12:1 (D:S) Ratio
• Range -4°F to 176°F (-20°C to 80°C)
• Accuracy ±3.6°F (±2°C)
HygroStick Data (Nominal)
• 30% to 40% RH (±3% RH) at 68ºF (20ºC)
• 41% to 98% RH (±2%) at 68ºF (20ºC)
• Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
QuikStick and QuikStick ST Data (Nominal)
• 0% to 10% RH, ±3% RH at 68°F (20°C)
• 10% to 90% RH, ±2% RH at 68°F (20°C)
• 90% to 100% RH, ±3% RH at 68°F (20°C)
• Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C)
• Nominal response 30% to 90% and back to 30% RH in
45 seconds @ 68°F (20°C)
Data Storage
• Store up to 8,000 results with time-and-date stamping
from all instrument functions with the push of a button.
Store 6,100 results with automatic logging.
Warranty
24 months on mechanical or manufacturing defects.
Does not include wearing of parts or accessories.
Protimeter Flooring Kits | 7
Page 8

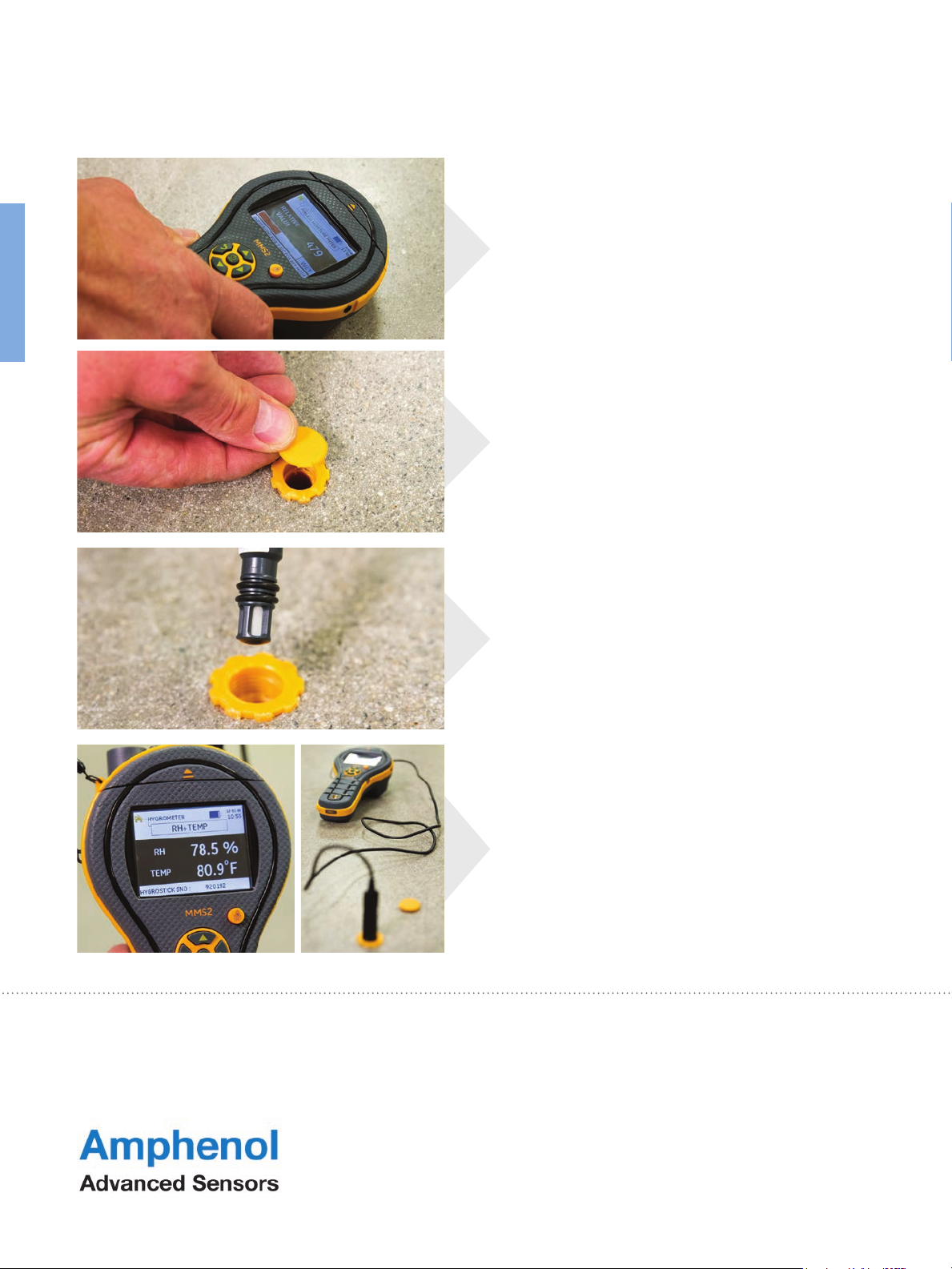

Simple Steps to Condent Moisture Assurance
• Rapidly evaluate the oor moisture level
using the MMS2, or another non-invasive
moisture meter
• Select your in-situ humidity test points
• Drill holes to 40% of the depth of the
concrete
• Clean out the drilled holes and insert the
adjustable sleeve at the correct depth for
the slab
• Insert the Protimeter mini Hygrostick using
the insertion tool
• Cap the sleeve and wait for moisture
equilibrium. See local standards for
recommended soak time
• Measure and record the relative humidity
and temperature
• Remove the mini Hygrostick for reuse
www.protimeter.com
www.amphenol-sensors.com
North and South America
Tel: +1-814-834-9140
© 2018 Amphenol Corporation. All Rights Reserved. Specications are subject to
change without notice.
Europe, Middle East and Asia
Tel: +44 1823 335 200
AAS-BR-219D 02/2018
