ProtEX-RTP PD6830 series, PD6830-AP0-0, PD6830-APA-0, PD6830-BM0-0, PD6830-BTA-0 Instruction Manual

PD6830 Explosion-Proof Pulse Input Rate/Totalizer
Instruction Manual

Rate/Totalizer

 Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square

Wave, Opto-Isolated Inputs

 Explosion-Proof, IP68, NEMA 4X Enclosure
 Isolated 4-20 mA Output for Rate, Total, or Grand Total
 5-Digit 0.7" (17.8 mm) Top Display for Rate or Total
 7 Alphanumeric Character 0.4" (10.2 mm) Bottom Display for Rate, Total, Grand

Total, Units, and Tag

 13-Digit Totalizer with Total Overflow Feature
 SafeTouch Through-Glass Button Programming
 Battery, DC, or Output Loop-Powered Models
 Two Isolated Open Collector Pulse Outputs, Up to 5 kHz
 Automatic Rate, Total, & Grand Total Unit Conversions
 Gate Function for Rate Display of Slow Pulse Rates
 K-Factor, Scaling, or Live Input Calibration with 32-Point Linearization
 Password Protection
 Backlight Standard on All Models
 Operates from -40 to 75°C
 Data Logging Functions and Modbus® Accessible Data

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA
Tel [phone] • Fax [phone]

www.predig.com

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

CAUTION: Read complete
instructions prior to installation
and operation of the meter.

WARNING: Risk of
electric shock or
personal injury.

Model

Description

PD6830-AP0-0

9-30 VDC Powered, Constant
Backlight, 2 Pulse Outputs

PD6830-APA-0

9-30 VDC Powered, Constant
Backlight, Isolated 4-20 Output,
2 Pulse Outputs

PD6830-BM0-0

Battery Powered*, or DC-Powered
with Battery Backup, Backlight**,
2 Pulse Outputs

PD6830-BMA-0

Battery (or 9-30 VDC) Powered*, or
DC Powered with Battery Backup,
Backlight**, Isolated 4-20 mA Output,
2 Pulse Outputs

PD6830-BTA-0

Battery Powered*, or DC Powered with
Battery Backup, Loop Output Powered
Backlight, Isolated 4-20 Output,
2 Pulse Outputs

PD6830-CTB-0

4-20 mA Output-Powered,
Loop-Powered Backlight, Non-Isolated
4-20 mA Output, 2 Pulse Outputs

PD6830-DTB-0

4-20 mA Output-Powered with Battery
Backup, Loop Output Powered
Backlight**, Non-Isolated 4-20 mA
Output, 2 Pulse Outputs

-I Option

Isolated 2-wire RS-485 with Modbus
protocol.***
Replace ending -0 in part number
above with –I

(Example: PD6830-APA-I). Not
available on -CTB or -DTB models.

Model

Description

PDAPLUG75

3/4" Metal Conduit/Stopping Plug

PDABAT36C

3.6 V C Cell Lithium Battery

PDA0001

3/4" M-NPT to F-M20 Reducer

PDA0002

3/4" M-NPT to 1/2" F-NPT Reducer

PDA8068

USB Serial Adapter

PDA6846

Pipe Mounting Kit

PDA6846-SS

Stainless Steel Pipe Mounting Kit

!

Disclaimer

The information contained in this document is subject to
change without notice. Precision Digital makes no
representations or warranties with respect to the contents
hereof; and specifically disclaims any implied warranties of
merchantability or fitness for a particular purpose.

WARNINGS

• This product is not recommended for life support
applications or applications where malfunctioning could
result in personal injury or property loss. Anyone using
this product for such applications does so at his/her own
risk. Precision Digital Corporation shall not be held liable
for damages resulting from such improper use.

• Failure to follow installation guidelines could result in
death or serious injury. Make sure only qualified personnel
perform the installation.

• Never remove the meter cover in explosive environments
when the circuit is live.

• Cover must be fully engaged to meet flameproof/explosion­proof requirements.

• Cancer and Reproductive Harm www.P65Warnings.ca.gov.
For California Proposition 65 details please visit our website
www.predig.com

Limited Warranty

Precision Digital Corporation warrants this product against
defects in material or workmanship for the specified period

under “Specifications” from the date of shipment from the

factory. Precision Digital’s liability under this limited warranty

shall not exceed the purchase value, repair, or replacement
of the defective unit.

Registered Trademarks

All trademarks mentioned in this document are the property
of their respective owners.

© 2013-2019 Precision Digital Corporation.
All rights reserved.

www.predig.com

INTRODUCTION

The ProtEX-RTP PD6830 is a rugged, explosion-proof, pulse
input rate/totalizer for demanding applications in hazardous
areas or in harsh environments. It can be programmed using
the four SafeTouch through-glass buttons, without removing
the cover, or with four internal push-buttons. The top
numeric display will read rate or total up to five digits and the
alphanumeric bottom display will read up to 7 digits,
13 digits with the total overflow feature. The alphanumeric
display can also be programmed to show any combination of
numbers and letters up to seven characters long for rate,
total, grand total, engineering units and/or identification tag.
The backlight makes the display more visible in any lighting
condition. The enclosure is provided with threaded conduit
holes and integrated pipe or wall mounting flanges.

ORDERING INFORMATION

* When DC-powered, battery will provide backup power when DC power is lost.
** Backlight is constant when DC powered and momentary when battery powered.

***Communication disabled when actively powered by battery.

Accessories

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Table of Contents

INTRODUCTION ........................................................ 2

ORDERING INFORMATION...................................... 2

SPECIFICATIONS ..................................................... 5

General .......................................................................... 5

Rate Input ...................................................................... 6

Rate/Totalizer ................................................................ 6

4-20 mA Transmitter Output ......................................... 7

Open Collector Outputs ................................................ 7

Serial Communications ................................................ 8

Product Ratings and Approvals ................................... 8

Electromagnetic Compatibility ..................................... 9

SAFETY INFORMATION ................................................ 9

INSTALLATION ......................................................... 9

Unpacking ..................................................................... 9

Pre-Installed Conduit/Stopping Plug ........................... 9

Battery Activation Pull Tab ........................................... 9

Mounting ....................................................................... 9

Cover Jam Screw ........................................................ 10

Connections ................................................................ 10

Input Signal Connections ......................................... 10

DC Power Connection .............................................. 11

External Total Reset Connection .............................. 11

4-20 mA Transmitter Output Connections................. 12

RS-485 Serial Connections ...................................... 12

Open Collector Output Connections ......................... 12

Battery Replacement ................................................ 13

SETUP AND PROGRAMMING ............................... 13

SafeTouch Buttons ..................................................... 13

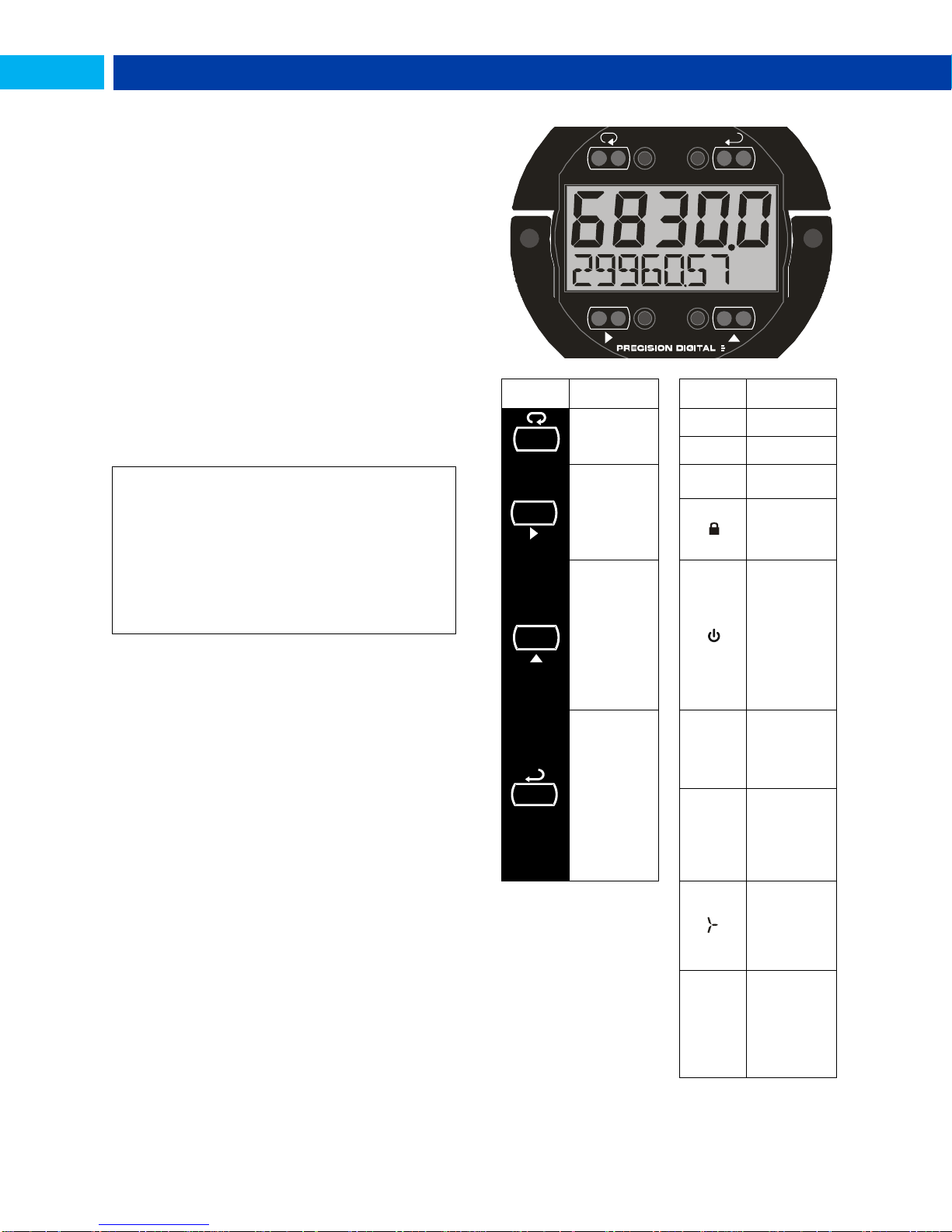

Buttons and Display ................................................... 14

Setting Numeric Values .............................................. 15

Setting Alphanumeric Labels (LABEL) ........................ 15

Main Menu ................................................................... 15

Setup Menu Display Functions & Messages ............. 16

Setting Up the Meter (SETUP) ...................................... 17

Selecting Input Type (Input).................................... 18

Input Level Selection Switch ................................ 18

Entering the K-Factor (Factr) .................................. 19

K-Factor Units (FuNiT) ........................................ 19

K-Factor Decimal Point (dec.pt) .......................... 19

K-Factor Value (factr) ....................................... 19

Display Units (Units) ............................................... 19

Setting the Time Base (tbase) ............................ 20

Setting the Rate Display Units (rateU) ................ 20

Total Units (tot U) .............................................. 21

Grand Total Units (GtotU) ................................... 21

Automatic Unit Conversions ................................ 22

Custom Units Entry (USER) .................................. 22

Custom Units Rate Conversion Factor (ratCF) .... 22

Custom Units Total Conversion Factor (totCF) ... 22
Custom Units Grand Total Conversion Factor

(GrtCF) ........................................................ 22

Setting the Decimal Point (dec.PT) ............................ 22

Configuring the Display (Dsply) ............................... 23

Top Display (TOp) ................................................ 23

Bottom Display (bOtm) ...................................... 23

Custom Tag (TAG)................................................ 23

Setting the Toggle Time (TIME) ........................... 23

Advanced Features Menu ........................................... 24

Advanced Features Menu & Display Messages........ 24

Open Collector Outputs (OUTPUT) ............................. 26

Output 1 and 2 Setup (OUT 1, OUT 2) .................. 26

Scaling the 4-20 mA Analog Output (Aout) .............. 28

Gate Function (GATE) ............................................... 28

Contact Debounce Filter (FILTER) ............................ 28

Low-Flow Cutoff (CUTOFF) ........................................ 28

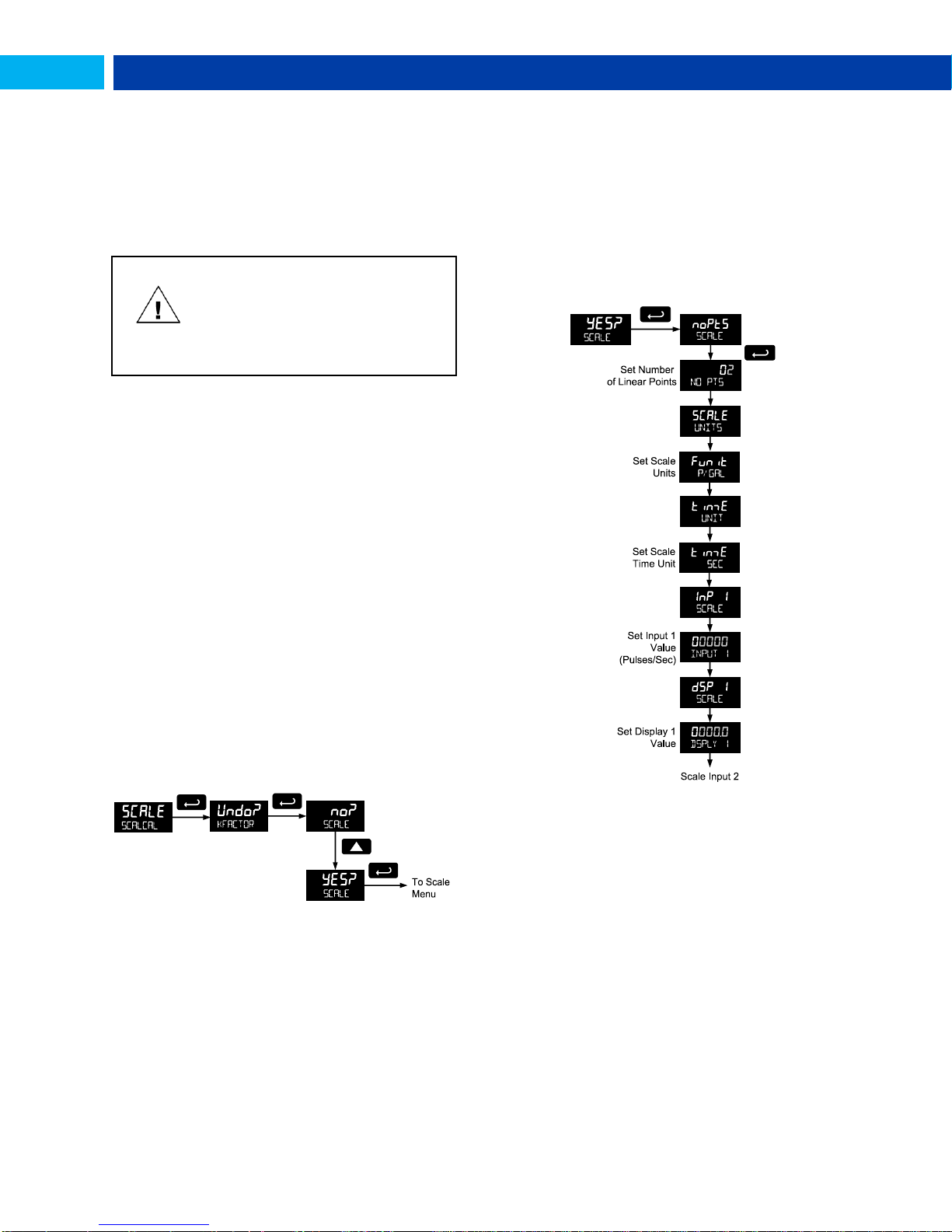

Scaling & Calibration (SCALCAL) ............................... 29

Undoing K-Factor, Scale, and Calibration (Undo?)29

Scaling the Meter (SCale) ................................... 29

Calibrating the Meter (CaL).................................. 30

Multi-Point Linearization (nopts) ......................... 31

Total Reset (T Reset) ............................................. 31

Manual or Automatic Total Reset Function (t rST)31
Manual or Automatic Grand Total Reset Function

(GtrST) ....................................................... 32

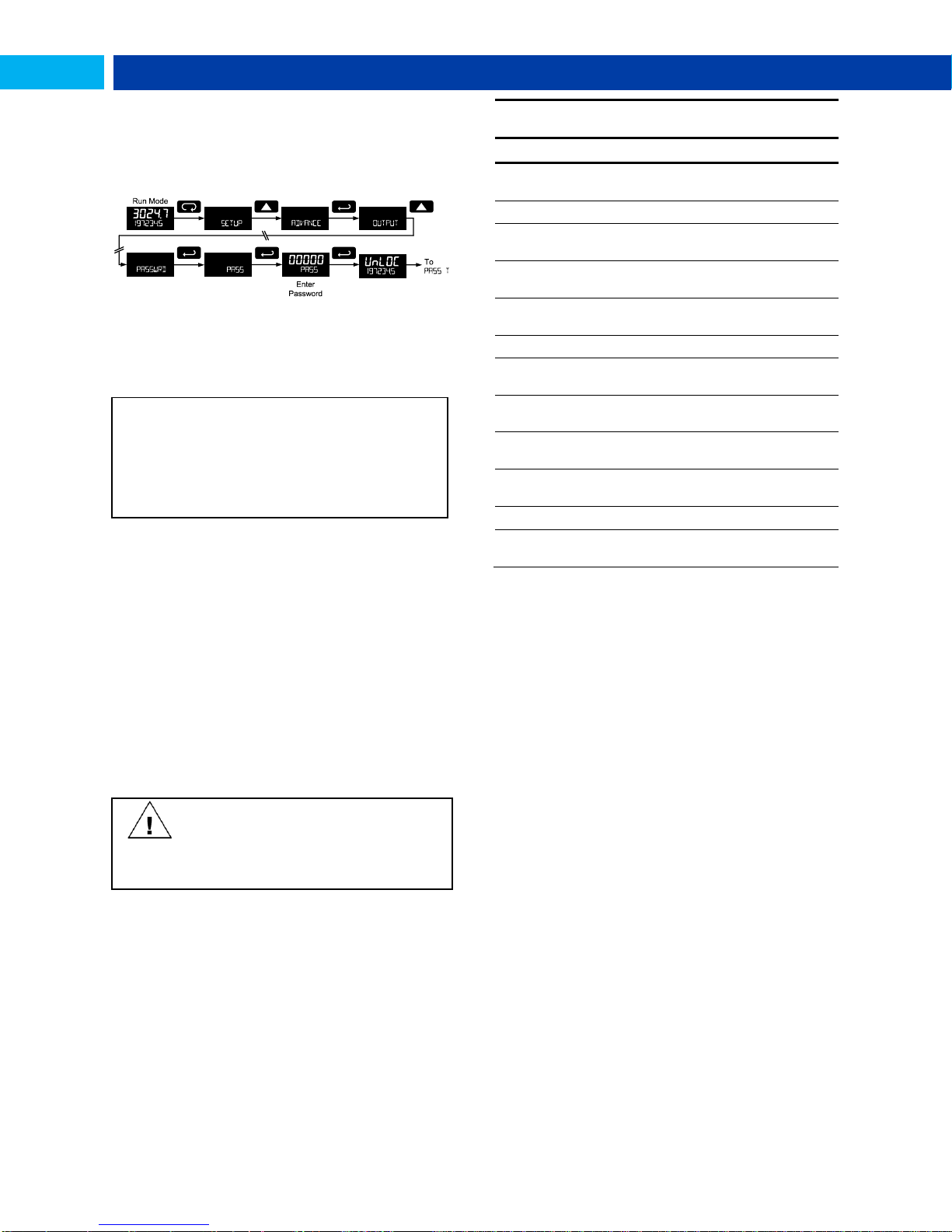

Setting Up Passwords (PASSWRD) ............................. 32

Locking Meter Setup Parameters ........................ 32

Making Changes to a Password Protected Meter 32
Password Restricting Total & Grand Total Reset 32
Resetting Total & Grand Total on a Password

Protected Meter .......................................... 32

Disabling Password Protection ............................ 33

Non-Resettable Grand Total ............................... 33

Custom (CUSTOM) ..................................................... 34

System (SYSTEM) ..................................................... 35

Set Real Time Clock (SETTIME) .......................... 35

Data Log Setup (DATALOG) .................................. 35

View Data Log (LOGVIEW) .................................... 36

Backlight (BAKLITE) ............................................ 36

Analog Output Calibration (AO CAL) .................... 36

Backup & Restore (BACKUP) ................................ 36

Battery Power Symbol Alert (BAT SYM) ............... 36

Information (INFO) ............................................... 36

Serial Communications (COMM) ................................. 37

Standby Mode (STANDBY)......................................... 37

Wakeup the Meter (WAKEUP?) .............................. 37

OPERATION ............................................................ 37

Front Panel Buttons Operation .................................. 37

Grand Total Reading (GrTOTAL) ................................. 38

Toggle Lower Display Parameter .............................. 38

Resetting the Total (RESET TOTAL?)............................ 38

Resetting the Grand Total (RESET GrTOT?) ................ 39

Resetting Max/Min Readings (RESET MAXIMUM,

MINIMUM) ...................................................................... 39

Reset Meter to Factory Defaults ................................ 39

Factory Defaults & User Settings .............................. 39

TROUBLESHOOTING ............................................. 40

Troubleshooting Tips ................................................. 40

MOUNTING DIMENSIONS ...................................... 41

QUICK USER INTERFACE REFERENCE .............. 42

EU DECLARATION OF CONFORMITY .................. 43

3

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Table of Figures

Figure 1. Connector Board .................................... 10

Figure 2. Flowmeter Powered by External Supply

(Active) ............................................................ 10

Figure 3. Isolated Flowmeter Powered by External

Supply (ISO) .................................................... 10

Figure 4. Self-Powered Magnetic Pickup Coil

Flowmeter (Coil) ............................................. 11

Figure 5. NPN Open Collector Input ..................... 11

Figure 6. PNP Sensor with External Power .......... 11

Figure 7. Switch Contact Input (Reed) ................. 11

Figure 8. DC Power Connections .......................... 11

Figure 9. Reset Connections ................................. 11

Figure 10. 4-20 mA Output Connections .............. 12

Figure 11. RS-485 2 Wire Serial Connections ...... 12

Figure 12. RS-485 4 Wire Serial Connections ...... 12

Figure 13. Open Collector Output Connections .. 12

Figure 14. Battery Orientation ............................... 13

Figure 15. Date Display Example .......................... 35

Figure 16. Enclosure Dimensions – Front View .. 41

Figure 17. Enclosure Dimensions – Side View .... 41

4

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

DISPLAY

Five Digits
Top
Display (0
to 99999)

0.7" (17.8 mm) high, 7­segment,
automatic lead zero
blanking.

Seven
Characters
Bottom
Display

0.4" (10.2 mm) high, 14­segment, automatic lead
zero blanking.

Symbols

Total, grand total, battery
power/low battery, high
alarm, low alarm, SafeTouch
button sleep mode/disable,
password lock

DISPLAY
ASSIGNMENT

Top Display: Rate or total
Bottom Display: Combinations of rate,
total, grand total, units, and custom tag

BACKLIGHT

White LED, 10 second auto-off when
battery powered

Backlight deactivated below
temperatures ≈ -20°C

ALARM
INDICATION

Flashing display plus HI/LO (rate) or SET
(total) indicators

DISPLAY
UPDATE RATE

Ambient > -20°C: 1 Update/Second
Ambient < -20°C: 1 Update/10 Seconds

Note: Update is dependent on gate
settings.

OVERRANGE

Display flashes 99999

PROGRAMMING
METHODS

Four SafeTouch through-glass buttons
when cover is installed. Four internal
pushbuttons when cover is removed.

RECALIBRATION

All ranges are calibrated at the factory to
read frequency in Hz. No recalibration
required.

MAX/MIN
DISPLAY

Max/Min readings reached by the
process are stored until reset by the user
or until power to the meter is cycled.

PASSWORD
MENU OPTIONS

Three programmable password selections
can be used for the following: restrict
modification of settings, prevent resetting
the total or grand total without the
password, or permanently lock out the
ability to change or reset the grand total or
any grand total related settings (making a
non-resettable grand total).

Pass: Restricts modifications of
programmed settings to require re-entering
the password to make changes.

Pass T: Restricts the reset of total to
require re-entering the password. Disables
the manual mode reset contact.

Pass GT: Restricts the reset of grand total
to Require re-entering the password. May
enable a non-resettable grand total and
permanent lockout of grand total-related
settings with a specific password.

POWER
OPTIONS

9-30 VDC Powered, 2.2 W max

4-20 mA Output Powered, 30 VDC max

Battery Power

9-30 VDC Powered with Battery Backup

4-20 mA Output Powered with Battery
Backup

BATTERY

3.6 V Primary Lithium (Li-SOCl2), non­rechargeable
Model PDABAT36C

Expected Service Life & Recommended
Replacement Interval

Operating
Condition

Estimated

Service

Life

Suggested

Replacement

Interval

Open collector
outputs off,
SafeTouch
buttons off,
minimal
backlight use

7.5 years

5.5 years

<100 Hz open
collector
outputs,
minimal
SafeTouch
button or
backlight use

5.5 years

4 years

<2 kHz open
collector
outputs,
minimal
SafeTouch
button or
backlight use

2.5 years

2 years

<5 kHz open
collector
outputs,
minimal
SafeTouch
button or
backlight use

1.3 years

1 year

Backup power
only

N/A

10 years

DATA LOGGING

Up to 1024 records, recorded 4/day at
specific times or at defined time intervals.
Record contains date, time, rate, total,
grand total, and log number.

ISOLATION

All Models:

500 V opto-isolated
input-to-power/output
with isolated input
enabled

PD6830-BTA:

500 V input-to-output

PD6830-APA:

500 V input/power-to­output

Note: Requires separate
output supply

ENVIRONMENTAL

Operating temperature range: -40 to 75°C
Storage temperature range: -40 to 75°C
Backlight deactivated below

temperatures ≈ -20°C
Relative humidity: 0 to 90% non-

condensing

SPECIFICATIONS

Except where noted all specifications apply to operation at
+25°C.

General

5

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

NON-VOLATILE
MEMORY

All programmed settings and total
reading are stored in non-volatile memory
for a minimum of ten years if power is
lost.

CONNECTIONS

Screw terminals accept 12 to 22 AWG
wire

ENCLOSURE

Explosion-proof die-cast aluminum with
glass window, corrosion resistant epoxy
coating, color: blue. NEMA 4X, 7, & 9,
IP68. Copper-free (0.3%).

Default conduit connections: Three ¾"
NPT threaded conduit openings. One ¾"
NPT metal plug with 12 mm hex key
fitting installed. Additional conduit
opening configurations and plugs may be
available; verify quantity and sizes on
specific device labeling during
installation.

MOUNTING

May be mounted directly to conduit. Two
slotted flanges for wall mounting or NPS
1½" to 2½" or DN 40 to 65 mm pipe
mounting. See Mounting Dimensions on
page 41.

OVERALL
DIMENSIONS

5.67" x 5.24" x 4.88" (W x H x D)
(144 mm x 133 mm x 124 mm)

WEIGHT

5.00 lbs (80 oz, 2.27 kg)

WARRANTY

3 years parts and labor

PULSE/
TRANSISTOR/
CONTACT
CLOSURE
INPUT

Field selectable; Sourcing or sinking
pulse or square wave
0-5 V, 0-12 V, or 0-24 V; TTL; NPN or
PNP transistor;

Open collector 100 kΩ pull-up to 3 V;
Switch contact 100 kΩ pull-up to 3 V;
PNP transistor 100 kΩ pull-down to

ground (COM)

Active input 100 kΩ to battery level,
10 kΩ to power

Maximum Frequency: 64 kHz
Minimum Pulse Width: 5 µs

Threshold Setting

Low (V)

High (V)

Normal

1.2

2.0

Low

0.2

1/2

OPTO­ISOLATED
INPUT

Sourcing pulse or square wave 0-5 V,
0-12 V, or 0-24 V; Logic High: 2-24 V,
Logic Low: < 1 V

Maximum Frequency: 20 kHz
Minimum Pulse Width: 20 µs
Input Current: 1 mA @ 5 V, 2.5 mA @
12 V, 5 mA @ 24 V

LOW VOLTAGE
MAG PICKUP
INPUT

Sensitivity: 20 mVp-p to 24 Vp-p
Maximum Frequency: 6 kHz

MINIMUM
INPUT
FREQUENCY

0.0001 Hz. Minimum frequency is
dependent on high gate setting (rate
display).

INPUT
IMPEDANCE

Pulse input: Greater than 75 k @
1 kHz.
Open collector/switch input: 100 k
pull-up to 3 V.

ACCURACY

±0.03% of calibrated span ±1 count

TEMPERATURE
DRIFT

Rate display is not affected by changes
in temperature.

LOW-FLOW
CUTOFF

0-99,999 (0 disables cutoff function)

DECIMAL
POINT

Up to four decimal places or none:

4.4444, 33.333, 222.22, 1111.1,

or 00000

CALIBRATION

May be calibrated using K-Factor,
scale without signal source, or by
applying an external calibration signal.

K-FACTOR

Field programmable K-Factor converts
input pulses to rate in engineering
units. May be programmed from

0.000001 to 9,999,999 pulses/unit.

CALIBRATION
RANGE

Input 1 signal must be ≥ 1 Hz; input 2
signal may be set anywhere above
input 1 setting. Minimum input span is
1 Hz.

An Error message will appear if the
input 1 and input 2 signals are too
close together.

INPUT
CONTACT
DEBOUNCE
FILTER

Programmable contact debounce filter.
Input signal frequency speed selections
of Hi (no filter), Med (250 Hz max input,
2 ms pulse width), and Low (100 Hz
max input, 5 ms minimum pulse width).

TIME BASE

Second, minute, hour, or day

GATE

Low gate: 1-99 seconds;
High gate: 2-9,999 seconds

DISPLAY
ASSIGNMENT

The Top display is assigned to rate or
total. The Bottom display is
programmable to display total; total and
units; total and tag; total, total units,
and rate units; grand total; grand total
and grand total units; grand total and
tag; grand total, grand total units, and
rate units; rate units; rate; rate and total
units; rate and rate units; rate and tag;
rate units; total units; a custom tag; or
be off (blank).

RATE DISPLAY
UNITS

Gallons, liters, imperial gallons, cubic
meters, barrels, bushels, cubic yards,
cubic feet, cubic inches, liquid barrels,
beer barrels, hectoliters, or custom.

RATE DISPLAY
TIME BASE

Rate display may be calculated in
terms of units per second, minute,
hour, or day.

TOTAL & GRAND
TOTAL DISPLAY
UNITS

Gallons, liters, imperial gallons, cubic
meters, barrels, bushels, cubic yards,
cubic feet, cubic inches, liquid barrels,
beer barrels, hectoliters, or custom.
Setting is independent for each.

TOTAL & GRAND
TOTAL DISPLAY
UNIT
MULTIPLIER

x1, x100 (h), x1000 (k), or x1,000,000
(M) multiplier (and prefix) applied to
total or grand total display units. Setting
is independent for each.

Rate Input

Rate/Totalizer

6

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

TOTAL & GRAND
TOTAL DECIMAL
POINT

Up to six decimal places or none:

6.666666, 55.55555, 444.4444,

3333.333, 22222.22, 111111.1 or
0000000

Total and grand total decimal points
are independently programmed, and
are independent of rate decimal point.

TOTALIZERS

Calculates total and grand total based
on rate and field programmable
multiplier to display total in engineering
units. Time base must be selected
according to the time units in which the
rate is displayed. The total and grand
total utilize the same time base, with
different conversion factors and resets.

TOTALIZER
RESET

Via SafeTouch RESET button,
mechanical button (cover off), external
contact closure (total only),
automatically via user selectable preset
value and time delay (1 – 99,999 sec).
Manual reset may be disabled or
protected by password for the total and
grand total. Total and grand total reset
independently.

TOTAL
OVERFLOW AND
ROLLOVER

The total can display up to
9,999,999,999,999. Up to 9,999,999
can be displayed on the lower display
normally. An overflow display will
toggle between the first six digits and
last seven digits (999999 <> 9999999)
for a 13-digit total. The total will rollover
beyond thirteen digits. The T indicator
on the display will flash to indicate total
overflow, and the six most significant
digits (first six numbers of the total) are
indicated with the flashing overflow
symbol .

GRAND TOTAL
OVERFLOW AND
ROLLOVER

The grand total can display up to
9,999,999,999,999. Up to 9,999,999
can be displayed on the lower display
normally. An overflow display will
toggle between the first six digits and
last seven digits (999999 <> 9999999)
for a 13-digit total. The grand total will
rollover beyond thirteen digits. The GT
indicator on the display will flash to
indicate grand total overflow, and the
six most significant digits (first six
numbers of the grand total) are
indicated with the flashing overflow
symbol .

EXTERNAL
TOTAL RESET

External total reset connections are
made between RST and COM. Logic
High: 1.4 V, 3.3V max; Logic Low: <

0.8 V.
32 ms debounce.

OUTPUT
SOURCE

Rate/process, total, grand total, or
disabled

SCALING RANGE

4.000 to 20.000 mA for any display
range.

DISABLE

If disabled, the output will output 3.2
mA

CALIBRATION

Factory Calibrated: 0.0 to 1000.0 = 4­20 mA output

UNDERRANGE

Output Underrange: 3.8 mA

OVERRANGE

Display Overrange: 20.5 mA

Output Overrange: 20.5 mA

ACCURACY

± 0.05% span ± 0.004 mA

TEMPERATURE
DRIFT

0.08 µA/C max from -40 to 75C
ambient,

EXTERNAL LOOP
POWER SUPPLY

30 VDC maximum

OUTPUT LOOP
RESISTANCE

Power
Supply

Minimum

Maximum

24 VDC

10 

750 

30 VDC

100 

1100 

Note: loop-powered backlight
subtracts 150  from maximum
resistance figures above.

OUTPUT
ASSIGNMENT

Two open collector pulse outputs Out 1
and Out 2.
Individually programmable for rate,
total, or grand total alarms; rate, total,
or grand total pulse outputs; or
retransmitting of pulse inputs; constant
timed pulse output; quadrature outputs
(requires Out 1 and Out 2); or off.

RATING

Isolated open collector, off: 24 VDC
max, on: <1 V @ 150 mA max

ALARM OUTPUT

Assign to rate for high or low alarm trip
point.
Assign to total or grand total for total or
grand total alarms.

ALARM
DEADBAND

0-100% FS, user selectable

ALARM
ACKNOWLEDGE

Front panel ENTER button resets
output and screen indication.

PULSE OUTPUT
K-FACTOR
(COUNT)

K-factor (couNT) programmable from

0.000001 to 9999999. Rate pulses are
generated as a scaled output of the
rate input with one output pulse per K­factor (count) number of input pulses.
Total and grand total pulses are
generated for every total or grand total
increment selected. (e.g. K-factor value
of 100 will generate one pulse every
time the total is incremented by 100
units)
Rate retransmission pulses one to one
for input pulses, up to maximum output
speed. K-factor is not used for
retransmitting outputs.

4-20 mA Transmitter Output

Open Collector Outputs

7

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

PULSE OUTPUT
PULSE WIDTH

Unless otherwise stated, pulses are
50% duty cycle for required frequency.

A pulse rate retransmit output will
generate 100 to 130 μs pulses at the
falling edge of every input pulse.

PULSE OUTPUT
MAXIMUM
FREQUENCY

5 kHz, pulse width at 50% duty cycle.
If the programming of the outputs

would exceed 5 kHz, the meter will
display pUlse OVERRNG

QUADRATURE
OUTPUT

Output set to quadrature will lag the
other pulse output by 90° (1/4 duty
cycle) at output frequency. Minimum 1
Hz

TIMER OUTPUT

Programmable on and off time,
repeating cycle. Minimum period 0.1
second, maximum 100,000 seconds.
Minimum pulse time 0.01 second,
maximum 10,000 seconds.

PROTOCOL

2-Wire RS-485 Modbus® RTU

METER
ADDRESS/
SLAVE ID

1 - 247

BAUD RATE

1,200; 4,800; 9,600; 19,200; 38,400;
57,600;
or 115,200 bps

TRANSMIT TIME
DELAY

Programmable between 0 and 199 ms

PARITY/STOP
BIT

Even, odd, none with 1 stop bit, or
none with 2 stop bits

BYTE-TO-BYTE
TIMEOUT

Max of 1.5 character times or 750 μs

Note: Refer to Modbus Register Tables at www.predig.com
for details.

FM

Explosion-proof for
Class I, Division 1, Groups B, C and D

Dust-ignition proof for
Class II/ III, Division 1, Groups E, F and G; T6

Flame-proof for use in
Class I, Zone 1, AEx d Group IIC; T6

Protection by Enclosure, Zone 21, AEx tb IIIC;
T85°C

Ta = -40 to 75°C.
Enclosure: Type 4X, IP66.
Certificate number: 3040391

CSA

Explosion-proof for use in
Class I, Division 1, Groups B, C and D

Dust-ignition proof for use in
Class II/III, Division 1, Groups E, F and G; T6

Flame-proof for use in Zone 1, Ex d IIC T6
Ta = -40 to 75°C.
Enclosure: Type 4X & IP66/IP68.
Certificate number: 2325749

ATEX &
IECEx

Zone 1, Ex d IIC T6 Gb

Atmospheres (Zone 21)

IECEx Certificate Number: lECEx SIR

10.0056X

Serial Communications

Product Ratings and Approvals

Special Conditions for Safe Use:

Use suitably certified and dimensioned cable entry device
and/or plug. The equipment shall be installed such that the
supply cable is protected from mechanical damage. The
cable shall not be subjected to tension or torque. If the cable
is to be terminated within an explosive atmosphere, then
appropriate protection of the free end of the cable shall be
provided.

Year of Construction

This information is contained within the serial number with
the first four digits representing the year and month in the
YYMM format.

For European Community: The PD6830 must be installed
in accordance with the ATEX directive 94/9/EC, and the
product certificate Sira 10ATEX1116X.

8

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

EMISSIONS

EN 61326:2013
Measurement, control, and laboratory
use – Industrial
Group 1 Class A ISM emissions
requirements
EN55022:2010
Class A ITE emissions requirements
EN61000-6-4:2007+A1:2011
Emissions for heavy industrial
environments - Generic

Radiated
Emissions

Class A

IMMUNITY

EN 61326:2013
Measurement, control, and laboratory
use – Industrial
EN61000-6-2:2005
Immunity for heavy environments ­Generic

ESD

±4 kV contact,
±8 kV air

RFI –
Amplitude
Modulated

80-1000 MHz @ 10 V/m,

1.4-2.0 GHz @ 10 V/m,

2.0-2.7 GHz @ 10 V/m,
80% AM (1 kHz)

EFT

±2 kV DC mains, ±2 kV other

Telco Surge

±1 kV

CRFI

10 V 0.15-80 MHz, 1 kHz 80% AM

Power­Frequency
Magnetic Field

30 A/m 70% V for 0.5 period

WARNINGS

 Read complete instructions prior to installation and

operation of the meter.

 Installation and service should be performed only by

trained service personnel. Service requiring
replacement of internal components (not including
battery, if equipped) must be performed at the factory.

 Disconnect from supply before opening enclosure.

Keep cover tight while circuits are alive. Conduit seals
must be installed within 18" (450mm) of the
enclosure.

 Verify that the operating atmosphere of the meter is

consistent with the appropriate hazardous locations
certifications.

 If the meter is installed in a high voltage environment

and a fault or installation error occurs, high voltage
may be present on any lead

WARNING

Disconnect from supply before opening
enclosure. Keep cover tight while
circuits are alive. Conduit seals must
be installed within 18" (450mm) of the
enclosure.

WARNING

In hazardous areas, conduit and
conduit/stopping plugs require the application
of non-setting (solvent free) thread sealant. It
is critical that all relevant hazardous area
guidelines be followed for the installation or
replacement of conduit or plugs.

WARNING

Do not attempt to loosen or remove flange
bolts while the meter is in service.

Electromagnetic Compatibility

SAFETY INFORMATION

INSTALLATION

For Installation in USA: The PD6830 must be installed in
accordance with the National Electrical Code (NEC) NFPA

70.
For Installation in Canada: The PD6830 must be installed

in accordance with the Canadian Electrical Code CSA 22.1.
For European Community: The PD6830 must be installed

in accordance with the ATEX directive 94/9/EC and the
product certificate Sira 10ATEX1116X.

Wiring connectors are accessed by opening the enclosure.
Cover jam screw may need to be loosened on the cover. To
access electrical connectors, remove the 2 captive screws,
then disconnect the ribbon cable from the display module
and set the display module aside.

Unpacking

Remove the meter from box. Inspect the packaging and
contents for damage. Report damages, if any, to the carrier.
If any part is missing or the meter malfunctions, please
contact your supplier or the factory for assistance.

Pre-Installed Conduit/Stopping Plug

The PD6830 typically includes three ¾" NPT threaded
conduit openings and one ¾" NPT metal conduit plugs with
12 mm hex key fitting installed. Additional conduit opening
configurations and plugs may be available; verify quantity
and sizes on specific device labeling during installation. The
pre-installed plug and its installation are included in the
hazardous area approvals for the PD6830.

The conduit/stopping plug included in a typical PD6830 has
an internal 12 mm hexagonal socket recess for removal.

Battery Activation Pull Tab

PD6830 models with battery or battery backup power will
include a battery activation pull-tab. This tab assures the
meter is not operational during shipment or storage, and is
located with the battery. Remove this tab during installation
of the meter.

Mounting

The PD6830 has two slotted mounting flanges that may be
used for pipe mounting or wall mounting. Alternatively, the
unit may be supported by the conduit using the conduit holes
provided.

Refer to Mounting Dimensions, page 41 for details.

9

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

WARNINGS

 Static electricity can damage sensitive components.
 Observe safe handling precautions for static-sensitive

components.

 Use proper grounding procedures/codes.
 If the meter is installed in a high voltage environment

and a fault or installation error occurs, high voltage
may be present on any lead or terminal.

S+

Signal input positive terminal connection

S-

Signal input negative terminal connection

COM

DC power supply input return/negative, reset
contact closure common

RST

Contact closure reset pull-up to 1.8 VDC

P+

DC Power positive terminal connection

LP+

4-20 mA transmitter DC power positive terminal
connection.

LP-

4-20 mA transmitter regulated current output
terminal connection

OC1+

Open collector output 1 positive terminal

OC1-

Open collector output 1 negative terminal

OC2+

Open collector output 2 positive terminal

OC2-

Open collector output 2 negative terminal

WARNING

Observe all safety regulations. Electrical
wiring should be performed in accordance
with all agency requirements and applicable
national, state, and local codes to prevent
damage to the meter and ensure personnel
safety.

Flo wm et e r

(P ulse O ut p u t )

P o w e r
S u p p ly

C O M R S T

P+

S+ S-

IN P U T LEVEL

m V V ISO

Flo w me t e r

(P u l s e O utp u t)

P ow er

S upp l y

C O M R S T

P+

S+ S-

IN P U T L E V E L

m V V IS O

P+

COM

RST

S+

S-

OC1+

OC1-

OC2+

OC2-

LP+

LP-

Cover Jam Screw

The cover jam screw should be properly installed once the
meter has been wired and tested in a safe environment. The
cover jam screw is intended to prevent the removal of the
meter cover in a flameproof environment without the use of
tools. Using a M2 hex wrench, turn the screw clockwise until
the screw contacts the meter. Turn the screw an additional
¼ to ½ turn to secure the cover. Caution: Excess torque may
damage the threads and/or wrench.

Connections

To access the connectors, loosen the cover jam screw (if
tightened) with an M2 hex wrench, remove the enclosure
cover and unscrew the two captive screws that fasten the
display module into the enclosure. Disconnect the ribbon
cable and remove the display module. Power and signal
connections are made to a barrier terminal connector in the
base of the enclosure. Grounding connections are made to
the two ground screws provided on the base – one internal
and one external. Use proper grounding techniques for
explosion-proof areas and observe all local and national
electric codes.

Figure 1. Connector Board

Input Signal Connections

Signal connections are made to a barrier terminal mounted
in the base of the enclosure. Input level and type are
configured using the slide switches on the bottom of the
display module as shown in the lower right of the following
figures.

Figure 2. Flowmeter Powered by External Supply

(Active)

Refer to Figure 1 for terminal positions.

Figure 3. Isolated Flowmeter Powered by External

Supply (ISO)

10

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Flo w m et er

(M ag n e ti c P i c kup C o i l)

C O M

R ST

P+

S+ S-

IN P U T L EV E L

m V V IS O

+3.0 V

100 kO h m

In te r n a l Pullu p

N P N

S E N SO R

C O M

R S T

P+

S+ S-

IN P U T L E V E L

m V V I S O

100 kO h m

In te r n a l P ull- D o w n

P N P

S E N SO R

P o w e r
S u p p ly

C O M

R S T

P+

S+ S-

IN P U T L E V E L

m V V IS O

+3. 0 V

100 kO h m

In te r n al P ullup

S W IT C H

C O NTA CT

C O M R S T

P+

S+ S-

IN P U T L E V E L

m V V I S O

P o w e r
S u p p ly

C O M R S T

P+

S+ S-

C O M R ST +

S+

S-

+3.0 V

100 k O hm

In ternal P u llu p

Figure 4. Self-Powered Magnetic Pickup Coil Flowmeter

(Coil)

DC Power Connection

Models configured for DC power (PD6830-A) are provided
with a terminal labeled P+ and are wired as shown in Figure 8.
Models configured for battery power (PD6830-B) may
optionally be connected to DC power and the battery will
function as backup power when DC is lost. The same power
supply may be used to power other circuits including a PNP­type sensor, however to maintain input isolation, a separate
power supply must be used to power the isolated 4-20 mA
transmitter as shown in Figure 10 and/or to power the
Opto-Isolated Flowmeter as shown in Figure 3.

Figure 5. NPN Open Collector Input

Figure 6. PNP Sensor with External Power

Figure 7. Switch Contact Input (Reed)

Figure 8. DC Power Connections

External Total Reset Connection

External total reset connections are made between RST and
COM. Connect to a contact closure source such as a relay or
a pushbutton as shown in Figure 9. Avoid extended contact
closure to preserve battery life. The total is reset when the
button is pressed. The meter will start to totalize immediately.
Holding down the button has no effect on the total.

Figure 9. Reset Connections

11

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

LP- LP +

P o w e r
S u p p ly

4-2 0 m A In p u t

D e v ic e

ProtEX

D

AT A D

AT A DO

DO

DI

DI

GND

GND

RS-485 DEVICE

ProtEX

D

AT A D

AT A GND

GND

RS-485 DEVICE

D

AT A D

AT

A

4-20 mA Transmitter Output Connections

Output connections are made to two terminals labeled LP+
and LP-. Connect to an input device such as a remote display
or chart recorder as shown in Figure 10.

Figure 10. 4-20 mA Output Connections

RS-485 Serial Connections

The meter may include an optional RS-485 two-wire serial
connection. The cabling used for an RS-485 serial
communications network should always be a high quality
cable such as Belden 8162 or Alpha 6203C. A two-wire
system requires two twisted pairs, and a four-wire system
requires three twisted pairs (the extra twisted pair is needed
for the signal ground).

Open Collector Output Connections

Open collector output 1 and 2 connections are made to
terminals labeled OC1+ and OC1-, and OC2+ and OC2-.
Connect the alarm or pulse input device as shown in Figure

13.

Figure 13. Open Collector Output Connections

Figure 11. RS-485 2 Wire Serial Connections

Figure 12. RS-485 4 Wire Serial Connections

12

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

WARNING

Fire, explosion and burns may result if not
handled properly. Do not recharge, short
circuit, crush, disassemble, heat above
100°C (212°F), incinerate, or expose
contents to water.

Battery disposal should be in accordance
with applicable regulations, which vary by
location. In many locations trashing of used
batteries is forbidden and disposal is done
through local battery disposal facilities. Spent
batteries should be packaged in such a way
as to prevent short circuits during handling
and transport.

There is no need to recalibrate the meter for frequency
in Hz when first received from the factory.

The meter is factory calibrated for Hz prior to shipment.
The calibration equipment is traceable to NIST standards.

SafeTouch Power Save Mode

SafeTouch buttons enter a power saving mode after three
minutes of inactivity. This mode is indicated by a pause

symbol ( ) appearing in the lower right of the display.
Only the MENU button is monitored in this mode. To
activate the SafeTouch buttons, press and hold the menu
button for up to five seconds. The display will read AWAKE,
and the SafeTouch buttons will be fully enabled.

SafeTouch Disabled Mode
When the cover is removed, the four mechanical buttons

located next to the sensors may be used. The sensors are
disabled when a mechanical button is pressed and will
automatically be re-enabled after 60 seconds of inactivity.

The SafeTouch power symbol ( ) will blink in the lower
right of the display if the buttons are disabled due to a
mechanical pushbutton being pressed.

IMPORTANT

SafeTouch buttons will not work if two or
more buttons are detected as being
pressed simultaneously. As a result, be
careful to avoid triggering multiple buttons
or reaching across one button location to
press another.

P

D

A

B

A

T

3

6

C

-

+

+

+

+

+

+

+

+

+

+

+

+

+

Battery Replacement

Battery-equipped models have a battery charge monitor.
When the battery is nearing the end of its capacity the screen
will periodically flash the message LO BATTERY and the BAT
indicator on the screen will flash. The recommended
replacement interval for models using the battery as a primary
power source is determined by the power and feature use, as
shown on page 5. The battery should be replaced when the
low battery indication is on the screen.

The total is backed up in non-volatile memory when the low
battery monitor is tripped. It is recommended that an updated
reading be manually backed up prior to changing out the
battery.

NOTICE: Battery may only be replaced with an original
Model PDABAT36C supplied by Precision Digital. Do not
recharge battery. Do not replace with used battery.

 Remove cover and display module and disconnect

display module ribbon cable.

 Carefully cut and remove the cable ties supplied for

shipping (if present).

 Remove the spent battery and prepare it for disposal.
 Install new PDABAT36C into battery clip with polarity as

shown in Figure 14.

 Reconnect and fasten display module. Install enclosure

cover.

 Resume operation.

SETUP AND PROGRAMMING

Overview

Setup and programming is done through the infrared
through-glass SafeTouch buttons, or using the mechanical
buttons when uncovered. There are two slide switches
located on the display module. One is used to configure the
input and the other is to lock or unlock the SafeTouch
Buttons.

SafeTouch Buttons

The PD6830 is equipped with four sensors that operate as
through-glass buttons so that it can be programmed and
operated without removing the cover (and exposing the
electronics) in a hazardous area. These buttons can be
disabled for security by using the THRU-GLASS BUTTONS
switch and selecting the OFF setting. This switch is located
on the back of the removable electronics module.

SafeTouch Button Operation

To actuate a button, press and remove one finger to the
glass directly over the marked button area. Remove finger to
at least 4 inches away from the glass in between button
activations. SafeTouch and mechanical buttons may be held
to cycle through menus or digits in place of repeatedly
pushing a button.

Figure 14. Battery Orientation

13

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

SafeTouch Button Equalize Delay

The SafeTouch buttons are designed to constantly
recalibrate for ambient conditions. When the cover position
is changed, the cover is removed, or an object is removed
that was placed over the front window, it may take a
moment for the SafeTouch buttons to recalibrate to the
change in conditions.

Allow up to 2 minutes for the SafeTouch buttons to
recalibrate to new conditions in these cases where the
cover position was changed, or the front window is being
unblocked.

ENTER

DISPLAYRESET

MENU

Button
Symbol

Description

Symbol

Status

Menu/
SafeTouch

Awake

HI

High Alarm

LO

Low Alarm

Right
Arrow/Rese
t

SET

Total Alarm

Settings
Lockout
Password
Enabled

Up Arrow/
Display

SafeTouch
Power
Save/Disabl
e.

Flashing:
Temporarily
Disabled
Due to
Mechanical
Button

Enter/
Alarm

Acknowled
ge

T

Total Display
Flashing:

Total
Overflow
Indication

GT

Grand Total
Display

Flashing:
Total
Overflow
Indication

13 Digit
Total
Overflow, 6
Most
Significant
Digits

BAT

Flashing:
Low Battery
Indicator

Steady:
Powered by
Battery
Backup

M E NU

ENTER

DISPLAY

RESET

SafeTouch Button Tips and Troubleshooting

The SafeTouch Buttons are designed to filter normal levels
of ambient interference and to protect against false
triggering, however it is recommended that the SafeTouch
Buttons be turned off (slide THRU-GLASS BUTTONS switch
to OFF) if there is an infrared interference source in line-of­sight to the display or if the buttons are not needed.

SafeTouch Button Tips:

 To the extent possible, install the display facing away

from sunlight, windows, reflective objects and any
sources of infrared interference.

 Keep the glass window clean.
 Tighten the cover securely.
 Use a password to prevent tampering.
 If the cover has not been installed and secured

tightly, it may take a moment for the SafeTouch
buttons to properly self calibrate when the cover is
tightened.

After all connections have been completed and verified,
connect the ribbon cable to the display module, fasten the
display module to the base, install enclosure cover, and then
apply power.

Buttons and Display

14

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Menu Button

 Hold the Menu SafeTouch button when in power

save mode (display will show ) to awaken
SafeTouch buttons.

 Press the Menu button to enter Programming Mode.
 Press the Menu button during Programming Mode to

return to the previous menu selections.

 Hold the Menu button for 1.5 seconds at any time to

exit Programming Mode and return to Run Mode.

 Press and hold the Menu button for 3 seconds to

access the Advanced Features of the meter.

Right / Reset Button

 Press the Right arrow button to move to the next

digit or decimal position during programming.

 Press Right to go backward through most selection

menus.

 Press Reset to reset the total, or values displayed in

the bottom display (grand total, max, or min). Press

Enter after Reset to confirm the reset.

Up / Display Button

 Press Display when in Run mode to display the

grand total, again to display the maximum, and again
to display the minimum reading since last reset.
These displays will time out in 12 seconds, or press
Display until total is displayed in the lower display.
Press Enter to lock this display, and disable the 12
second time out.

 Press the Up arrow button to scroll forward through

the menus, decimal point, or to increment the value
of a digit.

Enter Button

 Press the Enter button to access a menu or to

accept a setting.

 Press Enter to lock the grand total, maximum, or

minimum value on the lower display, and disable the
12 second time out.

 Press Enter while the grand total, max, or min

reading is locked on the lower display to return to run
mode.

 Press Enter to acknowledge alarm (if enabled).
 Press Enter to lock display of grand total, Max or Min

readings (disables 10 second timeout).

Setting Numeric Values

The numeric values are set using the Right and Up arrow
buttons. Press Right arrow to select next digit and Up arrow
to increment digit.

The digit being changed blinks.
Press the Enter button, at any time, to accept a setting or

Menu button to exit without saving changes.
The decimal point is set using the Right or Up arrow button

in the Setup, Decimal Point menu.

Setting Alphanumeric Labels (LABEL)

Fully alphanumeric values are set using the Right button to
select the digit, the Up and Right arrow buttons to select the
digit reading, and the Enter button to confirm and select the
next digit.

Menus using this entering method will display LABEL in the
upper display. After selecting the digit, and using the Up and
Right arrows to modify the digit, the display will read CHAR.
Using Enter to confirm the new digit will return the display to
reading LABEL.

The digit being changed blinks.
Press the Menu button to exit without saving changes.

Main Menu

The main menu separates the most commonly used
functions in the Setup menu, and more complex features in
the Advanced Features menu.

Press Menu button to enter Programming Mode then press
the Up arrow button to scroll through the main menu.

 Press Menu, at any time, to return to the previous

menu selection. Press and hold the Menu button for 1.5
seconds at any time to return to Run Mode.

 Changes to the settings are saved to memory only after

pressing Enter.

 The display moves to the next menu every time a

setting is accepted by
pressing Enter.

15

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

SETUP

Setup

Enter Setup menu

Input

Input

Enter Input type selection
menu

Activ

Active

Set active input type

npn

NPN

Set NPN input type

pnp

PNP

Set PNP input type

Reed

Reed

Set reed switch input type

COIl

Coil

Set coil input type

iso

Isolated

Set isolated input type

ActlO

Active low

Set active input type with
low threshold

npnlO

NPN low

Set NPN input type with
low threshold

pnplO

PNP low

Set PNP input type with
low threshold

Factr

K-factor

Enter the K-Factor menu

FUNIT

K-factor units

Enter the K-Factor units

P/GAL

Pulses/gallon

Set K-factor in pulses per
gallon

P/L

Pulses/liter

Set K-factor in pulses per
liter

P/IGAL

Pulses/imp
gallon

Set K-factor in pulses per
imperial gallon

P/M3

Pulses/meter3

Set K-factor in pulses per
meter cubed

P/BBL

Pulses/barrel

Set K-factor in pulses per
barrel

P/BUSH

Pulses/bushel

Set K-factor in pulses per
bushel

P/cuyD

Pulses/cubic
yard

Set K-factor in pulses per
cubic yard

P/cuFt

Pulses/cubic
feet

Set K-factor in pulses per
cubic foot

P/cuIn

Pulses/cubic
inch

Set K-factor in pulses per
cubic inch

P/LiBBL

Pulses/liquid
barrel

Set K-factor in pulses per
liquid barrel

P/BBBL

Pulses/beer
barrels

Set K-factor in pulses per
beer barrel

P/HECtL

Pulses/hectoliter

Set K-factor in pulses per
hectoliter

P/CUST

Pulses/custom

Set K-factor custom unit

Display

Parameter

Action/Setting

Dec.pT

K-factor decimal
point

Set the number of
decimal points in the
K-factor

FAcTR

K-factor value

Set the K-factor for
custom units

Unit``s

Units

Select standard units or
custom unit/tag

TbASE

Rate time base

Enter the Time Base
menu

seC

Second

Units per second

min

Minute

Units per minute

hour

Hour

Units per hour

day

Day

Units per day

RateU

Rate units

Select rate display units

GAL

Gallons

Set units as gallons

L

Liters

Set units as liters

IGAL

Imperial gallons

Set units as imperial
gallons

M3

Meters cubed

Set units as cubic meters

BBL

Barrels

Set units as barrels

BUSH

Bushels

Set units as bushels

cuyD

Cubic yards

Set units as cubic yards

cuFt

Cubic feet

Set units as cubic feet

cuIn

Cubic inches

Set units as cubic inches

LiBBL

Liquid barrels

Set units as liquid barrels

BBBL

Beer barrels

Set units as beer barrels

HECtL

Hectoliter

Set units as hectoliters

CUSt

Custom unit

Use a custom unit

USER

User

Set a custom unit

LABEL

Label

Select a custom unit label
character

CHAR

Character

Set a character in a
custom unit label

ratCF

Rate conversion
factor

Enter the Rate
Conversion Factor menu

Tot U

Total units

Select total display units

Nmult

Total multiplier

Select the total units
multiplier

X1

x1 (no
multiplier)

Select no multiplier

X100 h

x100 (h)

Select x100 multiplier
with h unit prefix

X1000 k

x1000 (k)

Select x1,000 multiplier
with k unit prefix

X1.0e6
M

x1.0*106 (M)

Select x1,000,000
multiplier with M prefix

Setup Menu Display Functions &
Messages

The meter displays various functions and messages during
setup, programming, and operation. The following table
shows the main menu functions and messages in the order
they appear in the menu.

16

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

TotCF

Total conversion
factor

Enter the Total
Conversion Factor menu

GToTU

Grand total units

Select grand total display
units

Nmult

Grand total
multiplier

Select the grand total
units multiplier

GrtCF

Grand total
conversion
factor

Enter the Grand Total
Conversion Factor menu

for custom units

Dec..pt

Decimal point

Enter Decimal Point
menu

Rate

Rate decimal

Set rate display decimal
point

total

Total decimal

Set total display decimal
point

Grtot

Grant total

Set grand total display
decimal point

Dsply

Display

Set the function of the top
and bottom displays

tOp

Top

Set the function of the top
display

Rate

Rate

Display rate

Total

Total

Display total

BOtnm

Bottom

Set the function of the
bottom display

Total

Total

Display total

TOgle

Toggle

Toggle between the
values shown in the
bottom display

TOTAL+U`````````````````

Total & units

Display total and units

TOT+TAG

Total & Tag

Display the total and
custom tag

T+U+RU

Total & units &
rate units

Display the total, total
units, and rate units

Grtot

Grand total

Display grand total

GrTOT+U`````````

Grand total &
units

Display grand total and
units

GT+TAG

Grand total &
tag

Display the grand total
and custom tag

GT+U+RU

Grand total &
units & rate
units

Display the grand total,
grand total units, and rate
units

rate

Rate

Display the rate

RaTe+TU

Rate & total
units

Display the rate and total
units

RaTe+RU

Rate & units

Display the rate and rate
units

RAT+TAG

Rate & tag

Display the rate and
custom tag

RUnit

Rate unit

Display the rate units

Display

Parameter

Action/Setting

TotUn

Total units

Display the total units

TAG

Custom tag

Enter the custom tag to
be displayed

Off

Off

Turn off the bottom
display

Tag
TIME

Tag Time

Set time to display
custom tag

Unit
TIME

Unit Time

Set time to display lower
display unit

Rate
TIME

Rate Unit Time

Set time to display rate
unit

Setting Up the Meter (SETUP)

The Setup menu is used to select:

1. Input type selection (INPuT)

2. K-factor number and units (FActr)

3. Display rate, total, and grand total units (Units)

4. Rate and total decimal point position (dec.pt)

5. Select what will appear on the lower display
(DSPLY)

Press the Enter button to access any menu or press Up
arrow button to scroll through choices. Press the Menu
button to back out of a menu, or hold the Menu button to exit
at any time.

17

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

See Rate Input specifications on page 6 for electrical

specifications of the inputs.

See

Input Signal Connections on page 10 for details

on wiring the input types.

N P N

S E N SO R

IN P U T L E V E L

m V V IS O

Selecting Input Type (Input)

Seven input types may be set. See Rate Input specifications
on page 6 for electrical specifications of the inputs.

The following input types may be selected:

Active (activ)

External power supply driven pulse inputs

NPN (NPN)

Internal pull-up resistor on S+ for NPN inputs

PNP (PNP)

Internal pull-down resistor on S+ for PNP inputs

Reed (reed)

Internal pull-up resistor on S+ for switch inputs

Coil (COIL)

Magnetic coil flowmeter inputs (input selector switch
must be set to mV)

Isolated active input (iso)

External power supply driven isolated pulse inputs (input
selector switch must be set to ISO)

Active with low threshold (acTLO)

External power supply driven pulse inputs with a low
threshold

NPN with low threshold (NPNLO)

Internal 3 V pull-up resistor on S+ for NPN inputs with a
low threshold

PNP with low threshold (PNPLO)

Internal pull-down resistor on S+ for PNP inputs with a
low threshold

Input Level Selection Switch

In addition to programming the Input parameter, the input
selector switch shown below must also be set. Input voltage
level selections include mV, V and isolated voltage level
inputs.

18

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Important Programming Note:

The units selected in this menu are the desired display
units only. The units defined by the k-factor of a flow meter
are entered in the K-Factor menu as part of the Factor Unit
menu programming. See K-Factor Units (FuNiT) on page
19 for details.
This allows the display units to be different than the units
defined by the flow meter, or be changed easily after initial
programming. Unit conversions for rates and totals are
performed automatically by the meter. See Automatic Unit
Conversions on page 22 for details.

GAL

Gallons

Set units as gallons

L

Liters

Set units as liters

IGAL

Imperial
gallons

Set units as imperial
gallons

M3

Meters cubed

Set units as cubic meters

BBL

Barrels

Set units as barrels

BUSH

Bushels

Set units as bushels

cuyD

Cubic yards

Set units as cubic yards

cuFt

Cubic feet

Set units as cubic feet

cuIn

Cubic inches

Set units as cubic inches

LiBBL

Liquid barrels

Set units as liquid barrels

BBBL

Beer barrels

Set units as beer barrels

HECtL

Hectoliter

Set units as hectoliters

CUSt

Custom unit

Use a custom unit

IMPORTANT

Performing a k-factor operation will
override any scaling or calibration
programming. Refer to Scaling &

Calibration (SCALCAL) on page 29 for more
information on these programming methods.

Entering the K-Factor (Factr)

The meter may be scaled using the K-factor, or conversion
factor, function. Most flowmeter manufacturers provide this
information with the device. Enter the K-Factor (Factr)
menu and select the units defined with the k-factor (example:
pulses/gal), the decimal point with highest resolution
possible, and program the K-Factor value. The meter will
automatically calculate the flow rate using the K-Factor and
the units and time base selected.

Display Units (Units)

The Units menu is used to select the display rate units and
time (example: Gal/s) and the display units for total and
grand total.

K-Factor Units (FuNiT)

Select the units defined with the k-factor (example:
pulses/gal). This is usually provided by the flowmeter
manufacturer. This does not set the rate display units, and
only relates to entering the K-factor. To set or change the
rate display units, see Setting the Rate Display Units (rateU)
on page 20.

The K-factor unit may be a custom unit (CUST).
Automatic unit conversions are not performed when the K-

factor unit is set to custom. See page 22 for information on
the automatic unit conversion feature.

K-Factor Decimal Point (dec.pt)

Set the number of decimal places necessary to enter the K­factor value. The decimal point may be set with up to six
decimal places or with no decimal point at all.

Pressing the Right arrow moves the decimal point one place
to the right (including no decimal point). Pressing the Up
arrow moves the decimal point one place to the left.

K-Factor Value (factr)

Enter the K-factor value. This value is entered in Pulses/Unit
as defined by the K-Factor Units parameter. Most flowmeter
manufacturers provide this information with the device.

The following units may be selected as the base units for
rate, total, and grand total. Time base for rate and a
multiplier for total and grand total units may also be selected
separately.

Units Unit Description

19

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Setting the Time Base (tbase)

The meter calculates rate based on rate time base and rate
display units. The time base is the unit of time used to
calculate the rate, and can be set as units per second,
minute, hour, or day.

Press the Enter button, at any time, to accept a setting or

Menu button to exit without saving changes.

Setting the Rate Display Units (rateU)

Rate is displayed in terms of a unit of volume, and a time
base. The unit selected will be used with the time base to
establish the rate unit (example: GAL/S when Units is GAL,
and time base is seconds).

The custom unit selection (CUST) will require the custom unit
to be entered by the user. See Custom Units Rate
Conversion Factor on page 22.

Press the Enter button, at any time, to accept a setting or
Menu button to exit without saving changes.

20

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Total Units (tot U)

This menu is used to select the display units for the total.
The base unit and a multiplier prefix are selected. If total and
units are selected to display, the multiplier prefix will appear
before the total unit (example: MGAL, kL).

Multipliers will convert the total for 1, 100, 1000, or 1 million
units. The meter will calculate the total appropriately for
display with the programmed multiplier and units.

A custom unit may be selected (CUST), and no multiplier
menu will be required. In this case, use the total conversion
factor as defined in Custom Units Total Conversion Factor
on page 22.

Press the Enter button, at any time, to accept a setting or

Menu button to exit without saving changes.

Grand Total Units (GtotU)

This menu is used to select the display units for the grand
total. The base unit and a multiplier prefix are selected. If
grand total and units are selected to display, the multiplier
prefix will appear before the total unit (example: MGAL, kL).

Multipliers will convert the total for 1, 100, 1000, or 1 million
units. The meter will calculate the total appropriately for
display with the programmed multiplier and units.

A custom unit may be selected (CUST), and no multiplier
menu will be required. In this case, use the grand total
conversion factor as defined in Custom Units Grand Total
Conversion Factor (GrtCF) on page 22.

Press the Enter button, at any time, to accept a setting or
Menu button to exit without saving changes.

21

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Automatic Unit Conversions

When switching from any standard unit of rate, total, or
grand total to any other standard unit, automatic unit
conversions are performed by the meter.

No unit conversions will be performed when the K-Factor
Units (FuNiT) menu is set to custom (CUST).

A total or grand total unit conversion will automatically
change the displayed total and grand total to the equivalent
volume of the newly selected unit.

Custom Units Entry (USER)

When a custom unit is selected for rate, total, or grand total,
a User menu allows for entry of the custom unit.

Any 5-digit 14-segment unit may be entered for a custom
rate unit (example: mL).

Any 7-digit 14-segment unit may be entered for a custom
total or grand total unit (examples: GALLONS, BOTTLES,
DRUMS).

When selected for total or grand total, a custom unit will not
allow a multiplier prefix. A custom total or grand total unit will
allow a total or grand total conversion factor to be entered to
define the unit. See Custom Units Total Conversion Factor
on page 22 for details.

Custom Units Total Conversion Factor
(totCF)

The total conversion factor is only used when the Units for
total have been set to custom (CUST). This menu will not
appear if standard display units are selected for total.

Total Conversion Factor is used to convert to a custom unit
of total display. For example, to display total as quantity of

2.5 gallon containers when the K-Factor units are set to
gallons, enter a conversion factor of 2.500.

Press the Enter button, at any time, to accept a setting or

Menu button to exit without saving changes.

Custom Units Grand Total Conversion
Factor (GrtCF)

The grand total conversion factor is only used when the
Units for grand total have been set to custom (CUST). This
menu will not appear if standard display units are selected
for grand total.

Grand Total Conversion Factor is used to convert to a
custom unit of total display. For example, to display grand
total as quantity of 2.5 gallon containers when K-Factor units
are set to gallons, enter a conversion factor of 2.500.

Press the Enter button, at any time, to accept a setting or
Menu button to exit without saving changes.

Fully alphanumeric values are set using the Right button to
select the digit to be changed. Press the Up button to begin
editing the digit, then the Up and Right arrow buttons to
select the next or previous alphanumeric character. Press
the Enter button to confirm and select the next digit to
change.

For details on setting alphanumeric labels, refer to Setting
Alphanumeric Labels (Label) on page 15.

Press Menu button to exit this menu without saving
changes.

Custom Units Rate Conversion Factor
(ratCF)

The rate conversion factor is only used when the Units for
rate have been set to custom (CUST). This menu will not
appear if standard display units are selected for the rate unit.

Rate Conversion Factor is used to convert to a custom unit
of rate display. For example, to display rate as quantity of

2.5 gallon containers when the K-Factor units are set to
gallons, enter a conversion factor of 2.500.

Press the Enter button, at any time, to accept a setting or

Menu button to exit without saving changes.

Setting the Decimal Point (dec.PT)

Rate decimal point may be set with up to four decimal places
or with no decimal point at all. Total decimal point may be
set with up to six decimal places or with no decimal point at
all. Grand total decimal point may be set with up to six
decimal places or with no decimal point at all. Rate decimal,
total decimal, and grand total decimal are programmed
individually.

Pressing the Right arrow moves the decimal point one place
to the right (including no decimal point). Pressing the Up
arrow moves the decimal point one place to the left.

22

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

1. Total

2. Alternating total and
total units

3. Alternating total and
custom tag

4. Alternating total, total
units, and rate units

5. Grand total

6. Alternating grand total
and
grand total units

7. Alternating grand total
and custom tag

8. Alternating grant total,
grand total units, and
rate units

9. Rate

10. Alternating rate and
total units

11. Alternating rate and
rate units

12. Alternating rate and
custom tag

13. Rate units

14. Total units

15. Custom tag

16. Off (blank)

Configuring the Display (Dsply)

The top and bottom displays can be independently
programmed to display selected information.

Top Display (TOp)

The top display can be programmed to display rate or total.
When displaying total, the top display will only show the 5
least significant digits, with no overflow display, for a total
from 0 to 99999. The total rolls over at 99999 to 0 when on
the top display. For a full 7-digit total with 13-digit total
overflow display function, use the bottom display for total.

Bottom Display (bOtm)

The bottom display can be programmed to display the
following information.

Custom Tag (TAG)

When the bottom display selected includes a custom tag, a
User menu will then allow a custom tag to be programmed.

Any 7-digit 14-segment label may be entered for a custom
tag (examples: RATe,
LINE 3, WaTER).

Fully alphanumeric values are set using the Right button to
select the digit, the Up and Right arrow buttons to select the
digit reading, and the Enter button to confirm and select the
next digit.

For details on setting alphanumeric labels, refer to Setting
Alphanumeric Labels (Label) on page 15.

If the bottom display is programmed to toggle (TOGLE), the
meter will prompt for a toggle time. In addition, it may require
a tag be entered, as shown in the example below.

Enter the time in seconds for the unit or tag to display in the
bottom window every 10 seconds. The unit may be
programmed to display for 1 to 5 seconds.

Press the Enter button, at any time, to accept a setting or

Menu button to exit without saving changes.

Setting the Toggle Time (TIME)

23

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

ADVANCE

Advanced

Enter Advanced menu

OUTPUT

Output

Setup open collector
outputs Out 1 and Out 2

OUT 1

Output 1

Assign function of open
collector output 1

OUT 2

Output 2

Assign function of open
collector output 2

PuLSE

Pulse

Set Out 1 or Out 2 for
pulse output mode

rate

Rate

Assign pulse output to
rate

total

Total

Assign pulse output to
total

Grtot

Grand total

Assign pulse output to
grand total

dec.pt

Decimal point

Set K-factor decimal point

count

Count

Set K-factor

Retr

Retransmit

Assign pulse output to
retransmit

quad

Quadrature

Assign pulse output to
quadrature

Test

Test

Assign pulse output to
test mode

ALrnm

Alarm

Assign Out 1 or Out 2 for
alarm output mode

rate

Rate

Assign alarm output to
rate

Set

Set point

Set rate alarm set point

reset

Reset point

Set rate alarm reset point

total

Total

Assign alarm output to
total

Grtot

Grand total

Assign alarm output to
grand total

Set

Set point

Set total or grand total
alarm set point

On

On

Set output to on state

Off

Off

Set output to off state

Tnmer

Timer

Set Out 1 or Out 2 for
timed pulse output mode

Start

Start

Activate timed pulse
output

Delay

Delay

Set the time of one period
(seconds)

On

On

Set the active low pulse
width

OFF

Off

Set Out 1 or Out 2 as off

A OUT

Analog Output

Enter Analog Output
menu

Rate

Rate output

Set rate as output
variable

total

Total output

Set total as output
variable

Grtot

Grand total
output

Set grand total as output
variable

Dsp 1

Display 1

Output display 1 value

Advanced Features Menu

To simplify the setup process, functions not needed for most
applications are located in the Advanced Features menu.
Access the Advanced features menu by pressing Enter at
the Advance menu in the Main Menu defined on page 15.

The Advanced Features menu is used to select:

1. Open collector output configuration (OUTPUT)

2. Analog output configuration (A OUT)

3. Gate function for low speed inputs (GATE)

4. Set the input filter (FILTER)

5. Set low flow cutoff (CUTOFF)

6. Scale or live calibrate the meter and override k­factor (SCALCAL)

7. Select method of total and grand total reset (T
RESET)

8. Set passwords (PASSWRD)

9. Reconfigure the Main menu structure (CUSTOM)

10. Enter the System menu for meter settings and
data logging (SYSTEM)

11. Configure serial communication settings (COMM) – if
applicable

12. Enter low-power Standby Mode (STANDBY) on
battery powered models

Advanced Features Menu & Display
Messages

The following table shows the Advanced features menu
functions and messages in the order they appear in the
menu.

Advanced menus A OUT displayed only for meters with the
analog output option, COMM displayed only for meters with the
serial communications option, and STANDBY only for meters
with battery or battery backup power.

Press the Enter button to access any menu or press the Up
arrow button to scroll through choices. Press the Menu
button to back out of a menu, or hold the Menu button to exit
at any time.

24

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

OUt 1

Output 1

Output 1 value

Dsp 2

Display 2

Output display 2 value

OUt 2

Output 2

Output 2 value

Save?

Save

Save entered analog
parameters

dsabl

Disable

Turn off the analog output

GATE

Gate

Enter Gate menu

LO

Low gate

Set Low Gate

HI

High gate

Set High Gate

FILTER

Filter

Enter Filter menu

HI

High speed filter

Set high speed filter

nmed

Medium speed
filter

Set medium speed filter

LO

Low speed filter

Set low speed filter

CUTOFF

Low-flow
cutoff

Enter Low-Low Cutoff
menu

SCALCAL

Scale &
calibrate

Enter the Scale &
Calibrate menu to

program without using a
k-factor

sCalE

Scale

Enter the Scale menu

Cal

Calibrate

Enter the Calibrate menu

Undo?
KFACTOR

Undo K-factor

Undo the K-Factor input
programming

Undo?
SCALCAL

Undo scaling &
calibration

Undo the scaling and
calibration input
programming

No?

No

Do not undo other
programming

Yes?

Yes

Undo other programming

Nopts

Number of
points

Enter the number of
scaling or calibration
points

Inp 1

Input 1

Calibrate or scale input 1
value

Dsp 1

Display 1

Program display 1 value

Inp 2

Input 2

Calibrate or scale input 2
value

DsP 2

Display 2

Program display 2 value

Save?

Save

Save entered calibration
or scale parameters

T RESET

Total reset

Enter the Total Reset
menu

T rST

Total reset

Select the Total Reset
method

man

Manual

Manual total reset

Enabl

Enable

Enable manual reset

dsabl

Disable

Disable manual reset

Auto

Automatic

Automatic total reset

T DELAY

Time delay

Automatic reset time
delay

time

Total Reset
Time

Enter the time of day to
reset the total
hh.mm (Default: 00.00
midnight)

Set
CLOCK

Set Clock

Message indicates that
the clock must be set. Go
to Advance – System –
Set Time

Display

Parameter

Action/Setting

GTrST

Grand total reset

Select the Grand Total
Reset method

PASSWRD

Password

Enter the Password menu

Pass

Password

Program password to
lock meter parameters

Pass T

Password total

Program password to
prevent total reset

Pass GT

Password grand
total

Enter password to
permanently lock out
grand total related
parameters and reset

UnLOC

Unlock

Password has been
unlocked

LOCd

Lock

Password has been
locked

UNLOCKD

Unlocked

Program password to
lock meter

LOCKED

Locked

Enter password to unlock
meter

CUSTOM

Custom

Enter Custom menu

POS 1

Position 1

Set menu position 1 (1-8)

POS 8

Position 8

Set menu position 8

SYSTEM

System

Enter System menu

SETTIME

Set time

Set real-time clock date
and time

YEAR

Year

Set the year

MONTH

Month

Set the month

01

January

Set month as January

02

February

Set month as February

03

March

Set month as March

04

April

Set month as April

05

May

Set month as May

06

June

Set month as June

07

July

Set month as July

08

August

Set month as August

09

September

Set month as September

10

October

Set month as October

11

November

Set month as November

12

December

Set month as December

DAY

Day

Set the day

TIME

Time

Set the hour and minute

DATALOG

Data log

Enter Data Log menu

LOGTIME

Log time

Set daily data log times

LOG 1

Log 1

Set first daily log time (1-

4)

DsAbL

Disable

Disable log number

INTERVL

Interval

Set interval log time

STArT

Start

Begin interval logging

LOGVIEW

Log view

View data log

ALL
LOGVIEW

All log view

View all data log points

LOG NUM

Log number

Go to specific log number

ALL

ERASE

All erase

Erase all logs

Erase?

Erase?

Confirm to erase all logs

BAKLITE

Backlight

Enable or disable
backlight

DsabL

Disable

Disable backlight

25

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Display

Parameter

Action/Setting

EnAbL

Enable

Enable backlight

AO CAL

Analog output
calibration

Enter Analog Output
Calibration menu

BACKUP

Backup

Enter Backup menu

SAvE?

Save?

Save current parameters
to backup restore

LOad?

Load?

Load parameters from
backup restore

DEFLT

Default

Restore factory default
parameter settings

RESET
DFALTS?

Reset defaults

Confirm factory reset

Bat syM

Battery symbol

Enter Battery Symbol
menu

DsabL

Disable

Disable battery backup

symbol

EnAbL

Enable

Enable battery backup

symbol

INFO

Info

Enter Info menu

SOFT

Software

Display software ID
number

ver

Version

Display software version
number

nmodL

Model

Display model number

COMM

Communications

Enter Communications
menu

nmbus

Modbus

Enter Modbus
communications menu

SlvID

Slave ID

Set Modbus slave ID

BaUd

Baud rate

Set baud rate

Tdely

Transmit delay

Set transmit delay time

Party

Parity

Set parity and stop bits

STANDBY

Standby

Enter standby mode
(battery powered only)

Yes?

Yes

Confirm standby mode

Output 1 and 2 Setup (OUT 1, OUT 2)

The function of open collector output 1 and 2 is configured
using the Off, Pulse, Alarm, and Timer menus detailed
below.

Pulse Output (PUlse)

Pulse outputs may be assigned to rate, total, grand total,
retransmit, quadrature, or test.

Open Collector Outputs (OUTPUT)

The meter is equipped with two NPN open collector outputs
that may be set up for pulse outputs, alarms, timed pulses,
or turned off.

Pulse outputs are based on K-factor, total or grand total
counts, or one-for-one retransmit for input pulses. Both
outputs may be used to generate a quadrature output based
on any pulse menu output type. An output test mode is also
selectable to generate pulses at a constant programmable
frequency.

Alarms are available based on the rate, total, or grand total.
The alarm status will show on the display even if the output
is not wired. The outputs may also be forced on or off.

A timed pulse output generates constant pulses at a
specified frequency and on time.

A total reset output generates a pulse whenever the selected
total is reset, total or grand total, regardless of the reset
method used. The On time is programmable between 0.10
and 99,999.99 sec.

The output may be disabled by selecting Off.

Rate Pulse Output (rate)

A rate based pulse output is a factor of the rate display and
count (output K-factor). The rate display is a factor of the
input pulses, time base, and the input K-factor. The rate of
output pulses over one time base (seconds, minutes, hours,
days) is defined below in terms of input pulses and the input
K-factor and count parameters.

For example, if the input K-factor value is set to 10, and the
count set to 10, one output pulse is generated for every 100
input pulses.

26

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Total & Grand Total Pulse Output (Total, Grtot)
A total and grand total based pulse output is a factor of the

associated total and count (output K-factor). A pulse will be
generated for every total accumulation amount equal to the
count.

If the maximum output frequency would be exceeded, the
meter will display the message pUlse OVERRNG alternating
on the display.

Retransmit Output (retr)
The retransmitting pulse output will send an output pulse for

every input pulse, essentially duplicating the input signal.
The output will generate a pulse at the falling edge of every
input pulse.

No additional programming is required for a retransmitting
pulse output.

If the maximum output frequency would be exceeded, the
meter will display the message pUlse OVERRNG alternating
on the display.

Quadrature Output (quad)
The pulse output set to quadrature will duplicate the other
open collector output, but lag by ¼ duty cycle (90 degrees
out of phase). For example, Out 1 will follow Out 2, if Out 1 is
set to
outputs are set to
other output should be programmed as desired for the
quadrature output function, and must be a pulse (
output selection.

Test Output (test)
The test output setting programs the output to generate

pulses at a programmed constant frequency. Set the
frequency decimal point location in the DECPT menu, and
then enter the desired output frequency in Hz in the PULSE
menu.

. Only one output should be set to

quad

, both outputs will be disabled. The

quad

quad

. If both

PUlse

)

Alarm Output (alrm)

Alarm outputs may be assigned to rate, total, or grand total;
or be forced on or off.

Rate Alarm (rate)

Program the rate set point to trigger the alarm. Rate alarm
deadband is determined by the difference between set and
reset points. Minimum deadband is one display count. If set
and reset points are programmed the same, output will reset
one count below set point.

Total or Grand Total Alarm (Total, Grtot)
Program total or grand total set point. A pulse alarm will

generate when the set value is reached by the total or grand
total.

If the total/grand total is set for manual reset, this alarm will
remain until the total/grand total is reset to 0.

If automatic total/grand total reset is enabled, the output will
generate an alarm for a period of time programmed in
ADVANCE  T RESET  Auto T DELAY. After this time
delay, the total/grand total will reset to 0 and the alarm will
clear.

If Out 1 and Out 2 are set for total or grand total alarm, the
auto reset will be triggered on the highest of the two alarm
set points.

For details on setting the total or grand total automatic reset
time delay, see Total Reset (T Reset) on page 31.

Force On State (On)

This alarm mode forces the output to be active, or on. This
mode is primarily used to test alarm systems.

Force Off State (OFF)

This alarm mode forces the output to be inactive, or off. This
mode is primarily used to test alarm systems.

27

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

CAUTION

Please note that when power is removed
from the meter, the analog output will drop
below 1 mA.

Take this effect into consideration when
designing any system using the 4-20 mA
output.

Timer Output (tmer)

The timer output produces a constant width pulse at a
constant rate. Program the Delay Period for one period from

0.1 to 999999.9 seconds (time from the start of one pulse to
the start of the next pulse).

Program the On Time for the active low pulse from .01 to

99999.99 seconds (pulse width). The on time must be less
than the delay time.

Select Start to begin outputting the constant timed pulse.
Select Stop to end outputting the constant timed pulse.

Total Reset Output (t rst)

A total reset output generates a pulse whenever the selected
total is reset, total or grand total, regardless of the reset
method used. Program the On Time from 0.10 to 99,999.99
seconds. This is the amount of time the open collector output
will remain on after the total or grand total has been reset.

Scaling the 4-20 mA Analog Output (Aout)

The Analog Output menu is used to program the 4-20 mA
output based on display values.

The 4-20 mA analog output (if equipped) can be scaled to
provide a 4-20 mA signal for any display range selected for
either the rate, total, or grand total. The output may be
disabled (DSABL), and will only output the minimum signal.

No equipment is needed to scale the analog output; simply
program two display values and corresponding mA output
signals.

Gate Function (GATE)

The gate function is used for displaying slow pulse rates.
Using the programmable gate, the meter is able to display
pulse rates as slow as 1 pulse every 9,999 seconds (0.0001
Hz). The gate function can also be used to obtain a steady
display reading with a fluctuating input signal.

There are two settings for the Gate, low gate (LO) and high
gate (HI).

Low Gate (LO GaTe)

For most applications, low gate setting should be left at 1
second. Increase low gate setting to obtain a steadier rate
display. The rate display will update in accordance with the
low gate setting, for example if low gate is set at 10, the
display will update every 10 seconds; changes in rate
between updates will not be reflected until next display
update.

High Gate (HI GaTE)

Set the high gate value to correspond to the highest
expected pulse period (lowest pulse rate). For instance if the
meter must display a rate when there is 1 pulse coming into
the meter every 10 seconds, set the high gate to 11
seconds. When the signal is removed from the meter, the
display will show the last reading for 11 seconds; then it will
read zero.

Contact Debounce Filter (FILTER)

The filter function (FILTER) can be used for applications
where the meter is set up to count pulses generated by
switch contacts. There are three settings, HI (high speed),
nmed (medium speed), and LO (low speed). High speed
disables the contact debounce filter and allows any pulse of
the minimum specified width for the selected input type.
Press ENTER when nmeD or LO is displayed to enable the
filter function.
The medium filter ignored signals faster than 250 Hz max, or
pulse widths less than 2 ms at 50% duty cycle. The low filter
ignores signals higher than 100 Hz, or pulse widths less than
5 ms at 50% duty cycle.

Low-Flow Cutoff (CUTOFF)

The low-flow cutoff feature allows the meter to be
programmed so that the often-unsteady output from a
transmitter at low flow rates, always displays zero on the
meter.

The cutoff value may be programmed from 0 to 9999.9.
Below the cutoff value, the meter will display zero.
Programming the cutoff value to zero disables the cutoff
feature.

28

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

IMPORTANT

Performing a scaling or calibration
operation will override any k-factor
programming. Similarly, completing the k-

factor menu will override any scaling or
calibration performed on the meter. Verify
the method of programming required, use
the password protection feature to secure
the meter if necessary.

Scaling & Calibration (SCALCAL)

It is very important to read the following information, before
proceeding to program the meter:

 There is no need to recalibrate the meter for

frequency in Hz when first received from the factory.

 The meter is factory calibrated for Hz prior to

shipment. The calibration equipment is traceable to
NIST standards.

There are three methods of programming the display to
show the correct engineering units based on input pulses.

 Use the Factor menu to enter a K-Factor.
 Use the Scale menu to enter the scaling without a signal

source.

 Use the Calibrate menu to apply a signal from a

calibrator or a flowmeter.

The k-factor, scale, and calibrate functions are exclusive of
each other. The meter uses the last function programmed.
The Scale and Calibrate functions can use up to 32 points
(default is 2). The number of points should be set in Scale
and Calibrate accordingly under the Number of Points
(nopts) menu selection prior to scaling and calibration of the
meter, see page 29 for details.

This menu is used to scale and calibrate the meter. For
information on using a k-factor for programming the input,
refer to Entering the K-Factor (Factr) on page 19.

Undoing K-Factor, Scale, and Calibration
(Undo?)

Whenever the input programming is being changed from
using k-factor to scaling or calibration; or from scaling or
calibration to k-factor, a confirmation menu appears. This
prevents accidental changing of the input programming.

The example below shows a meter programmed with a k­factor being reprogrammed to utilize input scaling.

Scaling the Meter (SCale)

The pulse input can be scaled to display the process
variable in engineering units.
A signal source is not needed to scale the meter; simply
program the inputs and corresponding display values.

A programmed scaled input will work with Automatic Unit
Conversions as described on page 22. The units for the
display values that must be entered are a combination of the
programmed Rate Unit and the time unit (Time UNIT)
entered in the Scale menu.

For example, if the Rate Unit is gallons, and the time unit
(Time UNIT) is seconds, the units for the display values
entered in the Scale menu are gallons/second.

For instructions on how to program numeric values see page

15.

Multi-Point Linearization (nopts)

Up to 32 linearization points can be selected under the
nopts function. The multi-point linearization can be used to
linearize the display for non-linear inputs.

Enter number of linearization points. The default value is 2
points. For linear inputs requiring only 2 scale points, the
number of points can be left at 2.

Number of Points (nopts)

Scale Units (SCALE UNITS)

Enter the units associated with the desired scale values.
Selecting the scale display units allows the meter to perform
automatic unit conversions.

29

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Important Programming Note: Save (save?)

After entering the last display value, the scaling entries
must be saved (SAUE?) before they will be put into effect.
However, you may move past this selection using the Up
arrow key if you need to go back and correct an earlier
entry. Once confident in the entries, however, the user
must navigate back to the Save menu screen (SAUE?) and
press the Enter key to save the changes.

Important Programming Note: Save (save?)
After entering the last display value, the calibration entries
must be saved (SAUE?) before they will be put into effect.
However, you may move past this selection using the Up
arrow key if you need to go back and correct and earlier
entry. Once confident in the entries however, the user must
navigate back to the Save menu screen (SAUE?) and press
the Enter key to save the changes.

Pulse Input Time Unit (Time UNIT)

This is the time component for the engineering units of the
display values being entered. Enter the appropriate
units/second, units/minute, units/hour, or units/day that
corresponds to the values being entered at the display 1-32 (
dsp) menus.

For example, if the display values are being entered in
gallons/second the time unit would be set to seconds.

Scale Input and Display (INPUT,
DSPLY)

Each scale input point is defined by an input frequency and a
corresponding display value.

The frequency inputs may be entered with up to three
decimal places. To access the decimal location digits when
entering a frequency, use the Right button to scroll to the
three decimal location digits.

Manual Multi-point Entry (INP, DSP)

Manual entry of the linearization data is done once the
number of points has been selected (NO PTS). Input signal
levels (InP 1-32) for up to 32 points, along with the
desired/corresponding meter reading (dSP 1-32), should be
entered for each linearization point.
Each scale point (1-32) has an input value and a display
value. The input value is the number of pulses/sec
(frequency), and the display value is the corresponding
display value for that input in the time unit selected
(example: gallons per minute, or GAL/M)

For instructions on how to program numeric values see
Setting Numeric Values, page 15.

1. Press the Up arrow button to scroll to the Calibration
menu (CAL) and press Enter.

2. The meter displays nopts. For a linear signal, press
Up arrow. For a non-linear signal, refer to Multi-Point
Linearization (nopts), page 31.

3. The meter displays CAL UNITS. Press Enter to select
the input units/pulse. The menu will read FuNiT.

4. Use the Up arrow to select the time unit. If entering
display values in units/second, press Enter.
Otherwise, select the time unit. Refer to Pulse Input
Time Unit (Time UNIT) on page 31.

5. The meter displays inp 1. Apply a known signal and
press Enter. The display will flash while accepting
the signal.

6. After the signal is accepted, the meter displays dsp
1 Press Enter. Enter a corresponding display value
for the signal input, and press Enter to accept.

7. The meter displays inp 2. Apply a known signal and
press Enter. The display will flash while accepting
the signal.

8. After the signal is accepted, the meter displays dsp

2. Press Enter. Enter a corresponding display value
for the signal input and press Enter to accept.

9. After completing calibration the save? display will
need to be
acknowledged using the Enter key before calibration
will take effect.

Calibrating the Meter (CaL)

To scale the meter without a signal source refer to Entering
the K-Factor (Factr) on page 19 or Scaling the Meter
(Scale) on page 29.

The pulse input can be calibrated to display the process in
engineering units by applying the appropriate input signal
and following the calibration procedure.

The use of a calibrated signal source is strongly
recommended.

A calibrated input will work with Automatic Unit Conversions
as described on page 22. The units for the display values
that must be entered are a combination of the programmed

Rate Unit and the time unit (Time UNIT) entered in the
Calibrate menu.

For example, if the Rate Unit is gallons, and the time unit
(Time UNIT) is seconds, the units for the display values
entered in the Calibrate menu are gallons/second.

The multi-point linearization feature (nopts) can be used to
linearize the display for non-linear signals. For instructions
on how to utilize this feature, see Multi-Point Linearization
(nopts), page 31.

30

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Error Message (Error)

An error message indicates that the calibration or scaling
process was not successful. After the error message is
displayed, the meter reverts to input 2 during calibration or
scaling, allowing the appropriate input signal to be applied or
programmed.

The error message might be caused by any of the following
conditions:

1. Input signal is not connected to the proper terminals or it
is connected backwards.

2. Minimum input span requirements not maintained.

3. Input 1 signal inadvertently applied to calibrate
input 2.

Minimum Input Span

The minimum allowed input span is 1 Hz, which is the minimum
difference between input 1 and input 2 signals required to
complete the calibration or scaling of the meter.

Multi-Point Linearization (nopts)

Up to 32 linearization points can be selected under the
nopts function. The multi-point linearization can be used to
linearize the display for non-linear inputs. Linearization data
can be entered using a known accurate signal source (InP
1-32) and then entering the desired/corresponding meter
reading (dSP 1-32) for that input signal level. These points
are established via direct entry (SCALE) or with an external
calibration signal (CAL).

Calibration Units (CAL UNITS)

Enter the units associated with the desired scale values.
Selecting this unit allows the meter to perform automatic unit
conversions.

Pulse Input Time Unit (Time UNIT)

This is the time component to be used when calibrating a
number of input pulses per time unit to equal a certain
display value.

For example, if the inputs being entered in pulses/second
the time unit would be set to seconds.

Total Reset (T Reset)

This menu is used to select the ways the total and grand
total may be reset.

Manual or Automatic Total Reset
Function (t rST)

For manual reset, select T RESET  t rst  man and
then select whether manual reset will be enabled (Enabl) or
disabled (dsabl) using the Up arrow key. Press the Enter
button to accept. Disabling reset will avoid inadvertent resets
of the total via the front reset button or external reset
contact.

For automatic reset, select T RESET  t rst  Auto T
DELAY and enter reset delay time in seconds. Once the
output alarm total set point is reached, the meter waits for a
programmed amount of time (T DELAY) and then resets the
total to zero.

For timed reset, select T RESET  t rst  Time T
RESET and enter the time of day at which the total should be
reset. The total value will be reset every day at the specified
time.

Press the Enter button, at any time, to accept a setting;
otherwise press the Menu button to exit without saving
changes.

Total Alarm Time

The T DELAY parameter is used by the NPN open collector
outputs when they are programmed as total alarms. If total

reset (t rst) is programmed to Auto the time delay (T
DELAY) is the length of the associated Out 1 or Out 2 total

alarm prior to the total being reset to 0.
For information on programming the NPN open collector

pulse outputs as total alarms, see Alarm Output
programming on page 27.

31

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Model:

Serial Number:

Setting Lockout
Password (PASS):

__ __ __ __ __

Total Reset Password
(PASS T):

__ __ __ __ __

Grand Total Reset
Password (PASS GT)

__ __ __ __ __

Manual or Automatic Grand Total Reset
Function (GtrST)

For manual reset, select T RESET  Gtrst  man and
then select whether manual reset will be enabled (Enabl) or
disabled (dsabl) using the Up arrow key. Press the Enter
button to accept. Disabling reset will avoid inadvertent resets
of the total via the front reset button.

For automatic reset, select T RESET  Gtrst  Auto T
DELAY and enter reset delay time in seconds. Once the
grand alarm output grand total set point is reached, the
meter waits for a programmed amount of time (T DELAY) and
then resets the grand total to zero.

For timed reset, select T RESET  t rst  Time T
RESET and enter the time of day at which the total should be
reset. The total value will be reset every day at the specified
time.

Press the Enter button, at any time, to accept a setting;
otherwise press the Menu button to exit without saving
changes.

Setting Up Passwords (PASSWRD)

The Password menu is used to program a five-digit
password to prevent unauthorized changes to the
programmed parameter settings, to restrict the ability to
reset the total and grand total, and to permanently lockout
the ability to reset the grand total and any grand total related
parameters.

The lock symbol is displayed to indicate that settings are
password protected.

Record all passwords for future reference. If appropriate, it
may be recorded in the space provided.

Locking Meter Setup Parameters

Enter the Password menu, select Pass, and program a five­digit password. The meter will return to Run Mode after
locking any of the passwords.

For instructions programming numeric values see Setting
Numeric Values, page 15.

Grand Total Alarm Time

The T DELAY parameter is used by the NPN open collector
outputs when they are programmed as grand total alarms. If

grand total reset (Gtrst) is programmed to Auto,the time
delay (T DELAY) is the length of the associated Out 1 or Out

2 grand total alarm prior to the grand total being reset to 0.
For information on programming the NPN open collector

pulse outputs as grand total alarms, see Alarm Output
programming on page 27.

Press the Enter button, at any time, to accept a setting;
otherwise press the Menu button to exit without saving
changes.

If the meter is password protected, the meter will display the
message PASS LOCKED when an attempt is made to enter
the Setup menu or Advanced menu. Press the Enter button
while the message is being displayed and input the correct
password followed by the Enter button to gain access to the
menu. After exiting the programming mode, the meter
returns to its password protected condition.

Making Changes to a Password Protected
Meter

Password Restricting Total & Grand Total
Reset

To restrict resetting of the total, enter the Password menu,
select Pass T, and program a five-digit password. This will
deactivate the remote reset connections. Total will only be
able to be reset through the SafeTouch Buttons or
mechanical pushbuttons, if the appropriate password is
entered.

To restrict resetting of the grand total, enter the Password
menu, select Pass GT, and program a five-digit password.

Resetting Total & Grand Total on a
Password Protected Meter

If the meter is password protected for total or grand total
reset, the meter will display the message PASS T or PASS GT
when an attempt is made to enter the password protected
total or grand total Reset menus. Input the password and
press the Enter button to reset the total or grand total.

The password requirement may be disabled by entering the
password in the Password menu for total (Pass T) or grand
total (Pass GT).

32

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Did you forget the passwords?

The password may be disabled by entering a master
password. If you are authorized to make changes, enter
the master settings lockout (PASS) password 50865, the
master total reset (PASS T) password 80034, or the
master grand total reset (PASS GT) password 80034 to
unlock the meter.

Non-Resettable Grand Total Locked Menus &

Parameters

Display

Parameter/Menu

Action/Setting Locked

Input

Input

All Input type selection
menu parameters

GtotU

Grand total units

Set grand total units

GrtCF

Grand total
conversion factor

Enter the Grand Total
Conversion Factor menu

Grtot

DECIMAL

Grand total
decimal point

Enter the grand total
display decimal point

Factr

K-factor

All K-Factor menu
parameters

sCalE

Scale

All Scale menu parameters

Cal

Calibrate

All Calibrate menu
parameters

GTrST

Grand total reset

All the Grand Total Reset
menu parameters

Pass GT

Password grand
total

Enter the grand total reset
password

Grtot
ALARM

Grand total alarm

All grand total alarm output
menu parameters

FILTER

Filter

Enter Filter parameter

CUTOFF

Low-flow cutoff

Enter Low-Flow Cutoff
parameter

CAUTION

Locking the meter into a non-resettable
grand total is not reversible. It is a permanent
meter configuration. Doing so will
permanently prevent most input parameters
from being altered. This should be the last
step after verifying all setup parameters.

Disabling Password Protection

To disable the password protection, access the Password
menu, select the type of password to be disabled, and enter
the correct password as shown below. That password is now
disabled until a new password is entered.

If the correct five-digit password is entered, the meter
displays the message UnlOC (unlocked) and the protection
is disabled until a new password is programmed.

If the password entered is incorrect, the meter displays the
message LOCD,

Non-Resettable Grand Total

The grand total may be configured to be a non-resettable
grand total. This is a permanent setting. Configuring the
grand total as a non-resettable grand total locks out all setup
parameters that could be used to reset the grand total or
change the setup of the grand total; including input selection,
rate scaling, and conversion factors.

To configure the meter for non-resettable grand total mode,
enter the non-resettable grand total password below into the
Pass GT parameter in the Password menu.

The non-resettable grand total permanently locks the
following setup menus and parameters from being changed:
input selection, K-factor, K-factor units, grand total units,
grand total conversion factor, grand total decimal point,
scaling, calibration, grand total alarms, pulse input filter, and
cutoff.

The above menus remain accessible; however the
parameters listed above within the menus are locked and
may not be changed.

Non-resettable grand total password: 50873

33

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

CAUTION

Changing the default menu setup with the
Custom menu feature may change the
setup and operation procedures described
in this manual. Only operators familiar with
the programming and operation of this unit
should use this feature.

Custom Menu Parameters

Display

Parameter/Menu

Action

NONE

None

Set no menu position display

INPUT

Input

Set to show Input menu

KFACTOR

K-Factor

Set to show K-Factor
menu

UNITs

Units

Select standard units or
custom unit/tag

DECIMAL

Decimal

Set to show Decimal menu

DISPLAY

Display

Set to show Display menu

A OUT

Analog out

Set to show Analog Output
menu

RATE.DP

Rate decimal
Point

Set to show Rate Decimal
Point menu

Custom Menu Parameters

Display

Parameter/Menu

Action

TOTAL.DP

Total decimal
point

Set to show Total Decimal
Point menu

GRTOT.DP

Grand total
decimal point

Set to show Grand Total
Decimal Point menu

SCALE

Scale

Set to show Scale menu

CAL

Calibrate

Set to show Calibrate
menu

T BASE

Time base

Set to show Time Base
menu

T FACTR

Total conversion
factor

Set to show Total
Conversion Factor menu

T RESET

Total reset

Set to show Total Reset
menu

GTFACTR

Grand total
conversion factor

Set to show Grand Total
Conversion Factor menu

GTRESET

Grand total reset

Set to show Grand Total
Reset menu

PASS

Password

Program password to lock
meter parameters

PASS T

Total password

Program password to
prevent total reset

PASS GT

Grand total
password

Program password to
prevent grand total reset.
May permanently lock out
grand total related
parameters and reset

OUTPUT

Output

Set to show Output menu

OUT 1

Out 1

Assign function of pulse
output 1

OUT 2

Out 2

Assign function of pulse
output 2

DATALOG

Data Log

Enter Data Log menu

LOGTIME

Log Time

Set daily data log times

INTERVL

Interval

Set interval log times

LOGVIEW

Log View

Enter Log View menu

PASSWRD

Password

Set to show Password
menu

SETUP

Setup

Set to show Setup menu

ADVANCE

Advance

Set to show Advanced
menu

SYSTEM

System

Set to show System menu

Custom (CUSTOM)

The Custom menu is used to modify the initial programming
menus that appear in the Main Menu when the Menu button
is pressed in Run Mode.

Eight menu positions are available. Menu positions 6 and 7
are factory programmed for Setup and Advanced.

To add a menu or parameter to the menu structure, or
change the default menus, press Enter at the desired menu
in the position (POS) to be edited, and use the Up or Right
arrows to select the desired menu item for that position. See
page 34 for a complete list of the available menu selections
for each position.

34

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

System (SYSTEM)

The system function is used to set the real time clock, set
daily data log times, enable/disable the backlight, access
analog output controls used in troubleshooting, store,
restore, and backup restore feature, enable/disable the
battery power alert symbol on the display, and review basic
system identification information.

Set Real Time Clock (SETTIME)

The real time clock is used to trigger data log events, and is
recorded at every logged data point. The menu displays the
date and time.

Figure 15. Date Display Example

The above display example shows the date to be June 27, at
14 hours, 32 minutes, and 36 seconds. The display date will
toggle with the year.

The year, month, day, hour, and minute may all be set by the
user. The real time clock will need to be reset if external
power and battery power are lost.

Changing the time (hours and minutes) will reset the
seconds clock to 0.

Data Log Setup (DATALOG)

The Data Log menu is used to setup and enable the data log
functions. The meter may contain up to 1024 records, each
containing date, time, rate, total, grand total, and log
number.

There are two ways to configure the time when a data log is
recorded. The Log Time feature allows up to 4 data logs to
be recorded each day, at specific times. The Log Interval
feature allows a data log to be recorded each time a time
interval has passed.

Only the Log Time or Log Interval may be active at once.
While one type of data logging has been enabled, the other
menu will be inaccessible.

Log Time Setup (LOGTIME)

The Log Time menu contains four log points (LOG 1 to LOG

4). Each log time is configured separately. For each daily log

time desired, enable a log, and set the log time for the hours
and minutes the log is to be recorded. The time is set in real­time, based on the real time clock setup.

The Log Time feature will roll-over, deleting the oldest data
logs (in blocks of 8) when the log is full and new logs must
be recorded. This makes it the most useful for long-term
data logging.

Interval Setup (INTERVL)

The Interval menu sets the time interval for data logging.
Every time interval, one data point will be recorded. To
enable interval data logging, enable the feature, and set the
interval time for the hours and minutes between each log.

If set to F.STOP, the Log Interval feature will not delete old
data, and data logging will stop when the log is full. This
makes it the most useful for short periods and logging
specific functions.

If set to Cont, the Log Interval feature will delete the old data
when full and continue logging data. The Log Interval feature
will roll-over, deleting the oldest data logs (in blocks of 8)
when the log is full and new logs must be recorded. This
makes it the most useful for long-term data logging.

35

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

CAUTION

Once meter parameters have been saved
to memory by the backup restore feature
there is no recovering the previously saved
settings.

Once parameters have been loaded into
the meter from the backup restore feature
there is no recovering the previously
programmed settings.

The meter saves all parameter settings and no
reprogramming is necessary when power is lost and
restored to the meter. The total and grand totals are
saved during a power loss. Only the maximum and
minimum displays are reset when power is lost.

View Data Log (LOGVIEW)

The Log View menu allows on-screen browsing of the data
log points stored in the meter. Data points may be navigated
by viewing the log number, date and time, total, or grand
total amounts. A known log may be jumped to immediately,
avoiding a lengthy search for data. All logs may be deleted
with the ERASE command, requiring confirmation.

Once the log records are displayed, use the Up and Right
arrows to change the log entry being viewed. The Enter key
changes the displayed information for the same log.

Backlight (BAKLITE)

The Backlight menu is used to enable or disable the
backlight. This feature is particularly important for the
battery-powered models with momentary backlight. This
feature is not available for models with a loop output
powered backlight.

Analog Output Calibration (AO CAL)

This feature is only used at the factory for diagnostic
purposes. It is not recommended to access this menu
without instruction from technical support.

Backup & Restore (BACKUP)

The features are used to save and restore programmed
settings. Programming can be restored to a known saved
good configuration, or to factory defaults. This is useful to
restore meters whose programming has been altered in
unknown ways, or to quickly restore known good settings if
mistakes are made during reprogramming.

The save feature (SAvE?) saves all current parameter
settings into the memory of the backup restore. The backup
restore feature is loaded with factory default settings until a
new configuration is saved.

The load feature (load?) restores all parameters to the
programmed values stored in backup restore memory. The
load feature will not affect the current password settings, or
allow the editing of permanently locked parameters due to
the enabling of the non-resettable grand total feature. See
Non-Resettable Grand Total described on page 33.

The default feature (deflt) restores all parameters to the
factory default values. Factory default reset does not change
the saved backup restore settings, override passwords, or
edit parameters locked by a permanent non-resettable grand
total. See Non-Resettable Grand Total, as described on
page 33.

Battery Power Symbol Alert (BAT SYM)

The Battery Power Symbol Alert menu is used to enable or
disable the battery alert symbol on the display. This is a
useful way to be aware of a power failure to a model with
battery backup.

When enabled, the battery symbol will appear whenever the
meter is powered as a battery backup. This is detected when
the meter being powered from DC or loop-power
experiences power loss, subsequently switching over to
battery power.

The indicator will not appear if the meter is powered on via
battery power, only when there is applied power to the DC or
loop-power lines, followed by power loss. This prevents the
batter indicator from appearing at all times for a primarily
battery powered application.

The battery symbol will flash in a low battery condition
regardless of the setting of this parameter.

Information (INFO)

The Information menu is part of the System features menu. It
shows software identification number, version number, and
extended model number. To view this information:

Go to the Information menu (INFO) and press Enter button.
Continue pressing Enter to scroll through the displays.
Following the information display, the meter will exit the

Advanced features menu and return to run mode.

36

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Symbol

Description

 Hold the Menu SafeTouch button when

in power save mode (display will show

) to awaken SafeTouch buttons.

 Press the Menu button to enter

Programming Mode.

 Press the Menu button during

Programming Mode to return to the
previous menu selections.

 Hold the Menu button for 1.5 seconds at

any time to exit Programming Mode and

 Press the Right arrow button to move to

the next digit or decimal position during
programming.

 Press Right to go backward through

most selection menus.

 Press Reset to reset the total, or values

 Press Display when in Run mode to

display the grand total, again to display
the maximum, and again to display the
minimum reading since last reset. These
displays will time out in 12 seconds, or
press Display until total is displayed in
the lower display. Press Enter to lock
this display, and disable the 12 second

 Press the Enter button to access a menu

or to accept a setting.

 Press Enter to lock the grand total,

maximum, or minimum value on the
lower display, and disable the 12 second
time out.

 Press Enter while the grand total, max,

or min reading is locked on the lower
display to return to run mode.

 Press Enter to acknowledge alarm (if

enabled).

Max or Min readings (disables 10 second
timeout).

M E NU

ENTER

DISPLAY

RESET

Serial Communications (COMM)

The Communications menu is used to setup serial
communications parameters necessary for communication
via Modbus.

Modbus communications is performed with the 2-wire RS­485 with Modbus RTU option.

When using more than one meter in a multi-drop mode, each
meter must be provided with its own unique address. The
meter address (Slave ID) may be programmed between 1
and 247. The baud rate may be set to 1,200; 2,400; 4,800;
9,600; 19,200; 38,400; 57,600; or 115,200 bps. The transmit
delay may be set between 0 and
199 ms. The parity can be set to even, odd, or none with 1 or
2 stop bits.

Refer to the ProtEX Modbus Register Tables located at
www.predig.com for details.

Wakeup the Meter (WAKEUP?)

To bring the meter out of standby mode, press any button
and Wakeup (WAKEUP?) will flash. If using SafeTouch
buttons, it may be required to hold the button for several
seconds.

Confirm that the meter should awaken to run mode by
pressing the Enter key while WAKEUP? is flashing. The meter
will return to the normal run mode.

OPERATION

Front Panel Buttons Operation

Standby Mode (STANDBY)

Standby mode is available on battery powered and battery
backup models only.

The Standby menu is used to enter a power-saving standby
mode that will turn off the display and activate a low power
mode for the through-glass buttons. Signal processing
operations will continue to run. This mode may be used to
reduce power consumption and increase battery life when
the meter is not in use.

It may take up to 3 seconds for the meter to enter standby
mode after confirming the flashing display with the Enter
button.

The following SafeTouch button information is reprinted from
SafeTouch Button Operation on page 13.

37

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

SafeTouch Power Save Mode

SafeTouch buttons enter a power saving mode after three
minutes of inactivity. This mode is indicated by a pause

symbol ( ) appearing in the lower right of the display.
Only the MENU button is monitored in this mode. To
activate the SafeTouch buttons, press and hold the menu
button for up to five seconds. The display will read AWAKE,
and the SafeTouch buttons will be fully enabled.

SafeTouch Disabled Mode
When the cover is removed, the four mechanical buttons

located next to the sensors may be used. The sensors are
disabled when a mechanical button is pressed and will
automatically be re-enabled after 60 seconds of inactivity.

The SafeTouch power symbol ( ) will blink in the lower
right of the display if the buttons are disabled due to a
mechanical pushbutton being pressed.

IMPORTANT

SafeTouch buttons will not work if two or
more buttons are detected as being
pressed simultaneously. As a result, be
careful to avoid triggering multiple buttons
or reaching across one button location to
press another.

SafeTouch Button Equalize Delay

The SafeTouch buttons are designed to constantly
recalibrate for ambient conditions. When the cover position
is changed, the cover is removed, or an object is removed
that was placed over the front window, it may take a
moment for the SafeTouch buttons to recalibrate to the
change in conditions.

Allow up to 2 minutes for the SafeTouch buttons to
recalibrate to new conditions in these cases where the
cover position was changed, or the front window is being

unblocked.

SafeTouch Button Operation

To actuate a button, press and remove one finger to the
glass directly over the marked button area. Remove finger to
at least 4 inches away from the glass in between button
activations. SafeTouch and mechanical buttons may be held
to cycle through menus or digits in place of repeatedly
pushing a button.

SafeTouch Button Tips and Troubleshooting

The SafeTouch Buttons are designed to filter normal levels
of ambient interference and to protect against false
triggering, however it is recommended that the SafeTouch
Buttons be turned off (slide THRU-GLASS BUTTONS switch
to OFF) if there is an infrared interference source in line-of­sight to the display or if the buttons are not needed.

SafeTouch Button Tips:

 To the extent possible, install the display facing away

from sunlight, windows, reflective objects and any
sources of infrared interference.

 Keep the glass window clean.
 Tighten the cover securely.
 Use a password to prevent tampering.
 If the cover has not been installed and secured

tightly, it may take a moment for the SafeTouch
buttons to properly self calibrate when the cover is
tightened.

After all connections have been completed and verified,
connect the ribbon cable to the display module, fasten the
display module to the base, install enclosure cover, and then
apply power.

38

Grand Total Reading (GrTOTAL)

The grand total is a separate total that is not reset when the
total is reset. This allows the complete total to be tracked by
the grand total, while individual batch, or daily totals are
reset regularly.

To display the grand total, press the Up/Display button. The
display will read GRTOTAL, and the GT symbol will appear
indicating the grand total is being displayed on the bottom
display. After 10 seconds, the bottom display will return to
showing total. To lock the grand total on the display, press
Enter. Pressing Menu at any time will return to normal run
mode.

Note: If the Display menu has been setup to display the
grand total on the bottom display, pressing the Up/Display
button will display the maximum and minimum readings
followed by the total.

Toggle Lower Display Parameter

The maximum and minimum (peak & valley) readings
reached by the rate are stored in the meter since the last
reset or power-up. The meter shows MAXIMUM or MINIMUM to
differentiate between run mode and max/min display. The
previous total and grand total value reached prior to being
reset are also stored.

To display the maximum and minimum readings or the
previous total and grand total use Up/Display button to cycle
the bottom display. Maximum and minimum are displayed
after the grand total.

Press the Enter button to remain in Max/Min/Previous
display mode. If Enter is not pressed, the Max/Min/Previous
display readings will time out after ten seconds. The meter
will return to display the actual reading. Pressing Menu at
any time will return to normal run mode.

Resetting the Total (RESET TOTAL?)

If manual Total Reset is enabled in the Program menu, the
total may be reset by pressing the Reset button and using
the Enter button to confirm the reset.

Additionally if programmed for manual reset, the total may
be reset using a normally open pushbutton connected
across the terminals RST and COM.

Note: The total is cleared immediately when Enter button is
pressed. Totalization will then continue, even if the Enter
button or external reset button continues to be held
down/triggered.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Parameter

Display

Default
Setting

User
Setting

Input Type

INPUT

Active

K-Factor
units

FuNiT

Pulses/
Gallon

K-Factor

Factr

1.0000

Rate Time
Base

Tbase

Second

Rate Unit

RateU

Gallons/
second

Total Unit

Tot U

Gallons

Total
Multiplier

Nmult

x1

Grand Total
Unit

GtotU

Gallons

Grand Total
Multiplier

Nmult

x1

Parameter

Display

Default
Setting

User
Setting

Rate
Decimal
Point

1111.1

1 place

Total
Decimal
Point

111111.1

1 place

Grand Total
Decimal
Point

111111.1

1 place

Total
Conversion
Factor

TotCF

N/A (Only
valid with
custom
units)

Grand Total
Conversion
Factor

grtCF

N/A (Only
valid with
custom
units)

Top Display

TOP

Rate

Bottom
Display

BOTNm

Total

Advanced Features

Total Reset

T rst

Manual ­Enabled

Grand Total
Reset

T rst

Manual ­Enabled

Analog Out
Value

A out

Rate

Output
Display 1

Dspl1

0000.0

Output 1

Out 1

4.000

Output
Display 2

Dspl2

1000.0

Output 2

Out 2

20.000

Scale
Enable

SCALE

No – Use
K-Factor

Scale/Cal #
Points

nopts

2 (N/A)

Scale Unit

Funit

Pulses/Gal
lon (N/A)

Scale Unit
Time Base

tinme

Second
(N/A)

Scale/Cal
Input 1

Inpt1

00000
(N/A)

Scale/Cal
Display 1

dspl1

0000.0
(N/A)

Scale/Cal
Input 2

Inpt2

1000 (N/A)

Scale/Cal
Display 1

Dspl2

1000.0
(N/A)

Parameter
Lock
Password

PASS

00000
(unlocked)

Total Reset
Password

PASS T

00000
(unlocked)

Resetting the Grand Total (RESET GrTOT?)

If manual Grand Total Reset is enabled in the Program
menu, the grand total may be reset using the Reset button.

To reset the grand total, display the grand total by pressing
the Up/Display button. While grand total is being displayed,
press the Reset button. Confirm the reset with the Enter
button.

Resetting Max/Min Readings (RESET
MAXIMUM, MINIMUM)

The maximum and minimum readings may be reset by
pressing the Reset button while displaying either the
maximum or minimum. The display will show RESET to verify
the reset of maximum or minimum value.

The maximum and minimum must be reset individually.

Reset Meter to Factory Defaults

Reset to factory defaults will restore most meter parameters
to their factory default setting.

When the parameters have been changed in a way that is

difficult to determine what’s happening, it might be better to

start the setup process from the factory defaults.
Factory default reset does not change the saved backup

restore settings, override passwords, or edit parameters
locked by a permanent non-resettable grand total. See Non­Resettable Grand Total, as described on page 33.

Instructions to load factory defaults can be found in the
Backup & Restore (BACKUP) menu on page 36.

Factory Defaults & User Settings

The following table shows the factory setting for most of the
programmable parameters on the meter. Next to the factory
setting, the user may record the new setting for the particular
application.

Model: _________________________
S/N: ___________________________
Date: __________________________

39

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Parameter

Display

Default
Setting

User
Setting

Grand Total
Reset
Password

PASS GT

00000
(unlocked)

Output 1

OUT 1

Off Output 2

OUT 2

Off Low Gate

LO GATE

1 High Gate

HI GATE

2

Filter

FILTER

High
Speed

Cutoff

CUTOFF

0
(disabled)

Battery
Symbol

BaT SYM

Disabled

Modbus
Slave ID

sLvID

247

Baud Rate

baud

9,600 bps

Time Delay

Tdely

10 ms

Parity

Party

Even

Additional Parameters & Notes

Symptom

Check/Action

No display or faint
display

Check power connection.
Press and hold Menu key for 5 seconds

to check for Standby mode. If
“WAKEUP?” is displayed, press the Enter
key to awaken the meter from Standby
mode.

SafeTouch
Buttons do not
respond

If is displayed, hold Menu
SafeTouch button to leave power save
mode.

If is flashing, wait 60 seconds to leave
mechanical pushbutton lockout mode.
If the cover was recently tightly secured,
you may need to wait up to 2 minutes for
buttons to self-calibrate to the new cover
position due to glass reflection.
Verify Through-Glass Button switch on
display module is in ON position.
Sunlight can interfere with the sensors.
It is recommended to shield the window
while operating the buttons by standing
so as to block direct sunlight.

Rate display
unsteady

Increase low gate setting in Advanced
menu.

Meter displays
error message
during calibration
(eRROR Span)

Verify minimum input span
requirements
Meter flashes
99999

Check input signal is within scaled
range of 99999.

Display stuck
displaying

MAXIMUM or
MINIMUM

Press Enter (Unlock) to exit Max/Min
display

Display response
is too slow

Check if gate settings can be lowered.

If the display locks
up or the meter
does not respond

Perform hard reset by removing the
display module or by removing
external loop or DC power.

Backlight does not
appear.

Backlight is intended for viewing
assistance in dim lighting. It may not
be noticeable under good lighting
conditions. Battery powered models
turn off the backlight after ten seconds
of button inactivity.

Other symptoms

Call Technical Support for assistance.

TROUBLESHOOTING

The rugged design and the user-friendly interface of the
meter should make it unusual for the installer or operator to
refer to this section of the manual. If the meter is not working
as expected, refer to the recommendations below.

Troubleshooting Tips

40

Note: Certain sequences of events can cause unexpected
results. To solve these issues, it is best to start fresh from
factory defaults and map changes ahead of time, rather than
at random.

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

3.3 5 [8 5 .0 ]

4.1 5 [1 0 5 .5 ]

3.2 2 [8 1 .9 ]

4.8 6 [1 2 3 .5 ]

MOUNTING DIMENSIONS

All units: inches [mm]

Figure 16. Enclosure Dimensions – Front View

Figure 17. Enclosure Dimensions – Side View

41

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

Pushbutton

Function

Menu

Go to Programming mode, back out one level of programming. Hold
to enter Advanced Features mode. Leave grand total/max/min mode.

Right Arrow

Move to next digit or decimal point position. Go to reset menu
Return to last programming menu.

Up Arrow

Move to next selection or increment digit.
Enter grand total/max/min display mode.

Enter

Accept selection/value and move to next selection. Acknowledge
Alarm.

Cycle Rate, Total, Grand Total, and Max/Min on Lower Display

While in Run Mode, pressing Display will cycle the rate, total, grand total, and max/min
display. In this mode, the display will show the rate, total, grand total, maximum, or
minimum values since last reset when they are not selected as the top or bottom display.
The grand total, max, or min will display for 10 seconds. Press Enter while displaying the
rate, total, grand total, max, or min, to disable the 10 second time-out and continuously
display the rate, total, grand total, max, or min. Press Enter again to disable this display
lock.

Menu for

3 seconds

Display

Program

Run

Advanced

Features

Rate, Total,

Grand Total,

Max & Min

Menu
Hold

Menu Hold

Menu

Operational Modes

QUICK USER INTERFACE REFERENCE

EU Declaration of Conformity

Issued in accordance with ISO/IEC 17050-1:2004 and ATEX Directive 2014/34/EU.

We,

Precision Digital Corporation
233 South Street
Hopkinton, MA 01748 USA

as the manufacturer, declare under our sole responsibility that the product(s),

Model PD6830 Pulse Input Rate/Totalizer

to which this declaration relates, is in conformity with the European Union Directives shown below:

2014/35/EU Low Voltage Directive
2014/34/EU ATEX Directive
2014/30/EU EMC Directive
2011/65/EU RoHS Directive

This conformity is based on compliance with the application of harmonized or applicable technical
standards and, when applicable or required, a European Union notified body certification.

Standards:

EN 55022:2007 EN 61000-6-2:2005 EN 60079-0:2009
EN 61000-6-4:2004 EN 60079-1:2007 EN 61010-1:2001
EN 60079-31:2009 EN 61326:2006

The standards EN 55022:2007, EN 60079-0:2009, EN 60079-1:2007, EN 60079-31:2009, EN 61000­6-4:2004, EN 61010-1:2001, and EN 61326:2006 are no longer harmonized. The requirements of
these standards have been checked against the harmonized standard EN 55022:2010, EN 60079­0:2012+A11:2013, EN 60079-1:2014, EN 60079-31:2014, EN 61000-6-4:2007+A1:2011, EN 61010­1:2010, and EN 61326:2013 and there were no major technical changes affecting the latest technical
knowledge for the products listed above.

EC Type Examination Certificate: Sira 10ATEX1116X
Product Markings: II 2 G D

Ex d IIC T6 Gb
Ex tb IIIC T85°C Db IP68
Tamb = -40°C to +75°C

ATEX Notified Body for EC Type Examination Certificate: Sira Certification Service, NB 0518
Unit 6, Hawarden Industrial Park
Hawarden, Deeside, CH5 3US, UK

ATEX Quality Assurance Notification No.: SIRA 10 ATEX M462
ATEX Notified Body for Quality Assurance: Sira Certification Service, NB 0518

Unit 6, Hawarden Industrial Park
Hawarden, Deeside, CH5 3US, UK

Signed for and on behalf of Precision Digital Corporation:

Name: Jeffrey Peters
Company: Precision Digital Corporation
Title: President
Date: 02/12/2018

Document No: DoC PD6830 {021218}

PD6830 Explosion-Proof Pulse Input Rate/Totalizer Instruction Manual

How to Contact Precision Digital

 For Technical Support please

Call: [phone] or [phone]
Fax: [phone]
Email: [e-mail]

 For Sales Support or to place an order please

contact your local distributor or
Call: [phone] or [phone]
Fax: [phone]
Email: [e-mail]

 For the latest version of this manual please visit

www.predig.com

PRECISION DIGITAL CORPORATION

233 South Street • Hopkinton MA 01748 USA
Tel [phone] • Fax [phone]

www.predig.com

LIM6830_P

SFT050 Ver 3.200 & up

01/19
