Proteus IMT-7500, IMT-7000, PEC-7500 Instruction Manual

THE MONITOR IS DESIGNED FOR PROGRAMMABLE MAGNETIC BIKES AND INTRODUCED
WITH THE FOLLOWING CATEGORIES :

- KEY FUNCTIONS

- ABOUT DISPLAYS

- OPERATING RANGES

- THINGS YOU SHOULD KNOW BEFORE EXERCISING

- OPERATION INSTRUCTIONS

KEY FUNCTIONS

THERE ARE TOTAL 6 KEYS INCLUDING START / PAUSE, ENTER, MODE, UP, DOWN, AND
RECOVERY.

A. START / PAUSE : STARTS OR STOPS THE PROGRAM CHOSEN. AND, RESETS THE

MONITOR BY PRESSING AND HOLDING FOR 2 SECONDS.

B. ENTER : CHOOSES THE FUNCTIONS FROM PROGRAMS, GENDER, HEIGHT, WEIGHT, TIME,

DISTANCE, WATT, TARGET HEART RATE, AGE, AND 10 COLUMNS. THE CHOSEN
FUNCTION SHALL FLASH. PLEASE NOTE THAT NOT ALL THE FUNCTIONS CAN BE
SELECTED IN EVERY PROGRAM ACCORDING TO THE TYPES OF EACH PROGRAM.

C. MODE : CHANGES THE DISPLAYS OF THE VALUES BETWEEN RPM OR SPEED, AND CAL

OR WATT. THE VALUES OF RPM AND WATT SHOW AT THE SAME TIME, OR THE VALUES
OF SPEED AND CAL DO BY PRESSING IT.

D. UP ( ) : SELECTS OR INCREASES THE VALUES OF PROGRAMS, GENDER, HEIGHT,

WEIGHT, TIME, DISTANCE, WATT, TARGET HEART RATE, AGE, AND 10 COLUMNS.

E. DOWN ( ) : SELECTS OR DECREASES THE VALUES OF PROGRAMS, GENDER, HEIGHT,

WEIGHT, TIME, DISTANCE, WATT, TARGET HEART RATE, AGE, AND 10 COLUMNS.

F. RECOVERY : STARTS THE FUNCTION OF PULSE RECOVERY. WHEN PRESS AGAIN WILL

OUT OF PULSE RECOVERY MODE.

G. LCD CONSTRAST CALIBRATION :

1. DURING STOP MODE, PRESS & HOLD ENTER & ( + ) KEYS SIMULTANEOUSLY FOR
EVER 2 SECONDS TO ENTER LCD CONTRAST CALIBRATION MODE.

2. THEN YOU CAN PRESS ( + ) OR ( - ) KEY TO ADJUST THE LCD CONTRAST TO BE
LIGHTER OR DARKER.

3. AFTER COMPLETION LCD CONTRAST CALIBRATION. PRESS START/PAUSE KEY TO EXIT.

TH

4. THERE ARE 16 DIFFERENT LCD CONTRAST LEVEL AND THE DEFAULT VALUE IS IN 8
LEVEL..

- 1 -

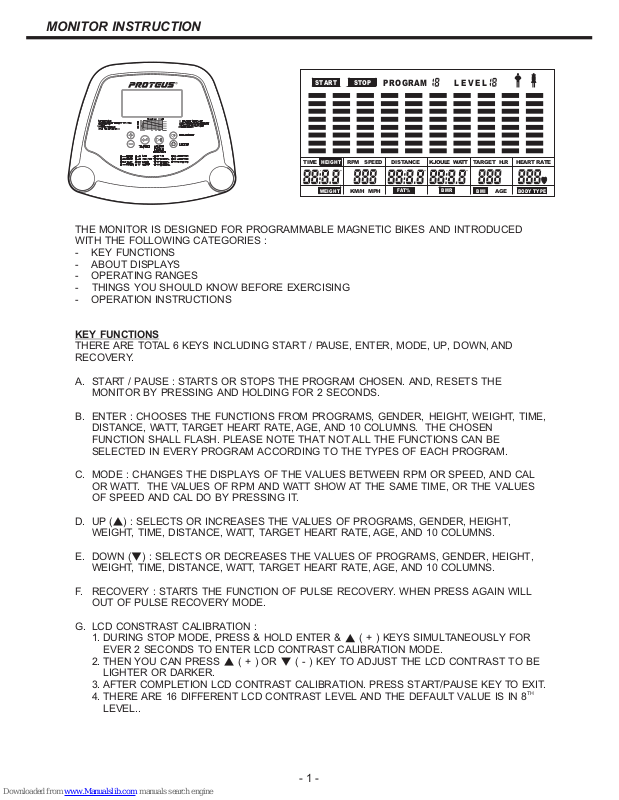

MONITOR INSTRUCTION

TIME RPM SPEED

MPH

DISTANCE KJOULE

WATT TARGET H.R HEART RATE

AGE

KM/H

HEIGHT

WEIGHT

START

STOP

PROGRAM LEVEL

BODY TYPEBMI

BMR

FAT%

ABOUT DISPLAY
A. START : INDICATES THE PROGRAM SELECTED HAS STARTED.

B. STOP : INDICATES THE PROGRAM SELECTED HAS PAUSED. AND,

USERS ARE FREE TO CHANGE THE PROGRAMS AND THE VALUE
OF FUNCTIONS APPLIED.

C. PROGRAMS : INDICATES THE PROGRAMS SELECTED FROM

PROGRAM 1 TO PROGRAM 15.

D. LEVELS : INDICATES THE LEVEL OF LOADING SELECTED FROM

LEVEL 1 TO LEVEL 16.

E. GENDER : INDICATES THE GENDER ( MALE OR FEMALE )

SELECTED.

F. TIME / HEIGHT / WEIGHT DISPLAY : INDICATES ONLY 1 VALUE OF

TIME, HEIGHT, OR WEIGHT DISPLAYED DEPENDING ON THE
PROGRAMS..

G. RPM / SPEED / KM / H ( MPH ) DISPLAY : INDICATES ONLY 1 VALUE

OF RPM, SPEED, OR KM / H ( MPH ) DISPLAYED DEPENDING ON
THE PROGRAMS. KM / H OR MPH WILL DISPLAY WHEN CURRENT
SHOWS UP.

H. DISTANCE / FAT% DISPLAY : INDICATES ONLY 1 VALUE OF

DISTANCE OR FAT% DISPLAYED DEPENDING ON THE PROGRAMS.

I. CAL / WATT / BMR DISPLAY : INDICATES ONLY ONE VALUE OF CAL,

WATT, OR BMR DISPLAYED DEPENDING ON THE PROGRAMS.

J. TARGET H.R. / BMI/AGE DISPLAY : INDICATES ONLY ONE VALUE OF

TARGET HEART RATE, BMI, OR AGE DISPLAYED DEPENDING ON
THE PROGRAMS.

K. HEART RATE / BODY TYPE DISPLAY : INDICATES ONLY ONE VALUE

OF HEART RATE OR BODY TYPE DISPLAYED DEPENDING ON THE
PROGRAMS.

START

STOP

PROGRAM

LEVEL

- 2 -

TARGET H.R

HEART RATE

CA R W ATT

L. LOADING PROFILES : THERE ARE 10 COLUMNS OF LOADING BARS, AND 8 BARS IN EACH

COLUMN. EACH COLUMN REPRESENTS 3 MINUTES WORKOUT ( WITHOUT THE CHANGE
OF TIME VALUE ), AND EACH BAR REPRESENTS 2 LEVELS OF LOADING.

M. BACKLIGHT FUNCTION

PRESS THE START BUTTON AND THE BACKLIGHT WILL TURN ON.
PRESS THE STOP BUTTON AND THE BACKLIGHT WILL TURN OFF.

OPERATING RANGES

AUTO POWER ON / OFF : DURING FOUR MINUTES WITHOUT ANY SIGNAL INPUT TO
COMPUTER ,COMPUTER WILL GO INTO SLEEP MODE. WHEN PRESS START / PAUSE KEY OR
START WORKOUT AGAIN, THE COMPUTER WILL AUTOMATICALLY POWER ON.

THINGS YOU SHOULD KNOW BEFORE EXERCISING

A. THE VALUES CALCULATED OR MEASURED BY THE COMPUTER ARE FOR EXERCISE

PURPOSE ONLY, NOT FOR MEDICAL PURPOSE.

B. BEFORE OPERATE THIS COMPUTER, BE MAKE SURE TO PLUG THE CONNECTOR OF

ADAPTOR. THE ADAPTOR SPECIFICATION REQUEST 6VDC / 1A OUTPUT.

C. THE VARIABLES MAY NEED TO CHANGE IN THE PROGRAMS :

PLEASE NOTE THAT ONLY 1 VALUE OF TIME OR DISTANCE CAN BE ADJUSTED. BOTH
ADJUSTMENTS DO NOT EXIST AT THE SAME TIME. FOR EXAMPLE, THE VALUE OF DISTANCE
IS 0.0 WHILE THE VALUE OF TIME IS ADJUSTED TO BE ANY NUMBER EXCEPT 00:00 .

PROGRAM 1~15 15~1 1 1
LEVEL 1~16 16~1 N/A 1
GENDER MALE,FEMALE N/A MALE N/A
TIME( MANUAL ) 0:00~99:59 99:00~5:00( 1:00 ) 0:00 1:00
HEIGHTCM/INCH 110.0~199.5/3'8~6'5 199.5~110.0/6'5~3'8 175.0/5'9" 0.5/1
WEIGHTKG/LB 10.0~199.8/23~440 199.8~10.0/440~23 70.0/155 0.2/0.5
DISTANCE 0.0~999.0 999.0~1.0 0.0 1.0
WATT 30 ~ 300 300 ~ 30 100 10
TARGET H.R. 60 ~ 220 220 ~ 60 90 1
AGE 10 ~ 99 99 ~ 10 30 1

VALUES

RANGE

( COUNT UP )

COUNTDOWN

PRESET

INCREMENT

( DECREMENT )

PROGRAMS VARIABLES
P1 ~ P7 TIME, DISTANCE, AGE
P8 GENDER, HEIGHT, WEIGHT, AGE
P9 TIME, DISTANCE, TARGET H.R.
P10 ~ P12 TIME, DISTANCE, AGE
P13 ~ P14 TIME, DISTANCE, AGE, 10 COLUMNS
P15 TIME, DISTANCE, WATT, AGE

- 3 -

PROGRAM

1 (MANUAL)

PROGRAM

2 (POLLING)

PROGRAM

3 (VALLEY)

PROGRAM

4 (FAT BURN)

PROGRAM

5 (RAMP)

PROGRAM

6 (MOUNTAIN)

PROGRAM

7 (RANDOM)

PROGRAM

8 (BODY FAT)

PROGRAM

9 (TARGET H.R.)

PROGRAM

10 (60% H.R.C.)

PROGRAM

11 (75% H.R.C.)

PROGRAM

12 (85% H.R.C.)

PROGRAM

13 (USER SETTING)

PROGRAM

14 (USER SETTING)

PROGRAM

15 (WATTCONTROL)

D. PROGRAMS SELECTION :

THERE ARE 15 PROGRAMS WITH 1 RECOVERY INCLUDING 1 MANUAL PROGRAM, 6
PRESET PROGRAMS, 1 BODY FAT PROGRAM, 4 HEART RATE CONTROL PROGRAMS, 2
USER SETTING PROGRAMS, 1 WATT CONTROL PROGRAM, AND 1 PULSE RECOVERY
MEASURING.

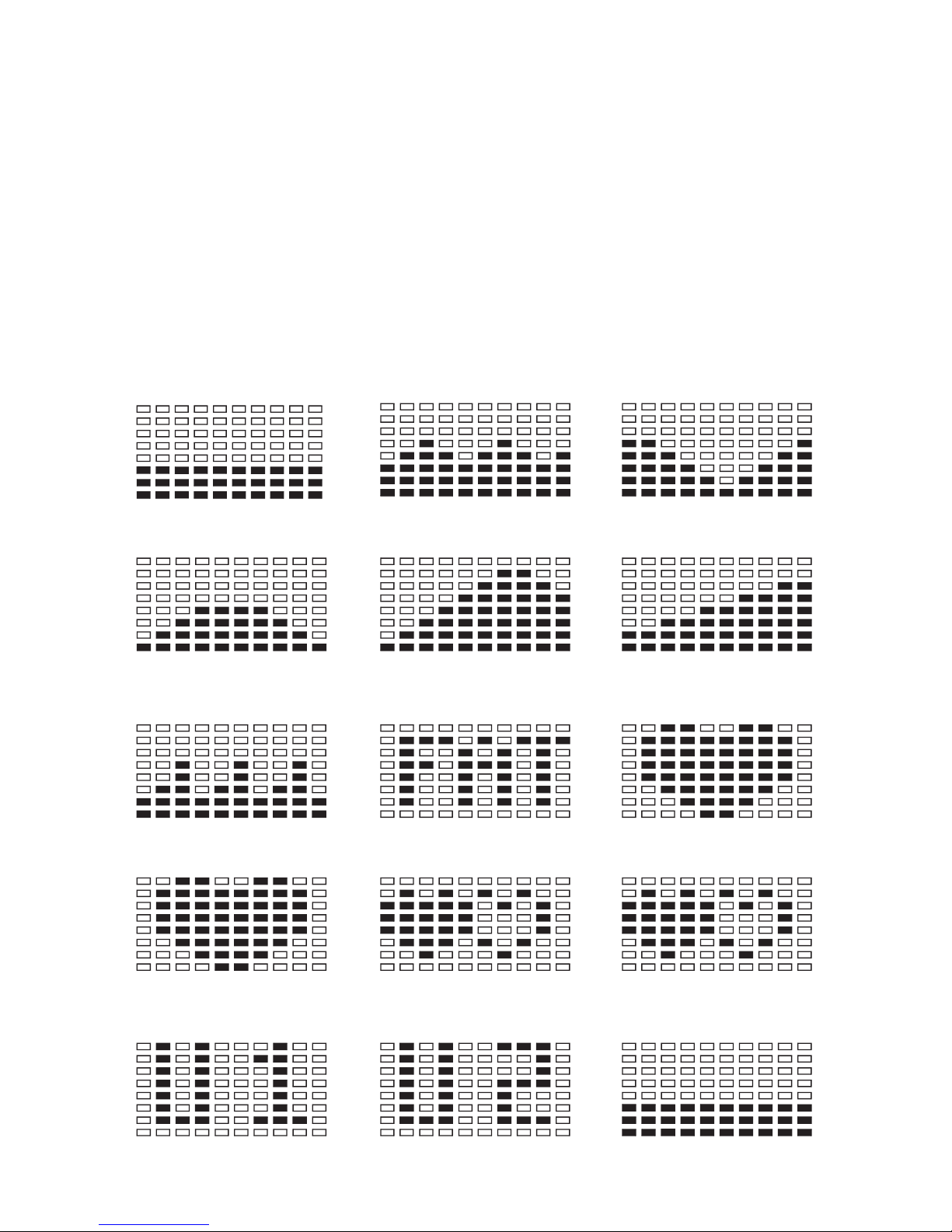

E. PROGRAM GRAPH :

EACH GRAPH SHOWN IS THE PROFILE OF THE LOADING IN EACH COLUMN. WITH THE
VALUE OF TIME COUNTING UP, EACH COLUMN IS 3 MINUTES THAT ALL THE COLUMNS
MAKE UP 30 MINUTES. WITH THE VALUE OF TIME COUNTING DOWN, EACH COLUMN IS
THE VALUE OF SETUP TIME DIVIDED BY 10. FOR EXAMPLE, IF THE TIME VALUE IS SETUP
TO 40 MINUTES, EACH COLUMN WILL BE 40 MINUTES DIVIDED BY 10 COLUMNS ( 40/10=4 ).
THEN, EACH COLUMN WILL BE 4 MINUTES. THE FOLLOWING GRAPHS ARE ALL THE
PROFILES IN THE MONITOR.

- 4 -

F. BODY TYPES :

THERE ARE 9 BODY TYPES DIVIDED ACCORDING TO THE FAT% CALCULATED.
TYPE 1 IS FROM 5% TO 9.9%. TYPE 2 IS FROM 10% TO 14.9%. TYPE 3 IS FROM 15% TO

19.9%. TYPE 4 IS FROM 20% TO 24.9%. TYPE 5 IS FROM 25% TO 29.9%. TYPE 6 IS FROM

30% TO 34.9%. TYPE 7 IS FROM 35% TO 39.9%. TYPE 8 IS FROM 40% TO 44.9%. TYPE 9
IS FROM 45% TO 50%.

G. BMR : BASAL METABOLISM RATIO. THE MONITOR WILL CALCULATE THE DATA OF

GENDER, HEIGHT, WEIGHT AND AGE TO SHOW YOUR VALUE. THE VALUE WILL SHOW ON
THE SCREEN FROM 1 ~ 9999 KCAL.

H. BMI : BODY MASS INDEX. THE MONITOR WILL

CALCULATE THE DATA OF HEIGHT AND
WEIGHT TO SHOW YOUR VALUE. THE VALUE WILL SHOW ON THE SCREEN FROM 1.0 ~

99.9 ON SCREEN.

I. FAT %( BODY FAT RATIO ) :

THE MONITOR WILL CALCULATE THE DATA OF GENDER, HEIGHT, WEIGHT AND AGE TO
SHOW YOUR BODY FAT RATIO. THE VALUE WILL SHOW ON SCREEN FROM 5 ~ 50%.

OPERATION INSTRUCTIONS

A. EXERCISING WITH A SPECIFIC GOAL :

1. TIME CONTROL : SETS UP A PERIOD OF TIME TO EXERCISE. ( EXCEPT IN PROGRAM 8 )

2. DISTANCE CONTROL : SETS UP A CERTAIN DISTANCE TO EXERCISE. ( EXCEPT IN
PROGRAM 8 )

3. BODY FAT CONTROL : COMPUTER DESIGNS VARIOUS PROGRAMS FOR DIFFERENT
PEOPLE WITH DIFFERENT BODY FAT RATIO.

4. WATT CONTROL : KEEPS DIFFERENT BODIES BURNING IN DESIRE WATT CONSUMED.

5. HEART RATE CONTROL : KEEPS USERS TO EXERCISE UNDER A SAFE HEART-BEATING
CONDITION

B. PULSE RATE :

THE WHOLE SET OF HEART RATE DETECTOR INCLUDE 2 SENSORS EACH SIDE. EACH
SENSOR HAS 2 PIECES OF METAL PARTS. THE CORRECT WAY TO GET DETECTED IS TO
GENTLY HOLD BOTH METAL PARTS EACH HAND. WITH THE GOOD SIGNALS PICKED UP
BY THE COMPUTER, THE HEART MARK " " IN THE HEART RATE / BODY TYPE DISPLAY
SHALL FLASH.
NOTE : THERE ARE TWO HEART RATE DETECTING SYSTEMS, HAND AND WIRELESS
PULSE, BUILT IN MONITOR. HAND PULSE DETECTING BE FIRST PRECEDENCE. WHEN
USER APPLY WIRELESS AND HAND PULSE SYSTEM TOGETHER. ONCE HAND PULSE IS
DETECTED, THE LCD DISPLAY WILL DISPLAY HAND PULSE VALUE FIRST, NOT WIRELESS
PULSE VALUE. IF APPLY WIRELESS PULSE SYSTEM, PLEASE SELECT THE FREQUENCY
TO MATCH 5K HZ. IF THE FREQUENCY OF PULSE TRANSMITTER IS DIFFERENT THAN
MONITOR BUILT, THE HEART RATE DISPLAY ON MONITOR WILL BE INTERMITTENT OR NO
DISPLAY.

C. MANUAL PROGRAM :

PROGRAM 1 IS A MANUAL PROGRAM. PRESS ENTER KEY TO SELECT TIME ( OR
DISTANCE ) AND AGE. THEN, PRESS ¡¶ OR ¡¿ KEY TO ADJUST THE VALUES. THEDEFAULT
LEVEL OF LOADING IS 6. AFTER PRESSING START / PAUSE KEY TO EXERCISE, PLEASE
ALSO APPLY THE HEART RATE DETECTOR APPROPRIATELY. USERS MAY EXERCISE IN
ANY DESIRE LEVEL ( BY PRESSING ¡¶ OR ¡¿ DURING THE WORKOUT ) WITH A PERIOD OF
TIME OR A CERTAIN DISTANCE. WITH THE INPUT OF AGE, THE COMPUTER MAY SUGGEST
A TARGET HEART RATE TO EXERCISE. THE SUGGESTED HEART RATE IS 85% AS THE
FORMULA CALCULATED 85% ( 220 AGE ). WITHOUT THE INPUT OF AGE, THE COMPUTER
MAY SETUP THE DEFAULT VALUE BE 161 AS FORMULA 85% ( 220 30 ). IF THE HEART RATE
DETECTED EQUALS TO OR GREATER THAN THE TARGET H.R., THE VALUE OF HEART RATE
WILL KEEP FLASHING. PLEASE NOTE THAT IT IS A WARNING FOR USERS TO SLOW DOWN
OR TO LOWER THE LEVEL OF LOADING.

- 5 -

D. PRESET PROGRAMS :

PROGRAM 2 TO PROGRAM 7 ARE THE PRESET PROGRAMS. PRESS ENTER KEY TO
SELECT TIME ( OR DISTANCE ) AND AGE. THEN, PRESS ¡¶ OR ¡¿ KEY TO ADJUST THE
VALUES. USERS MAY EXERCISE WITH DIFFERENT LEVEL OF LOADING IN DIFFERENT
COLUMNS AS THE PROFILES SHOW. AFTER PRESSING START / PAUSE KEY TO
EXERCISE, PLEASE ALSO APPLY THE HEART RATE DETECTOR OR TRANSMITTER
APPROPRIATELY. USERS MAY ALSO EXERCISE IN ANY DESIRE LEVEL ( BY PRESSING
OR DURING THE WORKOUT ) WITH A PERIOD OF TIME OR A CERTAIN DISTANCE. WITH
THE INPUT OF AGE, THE COMPUTER MAY SUGGEST A TARGET HEART RATE TO
EXERCISE. THE SUGGESTED HEART RATE IS 85% AS THE FORMULA CALCULATED 85%
( 220 AGE ). WITHOUT THE INPUT OF AGE, THE COMPUTER MAY SETUP THE DEFAULT
VALUE BE 161 AS FORMULA 85% ( 220 30 ). IF THE HEART RATE DETECTED EQUALS TO
OR GREATER THAN THE TARGET H.R., THE VALUE OF HEART RATE WILL KEEP FLASHING.

PLEASE NOTE THAT IT IS A WARNING FOR USERS TO SPEED DOWN OR TO LOWER THE
LEVEL OF LOADING.

E. BODY FAT PROGRAM :

PROGRAM 8 IS A SPECIAL PROGRAM DESIGNED TO CALCULATE USERS' BODY FAT RATIO

AND TO DESIGN A SPECIFIC LOADING PROFILE FOR USERS. WITH 9 DIFFERENT BODY

TYPES, THE COMPUTER CAN GENERATE 9 DIFFERENT PROFILES FOR EACH. PRESS
ENTER KEY TO SELECT GENDER, HEIGHT, WEIGHT, AND AGE. THEN, PRESS OR KEY
TO ADJUST THE VALUES. AFTER PRESSING START / PAUSE KEY TO CALCULATE BODY
FAT, PLEASE ALSO APPLY THE HEART RATE DETECTOR APPROPRIATELY. IF IT HAPPENS,
PRESS START / PAUSE KEY TO CALCULATE AGAIN. THEN, THE CALCULATION VALUES OF
FAT%, BMR, BMI, BODY TYPE, AND A DESIGNED PROFILE WILL SHOW UP SHORTLY.
PRESS START / PAUSE KEY TO EXERCISE. THE PROFILE SHOWN IN THE DISPLAY IS
SPECIALLY DESIGNED FOR YOUR BODY TYPE. THE TARGET HEART RATE WILL SETUP AS :
TYPE1~3 S 55% * ( 220-AGE ) TYPE4~6 IS 65% * ( 220-AGE ) TYPE7~9 IS 75%*( 220-AGE )
IF THE HEART RATE DETECTED EQUALS TO OR GREATER THAN THE TARGET H.R., THE
VALUE OF HEART RATE WILL KEEP FLASHING. PLEASE NOTE THAT IT IS A WARNING FOR
USERS TO SPEED DOWN OR TO LOWER THE LEVEL OF LOADING.

F. ERROR MESSAGE : " E3 "

ONCE YOU DO NOT PUT YOUR HANDS ON THE SENSOR OR FIRMLY GRASPED, THE
SCREEN WILL SHOW " E3 " .
TO SOLVE THIS PROBLEM, PLEASE PRESS THE MEASURE BUTTONS ONCE AGAIN, AND
HOLD ON THE SENSOR WITH STRAIGHT ARMS IMMEDIATELY. PLEASE DO NOT MOVE
YOUR BODY WHILE MEASURING.
NOTE : ONLY UNDER THE HAND PULSE FUNCTION AND THE BODY FAT WORKS.

G. HEART RATE CONTROL PROGRAMS :

PROGRAM 9 TO PROGRAM 12 ARE THE HEART RATE CONTROL PROGRAMS. IN
PROGRAM 9, PRESS ENTER KEY TO SELECT TIME ( OR DISTANCE ) AND TARGET H.R.
USERS MAY SETUP A TARGET HEART RATE TO EXERCISE IN A PERIOD OF TIME OR A
CERTAIN DISTANCE. IN PROGRAM 10 TO PROGRAM 12, PRESS ENTER KEY TO SELECT
TIME ( OR DISTANCE ) AND AGE. THEN, PRESS OR KEY TO ADJUST THE VALUES.
USERS MAY EXERCISE IN A PERIOD OF TIME OR A CERTAIN DISTANCE WITH 60% MAX
HEART RATE IN PROGRAM10, 75% MAX HEART RATE IN PROGRAM 11, AND 85% MAX
HEART RATE IN PROGRAM 12. AFTER PRESSING START / PAUSE KEY TO EXERCISE,
PLEASE ALSO APPLY THE HEART RATE DETECTOR APPROPRIATELY. IN THESE
PROGRAMS, THE COMPUTER WILL ADJUST THE LEVEL OF LOADING ACCORDING TO THE
HEART RATE DETECTED. FOR EXAMPLE, THE LEVEL OF LOADING MAY INCREASE WHILE
THE HEART RATE DETECTED IS LOWER THAN TARGET H.R. ALSO, THE LEVEL OF
LOADING MAY DECREASE WHILE THE HEART RATE DETECTED IS HIGHER THAN TARGET
H.R. AS A RESULT, THE USER'S HEART RATE WILL BE ADJUSTED TO CLOSE THE TARGET
H.R. IN THE RANGE OF TARGET H.R. 5 AND TARGET H.R. +5.

.

- 6 -

H. USER SETTING PROGRAMS :

PROGRAM 13 TO PROGRAM 14 ARE THE USER-SETTING PROGRAMS. USERS ARE FREE
TO EDIT THE VALUES IN THE ORDER OF TIME ( OR DISTANCE ), AGE, AND THE LEVEL OF
LOADING IN 10 COLUMNS. THE VALUES AND PROFILES WILL BE STORED IN THE MEMORY
AFTER SETUP. AFTER PRESSING START/PAUSE KEY TO EXERCISE, PLEASE ALSO APPLY
THE HEART RATE DETECTOR APPROPRIATELY. USERS MAY ALSO CHANGE THE ONGOING
LOADING IN EACH COLUMN BY PRESSING OR KEY, AND THEY WILL NOT CHANGE
THE LEVEL OF LOADING STORED IN THE MEMORY. WITH THE INPUT OF AGE, THE
COMPUTER MAY SUGGEST A TARGET HEART RATE TO EXERCISE. THE SUGGESTED
HEART RATE IS 85% AS THE FORMULA CALCULATED 85% ( 220 AGE ). WITHOUT THE
INPUT OF AGE, THE COMPUTER MAY SETUP THE DEFAULT VALUE BE 161 AS FORMULA
85% ( 220 30 ). IF THE HEART RATE DETECTED EQUALS TO OR GREATER THAN THE
TARGET H.R., THE VALUE OF HEART RATE WILL KEEP FLASHING. PLEASE NOTE THAT IT

IS A WARNING AND SUGGESTION FOR USERS TO SPEED DOWN OR TO LOWER THE
LEVEL OF LOADING.

I. WATT CONTROL PROGRAM :

PROGRAM 15 IS A WATT CONTROL PROGRAM ( INDEPENDENT SYSTEM ). PRESS ENTER
KEY TOSELECT THE VALUES OF TIME ( OR DISTANCE ), WATT, AND AGE. THEN,
PRESS OR KEY TO ADJUST THE VALUES. AFTER PRESSING START / PAUSE KEY TO
EXERCISE, PLEASE ALSO APPLY THE HEART RATE DETECTOR APPROPRIATELY. DURING
THE EXERCISE,THE LEVEL OF LOADING IS NOT ADJUSTABLE BY USER. IN THIS
PROGRAM , COMPUTER WILLADJUSTTHE LEVEL OF LOADING ACCORDING TO THE VALUE
OF WATT SETUP. FOR EXAMPLETHE LEVEL OF LOADING MAY INCREASE WHILE THE
SPEED IS TOO SLOW. ALSO, THE LEVEL OF LOADING MAY DECREASE WHILE THE SPEED
IS TOO FAST. AS ARESULT, THE CALCULATED VALUE OF WATT WILL CLOSE TO THE
VALUE OF WATT SETUP BY USERS. WITH THE INPUT OF AGE, THE COMPUTER MAY
SUGGEST A TARGET HEART RATE TO EXERCISE. THE SUGGESTED HEART RATE IS 85%
AS THE FORMULA CALCULATED 85% ( 220 AGE ). WITHOUT THE INPUT OF AGE, THE
COMPUTER MAY SETUP THE DEFAULT VALUE BE 161 AS FORMULA 85% ( 220 30 ). IF THE
HEART RATE DETECTED EQUALS TO OR GREATER THAN THE TARGET H.R., THE VALUE
OF HEART RATE WILL KEEP FLASHING. PLEASE NOTE THAT IT IS A WARNING AND
SUGGESTION FOR USERS TO SETUP LOWER WATT AGAIN.

J. PULSE RECOVERY :

IT IS A FUNCTION TO CHECK THE CONDITION OF PULSE RECOVERY WHEN STOP
EXERCISING THAT IS SCALED FROM F1.0 TO F6.0 WHILE F1.0 MEANS THE BEST AND F6.0
MEANS THE WORST AND THE INCREMENT IS 0.1. THIS FUNCTION MAY REFLECT YOUR
HEART PULSE RECOVERY ABILITY AND IMPROVE IT THROUGH EXERCISE. IN ORDER TO
GET RATED CORRECTLY, USERS MUST TEST IT RIGHT AFTER THE WORKOUT FINISHED
BY PRESSING RECOVERY KEY AND THEN STOP EXERCISING. AFTER THE KEY IS
PRESSED, PLEASE ALSO APPLY THE HEART RATE DETECTOR APPROPRIATELY. THE TEST
WILL LAST FOR 1 MINUTE AND THE RESULT WILL SHOW IN THE DISPLAY. WHEN PRESS
AGAIN WILL OUT OF PULSE RECOVERY MODE.

NOTE : PROGRAM 1 TO 14 IS DEPENDENT SYSTEM. PROGRAM 15 IS INDEPENDENT
SYSTEM ( WATT CONTROL PROGRAM ).
THE VALUE OF WATT CONSUMPTION, PLEASE REFER :

WATT TABLE ( DEPENDENT )

- 7 -

RPM

LEVER

L1 L2

L3

L4

L5

L6

L7

L8 L9 L10

L11 L12

L13

L14

L15 L16

2 0

3 0

4 0

5 0

6 0

7 0

8 0

9 0

1 0 0

5.2

11.4

17.3

26.8

35

42

53

64

72

8

17.9

28.4

42.7

49.5

63

80

97

117

10

22.9

35.4

52.5

64

82

103

124

152

12

26.6

41.6

63.3

78.5

94

119

145

179

14.2

31.2

49

74.2

93

112

139

168

213

16.3

18.5 20.2

22

23.7

26.8 28.8

32.8 33.6 37.3 38.9

36.4

41.7

45.4

51.3

54.7

59.3

64.9

68.3 73.2 80.3 81.3

56.9 65

71.3 78.3 83.2 94.3 101.3 113.3

118.7

129.3 137

87.6 99.9 109.1 120.5

131 146.3

158 166.9 175.1

193.1 203.9

107.5

122

132.5

151 165.5 175 194.5 209 220

238

252

131

151

163

182 190 208 228

237

251 260 287

163

188 205

227

232

264 285

308 324 335 363

196

250 285

313 352 380

415 458 480 504 546

575

227 247 274

279

316 342 369 386 399 433
