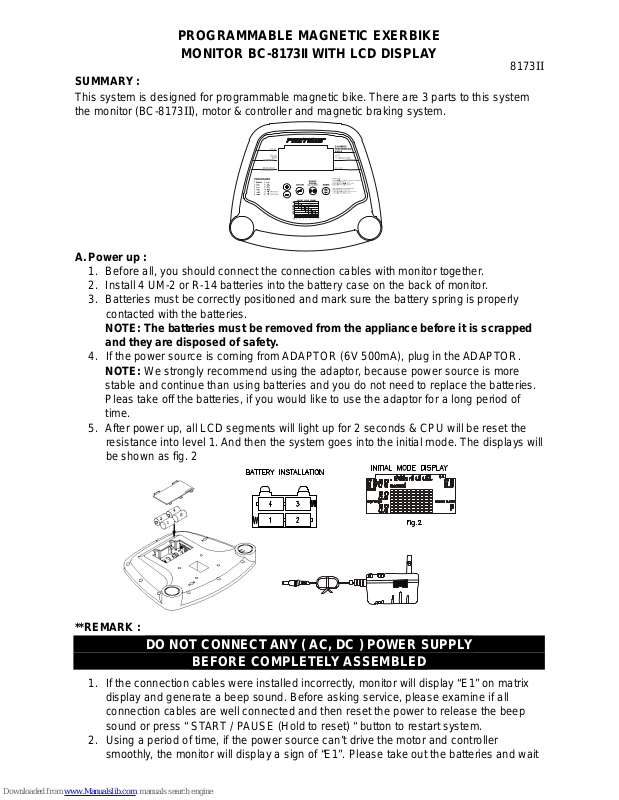

Proteus BC-8173II User Manual

PROGRAMMABLE MAGNETIC EXERBIKE

MONITOR BC-8173II WITH LCD DISPLAY

8173II

SUMMARY :

This system is designed for programmable magnetic bike. There are 3 parts to this system
the monitor (BC-8173II), motor & controller and magnetic braking system.

A. Power up :

1. Before all, you should connect the connection cables with monitor together.

2. Install 4 UM-2 or R-14 batteries into the battery case on the back of monitor.

3. Batteries must be correctly positioned and mark sure the battery spring is properly
contacted with the batteries.

NOTE: The batteries must be removed from the appliance before it is scrapped
and they are disposed of safety.

4. If the power source is coming from ADAPTOR (6V 500mA), plug in the ADAPTOR.
NOTE: We strongly recommend using the adaptor, because power source is more
stable and continue than using batteries and you do not need to replace the batteries.
Pleas take off the batteries, if you would like to use the adaptor for a long period of
time.

5. After power up, all LCD segments will light up for 2 seconds & CPU will be reset the
resistance into level 1. And then the system goes into the initial mode. The displays will
be shown as fig. 2

**REMARK :

DO NOT CONNECT ANY ( AC, DC ) POWER SUPPLY

BEFORE COMPLETELY ASSEMBLED

1. If the connection cables were installed incorrectly, monitor will display “E1” on matrix
display and generate a beep sound. Before asking service, please examine if all
connection cables are well connected and then reset the power to release the beep
sound or press “ START / PAUSE (Hold to reset) “ button to restart system.

2. Using a period of time, if the power source can’t drive the motor and controller
smoothly, the monitor will display a sign of “E1”. Please take out the batteries and wait

for 15 seconds, and then reinstall the new batteries. If the monitor still shows “E1” and
beeps, please call service man.

3. If the monitor shows “ E2 ”message, please call service man.

B. Clock and Date Setting:

1) After power on the monitor, the top of the LCD will display “ PM 12:00 00 01D01M03Y”
and the hour display will flash.

2) Press ♁ or \ button to set up the hour value and then press the ENTER button to
confirm your setting value.

3) Minute display will flash. Press ♁ or \ button to set up the minute value and then
press the ENTER button to confirm your setting value.

4) The Letter of E will flash. It is means the language is English. Press ♁ or \ button to
choose the language you prefer to use. E means English; D means German; F means
French; I means Italian; S means Spanish; A means USA. The indication of date is
Month-Day-Year in USA and the others are Day-Month-Year.

5) The year display will flash. Press ♁ or \ button to set up the year value and then
press the ENTER button to confirm your setting value.

6) The month display will flash. Press ♁ or \ button to set up the month value and then
press the ENTER button to confirm your setting value.

7) The day display will flash. Press ♁ or \ button to set up the day value and then
press the ENTER button to confirm your setting value.

8) The display will go to the program 1.

Note:
If you would like to set alarm, cancel alarm or change clock and date setting, press the
♁ or \ button in the stop mode and go to the clock setting program. This program is
located behind of the program 12 and the window will show SET.

1. Hold the START/PAUSE button two seconds to enter the alarm setting. The
operating procedure is same as the clock setting above.

2. Press the START/ PAUSE to choose with alarm or without alarm function. With
alarm function, the window will display the bell picture. Without alarm function, the
bell picture will disappear from the window.

3. Hold the ENTER button two seconds to enter the clock and date modify function.
The operating procedure is same as the clock above.

Note:
When take off the adaptor or run out of battery will clear the data of clock and date.

C. KEY BOARD:

1. MODE : Change the display of Speed & Cal. Functions to RPM & Performance value
functions, and keep the other functions as the same.

2. ENTER : During PAUSE mode, press ENTER key to enter Time or Age(only in 11

th

&

12th program) setting.

3. START/PAUSE : To start or pause exercising.

Hold this button for 2 seconds can enter initial mode & reset all value
to zero.

4. ♁ : Selects Program or sets up the values of load level, time and age. Or set up the
values of clock, date and alarm.

5. \ : Selects Program or sets down the values of load level, time and age. Or set up the
values of clock, date and alarm.

D. OPERATING STEPS :

This system contains of 12 different programs and you can preset the workout time and
system will divide the time by 10 intervals. If you don’t preset workout time, system will
