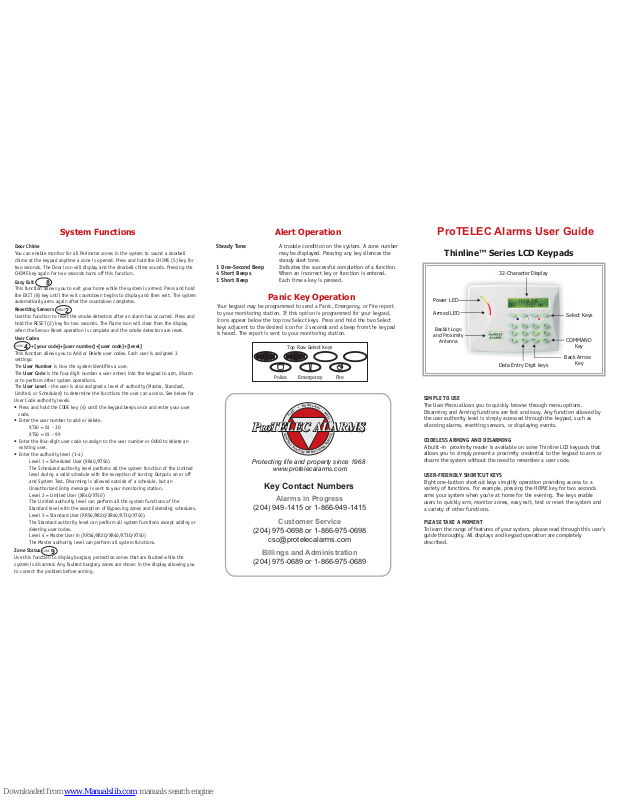

Thinline™ Series LCD Keypads
System Functions
ProTELEC Alarms User Guide
SIMPLE TO USE
The User Menu allows you to quickly browse through menu options.
Disarming and Arming functions are fast and easy. Any function allowed by
the user authority level is simply accessed through the keypad, such as
silencing alarms, resetting sensors, or displaying events.
CODELESS ARMING AND DISARMING
A built-in proximity reader is available on some Thinline LCD keypads that
allows you to simply present a proximity credential to the keypad to arm or
disarm the system without the need to remember a user code.
USER-FRIENDLY SHORTCUT KEYS
Eight one-button shortcut keys simplify operation providing access to a
variety of functions. For example, pressing the HOME key for two seconds
arms your system when you're at home for the evening. The keys enable
users to quickly arm, monitor zones, easy exit, test or reset the system and
a variety of other functions.
PLEASE TAKE A MOMENT
To learn the range of features of your system, please read through this user's
guide thoroughly. All displays and keypad operation are completely
described.
Door Chime
You can enable monitor for all Perimeter zones in the system to sound a doorbell
chime at the keypad anytime a zone is opened. Press and hold the CHIME (5) key for
two seconds. The Door icon will display and the doorbell chime sounds. Pressing the
CHIME key again for two seconds turns off this function.
Easy Exit
This function allows you to exit your home while the system is armed. Press and hold
the EXIT (8) key until the exit countdown begins to display and then exit. The system
automatically arms again after the countdown completes.
Resetting Sensors
Use this function to reset the smoke detectors after an alarm has occurred. Press and
hold the RESET (2) key for two seconds. The Flame icon will clear from the display
when the Sensor Reset operation is complete and the smoke detectors are reset.
User Codes
+[your code]+[user number]+[user code]+[level]
This function allows you to Add or Delete user codes. Each user is assigned 3
settings:
The User Number is how the system identifies a user.
The User Code is the four digit number a user enters into the keypad to arm, disarm
or to perform other system operations.
The User Level - the user is also assigned a level of authority (Master, Standard,
Limited, or Scheduled) to determine the functions the user can access. See below for
User Code authority levels.
• Press and hold the CODE key (4) until the keypad beeps once and enter your user
code.
• Enter the user number to add or delete.
XT30 = 01 - 30
XT50 = 01 - 99
• Enter the four-digit user code to assign to the user number or 0000 to delete an
existing user.
• Enter the authority level (1-4)
Level 1 = Scheduled User (XR40/XT50)
The Scheduled authority level performs all the system function of the Limited
level during a valid schedule with the exception of turning Outputs on or off
and System Test. Disarming is allowed outside of a schedule, but an
Unauthorized Entry message is sent to your monitoring station.
Level 2 = Limited User (XR40/XT50)
The Limited authority level can perform all the system functions of the
Standard level with the exception of Bypassing zones and Extending schedules.
Level 3 = Standard User (XRS6/XR20/XR40/XT30/XT50)
The Standard authority level can perform all system functions except adding or
deleting user codes.
Level 4 = Master User in (XRS6/XR20/XR40/XT30/XT50)
The Master authority level can perform all system functions.
Zone Status
Use this function to display burglary protection zones that are faulted while the
system is disarmed. Any faulted burglary zones are shown in the display allowing you
to correct the problem before arming.
8
RESET
2
CODE
4
ZONE
9
Alert Operation
Panic Key Operation
Top Row Select Keys
Police Emergency Fire
Protecting life and property since 1968
Alarms in Progress
Customer Service
Billings and Administration
(204) 949-1415 or 1-866-949-1415
(204) 975-0698 or 1-866-975-0698
csc@protelecalarms.com
(204) 975-0689 or 1-866-975-0689
www.protelecalarms.com
Key Contact Numbers
R
G
U
L
A
B
R
•
Y
•
E
M
R
I
E
F
D
I
C
C
E
E
C
N
I
T
V
R
R
A
E
L
S
S
G
T
N
A
I
T
R
I
O
O
N
T
I
N
M
O
PROTELEC ALARMSPROTELEC ALARMS
PROTELEC ALARMSPROTELEC ALARMS
Your keypad may be programmed to send a Panic, Emergency, or Fire report
to your monitoring station. If this option is programmed for your keypad,
icons appear below the top row Select keys. Press and hold the two Select
keys adjacent to the desired icon for 2 seconds and a beep from the keypad
is heard. The report is sent to your monitoring station.
Steady Tone A trouble condition on the system. A zone number
may be displayed. Pressing any key silences the
steady alert tone.
1 One-Second Beep Indicates the successful completion of a function.
4 Short Beeps When an incorrect key or function is entered.
1 Short Beep Each time a key is pressed.
32-Character Display
Armed LED
Power LED
Data Entry Digit keys
COMMAND
Key
Back Arrow
Key
Select Keys
Backlit Logo
and Proximity
Antenna
Arming the System
Disarming the System
Arming a Home/Sleep/Away System
1. Enter your user code or present a proximity credential. The keypad displays
HOME AWAY or HOME SLEEP AWAY (you may have three areas).
2. Select HOME to arm the Perimeter only.
3. Select SLEEP to arm the Perimeter and Interior.
4. Select AWAY to arm the Perimeter, Interior, and Bedroom.
5. The system displays any faulted and bypassed zones in the following
order: faulted burglary zones, bypassed burglary zones, faulted 24-hour
zones, and bypassed 24-hour zones.
6. At this point you can force arm or bypass any faulted burglary zones. A
zone that is force armed is restored into the system if it later returns to
normal. A zone that is bypassed remains bypassed until the system is
disarmed. See steps 6a through 6d.
6a. If a problem exists on any zones, the zone name and problem display
followed by: OKAY BYPASS STOP.
6b. Select OKAY to force arm the zone(s) before arming.
6c. Select BYPASS to bypass the zone(s) before arming.
6d. Select STOP to stop the system from arming. Correct the zone
problem(s) and return to step 1.
7. The keypad displays HOME SYSTEM ON if you selected HOME, or SLEEP
SYSTEM ON if you selected SLEEP, or ALL SYSTEM ON if you selected
AWAY.
8. The keypad next displays EXIT: ## INSTNT and begins to count down the
number of seconds remaining for you to exit. The keypad sounds the exit
delay alert and when the delay expires, all zones are armed.
9. You can select INSTNT while EXIT: ## INSTNT displays to immediately arm
all zones and make them instant. The keypad displays INSTANT. When you
select INSTANT, any entry/exit zone that trips immediately activates an
alarm and the exit delay countdown immediately stops.
10. When the system is armed, the keypad displays HOME SYSTEM ON for
Perimeter arming, SLEEP SYSTEM ON for Perimeter and Interior arming,
and ALL SYSTEM ON for all areas armed.
Arming with Shortcut Keys
While the system is disarmed, press and hold the ALL, HOME, PERIM or
SLEEP key for two seconds to arm your system.
ALL arms the entire system.
HOME or PERIM arms the Perimeter zones leaving the Interior
disarmed.
SLEEP arms the Perimeter and Interior zones leaving the sleeping
area disarmed. (optional)
Disarming a Sleep/Away System
1. During entry delay, the keypad displays ENTER CODE:. Enter your user
code or present a proximity credential.
2. The keypad then displays any alarms or communication problems that
occurred during the armed period.
3. The keypad next displays ALL SYSTEM OFF to confirm the system is
disarmed.
Disarming During an Alarm
Enter your user code or present a proximity credential to silence the siren
leaving the system armed.
After a user code is entered to silence the siren, CANCEL/VERIFY displays
allowing you time to investigate a burglary alarm prior to disarming the
system.
If a valid alarm has not occurred, choosing CANCEL disarms
the system and sends a Cancel or Abort message to the
Central Station.
If the alarm is valid, choosing VERIFY sends a Verify
message to the Central Station. The system remains armed
to provide continued intrusion detection.
System Test is used to test the battery, alarm bell or siren, and central
station communication. The System Test function begins automatically as
soon as you select it.
Using the System Test Function
1. Access the User Menu.
2. Press the COMMAND key until SYSTEM TEST? displays.
3. Press any Select key. The system test begins automatically and the keypad
displays:
1) BELL SOUNDING during a two second bell test, then:
2) KEYPAD SOUNDING during a two second keypad test, then:
3) BATTERY - OKAY or BATTERY - TRBL to indicate the battery condition,
then:
4) TRANSMIT TEST * and ATTEMPT NO : 1 during the transmit test, then:
5) TRANSMIT OKAY or TRANSMIT FAILED to show the transmit test
results, then:
6) TEST END to indicate the System Test is complete.
7) Press the Back Arrow key to end the system test.
System Test
Keypad Shortcut Keys

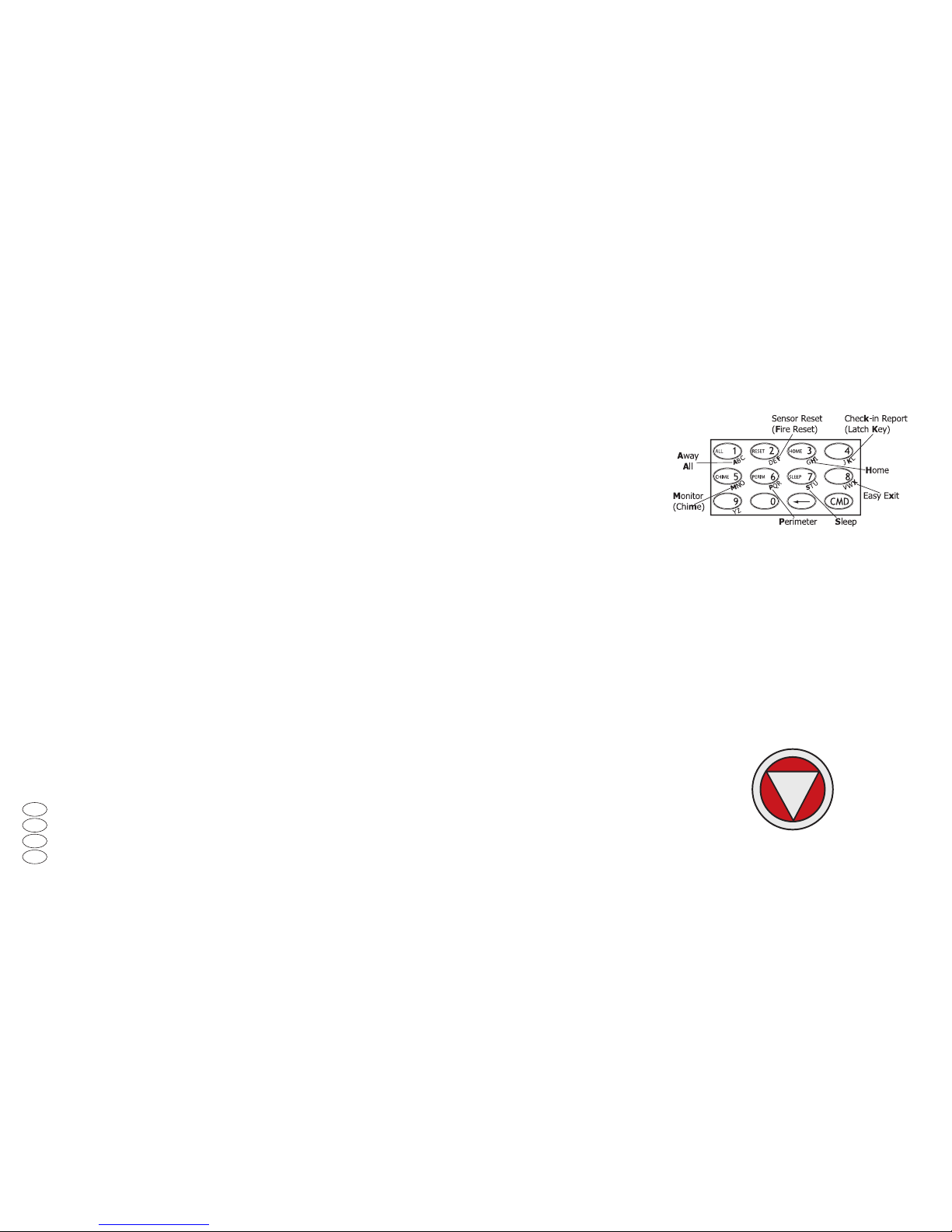

Your LCD keypad provides one-button shortcut keys. Holding down a keypad
button for two seconds until the tone re-sounds allows you to arm, monitor
or reset your system. These options can still be accessed through the User
Menu if desired.
Keypad Shortcut Keys
Keypad Key Arming System Operation
Press Key 1 Arm Away for Home/Sleep/Away systems Arm All
for All/Perimeter systems
Press Key 2 Sensor (Fire) Reset on all systems
Press Key 3 Arm Home for Home/Sleep/Away systems
Press Key 4 Check-in Report on all systems
Press Key 5 Monitor (Chime) on all systems
Press Key 6 Arm Perimeter for All/Perimeter systems
Press Key 7 Arm Sleep for Home/Sleep/Away systems
Press Key 8 Easy Exit for Home/Sleep/Away systems
