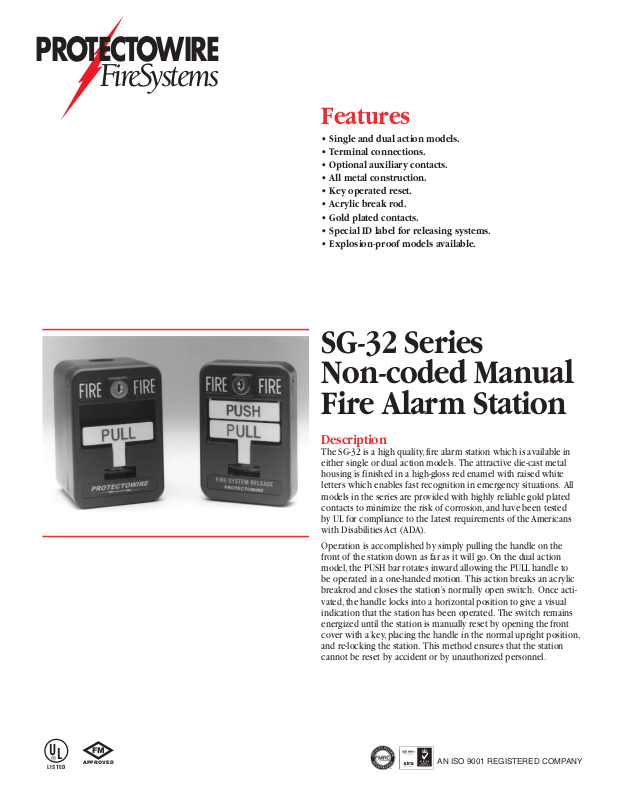

PROTECTOWIRE SG-32 Specifications

Page 1

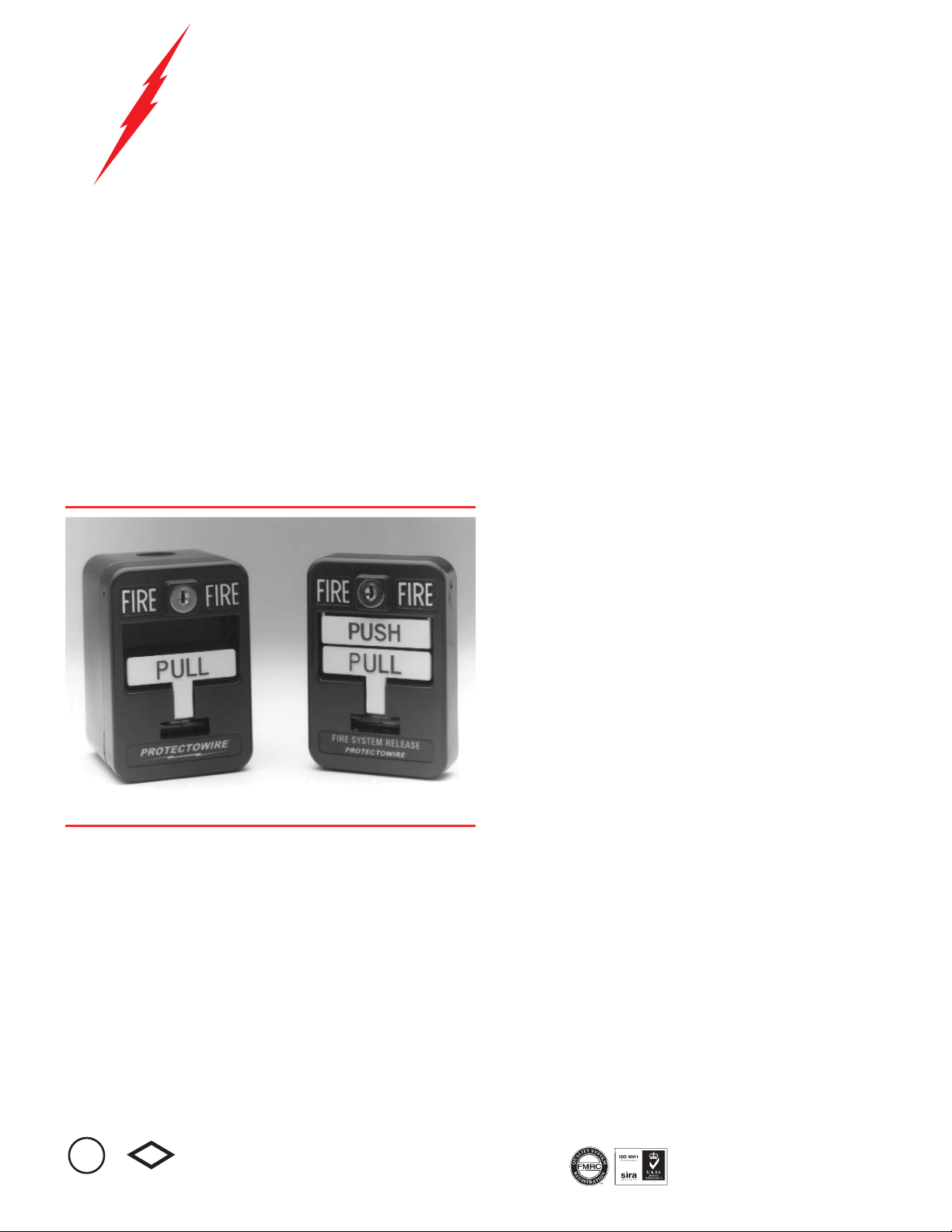

SG-32 Series Non-coded Manual Fire Alarm Station

Description

The SG-32 is a high quality, fire alarm station which is available in either single or dual action models. The attractive die-cast metal housing is finished in a high-gloss red enamel with raised white letters which enables fast recognition in emergency situations. All models in the series are provided with highly reliable gold plated contacts to minimize the risk of corrosion, and have been tested by UL for compliance to the latest requirements of the Americans with Disabilities Act (ADA).

Operation is accomplished by simply pulling the handle on the front of the station down as far as it will go.On the dual action model, the PUSH bar rotates inward allowing the PULL handle to be operated in a one-handed motion. This action breaks an acrylic breakrod and closes the station’s normally open switch. Once activated, the handle locks into a horizontal position to give a visual indication that the station has been operated. The switch remains energized until the station is manually reset by opening the front cover with a key, placing the handle in the normal upright position, and re-locking the station. This method ensures that the station cannot be reset by accident or by unauthorized personnel.

Features

• Single and dual action models.

• Terminal connections.

• Optional auxiliary contacts.

• All metal construction.

• Key operated reset.

• Acrylic break rod.

• Gold plated contacts.

• Special ID label for releasing systems.

• Explosion-proof models available.

PROTECTOWIRE

AN ISO 9001 REGISTERED COMPANY

FireSystems

LISTED

APPROVED

Page 2

Specifications

• Switch rating: 1 amp, 30VDC; SGX models -5 amp, 30 VDC

• Pull Station Dimensions: 4 3/4” H x 3 1/4”W x 1” D; SGX models – 6 5/16” H x 3 1/4”W x 3 7/8” D

• Surface Backbox Dimensions: 4 3/4” H x 3 1/4”W x 2 1/4” D

• All models are supplied with one acrylic breakrod,one key, and a special label.

• Classifications for SGX-32 models only:Class I, Groups B, C, and D; Class II, Groups E, F, and G; Class III, hazardous environments; and NEMA 4X, weatherproof applications.

Ordering Information

Explosion-Proof

Model No. Single Action Dual Action SPST DPST DPDT Weatherproof

SG-32SK2 X – X – – – SG-32SK1 – X X – – – SG-32AXK2 X – – X – – SGX-32SK2 X – – – X X SGX-32SK1 – X – – X X

Accessories

SGB-32S Interior surface backbox - red SG-GR Acrylic breakrods (1 dozen/pack)

Approvals

• UL Listed • Factory Mutual • City of New York #MEA-382-94-E

• Calif. State Fire Marshal Listing #7150-1408:107 • ADA Compliant

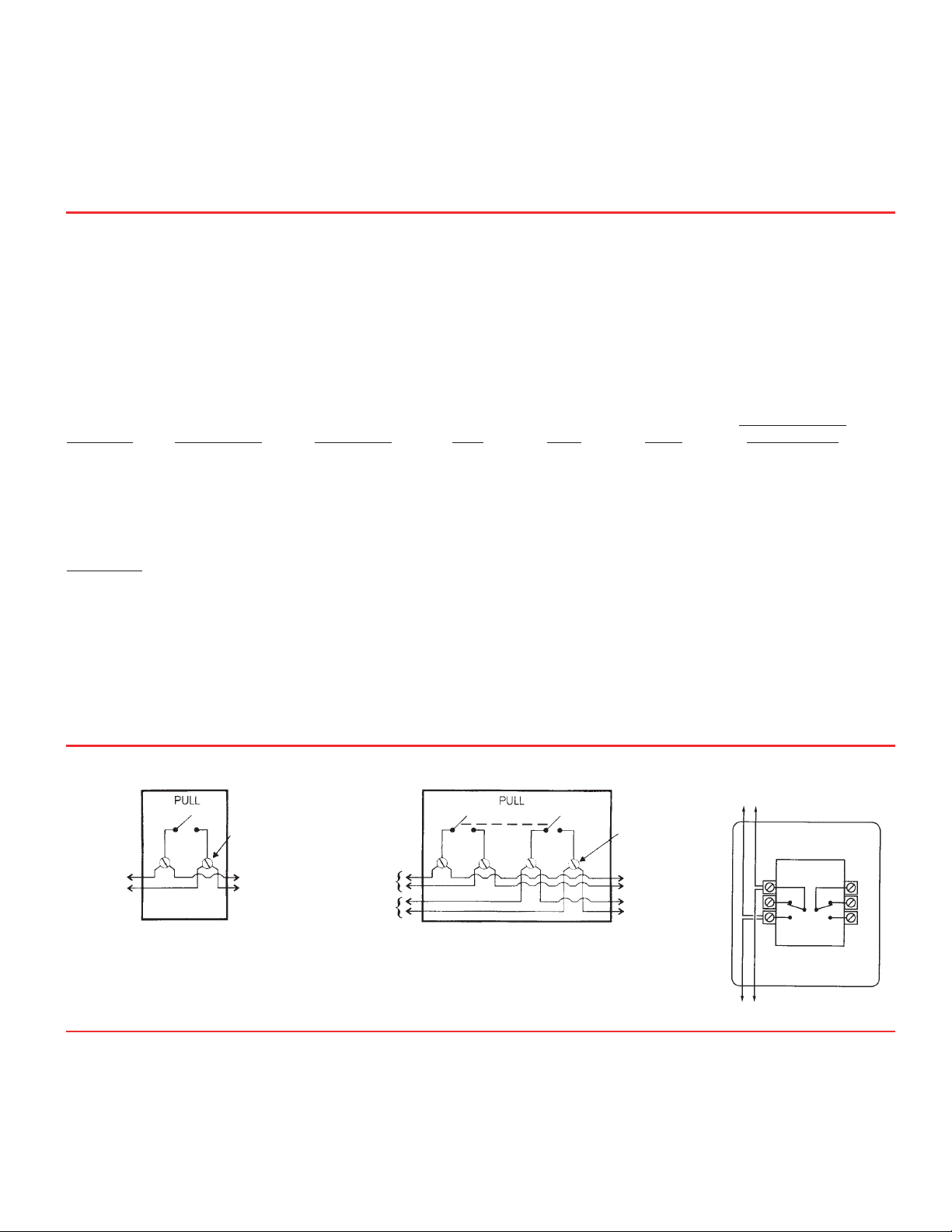

Wiring Diagrams

All SG-32S models are provided with a normally open SPST switch. The SG-32AX model is supplied with a DPST normally open switch for applications where activation of remote auxiliary functions is required. All models mount on a standard single gang backbox, and are provided with terminal connectors, gold plated switch contacts, and a key operated reset feature.For extinguishing system applications, a field installed special identification label which reads “FIRE SYSTEM RELEASE” is also provided. In order to accommodate a wide

range of installation requirements,a red surface mounted interior backbox, Model SGB-32S, is also optionally available.

The SGX-32 models are die-cast metal, explosion-proof stations available in either single or dual action configurations.They are UL Listed and Factory Mutual Approved for use in hazardous environments and NEMA 4X, weatherproof applications.The SGX-32 models have a DPDT switch with terminal connectors.The contacts are gold plated to reduce risk of corrosion and are rated for 5 amps at 30 VDC.

SG-32S

SG-32AX

To Fire

Alarm

Control

Panel

To next

device

or ELR

To next device or ELR

Auxiliary

Alarm

Circuit

Screw

Terminals

To FACP

Screw

Terminals

SGX-32

The Protectowire Company, Inc.

Post Office Box 200, Hanover, MA 02339-0200 U.S.A. 781-826-3878, Fax 781-826-2045

Web: http://www.protectowire.com e-mail: [email protected]

Special hazard fire detection systems

To Fire Alarm Control Panel

To Next Device or ELR
