Page 1
Hybrid
6HULHV Standalone DVR User’s Manual
Page 2
Table of Contents
1 FEATURES AND SPECIFICATIONS ..................................................... 11
1.1 Overview ........................................................................................................................... 11
1.2 Features ............................................................................................................................ 11
1.3 Specifications ................................................................................................................... 12
2 OVERVIEW AND CONTROLS ............................................................... 17
2.1 Front Panel ....................................................................................................................... 17
2.2 Rear Panel ........................................................................................................................ 19
2.3 Connection Sample .......................................................................................................... 20
2.4 Remote Control ................................................................................................................ 21
2.5 Mouse Control .................................................................................................................. 23
2.6 Virtual Keyboard & Front Panel....................................................................................... 24
2.6.1 Virtual Keyboard .......................................................................................................... 24
2.6.2 Front Panel ................................................................................................................... 25
3 INSTALLATION AND CONNECTIONS .................................................. 26
3.1 Check Unpacked DVR ..................................................................................................... 26
Page 3
3.2 About Front Panel and Real Panel ................................................................................. 26
3.3 HDD Installation ............................................................................................................... 26
3.4 Rack Installation ............................................................................................................... 27
3.5 Connecting Power Supply ............................................................................................... 27
3.6 Connecting Video Input and Output Devices ................................................................. 27
3.6.1 Connecting Video Input ............................................................................................... 27
3.7 Connecting Audio Input & Output, Bidirectional Audio .................................................. 28
3.7.1 Audio Input ................................................................................................................... 28
3.7.2 Audio Output ................................................................................................................ 28
3.8 Alarm Input and Output Connection ............................................................................... 29
3.8.1 Alarm Input and Output Details .................................................................................. 30
3.8.2 Alarm Input Port ........................................................................................................... 31
3.8.3 Alarm Output Port ........................................................................................................ 31
3.9 RS485 ............................................................................................................................... 32
4 OVERVIEW OF NAVIGATION AND CONTROLS .................................. 33
4.1 Login, Logout & Main Menu ............................................................................................ 33
4.1.1 Login ................................................................................................ ............................. 33
4.1.2 Main Menu.................................................................................................................... 34
4.1.3 Logout ........................................................................................................................... 34
4.1.4 Auto Resume after Power Failure .............................................................................. 35
4.1.5 Replace Button Battery ............................................................................................... 35
4.2 Manual Record ................................................................ ................................................. 35
4.2.1 Live Viewing ................................................................................................................. 35
4.2.2 Manual record .............................................................................................................. 36
Page 4
4.3 Search & Playback ........................................................................................................... 38
4.4 Schedule ........................................................................................................................... 41
4.4.1 Schedule Menu ................................................................................................................. 41
4.4.2 Snapshot ...................................................................................................................... 43
4.4.3 Image FTP.................................................................................................................... 45
4.4.4 Snapshot Disk (For special series only) ..................................................................... 45
4.5 Detect ................................................................................................................................ 46
4.5.1 Go to Detect Menu ........................................................................................................... 46
4.5.2 Motion Detect .................................................................................................................... 46
4.5.3 Video Loss......................................................................................................................... 49
4.5.4 Camera Masking .............................................................................................................. 49
4.6 Alarm Setup and Alarm Activation .................................................................................. 50
4.6.1 Go to alarm setup interface ......................................................................................... 50
4.6.2 Alarm setup .................................................................................................................. 50
4.7 Backup .............................................................................................................................. 52
4.7.1 Detect Device ................................................................................................................... 52
4.7.1 Backup .......................................................................................................................... 53
4.8 PTZ Control and Color Setup .......................................................................................... 54
4.8.1 Cable Connection ............................................................................................................. 54
4.8.2 PTZ Setup ......................................................................................................................... 54
4.8.3 3D Intelligent Positioning Key ......................................................................................... 56
4.9 Preset/ Patrol/Pattern/Scan ............................................................................................. 56
4.9.1Preset Setup...................................................................................................................... 57
4.9.2 Activate Preset ................................................................................................................. 58
4.9.3 Patrol setup (Tour Setup) ................................................................................................ 58
4.9.4 Activate Patrol (tour) ........................................................................................................ 58
4.9.5 Pattern Setup ................................................................................................................... 58
4.9.6 Activate Pattern Function ................................................................................................ 59
4.9.7 Auto Scan Setup .............................................................................................................. 59
4.9.8 Activate Auto Scan .......................................................................................................... 59
4.10 Flip ................................................................ ..................................................................... 59
Page 5
5 UNDERSTANDING OF MENU OPERATIONS AND CONTROLS ......... 60
5.1 Menu Tree ........................................................................................................................ 60
5.2 Main Menu ................................................................................................ ........................ 60
5.3 Setting ............................................................................................................................... 61
5.3.1 General ......................................................................................................................... 61
5.3.2 Encode ......................................................................................................................... 63
5.3.3 Schedule ...................................................................................................................... 64
5.3.4 RS232 ........................................................................................................................... 64
5.3.5 Network ........................................................................................................................ 65
5.3.6 Alarm ............................................................................................................................ 74
5.3.7 Detect ........................................................................................................................... 74
5.3.8 Pan/Tilt/Zoom ............................................................................................................... 74
5.3.9 Display .......................................................................................................................... 75
5.3.10 Default ...................................................................................................................... 77
5.4 Search ............................................................................................................................... 78
5.5 Advanced .......................................................................................................................... 78
5.5.1 HDD Management ................................................................ ....................................... 78
5.5.2 Abnormity ..................................................................................................................... 82
5.5.3 Alarm Output ................................................................................................................ 82
5.5.4 Manual Record............................................................................................................. 83
5.5.5 Account......................................................................................................................... 83
5.5.6 Auto Maintain ................................................................................................ ............... 85
5.5.7 TV Adjust ...................................................................................................................... 86
5.5.8 Video Matrix ................................................................................................................. 86
5.5.9 Remote Device ............................................................................................................ 87
5.5.10 Text Overlay ............................................................................................................ 88
5.5.11 Config File Backup .................................................................................................. 90
5.6 Information ........................................................................................................................ 90
5.6.1 HDD Information .......................................................................................................... 91
5.6.2 BPS ............................................................................................................................... 92
5.6.3 Log ................................................................................................................................ 92
5.6.4 Version ......................................................................................................................... 93
5.6.5 Online Users ................................................................................................................ 94
Page 6
5.7 Shutdown .......................................................................................................................... 94
6 ABOUT AUXILIARY MENU .................................................................... 96
6.1 Go to Pan/Tilt/Zoom Menu .............................................................................................. 96
6.1.1 3D Intelligent Positioning Key ................................ ..................................................... 97
6.2 Preset /Patrol / Pattern /Border Function .................................................................. 97
6.2.1 Preset Setup ................................................................................................................ 98
6.2.2 Activate Preset ............................................................................................................. 98
6.2.3 Patrol Setup ................................................................................................................. 98
6.2.4 Activate Patrol ................................................................................................ .............. 99
6.2.5 Pattern Setup ................................................................................................ ............... 99
6.2.6 Activate Pattern Function ................................ ............................................................ 99
6.2.7 Border Setup ................................................................................................................ 99
6.2.8 Activate Border Function ........................................................................................... 100
6.2.9 Flip .............................................................................................................................. 100
7 WEB CLIENT OPERATION .................................................................. 101
7.1 Network Connection ....................................................................................................... 101
7.2 Login................................................................................................................................ 101
7.2.1 Real-time Monitor ...................................................................................................... 104
7.2.2 PTZ ............................................................................................................................. 106
7.2.3 Color ........................................................................................................................... 108
7.2.4 Picture Path and Record Path .................................................................................. 109
7.3 Configure ........................................................................................................................ 110
7.3.1 System Information .................................................................................................... 110
7.3.2 System Configuration ................................................................................................ 112
7.3.3 Advanced ................................................................................................................... 133
7.3.4 Additional Function .................................................................................................... 140
7.4 Search ............................................................................................................................. 142
Page 7
7.5 Alarm ............................................................................................................................... 146
7.6 About ............................................................................................................................... 147
7.7 Log out ............................................................................................................................ 147
7.8 Un-install Web Control ................................................................................................... 148
8 PROFESSIONAL SURVEILLANCE SYSTEM ...................................... 149
9 FAQ ...................................................................................................... 150
APPENDIX A HDD CAPACITY CALCULATION ....................................... 155
APPENDIX B COMPATIBLE BACKUP DEVICES ....................................... 157
Appendix B-1 Compatible USB list ............................................................................................. 157
Appendix B-2 Compatible SD Card list ................................................................................. 158
Appendix B-3 Compatible Portable HDD list ........................................................................ 158
Appendix B-4 Compatible USB DVD List ............................................................................. 158
Appendix B-5 Compatible SATA DVD List................................................................................. 158
Appendix B-6 Compatible SATA HDD List ............................................................................. 159
APPENDIX C COMPATIBLE CD/DVD BURNER LIST ............................. 162
Page 8
APPENDIX D COMPATIBLE DISPLAYER LIST ....................................... 163
APPENDIX E COMPATIBLE SWITCHER ................................................... 164
APPENDIX F COMPATIBLE WIRELESS MOUSE LIST ........................... 165
APPENDIX G EARTHING ......................................................................... 166
APPENDIX H TOXIC OR HAZARDOUS MATERIALS OR ELEMENTS ...... 172
Page 9
Welcome
Thank you for purchasing our DVR!
This user’s manual is designed to be a reference tool for the installation and operation of
your system.
Here you can find information about this series hybrid standalone DVR features and
functions, as well as a detailed menu tree.
Before installation and operation please read the following safeguards and warnings
carefully!
Page 10
Important Safeguards and Warnings
1．Electrical safety
All installation and operation here should conform to your local electrical safety codes.
We assume no liability or responsibility for all the fires or electrical shock caused by
improper handling or installation.
2．Transportation security
Heavy stress, violent vibration or water splash are not allowed during transportation,
storage and installation.
3．Installation
Keep upwards. Handle with care.
Do not apply power to the DVR before completing installation.
Do not place objects on the DVR
4．Qualified engineers needed
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted
repair.
5．Environment
The DVR should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
6. Accessories
Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.
7. Lithium battery
Improper battery use may result in fire, explosion, or personal injury!
When replace the battery, please make sure you are using the same model!
Page 11
1 FEATURES AND SPECIFICATIONS
1.1 Overview
The hybrid standalone series DVR is an excellent digital monitor product designed for
security field.
It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression
algorithm and G.711 audio compression technology realize high quality, low bit stream.
Unique frame by frame play function is suitable for detailed analysis. It has various
functions such as record, playback, monitor at the same time and can guarantee audio
video synchronization. This series product has advanced technology and strong network
data transmission function.
This series device adopts embedded design to achieve high security and reliability. It can
work in the local end, and at the same time, when connecting it to the professional
surveillance software (PSS), it can connect to the security network to realize strong
network and remote monitor function.
This series product can be widely used in various areas such as banking,
telecommunication, electric power, interrogation, transportation, intelligent resident zone,
factory, warehouse, resources, and water conservancy.
1.2 Features
This series product has the following features:
Analog and digital mixed input
Support analog and digital signal simultaneously. It can connect to multiple-channel high
definition IPC.
Real-time surveillance
Support analog output port, VGA port and HDMI port. Realize the surveillance through the
monitor or displayer. Support HDMI, VGA, and TV output at the same time.
Storage function
Special data format to guarantee data security and can remove the risk of the vicious data
modification. Support digital watermark.
Compression format
Support multiple-channel audio and video. An independent hardware decodes the audio
and video signal from each channel to maintain video and audio synchronization.
Backup function
Support backup operation via USB port (such as U disk, portable HDD, burner)
Page 12
Client-end user can download the file to local HDD to backup via network.
Record & playback function
Support each channel real-time record independently, and at the same time it can support
search, forward play, network monitor, record search, download and etc.
Support various playback modes: slow play, fast play, backward play and frame by frame
play.
Support time title overlay so that you can view event accurate occurred time
Support customized zoom function during the preview.
Network operation
Support network remote real-time monitor, remote record search and remote PTZ control.
Alarm activation function
Several relay alarm outputs to realize alarm activation and on-site light control.
The alarm input port and output has the protection circuit to guarantee device safety.
Communication port
RS485 port can realize alarm input and PTZ control.
RS232 port can connect to keyboard to realize central control, and can also connect to PC
COM to upgrade system and realize maintenance, and matrix control.
Standard Ethernet port can realize network access function.

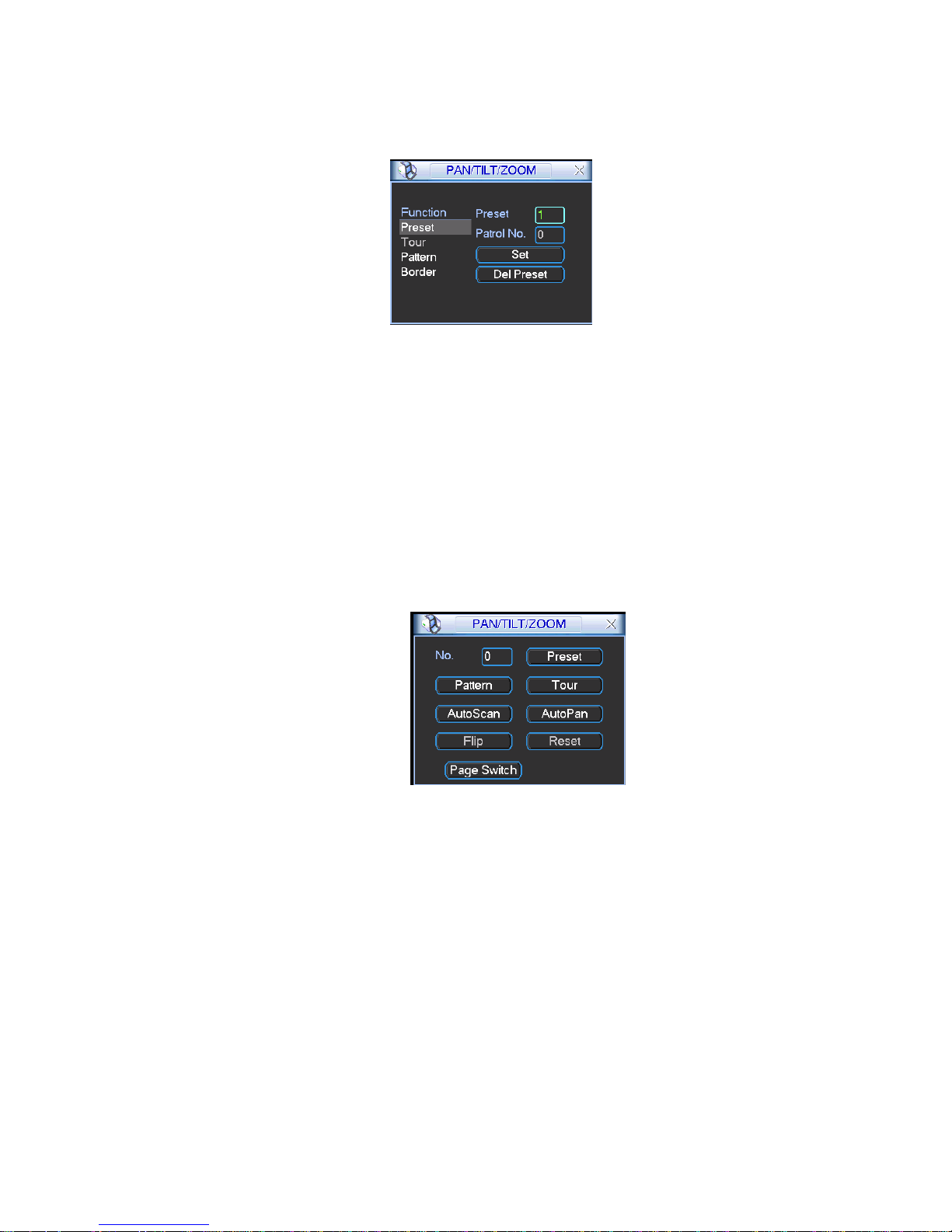

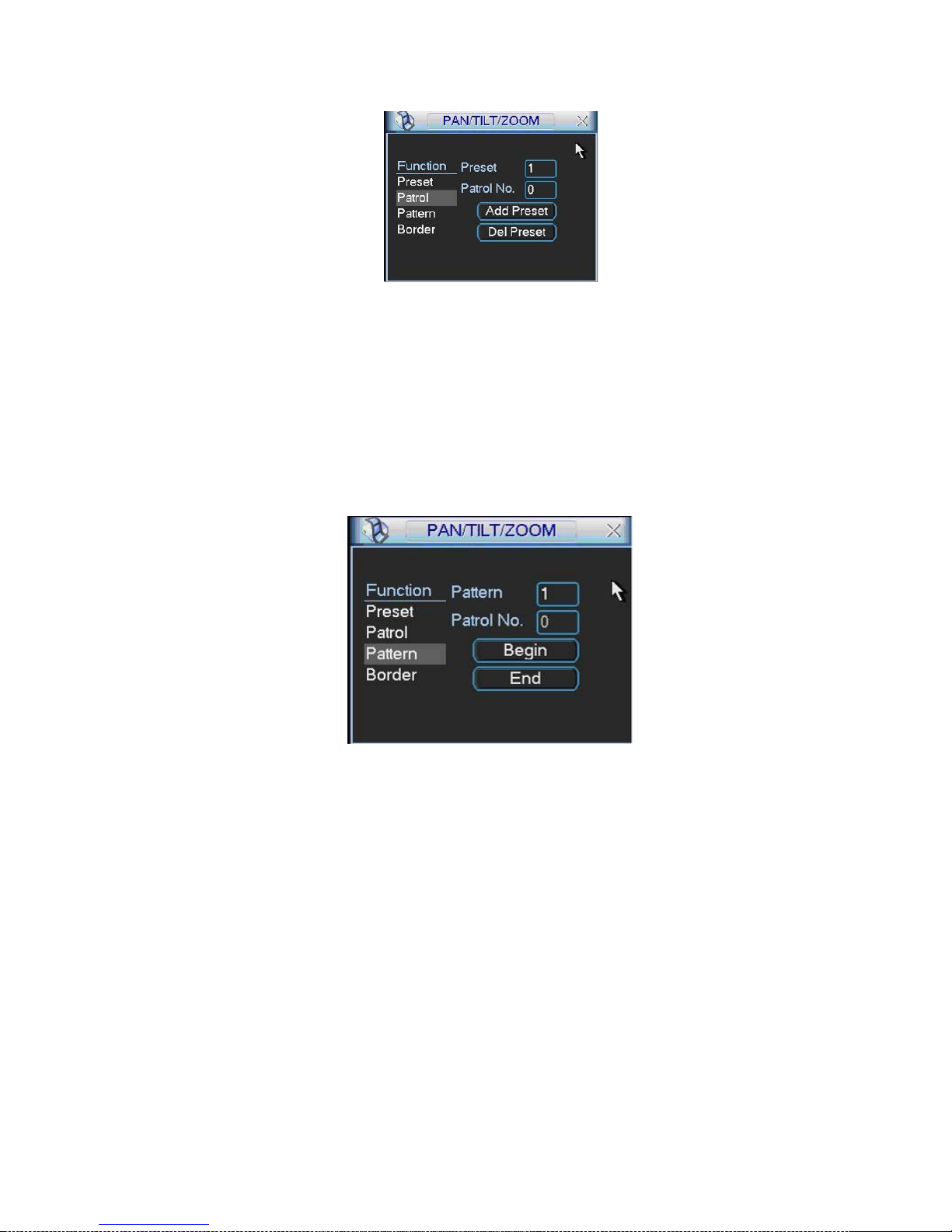

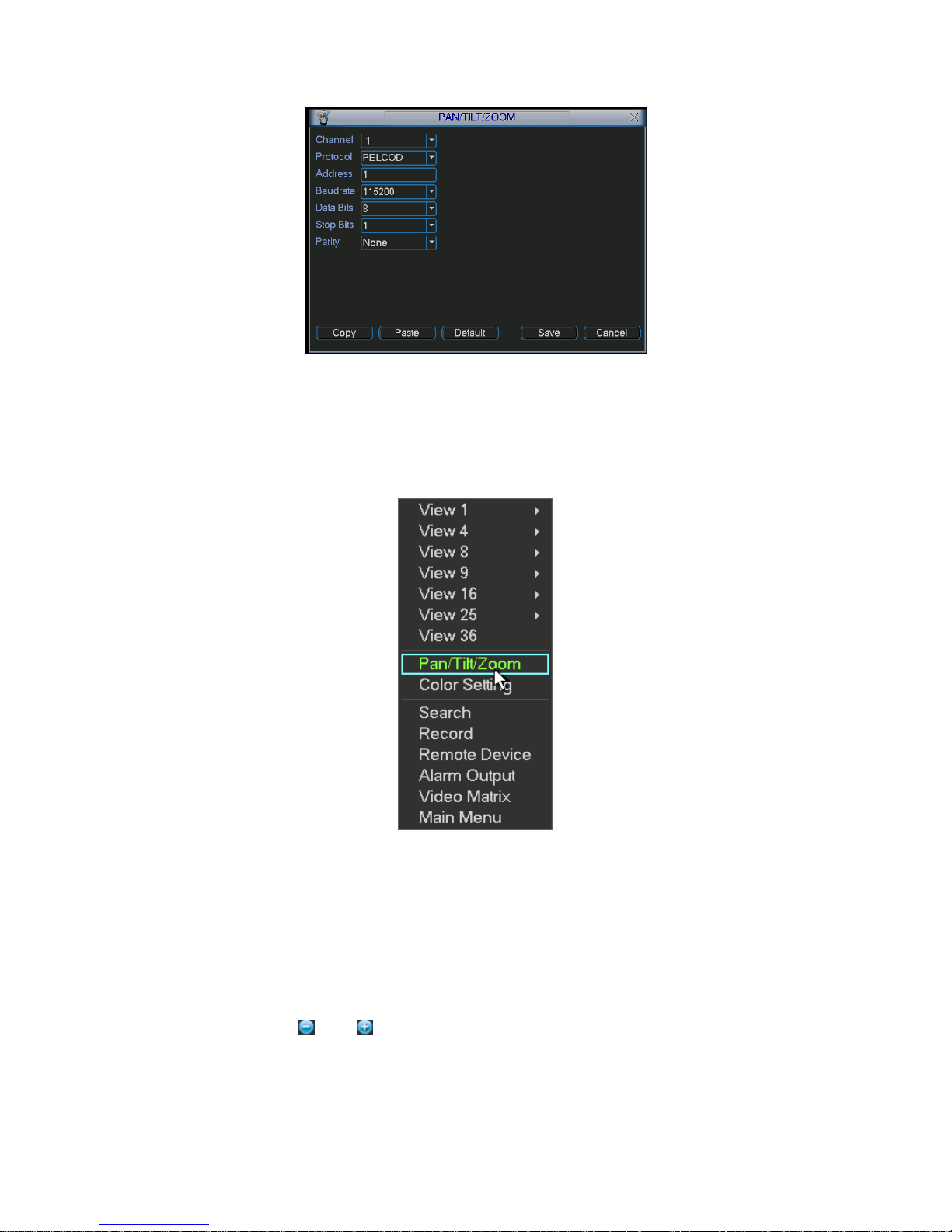

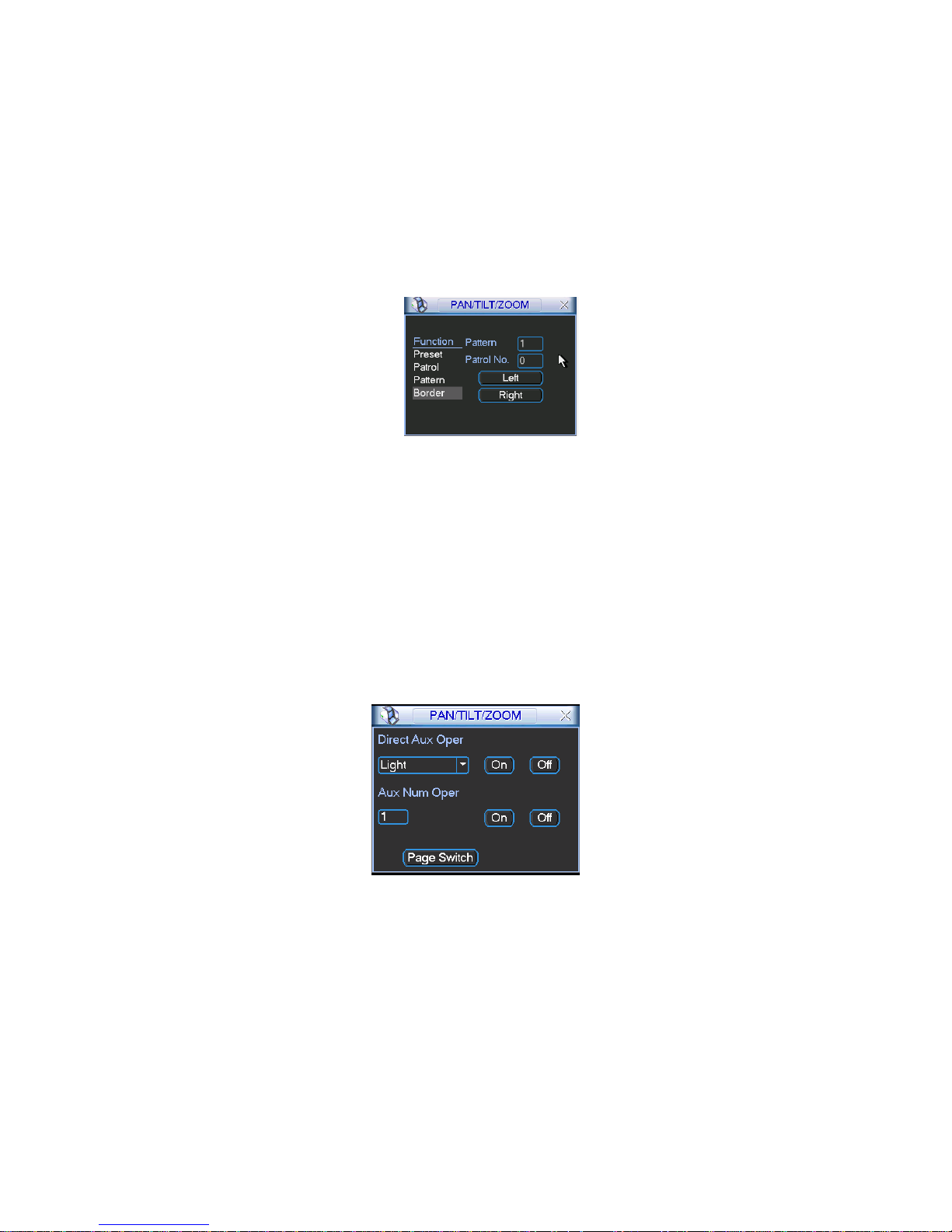

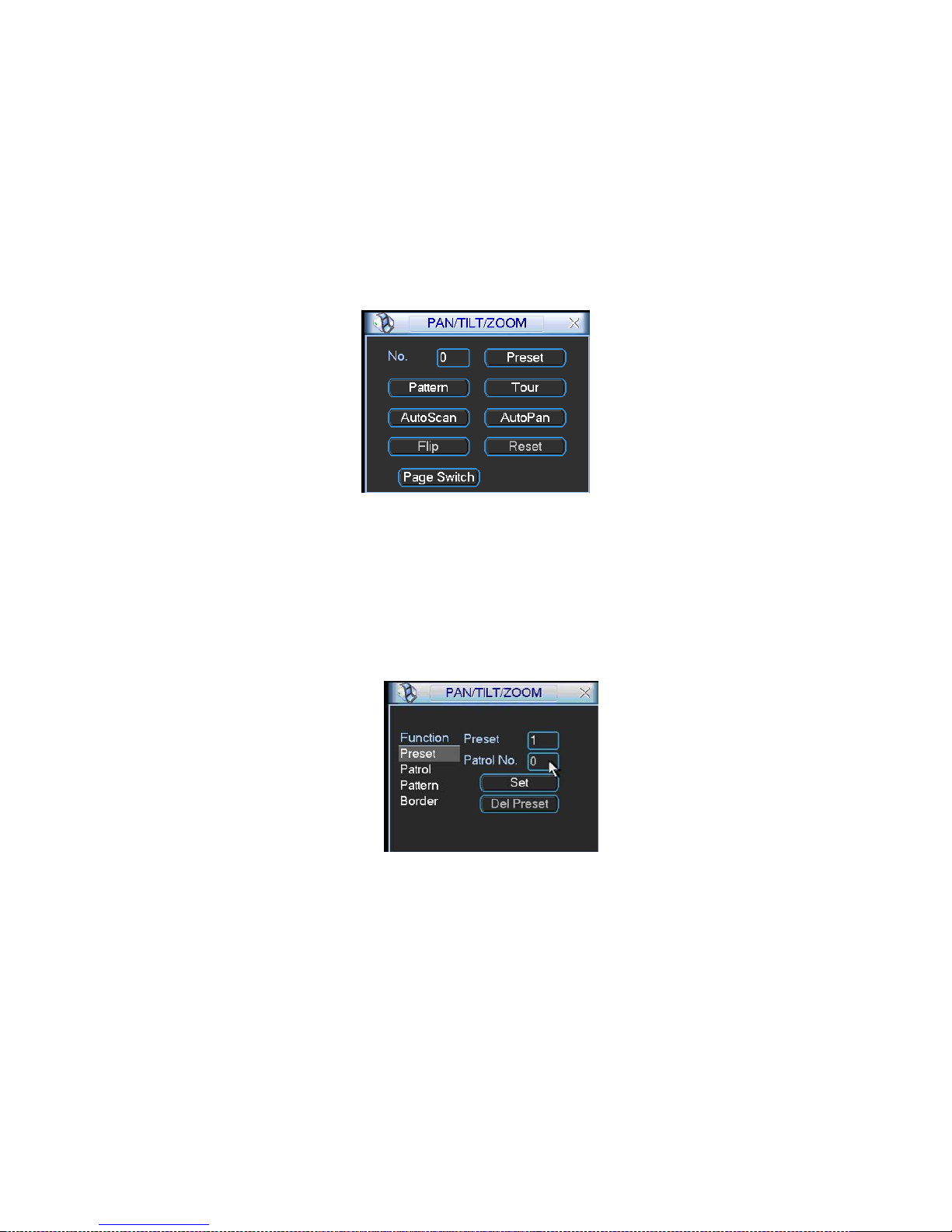

PTZ control
Support PTZ decoder via RS485.
Support various decode protocols to allow the PTZ to control the speed dome.
Intelligent operation

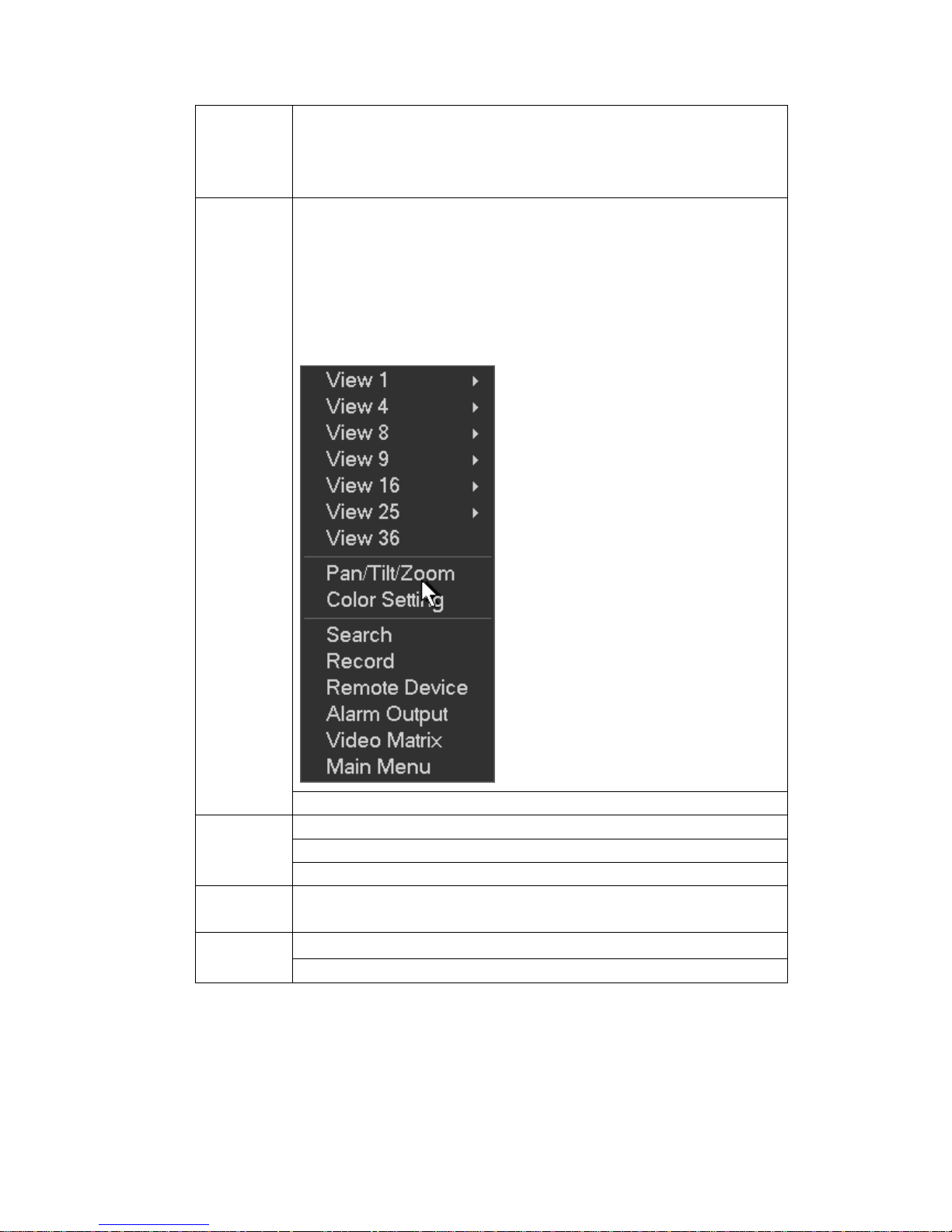

Mouse operation function
In the menu, support copy and paste setup function

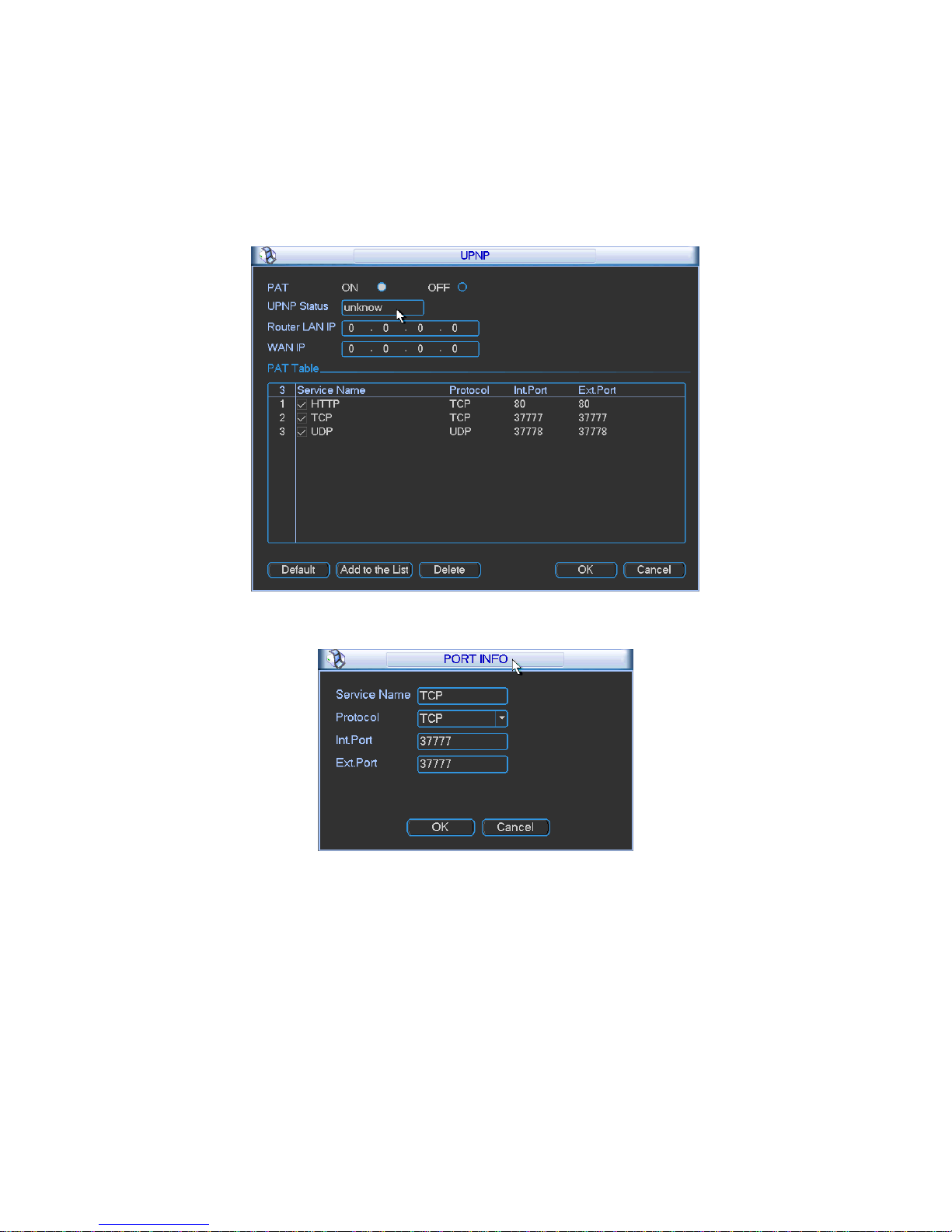

UPNP (Universal Plug and Play)
Establish mapping connection between LAN and WAN via UPNP protocol.
Slight function differences may be found due to different series.
1.3 Specifications
Parameter
16-ch
System
Main Processor
High-performance industrial embedded micro controller
OS
Embedded LINUX
System
Resources
Multiplex operations: Multiple-channel record, multiple-channel
playback and network operation simultaneously
Page 13
Interface
User-friendly graphical user interface
Input Devices
Front panel, USB mouse, remote control

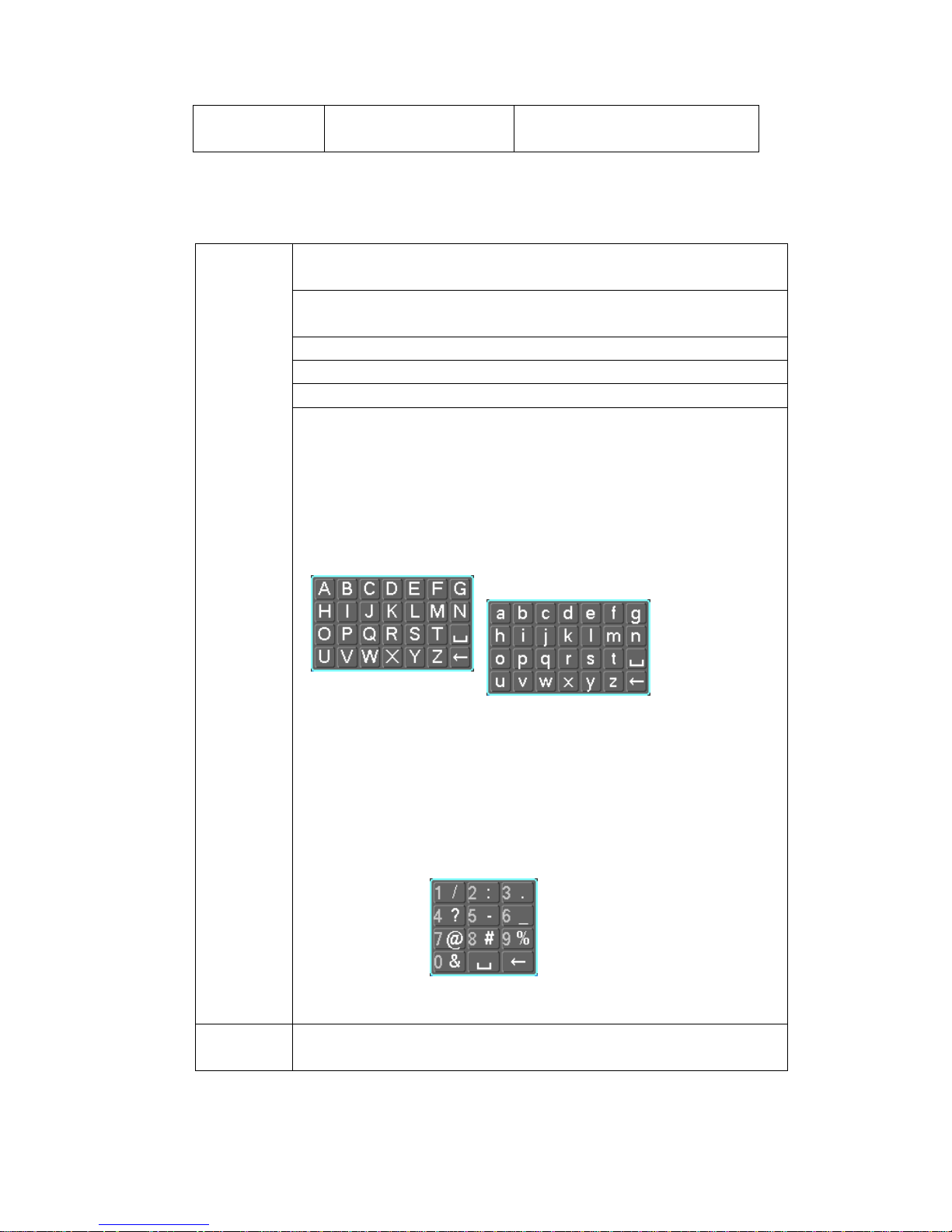

Input Method
Arabic number, English character, donation and extension Chinese
(optional)
Shortcut
Function
Copy/paste operation, USB mouse right-key shortcut menu, double
click USB mouse to switch screen.
Compression
Standard
Video
Compression
H.264
Audio
Compression
G.711
Video monitor
Video Input
4-CH composite
video input:
(NTSC/PAL) BNC
(1.0VB
P- P,
B75Ω)
8-CH composite video
input: (NTSC/PAL)
BNC (1.0VB
P- P,
B75Ω)
16-CH composite
video input:
(NTSC/PAL) BNC
(1.0VB
P- P,
B75Ω)
Video Output
1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.
1-ch VGA output.
1-ch HDMI output.
Support TV/VGA/HDMI video output at the same time.
Video Standard
PAL (625 line, 50f/s), NTSC (525 line, 60f/s)
Record Speed
Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s
per channel
Video Partition
1/4
windows(Optional)
1/4/8/9/12 windows
1/4/8/9/16 /20
windows
Monitor Touring
Support monitor tour functions such as alarm, motion detection, and
schedule auto control.
Resolution
(PAL/NTSC)
PAL（625TV Line，50f/s）， NTSC（525TV line，60f/s）
Real-time monitor：
D1 704×576/704×480
Playback：
1/16-ch: D1 704×576/704×480 (6f/s, when other channels’
resolution are all CIF, the first channel and the ninth channel can
support 25f/s.) , CIF 352×288/ 352×240 , QCIF 176×144/176×120
Other channels CIF 352×288/ 352×240 、QCIF 176×144/176×
120.
Support dual streams: extra stream resolution QCIF
176×144/176×120

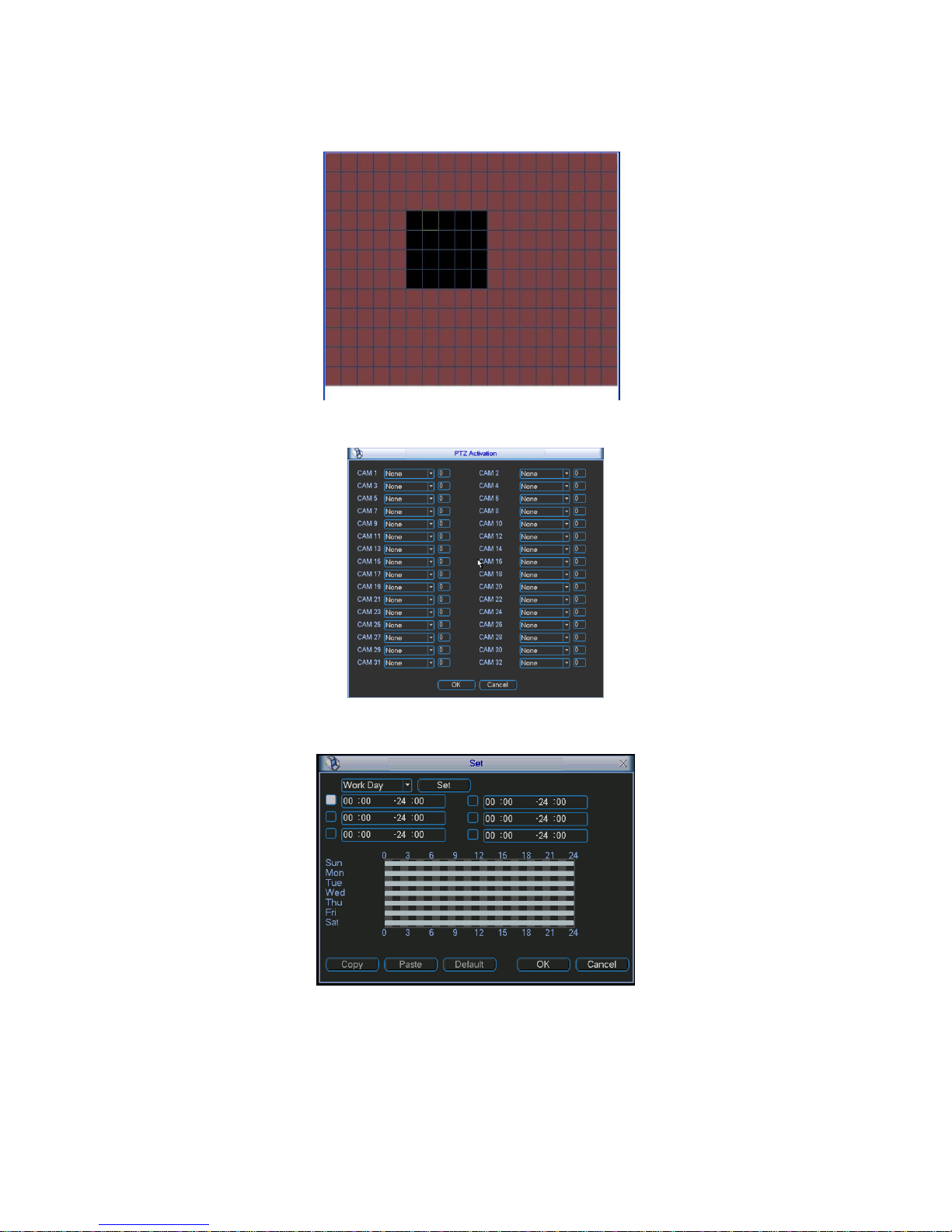

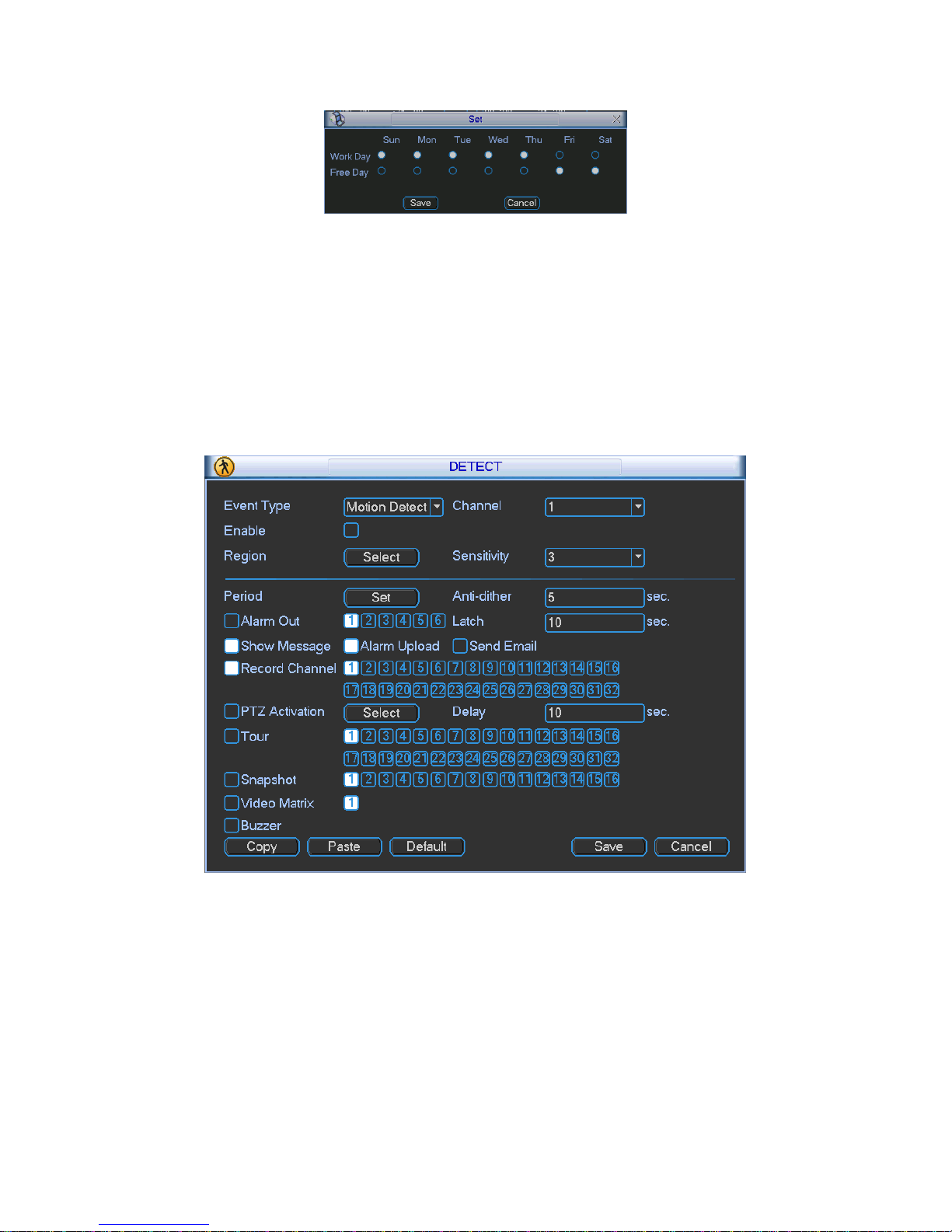

Motion
Detection
Zone setup: support max 396(22×18) zones.
Support various sensitivities.
Image Quality
6-level image quality (Adjustable)
Privacy mask
Support one privacy mask of user-defined size in full screen.
Support max 4 zones.
Page 14
Information
Channel information, time information and privacy mask zone.

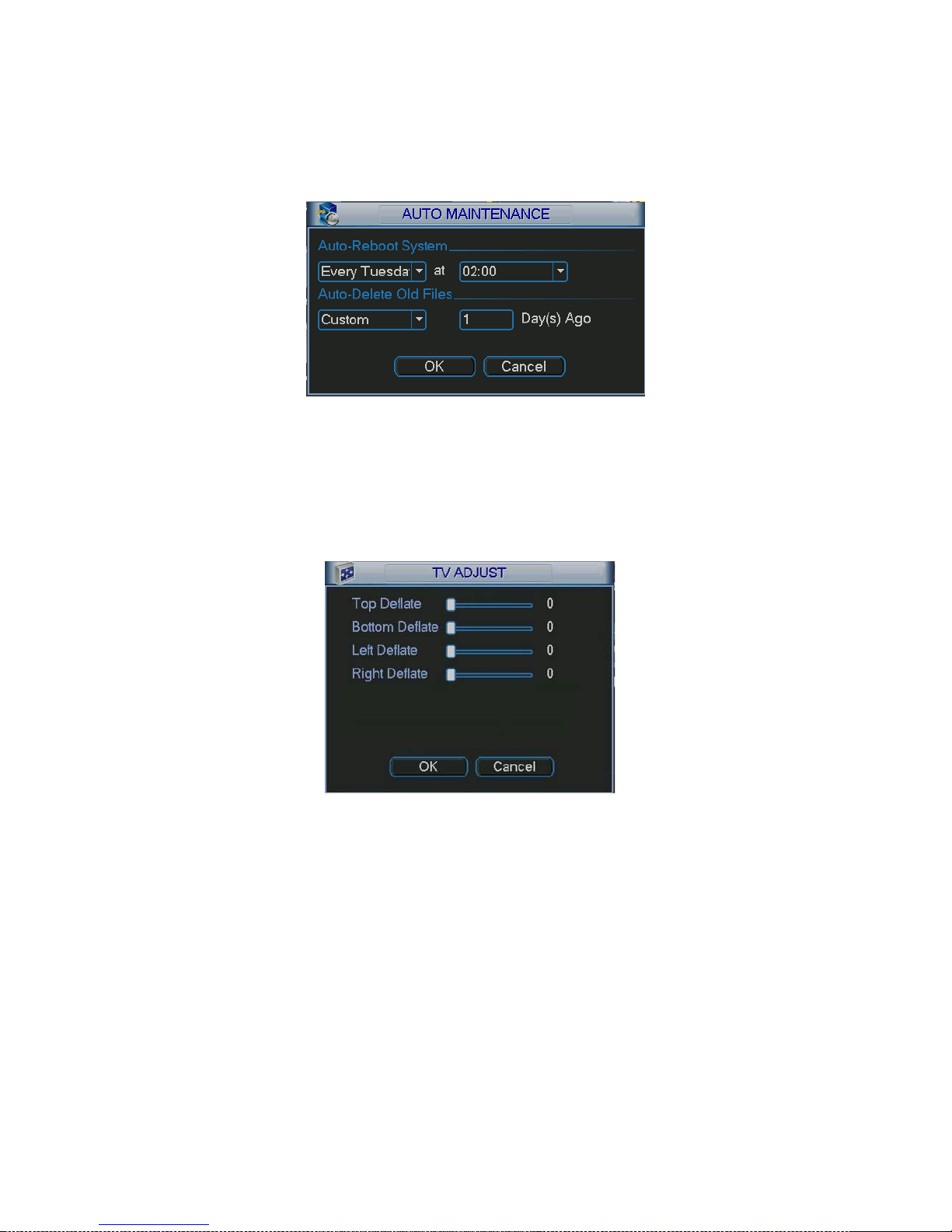

TV Adjust
Adjust TV output zone suitable to anamorphic video.
Channel Lock
Cover secret channel with blue screen though system is encoding
normally.
Screen-lock function to prevent unauthorized user seeing secret video.

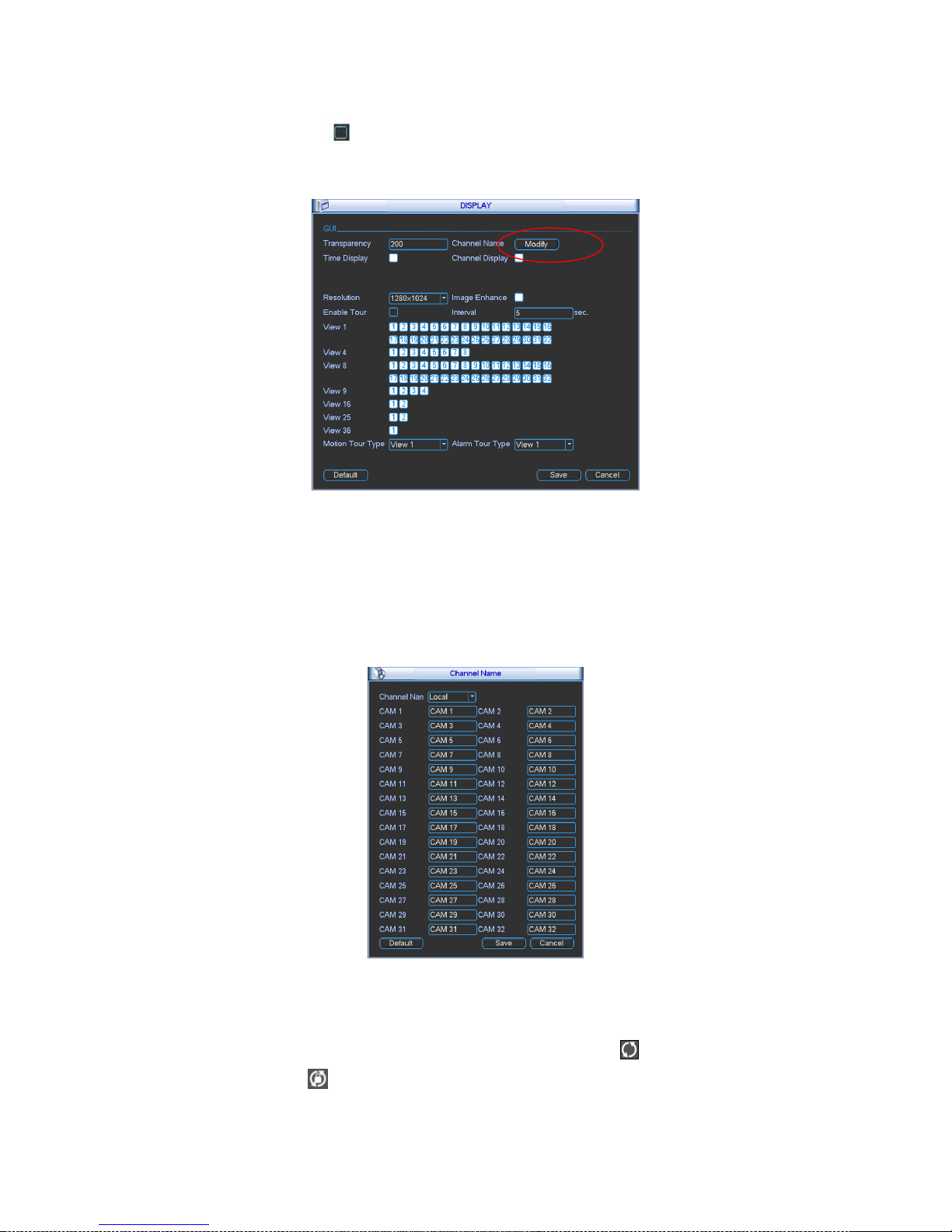

Channel
Information
Channel name, recording status, screen lock status, video loss status
and motion detection status are shown on the bottom left of display
screen.
Color
Configuration
Hue, brightness, contrast, saturation and gain setup for each channel.
Audio
Audio Input
4-ch 200-2000mv
10KΩ(BNC)
8-ch 200-2000mv
10KΩ(BNC)
16-ch
200-2000mv
10KΩ (BNC)
Audio Output
1-ch audio output 200-3000mv 5KΩ(BNC)
Bidirectional
Audio
1- ch audio input 200-3000mv 10KΩ(BNC)
1- ch audio output 200-3000mv 5KΩ(BNC)
Hard disk
Hard Disk
8 built-in SATA port. Support 8 HDD.
Hard Disk
Occupation
Audio：PCM 28.8MByte/h
Video：56-900MByte/h
Record and
playback
Recording
Mode
Manual recording, motion detection recording, schedule recording and
alarm recording
Priority: Manual recording> alarm recording>motion detection
recording>schedule recording.
Recording
Length
1 to 120 minutes single record duration (Default setup is 60 minutes)

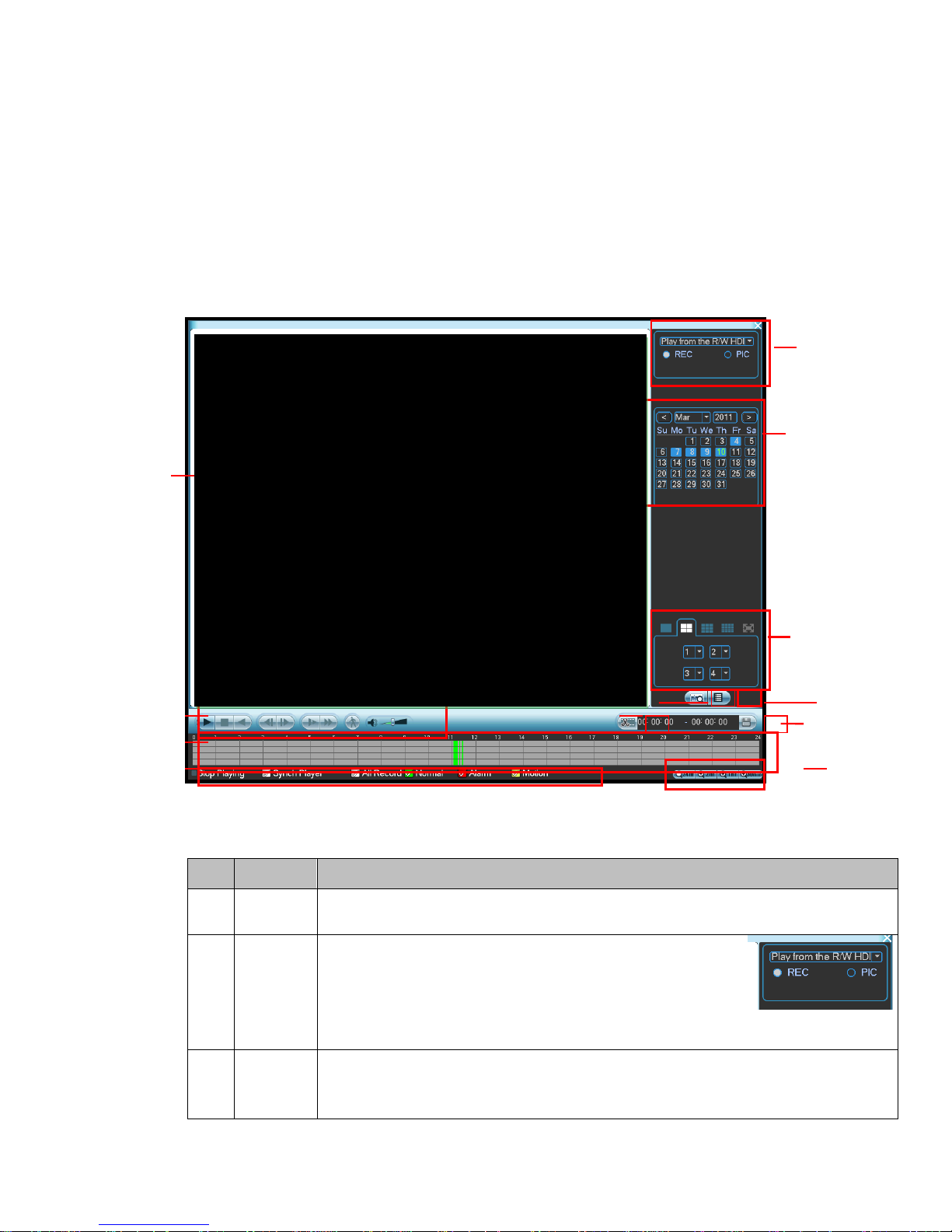

Playback
Repeat Way
When hard disk is full, system can overwrite previous video file.
Record Search
Various search engines such as time, type and channel.
Playback Mode
Various fast play, slow play speeds, manual frame by frame playback
and reverse play mode.
Various File
Switch Ways
Can switch to previous or next file or any file in current play list.
Can switch to file on other channel of the same time. (If there is a file)
Support file continuous play, when file is end system auto plays the
next file in the current channel
Multi-channel
Playback
Support single channel, 4 channel, 9 channel and 16 channel
modes
Window
Zoom
Switch between self-adaptive screen/full screen when playback
Page 15
Partial
Enlargement
When in one-window full-screen playback mode, you can select any
zone to activate partial enlargement function.

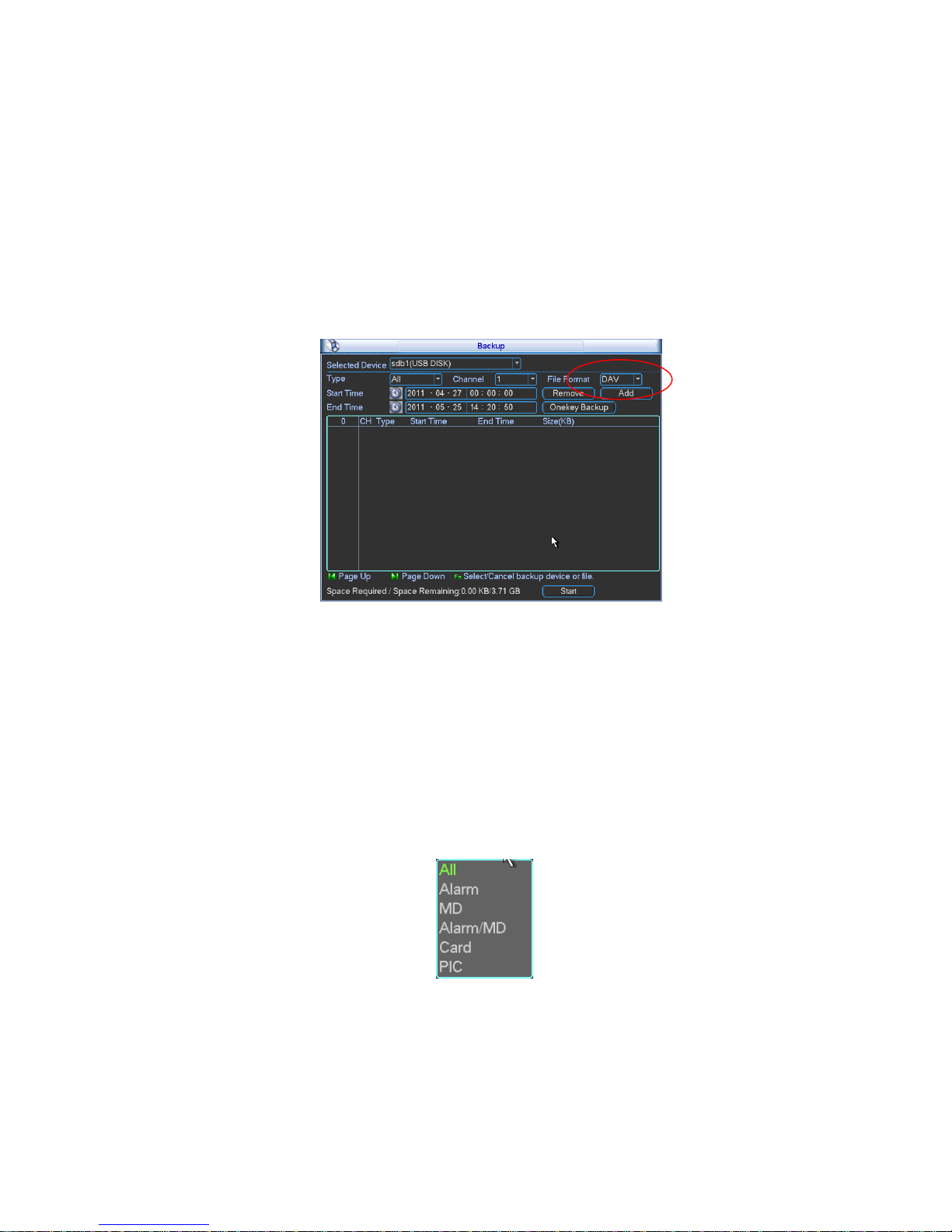

Backup
function
Backup Mode
HDD backup
Support peripheral USB backup device. (Flash disk, portable disk,
USB burner and etc.)
Support external eSATA device backup
Support network download and backup
Network
Function
Network control
View monitor channel remotely.
DVR configuration through client-end and web browser
Upgrade via client or browser to realize remote maintenance.
View alarm information such as external alarm, motion detection and
video loss via client.
Support network PTZ lens control
File download backup and playback
Multiple devices share information via corresponding software such as
professional surveillance software (PSS)
Duplex transparent COM
Network alarm input and output
Bidirectional audio.

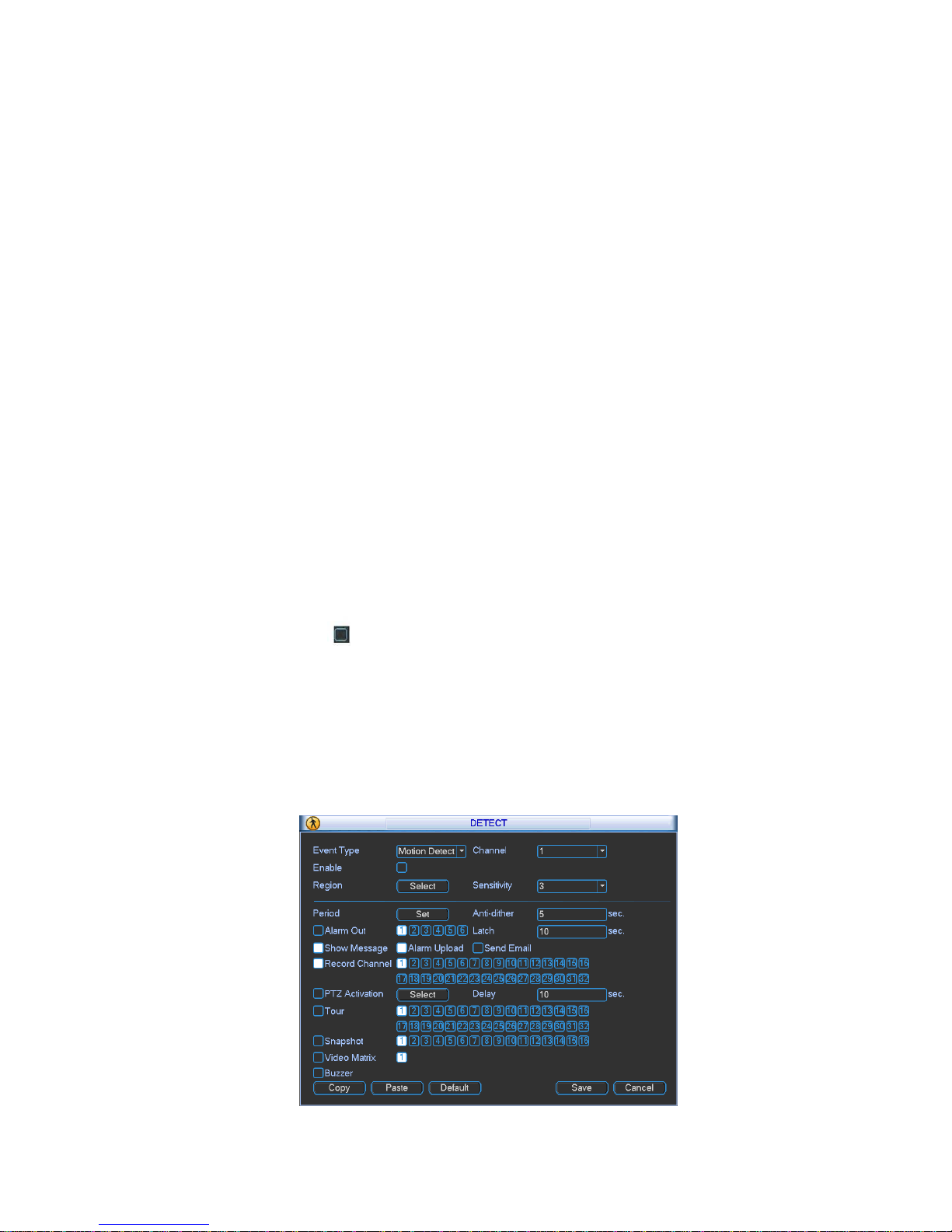

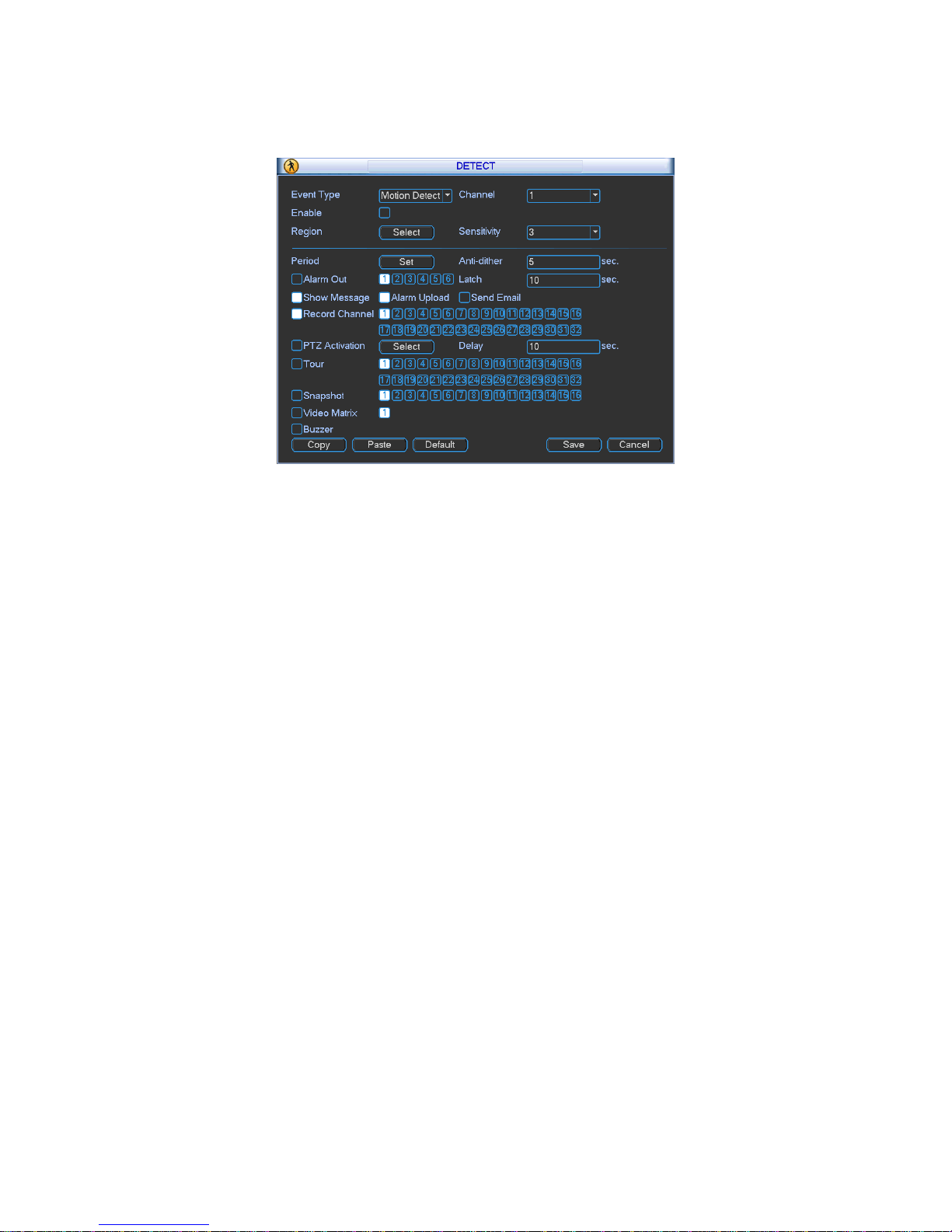

Motion
Detection and
Alarm
Motion
Detection
Zone setup: support 396((PAL 22×18, NTSC 22×15)) detection zones.
Various sensitivity levels.
Alarm can activate record or external alarm or screen message
prompt.
Video Loss
Alarm can activate external alarm or screen message prompt.
External Alarm
Support record activation function or activate external alarm or screen
message in specified period.
Manual Alarm
Control
Enable or disable alarm input channel
Support analog alarm signal to specific alarm output channel.

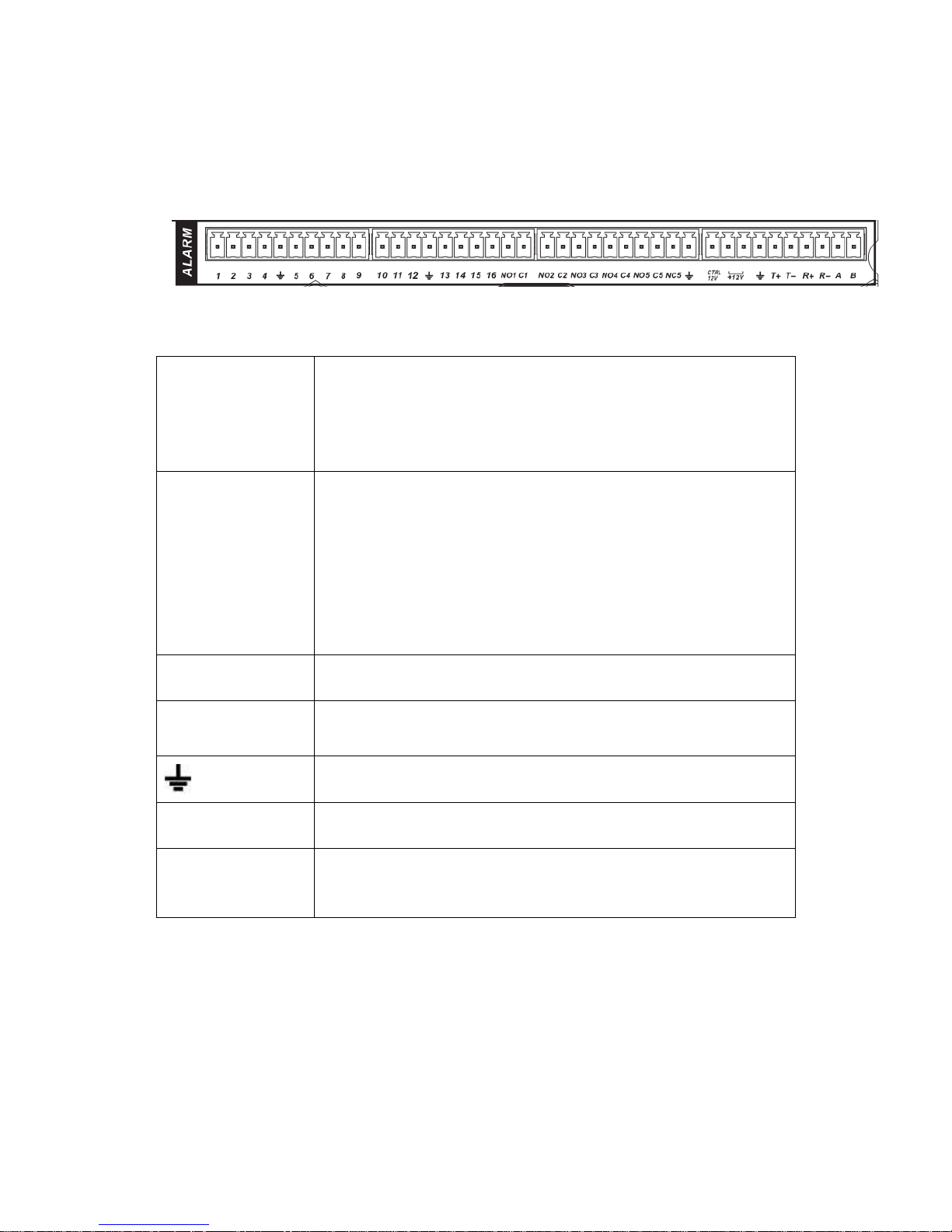

Alarm Input
4-ch alarm input（You
can set normal open
or normal close type
to select the alarm
type. ）
8-ch alarm input（You can
set normal open or
normal close type to
select the alarm type. ）
16-ch alarm input
（ You can set
normal open or
normal close type
to select the
alarm type. ）

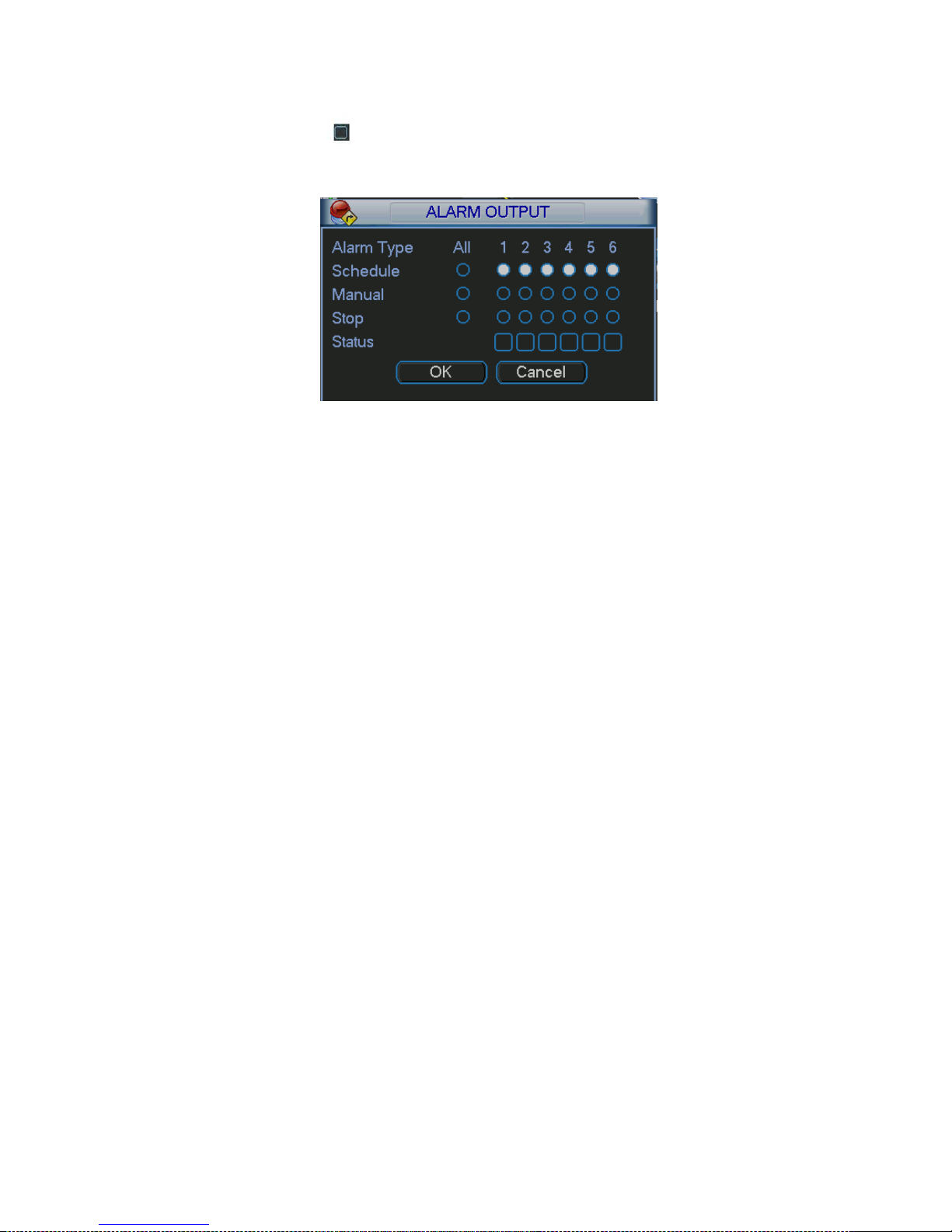

Alarm Output
6-channel relay output. (one of them can control DC+12v output)
Alarm Relay
30VDC 2A，125VAC 1A（activation alarm ）
Interface
USB Interface
3USB 2.0 ports. (HF-S/N series supports 2 USB 2.0 )
Network
connection
RJ45 10M/100M/1000M self-adaptable Ethernet port
RS485
PTZ control port
Support various PTZ control protocols.
RS232
Ordinary COM (Debug),keyboard connection and transparent serial
port(COM input and output via network )
Page 16
System
Information

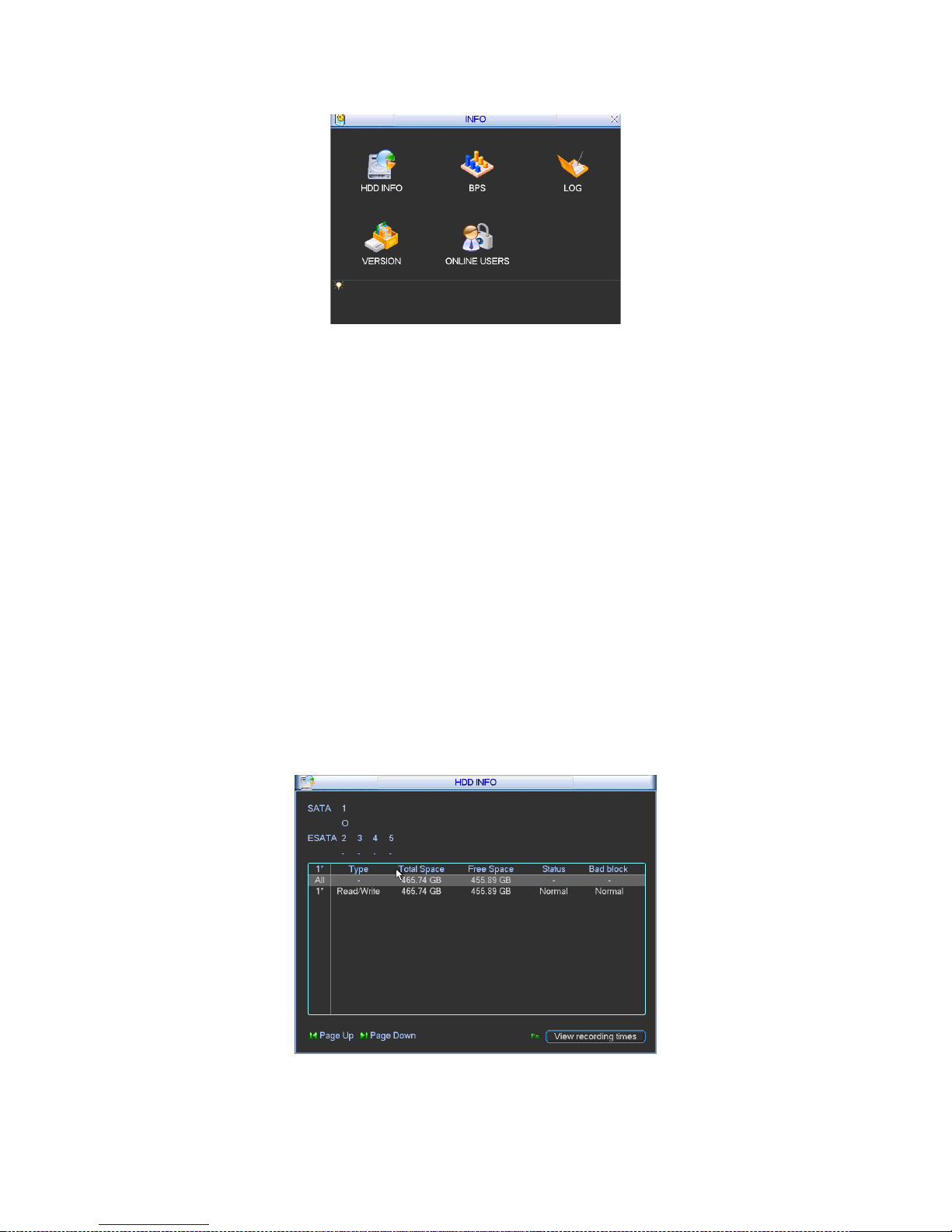

Hard Disk
Information
Display HDD current status

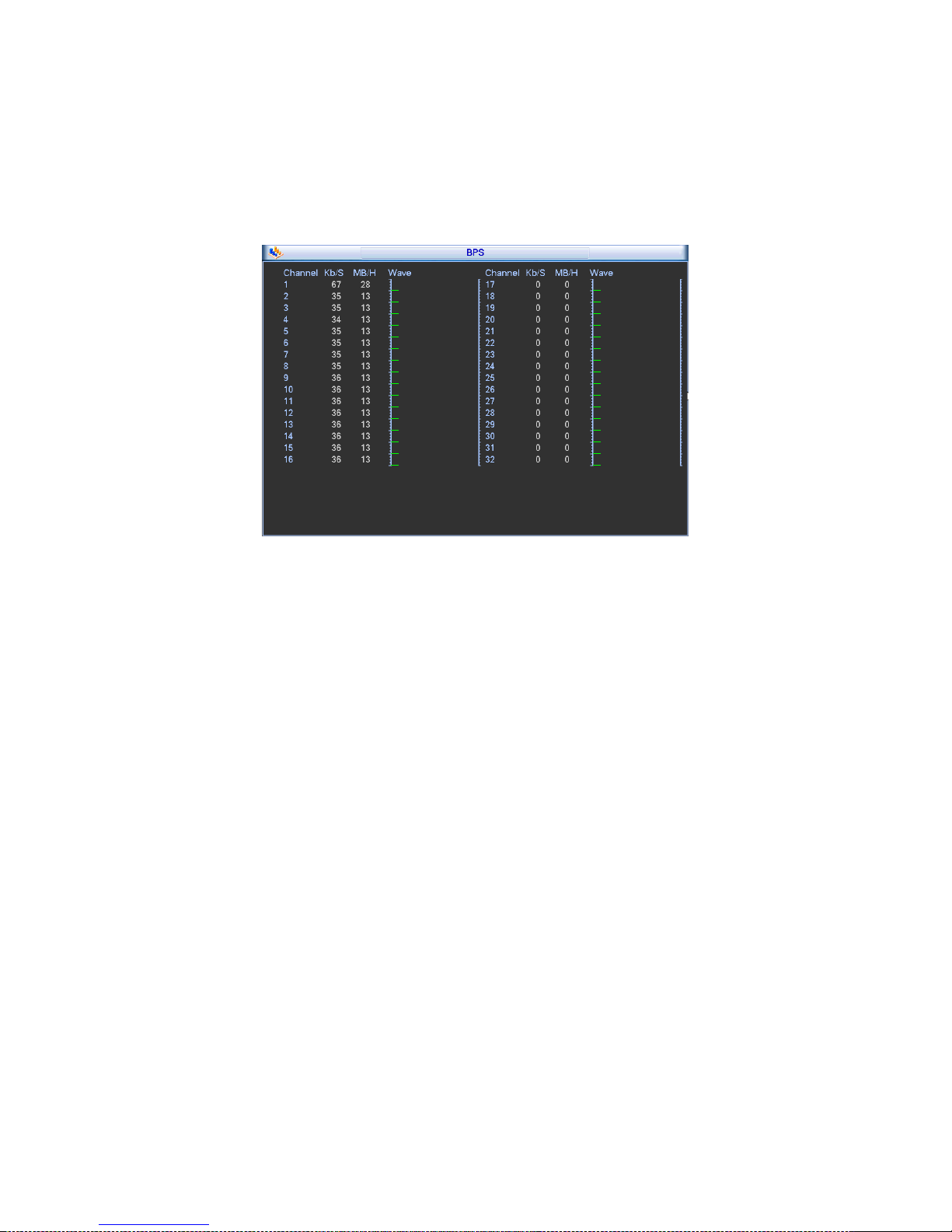

Data Stream
Statistics
Data stream statistics for each channel (in wave mode)

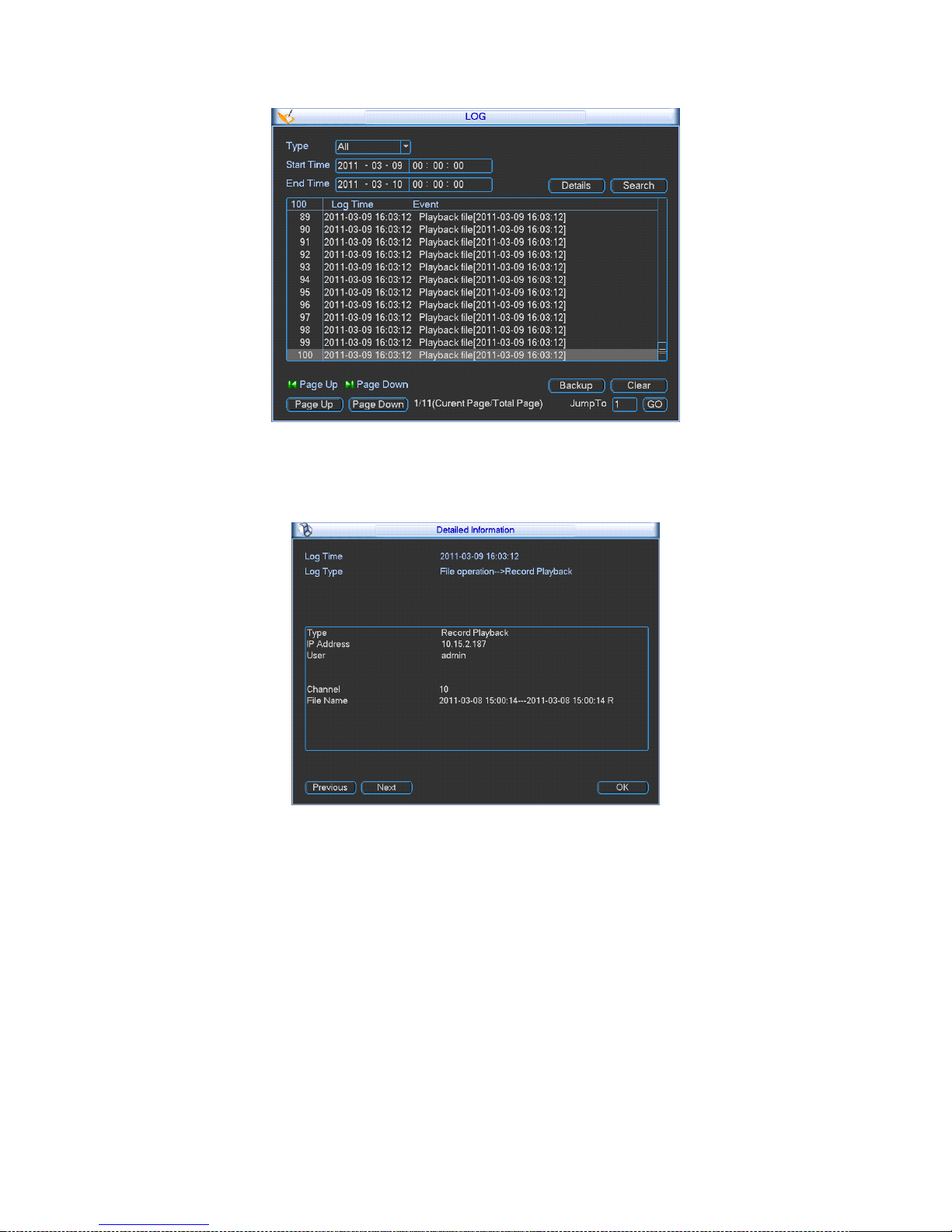

Log statistics
Backup to 1024 log files.
Support various search engines such as time and type.

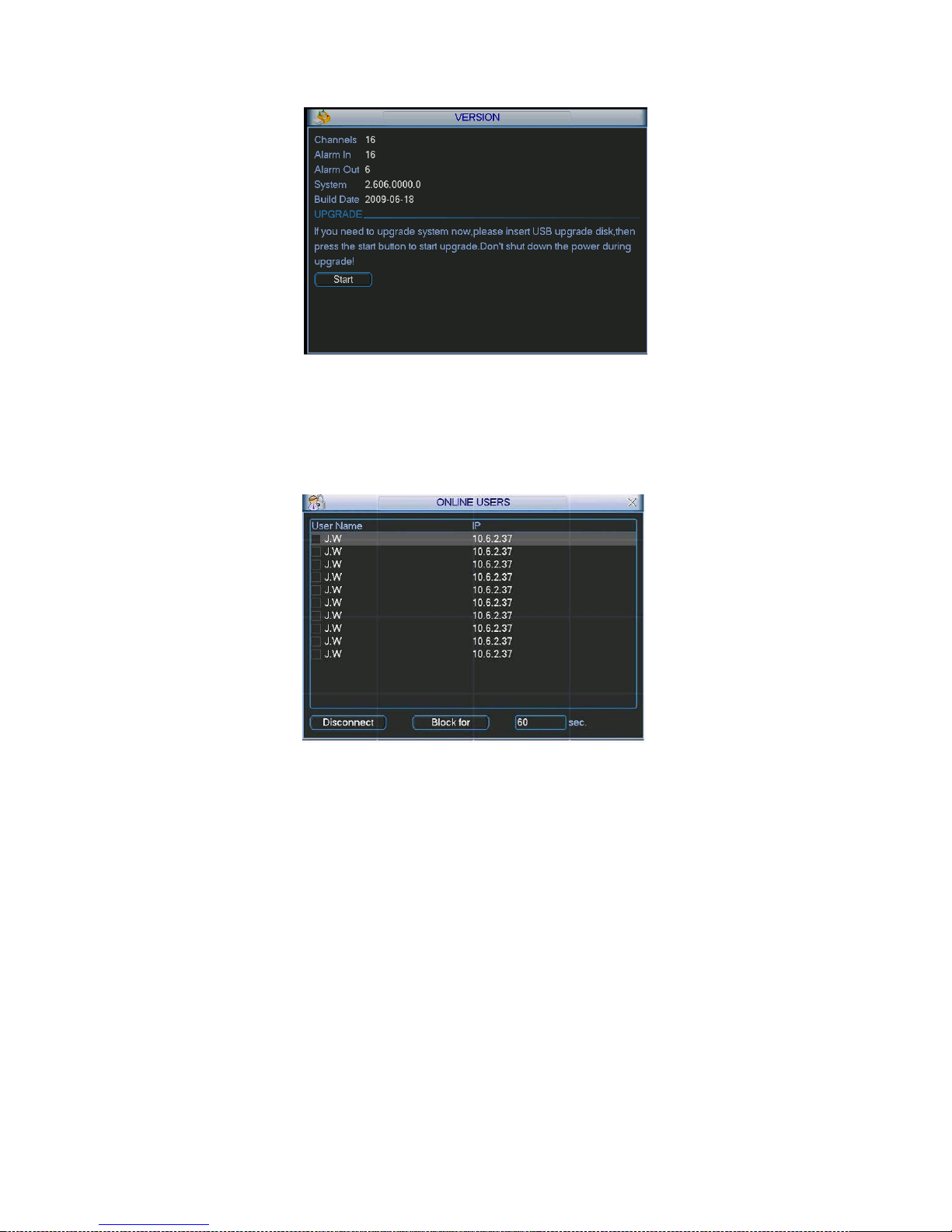

Version
Display version information: channel amount, alarm input and output
amount, system version and release date.
On-line user
Display current on-line user
User

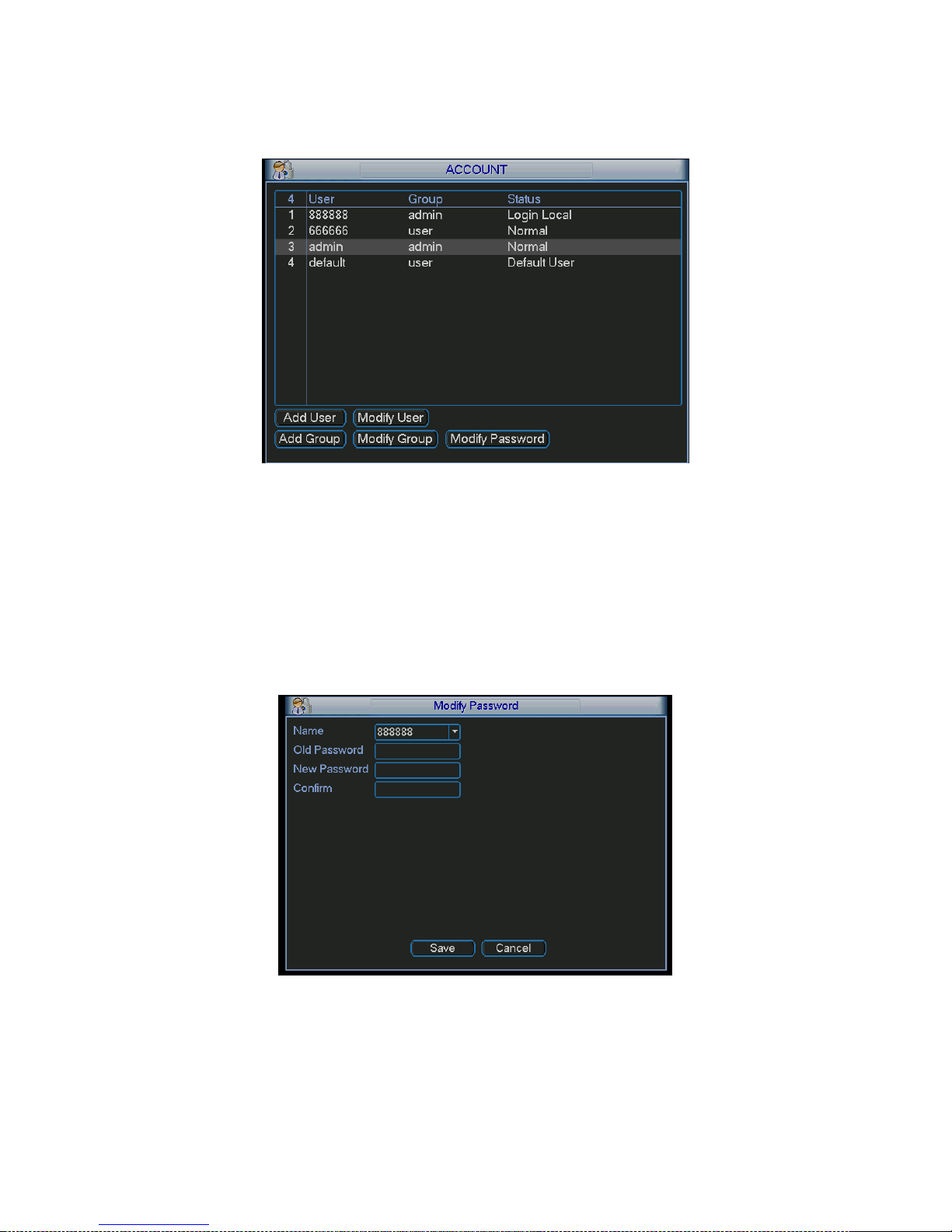

Management
User
Management
Multi-lever user management; various management modes
Integrated management for local user, serial port user and network
user.
Configurable user power.
Support user /group and its corresponding rights modification.
No limit to the user or group amount.
Password
Authentication
Password modification
Administrator can modify other user’s password.
Account lock strategy
Five times login failure in thirty minutes may result in account lock.
Upgrade
Web browser, client-end and update tool.

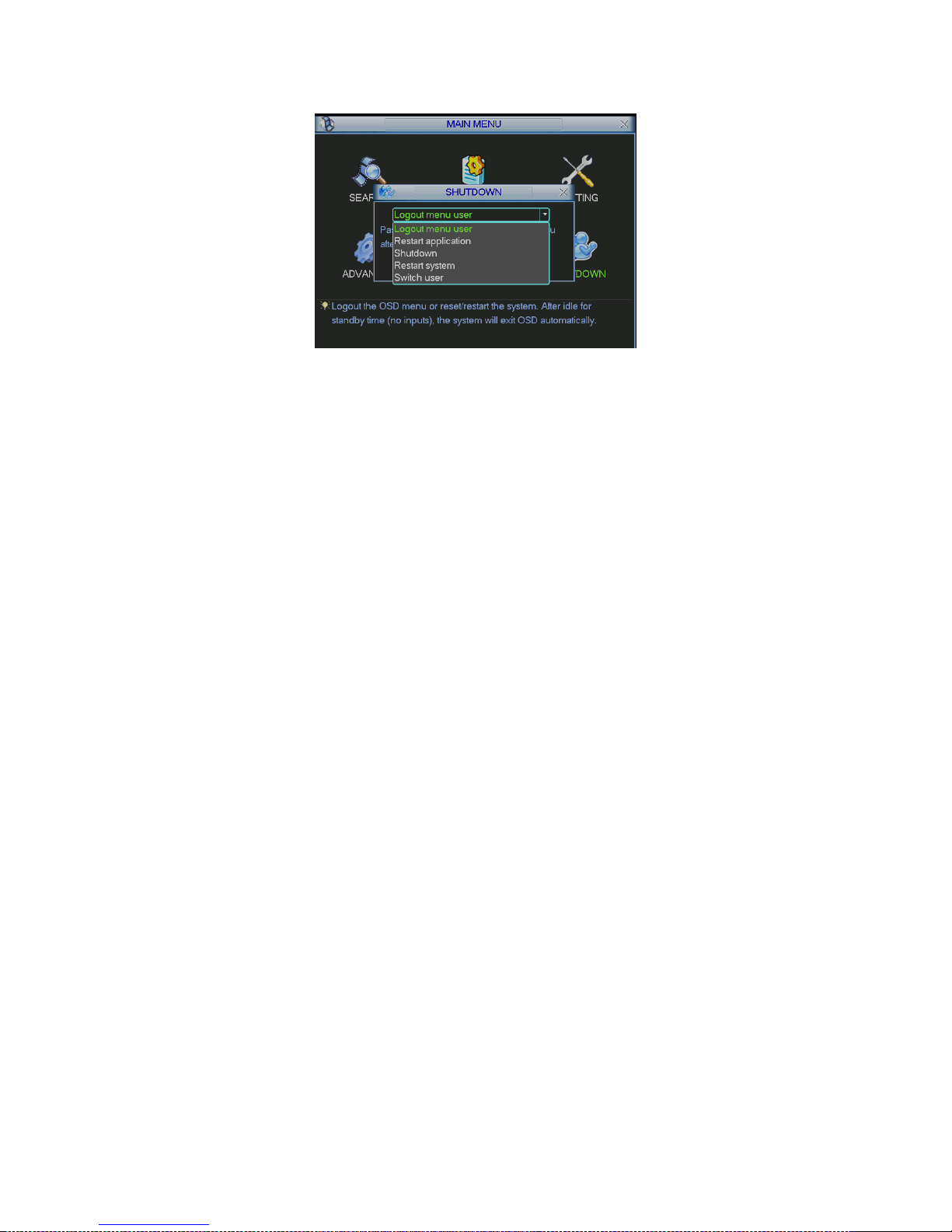

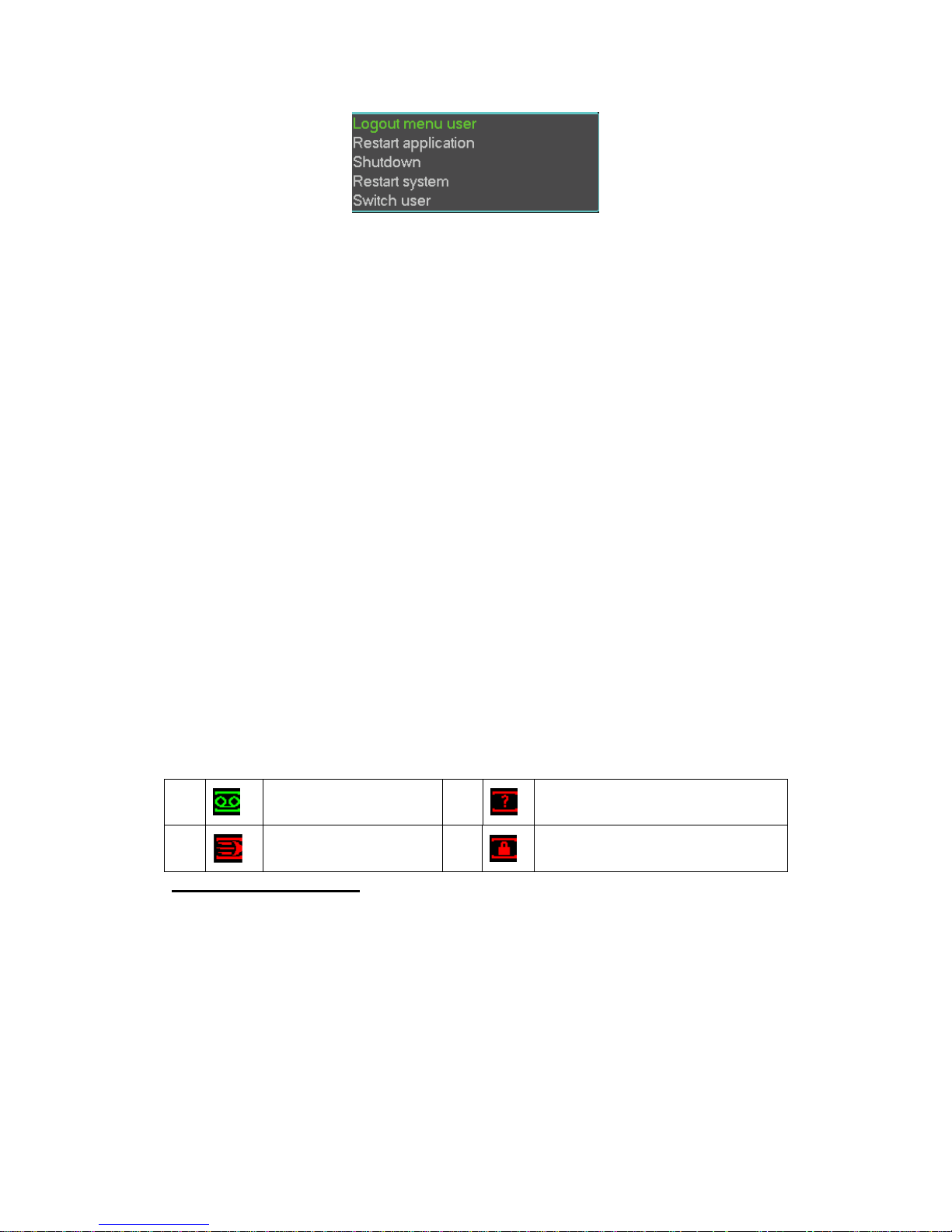

Login, Logout and Shutdown
Password login protection to guarantee safety
User-friendly interface when login. Provide the following options:
Logout /shutdown/ restart.
Right authentication when shut down to make sure only those proper
people can turn off DVR
General
Parameter
Power
AC90~264V 50+2% Hz(Max. 220W)
Power
Consumption
≤25W (Exclude HDD)
Working
Temperature
0℃－＋55℃
Working
Humidity
10%－90%
Air Pressure
86kpa－106kpa
Dimension
440(W) x460(D) x89(H)mm
Weight
6.5－7.5KG (Exclude HDD)
Installation
Mode
Desktop installation
Page 17
2 Overview and Controls
This section provides information about front panel and rear panel. When you install this
series DVR for the first time, please refer to this part first.

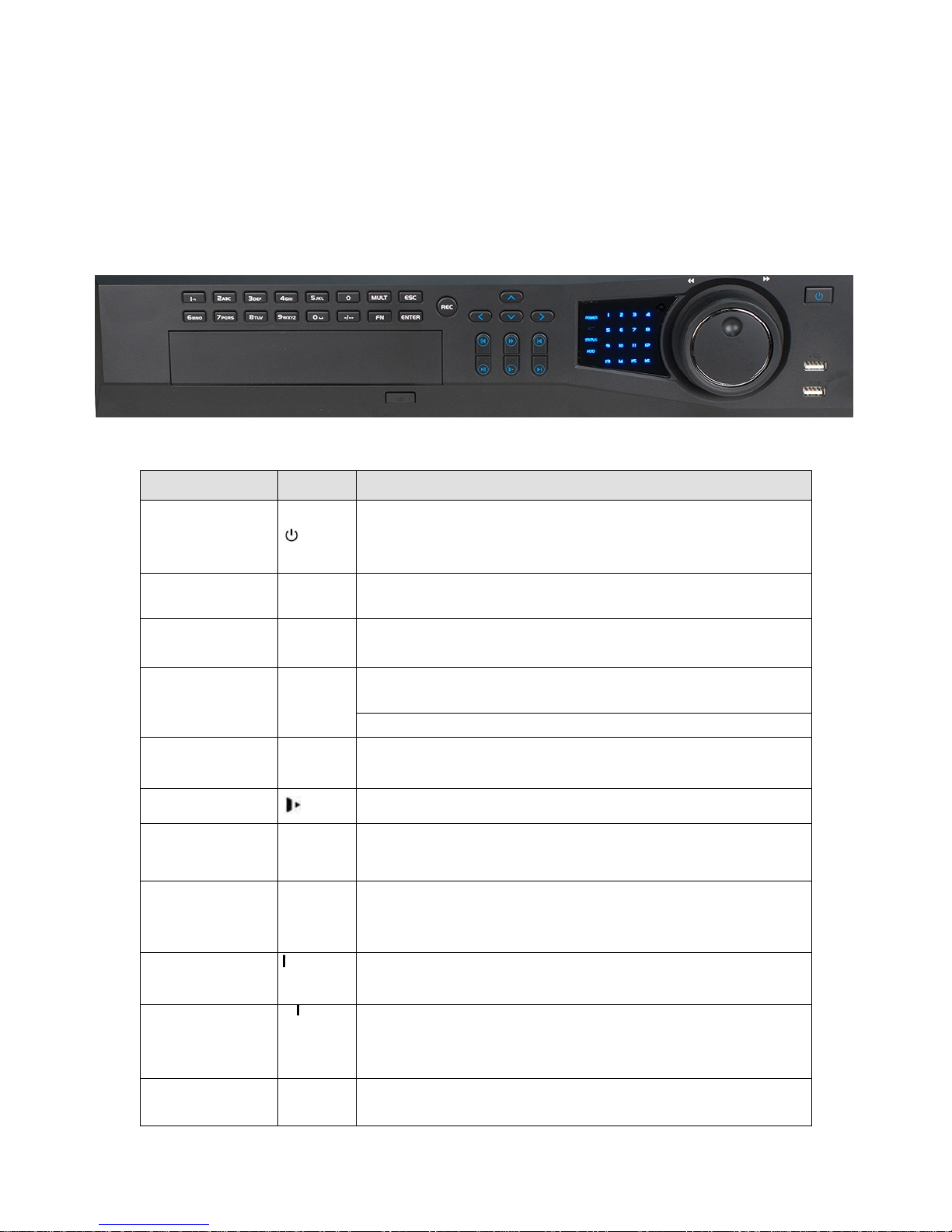

2.1 Front Panel
This series products’ front panel are shown as below. See Figure 2-1.
Figure 2-1
Please refer to the following sheet for front panel button information.
Name
Icon
Function
Power button
Power button, press this button for three seconds to boot up or
shut down DVR.
Number button
0-9
Input Arabic number
Switch channel
Input number
more than 10
-/--
If you want to input a number more than 10, please click this
button and then input.
Shift
In textbox, click this button to switch between numeral,
English(Small/Capitalized),donation and etc.
Enable or disable tour.
Fast play
Various fast speeds and normal playback.
Slow play
Multiple slow play speeds or normal playback.
Play/Pause
In normal playback click this button to pause playback
In pause mode, click this button to resume playback.
Reverse/Pause
In normal playback or pause mode, click this button to reverse
playback
In reverse playback, click this button to pause playback.
Play previous
In playback mode, playback the previous video
Play Next
In playback mode, playback the next video
In menu setup, go to down ward of the dropdown list.
Up/
Down
、
Activate current control, modify setup, and then move up and
down.
Page 18
Increase/decrease numeral.
Assistant function such as PTZ menu.
Left/
Right
Shift current activated control, and then move left and right.
When playback, click these buttons to control playback bar.
ESC
ESC
Go to previous menu, or cancel current operation.
When playback, click it to restore real-time monitor mode.
Enter
ENTER
Confirm current operation
Go to default button
Go to menu
Assistant
Fn
One-window monitor mode, click this button to display assistant
Backspace function: in numeral control or text control, press it for
1.5 seconds to delete the previous character before the cursor.
In motion detection setup, working with Fn and direction keys to
realize setup.
In text mode, click it to switch between numeral, English
character(small/capitalized) and etc.
In HDD management interface, you can click it to switch HDD
record information and other information (Menu prompt)
Realize other special functions.
Record
REC
Manually stop/start recording, working with direction keys
or numeral keys to select the recording channel.
Window switch
Mult
Click it to switch one-window/multiple-window.
Shuttle(outer
ring)
In real-time monitor mode it works as left/right direction key.
Playback mode, counter clockwise to forward and clock wise to
backward.
Jog(inner dial)
Up/down direction key.
Playback mode, turn the inner dial to realized frame by frame
playback. (Only applies to some special versions.)
USB port
To connect USB storage device, USB mouse, burner and etc.
Record light
1-32
For 4/8/16 channel device: indication light on means that the
channel is in recording.
Page 19
For 32 channel device:
Indication Light on: 1-16 channel is in recording
Indication Light flashes: 17-32 channel is in recording
Indication Light normally on: the corresponding channels are in
recording
Remote control
indication light
ACT
Remote control indication light
Status indication
light
Status
If there is Fn indication light, current status indication light is null.
Power indication
light
PWR
Power indication light
IR Receiver
IR
It is to receive the signal from the remote control.

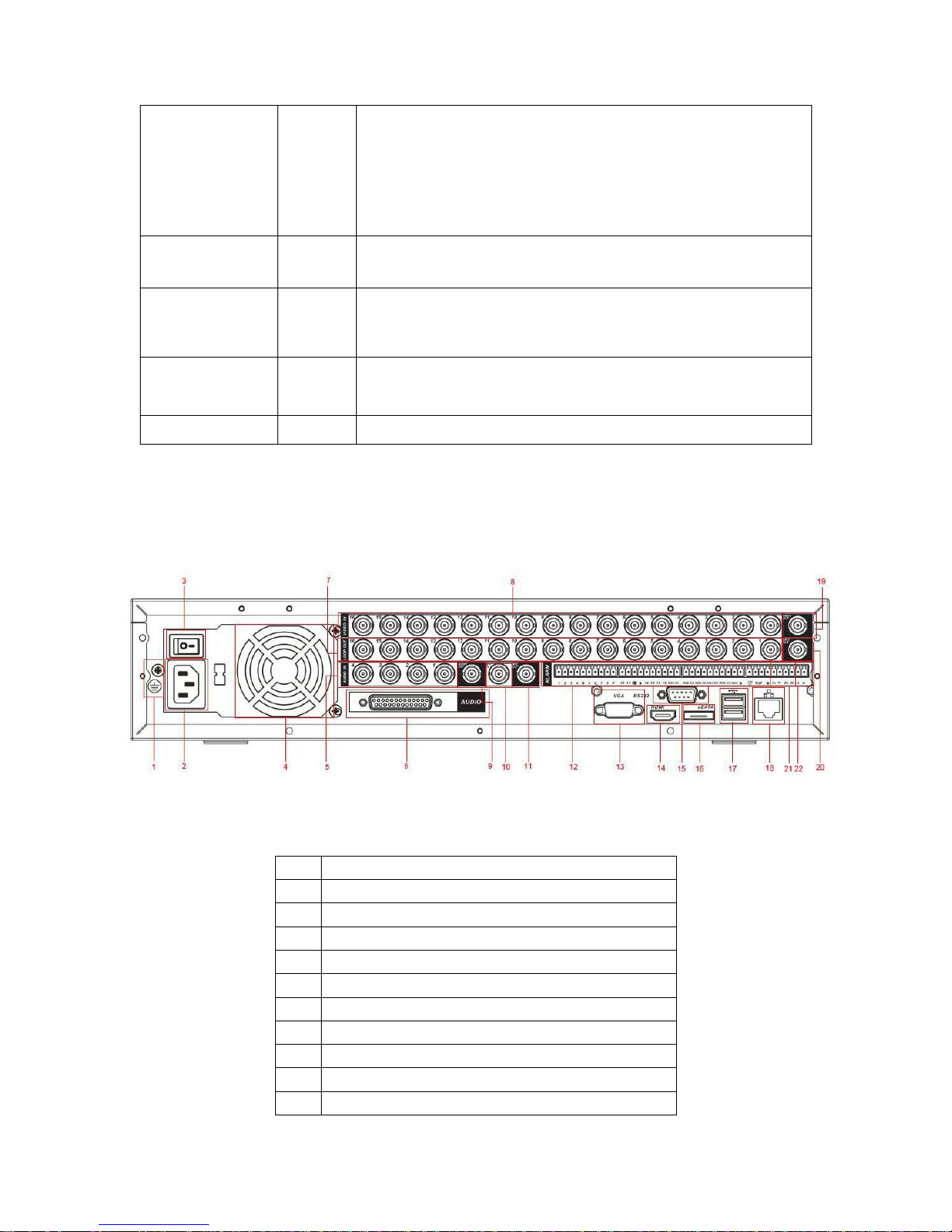

2.2 Rear Panel
This series products’ rear panel are shown as below.
See Figure 2-2
Figure 2-2
Please refer to the following sheet for detailed information.
1
Grounding hole
2
Power input port
3
Power button
4
Fan 5 1st to 4th-channel audio input
6
DB25 port (5th to 16th-channel audio input port)
7
Loop video output
8
Video input
9
Video output
10
Bidirectional talk input port
11
Bidirectional talk output port
Page 20
12
Alarm input/alarm output
13
Video VGA output
14
HDMI port
15
RS-232 port
16
eSATA port
17
USB port
18
Network port
19
Video CVBS output
20
Video matrix output
21
Full duplex RS-485 port
22
Half duplex RS-485 port
When connect the Ethernet port, please use crossover cable to connect the PC and use
the straight cable to connect to the switcher or router.

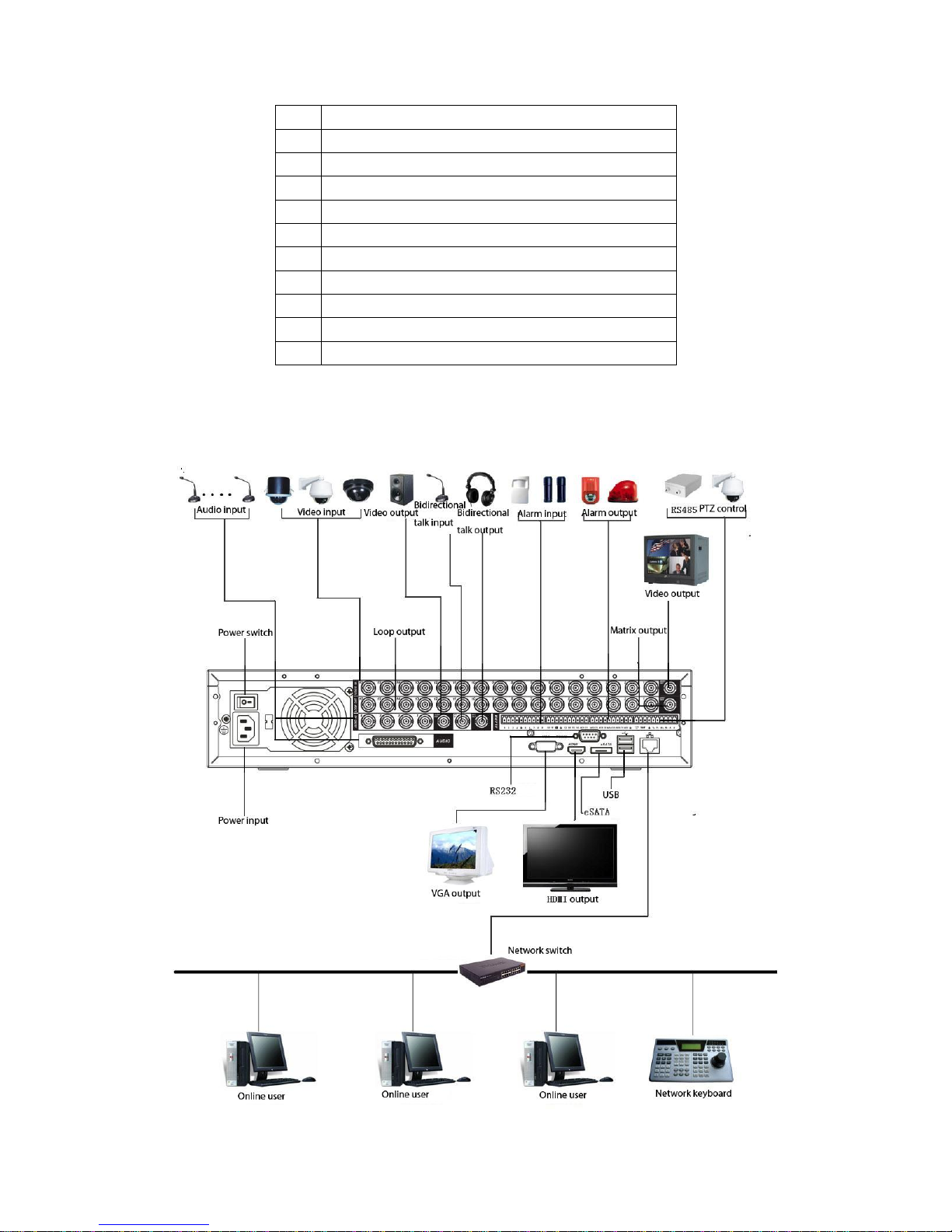

2.3 Connection Sample
Page 21
Figure 2-3
2.4 Remote Control
The remote control interface is shown as in Figure 2-4.
Please note remote control is not our standard accessory and it is not included in the
accessory bag.
Figure 2-4
Serial Number
Name
Function
1
Power button
Click it to boot up or shut down
the device.
2
Address
Click it to input device number, so
that you can control it.
3
Forward
Various forward speeds and
normal speed playback.
4
Slow play
Multiple slow play speeds or
normal playback.
5 Next record
In playback mode, playback the
next video.
Previous record
In playback mode, playback the
Page 22
6
previous video.
7
Play/Pause
In pause mode, click this button
to realize normal playback.
In normal playback click this
button to pause playback.
In real-time monitor mode, click
this button to enter video search
menu.
8 Reverse/pause
Reverse playback pause mode,
click this button to realize normal
playback.
In reverse playback click this
button to pause playback.
9 Esc.
Go back to previous menu or
cancel current operation (close
upper interface or control)
10
Record
Start or stop record manually
In record interface, working with
the direction buttons to select the
record channel.
Click this button for at least 1.5
seconds, system can go to the
Manual Record interface.
11
Direction keys
Switch current activated control,
go to left or right.
In playback mode, it is to control
the playback process bar.
Aux function(such as switch the
PTZ menu)
12
Enter /menu key
go to default button
go to the menu
13
Multiple-window switch
Switch between multiple-window
and one-window.
14
Fn
In 1-ch monitor mode: pop up
assistant function： PTZ control
and Video color.
Switch the PTZ control menu in
PTZ control interface.
In motion detection interface,
working with direction keys to
complete setup.
15
0-9 number key
Input password, channel or
switch channel.
Page 23
Shift is the button to switch the
input method.
2.5 Mouse Control
Left click
mouse
System pops up password input dialogue box if you have not logged in.
In real-time monitor mode, you can go to the main menu.
When you have selected one menu item, left click mouse to view menu
content.
Implement the control operation.
Modify checkbox or motion detection status.
Click combo box to pop up drop down list
In input box, you can select input methods. Left click the corresponding
button on the panel you can input numeral/English character
(small/capitalized). Here ← stands for backspace button. ＿ stands
for space button.
In English input mode: _stands for input a backspace icon and ←
stands for deleting the previous character.
In numeral input mode: _ stands for clear and ← stands for
deleting the previous numeral.
When input special sign, you can click corresponding numeral in the
front panel to input. For example, click numeral 1 you can input―/‖ , or
you can click the numeral in the on-screen keyboard directly.
Double left
click mouse
Implement special control operation such as double click one item in
the file list to playback the video.
Page 24
In multiple-window mode, double left click one channel to view in
full-window.
Double left click current video again to go back to previous
multiple-window mode.
Right click
mouse

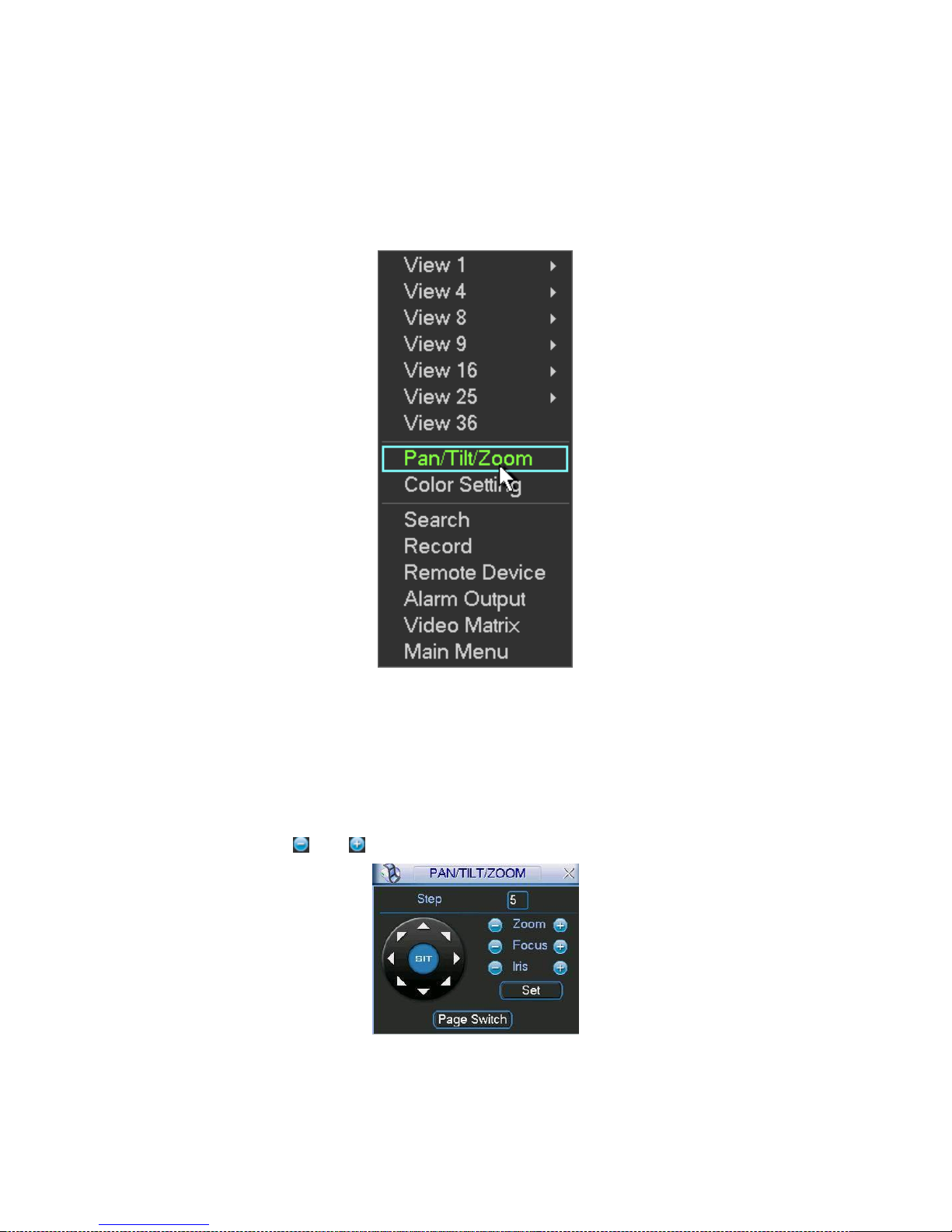

In real-time monitor mode, pops up shortcut menu: one-window,
four-window, nine-window and sixteen-window, Pan/Tilt/Zoom, color
setting, search, record, alarm input, alarm output, main menu.
Among which, Pan/Tilt/Zoom and color setting applies for current
selected channel.
If you are in multiple-window mode, system automatically switches to
the corresponding channel.
Exit current menu without saving the modification.
Press
middle
button
In numeral input box: Increase or decrease numeral value.
Switch the items in the check box.
Page up or page down
Move
mouse
Select current control or move control
Drag
mouse
Select motion detection zone
Select privacy mask zone.
2.6 Virtual Keyboard & Front Panel
2.6.1 Virtual Keyboard
The system supports two input methods: numeral input and English character (small and
capitalized) input.
Page 25
Move the cursor to the text column, the text is shown as blue, input button pops up on the
right. Click that button to switch between numeral input and English input (capitalized and
small), Use > or < to shift between small character and capitalized character.
2.6.2 Front Panel
Move the cursor to the text column. Click Fn key and use direction keys to select number
you wanted. Please click enter button to input.
Page 26
3 Installation and Connections
Note: All the installation and operations here should conform to your local electric
safety rules.
3.1 Check Unpacked DVR
When you receive the DVR from the forwarding agent, please check whether there is any
visible damage. The protective materials used for the package of the DVR can protect
most accidental clashes during transportation. Then you can open the box to check the
accessories.
Please check the items in accordance with the list on the warranty card. Finally you can
remove the protective film of the DVR.
Note
Remote control is not a standard accessory and it is not included in the accessory bag.
3.2 About Front Panel and Real Panel
The model in the front panel is very important; please check according to your purchase
order.
The label in the rear panel is very important too. Usually we need you to represent the
serial number when we provide the service after sales.

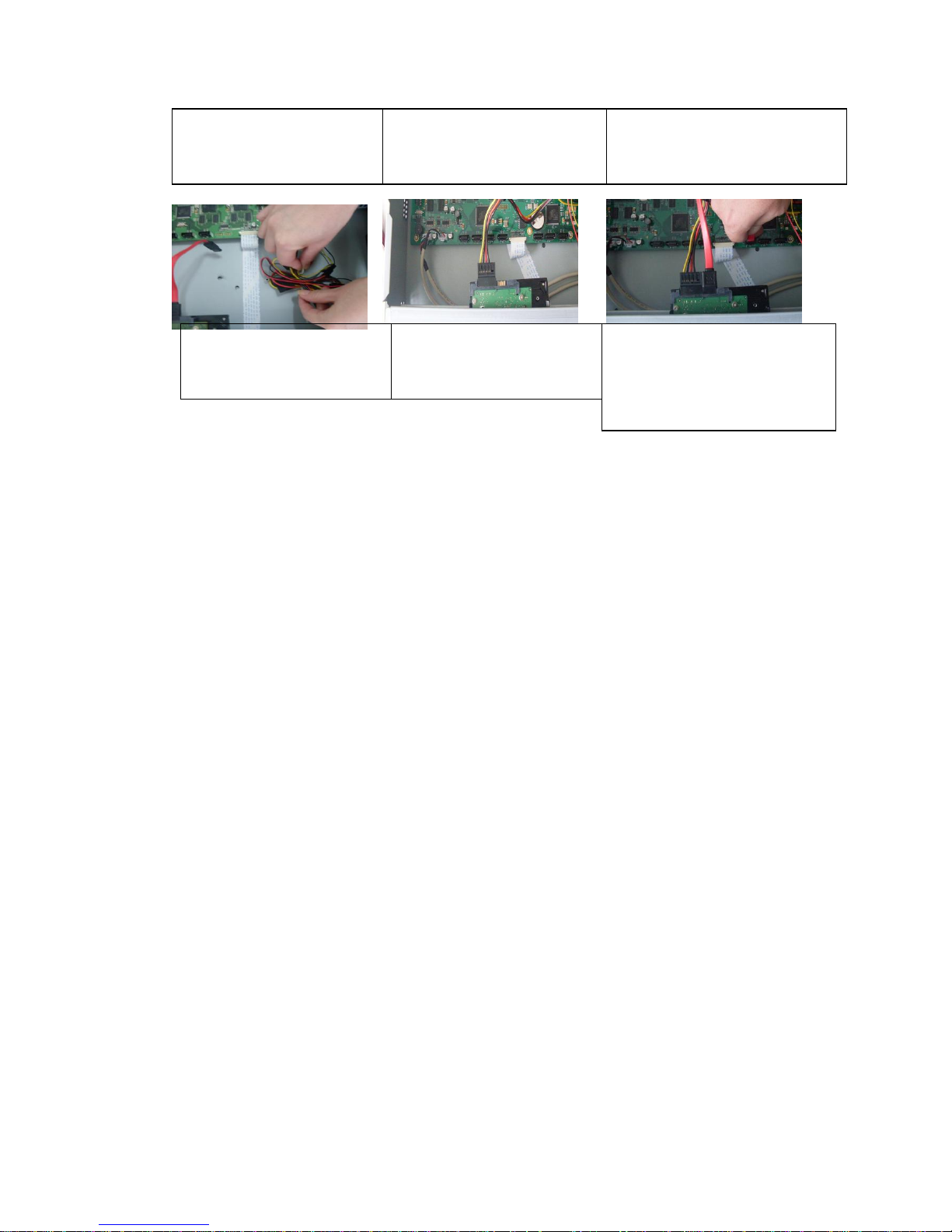

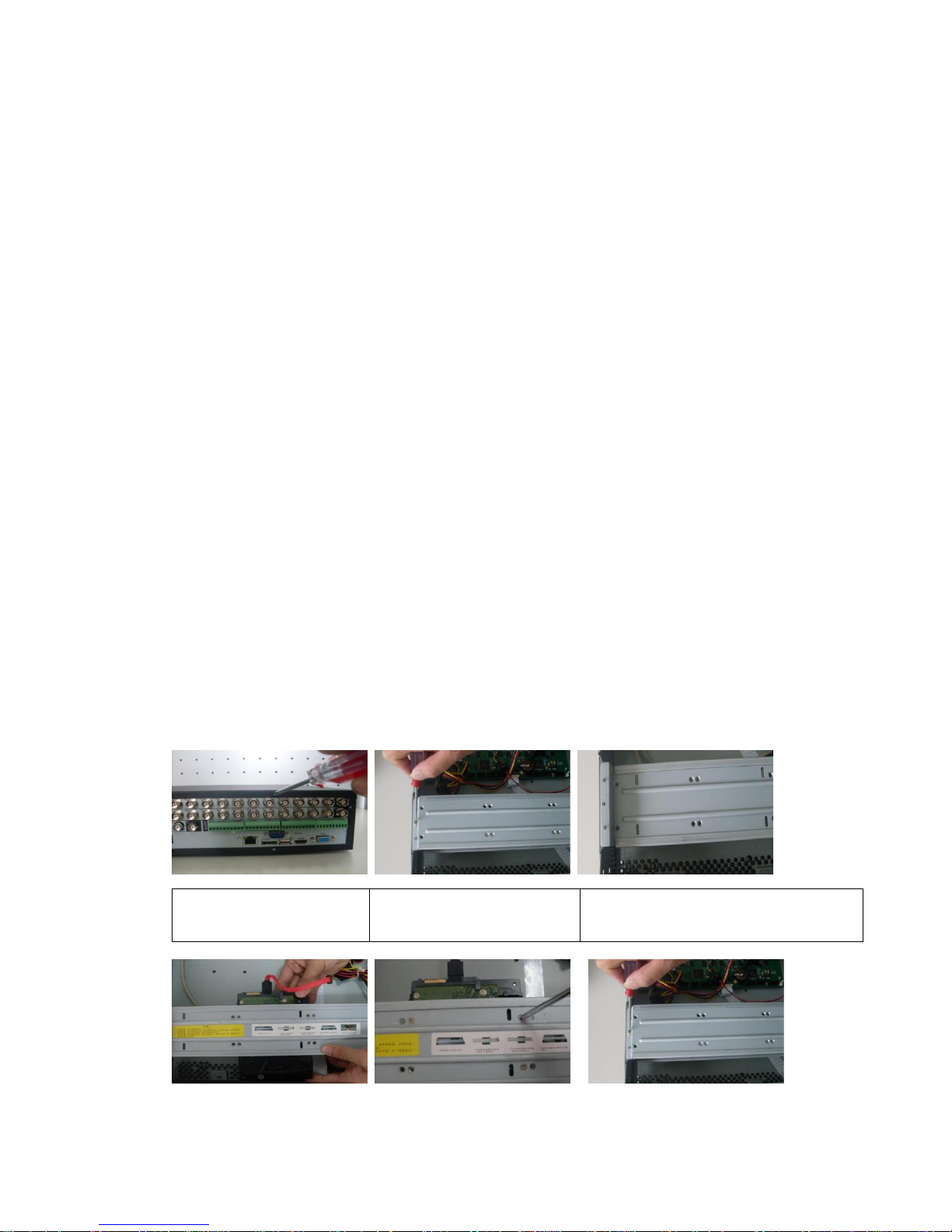

3.3 HDD Installation
This series DVR has 1 to 8 HDDs(no limitation for capacity). Please use HDD of 7200rpm
or higher. Usually we do not recommend the HDD for the PC.
You can refer to the Appendix for recommended HDD brand.
Please follow the instructions listed below to install hard disk.
1. Loosen the screws of the
upper cover.
2. Loosen HDD upper bracket
3. You can see the HDD lower support after
loosening HDD upper bracket
Page 27
Note:
You can connect the HDD data cable and the power cable first and then fix the HDD
in the device.
Please pay attention to the front cover. It adopts the vertical sliding design. You need
to push the clip first and then put down.
3.4 Rack Installation
The DVR occupies 1.5/2U rack units of vertical rack space.
Use twelve screws to fix the unit
Please make sure the indoor temperature is below 35℃ (95°f).
Please make sure there is 15cm (6 inches) space around the device to guarantee
sound ventilation.
Please install from the bottom to the top.
If there are more accessories connected in the rack, please take precaution
measures in case the rack power is overload.
3.5 Connecting Power Supply
Please check input voltage and device power button match or not.
We recommend you use UPS to guarantee steady operation, DVR life span, and other
peripheral equipments operation such as cameras.
3.6 Connecting Video Input and Output Devices
3.6.1 Connecting Video Input
The video input interface is BNC. The input video format includes: PAL/NTSC BNC
（1.0VB
P- P ，
B75Ω.）.
The video signal should comply with your national standards.
The input video signal shall have high SNR, low distortion; low interference, natural color
4. Place the HDD in accordance
to the four holes on the lower
bracket
5. Fix the HDD firmly with screws.
6. Install the upper support and fix it
firmly. Fix the HDD to the HDD upper
support in the same way.
7.Loosen the HDD power wire
inside the DVR.
8. Insert the power wire
9. Connect HDD to SATA port with
specified data line, then put the
cover on the box and fix it firmly.
Page 28
and suitable lightness.
Guarantee the stability and reliability of the camera signal:
The camera shall be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.
The camera and the DVR should have the same grounding to ensure the normal
operation of the camera.
Guarantee stability and reliability of the transmission lineBTTTB
Please use high quality, sound shielded BNC. Please select suitable BNC model
according to the transmission distance.
If the distance is too long, you should use twisted pair cable, and you can add video
compensation devices or use optical fiber to ensure video quality.
You should keep the video signal away from the strong electromagnetic interference,
especially the high tension current.
Keep connection lugs in well contactBTTTB
The signal line and shielded wire should be fixed firmly and in well connection. Avoid dry
joint, lap welding and oxidation.BTTT
Connecting Video Output
Video output includes a TBNC(PAL/NTSC, 1.0VP- P， 75Ω）output, a VGA output and a
HDMI output.
System supports BNC, VGA and HDMI output at the same time.
When you are using pc-type monitor to replace the monitor, please pay attention to the
following points:
To defer aging, do not allow the pc monitor to run for a long time.
Regular demagnetization will keep device maintain proper status.
Keep it away from strong electromagnetic interference devices.
Using TV as video output device is not a reliable substitution method. You also need to
reduce the working hour and control the interference from power supply and other devices.
The low quality TV may result in device damage.
3.7 Connecting Audio Input & Output, Bidirectional Audio
3.7.1 Audio Input
BNC port is adopted for audio input port.
Due to high impedance of audio input, please use active sound pick-up.
Audio transmission is similar to video transmission. Try to avoid interference, dry joint,
loose contact and it shall be away from high tension current.
3.7.2 Audio Output
The audio output signal parameter is usually over 200mv 1KΩ (BNC). It can directly
connect to low impedance earphone, active sound box or amplifier-drive audio output
device.
If the sound box and the pick-up cannot be separated spatially, it is easy to arouse
squeaking. In this case you can adopt the following measures:
Page 29
Use better sound pick-up with better directing property.
Reduce the volume of the sound box.
Using more sound-absorbing materials in decoration can reduce voice echo and
improve acoustics environment.
Adjust the layout to reduce happening of the squeaking.
3.8 Alarm Input and Output Connection
Please read the followings before connecting.
1. Alarm input
a. Please make sure alarm input mode is grounding alarm input.
b. Grounding signal is needed for alarm input.
c. Alarm input needs the low level voltage signal.
d. Alarm input mode can be either NC (normal Open) or NO (Normal Close)
e. When you are connecting two DVRs or you are connecting one DVR and one other
device, please use a relay to separate them,
2. Alarm output
The alarm output port should not be connected to high power load directly (It shall be less
than 1A) to avoid high current which may result in relay damage. Please use the co
contactor to realize the connection between the alarm output port and the load.
3. How to connect PTZ decoder
a. Ensure the decoder has the same grounding with DVR, otherwise you may not control
the PTZ. Shielded twisted wire is recommended and the shielded layer is used to connect
to the grounding.
b. Avoid high voltage. Ensure proper wiring and some thunder protection measures.
c. For too long signal wires, 120Ω should be parallel connected between A, B lines on the
far end to reduce reflection and guarantee the signal quality.
d. ―485 A, B‖ of DVR cannot parallel connect with ―485 port‖ of other device.
e. The voltage between of A,B lines of the decoder should be less than 5v.
4. Please make sure the front-end device has soundly earthed.
Improper grounding may result in chip damage.
Page 30
3.8.1 Alarm Input and Output Details
Important
Please refer to the specifications for the alarm input and output channel amount.
Do not merely count the alarm input and out channel amount according to the ports
on the rear panel.
Figure 3-1
In the first line, from
the left to the right,:
1，2，3，4，5，6，
7，8，9，10，11，
12，13，14，15，16
ALARM 1 to ALARM 16. The alarm becomes active in low voltage.
In the second line,
from the left to the
right:
NO1 C1，
NO2 C2，
NO3 C3，
NO4 C4,
NO5 C5 NC5
The first four are four groups of normal open activation output (on/off
button)
NO5 C5 NC5 is a group of NO/NC activation output (on/off button)
CTRL 12V
Control power output. You need to close the device power to cancel
the alarm.
+12V
It is external power input. Need the peripheral equipment to provide
+12V power (below 1A).
Earth cable.
485 A/B
485 communication port. They are used to control devices such as
decoder.
T+,T-,R+,R-
They are four-wire double duplex RS485 port
T+ T-: output wire
R+ R-: input wire
Page 31

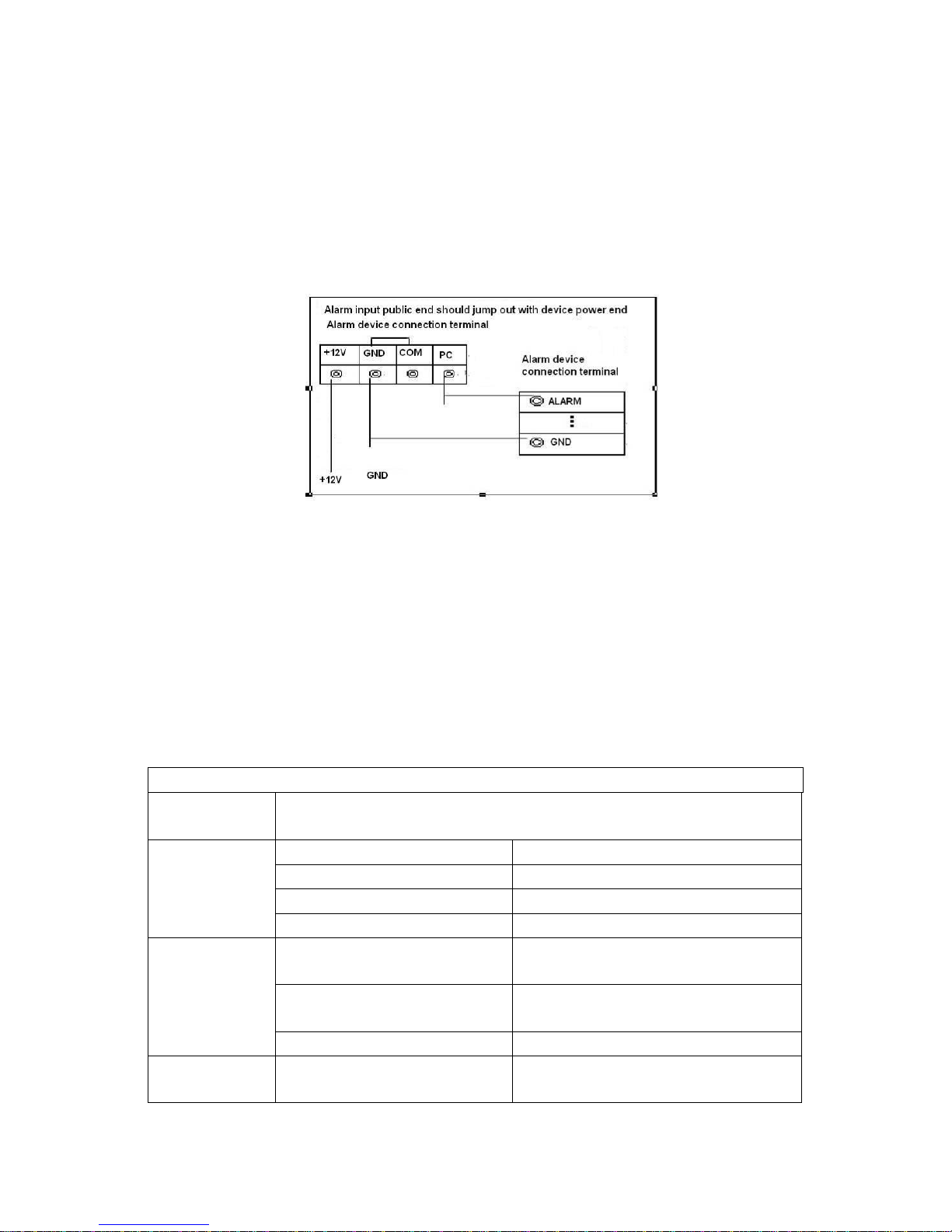

3.8.2 Alarm Input Port
Please refer to the following sheet for more information.
Grounding alarm inputs. Normal open or Normal close type)
Please parallel connect COM end and GND end of the alarm detector (Provide
external power to the alarm detector).
Please parallel connect the Ground of the DVR and the ground of the alarm detector.
Please connect the NC port of the alarm sensor to the DVR alarm input(ALARM)
Use the same ground with that of DVR if you use external power to the alarm device.
Figure 3-2
3.8.3 Alarm Output Port
Provide external power to external alarm device.
To avoid overloading, please read the following relay parameters sheet carefully.
RS485 A/B cable is for the A/B cable of the PTZ decoder.
T+,T-,R+,R- are four-wire double duplex RS485 port.
T+ T-: output wire
R+ R-: input wire
Relay Specification
Model:
JRC-27F
Material of the
touch
Silver
Rating
（Resistance
Load）
Rated switch capacity
30VDC 2A, 125VAC 1A
Maximum switch power
125VA 160W
Maximum switch voltage
250VAC, 220VDC
Maximum switch currency
1A
Insulation
Between touches with same
polarity
1000VAC 1minute
Between touches with different
polarity
1000VAC 1minute
Between touch and winding
1000VAC 1minute
Surge voltage
Between touches with same
polarity
1500V (10×160us)
Page 32
Length of open
time
3ms max
Length of close
time
3ms max
Longevity
Mechanical
50×106 times (3Hz)
Electrical
200×103 times (0.5Hz)
Temperature
-40℃ ~+70℃
3.9 RS485
When the DVR receives a camera control command, it transmits that command up the coaxial
cable to the PTZ device. RS485 is a single-direction protocol; the PTZ device can’t return any
data to the unit. To enable the operation, connect the PTZ device to the RS485 (A,B) input on
the DVR.
Since RS485 is disabled by default for each camera, you must enable the PTZ settings first.
This series DVRs support multiple protocols such as Pelco-D, Pelco-P.
To connect PTZ devices to the DVR:
1. Connect RS485 A,B on the DVR rear panel.
2. Connect the other end of the cable to the proper pins in the connector on the camera.
3. Please follow the instructions to configure a camera to enable each PTZ device on the
DVR.
Page 33
4 Overview of Navigation and Controls
Note:
All the operations listed below are based on the 2U series product.
Before operation, please make sure:
You have properly installed HDD and all the cable connections.
The provided input power and the device power are matched.
The external power shall be DC 12V.
Always use the stable current, if necessary UPS is a best alternative measure.
4.1 Login, Logout & Main Menu
4.1.1 Login

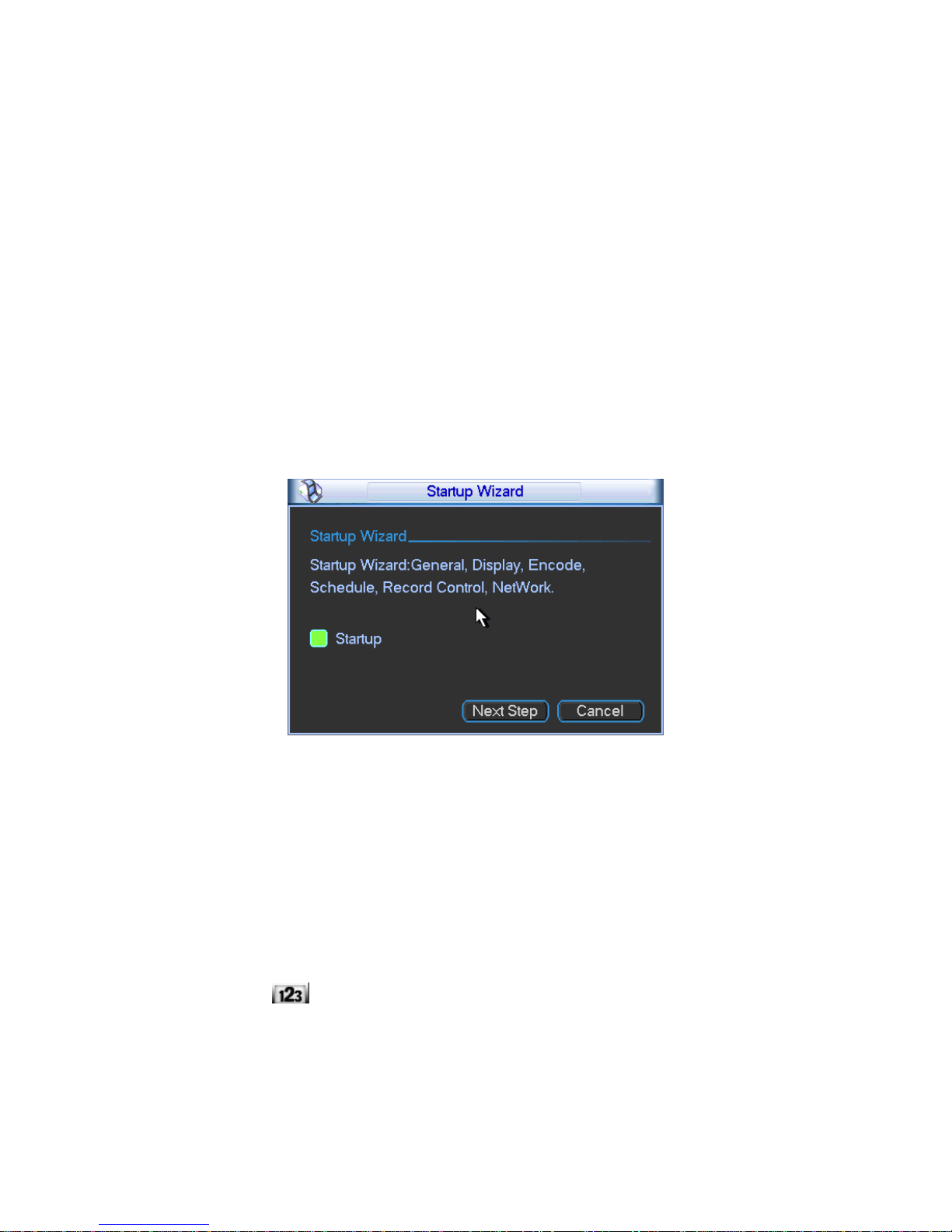

After system booted up, system pops up the startup wizard.
Click the Cancel button; you can go to the system login interface.
Click the Next Step button; you can go to the startup wizard interface. Here you can set
the system basic information. See Figure 4-1.
Figure 4-1

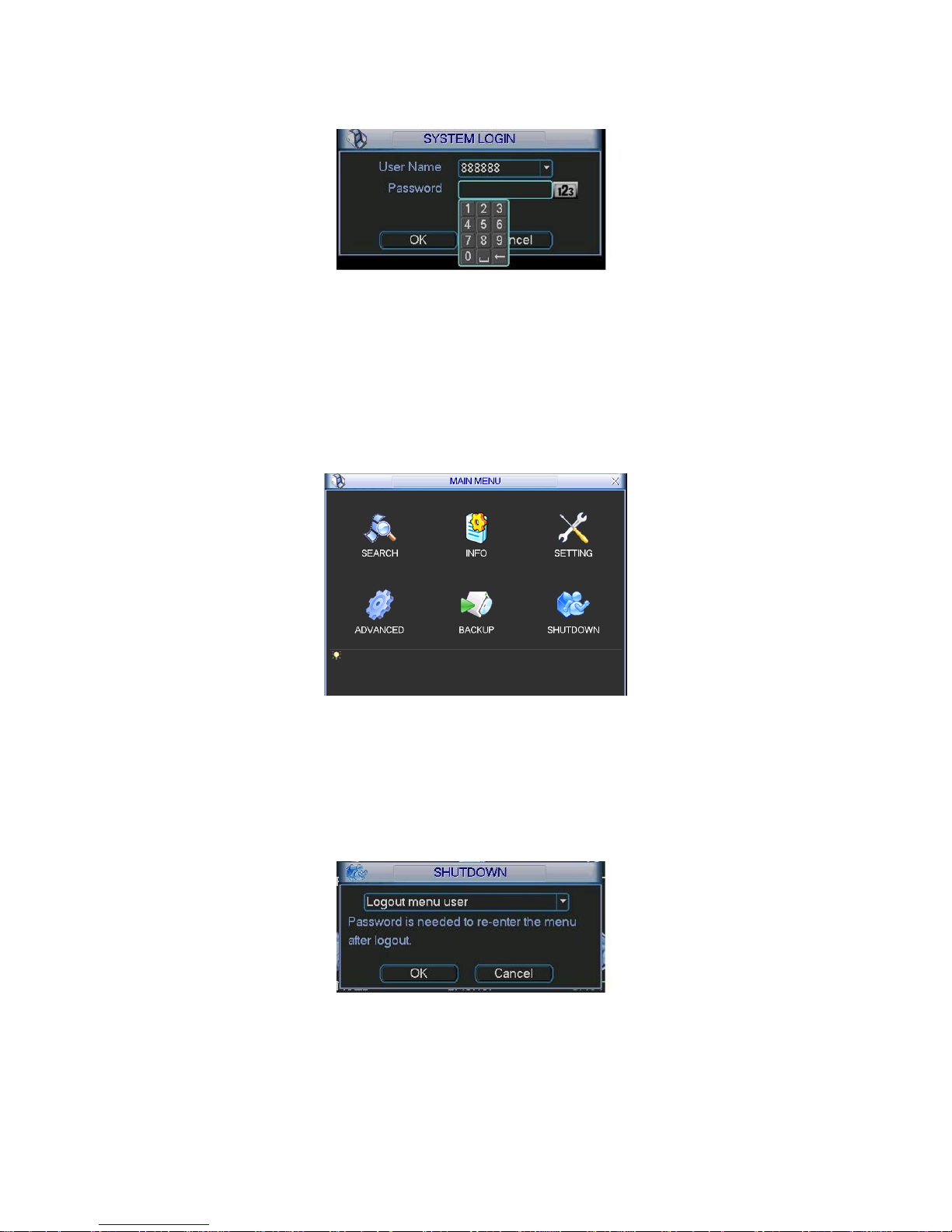

The system login interface is shown as in Figure 4-2.
System consists of four accounts:
Username: admin. Password: admin. (administrator, local and network)
Username: 888888. Password: 888888. (administrator, local only)
Username: 666666. Passwords: 666666(Lower authority user who can only monitor,
playback, backup etc.)
Username: default. Password: default(hidden user)
You can use USB mouse, front panel, remote control or keyboard to input. About input
method: Click to switch between numeral, English character (small/capitalized) and
denotation.
Note:
For security reason, please modify password after you first login.
Within 30 minutes, three times login failure will result in system alarm and five times login
Page 34
failure will result in account lock!
Figure 4-2

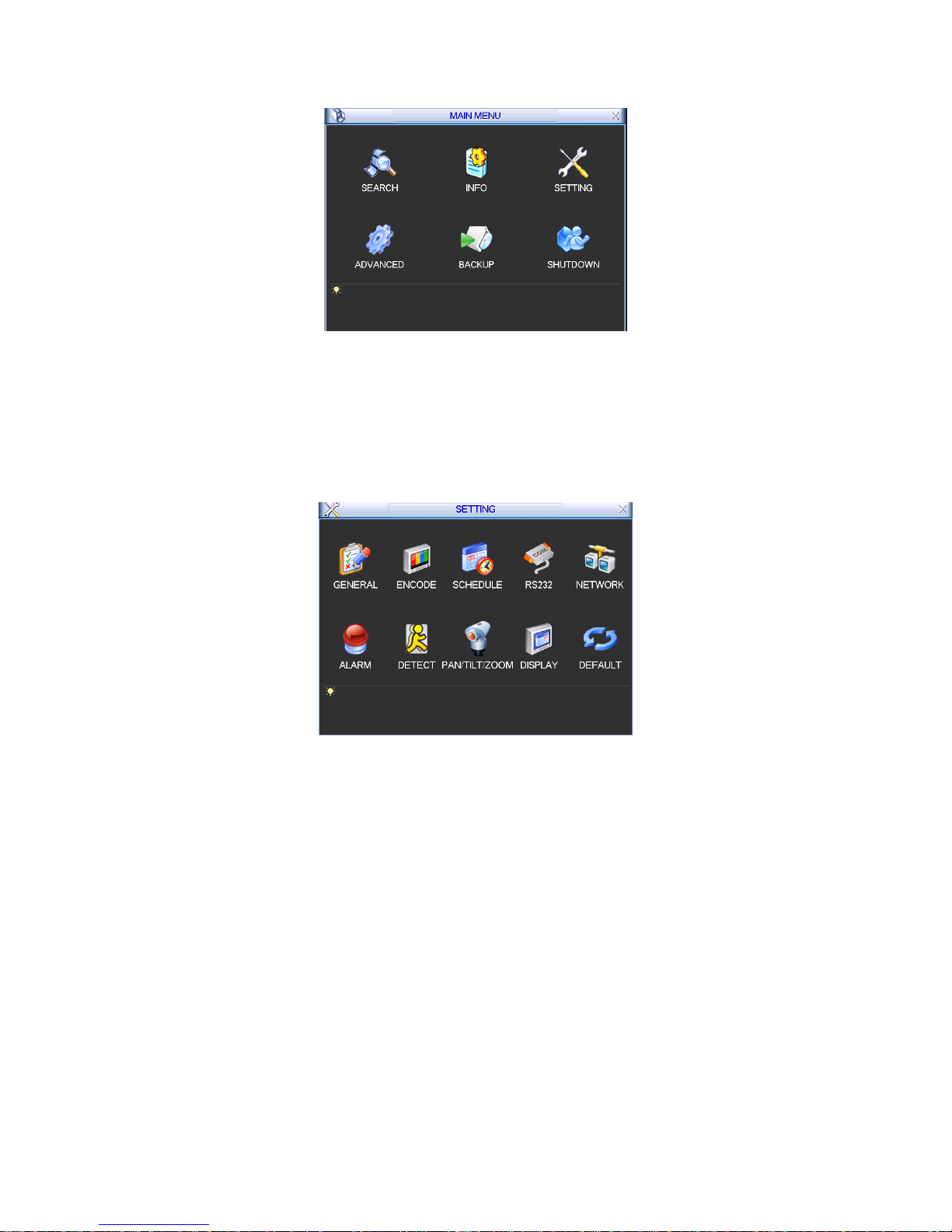

4.1.2 Main Menu
After you logged in, the system main menu is shown as below. See Figure 4-3.
There are total six icons: search, information, setting, backup, advanced and
shutdown.
You can move the cursor to highlight the icon, and then double click mouse to enter
the sub-menu.
Figure 4-3
4.1.3 Logout
There are two ways for you to log out.
One is from menu option:
In the main menu, click shutdown button, you can see an interface is shown as below.
See Figure 4-4.
Figure 4-4
There are several options for you. See Figure 4-5.
Page 35
Figure 4-5
The other ways is to press power button on the front panel for at least 3 seconds,
system will stop all operations. Then you can click the power button in the rear panel to
turn off the DVR.
4.1.4 Auto Resume after Power Failure
The system can automatically backup video and resume previous working status after
power failure.
4.1.5 Replace Button Battery
Please make sure to use the same battery model if possible.
We recommend replace battery regularly (such as one-year) to guarantee system time
accuracy.
Note:
Before replacement, please save the system setup, otherwise, you may lose the data
completely!
4.2 Manual Record
4.2.1 Live Viewing
After you logged in, the system is in live viewing mode. You can see system date, time
and channel name. If you want to change system date and time, you can refer to
general settings (Main Menu->Setting->General). If you want to modify the channel
name, please refer to the display settings (Main Menu->Setting->Display)

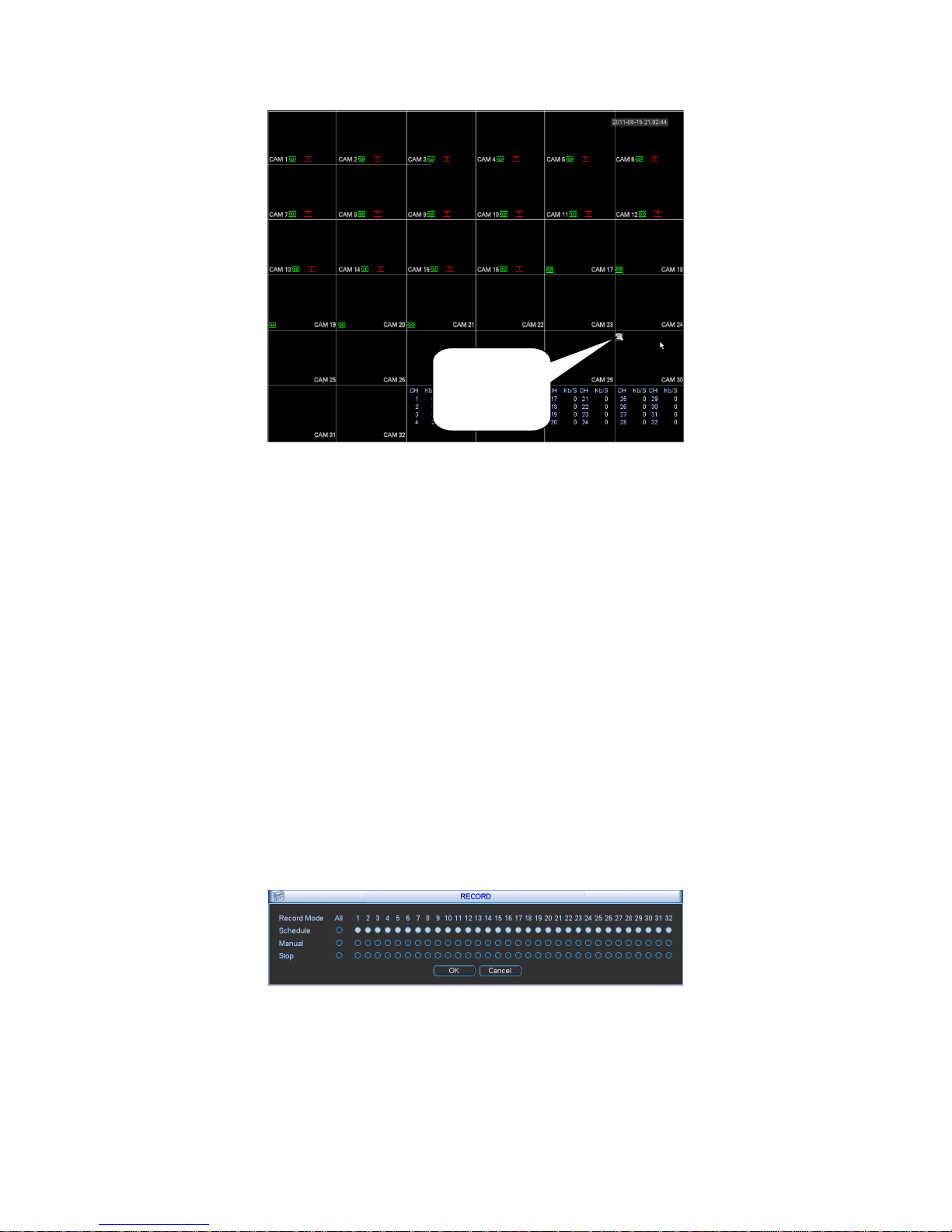

Preview Zoom Function
Move your mouse to the left top corner of the preview interface; you can see the
preview zoom button. See Figure 4-6. Left click the icon; you can see a hook icon.
Now you have enabled the preview zoom function. You can drag the mouse to zoom in
the image.
1
Recording status
3
Video loss
2
Motion detection
4
Camera lock
Page 36
Figure 4-6
4.2.2 Manual record
Note:
You need to have proper rights to implement the following operations. Please make
sure the HDD has been properly installed.
4.2.2.1 Manual record menu
There are two ways for you to go to manual record menu.
Right click mouse or in the main menu, Advanced->Manual Record.
In live viewing mode, click record button in the front panel or record button in the
remote control.
Manual record menu is shown as in Figure 4-7.
4.2.2.2 Basic operation
There are three statuses: schedule/manual/stop. Please highlight icon“○” to select
corresponding channel.
Manual: The highest priority. After manual setup, all selected channels will begin
ordinary recording.
Schedule: Channel records as you have set in recording setup (Main
Menu->Setting->Schedule)
Stop: All channels stop recording.
Figure 4-7
4.2.2.3 Enable/disable record
Please check current channel status: ―○‖ means it is not in recording status, ―●‖ means
it is in recording status.
Preview
zoom button
Page 37

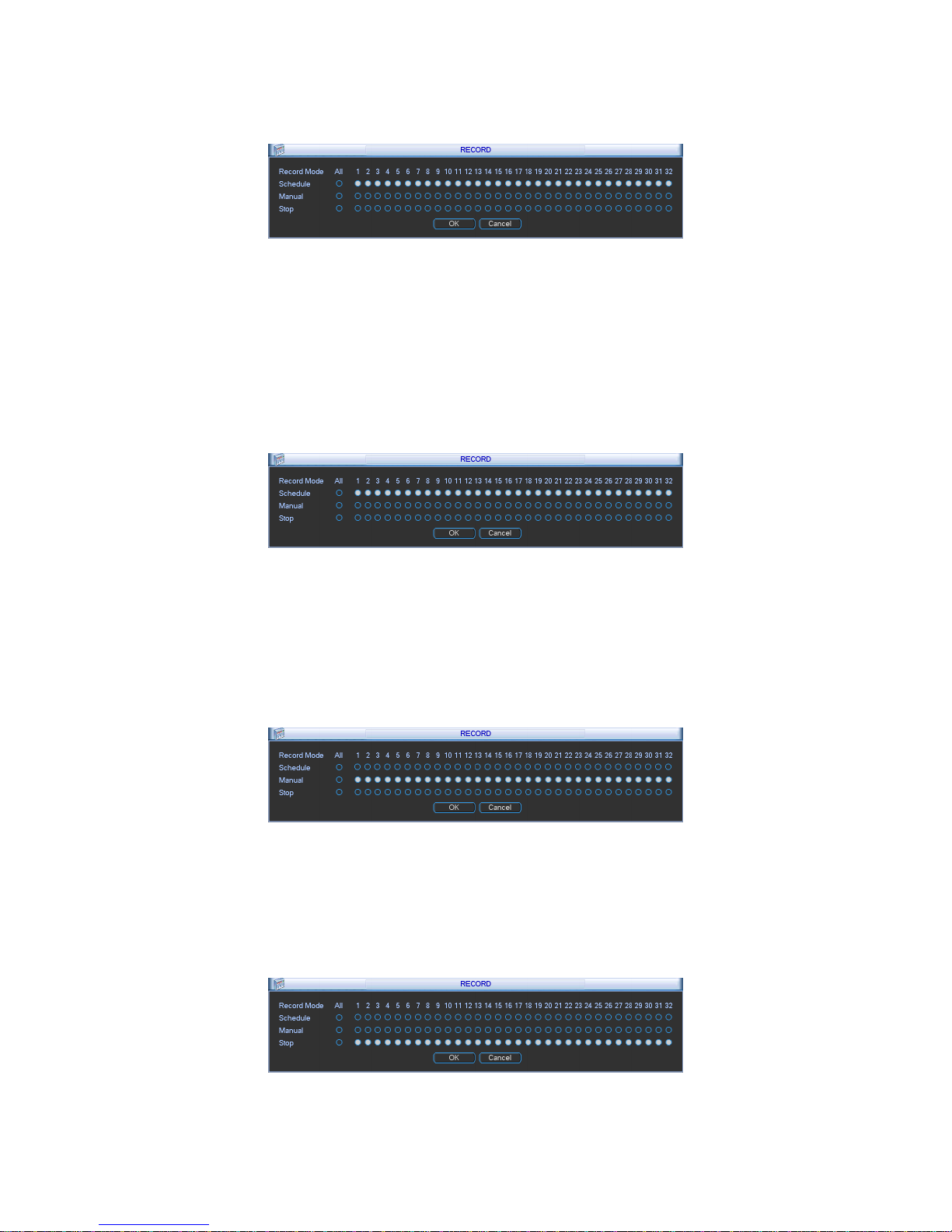

You can use mouse or direction key to highlight channel number. See Figure 4-8.
Figure 4-8
4.2.2.4 Enable all channel recording
Highlight ○ below All, you can enable all channel recording.
All channel schedule record
Please highlight ―ALL‖ after ―Schedule‖. See Figure 4-9.
When system is in schedule recording, all channels will record as you have previously
set (Main menu->Setting->Schedule).
The corresponding indication light in front panel will turn on.
Figure 4-9
All channel manual record
Please highlight “ALL” after “Manual.” See Figure 4-10.
When system is in manual recording, all scheduled set up you have set in will be null
((Main menu->Setting->Schedule)).
You can see indication light in front panel turns on, system begins manual record now.
Figure 4-10
4.2.2.5 Stop all channel recording
Please highlight “ALL” after “Stop”. See Figure 4-11.
System stops all channel recording no matter what mode you have set in the menu
(Main menu->Setting->Schedule)
Figure 4-11
Page 38
4.3 Search & Playback
Click search button in the main menu, search interface is shown as below. See Figure
4-12.
Usually there are three file types:
R: Regular recording file.
A: External alarm recording file.
M: Motion detection recording file
Figure 4-12

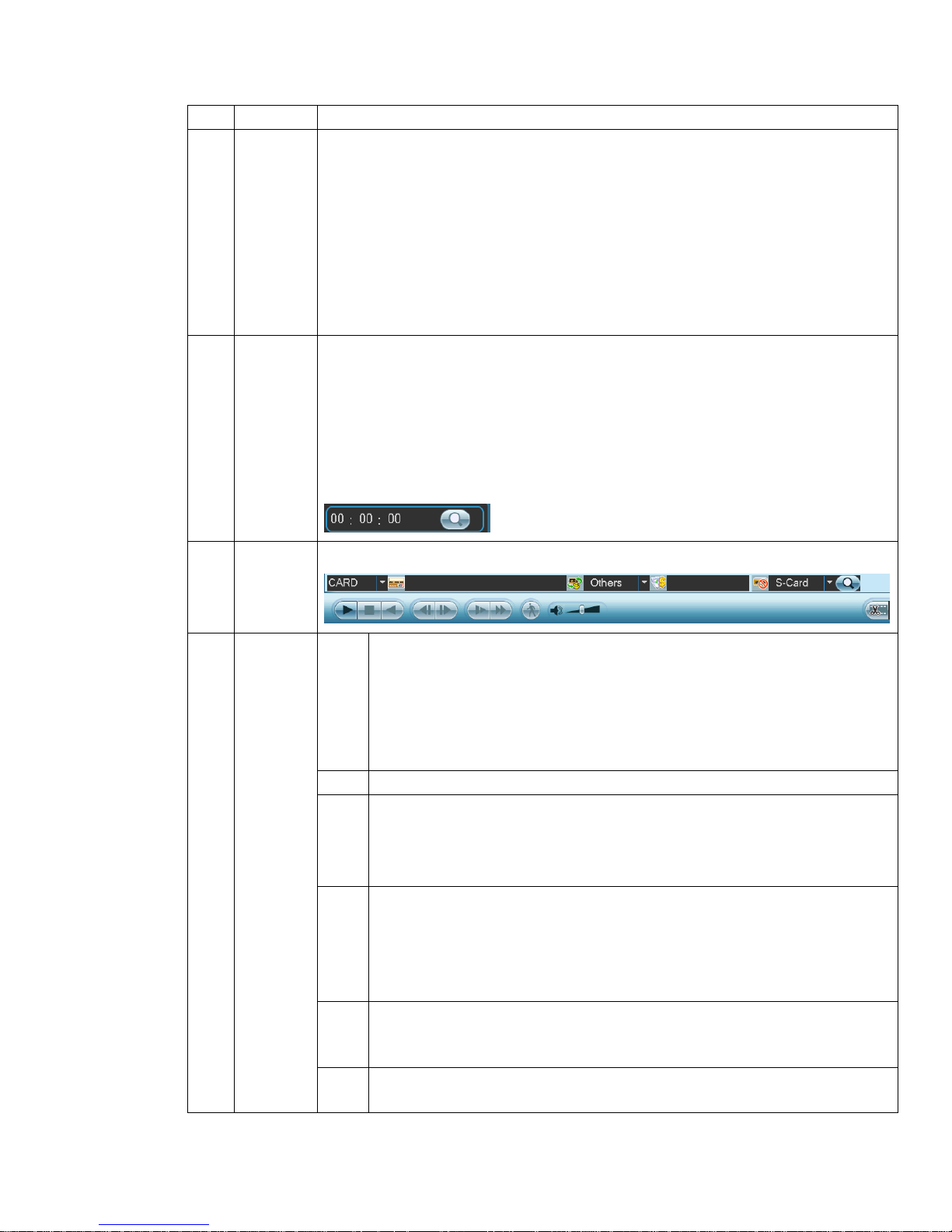

Please refer to the following sheet for more information.
SN
Name
Function
1
Display
window
Here is to display the searched picture or file.
Support 1/4/9/16-window playback.
2
Search
type
Here you can select to search the picture or the recorded
file.
When there is displayed picture on the left pane, you can
set the corresponding setup
3
Calendar
The blue highlighted date means there is picture or file. Otherwise, there is no
picture or file.
In any play mode, click the date you want to see, you can see the corresponding
2 3 4
5 6 7 8 12 9 10
11 1 1
Page 39
record file trace in the time bar.
4
Playback
mode
and
channel
selection
pane.
Playback mode：1/4/9/16. (It may vary due to different series.)
In 1-window playback mode: you can select 1-16 channels.
In 4-window playback mode: you can select 4 channels according to your
requirement.
In 9-window playback mode, you can switch between 1-9 and 10-16 channels.
In 16-window playback mode, you can switch between1-16 and 17-32
channels.
The time bar will change once you modify the playback mode or the channel
option.
5
File list
switch
button
Double click it, you can view the picture/record file list of current day.
The file list is to display the first channel of the record file.
The system can display max 128 files in one time. Use the / or the mouse to
view the file. Select one item, and then double click the mouse or click the ENTER
button to playback.
You can input the period in the following interface to begin accurate search.
File type：R—regular record； A—external alarm record；M—Motion detect record.
6
Card
number
search

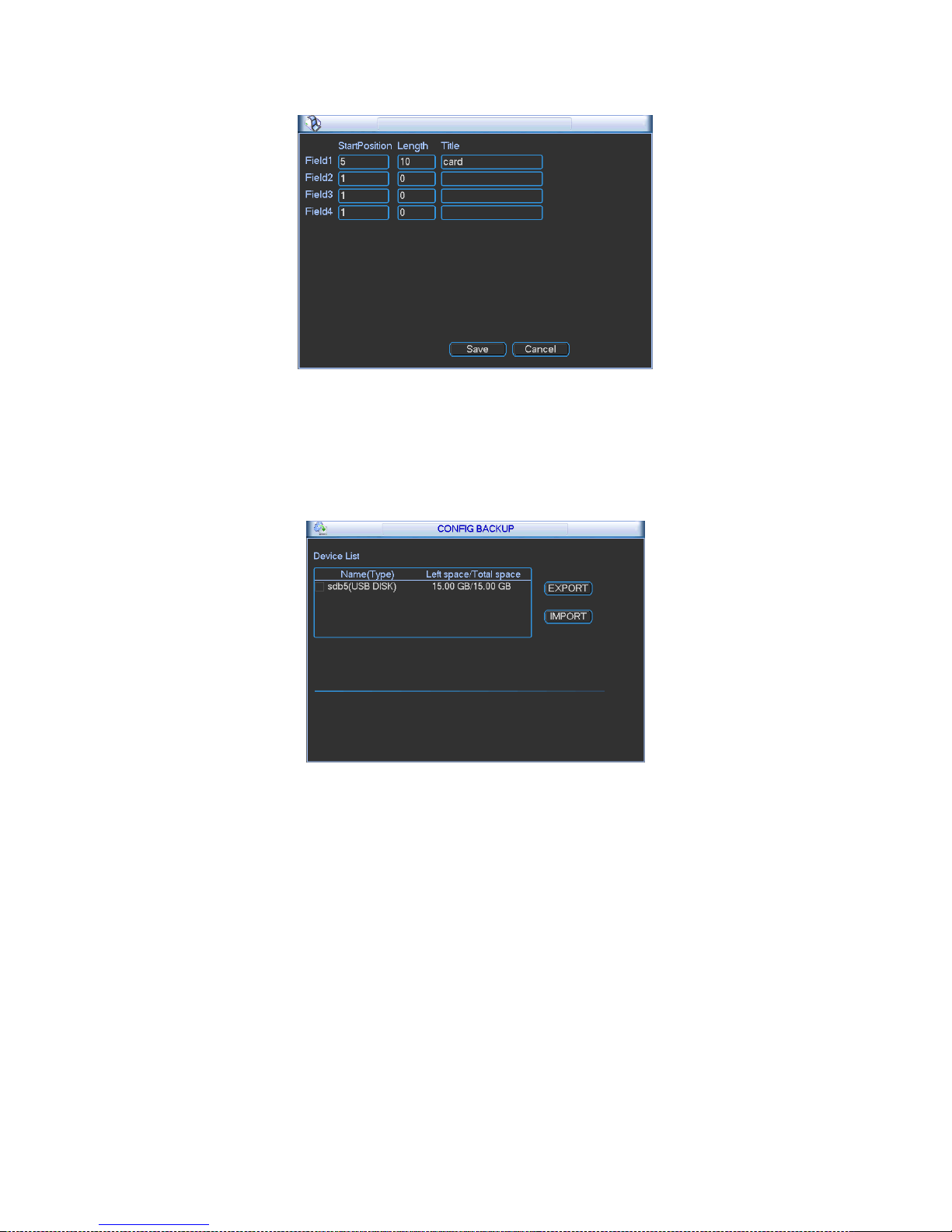

The card number search interface is shown as below.
7
Playback
control
pane.
►/
Play/Pause
There are three ways for you to begin playback.
The play button
Double click the valid period of the time bar.
Double click the item in the file list.
In slow play mode, click it to switch between play/pause.
■
Stop
Backward play
In normal play mode, left click the button, the file begins backward play.
Click it again to pause current play.
In backward play mode, click ►/ to restore normal play.
│/
│
In playback mode, click it to play the next or the previous section. You can
click continuously when you are watching the files from the same channel.
In normal play mode, when you pause current play, you can click │ and
│ to begin frame by frame playback.
In frame by frame playback mode, click ►/ to restore normal playback.
►
Slow play
In playback mode, click it to realize various slow play modes such as slow
play 1, slow play 2, and etc.
Fast forward
In playback mode, click to realize various fast play modes such as fast
Page 40
play 1,fast play 2 and etc.
Note: The actual play speed has relationship with the software version.
Smart search
The volume of the playback
Click the snapshot button in the full-screen mode, the system can snapshot
1 picture per second.
8
Time bar
It is to display the record type and its period in current search criteria.
In 4-window playback mode, there are corresponding four time bars. In other
playback mode, there is only one time bar.
Use the mouse to click one point of the color zone in the time bar, system begins
playback.
The time bar is beginning with 0 o'clock when you are setting the configuration.
The time bar zooms in the period of the current playback time when you are playing
the file.
The green color stands for the regular record file. The red color stands for the
external alarm record file. The yellow stands for the motion detect record file.
9
Time bar
unit
●The option includes: 24H, 12H, 1H and 30M. The smaller the unit, the larger the
zoom rate. You can accurately set the time in the time bar to playback the record.
The time bar is beginning with 0 o'clock when you are setting the configuration.
The time bar zooms in the period of the current playback time when you are playing
the file.
10
Backup
Select the file(s) you want to backup from the file list. System max supports files
from four channels. Then click the backup button, now you can see the backup
menu. Click the start button to begin the backup operation.
Check the file again you can cancel current selection.
System max supports to display 32 files from one channel.
11
Clip
It is to edit the file.
●Please play the file you want to edit and then click this button when you want to
edit. You can see the corresponding slide bar in the time bar of the corresponding
channel. You can adjust the slide bar or input the accurate time to set the file end
time. Click this button again and then save current contents in a new file. .
12
Record
type
In any play mode, the time bar will change once you modify the search type.
13
Smart
search
When system is playing, you can select a zone in the window to begin motion
detect. Click the motion detect button to begin play.
Current button is null once the motion detect play has begun.
The system will take the whole play zone as the motion detect region by
default.
The motion detect play stopped once you switch the play file.
Operations such as set time bar, click the play button, or any file list operation
will stop current motion detect play.
Page 41
Other Functions
14
Other channel
synchronization switch to play
when playback
When playing the file, click the number button, system can
switch to the same period of the corresponding channel to play.
15
Digital zoom
When the system is in full-screen playback mode, left click
the mouse in the screen. Drag your mouse in the screen to
select a section and then left click mouse to realize digital
zoom. You can right click mouse to exit.
Note:
All the operations here (such as playback speed, channel, time and progress) have
relationship with hardware version. Some series DVRs do not support some functions
or playback speeds.
4.4 Schedule
After system booted up, it is in default 24-hour regular mode. You can set record type
and time in schedule interface.

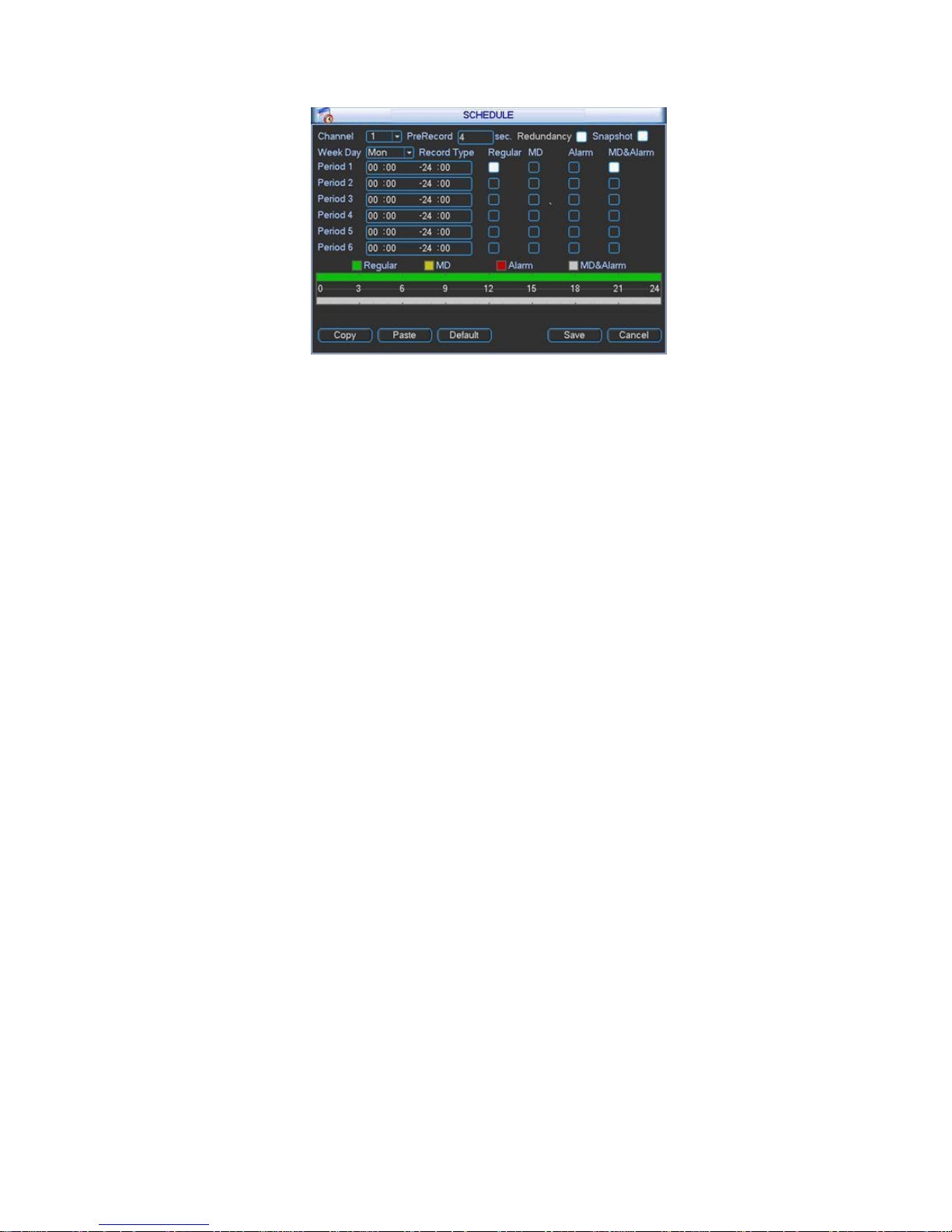

4.4.1 Schedule Menu
In the main menu, from setting to schedule, you can go to schedule menu. See Figure
4-13.
Channel: Please select the channel number first. You can select “ all” if you want to
set for the whole channels.
Week day: There are eight options: ranges from Saturday to Sunday and all.
Pre-record: System can pre-record the video before the event occurs into the file. The
value ranges from 1 to 30 seconds depending on the bit stream.
Redundancy: System supports redundancy backup function. It allows you backup
recorded file in two disks. You can highlight Redundancy button to activate this
function. Please note, before enable this function, please set at least one HDD as
redundant. ( Main menu->Advanced->HDD Management) Please refer to chapter
4.4.1.2 for detailed information.
Snapshot: You can enable this function to snapshoot image when alarm occurs.
Record types: There are four types: regular, motion detection (MD), Alarm, MD &
alarm.
Please highlight icon to select the corresponding function. After completing all the
setups please click save button, system goes back to the previous menu.
At the bottom of the menu, there are color bars for your reference. Green color stands
for regular recording, yellow color stands for motion detection and red color stands for
alarm recording. The white means the MD and alarm record is valid. Once you have
set to record when the MD and alarm occurs, system will not record neither motion
detect occurs nor the alarm occurs.
Page 42

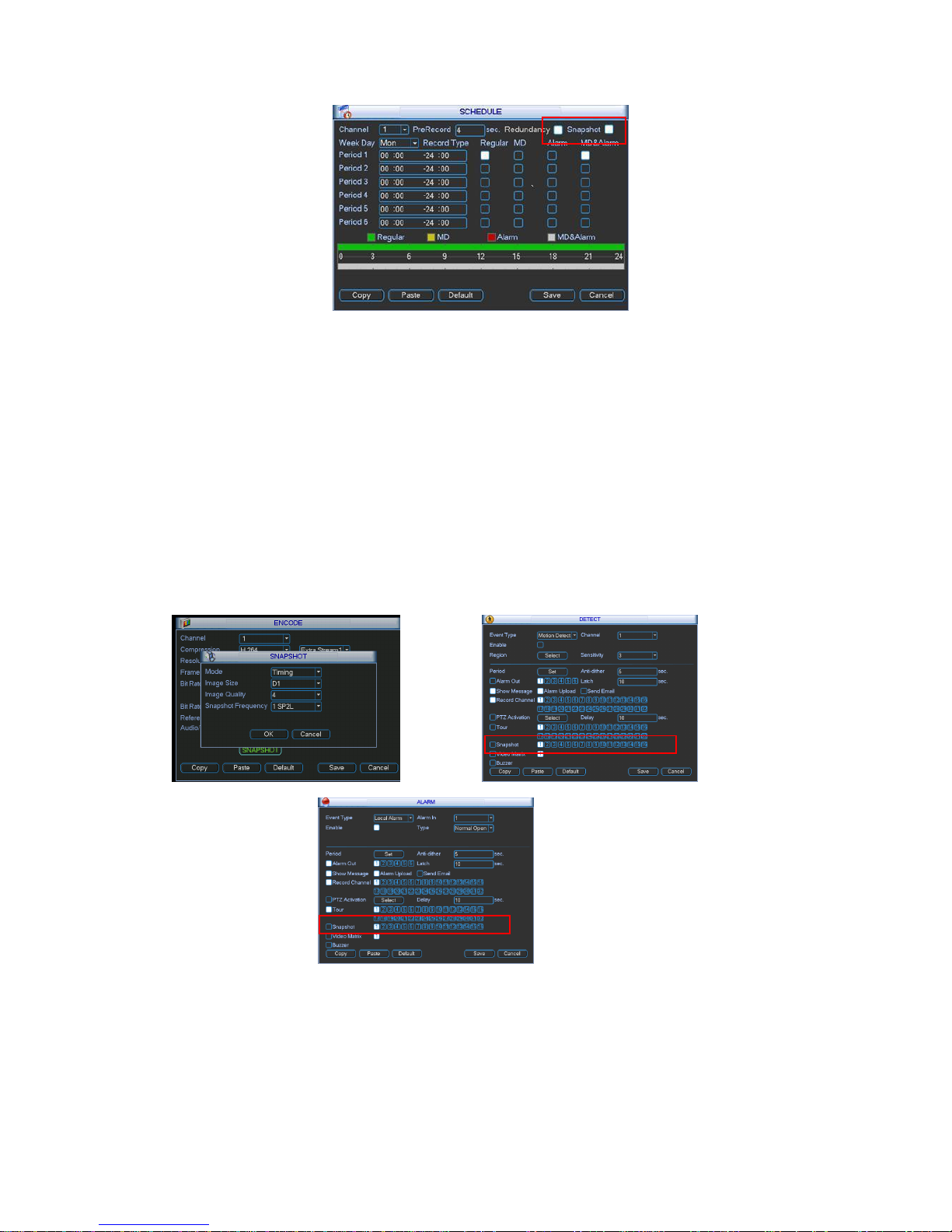

Figure 4-13
4.4.1.1 Quick Setup
This function allows you to copy one channel setup to another. After setting in channel 1,
you can click paste button and turn to channel 2 and then click copy button. You can finish
setting for one channel and then click save button or you can finish all setup and then click
save button to memorize all the settings.
4.4.1.2 Redundancy
Redundancy function allows you to memorize record file in several disks. When there
is file damage occurred in one disk, there is a spare one in the other disk. You can use
this function to maintain data reliability and safety.
In the main menu, from Setting to Schedule, you can highlight redundancy button to
enable this function. See Figure 4-13.

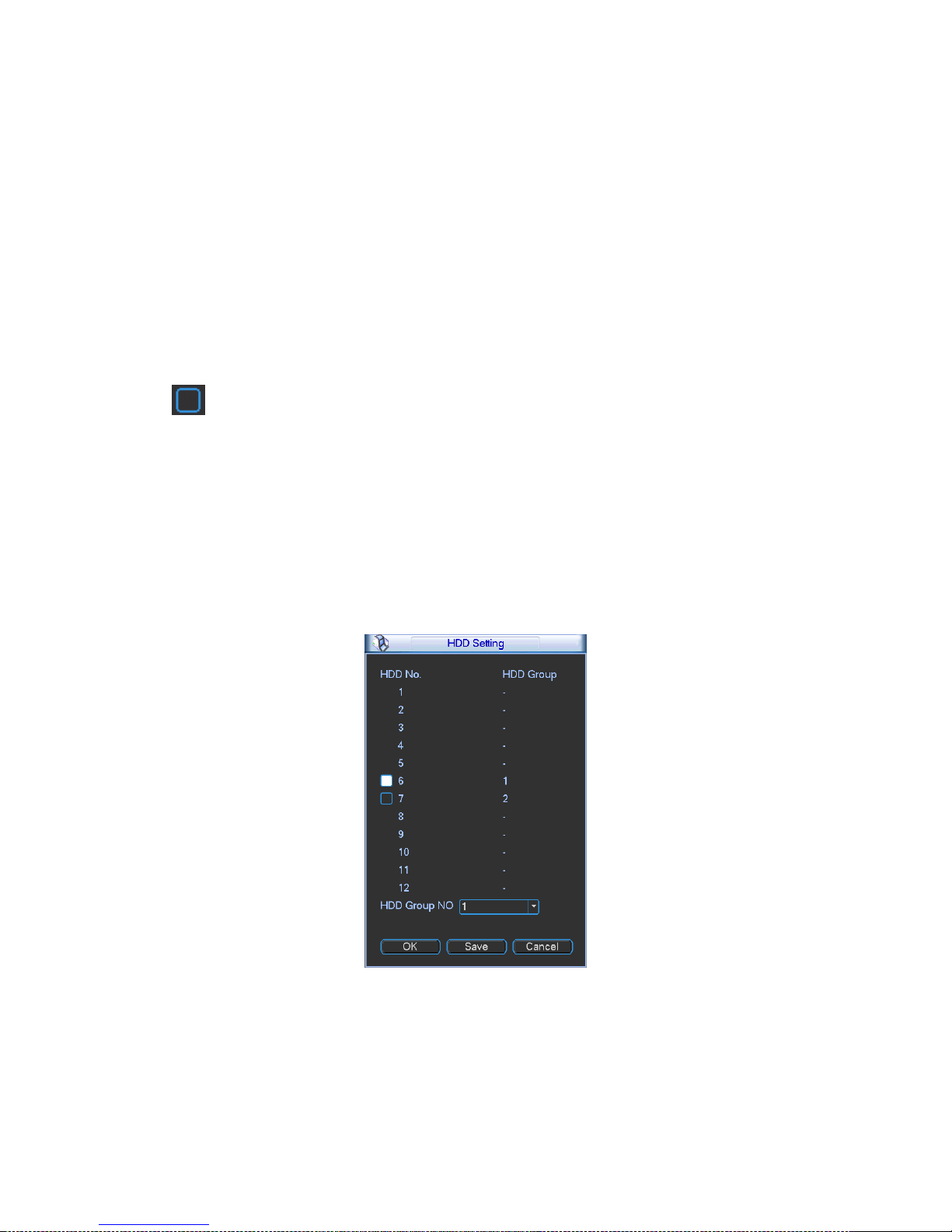

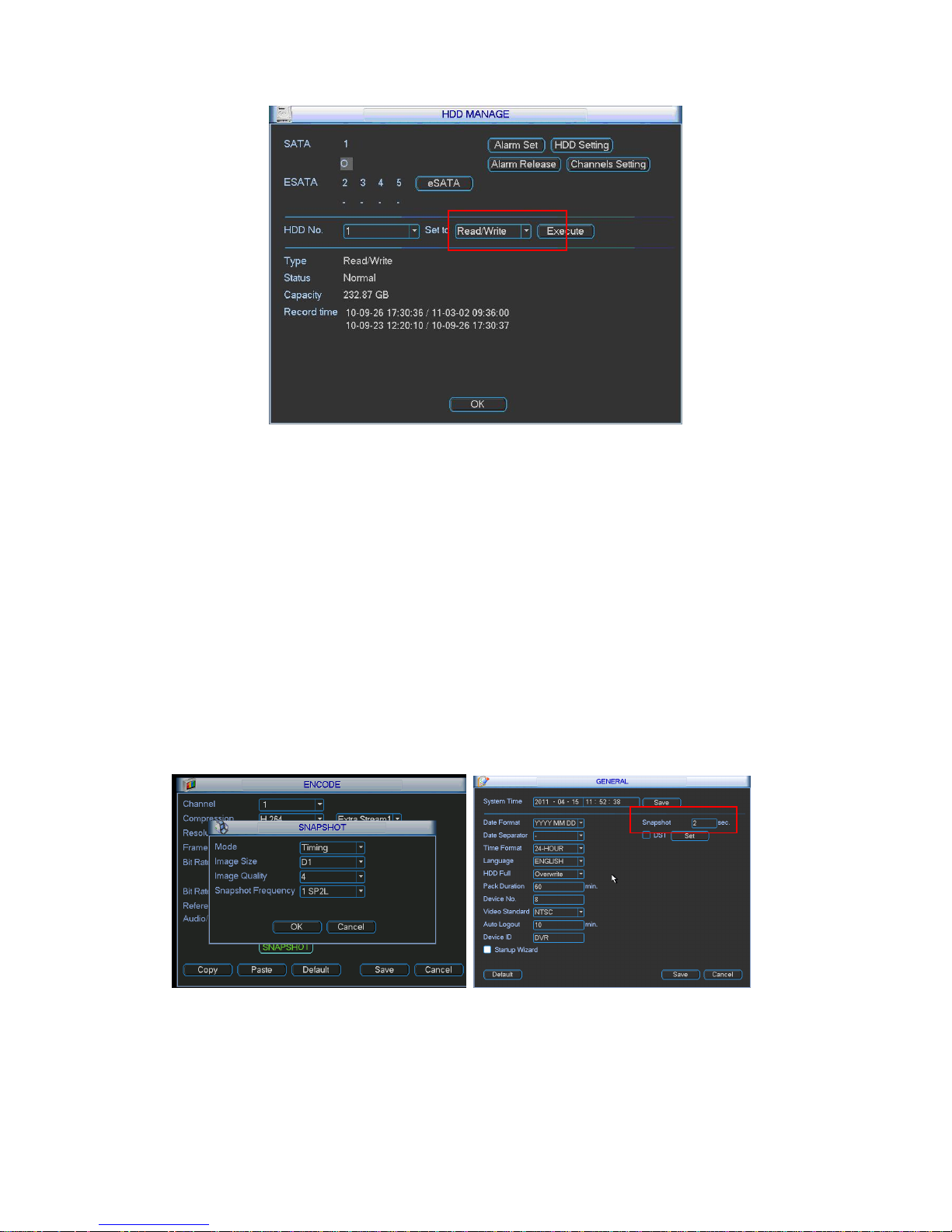

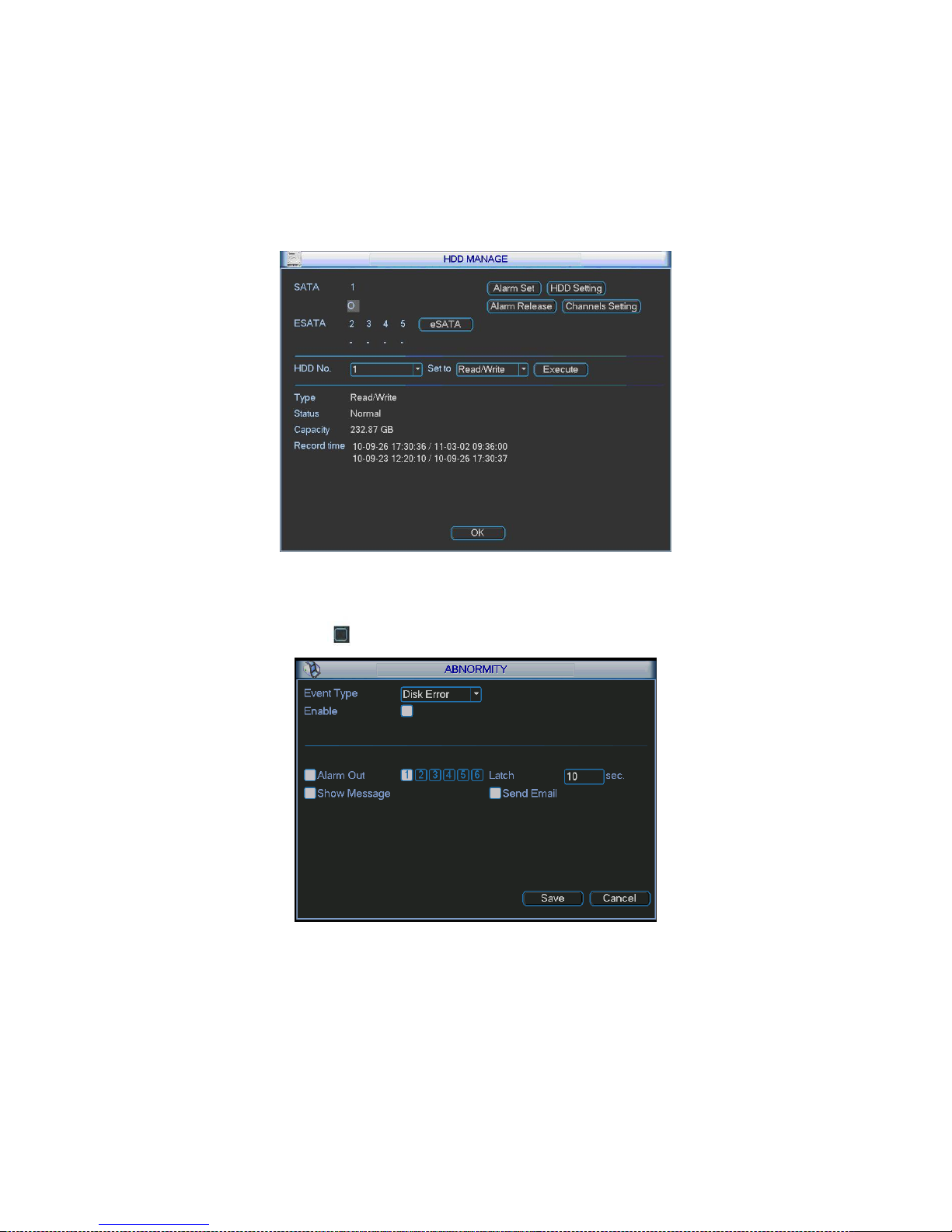

In the main menu, from Advanced to HDD management, you can set one or more
disk(s) as redundant. You can select from the dropdown list. See Figure 4-14. System
auto overwrites old files once hard disk is full.
Please note only read/write disk or read-only disk can backup file and support file
search function, so you need to set at least one read-write disk otherwise you can not
record video.
Note
About redundancy setup:
If current channel is not recording, current setup gets activated when the channel
begin recording the next time.
If current channel is recording now, current setup will get activated right away, the
current file will be packet and form a file, then system begins recording as you have
just set.
After all the setups please click save button, system goes back to the previous menu.
Page 43
Figure 4-14
Playback or search in the redundant disk.
There are two ways for you to playback or search in the redundant disk.
Set redundant disk(s) as read-only disk or read-write disk (Main
menu->Advanced->HDD management). See Figure 4-14.System needs to reboot to
get setup activated. Now you can search or playback file in redundant disk.
Dismantle the disk and play it in another PC.
4.4.2 Snapshot
4.4.2.1 Schedule Snapshot

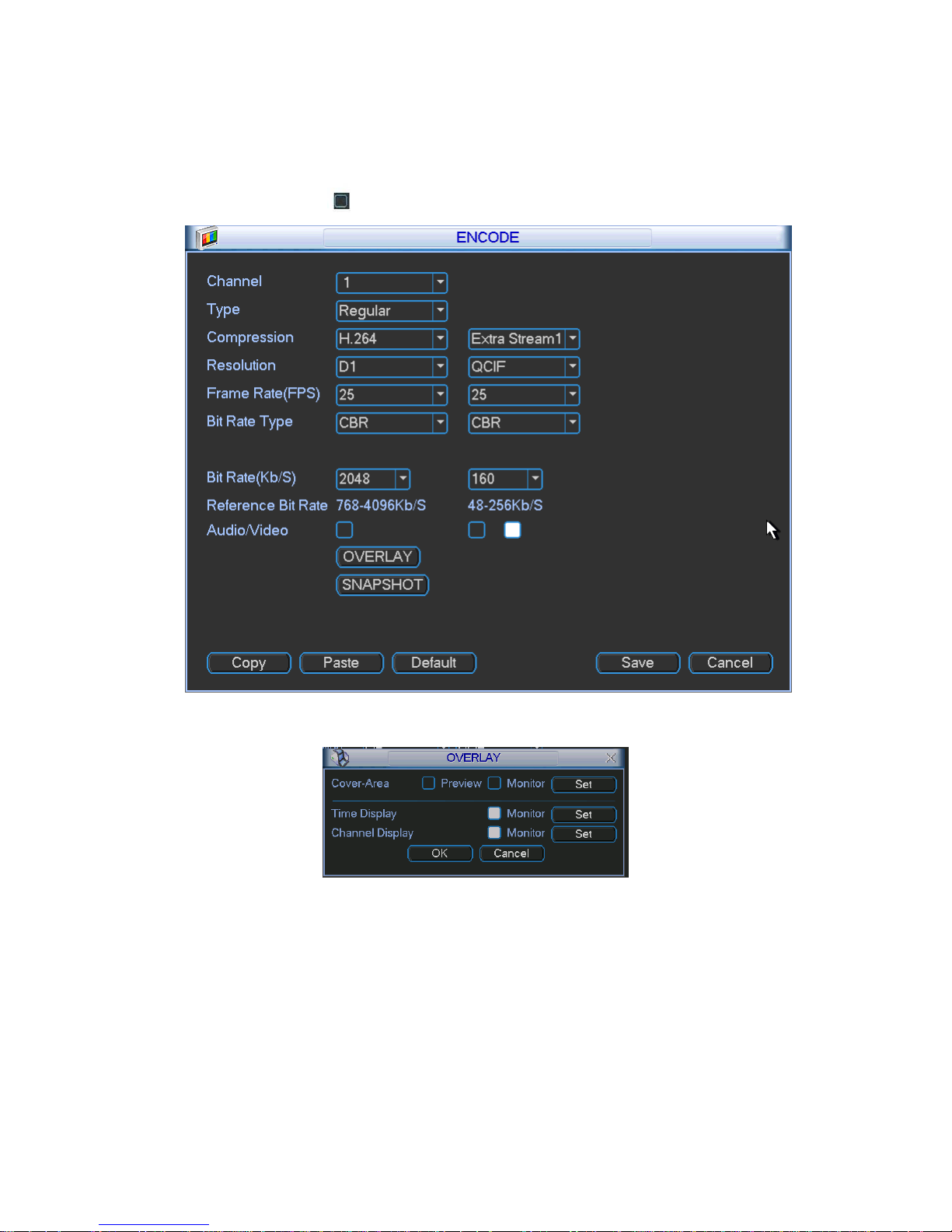

In Encode interface, click snapshot button to input snapshot mode, size, quality and
frequency.

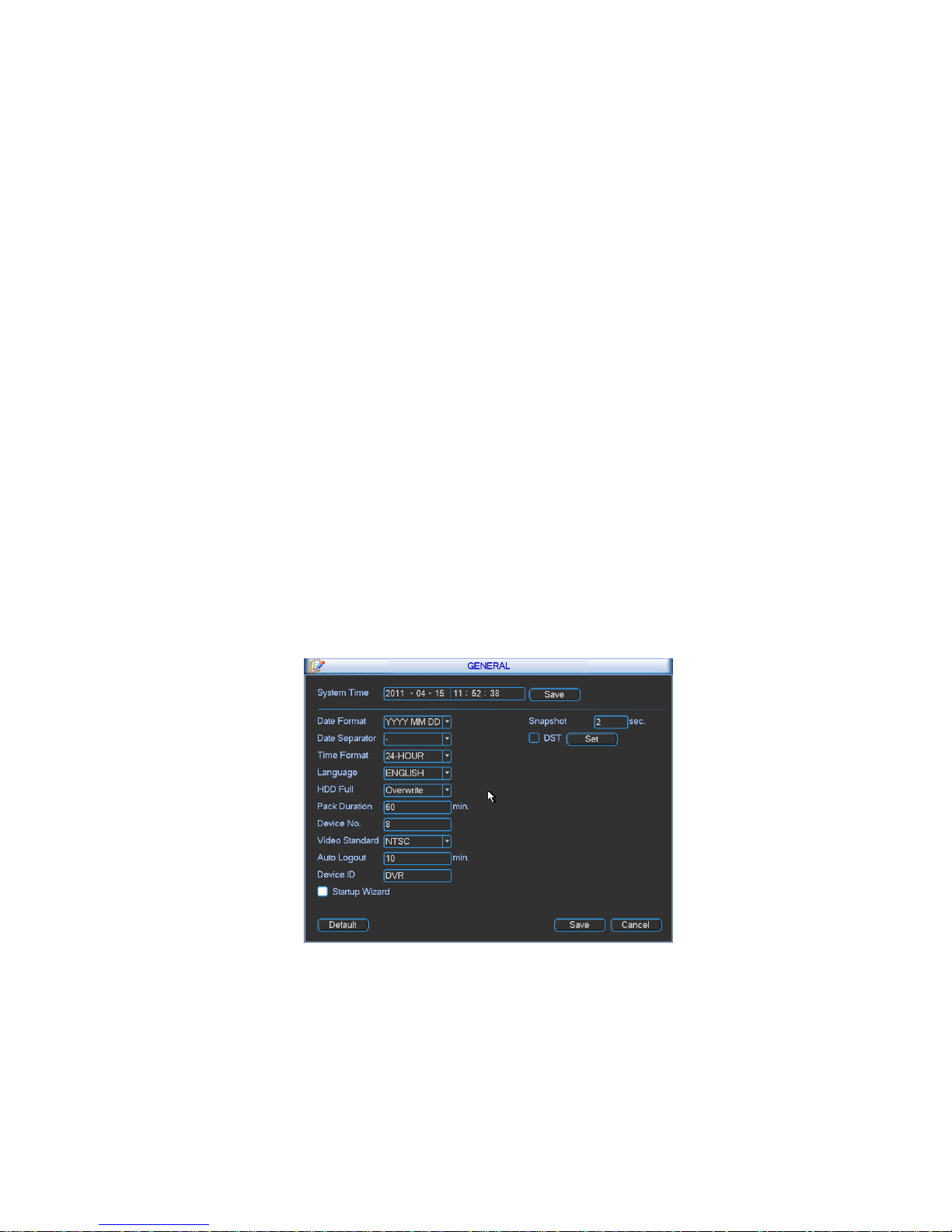

In General interface please input upload interval.
In Schedule interface, please enable snapshot function.
Please refer to the following figure for detailed information. See Figure 4-15
Page 44
Figure 4-15
4.4.2.2 Activation Snapshot
Please follow the steps listed below to enable the activation snapshot function. After
you enabled this function, system can snapshot when the corresponding alarm
occurred.
In Encode interface, click snapshot button to input snapshot mode, size, quality
and frequency.
In General interface please input upload interval.
In Detect interface please enable snapshot function for specified channels. Or in
alarm interface please enable snapshot function for specified channels.
Please refer to the following figure for detailed information. See Figure 4-16.
Figure 4-16
4.4.2.3 Priority
Please note the activation snapshot has the higher priority than schedule snapshot. If
you have enabled these two types at the same time, system can activate the activation
Page 45
snapshot when alarm occurs, and otherwise system just operates the schedule
snapshot.
4.4.3 Image FTP

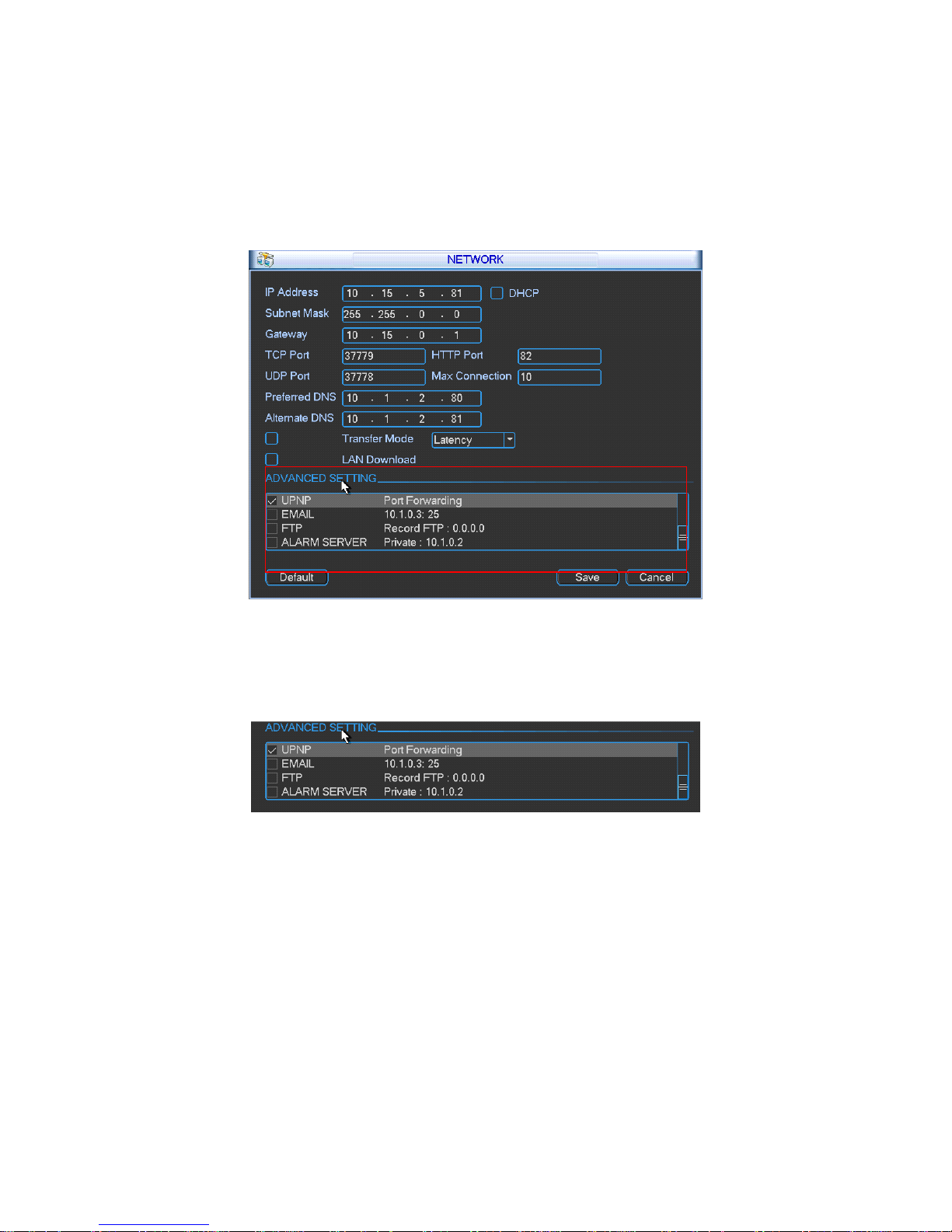

In Network interface, you can set FTP server information. Please enable FTP function
and then click save button. See Figure 4-17.

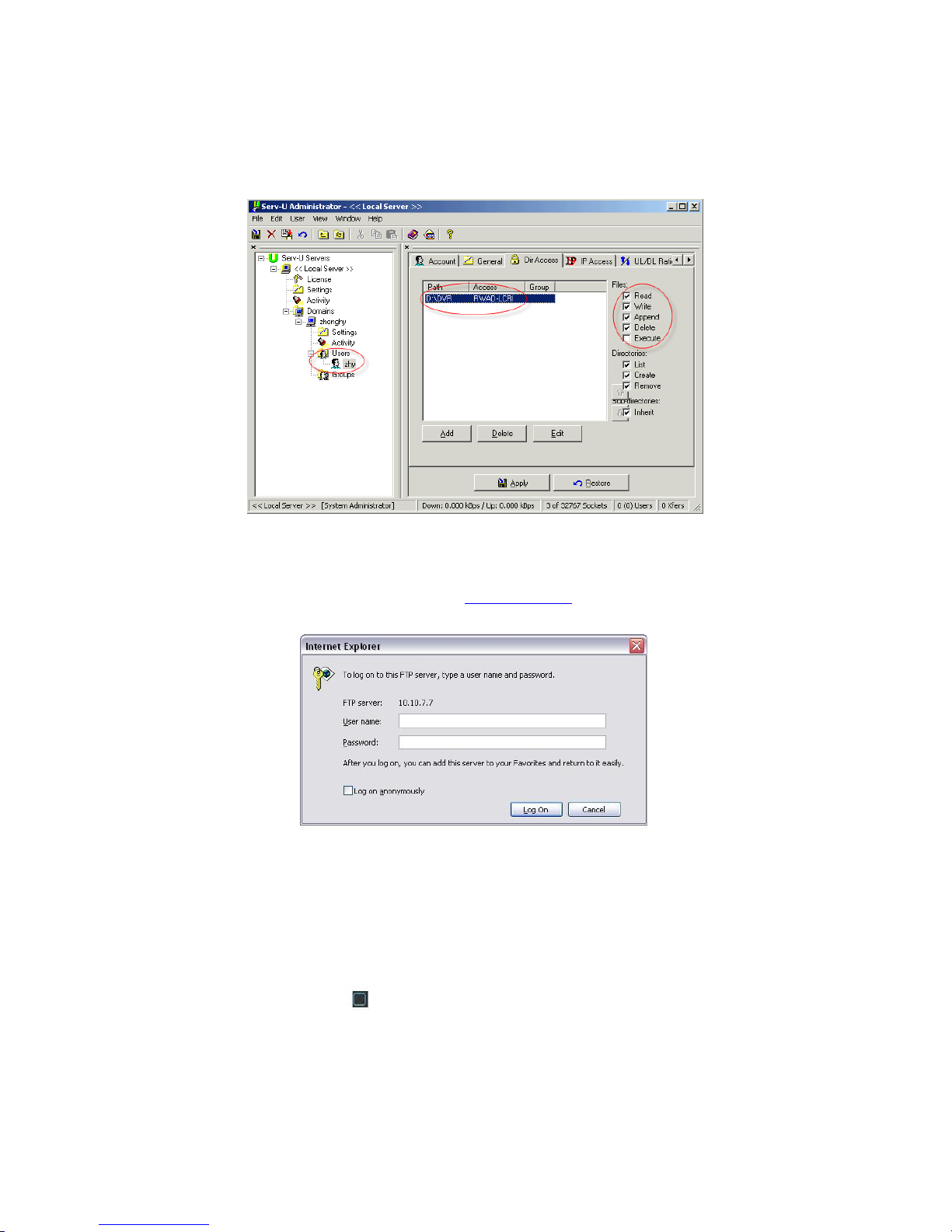

Please boot up corresponding FTP server.
Please enable schedule snapshot (Chapter 4.4.2.1) or activation snapshot (Chapter
4.4.2.2) first, now system can upload the image file to the FTP server.
Figure 4-17
4.4.4 Snapshot Disk (For special series only)
Set one disk as snapshot (Main menu->Advanced->HDD management) and then click
execute button. See Figure 4-18. System needs to reboot to get current setup activated.
Figure 4-18
All scheduled snapshot files or activated snapshot files will be memorized in the
snapshot disk.

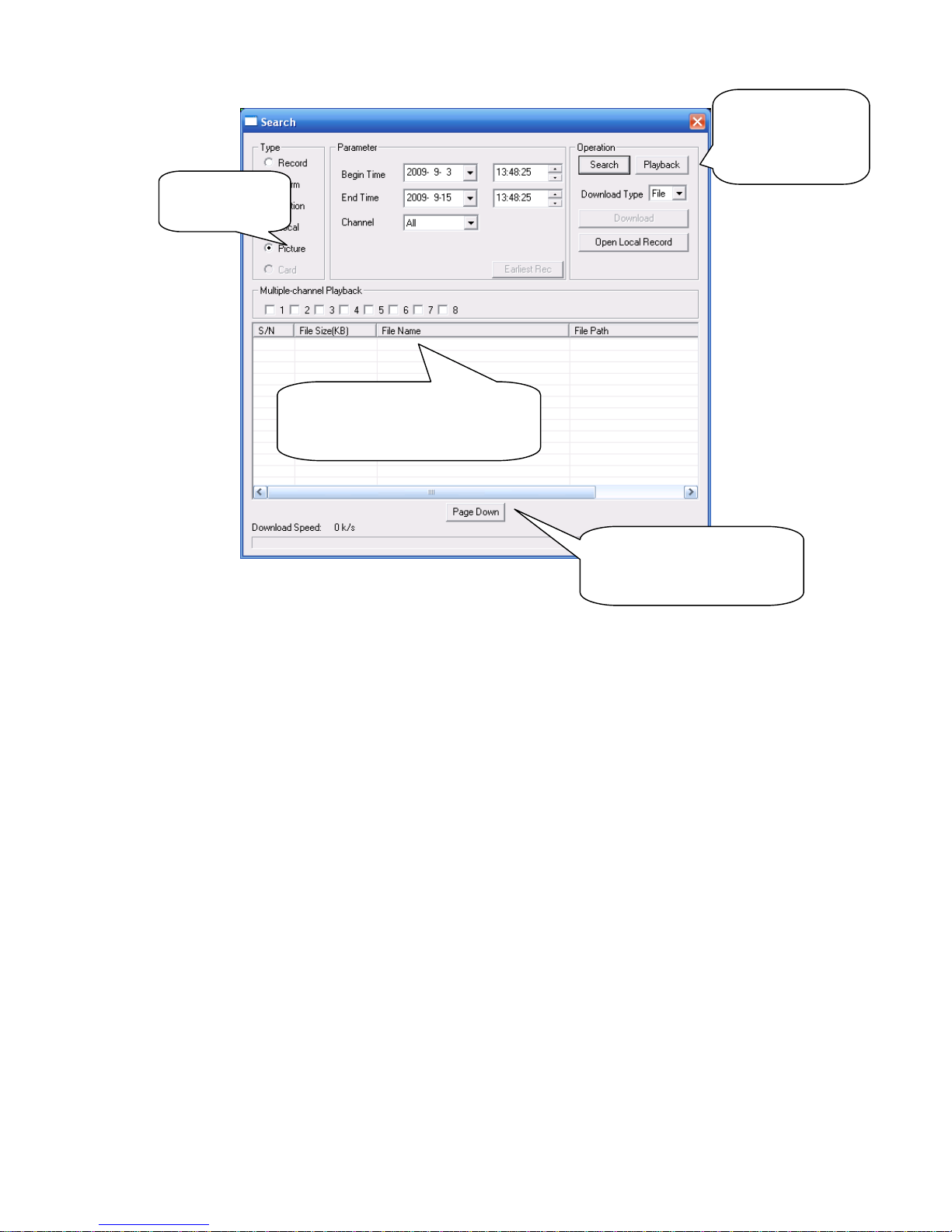

You can search the corresponding images via Web. See Figure 4-19.
Please input the
corresponding information
here, if you just upload the
image FTP.
Page 46
Figure 4-19
4.5 Detect
4.5.1 Go to Detect Menu
In the main menu, from Setting to Detect, you can see motion detect interface. See
Figure 4-20.There is three detection types: motion detection, video loss, camera
masking.
4.5.2 Motion Detect
Detection menu is shown as below. See Figure 4-20
Event type: from the dropdown list you can select motion detection type.
Channel: select the channel to activate recording function once alarm occurred.
Please make sure you have set MD record in encode interface(Main
Menu->Setting->Schedule) and schedule record in manual record interface(Main
Menu->Advanced->Manual Record)
Latch: when motion detection complete, system auto delays detecting for a specified
time. The value ranges from 10-300(Unit: second)
Region: Click select button, the interface is shown as in Figure 4-21. Here you can
set motion detection zone. There are 396(PAL)/330(NTSC) small zones. The green
zone is current cursor position. Grey zone is the motion detection zone. Black zone is
the disarmed zone. You can click Fn button to switch between the arm mode and
disarm mode. In arm mode, you can click the direction buttons to move the green
Select search
engine here
You can see result here. Double click
file name, you can view the image
content.
There are max 100 files in one
page. Click here to view more.
Select a file and then
click here to view
image content.
Page 47
rectangle to set the motion detection zone. After you completed the setup, please
click ENTER button to exit current setup. Do remember click save button to save
current setup. If you click ESC button to exit the region setup interface system will not
save your zone setup.
Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity.
Show message: System can pop up a message to alarm you in the local host screen if
you enabled this function.
Alarm upload: System can upload the alarm signal to the network (including alarm
centre) if you enabled current function.
Send email: System can send out email to alert you when alarm occurs.

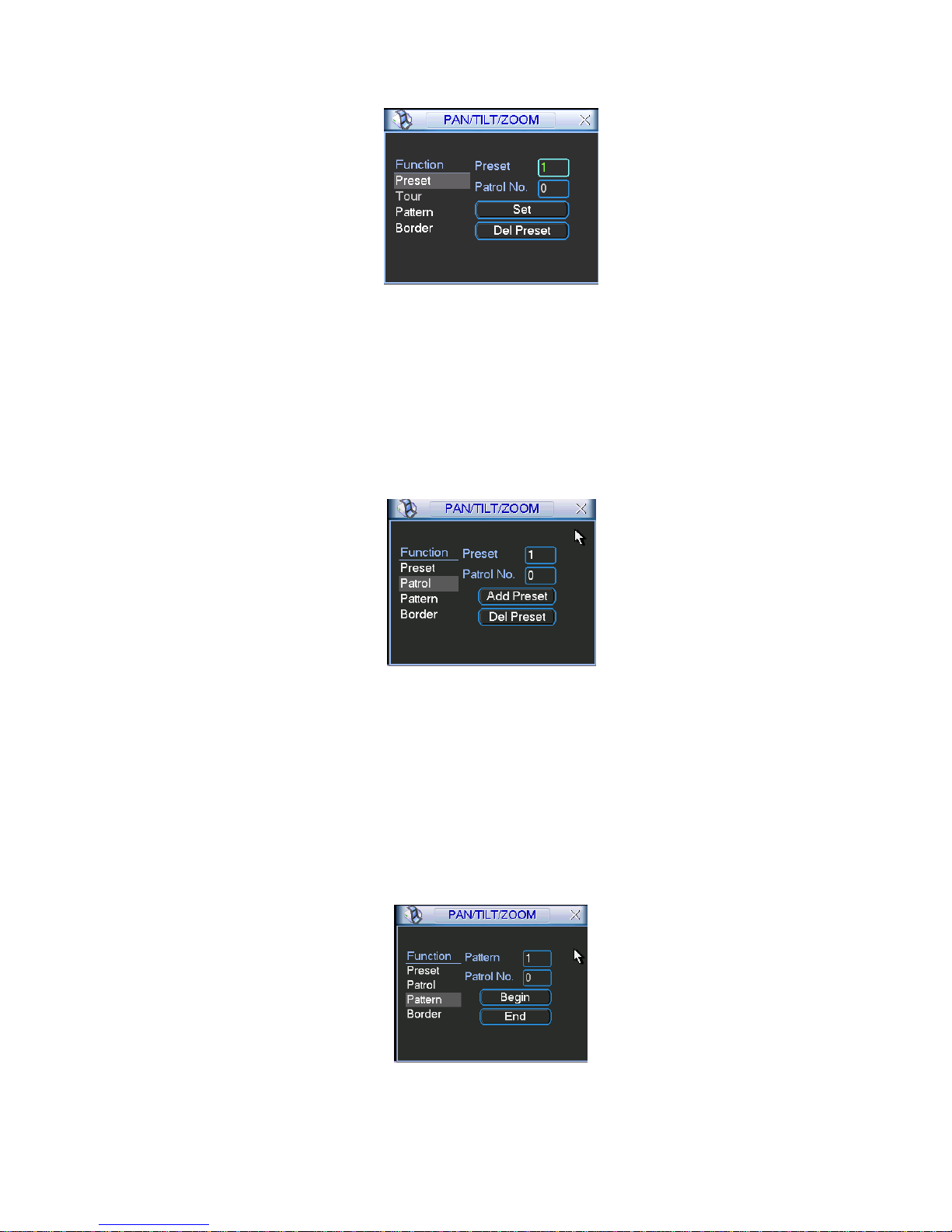

PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to
preset, tour &pattern when there is an alarm. Click “select” button, you can see an
interface is shown as in X305H305H305HFigure 4-22X.
Period: Click set button, you can see an interface is shown as in Figure 4-23. Here
you can set for business day and non-business day. In Figure 4-23 click set button,
you can see an interface is shown as in Figure 4-24. Here you can set your own setup
for business day and non-business day.
Anti-dither: Here you can set anti-dither time.
Alarm output: when alarm occurred, system enables peripheral alarm devices.
Tour: Here you can enable tour function when alarm occurs. System one-window
tour. Please go to chapter 5.3.9 Display for tour interval setup.
Snapshot: You can enable this function to snapshoot image when alarm occurs.
Please highlight icon to select the corresponding function. After all the setups please
click save button, system goes back to the previous menu.
Note:
In motion detection mode, you can not use copy/paste to set channel setup since the
video in each channel may not be the same.
In Figure 4-21, you can left click mouse and then drag it to set a region for motion
detection. Click Fn to switch between arm/withdraw motion detection. After setting, click
enter button to exit.
Page 48
Figure 4-20
Figure 4-21
Figure 4-22
Figure 4-23
Page 49
Figure 4-24
4.5.3 Video Loss
In Figure 4-20, select video loss from the type list. You can see the interface is shown
as in Figure 4-25.This function allows you to be informed when video loss
phenomenon occurred. You can enable alarm output channel and then enable show
message function.
Tips:
You can enable preset activation operation when video loss occurs.
Please refer to chapter 4.5.2 motion detection for detailed information.
Figure 4-25
4.5.4 Camera Masking
When someone viciously masks the lens, or the output video is in one-color due to the
environments light change, the system can alert you to guarantee video continuity.
Camera masking interface is shown as in Figure 4-26.
Tips:
You can enable preset/tour/pattern activation operation when video loss occurs.
Please refer to chapter 4.5.2 motion detection for detailed information.
Note:
Page 50
In Detect interface, copy/paste function is only valid for the same type, which means
you can not copy a channel setup in video loss mode to camera masking mode.
Figure 4-26
4.6 Alarm Setup and Alarm Activation
Before operation, please make sure you have properly connected alarm devices such
as buzzer.
4.6.1 Go to alarm setup interface
In the main menu, from Setting to Alarm, you can see alarm setup interface. See
Figure 4-27.
4.6.2 Alarm setup

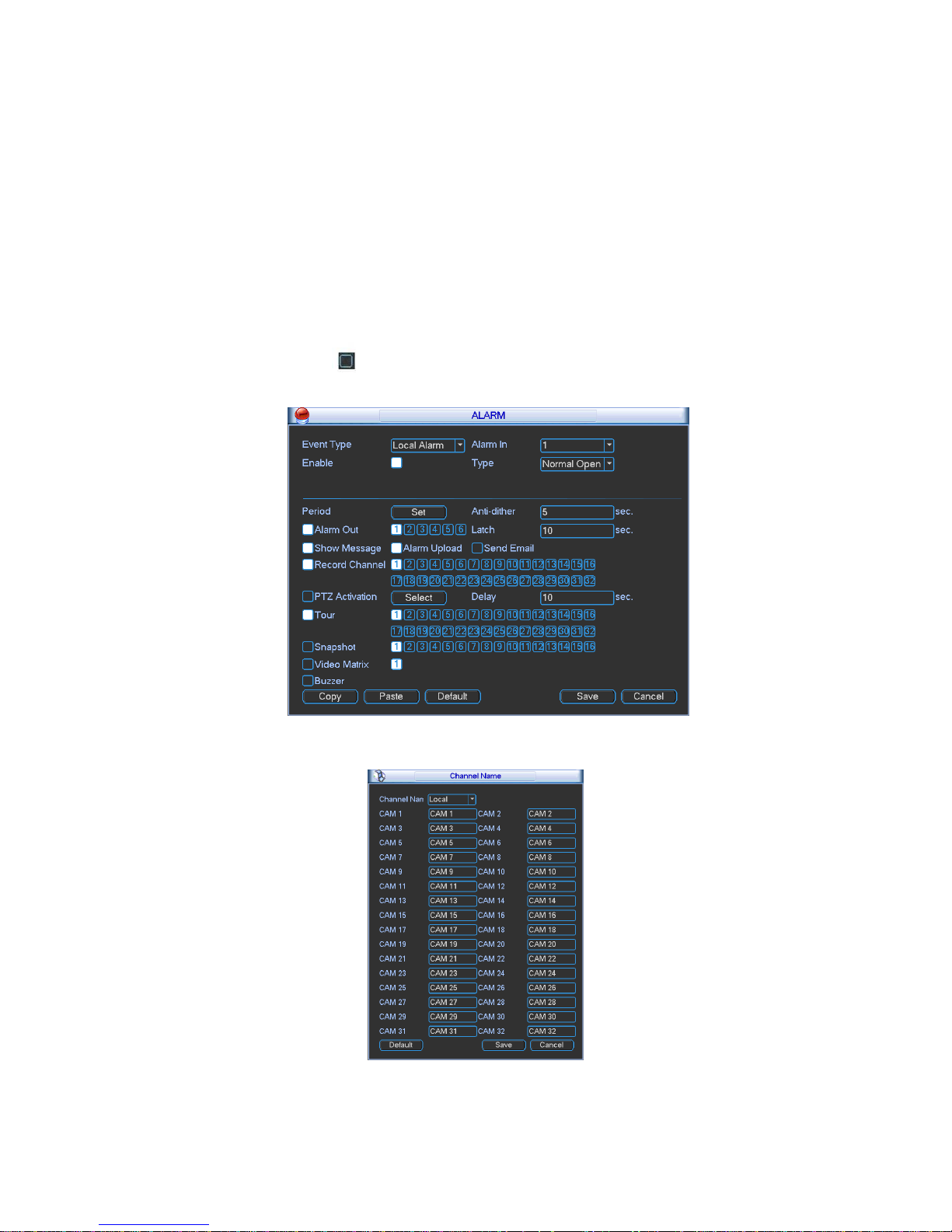

Alarm interface is shown as below. See Figure 4-27.
Alarm in: Here is for you to select channel number.
Event type: There are two types. One is local input and the other is network input.
Type: normal open or normal close.
PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to
preset, tour& pattern when there is an alarm. Click ―select‖ button, you can see an
interface is shown as in Figure 4-28.
Period: Click set button, you can see an interface is shown as in Figure 4-29. Here
you can set for business day and non-business day. In Figure 4-29, click set button,
you can see an interface is shown as in Figure 4-30. Here you can set your own setup
for business day and non-business day.
Anti-dither: Here you can set anti-dither time.
Show message: System can pop up a message to alarm you in the local host screen if
you enabled this function.
Alarm upload: System can upload the alarm signal to the network (including alarm
centre) if you enabled current function.
Send email: System can send out email to alert you when alarm occurs.
Record channel: you can select proper channel to record alarm video (Multiple
choices). At the same time you need to set alarm record in schedule interface (Main
Page 51
Menu->Setting->Schedule) and select schedule record in manual record interface
(Main Menu->Advance->Manual Record).
Latch: Here is for you to set proper delay duration. Value ranges from 10 to 300
seconds. System automatically delays specified seconds in turning off alarm and
activated output after external alarm cancelled.
Tour: Here you can enable tour function when alarm occurs. System supports
one-window tour. Please go to chapter 5.3.9 Display for tour interval setup.
Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm
occurs.
For snapshot operation, please refer to chapter 4.4.2.
Please highlight icon to select the corresponding function. After setting all the
setups please click save button, system goes back to the previous menu.
Figure 4-27
Figure 4-28
Page 52
Figure 4-29
Figure 4-30
4.7 Backup
DVR support USB device backup and network download. Here we introduce USB
backup. You can refer to Chapter 7 Web Client Operation for network download
backup operation.
4.7.1 Detect Device

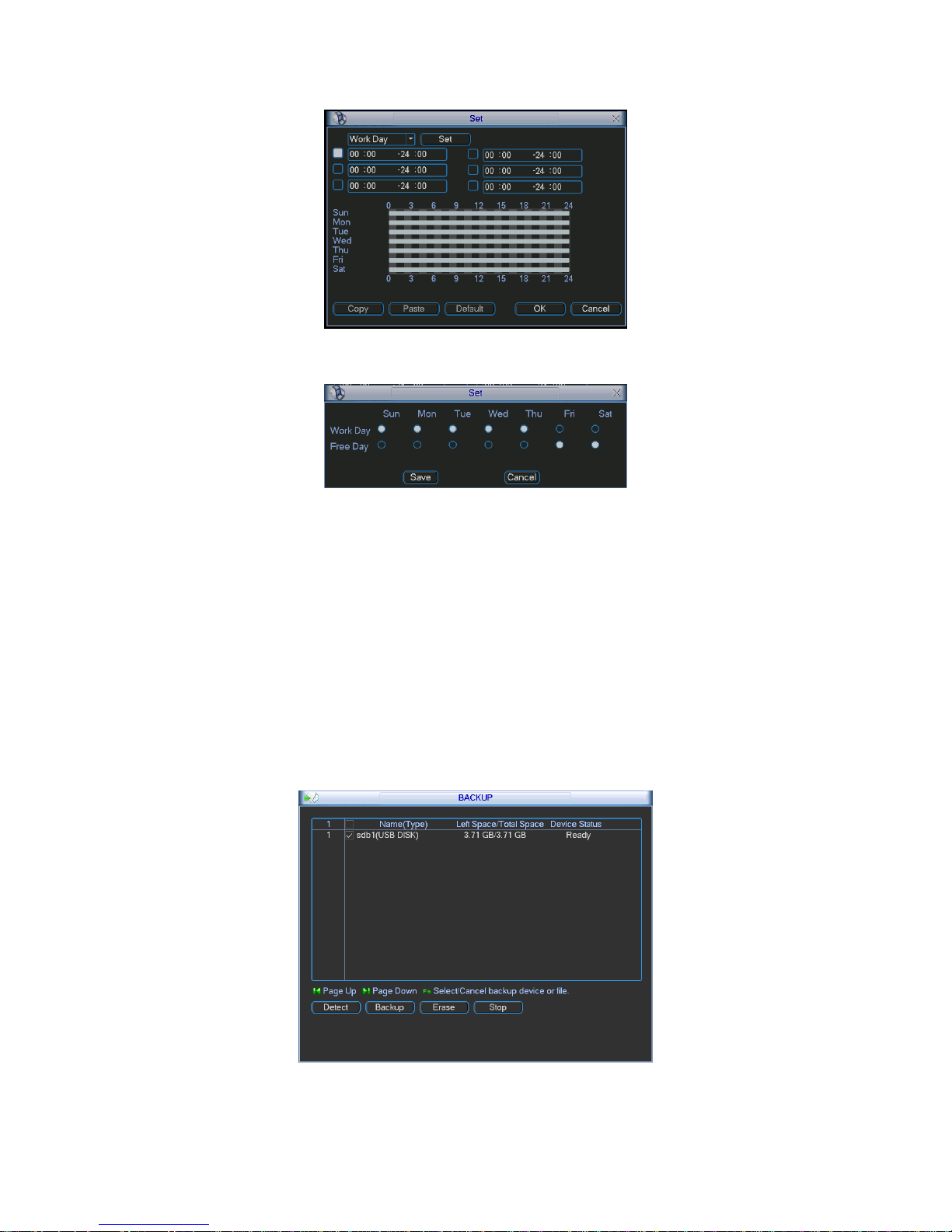

Click backup button, you can see an interface is shown as in Figure 4-31. Here is for
you to view devices information.
You can view backup device name and its total space and free space. The device
includes USB burner, flash disk, SD card, and portable HDD.
Figure 4-31
Page 53
4.7.1 Backup
Select backup device and then set channel, file start time and end time.
Click add button, system begins search. All matched files are listed below. System
automatically calculates the capacity needed and remained. See Figure 4-32.
system only backup files with a √ before channel name. You can use Fn or cancel
button to delete √ after file serial number.
Click backup button, you can backup selected files. There is a process bar for you
reference.
When the system completes backup, you can see a dialogue box prompting
successful backup.
Figure 4-32
Click backup button, system begins burning. At the same time, the backup button
becomes stop button. You can view the remaining time and process bar at the left
bottom.
File format: Click the file format; you can see there are two options: DAV/ASF.
Picture backup: Please set the corresponding time, channel and then select the
type as PIC from the dropdown list. See
Figure 4-33. Please click the Add button and then select the pictures. Click the
Start button; you can copy the specified pictures to the selected portable devices.
Figure 4-33
One key backup: It includes three steps: the search, select all, start the backup.
You can skip the above three steps and then copy all the searched files directly.
The file name format usually is: SN_CH+channel number+time Y+M+D+H+M+S. In the
Page 54
file name, the YDM format is the same as you set in general interface. (Main Menu
->Setting ->General).File extension name is .dav.
Tips:
During backup process, you can click ESC to exit current interface for other operation.
The system will not terminate backup process.
Note:
When you click stop button during the burning process, the stop function becomes
activated immediately. For example, if there are ten files, when you click stop system
just backup five files, system only save the previous 5 files in the device (But you can
view ten file names).
4.8 PTZ Control and Color Setup
Note: All the operations here are based on PELCOD protocol. For other protocols,
there might be a little difference.
4.8.1 Cable Connection
Please follow the procedures below to go on cable connection
Connect the dome RS485 port to DVR 485 port.
Connect dome video output cable to DVR video input port.
Connect power adapter to the dome.
4.8.2 PTZ Setup
Note: The camera video should be in the current screen. Before setup, please check
the following connections are right:
PTZ and decoder connection is right. Decoder address setup is right.
Decoder A (B) line connects with DVR A (B) line.
Boot up the DVR, input user name and password.

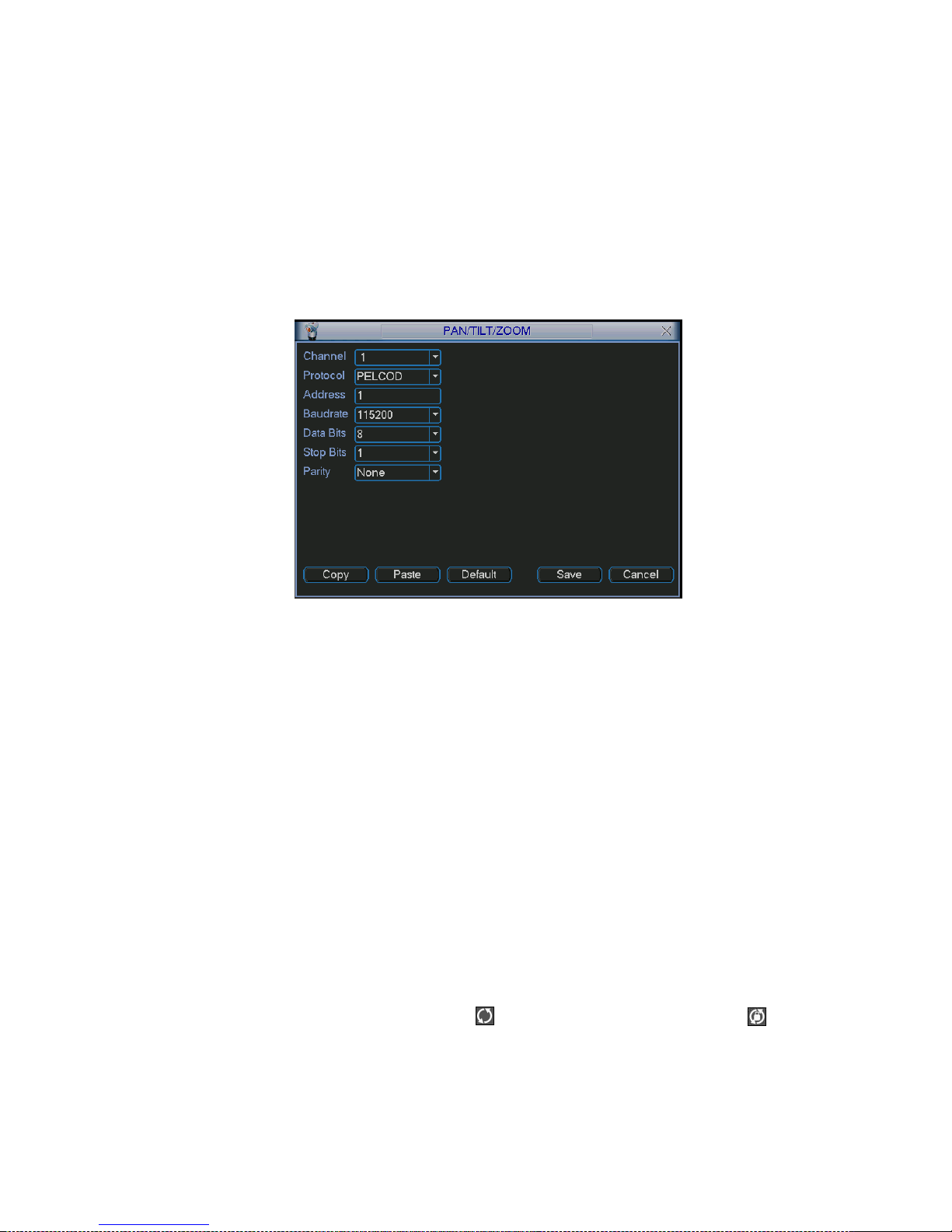

In the main menu, click setting, and then click Pan/Tilt Control button. The interface is
shown as in Figure 4-34. Here you can set the following items:
Channel: select the current camera channel.
Protocol: select corresponding PTZ protocol(such as PELCOD)
Address: default address is 1.
Baud rate: select corresponding baud rate. Default value is 9600.
Data bits: select corresponding data bits. Default value is 8.
Stop bits: select corresponding stop bits. Default value is 1.
Parity: there are three options: odd/even/none. Default setup is none.
Page 55
Figure 4-34
After completing all the setting please click save button.
In one window display mode, right click mouse (click ―Fn‖ Button in the front panel or
click ―Fn‖ key in the remote control). The interface is shown as in Figure 4-35.
Figure 4-35

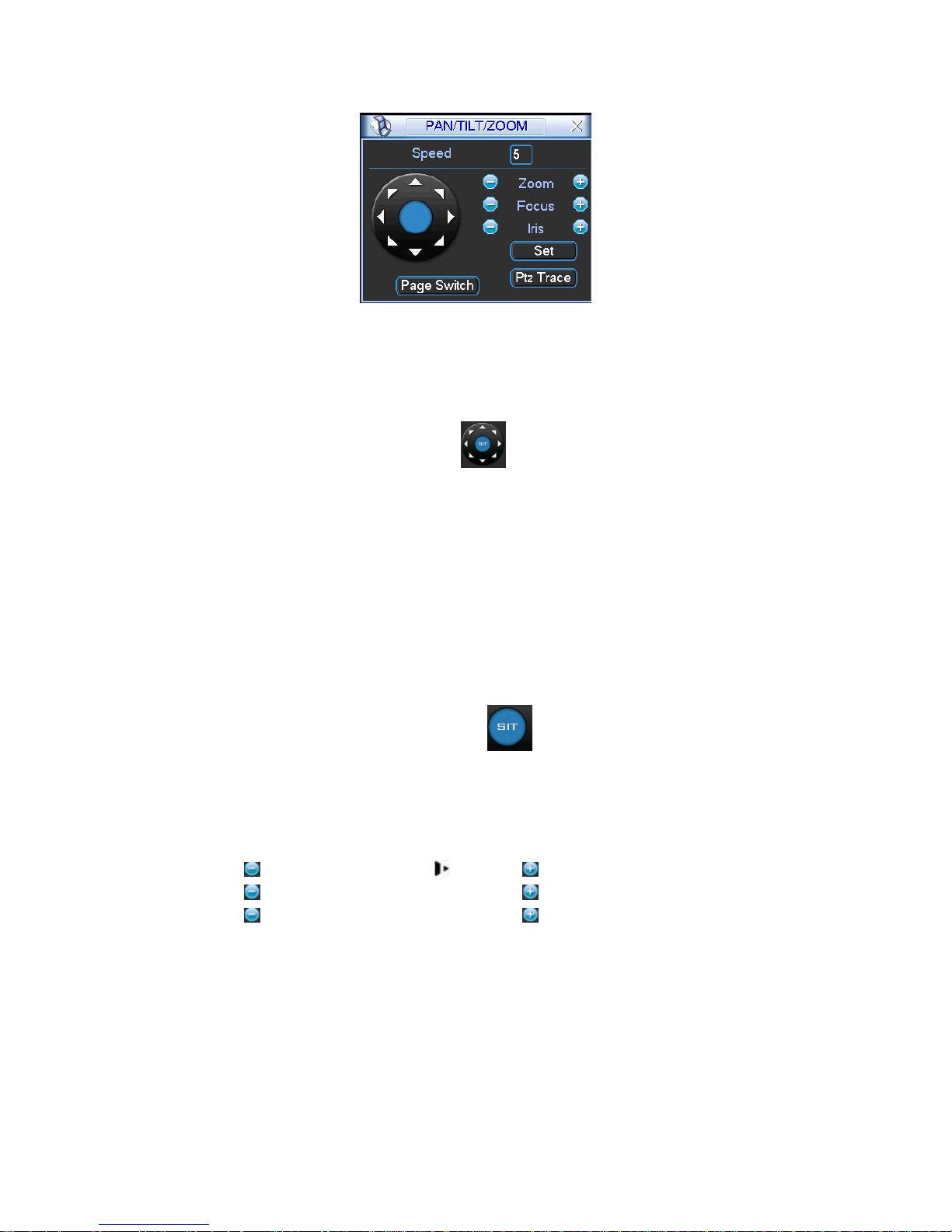

Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-36.
Here you can set the following items:
Step: value ranges fro 1 to 8.
Zoom
Focus
Iris
Please click icon and to adjust zoom, focus and iris.
Page 56
Figure 4-36

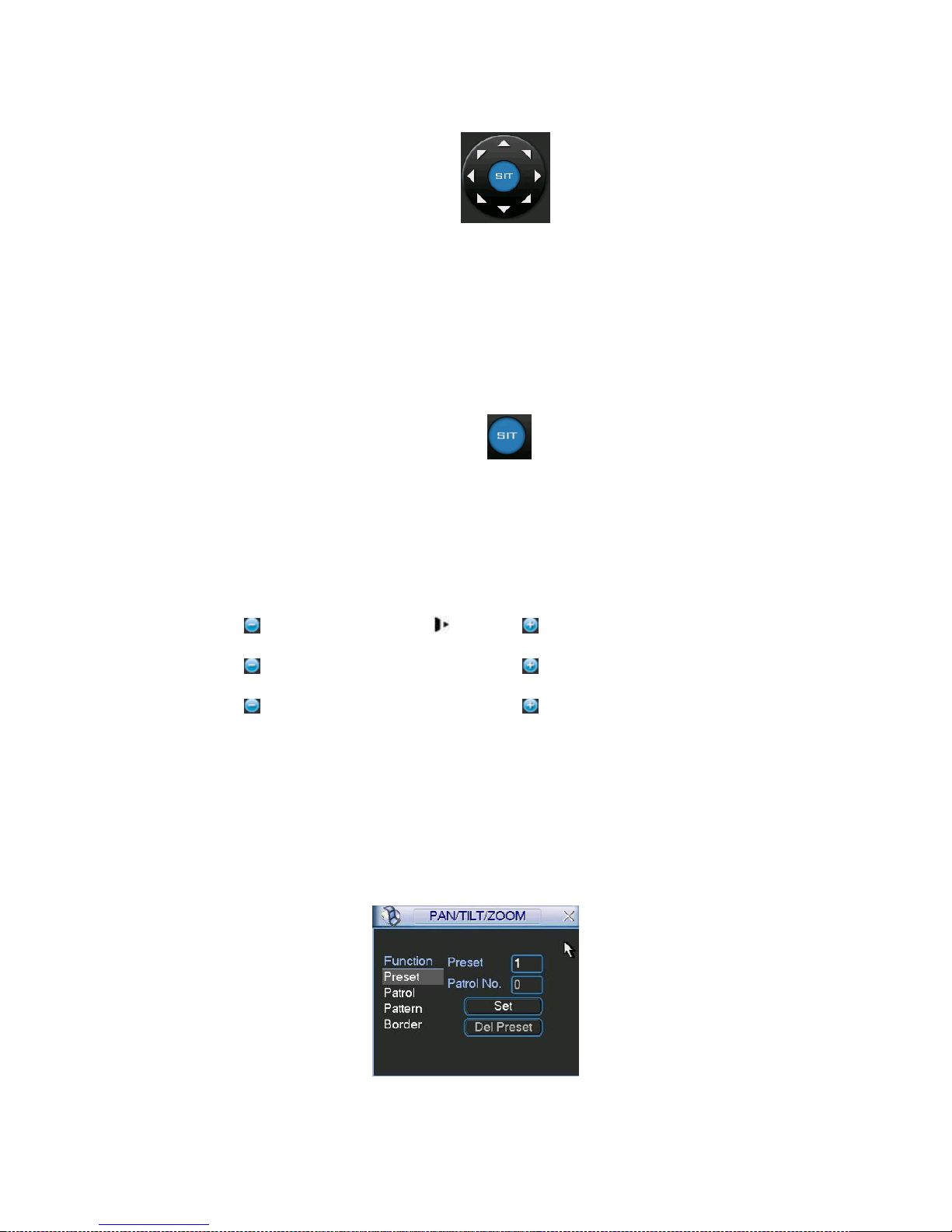

In Figure 4-36, please click direction arrows (See Figure 4-37) to adjust PTZ position.
There are total 8 direction arrows.
Figure 4-37
4.8.3 3D Intelligent Positioning Key
In the middle of the eight direction arrows, there is a 3D intelligent positioning key.
SeeFigure 4-38.X Please make sure your protocol supports this function and you need to
use mouse to control.
Click this key, system goes back to the single screen mode. Drag the mouse in the screen
to adjust section size. The dragged zone supports 4X to 16X speeds. It can realize PTZ
automatically. The smaller zone you dragged, the higher the speed.
Figure 4-38
Here is a sheet for you reference.
Name
Function
key
function
Shortcut
key
Function
key
function
Shortcut
Key
Zoom
Near
Far
Focus
Near
│
Far
►│
Iris close
Open
4.9 Preset/ Patrol/Pattern/Scan
In Figure 4-36, please click the ―set‖ button. The interface is shown as below. See Figure
4-39.
Here you can set the following items:
Preset
Tour
Page 57
Pattern
Border
Figure 4-39
In X328H328H328H Figure 4-36, click page switch button, the interface is shown as in Figure 4-40.
Here you can activate the following functions:
Preset
Tour
Pattern
Auto scan
Auto pan
Flip
Reset
Page switch
Figure 4-40
Note:
Preset, tour and pattern all need the value to be the control parameter. You can define
it as you require.
You need to refer to your speed dome user’s manual for Aux definition. In some
cases, it can be used for special process.
The following setups are usually operated in the X332H332H332HFigure 4-36, Figure 4-39 and
Figure 4-40.
4.9.1Preset Setup
In Figure 4-36, use eight direction arrows to adjust camera to the proper position.
In Figure 4-39, click preset button and input preset number. The interface is shown as in
Figure 4-41.
Now you can add this preset to one tour.
Page 58
Figure 4-41
4.9.2 Activate Preset
In Figure 4-40, please input preset number in the No. blank, and click preset button.
4.9.3 Patrol setup (Tour Setup)
In Figure 4-38, click patrol button. The interface is shown as in Figure 4-42.Input preset
number and add this preset to a patrol (tour). For each patrol (tour), you can input max 80
presets.
Figure 4-42
4.9.4 Activate Patrol (tour)
In X341H341H341H Figure 4-39, input patrol (tour) number in the No. blank and click patrol button
4.9.5 Pattern Setup
In Figure 4-39, click pattern button and then click ―begin‖ button. The interface is shown as
in Figure 4-43. Then you can go to Figure 4-36 X to modify zoom, focus, and iris.
Go back to Figure 4-43 and click ―end‖ button. You can memorize all these operations as
pattern 1.
Figure 4-43
Page 59
4.9.6 Activate Pattern Function
In X346H346H346H Figure 4-39, input mode value in the No. blank, and click pattern button.
4.9.7 Auto Scan Setup

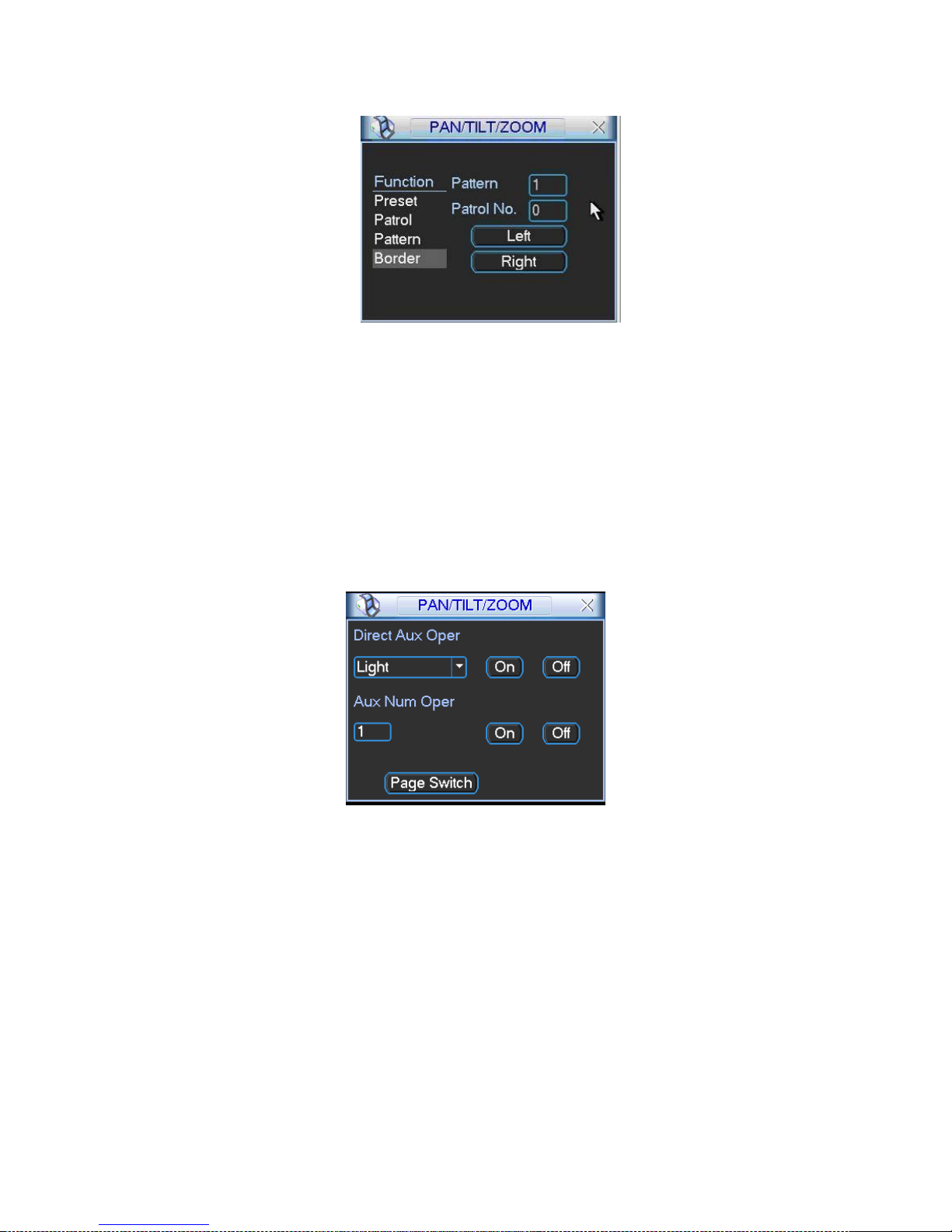

In X347H347H347H Figure 4-38, click border button. The interface is shown as in X348H348H348H Figure 4-43.
Please go to X349H349H349H X349H349H349HFigure 4-35, use direction arrows to select camera left limit
Then please go to X350H350H350H Figure 4-43X and click left limit button
Repeat the above procedures to set right limit.
Figure 4-44
4.9.8 Activate Auto Scan
In Figure 4-40, click ―Auto Scan‖ button, the system begins auto scan. Correspondingly,
the auto scan button becomes Stop button. Click stop button to terminate scan operation.
4.10 Flip
In Figure 4-40, click page switch button, you can see an interface is shown as below. See
Figure 4-45. Here you can set auxiliary function. The aux value has relation ship with the
Aux button of the decoder.
Click page switch button again, system goes back to Figure 4-36.
Figure 4-45
Page 60
5 Understanding of Menu Operations and Controls
5.1 Menu Tree
This series DVR menu tree is shown as below.
Backup
Information
HDD Info
BPS
Log
Version
Online Users
Setting
General
Encode
Schedule
RS232
Menu Network
Alarm
Detect
Pan/ Tilt/Zoom
Display
Default
Search
Advanced
HDD Management
Alarm Output
Abnormity
Manual Record
Account
Auto Maintain
TV Adjust
Video Matrix
Title Overlay
Config Backup
Shutdown
5.2 Main Menu
After you logged in, the system main menu is shown as below. See Figure 5-1.X There are
total six icons: search, Information, setting, backup, advanced and shutdown. Move the
cursor to highlight the icon, then double click mouse to enter the sub-menu.
Page 61
Figure 5-1
5.3 Setting
In main menu, highlight setting icon and double click mouse. System setting interface is
shown as below. See Figure 5-2.
Figure 5-2
5.3.1 General
General setting includes the following items. See X357H357H357HFigure 5-3X.
System time: Here is for you to set system time
Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or
DD-MM-YYYY.
Date separator: There are three denotations to separate date: dot, beeline and
solidus.

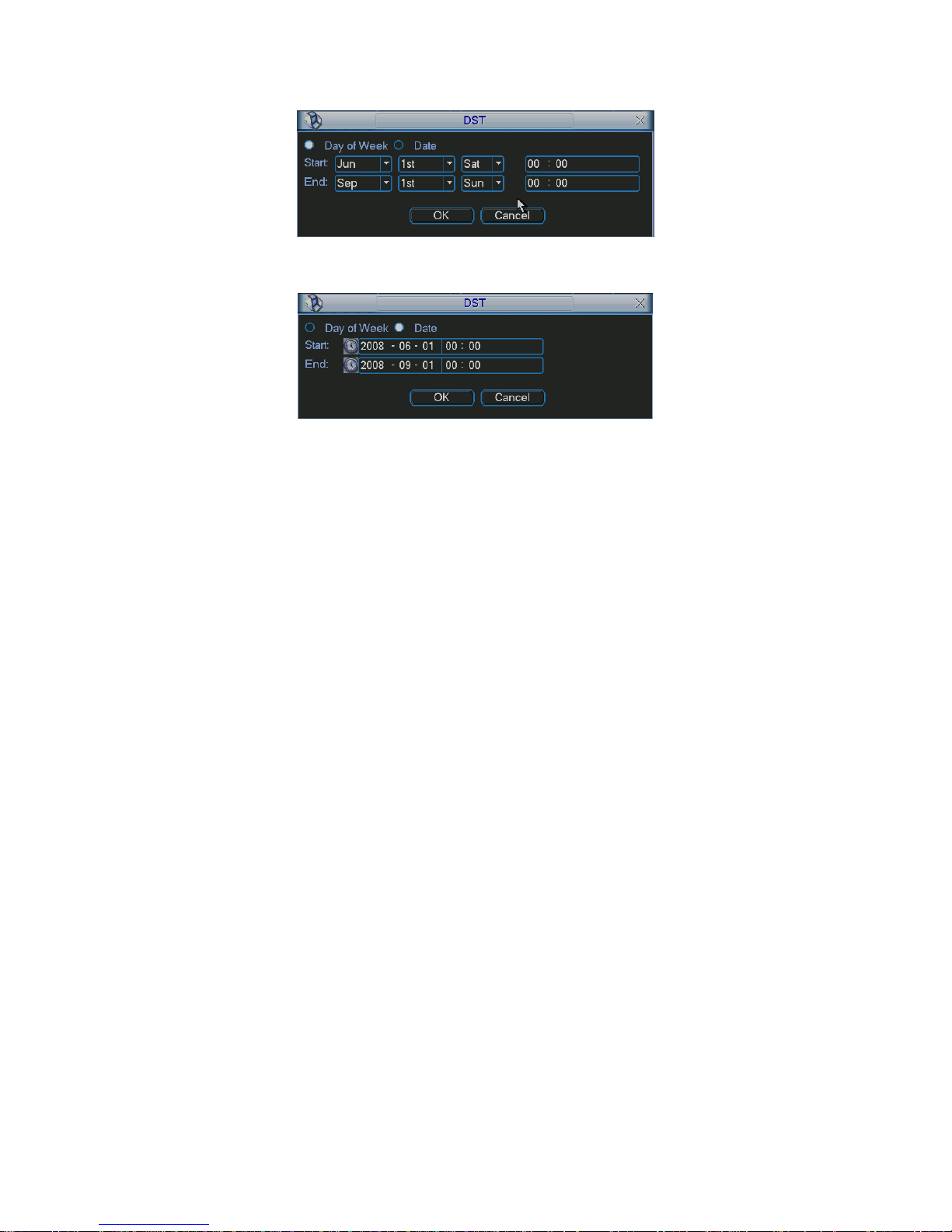

DST: Here you can set DST time and date. Please enable DST function and then click
set button. You can see an interface is shown as in Figure 5-4. Here you can set start
time and end time by setting corresponding week setup. In Figure 5-4, enable date
button, you can see an interface is shown as in Figure 5-5. Here you can set start time
and end time by setting corresponding date setup.
Time format: There are two types: 24-hour mode or 12-hour mode.
Page 62
Language: System supports various languages: Chinese (simplified), Chinese
(Traditional), English, Italian, Japanese, French, Spanish (All languages listed here
are optional. Slight difference maybe found in various series.)
HDD full: Here is for you to select working mode when hard disk is full. There are two
options: stop recording or rewrite. If current working HDD is overwritten or the current
HDD is full while the next HDD is no empty, then system stops recording, If the
current HDD is full and then next HDD is not empty, then system overwrites the
previous files.
Pack duration: Here is for you to specify record duration. The value ranges from 60 to
120 minutes. Default value is 60 minutes.
DVR No: When you are using one remote control (not included in the accessory bag)
to control several DVRs, you can give a name to each DVR for your management.
Video standard: There are two formats: NTSC and PAL.
Auto logout: Here is for you to set auto logout interval once login user remains
inactive for a specified time. Value ranges from 0 to 60 minutes.
Startup wizard: Once you check the box here, system will go to the startup wizard
directly when the system restarts the next time. Otherwise, it will go to the login
interface.
Device ID: Please input a corresponding device name here.
Note:
Since system time is very important, do not modify time casually unless there is a must!
Before your time modification, please stop record operation first!
After completing all the setups please click save button, system goes back to the previous
menu.
Figure 5-3
Page 63
Figure 5-4
Figure 5-5
5.3.2 Encode
Encode setting includes the following items. See Figure 5-6.
Please note some series do not support extra stream.
Channel: Select the channel you want.
Type: Please select from the dropdown list. There are three options: regular/motion
detect/alarm. You can set the various encode parameters for different record types.
Compression: System supports H.264.
Resolution: System supports various resolutions, you can select from the dropdown
list. The main stream supports D1/HD1/BCIF/CIF/QCIF and the extra stream supports
CIF/QCIF. Please note the option may vary due to different series.
Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.
Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set
video quality.
Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image
quality.
Video/audio: You can enable or disable the video/audio.
Overlay: Click overlay button, you can see an interface is shown in Figure 5-7.
Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag
you mouse to set proper section size. In one channel video, system max supports 4
zones in one channel.
Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means
the privacy mask zone can not be viewed by user when system is in preview status.
Monitor means the privacy mask zone can not be view by the user when system is in
monitor status.
Time display: You can select system displays time or not when you playback. Please
click set button and then drag the title to the corresponding position in the screen.
Page 64
Channel display: You can select system displays channel number or not when you
playback. Please click set button and then drag the title to the corresponding position
in the screen.
Please highlight icon to select the corresponding function.
Figure 5-6
Figure 5-7
5.3.3 Schedule
Please refer to chapter 4.4 schedule.
5.3.4 RS232

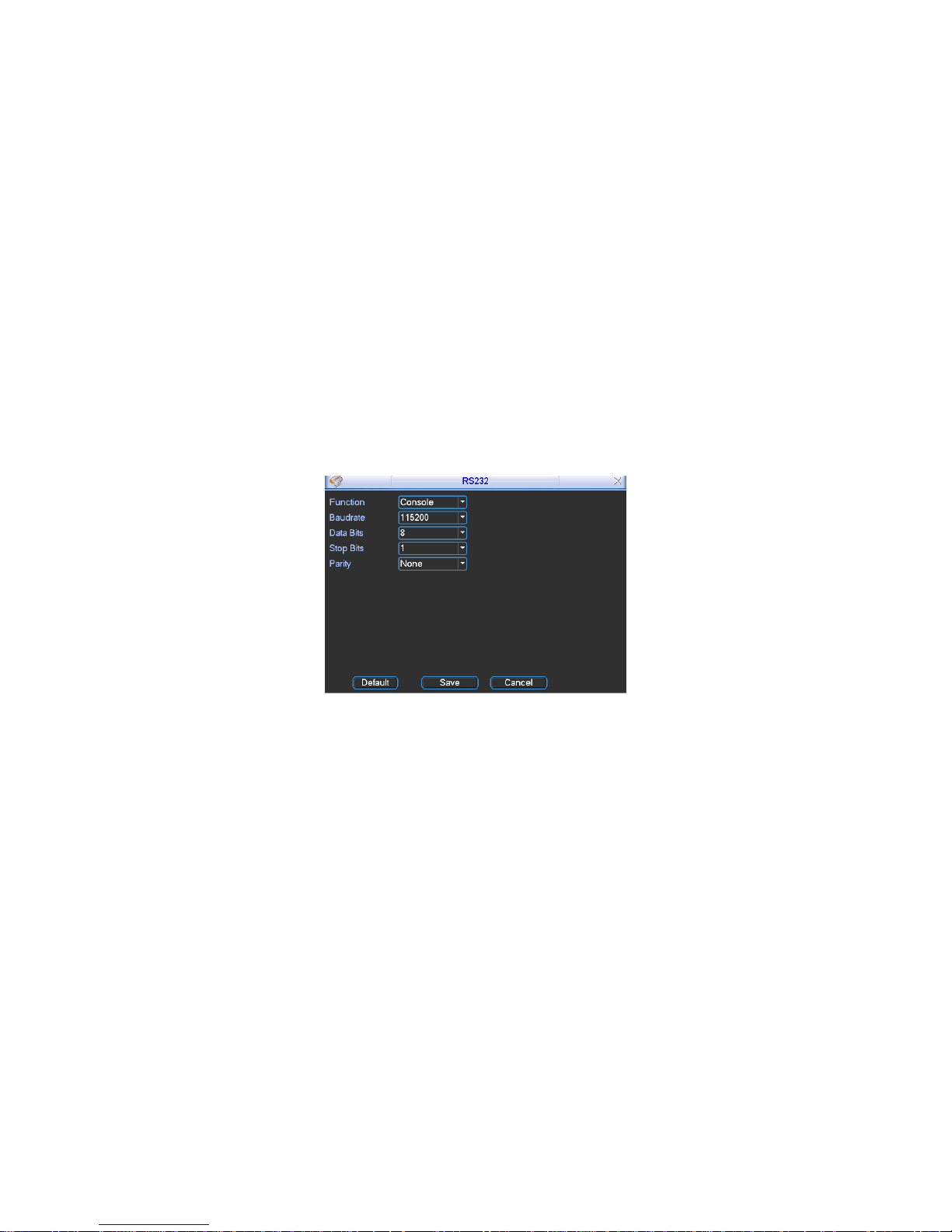

RS232 interface is shown as below. There are five items. See Figure 5-8.
Function: There are various devices for you to select. Console is for you to use the
COM or mini-end software to upgrade or debug the program. The control keyboard is
Page 65
for you to control the device via the special keyboard. Transparent COM (adapter) is
to connect to the PC to transfer data directly. Protocol COM is for card overlay
function. Network keyboard is for you to use the special keyboard to control the
device. PTZ matrix is to connect to the peripheral matrix control.
Baud rate: You can select proper baud rate.
Data bit: You can select proper data bit. The value ranges from 5 to 8.
Stop bit: There are three values: 1/1.5/2.
Parity: there are five choices: none/odd/even/space mark.
System default setup is:
Function: Console
Baud rate:115200
Data bit:8
Stop bit:1
Parity: None
After completing all the setups please click save button, system goes back to the previous
menu.
Figure 5-8
5.3.5 Network
Here is for you to input network information. See Figure 5-9.
IP address: Here you can input IP address.
DHCP: It is to auto search IP. When enable DHCP function, you can not modify
IP/Subnet mask /Gateway. These values are from DHCP function. If you have not
enabled DHCP function, IP/Subnet mask/Gateway display as zero. You need to
disable DHCP function to view current IP information. Besides, when PPPoE is
operating, you can not modify IP/Subnet mask /Gateway.
TCP port: Default value is 37777.
UDP port: Default value is 37778.
HTTP port: Default value is 80.
RTSP port: Default value is 554.
Max connection: system support maximal 20 users. 0 means there is no connection
limit.
Preferred DNS server: DNS server IP address.
Page 66
Alternate DNS server: DNS server alternate address.
Transfer mode: Here you can select the priority between fluency/video qualities.
LAN download: System can process the downloaded data first if you enable this
function. The download speed is 1.5X or 2.0X of the normal speed.
After completing all the setups please click save button, system goes back to the previous
menu.
Figure 5-9
5.3.5.1 Advanced Setup
Advanced setup interface is shown as in Figure 5-10. Please draw a circle to enable
corresponding function and then double click current item to go to setup interface.
Figure 5-10
5.3.5.2 IP Filter

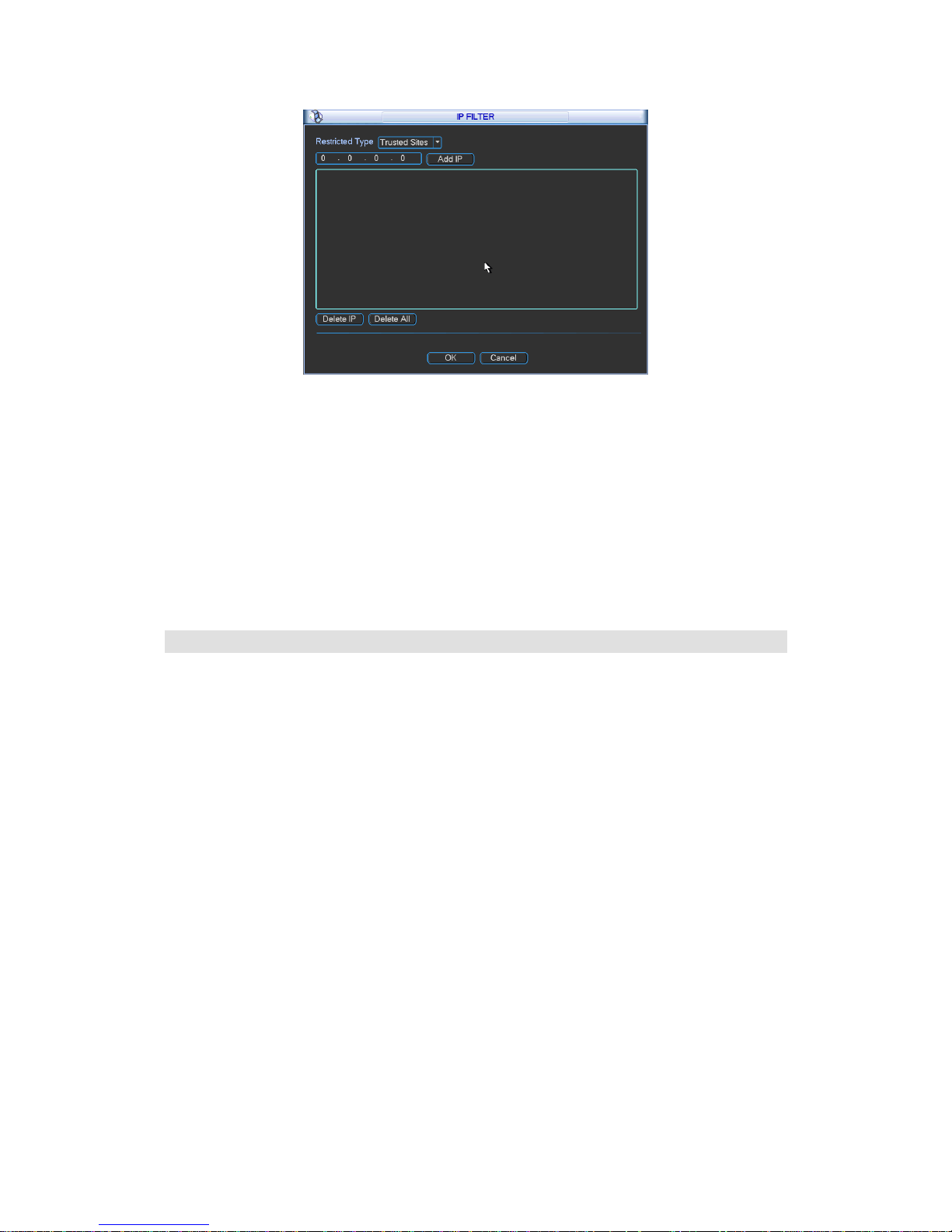

IP filter interface is shown as in Figure 5-11. You can add IP in the following list. The list
supports max 64 IP addresses.
Please note after you enabled this function, only the IP listed below can access current
DVR.
If you disable this function, all IP addresses can access current DVR.
Page 67
Figure 5-11
5.3.5.3 NTP Setup
You need to install SNTP server (Such as Absolute Time Server) in your PC first. In
Windows XP OS, you can use command ―net start w32time‖ to boot up NTP service.

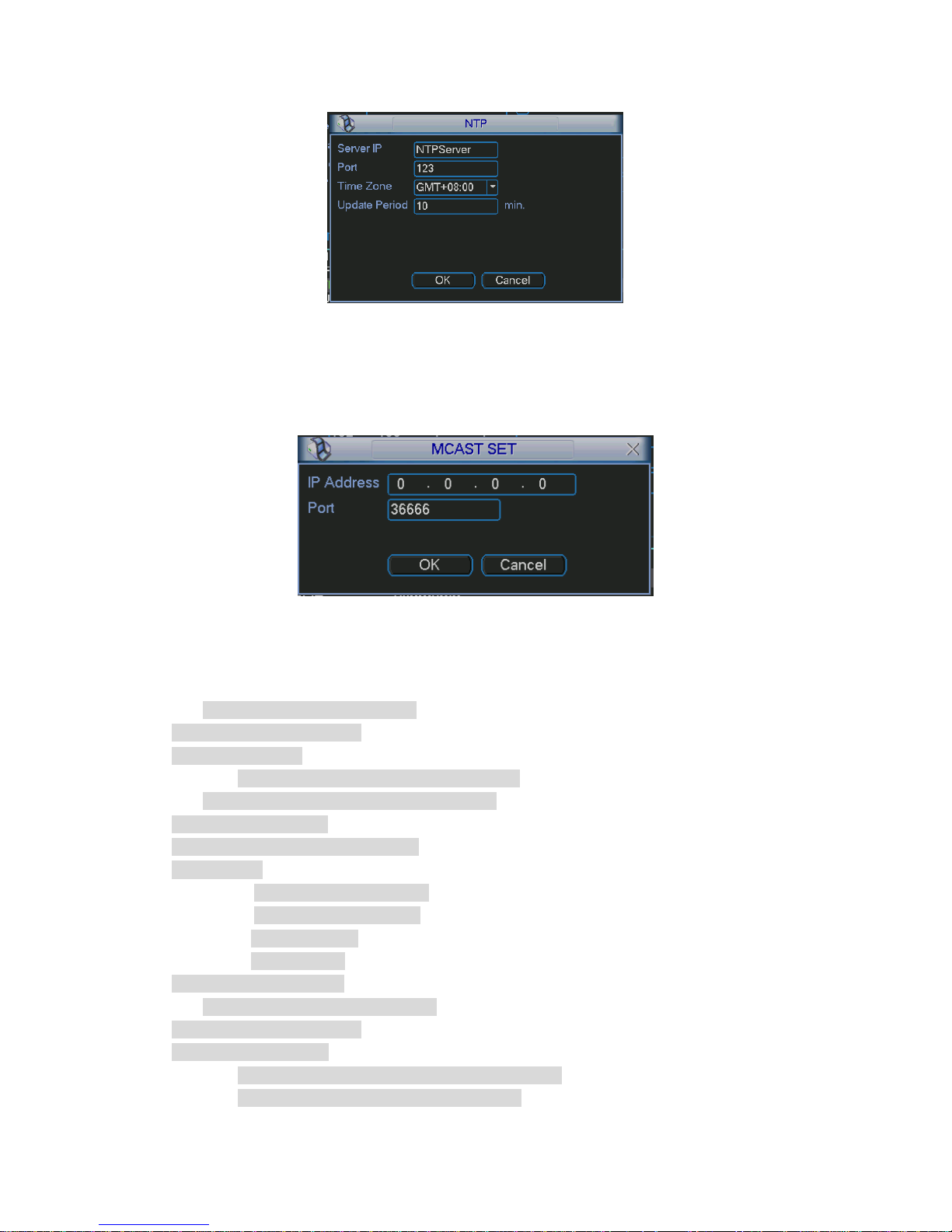

NTP setup interface is shown as in Figure 5-12.
Host IP: Input your PC address.
Port: This series DVR supports TCP transmission only. Port default value is 123.
Update interval: minimum value is 1. Max value is 65535. (Unit: minute)
Time zone: select your corresponding time zone here.
Here is a sheet for your time zone setup.
City /Region Name
Time Zone
London
GMT+0
Berlin
GMT+1
Cairo
GMT+2
Moscow
GMT+3
New Deli
GMT+5
Bangkok
GMT+7
Beijing (Hong Kong)
GMT+8
Tokyo
GMT+9
Sydney
GMT+10
Hawaii
GMT-10
Alaska
GMT-9
Pacific Time(P.T)
GMT-8
American Mountain Time(M.T)
GMT-7
American Central Time(C.T)
GMT-6
American Eastern Time(E.T)
GMT-5
Atlantic Time
GMT-4
Brazil
GMT-3
Middle Atlantic Time
GMT-2
Page 68
Figure 5-12
5.3.5.4 Multiple Cast Setup
Multiple-cast setup interface is shown as in Figure 5-13.
Figure 5-13
Here you can set a multiple cast group. Please refer to the following sheet for detailed
information.
IP multiple cast group address
-224.0.0.0-239.255.255.255
-―D‖ address space
The higher four-bit of the first byte=‖1110‖
Reserved local multiple cast group address
-224.0.0.0-224.0.0.255
-TTL=1 When sending out telegraph
-For example
224.0.0.1 All systems in the sub-net
224.0.0.2 All routers in the sub-net
224.0.0.4 DVMRP router
224.0.0.5 OSPF router
224.0.0.13 PIMv2 router
Administrative scoped addressees
-239.0.0.0-239.255.255.255
-Private address space
Like the single broadcast address of RFC1918
Can not be used in Internet transmission
Page 69
Used for multiple cast broadcast in limited space.
Except the above mentioned addresses of special meaning, you can use other addresses.
For example:
Multiple cast IP: 235.8.8.36
Multiple cast PORT: 3666.
After you logged in the Web, the Web can automatically get multiple cast address and add
it to the multiple cast groups. You can enable real-time monitor function to view the view.
Please note multiple cast function applies to special series only.
5.3.5.5 PPPoE

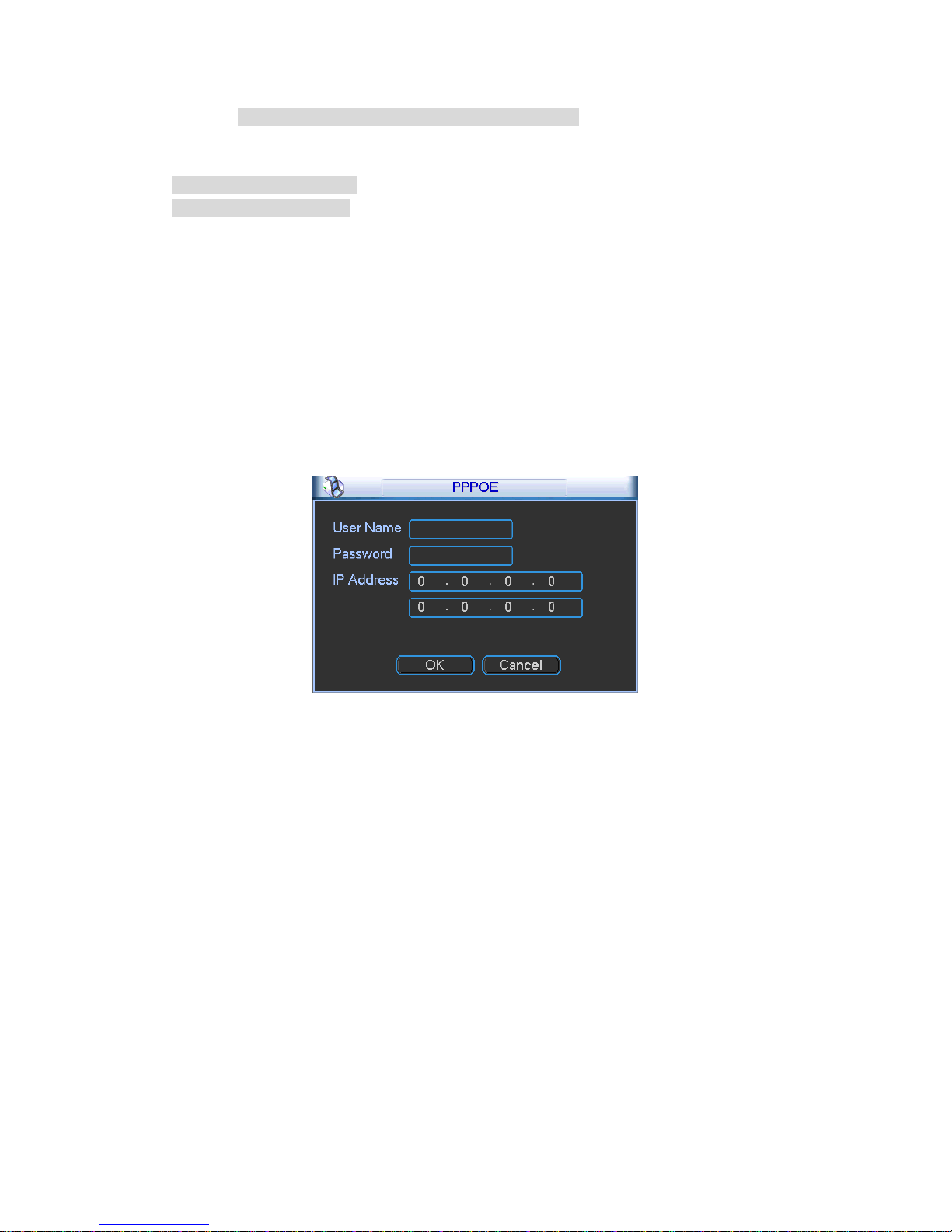

PPPoE interface is shown as in Figure 5-14.
Input ―PPPoE name‖ and ―PPPoE password‖ you get from your ISP (Internet service
provider).
Click save button, you need to restart to activate your configuration.
After rebooting, DVR will connect to internet automatically. The IP in the PPPoE is the
DVR dynamic value. You can access this IP to visit the unit.
Figure 5-14
5.3.5.6 DDNS Setup

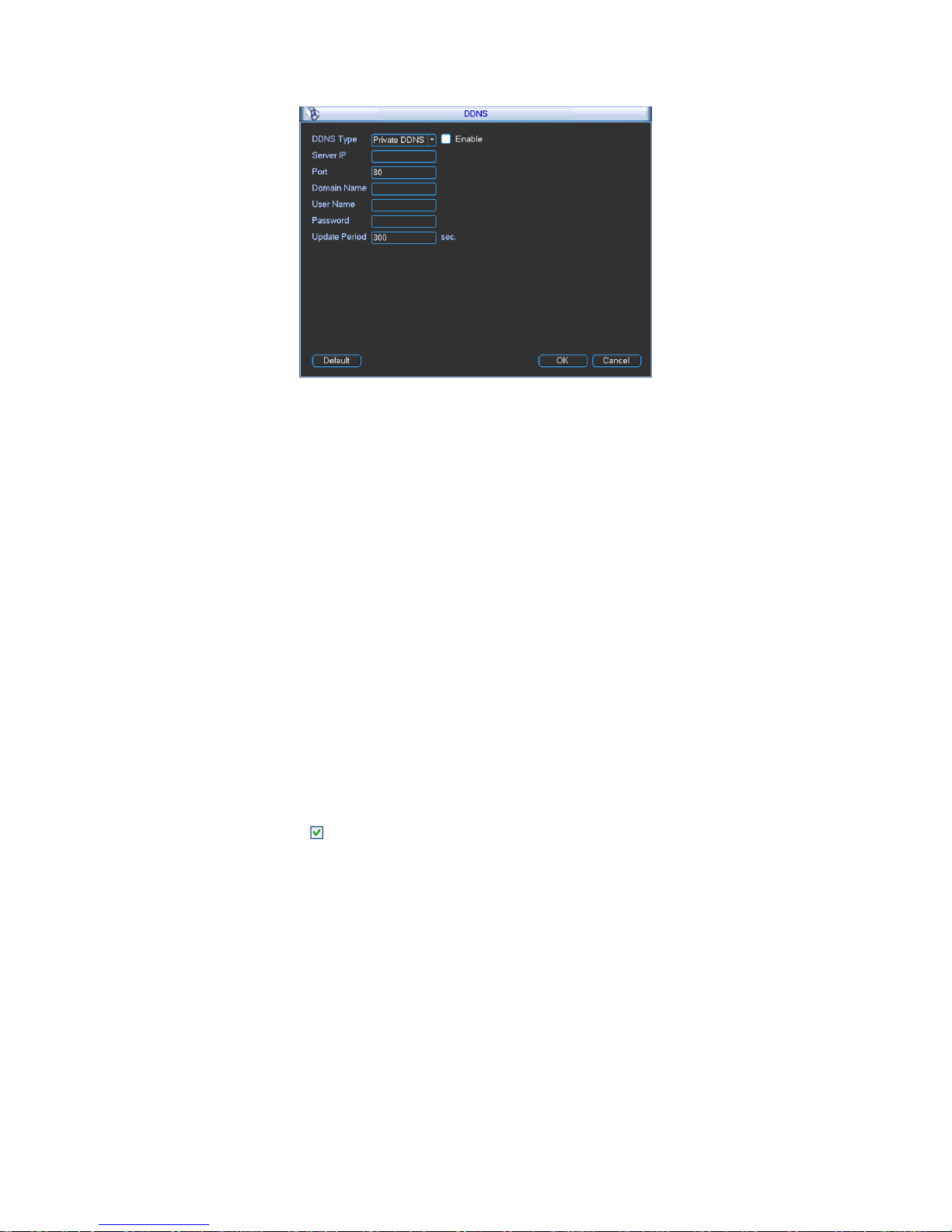

DDNS setup interface is shown as in Figure 5-15.
You need a PC of fixed IP in the internet and there is the DDNS software running in this
PC. In other words, this PC is a DNS (domain name server).
In network DDNS, please select DDNS type and highlight enable item. Them please input
your PPPoE name you get from you IPS and server IP (PC with DDNS ) . Click save
button and then reboot system.
Click save button, system prompts for rebooting to get all setup activated.
After rebooting, open IE and input as below:
http：//(DDNS server IP)/(virtual directory name)/webtest.htm
e.g.: http：//10.6.2.85/DVR _DDNS/webtest.htm.)
Now you can open DDNSServer web search page.
Page 70
Figure 5-15
Please note NNDS type includes: CN99 DDNS、NO-IP DDNS、Private DDNS、Dyndns
DDNS and sysdns DDNS. All the DDNS can be valid at the same time, you can select as
you requirement.
Private DDNS function shall work with special DDNS server and special Professional
Surveillance Software (PSS).
5.3.5.7 UPNP
The UPNP protocol is to establish a mapping relationship between the LAN and the WAN.
Please input the router IP address in the LAN in Figure 5-9. Double click the UPNP item in
Figure 5-9, you can see the following interface. See Figure 5-16.
UPNP on/off ：Turn on or off the UPNP function of the device.
Status: When the UPNP is offline, it shows as ―Unknown‖. When the UPNP works it
shows ―Success‖
Router LAN IP: It is the router IP in the LAN.
WAN IP: It is the router IP in the WAN.
Port Mapping list： The port mapping list here is the one to one relationship with the
router’s port mapping setting.
Enable Switch : ：It shows that the function of port mapping is enabled in this port.
List：
Service name：Defined by user.
Protocol： Protocol type
Internal port：Port that has been mapped in the router.
External port：Port that has been mapped locally.
Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.
Add to the list: Click it to add the mapping relationship.
Delete: Click it to remove one mapping item.
Double click one item; you can change the corresponding mapping information. See
Figure 5-17.
Page 71
Important:
When you are setting the router external port, please use 1024~5000 port. Do not
use well-known port 1~255 and the system port 256~1023 to avoid conflict.
For the TCP and UDP, please make sure the internal port and external port are the
same to guarantee the proper data transmission.
Figure 5-16
Figure 5-17
5.3.5.8 Email

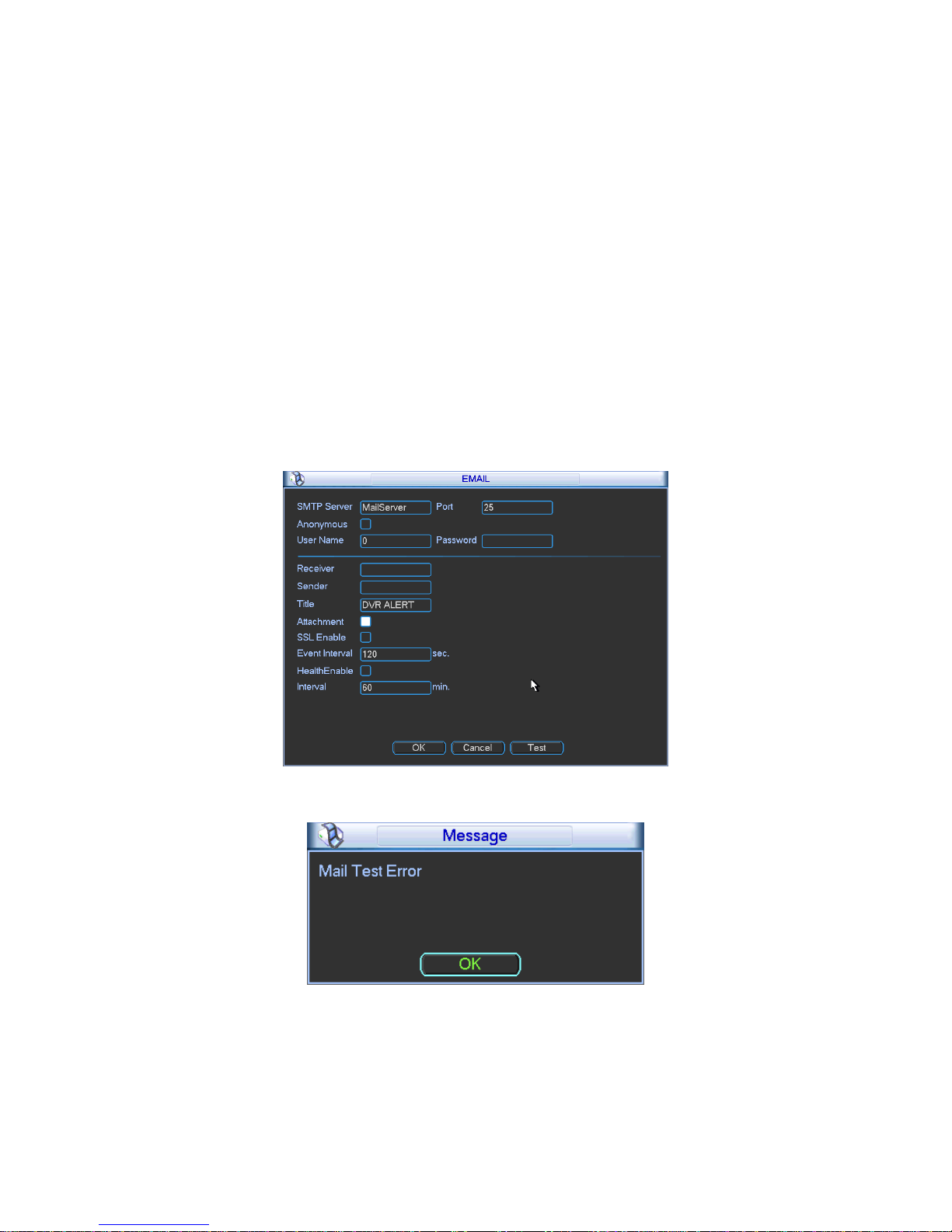

The email interface is shown as below. See Figure 5-18.
SMTP server: Please input your email SMTP server IP here.
Port: Please input corresponding port value here.
User name: Please input the user name to login the sender email box.
Password: Please input the corresponding password here.
Sender: Please input sender email box here.
Title: Please input email subject here. System support English character and Arabic
number. Max 32-digit.
Page 72
Receiver: Please input receiver email address here. System max supports 3 email
boxes.
SSL enable: System supports SSL encryption box.
Interval: The send interval ranges from 0 to 3600 seconds. 0 means there is no
interval.
Health email enable: Please check the box here to enable this function. This function
allows the system to send out the test email to check the connection is OK or not.
Interval: Please check the above box to enable this function and then set the
corresponding interval. System can send out the email regularly as you set here.
Click the Test button, you can see the corresponding dialogue box to see the email
connection is OK or not. See Figure 5-19.
Please note system will not send out the email immediately when the alarm occurs. When
the alarm, motion detection or the abnormity event activates the email, system sends out
the email according to the interval you specified here. This function is very useful when
there are too many emails activated by the abnormity events, which may result in heavy
load for the email server.
Figure 5-18
Figure 5-19
5.3.5.9 FTP
You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish
Page 73
FTP service.
Please install Ser-U FTP SERVER first. From ―start‖ -> ―program‖ -> Serv-U FTP Server
-> Serv-U Administator. Now you can set user password and FTP folder. Please note you
need to grant write right to FTP upload user. See Figure 5-20.
Figure 5-20
You can use a PC or FTP login tool to test setup is right or not.
For example, you can login user ZHY to H140H140H140HTUFTP://10.10.7.7UTH and then test it can modify
or delete folder or not. See Figure 5-21.
Figure 5-21
System also supports upload multiple DVRs to one FTP server. You can create multiple
folders under this FTP.

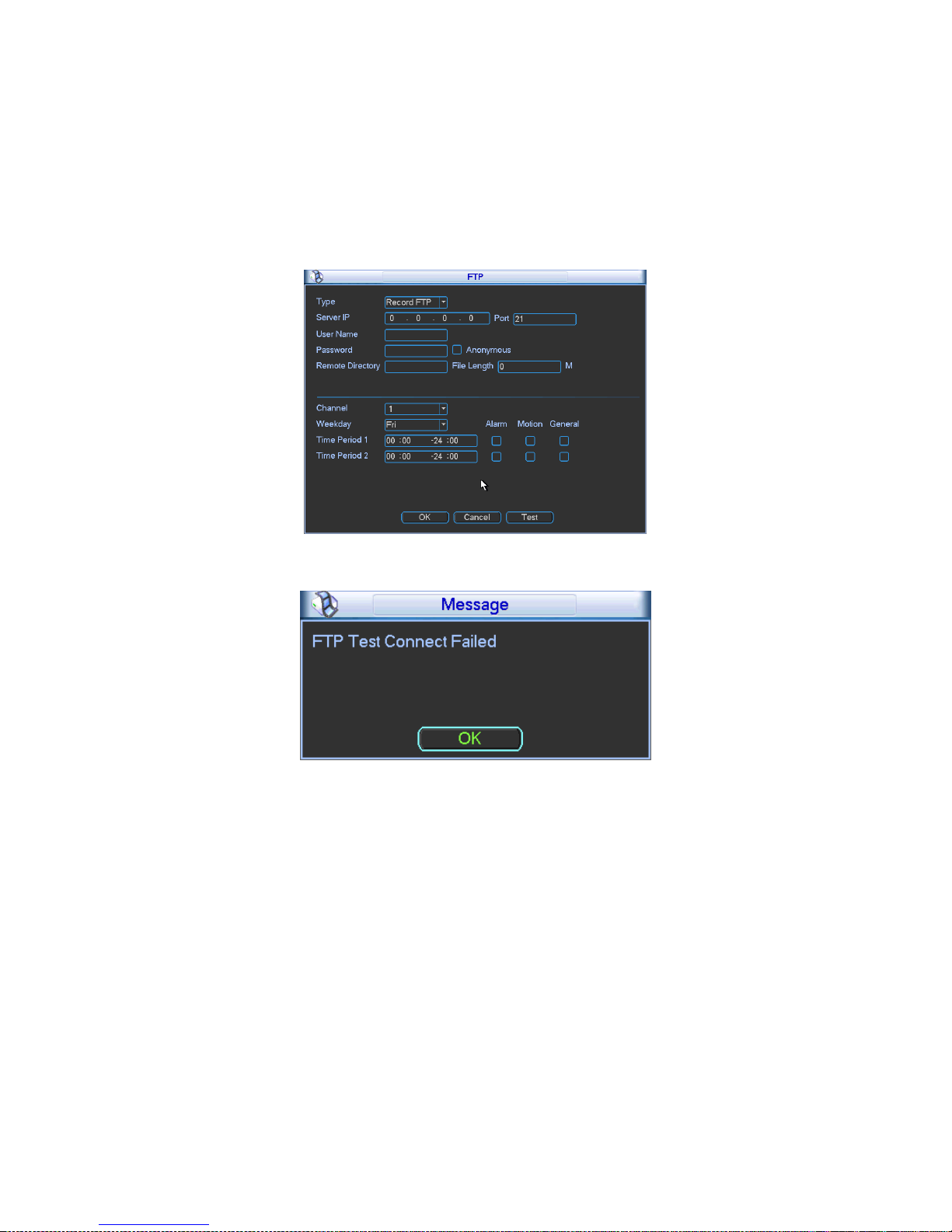

In Figure 5-9, select FTP and then double click mouse. You can see the following interface.
See Figure 5-22.
Please highlight the icon in front of Enable to activate FTP function.
Here you can input FTP server address, port and remote directory. When remote directory
is null, system automatically create folders according to the IP, time and channel.
User name and password is the account information for you to login the FTP.
File length is upload file length. When setup is larger than the actual file length, system will
Page 74
upload the whole file. When setup here is smaller than the actual file length, system only
uploads the set length and auto ignore the left section. When interval value is 0, system
uploads all corresponding files.
After completed channel and weekday setup, you can set two periods for one each
channel.
Click the Test button, you can see the corresponding dialogue box to see the FTP
connection is OK or not. See Figure 5-23.
Figure 5-22
Figure 5-23
5.3.5.10 Alarm Centre
This interface is reserved for you to develop.
5.3.6 Alarm
Please refer to chapter 4.6 Alarm Setup and Activation.
5.3.7 Detect
Please refer to chapter 4.5 Detect.
5.3.8 Pan/Tilt/Zoom
The pan/tilt/zoom setup includes the following items. Please select channel first. See
Figure 5-24.
Page 75
Protocol: Select corresponding PTZ protocol such as PELCOD.
Address: input corresponding PTZ address.
Baud rate: Select baud rate.
Data bit: Select data bit.
Stop bit: Select stop bit.
Parity: There are three choices: none/odd/even.
After completed all the setups please click save button, system goes back to the previous
menu.
For detailed setup, please refer to chapter 4.9 preset/patrol/pattern/scan.
Figure 5-24
5.3.9 Display
Display setup interface is shown as below. See Figure 5-25.
Transparency: Here is for you to adjust transparency. The value ranges from 128 to
255.
Channel name: Here is for you to modify channel name. System max support 25-digit
(The value may vary due to different series). Please note all your modification here
only applies to DVR local end. You need to open web or client end to refresh channel
name.
Time display: You can select to display time or not when system is playback.
Channel display: You can select to channel name or not when system is playback.
Resolution: There are four options: 1280×1024(default),1280×720,1024×768,800
×600. Please note the system needs to reboot to activate current setup.
Enable tour: Activate tour function.
Interval: System supports 1/4/8/9/16-window tour. Input proper interval value here.
The value ranges from 5-120 seconds. In tour process, you can use mouse or click
Shift to turn on window switch function. Stands for opening switch function,
stands for closing switch function.
Monitor tour type: System support 1/8-window tour.
Alarm tour type: System support 1/8-window tour.
Page 76
Please highlight icon to select the corresponding function.
After completing all the setups please click save button, system goes back to the previous
menu.
Figure 5-25
In Figure 5-25, click modify button after channel. You can see an interface is shown as in
Figure 5-26. Please note all your modification here applies to local end only. You need to
refresh web or client-end to get the latest channel name. System max support 25-digital
character.
Figure 5-26

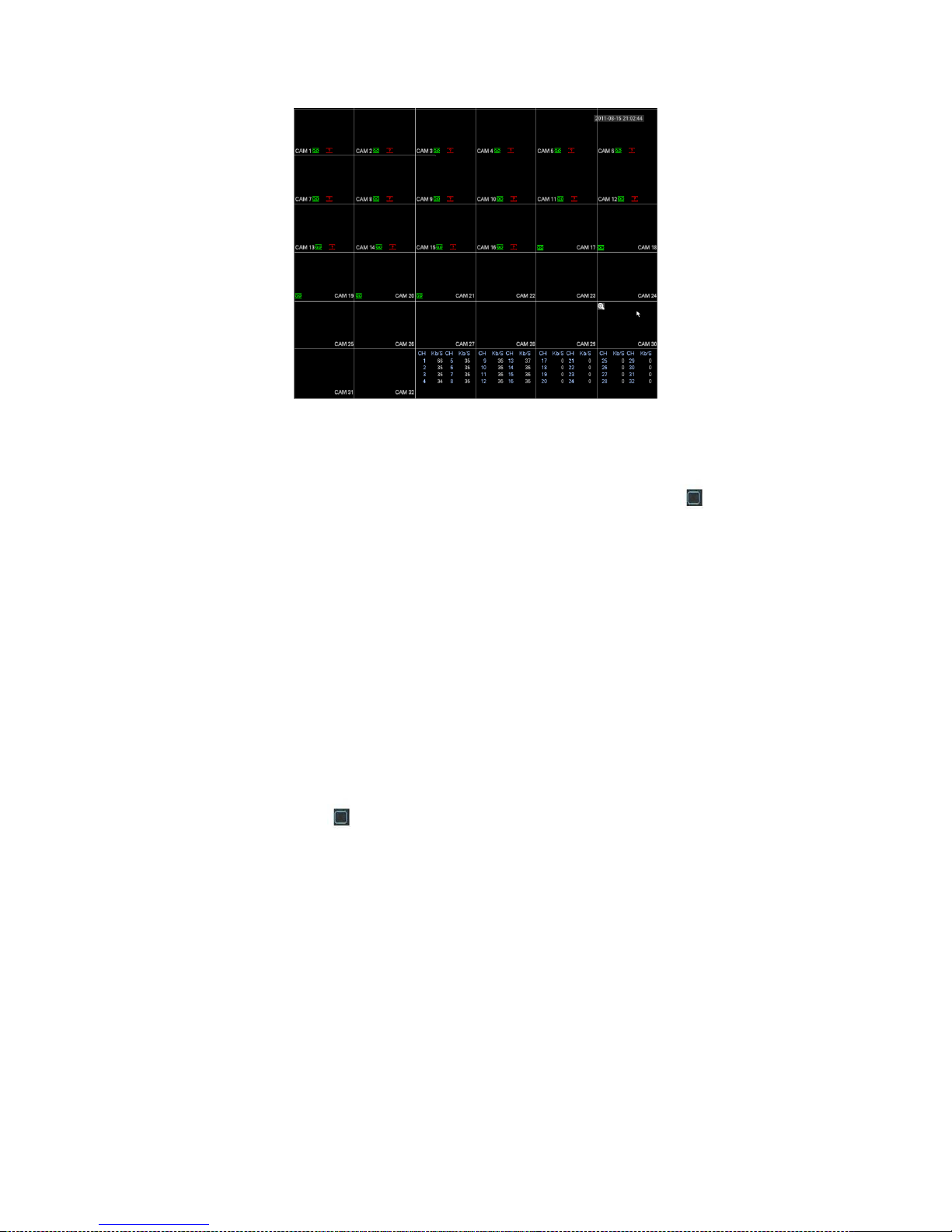

In tour mode, you can see the following interface. On the right corner, right click mouse or
click shift button, you can control the tour. There are two icons: stands for enabling
window switch and stands for disabling window function. See Figure 5-27.
Page 77
Figure 5-27

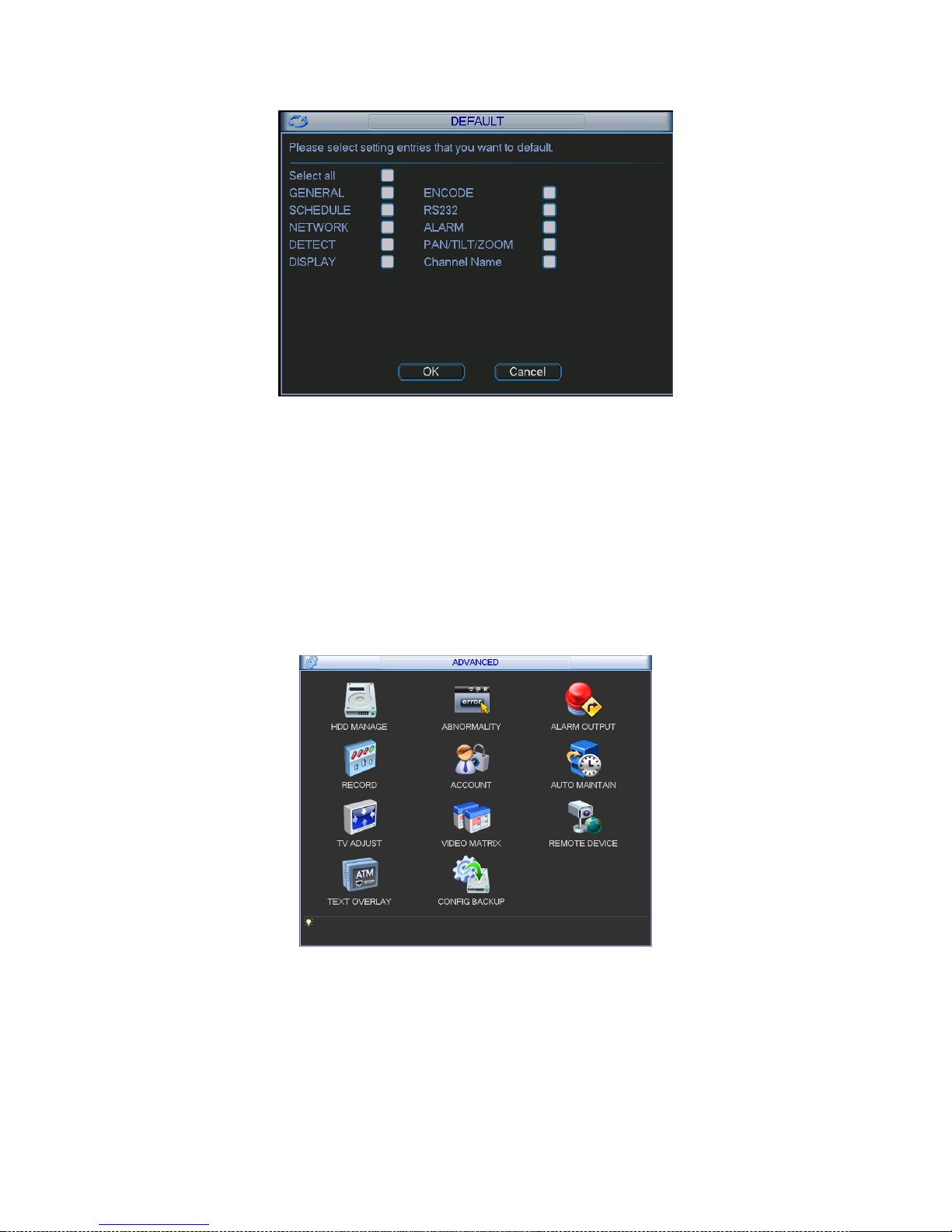

5.3.10 Default
Click default icon, system pops up a dialogue box. You can highlight to restore
default factory setup. See X381H381H381HFigure 5-26.
Select all
General
Encode
Schedule
RS232
Network
Alarm
Detect
Pan/tilt/zoom
Display
Channel name
Please highlight icon to select the corresponding function.
After all the setups please click save button, system goes back to the previous menu.
Warning!
System menu color, language, time display mode, video format, IP address, user account
will not maintain previous setup after default operation!
Page 78
Figure 5-28
5.4 Search
Please refer to chapter 4.3 Search.
5.5 Advanced
Double click advanced icon in the main window, the interface is shown as below. See
Figure 5-29.There are total eight function keys: HDD management, alarm output,
abnormity, manual record, account, auto maintenance, TV adjust and video matrix.
Figure 5-29
5.5.1 HDD Management
Here is for you to view and implement hard disk management. See Figure 5-30.
You can see current HDD type, status, capacity and record time. When HDD is working
properly, system is shown as O. When HDD error occurred, system is shown as X.
Page 79
Alarm set: Click alarm set button, the interface is shown as below. See Figure 5-31.
(This interface is just like the abnormity setup). Please refer to chapter 5.5.2 for
detailed information.
HDD operation: You can select HDD mode from the dropdown list such as read-only
or you can erase all data in the HDD. Please note system needs to reboot to get all
the modification activated.
Figure 5-30
Please highlight icon to select the corresponding function.
Figure 5-31
For the HDD group setup operation, please note:
Each channel’s records can be stored into the specified HDD Group.
Each HDD Group is corresponding to several hard disks, while one hard disk is
only included in one HDD Group.
Each channel is only corresponding with one HDD Group, while one HDD Group
can store records from several channels.
Page 80
HDD Group is only available for read-write HDD and self-defined disks, other
types of hard disks cannot be set as HDD Group.
Important:
e-SATA also supports this function, you can manage e-SATA hard disk as local hard
disk.
Current series software version can only set the HDD group operation of the
read-write HDDs. It is not for the redundancy HDD.
HDD Setting

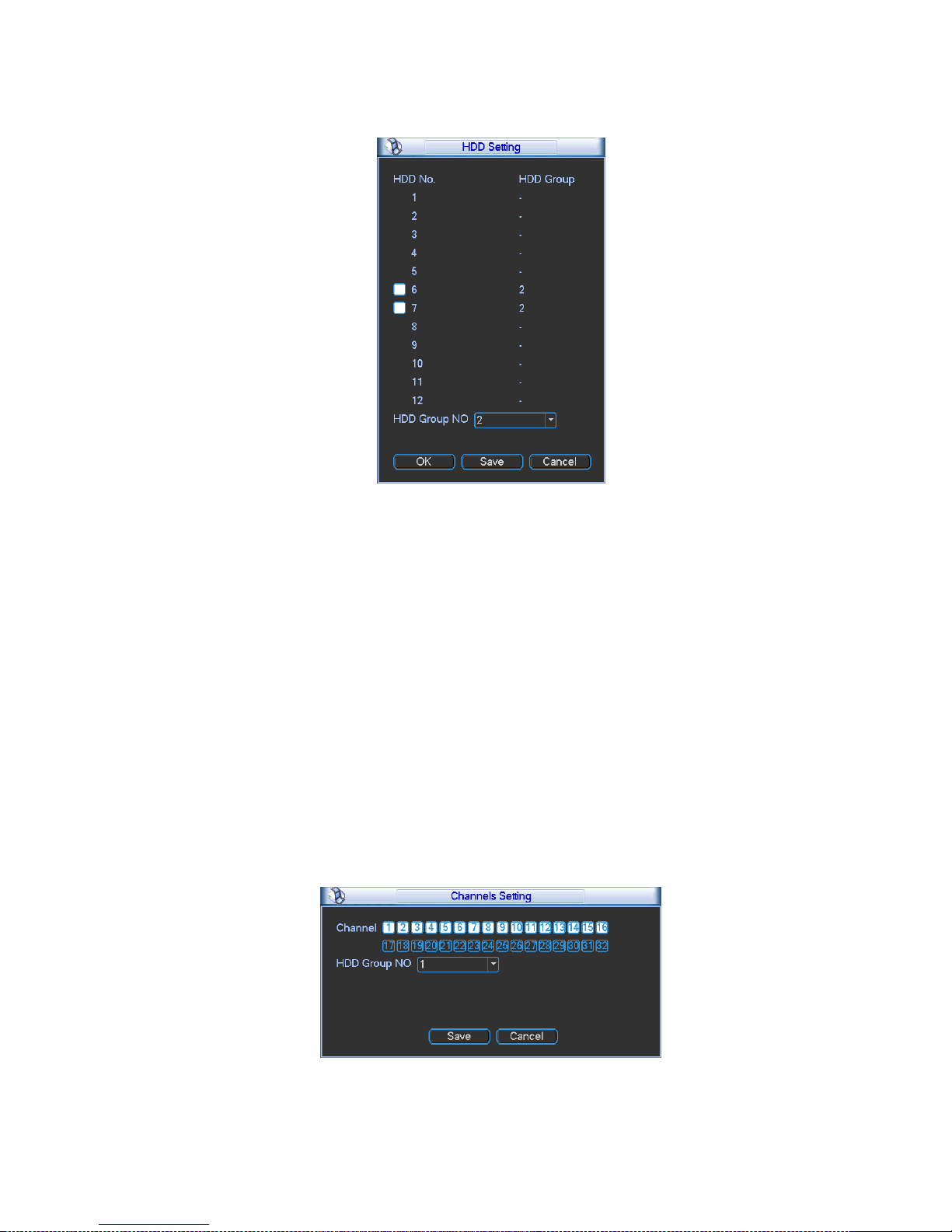

Click the button ―HDD Settings‖ at the top right corner of the Figure 5-30, system will pop
up an interface as below. See Figure 5-32.
The number of hard disk from 1 to 12 is shown in the ―HDD No.‖ column. If there is a mark
in the front of the number, it means this interface have access to the hard disk,
otherwise it does not have access to the hard disk.
The ―HDD Group‖ column lists the HDD Group number of current hard disk.
When you are setting the HDD Group, please check the box of the hard disk, and then
choose the corresponding HDD Group number and save the settings.
In Figure 5-32, you can see the system has two working hard disks at the 6th and 7th
position, and the 6th position hard disk belongs to HDD Group 1, the 7th position hard disk
belongs to HDD Group 2.
Figure 5-32
In Figure 5-33, you can see the 6th and 7th position hard disks both belong to HDD Group
2.
Important
Once you change the HDD Group settings, system will pack the records and snapshots,
Page 81
and then reboot.
Figure 5-33

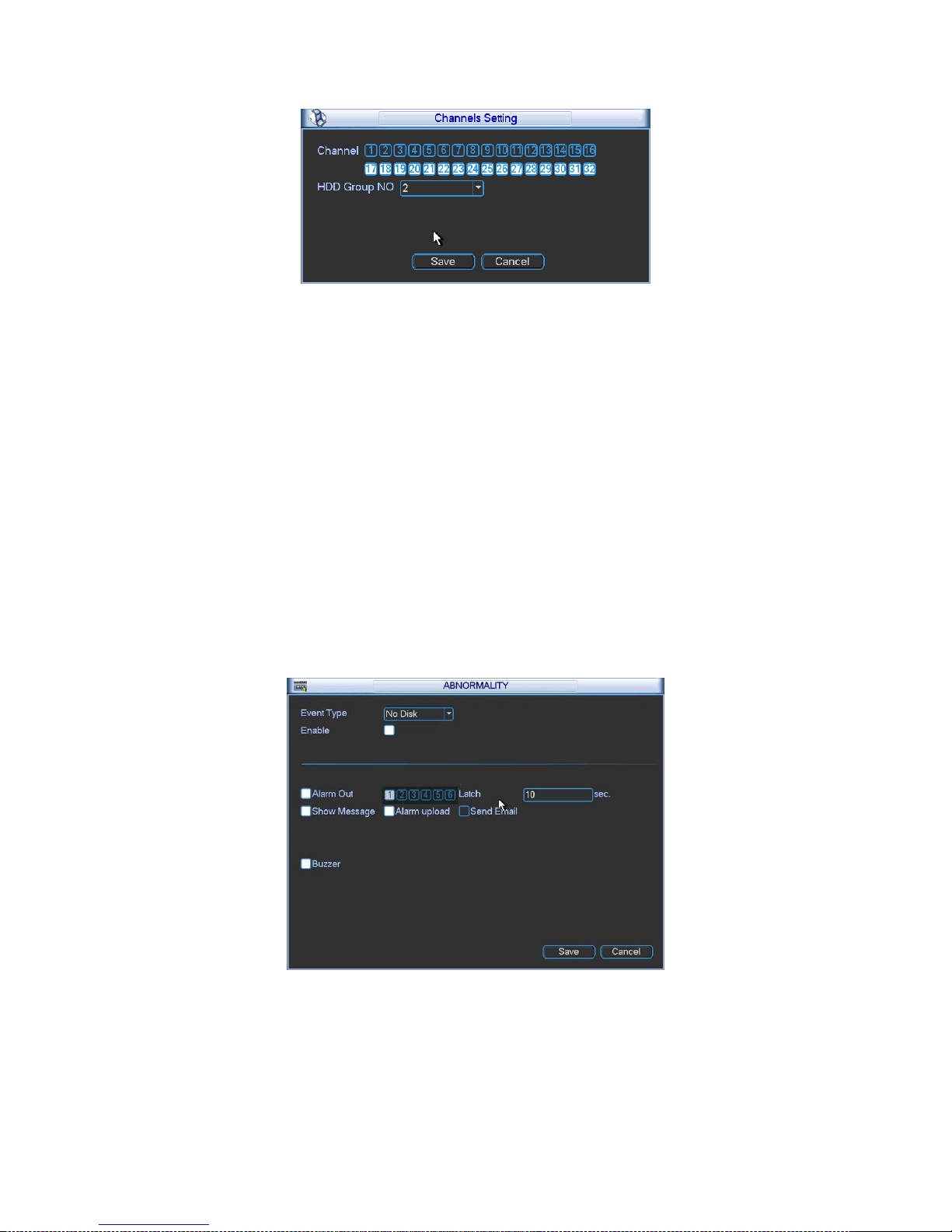

Channels Setting
Click the button named with ―Channels Settings‖ at the top right corner of the Figure 5-30,
system will pop up an interface shown as in Figure 5-34.
When you are setting the configurations of the channels setting, please select relevant
channels first (such as channel 1 to 16), and then select the HDD Group NO. Please click
the Save button to save current setup.
The Figure 5-34 and Figure 5-35 show that channels 1 to 16 are associated to HDD
Group NO 1, and channels 17 to 32 are associated to HDD Group NO 2. Therefore the
records of channels 1 to 16 are stored into the hard disk(s) which belong to HDD Group
NO 1, and the records of channels 17 to 32 are stored into the hard disk(s) which belong
to HDD Group NO 2.
Important
Once you change the HDD Group settings, system will pack the records and snapshots,
and then reboot.
Figure 5-34
Page 82
Figure 5-35
5.5.2 Abnormity
Abnormity interface is shown as in Figure 5-36.
Event type: There are several options for you such as disk error, no disk,
disconnection, IP conflict and etc.
Alarm output: Please select alarm activation output port (multiple choices).
Latch: Here you can set corresponding delaying time. The value ranges from
10s-300s. System automatically delays specified seconds in turning off alarm and
activated output after external alarm cancelled.
Show message: system can pop up the message in the local screen to alert you
when alarm occurs.
Alarm upload: System can upload the alarm signal to the network (including alarm
centre) if you enabled current function.
Send email: System can send out email to alert you when alarm occurs.
Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm
occurs.
Figure 5-36
5.5.3 Alarm Output
Here is for you to set proper alarm output.
Page 83
Please highlight icon to select the corresponding alarm output.
After all the setups please click OK button, system goes back to the previous menu. See
Figure 5-37.
Figure 5-37
5.5.4 Manual Record
Please refer to chapter 4.2.2 manual record.
5.5.5 Account
Here is for you to implement account management. See Figure 5-38. Here you can:
Add new user
Modify user
Add group
Modify group
Modify password.
For account management please note:
For the user account name and the user group, the string max length is 6-byte. The
backspace in front of or at the back of the string is invalid. There can be backspace in
the middle. The string includes the valid character, letter, number, underline,
subtraction sign, and dot.
System account adopts two-level management: group and user. No limit to group or
user amount.
For group or user management, there are two levels: admin and user.
The user name and group name can consist of eight bytes. One name can only be
used once. There are four default users: admin/888888/666666 and hidden user
―default‖. Except user 6666, other users have administrator right.
Hidden user ―default‖ is for system interior use only and can not be deleted. When
there is no login user, hidden user ―default‖ automatically login. You can set some
rights such as monitor for this user so that you can view some channel view without
login.
One user should belong to one group. User right can not exceed group right.
About reusable function: this function allows multiple users use the same account to
login.
Page 84
After all the setups please click save button, system goes back to the previous menu.
Figure 5-38
5.5.5.1 Modify Password
Click password button, the interface is shown as in Figure 5-39.
Here you can modify account password.
Please select the account from the dropdown list, input the old password and then input
the new password twice. Click the Save button to confirm current modification.
For the users of user account right, it can modify password of other users.
Figure 5-39
5.5.5.2 Add/Modify Group

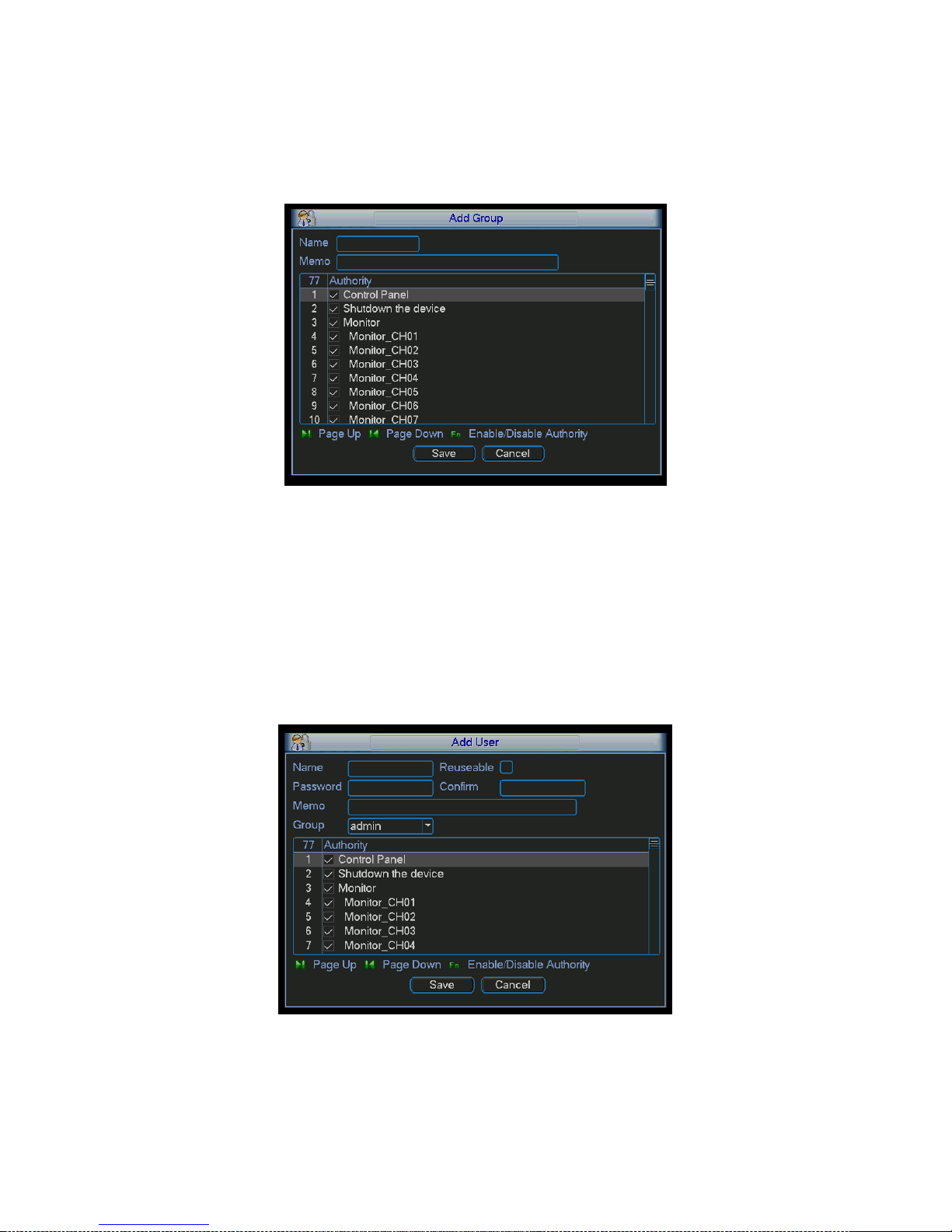

Click add group button, the interface is shown as below. See Figure 5-40.
Here you can input group name and then input some memo information if necessary.
There are total 60 rights such as control panel, shut down, real-time monitor, playback,
Page 85
record, record file backup, PTZ, user account, system information view, alarm input/output
setup, system setup, log view, clear log, upgrade system, control device and etc.
The modify group interface is similar to the Figure 5-40.
Figure 5-40
5.5.5.3 Add/Modify User
Click add user button, the interface is shown as in Figure 5-41.
Please input the user name, password, select the group it belongs to from the dropdown
list.
Then you can check the corresponding rights for current user.
For convenient user management, usually we recommend the general user right is lower
than the admin account.
The modify user interface is similar to Figure 5-41.
Figure 5-41
5.5.6 Auto Maintain
Page 86
Here you can set auto-reboot time and auto-delete old files setup. You can set to delete
the files for the specified days. See Figure 5-42.
You can select proper setup from dropdown list.
After all the setups please click save button, system goes back to the previous menu.
Figure 5-42
5.5.7 TV Adjust
Here is for you to adjust TV output setup. See Figure 5-43.
Please drag slide bar to adjust each item.
After all the setups please click OK button, system goes back to the previous menu.
Figure 5-43
5.5.8 Video Matrix

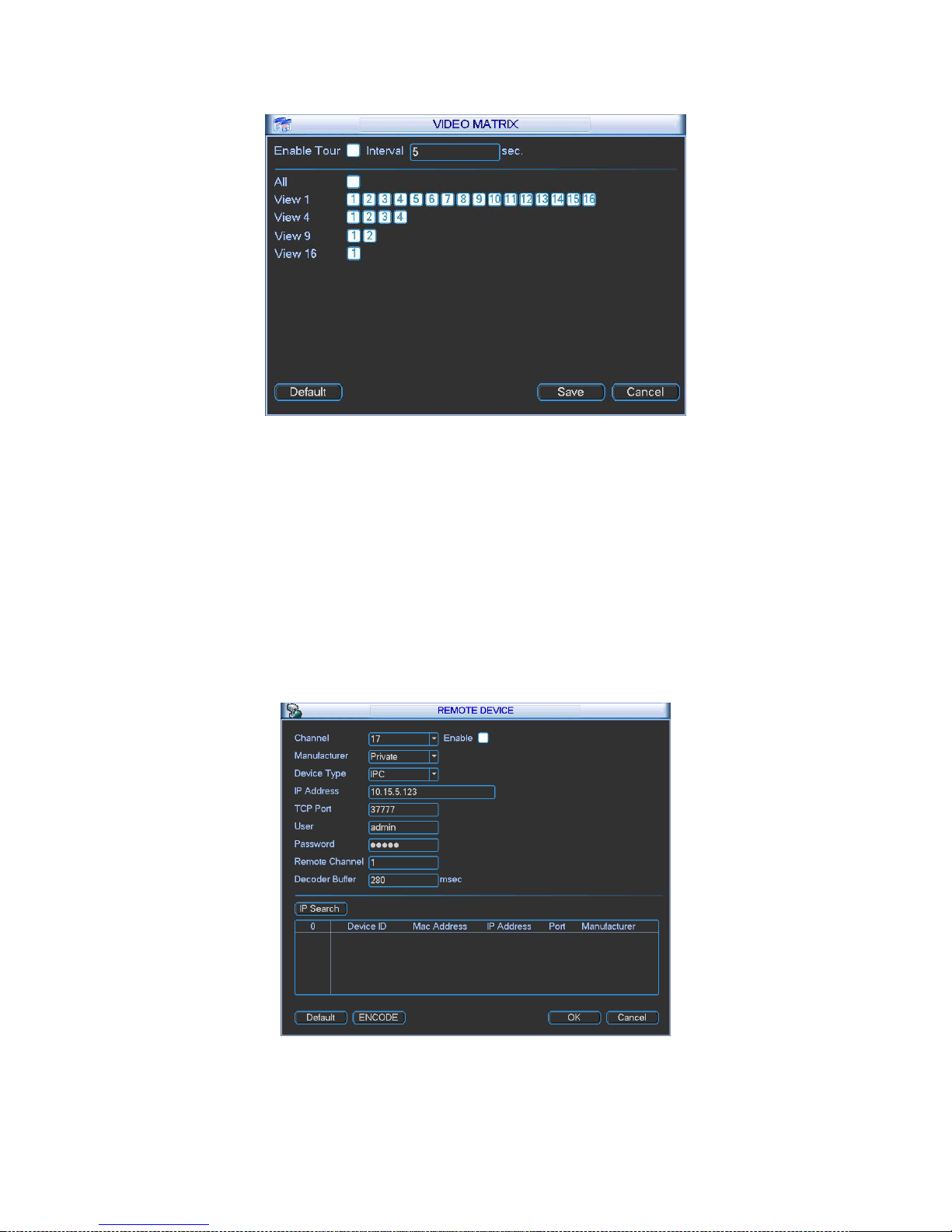

Here you can set matrix output channel and its interval. See Figure 5-44.
It can support the 1/4/9/16-window sport tour and you can specify the interval.
Page 87
Figure 5-44
5.5.9 Remote Device
The remote device interface is shown as in Figure 5-45. Here you can set IPC IP
address, port, remote device channel number, user name and its password.
IPC port number is 37777; remote device channel number is 1 by default. IPC user
name is admin and password is admin.
The 4-ch device max. supports 4-ch D1 IPC or 2-ch 720P IPC or 1-ch 1080P IPC.
The 8-ch device max. supports 8-ch D1 IPC or 4-ch 720P IPC or 2-ch 1080P IPC.
The 16-ch device max. supports 16-ch D1 IPC or 8-ch 720P IPC or 4-ch 1080P IPC.
Figure 5-45
Page 88
Note: this device also supports IPCs from the third parties (i.e. Sony, AXIS, Samsung,
Panasonic and etc.)
5.5.10 Text Overlay
The card overlay function is for financial areas. It includes Sniffer, information analysis and
title overlay function. The Sniffer mode includes COM and network.
5.5.10.1 COM Type

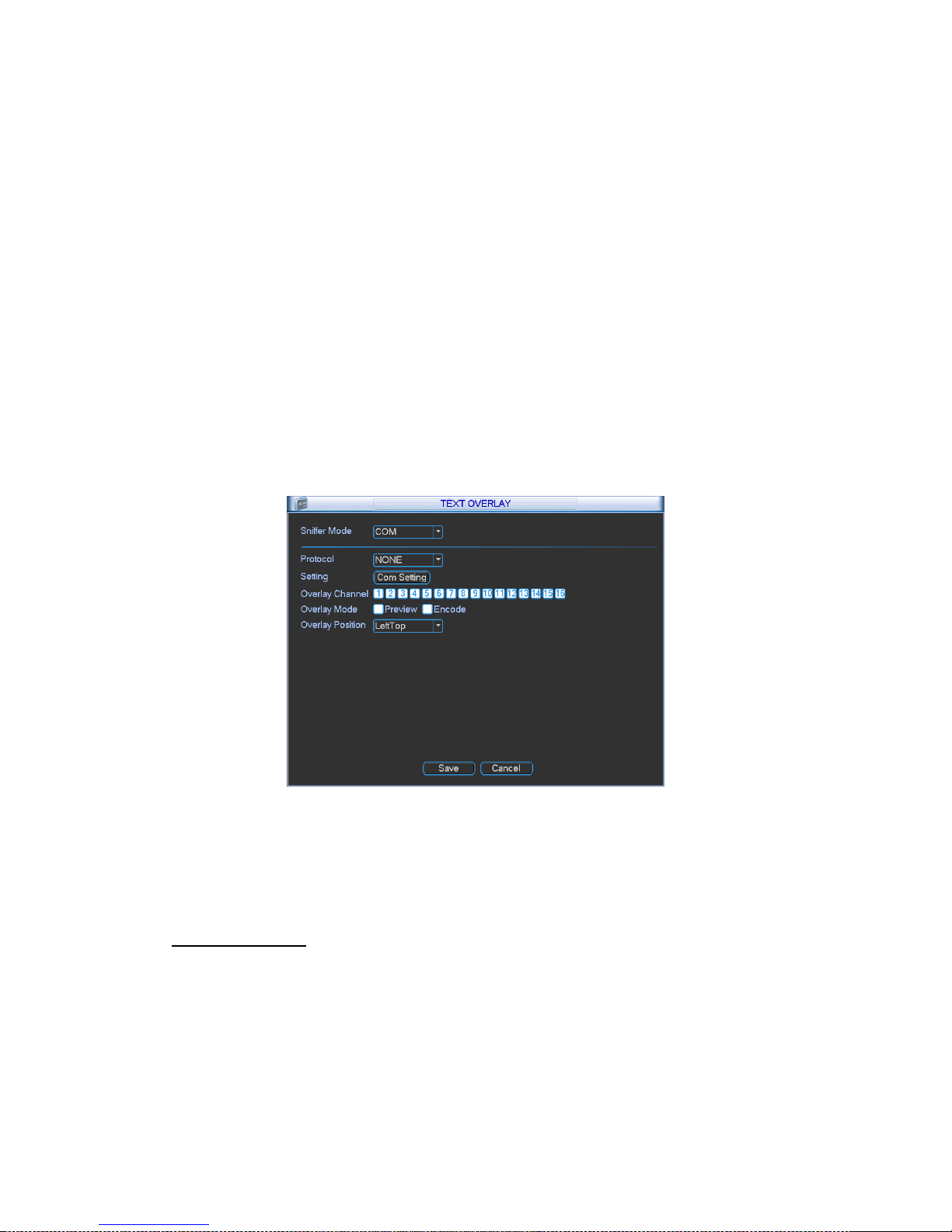

The COM interface is shown as below. See Figure 5-46.
Protocol: Please select from the dropdown list.
Setting: Click COM setting button, the interface is shown as in RS232 interface.
Please refer to Chapter 5.3.4 RS232.
Overlay channel: Please select the channel you want to overlay the card number.
Overlay mode: There are two options: preview and encode. Preview means overlay
the card number in the local monitor video. Encode means overlay the card number
in the record file.
Overlay Position: Here you can select the proper overlay position from the dropdown
list.
Figure 5-46
5.5.10.2 Network Type

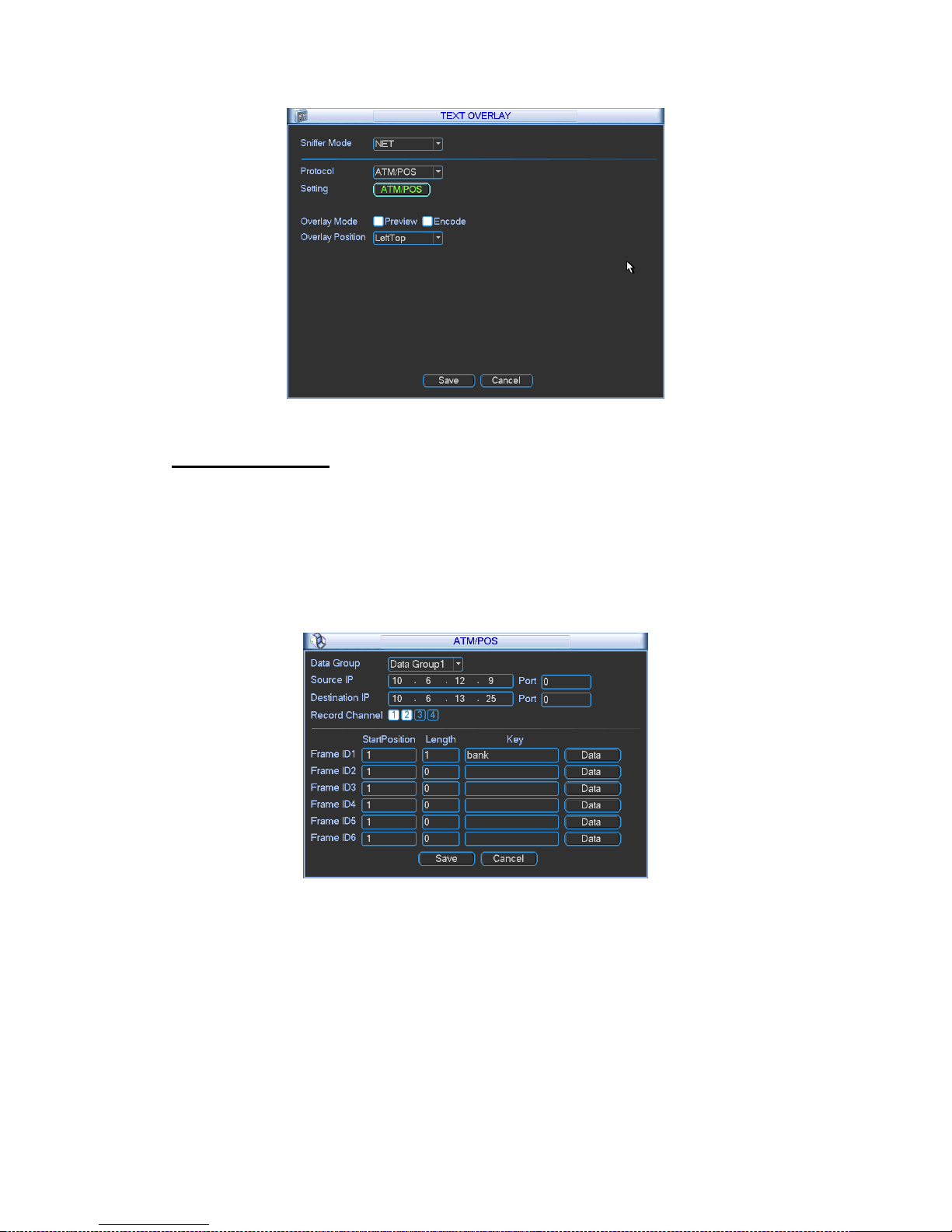

The network type interface is shown as below. See Figure 5-47.
Here we take the ATM/POS protocol to continue.
There are two types: with or without the protocol according to client’s requirements.
With the protocol
For ATM/POS with the protocol, you just need to set the source IP, destination IP
(sometimes you need to input corresponding port number).
Page 89
Figure 5-47
Without the protocol
For the ATM/POS without the protocol, the interface is shown as in Figure 5-48.
Source IP refers to host IP address that sends out information (usually it is the device
host.)
Destination IP refers to other systems that receive information.
Usually you do not need to set source port and target port.
There are total four groups IP. The record channel applies to one group (optional) only.
Six frame ID groups verification can guarantee information validity and legal.
Figure 5-48
Click Data button you can see an interface is shown as in Figure 5-49.
Here you can set offset value, length, title according to your communication protocol and
data package. .
Page 90
Figure 5-49
5.5.11 Config File Backup
The configuration file backup interface is shown as below. See Figure 5-50.
This function allows you to copy current system configuration to other devices.
Figure 5-50
5.6 Information
Here is for you to view system information. There are total five items: HDD (hard disk
information), BPS (data stream statistics), Log and version, and online user. See Figure
5-51.
Page 91
Figure 5-51
5.6.1 HDD Information
Here is to list hard disk type, total space, free space, video start time and status. See X391H391H391H
See Figure 5-52.○ means current HDD is normal. X means there is error. - means there is
no HDD.
If disk is damaged, system shows as ―?‖. Please remove the broken hard disk before you
add a new one.
Once there is a hard disk confliction, please check hard disk time and system time is the
same or not. Please go to setting then general to modify system time. At last, reboot the
system to solve this problem.
After system booted up, if there is any confliction, system goes to HDD information
interface directly. Please note, system does not ask you to deal with it forcedly.
When HDD confliction occurs, you can check system time and HDD time are identical or
not. If they are not identical, please go to General (Chapter 5.3.1) to adjust system time or
go to HDD Management (Chapter 5.5.1) to format HDD and then reboot the DVR.
Figure 5-52
Page 92
Tips:
Please click Fn button or left click mouse to view HDD record time and HDD type and
time.
5.6.2 BPS
Here is for you to view current video data stream (KB/s) and occupied hard disk storage
(MB/h). See Figure 5-53.
Figure 5-53
5.6.3 Log
Here is for you to view system log file. System lists the following information. See Figure
5-54.
Log types include system operation, configuration operation, data management, alarm
event, record operation, log clear and etc.
Pleased select start time and end time, then click search button. You can view the log
files.
System max displays 100 logs in one page. It can max save 1024 log files.
Please page up/down button to view if there are more than ten files.
System also supports the backup function; you can click the backup button to save the log
files in the USB devices.
Page 93
Figure 5-54
Click the Details button or double click the log item, you can view the detailed information.
See Figure 5-55.
Figure 5-55
5.6.4 Version
Here is for you to view some version information. See Figure 5-56.
Channel
Alarm in
Alarm out
System version:
Build Date
Page 94
Figure 5-56
5.6.5 Online Users
Here is for you manage online users. See Figure 5-57.
You can disconnect one user or block one user if you have proper system right. Max
disconnection setup is 65535 seconds.
Figure 5-57
5.7 Shutdown
Double click shutdown button, system pops up a dialogue box for you to select. See
Figure 5-58
Logout menu user: log out menu. You need to input password when you login the
next time.
Restart application: reboot DVR.
Shutdown: system shuts down and turns off power.
Restart system: system begins rebooting.
Switch user: you can use another account to log in.
Page 95
Figure 5-58
Page 96
6 About Auxiliary Menu
6.1 Go to Pan/Tilt/Zoom Menu
In the one-window surveillance mode, right click mouse (click ―fn‖ Button in the front panel
or click AUX key in the remote control). The interface is shown as below: See X397H397H397HFigure 6-1X.
Figure 6-1
Click Pan/Tilt/Zoom, the interface is shown as in X398H398H398HFigure 6-2X.
Here you can set the following items:
Zoom
Focus
Iris
Please click icon and to adjust zoom, focus and Iris.
Figure 6-2
In X399H39 9H399HFigure 6-2X, please click direction arrows (See X400H400H40 0HFigure 6-3X ) to adjust PTZ position.
There are totally eight direction arrows. (Please note there are only four direction arrows
Page 97
in DVR front panel.)
Figure 6-3
6.1.1 3D Intelligent Positioning Key
In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See
X401H401H401HFigure 6-4X . Please make sure your protocol supports this function and you need to use
mouse to control.
Click this button, system goes back to the single screen mode. Drag the mouse in the
screen to adjust section size.
Figure 6-4
Here is a sheet for you reference.
Name
Function
key
function
Shortcut
key
Function
key
function
Shortcut
key
Zoom
Near
Far
Focus
Near
│
Far
►│
Iris close
Open
6.2 Preset /Patrol / Pattern /Border Function
In X402H402H402HFigure 6-2X click the set button. The interface is shown as below:
Here you can set the following items:
Preset
Patrol
Pattern
Border
Figure 6-5
In X403H403H403HFigure 6-2X, click page switch button, you can see an interface as in X404H404H404HFigure 6-6X.
Page 98
Here you can activate the following functions:
Preset
Tour(Patrol)
Pattern
Auto scan
Auto pan
Flip
Page Switch
Figure 6-6
6.2.1 Preset Setup
Note: The following setups are usually operated in the X405H405H405HFigure 6-2X, X406H406H406HFigure 6-5X and
X407H407H407HFigure 6-6X.
In X408H408H408HFigure 6-2X, use eight direction arrows to adjust camera to the proper position.
In X409H409H409HFigure 6-5X, click preset button and input preset number. The interface is shown as in
X410H410H410HFigure 6-7X.
Add this preset to one patrol number
Figure 6-7
6.2.2 Activate Preset
In X411H411H411HFigure 6-6X please input preset number in the No. blank, and click preset button.
6.2.3 Patrol Setup
In X412H412H412HFigure 6-5X, click patrol button. The interface is shown as in X413H413H413HFigure 6-8X.
Input preset number and then add this preset to one patrol.
Page 99
Figure 6-8
6.2.4 Activate Patrol
In X414H414H414HFigure 6-6X, input patrol number in the No. blank and click patrol button
6.2.5 Pattern Setup
In X415H415H415HFigure 6-5X, click pattern button and then click begin button. The interface shows like
X416H416H416HFigure 6-9X.
Please go to X417H417H417HFigure 6-2X to modify zoom, focus, and iris. Go back to X418H418H418HFigure 6-9X and
click end button.
You can memorize all these setups as pattern 1.
Figure 6-9
6.2.6 Activate Pattern Function
In X419H419H419HFigure 6-6X input mode value in the No. blank, and click pattern button.
6.2.7 Border Setup
In X420H420H420HFigure 6-5X, click border button. The interface is shown as in X421H421H421HFigure 6-10X.
Please go to X422H422H422HFigure 6-2X, use direction arrows to select camera left limit, and then please
go to X423H423H423HFigure 6-10X and click left limit button
Repeat the above procedures to set right limit.
Page 100
Figure 6-10
6.2.8 Activate Border Function
In X424H424H424HFigure 6-6X, click auto scan button, the system begins auto scan. Correspondingly, the
auto scan button changes to stop button.
Click stop button to terminate scan operation.
6.2.9 Flip
In X425H425H425HFigure 6-6X, click page switch button, you can see an interface is shown as below. See
X426H426H426HFigure 6-11X. Here you can set auxiliary function.
Click page switch button again, system goes back to X427H427H427HFigure 6-2X.
Figure 6-11
