USER
MANUAL
SA-5700
Desktop CPU Book-Sized PC
Powered by Intel® 6th/7th Gen. Core
With 2DVI, 4COM and 2LAN
SA-5700 M2
SA-5700
Desktop CPU Book-Sized PC
with Intel® 6th/7th Gen. Core
COPYRIGHT NOTICE & TRADEMARK
All trademarks and registered trademarks mentioned herein are the
property of their respective owners.
This manual is copyrighted in June 2017. You may not reproduce or
transmit in any form or by any means, electronic, or mechanical,
including photocopying and recording.
DISCLAIMER
This user’s manual is meant to assist users in installing and setting up
the system. The information contained in this document is subject to
change without any notice.
CE NOTICE
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
FCC NOTICE
This equipment has been tested and found to comply with the limits for
a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any change or modifications to the equipment
not expressly approve by the party responsible for compliance could
void your authority to operate such equipment.
CAUTION: Danger of explosion may occur when the battery
is incorrectly replaced. Replace the battery only with the
same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the manufacturer’s
instructions.
WARNING: Some internal parts of the system may have high
electrical voltage. We strongly recommend that only qualified
engineers are allowed to service and disassemble the
system. If any damages should occur on the system and are
caused by unauthorized servicing, it will not be covered by
the product warranty.
i
Contents
Revision History ............................................................................................. vi
1 Introduction ......................................................................................... 1-1
1.1 About This Manual .................................................................... 1-2
2 Getting Started .................................................................................... 2-1
2.1 Package List .............................................................................. 2-2

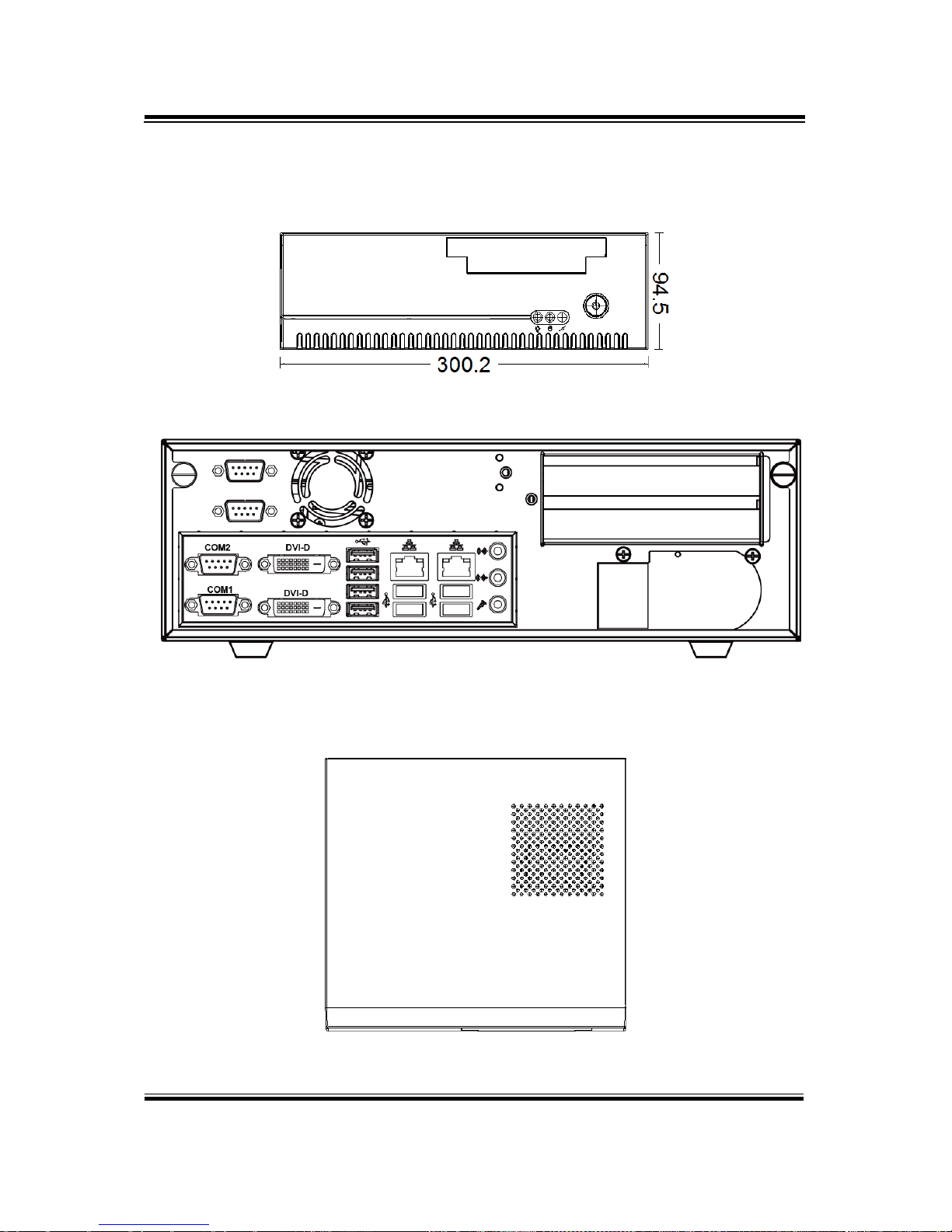

2.2 System Overview ...................................................................... 2-3

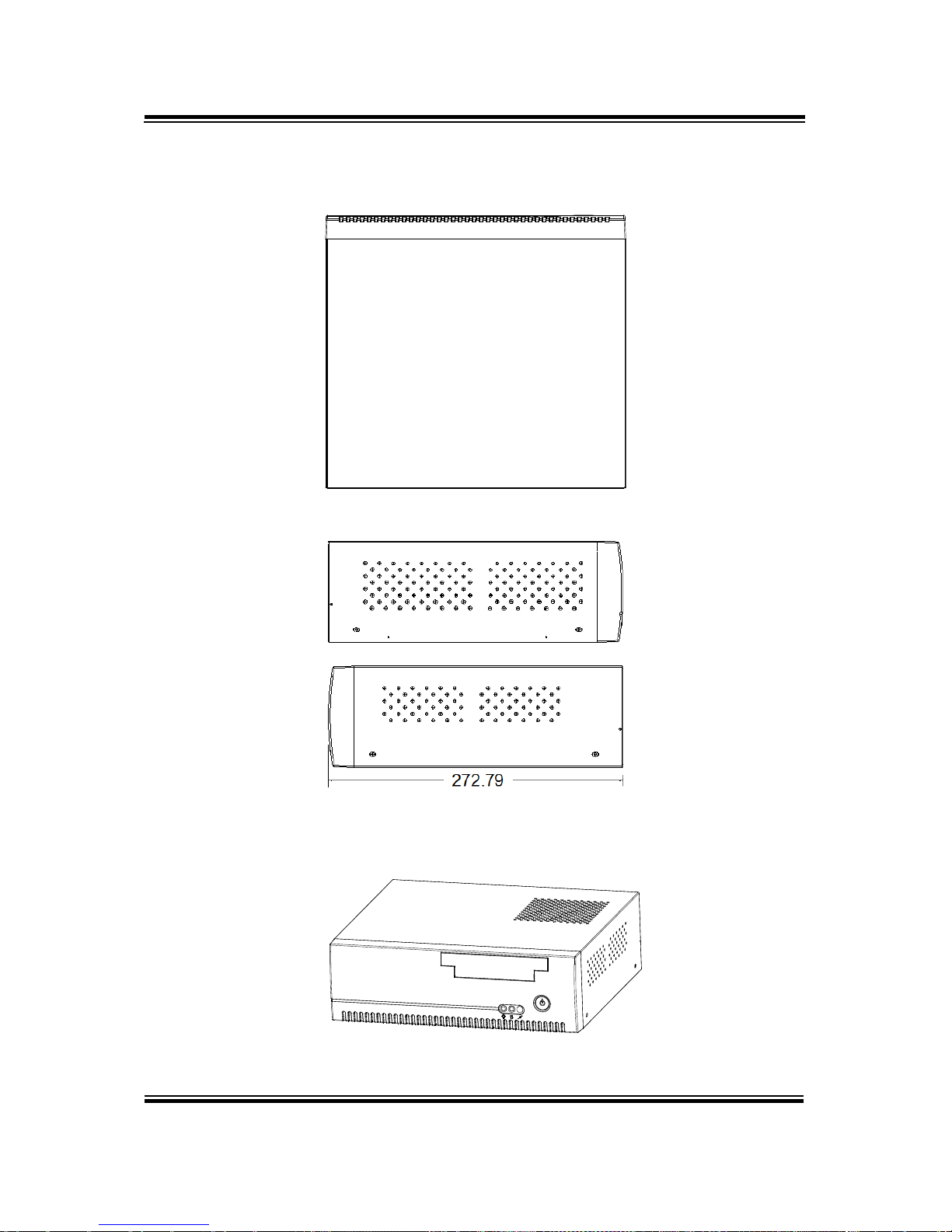

2.2.1 Front View ......................................................................... 2-3
2.2.2 Rear View .......................................................................... 2-3
2.2.3 Top View ............................................................................ 2-3
2.2.4 Bottom View ...................................................................... 2-4
2.2.5 Side View ........................................................................... 2-4
2.2.6 Quarter View ...................................................................... 2-4
2.3 System Specifications ............................................................... 2-5
2.4 Safety Precautions .................................................................... 2-6
3 System Configuration ......................................................................... 3-1
3.1 External I/O Ports Diagram ....................................................... 3-2

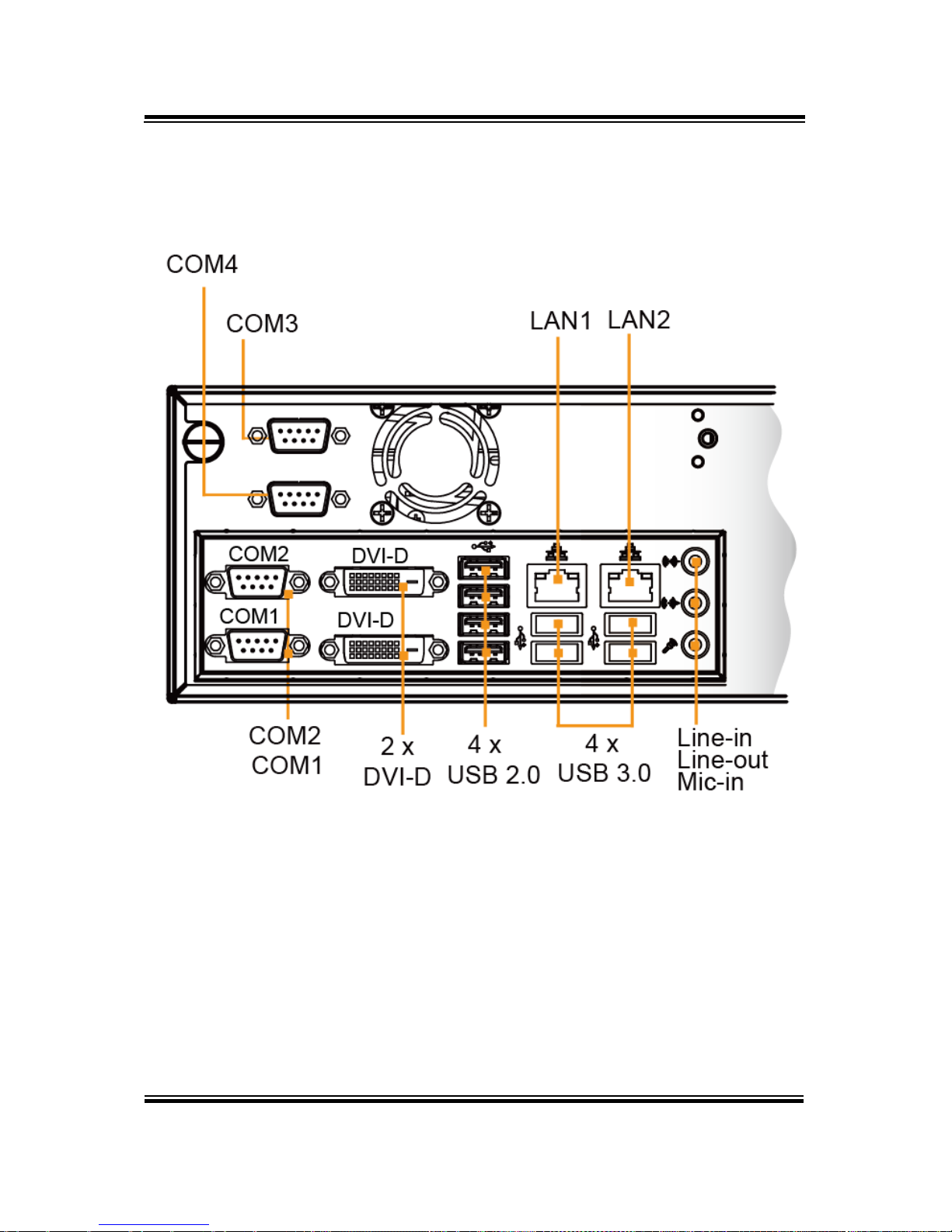

3.1.1 Rear I/O Ports Diagram ..................................................... 3-2
3.2 JUMPER & CONNECTOR QUICK REFERENCE TABLE ........ 3-2
3.3 COMPONENT LOCATIONS ..................................................... 3-4
3.3.1 Top View and Jumper Settings of SA-5700 ....................... 3-4
3.3.2 Bottom View of SA-5700 ................................................... 3-5

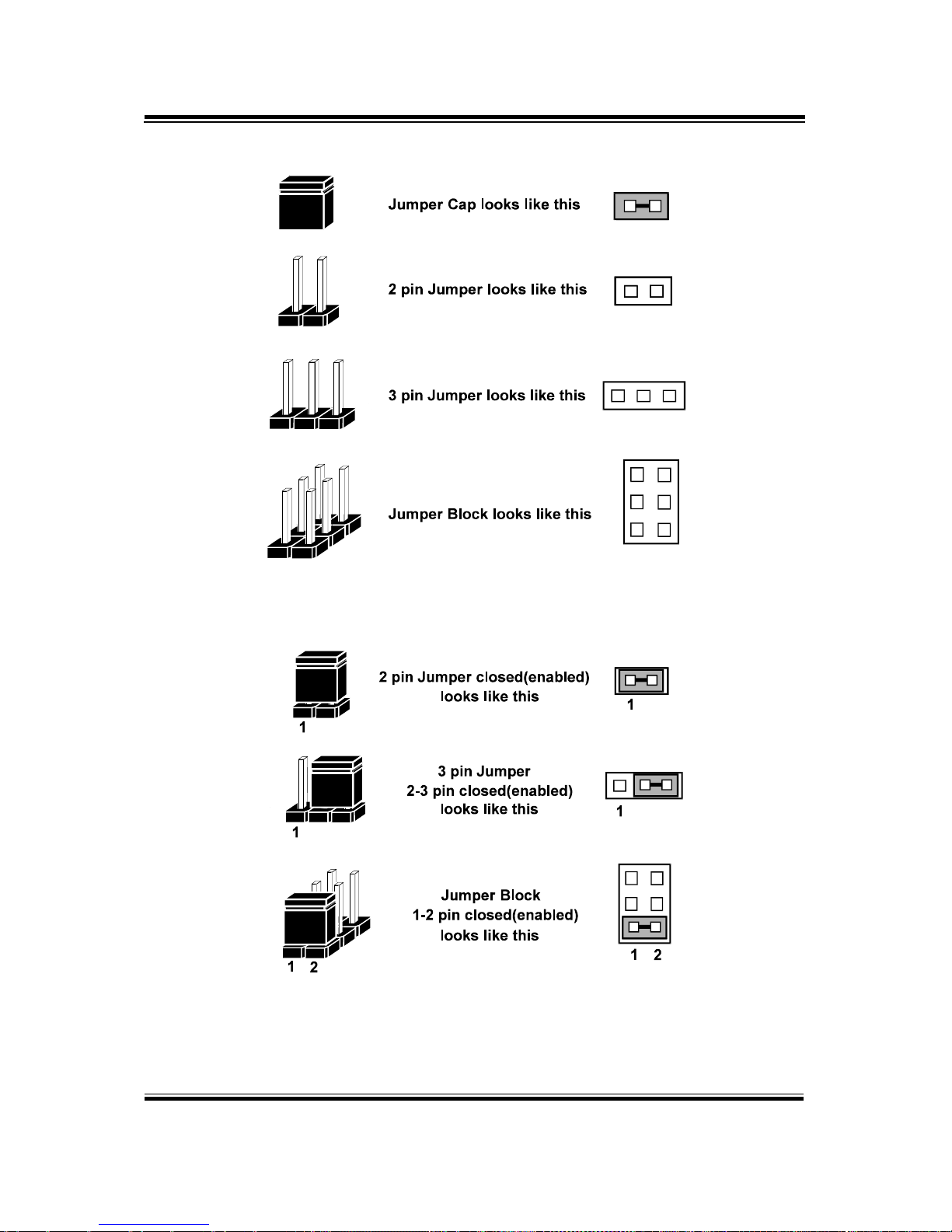

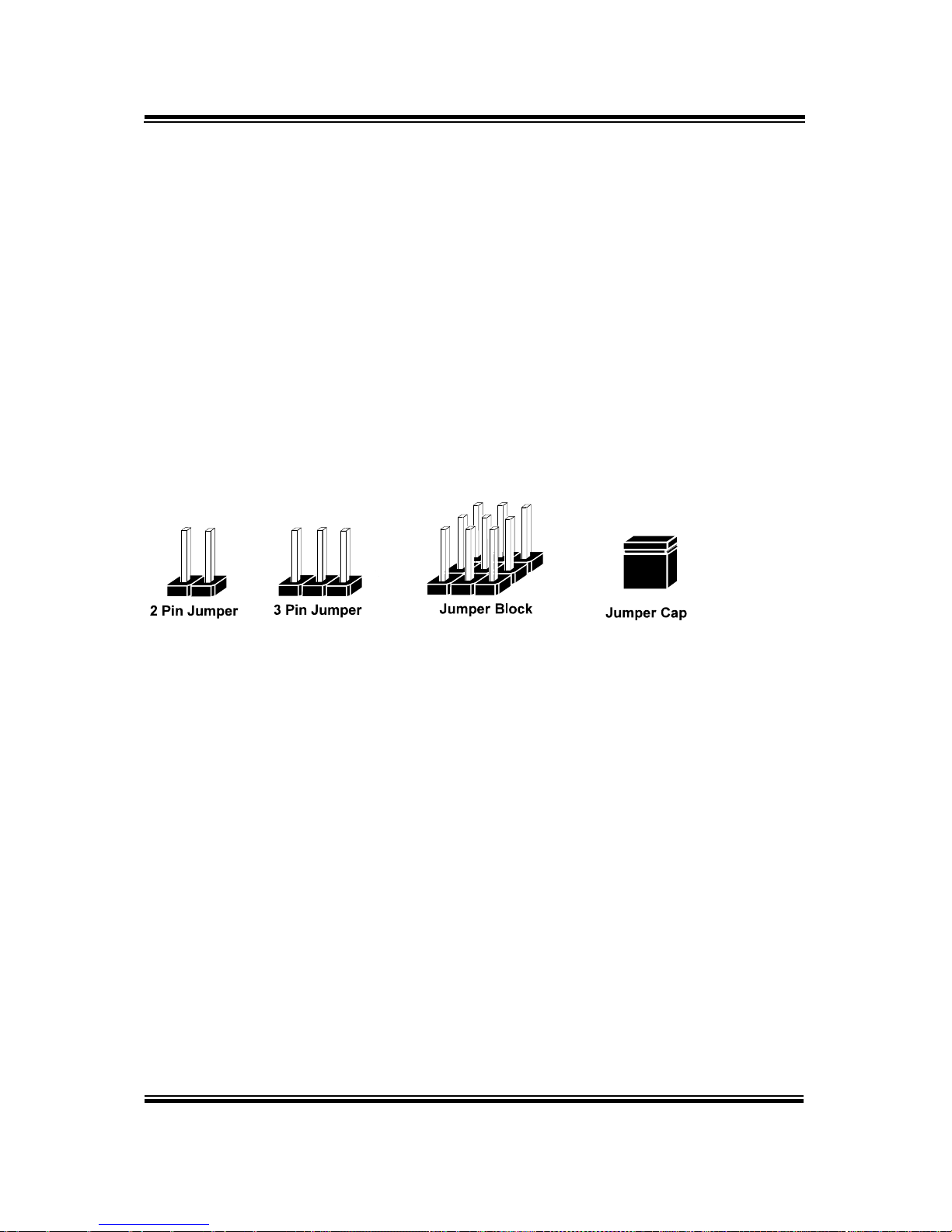

3.4 Setting Jumpers ........................................................................ 3-6
3.5 Setting Main Board Connectors and Jumpers .......................... 3-8
ii
3.5.1 COM1, COM2, COM4 Port Pin9 Definition Selection Guide
........................................................................................... 3-8
3.5.2 COM Ports ......................................................................... 3-9
3.5.3 COM1 RS-232/422/485 Selection ................................... 3-12
3.5.4 COM1 RS-485 Auto Flow Selection ................................ 3-13
3.5.5 LAN and USB 3.0 Ports ................................................... 3-14
3.5.6 LAN2 Port Enable Selection ............................................ 3-16
3.5.7 4 x 1 USB 2.0 Connectors ............................................... 3-17
3.5.8 Internal USB 2.0 Connector ............................................ 3-18
3.5.9 Dual DVI-D Ports ............................................................. 3-19
3.5.10 DisplayPort Connector (Optional) .................................... 3-21
3.5.11 HD Audio Connector ........................................................ 3-22
3.5.12 Printer Port Connector (Optional) .................................... 3-23
3.5.13 Front Panel Connector .................................................... 3-24
3.5.14 CPU Fan Connector ........................................................ 3-25
3.5.15 System Fan Connector .................................................... 3-25
3.5.16 Half-Sized Mini PCI Express Slots .................................. 3-26
3.5.17 PCI Express Slots ............................................................ 3-27
3.5.18 SATA 3.0 Connectors ...................................................... 3-29
3.5.19 ATX Power Connectors ................................................... 3-30
3.5.20 AT / ATX Mode Selection ................................................. 3-31
3.5.21 SPI Connector ................................................................. 3-32
3.5.22 SPI Override Protection Selection ................................... 3-32
3.5.23 Case Open Detection Connector .................................... 3-33
3.5.24 Intruder Detection Selection ............................................ 3-33
3.5.25 Low Pin Count (LPC) Connector ..................................... 3-34
3.5.26 Clear RTC Data Selection ............................................... 3-34
3.5.27 VCCIO Voltage Selection ................................................ 3-35
3.5.28 BIOS Recovery Mode Selection ...................................... 3-36
iii
3.5.29 Clear CMOS Data Selection ............................................ 3-37
4 Software Utilities ................................................................................. 4-1
4.1 Introduction ................................................................................ 4-2
4.2 Installing Intel® Chipset Software Installation Utility .................. 4-6
4.2.1 Introduction ........................................................................ 4-6
4.2.2 Intel® Chipset Software Installation Utility.......................... 4-6
4.3 Intel® Management Engine Components Installer Installation . 4-7
4.4 Intel® USB 3.0 eXtensible Host Controller Utility ..................... 4-8

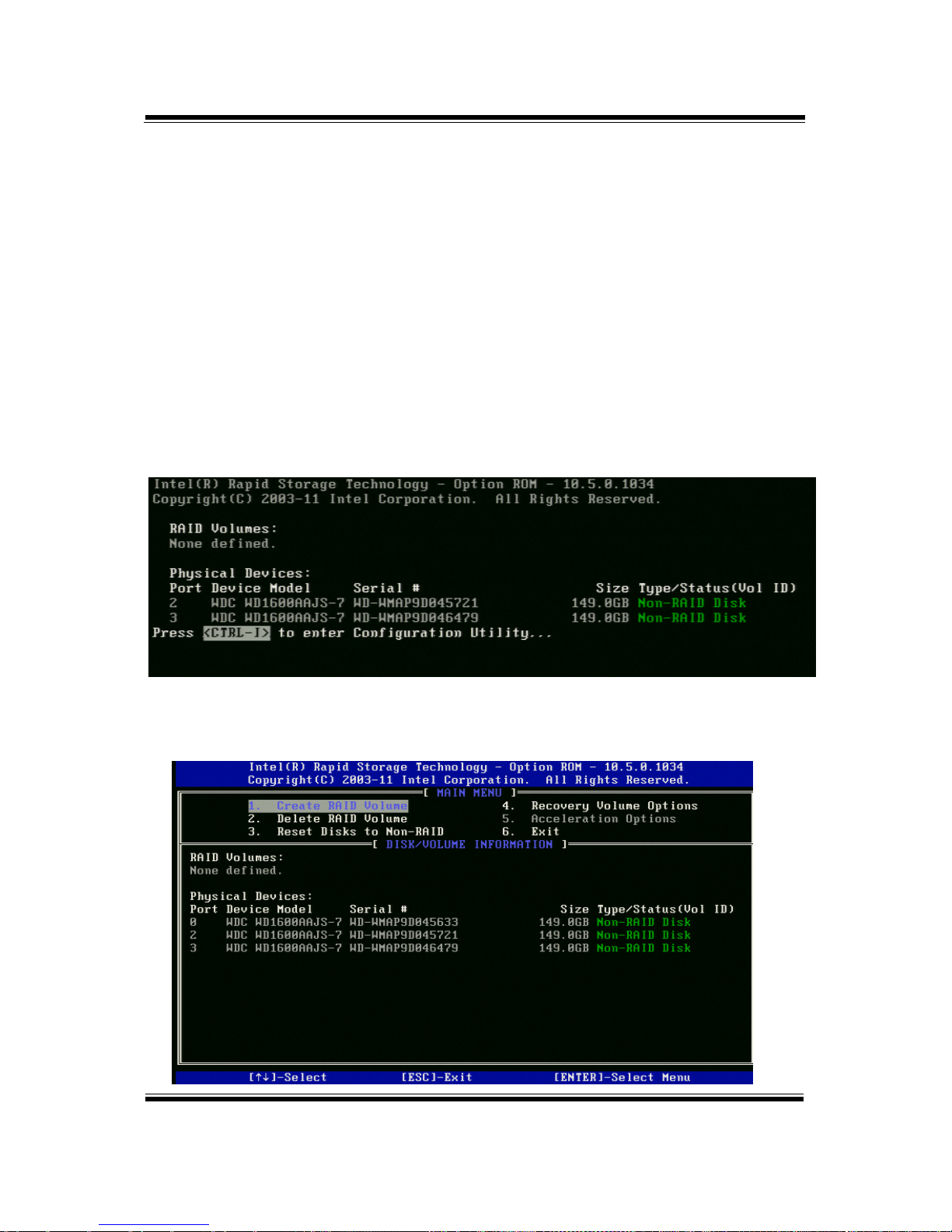

4.5 Installing RAID Driver Utility (Only for Q170, Optional) ............. 4-9
4.6 Installing Graphics Driver Utility .............................................. 4-11
4.7 Installing LAN Driver Utility ...................................................... 4-12
4.8 Installing Sound Driver Utility .................................................. 4-13
5 BIOS SETUP ........................................................................................ 5-1
5.1 Introduction ................................................................................ 5-2
5.2 Accessing Setup Utility .............................................................. 5-3

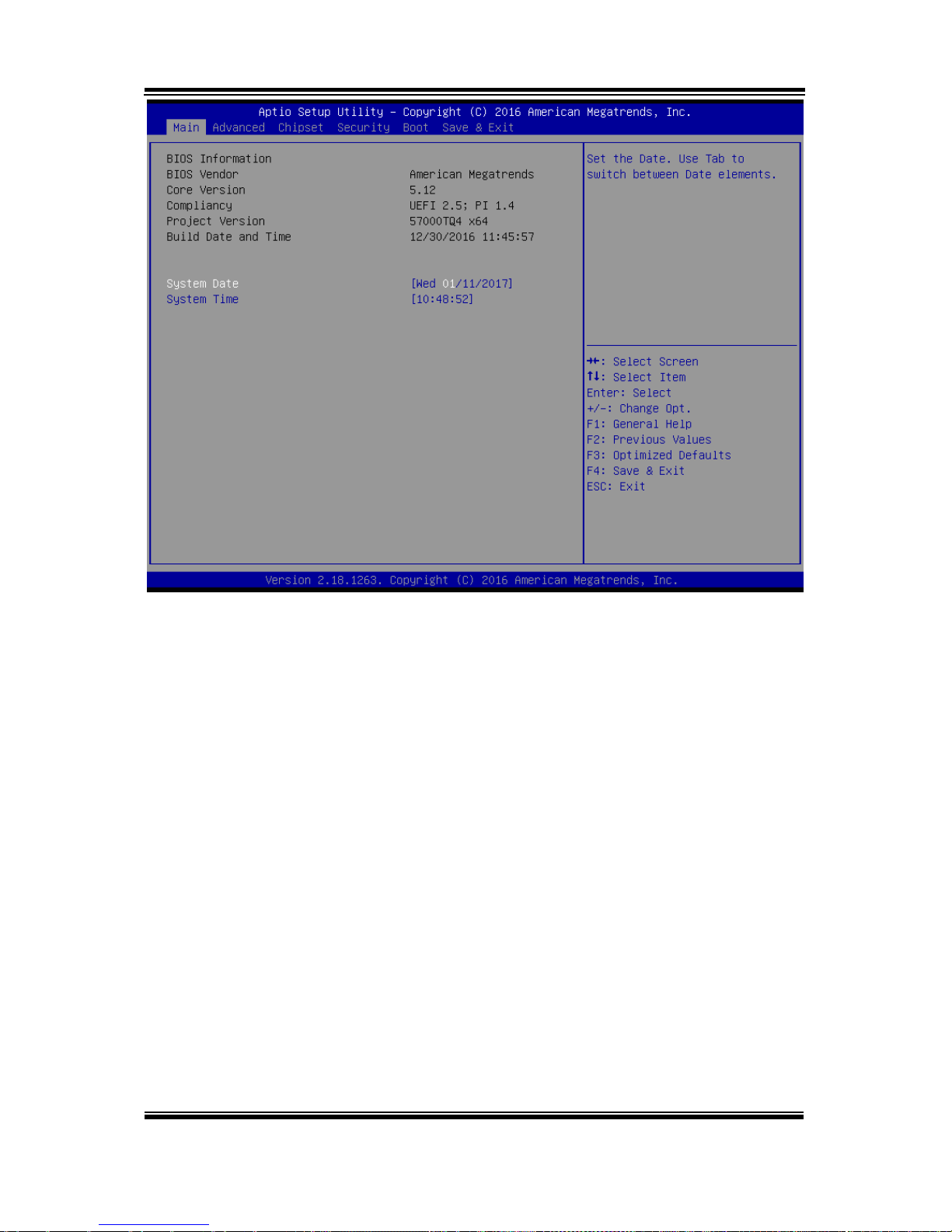

5.3 Main ........................................................................................... 5-7
5.4 Advanced .................................................................................. 5-9
5.4.1 Advanced – CPU Configuration ...................................... 5-10
5.4.2 Advanced – SATA Configuration ..................................... 5-12
5.4.3 Advanced – PCH-FW Configuration ................................ 5-13
5.4.4 Advanced – ACPI Settings .............................................. 5-14
5.4.5 Advanced – F81866 Super IO Configuration .................. 5-15
5.4.6 Advanced – Hardware Monitor ........................................ 5-23
5.4.6.1 Advanced – Hardware Monitor – Smart Fan Mode
Configuration .............................................................. 5-24
iv
5.4.7 Advanced – F81866 Watchdog Configuration ................. 5-25
5.4.8 Advanced – Network Stack Configuration ....................... 5-26
5.4.9 Advanced – USB Configuration ....................................... 5-27
5.5 Chipset .................................................................................... 5-28
5.5.1 Chipset – System Agent (SA) Configuration ................... 5-29
5.5.1.1 Chipset – SA Configuration – Memory Configuration 5-30
5.5.1.2 Chipset – System Agent (SA) Configuration – Graphics
Configuration .............................................................. 5-32
5.5.1.3 Chipset –System Agent (SA) Configuration – PEG Port
Configuration .............................................................. 5-34
5.5.2 Chipset – PCH-IO Configuration ..................................... 5-35
5.5.2.1 Chipset – PCH-IO Configuration – PCI Express
Configuration .............................................................. 5-36
5.6 Security ................................................................................... 5-38
5.7 Boot ......................................................................................... 5-40
5.7.1 Boot – CSM Configuration ............................................... 5-42
5.8 Save & Exit .............................................................................. 5-44
Appendix A System Diagrams .................................................... A-1
SA-5700 System Exploded Diagram ........................................................A-2
SA-5700 CPU Heat Sink Exploded Diagram ............................................A-4
SA-5700 SATA HDD Exploded Diagram ..................................................A-5
Appendix B Technical Summary ................................................ B-1
System Block Diagram .............................................................................B-2
Interrupt Map ............................................................................................B-3
I/O MAP ..................................................................................................B-20
DMA Channels Map ................................................................................B-22
v
Memory Map ...........................................................................................B-23
Configuring WatchDog Timer .................................................................B-25
Flash BIOS Update .................................................................................B-27
List of Figures
Figure 3-1. Main Board Component Location (Top View) ................. 3-4
Figure 3-2. Main Board Component Location (Bottom View) ............ 3-5
Figure 5-1. Extensible Firmware Interface Diagram ......................... 5-2

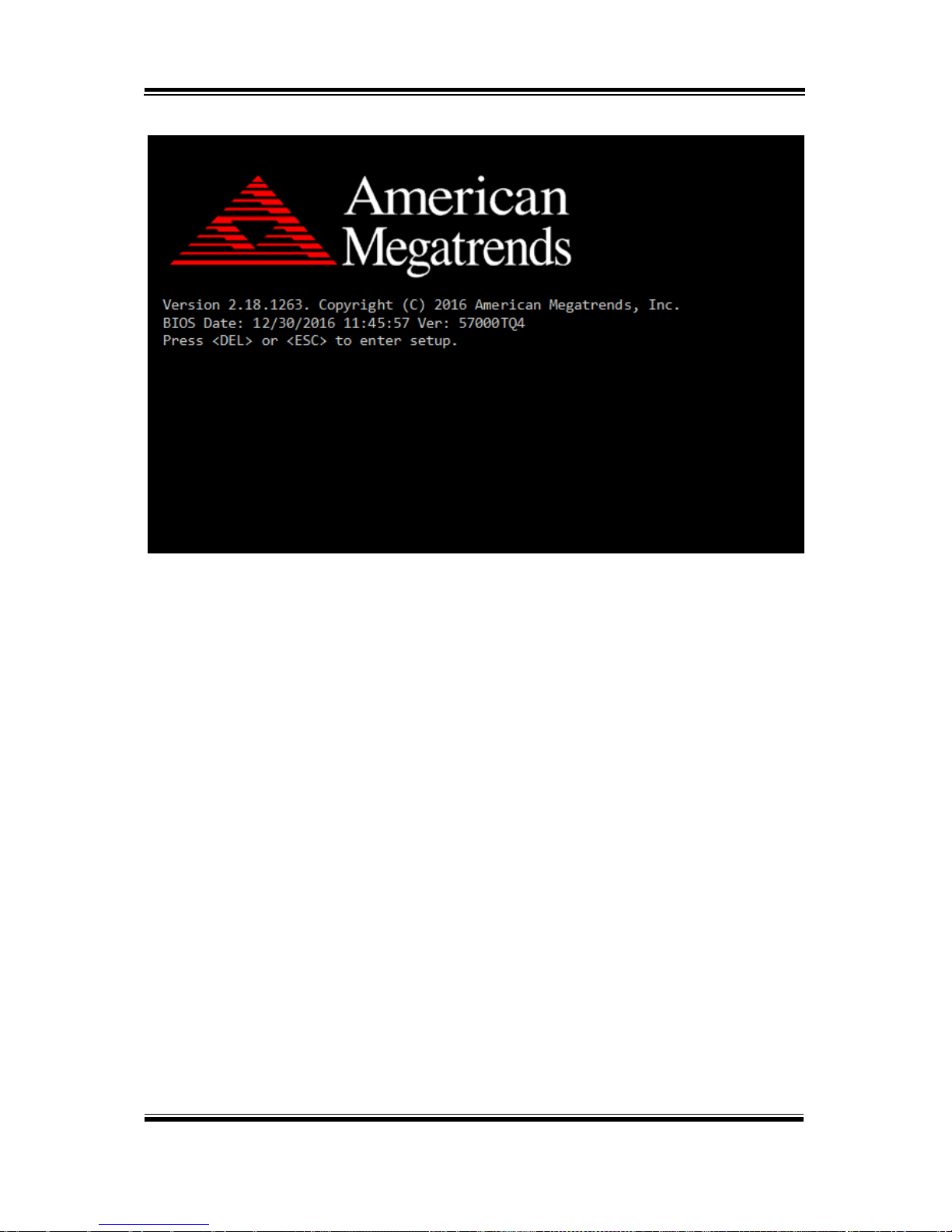

Figure 5-2. POST Screen with AMI Logo.......................................... 5-4
vi
Revision History
The revision history of SA-5700 User Manual is described below:
Version No.
Revision History
Page No.
Date
M1
Initial Release
-
2017/03/10
M2
Revised Section 4.5 Installing RAID
Driver Utility (Only for Q170,
Optional).
4-9
2017/06/14
The SA-5700 System Exploded
Diagram has been revised.
A-2 to A-3
The SA-5700 CPU Heat Sink
Exploded Diagram has been revised.
A-4
The Flash BIOS Update section in
Appendix B has bee revised.
B-27 to
B-30
SA-5700 SERIES USER MANUAL
Page: 1-1
1 Introduction
This chapter provides the introduction for the SA-5700
system as well as the framework of the user manual.
The following topic is included:
• About This Manual
Chapter 1 Introduction
SA-5700 SERIES USER MANUAL
Page: 1-2
1.1 About This Manual
Thank you for purchasing our SA-5700 system. The SA-5700 is an updated system
designed to be comparable with the highest performance of IBM AT personal
computers. The SA-5700 provides faster processing speed, greater expandability and
can handle more tasks than before. This manual is designed to assist you how to
install and set up the whole system. It contains 5 chapters and 2 appendixes. Users can
configure the system according to their own needs. This user manual is intended for
service personnel with strong hardware background. It is not intended for general
users.
The following section outlines the structure of this user manual.
Chapter 1 Introduction
This chapter introduces you to the background of this manual.
Chapter 2 Getting Started
This chapter describes the package contents and outlines the system specifications. It
also includes the physical illustrations for the SA-5700 system. Read the safety
reminders carefully on how to take care of your system properly.
Chapter 3 System Configuration
This chapter outlines the locations of the motherboard components and their
respective functions. You will learn how to set the jumpers and configure the system
to meet your own needs.
Chapter 4 Software Utilities
This chapter contains helpful information for proper installations of the Intel Chipset
Software Installation Utility, Intel Management Engine Components Installer Driver
Utility, Intel USB 3.0 Extensible Host Controller Driver Utility, RAID Driver Utility
(optional, only for Q170 SKU), Graphics Driver Utility, LAN Driver Utility and
Sound Driver Utility.
Chapter 5 AMI BIOS Setup
This chapter indicates you how to change the BIOS configurations.
Appendix A System Assembly Diagrams
This appendix provides the system exploded diagrams and part numbers of SA-5700.
Appendix B Technical Summary
This appendix provides the information about the system block diagram, allocation
maps for system resources, Watchdog Timer Configuration and Flash BIOS Update.
SA-5700 SERIES USER MANUAL
Page: 2-1
2 Getting Started
This chapter provides the information for the SA-5700
system. It describes how to set up the system quickly and
outlines the system specifications.
The following topics are included:
• Package List
• System Overview
• System Diagrams
• System Specification
• Safety Precautions
Experienced users can go to Chapter 3 System
Configuration on page 3-1 for a quick start.
Chapter 2 Getting Started
SA-5700 SERIES USER MANUAL
Page: 2-2
2.1 Package List
If you discover any of the items listed below are damaged or lost, please
contact your local distributor immediately.
Item
Q’ty
SA-5700
1
Manual / Driver DVD
1
Quick Guide
1
Mini Jumper (2 mm)
6
AC Power Cord
1
Chapter 2 Getting Started
SA-5700 SERIES USER MANUAL
Page: 2-3
2.2 System Overview
Unit: mm
2.2.1 Front View
2.2.2 Rear View
2.2.3 Top View
Chapter 2 Getting Started
SA-5700 SERIES USER MANUAL
Page: 2-4
2.2.4 Bottom View
2.2.5 Side View
2.2.6 Quarter View
Chapter 2 Getting Started
SA-5700 SERIES USER MANUAL
Page: 2-5
2.3 System Specifications
System
CPU Support
Intel® 6th / 7th Gen. Core
TM
i3/i5/i7/ Pentium® /
Celeron® processor (LGA1151)
Chipset
Intel
®
H110 / Q170
Memory Support
2 x DDR4 SO-DIMM sockets (up to 32GB)
Power Supply
ATX 220W
Expansion Slots
1 x PCIe (x16) slot
1 x mini PCIe slot
Drive Bay
2 x 2.5” SATA HDDs
2 x 2.5” SSDs (optional)
Operating System
Win 7 / Win 8.1 / Win 10 IoT LTSB 2016 / Ubuntu 16.04
System Weight
5 kg
Dimension (W x H x D)
300 x 94 x 270 mm
Certificate
FCC / CE
I/O Ports
Display
2 x DVI-D
1 x DP (optional)
USB
4 x USB 3.0
4 x USB 2.0
Audio
Line-in, Line-out, Mic-in
LAN
2 x GbE LANs support Wake-on-LAN, PXE
LAN1: Intel® I219 LM
LAN2: Intel
®
I210 AT
Serial Port
COM1 for RS-232/422/485
COM2/COM3/COM4 for RS-232
COM1/COM2/COM4 support +5V / +12V / RI
selectable
COM5/COM6 for RS-232 (optional)
Parallel Port
1 x parallel port (optional)
Environment
Operating Temperature
HDD: 0°C ~ 40°C (32°F~ 104°F)
Storage Temperature
-20°C ~ 80°C (-4°F~ 176°F)
Humidity
20%~ 90%
Note: Intel® 7th generation CPU is NOT compatible with Win 7 / Win 8.1.
Chapter 2 Getting Started
SA-5700 SERIES USER MANUAL
Page: 2-6
2.4 Safety Precautions
Before operating this system, read the following information carefully to protect your
systems from damages, and extend the life cycle of the system.
1. Check the Line Voltage
• The operating voltage for the power supply should be within the range of
100V to 240V AC; otherwise the system may be damaged.
2. Environmental Conditions
• Place your SA-5700 on a sturdy, level surface. Be sure to allow enough
space around the system to have easy access needs.
• Avoid installing your SA-5700 system in extremely hot or cold places.
• Avoid direct sunlight exposure for a long period of time (for example, in a
closed car in summer time. Also avoid the system from any heating device.).
Or do not use SA-5700 when it has been left outdoors in a cold winter day.
• Avoid moving the system rapidly from a hot place to a cold place, and vice
versa, because condensation may occur inside the system.
• Protect your SA-5700 from strong vibrations which may cause hard disk
failure.
• Do not place the system too close to any radio-active device. Radio-active
device may cause signal interference.
• Always shut down the operating system before turning off the power.
3. Handling
• Avoid placing heavy objects on the top of the system.
• Do not turn the system upside down. This may cause the hard drive to
malfunction.
• Do not allow any objects to fall into this device.
• If water or other liquid spills into the device, unplug the power cord
immediately.
4. Good Care
• When the outside case gets stained, remove the stains using neutral washing
agent with a dry cloth.
• Never use strong agents such as benzene and thinner to clean the surface of
the case.
• If heavy stains are present, moisten a cloth with diluted neutral washing
agent or alcohol and then wipe thoroughly with a dry cloth.
• If dust is accumulated on the case surface, remove it by using a special
vacuum cleaner for computers.
SA-5700 SERIES USER MANUAL
Page: 3-1
3 System Configuration
This chapter contains helpful information about the
external I/O Ports diagram, and jumper & connector
settings, and component locations for the main board.
The following topics are included:
• External I/O Ports Diagram
• Main Board Jumper Settings and Component
Locations
• How to Set Jumpers
• Setting Main Board Connectors and Jumpers
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-2
3.1 External I/O Ports Diagram
3.1.1 Rear I/O Ports Diagram
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-2
3.2 JUMPER & CONNECTOR QUICK REFERENCE TABLE
JUMPER Description
NAME
Clear CMOS Data Selection
JCMOS1
COM1 Pin9 RI/5V/12V Selection
JP_COM1
COM2 Pin9 RI/5V/12V Selection
JP_COM2
COM4 Pin9 RI/5V/12V Selection
JP_COM4
LAN2 Port Enable Selection
JP_LAN2
VCCIO Voltage Selection
JP1
AT / ATX Mode Selection
JP2 & JP3
Intruder Detection Selection
JP4
BIOS Recovery Mode Selection
JP5
COM1 RS-232/422/485 Selection
JP6
SPI Override Protection Selection
JP9
COM1 RS-485 Auto Flow Selection
JP11
Clear RTC Data Selection
JRTC1
CONNECTOR Description
NAME
COM Ports
COM1, COM2, COM3, COM4
COM3, COM4 Pin Headers
COM3, COM4
(Optional) COM5, COM6 Ports
COM5, COM6
(Optional) COM5, COM6 Pin
Headers
COM5, COM6
2 x LAN Ports and 4 x USB 3.0 Ports
LAN1_USB1, LAN2_USB2
4 x 1 USB 2.0 Connectors
USB1
Internal USB 2.0 Connector
USB2
2 x DVI-D Connectors
DVI1
(Optional) Display Connector
DP1
HD Audio Connector
AUDIO1
(Optional) Printer Port (LPT)
Connector
LPT1
Front Panel Connector
FP1
CPU Fan Connector
CPU_FAN1
System Fan Connector
SYS_FAN1
Half-Sized Mini PCI Express Slots
M_PCIE1
PCI Express Slots (PCIe (x16))
PCI_E1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-3
CONNECTOR Description
NAME
SATA 3.0 Connectors
SATA1, SATA2
ATX Power Input Connectors
ATX_PWR1, ATX_PWR2
SPI Connector
JP7
Case Open Detection Connector
JP10
Low Pin Count (LPC) Connector
JP12
DDR4 SO-DIMM memory socket
SO-DIMM1
DDR4 SO-DIMM memory socket
SO-DIMM2
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-4
3.3 COMPONENT LOCATIONS
3.3.1 Top View and Jumper Settings of SA-5700
Figure 3-1. Main Board Component Location (Top View)
WARNING: Always disconnect the power cord when you are
working with connectors and jumpers on the main board.
Make sure both the system and peripheral devices are turned
OFF as sudden surge of power could damage sensitive
components. Make sure SA-5700 is properly grounded.
CAUTION: Observe precautions while handling electrostatic
sensitive components. Make sure to ground yourself to
prevent static charge while you are working on the
connectors and jumpers. Use a grounding wrist strap and
place all electronic components in any static-shielded
devices.
COM4 Pin9 Voltage
Selection
COM1 Pin9 Voltage
Selection
RTC1
1
9
10
B2
B82
1
LAN2_USB2
LAN1_USB1
USB1
JD09M1
DVI1
ATX_PWR2
PCI_E1
JP_LAN2
JP10
JP9
COM5
COM3
COM4
JP_COM2
JP_COM1
JP_COM4
JP11
JP6
SYS_FAN1
CPU_FAN1
JP3
SO-DIMM1
SO-DIMM2
USB2
SATA1
SATA2
JP1
JP12
FP1
JP4
JCMOS1
JP2
1
BAT1
M_PCIE1
LPT1
JP7
JP5
143
1
1
ATX_PWR1
R
Intel® 6th/7th Gen.
EMOVE
Core™ i3/i5/i7
(LGA1151)
145
259
259
260
260
146
144
146
144
145
143
2
1
2
1
1
1
1
2
15
16
18
52
51
1
1
1
2
1
8
7
1
26
13
Intel®
H110/Q170
1
1
2
20
19
5
10
10
6
1
1
6
1
1
A2
B1
A1
A82
B81
A81
1
5
1
7
1
13
24
12
1
6
1
6
5
6
5
3
4
1
2
12V
12V
GND
GND
15
2
6
1
1
2
COM6
1
7
14
5
DP1
Disable
1
1
Enable
(default)
JP4 Intruder Detect
Selection
AT/ATX Mode
Selection
AT
ATX
(default)
1
1
JP5 BIOS Recovery Mode
Selection
Configure
Normal
(default)
1
1
1
Recovery
1
(default)
Enable
Disable
1
SPI Override
Protection Selection
Normal
1
1
Clea
(default)
JCMOS1 Clear CMOS
Data Selection
1
1
JRTC1 Clear RTC Data
Selection
Normal
(default)
Clear RTC Data
AUDIO1
LAN2 Enable/Disable
Selection
Disable
Enable
(default)
1
1
2
1
RI
(default)
6
5
12V
COM2 Pin9 Voltage
Selection
2
1
5V
2
1
5
6 6
5
5V
6
2
2
5
1
12V
RI
(default)
1
2
5
6
6
5
2
1
COM1 RS-232/422/485
Selection
COM1 RS-485 Auto Flow
Control Selection
Enable
(default)
Disable
1
1
VCCIO Voltage Selection
1.0V 0.95V
(default)
1
1
RS485
RS422
RS232
1
2
9
10
(default)
2
10
1
9
2
9
10
1
AT/ATX Mode Selection
ATX
(default)
1
AT
1
2
1
12V
2
1
5
6
5V
RI
(default)
2
1
5
6
5
6
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-5
CAUTION: Always touch the motherboard components by
the edges. Never touch components such as a processor by
its pins. Take special cares while you are holding electronic
circuit boards by the edges only. Do not touch the mainboard
components.
3.3.2 Bottom View of SA-5700
SIO
Figure 3-2. Main Board Component Location (Bottom View)
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-6
3.4 Setting Jumpers
You can configure your board by setting the jumpers. A jumper consists of two or
three metal pins with a plastic base mounted on the card. By using a small plastic
"cap", also known as the jumper cap (with a metal contact inside), you are able to
connect the pins. So you can configure your hardware settings by "opening" or
"closing" jumpers.
Jumpers can be combined into sets that are called jumper blocks. When jumpers are
all in the block, you have to put them together to set up the hardware configuration.
The figure below shows what this looks like.
Jumpers & Caps
If a jumper has three pins, for example, labeled 1, 2 and 3. You can connect pins 1 and
2 to create one setting and shorting. You can also select to connect pins 2 and 3 to
create another setting. The format of the jumper picture will be illustrated throughout
this manual. The figure below shows different types of jumpers and jumper settings.
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-7
Jumper diagrams
Jumper settings
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-8
3.5 Setting Main Board Connectors and Jumpers
3.5.1 COM1, COM2, COM4 Port Pin9 Definition Selection Guide
Jumper Location: JP_COM1 & JP_COM2 & JP_COM4
Description: COM1, COM2 and COM4 Port pin9 RI/+5V/+12V
Selection
SELECTION
JUMPER
SETTING
JUMPER ILLUSTRATION
JP_COM1
JP_COM2
JP_COM4
RI
1-2
(Default
Setting)
JP_COM1
JP_COM2
JP_COM4
12V
3-4
JP_COM1
JP_COM2
JP_COM4
5V
5-6
JP_COM1
JP_COM2
JP_COM4
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-9
3.5.2 COM Ports
COM1(RS-232/422/485) Connector Pin Assignment:
PIN
ASSIGNMENT
RS-232
RS-422
RS-485
1
DCD#
TX-
RS-485-
2
RX
TX+
RS-485+
3
TX
RX+ X 4
DTR#
RX- X 5
GND
GND
GND
6
DSR#
X X 7
RTS#
X
X
8
CTS#
X
X
9
RI# X X
Notes:
1. COM1 is selectable as RS-232, RS-422, RS-485 by JP6.
2. Default setting is RS-232. Please see “COM1 RS-232/422/485 Selection” section for
details.
3. COM1 Pin 9 is selectable for RI, +5V or +12V by jumper setting. Default setting is RI.
Please see “COM1, COM2, COM4 Port Pin9 Definition Selection Guide” section for
selection details.
COM2(RS-232) Connector Pin Assignment:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
DCD#
6
DSR#
2
RX
7
RTS#
3
TX 8 CTS#
4
DTR#
9
RI#
5
GND - -
Note:
1. COM2 Pin 9 is selectable for RI, +5V or +12V by jumper setting. Default setting is RI.
Please see “COM1, COM2, COM4 Port Pin9 Definition Selection Guide” section for
selection details.
5
1
9
6
COM1
5
1
9
6
COM2
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-10
COM3(RS-232), COM4(RS-232) Connector Pin Assignment:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
DCD#
6
DSR#
2
RX
7
RTS#
3
TX 8 CTS#
4
DTR#
9
RI#
5
GND - -
Note:
1. COM4 Pin 9 is selectable for RI, +5V or +12V by jumper setting. Default setting is RI.
Please see “COM1, COM2, COM4 Port Pin9 Definition Selection Guide” section for
selection details.
COM3(RS-232), COM4(RS-232) Connector Pin Header Pin Assignment:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
DCD#
6
DSR#
2
RX
7
RTS#
3
TX 8 CTS#
4
DTR#
9
RI#
5
GND
10
NC
5
1
9
6
COM3/
COM4
COM3/
COM4
Pin Header
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-11
(Optional) COM5(RS-232), COM6 (RS-232) Connector Pin Assignment:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
DCD#
6
DSR#
2
RX
7
RTS#
3
TX 8 CTS#
4
DTR#
9
RI#
5
GND - -
(Optional) COM5(RS-232),COM6 (RS-232) Connector Pin Header Pin Assignment:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
DCD#
6
DSR#
2
RX
7
RTS#
3
TX 8 CTS#
4
DTR#
9
RI#
5
GND
10
NC
COM5/
COM6
Pin Header
(optional)
5
1
9
6
COM5/
COM6
(optional)
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-12
3.5.3 COM1 RS-232/422/485 Selection
Jumper Location: JP6
Description: COM1 RS-232/422/485 Selection
SELECTION
JUMPER SETTINGS
JUMPER ILLUSTRATION
RS-232
Open
(Default Setting)
JP6
RS-422
1-2,
3-4,
9-10
JP6
RS-485
1-2,
5-6,
7-8
JP6
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-13
3.5.4 COM1 RS-485 Auto Flow Selection
Jumper Location: JP11
Description: COM1 RS-485 Auto Flow Selection
SELECTION
JUMPER SETTINGS
JUMPER ILLUSTRATION
Disable
1-2
JP11
Enable
2-3
(Default Setting)
JP11
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-14
3.5.5 LAN and USB 3.0 Ports
Port Name: LAN1_USB1 (rear I/O)
Description: LAN1 & Dual USB 3.0 Ports
LAN1 signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
MDI_0P
5
MDI_2N
2
MDI_0N
6
MDI_1N
3
MDI_1P
7
MDI_3P
4
MDI_2P
8
MDI_3N
LAN LED Indicator:
Left Side LED
Green Color On
10/100Mbps LAN Speed Indicator
Orange Color On
Giga LAN Speed Indicator
Off
No LAN switch/hub connected
Right Side LED
Yellow Color Blinking
LAN Message Active
Off
No LAN Message Active
USB 3.0 signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
A1
VCC5
B1
VCC5
A2
USBP1N
B2
USBP2N
A3
USBP1P
B3
USBP2P
A4
GND
B4
GND
A5
RX1_DN
B5
RX2_DN
A6
RX1_DP
B6
RX2_DP
A7
GND
B7
GND
A8
TX1_DN
B8
TX2_DN
A9
TX1_DP
B9
TX2_DP
LAN1_USB1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-15
Port Name: LAN2_USB2 (rear I/O)
Description: LAN2 Port & Dual USB3.0 Ports
LAN2 signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
MDI_0P
5
MDI_2N
2
MDI_0N
6
MDI_1N
3
MDI_1P
7
MDI_3P
4
MDI_2P
8
MDI_3N
LAN LED Indicator:
Left Side LED
Green Color On
10/100Mbps LAN Speed Indicator
Orange Color On
Giga LAN Speed Indicator
Off
No LAN switch/hub connected
Right Side LED
Yellow Color Blinking
LAN Message Active
Off
No LAN Message Active
USB 3.0 signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
A1
VCC5
B1
VCC5
A2
USBP3N
B2
USBP4N
A3
USBP3P
B3
USBP4P
A4
GND
B4
GND
A5
RX3_DN
B5
RX4_DN
A6
RX3_DP
B6
RX4_DP
A7
GND
B7
GND
A8
TX3_DN
B8
TX4_DN
A9
TX3_DP
B9
TX4_DP
LAN2_USB2/
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-16
3.5.6 LAN2 Port Enable Selection
Jumper Location: JP_LAN2
Description: LAN2 Port Enable Selection
SELECTION
JUMPER SETTINGS
JUMPER ILLUSTRATION
Enable
1-2
(Default Setting)
JP_LAN2
Disable
2-3
JP_LAN2
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-17
3.5.7 4 x 1 USB 2.0 Connectors
Port Name: USB1 (rear I/O)
Description: USB 2.0 Connectors x 4
USB 2.0 signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
4
GND
3
USB2_P5_DP_L
2
USB2_P5_DN_L
1
VCC5
8
GND
7
USB2_P6_DP_L
6
USB2_P6_DN_L
5
VCC5
12
GND
11
USB2_P7_DP_L
10
USB2_P7_DN_L
9
VCC5
16
GND
15
USB2_P8_DP_L
14
USB2_P8_DN_L
13
VCC5
USB1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-18
3.5.8 Internal USB 2.0 Connector
Connector Location: USB2
Description: Internal USB 2.0 Connector
USB 2.0 connector signals:
PIN
ASSIGNMENT
1
VCC5
2
USB2_P9_DN_L
3
USB2_P9_DP_L
4
GND
5
GND
USB2
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-19
3.5.9 Dual DVI-D Ports
Port Name: DVI1 (rear I/O)
Description: 2 x DVI (Digital Visual Interface) Integrated
Connectors (Supports only DVI-D signals)
DVI1 connector signals (A):
PIN
ASSIGNMENT
PIN
ASSIGNMENT
A1
DP_Data2-
A13
NC
A2
DP_Data2+
A14
+5V Power
A3
Ground
A15
Ground
A4
NC
A16
HOT Plug Detect
A5
NC
A17
DP_Data0-
A6
DP_Ctrl_Clock
A18
DP_Data0+
A7
DP_Ctrl_ Data
A19
Ground
A8
CRT_VSYNC
A20
NC
A9
DP_Data1-
A21
NC
A10
DP_Data1+
A22
Ground
A11
Ground
A23
DP_Clock+
A12
NC
A24
DP_Clock-
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-20
DVI1 connector signals (B):
PIN
ASSIGNMENT
PIN
ASSIGNMENT
B1
DP_Data2-
B13
NC
B2
DP_Data2+
B14
+5V Power
B3
Ground
B15
Ground
B4
NC
B16
HOT Plug Detect
B5
NC
B17
DP_Data0-
B6
DP_Ctrl_Clock
B18
DP_Data0+
B7
DP_Ctrl_ Data
B19
Ground
B8
CRT_VSYNC
B20
NC
B9
DP_Data1-
B21
NC
B10
DP_Data1+
B22
Ground
B11
Ground
B23
DP_Clock+
B12
NC
B24
DP_Clock-
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-21
3.5.10 DisplayPort Connector (Optional)
Connector Location: DP1
Description: DisplayPort Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
DP_C_DATA0+
2
GND
3
DP_C_DATA0-
4
DP_C_DATA1+
5
GND
6
DP_C_DATA1-
7
DP_C_DATA2+
8
GND
9
DP_C_DATA2-
10
DP_C_DATA3+
11
GND
12
DP_C_DATA3-
13
DP_C_AUX_ENJ
14
GND
15
DP_C_AUX+
16
DP_C_HPD
17
DP_C_AUX-
18
DP_VCC3_3
19
DP_VCC5
20
DP_VCC3_3
DP1 (optional)
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-22
3.5.11 HD Audio Connector
Connector Location: AUDIO1
Description: HD Audio Connector for Line_in/Line_out/Mic_in.
Line-in:
PIN
ASSIGNMENT
42
NC
43
NC
44
NC
32
HD_LINE-IN-L
33
GND
34
GND
35
HD_LINE-IN-R
Line-out:
PIN
ASSIGNMENT
22
LINE-OUT-L
23
GND
24
GND
25
LINE-OUT-R
Mic-in:
PIN
ASSIGNMENT
2
HD_MIC1-L_L
3
GND
1
GND
4
GND
5
HD_MIC1-R_L
AUDIO1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-23
3.5.12 Printer Port Connector (Optional)
Connector Location: LPT1
Description: Printer Port Connector
Printer Port (LPT1) signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
STRB#
14
AFD
2
D0
15
ERR#
3
D1
16
INIT
4
D2
17
SLIN
5
D3
18
GND
6
D4
19
GND
7
D5
20
GND
8
D6
21
GND
9
D7
22
GND
10
ACK#
23
GND
11
BUSY
24
GND
12
PE
25
GND
13
SLCT
26
GND
LPT1 (optional)
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-24
3.5.13 Front Panel Connector
Port Name: FP1
Description: Front Panel Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
HDD+
2
PWR+
3
HDD-
4
PWR-
5
GND
6
Power Button
7
Reset Button
8
GND
9
5V
-
-
FP1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-25
3.5.14 CPU Fan Connector
Connector Location: CPU_FAN1
Description: CPU Fan Connector
CPU Fan Connector (CPU_FAN1) signals:
PIN
ASSIGNMENT
1
GND
2
VCC12
3
TAC
4
CTL
Notes:
1. CPU Fan speed mode can be set by BIOS.
2. Default BIOS setting is “Auto Duty-Cycle Mode”. Please see Chapter 5 for
more details.
3.5.15 System Fan Connector
Connector Location: SYS_FAN1
Description: System Fan Connector
System Fan Connector (SYS_FAN1) signals:
PIN
ASSIGNMENT
1
GND
2
VCC12
3
NC
SYS_FAN1
CPU_FAN1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-26
3.5.16 Half-Sized Mini PCI Express Slots
Connector Location: M_PCIE1
Description: Half-Sized Mini-PCI Express Slots
Mini-PCI Express Slot 1 (M_PCIE1) signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
WAKEJ
2
VCC_3_3_SB
3
NC
4
GND
5
NC
6
VCC1_5
7
CLKREQJ
8
NC
9
GND
10
NC
11
CLK_DN
12
NC
13
CLK_DP
14
NC
15
GND
16
NC
17
NC
18
GND
19
NC
20
NC
21
GND
22
PLTRSTJ_BUF
23
PCIE_RXN
24
VCC3_3_SB
25
PCIE_RXP
26
GND
27
GND
28
VCC1_5
29
GND
30
SMB_CLK
31
PCIE_TXN
32
SMB_DATA
33
PCIE_TXP
34
GND
35
GND
36
USBN
37
GND
38
USBP
39
VCC3_3_SB
40
GND
41
VCC3_3_SB
42
NC
43
GND
44
NC
45
NC
46
NC
47
NC
48
VCC1_5
49
NC
50
GND
51
NC
52
VCC3_3_SB
Mini PCI Express is the successor of the Mini PCI card and provides an increased
data throughput. The cards have a detached network interface and are equipped with
one lane. They are used in particular in embedded designs or compact box PCs.
M_PCIE1/
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-27
3.5.17 PCI Express Slots
Connector Location: PCI_E1 (PCIE x16)
Description: PCI Express Slots
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
B2
+ 12V
B1
+ 12V
A2
+ 12V
A1
PRSNT#1
B4
GND
B3
+ 12V
A4
GND
A3
+ 12V
B6
SMB_DATA
B5
SMB_CLK
A6
NC
A5
NC
B8
+ 3.3V
B7
GND
A8
NC
A7
NC
B10
+ 3.3V_AXU
B9
NC
A10
+ 3.3V
A9
+ 3.3V - -
B11
WAKE# - -
A11
PERST#
B12
RSVD
B13
GND
A12
GND
A13
REFCLK+
B14
HSOP0
B15
HSON0
A14
REFCLK-
A15
GND
B16
GND
B17
PRSNT#2
A16
HSIP0
A17
HSIN0
B18
GND
B19
HSOP1
A18
GND
A19
RSVD
B20
HSON1
B21
GND
A20
GND
A21
HSIP1
B22
GND
B23
HSOP2
A22
HSIN1
A23
GND
B24
HSON2
B25
GND
A24
GND
A25
HSIP2
B26
GND
B27
HSOP3
A26
HSIN2
A27
GND
B28
HSON3
B29
GND
A28
GND
A29
HSIP3
B30
RSVD
B31
PRSNT#2
A30
HSIN3
A31
GND
B32
GND
B33
HSOP4
A32
RSVD
A33
RSVD
B34
HSON4
B35
GND
A34
GND
A35
HSIP4
B36
GND
B37
HSOP5
A36
HSIN4
A37
GND
B38
HSON5
B39
GND
A38
GND
A39
HSIP5
B40
GND
B41
HSOP6
A40
HSIN5
A41
GND
B42
HSON6
B43
GND
A42
GND
A43
HSIP6
B44
GND
B45
HSOP7
A44
HSIN6
A45
GND
B46
HSON7
B47
GND
A46
GND
A47
HSIP7
B48
PRSNT#2
B49
GND
A48
HSIN7
A49
GND
B50
HSOP8
B51
HSON8
A50
RSVD
A51
GND
B52
GND
B53
GND
A52
HSIP8
A53
HSIN8
B54
HSOP9
B55
HSON9
A54
GND
A55
GND
B56
GND
B57
GND
A56
HSIP9
A57
HSIN9
A1
A11
A12
A82
B1
B11
B12
B82
PCI_E1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-28
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
B58
HSOP10
B59
HSON10
A58
GND
A59
GND
B60
GND
B61
GND
A60
HSIP10
A61
HSIN10
B62
HSOP11
B63
HSON11
A62
GND
A63
GND
B64
GND
B65
GND
A64
HSIP11
A65
HSIN11
B66
HSOP12
B67
HSON12
A66
GND
A67
GND
B68
GND
B69
GND
A68
HSIP12
A69
HSIN12
B70
HSOP13
B71
HSON13
A70
GND
A71
GND
B72
GND
B73
GND
A72
HSIP13
A73
HSIN13
B74
HSOP14
B75
HSIN14
A74
GND
A75
GND
B76
GND
B77
GND
A76
HSIP14
A77
HSIN14
B78
HSIP15
B79
HSIN15
A78
GND
A79
GND
B80
GND
B81
PRSNT#2
A80
HSIP15
A81
HSIN15
B82
RSVD
- - A82
GND
-
-
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-29
3.5.18 SATA 3.0 Connectors
Connector Location: SATA1
Description: Serial ATA (SATA) 6GB/s Connector
Serial ATA 6GB/s Connector (SATA1) signals:
PIN
ASSIGNMENT
1
GND
2
TXPC
3
TXNC
4
GND
5
RXNC
6
RXPC
7
GND
Connector Location: SATA2
Description: Serial ATA (SATA) 6GB/s Connector
Serial ATA 6GB/s Connector (SATA2) signals:
PIN
ASSIGNMENT
1
GND
2
TXPC
3
TXNC
4
GND
5
RXNC
6
RXPC
7
GND
SATA1
SATA2
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-30
3.5.19 ATX Power Connectors
Connector Location: ATX_PWR1
Description: ATX Power Connector
ATX_PWR1 ATX Power Connector signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
+3.3V
13
+3.3V
2
+3.3V
14
12V
3
GND
15
GND
4
+5V
16
PSON
5
GND
17
GND
6
+5V
18
GND
7
GND
19
GND
8
PWROK
20
-5V
9
5VSB
21
+5V
10
+12V
22
+5V
11
+12V
23
+5V
12
+3.3V
24
GND
Connector Location: ATX_PWR2
Description: DC Power Input Connector
ATX_PWR2 DC Power Input Connector signals:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
GND
3
+12V
2
GND
4
+12V
ATX_PWR1
ATX_PWR2
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-31
3.5.20 AT / ATX Mode Selection
Jumper Location: JP2
Description: AT / ATX Mode Selection
SELECTION
JUMPTER SETTING
JUMPER ILLUSTRATION
AT
1-2
JP2
ATX
2-3
(Default Setting)
JP2
Jumper Location: JP3
Description: AT / ATX Mode Selection
SELECTION
JUMPTER SETTING
JUMPER ILLUSTRATION
AT
Close
JP3
ATX
Open
(Default Setting)
JP3
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-32
3.5.21 SPI Connector
Connector Location: JP7
Description: SPI (Serial Peripheral Interface Bus) Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
3.3V
2
GND
3
CSJ
4
CLK
5
MISO
6
MOSI
7
NC
8
NC
3.5.22 SPI Override Protection Selection
Jumper Location: JP9
Description: SPI Override Protection Selection
SELECTION
JUMPER SETTING
JUMPER ILLUSTRATION
Enable
Open
(Default Setting)
JP9
Disable
Close
JP9
JP7
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-33
3.5.23 Case Open Detection Connector
Connector Location: JP10
Description: Case Open Detection Connector
PIN
ASSIGNMENT
1
Caseopen+
2
Caseopen-
3.5.24 Intruder Detection Selection
Jumper Location: JP4
Description: Intruder Detection Selection
SELECTION
JUMPER SETTING
JUMPER ILLUSTRATION
Enable
Close
(Default Setting)
JP4
Disable
Open
JP4
JP10
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-34
3.5.25 Low Pin Count (LPC) Connector
Connector Location: JP12
Description: Low Pin Count (LPC) Connector
PIN
ASSIGNMENT
PIN
ASSIGNMENT
1
CLK
2
GND
3
FRAME#
4
GND
5
PLTRST#
6
LPC_AD0
7
LPC_AD3
8
LPC_AD2
9
3.3V
10
LPC_AD1
3.5.26 Clear RTC Data Selection
Jumper Location: JRTC1
Description: Clear RTC Data Selection
SELECTION
JUMPER SETTINGS
JUMPER ILLUSTRATION
Normal
Open
(Default Setting)
JRTC1
Clear RTC
Data
Close
JRTC1
JP12
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-35
3.5.27 VCCIO Voltage Selection
Jumper Location: JP1
Description: VCCIO Voltage Selection
SELECTION
JUMPER SETTING
JUMPER ILLUSTRATION
0.95V
2-3
(Default Setting)
JP1
1.0V
1-2
JP1
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-36
3.5.28 BIOS Recovery Mode Selection
Jumper Location: JP5
Description: BIOS Recovery Mode Selection
SELECTION
JUMPER SETTING
JUMPER ILLUSTRATION
Normal
1-2
(Default Setting)
JP5
Configure
2-3
JP5
Recovery
Open
JP5
Chapter 3 Hardware Configuration
SA-5700 SERIES USER MANUAL
Page: 3-37
3.5.29 Clear CMOS Data Selection
Jumper Location: JCMOS1
Description: Clear CMOS Data Selection
Step 1. Remove the main power of the PC.
Step 2. Close JCMOS1 (pins 1-2) for 6 seconds by a cap.
Step 3. Remove the cap which is just used on JCMOS1 (1-2), so that JCMOS1
returns to “OPEN”.
Step 4. Power on the PC and the PC will then auto-reboot for once in order to set
SoC’s register.
Step 5. Done!
SELECTION
JUMPER SETTINGS
JUMPER ILLUSTRATION
Normal
Open
(Default Setting)
JCMOS1
Clear CMOS
Data
Close
JCMOS1
Note: Please make sure the main power is off before you clear CMOS.
SA-5700 SERIES USER MANUAL
Page: 4-1
4 Software Utilities
This chapter provides the detailed information that guides
users to install driver utilities for the system. The following
topics are included:
• Installing Intel® Chipset Software Installation Utility
• Installing Intel® Management Engine Components
Installer
• Installing USB 3.0 eXtensible Host Controller Utility
• Installing RAID Driver Utility (Only for Q170,
Optional)
• Installing Graphics Driver Utility
• Installing LAN Driver Utility
• Installing Sound Driver Utility
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-2
4.1 Introduction
Enclosed with the SA-5700 Series package is our driver utilities
contained in a DVD-ROM disk. Refer to the following table for driver
locations:
Filename (Assume that DVD-
ROM drive is D :)
Purpose
OS
DOS
Win7
Win8.1
Win10
D:\Driver\Flash BIOS
For BIOS update utility
X X X
D:\H110\Driver\Platform\Main
Chip\Win7(32-bit)
Intel® Chipset Device
Software installer
X
D:\H110\Driver\Platform\
Graphic\Win7(32-bit)
Intel(R) HD Graphics
installer
X
D:\H110\Driver\Platform\LAN\
Win7(32-bit)
Intel(R) Network
Connections Software
X
D:\H110\Driver\Platform\Sound
Codec \Win7(32-bit)
Realtek High Definition
Audio System Software
X
D:\H110\Driver\Platform\
USB3.0\Win7(32-bit)
Intel(R) USB 3.0 eXtensible
Host Controller
X
D:\H110\Driver\Platform\KMDF\
Win7(32-bit)
Kernel-Mode Driver
Framework
X X
X
D:\H110\Driver\Platform\ME\
Win7(32-bit)
Intel(R) Management
Engine Components
installer
X
D:\H110\Driver\Platform\Main
Chip\Win7(64-bit)
Intel® Chipset Device
Software installer
X
D:\H110\Driver\Platform\
Graphic\Win7(64-bit)
Intel(R) HD Graphics
installer
X
D:\H110\Driver\Platform\LAN\
Win7(64-bit)
Intel(R) Network
Connections Software
X
D:\H110\Driver\Platform\Sound
Codec\Win7(64-bit)
Realtek High Definition
Audio System Software
X
D:\H110\Driver\Platform\USB3.
0\Win7(64-bit)
Intel(R) USB 3.0 eXtensible
Host Controller
X
D:\H110\Driver\Platform\KMDF\
Win7(64-bit)
Kernel-Mode Driver
Framework
X X
X
D:\H110\Driver\Platform\ME\
Win7(64-bit)
Intel(R) Management
Engine Components
installer
X
D:\H110\Driver\Platform\Main
Intel® Chipset Device
X
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-3
Filename (Assume that DVD-
ROM drive is D :)
Purpose
OS
DOS
Win7
Win8.1
Win10
Chip\Win8.1(64-bit)
Software installer
D:\H110\Driver\Platform\
Graphic\Win8.1(64-bit)
Intel(R) HD Graphics
installer
X
D:\H110\Driver\Platform\LAN\
Win8.1(64-bit)
Intel(R) Network
Connections Software
X
D:\H110\Driver\Platform\Sound
Codec \Win8.1(64-bit)
Realtek High Definition
Audio System Software
X
D:\H110\Driver\Platform\ME\
Win8.1(64-bit)
Intel(R) Management
Engine Components
installer
X
D:\H110\Driver\Platform\Main
Chip \Win10(64-bit)
Intel® Chipset Device
Software installer
X
D:\H110\Driver\Platform)\
Graphic \Win10(64-bit)
Intel(R) HD Graphics
installer
X
D:\H110\Driver\Platform\LAN\
Win10(64-bit)
Intel(R) Network
Connections Software
X
D:\H110\Driver\Platform\Sound
Codec \Win10(64-bit)
Realtek High Definition
Audio System Software
X
D:\H110\Driver\Platform\ME\
Win10(64-bit)
Intel(R) Management
Engine Components
installer
X
D:\H110\Driver\Platform\KMDF\
Win7(32-bit)
Kernel-Mode Driver
Framework
X X
X
D:\Q170\Driver\Platform\Main
Chip \Win7(32-bit)
Intel® Chipset Device
Software installer
X
D:\Q170\Driver\Platform\
Graphic \Win7(32-bit)
Intel(R) HD Graphics
installer
X
D:\Q170\Driver\Platform\LAN\
Win7(32-bit)
Intel(R) Network
Connections Software
X
D:\Q170\Driver\Platform\Sound
Codec \Win7(32-bit)
Realtek High Definition
Audio System Software
X
D:\Q170\Driver\Platform\KMDF
\Win7(32-bit)
Kernel-Mode Driver
Framework
X X
X
D:\Q170\Driver\Platform\
USB3.0\Win7(32-bit)
Intel(R) USB 3.0 eXtensible
Host Controller
X
D:\Q170\Driver\Platform\RAID
\Win7(32-bit)
Intel(R) Rapid Storage
Technology (Intel(R) RST).
X
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-4
Filename (Assume that DVD-
ROM drive is D :)
Purpose
OS
DOS
Win7
Win8.1
Win10
D:\Q170\Driver\Platform\ME\
Win7(32-bit)
Intel(R) Management
Engine Components
installer
X
D:\Q170\Driver\Platform\Main
Chip \Win7(64-bit)
Intel® Chipset Device
Software installer
X
D:\Q170\Driver\Platform\
Graphic \Win7(64-bit)
Intel(R) HD Graphics
installer
X
D:\Q170\Driver\Platform\LAN
\Win7(64-bit)
Intel(R) Network
Connections Software
X
D:\Q170\Driver\Platform\KMDF
\Win7(64-bit)
Kernel-Mode Driver
Framework
X X
X
D:\Q170\Driver\Platform\Sound
Codec \Win7(64-bit)
Realtek High Definition
Audio System Software
X
D:\Q170\Driver\Platform\
USB3.0\Win7(64-bit)
Intel(R) USB 3.0 eXtensible
Host Controller
X
D:\Q170\Driver\Platform\ME\
Win7(64-bit)
Intel(R) Management
Engine Components
installer
X
D:\Q170\Driver\Platform\RAID\
Win7(64-bit)
Intel(R) Rapid Storage
Technology (Intel(R) RST).
X
D:\Q170\Driver\Platform\Main
Chip \Win8.1(64-bit)
Intel® Chipset Device
Software installer
X
D:\Q170\Driver\Platform\
Graphic \Win8.1(64-bit)
Intel(R) HD Graphics
installer
X
D:\Q170\Driver\Platform\LAN\
Win8.1(64-bit)
Intel(R) Network
Connections Software
X
D:\Q170\Driver\Platform\Sound
Codec \Win8.1(64-bit)
Realtek High Definition
Audio System Software
X
D:\Q170\Driver\Platform\ME\
Win8.1(64-bit)
Intel(R) Management
Engine Components
installer
X
D:\Q170\Driver\Platform\RAID
\Win8.1(64-bit)
Intel(R) Rapid Storage
Technology (Intel(R) RST).
X
D:\Q170\Driver\Platform\Main
Chip \Win10(64-bit)
Intel® Chipset Device
Software installer
X
D:\Q170\Driver\Platform\
Graphic \Win10(64-bit)
Intel(R) HD Graphics
installer
X
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-5
Filename (Assume that DVD-
ROM drive is D :)
Purpose
OS
DOS
Win7
Win8.1
Win10
D:\Q170\Driver\Platform\LAN\
Win10(64-bit)
Intel(R) Network
Connections Software
X
D:\Q170\Driver\Platform\Sound
Codec \Win10(64-bit)
Realtek High Definition
Audio System Software
X
D:\Q170\Driver\Platform\ME\
Win10(64-bit)
Intel(R) Management
Engine Components
installer
X
D:\Q170\Driver\Platform\RAIDs
\Win10(64-bit)
Intel(R) Rapid Storage
Technology (Intel(R) RST).
X
X : Not support
: Support
Note: Install the driver utilities immediately after the OS installation is completed.
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-6
4.2 Installing Intel® Chipset Software Installation Utility
4.2.1 Introduction
The Intel® Chipset Software Installation Utility installs the Windows
*.INF files to the target system. These files outline to the operating
system how to configure the Intel chipset components in order to
ensure that the following functions work properly:
• Core PCI and ISAPNP Services
• PCIe Support
• SATA Storage Support
• USB Support
• Identification of Intel
®
Chipset Components in the Device Manager
4.2.2 Intel® Chipset Software Installation Utility
The utility pack is to be installed only for Windows® 7/8.1/10 series,
and it should be installed immediately after the OS installation is
finished. Please follow the steps below:
1 Connect the USB DVD-ROM device to SA-5700 and insert the
driver disk.
2 Enter the Main Chip folder where the Chipset driver is located.
3 Select Windows 7 (32/64-bit) / Windows 8.1 (64-bit) / Windows
10 (64-bit) for your OS platform.
4 Click the chipset driver installation file for driver installation.
5 Follow the on-screen instructions to install the driver.
6 Once the installation is completed, shut down the system and
restart SA-5700 for the changes to take effects.
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-7
4.3 Intel® Management Engine Components Installer
Installation
For Windows 7 only. Pre-install Microsoft's Kernel-Mode Driver
Framework (KMDF) version 1.11 before you install the Intel®
Management Engine Components Installer (ME) in order to avoid
errors in Device Manager.
Installation Instructions for Kernel-Mode Driver Framework
(KMDF)
To install the Kernel-Mode Driver Framework (KMDF), follow the
steps below:
1 Insert the driver disk into a DVD-ROM device.
2 (For Windows 7 only) Enter the KMDF folder where the
installation driver file is located.
3 (For Windows 7 only) Click the Setup kmdf-1.11.exe file for
driver installation.
Installation Instructions for Intel® Management Engine
Components Installer
1 Connect the USB DVD-ROM device to SA-5700 and insert the
driver disk.
2 Enter the ME Installation Driver folder where the driver is
located.
3 Select Windows 7 (32/64-bit) / Windows 8.1 (64-bit) / Windows
10 (64-bit) for your OS platform.
4 Click SetupME.exe file for ME driver installation.
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-8
5 Follow the on-screen instructions to complete the installation.
6 Once the installation is completed, shut down the system and
restart SA-5700 for the changes to take effect.
4.4 Intel® USB 3.0 eXtensible Host Controller Utility
Intel® USB 3.0 eXtensible Host Controller Driver supports the
following Intel® Chipsets/Processors:
• Intel
®
8 Series/C220 series Chipset Family
• Intel
® 4th
Generation Core
TM
Processors
• Intel
®
C610 series Chipset Family
• Intel
®
9 Series Chipset Family
• Intel
®
Pentium® Processor or Intel® Celeron® Processor N- & J-
Series
• Intel
®
5th generation Intel® CoreTM Processors
• Intel
®
CoreTM M Processor
• Intel
®
6th generation Intel® CoreTM processors
• Intel
®
100 Series Chipset Family
To install the utility, follow the steps below:
1 Insert the driver disk into a DVD-ROM device.
2 Under Windows system, go to the directory where the driver is
located.
3 Run the application with administrative privileges.
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-9
4.5 Installing RAID Driver Utility (Only for Q170, Optional)
INTEL® RapidStorage Technology Option ROM
The Intel
®
Rapid Storage Technology option ROM provides the
following:
Pre-operating system user interface for RAID volume management
Ability to create, delete and reset RAID volumes
RAID recovery
User Interface
To enter the Intel
®
Rapid Storage Technology option ROM user
interface, press Ctrl-I when prompted during the Power-On Self-Test
(POST).
Option ROM prompt:
In the user interface, the hard drive(s) and hard drive information listed
for your system will differ from the example in the figure below:
Option ROM user interface:
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-10
Installing RAID Driver Utility (Only for Q170, Optional)
The Intel® Rapid Storage Technology (Intel® RST) driver supports
RAID 0, 1 in Q170 SKU only for 2 x 2.5” SATAIII HDD/SSD. To
install the RAID driver utility, follow the steps below:
1 Connect the USB DVD-ROM device to SA-5700 and insert the
driver disk.
2 Enter the RST folder where the driver is located.
3 Select Windows 7 (32/64-bit) / Windows 8.1 (64-bit) / Windows
10 (64-bit) for your OS platform.
4 Click SetupRST.exe driver installation file for driver installation.
5 Follow the on-screen instructions to complete the installation.
6 Once the installation is completed, shut down the system and
restart SA-5700 for the changes to take effect.
Note: The RAID driver utility is not supported for H110 SKU.
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-11
4.6 Installing Graphics Driver Utility
The graphics interface embedded in SA -5700 can support a wide
range of display types. You can have dual displays via DVI-D ports
and make the system work simultaneously.
To install the Graphics driver utility, follow the steps below:
1 Connect the USB DVD-ROM device to SA-5700 and insert the
driver disk.
2 Enter the Graphic folder where the driver is located.
3 Select Windows 7 (32/64-bit) / Windows 8.1 (64-bit) / Windows
10 (64-bit) for your OS platform.
4 Click the graphics driver installation file for driver installation.
5 Follow the on-screen instructions to complete the installation.
6 Once the installation is completed, shut down the system and
restart SA-5700 for the changes to take effect.
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-12
4.7 Installing LAN Driver Utility
Enhanced with LAN function, SA-5700 supports various network
adapters. To install the LAN Driver, follow the steps below:
1 Connect the USB DVD-ROM device to SA-5700 and insert the
driver disk.
2 Enter the LAN folder where the driver is located.
3 Select Windows 7 (32/64-bit) / Windows 8.1 (64-bit) / Windows
10 (64-bit) for your OS platform.
4 Click the LAN driver installation file for driver installation.
5 Follow the on-screen instructions to complete the installation.
6 Once the installation is completed, shut down the system and
restart SA-5700 for the changes to take effects.
For more details on the installation procedure, refer to the
README.txt file that you can find on LAN Driver Utility.
Chapter 4 Software Utilities
SA-5700 SERIES USER MANUAL
Page: 4-13
4.8 Installing Sound Driver Utility
The sound function enhanced in this system is fully compatible with
Windows® 7/8.1/10 series.
To install the Sound Driver, follow the steps below:
1 Connect the USB DVD-ROM device to SA-5700 and insert the
driver disk.
2 Open the Sound folder where the driver is located.
3 Select Windows 7 (32/64-bit) / Windows 8.1 (64-bit) / Windows
10 (64-bit) for your OS platform.
4 Click the Sound driver installation file for driver installation.
5 Follow the on-screen instructions to complete the installation.
6 Once the installation is completed, shut down the system and
restart SA-5700 for the changes to take effect.
SA-5700 SERIES USER MANUAL
Page: 5-1
5 BIOS SETUP
This chapter guides users how to configure the basic
system configurations via the BIOS Setup Utilities. The
information of the system configuration is saved in
battery-backed CMOS RAM and BIOS NVRAM so that
the Setup information is retained when the system is
powered off. The BIOS Setup Utilities consist of the
following menu items:
• Accessing Setup Utilities
• Main Menu
• Advanced Menu
• Chipset Menu
• Security Menu
• Boot Menu
• Save & Exit Menu
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-2
5.1 Introduction
The SA-5700 System uses an AMI (American Megatrends Incorporated)
Aptio BIOS that is stored in the Serial Peripheral Interface Flash
Memory (SPI Flash) and can be updated. The SPI Flash contains the
built-in BIOS setup program, Power-On Self-Test (POST), PCI
auto-configuration utility, LAN EEPROM information, and Plug and
Play support.
Aptio is AMI’s BIOS firmware based on the UEFI (Unified Extensible
Firmware Interface) specifications and the Intel Platform Innovation
Framework for EFI. The UEFI specification defines an interface
between the operating system and platform firmware. The interface
consists of data tables that contain platform-related information, boot
service calls, and runtime service calls that are available to the
operating system and its loader. These elements have combined to
provide a standard environment for booting the operating system and
running pre-boot applications.
The diagram below shows the Extensible Firmware Interface’s location
in the software stack.
Figure 5-1. Extensible Firmware Interface Diagram
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-3
EFI BIOS provides an user interface that allows you to modify
hardware configuration, e.g. change the system date and time,
enable/disable a system component, determine bootable device priority,
set up personal password, etc., which is convenient for engineers to
perform modifications and customize the computer system and allows
technicians to troubleshoot the occurred errors when the hardware is
faulty.
The BIOS setup menu allows users to view and modify the BIOS
settings for the computer. After the system is powered on, users can
access the BIOS setup menu by pressing <Del> or <Esc > immediately
while the POST message is running before the operating system is
loading.
All the menu settings are described in details in this chapter.
5.2 Accessing Setup Utility
After the system is powered on, BIOS will enter the Power-On
Self-Test (POST) routines and the POST message will be displayed:
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-4
Figure 5-2. POST Screen with AMI Logo
Press <Del> or <Esc> to access the Setup Utility program and the
Main menu of the Aptio Setup Utility will appear on the screen as
below:
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-5
BIOS Setup Menu Initialization Screen
You may move the cursor by <↑> and <↓> keys to highlight the
individual menu items. As you highlight each item, a brief description
of the highlighted selection will appear on the right side of the screen.
The language of the BIOS setup menu interface and help messages are
shown in US English. You may use <↑> or <↓> key to select among the
items and press <Enter> to confirm and enter the sub-menu. The
following table provides the list of the navigation keys that you can use
while operating the BIOS setup menu.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-6
BIOS Setup
Navigation Key
Description
<←> and <→>
Select a different menu screen (move the
cursor from the selected menu to the left or
right).
<↑> and <↓>
Select a different item (move the cursor from
the selected item upwards or downwards)
<Enter>
Execute the command or select the sub-menu.
<F2>
Load the previous configuration values.
<F3>
Load the default configuration values.
<F4>
Save the current values and exit the BIOS
setup menu.
<Esc>
Close the sub-menu.
Trigger the confirmation to exit BIOS setup
menu.
BIOS Messages
This section describes the alert messages generated by the board’s
BIOS. These messages would be shown on the monitor when certain
recoverable errors/events occur during the POST stage. The table
bellow gives an explanation of the BIOS alert messages:
BIOS Message
Explanation
A first boot or
NVRAM reset
condition has been
detected.
BIOS has been updated or the battery was
replaced.
The CMOS defaults
were loaded.
Default values have been loaded after the
BIOS was updated or the battery was
replaced.
The CMOS battery
is bad or has been
recently replaced.
The battery may be losing power and users
should replace the battery immediately. Also,
this message is displayed once the new battery
is replaced.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-7
5.3 Main
Menu Path Main
The Main menu allows you to view the BIOS Information, change the system date
and time, and view the user access privilege level. Use tab to switch between date
elements. Use <↑> or <↓> arrow keys to highlight the item and enter the value you
want in each item. This screen also displays the BIOS version (project) and BIOS
Build Date and Time.
Main Screen
BIOS Setting
Options
Description/Purpose
BIOS Vendor
No changeable options
Displays the BIOS vendor.
Core Version
No changeable options
Displays the current BIOS core version.
Compliancy
No changeable options
Displays the current UEFI version.
Project Version
No changeable options
Displays the version of the BIOS currently
installed on the platform.
Build Date and
Time
No changeable options
Displays the date of current BIOS version.
System Date
Month, day, year
Sets the system date. The format is [Day
Month/ Date/ Year]. Users can directly
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-8
BIOS Setting
Options
Description/Purpose
enter values or use <+> or <-> arrow keys
to increase/decrease it. The “Day” is
automatically changed.
System Time
Hour, minute, second
Sets the system time. The format is [Hour:
Minute: Second]. Users can directly enter
values or use <+> or <-> arrow keys to
increase/decrease it.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-9
5.4 Advanced
Menu Path Advanced
This menu provides advanced configurations such as CPU Configuration, SATA
Configuration, PCH-FW Configuration, ACPI Settings, F81866 Super IO
Configuration, Hardware Monitor, F81866 Watchdog, Network Stack Configuration
and USB Configuration.
Advanced Menu Screen
BIOS Setting
Options
Description/Purpose
CPU Configuration
Sub-Menu
CPU Configuration Parameters.
SATA Configuration
Sub-Menu
SATA Device Options Settings.
PCH-FW
Configuration
Sub-Menu
Management Engine Technology
Parameters.
ACPI Settings
Sub-Menu
System ACPI Parameters.
F81866 Super IO
Configuration
Sub-Menu
System Super IO Chip Parameters.
Hardware Monitor
Sub-Menu
Monitor hardware status.
F81866 Watchdog
Sub-Menu
F81866 Watchdog Parameters.
Network Stack
Configuration
Sub-Menu
Network Stack Settings.
USB Configuration
Sub-Menu
USB Configuration Parameters.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-10
5.4.1 Advanced – CPU Configuration
Menu Path Advanced > CPU Configuration
The CPU Configuration provides advanced CPU settings and some information
about CPU.
CPU Configuration Screen
BIOS Setting
Options
Description/Purpose
CPU Configuration
No changeable options
Displays CPU configuration.
Type
No changeable options
Displays CPU Core.
ID
No changeable options
Displays CPU ID number.
Speed
No changeable options
Displays the CPU speed.
L1 Data Cache
No changeable options
Displays L1 Data Cache size.
L1 Instruction Cache
No changeable options
Displays L1 Instruction Cache size.
L2 Cache
No changeable options
Displays L2 Cache size.
L3 Cache
No changeable options
Displays L3 Cache size.
L4 Cache
No changeable options
Displays L4 Cache size.
VMX
No changeable options
Supports Intel VMX Technology.
SMX/TXT
No changeable options
Reports if Intel Secure Mode
Extensions Technology (SMX)
/Trusted Execution Technology
(TXT) is supported by the processor.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-11
BIOS Setting
Options
Description/Purpose
Intel Virtualization
Technology
- Disabled
- Enabled
When enabled, VMM can utilize the
additional hardware capabilities
provided by Vanderpool Technology.
Previously codenamed "Vanderpool",
VT-x represents Intel’s technology for
virtualization on the x86 platform.
Hyper-Threading
- Disabled
- Enabled
When disabled, only one thread per
enabled core is enabled. Hyper
Threading is Intel’s term for its
simultaneous multithreading
implementation in their CPUs. Enable
this function will improve
parallelization of computation
performed on PC microprocessor. For
each processor core that is physically
present, the operating system
addresses two virtual processors, and
shares the workload between them
when possible.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-12
5.4.2 Advanced – SATA Configuration
Menu Path Advanced > SATA Configuration
The SATA Configuration allows users to enable / disable the SATA controller as well
as the operational mode after the SATA controller is enabled. The following screen
indicates the functions available when the SATA hard drive is set to work in AHCI
mode.
SATA Configuration Screen
BIOS Setting
Options
Description/Purpose
SATA Controller(s)
- Disabled
- Enabled
Enables or Disables the on-chip SATA
Device. Default: Enabled.
SATA Mode Selection
- AHCI
- RAID
Determines how SATA controller(s)
operate.
Serial ATA Port 1 – 2,
No changeable options
Display the SATA device’s name.
Software Preserve
No changeable options
Indicates whether the connected SATA
device supports Software Setting
Preservation (SSP).
Port 1 - 2
- Disabled
- Enabled
Enables or Disables SATA Port Device.
Hot Plug
- Disabled
- Enabled
Enables or Disables SATA Port Device
Hot Plug function to designate a SATA
port device as hot-pluggable.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-13
5.4.3 Advanced – PCH-FW Configuration
Menu Path Advanced > PCH-FW Configuration
The PCH-FW allows users to view the information about ME (Management Engine)
firmware information, such as ME firmware version, firmware mode and firmware
SKU.
PCH-FW Configuration Screen
BIOS Setting
Options
Description/Purpose
ME Firmware
Version
No changeable options
Displays the ME Firmware Version.
ME Firmware Mode
No changeable options
Displays the ME Firmware Mode.
ME Firmware SKU
No changeable options
Displays the ME Firmware SKU.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-14
5.4.4 Advanced – ACPI Settings
Menu Path Advanced > ACPI Settings
The ACPI Settings allows users to configure relevant ACPI (Advanced
Configuration and Power Management Interface) settings such as Enable/Disable
Hibernation and ACPI sleep state.
ACPI Settings Screen
BIOS Setting
Options
Description/Purpose
Enable
Hibernation
- Disabled
- Enabled
Enables or Disables System ability to
Hibernate (OS/S4 Sleep State). This
option may be not effective with some
OS.
ACPI Sleep State
- Suspend Disabled
- S3 (Suspend to RAM)
Selects the ACPI sleep state the system
will enter when the SUSPEND button is
pressed.
Lock Legacy
Resources
- Disabled
- Enabled
Enables or Disables Lock of Legacy
Resources.
S3 Video Repost
- Disabled
- Enabled
Enables or Disables S3 Video Repost.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-15
5.4.5 Advanced – F81866 Super IO Configuration
Menu Path Advanced > F81866 Super IO Configuration
F81866 Super IO Configuration Screen
BIOS Setting
Options
Description/Purpose
Serial Port 1 Configuration
Sub-menu
Sets the parameters of Serial Port 1
(COMA).
Serial Port 2 Configuration
Sub-menu
Sets the parameters of Serial Port 2
(COMB).
Serial Port 3 Configuration
Sub-menu
Sets the parameters of Serial Port 3
(COMC).
Serial Port 4 Configuration
Sub-menu
Sets the parameters of Serial Port 4
(COMD).
Serial Port 5 Configuration
Sub-menu
Sets the parameters of Serial Port 5
(COME).
Serial Port 6 Configuration
Sub-menu
Sets the parameters of Serial Port 6
(COMF).
Parallel Port
Sub-menu
Sets the parameters of Parallel Port (LPT).
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-16
Menu Path Advanced > F81866 Super IO Configuration >
Serial Port 1 Configuration
Serial Port 1 Configuration Screen
BIOS Setting
Options
Description/Purpose
Use This Device
- Disabled
- Enabled
Enables or Disables Serial
Port 1.
Device Settings
No changeable options
Displays the current settings
of Serial Port 1.
Change Settings
- Auto
- IO=3F8h; IRQ=4;
- IO=3F8h; IRQ=3,4,5,6,7,10,11;
- IO=2F8h; IRQ=3,4,5,6,7,10,11;
- IO=3E8h; IRQ=3,4,5,6,7,10,11;
- IO=2E8h; IRQ=3,4,5,6,7,10,11;
Allows you to select specific
IO address and IRQ for Serial
Port 1.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-17
Menu Path Advanced > F81866 Super IO Configuration >
Serial Port 2 Configuration
Serial Port 2 Configuration Screen
BIOS Setting
Options
Description/Purpose
Use This Device
- Disabled
- Enabled
Enables or Disables Serial
Port 2.
Device Settings
No changeable options
Displays the current settings
of Serial Port 2.
Change Settings
- Auto
- IO=2F8h; IRQ=3;
- IO=3F8h; IRQ=3,4,5,6,7,10,11;
- IO=2F8h; IRQ=3,4,5,6,7,10,11;
- IO=3E8h; IRQ=3,4,5,6,7,10,11;
- IO=2E8h; IRQ=3,4,5,6,7,10,11;
Allows you to select specific
IO address and IRQ for Serial
Port 2.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-18
Menu Path Advanced > F81866 Super IO Configuration >
Serial Port 3 Configuration
Serial Port 3 Configuration Screen
BIOS Setting
Options
Description/Purpose
Use This Device
- Disabled
- Enabled
Enables or Disables Serial
Port 3.
Device Settings
No changeable options
Displays the current settings
of Serial Port 3.
Change Settings
- Auto
- IO=3E8h; IRQ=7;
- IO=3E8h; IRQ=3,4,5,6,7,10,11;
- IO=2E8h; IRQ=3,4,5,6,7,10,11;
- IO=2F0h; IRQ=3,4,5,6,7,10,11;
- IO=2E0h; IRQ=3,4,5,6,7,10,11;
Allows you to select specific
IO address and IRQ for Serial
Port 3.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-19
Menu Path Advanced > F81866 Super IO Configuration >
Serial Port 4 Configuration
Serial Port 4 Configuration Screen
BIOS Setting
Options
Description/Purpose
Use This Device
- Disabled
- Enabled
Enables or Disables Serial
Port 4.
Device Settings
No changeable options
Displays the current settings
of Serial Port 4.
Change Settings
- Auto
- IO=2E8h; IRQ=10;
- IO=3E8h; IRQ=3,4,5,6,7,10,11;
- IO=2E8h; IRQ=3,4,5,6,7,10,11;
- IO=2F0h; IRQ=3,4,5,6,7,10,11;
- IO=2E0h; IRQ=3,4,5,6,7,10,11;
Allows you to select specific
IO address and IRQ for Serial
Port 4.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-20
Menu Path Advanced > F81866 Super IO Configuration >
Serial Port 5 Configuration
Serial Port 5 Configuration Screen
BIOS Setting
Options
Description/Purpose
Use This Device
- Disabled
- Enabled
Enables or Disables Serial
Port 5.
Device Settings
No changeable options
Displays the current settings
of Serial Port 5.
Change Settings
- Auto
- IO=2F0h; IRQ=6;
- IO=3E8h; IRQ=3,4,5,6,7,10,11;
- IO=2E8h; IRQ=3,4,5,6,7,10,11;
- IO=2F0h; IRQ=3,4,5,6,7,10,11;
- IO=2E0h; IRQ=3,4,5,6,7,10,11;
Allows you to select specific
IO address and IRQ for Serial
Port 5.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-21
Menu Path Advanced > F81866 Super IO Configuration >
Serial Port 6 Configuration
Serial Port 6 Configuration Screen
BIOS Setting
Options
Description/Purpose
Use This Device
- Disabled
- Enabled
Enables or Disables Serial
Port 6.
Device Settings
No changeable options
Displays the current settings
of Serial Port 6.
Change Settings
- Auto
- IO=2E0h; IRQ=11;
- IO=3E8h; IRQ=3,4,5,6,7,10,11;
- IO=2E8h; IRQ=3,4,5,6,7,10,11;
- IO=2F0h; IRQ=3,4,5,6,7,10,11;
- IO=2E0h; IRQ=3,4,5,6,7,10,11;
Allows you to select specific
IO address and IRQ for Serial
Port 6.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-22
Menu Path Advanced > F81866 Super IO Configuration >
Parallel Port Configuration
Parallel Port Configuration Screen
BIOS Setting
Options
Description/Purpose
Use This Device
- Disabled
- Enabled
Enables or Disables parallel
port.
Device Settings
No changeable options
Displays the current settings
of Parallel Port.
Change Settings
- Auto
- IO=378h; IRQ=5;
- IO=378h; IRQ=5,6,7,9,10,11,12;
- IO=278h; IRQ=5,6,7,9,10,11,12;
- IO=3BCh; IRQ=5,6,7,9,10,11,12;
Allows you to select specific
IO address and IRQ for
Parallel Port.
Mode
- STD Printer Mode
- SPP Mode
- EPP-1.9 and SPP Mode
- EPP-1.7 and SPP Mode
- ECP Mode
- ECP and EPP 1.9 Mode
- ECP and EPP 1.7 Mode
Allows you to hange Parallel
Port mode. Some of the Mode
required a DMA resource.
After Mode is changed, reset
the system to reflect actual
device settings.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-23
5.4.6 Advanced – Hardware Monitor
Menu Path Advanced > Hardware Monitor
The Hardware Monitor allows users to monitor the health and status of the system
such as CPU temperature, system temperature and voltage levels in supply.
Hardware Monitor Screen
BIOS Setting
Options
Description/Purpose
Smart Fan Mode
Configuration
Sub-Menu
Smart Fan Mode Selection
CPU Temperature
No changeable options
Displays the processor's temperature.
System Temperature
No changeable options
Displays the system's temperature.
CPU Fan Speed
No changeable options
Displays CPU Fan speed
VCORE
No changeable options
Detects and displays the VCORE
CPU voltage.
VSB5V
No changeable options
Detects and displays voltage level of
the VSB5V in supply.
VCC5V
No changeable options
Detects and displays voltage level of
the VCC5V in supply.
VCC12
No changeable options
Detects and displays voltage level of
the VCC12 in supply.
VCC3V
No changeable options
Detects and displays voltage level of
the VCC3V in supply.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-24
BIOS Setting
Options
Description/Purpose
VSB3V
No changeable options
Detects and displays voltage level of
the VSB3V in supply.
VBAT
No changeable options
Detects and displays the battery
voltage.
5.4.6.1 Advanced – Hardware Monitor – Smart Fan Mode
Configuration
Menu Path Advanced > Hardware Monitor > Smart Fan Mode
Configuration
Smart Fan Mode Configuration Screen
BIOS Setting
Options
Description/Purpose
CPU Fan Smart Fan
Control
- Manual Duty Mode
- Auto Duty-Cycle Mode
Smart Fan Mode selection for CPU
Fan.
Manual Duty Mode
Numeric (from 1 to 100)
Manual mode fan control. Users can
write expected duty cycle from 1-100
(PWM fan type).
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-25
5.4.7 Advanced – F81866 Watchdog Configuration
Menu Path Advanced > F81866 Watchdog
If the system hangs or fails to respond, enable the F81866 Watchdog function to
trigger a system reset via the 255-level watchdog timer.
F81866 Watchdog Configuration Screen
BIOS Setting
Options
Description/Purpose
Enable Watchdog
- Enabled
- Disabled
Enables/Disables F81866 Watchdog
timer settings.
Watchdog timer unit
- 1s
- 60s
Selects 1s (second) or 60s (minute) as
the time unit of Watchdog timer.
Count for Timer
(Seconds)
Numeric
(from 1 to 255)
Sets the timeout for Watchdog timer.
(Max. value: 255 seconds or minutes)
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-26
5.4.8 Advanced – Network Stack Configuration
Menu Path Advanced > Network Stack Configuration
The Network Stack Configuration allows users to enable/disable UEFI Network
Stack, IPv4/IPv6 PXE (Pre-Boot eXecution Environment) support and configure PXE
boot wait time and detects the media presence.
PXE allows a workstation to boot from a server on a network prior to booting the
operating system on the local hard drive. A PXE-enabled workstation connects its
NIC to the LAN via a jumper, which keeps the workstation connected to the network
even when the power is turned off.
Network Stack Configuration Screen
BIOS Setting
Options
Description/Purpose
Network Stack
- Disabled
- Enabled
Enables or Disables UEFI Network Stack.
Ipv4 PXE
Support
- Disabled
- Enabled
Enables IPv4 PXE Boot Support. If
disabled, IPv4 PXE boot option will not
be created.
Ipv6 PXE
Support
- Disabled
- Enabled
Enables IPv6 PXE Boot Support. If
disabled, IPv6 PXE boot option will not
be created.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-27
BIOS Setting
Options
Description/Purpose
PXE boot wait
time
Numeric (from 0 to 5)
Number of seconds to wait for PXE boot
to abort after the Esc key is pressed.
Media detect
count
Numeric (from 1 to 50)
Number of times that the media presence
will be checked.
5.4.9 Advanced – USB Configuration
Menu Path Advanced > USB Configuration
The USB Configuration allows users to enable/disable USB mass storage driver
support.
USB Configuration Screen
BIOS Setting
Options
Description/Purpose
USB Mass Storage Driver
Support
- Enabled
- Disabled
Enables or Disables USB mass storage
driver support.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-28
5.5 Chipset
Menu Path Chipset
This menu allows users to configure advanced Chipset settings such as System Agent
(SA) and PCH-IO configuration parameters.
Chipset Screen
BIOS Setting
Options
Description/Purpose
System Agent (SA)
Configuration
Sub-menu
System Agent (SA) parameters.
PCH-IO Configuration
Sub-menu
PCH parameters.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-29
5.5.1 Chipset – System Agent (SA) Configuration
Menu Path Chipset > System Agent (SA) Configuration
The System Agent Configuration allows users to display DRAM information on the
platform as well as configure graphics settings.
System Agent (SA) Configuration Screen
BIOS Setting
Options
Description/Purpose
SA PCIe Code
Version
No changeable options
Displays the SA PCIe Code Version.
VT-d
No changeable options
Indicates whether Intel’s VT-d
(Virtualization Technology for Directed
I/O) capability is supported. VT-d extends
Intel's Virtualization Technology (VT)
roadmap by providing hardware assists for
virtualization solution, and helps end users
improve security and reliability of the
systems and also improves performance of
I/O devices in virtualized environment.
Memory
Configuration
Sub-menu
Displays the DRAM information on the
platform.
Graphics
Configuration
Sub-menu
Configures Graphics Settings.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-30
BIOS Setting
Options
Description/Purpose
PEG Port
Configuration
Sub-menu
PEG (PCI Express Graphics) Port
Configuration.
VT-d
- Disabled
- Enabled
Enables or Disables VT-d function.
5.5.1.1 Chipset – SA Configuration – Memory Configuration
Menu Path Chipset > System Agent (SA) Configuration >
Memory Configuration
The Memory Configuration allows users to check for the information about the
memory frequency, total DRAM size and memory (RAM) timings, etc.
Memory Configuration Screen
BIOS Setting
Options
Description/Purpose
Memory RC Version
No changeable options
Displays the Memory RC Version.
Memory Frequency
No changeable options
Displays the Frequency of Memory.
Memory Timings
(tCL-tRCD-tRP-tRAS)
No changeable options
Displays the Memory (RAM) timings
and latency.
• CAS Latency (tCL) - This is the most
important memory timing. CAS stands
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-31
BIOS Setting
Options
Description/Purpose
for Column Address Strobe. If a row
has already been selected, it tells us
how many clock cycles we'll have to
wait for a result (after sending a
column address to the RAM
controller).
• Row Address (RAS) to Column
Address (CAS) Delay (tRCD) - Once
we send the memory controller a row
address, we'll have to wait this many
cycles before accessing one of the
row's columns. So, if a row hasn't been
selected, this means we'll have to wait
tRCD + tCL cycles to get our result
from the RAM.
• Row Precharge Time (tRP) - If we
already have a row selected, we'll have
to wait this number of cycles before
selecting a different row. This means it
will take tRP + tRCD + tCL cycles to
access the data in a different row.
• Row Active Time (tRAS) - This is the
minimum number of cycles that a row
has to be active for to ensure we'll
have enough time to access the
information that's in it. This usually
needs to be greater than or equal to the
sum of the previous three latencies
(tRAS = tCL + tRCD + tRP).
SO-DIMM#1
No changeable options
Displays if SO-DIMM#1 socket is
populated/enabled or not.
SO-DIMM#2
No changeable options
Displays if SO-DIMM#2 socket is
populated/enabled or not.
Size
No changeable options
Displays the total memory size.
Chapter 5 BIOS Setup
SA-5700 SERIES USER MANUAL
Page: 5-32
5.5.1.2 Chipset – System Agent (SA) Configuration – Graphics
Configuration
Menu Path Chipset > System Agent (SA) Configuration >
Graphics Configuration
Graphics Configuration Screen
BIOS Setting
Options
Description/Purpose
Primary Display
- Auto
- IGFX
- PEG
Select which of IGFX/PEG Graphics
device should be Primary Display.
LCD Control
Sub-menu
LCD Control sub-menu.
Loading...
