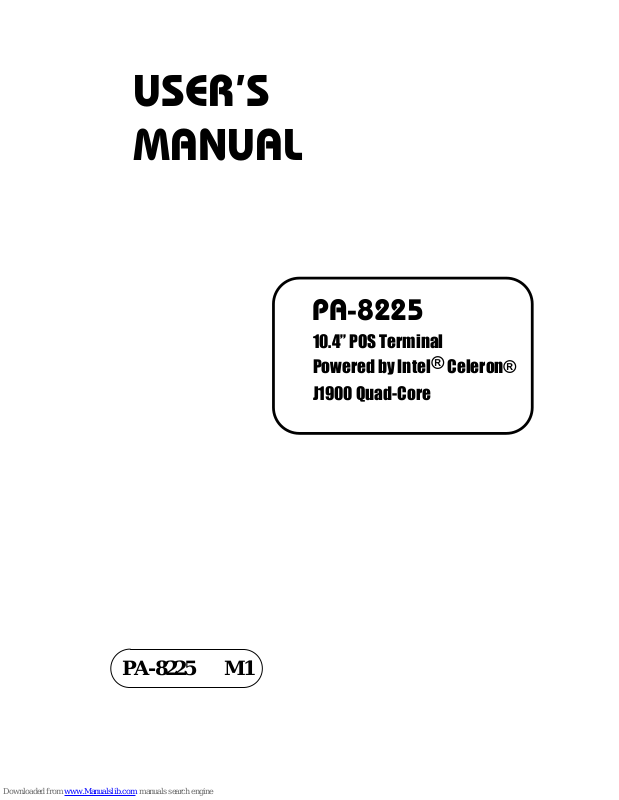

USER’S MANUAL

PA-8225

10.4” POS Terminal Powered by Intel® Celeron®

J1900 Quad-Core

PA-8225 M1

Contents

PA-8225 POS System

With SATA/3COM/4USB

COPYRIGHT NOTICE & TRADEMARK

All trademarks and registered trademarks mentioned herein are the property of their respective owners.

This manual is copyrighted in July 2016. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.

DISCLAIMER

This user’s manual is meant to assist users in installing and setting up the system. The

information contained in this document is subject to change without any notice.

CE NOTICE

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Contents

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void your authority to operate such equipment.

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. WARNING! Some internal parts of the system may have high electrical voltage. And therefore we strongly recommend that qualified engineers can open and disassemble the system. The LCD and Touchscreen are easily breakable, please handle them with extra care.

Page:1-1

INTRODUCTION

This chapter gives you the information for the PA-8225. It also outlines the system specifications.

Sections included:

 About This Manual

 POS System Illustration

 System Specifications

 Safety precautions

Experienced users can jump to chapter 2 on page 2-1 for a quick start.

CHAPTER

1

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-2

1-1. ABOUT THIS MANUAL

Thank you for purchasing our PA-8225 Series System. The PA-8225 is an updated system designed to be comparable with the highest performance of IBM AT personal computers. The PA-8225 provides faster processing speed, greater expandability and can handle more tasks than before. This manual is designed to assist you how to install and set up the whole system. It contains four chapters and two appendixes. Users can configure the system according to their own needs.

Chapter 1 Introduction

This chapter introduces you to the background of this manual. It also includes illustrations and specifications for the whole system. The final section of this chapter indicates some safety reminders on how to take care of your system.

Chapter 2 System Configuration

This chapter outlines the location of motherboard, printer, VFD, MSR components and their function. You will learn how to set the jumpers and configure the system to meet your own needs.

Chapter 3 Software

This chapter contains detailed information for driver installations of the Intel® Utility, VG, LAN, Sound, Touch Screen, embedded peripheral devices, BIOS setup & update, Watchdog timer and resource map.

Chapter 4 System Diagrams

This chapter shows the exploded diagrams and part numbers of PA-8225 components.

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-3

1-2. POS SYSTEM ILLUSTRATION

PA-8225 in normal position

Top View

Bottom View

295.81

337.83

Front View

Rear View

Quarter View

Side View

146.94

12.1

22.2

Unit: mm

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-4

PA-8225 in flat position

Top View

Bottom View

Front View

Rear View

295.81

233.52

Quarter View

Side View

235.56

Unit: mm

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-5

PA-8225 in upright position

Top View

Rear View

Front View

Quarter View

286.42

304.35

Side View

50.5

305.46

Unit: mm

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-6

1-3. SYSTEM SPECIFICATIONS

System

CPU

Intel® Celeron® J1900 Quad-Core 2.0GHz

Memory

1 x DDR3L SO-DIMM 204-pin socket, up to 8GB

OS Support

Microsoft Windows 8 & POSReady7

Power Supply

72~120 Watt power adapter

Audio

2W speaker

BIOS

AMI SPI BIOS, 8 Mbits with VGA BIOS

System Weight

With power adapter: approx.5 kg

Dimension (W x H x D)

338mm x 296mm x 147mm

Certificate

CE/FCC

Storage

SATA

1 x 2.5” HDD or SSD

I/O Ports

Serial Port

 3 x DB-9 (COM2,COM3,COM4; COM1 is internal)  5 x wafers on board:

- COM1-1: Co-lay with COM1

- COM2-1: Co-lay with COM2

- COM3-1: Co-lay with COM3

- COM4-1: Co-lay with COM4-2

USB

4 x USB2.0 (3 on rear I/O, 1 on side bezel)

LAN

1 x Giga LAN

VGA

1 x DB-15 VGA Interface

Display

LCD Interface

10.4” TFT XGA

Max. Resolution

1024 x 768, 800 x 600

Brightness

400cd/m

2

Viewing Angel

22~48 degrees

Touch Panel

10.4” 5-wire analog resistive

Environment

Temperature

 Operating: 0~35°C (32 ~ 95°F)

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-7

 Storage: -5~60°C (-23~ 140°F)

Humidity

20~90%

Optional accessories

MSR & i-Button

ISO I ,II, III; JIS I,II and support information key reader

RFID

ISO14443A, Mifare, Felica-lite

Fingerprint

8-bit grayscale reader

Customer Display

 Interface: RS-232C Baud Rate: 9600/19200 bps  Placement: 20 columns and 2 lines, each column is 5 x

7 dots

 Brightness: cd/m2  Dimensions:

18.2

107.2

0.55

0.75

6.75

3.75

0.8

1.0

 Standard Code

CP-437, CP-850, CP-857, CP-865, Katakana

 International Characters

USA, FRANCE, GERMANY, UK, DENMARK I, SWDEN, ITALY, SPAIN, JAPAN, NORWAY, DENMARK II, RUSSIA, SLAVONIC

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-8

Printer

2” or 3” easy loading thermal printer with auto-cutter Printer:

Items

Specifications

Printing method

Thermal dot line printing

Printing accuracy

1mm /5M

Paper feed pitch

0.0625 mm

Maximum Paper-Roll thickness

80mm

Total dots per line & Printable dots per line

2inch 432 dots; 3inch 576 dots

Maximum print speed

2inch 200 mm/s; 3inch 170 mm/s

Print width

2inch 54 mm; 3inch 72mm

Paper width

2inch 58 +0/-1 mm; 3inch 80 +0/-1 mm

A mm (Printing Width)

2 inch (A:54, C:58, D:2) 3 inch (A:72, C:80, D:4)

D mm

0

-1 mm (Paper Width)

C

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-9

Printer

Auto-cutter:

Items

Specifications

Paper cutting method

Slide cutting

Type of paper cutting

Full cut and Partial cut (1.5 ±0.5 mm tab left at the center)

Paper curling tendency

Fixed blade side and Movable blade side

Minimum paper core diameter

φ8 mm (paper thickness: 75μm or thin)

φ18 (paper thickness: thicker than 75μm)

Minimum paper cutting length

10 mm Cutting processing time

Approx. 0.5 s/cycle

Cutting frequency

1 cut/2 s max.

 Standard Code

CP-437, CP-850, CP-857, CP-737, CP-852, CP-860, CP-862, CP-863, CP-865, CP-866, CP-1250, CP-1251, CP-1252, CP-1253, CP-1254, CP-1257, Katakana

 KANJI

JAPANESE (SHIFT-JIS) Code, TRADITIONAL CHINESE Code

 International Characters

USA, FRANCE, GERMANY, UK, DENMARK I, SWDEN, ITALY, SPAIN I, JAPAN, NORWAY, DENMARK II, SPAIN II, LATIN AMERICA, KOREA, RUSSIA, SLAVONIC

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-10

1-4. SAFETY PRECAUTIONS

The following messages are safety reminders on how to protect your systems from damages, and extending the life cycle of the system.

1. Check the Line Voltage a. The operating voltage for the power supply should be within the range of

100V to 240V AC; otherwise the system may be damaged.

2. Environmental Conditions a. Place your PA-8225 on a sturdy, level surface. Be sure to allow enough

space around the system to have easy access needs.

b. Avoid installing your PA-8225 Series POS system in extremely hot or cold

places.

c. Avoid exposure to sunlight for a long period of time (for example, in a

closed car in summer time. Also avoid the system from any heating device.). Or do not use the PA-8225 when it has been left outdoors in a cold winter day.

d. Bear in mind that the operating ambient temperature is between 0C and

35C (32F and 95F).

e. Avoid moving the system rapidly from a hot place to a cold place, and vice

versa, because condensation may occur inside the system.

f. Protect your PA-8225 against strong vibrations, which may cause hard disk

failure.

g. Do not place the system too close to any radio-active device. Radio-active

device may cause signal interference.

h. Always shutdown the operation system before turning off the power.

3. Handling a. Avoid placing heavy objects on the top of the system. b. Do not turn the system upside down. This may cause the hard drive to

malfunction.

c. Do not allow any objects to fall into this product. d. If water or other liquid spills into the product, unplug the power cord

immediately.

Chapter 1 Introduction

PA-8225 SERIES USERS MANUAL

Page: 1-11

4. Good Care a. When the outside case gets stained, remove the stains using neutral washing

agent with a dry cloth.

b. Never use strong agents such as benzene and thinner to clean the surface of

the case.

c. If heavy stains are present, moisten a cloth with diluted neutral washing

agent or alcohol and then wipe thoroughly with a dry cloth.

d. If dust is accumulated on the case surface, remove it by using a special

vacuum cleaner for computers.

5. Maintenance During maintenance, please place the machine and follow the guidance step by

step as photo below to exchange HDD or Memory or other parts.

Step 1:

Take screw off

Open the front panel

Step2 & 3: Take front metal off

CAUTION:

During Maintenance, Do not place the machine in an upside down position.

Page 2-1

SYSTEM

CONFIGURATION

Helpful information that describes the jumper and connector settings, component locations, and pin assignment.

Sections included:

 System External I/O Port Pin Assignment  How to Set Jumpers  Component Locations & Jumper Settings

- Mainboard

- Printer Board (peripheral device)

- VFD Board (peripheral device)

- MSR Board (peripheral device)

CHAPTER

2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-2

2-1. SYSTEM EXTERNAL I/O PORT & PIN ASSIGNMENT

Rear I/O

Side I/O

Power USB4 button

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-3

2-1-1. Power Button

To turn on the system, press the power button on the side of the system briefly.

ACTION

ASSIGNMENT

Click

0V

Release

+3.3V

2-1-2. DC-IN Port

DC IN: DC Power-In Port (rear IO)

ASSIGNMENT

1

GND

3

+24V

2

GND

4

+24V

2-1-3. VGA Port

VGA: VGA Port, D-Sub 15-pin (rear IO)

ASSIGNMENT

1

RED

9

+5V

2

GREEN

10

GND

3

BLUE

11

NC 4 NC

12

DDCA DATA

5

GND

13

HSYNC

6

GND

14

VSYNC

7

GND

15

DDCA CLK

8

GND

34

12

DC IN

Power

Button

15

610

1115

VGA

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-4

2-1-4. COM Port

COM2, COM3, COM4: D-Sub9 Serial Ports (rear IO)

 COM2: Co-lay with COM2-1  COM3: Co-lay with COM3-1

ASSIGNMENT

1

DCD

6

DSR

2

RXD

7

RTS

3

TXD

8

CTS

4

DTR

9

RI/+5V/+12V selectable (Max. current: 1A)

5

GND

Note: COM3 & COM3-1 will not function when jumpers

JP20, JP21, JP22 are set as 2-3 connected (i-Button). Refer to the section i-Button Function Selection for details. COM4-2 will not function when COM4-1 is selected as the printer control interface.

2-1-5. LAN Port

LAN: LAN RJ45 Port (rear IO)

ASSIGNMENT

1

MDIP0

5

MDIP2

2

MDIN0

6

MDIN2

3

MDIP1

7

MDIP3

4

MDIN1

8

MDIN3

LAN LED Indicator:

Right Side LED

Yellow Color Blinking

LAN Message Active

Off

No LAN Message Active

Left Side LED

Green Color On

10/100Mbps LAN Speed Indicator

Orange Color on

Giga LAN Speed Indicator

Off

No LAN switch/ hub connected.

5

1

9

6

COM2/

COM3/

COM4/

81

Green Yellow

LAN

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-5

2-1-6. Cash Drawer Port

DRW1 Signal from M/B GPIO (rear I/O).

ASSIGNMENT

1

GND

4

+12V/+24V (Max. current: 1A)

2

Drawer Open

5

NC 3 Drawer Sense

6

GND

SIO Address

Cash drawer 1

LDN 06, 0x91 bit 1

Cash drawer 2

LDN 06, 0x91 bit 3

16

DRW1/ DRW2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-6

2-1-7. USB Ports

USB1, USB2, USB3, USB4: USB Type A Ports

 USB1~3: Rear I/O  USB4: Side IO

ASSIGNMENT

1

+5V (Max. current: 0.5A)

3

D+ 2

D- 4 GND

1 4

USB1/

USB2/

USB4/

1 4

USB3

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-7

2-2. MAINBOARD COMPONENT LOCATIONS & JUMPER

SETTINGS

M/B: PB-6822

LVDS1

USB7

J3

JP_VDD1

JP_12

JP_8

JP_9

USB1

JP32

SW1_3

JP19

JP30

USB2

COM1_1

COM4_1

COM2_1

COM3_1

JP_COM4

JP_COM3

JP_COM2

JP_COM1

PRT_PWR1

PWR_IN1

USB8LAN1

LINE-OUT1

JP31

USB5

SW1

USB6

JI_BUTTON1

SP1

SPK1

SLOT1

COM4_2

JP20

JP21

JP22

COM2

COM3

DC5V_PWR1

JP37

JP29

JP5

DC12V_PWR1

LPT1

J2

SATA2

SATA1

JPWR_4P2

JPWR_4P1

TOUCH3

JP14

JP15

JINVDRV1

JINV4

JP4

JP3

JP38JP39

Battery

Intel

®

Celeron® J1900

Quad-Core

DIMM1

ESATA1

DRW1

J4

1

3

VGA1

PS/2_2

LED1_1

LED1_3

PB-6822 Mainboard Component Locations

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-8

SLOT2

1

15

17

51

2

16

18

52

PB-6822 Mainboard Component Locations - Rear

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-9

2-2-1. How to Set Jumpers

You can configure your board by setting the jumpers. A jumper consists of two or three metal pins with a plastic base mounted on the card, and by using a small plastic "cap", also known as the jumper cap (with a metal contact inside), you are able to connect the pins. So you can set-up your hardware configuration by "opening" or "closing" pins.

Jumpers can be combined into sets that called jumper blocks. When jumpers are all in the block, you have to put them together to set up the hardware configuration. The figure below shows what this looks like.

Jumpers & caps

If a jumper has three pins for example, labelled PIN1, PIN2, and PIN3. You can connect PIN1 & PIN2 to create one setting and shorting. You can either connect PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagrams look and what they represent.

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-10

Jumper diagrams

Jumper settings

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-11

2-2-2. COM Port RI & Voltage Selection

JP_COM1, JP_COM2, JP_COM3, JP_COM4: Pin-headers on board

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

RI

1-2

5

6

1

2

JP_COM1

5

6

1

2

JP_COM2

5

6

1

2

JP_COM3

5

6

1

2

JP_COM4

+12V

3-4

5

6

1

2

JP_COM1

5

6

1

2

JP_COM2

5

6

1

2

JP_COM3

5

6

1

2

JP_ COM4

+5V

5-6

5

6

1

2

JP_COM1

5

6

1

2

JP_COM2

5

6

1

2

JP_COM3

5

6

1

2

JP_ COM4

Note: Manufacturing Default is RI for JP_COM1 & JP_COM4, and open (no connection) for

JP_COM2 & JP_COM3

Caution:

1. Voltage of external COM 2 & COM3 ports are adjustable on BIOS or with the

corresponding jumpers JP_COM2 & JP_COM3. Either way cannot be applied simultaneously in case of system error, component damage or serious boot failure. For instance, JP_COM2 will be enabled if COM2 is disabled on BIOS.

2. There is no pin connection for JP_COM2 or JP_COM3 by default. Refer to Voltage Adjust

Configuration in chapter 3 for detailed BIOS setting (BIOS default at Disabled).

3. Voltage of COM1 or COM4 is not adjustable on BIOS.

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-12

2-2-3. COM Connector

COM1-1, COM2-1, COM3-1, COM4-1, COM4-2: COM Connectors

ASSIGNMENT

1

DCD

6

DSR

2

RXD

7

RTS

3

TXD

8

CTS

4

DTR

9

RI/+5V/+12V selectable (Max. current: 1A)

5

GND

10

NC

For details, refer to COM Port RI & Voltage Selection.

2-2-4. i-Button Connector

JI_BUTTON1: i-Button Connector

ASSIGNMENT

1

COM3_DTR_R_I

2

COM3_RXD_R_I

2-2-5. COM3 / i-Button Function Selection

JP20, JP21, JP22: COM3 / i-Button Function Connectors

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

COM 3

1-2

1

3

JP20/JP21/JP22/

i-Button*

2-3

1

3

JP20/JP21/JP22/

Note: Manufacturing Default is COM3. *COM3 & COM3-1 will not function when jumpers JP20, JP21 & JP22 are set as “i-Button.”

1

2

JI_BUTTON1

51

10

6

COM1-1/ COM2-1/ COM3-1/ COM4-1/

610

1

5

COM4-2/

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-13

2-2-6. Cash Drawer Control Selection

JP37: DRW1, DRW1-1, DRW1-2 DRW1 port is used by default. You can add a second port via either of the methods below:

Method 1:

DRW1 includes two groups of GPIO pins. The second group is normally unused but can be enabled by the jumper. Set the pin header jumper JP37 as 1-2 connected if necessary.

Method 2:

You can split DRW1 into two channels of DRW1-1 & DRW1-2 using the Y-Cable (option).

JP37: Cash Drawer control connector

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

DRW1-1 &

DRW1-2

1-2

JP37

GND

(Default)

2-3

JP37

Step 3.

DRW1, DRW1-1, DRW1-2 shares the same power source. (Default: 12V).

SIO Address

Cash drawer 1

LDN 06, 0x91 bit 1

Cash drawer 2

LDN 06, 0x91 bit 3

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-14

CASH DRAWER CONFIGURATION

The I/O port address of the cash drawer is 2E (hex) and 2F (hex). 2E (hex) is the address port. 2F (hex) is the data port. User must first assign the address of register by writing address value into address port 2E (hex), then write/read data to/from the assigned register through data port 2F (hex).

Configuration Sequence

To program F81866 configuration registers, the following configuration sequence must be followed: (1) Enter the extended function mode (2) Configure the configuration registers (3) Exit the extended function mode

(1) Enter the extended function mode

To place the chip into the Extended Function Mode, two successive writes of 0x87 must be applied to Extended Function Enable Registers (EFERs, i.e. 2Eh or 4Eh).

(2) Configure the configuration registers

The chip selects the Logical Device and activates the desired Logical Devices through Extended Function Index Register (EFIR) and Extended Function Data Register (EFDR). The EFIR is located at the same address as the EFER, and the EFDR is located at address (EFIR+1). First, write the Logical Device Number (i.e. 0x06) to the EFIR and then write the number of the desired Logical Device to the EFDR. If accessing the Chip (Global) Control Registers, this step is not required. Secondly, write the address of the desired configuration register within the Logical Device to the EFIR and then write (or read) the desired configuration register through the EFDR.

(3) Exit the extended function mode

To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to

enter the configuration mode.

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-15

Code example for open/close the cash drawer 1/2

;------ Enter to extended function mode -----------------------------------------------------

mov dx, 2eh mov al, 87h out dx, al out dx, al

;------ Select Logical Device 6 of Cash drawer --------------------------------------------

mov al, 07h out dx, al inc dx mov al, 06h out dx, al dec dx

;------ Open Cash drawer 1 --------------------------------------------

mov al, 91h out dx, al inc dx in al, dx and al, FDh or al, 02h out dx, al

;------ Close Cash drawer 1 --------------------------------------------

in al, dx and al, FDh out dx, al

;------ Open Cash drawer 2 --------------------------------------------

in al, dx and al, F7h or al, 08h out dx, al

;------ Close Cash drawer 2 --------------------------------------------

in al, dx and al, F7h out dx, al

;------ Exit the extended function mode --------------------------------------------------------

dec dx mov al, 0aah out dx, al

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-16

Note:

The DRW2 Port can function only when the optional "Printer Kit" is installed on PA-

8225. The DRW2 signals from the printer board (MB-1030, MB-1011, MB-1013,

PDAC-3100) can be controlled via relevant commands. The DRW2 port is located on the rear I/O panel as shown below:

DRW2 Port

ASSIGNMENT

1

GND

4

+24V

2

Drawer Open

5

NC 3 Drawer Sense

6

GND

Control Codes

Hexadecimal

Codes

Function

10 04

Real-time status transmission

10 14

Real-time output of the specified pulse

DRW2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-17

2-2-7. Cash Drawer Power Selection

JP29: Cash Drawer power selection

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

+24V

1-2

3

1

JP29

+12V

2-3

3

1

JP29

Note: Manufacturing Default is +12V.

Caution:

1. The voltage of the external cash drawer port DRW1 is adjustable via BIOS or the

corresponding jumper JP29. Either way cannot be applied simultaneously in case of system error, component damage or serious boot failure. That is, JP29 will be enabled if DRW1 is disabled on BIOS.

2. There is no pin connection for JP29 by default. Refer to the Voltage Adjustment

Configuration in chapter 3 for detailed BIOS setting (BIOS default at 12V).

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-18

2-2-8. USB Connector

USB1, USB2, USB6, USB7: USB 2.0 connector

ASSIGNMENT

1

5V (Maximum current: 0.5A)

2

D- 3 D+ 4 GND

5

GND

Note: USB1 would be used when jumpers

JP14 & JP15 are set as 1-2 (short) connected.

2-2-9. LED Connector

LED1-1: Power indication LED connector

ASSIGNMENT

1

GND

2

PWR_LED

2 1

LED1-1

1

5

USB1/ USB2/ USB7/

1

5

USB6

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-19

2-2-10. Power Connector

DC12V_PWR1: DC 12Voltage Provider Connector

ASSIGNMENT

1

VCC12

2

GND

3

VCC12

DC5V_PWR1: DC 5Voltage Provider Connector

ASSIGNMENT

1

5V 2 GND

2-2-11. Power for Thermal Printer Connector

PRT_PWR1: Power for Thermal Printer Connector

ASSIGNMENT

1

VCC24SB

2

VCC24SB

3

GND

4

GND

2-2-12. External Speaker Connector

SPK1: External speaker connector

ASSIGNMENT

1

SPK_GND

2

SPK_OUT

1 3

DC12V_PWR1

1 4

PRT_PWR1

12

SPK1

12

DC5V_PWR1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-20

2-2-13. Inverter Connector

JINV4: Inverter connectors

ASSIGNMENT

1

+12V

2

+12V

3

GND

4

BRCTR

5

GND

6

LVDS_BKLTEN

2-2-14. LED Backlight Power Control Selection

JP12: LED backlight power control connectors

(for LED backlight panel without power driver built-in)

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

On

1-3 2-4

21

65

JP12

Off

3-5 4-6

21

65

JP12

Note: Manufacturing Default is LED.

1

6

JINV4

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-21

2-2-15. LED Backlight Power Connector

JINVDRV1: LED backlight power connector

ASSIGNMENT

1

VCC

2

GND

Note: JINVDRV1 will not function when

JP38 & JP39 are set as “RS-232” interface.

2-2-16. Panel Resolution Selection

JP8, JP9: Panel resolution control connectors

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

15” 1024 x 768 (24 bit)

JP8: 1-3, 4-6 JP9: 3-5, 4-6

21 65

JP8

21

65

JP9

10.4” 1024 x 768 (18 bit)

JP8: 3-5, 2-4 JP9:3-5, 4-6

21 65

JP8

21

65

JP9

10.4” 800 x 600 (18bit)

JP8: 3-5, 4-6 JP9: 3-5, 4-6

21

65

JP8

21

65

JP9

Note: Manufacturing Default is 10.4”, 1024 x 768 (18bit).

12

JINVDRV1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-22

2-2-17. LVDS Connector

LVDS1: LVDS Connector

ASSIGNMENT

1

LVDS_VCC

16

LVDS_CLKA_D+

2

GND

17

VDS_CLKA_D-

3

NC

18

GND

4

NC

19

LVDS_A2_D+

5

GND

20

LVDS_A2_D-

6

LVDS_B2_D-

21

GND

7

LVDS_B2_D+

22

LVDS_A1_D+

8

GND

23

LVDS_A1_D-

9

LVDS_B1_D-

24

GND

10

LVDS_B1_D+

25

LVDS_A0_D+

11

LVDS_B3_D+

26

LVDS_A0_D-

12

LVDS_B3_D-

27

LVDS_A3_D+

13

LVDS_B0_D+

28

LVDS_A3_D-

14

LVDS_B0_D-

29

LVDS_VCC

15

GND

30

LVDS_VCC

2-2-18. Touch Panel Connector

TOUCH3: Touch panel connectors

ASSIGNMENT

1

LR (Low Right)

4

UR (Up Right)

2

LL (Low Left)

5

UL (Up Left)

3

Probe

2

1 29

30

LVDS1

1

5

TOUCH3

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-23

2-2-19. Touch Panel Signal Interface Selection

JP14, JP15, JP38, JP39: Control connectors for touch panel signal interface

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

USB1

Connector

JP14: 1-2 JP15: 1-2 JP38: 2-3

JP39: 2-3

1 3

JP14

1 3

JP15

3

1

JP38

3

1

JP39

USB

Interface

JP14: 2-3 JP15: 2-3 JP38: 2-3

JP39: 2-3

1 3

JP14

1 3

JP15

3

1

JP38

3

1

JP39

RS-232

Interface

JP14: 1-2 JP15: 1-2 JP38: 1-2

JP39: 1-2

1 3

JP14

1 3

JP15

3

1

JP38

3

1

JP39

Note: 1. Manufacturing Default is USB.

2. The COM2 & COM2-1 connector will not function when JP38 & JP39 are set as 1-2 connected.

3. USB1 connector when JP14 & JP15 are set as 1-2 connected.

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-24

2-2-20. Clear CMOS Data Selection

JP3: Clear CMOS data selection

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

Normal

Open

1

JP3

Clear CMOS*

1-2

1

JP3

Note: Manufacturing Default is Normal.

*To clear CMOS data, you must power-off the computer and set the jumper to “Clear CMOS” as

illustrated above. After five to six seconds, set the jumper back to “Normal” and power-on the computer.

2-2-21. MSR/Card Reader Connector

PS/2_2: MSR/Card reader connectors

ASSIGNMENT

1

KB_CLK (Output)

2

KB_CLK_C (Input)

3

KB_DATA_C (Input)

4

KB_DATA (Output)

5

+5V

6

GND

6

1

PS/2_2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-25

2-2-22. SATA & SATA Power Connector

SATA1, SATA2: Serial ATA connectors

ASSIGNMENT

1

G1 5 RX-

2

TX+

6

RX+

3

TX-

7

G3 4 G2

Note: SATA1 only supports the optional RAID

function on board.

JPWR_4P1, JPWR_4P2: Serial ATA power connectors

ASSIGNMENT

1

VCC

2

GND

3

GND

4

VCC12

Note: JPWR_4P1 only supports the

optional RAID function on board.

1 7

SATA1/

SATA2/

1 4

JPWR_4P1/ JPWR_4P2/

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-26

2-2-23. Printer Connector

LPT1: Printer connector

ASSIGNMENT

1

STBJ

14

ALFJ

2

PDR0

15

ERRJ

3

PDR1

16

PAR_INITJ

4

PDR2

17

SLCTINJ

5

PDR3

18

GND

6

PDR4

19

GND

7

PDR5

20

GND

8

PDR6

21

GND

9

PDR7

22

GND

10

ACKJ

23

GND

11

BUSY

24

GND

12

PE

25

GND

13

SLCTJ

26

NC

26

13

14

1

LPT1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-27

2-2-24. Mini-PCIe / mSATA Connector

SLOT1: Mini-PCIe connector, not support USB function

ASSIGNMENT

1

WAKE#

27

GND

2

+3.3V

28

+1.5V

3

Reserved

29

GND

4

GND

30

SMB_CLK

5

Reserved

31

PETn2

6

+1.5V

32

SMB_DATA

7

CLKREQ#

33

PETp2

8

Reserved

34

GND

9

GND

35

GND

10

Reserved

36

NC

11

REFCLK1-

37

GND

12

Reserved

38

NC

13

REFCLK1+

39

+3.3V

14

Reserved

40

GND

15

GND

41

+3.3V

16

Reserved

42

Reserved

17

Reserved

43

GND

18

GND

44

Reserved

19

Reserved

45

NC

20

Reserved

46

Reserved

21

GND

47

NC

22

PERST#

48

+1.5V

23

PERn2

49

NC

24

+3.3SB

50

GND

25

PERp2

51

Reserved

26

GND

52

+3.3V

12151617

18

51

52

SLOT1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-28

SLOT2: Mini-PCIe or mSATA connector, support USB function

ASSIGNMENT

1

WAKE#

27

GND

2

+3.3V

28

+1.5V

3

Reserved

29

GND

4

GND

30

SMB_CLK

5

Reserved

31

PETn0/SATA1_TX-

6

+1.5V

32

SMB_DATA

7

CLKREQ#

33

PETp0/SATA1_TX+

8

Reserved

34

GND

9

GND

35

GND

10

Reserved

36

USB_D-

11

REFCLK0-

37

GND

12

Reserved

38

USB_D+

13

REFCLK0+

39

+3.3V

14

Reserved

40

GND

15

GND

41

+3.3V

16

Reserved

42

Reserved

17

Reserved

43

GND

18

GND

44

Reserved

19

Reserved

45

NC

20

Reserved

46

Reserved

21

GND

47

NC

22

PERST#

48

+1.5V

23

PERn0/SATA1_RX+

49

NC

24

+3.3SB

50

GND

25

PERp0/SATA1_RX-

51

Reserved

26

GND

52

+3.3V

12

1516

1718

5152

SLOT2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-29

2-3. PRINTER BOARD COMPONENT LOCATIONS & PIN

ASSIGNMENT

2-3-1. Printer Board: PDAC-3100

CN5

CN8

CN7

CN6

CN3

CN1

14

1

13

7

1

12

CN2

1

50

1

5

1

4

PDAC-3100 Printer Board Component Locations

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-30

2-3-1-1. Power Supply Connector

CN1: Power supply wafer

ASSIGNMENT

1

+24V

2

+24V

3

GND

4

GND

2-3-1-2. RS-232 Interface Connector

CN7: RS-232 interface connector

ASSIGNMENT

1

TXD

5

DTR

2

RXD

6

DSR

3

RTS

7

GND

4

CTS

4

1

CN1

1

7

CN7

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-31

2-3-1-3. Auto-Cutter Connector

CN3: Auto-cutter wafer

ASSIGNMENT

FUNCTION

1

NC

Unused

2

Vcs

Power supply of the home position sensor

3

GND

GND of the home position sensor

4

CUTS

Signal of the home position sensor

5

2B-1

Auto-cutter motor drive signal

6

2B-2

Auto-cutter motor drive signal

7

2A-1

Auto-cutter motor drive signal

8

2A-2

Auto-cutter motor drive signal

9

1B-1

Auto-cutter motor drive signal

10

1B-2

Auto-cutter motor drive signal

11

1A-1

Auto-cutter motor drive signal

12

1A-2

Auto-cutter motor drive signal

2-3-1-4. USB Connector

CN8: USB Connector

ASSIGNMENT

1

Vbus

4

NC 2 D- 5 GND

3

D+

1 5

CN8

1

12

CN3

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-32

2-3-1-5. Thermal Head/Motor/Sensor Connector

CN2: Thermal head/motor/sensor connector

ASSIGNMENT

FUNCTION

1

24V

Head drive power

2

24V

Head drive power

3

24V

Head drive power

4

24V

Head drive power

5

24V

Head drive power

6

24V

Head drive power

7

DAT

Print data output

8

CLK

Synchronizing signal for print data transfer

9

GND

Head GND

10

GND

Head GND

11

GND

Head GND

12

GND

Head GND

13

GND

Head GND

14

GND

Head GND

15

NC

Unused

16

DST4

Head strobe signal

17

DST3

Head strobe signal

18

3.3V

Logic Power

19

GND

Thermistor GND

20

GND

Thermistor GND

21

TH

Thermistor signal

22

NC

Unused

23

DST2

Head strobe signal

24

DST1

Head strobe signal

25

GND

Head GND

26

GND

Head GND

27

GND

Head GND

28

GND

Head GND

29

GND

Head GND

1

50

CN2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-33

ASSIGNMENT

FUNCTION

30

GND

Head GND

31

LATCH

Print data latch

32

24V

Head drive power

33

24V

Head drive power

34

24V

Head drive power

35

24V

Head drive power

36

24V

Head drive power

37

24V

Head drive power

38

NC

Unused

39

PS

Signal of the out-of-paper sensor

40

Vps

Power supply of the out-ofpaper sensor

41

GND

GND of the platen position/ out-of-paper sensor

42

HS

Signal of the platen position sensor

43

NC

Unused

44

FG

Frame GND

45

FG

Frame GND

46

NC

Unused

47

2A

Motor drive signal

48

1B

Motor drive signal

49

1A

Motor drive signal

50

2B

Motor drive signal

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-34

2-3-1-6. Terminal Assignment Connector

CN5: Terminal assignment connector

ASSIGNMENT

FUNCTION

1

FEED

Feed signal

2

RESET

Reset signal

3

GND

4

ST1

Status signal

5

ST2

Status signal

6

ST3

Status signal

7

ST4

Status signal

8

GND

9

DRS

Drawer sensor signal

10

DSW

Drawer switch signal

11

Vdu

Drive terminal for the drawer (Vp side)

12

GNDdu

Drive terminal for the drawer (GND side)

13

GND

14

NC

Unused

14

1

CN5

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-35

2-3-2. Printer Board: MB-1030

1

5

13

4

CN3

CN2

4

14

1

50

12

1

9 10

2

CN1

CUT_CN1

PRINT_CN1

COM1

USB_CN1

24V_CN1

MB-1030 RB, RC Printer Board Component Locations

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-36

2-3-2-1. Power Supply Connector

24V_CN1: Power Supply Wafer

ASSIGNMENT

1

GND

2

GND

3

+24V

4

+24V

2-3-2-2. RS-232 Interface Connector

COM1: RS-232 Interface Connector

ASSIGNMENT

1

NC 6 DSR /CTS

2

RXD

7

RTS

3

TXD

8

CTS

4

DTR /RTS

9

NC

5

GND

10

NC

4

1

24V_CN1

1

9 10

2

COM1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-37

2-3-2-3. Thermal Head/Motor/Sensor Connector

PRINT_CN1: Thermal head/motor/sensor connector

ASSIGNMENT

FUNCTION

1

24V

Head drive power

2

24V

Head drive power

3

24V

Head drive power

4

24V

Head drive power

5

24V

Head drive power

6

24V

Head drive power

7

DAT

Print data output

8

CLK

Synchronizing signal for print data transfer

9

GND

Head GND

10

GND

Head GND

11

GND

Head GND

12

GND

Head GND

13

GND

Head GND

14

GND

Head GND

15

NC

Unused

16

DST4

Head strobe signal

17

DST3

Head strobe signal

18

3.3V

Logic Power

19

GND

Thermistor GND

20

GND

Thermistor GND

21

TH

Thermistor signal

22

NC

Unused

23

DST2

Head strobe signal

24

DST1

Head strobe signal

25

GND

Head GND

26

GND

Head GND

27

GND

Head GND

28

GND

Head GND

29

GND

Head GND

1

50

PRINT_CN1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-38

ASSIGNMENT

FUNCTION

30

GND

Head GND

31

LATCH

Print data latch

32

24V

Head drive power

33

24V

Head drive power

34

24V

Head drive power

35

24V

Head drive power

36

24V

Head drive power

37

24V

Head drive power

38

NC

Unused

39

PS

Signal of the out-of-paper sensor

40

Vps

Power supply of the out-ofpaper sensor

41

GND

GND of the platen position/ out-of-paper sensor

42

HS

Signal of the platen position sensor

43

NC

Unused

44

FG

Frame GND

45

FG

Frame GND

46

NC

Unused

47

2A

Motor drive signal

48

1B

Motor drive signal

49

1A

Motor drive signal

50

2B

Motor drive signal

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-39

2-3-2-4. Auto-Cutter Connector

CUT_CN1: Auto-cutter Connector

ASSIGNMENT

FUNCTION

1

NC

Unused

2

Vcs

Power supply of the home position sensor

3

GND

GND of the home position sensor

4

CUTS

Signal of the home position sensor

5

2B-1

Autocutter motor drive signal

6

2B-2

Autocutter motor drive signal

7

2A-1

Autocutter motor drive signal

8

2A-2

Autocutter motor drive signal

9

1B-1

Autocutter motor drive signal

10

1B-2

Autocutter motor drive signal

11

1A-1

Autocutter motor drive signal

12

1A-2

Autocutter motor drive signal

2-3-2-5. Paper-Near-END Sensor Connector

CN2: Paper-near-end sensor connector

ASSIGNMENT

FUNCTION

1

Vns

Power supply of the near end sensor

2

NS

Signal of the near end sensor

3

GND

GND of the near end sensor

12

1

CUT_CN1

13

CN2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-40

2-3-2-6. USB Interface Connector

USB_CN1: USB interface connector

ASSIGNMENT

1

Vbus

4

GND

2

D- 5 GND

3

D+

2-3-2-7. Terminal Assignment Connector

CN1: Terminal assignment connector

ASSIGNMENT

FUNCTION

1

FEED

Feed signal

2

RESET

Reset signal

3

GND

4

ST1

Status signal

5

ST2

Status signal

6

ST3

Status signal

7

ST4

Status signal

8

GND

9

DRS

Drawer sensor signal

10

DSW

Drawer switch signal

11

Vdu

Drive terminal for the drawer (Vp side)

12

GNDdu

Drive terminal for the drawer (GND side)

13

GND

14

NC

Unused

1

5

USB_CN1

14

1

CN1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-41

2-3-3. Printer Board: MB-1011 & MB-1013

MB-1011 & MB-1013 Printer Board Component Locations

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-42

2-3-3-1. Power Supply Connector

CN1: Power supply wafer

ASSIGNMENT

1

GND

2

GND

3

+24V

4

+24V

2-3-3-2. RS-232 Interface Connector

CN7: RS-232 interface connector

ASSIGNMENT

1

TXD

5

DTR

2

RXD

6

DSR

3

RTS

7

GND

4

CTS

4

1

CN1

1

7

CN7

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-43

2-3-3-3. Thermal Head/Motor/Sensor Connector

CN2: Thermal head/motor/sensor connector

ASSIGNMENT

FUNCTION

1

24V

Head drive power

2

24V

Head drive power

3

24V

Head drive power

4

24V

Head drive power

5

24V

Head drive power

6

24V

Head drive power

7

DAT

Print data output

8

CLK

Synchronizing signal for print data transfer

9

GND

Head GND

10

GND

Head GND

11

GND

Head GND

12

GND

Head GND

13

GND

Head GND

14

GND

Head GND

15

NC

Unused

16

DST4

Head strobe signal

17

DST3

Head strobe signal

18

3.3V

Logic Power

19

GND

Thermistor GND

20

GND

Thermistor GND

21

TH

Thermistor signal

22

NC

Unused

23

DST2

Head strobe signal

24

DST1

Head strobe signal

25

GND

Head GND

26

GND

Head GND

27

GND

Head GND

28

GND

Head GND

29

GND

Head GND

1

50

CN2

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-44

ASSIGNMENT

FUNCTION

30

GND

Head GND

31

LATCH

Print data latch

32

24V

Head drive power

33

24V

Head drive power

34

24V

Head drive power

35

24V

Head drive power

36

24V

Head drive power

37

24V

Head drive power

38

NC

Unused

39

PS

Signal of the out-of-paper sensor

40

Vps

Power supply of the out-ofpaper sensor

41

GND

GND of the platen position/ out-of-paper sensor

42

HS

Signal of the platen position sensor

43

NC

Unused

44

FG

Frame GND

45

FG

Frame GND

46

NC

Unused

47

2A

Motor drive signal

48

1B

Motor drive signal

49

1A

Motor drive signal

50

2B

Motor drive signal

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-45

2-3-3-4. Auto-Cutter Connector

CN3: Auto-cutter Connector

ASSIGNMENT

FUNCTION

1

NC

Unused

2

Vcs

Power supply of the home position sensor

3

GND

GND of the home position sensor

4

CUTS

Signal of the home position sensor

5

2B-1

Autocutter motor drive signal

6

2B-2

Autocutter motor drive signal

7

2A-1

Autocutter motor drive signal

8

2A-2

Autocutter motor drive signal

9

1B-1

Autocutter motor drive signal

10

1B-2

Autocutter motor drive signal

11

1A-1

Autocutter motor drive signal

12

1A-2

Autocutter motor drive signal

2-3-3-5. USB Interface Connector

CN8: USB interface connector

ASSIGNMENT

1

Vbus

2

D-

3

D+

4

GND

5

GND

12

1

CN3

1

5

CN8

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-46

2-3-3-6. Terminal Assignment Connector

CN5: Terminal assignment connector

ASSIGNMENT

FUNCTION

1

FEED

Feed signal

2

RESET

Reset signal

3

GND

4

ST1

Status signal

5

ST2

Status signal

6

ST3

Status signal

7

ST4

Status signal

8

GND

9

DRS

Drawer sensor signal

10

DSW

Drawer switch signal

11

Vdu

Drive terminal for the drawer (Vp side)

12

GNDdu

Drive terminal for the drawer (GND side)

13

GND

14

NC

Unused

1

14

CN5

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-47

2-4. VFD BOARD COMPONENT LOCATIONS & PIN ASSIGNMENT

2-4-1. VFD Board: MB-4103, LD720

JP12V

CN1

1

16

MB-4103 & LD720 VFD Board Component Locations

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-48

2-4-1-1. Power Switch Selection

JP12V: Power Switch Selection

SELECTION

JUMPER SETTING

JUMPER ILLUSTRATION

OFF

1-2

3

1

JP12V

ON

2-3

3

1

JP12V

Note: Manufacturing Default is ON.

2-4-1-2. RS-232 Serial Interface Connector

CN1: RS-232 serial interface wafer

ASSIGNMENT

1

GND

9

NC 2 TXD

10

NC 3 RXD

11

NC 4 DTR

12

NC 5 DSR

13

NC 6 RTS

14

NC 7 CTS

15

NC 8 +12V/+5V

16

NC

1

16

CN1

Chapter 2 System Configuration

PA-8225 SERIES USER’S MANUAL

Page: 2-49

2-5. MSR BOARD COMPONENT LOCATIONS & PIN ASSIGN-

MENT

2-5-1. MB-3012

IO1

I_BUTTON1

1 12

1

2

MB-3012 MSR Board Component Locations

2-5-1-1. Information Button Reader

I_BUTTON1: Information button reader

ASSIGNMENT

1

I_B1

2

GND

2-5-1-2. Output Connector

IO1: Output wafer

ASSIGNMENT

1

CLK_KB

7

RX_MSR

2

CLK_PC

8

TX_MSR

3

DATA_KB

9

GND

4

DATA_PC

10

USB_D+_R

5

+5V

11

USB_D-_R

6

CHASSIS GND

12

GND

1

2

I-BUTTON1

1 12

IO1

PA-8225 SERIES USER’S MANUAL

Page: 3-1

SOFTWARE

This chapter provides the detailed information of driver utilities and BIOS settings for the system.

The following sections are included:  Driver

- Intel® Chipset Software Installation Utility

- VGA Driver Utility

- LAN Driver Utility

- Sound Driver Utility

- Touchscreen Driver Utility

- Fingerprint Driver Utility (Optional)

- RFID Module Driver (Optional)

- Wireless Module Driver (Optional)

 Embedded Peripheral Device

- Printer

- VFD

- MSR

 API  BIOS Operation

- Setup

- Watchdog Timer Configuration

- Update Procedure

- System Resource Map

CHAPTER

3

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-2

3-1. DRIVER

3-1-1-1. Introduction

Enclosed with the PA-8225 Series package is our driver utilities, which comes in a DVD-ROM format.

3-1-2-1. API Package Folder

Refer to the "3-3 API" for the details. +--->\DEMO PROJECT\ +--->\ProxAPI standard\ +--->\Document\

3-1-2-2. Driver Folder

1. The sequence of setup is "Main Chip -> VGA -> LAN -> SOUND -> TOUCH[Device folder]"

2. You will be prompted to reboot when installation is complete. +--->\Flash BIOS\AFUa.bat +--->\Plaform\ +--->\Device\

3-1-2-3. User Manual Folder

\AdbeRdr930_en_US.exe (PDF File reader)

3-1-2-4. README

The DRIVER DISC introduction

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-3

3-1-3. Intel® Chipset Software Installation Utility

3-1-3-1. Introduction

The Intel® Chipset Software Installation Utility installs Windows *.INF files to the target system. These files outline to the operating system how to configure the Intel chipset components in order to ensure the following features function properly:

 SATA Storage Support (SATA & SATA II)  USB Support (1.1 & 2.0)  Identification of Intel® Chipset Components in Device Manager

3-1-3-2. Installation of Intel® Chipset Driver

The utility pack is to be installed only for POSReady 7 & Embedded 8 Industry series, and it should be installed right after the OS installation. Please follow the steps below:

1. Connect the USB DVD-ROM device to PA-8225 and insert the driver disk.

2. Enter the “Main Chip” folder where the Chipset driver is located (depending

on your OS platform).

3. Click Setup.exe file for driver installation.

4. Follow the on-screen instructions to complete the installation.

5. Once installation is completed, shut down the system and restart PA-8225 for

the changes to take effect.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-4

3-1-4. VGA Driver Utility

The VGA interface embedded with PA-8225 can support a wide range of display types. You can have dual displays via CRT & LVDS interfaces work simultaneously.

3-1-4-1. Installation of VGA Driver

To install the Graphics driver, follow the steps below:

1. Connect the USB-DVD ROM device to PA-8225 and insert the driver disk.

2. Enter the “VGA” folder where the VGA driver is located (depending on your

OS platform).

3. Click Setup.exe file for driver installation.

4. Follow the on-screen instructions to complete the installation.

5. Once installation is completed, shut down the system and restart PA-8225 for the changes to take effect.

3-1-5. LAN Driver Utility

PA-8225 is enhanced with LAN function that can support various network adapters. Installation platform for the LAN driver is listed as follows:

3-1-5-1. Installation of LAN Driver

To install the LAN Driver, follow the steps below:

1. Connect the USB DVD-ROM device to PA-8225 and insert the driver disk.

2. Enter the “LAN” folder where the LAN driver is located (depending on your OS platform).

3. Click Setup.exe file for driver installation.

4. Follow the on-screen instructions to complete the installation.

5. Once installation is completed, shut down the system and restart PA-8225 for the changes to take effect.

For more details on the Installation procedure, please refer to the Readme.txt file found on LAN Driver Utility.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-5

3-1-6. Sound Driver Utility

The sound function enhanced in this system is fully compatible with Windows POSReady 7 & Embedded 8 Industry series. Below, you will find the content of the Sound driver.

3-1-6-1. Installation of Sound Driver

To install the Sound Driver, follow the steps below:

1. Connect the USB DVD-ROM device to PA-8225 and insert the driver disk.

2. Enter the “Sound” folder where the sound driver is located (depending on your OS platform).

3. Click Setup.exe file for driver installation.

4. Follow the on-screen instructions to complete the installation.

5. Once installation is completed, shut down the system and restart PA-8225 for the changes to take effect.

3-1-7. Touchscreen Driver Utility

The touchscreen driver utility can only be installed on Windows POSReady 7 & Embedded 8 Industry series, and it should be installed right after the OS installation.

3-1-7-1. Installation of Touchscreen Driver

To install the touchscreen driver, follow the steps below:

1. Connect the USB DVD-ROM device to PA-8225 and insert the driver disk.

2. Enter the “Device\Touch Screen” folder where the touchscreen driver is located.

3. Click Setup.exe file for driver installation.

4. Follow the on-screen instructions to complete the installation.

5. Once installation is completed, shut down the system and restart PA-8225 for the changes to take effect.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-6

3-1-8. Fingerprint Driver Utility (Optional)

The fingerprint driver utility can only be installed on a Windows platform, and it should be installed right after the OS installation.

3-1-8-1. Installation of Fingerprint Driver

To install the fingerprint driver, follow the steps below:

1. Connect the USB DVD-ROM device to PA-8225 and insert the driver disk.

2. Enter the “Device\Embedded Finger Printer” folder where the fingerprint driver is located.

3. Click Setup.exe file for driver installation.

4. Follow the on-screen instructions to complete the installation.

5. Once installation is completed, shut down the system and restart PA-8225 for the changes to take effect.

3-1-9. RFID Module Driver Utility (Optional)

The RFID driver utility can only be installed on Windows POSReady7 & Embedded 8 industry series, and it should be installed right after the OS installation.

3-1-9-1. Installation of |RFID Module Driver

To install the fingerprint driver, follow the steps below:

1. Connect the USB DVD-ROM device to PA-8225 and insert the driver disk.

2. Enter the “Device\RFID Module” folder where the RFID Module driver is located.

3. Click Autorun.exe file for driver installation.

4. Select Mifare Demo Software V1.5R8.

5. Follow the on-screen instructions to complete the installation.

6. Once installation is completed, shut down the system and restart PA-8225 for the changes to take effect.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-7

3-1-10. Wireless Module Driver Utility (Optional)

The wireless driver utility can only be installed on Windows POSReady7 & Embedded 8 Industry series, and it should be installed right after the OS installation.

3-1-10-1. Installation of Wireless Driver

To install the wireless driver, follow the steps below:

1. Connect the USB DVD-ROM device to PA-8225 and insert the driver disk.

2. Enter the “Device\Embedded Wireless Module” folder where the wireless driver is located.

3. Click Setup.exe file for driver installation.

4. Follow the on-screen instructions to complete the installation.

5. Once installation is completed, shut down the system and restart PA-8225 for the changes to take effect.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-8

3-2. PERIPHERAL DEVICES

Command lists and driver installation guide for peripheral devices of the system printer board, VFD and MSR – are explicitly included in this section.

3-2-1. Printer Board: MB-1030

3-2-1-1. Command

1. Printer Registry Operation

Registry Name

Default Data

Notes

BaudRate

115200

-

BitLength

8 - Parity

0

-

Stop

1

-

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-9

2. Command List

Standard Commands

Command

RA

RB

Command

RA

RB

Command

RA

RB

HT

V ESC D

V GS /

V V LF

V V ESC E

V V GS :

FF

V ESC G

V GS B

V V CR

V V ESC J

V V GS H

V V CAN

V ESC L

V GS I

V V DLE EOT

V V ESC M

V V GS L

V V DLE ENQ

V ESC c 4

V GS P

V V DLE DC4

V V ESC c 5

V GS V

V V ESC FF

V ESC d

V V GS W

V ESC SP

V V ESC p

V V GS \

ESC !

V V ESC t

V V GS ^

ESC $

V V ESC {

V V GS a

V V ESC %

FS g 1

GS b

ESC &

FS g 2

GS f

V V ESC *

V FS p

V V GS h

V V ESC

V V FS q

V V GS k

V V ESC 2

V V GS !

V V GS r

V V ESC 3

V V GS $

V GS v 0

V V ESC =

V V GS *

V V GS w

V V ESC ?

GS ( A

V V

ESC @

V V GS ( K

V

Kanji Control Commands

Command

MB-1030

RA

MB-1030

RB

FS ! V V

FS &

V V FS V

FS . V V

FS 2

FS C

FS S

V

FS W

V

Other Command

Command

MB-1030

RA

MB-1030

RB

ESC i

V

ESC m

V V DC2 ;

V GS p 1

V

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-10

COMMAND LIST

Standard Commands

Control

Codes

Hexadecimal

Codes

Function

Standard

Mode

Page Mode

<HT>

09

Horizontal tab

V V <LF>

0A

Print and line feed

V

<FF>

0C

Print and recover to standard mode (in page mode)

Ignored

V

<CR>

0D

Print and carriage return

V

<CAN>

18

Cancel print data in page mode

Ignored

V

10 04

Real-time status transmission

V

10 05

Real-time request to printer

V

10 14

Real-time output of specified pulse

V

1B 0C

Print data in page mode

Ignored

V

1B 20

Set right-side character spacing

V

<ESC !>

1B 21

Select print mode(s)

V

<ESC $>

1B 24

Set absolute print position.

V

<ESC *>

1B 2A

Select bit image mode

V

<ESC ->

1B 2D

Turn underline mode on/off.

V

<ESC 2>

1B 32

Select default line spacing

V

<ESC 3>

1B 33

Set line spacing

V

<ESC =>

1B 3D

Select peripheral device

V

<ESC @>

1B 40

Initialize printer

V

<ESC D>

1B 44

Set horizontal tab position

V

<ESC E>

1B 45

Turn emphasized mode on/off

V

<ESC G>

1B 47

Turn double-strike mode on/off

V

<ESC J>

1B 4A

Print and feed paper

V

<ESC L>

1B 4C

Select page mode

◎

Ignored

1B 4D

Select character font

V

<ESC R>

1B 52

Select an international character set

V

<ESC S>

1B 53

Select standard mode

Ignored

V

<ESC T>

1B 54

Select print direction in page mode

▲

V

<ESC V>

1B 56

Turn 90 degree clockwise rotation mode on/off

V

▲

<ESC W>

1B 57

Set printing area in page mode

▲

V

<ESC \>

1B 5C

Set relative print position

V

<ESC a>

1B 61

Select justification

◎

▲

1B 63 33

Select paper sensor(s) to output paper-end

V

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-11

Control

Codes

Hexadecimal

Codes

Function

Standard

Mode

Page Mode

signals

1B 63 34

Select paper sensor(s) to stop printing

V

1B 63 35

Enable/disable panel buttons

V

<ESC d>

1B 64

Print and feed n lines

V

<ESC i>

1B 69

Full cut

V

Disabled

<ESC m>

1B 6D

Partial cut

V

Disabled

<ESC p>

1B 70

General pulse

V

<ESC t>

1B 74

Select character code table

V

<ESC {>

1B 7B

Turn upside-down printing mode on/off

◎

▲

<FS p>

1C 70

Print NV bit image

V

Disabled

<FS q>

1C 71

Define NV bit image

◎

Disabled

<GS !>

1D 21

Select character size

V

<GS $>

1D 24

Set absolute vertical print position in page mode

Ignored

V

<GS *>

1D 2A

Define download bit images

V

1D 28 41

Execute test print

V

Disabled

1D 28 4B

Set print density

V

Disabled

<GS />

1D 2F

Print download bit image

●

V

<GS B>

1D 42

Turn white/black reverse printing mode on/off

V

<GS H>

1D 48

Select printing position of HRI characters

V

<GS I>

1D 49

Transmit printer ID

V

Disabled

<GS L>

1D 4C

Set left margin

◎

Disabled

<GS P>

1D 50

Set basic calculated pitch

V

<GS V>

1D 56

Cut paper ◎

V

<GS W>

1D 57

Set printing area width

◎

▲

<GS \>

1D 5C

Set relative vertical print position in page mode

Ignored

<GS a>

1D 61

Enable/disable Automatic Status Back (ASB)

V

<GS f>

1D 66

Select font for HRI characters

V

<GS h>

1D 68

Set bar code height

V

<GS k>

1D 6B

Print bar code

●

V

<GS r>

1D 72

Transmit status

V

1D 76 30

Print raster bit image

●

Disabled

<GS w>

1D 77

Set bar code width

V

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-12

Two-dimensional Bar Code Commands

Control

Codes

Hexadecimal

Codes

Function

Standard

Mode

Page

Mode

<DC2 ;>

12 3B

Specifies a module size of QR Code and Data Matrix

V

1D 70 01

Prints QRCode data based on the specified contents

V

Kanji Control Commands

(when the Japanese, Simplified Chinese, Traditional Chinese, or Korean

model is used)

Control

Codes

Hexadecimal

Codes

Function

Standard

Mode

Page

Mode

<FS !>

1C 21

Set print mode(s) for Kanji characters

V

<FS &>

1C 26

Select Kanji character mode

V

<FS ->

1C 2D

Turn underline mode on/off for Kanji characters

V

<FS .>

1C 2E

Cancel Kanji character mode

V

<FS S>

1C 53

Set Kanji character spacing

V

<FS W>

1C 57

Turn quadruple-size mode on/off for Kanji characters

V

Command classification

Executing : Printer executes the command, which does not then affect the following data. Setting : Printer uses flags to make settings, and those settings affect the following data.

○: Enabled. ◎: Enabled only when the command is set at the beginning of a line.

●: Enabled only when data is not present in the printer buffer. ▲: Only value setting is possible.

Disabled: Parameters are processed as printable data. Ignored: All command codes including parameters are ignored and nothing is executed.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-13

COMMAND DETAILS

STANDARD COMMAND DETAILS

HT

[Name]

Horizontal tab

[Format]

ASCII HT Hex. 09

Decimal 9

[Range]

N/A

[Description]

Moves print position to next horizontal tab position.

 This command is ignored if the next tab is not set.  If the next tab position exceeds the print region, the print position is moved

to [print region + 1].

 The horizontal tab position is set by ESC D (Set/cancel horizontal tab

position).

 When the print position is at the [print region + 1] position and this

command is received, the current line buffer full is printed and a horizontal tab is executed from the top of the next line.

 The initial value of the horizontal tab position is every 8 characters of Font

A (the 9th, 17th, 25th positions, etc.)

LF

[Name]

Print and line feed

[Format]

ASCII LF Hex. 0A

Decimal 10

[Range]

N/A

[Description]

Prints the data in the print buffer and performs a line feed based on the set line feed amount.  After execution, makes the top of the line the next print starting position.

FF

[Name]

Print and recover to standard mode (in page mode)

[Format]

ASCII FF Hex. 0C

Decimal 12

[Range]

N/A

[Description]

Prints all buffered data to the print region collectively, and then recovers to the standard mode.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-14

 All buffer data is deleted after printing.  The print area set by ESC W (Set print region in page mode) is reset to the

default setting.

 No paper cut is executed.  Sets the print position to the beginning of the next line after execution.  This command is enabled only in page mode.

CR

[Name]

Print and carriage return

[Format]

ASCII CR Hex. 0D

Decimal 13

[Range]

N/A

[Description]

When an automatic line feed is enabled, this command functions in the same way as LF(print and line feed). When the automatic line feed is disabled, this command is ignored.

 This command is ignored with serial interface models.  Sets the print position to the beginning of the next line after execution.

CAN

[Name]

Cancel print data in page mode

[Format]

ASCII CAN Hex. 18

Decimal 24

[Range]

N/A

[Description]

Deletes all print data in the currently set print region in page mode.

 This command is enabled only in page mode.  Portions included in the currently set print region are also deleted, even if

previously set print region data.

DLE EOT n

[Name]

Real-time status transmission.

[Format]

ASCII OLE EOT n Hex. 10 04 n Decimal 16 4 n

[Range]

1 ≤ n ≤ 4

[Description]

Transmits the selected printer status specified by n in real time, according to the following parameters: n = 1 : Transmit printer status. n = 2 : Transmit off-line status. n = 3 : Transmit error status. n = 4 : Transmit paper roll sensor status.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-15

n = 1 : Printer status.

Bit

On / Off

Hex

Decimal

Function

0

Off

00 0 Not used. Fixed to Off.

1

On

02 2 Not used. Fixed to On.

2 Off

00 0 Drawer open/close signal is LOW.

On

04 4 Drawer open/close signal is HIGH.

3 Off

00 0 On-line.

On

08 8 Off-line.

4

On

10

16

Not used. Fixed to On.

5

Off

00 0 Not used. Fixed to Off.

6

Off

00 0 Not used. Fixed to Off.

7

Off

00 0 Not used. Fixed to Off.

n = 2 : Off-line status.

Bit

On / Off

Hex

Decimal

Function

0

Off

00 0 Not used. Fixed to Off.

1

On

02 2 Not used. Fixed to On.

2 Off

00 0 Cover is closed.

On

04 4 Cover is open.

3

Off

00 0 Not used. Fixed to Off.

4

On

10

16

Not used. Fixed to On.

5 Off

00 0 No paper-end stop.

On

20

32

Printing stops due to paper end.

6 Off

00 0 No error.

On

40

64

Error occurs.

7

Off

00 0 Not used. Fixed to Off.

n = 3 : Error status

Bit

On / Off

Hex

Decimal

Function

0

Off

00 0 Not used. Fixed to Off.

1

On

02 2 Not used. Fixed to On.

2

Off

00 0 Not used. Fixed to Off.

3

Off

00 0 Not used. Fixed to Off.

4

On

10

16

Not used. Fixed to On.

5

Off

00 0 Not used. Fixed to Off.

6

Off

00 0 Not used. Fixed to Off.

7

Off

00 0 Not used. Fixed to Off.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-16

n = 4 : Continuous paper sensor status.

Bit

On / Off

Hex

Decimal

Function

0

Off

00 0 Not used. Fixed to Off.

1

Off

02 2 Not used. Fixed to On.

2

Off

00 0 No paper-near-end stop.

On

04 4 Printing stops due to paper near end.

3

Off

00 0 No paper-near-end stop.

On

08 8 Printing stops due to paper near end.

4

On

10

16

Not used. Fixed to On.

5 Off

00 0 No paper-end stop.

On

20

32

Printing stops due to paper end.

6 Off

00 0 No paper-end stop.

On

40

64

Printing stops due to paper end.

7

Off

00 0 Not used. Fixed to Off.

DLE ENQ n

[Name]

Real-time request to printer.

[Format]

ASCII DLE ENQ n Hex. 10 05 n Decimal 16 5 n

[Range]

1 ≤ n ≤ 2

[Description]

Responds to requests n specifications from the host in real-time. n specifications are below. n = 1: Recover from the error and start printing from the line where the error occurred. n = 2: Recover from error after clearing the reception buffer and print buffer. This command is enabled even when the printer specification is disabled by ESC = (select peripheral devices).

DLE DC4 n m t

[Name]

Real-time output of specified pulse.

[Format]

ASCII DLE DC4 n m t Hex. 10 14 n m t Decimal 16 20 n m t

[Range]

n = 1 m = 0,1

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-17

1 ≤ t ≤ 8

[Description]

This outputs a signal specified by t to the connector pin specified by m. m = 0: #2 Pin of the drawer kick connector m = 1: #5 Pin of the drawer kick connector On time is set to t x 100 msec; Off time is set to t x 100 msec.

ESC FF

[Name]

Print data in page mode.

[Format]

ASCII ESC FF Hex. 1B 0C Decimal 27 12

[Range]

N/A

[Description]

Prints all buffered data in the print area collectively in page mode.

 This command is enabled only in page mode.  Holds the following information after printing.

a. Expanded data b. Character print direction selection in page mode (ESC T) c. Set print region (ESC W) in the page mode.

d. Character expansion position

ESC SP n

[Name]

Set right-side character spacing.

[Format]

ASCII ESC SP n Hex. 1B 20 n Decimal 27 32 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 0

[Description]

This command sets the size of space to right of character. Right space = n × [horizontal motion units].

ESC ! n

[Name]

Select print mode(s).

[Format]

ASCII ESC ! n Hex. 1B 21 n Decimal 27 33 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 0

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-18

[Description]

This command selects print mode(s) with bits having following meanings.

Bit

On / Off

Hex

Decimal

Function

0 Off

00 0 Character font A selected.

On

01 1 Character font B selected.

1

Off

00 0 Not used. Fixed to Off.

2

Off

00 0 Not used. Fixed to Off.

3 Off

00 0 Emphasized mode not selected.

On

08 8 Emphasized mode selected.

4 Off

00 0 Double-height mode not selected

On

10

16

Double-height mode selected

5 Off

00 0 Double-width mode not selected.

On

20

32

Double-width mode selected.

6

Off

00 0 Not used. Fixed to Off.

7 Off

00 0 Underline mode not selected.

On

80

128

Underline mode selected.

ESC $ nL nH

[Name]

Set absolute print position.

[Format]

ASCII ESC $ nL nH Hex. 1B 24 nL nH Decimal 27 36 nL nH

[Range]

0 ≤ (nL + nH x 256) ≤ 65535 (0 ≤ nH ≤ 255, 0 ≤ nL ≤ 255)

[Description]

This command specifies the next print starting position in reference to the left edge of the print area. The printing start position is calculated using (nL + nH x 256) x (vertical or horizontal motion units). Specifications exceeding the print range are ignored.

ESC * m nL nH d1…dk

[Name]

Select bit image mode

[Format]

ASCII ESC * m nL nH d1...dk Hex. 1B 2A m nL nH d1...dk

Decimal 27 42 m nL nH d1...dk

[Range]

m = 0,1,32,33 0 ≤ nL ≤ 255 0 ≤ nH ≤ 3

0 ≤ d ≤ 255

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-19

[Description]

Selects a bit-image mode in mode m for the number of dots specified by nL and nH. m = 1,33 : (nL+nH×256)<576 (3 inch);(nL+nH×256)<432 (2 inch). m = 0,32 : (nL+nH×256)<288 (3 inch);(nL+nH×256)<216 (2 inch).

m

Mode

Number

of

Vert. Dir.

Dots

Density of

Vert. Dir.

Dots

Density of

Hor. Dir.

Dots

Data Count (k)

0

8 dot single

density

8

67 DPI

101 DPI

nL+nH×256

1

8 dot double

density

8

67 DPI

203 DPI

nL+nH×256

32

24 dot single

density

24

203 DPI

101 DPI

(nL+nH×256)

×3

33

24 dot

double

density

24

203 DPI

(nL+nH×256)

×3

ESC - n

[Name]

Turn underline mode on/off.

[Format]

ASCII ESC - n Hex. 1B 2D n Decimal 27 45 n

[Range]

0 ≤ n ≤ 2 Initial Value n = 0

[Description]

This command enables the print data following it to be printer out underlined. The underline mode varied depending on the following values of n:

n

Function

0

Turns off underline mode

1

Turns on underline mode, set at 1-dot thick

2

Turns on underline mode, set at 2-dot thick

ESC 2

[Name]

Select default line spacing.

[Format]

ASCII ESC 2 Hex. 1B 32 Decimal 27 50

[Range]

N/A

[Description]

This command sets the default line spacing The default line spacing is approximately 4.25 mm, which is equivalent to 34 dots.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-20

ESC 3 n

[Name]

Set line spacing.

[Format]

ASCII ESC 3 n Hex. 1B 33 n Decimal 27 51 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 34

[Description]

This command sets the line spacing using a following rule. Line spacing = n x (vertical or horizontal motion units)

ESC = n

[Name]

Select peripheral device.

[Format]

ASCII ESC = n Hex. 1B 3D n Decimal 27 61 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 1

[Description]

Selects the peripheral device for which the data is effective from the host computer.

Bit

Function

〝0〞

〝1〞

7

Undefined

6 Undefined

5 Undefined

4

Undefined

3

Undefined

2 Undefined

1 Undefined

0 Printer

Invalid

Valid

ESC @

[Name]

Initialize printer.

[Format]

ASCII ESC @ Hex. 1B 40 Decimal 27 64

[Range]

N/A

[Description]

Clears data from the print buffer and sets the printer to its default settings.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-21

ESC D n1…nk NUL

[Name]

Set horizontal tab position

[Format]

ASCII ESC D n1...nk NUL Hex. 1B 44 n1...nk NUL

Decimal 27 68 n1...nk NUL

[Range]

1 ≤ n ≤ 255 0 ≤ k ≤ 32

[Description]

Sets horizontal tab position

 n specifies the column number for setting a horizontal tab position from the

left margin or the beginning of the line.

 k indicates the number of horizontal tab positions to be set.

ESC E n

[Name]

Turn emphasized mode on / off.

[Format]

ASCII ESC E n Hex. 1B 45 n Decimal 27 69 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 0

[Description]

This command turns emphasized mode on or off by toggling the least significant bit of n like following. When the LSB of n is 0, emphasized mode is turned off. When the LSB of n is 1, emphasized mode is turned on.

ESC G n

[Name]

Turn double-strike mode on/off.

[Format]

ASCII ESC G n Hex. 1B 47 n Decimal 27 71 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 0

[Description]

Specifies or cancels double printing.

Cancels double printing when n = <*******0>B. Specifies double printing when n = <*******1>B.

 n is effective only when it is the lowest bit.  This printer is not capable of double printing, so the print is the same as

when using emphasized printing.

 This command is enabled for ANK characters

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-22

ESC J n

[Name]

Print and feed paper.

[Format]

ASCII ESC J n Hex. 1B 4A n Decimal 27 74 n

[Range]

0 ≤ n ≤ 255

[Description]

This command prints the data in the print buffer and feeds the paper [n X vertical motion unit].

 Sets the print position to the beginning of the next line after printing.  In standard mode, the printer uses the vertical motion unit (y).  In page mode, this command functions as follows, depending on the starting

position of the printable area:

(1) When the starting position is set to the upper left or lower right of the

printable area using ESC T, the vertical motion unit (y) is used.

(2) When the starting position is set to the upper right or lower left of the

printable area using ESC T, the horizontal motion unit (x) is used.

 The maximum line spacing is 150mm {5.9 inches }. When the setting value

exceeds the maximum, it is converted to the maximum automatically.

ESC L

[Name]

Select page mode

[Format]

ASCII ESC L Hex. 1B 4C

Decimal 27 76

[Range]

N/A

[Description]

 Enabled only when input with the top of line.  Invalid when input by page mode.  Returns to standard mode after the following commands are issued.

a. FF (Print and recover to page mode) b. ESC S (Select standard mode)

 Character expansion position has the starting point specified by ESC T

(Character print direction selection in page mode) in the printing region designated by the ESC W (Set print region in the page mode) command.

 This command switches the settings for the following commands the values

of which can be set independently in standard mode and page mode to

those for page mode a. Set space amount: ESC SP, FS S b. Set line feed amount: ESC 2, ESC 3

 The following commands are enabled only when in page mode.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-23

a. ESC V :Specify/cancel character 90 degree clockwise rotation b. ESC a :Position alignment c. ESC { :Specify/cancel upside-down printing d. GS W :Set print region width

 The following command is ignored in page mode.

a. GS (A :Test print

 The following commands are invalid in page mode.

a. FS p :Print NV bit image b. FS q :Define NV bit image c. GS v 0 :Print raster bit images d. GS L :Set left margin

 Recover to standard mode using ESC @ (initialize printer).

ESC M n

[Name]

Select character font.

[Format]

ASCII ESC M n Hex. 1B 4D n Decimal 27 77 n

[Range]

n = 0, 1 Initial Value n = 0

[Description]

This command selects ANK character fonts using n as following.

n

Function

0

Character font A selected

1

Character font B selected

ESC R n

[Name]

Select an international character set.

[Format]

ASCII ESC R n Hex. 1B 52 n Decimal 27 82 n

[Range]

0 ≤ n ≤ 16 Initial Value n = 0

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-24

[Description]

This command specifies international characters according to n values.

n

Character set

0

USA

1

France

2

Germany

3

UK 4 Denmark I

5

Sweden

6

Italy

7

Spain

8

Japan

9

Norway

10

Denmark II

11

Spain II

12

Latin America

13

Korea

14

Russia

15

Slavonic

16

User Define

ESC S

[Name]

Select standard mode

[Format]

ASCII ESC S Hex. 1B 53

Decimal 27 83

[Range]

N/A

[Description]

 Valid only when input by page mode.  All buffer data in page mode is deleted.  Sets the print position to the beginning of the next line after execution.  The print area set by ESC W (Set print region in page mode) is reset to the

default setting.

 This command switches the settings for the following commands the values

of which can be set independently in standard mode and page mode to

those for standard mode a. ESC SP :Set character right space amount b. FS S :Set Chinese character space amount

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-25

c. ESC 2 :Set default line spacing d. ESC 3 :Set line spacing

 The following commands are effective only when in standard mode.

a. ESC W :Set print region in page mode b. ESC T :Select character print direction in page mode

 The following commands are ignored in standard mode.

a. GS $ :Specify absolute position for character vertical direction in page

mode

b. GS \: :Specify relative position for character vertical direction in page

mode  Standard mode is selected when the power is turned on, the printer is reset

or initialized (ESC @).

ESC T n

[Name]

Select print direction in page mode.

[Format]

ASCII ESC T n Hex. 1B 54 n

Decimal 27 84 n

[Range]

0 ≤ n ≤ 3, 48 ≤ n ≤ 51 Initial Value n = 0

[Description]

Selects the character printing direction and starting point in page mode.

n

Print Direction

Starting Point

0, 48

Left to Right

Upper Left (A in the figure below)

1, 49

Bottom to Top

Lower Left (B in the figure below)

2, 50

Right to Left

Lower Right (C in the figure below)

3, 51

Top to Bottom

Upper Right (D in the figure below)

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-26

ESC V n

[Name]

Turn 90 degree clockwise rotation mode on/off

[Format]

ASCII ESC V n Hex. 1B 56 n

Decimal 27 86 n

[Range]

0 ≤ n≤ 1, 48≤ n ≤49 Initial Value n = 0

[Description]

Specifies or cancels character 90 degree clockwise rotation.

 Underlines are not applied to characters rotated 90 degrees clockwise

even when ESC !,ESC - or FS - commands are given.

 If 90 degree clockwise rotation is specified, double-wide and double-tall

commands in the 90 rotation mode enlarges characters in the opposite directions to double-wide and double-tall commands.

 This command only affects printing in standard mode.  In page mode, this command is only effective for the setting.  This command is effective for ANK and Chinese characters.

n

Function

0, 48

Turns off 90 degree clockwise rotation mode

1, 49

Turns on 90 degree clockwise rotation mode

ESC W xL xH yL yH dxL dxH dyL dyH

[Name]

Set printing area in page mode

[Format]

ASCII ESC W xL xH yL yH dxL dxH dyL dyH Hex. 1B 57 xL xH yL yH dxL dxH dyL dyH

Decimal 27 87 xL xH yL yH dxL dxH dyL dyH

[Range]

0 ≤ xL, xH, yL, yH, dxL, dxH, dyL, dyH ≤ 255 However, this excludes dxL = dxH = 0 or dyL = dyH = 0

Initial Value xL = xH = yL = yH = 0

[Description]

Sets the print region position and size.

 Horizontal direction starting point [(xL + xH x 256) x basic calculated pitch]  Vertical direction starting point [(yL + yH x 256) x basic calculated pitch]  Horizontal direction length [(dxL + dxH x 256) basic calculated pitch]  Vertical direction length = [(dyL + dyH x 256) basic calculated pitch]  (X+Dx-1)<576 (3 inch, basic calculated pitch=1);(X+Dx-1)<432 (2 inch,

basic calculated pitch=1)

 (Y+Dy-1)<768 (basic calculated pitch=1);  If (horizontal starting position + printing area width) exceeds the printable

area, the printing area width is automatically set to (horizontal printable area

- horizontal starting position).

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-27

 If (vertical starting position + printing area height) exceeds the printable

area, the printing area height is automatically set to (vertical printable area vertical starting position).

ESC \ nL nH

[Name]

Set relative print position.

[Format]

ASCII ESC \ nL nH Hex. 1B 5C nL nH Decimal 27 92 nL nH

[Range]

0 ≤ (nL + nH x 256) ≤ 65535 (0 ≤ nL 255, 0 ≤ nH ≤ 255)

[Description]

Specifies the next print starting position with a relative position based on the current position. This sets the position from the current position to [(nL + nH x

256) x basic calculated pitch] for the next print starting position.  Specifications exceeding the print range are ignored.

ESC a n

[Name]

Select justification.

[Format]

ASCII ESC a n Hex. 1B 61 n Decimal 27 97 n

[Range]

0 ≤ n ≤2 Initial Value n = 0

[Description]

This command specifies position alignment for all data in one line in the standard mode, using n as follows:

n

Alignment

0

Left alignment

1

Center alignment

2

Right alignment

This command has no effect in page mode.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-28

ESC c 3 n

[Name]

Select paper sensor(s) to output paper-end signals.

[Format]

ASCII ESC c 3 n Hex. 1B 63 33 n Decimal 27 99 51 n

[Range]

Specification: 0 ≤ n ≤ 3 Initial Value n = 0

[Description]

Selects paper out detector that outputs a paper out signal when paper has run out.

Bit

Function

〝0〞

〝1〞

7

Undefined

6

Undefined

5

Undefined

4

Undefined

3

Undefined

2

Undefined

1

Paper roll near end detector

Invalid

Valid

0

Paper roll near end detector

Invalid

Valid

ESC c 4 n

[Name]

Select paper sensor(s) to stop printing.

[Format]

ASCII ESC c 4 n Hex. 1B 63 34 n Decimal 27 99 52 n

[Range]

Specification: 0 ≤ n ≤ 3 Initial Value n = 0

[Description]

Selects the paper out detector to stop printing when paper has run out.

Bit

Function

〝0〞

〝1〞

7

Undefined

6

Undefined

5

Undefined

4

Undefined

3

Undefined

2

Undefined

1

Paper roll near end detector

Invalid

Valid

0

Paper roll near end detector

Invalid

Valid

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-29

ESC c 5 n

[Name]

Enable/disable panel buttons

[Format]

ASCII ESC c 5 n Hex. 1B 63 35 n Decimal 27 99 53 n

[Range]

Specification: 0 ≤ n ≤ 255 Initial Value n = 0

[Description]

Toggles the panel switches between enabled and disabled.

 Enables panel switches when n = <*******0>B.  Disables panel switches when n = <*******1>B.

 n is effective only when it is the lowest bit.  When disabled, all panel switches are disabled.

ESC d n

[Name]

Print and feed n lines

[Format]

ASCII ESC d n Hex. 1B 64 n Decimal 27 100 n

[Range]

0 ≤ n ≤ 255

[Description]

Prints the data in the print buffer and performs a paper feed of n lines.

 Sets the print position to the beginning of the next line after printing.  Paper is fed approximately 150 mm if the [n x basic calculated pitch]

exceeds approximately 150 mm (5.9 inches).

ESC i

[Name]

Full cut.

[Format]

ASCII ESC i Hex. 1B 69 Decimal 27 105

[Range]

N/A

[Description]

This command executes a full cut of the paper in standard mode

ESC m

[Name]

Partial cut.

[Format]

ASCII ESC m Hex. 1B 6D Decimal 27 109

[Range]

N/A

[Description]

This command executes a partial cut of the paper with one point uncut in standard mode.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-30

ESC p m t1 t2

[Name]

General pulse.

[Format]

ASCII ESC p m t1 t2 Hex. 1B 70 m t1 t2 Decimal 27 112 m t1 t2

[Range]

0 ≤ m ≤ 1, 48 ≤ m ≤ 49 0 ≤ t1 ≤ 255 0 ≤ t2 ≤ 255

[Description]

This outputs a signal specified by t1 and t2 to the connector pin specified by m. Drawer kick on time is set to t1 x 2 ms; off time is set to t2 x 2 ms.

m

Connector Pin

0, 48

Drawer kick connector pin #2

1, 49

Drawer kick connector pin #5

ESC t n

[Name]

Select character code table.

[Format]

ASCII ESC t n Hex. 1B 74 n Decimal 27 116 n

[Range]

0 ≤ n ≤ 8 Initial Value n = 0

[Description]

Select page n of the character code table.

n

Character set

0

CP-437

1

Katakana

2

CP-850

3

CP-852

4

CP-860

5

CP-863

6

CP-865

7

CP-1252

8

User Define

t1

t2

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-31

ESC { n

[Name]

Turns upside-down printing mode on/off.

[Format]

ASCII ESC { n Hex. 1B 7B n Decimal 27 123 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 0

[Description]

Specifies or cancels upside-down printing.

 Cancels upside-down printing when n = <*******0>H.  Specifies upside-down printing when n = <*******1>H.  n is effective only when it is the lowest bit.  This command is effective only when input at the top of the line when

standard mode is being used.

 This command has no affect in page mode. In page mode, this command is

only effective for the setting.

 Upside-down printing rotates line data 180 degrees.

n

Upside-down mode

0

Turned off

1

Turned on

FS p n m

[Name]

Print NV bit image.

[Format]

ASCII FS p n m Hex. 1C 70 n m Decimal 28 112 n m

[Range]

1 ≤ n ≤ 255 0 ≤ m ≤ 3, 48 ≤ m ≤ 51

[Description]

Prints NV bit image n using mode m.

 n specifies the NV bit image number.  m specifies the bit-image mode.  NV bit image is a bit image defined in non-volatile memory by FS q and

printed by this command.

 This command is ignored when the specified NV bit image n is undefined.

m

Mode

0, 48

Nornal

1, 49

Double-width

2, 50

Double-height

3, 51

Quadruple

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-32

FS q n [xL xH yL yH d1…dk]1…[xL xH yL yH d1…dk]n

[Name]

Define NV bit image.

[Format]

ASCII FS q n [xL xH yL yH d1…dk]1…[xL xH yL yH d1…dk]n Hex. 1C 71 n [xL xH yL yH d1…dk]1…[xL xH yL yH d1…dk]n Decimal 28 113 n [xL xH yL yH d1…dk]1…[xL xH yL yH d1…dk]n

[Range]

1 ≤ n ≤ 255

1 ≤ (xL + xH ×256) ≤ 54 (0 ≤ xL ≤ 54, xH=0) for 2 inch 1 ≤ (xL + xH ×256) ≤ 72 (0 ≤ xL ≤ 72, xH=0) for 3 inch 1 ≤ (yL + yH ×256) ≤ 96 (0 ≤ yL ≤ 96, yH=0) 0 ≤ d ≤ 255

k = (xL + xH × 256) × (yL + yH × 256) × 8

[Description]

Defines the specified NV bit image.

 n specifies the number of NV bit images to define.  xL and xH specify the horizontal direction for one NV bit image (xL + xH x

256) x 8 dots.

 yL and yH specify the vertical direction for one NV bit image (yL + yH x 256)

x 8 dots.

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-33

GS ! n

[Name]

Select character size.

[Format]

ASCII GS ! n Hex. 1D 21 n Decimal 29 33 n

[Range]

0 ≤ n ≤ 255 (1 ≤ Vertical enlargement ≤ 8, 1 ≤ Horizontal enlargement ≤ 8) Initial Value n = 0

[Description]

This command selects the character height and width using bits 0 to 3, and bits 4 to 7 respectively as follows:

Bit

Function

Setting

0

Specifies the number of times normal font size in the vertical direction

Refer to Table 2 [Enlarged in vertical direction]

1 2 3

4

Specifies the number of times normal font size in the horizontal direction

Refer to Table 1 [Enlarged in horizontal direction]

5 6 7

Table 1 [Enlarged in horizontal direction]

Hex

Decimal

Enlargement

00

0

1 time(standard)

10

16

2 times

20

32

3 times

30

48

4 times

40

64

5 times

50

80

6 times

60

96

7 times

70

112

8 times

Table 2 [Enlarged in vertical direction]

Hex

Decimal

Enlargement

00

0

1 time(standard)

01

1

2 times

02

2

3 times

03

3

4 times

04

4

5 times

05

5

6 times

06

6

7 times

07

7

8 times

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-34

GS $ nL nH

[Name]

Set absolute vertical print position in page mode

[Format]

ASCII GS $ nL nH Hex. 1D 24 nL nH

Decimal 29 36 nL nH

[Range]

0 ≤ nL ≤ 255, 0 ≤ nH ≤ 255,

[Description]

Specifies the character vertical direction position for the data expansion starting position using the absolute position based on the starting point in page mode. The position of the character vertical direction for the next data expansion starting position is the position specified by [(nL + nH x 256) x basic calculated pitch] from the starting point.

 When not in page mode, this command is ignored.  Specifications for absolute positions that exceed the specified print range

are ignored.

GS * X Y [d1…d(X x Y x 8)]

[Name]

Define download bit images.

[Format]

ASCII GS * X Y [d1…d(X x Y x 8)] Hex. 1D 2A X Y [d1…d(X x Y x 8)] Decimal 29 42 X Y [d1…d(X x Y x 8)]

[Range]

1 ≤ X ≤ 54 (for 2 inch) 1 ≤ X ≤ 72 (for 3 inch) 1 ≤ Y ≤ 96 0 ≤ d ≤ 255

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-35

[Description]

Defines the download bit image of the number of dots specified by X and Y.

 X specifies the number of bytes in the horizontal direction.  Y specifies the number of bytes in the vertical direction.  Horizontal direction dot count is X x 8 dots; Vertical direction dot count is Y

x 8 dots

 d indicates the bit-image data. Bits that correspond to the dots to print are 1,

and the bits that correspond to the dots that are not printed are 0.

GS ( A pL pH n m

[Name]

Execute test print.

[Format]

ASCII GS ( A pL pH n m Hex. 1D 28 41 pL pH n m Decimal 29 40 65 pL pH n m

[Range]

{pL+ (pH×256) } = 2 (pL = 2,pH = 0) 0 ≤ n ≤ 2 , 48 ≤ n ≤ 50 2 ≤ m ≤ 3 , 50 ≤ m ≤ 51

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-36

[Description]

Executes the specified test print. The following command is ignored in page mode.

Specifies the parameter count following pL and pH in (pL + (pH x 256)) bytes. n specifies the paper to be tested.

n

Paper Type

0 , 48

Basic sheet (paper roll)

1 , 49 2 , 50

Paper Roll

m specifies a test pattern..

m

Type of Test Print

2 , 50

Printer Status (Self Print)

3 , 51

Rolling Pattern Print

GS ( K pL pH n m

[Name]

Set print density.

[Format]

ASCII GS ( A pL pH n m Hex. 1D 28 4B pL pH n m Decimal 29 40 75 pL pH n m

[Range]

{pL+ (pH×256) } = 2 (pL = 2,pH = 0) n = 49

250 ≤ m ≤ 255, 0 ≤ m ≤ 6 Initial Value m = 0

[Description]

Sets print density..

m

Print Density

250

0.7

251

0.7

252

0.8

253

0.8

254

0.9

255

0.9 0 1.0 1 1.1 2 1.1 3 1.2

4

1.2

5

1.3 6 1.3

Chapter 3 Software

PA-8225 SERIES USER’S MANUAL

Page: 3-37

GS / m

[Name]

Print downloaded bit image.

[Format]

ASCII GS / m Hex. 1D 2F m Decimal 29 47 m

[Range]

0 ≤ m ≤ 3, 48 ≤ m ≤ 51

[Description]

This command prints the downloaded bit image defined by GS * according to the mode denoted by m.

m

Mode

Vertical dot density(DPI)

Horizontal dot density(DPI)

0 , 48

Normal

203

1 , 49

Double-width

203

101

2 , 50

Double-height

101

203

3 , 51

Quadruple

101

GS B n

[Name]

Turn white/black reverse printing mode on/off

[Format]

ASCII GS B n Hex. 1D 42 n Decimal 29 66 n

[Range]

0 ≤ n ≤ 255 Initial Value n = 0

[Description]

Specifies or cancels black and white inverted printing.

 Cancels black and white inverted printing when n = <*******0>B.  Specifies black and white inverted printing when n = <*******1>B.  n is effective only when it is the lowest bit.  Internal characters and download characters are targeted for black and

white inverted printing.

 This command is effective for ANK and Chinese characters.

GS H n

[Name]

Select printing position of HRI characters.

[Format]

ASCII GS H n Hex. 1D 48 n Decimal 29 72 n

[Range]

0 ≤ n ≤ 3, 48 ≤ n ≤ 51 Initial Value n = 0

Protech Systems PA-8225 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
