USER’S
MANUAL

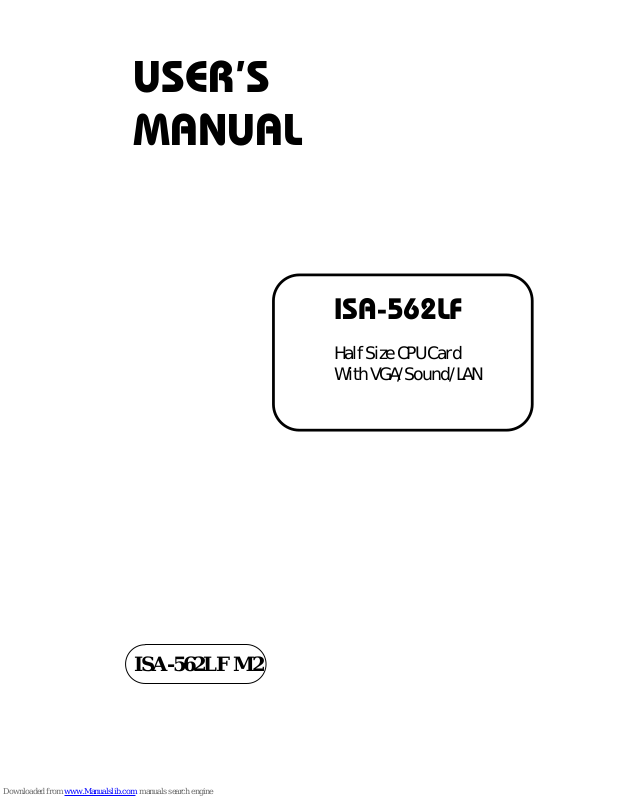

ISA-562LF
Half Size CPU Card
With VGA/Sound/LAN
ISA-562LF M2
Copyright Notice
ISA-562LF
Half Size CPU Card
With VGA /Sound/LAN
OPERATION MANUAL
COPYRIGHT NOTICE
This operation manual is meant to assist both Embedded Computer
manufacturers and end users in installing and setting up the system. The
information contained in this document is subject to change without any
notice.
This manual is copyrighted in May, 2006. You may not reproduce or
transmit in any form or by any means, electronic, or mechanical, including
photocopying and recording.
ACKNOWLEDGEMENTS
All trademarks and registered trademarks mentioned herein are the
property of their respective owners.
CE NOTICE
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
Copyright Notice
FCC NOTICE
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void
your authority to operate such equipment.
Contents
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION
1-1 About This Manual ........................................................ 1-2
1-2 System Specification ...................................................... 1-3
1-3 Safety Precautions ......................................................... 1-5
CHAPTER 2 HARDWARE CONFIGURATION
2-1 Jumper & Connector Quick Reference Table ................ 2-2
2-2 Component Locations .................................................... 2-3
2-3 How to Set the Jumpers ................................................. 2-4
2-4 COM Port Connector ……..…………………………... 2-6
2-5 RS232/422/485(COM2) Selection ................................ 2-7
2-6 Keyboard or PS/2 Mouse Connector .....................….... 2-8
2-7 External Keyboard Connector ....................................... 2-8
2-8 Keyboard or PS/2 Mouse Selection …………………… 2-9
2-9 Reset Connector ............................................................ 2-10
2-10 Hard Disk Drive LED Connector .................................. 2-10
2-11 ATX Power Button ….................................................... 2-10
2-12 External Speaker Connector .......................................... 2-11
2-13 Power LED Connector ……........................................... 2-11
2-14 KeyLock Connector ..………………………………… 2-11
2-15 IrDA Connector ……………………………………… 2-12
2-16 CPU Fan Connector ………………………………….. 2-12
2-17 Clear CMOS Data Selection ………………………… 2-13
2-18 VGA CRT Connector ………………………………… 2-14
2-19 Hard Disk Drive Connector ........................................... 2-15
2-20 Floppy Disk Drive Connector ....................................... 2-16
2-21 Printer Connector .......................................................... 2-17
2-22 Universal Serial Bus Connector ……………………… 2-18
2-23 LAN Connector ………………………………………. 2-18
2-24 ATX Power Connector ……………………………….. 2-19
2-25 5VSB Connector ……….……………………….…… 2-19
2-26 AT/ATX Power Selection …………………………….. 2-20
Contents
2-27 Inverter Connector …………………………………….. 2-21
2-28 CDIN Connector ………………………………………. 2-21
2-29 Sound Connector ………………………………………. 2-21
2-30 Reset / NMI Watchdog Selection………………………… 2-22
2-31 LVDS Connector ………………………………………. 2-23
2-32 LVDS Panel Voltage Selection ……………………….. 2-24
CHAPTER 3 SOFTWARE UTILITIES
3-1 Introduction …………..........................................…....... 3-2
3-2 VGA Driver Utility ……………………………….…… 3-2
3-3 Flash BIOS Update ..............................................…....... 3-3
3-4 LAN Driver Utility …...........................................…...... 3-5
3-5 Sound Driver Utility …………………………………… 3-6
3-6 Intel Chipset Software Installation Utility …..……..….. 3-7
3-7 USB2.0 Software Installation Utility ………………….. 3-8
3-8 Watchdog Configuration ……………………………… 3-9
CHAPTER 4 AWARD BIOS SETUP
4-1 Introduction ................................................................... 4-2
4-2 Entering Setup ............................................................... 4-3
4-3 The Standard CMOS Features ………............................ 4-4
4-4 The Advanced BIOS Features ....................................... 4-8
4-5 Advanced Chipset Features ........................................... 4-11
4-6 Integrated Peripherals …............................................... 4-14
4-7 Power Management Setup ............................................. 4-19
4-8 PNP/PCI Configuration …............................................. 4-20
4-9 PC Health Status …….................................................... 4-22
4-10 Frequency Control ....................................…………...... 4-24
4-11 Load Fail-Safe Defaults ................................................. 4-26
4-12 Load Optimized Defaults .........................................…. 4-26
4-13 Set Supervisor Password ……………………………… 4-27
4-14 Save & Exit Setup ......................................................... 4-28
4-15 Exit Without Saving ………………………………… 4-29
Contents
APPENDIX A EXPANSION BUS
ISA Bus Pin Assignment ..............................................…......... A-2
PC/104 Connector ..........................………....................…........ A-3
Compact Flash Card Connector Pin Assignment ……………. A-4
APPENDIX B TECHNICAL SUMMARY
Block Diagram ........................................................................... B-2
Interrupt Map ............................................................................ B-3
RTC & CMOS RAM Map ........................................................ B-4
Timer & DMA Channels Map .................................................. B-5
I/O & Memory Map ...............................................…................ B-6
Page:1-1
INTRODUCTION
This chapter gives you the information for ISA-562LF. It also
outlines the System specification.
Section includes:
z About This Manual
z System Specifications
z Safety precautions
Experienced users can skip to chapter 2 on page 2-1
for Quick Start.
CHAPTER
1
Chapter 1 Introduction
Page: 1-2
ISA-562LF USER
′
S MANUAL
1-1. ABOUT THIS MANUAL
Thank you for purchasing our ISA-562LF Intel® processor, Half Size Card
enhanced with VGA / Sound/ LAN, which is fully PC / AT compatible. ISA562LF provides faster processing speed, greater expandability and can handle
more task than before. This manual is designed to assist you how to install and
set up the system. It contains four chapters. The user can apply this manual for
configuration according to the following chapters :
Chapter 1 Introduction
This chapter introduces you to the background of this manual, and the
specification for this system. Final part of this chapter will indicate you how
to avoid damaging this Embedded Card.
Chapter 2 Hardware Configuration
This chapter outlines the component location and their functions. In the end of
this chapter, you will learn how to set jumper and how to config ure this card
to meet your own needs.
Chapter 3 Software Utilities
This chapter contains helpful information for proper installations of the VGA
utility, LAN utility, sound utility, and BIOS update. It also describes the
Watchdog timer configuration.
Chapter 4 Award BIOS Setup
This chapter indicates you how to set up the BIOS configurations.
Appendix A Expansion Bus
This Appendix introduces you the expansion bus for ISA Bus, PC/104
connector and Compact Flash.
Appendix B Technical Summary
This section gives you the information about the Technical maps.
Chapter 1 Introduction
ISA-562LF USER′S MANUAL
Page: 1-3
1-2. SYSTEM SPECIFICATION
z CPU :
Intel® processor
ULV Celeron® M 1GHz / Intel® Pentium® M L 1.4GHz
System bus frequency at 400MHz
Auto detect voltage regulator
z SYSTEM CHIPSET :
Intel® 855GME chipset
z MEMORY :
Supports up to 1GB DDR333 SDRAM.
One 200-pin DDR SO-DIMM sockets on board
z CACHE :
Built-in CPU
z REAL-TIME CLOCK / CALENDAR :
256-byte battery backed CMOS RAM.
Hardware implementation to indicate century rollover
z BIOS :
Phoenix-AwardBIOS™ for plug & play function
Memory size with 4 MB, with VGA BIOS
z KEYBOARD/MOUSE CONNECTOR :
Mini DIN connector, selectable for Keyboard, PS/2 Mouse, or Y-Cable
One additional 4-pin External keyboard connector
z UNIVERSAL SERIAL BUS :
Universal Serial Bus Connector on board
Supports up to two USB 2.0 ports.
z BUS SUPPORT :
One ISA Bus
One PC/104
One Compact Flash Bus
Chapter 1 Introduction
Page: 1-4
ISA-562LF USER
′
S MANUAL
z DISPLAY :
Integrated Graphic in Intel® 855GME
Support D-Sub 15 pin VGA connector
Support 18/24 bit LVDS connector
Support 3.3V/5V LVDS Panel Power Selection
Support 12V Panel Backlight
* 24 bit hardware is ready but Intel does not recommend using.
z IDE INTERFACE :
One IDE ports support up to two IDE devices.
Supports Ultra DMA 33/66/100.
Compact Flash is connected at secondary IDE Bus.
z FLOPPY DISK DRIVER INTERFACE :
Supports up to two Floppy Disk Drives, 3.5" and 5.25".
z LAN INTERFACE :
Intel® 82562ET 10/100 Mbps Ethernet.
Supports Wake-on-LAN with ATX power.
z SERIAL PORT :
Two high speed 16550 Compatible UARTs with Send / Receive 16 Byte
FIFOs. COM1 for RS232; COM2 for RS232/422/485.
z PARALLEL PORT :
One port supports SPP / ECP / EPP Function.
z HARDWARE MONITORING FUNCTION :
Monitor Voltage, CPU Temperature and Cooling Fan.
z IRDA PORT :
One 5-pin Infrared connector
Supports IrDA v1.0 SIR protocol.
z LED INDICATOR :
HDD LED, Power LED.
z SOUND :
Realtek ALC202A (AC’ 97 Codec)
Chapter 1 Introduction
ISA-562LF USER′S MANUAL
Page: 1-5
z OPERATING TEMPERATURE :
0 to 60°C (32°F to 140°F)
z INPUT POWER REQUIREMENT :
ATX power: +5V, +12, 5VSB.
AT power: +5V, +12V.
z BOARD DIMENSION :
185mm x 122mm (7.28” x 4.8”)
z BOARD NET WEIGHT :
310 grams (0.68 lb)
1-3. EXTRA INDUSTRIAL APPLICATION FEATURES
z WATCH DOG TIMER :
Watchdog Timer controllable by software, customer application 1~255 second
watchdog timer time-out value.
Reset upon mouse/keyboard, SMI or system reset.
1-4. SAFETY PRECAUTIONS
Follow the messages below to avoid your systems from damage:
1. Avoid your system from static electricity on all occasions.
2. Prevent electric shock. Don‘t touch any components of this card when the card
is power-on. Always disconnect power when the system is not in use.
3. Disconnect power when you change any hardware devices. For instance, when
you connect a jumper or install any cards, a surge of power may damage the
electronic components or the whole system.
Page 2-1
HARDWARE
CONFIGURATION
** QUICK START **
CHAPTER
2
Helpful information describes the jumper & connector settings, and
component locations.
Section includes:
z Jumper & Connector Quick Reference Table
z Component Locations
z Configuration and Jumper settings
z Connector’s Pin Assignments
Chapter 2 Hardware Configuration
Page: 2-2
ISA-562LF USER
′
S MANUAL
2-1. JUMPER & CONNECTOR QUICK REFERENCE TABLE
COM Port Connector ....................…..................………
COM1, COM2
RS232/422/485 (COM2) Selection .....................………
JP2
Keyboard/ Mouse Connector ..........….....……………..
DIN1
External Keyboard Connector …………………………
EXKB1
Keyboard/Mouse Selection …………………………….
JP16
Reset Connector .........................…....................……….
JPANEL1 (9,11)
Hard Disk Drive LED Connector .......................……….
JPANEL1 (5,7)
ATX Power Button ……………………………………..
JPANEL1 (10,12)
External Speaker Connector ....…........................………
JPANEL1 (1,3)
Power LED Connector …………….…...............………
JPANEL1 (4,6,8)
KeyLock Connector …………………………………….
JPANEL1 (13,14)
IrDA Connector ………………………………………..
………………………………………..
JPANEL1 (17,18,19,20)
JIRDA1
CPU Fan Connector ……………………………………
JCFAN1
Clear CMOS Data Selection ……………………………
JP13
VGA Connector …................……..……………………
VGA1
Hard Disk Drive Connector …..............…….........…….
IDE1
Floppy Disk Drive Connector ….............…….......…….
FDD1
Printer Connector …........................…...…….........……
LPT1
Universal Serial Bus Connector …........................…..…
JUSB1
LAN Connector …....................................……....……...
LAN1
ATX Power Connector …………………………………
PW1
5VSB Connector ………………………………………
J6
AT/ATX Power Selection ……………………………..
JP14, JP1
Reset/NMI Watchdog Selection ………………………..
JP18
Inverter Connector ……………………………………
J3
CDIN Connector ………………………………………
JCDIN1
Sound Connector ……………………………………….
J4
LVDS Connector ………………………………………
LVDS1
LVDS Voltage Selection ………………………………
JP7
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-3
2-2. COMPONENT LOCATIONS

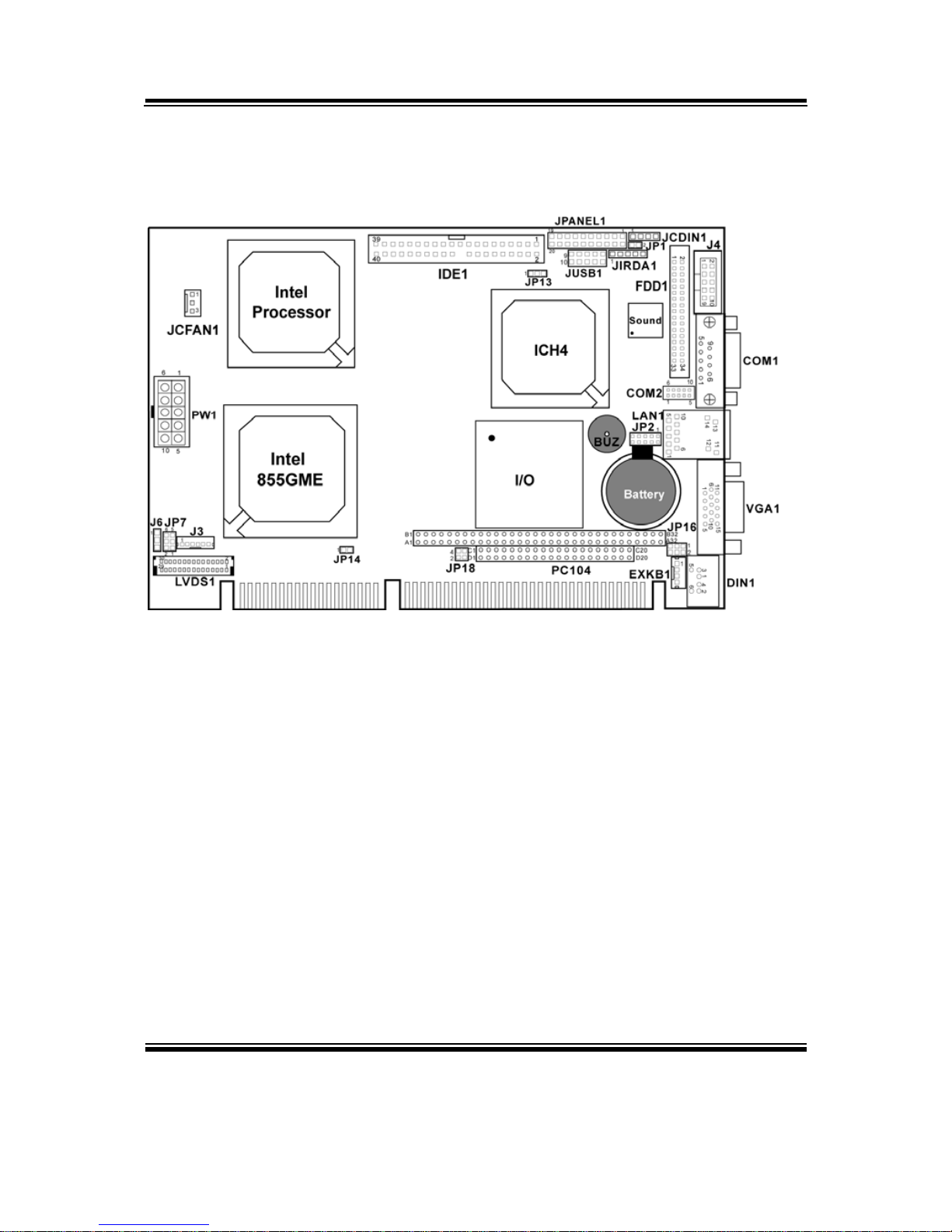

ISA-562LF Connector, Jumper and Component locations
Chapter 2 Hardware Configuration
Page: 2-4
ISA-562LF USER
′
S MANUAL
2-3. HOW TO SET THE JUMPERS
You can configure your board by setting jumpers. Jumper is consists of
two or three metal pins with a plastic base mounted on the card, and by
using a small plastic "cap", Also known as the jumper cap (with a metal
contact inside), you are able to connect the pins. So you can set-up your
hardware configuration by "open" or "close" pins.
The jumper can be combined into sets that called jumper blocks. When the
jumpers are all in the block, you have to put them together to set up the
hardware configuration. The figure below shows how this looks like.
JUMPERS AND CAPS
If a jumper has three pins (for examples, labelled PIN1, PIN2, and PIN3),
You can connect PIN1 & PIN2 to create one setting and shorting. You can
either connect PIN2 & PIN3 to create another setting. The same jumper
diagrams are applied all through this manual. The figure below shows what
the manual diagrams look and what they represent.
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-5
JUMPER DIAGRAMS
2 pin Jumper
looks like this
Jumper Ca p
looks like this
3 pin Jumper
looks like this
Jumper Bl o ck
looks like this
JUMPER SETTINGS
Looks like this
3 pin Jumper
2-3 pin close(ena b led)
Looks like this
Jumper Block
1-2 pin close(ena b led)
2 pin Jumper close(enabled)
1
1
1
2
12
1
1
Looks like this
Chapter 2 Hardware Configuration
Page: 2-6
ISA-562LF USER
′
S MANUAL
2-4. COM PORT CONNECTOR
COM1 : COM1 Connector
COM1 is fixed as RS-232.
The pin assignment is as follows :
PIN ASSIGNMENT
1 COM1_DCD
2 COM1_RXD
3 COM1_TXD
4 COM1_DTR
5 GND
6 COM1_DSR
7 COM1_RTS
8 COM1_CTS
9 COM1_RI
NC NC
COM2 : COM2 Connector
The COM2 is selectable as RS-232/422/485.
The pin assignment is as follows :
ASSIGNMENT
PIN
RS-232 RS-422 RS-485
1 COM2_DCD TXN TXN
2 COM2_RXD TXP TXP
3 COM2_TXD RXP RXP
4 COM2_DTR RXN RXN
5 GND GND GND
6 COM2_DSR RTSN NC
7 COM2_RTS RTSP NC
8 COM2_CTS CTSP NC
9 COM2_RI CTSN NC
10 NC NC NC
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-7
2-5. RS232/422/485 (COM2) SELECTION
JP2 : RS-232/422/485 (COM2) Selection
This connector is used to set the COM2 function.
The jumper settings are as follows :
COM 2
Function
Jumper Settings
(pin closed)
Jumper
Illustrations
RS-232
open
RS-422 1-2, 3-4, 9-10
RS-485 1-2, 5-6, 7-8
*** Manufactory default --- RS-232.
Chapter 2 Hardware Configuration
Page: 2-8
ISA-562LF USER
′
S MANUAL
2-6. KEYBOARD OR PS/2 MOUSE CONNECTOR
DIN1 : Keyboard or PS/2 Mouse Connector
DIN connector can support keyboard, Y-cable, or PS/2 Mouse, user may
select the right device to used on “Keyboard or PS/2 Mouse Selection”.
The pin assignments are as follows :
ASSIGNMENT
PIN
Keyboard PS/2 Mouse
1 KDAT MDAT
2 MDAT MDAT
3 GND GND
4 V5SB V5SB
5 KCLK MCLK
6 MCLK MCLK
2-7. EXTERNAL KEYBOARD CONNECTOR
EXKB1 : External Keyboard Connector
The pin assignment is as follows :
PIN ASSIGNMENT
1 KCLK
2 KDAT
3 GND
4 V5SB
1
2
3
4
5
6
DIN1
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-9
2-8. KEYBOARD OR PS/2 MOUSE SELECTION
JP16 : Keyboard or PS/2 Mouse Selection
For Y-Cable user, please set the jumper same as AT keyboard.
The jumper settings are as follows:
DEVICE
TYPE
JUMPER SETTING
(pin closed)
JUMPER
ILLUSTRATION
AT KEYBOARD
3-5
4-6
PS/2 MOUSE
1-3
2-4
*** Manufactory default -- AT Keyboard.
Chapter 2 Hardware Configuration
Page: 2-10
ISA-562LF USER
′
S MANUAL
2-9. RESET CONNECTOR
JPAENL1 (9,11) : Reset Connector.
The pin assignment is as follows :
PIN ASSIGNMENT
9 GND
11 RST_SW
2-10. HARD DISK DRIVE LED CONNECTOR
JPAENL1 (5,7) : Hard Disk Drive LED Connector
The pin assignment is as follows :
PIN ASSIGNMENT
5 +3.3V
7 HD_LED
2-11. ATX POWER BUTTON
JPANEL1 (10,12) : ATX Power Button
The pin assignment is as follows :
PIN ASSIGNMENT
10 V5SB
12 PWB_SIOJ
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-11
2-12. EXTERNAL SPEAKER CONNECTOR
JPANEL1 (1,3) : External Speaker Connector
The pin assignment is as follows :
PIN ASSIGNMENT
1 SPK3
3 VCC
2-13. POWER LED CONNECTOR
JPAENL1 (4,6,8) : Power LED Connector
The pin assignment is as follows:
PIN ASSIGNMENT
4 VCC
6 VCC
8 PLED
2-14. KEYLOCK CONNECTOR
JPAENL1 (13,14) : Keylock Connector
The pin assignment is as follows:
PIN ASSIGNMENT
13 KEYLOCKJ
14 GND
Chapter 2 Hardware Configuration
Page: 2-12
ISA-562LF USER
′
S MANUAL
2-15. IRDA CONNECTOR
JPANEL1 (17,18,19,20): IrDA (Infrared) Connector
The pin assignments are as follows:
PIN ASSIGNMENT
17 VCC
18 GND
19 IRTX2
20 IRRX2
JIRDA1: IrDA (Infrared) Connector.
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCC
2 NC
3 IRRX
4 GND
5 IRTX
2-16. CPU FAN CONNECTOR
JCFAN1 : CPU Fan connector
The pin assignment is as follows:
PIN ASSIGNMENT
1 GND
2 +12V
3 FAN1
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-13
2-17. CLEAR CMOS DATA SELECTION
JP13 : Clear CMOS Data Selection
The selections are as follows :
FUNCTION
JUMPER SETTING
(pin closed)
JUMPER
ILLUSTRATION
Clear CMOS 2-3
Normal 1-2
*** Manufacturing Default is set as Normal.
Note: To clear CMOS data, user must power-off the computer and set the jumper to
“Clear CMOS” as illustrated above. After five to six seconds, set the jumper
back to “Normal” and power-on the computer.
Chapter 2 Hardware Configuration
Page: 2-14
ISA-562LF USER
′
S MANUAL
2-18. VGA CONNECTOR
VGA1 : VGA CRT Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 RED
2 GREEN
3 BLUE
4 NC
5 GND
6 GND
7 GND
8 GND
9 VCC
10 GND
11 NC
12 VGA IIC DATA
13 HSYNC
14 VSYNC
15 VGA IIC CLK
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-15
2-19. HARD DISK DRIVE CONNECTOR
IDE1: Hard Disk Drive Connector
The pin assignments are as follows:
PIN ASSIGNMENT PIN ASSIGNMENT
1 IDERSTJ 2 GND
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 NC
21 PDREQ 22 GND
23 PDIOWJ 24 GND
25 PDIORJ 26 GND
27 PDIORDY 28 PULL LOW
29 PDDACKJ 30 GND
31 IRQ14 32 NC
33 PDA1 34 PD66_DECT
35 PDA0 36 PDA2
37 PDCSJ1 38 PDCSJ3
39 IDEACTPJ 40 GND
Chapter 2 Hardware Configuration
Page: 2-16
ISA-562LF USER
′
S MANUAL
2-20. FLOPPY DISK DRIVE CONNECTOR
FDD1 : Floppy Disk Drive Connector
You can use a 34-pin daisy-chain cable to connect two-FDDs. On one
end of this cable is a 34-pin flat cable to attach the FDD on the board, and
the other side is attaches two FDDs.
The pin assignments are as follows :
PIN ASSIGNMENT PIN ASSIGNMENT
1 GND 2 RWCJ
3 GND 4 NC
5 NC 6 DS1J
7 GND 8 INDEXJ
9 GND 10 MOAJ
11 GND 12 DSBJ
13 GND 14 DSAJ
15 GND 16 MOBJ
17 GND 18 DIRJ
19 GND 20 STEPJ
21 GND 22 WDJ
23 GND 24 WENJ
25 GND 26 TRAK0J
27 GND 28 WPJ
29 GND 30 RDATAJ
31 GND 32 HEADJ
33 GND 34 DSKCHGJ
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-17
2-21. PRINTER CONNECTOR
LPT1 : Printer Connector
As to link the Printer to the card, you need a cable to connect both DB25
connector and parallel port.
The pin assignments are as follows :
PIN ASSIGNMENT PIN ASSIGNMENT
1 PRNSTRBJ 14 PRNALFJ
2 PRND0 15 PRNERRORJ
3 PRND1 16 PRNPARINITJ
4 PRND2 17 PRNSLCTINJ
5 PRND3 18 GND
6 PRND4 19 GND
7 PRND5 20 GND
8 PRND6 21 GND
9 PRND7 22 GND
10 PRNACKJ 23 GND
11 PRNBUSY 24 GND
12 PRNPE 25 GND
13 PRNSLCTJ 26 NC
Chapter 2 Hardware Configuration
Page: 2-18
ISA-562LF USER
′
S MANUAL
2-22. UNIVERSAL SERIAL BUS CONNECTOR
JUSB1: Universal Serial Bus Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 USBV0
2 USBV1
3 USBC0N
4 USBC1N
5 USBC0P
6 USBC1P
7 GND
8 GND
9 GND
10 GND
2-23. LAN CONNECTOR
LAN1: LAN Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 TXP
2 TXN
3 RXP
4 CGND
5 CGND
6 RXN
7 CGND
8 CGND
LAN LED Indicator:
Left side LED:
Green Color On 10/100 LAN Speed Indicator
Off No LAN switch/hub connected
Right side LED:
Yellow Color Blinking LAN Message Active
Off No LAN Message Active
LAN1
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-19
2-24. ATX POWER CONNECTOR
PW1 : ATX Power Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 VCC
2 VCC
3 GND
4 GND
5 +12V
6 V5SB
7 VCC
8 GND
9 PSON
10 -12V
2-25. 5VSB CONNECTOR
J6 : 5VSB Connector
The pin assignments are as follows:
PIN ASSIGNMENT
1 V5SB
2 GND
3 PSON
Chapter 2 Hardware Configuration
Page: 2-20
ISA-562LF USER
′
S MANUAL
2-26. AT/ATX POWER SELECTION
JP1, JP14 : AT/ATX Power Selection
The selections are as follows :
JUMPER SETTING
(pin closed)
FUNCTION
JP1 JP14
JUMPER
ILLUSTRATION
AT 1-2 Open
ATX Open 1-2
*** Manufacturing Default is set as ATX.
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-21
2-27. INVERTER CONNECTOR
J3 : Inverter Connector
The pin assignment is as follows:
PIN ASSIGNMENT
1 +12V
2 GND
3 VCC
4 NC
5 BKLTEN
2-28. CDIN CONNECTOR
JCDIN1 : CDIN Connector
The pin assignment is as follows:
PIN ASSIGNMENT
1 CD_L
2 CDGND
3 CDGND
4 CD_R
2-29. SOUND CONNECTOR
J4 : Sound Connector
The pin assignment is as follows:
PIN ASSIGNMENT PIN ASSIGNMENT
1 MIC_IN 2 NC
3 GND 4 GND
5 LINE_L 6 LINE_R
7 GND 8 GND
9 SPK_L 10 SPK_R
Chapter 2 Hardware Configuration
Page: 2-22
ISA-562LF USER
′
S MANUAL
2-30. RESET/NMI WATCHDOG SELECTION
JP18 : Reset/NMI Watchdog Selection
The selections are as follows:
FUNCTION
JUMPER SETTING
(pin closed)
JUMPER
ILLUSTRATION
RESET 1-2
NMI 3-4
***Manufacturing Default is set as Reset.
Chapter 2 Hardware Configuration
ISA-562LF USER′S MANUAL
Page: 2-23
2-31. LVDS CONNECTOR
LVDS1 : LVDS Connector.
The pin assignments are as follows:
LVDS1
2
1
30
29
PIN ASSIGNMENT PIN ASSIGNMENT
1 LVDS_VCC 2 GND
3 CLKBM 4 CLKBP
5 GND 6 YBM2
7 YBP2 8 GND
9 YBM1 10 YBP1
11 YBP3 12 YBM3
13 YBP0 14 YBM0
15 GND 16 CLKAP
17 CLKAM 18 GND
19 YAP2 20 YAM2
21 GND 22 YAP1
23 YAM1 24 GND
25 YAP0 26 YAM0
27 YAP3 28 YAM3
29 LVDS_VCC 30 LVDS_VCC
Chapter 2 Hardware Configuration
Page: 2-24
ISA-562LF USER
′
S MANUAL
2-32. LVDS PANEL VOLTAGE SELECTION
JP7 : LVDS Panel Voltage Selection.
The selections are as follows:
SELECTION
JUMPER SETTING
JUMPER
ILLUSTRATION
LVDS_VCC3 1-3, 2-4
LVDS_VCC5 3-5, 4-6
***Manufacturing Default is set as LVDS_VCC3.
Page: 3-1
SOFTWARE
UTILITIES
This chapter comprises the detailed information of VGA driver, LAN
driver, and Flash BIOS update. It also describes how to install the
watchdog timer configuration.
Section includes:
z VGA Driver Utility
z Flash BIOS Update
z LAN Driver Utility
z Sound Driver Utility
z Intel® Chipset Software Installation Utility
z USB2.0 Chipset Software Installation Utility
z Watchdog Configuration
CHAPTER
3
Chapter 3 Software Configuration
Page:3-2
ISA-562LF USER
′
S MANUAL
3-1. INTRODUCTION
Enclosed with our ISA-562LF package is our driver utility, which may
comes in a form of a CD ROM disc or floppy diskettes. For CD ROM disc
user, you will only need some of the files contained in the CD ROM disc,
please kindly refer to the following chart:
Filename
(Assume that CD ROM drive is D:)
Purpose
D:\Driver\VGA
Intel 855GME
For VGA driver installation
D:\Driver\FLASH For BIOS update utility
D:\Driver\LAN For LAN Driver installation
D:\Driver\Sound Realtel ALC202A AC97
For Sound driver installation
D:\Driver\UTILITY Intel® Chipset Software
Installation Utility
For Win 98SE,ME, 2000, XP
D:\Driver\USB 2.0 USB 2.0 Software Installation
Utility
For Win 98SE, 2000, ME, XP
User should remember to install the Utility right after the OS fully installed.
3-2. VGA DRIVER UTILITY
The VGA interface embedded with our ISA-562LF can support a wide
range of display. You can display CRT, LVDS simultaneously with the
same mode.
Chapter 3 Software Configuration
ISA-562LF USER′S MANUAL
Page:3-3
1. Win 9X program
2. Win NT4.0 program
3. Win 2000 program
4. Win XP program
3-2-1. Installation of VGA Driver:
To install the VGA Driver, simply follow the following steps:
1. Place insert the Utility Disk into Floppy Disk Drive A/B or CD
ROM drive.
2. Under Windows 9X/NT4.0/2000/XP system, go to the directory
where VGA driver is located.
3. Click Setup.exe file for VGA driver installation.
4. Follow the instructions on the screen to complete the installation.
5. Once installation is completed, shut down the system and restart in
order for the changes to take effect.
Under the Windows 98 system, after rebut computer, there will have two
error messages appear, “Can’t find ikch8xx.cat and isb8xx.cat”, just skip the
messages, they will not cause any effects.
Chapter 3 Software Configuration
Page:3-4
ISA-562LF USER
′
S MANUAL
3-3. FLASH BIOS UPDATE
3-3-1. System BIOS Update:
Users of ISA-562LF can use the program “Awdflash.exe” contained in
the Utility Disk for system BIOS and VGA BIOS update.
3-3-2. To update VGA BIOS for LCD Flat Panel Display:
As ISA-562LF user, you have to update the VGA BIOS for your specific
LCD flat panel you are going to use. For doing this, you need two files.
One is the “Awdflash.exe” file and the other is the VGA BIOS for ATI
Rage Mobility M6 file for LCD panel display. Both file must be
provided by the vendor or manufacturer. When you get these two files
ready, follow the following steps for updating your VGA BIOS:
1. Install “Awdflash.exe” from Utility Disk to Drive C.
2. Insert the VGA BIOS file you have obtained from the vendor.
Type the path to Awdflash.exe and execute the VGA BIOS update
with file H562xxxx.bin
3. C:\UTIL\AWDFLASH>AWDFLASH H562xxxx.bin
4. The screen will display as the table fount on the next page:
FLASH MEMORY WRITER v7.XX
(C) Award Software 2001 All Rights Reserved
Flash Type – SST 49LF004A /3.3V
File Name to Program: H562xxxx.bin
Checksum: XXXXX
Error Message: Do You Want To Save BIOS (Y/N)
If you want to save up the original BIOS, enter "Y" and press < Enter >.
If you choose "N", the following table will appear on screen.
Chapter 3 Software Configuration
ISA-562LF USER′S MANUAL
Page:3-5
FLASH MEMORY WRITER v7.XX
(C) Award Software 2001 All Rights Reserved
Flash Type – SST 49LF004A /3.3V
File Name to Program: H562xxxx.bin
Checksum: XXXXX
Error Message : Are You Sure To Program (Y/N)
Select "Y", and the BIOS will be renewed. When you are refreshing the
BIOS, do not turn off or reset the system, or you will damage the BIOS.
After you have completed all the programming, the screen displays the
table below:
FLASH MEMORY WRITER v7.XX
(C) Award Software 2001 All Rights Reserved
Flash Type – SST 49LF004A /3.3V
File Name to Program: H562xxxx.bin
Checksum: XXXXX
Reset System or Power off to
accomplish update process!
F1: Reset F10: Exit
Please reset or power off the system, and then the Flash BIOS is fully
implemented.
Chapter 3 Software Configuration
Page:3-6
ISA-562LF USER
′
S MANUAL
3-4. LAN DRIVER UTILITY
3-4-1. Introduction
ISA-562LF is enhanced with LAN function that can support various
network adapters. Installation programs for LAN drivers are listed as
follows:
For more details on Installation procedure, please refer to Readme.txt
file found on LAN DRIVER UTILITY.
Chapter 3 Software Configuration
ISA-562LF USER′S MANUAL
Page:3-7
3-5. SOUND DRIVER UTILITY
3-5-1. Introduction
The Realtek ALC202A sound function enhanced in this system is fully
compatible with Windows 98, Windows NT 4.0, Windows 2000,
Windows XP. Below, you will find the content of the Sound driver :
3-5-2. Installation Procedure for Windows 9x/NT/2000/XP
1. From the task bar, click on Start, and then Run.
2. In the Run dialog box, type D:\Sound\path\setup, where
“D:\Sound\pathname” refers to the full path to the source files.
3. Click on the OK button or press the ENTER key.
4. Click on the “Next” and OK prompts as they appear.
5. Reboot the system to complete the driver installation.
Chapter 3 Software Configuration
Page:3-8
ISA-562LF USER
′
S MANUAL
3-6. INTEL® C HIPSET SOFTWARE INSTALLATION UTILITY
3-6-1. Introduction
The Intel® Chipset Software Installation Utility installs to the target
system the Windows* INF files that outline to the operating system how
the chipset components will be configured. This is needed for the
proper functioning of the following features:
- Core PCI and ISAPNP Services
- AGP Support
- IDE/ATA33/ATA66/ATA100 Storage Support
- USB Support
- Identification of Intel® Chipset Components in Device Manager
3-6-2. Installation of Utility for Windows 98SE/ME/2000/XP
The Utility Pack is to be installed only for Windows 98SE, Windows
ME, Windows 2000 and XP program.
It should be installed right after the OS installation, kindly follow the
following steps:
1. Place insert the Utility Disk into Floppy Disk Drive A/B or CD
ROM drive.
2. Under Windows 98SE/ME/2000/XP system, go to the directory
where Utility Disc is located.
3. Click Setup.exe file for utility installation.
4. Follow the instructions on the screen to complete the installation.
5. Once installation is completed, shut down the system and restart in
order for the changes to take effect.
Chapter 3 Software Configuration
ISA-562LF USER′S MANUAL
Page:3-9
3-7. USB2.0 SOFTWARE INSTALLATION UTILITY
3-7-1. Installation of Utility for Windows 98SE/ 2000/XP
Intel USB 2.0 Enhanced Host Controller driver can only be used on
Windows 98SE, Windows 2000 and Windows XP on Intel Desktop
boards. It should be installed right after the OS installation, kindly
follow the following steps:
1. Place insert the Utility Disk into Floppy Disk Drive A/B or CD
ROM drive.
2. Under Windows 98SE, 2000, and XP system, go to the directory
where Utility Disc is located.
3. Start the “System” wizard in control panel. (Click
Start/Settings/Control Panel).
4. Select “Hardware” and click “Device Manager ” button.
5. Double Click “USB Root Hub”.
6. Select “Driver”.
7. Click “Install” to install the driver.
8. Follow the instructions on the screen to complete the installation.
9. Click “Finish” after the driver installation is complete.
Chapter 3 Software Configuration
Page:3-10
ISA-562LF USER
′
S MANUAL
3-8. WATCHDOG TIMER CONFIGURATION
The I/O port address of the watchdog timer is 2E(hex) and 2F(hex). 2E (hex) is the
address port. 2F(hex) is the data port. User must first assign the address of register by
writing address value into address port 2E(hex), then write/read data to/from the
assigned register through data port 2F (hex).
Configuration Sequence
To program W83627HF configuration registers, the following configuration sequence
must be followed:
(1) Enter the extended function mode
(2) Configure the configuration registers
(3) Exit the extended function mode
(1) Enter the extended function mode
To place the chip into the extended function mode, two successive writes of 0x87
must be applied to Extended Function Enable Registers (EFERs, i.e. 2Eh).
(2) Configurate the configuration registers
The chip selects the logical device and activates the desired logical devices through
Extended Function Index Register (EFIR) and Extended Function Data Register
(EFDR). EFIR is located at the same address as EFER, and EFDR is located at
address (EFIR+1).
First, write the Logical Device Number (i.e.,0x07) to the EFIR and then write the
number of the desired logical device to the EFDR. Secondly, write the address of the
desired configuration register within the logical device to the EFIR and then write (or
read) the desired configuration register through EFDR.
(3) Exit the extended function mode
To exit the extended function mode, one write of 0xAA to EFER is required. Once
the chip exits the extended function mode.
Example Program
1. Enable watchdog timer and set 30 sec. as timeout interval
;----------------------------------------------------------Mov dx, 2eh ; Enter to extended function mode
Mov al, 87h
Out dx, al
Out dx, al
;----------------------------------------------------------Mov al, 07h ; Select Logical Device 8 of watchdog timer
Chapter 3 Software Configuration
ISA-562LF USER′S MANUAL
Page:3-11
Out dx,al
Inc dx
Mov al, 08h
Out dx,al
;----------------------------------------------------------Mov al, 30h ; Enable Watchdog Function
Out dx,al
Inc dx
Mov al, 01h
Out dx,al
;----------------------------------------------------------Dec dx ; Set second as counting unit
Mov al, 0f5h
Out dx,al
Inc dx
In al,dx
And al,not 08h
Out dx,al
;----------------------------------------------------------Dec dx ; Set timeout interval as 30seconds and start counting
Mov al, 0f6h
Out dx,al
Inc dx
Mov al, 30
Out dx,al
;----------------------------------------------------------Dec dx ; Exit the extended function mode
Mov al, 0aah
Out dx,al
Page: 4-1
AWARD
BIOS SETUP
This chapter shows how to set up the Award BIOS.
Section includes:
z Introduction
z Entering Setup
z The Standard CMOS Features
z The Advanced BIOS Features
z The Advanced Chipset Features
z Integrated Peripherals
z Power Management Setup
z PNP/PCI Configuration
z PC Health Status
z Frequency Control
z Load Fail-Safe Defaults
z Load Optimized Defaults
z Set Supervisor Password
z Set User Password
z Save and Exit Setup
z Exit Without Saving
CHAPTER
4
Chapter 4 Award BIOS Setup
Page: 4-2
ISA-562LF USER
′
S MANUAL
4-1. INTRODUCTION
This chapter will show you the function of the BIOS in managing the
features of your system. The ISA-562LF Intel® processor, Half Size Card is
equipped with the BIOS for system chipset from Award Software Inc. This
page briefly explains the function of the BIOS in managing the special
features of your system. The following pages describe how to use the BIOS
for system chipset Setup menu.
Your application programs (such as word processing, spreadsheets, and
games) rely on an operating system such as DOS or OS/2 to manage such
things as keyboard, monitor, disk drives, and memory.
The operating system relies on the BIOS (Basic Input and Output system), a
program stored on a ROM (Read-only Memory) chip, to initialize and
configure your computer's hardware. As the interface between the hardware
and the operating system, the BIOS enables you to make basic changes to
your system's hardware without having to write a new operating system.
The following diagram illustrates the interlocking relationships between the
system hardware, BIOS, operating system, and application program:
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-3
4-2. ENTERING SETUP
When the system is powered on, the BIOS will enter the Power-On Self
Test (POST) routines and the following message will appear on the lower
screen:
PRESS <DEL> TO ENTER SETUP, ESC TO SKIP MEMORY TEST
As long as this message is present on the screen you may press the <Del>
key (the one that shares the decimal point at the bottom of the number
keypad) to access the Setup program. In a moment, the main menu of the
Award SETUP program will appear on the screen:
Phoenix - AwardBIOS CMOS Setup Utility
►Standard CMOS Features
►Advanced BIOS Features
►Advanced Chipset Features
►Integrated Peripherals
►Power Management Setup
►PnP/PCI Configurations
►PC Health Status
►Frequency Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Esc : Quit ↑↓→← : Select Item
F10 : Save & Exit Setup
Time, Date, Hard Disk Type .…
Setup program initial screen
You may use the cursor the up/down keys to highlight the individual menu
items. As you highlight each item, a brief description of the highlighted
selection will appear at the bottom of the screen.
Chapter 4 Award BIOS Setup
Page: 4-4
ISA-562LF USER
′
S MANUAL
4-3. THE STANDARD CMOS FEATURES
Highlight the〝STANDARD CMOS FEATURES〞and press the <ENTER>
key and the screen will display the following table:
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Date (mm:dd:yy)
Time (hh:mm:ss)
Thu, Jun
9 2005
18 : 28 : 11
Item Help
▶ IDE Primary Master
▶ IDE Primary Slave
▶ IDE Secondary Master
▶ IDE Secondary Slave
Drive A
Drive B
Video
Halt On
Base Memory
Extended Memory
Total Memory
[None]
[None]
[None]
[None]
[1.44M, 3.5 in.]
[None]
[EGA/VGA]
[All, But Keyboard]
640K
489472K
490496K
Menu Level ►
Change the internal
clock.
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
CMOS Setup screen
In the above Setup Menu, use the arrow keys to highlight the item and then use
the <PgUp> or <PgDn> keys to select the value you want in each item.
Date:
< Month >, < Date > and <Year >. Ranges for each value are in the CMOS
Setup Screen, and the week-day will skip automatically.
Time:
< Hour >, < Minute >, and < Second >. Use 24 hour clock format, i.e., for PM
numbers, add 12 to the hour. For example: 4: 30 P.M. You should enter the
time as 16:30:00.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-5
IDE Primary Master / Slave:
IDE Secondary Master / Slave:
The BIOS can automatically detect the specifications and optimal operating
mode of almost all IDE hard drives. When you select type AUTO for a hard
drive, the BIOS detect its specifications during POST, every time system
boots.
If you do not want to select drive type AUTO, other methods of selecting
drive type are available:
1. Match the specifications of your installed IDE hard drive(s) with the
preprogrammed values for hard drive types 1 through 45.
2. Select USER and enter values into each drive parameter field.
3. Use the IDE HDD AUTO DETECTION function in Setup.
Here is a brief explanation of drive specifications:
Type: The BIOS contains a table of pre-defined drive types. Each
defined drive type has a specified number of cylinders, number of heads,
write precompensation factor, landing zone, and number of sectors.
Drives whose specifications do not accommodate any predefine type are
classified as type USER.
• Size: Disk drive capacity (approximate). Note that this size is usually
greater than the size of a formatted disk given by a disk-checking
program.
• Cyls: number of cylinders.
• Head: number of heads.
• Precomp: write precompensation cylinders.
• Landz: landing zone.
• Sector: number of sectors.
• Mode: Auto, Normal, Large or LBA.
Auto: The BIOS automatically determines the optimal mode.
Normal: Maximum number of cylinders, heads, sectors
supported are 1024, 16 and 63.
Large: For drives that do not support LBA and have more
than 1024 cylinders.
Chapter 4 Award BIOS Setup
Page: 4-6
ISA-562LF USER
′
S MANUAL
LBA (Logical Block Addressing): During drive accesses, the
IDE controller transforms the data address described by
sector, head and cylinder number into a physical block
address, significantly improving data transfer rates. For
drives greater than 1024 cylinders.
DRIVE A AND DRIVE B:
Select the type of floppy disk drive installed in your system. The available
options are 360KB 5.25in, 1.2KB 5.25in, 720KB 3.5in, 1.44MB 3.5in,
2.88MB 3.5in and None.
VIDEO:
This category selects the type of video adapter used for the primary system
monitor. Although secondary monitors are supported, you do not have to
select the type in Setup. Available Options are as follows:
EGA/VGA Enhanced Graphics Adapter/Video Graphics Array.
For EGA, VGA, SEGA, SVGA or PGA monitor
adapters.
CGA 40 Color Graphics Adapter, power up in 40 column mode.
CGA 80 Color Graphics Adapter, power up in 80 column mode.
MONO Monochrome adapter, includes high resolution
monochrome adapters.
HALT ON:
This category allows user to choose whether the computer will stop if an error
is detected during power up. Available options are “All errors”, “No errors”,
“All, But keyboard”, “All, But Diskette”, and “All But Disk/Key”.
BASE MEMORY:
Displays the amount of conventional memory detected during boot up.
EXTENDED MEMORY:
Displays the amount of extended memory detected during boot up.
TOTAL MEMORY:
Displays the total memory available in the system.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-7
HARD DISK ATTRIBUTES:
Type Cylinders Heads V-P comp LZone Sect Capacity
1 306 4 128 305 17 10
2 615 4 300 615 17 20
3 615 6 300 615 17 30
4 940 8 512 940 17 62
5 940 6 512 940 17 46
6 615 4 65535 615 17 20
7 642 8 256 511 17 30
8 733 5 65535 733 17 30
9 900 15 65535 901 17 112
10 820 3 65535 820 17 20
11 855 5 65535 855 17 35
12 855 7 65535 855 17 49
13 306 8 128 319 17 20
14 733 7 65535 733 17 42
15 000 0 0000 000 00 00
16 612 4 0000 663 17 20
17 977 5 300 977 17 40
18 977 7 65535 977 17 56
19 1024 7 512 1023 17 59
20 733 5 300 732 17 30
21 733 7 300 732 17 42
22 733 5 300 733 17 30
23 306 4 0000 336 17 10
24 977 5 65535 976 17 40
25 1024 9 65535 1023 17 76
26 1224 7 65535 1223 17 71
27 1224 11 65535 1223 17 111
28 1224 15 65535 1223 17 152
29 1024 8 65535 1023 17 68
30 1024 11 65535 1023 17 93
31 918 11 65535 1023 17 83
32 925 9 65535 926 17 69
33 1024 10 65535 1023 17 85
34 1024 12 65535 1023 17 102
35 1024 13 65535 1023 17 110
36 1024 14 65535 1023 17 119
37 1024 2 65535 1023 17 17
38 1024 16 65535 1023 17 136
39 918 15 65535 1023 17 114
40 820 6 65535 820 17 40
41 1024 5 65535 1023 17 42
42 1024 5 65535 1023 26 65
43 809 6 65535 852 17 40
44 809 6 65535 852 26 61
45 776 8 65335 775 33 100
47 AUTO
Award Hard Disk Type Table
Chapter 4 Award BIOS Setup
Page: 4-8
ISA-562LF USER
′
S MANUAL
4-4. THE ADVANCED BIOS FEATURES
Choose the〝ADVANCED BIOS FEATURES〞in the main menu, the screen
shown as below.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced BIOS Features
Virus Warning
CPU L1 & L2 Cache
[Disabled]
[Enabled]
Item Help
Quick Power On Self Test
First Boot Device
Second Boot Device
Boot Up Floppy Seek
Boot Up NumLock Status
Typematic Rate Setting
x Typematic Rate (Chars/Sec)
x Typematic Delay (Msec)
Security Option
OS Select For DRAM > 64MB
[Enabled]
[Floppy]
[HDD-0]
[Enabled]
[On]
[Disabled]
6
250
[Setup]
[Non-OS2]
Menu Level ►
Allows you to choose
the VIRUS warming
feature for IDE Hard
Disk boot sector
protection. If this
function is enabled and
someone attempt to
write data into this area,
BIOS will show a
warning message on
screen and alarm beep
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
BIOS Features Setup Screen
The “BIOS FEATURES SETUP” allow you to configure your system for
basic operation. The user can select the system’s default speed, boot-up
sequence, keyboard operation, shadowing and security.
A brief introduction of each setting is given below.
VIRUS WARNING :
This item allows you to choose the Virus Warning feature for IDE Hard Disk
boot sector protection. If this function is enabled and someone attempt to
write data into this area, BIOS will show a warning message on screen and
alarm beep.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-9
CPU L1 & L2 CACHE :
This item allows you to enable L1 & L2 cache.
QUICK POWER ON SELF-TEST:
This item allows you to speed up Power On Self Test (POST) after power-up
the computer. When enabled, the BIOS will shorten or skip some check items
during POST.
FIRST/SECOND/ BOOT DEVICE:
The BIOS attempt to load the operating system from the devices in the
sequence selected in these items.
BOOT UP FLOPPY SEEK:
You may enable / disable this item to define whether the system will look for
a floppy disk drive to boot at power-on, or proceed directly to the hard disk
drive.
BOOT UP NUMLOCK STATUS:
Select power on state for NumLock.
TYPEMATIC RATE SETTING:
Enable this item if you wish to be able to configure the characteristics of
your keyboard. Typematic refers to the way in which characters are entered
repeatedly if a key is held down. For example, if you press and hold down
the "A" key, the letter "a" will repeatedly appear on your screen on your
screen until you release the key. When enabled, the typematic rate and
typematic delay can be selected.
TYPEMATIC RATE (CHARS/SEC):
This item sets the number of times a second to repeat a key stroke when you
hold the key down.
TYPEMATIC DELAY (MSEC):
The item sets the delay time after the key is held down before it begins to
repeat the keystroke.
Chapter 4 Award BIOS Setup
Page: 4-10
ISA-562LF USER
′
S MANUAL
SECURITY OPTION:
This category allows you to limit access to the system and Setup, or just to
Setup.
System The system will not boot and access to Setup will be
denied if the correct password is not entered at the
prompt.
Setup The system will boot, but access to Setup will be
denied if the correct password is not entered at the
prompt.
To disable security, select PASSWORD SETTING at Main Menu and
then you will be asked to enter password. Do not type anything and just
press <Enter>, it will disable security. Once the security is disabled, the
system will boot and you can enter Setup freely.
OS SELECT FOR DRAM >64MB :
Select the operating system that is running with greater than 64MB or RAM
on the system. You may choose OS2 or Non-OS2.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-11
4-5. ADVANCED CHIPSET FEATURES
Choose the〝ADVANCED CHIPSET FEATURES〞from the main menu,
the screen shown as below.
Phoenix - AwardBIOS CMOS Setup Utility
Advanced Chipset Features
Item Help
DRAM Timing Selectable
X CAS Latency Time
X Active to Precharge Delay
X DRAM RAS# to CAS# Delay
X DRAM RAS# Precharge
System BIOS Cacheable
Video BIOS Cacheable
Memory Hole At 15M-16M
Delayed Transaction
AGP Aperture Size (MB)
** On-Chip VGA Setting **
On-Chip VGA
On-Chip Frame Buffer Size
Boot Display
Panel Type
Non-Maskable Interrupt
[By SPD]
2
6
3
3
[Enabled]
[Disabled]
[Disabled]
[Enabled]
[64]
[Enabled]
[32MB]
[CRT]
[640x480 18-bits]
[Disabled]
Menu Level ►
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Chipset Features Setup Screen
This parameter allows you to configure the system based on the specific
features of the installed chipset. The chipset manages bus speed and
access to system memory resources, such as DRAM and the external cache.
It also coordinates communications between conventional ISA bus and the
PCI bus. It must be stated that these items should never need to be altered.
The default settings have been chosen because they provide the best operating conditions for the system. The only time you might consider making
any changes would be if you discovered that data was being lost while
using your system.
Chapter 4 Award BIOS Setup
Page: 4-12
ISA-562LF USER
′
S MANUAL
DRAM TIMING BY SELECTABLE:
This allows you to select the DRAM timing.
CAS LATENCY TIME:
When synchronous DRAM is installed, the number of clock cycles of CAS
latency depends on the DRAM timing.
ACTIVE TO PRECHARGE DELAY:
This item controls the number of DRAM clocks for TRAS.
DRAM RAS# TO CAS# DELAY:
This field let’s you insert a timing delay between the CAS and RAS strobe
signals, used when DRAM is written to, read from, or refreshed. Fast gives
faster performance; and Slow gives more stable performance. This field
applies only when synchronous DRAM is installed in the system.
DRAM RAS# PRECHARGE:
If an insufficient number of cycles is allowed for the RAS to accumulate its
charge before DRAM refresh, the refresh may be incomplete and the DRAM
may fail to retain data. Fast gives faster performance; and Slow gives more
stable performance. This field applies only when synchronous DRAM is
installed in the system.
DRAM DATA INTEGRITY MODE:
Select Parity or ECC (error-correcting code), according to the type of installed
DRAM.
SYSTEM BIOS CACHEABLE:
Selecting Enabled allows caching of the system BIOS ROM at F0000hFFFFFh, resulting in better system performance. However, if any program
writes to this memory area, a system error may result.
VIDEO BIOS CACHEABLE:
Select Enabled allows caching of the video BIOS, resulting in better system
performance. However, if any program writes to this memory area, a system
error may result.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-13
MEMORY HOLE AT 15M-16M:
You can reserve this area of system memory for ISA adapter ROM. When
this area is reserved, it cannot be cached. The user information of
peripherals that need to use this area of system memory usually discusses their
memory requirements.
DELAYED TRANSACTION:
The chipset has an embedded 32-bit posted write buffer to support delay
transactions cycles. Select Enabled to support compliance with PCI
specification version 2.1.
AGP APERTURE SIZE:
This field determines the effective size of the Graphic Aperture used for a
particular GMCH configuration. It can be updated by the GMCH-specific
BIOS configuration sequence before the PCI standard bus enumeration
sequence takes place. If it is not updated then a default value will select an
aperture of maximum size.
ON-CHIP VGA :
By default, the On-Chip VGA or chipset-integrated VGA is “Enabled”.
ON-CHIP FRAME BUFFER SIZE: (depend on chipset)
The On-Chip Frame Buffer Size can be set as 1MB or 8MB. This memory is
shared with the system memory.
BOOT DISPLAY: (depend on chipset)
Boot Display determines the display output device where the system boots.
The options are CRT and LVDS.
PANEL TYPE: (depend on chipset)
This field allows user to decide the LVDS panel resolution. The available
choices are: 640x480 18bits, 800x600 18bits, 1024x768 18bits, 1280x1024
36bits, 1400x1050 36bits, 1600x1200 36bits, and 1024x768 24bits.
Chapter 4 Award BIOS Setup
Page: 4-14
ISA-562LF USER
′
S MANUAL
4-6. INTEGRATED PERIPHERALS
Choose〝INTEGRATED PERIPHERALS〞from the main setup menu, a
display will be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
Integrated Peripherals
Item Help
►OnChip IDE Device
►Onboard Device
►SuperIO Device
Watch Dog Timer Select
[Press Enter]
[Press Enter]
[Press Enter]
[Disabled]
Menu Level
►
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Integrated Peripherals Setup Screen
By moving the cursor to the desired selection and by pressing the <F1> key,
the all options for the desired selection will be displayed for choice.
If bios setup menu item supports USB device boot, it will cause Win9x detects
the same storages twice when the system is rebooted, and USB HDD will fail.
Note: this cause just happen under Win9x, the phenomenon is a limitation.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-15
ONCHIP IDE DEVICE:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Phoenix – Award CMOS Setup Utility
OnChip IDE Device
Item Help
OnChip Primary PCI IDE
IDE Primary Master PIO
IDE Primary Slave PIO
IDE Primary Master UDMA
IDE Primary Slave UDMA
OnChip Secondary PCI IDE
IDE Secondary Master PIO
IDE Secondary Slave PIO
IDE Secondary Master UDMA
IDE Secondary Slave UDMA
IDE HDD Block Mode
[Enabled]
[Auto]
[Auto]
[Auto]
[Auto]
[Enabled]
[Auto]
[Auto]
[Auto]
[Auto]
[Enabled]
Menu Level ►
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
1. OnChip Primary PCI IDE
The integrated peripheral controller contains an IDE interface with
support for two IDE channels. Select Enabled to activate each channel
separately.
2. Primary Master/Slave PIO
Secondary Master/Slave PIO
The four IDE PIO fields allow you to set a PIO mode (0-4) for each of
the four IDE devices that the onboard IDE interface supports. Modes
0 through 4 provide successively increased performance. In Auto
mode, the system automatically determines the best mode for each
device.
3. Primary Master/Slave UDMA
Secondary Master/Slave UDMA
Ultra DMA/33 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If you
hard drive and your system software both support Ultra DMA/33,
select Auto to enable BIOS support.
Chapter 4 Award BIOS Setup
Page: 4-16
ISA-562LF USER
′
S MANUAL
4. OnChip Secondary PCI IDE
Enable the secondary IDE channel.
5. IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or
multiple sector read/write. If your IDE hard drive supports block mode
(most new drives do), select Enabled for automatic detection of the
optimal number of block read/writes per sector the drive can support.
ONBOARD DEVICE:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Phoenix – Award CMOS Setup Utility
Onboard Device
Item Help
USB Controller
USB 2.0 Support
USB Keyboard Support
USB Mouse Support
AC97 Audio
Onboard LAN
Init Display First
[Enabled]
[Enabled]
[Disabled]
[Disabled]
[Auto]
[Enabled]
[Onboard]
Menu Level ►
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
1. USB Controller
This should be enabled if your system has a USB installed on the
system board and you want to use it. Even when so equipped, if you
add a higher performance controller, you will need to disable this
feature.
2. USB 2.0 Support
Enable the USB 2.0 controller.
3. USB Keyboard Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB keyboard.
4. USB Mouse Support
Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have a USB Mouse.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-17
5. AC97 Audio
This item allows you to enable/disable to support AC97 Audio.
6. Onboard LAN
Enable onboard LAN chip.
7. Init Display First
This item allows you to decide to active whether PCI Slot or on-chip
VGA first.
SUPER IO DEVICE:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Phoenix – Award CMOS Setup Utility
SuperIO Device
Item Help
Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART Mode Select
X RxD, TxD Active
X IR Transmission Delay
X UR2 Duplex Mode
X Use IR Pins
Onboard Parallel Port
Parallel Port Mode
X EPP Mode Select
X ECP Mode Use DMA
PWRON After PWR-Fail
[Enabled]
[3F8/IRQ4]
[2F8/IRQ3]
[Normal]
Hi, Lo
Enabled
Half
IR-Rx2Tx2
[378/IRQ7]
[SPP]
EPP1.7
3
[Off]
Menu Level ►
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
1. Onboard FDC Controller
Select Enabled if the system has a floppy disk controller (FDC) installed
on the system board and you wish to use it. If you install and-in FDC or
the system has no floppy drive, select Disabled.
2. Onboard Serial Port 1/2
Select an address and corresponding interrupt for the first and second
serial ports.
3. UART Mode Select
This item allows you to select UART mode.
Chapter 4 Award BIOS Setup
Page: 4-18
ISA-562LF USER
′
S MANUAL
4. RxD, TxD Active
This item allows you to determine the active of RxD, TxD.
5. IR Transmission Delay
This item allows you to enable/disable IR transmission delay.
6. UR2 Duplex Mode
This item allows you to select the IR half/full duplex function.
7. Use IR Pins
This item allows you to select IR transmission routes, one is RxD2m,
TxD2 (COM Port) and the other is IR-Rx2Tx2
8. Onboard Parallel Port
This item allows you to determine access onboard parallel port
controller with which I/O address.
9. Parallel Port Mode
Select an operating mode for the onboard parallel (printer) port.
Select Normal, Compatible, or SPP unless you are certain your
hardware and software both support one of the other available modes.
10. EPP Mode Select
Select EPP port type 1.7 or 1.9.
11. ECP Mode Use DMA
Select a DMA channel for the parallel port for use during ECP mode.
12. PWRON After PWR-Fail
This item allows you to select if you want to power on the system after
power failure. The choice: Off, On, Former-Sts.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-19
4-7. POWER MANAGEMENT SETUP
Choose〝POWER MANAGEMENT SETUP〞option on the main menu, a
display will be shown on screen as below :
Phoenix - AwardBIOS CMOS Setup Utility
Power Management Setup
Item Help
ACPI Function
Power Management
Video Off Method
Video Off In Suspend
MODEM Use IRQ
Suspend Mode
Power-Supply Type
Soft-Off by PWR-BTTN
Wake-Up by PCI card
Wake Up On LAN
Resume by Alarm
x Date (of Month) Alarm
x Time (hh:mm:ss) Alarm
** Reload Global Timer Events **
Primary IDE 0
Primary IDE 1
Secondary IDE 0
Secondary IDE 1
FDD, COM, LPT Port
[Enabled]
[User Define]
[DPMS]
[Yes]
[3]
[Disabled]
[ATX]
[Instant-Off]
[Enabled]
[Disabled]
[Disabled]
0
0 : 0 : 0
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
Menu Level ►
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Power Management Setup Screen
The “Power Management Setup” allows the user to configure the system to
the most effectively save energy while operating in a manner consistent with
your own style of computer use.
ACPI FUNCTION:
This item allows the user to set the ACPI suspend type to be used.
POWER MANAGEMENT:
This item allows you to select the Power Management mode.
Chapter 4 Award BIOS Setup
Page: 4-20
ISA-562LF USER
′
S MANUAL
VIDEO OFF METHOD:
This determines the manner in which the monitor is blanked.
V/H SYNC+Blank This selection will cause the system to turn off the vertical
and horizontal synchronization ports and write blanks to the
video buffer.
Blank Screen This option only writes blanks to the video buffer.
DPMS Select this option if your monitor supports the Display
Power Management Signalling (DPMS) standard of the
Video Electronics Standards to select video power
management values.
MODEM USE IRQ:
This item enable you to name the interrupt request (IRQ) line assigned to
the modem (if any) on your system. Activity of the selected IRQ always
awakens the system.
SUSPEND MODE:
When enabled and after the set time of system inactivity, all devices except
the CPU will be shut off.
POWER SUPPLY TYPE:
It supports the message,” It is now safe to turn off your computer”, to wait
for AT power supply shutdown if the setting of the item is AT. In addition, it
won’t show any message if the setting is ATX.
SOFT-OFF BY PWR-BTTN:
Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has “hung”. The choices are
Delay 4 Sec and Instant-Off.
WAKE-UP BY PCI CARD:
An input signal from PME on the PCI card awakens the system from a soft
off state.
WAKE UP ON LAN:
When the system enters a Soft-off mode (Standby power exist but system is
not working), it will wake up system when specific signals occurred. The
BIOS monitors the system for “activity” to determine when to enable power
management.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-21
RESUME BY ALARM:
When Enabled, your can set the date and time at which the RTC (real-time
clock) alarm awakens the system from Suspend mode.
RELOAD GLOBAL TIMER EVENTS:
PM events are I/O events whose occurrence can prevent the system from
entering a power saving mode or can awaken the system from such a mode.
In effect, the system remains alert for anything, which occurs to a device
which is configured as Enabled, even when the system is in a power down
mode. (1) Primary IDE 0 (2) Primary IDE 1 (3) Secondary IDE 0 (4)
Secondary IDE 1 (5) FDD, COM, LPT Port
Chapter 4 Award BIOS Setup
Page: 4-22
ISA-562LF USER
′
S MANUAL
4-8. PNP/PCI CONFIGURATION
Choose 〝PNP/PCI CONFIGURATION〞 from the main menu, a display
will be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
PnP/PCI Configurations
Item Help
Reset Configuration Data
Resources Controlled By
x IRQ Resources
x DMA Resources
PCI/VGA Palette Snoop
[Disabled]
[Auto (ESCD)]
Press Enter
Press Enter
[Disabled]
Menu Level ►
Select Yes if you are
using a Plug and Play
capable operating
system Select No if
you need the BIOS to
configure non-boot
devices
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
PNP/PCI Configuration Setup Screen
The PNP/PCI Configuration Setup describes how to configure PCI bus system.
PCI, also known as Personal Computer Interconnect, is a system, which
allows I/O devices to operate at speeds nearing the speed of the CPU itself
uses when communicating with its own special components.
This section covers technical items, which is strongly recommended for
experienced users only.
RESET CONFIGURATION DATA:
Normally, you leave this field Disabled. Select Enabled to reset Extended
System Configuration Data (ESCD) when you exit Setup if you have
installed a new add-on and the system configuration has caused such a
serious conflict that the operating system cannot boot.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-23
RESOURCE CONTROLLED BY:
The Award Plug and Play Bios can automatically configure all of the booth
and Plug and Play-compatible devices. However, this capability means
absolutely nothing unless you are using a Plug and Play operating system
such as Windows 95. By choosing “manual”, you are allowed to
configure the IRQ Resources and DMA Resources.
IRQ RESOURCES:
The options for these items are found in its sub menu. By pressing the
<ENTER> key, you are prompt to enter the sub menu of the detailed options
as shown below:
Phoenix – Award CMOS Setup Utility
IRQ Resources
Item Help
IRQ-3 assigned to
IRQ-4 assigned to
IRQ-5 assigned to
IRQ-7 assigned to
IRQ-9 assigned to
IRQ-10 assigned to
IRQ-11 assigned to
IRQ-12 assigned to
IRQ-14 assigned to
IRQ-15 assigned to
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
[PCI Device]
Menu Level ►
Legacy ISA for devices
compliant with the
original PC AT bus
specification, PCI/ISA
PnP for devices
compliant with the Plug
and Play standard
whether designed for
PCI or ISA bus
architecture
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Descriptions on each item above are as follows:
13. IRQ-n Assigned to:
You may assign each system interrupt a type, depending on the type of
device using the interrupt.
PCI/VGA PALETTE SNOOP:
Leave this field at Disabled.
Chapter 4 Award BIOS Setup
Page: 4-24
ISA-562LF USER
′
S MANUAL
4-9. PC HEALTH STATUS
Choose 〝PC HEALTH STATUS〞 from the main menu, a display will
be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
PC Health Status
Item Help Current Warning Temperature
Current CPU Temperature
Current CPU Fan Speed
Current SYSTEM Fan Speed
Vcore
Vccp
3.3
V
+ 5 V
+12
V
-12
V
VBAT (V)
5VSB (V)
Shutdown Temperature
[Disabled]
47℃/116℉
0 RPM
0
RPM
0.99V
1.02V
3.34V
4.97V
11.97V
-11.62V
3.24V
4.96V
[Disabled]
Menu Level ►
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
PC Health Status Setup Screen
The PC Health Status Setup allows you to select whether to choose between
monitoring or to ignore the hardware monitoring function of your system.
CURRENT WARNING TEMPERATURE:
Select the combination of lower and upper limits for the CPU temperature.
If the CPU temperature extends beyond either limit, any warning
mechanism programmed into your system will be activated.
CURRENT CPU TEMPERATURE:
This item shows you the current CPU temperature.
CURRENT CPU FAN SPEED:
This item shows you the current CPUFAN speed.
CURRENT SYSTEM FAN SPEED:
This item shows you the current System FAN speed.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-25
VCORE:
This item shows you the current system voltage.
3.3V / +5V / +12V / -12V/VBAT/5VSB:
Show you the voltage of 3.3V/+5V/+12V/-12V/VBAT/5VSB.
SHUTDOWN TEMPERATURE:
This item allows you to set up the CPU shutdown Temperature. This
function is only effective under Windows 98 ACPI mode.
4-10. FREQUENCY CONTROL
Choose 〝FREQUENCY CONTROL〞 from the main menu, a display
will be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
Frequency Control
Item Help
Auto Detect PCI Clk
Spread Spectrum
[Enabled]
[Enabled]
Menu Level ►
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7:Optimized Defaults
Frequency Control Setup Screen
This setup menu allows you to specify your settings for frequency control.
AUTO DETECT PCI CLK:
This item allows you to enable or disable auto detect PCI Clock.
SPREAD SPECTRUM:
When the system clock generator pulses, the extreme values of the pulse
generate excess EMI. Enabling pulse spectrum spread modulation
changes the extreme values from spikes to flat curves, thus reducing EMI.
This benefit may in some cases be outweighed by problems with timingcritical devices such as a clock-sensitive SCSI device.
Chapter 4 Award BIOS Setup
Page: 4-26
ISA-562LF USER
′
S MANUAL
4-11. LOAD FAIL-SAFE DEFAULTS
By pressing the <ENTER> key on this item, you get a confirmation dialog
box with a message similar to the following:
Load Fail-Safe Defaults ( Y/N ) ? N
To use the BIOS default values, change the prompt to "Y" and press the
<Enter > key. CMOS is loaded automatically when you power up the
system.
4-12. LOAD OPTIMIZED DEFAULTS
When you press <Enter> on this category, you get a confirmation dialog
box with a message similar to the following:
Load Optimized Defaults ( Y/N ) ? N
Pressing "Y" loads the default values that are factory setting for optimal
performance system operations.
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-27
4-13. SET SUPERVISOR PASSWORD
User is allowed to set either supervisor or user password, or both of them.
The difference is that the supervisor password can enter and change the
options of the setup menus while the user password can enter only but do not
have the authority to change the options of the setup menus.
TO SET A PASSWORD
When you select this function, the following message will appear at the
center of the screen to assist you in creating a password.
Enter Password:
Type the password up to eight characters in length, and press < Enter >.
The password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press the < Enter > key. You may also press < Esc >
to abort the selection and not enter a password.
User should bear in mind that when a password is set, you will be
asked to enter the password everything you enter CMOS setup Menu.
TO DISABLE THE PASSWORD
To disable the password, select this function (do not enter any key when
you are prompt to enter a password), and press the <Enter> key and a
message will appear at the center of the screen:
PASSWORD DISABLED!!!
Press any key to continue...
Press the < Enter > key again and the password will be disabled. Once the
password is disabled, you can enter Setup freely.
Chapter 4 Award BIOS Setup
Page: 4-28
ISA-562LF USER
′
S MANUAL
4-14. SAVE & EXIT SETUP
After you have completed adjusting all the settings as required, you must
remember to save these setting into the CMOS RAM. To save the settings,
select “SAVE & EXIT SETUP” and press <Enter>, a display will be shown
as follows:
Phoenix - AwardBIOS CMOS Setup Utility
►Standard CMOS Features
►Advanced BIOS Features
►Advanced Chipset Features
►Integrated Peripherals
►Power Management
►PnP/PCI Configura
►PC Health Status
►Frequency Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
word
etup
Saving
Esc : Quit ↑↓→← : Select Item
F10 : Save & Exit Setup
Save Data to CMOS
When you confirm that you wish to save the settings, your system will be
automatically restarted and the changes you have made will be implemented.
You may always call up the setup program at any time to adjust any of the
individual items by pressing the <Del> key during boot up.
Save to CMOS and EXIT Y/N)? Y
Chapter 4 Award BIOS Setup
ISA-562LF USER′S MANUAL
Page: 4-29
4-15. EXIT WITHOUT SAVING
If you wish to cancel any changes you have made, you may select the
“EXIT WITHOUT SAVING” and the original setting stored in the CMOS
will be retained. The screen will be shown as below:
Phoenix - AwardBIOS CMOS Setup Utility
►Standard CMOS Features
►Advanced BIOS Features
►Advanced Chipset Features
►Integrated Peripherals
►Power Management
►PnP/PCI Configura
►PC Health Status
►Frequency Control
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
word
etup
Saving
Esc : Quit ↑↓→← : Select Item
F10 : Save & Exit Setup
Abandon all Datas
Quit Without Saving (Y/N)? N
Page: A-1
EXPANSION BUS
This appendix indicates the pin assignments.
Section includes:
z ISA BUS Pin Assignment
z PC/104 Connector Pin Assignment
z Compact Flash Card Connector Pin Assignment
APPENDIX
A
Appendix A Expansion Bus
Page: A-2
ISA-562LF USER
′
S MANUAL
ISA BUS PIN ASSIGNMENT
There are two edge connector (called “gold fingers“) on this CPU Card, on the
right hand is the connector of ISA Bus, followed up by PCI BUS connector. The
ISA-bus connector is divided into two sets : one consists of 62 pins; the other
consists of 36 pins. The pin assignment is as follows:
B A D C
PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT
B1 GND A1 -I/O CH CHK D1 -MEMCS16 C1 SBHE
B2 RESET A2 SD07 D2 -I/OCS16 C2 LA23
B3 +5V A3 SD06 D3 IRQ10 C3 LA22
B4 IRQ9 A4 SD05 D4 IRQ11 C4 LA21
B5 -5V A5 SD04 D5 IRQ12 C5 LA20
B6 DRQ2 A6 SD03 D6 IRQ15 C6 LA19
B7 -12V A7 SD02 D7 IRQ14 C7 LA18
B8 OWS A8 SD01 D8 -DACK0 C8 LA17
B9 +12V A9 SD00 D9 DRQ0 C9 -MEMR
B10 GND A10 -I/O CH RDY D10 -DACK5 C10 -MEMW
B11 -SMEMW A11 AEN D11 DRQ5 C11 SD08
B12 -SMEMR A12 SA19 D12 -DACK6 C12 SD09
B13 -IOW A13 SA18 D13 DRQ6 C13 SD10
B14 -IOR A14 SA17 D14 -DACK7 C14 SD11
B15 -DACK3 A15 SA16 D15 DRQ7 C15 SD12
B16 -DRQ3 A16 SA15 D16 +5V C16 SD13
B17 -DACK1 A17 SA14 D17 -MASTER C17 SD14
B18 -DRQ1 A18 SA13 D18 GND C18 SD15
B19 -REFRESH A19 SA12
B20 BCLK A20 SA11
B21 IRQ7 A21 SA10
B22 IRQ6 A22 SA09
B23 IRQ5 A23 SA08
B24 IRQ4 A24 SA07
B25 IRQ3 A25 SA06
B26 -DACK2 A26 SA05
B27 T/C A27 SA04
B28 BALE A28 SA03
B29 +5V A29 SA02
B30 OSC A30 SA01
B31 GND A31 SA00
Appendix A Expansion Bus
ISA-562LF USER′S MANUAL
Page: A-3
PC-104 CONNECTOR PIN ASSIGNMENT
104AB, 104CD : PC-104 Connector
The PC-104 can support multi-pieces of PC-104 modules. It has two
connectors : one (104AB) consists of 64 pin; the other one (104CD) consists
of 40 pin, both of them are dual-in-line headers
The pin assignments for connector 104AB & 104CD are as follow:
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
PIN
ASSIGNMENT
A1 IOCHK B1 GND C1 GND D1 GND
A2 D7 B2 REST C2 SBHE D2 MEMCS16
A3 D6 B3 VCC C3 LA23 D3 IOCS16
A4 D5 B4 IRQ9 C4 LA22 D4 IRQ10
A5 D4 B5 -5V C5 LA21 D5 IRQ11
A6 D3 B6 DRQ2 C6 LA20 D6 IRQ12
A7 D2 B7 -12V C7 LA19 D7 IRQ15
A8 D1 B8 OWS C8 LA18 D8 IRQ14
A9 D0 B9 +12V C9 LA17 D9 DACK0
A10 IOCHRDY B10 GND C10 MEMR D10 DRQ0
A11 AEN B11 SMEMW C11 MEMW D11 DACK5
A12 A19 B12 SMEMR C12 D8 D12 DRQ5
A13 A18 B13 IOW C13 D9 D13 DACK6
A14 A17 B14 IOR C14 D10 D14 DRQ6
A15 A16 B15 DACK3 C15 D11 D15 DACK7
A16 A15 B16 DRQ3 C16 D12 D16 DRQ7
A17 A14 B17 DACK1 C17 D13 D17 VCC
A18 A13 B18 DRQ1 C18 D14 D18 MASTER
A19 A12 B19 REFRESH C19 D15 D19 GND
A20 A11 B20 CLK C20 KEY PIN D20 GND
A21 A10 B21 IRQ7
A22 A9 B22 IRQ6
A23 A8 B23 IRQ5
A24 A7 B24 IRQ4
A25 A6 B25 IRQ3
A26 A5 B26 DACK2
A27 A4 B27 TC
A28 A3 B28 BALE
A29 A2 B29 VCC
A30 A1 B30 OSC
A31 A0 B31 GND
A32 GND B32 GND
Appendix A Expansion Bus
Page: A-4
ISA-562LF USER
′
S MANUAL
COMPACT FLASH CARD CONNECTOR PIN ASSIGNMENT
The pin assignments of Compact Flash Card connector are stated below.
PIN ASSIGNMENT PIN Assignment
1 GND 26 -CD1
2 D03 27 D111
3 D04 28 D121
4 D05 29 D131
5 D06 30 D141
6 D07 31 D151
7 -CS0 32 -CS11
8 A102 33 -VS1
9 -ATASEL 34 -IORD
10 A092 35 -IOWR
11 A082 36 -WE3
12 +3.3V 37 INTRQ
13 VCC 38 VCC
14 A062 39 -CSEL
15 A052 40 -VS2
16 A042 41 -RESET
17 A032 42 IORDY
18 A02 43 -INPACK
19 A01 44 -REG3
20 A00 45 -DASP
21 D00 46 -PDIAG
22 D01 47 D081
23 D02 48 D091
24 -IOCS16 49 D101
25 -CD2 50 GND
Page: B-1
TECHNICAL
SUMMARY
This section introduce you the maps concisely.
Section includes:
z Block Diagram
z Interrupt Map
z RTC & CMOS RAM Map
z Timer & DMA Channels Map
z I / O & Memory Map
APPENDIX
B
Appendix B Technical Summary
Page: B-2
ISA-562LF USER
′
S MANUAL
BLOCK DIAGRAM
Appendix B Technical Summary
ISA-562LF USER′S MANUAL
Page: B-3
INTERRUPT MAP
IRQ ASSIGNMENT
0 System TIMER
1 Keyboard
2 Cascade
3 Serial port 2
4 Serial port 1
5 Available
6 Floppy
7 Parallel port 1
8 RTC clock
9 Available
10 Available
11 Available
12 PS/2 Mouse
13 Math coprocessor
14 IDE1
15 IDE2
Appendix B Technical Summary
Page: B-4
ISA-562LF USER
′
S MANUAL
RTC & CMOS RAM MAP
CODE ASSIGNMENT
00 Seconds
01 Second alarm
02 Minutes
03 Minutes alarm
04 Hours
05 Hours alarm
06 Day of week
07 Day of month
08 Month
09 Year
0A Status register A
0B Status register B
0C Status register C
0D Status register D
0E Diagnostic status byte
0F Shutdown byte
10 Floppy Disk drive type byte
11 Reserve
12 Hard Disk type byte
13 Reserve
14 Equipment byte
15 Base memory low byte
16 Base memory high byte
17 Extension memory low byte
18 Extension memory high byte
30 Reserved for extension memory low byte
31 Reserved for extension memory high byte
32 Date Century byte
33 Information Flag
34-3F Reserve
40-7f Reserved for Chipset Setting Data
Appendix B Technical Summary
ISA-562LF USER′S MANUAL
Page: B-5
TIMER & DMA CHANNELS MAP
Timer Channel Map
:
Timer Channel Assignment
0 System timer interrupt
1 DRAM Refresh request
2 Speaker tone generator
DMA Channel Map
:
DMA Channel Assignment
0 Available
1 Available
2 Floppy
3 Available
4 Cascade
5 Available
6 Available
7 Available
Appendix B Technical Summary
Page: B-6
ISA-562LF USER
′
S MANUAL
I/O & MEMORY MAP
Memory Map :
MEMORY MAP ASSIGNMENT
0000000-009FFFF System memory used by DOS and
application
00A0000-00BFFFF Display buffer memory for VGA/ EGA /
CGA / MONOCHROME adapter
00C0000-00DFFFF Reserved for I/O device BIOS ROM or
RAM buffer.
00E0000-00EFFFF Reserved for PCI device ROM
00F0000-00FFFFF System BIOS ROM
0100000-FFFFFFF System extension memory
I/O Map :
I/O MAP ASSIGNMENT
000-01F DMA controller (Master)
020-021 Interrupt controller (Master)
022-023 Chipset controller registers I/O ports.
040-05F Timer control regsiters.
060-06F Keyboard interface controller (8042)
070-07F RTC ports & CMOS I/O ports
080-09F DMA register
0A0-0BF Interrupt controller (Slave)
0C0-0DF DMA controller (Slave)
0F0-0FF Math coprocessor
1F0-1F8 Hard Disk controller
278-27F Parallel port-2
2B0-2DF Graphics adapter controller
2F8-2FF Serial port-2
360-36F Net work ports
378-37F Parallel port-1
3B0-3BF Monochrome & Printer adapter
3C0-3CF EGA adapter
3D0-3DF CGA adapter
3F0-3F7 Floppy disk controller
3F8-3FF Serial port-1
Loading...
