Protech Systems BU-2509 User Manual

USER’S

MANUAL

BU-2509

Micro ATX Motherboard With Intel® 6th Gen. CoreTM

i7/i5/i3 and Xeon E3 V5 Processor

BU-2509 M1

BU-2509

With Intel® 6th Generation Core

TM

Micro ATX Motherboard

COPYRIGHT NOTICE & TRADEMARK

All trademarks and registered trademarks mentioned herein are the property of their respective owners.

This manual is copyrighted in December 2016. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.

DISCLAIMER

This operation manual is meant to assist both Embedded Computer manufacturers and end users in installing and setting up the system. The information contained in this document is subject to change without any notice.

CE NOTICE

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case users will be required to correct the interference at his own expense.

You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void your authority to operate such equipment.

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Contents

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION

1-1 About This Manual…............................................................

1-2

1-2 System Specification…..........................................................

1-3

1-3 Safety Precautions….............................................................

1-7

CHAPTER 2 HARDWARE CONFIGURATION

2-1 Jumper & Connector Quick Reference Table…....................

2-2

2-2 Component Locations….…...................................................

2-3

2-3 How to Set Jumpers…...........................................................

2-6

2-4 COM Port and Connectors (COM1-COM6)………………

2-8

2-5 Clear CMOS Data Selection (JCMOS1)……………………

2-10

2-6 COM3 and COM4 Port RI / Voltage Selection (JPCOM3,

JPCOM4)…….…………………………………………….

2-11 2-7 Digital Input /Output Port Connector (JDIO1)…….……….

2-12

2-8 Keyboard and Mouse Port (KB_MS1)…………………......

2-13

2-9 DVI Port (DVI-D)...………………………..…….................

2-14

2-10 VGA Port (VGA)….………………………………………..

2-15

2-11 Front Panel Connector (FP1)…………...…………….........

2-16

2-12 LAN & USB Ports (LAN1_USB1, LAN2_USB1)…………

2-17

2-13 Line-In, Line-Out, MIC-In Port (AUDIO1)………………...

2-19

2-14 RS-232/422/485 (COM2) Selection (JP2)…………………

2-20

2-15 COM2 Auto Detection Selection (JP4)………………….…

2-21

2-16 Hardware Power Failure Selection (JP1)…………………...

2-22

2-17 Flash Descriptor Override Selection (JP3)…………………

2-23

2-18 LAN2 Enable/Disable Selection (JP5)………………...…...

2-24

2-19 Mini PCIE Voltage Selection (JP13)……………...………..

2-25

2-20 VCCIO Voltage Selection (JP10)……………...…………...

2-26

2-21 Mini PCI Express Slot (MPCIE1)……………...…………..

2-27

2-22 PCI Express Slots (PCI_E1 (X16), PCI_E2, PCI_E4 (X4),

PCI_E3 (X1))..……………………………………………...

2-28

2-23 CPU / System Fan Connectors (CPU_FAN1, SYS_FAN1,

SYS_FAN2)………..………………………………………

2-33

Contents

2-24 Serial ATA (SATA) Connectors (SATA1, SATA2,

SATA3, SATA4, SATA5, SATA6, SATA7, SATA8)…….

2-34 2-25 Internal USB 3.0 Connector (USB1)……………………….

2-35

2-26 Internal USB 2.0 Connectors (USB2, USB3)………………

2-35

2-27 Display Port Connector (DP1)…………………..…………

2-36

2-28 Power Input Connectors (ATX_PWR1, ATX_PWR2) ……

2-37

2-29 Speaker Connector (JSPEAKER)…………………..………

2-38

2-30 LPC Connector (JLPC1)…………………………..….........

2-38

CHAPTER 3 SOFTWARE UTILITIES

3-1 Introduction……………..........................................….........

3-2

3-2 Intel® Chipset Software Installation Utility……..……..…...

3-3

3-3 Intel® Trusted Execution Engine Installation Utility……….

3-4

3-4 VGA Driver Utility………………………………….……...

3-5

3-5 LAN Driver Utility……...........................................….........

3-6

3-6 Sound Driver Utility………………………………………..

3-7

CHAPTER 4 BIOS SETUP

4-1 Introduction….......................................................................

4-2

4-2 Entering Setup Utility…........................................................

4-3

4-3 Main…………......................................................................

4-5

4-4 Advanced…...........................................................................

4-6

4-5 Chipset…...............................................................................

4-32

4-6 Security…..............................................................................

4-50

4-7 Boot….…..............................................................................

4-51

4-8 Save & Exit….......................................................................

4-56

APPENDIX A TECHNICAL SUMMARY

Block Diagram…..............................................................................

A-2

Interrupt Map…............................................................................ ....

A-3

Memory Map….……………………………………………………

A-8

I/O Map…........................................................................................

A-10

Watchdog Timer Configuration….………………...………………

A-13

Flash BIOS Update…...............................................…....................

A-16

Page:1-1

INTRODUCTION

This chapter gives you the information for BU-2509. It also outlines the system specifications.

The following sections are included:

 About This Manual  System Specifications  Safety Precautions

Experienced users can jump to chapter 2 on page 2-1 for a quick start.

CHAPTER

1

Chapter 1 Introduction

BU-2509 USERS MANUAL

Page: 1-2

1-1. ABOUT THIS MANUAL

Thank you for purchasing our BU-2509 Micro ATX Motherboard with Intel® 6th Generation CoreTM i7/i5/i3 Pentium

®

processor. The BU-2509 provides faster processing speed, greater expandability and can handle more tasks than before. This manual is designed to assist you how to install and set up the system. It contains four chapters. The user can apply this manual for configuration according to the following chapters:

Chapter 1 Introduction

This chapter introduces you to the background of this manual, and the specifications for this system. The final page of this chapter will indicate how to avoid damaging this board.

Chapter 2 Hardware Configuration

This chapter outlines the component locations and their functions. In the end of this chapter, you will learn how to set jumper and how to configure this card to meet your own needs.

Chapter 3 Software Utilities

This chapter contains helpful information for proper installations of the VGA utility, LAN utility, Sound utility, and Flash BIOS Update. It also describes the Watchdog-timer configuration.

Chapter 4 BIOS Setup

This chapter indicates you how to set up the BIOS configurations.

Appendix A Expansion Bus

This appendix introduces you the expansion bus for PCIe connectors.

Appendix B Technical Summary

This appendix gives you the information about the Technical maps.

Chapter 1 Introduction

BU-2509 USERS MANUAL

Page: 1-3

1-2. SYSTEM SPECIFICATIONS

System

CPU

 BU-2509RA-00P/11P/D0P/D1P: Intel

®

Skylake-S CPU socket (LGA1151), supporting i7-6700(TE), i5-6500(TE), i3-6100(TE), Pentium G4400(TE), Celeron G3900(TE)

 BU-2509RA-06P/D6P: Intel

®

Skylake-S CPU socket (LGA1151), supporting E3-1275 v5, E3-1225 v5, E31268L v5, i3-6100TE, i7-6700(TE), i5-6500(TE), i36100, Pentium G4400(TE), Celeron G3900(TE)

OS Support

Windows 7, Windows 8.1, Windows 10, Ubuntu14.4

Chipset

 BU-2509RA-00P/D0P: Intel

®

Q170

 BU-2509RA-11P/D1P: Intel

®

H110

 BU-2509RA-06P/D6P: Intel

®

C236

Memory Support

 BU-2509RA-00P/D0P: 4 x DDR4 DIMM 2133, supports

dual-channel and non-ECC

 BU-2509RA-11P/D1P: 2 x DDR4 DIMM 2133, supports

dual-channel (location: JUDIMM2 / 4) and non-ECC

 BU-2509RA-06P/D6P: 4 x DDR4 DIMM 2133, supports

dual-channel, ECC & non-ECC

ECC Compatibility

 BU-2509RA-00P/11P/ D0P/D1P: Non-ECC  BU-2509RA-06P/D6P:

- E3-1275 v5, supports ECC

- E3-1225 v5, supports ECC

- E3-1268L v5, supports ECC

- i3-6100TE, supports ECC

- i7-6700(TE), non-ECC

- i5-6500(TE), non-ECC

- i3-6100, non-ECC

- Pentium G4400(TE), non-ECC

- Celeron G3900(TE), non-ECC

BIOS

AMI BIOS

Watchdog

1~255 seconds

Chapter 1 Introduction

BU-2509 USERS MANUAL

Page: 1-4

Hardware Monitor

FAN, 12V, 5V, 5Vsb, Vcore

Speaker

Internal buzzer

Power Supply

ATX Power Supply (24 pins + 4 pins)

Dimension

229 mm x 191 mm

Certificate

CE/FCC Class A

I/O Ports

Serial Port

Total 6 COM ports: *COM1-6: RS-232

*COM2: RS-232/422/485 auto flow control (Rear I/O) *COM3, 4 support 5V/12V by jumper selection

USB Port

 BU-2509RA-00P/06P/D0P/D6P:

Total 6 x USB 3.0, 4 x USB 2.0 4 x USB 3.0 on Rear I/O, others on board (internal wafer)

 BU-2509RA-11P/D1P: Total 4 x USB 3.0, 4 x USB 2.0

4 x USB 3.0 on Rear I/O, others on board (internal wafer)

SATA Interface

 BU-2509RA-00P/D0P:

6 x SATA III, supports RAID 0/1/5/10

 BU-2509RA-11P/D1P: 4 x SATA III  BU-2509RA-06P/D6P:

8 x SATA III, supports RAID 0/1/5/10

LAN

 Dual ports support 10/100/1000Mbps and Wake-on-LAN  LAN1: Intel

®

PHy 219 LM (10/100/1000Mbps)

 LAN2: Intel

®

LAN 210 AT (10/100/1000Mbps)

Audio

Realtek ALC888S High Definition Audio, line-out / line-in / MIC-in (Rear I/O)

DIO

8in/8out (internal connector) API supporting

Keyboard/Mouse

2 x PS/2 (Rear I/O)

Expansion Bus

 BU-2509RA-00P/D0P: 1 x PCIe (x16), 2 x PCIe (x4),

1 x PCIe (x1), 1 x mini-PCIe (PCIe, USB)

Chapter 1 Introduction

BU-2509 USERS MANUAL

Page: 1-5

 BU-2509RA-11P/D1P:

1 x PCIe (x16), 1 x PCIe (x2) with PCIe (x4) connector, 1 x PCIe (x1), 1 x mini-PCIe (PCIe)

 BU-2509RA-06P/D6P: 1 x PCIe (x16), 2 x PCIe (x4),

1 x PCIe (x1), 1 x mini-PCIe (PCIe, USB)

LPC

1 x LPC (onboard pin-header)

TPM

Optional function via an additional LPC Daughter Board

FAN

1 x CPU FAN (4 pins), 1 x System FAN (4 pins), 1 x System FAN (3 pins)

I/O and others

 Fintek 81866AD-I  Fintek 81216

Chapter 1 Introduction

BU-2509 USERS MANUAL

Page: 1-6

Display

Display Interface

 BU-2509RA-00P/11P/06P

1 x VGA up to 1920 x 1200 @60Hz, Rear I/O 1 x DVI-D up to 2560 x 1600 @60Hz, Rear I/O 1 Display Port up to 1920 x 1080 @60Hz, internal

connector

 BU-2509RA-D0P/D1P/D6P

1 x VGA up to 1920 x 1200 @60Hz, Rear I/O 1 x DVI-D up to 2560 x 1600 @60Hz, Rear I/O ( no DP function )

Multi-Display

Supports 3 independent displays

Others

Shock

15G peak-to-peak, 11ms duration, non-operation

Vibration

Non-operation: 2G, 5-200Hz, X,Y,Z axis

Environment

Operating Temp.

0°C ~ 60°C (32°F ~ 140°F)

Storage Temp.

-40°C ~ 85°C (-40°F ~ 185°F)

Humidity

Operating: 5% - 95% (non-condensing)

Chapter 1 Introduction

BU-2509 USERS MANUAL

Page: 1-7

1-3. SAFETY PRECAUTIONS

Follow the instructions below to avoid your systems from damages:

1. Keep your system away from static electricity on all occasions.

2. Prevent electric shock. Don’t touch any components of this board when it is

powered on. Always disconnect power when the system is not in use.

3. Disconnect power source when you change any hardware devices.

For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system.

Page 2-1

HARDWARE

CONFIGURATION

** QUICK START **

CHAPTER

2

Helpful information describes the jumper & connector settings, and component locations.

The following sections are included:

 Jumper & Connector Quick Reference Table

 Component Locations

 Configuration and Jumper Settings

 Connector Pin Assignments

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-2

2-1. JUMPER & CONNECTOR QUICK REFERENCE TABLE

The jumpers and connectors are arranged alphabetically below:

JUMPER/CONNECTOR

NAME

Power Input Connectors

ATX_PWR1, ATX_PWR2

Line-In, Line-Out and MIC-In Port

AUDIO1

COM Port and Connectors

COM1, COM2, COM3, COM4, COM5, COM6

CPU / System FAN Connectors

CPU_FAN1, SYS_FAN1, SYS_FAN2

Display Port Connector

DP1

DVI (Digital Video Interface) Port

DVI-D

Front Panel Connector

FP1

Clear CMOS Data Selection

JCMOS1

Digital Input / Output Connector

JDIO1

LPC Connector

JLPC1

COM Port RI/Voltage Selection

JPCOM3, JPCOM4

Speaker Connector

JSPEAKER

Keyboard / Mouse Connector

KB_MS1

LAN + USB Connectors

LAN1_USB1, LAN2_USB1

Mini PCI Express Slot

MPCIE1

PCI Express Slots

PCI_E1, PCI_E2, PCI_E3, PCI_E4

SATA Connectors

SATA1, SAT2, SATA3, SATA4, SATA5, SATA6, SATA7, SATA8

Universal Serial Bus 3.0 Connector

USB1

Universal Serial Bus 2.0 Connectors

USB2, USB3

VGA Port

VGA

RS-232/422/485 (COM2) Selection

JP2

COM2 Auto Detection Selection

JP4

Hardware Power Failure Selection

JP1

Flash Descriptor Override Selection

JP3

LAN2 Enable / Disable Selection

JP5

Mini PCI Express Voltage Selection

JP13

VCCIO Voltage Selection

JP10

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-3

2-2. COMPONENT LOCATIONS

BU-2509 Connector, Jumper and Component Locations (Front Side)

Note: C236 SKU has SATA1~8, JDIMM1~4, PCI_E1~4 available. Q170 SKU

only has SATA1~6, JDIMM1~4, PCI_E1~4 available. H110 SKU only has SATA1~4, JDIMM2/4, PCI_E1~3 available. USB1 is not available for H110 SKU. DP1 is not available for BU-2509RA-D0P/D1P/D6P.

CP U 1

JU DI MM 1

LAN1

JU DI MM 2

JU DI MM 3

JU DI MM 4

LAN2_USB1 LAN1_USB1

AUDIO1/ JOUT1

VGA DVI

COM2

COM1

KB_MS1

JP4

JP2

CPU_FAN1

ATX_PWR2

JP5

JP1

JP3

DP1

JP10

PCI_E2

PCI_E3

PCI_E4

PCI_E1

USB1

USB3 USB2

FP1

BAT1

SATA8

SATA7

SATA6

SATA5

SATA4

SATA3

SATA2

SATA1

ATX_PWR1

SYS_FAN1

SYS_FAN2

COM3

COM6

COM5 COM4

JLPC1

JP14

JPCOM4

JP15

JDIO1

JSPEAKER

MPCIE1

JPCOM3

DIMM1

DIMM2

DIMM3 DIMM4

JCMOS1

JP13

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-4

BU-2509 Connector, Jumper and Component Locations (Rear Side)

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-5

BU-2509 I/O View

VGA PortPS/2 Mouse

PS/2 Keyboard

COM Port

DVI-D Port

LAN1 LAN2

2 x USB 3.0 2 x USB 3.0

LINE-IN/ LINE-OUT

MIC-IN

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-6

2-3. HOW TO SET JUMPERS

You can configure your board by setting jumpers. Jumper is consists of two or three metal pins with a plastic base mounted on the card, and by using a small plastic "cap", Also known as the jumper cap (with a metal contact inside), you are able to connect the pins. So you can set-up your hardware configuration by "open" or "close" pins.

The jumper can be combined into sets that called jumper blocks. When the jumpers are all in the block, you have to put them together to set up the hardware configuration. The figure below shows how this looks like.

JUMPERS AND CAPS

If a jumper has three pins (for examples, labelled PIN1, PIN2, and PIN3), you can connect PIN1 & PIN2 to create one setting by shorting. You can either connect PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figure below shows what the manual diagrams look and what they represent.

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-7

Jumper Diagrams

2 pin Jumper looks like this

Jumper Cap looks like this

3 pin Jumper looks like this

Jumper Block looks like this

Jumper Settings

Looks like this

3 pin Jumper

2-3 pin close(enabled)

Looks like this

Jumper Block

1-2 pin close(enabled)

2 pin Jumper close(enabled)

1

2

1 2

1

Looks like this

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-8

2-4. COM PORT and CONNECTORS

COM1: COM1 Connector, fixed as RS-232.

ASSIGNMENT

1

DCD#

2

RX

3

TX

4

DTR#

5

GND

6

DSR#

7

RTS#

8

CTS#

9

RI#

COM2: COM2 Connector selectable as RS-232/422/485. The pin assignments are as follows:

Signal

RS-232

RS-422

RS-485

10

DCD#

TX-

RS-485-

11

RX

TX+

RS-485+

12

TX

RX+

NC

13

DTR#

RX-

NC

14

GND

15

DSR#

NC

16

RTS#

NC

17

CTS#

NC

18

RI#

NC

COM2/

COM1

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-9

COM3/COM4/COM5/COM6 CONNECTOR

COM3, COM4, COM5, COM6: COM Connector, fixed as RS-232.

ASSIGNMENT

1

DCD#

6

DSR#

2

RX

7

RTS#

3

TX

8

CTS#

4

DTR#

9

RI#

5

GND

10

Note: Pin 9 is selectable for RI, +5V or +12V for

COM3 and COM4 only.

COM3/

COM4/

COM5/

COM6

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-10

2-5. CLEAR CMOS DATA SELECTION

JCMOS1: Clear CMOS Data Selection

SELECTION

JUMPTER

SETTING

JUMPER ILLUSTRATION

Normal

1-2

JCMOS1

Clear CMOS

2-3

JCMOS1

Note 1: Manufacturing Default is Normal. Note 2: To clear CMOS data, users must power off the computer and set the jumper

to “Clear CMOS” as shown above. After five to six seconds, set the jumper back to “NC” and power on the computer.

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-11

2-6. COM PORT RI / VOLTAGE SELECTION

COM3 and COM4 RI & Voltage Selection

SELECTION

JUMPTER

SETTING

JUMPER ILLUSTRATION

RI

1-2

JPCOM3/JPCOM4

12V

3-4

JPCOM3/JPCOM4

5V

5-6

JPCOM3/JPCOM4

Note: Manufacturing default is RI.

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-12

2-7. DIGITAL I/O PORT CONNECTOR

JDIO1: Digital Input / Output Port Connector

ASSIGNMENT

1

VCC5

2

VCC12

3

DIN1

4

DOUT1

5

DIN2

6

DOUT2

7

DIN3

8

DOUT3

9

DIN4

10

DOUT4

11

DIN5

12

DOUT5-

13

DIN6

14

DOUT6

15

DIN7

16

DOUT7

17

DIN8

18

DOUT8

19

GND

20

GND

JDIO1

1

20

2

19

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-13

2-8. KEYBOARD & MOUSE PORT

KB_MS1: PS/2 Keyboard & Mouse Port

Mouse:

ASSIGNMENT

12

NC

11

MSCLK

10

VCC5

9

GND

8

NC

7

MSDATA

Keyboard:

ASSIGNMENT

6

NC

5

KBCLK

4

VCC5

3

GND

2

NC

1

KBDATA

KB_MS1

3

12

4

56

9

78

10

1112

MS

KB

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-14

2-9. DVI (Digital Video Interface) PORT

DVI-D: DVI-D (Digital Video Interface – Digital) function is supported. The pin assignments are as follows:

ASSIGNMENT

1

TMDS_D2-

13

NC

2

TMDS_D2+

14

VCC5

3

GND

15

GND

4

NC

16

TMDS_HPD

5

NC

17

TMDS_D0-

6

TMDS_CLK

18

TMDS_D0+

7

TMDS_DATA

19

GND

8

NC

20

NC

9

TMDS_D1-

21

NC

10

TMDS_D1+

22

GND

11

GND

23

TMDS_D3+

12

NC

24

TMDS_D3-

A DVI-D connector transfer only digital signals, providing faster transfer rates and better quality than their predecessor, the VGA cable. It is most commonly used to connect computer video cards to LCD monitors.

DVI-D

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-15

2-10. VGA PORT

VGA: VGA (Video Graphics Array) Connector The pin assignments are as follows:

ASSIGNMENT

1

CRT_RED

2

CRT_GREEN

3

CRT_BLUE

4

NC

5

GND

6

NC

7

GND

8

GND

9

CRT_VCC

10

GND

11

NC

12

CRT_SDA

13

CRT_HSYNC

14

CRT_VSYNC

15

CRT_SCL

VGA

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-16

2-11. FRONT PANEL CONNECTOR

FP1: Front Panel Connector

ASSIGNMENT

1

HDD_LED+

2

PWR_LED+

3

HDD_LED-

4

PWR_LED-

5

GND

6

PWR_BTN

7

RST_BTN

8

GND

9

VCC5

-

FP1

1

9

2

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-17

2-12. LAN & USB PORT

LAN1_USB1: LAN1 & Two USB 3.0 Ports

LAN1 signals:

ASSIGNMENT

1

MDI_P0

5

MDI_P2

2

MDI_N0

6

MDI_N2

3

MDI_P1

7

MDI_P3

4

MDI_N1

8

MDI_N3

LAN LED Indicator:

Left Side LED

Green Color On7

10/100 LAN Speed Indicator

Orange Color On8

Giga LAN Speed Indicator

Off

No LAN Switch/HUB connected

Right Side LED

Yellow Color Blinking

LAN Message Active

Off

No LAN Message Active

USB 3.0 signals:

ASSIGNMENT

A1

VCC

B1

VCC

A2

USB_N1

B2

USB_N2

A3

USB_P1

B3

USB_P2

A4

GND

B4

GND

A5

USB3_RX_N1

B5

USB3_RX_N2

A6

USB3_RX_P1

B6

USB3_RX_P2

A7

GND

B7

GND

A8

USB3_TX_N1

B8

USB3_TX_N2

A9

USB3_TX_P1

B9

USB3_TX_P2

Green/Orange Yellow

LAN1_USB1

B1 B4

B9 B5

A1 A4

A9 A5

8 1

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-18

LAN2_USB1: LAN2 & Two USB 3.0 Ports

LAN2 signals:

ASSIGNMENT

1

MDI_P0

5

MDI_P2

2

MDI_N0

6

MDI_N2

3

MDI_P1

7

MDI_P3

4

MDI_N1

8

MDI_N3

LAN LED Indicator:

Left Side LED

Green Color On7

10/100 LAN Speed Indicator

Orange Color On8

Giga LAN Speed Indicator

Off

No LAN Switch/HUB connected

Right Side LED

Yellow Color Blinking

LAN Message Active

Off

No LAN Message Active

USB 3.0 signals:

ASSIGNMENT

A1

VCC

B1

VCC

A2

USB_N3

B2

USB_N4

A3

USB_P3

B3

USB_P4

A4

GND

B4

GND

A5

USB3_RX_N3

B5

USB3_RX_N4

A6

USB3_RX_P3

B6

USB3_RX_P4

A7

GND

B7

GND

A8

USB3_TX_N3

B8

USB3_TX_N4

A9

USB3_TX_P3

B9

USB3_TX_P4

Green/Orange Yellow

LAN2_USB1

B1 B4

B9 B5

A1 A4

A9 A5

8 1

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-19

2-13. LINE-IN, LINE-OUT, MIC-IN PORT

AUDIO1: Line-In, Line-Out & Microphone The connector can also support only Microphone.

Line-In:

ASSIGNMENT

32

HD_LINE-IN-L

33

GND

34

GND

35

HD_LINE-IN-R

Line-Out:

ASSIGNMENT

22

LINE-OUT-L

23

GND

24

GND

25

LINE-OUT-R

MIC-In:

ASSIGNMENT

1

GND

2

HD_MIC1-L_L

3

GND

4

GND

5

HD_MIC1-R_L

AUDIO1

1 2345

22232425

32333435

424344

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-20

2-14. RS-232/422/485 (COM2) SELECTION

JP2: RS-232/422/485 (COM2) Selection The selections are as follows:

***Manufacturing Default – RS-232.

Selection

Jumper Setting

(Pin Closed)

Jumper Illustration

RS-232

Open

JP2

RS-422

1-2, 3-4, 9-10

JP2

RS-485

1-2, 5-6, 7-8

JP2

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-21

2-15. COM2 Auto Detection Selection

JP4: COM2 Auto Detection Selection The selections are as follows:

***Manufacturing Default – Auto.

Selection

Jumper Setting

(Pin Closed)

Jumper Illustration

Normal

1-2

JP4

Auto

2-3

JP4

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-22

2-16. HARDWARE POWER FAILURE SELECTION

JP1: Hardware Power Failure Selection

SELECTION

JUMPTER

SETTING

JUMPER ILLUSTRATION

Enable

1-2

JP1

Disable

2-3

JP1

Note: Manufacturing default is Disable.

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-23

2-17. FLASH DESCRIPTOR OVERRIDE SELECTION

JP3: Flash Descriptor Override Selection The selections are as follows:

***Manufacturing Default – Disable.

Selection

Jumper Setting

(Pin Closed)

Jumper Illustration

Disable

Open

JP3

Enable

1-2

JP3

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-24

2-18. LAN2 ENABLE / DISABLE Selection

JP5: LAN2 Enable / Disable Selection The selections are as follows:

***Manufacturing Default – Enable.

Selection

Jumper Setting

(Pin Closed)

Jumper Illustration

Enable

1-2

JP5

Disable

2-3

JP5

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-25

2-19. Mini PCIE VOLTAGE SELECTION

JP13: Mini PCIE Voltage Selection The selections are as follows:

***Manufacturing Default –3.3V_AUX.

Selection

Jumper Setting

(Pin Closed)

Jumper Illustration

3.3V

1-2

JP13

3.3V_AUX

2-3

JP13

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-26

2-20. VCCIO VOLTAGE SELECTION

JP10: VCCIO Voltage Selection The selections are as follows:

***Manufacturing Default – 0.95V.

Selection

Jumper Setting

(Pin Closed)

Jumper Illustration

1.0V

1-2

JP10

0.95V

2-3

JP10

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-27

2-21. MINI PCI EXPRESS SLOT

MPCIE1: Mini-PCI Express Slot

ASSIGNMENT

1

WAKE_N

2

3.3V_SB

3

NC

4

GND

5

NC

6

1.5V

7

CLKREQ#

8

NC

9

GND

10

NC

11

REFCLK-

12

NC

13

REFCLK+

14

NC

15

GND

16

NC

17

NC

18

GND

19

NC

20

NC

21

GND

22

PERST#

23

PE_RX_N

24

3.3V_SB

25

PE_RX_P

26

GND

27

GND

28

1.5V

29

GND

30

SMB_CLK

31

PE_TX_N

32

SMB_DATA

33

PE_TX_P

34

GND

35

GND

36

USB_N

37

GND

38

USB_P

39

3.3V_SB

40

GND

41

3.3V_SB

42

NC

43

GND

44

NC

45

NC

46

NC

47

NC

48

1.5V

49

NC

50

GND

51

NC

52

3.3V_SB

MPCIE1

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-28

2-22. PCI EXPRESS SLOTS

PCI_E1 (X16): PCI_E1 (PCIE X16)

ASSIGNMENT

A1

PRSNT#1

A21

HSIP1

A41

GND

A2

+ 12V

A22

HSIN1

A42

GND

A3

+ 12V

A23

GND

A43

HSIP6

A4

GND

A24

GND

A44

HSIN6

A5

NC

A25

HSIP2

A45

GND

A6

NC

A26

HSIN2

A46

GND

A7

NC

A27

GND

A47

HSIP7

A8

NC

A28

GND

A48

HSIN7

A9

+ 3.3V

A29

HSIP3

A49

GND

A10

+ 3.3V

A30

HSIN3

A50

RSVD

A11

PERST#

A31

GND

A51

GND

A12

GND

A32

RSVD

A52

HSIP8

A13

REFCLK+

A33

RSVD

A53

HSIN8

A14

REFCLK-

A34

GND

A54

GND

A15

GND

A35

HSIP4

A55

GND

A16

HSIP0

A36

HSIN4

A56

HSIP9

A17

HSIN0

A37

GND

A57

HSIN9

A18

GND

A38

GND

A58

GND

A19

RSVD

A39

HSIP5

A59

GND

A20

GND

A40

HSIN5

A60

HSIP10

PCI_E1

A1

A11

A12

A82

B1

B11

B12

B82

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-29

ASSIGNMENT

A61

HSIN10

A69

HSIN12

A77

HSIN14

A62

GND

A70

GND

A78

GND

A63

GND

A71

GND

A79

GND

A64

HSIP11

A72

HSIP13

A80

HSIP15

A65

HSIN11

A73

HSIN13

A81

HSIN15

A66

GND

A74

GND

A82

GND

A67

GND

A75

GND - -

A68

HSIP12

A76

HSIP14 - -

ASSIGNMENT

B1

+ 12V

B22

GND

B43

GND

B2

+ 12V

B23

HSOP2

B44

GND

B3

+ 12V

B24

HSON2

B45

HSOP7

B4

GND

B25

GND

B46

HSON7

B5

SMB_CLK

B26

GND

B47

GND

B6

SMB_DATA

B27

HSOP3

B48

PRSNT#2

B7

GND

B28

HSON3

B49

GND

B8

+ 3.3V

B29

GND

B50

HSOP8

B9

NC

B30

RSVD

B51

HSON8

B10

+ 3.3V_AXU

B31

PRSNT#2

B52

GND

B11

WAKE#

B32

GND

B53

GND

B12

RSVD

B33

HSOP4

B54

HSOP9

B13

GND

B34

HSON4

B55

HSON9

B14

HSOP0

B35

GND

B56

GND

B15

HSON0

B36

GND

B57

GND

B16

GND

B37

HSOP5

B58

HSOP10

B17

PRSNT#2

B38

HSON5

B59

HSON10

B18

GND

B39

GND

B60

GND

B19

HSOP1

B40

GND

B61

GND

B20

HSON1

B41

HSOP6

B62

HSOP11

B21

GND

B42

HSON6

B63

HSON11

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-30

ASSIGNMENT

B64

GND

B71

HSON13

B78

HSIP15

B65

GND

B72

GND

B79

HSIN15

B66

HSOP12

B73

GND

B80

GND

B67

HSON12

B74

HSOP14

B81

PRSNT#2

B68

GND

B75

HSIN14

B82

RSVD

B69

GND

B76

GND

-

B70

HSOP13

B77

GND

-

PCI_E2, PCI_E4 (X4): PCI_E2, PCI_E4 (PCIE X4) PCI_E2, PCI_E4 are only supported in C236 and Q170 SKU.

Note1: H110 SKU PCI_E2 only supports PCIE X 1.

ASSIGNMENT

A1

PRSNT#1

A12

GND

A23

GND

A2

+ 12V

A13

REFCLK+

A24

GND

A3

+ 12V

A14

REFCLK-

A25

HSIP2

A4

GND

A15

GND

A26

HSIN2

A5

NC

A16

HSIP0

A27

GND

A6

NC

A17

HSIN0

A28

GND

A7

NC

A18

GND

A29

HSIP3

A8

NC

A19

RSVD

A30

HSIN3

A9

+ 3.3V

A20

GND

A31

GND

A10

+ 3.3V

A21

HSIP1

A32

RSVD

A11

PERST#

A22

HSIN1 - -

PCI_E2/PCI_E4

A1 A11

A12

B1

B11

B12

B32

A32

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-31

ASSIGNMENT

B1

+ 12V

B12

RSVD

B23

HSOP2

B2

+ 12V

B13

GND

B24

HSON2

B3

+ 12V

B14

HSOP0

B25

GND

B4

GND

B15

HSON0

B26

GND

B5

SMB_CLK

B16

GND

B27

HSOP3

B6

SMB_DATA

B17

PRSNT#2

B28

HSON3

B7

GND

B18

GND

B29

GND

B8

+ 3.3V

B19

HSOP1

B30

RSVD

B9

NC

B20

HSON1

B31

PRSNT#2

B10

+ 3.3V_AXU

B21

GND

B32

GND

B11

WAKE#

B22

GND - -

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-32

PCI_E3 (X1): PCI_E3 (PCIE X1)

ASSIGNMENT

A1

PRSNT#1

A10

+ 3.3V

A2

+ 12V

A11

PERST#

A3

+ 12V

A12

GND

A4

GND

A13

REFCLK+

A5

NC

A14

REFCLK-

A6

NC

A15

GND

A7

NC

A16

HSIP0

A8

NC

A17

HSIN0

A9

+ 3.3V

A18

GND

ASSIGNMENT

B1

+ 12V

B10

+ 3.3V_AXU

B2

+ 12V

B11

WAKE#

B3

+ 12V

B12

RSVD

B4

GND

B13

GND

B5

SMB_CLK

B14

HSOP0

B6

SMB_DATA

B15

HSON0

B7

GND

B16

GND

B8

+ 3.3V

B17

PRSNT#2

B9

NC

B18

GND

PCI_E3

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-33

2-23. CPU / SYSTEM FAN CONNECTORS

CPU_FAN1: CPU Fan Connector SYS_FAN1: System Fan Connector 1

ASSIGNMENT

1

GND

2

VCC12

3

CPU_FANTAC

4

CPU_FANCTRL

SYS_FAN2: System Fan Connector 2

ASSIGNMENT

3

NC

2

VCC12

1

GND

CPU_FAN1

SYS_FAN1

4

1

SYS_FAN2

1

3

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-34

2-24. Serial ATA (SATA) CONNECTORS

SATA1, SATA2, SATA3, SATA4, SATA5, SATA6, SATA7, SATA8: SATA Connectors

SATA1-8 Pin Assignment:

ASSIGNMENT

1

GND

2

SATA_TX_P

3

SATA_TX_N

4

GND

5

SATA_RX_N

6

SATA_RX_P

7

GND

Notes:

1. C236 SKU supports SATA1~SATA8.

2. Q170 SKU supports SATA1~SATA6.

3. H110 SKU supports SATA1~SATA4.

SATA1/ SATA3/

SATA5/

SATA7/

SATA2/ SATA4/

SATA6/

SATA8/

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-35

2-25. INTERNAL USB 3.0 CONNECTOR

USB1: Internal USB 3.0 Connector

ASSIGNMENT

- - 1

VCC5

19

VCC5

2

USB3_RX_N

18

USB3_RX_N

3

USB3_RX_P

17

USB3_RX_P

4

GND

16

GND

5

USB3_TX_N

15

USB3_TX_N

6

USB3_TX_P

14

USB3_TX_P

7

GND

13

GND

8

USB2_N

12

USB2_N

9

USB2_P

11

USB2_P

10

GND

Note: USB1 is only available for C236/Q170 SKU, not available for H110 SKU.

2-26. INTERNAL USB 2.0 CONNECTORS

USB2, USB3: Internal USB 2.0 Connector

ASSIGNMENT

10

GND

9

NC

8

GND

7

GND

6

USB2_P

5

USB2_P

4

USB2_N

3

USB2_N

2

VCC5

1

VCC5

USB1

1

1011

19

USB2/

USB3

10

9

1

2

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-36

2-27. DISPLAY PORT CONNECTOR

DP1: Display Port Connector

ASSIGNMENT

19

VCC5

20

VCC3

17

AUX

18

VCC3

15

AUX+

16

HPD

13

AUX_EN#

14

GND

11

GND

12

DATA3-

9

DATA2-

10

DATA3+

7

DATA2+

8

GND

5

GND

6

DATA1-

3

DATA0-

4

DATA1+

1

DATA0+

2

GND

NOTE: BU-2509RA-D0P / D1P / D6P don’t support DP.

DP1

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-37

2-28. POWER INPUT CONNECTORS

ATX_PWR1: ATX Connector The pin assignments are as follows:

ASSIGNMENT

13

+ 3.3V

1

+ 3.3V

14

-12V

2

+ 3.3V

15

GND

3

GND

16

PSON

4

+ 5V

17

GND

5

GND

18

GND

6

+ 5V

19

GND

7

GND

20

-5V

8

POK

21

+ 5V

9

+ 5V_SB

22

+ 5V

10

+ 12V

23

+ 5V

11

+ 12V

24

GND

12

+ 3.3V

ATX_PWR2: Power Connector

ASSIGNMENT

4

+12V

1

GND

3

+12V

2

GND

ATX_PWR1

ATX_PWR2

Chapter 2 Hardware Configuration

BU-2509 USERS MANUAL

Page: 2-38

2-29. SPEAKER CONNECTOR

JSPEAKER: Speaker Connector

ASSIGNMENT

4

SPKR_SIGNAL

3

SPKR_SIGNAL

2

SPKR_SIGNAL

1

SPKR_VCC

2-30. LPC CONNECTOR

JLPC1: LPC Connector

ASSIGNMENT

20

DREQ0

19

SUS_TAT

18

CLK RUN

17

GND

16

SERIRQ

15

3VSB

14

SMBDATA

13

SMBCLK

12

GND

11

LAD0

10

LAD1

9

VCC3

8

LAD2

7

LAD3

6

VCC5

5

RESET

4

NC

3

FRAME

2

GND

1

CLK

JSPEAKER

1

4

JLPC1

1

20

2

19

Page: 3-1

SOFTWARE

UTILITIES

This chapter comprises the detailed information of VGA driver, LAN driver, and Sound driver.

The following sections are included:

 Introduction.  Intel® Chipset Software Installation Utility  Intel® Trusted Execution Engine Installation Utility  VGA Driver Utility  LAN Driver Utility  Sound Driver Utility

CHAPTER

3

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-2

3-1. INTRODUCTION

Enclosed with our BU-2509 package are our driver utilities, which come in a DVDROM disk. Refer to the following table for driver locations.

Filename (Assume that DVD ROM

drive is D :)

Purpose

OS

DOS

Win7

Win8.1

Win10

D:\H110\Driver\Flash BIOS

For BIOS update utility



D:\H110\Driver\Plaform\Win7(32bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\H110\Driver\Plaform\Win7(32bit)\VGA

Intel® HD Graphics installer

  

D:\H110\Driver\Plaform\Win7(32bit)\LAN

Intel® Network Connections Software

  

D:\H110\Driver\Plaform\Win7(32bit)\Sound

Realtek High Definition Audio System Software

  

D:\H110\Driver\Plaform\Win7(32bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\H110\Driver\Plaform\Win7(32bit)\ME

Intel® Management Engine Components installer

  

D:\H110\Driver\Plaform\Win7(64bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\H110\Driver\Plaform\Win7(64bit)\VGA

Intel® HD Graphics installer

  

D:\H110\Driver\Plaform\Win7(64bit)\LAN

Intel® Network Connections Software

  

D:\H110\Driver\Plaform\Win7(64bit)\Sound

Realtek High Definition Audio System Software

  

D:\H110\Driver\Plaform\Win7(64bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\H110\Driver\Plaform\Win7(64bit)\ME

Intel® Management Engine Components installer

  

D:\H110\Driver\Plaform\Win8.1(64bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\H110\Driver\Plaform\Win8.1(64bit)\VGA

Intel® HD Graphics installer

  

D:\H110\Driver\Plaform\Win8.1(64bit)\LAN

Intel® Network Connections Software

  

D:\H110\Driver\Plaform\Win8.1(64bit)\Sound

Realtek High Definition Audio System Software

  

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-3

Filename (Assume that DVD ROM

drive is D :)

Purpose

OS

DOS

Win7

Win8.1

Win10

D:\H110\Driver\Plaform\Win8.1(64bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\H110\Driver\Plaform\Win8.1(64bit)\ME

Intel® Management Engine Components installer

  

D:\H110\Driver\Plaform\Win10(64bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\H110\Driver\Plaform\Win10(64bit)\VGA

Intel® HD Graphics installer

  

D:\H110\Driver\Plaform\Win10(64bit)\LAN

Intel® Network Connections Software

  

D:\H110\Driver\Plaform\Win10(64bit)\Sound

Realtek High Definition Audio System Software

  

D:\H110\Driver\Plaform\Win10(64bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\H110\Driver\Plaform\Win10(64bit)\ME

Intel® Management Engine Components installer

  

D:\Q170\Driver\Flash BIOS

For BIOS update utility



D:\Q170\Driver\Plaform\Win7(32bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\Q170\Driver\Plaform\Win7(32bit)\VGA

Intel® HD Graphics installer

  

D:\Q170\Driver\Plaform\Win7(32bit)\LAN

Intel® Network Connections Software

  

D:\Q170\Driver\Plaform\Win7(32bit)\Sound

Realtek High Definition Audio System Software

  

D:\Q170\Driver\Plaform\Win7(32bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\Q170\Driver\Plaform\Win7(32bit)\RAID

Intel® Rapid Storage Technology (Intel® RST).

  

D:\Q170\Driver\Plaform\Win7(32bit)\ME

Intel® Management Engine Components installer

  

D:\Q170\Driver\Plaform\Win7(64bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\Q170\Driver\Plaform\Win7(64bit)\VGA

Intel® HD Graphics installer

  

D:\Q170\Driver\Plaform\Win7(64bit)\LAN

Intel® Network Connections Software

  

D:\Q170\Driver\Plaform\Win7(64bit)\Sound

Realtek High Definition Audio System Software

  

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-4

Filename (Assume that DVD ROM

drive is D :)

Purpose

OS

DOS

Win7

Win8.1

Win10

D:\Q170\Driver\Plaform\Win7(64bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\Q170\Driver\Plaform\Win7(64bit)\ME

Intel® Management Engine Components installer

  

D:\Q170\Driver\Plaform\Win7(64bit)\RAID

Intel® Rapid Storage Technology (Intel® RST).

  

D:\Q170\Driver\Plaform\Win8.1(64bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\Q170\Driver\Plaform\Win8.1(64bit)\VGA

Intel® HD Graphics installer

  

D:\Q170\Driver\Plaform\Win8.1(64bit)\LAN

Intel® Network Connections Software

  

D:\Q170\Driver\Plaform\Win8.1(64bit)\Sound

Realtek High Definition Audio System Software

  

D:\Q170\Driver\Plaform\Win8.1(64bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\Q170\Driver\Plaform\Win8.1(64bit)\ME

Intel® Management Engine Components installer

  

D:\Q170\Driver\Plaform\Win8.1(64bit)\RAID

Intel® Rapid Storage Technology (Intel® RST).

  

D:\Q170\Driver\Plaform\Win10(64bit)\Main Chip

Intel® Chipset Device Software installer

  

D:\Q170\Driver\Plaform\Win10(64bit)\VGA

Intel® HD Graphics installer

  

D:\Q170\Driver\Plaform\Win10(64bit)\LAN

Intel® Network Connections Software

  

D:\Q170\Driver\Plaform\Win10(64bit)\Sound

Realtek High Definition Audio System Software

  

D:\Q170\Driver\Plaform\Win10(64bit)\USB3.0

Intel® USB 3.0 eXtensible Host Controller

  

D:\Q170\Driver\Plaform\Win10(64bit)\ME

Intel® Management Engine Components installer

  

D:\Q170\Driver\Plaform\Win10(64bit)\RAID

Intel® Rapid Storage Technology (Intel® RST).

  

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-5

3-2. Intel® Chipset Device Software installer

3-2-1. Introduction

The Intel® Chipset Device Software installs Windows INF files to the target system. These files outline to the operating system how to configure the Intel® chipset components in order to ensure that the following features function properly:

 Core PCI and ISAPNP Services  PCIe Support  IDE/ATA33/ATA66/ATA100 Storage Support  SATA Storage Support  USB Support  Identification of Intel® Chipset Components in the Device Manager

3-2-2. Installation of Utility for Windows 7/8.1/10

The Utility Pack is to be installed only for Windows 7/8.1/10 series, and it should be installed right after the OS installation. Please follow the steps below:

1. Insert the driver disk into a DVD-ROM device.

2. Under Windows system, go to the directory where the Utility driver is located.

3. Run the application with administrative privileges.

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-6

3-3. INTEL® TRUSTED EXECUTION ENGINE INSTALLATION UTILITY

3-3-1. Introduction

Pre-install Microsoft’s Kernel-Mode Driver Framework (KMDF) version 1.11 for Windows 7/8.1/10 before you install the Intel® Trusted Execution Engine (TXE) driver in order to avoid errors in Device Manager.

3-3-2. Installation Instructions for Windows 7/8.1/10

1. Insert the driver disk into a DVD-ROM device.

2. Under Windows system, go to the directory where the driver is located.

3. Run the application with administrative privileges.

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-7

3-4. VGA DRIVER UTILITY

3-4-1. Introduction

The VGA interface embedded with our BU-2509 can support a wide range of display.

3-4-2. Installation of VGA Driver

To install the VGA Driver, simply follow the following steps:

1. Insert the driver disk into a DVD-ROM device.

2. Under Windows system, go to the directory where the VGA driver is located.

3. Run the application with administrative privileges.

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-8

3-5. LAN DRIVER UTILITY

3-5-1. Introduction

BU-2509 is enhanced with LAN function that can support various network adapters. Installation programs for LAN drivers are listed as follows:

For more details on Installation procedure, please refer to Readme.txt file found on LAN Driver Utility.

Chapter 3 Software Utilities

BU-2509 USERS MANUAL

Page:3-9

3-6. SOUND DRIVER UTILITY

3-6-1. Introduction

The Realtek sound function enhanced in this system is fully compatible with Windows 7/8.1. Below, you will find the content of the Sound driver:

3-6-2. Installation of Sound Driver

1. Insert the driver disk into a DVD-ROM device.

2. Under Windows system, go to the directory where the Sound driver is located.

3. Run the application with administrative privileges.

4. Follow the instructions on the screen to complete the installation.

5. Once the installation is completed, shut down the system and restart it in order for

the changes to take effect.

Page: 4-1

AMI BIOS SETUP

This chapter describes how to set up the AMI BIOS.

The following sections are included:

 Introduction

 Entering Setup

 Main

 Advanced

 Chipset

 Boot

 Security

 Save & Exit

CHAPTER

4

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-2

4-1. INTRODUCTION

The system BU-2509 uses an AMI Aptio BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the BIOS Setup program, Power-On Self-Test (POST), the PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.

Aptio is AMI’s BIOS firmware based on the UEFI (Unified Extensible Firmware Interface) specifications and the Intel Platform Innovation Framework for EFI. The UEFI specification defines an interface between the operating system and platform firmware. The interface consists of data tables that contain platform-related information, boot service calls, and runtime service calls that are available to the operating system and its loader. These elements have combined to provide a standard environment for booting the operating system and running pre-boot applications.

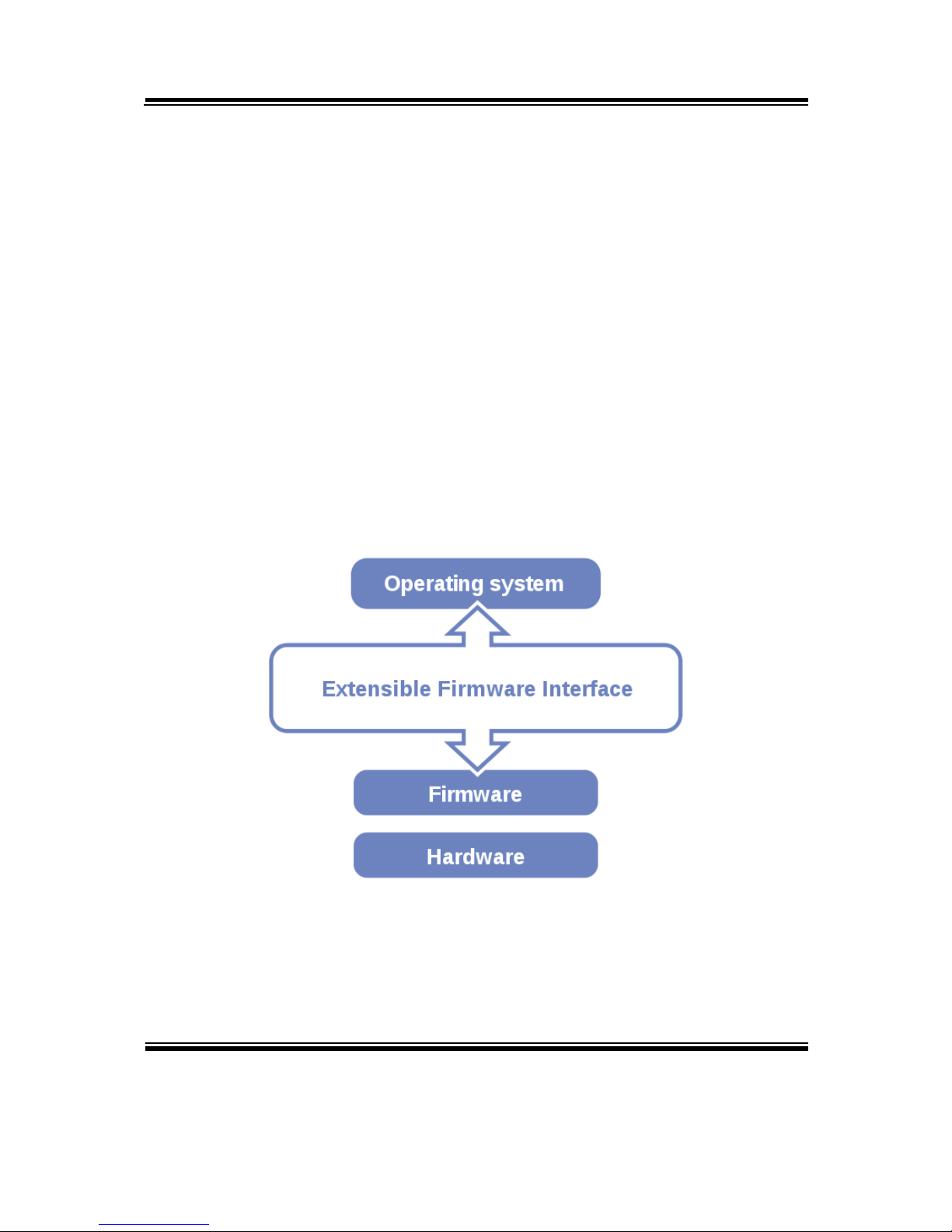

The diagram below shows the Extensible Firmware Interface’s location in the software stack.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-3

EFI BIOS provides an user interface that allows you to modify hardware configuration, e.g. change the system date and time, enable/disable a system component, determine bootable device priority, set up personal password, etc., which is convenient for engineers to perform modifications and customize the computer system and allows technicians to troubleshoot the occurred errors when the hardware is faulty.

The BIOS setup menu allows users to view and modify the BIOS settings for the computer. After the system is powered on, users can access the BIOS setup menu by pressing <Del> or <Esc> immediately while the POST message is running before the operating system is loading.

4-2. ENTERING SETUP UTILITY

After the system is powered on, BIOS will enter the Power-On Self-Test (POST) routines and the POST message will be displayed:

POST Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-4

Press the <Del> or <Esc> key to access the Setup Utility program, and the Main menu of the Aptio Setup Utility will appear on the screen as below:

BIOS Setup Menu Initialization Screen

You may move the cursor by up/down keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear at the bottom of the screen.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-5

4-3. MAIN

Menu Path Main

Main Screen

Use <↑> or <↓> arrow keys to highlight the item and key in the value you want in each

item. This menu provides basic system configurations, such as system date and time.

BIOS Setting

Options

Description/Purpose

BIOS Vendor

No changeable options

Displays the name of the BIOS vendor.

Core Version

No changeable options

Displays the current BIOS core version.

Compliancy

No changeable options

Displays the current UEFI version.

Project Version

No changeable options

Displays the version of the BIOS currently installed on the platform.

Build Date and Time

No changeable options

Displays the date that the current BIOS version is built.

System Date

Month, day, year

Sets the system date. The format is [Day Month/ Date/ Year]. Users can directly enter values or use <+> or <-> arrow keys to increase/decrease it. The “Day” is automatically changed.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-6

BIOS Setting

Options

Description/Purpose

System Time

Hour, minute, second

Sets the system time. The format is [Hour: Minute: Second]. Users can directly enter values or use <+> or <-> arrow keys to increase/decrease it.

4-4. ADVANCED

Menu Path Advanced

This menu provides advanced configurations such as Trusted Computing, ACPI Settings, PCH-FW Configuration, F81866 Super IO Configuration, Hardware Monitor, F81866 Watchdog, CPU Configuration, SATA Configuration, Network Stack Configuration and USB Configuration.

Advanced Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-7

BIOS Setting

Options

Description/Purpose

Trusted Computing

Sub-Menu

Trusted Computing Settings.

ACPI Settings

Sub-Menu

System ACPI Parameters.

PCH-FW Configuration

Sub-Menu

Management Engine Technology Parameters.

F81866 Super IO Configuration

Sub-Menu

System Super IO Chip Parameters. Hardware Monitor

Sub-Menu

Monitor hardware status.

F81866 Watchdog

Sub-Menu

F81866 Watchdog Parameters.

CPU Configuration

Sub-Menu

CPU Configuration Parameters.

SATA Configuration

Sub-Menu

SATA Device Options Settings.

Network Stack Configuration

Sub-Menu

Network Stack Settings. USB Configuration

Sub-Menu

USB Configuration Parameters.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-8

4-4-1. Advanced – Trusted Computing

Menu Path Advanced > Trusted Computing

The Trusted Computing allows users to enable/disable BIOS support for security device. The operating system will not show Security Device. The TCG EFI protocol and INT1A interface will not be available.

Trusted Computing Screen

BIOS Setting

Options

Description/Purpose

Security Device Support

- Disabled

- Enabled

Enables or Disables BIOS support for security device. O.S will not show security Device. TCG EFI protocol and INT1A interface will not be available.

Security Device Status

No changeable options

Security Device Information.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-9

4-4-2. Advanced - ACPI Settings

Menu Path Advanced > ACPI Settings

The ACPI Settings allows users to configure relevant ACPI (Advanced Configuration and Power Management Interface) settings, such as enable/disable Hibernation, ACPI Sleep State, lock legacy resources, etc.

ACPI Settings Screen

BIOS Setting

Options

Description/Purpose

Enable Hibernation

- Disabled

- Enabled

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

- Suspend Disabled

- S3 (Suspend to RAM)

Selects the highest ACPI sleep state the system will enter when the SUSPEND button is pressed.

Lock Legacy Resources

- Disabled

- Enabled

Enables or Disables Lock of Legacy Resources.

S3 Video Repost

- Disabled

- Enabled

Enables or Disables S3 Video Repost.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-10

4-4-3. Advanced - PCH-FW Configuration

Menu Path Advanced > PCH-FW Configuration

The PCH-FW allows users to view the information about ME (Management Engine) firmware information, such ME firmware version, firmware mode, firmware type, firmware SKU and TPM device selection.

PCH-FW Configuration Screen

BIOS Setting

Options

Description/Purpose

ME FW Version

No changeable options

Displays the ME Firmware Version.

ME Firmware Mode

No changeable options

Displays the ME Firmware Mode.

ME Firmware Type

No changeable options

Displays the ME Firmware Type.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-11

BIOS Setting

Options

Description/Purpose

ME Firmware SKU

No changeable options

Displays the ME Firmware SKU.

TPM Device Selection

- dTPM 1.2

- PTT

Selects TPM device: PTT or dTPM 1.2. PTT in SkuMgr dTPM 1.2 - Disables PTT in SkuMgr Warning ! PTT/dTPM will be disabled and all data saved on it will be lost.

4-4-4. Advanced - F81866 Super IO Configuration

Menu Path Advanced > F81866 Super IO Configuration

F81866 Super IO Configuration Screen

BIOS Setting

Options

Description/Purpose

Serial Port 1 Configuration

Sub-menu

Sets parameters of Serial Port 1 (COMA). Serial Port 2

Sub-menu

Sets parameters of Serial Port 2 (COMB).

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-12

BIOS Setting

Options

Description/Purpose

Configuration

Serial Port 3 Configuration

Sub-menu

Sets parameters of Serial Port 3 (COMC).

Serial Port 4 Configuration

Sub-menu

Sets parameters of Serial Port 4 (COMD).

Serial Port 5 Configuration

Sub-menu

Sets parameters of Serial Port 5 (COME).

Serial Port 6 Configuration

Sub-menu

Sets parameters of Serial Port 6 (COMF).

Menu Path Advanced > F81866 Super IO Configuration > Serial Port 1

Configuration

Serial Port 1 Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-13

BIOS Setting

Options

Description/Purpose

Serial Port

- Disabled

- Enabled

Enables or Disables Serial Port 1.

Device settings

No changeable options

Displays the current settings of Serial Port 1.

Change Settings

- Auto

- IO=3F8h; IRQ=4;

- IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;

Selects IRQ and I/O resource settings for Serial Port 1.

Menu Path Advanced > F81866 Super IO Configuration > Serial Port 2

Configuration

Serial Port 2 Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-14

BIOS Setting

Options

Description/Purpose

Serial Port

- Disabled

- Enabled

Enables or Disables Serial Port 2.

Device Settings

No changeable options

Displays the current settings of Serial Port 2.

Change Settings

- Auto

- IO=2F8h; IRQ=3;

- IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;

Selects IRQ and I/O resource settings for Serial Port 2.

Menu Path Advanced > F81866 Super IO Configuration > Serial Port 3

Configuration

Serial Port 3 Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-15

BIOS Setting

Options

Description/Purpose

Serial Port

- Disabled

- Enabled

Enables or Disables Serial Port 3.

Device Settings

No changeable options

Displays the current settings of Serial Port 3.

Change Settings

- Auto

- IO=3E8h; IRQ=7;

- IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;

Selects IRQ and I/O resource settings for Serial Port 3.

Menu Path Advanced > F81866 Super IO Configuration > Serial Port 4

Configuration

Serial Port 4 Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-16

BIOS Setting

Options

Description/Purpose

Serial Port

- Disabled

- Enabled

Enables or Disables Serial Port 4.

Device Settings

No changeable options

Displays the current settings of Serial Port 4.

Change Settings

- Auto

- IO=2E8h; IRQ=10;

- IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;

Selects IRQ and I/O resource settings for Serial Port 4.

Menu Path Advanced > F81866 Super IO Configuration > Serial Port 5

Configuration

Serial Port 5 Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-17

BIOS Setting

Options

Description/Purpose

Serial Port

- Disabled

- Enabled

Enables or Disables Serial Port 5.

Device Settings

No changeable options

Displays the current settings of Serial Port 5.

Change Settings

- Auto

- IO=2F0h; IRQ=6;

- IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;

Selects IRQ and I/O resource settings for Serial Port 5.

Menu Path Advanced > F81866 Super IO Configuration > Serial Port 6

Configuration

Serial Port 6 Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-18

BIOS Setting

Options

Description/Purpose

Serial Port

- Disabled

- Enabled

Enables or Disables Serial Port 6.

Device Settings

No changeable options

Displays the current settings of Serial Port 6.

Change Settings

- Auto

- IO=2F0h; IRQ=7;

- IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2F0h; IRQ=3,4,5,6,7,9,10,11,12;

- IO=2E0h; IRQ=3,4,5,6,7,9,10,11,12;

Selects IRQ and I/O resource settings for Serial Port 6.

Device Mode

- Disables IR1 function

- Enables IR1 function, active pulse 1.6uS

- Enables IR1 function, active pulse 3/16 bit time

Enables or Disables IR Mode function.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-19

4-4-5. Advanced – Hardware Monitor

Menu Path Advanced > Hardware Monitor

The Hardware Monitor allows users to monitor the health and status of the system such as CPU temperature, system temperature, CPU fan speed, system fan speed and voltage levels in supply.

Hardware Monitor Screen

BIOS Setting

Options

Description/Purpose

Smart Fan Mode Configuration

Sub-Menu

Smart Fan Mode Select CPU Temperature

No changeable options

Displays the processor's temperature.

System Temperature

No changeable options

Displays the system's temperature.

CPU Fan Speed

No changeable options

Displays CPU Fan speed.

System Fan1 Speed

No changeable options

Displays System Fan 1 speed

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-20

BIOS Setting

Options

Description/Purpose

VCORE

No changeable options

Displays the VCORE CPU voltage in supply.

VSB5V

No changeable options

Displays the voltage level of VSB5V in supply.

VCC5V

No changeable options

Displays the voltage level of VCC5V in supply.

VCC12V

No changeable options

Displays the voltage level of VCC12V in supply.

VCC3V

No changeable options

Displays the voltage level of VCC3V in supply.

VSB3V

No changeable options

Displays the voltage level of VSB3V in supply.

VSB5V

No changeable options

Displays the voltage level of VSB5V in supply.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-21

4-4-6. Advanced – Smart Fan Mode Configuration

Menu Path Advanced > Hardware Monitor > Smart Fan Mode

Configuration

Smart Fan Mode Configuration Screen

BIOS Setting

Options

Description/Purpose

CPU Fan Smart Fan Control

- Manual Duty Mode

- Auto Duty-Cycle Mode

Smart Fan Mode selection for CPU Fan.

Manual Duty Mode

- Numeric (from 1 to 100)

Manual mode fan control, users can write expected duty cycle (PWM fan type) from 1 to 100.

System Fan Smart Fan1 Control

- Manual Duty Mode

- Auto Duty-Cycle Mode

Smart Fan Mode selection for system fan 1.

Manual Duty Mode

- Numeric (from 1 to 100)

Manual mode fan control. Users can write the expected duty cycle (PWM fan type) from 1 to 100.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-22

4-4-7. Advanced – F81866 Watchdog Configuration

Menu Path Advanced > F81866 Watchdog

If the system hangs or fails to respond, enable the F81866 watchdog function to trigger a system reset via the 255-level watchdog timer.

F81866 Watchdog Configuration Screen

BIOS Setting

Options

Description/Purpose

Enable Watchdog

- Enabled

- Disabled

Enables/Disables F81866 Watchdog timer settings.

Watchdog timer unit

- 1s

- 60s

Selects 1s (second) or 60s (minute) as the time unit of Watchdog timer.

Count for Timer

Numeric (from 1 to 255)

Sets the timeout for Watchdog timer. (Max. value: 255 seconds or minutes)

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-23

4-4-8. Advanced – CPU Configuration

Menu Path Advanced > CPU Configuration

The CPU Configuration provides advanced CPU settings and some information about CPU.

CPU Configuration Screen 1

BIOS Setting

Options

Description/Purpose

CPU Signature

No changeable options

Displays CPU Signature.

Microcode Patch

No changeable options

CPU Microcode Patch Revision.

Max CPU Speed

No changeable options

Displays the maximum CPU speed.

Min CPU Speed

No changeable options

Displays the minimum CPU speed.

CPU Speed

No changeable options

Displays the CPU speed.

Processor Cores

No changeable options

Displays the number of cores of the processor.

Hyper Threading Technology

No changeable options

Reports if Intel Hyper-Threading Technology is supported by the processor. Hyper Threading is Intel’s

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-24

BIOS Setting

Options

Description/Purpose

term for its simultaneous multithreading implementation in their CPUs. Enable this function will improve parallelization of computation performed on PC microprocessor. For each processor core that is physically present, the operating system addresses two virtual processors, and shares the workload between them when possible.

Intel VT-x Technology

No changeable options

Reports if Intel VT-x Technology is supported by the processor. Previously codenamed "Vanderpool", VT-x represents Intel’s technology for virtualization on the x86 platform. Utilizing Vanderpool Technology (VT), a VMM (Virtual Machine Monitor) can utilize the additional hardware capabilities.

Intel SMX (Secure Mode Extensions) Technology

No changeable options

Reports if Intel Secure Mode Extensions Technology is supported by the processor.

64-bit

No changeable options

Reports if the processor supports Intel x86-64 (amd64) implementation.

EIST Technology

No changeable options

Report if the processor supports Intel Enhanced SpeedStep Technology.

L1 Data Cache

No changeable options

Displays L1 Data Cache size.

L1 Code Cache

No changeable options

Displays L1 Code Cache size.

L2 Cache

No changeable options

Displays L2 Cache size.

L3 Cache

No changeable options

Displays L3 Cache size.

L4 Cache

No changeable options

Displays L4 Cache size

Active Processor Cores

- All

- 1 to n (depends on CPU)

Number of cores to enable in each processor package.

Hardware Prefetcher

- Disabled

- Enabled

Turns on/off the MLC streamer prefetcher.

Adjacent Cache Line Prefetch

- Disabled

- Enabled

Turns on/off prefetching of adjacent cache lines.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-25

CPU Configuration Screen 2

BIOS Setting

Options

Description/Purpose

Intel Virtualization Technology

- Disabled

- Enabled

When enabled, a VMM (Virtual Machine Monitor) can utilize the additional hardware capabilities provided by Vanderpool Technology (VT).

Hardware Prefetcher

- Disabled

- Enabled

Turns on/off the MLC streamer prefetcher.

Adjacent Cache Line Prefetch

- Disabled

- Enabled

Turns on/off prefetching of adjacent cache lines.

CPU AES

- Disabled

- Enabled

Enables/Disables CPU Advanced Encryption Standard instructions.

Intel(R) Speed Shift Technology

- Disabled

- Enabled

Enabling Intel(R) Speed Shift Technology will expose the CPPC v2 interface to allow for hardware controlled P-states.

Intel(R) SpeedStep(tm)

- Disabled

- Enabled

Allows more than two frequency ranges to be supported.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-26

BIOS Setting

Options

Description/Purpose

CPU C states

- Disabled

- Enabled

Enables or Disables CPU C states.

Intel TXT(LT) Support

- Disabled

- Enabled

Displays Intel TXT (LT) information. TXT stands for Trusted Execution Technology.

SW Guard Extensions (SGX)

- Disabled

- Enabled

Enables/Disables Software Guard Extensions (SGX).

4-4-9. Advanced - SATA Configuration (AHCI Mode)

Menu Path Advanced > SATA Configuration

The SATA Configuration allows users to enable / disable the SATA controller as well as the operational mode after the SATA controller is enabled. The following screen indicates the functions available when the SATA controller is enabled and the AHCI mode is selected.

SATA Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-27

BIOS Setting

Options

Description/Purpose

SATA Controller(s)

- Disabled

- Enabled

Enables or Disables SATA Device.

SATA Mode Selection

- AHCI

- RAID

Determines how SATA controller(s) operate.

Alternate ID

- Disabled

- Enabled

Reports the alternate device ID.

Serial ATA Port 0 – 3 for H110 sku. Serial ATA Port 0 – 5 for Q170 sku. Serial ATA Port 0 – 7 for C236 sku.

No changeable options

Displays the SATA device’s name.

Software Preserve

No changeable options

Indicates whether the connected SATA device supports Software Setting Preservation (SSP).

Port 0-3 for H110 sku. Port 0-5 for Q170 sku. Port 0-7 for C236 sku.

- Disabled

- Enabled

Enable or Disable SATA Port Device.

Hot Plug

- Disabled

- Enabled

Enables or Disables Hot Plug function to designate a SATA port device as hot-pluggable.

Spin Up Device

- Disabled

- Enabled

On an edge detection from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

SATA Device Type

- Hard Disk Drive

- Solid State Drive

Identifies the SATA port is connected to Solid State Drive or Hard Disk Drive.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-28

4-4-10. Advanced – Network Stack Configuration

Menu Path Advanced > Network Stack Configuration

The Network Stack Configuration allows users to enable/disable UEFI Network Stack, IPv4/IPv6 PXE (Pre-Boot Execution) support and configure PXE boot wait time and detects the media presence.

PXE allows a workstation to boot from a server on a network prior to booting the operating system on the local hard drive. A PXE-enabled workstation connects its NIC to the LAN via a jumper, which keeps the workstation connected to the network even when the power is turned off.

Network Stack Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-29

BIOS Setting

Options

Description/Purpose

Network Stack

- Disabled

- Enabled

Enables or Disables UEFI Network Stack.

Ipv4 PXE Support

- Disabled

- Enabled

Enables IPv4 PXE Boot Support. If disabled, IPv4 PXE boot option will not be created.

Ipv6 PXE Support

- Disabled

- Enabled

Enables IPv6 PXE Boot Support. If disabled, IPv6 PXE boot option will not be created.

PXE boot wait time

Numeric (from 0 to 5)

Number of seconds to wait for PXE boot to abort after the Esc key is pressed.

Media detect count

Numeric (from 1 to 50)

Number of times that the media presence will be checked.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-30

4-4-11. Advanced - USB Configuration

Menu Path Advanced > USB Configuration

The USB Configuration allows users to configure advanced USB settings such as Legacy USB support.

USB Configuration Screen

BIOS Setting

Options

Description/Purpose

Legacy USB Support

- Disabled

- Enabled

Enables support for legacy USB.

XHCI Hand-off

- Disabled

- Enabled

This is a workaround for OSes w/o XHCI hand-off support.

USB Mass Storage Driver Support

- Disabled

- Enabled

Enables/Disables USB mass storage driver support.

Port 60/64 Emulation

- Disabled

- Enabled

This should be enabled for the complete USB keyboard legacy support for non-USBaware OSes.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-31

BIOS Setting

Options

Description/Purpose

USB transfer time-out

1 / 5 / 10 /20 sec

The time-out value for Control, Bulk, and Interrupt transfers.

Device reset time-out

10 / 20 / 30 / 40 sec

USB mass storage device Start Unit command time-out.

Device power-up delay

- Auto

- Manual

The maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

Device power-up delay in seconds

Numeric

(from 1 to 40)

The time range for power-up delay is from 1 to 40 seconds in one-second increment.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-32

4-5. CHIPSET

Menu Path Chipset

This menu allows users to configure advanced Chipset settings such as System Agent (SA) and PCH-IO configuration parameters.

Chipset Screen

BIOS Setting

Options

Description/Purpose

System Agent (SA) Configuration

Sub-menu

System Agent (SA) parameters. PCH-IO Configuration

Sub-menu

PCH parameters.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-33

4-5-1. Chipset – System Agent (SA) Configuration

Menu Path Chipset > System Agent (SA) Configuration

The System Agent Configuration allows users to configure graphics settings and

displays the DRAM information on the platform.

System Agent (SA) Configuration Screen

BIOS Setting

Options

Description/Purpose

System Agent Bridge Name

No changeable options

Displays the System Agent Bridge Name.

SA PCIe Code Version

No changeable options

Displays the SA PCIe Code Version.

VT-d

No changeable options

Indicates whether Intel’s VT-d (Virtualization Technology for Directed I/O) capability is supported. VT-d extends Intel's Virtualization Technology (VT) roadmap by providing hardware assists for virtualization solution, and helps end users improve security and reliability of the systems and also improves performance of I/O devices in virtualized environment.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-34

BIOS Setting

Options

Description/Purpose

VT-d

- Disabled

- Enabled

Enables or Disables VT-d function.

Graphics Configuration

Sub-menu

Configures Graphics configurations.

PEG Port Configuration (PCI_E1)

Sub-menu

PEG Port Configuration Memory Configuration

Sub-menu

Displays the DRAM information on the platform.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-35

4-5-1-1. Chipset - Graphics Configuration

Menu Path Chipset > System Agent (SA) Configuration > Graphics

Configuration

The Graphics Configuration allows users to configure the display settings for the LCD panel.

Graphics Configuration Screen

BIOS Setting

Options

Description/Purpose

IGFX VBIOS Version

No changeable options

Displays the IGFX VBIOS version.

Primary Display

- Auto

- IGFX

- PEG

- PCIE

Selects IGFX, PEG or PCI Graphics device as the Primary Display or selects SG for Switchable Gfx.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-36

BIOS Setting

Options

Description/Purpose

Internal Graphics

- Auto

- Disabled

- Enabled

Keeps IGFX enabled based on the setup options.

LCD Control

Sub-menu

LCD Control sub-menu.

Menu Path Chipset > System Agent (SA) Configuration >

Graphics Configuration > LCD Control

The LCD Control allows users to select the primary and secondary display device.

LCD Control Screen

BIOS Setting

Options

Description/Purpose

Primary IGFX Boot Display

- VGA

- EDP

- LVDS

Selects Primary Display device.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-37

BIOS Setting

Options

Description/Purpose

Secondary IGFX Boot Display

- Disabled

- VGA

- EDP

- LVDS

Selects Secondary Display device.

4-5-1-2. Chipset – SA Configuration > PEG Port Configuration

Menu Path Chipset > System Agent (SA) Configuration > PEG Port

Configuration (PCI_E1)

The PEG Port Configuration allows users to display the PEG status, enable Root Port and configure the maximum link speed and width, control ASPM support, etc.

PEG Port Configuration Screen

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-38

BIOS Setting

Options

Description/Purpose

PEG 0:1:0

No changeable options

Displays the PEG Status.

Enable Root Port

- Disable

- Enable

- Auto

Enables or Disables to the Root Port.

Max Link Speed

- Auto

- Gen 1

- Gen 2

- Gen 3

Configures PEG 0:1:0 maximum speed.

Max Link Width

- Auto

- Force X1

- Force X2

- Force X4

- Force X8

Forces PEG link to retrain to X1/2/4/8.

ASPM

- Disabled

- Auto

- ASPM L0s

- ASPM L1

- ASPM L0sL1

Controls ASPM support for the PEG 0.This is not effective if PEG is not the currently active device.

Detect NonCompliance Device

- Disable

- Enable

Detects Non-Compliance PCI Express Device in PEG.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-39

4-5-1-3. Chipset – SA Configuration > Memory Configuration

Menu Path Chipset > System Agent (SA) Configuration > Memory

Configuration

The Memory Configuration allows users to check for the information about the memory frequency, total DRAM size, DIMM size, and memory (RAM) timings and latency.

Memory Configuration Screen

BIOS Setting

Options

Description/Purpose

Memory RC Version

No changeable options

Displays the Memory RC Version.

Memory Frequency

No changeable options

Displays the Frequency of Memory. Total Memory

No changeable options

Displays the total system memory.

VDD

No changeable options

Displays the Memory Voltage (mV).

DIMM#1

No changeable options

Displays the size of DIMM#1.

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-40

BIOS Setting

Options

Description/Purpose

DIMM#2

No changeable options

Displays the size of DIMM#2.

DIMM#3 for Q170 and C236 sku.

No changeable options

Displays the size of DIMM#3.

DIMM#4 for Q170 and C236 sku.

No changeable options

Displays the size of DIMM#4.

Memory Timings (tCL-tRCD-tRPtRAS)

No changeable options

Displays the Memory (RAM) timings and latency.

• CAS Latency (tCL) - This is the most

important memory timing. CAS stands for Column Address Strobe. If a row has already been selected, it tells us how many clock cycles we'll have to wait for a result (after sending a column address to the RAM controller).

• Row Address (RAS) to Column

Address (CAS) Delay (tRCD) - Once we

send the memory controller a row address, we'll have to wait this many cycles before accessing one of the row's columns. So, if a row hasn't been selected, this means we'll have to wait tRCD + tCL cycles to get our result from the RAM.

• Row Precharge Time (tRP) - If we

already have a row selected, we'll have to wait this number of cycles before selecting a different row. This means it will take tRP + tRCD + tCL cycles to access the data in a different row.

• Row Active Time (tRAS) - This is the

minimum number of cycles that a row has to be active for to ensure we'll have enough time to access the information that's in it. This usually needs to be greater than or equal to the sum of the previous three latencies (tRAS = tCL + tRCD + tRP).

Chapter 4 AMI BIOS Setup

BU-2509 SERIES USERS MANUAL

Page: 4-41

4-5-2. Chipset – PCH-IO Configuration

Menu Path Chipset > PCH-IO Configuration

The PCH-IO Configuration allows users to configure North Bridge chipset, set PCI Express configuration parameters, enable/disable PCH LAN Controller and Wake-OnLAN function and determine the power on/off state that the system will go to following a power failure (G3 state).

PCH-IO Configuration Screen

BIOS Setting

Options

Description/Purpose

Intel PCH RC Version

No changeable options

Displays the Intel PCH RC Version.

Intel PCH SKU Name

No changeable options

Displays the Intel PCH SKU Name. Intel PCH Rev ID

No changeable options

Displays the Intel PCH Revision ID.

PCI Express Configuration

Sub-menu

PCI Express Configuration settings.

Protech Systems BU-2509 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
