Protech PC-410 User Manual

USER’S
MANUAL

PC-410 EMBEDDED CARD

OPERATION MANUAL

COPYRIGHT NOTICE

This operation manual is meant to assist both Embedded Computer manu­facturers and end users in installing and setting up the system. The infor­mation contained in this document is subject to change without any notice.

This manual is copyrighted May 2000. You may not reproduce or transmit in
any form or by any means, electronic or mechanical, including photocopying
and recording.

ACKNOWLEDGEMENTS

All trademarks and registered trademarks mentioned herein are the property of
their respective owners.

Copyright Notice

WITH VGA

Contents

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION

1-1 About This Manual ............................................................. 1-2

1-2 System Specification ..…..................................................... 1-3

1-3 Safety Precautions ............................................................... 1-6

CHAPTER 2 HARDWARE CONFIGURATION

2-1 Jumper & Connector Quick Reference Table ..................... 2-2

2-2 Component Locations ......................................................... 2-3

2-3 How to Set Jumpers ............................................................ 2-4

2-4 Turbo LED Connector ........................................................ 2-6

2-5 Hard Disk Driver LED ........................................................ 2-6

2-6 CPU Clock Selection ........................................................... 2-6

2-7 Reset Connector .................................................................. 2-7

2-8 External Speaker Connector ................................................ 2-7

2-9 COM2 for RS-232/422/485 Selection ................................. 2-8

2-10 CPU Type Selection .......................................................... 2-9

2-11 Power LED & Keylock Connector ................................... 2-10

2-12 CPU Voltage Selection ..................................................... 2-10

2-13 Green Function Connector ................................................ 2-11

2-14 AT Keyboard / PS2 Mouse Selection ............................... 2-11

2-15 Hard Disk Driver Connector ............................................. 2-12

2-16 Floppy Disk Driver Connector .......................................... 2-13

2-17 Printer Connector .............................................................. 2-14

2-18 LCD Panel Connector ....................................................... 2-15

2-19 VGA CRT Connector ........................................................ 2-16

2-20 COM1 Connector .............................................................. 2-17

2-21 COM2 Connector .............................................................. 2-17

2-22 Keyboard Connector ......................................................... 2-18

2-23 External Keyboard Connector ........................................... 2-19

2-24 Power Connector ............................................................... 2-19

2-25 Memory Installing ............................................................. 2-20

CHAPTER 3 SOFTWARE UTILITIES

3-1 VGA Installation ................................................................. 3-2

Contents

3-2 How to Install VGA Driver For PCI ................................... 3-3

3-3 Flash BIOS Update ............................................................. 3-5

3-4 Watchdog Timer Configuration .......................................... 3-7

CHAPTER 4 GREEN PC FUNCTION

4-1 Power Saving Block Diagram ............................................. 4-2

4-2 CPU Doze Mode ................................................................. 4-2

4-3 System Standby Mode ......................................................... 4-2

4-4 System Suspend Mode ........................................................ 4-3

CHAPTER 5 AWARD BIOS SETUP

5-1 Introduction ......................................................................... 5-2

5-2 Entering Setup ..................................................................... 5-3

5-3 The Standard CMOS Setup Menu ....................................... 5-4

5-4 The BIOS Features Setup .................................................... 5-8

5-5 Chipset Feature Setup ......................................................... 5-11

5-6 Power Management Setup ................................................... 5-12

5-7 Load BIOS Defaults ............................................................ 5-14

5-8 Load Setup Defaults ............................................................ 5-14

5-9 Password Setting ................................................................. 5-15

5-10 IDE HDD Auto Detection ................................................. 5-16

5-11 Save & Exit Setup ............................................................. 5-19

APPENDIX A EXPANSION BUS

PC-104 Connector Pin Assignment .............................................. A-2

ISA Bus Pin Assignment .............................................................. A-3

APPENDIX B TECHNICAL SUMMARY

Interrupt Map ................................................................................ B-2

RTC & CMOS RAM Map ............................................................ B-3

Timer & DMA Channels Map ...................................................... B-4

I/O & Memory Map ...................................................................... B-5

Contents

APPENDIX C TROUBLE SHOOTING

Trouble Shooting for Error Messages .......................................... C-2

Trouble Shooting for POST Code ................................................ C-5

INTRODUCTION

This chapter gives you the information for PC-410. It also outlines
the System specification.

Sections include:

z About This Manual

z System Specifications

z Safety precautions

Experienced users can skip to chapter 2 on page 2-1
for Quick Start.

CHAPTER

1

Page:1-1

Chapter 1 Introduction

1-1. ABOUT THIS MANUAL

Thank you for purchasing our PC-410 Embedded Card with VGA, fully PC /

AT compatible. The PC-410 provides faster processing speed, greater
expandability and can handle more task than before. This manual is
designed to assist you how to install and set up the system. It contains five
chapters. The User can apply this manual for configuration according to the
following chapters:

Chapter 1 Introduction

This chapter introduces you the background of this manual, and the speci­fication for this system. Final in this chapter will indicate you how to avoid
the damages for this Embedded Card.

Chapter 2 Hardware Configuration

This chapter outlines the components' locations and their functions. In the
end of this chapter, you will know how to set jumpers and how to configure
this card to meet your own needs.

Chapter 3 Software Utilities

This chapter contains helpful information for proper installations of the
VGA utilities and Flash BIOS. It also describes the Watchdog-timer
function.

Chapter 4 Green PC Function

This chapter explains the Green PC functions concisely.

Chapter 5 Award BIOS Setup

This chapter indicates you how to set up the BIOS configurations.

Appendix A Expansion Bus

This Appendix introduces you the expansion bus for PC-104 and ISA BUS

Appendix B Technical Summary

This section gives you the information about the Technical maps.

Appendix C Trouble Shooting

This section outlines the errors and offers you the methods to solve the
problems.

Page: 1-2

PC-410 USER‘S MANUAL

1-2. SYSTEM SPECIFICATION

zzzz

CPU :

Intel, AMD, Cyrix, Ti, SGS.
486SX / DX / DX2 / DX4 / OVER DRIVER / 5x86.
168pin PGA socket.
25 / 33 / 40 / 50 / 66 / 80 / 100 / 120 / 133MHz clock generator.

3.3V / 5V voltage regulator.

zzzz

MEMORY :

Up to 64MB DRAM.
Two 72pin SIMM socket on board.

zzzz

CACHE :

L1 Cache (depended on CPU type).
L2 Cache 128K / 256K / 512K.

zzzz

REAL-TIME CLOCK / CALENDAR :

CMOS data back up from BIOS set or BIOS default.
Dallas DS 12887 Real Time Clock.
Guaranty battery 10 years.

z

BIOS :

Award, Flash BIOS for plug & play function.
Easy update 128KB flash EEPROM.
Support Green Function .
Support S/IO Setup.

z

KEYBOARD CONNECTOR :

PC/AT type mini DIN connector.
Support PC/AT Keyboard or PS/2 Mouse by jumper selection.
5 pin External keyboard connector.

z

BUS SUPPORT :

External ISA BUS.
Internal PCI Bus, for VGA & IDE.
PC-104 BUS.

Chapter 1 Introduction

PC-410 USER‘S MANUAL

Page: 1-3

Chapter 1 Introduction

z

DISPLAY :

Support SVGA for CRT & Panel.
Support 32bits PCI Local Bus.
VGA BIOS combines in 128KB flash ROM together with system BIOS.
Support 15 pin connector 1024 x 768 (256 colors) resolution on SVGA
Monitor.
Support 1 MB Video memory.
Support 41 pin connector 640 x 480 or 800 x 600 resolutions on LCD Panel.
Panel support mono, color STN, TFT, EL.
SVGA & Panel Display simultaneously.

z

WATCHDOG :

I / O port 443H to open watchdog.
I / O port 441H to close watchdog.
Time-out timing select 0 / 2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24 /
26 / 28 / 30 sec +/- 25%.

z

IDE INTERFACE :

One IDE port, Support up to two Enhanced IDE devices.

z

FLOPPY DISK DRIVER INTERFACE :

Support up to two Floppy Disk Drivers, 3.5" and 5.25" (360K / 720K /

1.2M / 1.44M / 2.88M).

z

SERIAL PORT :

Two high speed 16550 Compatible UARTs with Send / Receive 16 Byte
FIFOs.
MIDI Compatible.
Programmable Band Rate Generator.

z

PARALLEL PORT :

SPP, ECP, EPP Function.
Bi-direction parallel port.

zzzz

GREEN FUNCTION :

Software support by BIOS setup.
Hardware support by switch control.

Page: 1-4

PC-410 USER‘S MANUAL

z

LED INDICATOR :

System power.
Hard Disk access.
Turbo and green function mode.

z

PC-104 BUS EXPANSION & SPEED :

ISA 8MHz
PC-104 8MHz
PCI Bus 33MHz

z

DMA CONTROLLER :

82C37 x 2

z

DMA CHANNELS :

7

z

INTERRUPT CONTROLLERS :

82C59 x 2

z

INTERRUPT LEVELS :

15

z

STORAGE TEMPERATURE :

-40 to 80°C.

z

OPERATING TEMPERATURE :

0 to 60°C.

z

SYSTEM POWER REQUIREMENT :

DC Voltage: +5V, minimum +4.75V, maximum 5.25V.
DC Ampere: 15A.
DC Voltage: +12V, minimum +11.4V, maximum 12.6V.
DC Ampere: 500mA.

z

BOARD DIMENSION :

7.2"(L) x 4.8"(W) ( 185mm x 122mm )

z

BOARD WEIGHT :

0.25 Kg.

Chapter 1 Introduction

PC-410 USER‘S MANUAL

Page: 1-5

Chapter 1 Introduction

1-3. SAFETY PRECAUTIONS

Follow the messages below to avoid your systems from damage:

1. Avoid your system from static electric on all occasions.

2. Stay safe from the electric shock. Don‘t touch any components of this
card when the card is on. Always disconnect power when the system is
not in use.

3. Disconnect power when you change any hardware devices. For instance,
when you connect a jumper or install any cards, a surge of power may
damage the electronic components or the whole system.

Page: 1-6

PC-410 USER‘S MANUAL

HARDWARE
CONFIGURATION

** QUICK START **

Helpful information details you the jumper & connector settings, and
components locations.

Sections include:

z Jumper & Connector Quick Reference Table

z Components‘ Locations

z Configuration and Jumper settings

z Connector Pin Assignments

CHAPTER

2

Page 2-1

Chapter 2 Hardware Configuration

2-1 JUMPER & CONNECTOR QUICK REFERENCE TABLE

Turbo LED Connector ................................................... JP2

Hard Disk Driver LED Connector .............................. JP3

CPU Clock selection ...................................................... JP4 /

1-6

Reset Connector ............................................................. JP5

RS232/422/485 (COM2) Selection ................................

...............................

JP4/7-12

JP6, JP15

CPU Type Selection ...................................................... JP7

Power LED and Keylock Connector .............................. JP8

CPU Voltage Selection .................................................. JP9

Green Function Switch Connector ................................. JP10

AT Keyboard / PS/2 Mouse Selection ........................... JP13

Hard Disk Connector ..................................................... HDD

Floppy Disk Connector .................................................. FDD

Printer Connector ........................................................... PRT

LCD Penal Connector .................................................... LCD

VGA CRT Connector .................................................... VGA

COM1 Connector .......................................................... COM1

COM2 Connector .......................................................... COM2

Keyboard Connector ...................................................... ATPS2

External Keyboard Connector ....................................... EXKB

Power Connector ........................................................... PWR

External Speaker Connector .......................................... SPK

Memory Installing .......................................................... SIMM1,2

Page: 2-2

PC-410 USER‘S MANUAL

2-2 COMPONENT LOCATIONS

Chapter 2 Hardware Configuration

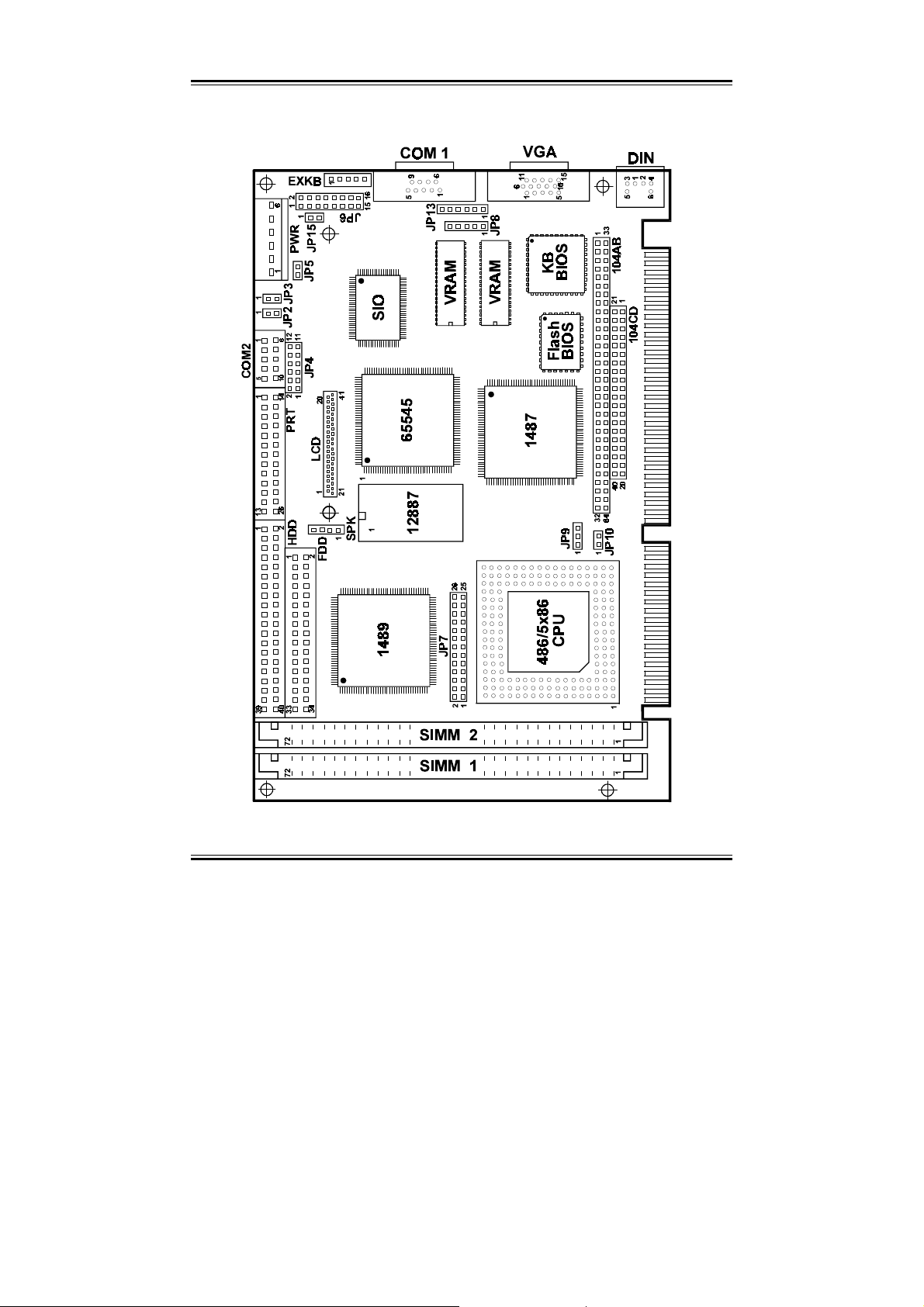

PC-410 Connector, Jumper and Component locations

PC-410 USER‘S MANUAL

Page: 2-3

Chapter 2 Hardware Configuration

2-3 HOW TO SET JUMPERS

You can configure your board by setting jumpers. A jumper consists of two or
three metal pins with a plastic base mounted on the card, and a small plastic
“cap”( with a metal contact inside) to connect the pins. So you can set up your
hardware confi guration by “open” or “close” the pins.

The jumper can be combined into sets which called jumper blocks. When the
jumpers are all in the block, you have to put them together to set up the
hardware configuration. The fi gure below shows how this looks.

JUMPERS AND CAPS

If a jumper has three pins, for examples, labelled PIN1, PIN2, and PIN3. You
can connect PIN1 & PIN2 to create one setting and shorting. You can either
connect PIN2 & PIN3 to create another setting. The same jumper diagrams are
applied a ll through this manual. The figure bel ow shows what the manual
diagrams look and what they represent.

Page: 2-4

PC-410 USER‘S MANUAL

JUMPER DIAGRAMS

Chapter 2 Hardware Configuration

JUMPER SETTINGS

PC-410 USER‘S MANUAL

Page: 2-5

Chapter 2 Hardware Configuration

2-4 TURBO LED CONNECTOR0

Turbo LED Connector

JP2 :

The pin assignments are as follows :

PIN ASSIGNMENT

1 Vcc
2 Turbo Signal

2-5 HARD DISK DRIVER LED

Hard Disk Driver LED Connector

JP3 :

The pin assignments are as follows :

PIN ASSIGNMENT

1 HDD Active Signal
2 Vcc

2-6 CPU CLOCK SELECTION

JP4 1-2,3-4,5-6 :

The jumper settings are as follows :

CPU

CLOCK

1-2 3-4 5-6

25 MHz

33 MHz

Closed

40 MHz

Closed

*** Manufactory default --- 33MHz

CPU Clock Selection

(JP4 / 7-8,9-10,11-12 for COM 1,COM 2 IRQ selection)

JUMPER SETTING

Closed

Closed

Open

Open

Closed

Closed

Open

CPU TYPE

SX-25, DX/2-50,
DX4/-75

SX-33, DX-33,
DX/2-66,DX/4-100
5x86/100/133

SX-40, DX-40,
DX/2-80
5x86/120

JUMPER

ILLUSTRATION

Page: 2-6

PC-410 USER‘S MANUAL

Chapter 2 Hardware Configuration

2-7 RESET CONNECTOR

Reset Connector

JP5 :

The pin assignments are as follows :

PIN ASSIGNMENT

1 Reset
2 Ground

2-8 EXTERANL SPEAKER CONNECTOR

External Speaker Connector

SPK :

The pin assignment are as follow :

PIN ASSIGNMENT

1 VCC
2 Ground
3 NC
4 Speaker Signal

PC-410 USER‘S MANUAL

Page: 2-7

Chapter 2 Hardware Configuration

2-9 COM2 FOR RS-232/422/485 SELECTION

JP4/7-12, JP6, JP15 :

RS-232/422/485 Selection
COM1 fixed for RS-232 function only
COM2 selectable for RS-232 or 422, 485 function
The jumper settings are as follows :

COM 2

Function
JP4/7-12

Jumper

Setting

JP4/7-12

Jumper

illustration

JP6

Jumper

setting

(pin closed)

RS-232

Open

1-2

RS-422

Closed

1-3
5-6
7-8

9-10

11-12

JP6

Jumper

illustration

JP15

Jumper

Setting

JP15

Open

Closed

Jumper

illustration

*** Manufactory default --- RS-232.

RS-485

Closed

1-3
4-6
7-8

9-10
11-12
13-14
15-16

Closed

Page: 2-8

PC-410 USER‘S MANUAL

2-10 CPU TYPE SELECTION

CPU Type Selection

JP7 :

The jumper settings are as follows :

CPU Type Jumper Setting

Intel

SX

Intel

DX\DX2\DX4

AMD

DX\DX4

AMD

DX2

Intel

P24D

OverDrive

AMD

Write Back

Intel

DX2 WriteBack

AMD

5x86

Cyrix

DX\DX2\DX4

Cyrix

5x86/100/120

Cyrix

5x86/133

5-6,11-12,13-15
14-16,19-20,22-24

5-6,11-12,13-15,14-16
19-21,22-24,25-26

4-6,9-11,15-16
19-21,22-24,25-26

4-6,9-11,15-16,17-18
19-21,22-24,25-26

1-3,5-6,8-10,11-12,13-15
14-16,19-21,23-24,25-26

1-3,5-6,7-9,8-10,11-12,13-15
14-16,19-21,23-24,25-26

1-2,6-8,9-10,11-13,14-16
15-17,19-21,22-24,25-26

1-3,5-6,8-10,11-12,15-17
14-16,19-21,23-24,25-26

1-3,5-6,7-9,8-10,11-12,15-17
14-16,19-21,23-24,25-26

Chapter 2 Hardware Configuration

(pin closed)

Jumper Illustration

**Note: The jumper settings of Intel DX2-66 (SX955) corresponds to Intel DX2 WriteBack, and

Intel DX4-100 (SK096) corresponds to Intel

DX4 WriteBack

.

PC-410 USER‘S MANUAL

Page: 2-9

Chapter 2 Hardware Configuration

2-11 POWER LED & KEYLOCK CONNECTOR

Power LED & Keylock Connector

JP8 :

The pin assignments are as follows :

PIN ASSIGNMENT

1 Power LED
2 NC
3 Ground
4 Keyboard INT
5 Ground

2-12 CPU VOLTAGE SELECTION

CPU Voltage Selection

JP9 :

The jumper settings are as follows :

CPU

VOLTAGE

3.3V

5V

*** Manufactory default --- 3.3V

JUMPER SETTING

1-2 2-3

Open

Closed

Closed

Open

JUMPER

ILLUSTRATION

Page: 2-10

PC-410 USER‘S MANUAL

Chapter 2 Hardware Configuration

2-13 GREEN FUNCTION CONNECTOR

Green Function Co nnector

JP10 :

When you touch the switch first time, it works into Green Mode, the second

time is back to Standard Mode. The pin assignments are as follow:

PIN ASSIGNMENT

1 Green Signal
2 Ground

2-14 AT KEYBOARD / PS2 MOUSE SELECTION

AT Keyboard / PS2 Mouse Selection

JP13 :

The jumper settings are as follows :

TYPE

JUMPER

SETTING

(pin closed)

AT KEYBOARD

2-3 , 5-6

JUMPER

ILLUSTRATION

*** Manufactory default --- AT Keyb oard

PS/2 MOUSE

1-2 , 4-5

PC-410 USER‘S MANUAL

Page: 2-11

Chapter 2 Hardware Configuration

2-15 HARD DISK DRIVER CONNECTOR

Hard Disk Connector

HDD :

The HDD disk pin assignments are as follows :

PIN ASSIGNMENT PIN ASSIGNMENT

1 REST 2 GND
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10

9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 GND 20 NC
21 NC 22 GND
23 IOW 24 GND
25 IOR 26 GND
27 IORDY 28 NC
29 NC 30 GND
31 IRQ14 32 IO16
33 A1 34 NC
35 A0 36 A2
37 CS0 38 CS1
39 HDLED 40 GND

Page: 2-12

PC-410 USER‘S MANUAL

Chapter 2 Hardware Configuration

2-16 FLOPPY DISK DRIVER CONNECTOR

Floppy Disk Driver Connector

FDD :

You can use a 34-pin daisy-chain cable to connect a two-FDDs. On one end of
this cable is a 34-pin flat cable to attach the FDD on the board, the other side
is to attach two FDDs.
The pin assignments are as follows :

PIN ASSIGNMENT PIN ASSIGNMENT

1 GND 2 RPM
3 GND 4 NC
5 GND 6 RATE0
7 GND 8 INDEX

9 GND 10 MTR0
11 GND 12 DRV1
13 GND 14 DRV0
15 GND 16 MTR1
17 GND 18 DIR
19 GND 20 STEP
21 GND 22 WDATA
23 GND 24 WGATE
25 GND 26 TRK0
27 GND 28 WRPRT
29 GND 30 RDATA
31 GND 32 SEL
33 GND 34 DSKCHG

PC-410 USER‘S MANUAL

Page: 2-13

Chapter 2 Hardware Configuration

2-17 PRINTER CONNECTOR

Printer Connector

PRT :

As to link the Printer to the card, you need a cable to connect both DB25

connector and parallel port. The pin assignments are as follows :

PIN ASSIGNMENT PIN ASSIGNMENT

1 STB 14 AUTFE
2 P0 15 ERROR
3 P1 16 INIT
4 P2 17 SLCTIN
5 P3 18 GND
6 P4 19 GND
7 P5 20 GND
8 P6 21 GND

9 P7 22 GND
10 ACK 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 NC

Page: 2-14

PC-410 USER‘S MANUAL

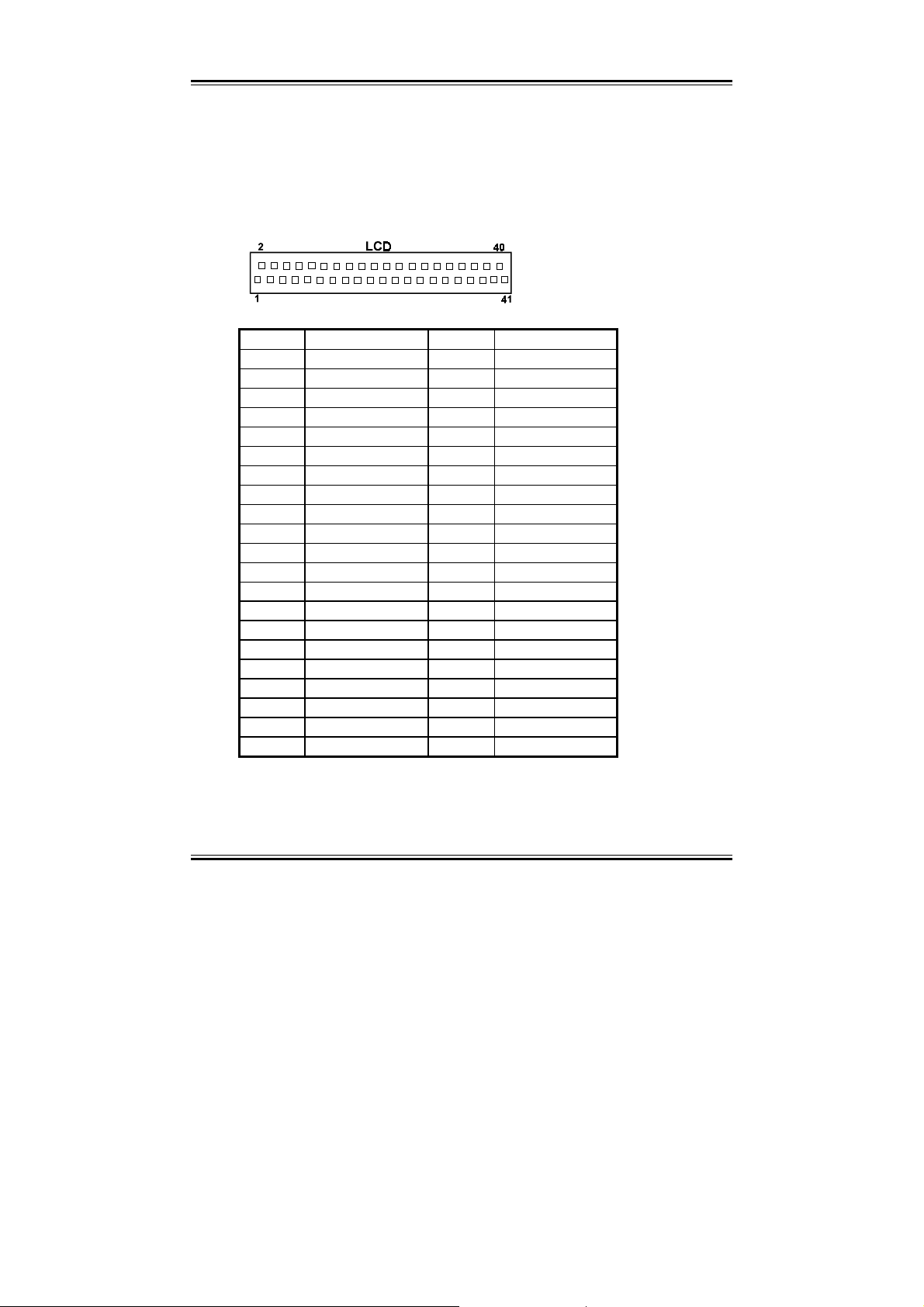

2-18 LCD PANEL CONNECTOR

: LCD Panel Connector

LCD

The connector LCD is a 41-pin, dual-in-line header used for Flat Panel
displays.
The pin assignments are as follows :

PIN ASSIGNMENT PIN ASSIGNMENT

1 P20 2 GND

3 P16 4 VCC

5 P21 6 P0

7 P17 8 P8

9 P22 10 P1
11 P18 12 P9
13 P23 14 P2
15 P19 16 P10
17 VCC 18 P3
19 FLM 20 P11
21 MDE 22 P4
23 LP 24 P12
25 SHFCLK 26 P5
27 3.3V 28 P13
29 3.3V 30 P6
31 ENABKL 32 P14
33 LCDVDD 34 P7
35 ENVEE 36 P15
37 GND 38 +12V
39 GND 40 +12V
41 NC

Chapter 2 Hardware Configuration

PC-410 USER‘S MANUAL

Page: 2-15

Chapter 2 Hardware Configuration

2-19 VGA CRT CONNECTOR

VGA CRT Connector

VGA :

The pin assignments are as follows:

PIN ASSIGNMENT

1 RED
2 GREEN
3 BLUE
4 NC
5 GND
6 GND
7 GND
8 GND

9 NC
10 GND
11 NC
12 NC
13 HSYNC
14 VSYNC
15 NC

Page: 2-16

PC-410 USER‘S MANUAL

2-20 COM1 CONNECTOR

COM1 :

COM1 Connector, DB9 male connector

The COM1 Connector assignments are as follows :

PIN ASSIGNMENT

1 DCD
2 RX
3 TX
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI

2-21 COM2 CONNECTOR

COM2 :

The COM2 Connector assignments are as follows :

COM2 Connector

PIN ASSIGNMENT

RS-232 RS-422 RS-485
1 DCD TX- TX­2 RX TX+ TX+
3 TX RX+ RX+
4 DTR RX- RX­5 GND GND GND
6 DSR RTS- NC
7 RTS RTS+ NC
8 CTS CTS+ NC
9 RI CTS- NC

10 NC NC NC

Chapter 2 Hardware Configuration

PC-410 USER‘S MANUAL

Page: 2-17

Chapter 2 Hardware Configuration

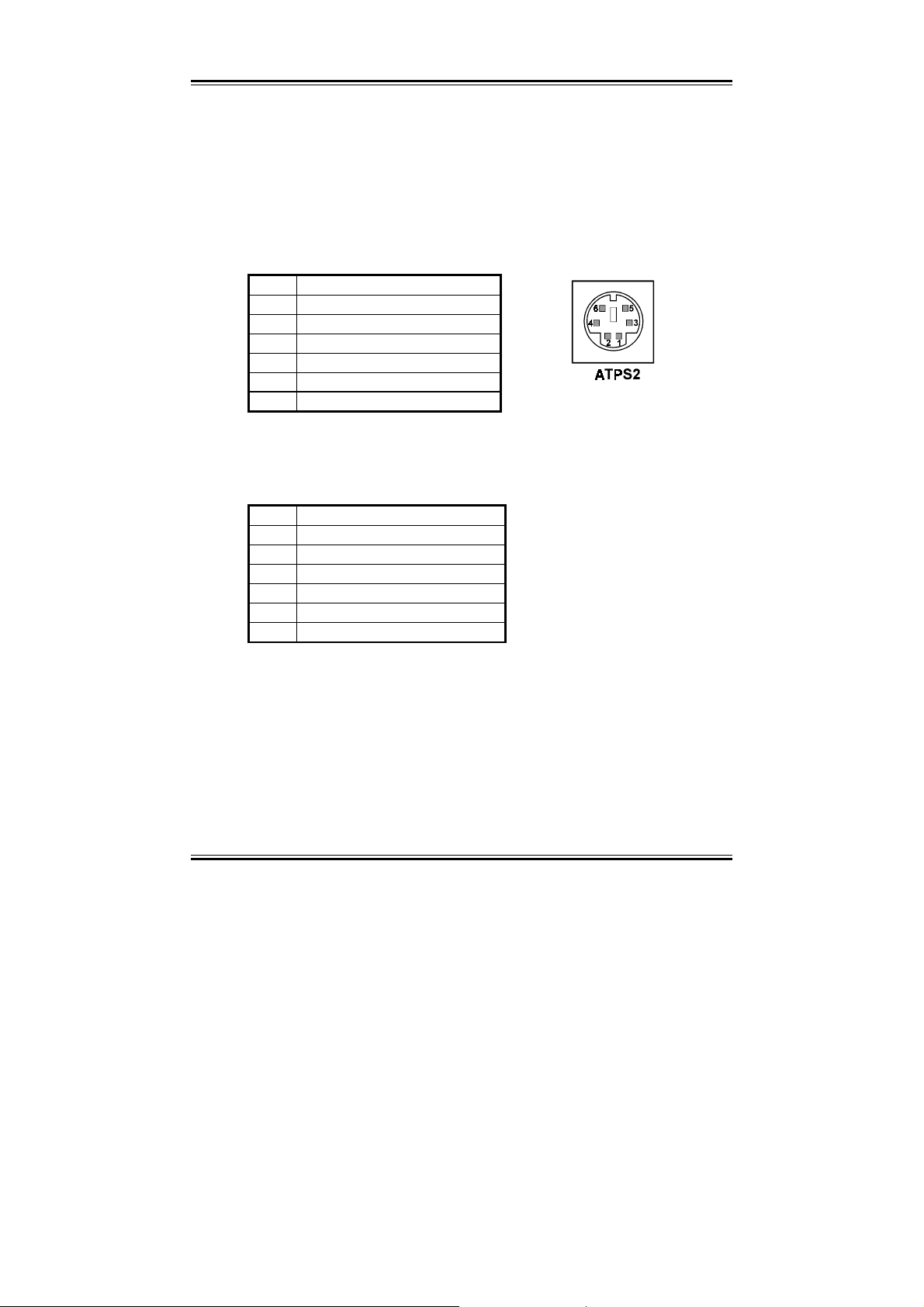

2-22 KEYBOARD CONNECTOR

ATPS2 :

The keyboard connector can support AT Keyboard or PS2 Mouse; you can
select them by setting

The ATPS2 connector assignments for keyboard are as follow :

The ATPS2 connector assignments for PS2 Mouse are as follows:

Keyboard Connector

(Please see Page 2-11 for reference).

JP13

PIN ASSIGNMENT

1 KBDATA
2 NC
3 GND
4 VCC
5 KBCLK
6 NC

PIN ASSIGNMENT

1 MOUSE DATA
2 NC
3 GND
4 VCC
5 MOUSE CLK
6 NC

Page: 2-18

PC-410 USER‘S MANUAL

Chapter 2 Hardware Configuration

2-23 EXTERNAL KEYBOARD CONNECTOR

EXKB :

External Keyboard Connector

The pin assignments are as follows :

PIN ASSIGNMENT

1 KBCLK
2 KBDATA
3 NC
4 GND
5 VCC

2-24 POWER CONNECTOR

Power Connector

PWR :

The pin assignments are as follows :

PIN ASSIGNMENT
1 NC
2 +5V
3 +12V
4 -12V
5 GND
6 GND

PC-410 USER‘S MANUAL

Page: 2-19

Chapter 2 Hardware Configuration

2-25 MEMORY INSTALLING

The PC-410 PCI local bus Embedded Computer will support 4 DRAM
banks ,bank 0 and bank 3 in two pcs 72 pin SIMM sockets on board.

Note:

SIMM 1,2 for single & double Bank DRAM module

(72pin x 32bit x 2)

DRAM BANK CONFIGURATION

SIMM 1

BANK 0,1

SIMM 2

BANK 2,3
1M 1M
1M 1M 2M
2M 2M
1M 2M 3M
2M 2M 4M
4M 4M
1M 4M 5M
2M 4M 6M
4M 4M 8M
8M 8M
2M 8M 10M
4M 8M 12M
8M 8M 16M
4M 16M 20M
8M 16M 24M

16M 16M 32M
32M 32M

4M 32M 36M
8M 32M 40M

16M 32M 48M
32M 32M 64M

TOTAL

MEMORY

Page: 2-20

PC-410 USER‘S MANUAL

SOFTWARE

CHAPTER

3

UTILITIES

This chapter comprises the detailed information of VGA and
Watchdog function; also describe how to install the configurations.

Sections include:

z VGA Configuration

z How to Install VGA Driver for PCI

z Flash BIOS Update

z Watchdog Timer Configuration

Page: 3-1

Chapter 3 Software Configuration

3-1. VGA CONFIGURATION

The VGA interface for PC-410 CPU Card can support a great range of

displays, such as SVGA, STN, TFT, EL.....etc. You can display CRT and

LCD Panel simultaneously on this board, but make sure that the modes for
both CRT and LCD Panel must be the same. If not, only CRT can be
displayed.

This card encloses with one Utility Disk; it contains two files: VGA.EXE
and AWDFLASH.EXE. The directions are as follows:

Before you change any setup for VGA and system BI OS, you have to install
your utility disk first, then the file will self-decompress and create sub­directory on your hard driver.

Page:3-2

PC-410 USER‘S MANUAL

Chapter 3 Software Configuration

3-2. HOW TO INSTALL VGA DRIVER FOR PCI

Change prompt path to C:\UTIL\VGA\PCI and key-in setup. For example,

C:\>
C:\CD\UTIL\VGA\PCI>
C:\CD\UTIL\VGA\PCI>SETUP

Press < Enter >, then the screen will display following tables :

DISPLAY DRIVER SETUP PROGRAM -Version 2.10-

(C) Copyright 1992,1995, Chips and Technologies, Inc.

DECOMPILATION OR DISASSEMBLY PROHIBITED

CHIPS 655XX - PCI Display Drivers

<<< Press any key to continue >>>

Follow the display messages to install VGA driver for PCI

Select any Application Driver to Install

ÇÈ = Move cursor Up / Down, ENTER = Enter selection, ESC = exit to DOS

Windows Version 3.1
AutoCAD Release 12
Lotus / Symphony
VESA Driver Version 1.2
Word Version 5.0
Word Version 5.5
WordPerfect Version 5.0
WordPerfect Version 5.1
Utility Programs

Version 3.2.1

PC-410 USER‘S MANUAL

Page:3-3

Chapter 3 Software Configuration

If you select “Windows Version 3.1”, the table below will appear on screen.

Windows Version 3.1

All Resolutions

ÇÈ = Move cursor Up/Down
ESC = Exit to Main Menu

Press < Enter >; the “All Resolutions” will be selected,then press <End>;
the table will change as follows.

Windows Version 3.1

All Resolutions selected

*

Enter the [Drive : Path] for installation
[ C : \ WINDOWS ]

Please type the PATH name for installation. When you have completed all the
installations as required, press any key to return to the Main Menu. If you want
to exit just press ESC, the message below will appear.

Enter = Toggle selection
END = Start to install

Select the answer as you require.

Page:3-4

Do you really want to exit (Y/N) ?

PC-410 USER‘S MANUAL

3-3. FLASH BIOS UPDATE

You can use the AWDFLASH.EXE to update your VGA and system BIOS.
Change path to
Enter the FILENAME. BIN; the screen will display the table below.

For ALI-1487/89-2A4KDP6BC DATE : 01/15/96
Flash Type -

File Name to Program : FILENAME.BIN

Error Message : Do You Want To Save BIOS (Y/N)

If you want to save up the original BIOS, enter “Y ”and press < Enter > then
key-in the FILENAME.BIN. If you choose “N”, the following table will
appear on screen.

C:\UTIL\AWDFLASH>AWDFLASH

FLASH MEMORY WRITER v5.0

Copyright ( C ) 1993, Award Software, Inc.,

Chapter 3 Software Configuration

Copyright ( C ) 1993, Award Software, Inc.,

For ALI-1487/89-2A4KDP6BC DATE : 01/15/96
Flash Type -

File Name to Program : FILENAME.BIN

Error Message : Are You Sure To Program (Y/N)

Enter the FILENAME.BIN and select “Y”, and the BIOS will being renewed.
Notice, when you are refreshing your BIOS, do not turn off or reset the system,
or you will damage the BIOS. After you have completed all the programming,
the message will inform you “Programming Flash Memory - 1FFFF ok”.
Please power off or reset the system. Then the Flash BIOS is implemented.

PC-410 USER‘S MANUAL

FLASH MEMORY WRITER v5.0

Page:3-5

Chapter 3 Software Configuration

3-4. WATCHDOG TIMER CONFIGURATION

The watchdog timer can reset the system automatically. It is defined at I/O port

. When you want to enable the watchdog timer, please write I/O port

443H

, then the system will reset itself. When you want to disable the function,

443H

write I/O port
function.

The PC-410 watchdog function, You must write your program so when it

writes I/O port address 443 for enable watchdog and write I/O port address
441 for disable watchdog. The timer's intervals have a tolerance of 25% so you
should program an instruction that will refresh the timer about every second.

The following program shows you how to program the watch timer in your

program.

Watchdog enable program:

MOV AX, 000FH (choose the values you need; start from 0)
MOV DX, 443H
OUT DX, AX

Watchdog disable program:

MOV AX, 000FH (ignore this value)
MOV DX, 441H
OUT DX, AX

The Watchdog Timer control table is as follow:

Level Value Time/sec Level Value Time/sec

1 F 0 9 7 16
2 E 2 10 6 18
3 D 4 11 5 20
4 C 6 12 4 22
5 B 8 13 3 24
6 A 10 14 2 26
7 9 12 15 1 28
8 8 14 16 0 30

, the system will run the command to stop the Watchdog

441H

Page:3-6

PC-410 USER‘S MANUAL

CHAPTER

GREEN PC
FUNCTION

This chapter gives you the concise information for Green PC Function.

Sections include:

z Power Saving Block Diagram

z CPU Doze Mode

z System STANDBY Mode

z System SUSPEND Mode

4

Page: 4-1

Chapter 4 Green PC Function

4-1. POWER SAVING BLOCK DIAGRAM

4-2. CPU DOZE MODE

1. After out of the timer, CPU clock is slow down to 8MHz.

2. Sound 1 beep.

3. Flash LED to indicate power saving status.

4. Monitor Activity, according to the setting of Advanced Setup.

5. Any activity occurs, system will exit from Doze mode to On mode.

4-3. SYSTEM STANDBY MODE

1. After out of the timer, CPU clock is slow down to 8MHz.

2. Sound 2 beeps.

3. Flash LED to indicate power saving status.

4. Level 1 cache are disabled.

5. VGA monitor displays blank screen.

6. Fixed disk driver motor will be spin off.

7. Any activity occurs, system will exit from Standby mode to On mode.

Page: 4-2

PC-410 USER‘S MANUAL

4-4. SYSTEM SUSPEND MODE

1. After out of the timer, CPU clock is slow down to 8MHz, if you use Intel S­series or Cyrix (SMI) CPU, then CPU clock will be stoped.

2. Sound 3 beeps.

3. Flash LED to indicate power saving status.

4. Level 2 cache are disabled.

5. VGA monitor displays blank screen.

6. Fixed disk driver motor will be spin off.

7. Monitor activity according to the setting of Advanced Setup.

8. When system in Suspend mode, only Keyboard / Mouse / Alarm resume can
wakeup system.

Chapter 4 Green PC Function

PC-410 USER‘S MANUAL

Page: 4-3

Chapter 4 Green PC Function

Page: 4-4

PC-410 USER‘S MANUAL

AWARD
BIOS SETUP

This chapter states out how to set up the Award BIOS.

Sections include:

z Introduction

z Entering Setup

z The Award BIOS Setup

z The Standard CMOS Setup

z The BIOS Features Setup

z The Chipset Features Setup

z Power Management Setup

z Load BIOS defaults

z IDE HDD Auto Detection

z Save Setup

CHAPTER

5

Page: 5-1

Chapter 5 Award BIOS Setup

5-1. INTRODUCTION

This chapter will show you the function of a BIOS in managing the features
of your system. The PC-410 Embedded Card is equipped with the BIOS for
system chipset from Award Software Inc. This page briefly explains the
function of a BIOS in managing the special features of your system. The
following pages describe how to use the BIOS for system chipset Setup
menu.

Your application programs (such as word processing, spreadsheets, and
games) rely on an operating system such as DOS or OS/2 to manage such
things as keyboard, monitor, disk drives, and memory.

The operating system relies on a BIOS (Basic Input and Output system), a
program stored on a ROM (Read-only Memory) chip, to initialize and
configure your computer's hardware. As the interface between the hardware
and the operating system, the BIOS enables you to make basic changes to
your system's hardware without having to write a new operating system.

The following diagram illustrates the interlocking relationships between the
system hardware, BIOS, operating system, and application program:

Page: 5-2

PC-410 USER‘S MANUAL

Chapter 5 Award BIOS Setup

5-2. ENTERING SETUP

Power on the computer and press < Del > immediately will allow you to
enter Setup. The other way to enter Setup is to power on the computer, when
the below message appears briefly at the bottom of the screen during the
POST (Power On Self Test), press < Del > key or simultaneously press
<Ctrl>, < Alt >, and < Esc > keys.

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> OR <DEL> KEY

As long as this message is present on the screen you may press the <Del>

key (the one that shares the decimal point at bottom of the number keypad)
to access the setup program. In a moment, the main menu of the Award
SETUP program will appear on the screen:

ROM / PCI / ISA BIOS (2A4KDP69)

CMOS SETUP UTILITY

AWARD SOFT WARE, INC.

STANDARD CMOS SETUP

BIOS FEATURES SETUP

CHIPSET FEATURES SETUP

POWER MANAGEMENT SETUP

LOAD BIOS DEFAULTS

LOAD SETUP DEFAULTS

Esc : Quit
F10 : Save & Exit Setup (Shift)F2 : Change Color

Time, Date, Hard Disk Type.........

Setup program initial screen

PASSWORD SETTING

IDE HDD AUTO DETECTION

SAVE & EXIT SETUP

EXIT WITHOUT SAVING

↑↓→←

:SELECT ITEM

PC-410 USER‘S MANUAL

Page: 5-3

Chapter 5 Award BIOS Setup

You may use the cursor up/down keys to highlight the individual menu
items. As you highlight each item, a brief description of that item's function
appears in the lower window. If you have a color monitor you can use the
Shift F2 keys to scroll through the various color combinations a vailable.

5-3. THE STANDARD CMOS SETUP MENU

Highlight STANDARD CMOS SETUP and press < ENTER > and the
screen will display the following table:

ROM PCI / ISA BIOS (2A4KDP69)

STANDARD CMOS SETUP
AWARD SOFT WARE, INC.

Date (mm:dd:yy) : Wed Jan 12 1994
Time (hh:mm:ss) : 18 : 24 : 14

CYLS. HEADS PRECOMP LANDZONE SECTORS MODE
Drive C : Auto ( 0Mb) 0 0 0 0 0 Auto
Drive D : Auto ( 0Mb) 0 0 0 0 0 Auto

Drive A : 1.2M , 5.25 in.
Drive B : 1.44M , 3.5 in.

Video : EGA/VGA

Halt On: All Errors

Esc : Quit

:Select Item Pu/Pd/+/- : Modify

↑↓→←

F1 : Help (Shift) F2 : Change Color

CMOS setup screen

In the above table the base memo ry size and the extended memory size are
displayed. This is automatically read from your systems, and you do not
need to set these parameters. The screen shows a calendar. The week display
will depend on the date set in your system clock and the flashing indicating
the current date. Since you have not yet set the time and date, the date
displayed is probably incorrect. Information on each item is as follows:

Base Memory: 640K

Extended Memory: 15360K

Other Memory: 384K

----------------------------------­Total Memory: 16384K

Page: 5-4

PC-410 USER‘S MANUAL

Chapter 5 Award BIOS Setup

Date:

< Month >, < Date > and <Year >. Ranges for each value are in the CMOS
Setup Screen, and the week-day will skip automatically.

Time:

< Hour >, < Minute >, and < Second >. Use 24 hour clock format, i.e., for
PM numbers, add 12 to the hour. For examples, 4: 30P.M. You should enter
the time as 16:30:00.

Drive C type / Drive D type:

The categories identify the types of hard disk drive C or drive D that have
been installed in the computer. There are 45 predefined types and 2 user
definable types are for Normal BIOS. Type 1 or Type 45 are predefined.
Type User is user-definable.

Primary Master/Primary Slave/Secondary Master/Secondary Slave :

The categories identify the types of 2 channels that have been installed in
the computer. There are 45 predefined types and 4 user definable types are
for Enhanced IDE BIOS. Type 1 to Type 45 are predefined. Type User is
user-definable.

Press PgUp / <+> or PgDn / <-> to select a numbered hard disk type or type
the number and press < Enter >. Note that the specifications of your drive
must match with the drive table. The hard disk will not work properly if you
enter improper information for this category. If your hard disk drive type is
not matched or listed, you can use Type User to define your own drive type
manually.

If you select Type User, related information is asked to be entered to the
following items. Enter the information directly from the keyboard and press
< Enter >. This information should be provided in the docu-mentation from
your hard disk vendor or the system manufacturer.

If the controller of HDD interface is ESDI, the selection shall be
"Type 1".

If the controller of HDD interface is SCSI, the selection shall be "None"
If the controller of HDD interface is CD-ROM, the selection shall be
"None"

PC-410 USER‘S MANUAL

Page: 5-5

Chapter 5 Award BIOS Setup

TYPE:

This is the number designation for a drive with certain identification
parameters.

CYLS.:

This is the number of cylinders found in the specified drive type.

HEADS:

This is the number of heads found in the specified drive type.

WPCOM:

WPcom is the read delay circuitry which takes into account the timing
differences between the inner and outer edges of the surface of the disk
platter. The number designates the starting cylinder of the signal.

LZONE:

Lzone is the landing zone of the heads. This number determines the cylinder
location where the heads will normally park when the system is shut down.

SIZE (CAPACITY):

This is the formatted capacity of the drive based on the following formula:
(# of heads) X (# of cylinders) X (# of sets) X ( 512bytes/sects)

DRIVE A AND DRIVE B:

The option are 360KB 5.25in, 1.2KB 5.25in, 720KB 3.5in, 1.44MB 3.5in,

2.88MB 3.5in and None. Not Installed could be used as an option for
diskless workstations.

VIDEO:

Options are Monochrome, Color 40, VGA/EGA, Color 80.

Page: 5-6

PC-410 USER‘S MANUAL

HARD DISK ATTRIBUTES:

Type Cylinders Heads V-P comp LZone Sect Capacity

1 306 4 128 305 17 10
2 615 4 300 615 17 20
3 615 6 300 615 17 30
4 940 8 512 940 17 62
5 940 6 512 940 17 46
6 615 4 65535 615 17 20
7 642 8 256 511 17 30
8 733 5 65535 733 17 30

9 900 15 65535 901 17 112
10 820 3 65535 820 17 20
11 855 5 65535 855 17 35
12 855 7 65535 855 17 49
13 306 8 128 319 17 20
14 733 7 65535 733 17 42
15 000 0 0000 000 00 00
16 612 4 0000 663 17 20
17 977 5 300 977 17 40
18 977 7 65535 977 17 56
19 1024 7 512 1023 17 59
20 733 5 300 732 17 30
21 733 7 300 732 17 42
22 733 5 300 733 17 30
23 306 4 0000 336 17 10
24 977 5 65535 976 17 40
25 1024 9 65535 1023 17 76
26 1224 7 65535 1223 17 71
27 1224 11 65535 1223 17 111
28 1224 15 65535 1223 17 152
29 1024 8 65535 1023 17 68
30 1024 11 65535 1023 17 93
31 918 11 65535 1023 17 83
32 925 9 65535 926 17 69
33 1024 10 65535 1023 17 85
34 1024 12 65535 1023 17 102
35 1024 13 65535 1023 17 110
36 1024 14 65535 1023 17 119
37 1024 2 65535 1023 17 17
38 1024 16 65535 1023 17 136
39 918 15 65535 1023 17 114
40 820 6 65535 820 17 40
41 1024 5 65535 1023 17 42
42 1024 5 65535 1023 26 65
43 809 6 65535 852 17 40
44 809 6 65535 852 26 61
45 776 8 65335 775 33 100

47 AUTO

PC-410 USER‘S MANUAL

Chapter 5 Award BIOS Setup

Award Hard Disk Type Table

Page: 5-7

Chapter 5 Award BIOS Setup

5-4. The BIOS FEATURES SETUP MENU

Choose the "BIOS FEATURES SETUP" in the main menu, the screen
shown as below.

ROM PCI/ISA BIOS (2A4KDP69)

BIOS FEATURES SETUP

CPU Internal Cache
External Cache
Quick Power On Self Test
Boot Sequence
Swap Floppy Drive
Boot Up Floppy Seek
Boot Up Numlock Status
Boot Up System Speed
Gate A20 Option
Memory Parity Check
Typematic Rate Setting
Typematic Rate (Chars/Sec)
Typematic Delay (Msec)
Security Option
PS/2 mouse function control
PCI/VGA Palatal snoop

The BIOS FEATURES SETUP allows you find true certain features
supported by the chipset and Award BIOS. It also includes support for
shadow RAM under which the contents of the ROM BIOS can be copied
into memory at boot up, enhancing performance. When you change any of
the setting, you may recall the default settings at any time from the main
menu.

This is detailed later. To get help on each item, highlight the relevant item
and press the F1 key. A Windows will appear on your screen detailing the
various options available for each item. A brief introduction of each setting
in the BIOS FEATURES SETUP program is given below.

AWARD SOFT WARE, INC.

: Enabled
: Enabled
: Disabled
: A,C
: Disabled
: Enabled
: ON
: High
: Fast
: Disabled
: Disabled
: 6
: 250
: Setup
: Enabled
Disabled

Video BIOS Shadow
C8000 -CFFFF Shadow
D0000- D7FFF Shadow
D8000- DFFFF Shadow

Esc : Quit
F1 : Help Pu/Pd/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

BIOS Features Setup

↑↓→←

: Enabled
: Disabled
: Disabled
: Disabled

: Select Item

Page: 5-8

PC-410 USER‘S MANUAL

CPU INTERNAL CACHE:

This item should always be Enable, If your system is 486CPU. Even if you
have installed the external cache. If you have no external cache installed this
item should be enabled to allow use of the internal 8K cache in the 486 CPU.

EXTERNAL CACHE:

Enable or disable this function according to whether you want external
cache enabled or disabled.

QUICK POWER ON SELF TEST:

You can enable or disable this item to speed up Power On Self Test (POST)
after you power on the computer. If it is set to Enable, BIOS will shorten or
skip some check items during POST.

BOOT SEQUENCE:

You may define whether the system will look first at drive A: and then at
drive C: when boot ing up, or vice versa.

BOOT UP FLOPPY SEEK:

You may enable / disable this item to define whether the system will look
for a floppy disk drive to boot at power-on, or directly to the hard disk drive.

BOOT UP NUMLOCK STATUS:

Use this item to enable / disable the NumLock on your keyboard
automatically at power-on.

BOOT UP SYSTEM SPEED:

Select High to configure your system in the turbo speed mode at boot up,
select Low to configure your system in normal speed mode. Whichever
setting you choose you will still be able to use the turbo switch to toggle
between the tow modes during use.

MEMORY PARITY CHECK:

Enable or Disable this item according to whether you wish the system to
check the memory parity during boot up or not. If you disable this item even
if the BIOS encounters a parity error it will be ignored. We re-commend that
you always enable the item in order to ensure that the memory is good each
time you turn your PC on.

Chapter 5 Award BIOS Setup

PC-410 USER‘S MANUAL

Page: 5-9

Chapter 5 Award BIOS Setup

GATE 20A OPTION:

When you set this category as Fast. The A20 signal is controlled by chipset
specific method.

TYPEMATIC RATE SETTING:

Enable this item if you wish to be able to configure the characteristics of
your keyboard. Typematic refers to the way in which characters are entered
repeatedly if a key is held down. For example, if you press and hold down
the "A" key, the letter "a" will repeatedly appear on your screen on your
screen until you release the key. This item is disable by default.

TYPEMATIC RATE (CHARS-SEC):

You can use this item to define the typematic rate delay of your keyboard,
i.e. the rate at which characters will be repeated when a key held down.

TYPEMATIC DELAY (MSEC):

You can use this item to define the period after which the typematic function
become active i.e. how long after you press a key the characters will be
repeated.

SECURITY OPTION:

This category allows you to limit access to the system and Setup, or just to
Setup. To disable security, select PASSWORD SETTING at Main Menu
and then you will be asked to enter password. Do not type anything and just
press <Enter>, it will disable security. Once the security is disabled, the
system will boot and you can enter Setup freely.

Page: 5-10

PC-410 USER‘S MANUAL

5-5. CHIPSET FEATURE SETUP

Choose the "CHIPSET FEATURES SETUP" from the main menu, the
screen shown as below.

ROM PCI/ISA BIOS (2A4KDP69)

CHIPSET FEATURES SETUP

Auto Configuration

AT-BUS Clock
DRAM Read Timing
DRAM Write Timing
SRAM Read Timing
SRAM Write Timing

On Chip Local Bus IDE
IDE Primary Master PIO
IDE Primary Slave PIO

By moving cursor to the desired selection and pressing < F1 > key, the all
options for the desired selection will be displayed for choice. User has to
use select the desired option.

AUTO CONFIGURATION FUNCTION:

When this option is Enabled, the BIOS automatically configures cache and
clock settings based on detection of the CPU clock speed, you cannot
change the other parameters. Set this option to Disabled to manually set
DRAM, cache and I/O bus clock operating parameters.

DRAM TIMING OPTION:

The number of wait states added on reads to DRAM. Fewer wait states
improve performance.

AWARD SOFT WARE, INC.

: Enable

: CLK/4
: Normal
: Normal
: 3-1-1-1
: 0 Wait

: Enabled
: Auto
: Auto

Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
Onboard Parallel Port
Parallel Port Mode

Esc : Quit
F1 : Help Pu/Pd/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Chipset Features Setup

Chapter 5 Award BIOS Setup

: Enabled
: 3F8/IRQ4
: 2F8/IRQ3
: 378/IRQ7
: Normal

: Select Item

↑↓→←

PC-410 USER‘S MANUAL

Page: 5-11

Chapter 5 Award BIOS Setup

SRAM TIMING OPTION:

The number of wait states added on reads to SRAM. Fewer wait states
improve performance.

AT BUS CLOCK:

Defines the clock value for AT bus. Usually, AT bus clock should be
programmed to 8Mhz, e.g. when system clock is 33Mhz, choose 4/1 CLKIN.
All values derived from CLKIN is called synchronous mode.
The 7.159Mhz option is called asyc. mode.

5-6. POWER MANAGEMENT SETUP

Choose "POWER MANAGEMENT SETUP" optio n on the main menu, a
display will be shown on screen as below :

ROM PCI/ISA BIOS (2A4KDP69)
POWER MANAGEMENT SETUP

Power Management
PM Control by APM
Video Off Option
Video Off Method

** PM Timer **
HDD Standby Timer
Doze Timer Select
Standby Timer Select
Inactive Timer Select

** PM Events **
VGA
FDD(3FXh)
LPT & (1FXh)
HDD (1FXh)
NMI
IRQ3 (COM 2)
IRQ4 (COM 1)
IRQ 5 (LPT 2)

This category determines how much power consumption for system after
selecting below items. Default value is Disable. Having made all the settings
above, press < Esc > to return to the main menu.

AWARD SOFT WARE, INC.

:Disable
:Yes
Susp,Stby->off
:V/H Sync+Blank

:Disabled
:Disabled
:Disabled
:Disabled

IRQ6 (Floppy Disk)
IRQ7 (LPT 1)
IRQ8 (RTC Alarm)
IRQ9 (IRQ Redir)
IRQ10 (Reserved)
IRQ11 (Reserved)
IRQ12 (PS/2 Mouse)
IRQ13 (Coprocessor)
IRQ14 (Hard Disk)
IRQ15 (Reserved)

:OFF
:ON
:LPT/COM
:ON
:OFF
:ON
:ON
:ON

Esc : Quit
F1 : Help Pu/Pd/+/- : Modify
F5 : Old Values (Shift)F2 : Color
F6 : Load BIOS Defaults
F7 : Load Setup Defaults

Power Management Setup

↑↓→←

: ON
: ON
: OFF
: ON
: OFF
: OFF
: ON
: OFF
: ON
: OFF

: Select Item

Page: 5-12

PC-410 USER‘S MANUAL

POWER MANAGEMENT:

This item determines how much power consumption for system. When you
define it as Max Saving are used all timers MIN value.

PM CONTROL BY APM:

When this item is set to be YES, the system BIOS will wait for APM‘s
prompt before it enter any PM mode e.g. DOZE, STANDBY or SUSPEND.
If APM is installed, & if there is a t ask running, even the timer is time out,
the APM will not prompt the BIOS to put the system into any power saving
mode.

DOZE MODE TIMEOUT:

Sets the time interval after inactivity when the system enters Doze mode.
This options as following, from 10 Sec to 2 Hours or Disabled.

STANDBY MODE TIMEOUT:

Sets the time interval after system inactivity when the system enters
STANDBY mode. This options as following: From 30 Sec to 2 Hours or
Disabled.

SUSPEND MODE TIMER:

Sets the time interval after system inactivity when the system enters
SUSPEND mode. This options as following: From 30 Sec to 2 Hours or
Disabled.

Chapter 5 Award BIOS Setup

PC-410 USER‘S MANUAL

Page: 5-13

Chapter 5 Award BIOS Setup

5-7. LOAD BIOS DEFAULTS

AUTO CONFIGURATION WITH BIOS DEFAULTS

"LOAD BIOS DEFAULTS" loads the default BIOS values. When the
diagnostic aid of your system becomes unusable, c hoose this option and the
following message appears :

Load BIOS Default ( Y / N ) ? Y

To use the BIOS defaults, change the prompt to "Y" and press < Enter >, the
CMOS is load automatically when you power on the PC-410.

5-8. LOAD SETUP DEFAULTS

AUTO CONFIGURATION WITH SETUP DEFAULTS

This Main Menu item uses the default SETUP values. Use this option as a
diagnostic aid of your system behaves erratically. Choose this item and the
following message appears:

To use the SETUP defaults, change the prompt to "Y" and press <Enter> The
CMOS is load automatically form SETUP default values:

Page: 5-14

Load SETUP Default ( Y / N )?Y

PC-410 USER‘S MANUAL

5-9. PASSWORD SETTING

If you want to enable this item you should choose the "PASSWORD
SETTING" option from the main menu, the following message will appear
at the center of the screen to assist you in creating a password.

Enter Password:

Type the password, up to eight characters, and press < Enter >. The
password typed now will clear any previously entered password from
CMOS memory. You will be asked to confirm the password. Type the
password again and press < Enter >. You may also press < Esc > to abort
the selection and not enter a password.

To disable password, just press < Enter > when you are prompted to enter
password. A message will confirm the password being disable. Once the
password is disabled, the system will boot and you can enter Setup freely.

Password Disabled

Chapter 5 Award BIOS Setup

If you select System at Security Option of BIOS Features Setup Menu, you
will be prompted for the password every time the system is rebooted or any
time you try to enter Setup. If you select Setup at Security Option of BIOS
Features Setup Menu, you will be prompted only when you try to enter
Setup.

PC-410 USER‘S MANUAL

Page: 5-15

Chapter 5 Award BIOS Setup

5-10. IDE HDD AUTO DETECTION

Choose the "IDE HDD AUTO DETECTION" op tion . The screen will be
shown as below.

ROM PCI / ISA BIOS (2A4XDP69)

STANDARD CMOS SETUP
AWARD SOFT WARE, INC.

CYLS. HEADS PRECOMP LANDZONE SECTORS MODE
Drive C : ( Mb) 0 0 0 0 0 -------

Select Driver C Option (N=Skip) : N

Option Size Cyls Heads Precomp Landzone Sectors Mode
____________________________________________________________
2(Y) 1277 619 64 0 2476 63 LBA
1 1278 2477 16 65535 2476 63 Normal
3 1277 1238 32 65536 2476 63 Large

Note: Some Oses (like SCO-UNIX) must use “Normal” for installation

IDE HDD AUTO DETECTION Screen

AUTO DETECTION

BIOS setup will display all possible modes that supported by the HDD
including NORMAL, LBA, & LARGE.

If HDD does not support LBA mode, ‘LBA’ option will be shown.

If no of cylinders is less then or equal to 1024, no ‘LARGE’ option will be
shown.

User can select a mode which is appropriate for then.

Page: 5-16

PC-410 USER‘S MANUAL

HDD MODE

The Award BIOS supports 3 HDD mode: NORMAL, LBA, & LARGE

NORMAL mode:

Generic access mode in which neither the BIOS nor the IDE controller will
make any transformations during accessing.

The maximum number of cylinders, heads & sectors for NORMAL mode are
1024, 16, &63.

no. Cylinder (1024)
x no. Head ( 16)
x no. Sector ( 63)
x no. Per sector ( 512)

--------------------------------------­ Total: 528 Mega byte

If user set his HDD to NORMAL mode, the maximum accessible HDD size
will be 528 Megabytes even though its physical size may be greater than that.

LBA (logical Block Addressing) mode:

A new HDD accessing method to overcome the 528 Megabyte bottleneck. The
number of cylinders. head & sectors shown in setup may not be the number
physically contained in the HDD.

During HDD accessing, The IDE controller will transform the logical address
described by sector, head & cylinder number into its own physical address
inside the HDD.

The maximum HDD size supported by LBA mode is 8.4 Gigabyte which is
obtained by the following formula:

no. Cylinder (1024)
x no. Head ( 255)
x no. Sector ( 63)
x no. Per sector ( 512)

--------------------------------------­ Total: 8.4 Giga byte

Chapter 5 Award BIOS Setup

PC-410 USER‘S MANUAL

Page: 5-17

Chapter 5 Award BIOS Setup

LARGE mode

:

Some IDE HDDs contain more than 1024 cylinder without LBA support (in
some cases, user do not want LBA). The BIOS provides another alternative to
support these kinds of HDD.

CYLS HEADS SECTOR MODE

----------------------------------------------------------------­ 1120 16 59 NORMAL
560 32 59 LARGE

BIOS tricks DOS (or other OS) that the number of cylinder is less than 1024
by dividing it by 2. At the same time, the number of heads is multiplied by 2.
A reverse transformation process will be made inside INT 13h in order to
access the right HDD address the right HDD address.

Maximum HDD size:

no. Cylinder (1024)
x no. Head ( 32)
x no. Sector ( 63)
x no. Per sector ( 512)

--------------------------------------­ Total: 1 Giga byte

REMARKS

:

To support LBA or LARGE mode of HDDs, there must be some softwares
involved. All these softwares are located in the Award HDD Service Routine
(INT 13h). It may be failed to access a HDD with LBA(LARGE) mode
selected if you are running under a Operating System which replaces the whole
INT 13h.

Page: 5-18

PC-410 USER‘S MANUAL

5-11. SAVE & EXIT SETUP

When you have completed adjusting all the settings as required, you must
have these setting into the CMOS RAM. Select SAVE & EXIT and
press<Enter> , when you confirm that you wish to save the settings your
machine will be automatically rebooted and the changes you have made will
be implemented. You may call up the setup program at any time to adjust
any of the individual items by pressing the <Del> key during boot up. If
wish to cancel any changes you have made, select EXIT WITHOUT
SAVING and the original setting stored in the CMOS will be retained.

Chapter 5 Award BIOS Setup

PC-410 USER‘S MANUAL

Page: 5-19

Chapter 5 Award BIOS Setup

Page: 5-20

PC-410 USER‘S MANUAL

EXPANSION BUS

This appendix indicates you the pin assignments.

Sections include:

z PC-104 Connector Pin Assignment

z ISA BUS Pin Assignment

APPENDIX

A

Page: A-1

Appendix A EXPANSION BUS

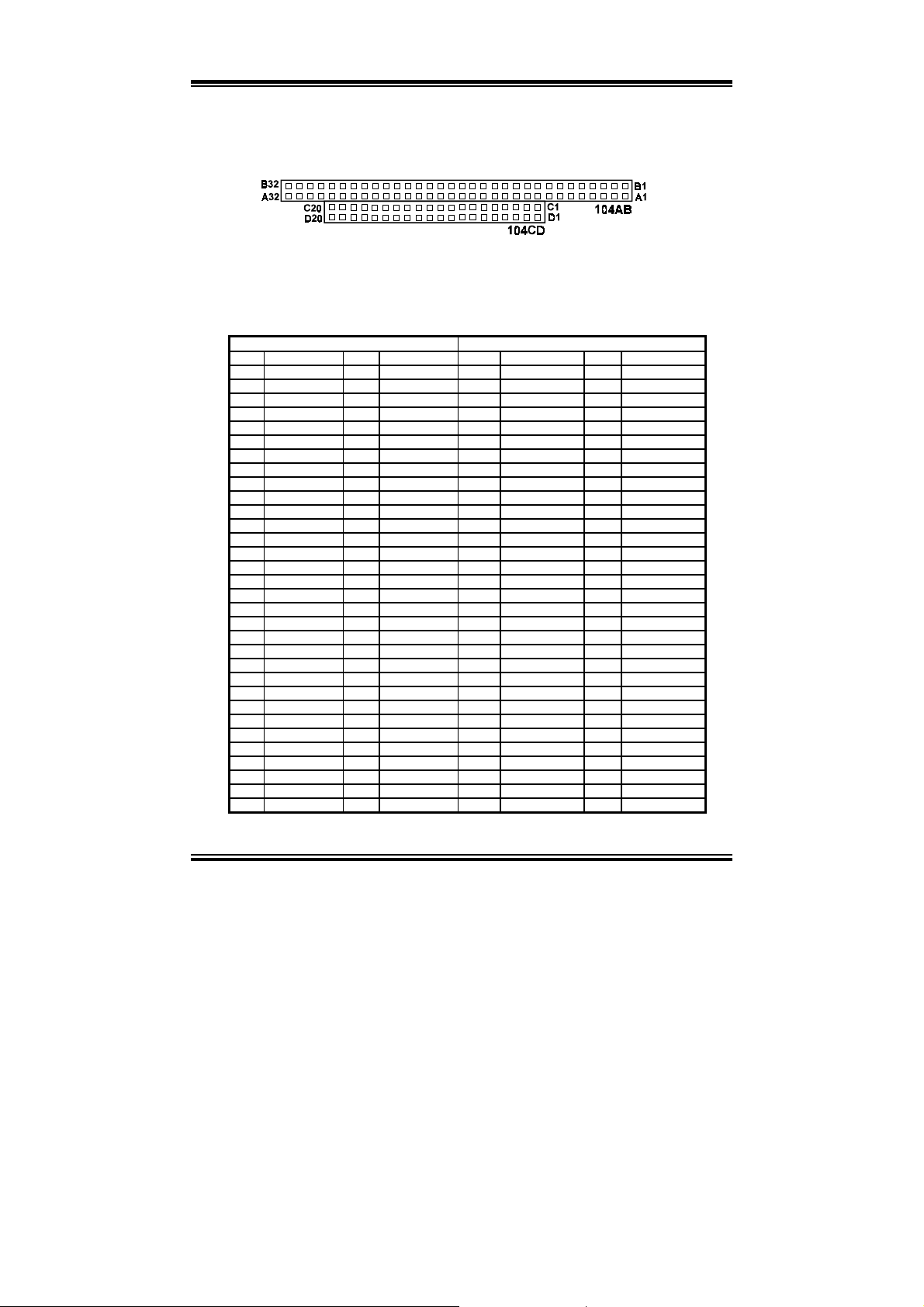

PC-104 CONNECTOR PIN ASSIGNMENT

104AB, 104CD : PC-104 Connector

The PC-104 can support multi-pieces of PC-104 modules. This card has two

connectors : one (104AB) consists of 64 pin, dual-in-line header, the other one
(104CD) consists of 40 pin, dual-in-line header

The pin assignments for connector 104AB & 104CD are as follow:

ASSIGNMENT

PIN
B1 GND A1 IOCHK D1 GND C1 GND
B2 REST A2 D7 D2 MEMCS16 C2 SBHE
B3 VCC A3 D6 D3 IOCS16 C3 LA23
B4 IRQ9 A4 D5 D4 IRQ10 C4 LA22
B5 -5V A5 D4 D5 IRQ11 C5 LA21
B6 DRQ2 A6 D3 D6 IRQ12 C6 LA20
B7 -12V A7 D2 D7 IRQ15 C7 LA19
B8 0WS A8 D1 D8 IRQ14 C8 LA18
B9 +12V A9 D0 D9 DACK0 C9 LA17
B10 GND A10 IOCHRDY D10 DRQ0 C10 MEMR
B11 SMEMW A11 AEN D11 DACK5 C11 MEMW
B12 SMEMR A12 A19 D12 DRQ5 C12 D8
B13 IOW A13 A18 D13 DACK6 C13 D9
B14 IOR A14 A17 D14 DRQ6 C14 D10
B15 DACK3 A15 A16 D15 DACK7 C15 D11
B16 DRQ3 A16 A15 D16 DRQ7 C16 D12
B17 DACK1 A17 A14 D17 VCC C17 D13
B18 DRQ1 A18 A13 D18 MASTER C18 D14
B19 REFRESH A19 A12 D19 GND C19 D15
B20 CLK A20 A11 D20 GND C20 KEY PIN
B21 IRQ7 A21 A10
B22 IRQ6 A22 A9
B23 IRQ5 A23 A8
B24 IRQ4 A24 A7
B25 IRQ3 A25 A6
B26 DACK2 A26 A5
B27 TC A27 A4
B28 BALE A28 A3
B29 VCC A29 A2
B30 OSC A30 A1
B31 GND A31 A0
B32 GND A32 GND

104AB 104CD

PIN

ASSIGNMENT

PIN

ASSIGNMENT

PIN

ASSIGNMENT

Page: A-2

PC-410 USER‘S MANUAL

Appendix A EXPANSION BUS

ISA BUS PIN ASSIGNMENT

The ISA BUS for this card is called “Gold Fingers”. It is divided into two sets : one
consists of 62 pins; the other consists of 36 pins.
The pin assignments are as follows :

PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT PIN ASSIGNMENT

B1 GND A1 -I/O CH CHK D1 -MEMCS16 C1 SBHE
B2 RESET A2 SD07 D2 -I/OCS16 C2 LA23
B3 +5V A3 SD06 D3 IRQ10 C3 LA22
B4 IRQ9 A4 SD05 D4 IRQ11 C4 LA21
B5 -5V A5 SD04 D5 IRQ12 C5 LA20
B6 DRQ2 A6 SD03 D6 IRQ15 C6 LA19
B7 -12V A7 SD02 D7 IRQ14 C7 LA18
B8 OWS A8 SD01 D8 -DACK0 C8 LA17
B9 +12V A9 SD00 D9 DRQ0 C9 -MEMR
B10 GND A10 -I/O CH RDY D10 -DACK5 C10 -MEMW
B11 -SMEMW A11 AEN D11 DRQ5 C11 SD08
B12 -SMEMR A12 SA19 D12 -DACK6 C12 SD09
B13 -IOW A13 SA18 D13 DRQ6 C13 SD10
B14 -IOR A14 SA17 D14 -DACK7 C14 SD11
B15 -DACK3 A15 SA16 D15 DRQ7 C15 SD12
B16 -DRQ3 A16 SA15 D16 +5V C16 SD13
B17 -DACK1 A17 SA14 D17 -MASTER C17 SD14
B18 -DRQ1 A18 SA13 D18 GND C18 SD15
B19 -REFRESH A19 SA12
B20 BCLK A20 SA11
B21 IRQ7 A21 SA10
B22 IRQ6 A22 SA09
B23 IRQ5 A23 SA08
B24 IRQ4 A24 SA07
B25 IRQ3 A25 SA06
B26 -DACK2 A26 SA05
B27 T/C A27 SA04
B28 BALE A28 SA03
B29 +5V A29 SA02
B30 OSC A30 SA01
B31 GND A31 SA00

B A D C

PC-410 USER‘S MANUAL

Page: A-3

Appendix A EXPANSION BUS

Page: A-4

PC-410 USER‘S MANUAL

TECHNICAL
SUMMARY

This section introduce you the maps concisely.

Sections include:

z Block Diagram

z Interrupt Map

z RTC & CMOS RAM Map

z Timer & DMA Channels Map

z I / O & Memory Map

APPENDIX

B

Page: B-1

Appendix B Technical Summary

INTERRUPT MAP

IRQ ASSIGNMENT

0 System TIMER interrupt from TIMER-0
1 Keyboard output buffer full
2 Cascade for IRQ 8-15
3 Serial port 2
4 Serial port 1
5 Parallel port 2
6 Floppy Disk adapter
7 Parallel port 1
8 RTC clock

9 Available
10 Available
11 Available
12 Available
13 Math coprocessor
14 Hard Disk adapter
15 Available

Page: B-2

PC-410 USER‘S MANUAL

RTC & CMOS RAM MAP

CODE ASSIGNMENT

00 Seconds
01 Second alarm
02 Minutes
03 Minutes alarm
04 Hours
05 Hours alarm
06 Day of week
07 Day of month
08 Month

09 Year
0A Status register A
0B Status register B
0C Status register C
0D Stat us register D
0E Diagnostic status byte
0F Shutdown byte

10 Floppy Disk drive type byte

11 Reserve

12 Hard Disk type byte

13 Reserve

14 Equipment byte

15 Base memory low byte

16 Base memory high byte

17 Extension memory low byte

18 E xtension memory high byte

30 Reserved for extension memory low byte

31 Re served for extension memory high byte

32 Date Century byte

33 Information Flag

34-3F Reserve

40-7f Reserved for Chipset Setting Data

Appendix B TECHNICAL SUMMARY

PC-410 USER‘S MANUAL

Page: B-3

Appendix B Technical Summary

TIMER & DMA CHANNELS MAP

Timer Channel Map

Timer Channel Assignment

0 System timer interrupt
1 DRAM Refresh request
2 Speaker tone gener ator

DMA Channel Map

DMA Channel Assignment

0 Available
1 IBM SDLC
2 Floppy Disk adapter
3 Channel-3 Available
4 Cascade for DMA controller 1
5 Available
6 Available
7 Available

:

:

Page: B-4

PC-410 USER‘S MANUAL

Appendix B TECHNICAL SUMMARY

I/O & MEMORY MAP

Memory Map :

MEMORY MAP ASSIGNMENT

0000000-009FFFF System memory used by DOS and

application

00A0000-00BFFFF Display buffer memory for VGA/ EGA /

CGA / MONOCHROME adapter

00C0000-00DFFFF Reserved for I/O device BIOS ROM or

RAM buffe r.
00E0000-00EFFFF Reserved for PCI device ROM
00F0000-00FFFFF System BIOS ROM
0100000-BFFFFFF System extension memory

I/O Map :

I/O MAP ASSIGNMENT

000-01F DMA controller (Master)
020-021 Interrupt controller (Master)
022-023 Chipset controller registers I/O ports.
040-05F Timer control regsiters.
060-06F Keyboard interface controller (8042)
070-07F RTC ports & CMOS I/O ports

080-09F DMA register
0A0-0BF Interrupt controller (Slave)
0C0-0DF DMA controller (Slave)

0F0-0FF Math coprocessor

1F0-1F8 Hard Disk controller

278-27F Parallel port-2
2B0-2DF Graphics adapter controller

2F8-2FF Serial port-2

360-36F Net work ports

378-37F Parallel port-1
3B0-3BF Monochrome & Printer adapter
3C0-3CF EGA adapter
3D0-3DF CGA adapter

3F0-3F7 Floppy disk controller

3F8-3FF Serial port-1

PC-410 USER‘S MANUAL

Page: B-5

Appendix B Technical Summary

Page: B-6

PC-410 USER‘S MANUAL

TROUBLE
SHOOTING

This section outlines the errors may occur when you operate the
system, also gives you the suggestions o n solving the problems.

Sections include:

z Trouble Shooting for Error Messages

z Trouble Shooting for POST Code

APPENDIX

C

Page: C-1

Appendix C Trouble Shooting

TROUBLE SHOOTING FOR ERROR MESSAGE

The following information inform you the error messages and the trouble
shooting. Please adjust your systems according to the messages below. And
make sure all the components and connectors are in proper position and firmly
attached. If the errors still encountered, please contact with yo ur distributor for
maintenance.

POST BEEP :

Currently there are two kind of beep codes in BIOS. The one code in-dicates
that a video error has occurred and the BIOS cannot initialize the video screen
to display any additional information. This beep code con-sists of a single long
beep followed by three short beeps. The other one code indicates that your
DRAM error has occurred. This beep code consists of a single long beep
repeatedly.

CMOS BATTERY FAILURE :

When the CMOS battery is out of work or has run out, the user has to replace
the whole unit.

CMOS CHECKSUM ERROR :

This error inform you that the CMOS is corrupted. When the battery runs weak,
this situation might happen. Please check the battery and change a new one
when necessary.

DISPLAY SWITCH IS SET INCORRECTLY :

Display switch on the motherboard can be set to either monochrome or color.
This indicates the switch is set to a different setting than indicated in Setup.
Determine which setting is correct, and then either turn off the system and
change the jumper, or enter Setup and change the video selection.

DISK BOOT FAILURE:

When you can‘t find the boot device, insert a system disk into Drive A and
press < Enter >. Make sure both the controller and cables are all in proper
positions, also make sure the disk is formatted correct device. Then reboot the
system.

Page: C-2

PC-410 USER‘S MANUAL

Appendix C Trouble Shooting

DISKETTE DRIVES OR TYPES MISMATCH ERROR :

When the diskette drive type is different from CMOS, please run setup or
configure the drive again.

ERROR ENCOUNTERED INITIALIZING HARD DRIVE :

When you can‘t initialize the hard drive. Assure the adapter is installed
correctly and all cables are correctly and firmly attached. Also be sure the
correct hard drive type is selected in Setup.

ERROR INITIALIZING HARD DISK CONTROLLER :

When this error occurs. Be sure the cord is exactly installed in the bus. Make
sure the correct hard drive type is selected in Setup. Also check whether all of
the jumpers are set correctly in the hard drive.

FLOPPY DISK CONTROLLER ERROR OR
NO CONTROLLER PRESENT :

When you cannot find or initialize the floppy drive controller, please check the
controller whether in proper Setup. If there are no floppy drive installed,
Ensure the Diskette Drive selection in Setup is set to NONE.

KEYBOARD ERROR OR NO KEYBOARD PRESENT :

When this situation happens, please check keyboard attachment and no keys
being pressed during the boot. If you are purposely configuring the system
without a keyboard, set the error halt condition in Setup to HALT ON ALL,
BUT KEYBOARD. This will cause the BIOS to ignore the missing keyboard
and continue the boot.

MEMORY ADDRESS ERROR :

When the memory address indicates error. You can use this location along
with the memory map for your system to find and replace the bad memory
chips.

MEMORY SIZE HAS CHANGED :

Memory has been added or removed since the last boot. In EISA mode use
Configuration Utility to re-configure the memory configuration. In ISA mode
enter Setup and enter the new memory size in the memory fields.

PC-410 USER‘S MANUAL

Page: C-3

Appendix C Trouble Shooting

MEMORY VERIFYING ERROR :

It indicates an error verifying a value already written to memory. Use the
location along with your system's memory map to locate the bad chip.

OFFENDING ADDRESS MISSING :

This message is used in connection with the I/O CHANNEL CHECK and
RAM PARITY ERROR messages when the segment that has caused the
problem cannot be isolated.

REBOOT ERROR :

When this error occurs that requires you to reboot.. Press any key and the
system will reboot.

SYSTEM HALTED :

Indicates the present boot attempt has been aborted and the system must be
rebooted. Press and hold down the CTRL and ALT keys and press DEL.

Page: C-4

PC-410 USER‘S MANUAL

Appendix C Trouble Shooting

TROUBLE SHOOTING FOR POST CODES

When you power on your PC, and the screen display nothing. You have to
insert the POST Card for test. The address for ISA POST port is 80h. Make
sure the card is in correct slot. The lists below indicate you the error messages.
Please follow the instruction to adjust your system. If the error still occurred,
please contact with your distributor for maintenance.

Turn off OEM specific cache, shadow.....

C0 :

Initialize all the standard devices with default values Standard devices

03 :

includes :
DMA controller (8237).
Programmable Interrupt Controller (8259).
Programmable Interval Timer (8254).
RTC chip.

1.Keyboard Controller Self-Test.

05 :

2.Enable Keyboard Interface.

Verfies CMOS‘s basic R/W functionality.

07 :

Program defaults values into chipset according to the MODBINable Chipset

BE :

Default Table.

Auto-detection of onboard DRAM & Cache.

C1 :

Copy the BIOS from ROM into E0000-FFFFF shadow RAM so that POST

C5 :

will go faster.

Test the first 256K DRAM.

08 :

1. Program the configuration register of Cyrix CPU according to the

09 :

MODBINable Cyrix Register Table.

2. OEM specific cache initialization (if needed).

PC-410 USER‘S MANUAL

Page: C-5

Appendix C Trouble Shooting

1. Initialize the first 32 interrupt vectors with corresponding Interrupt handlers

0A :

Initialize INT no from 33-120 with Dummy(Spurious) Interrupt Handler.

2. Issue CPUID instruction to identify CPU type.

3. Early Power Management initialization (OEM specific).

1.Verify the RTC time is valid or not.

0B :

2. Detect bad battery.

3. Read CMOS data into BIOS stack area.

4. PnP initializations including (PnP BIOS only).

-Assign CSN to PnP ISA card.

-Create resource map from ESCD.

5. Assign I/O & Memory for PCI devices (PCI BIOS only).

Initialization of the BIOS Data Area (40 : 0N-40:FF).

0C :

1. Program some of the Chipset‘s value according to Setup. (Early Setup

0D :

Value Program).

2. Measure CPU speed for display & decide the system clock speed.

3. Video initialization including Monochrome ,CGA, EGA/VGA. If no
display device found, the speaker will beep.

1. Initialize the APIC (Multi-Processor BIOS only).

0E :

2. Test video RAM (If Monochrome display device found).

3. Show messages including :

-Award Logo, Copyright string, BIOS Date code & Part No.

-OEM specific sign on messages.

-Energy Star Loge (Green BIOS only).

-CPU brand, type & speed.

-Test system BIOS checksum (Non-compress Version only).

DMA channel 0 test.

0F :

DMA channel 1 test.

10 :

DMA page registers test.

11 :

Test 8254 Timer 0 Counter2.

14 :

Page: C-6

PC-410 USER‘S MANUAL

Appendix C Trouble Shooting

Test 8259 interrupt mask bits for channel 1.

15 :

Test 8259 interrupt mask bits for channel 2.

16 :

Test 8259 functionality.

19 :

Detect Base Memory & Extended Memory Size.

30 :

1. Test Base Memory from 256K to 640K.

31 :

2. Test Extended Memory from 1M to the top of memory.

1.Display the Award Plug & Play BIOS Extension message (PnP BIOS only).

32 :

2.Program all onboard super I/O chips (if any) including COM ports, LPT

ports, FDD port....according to setup value.

Set flag to allow users to enter CMOS Setup Utility.

3C :

1 Initialize Keyboard.

3D :

2 Install PS2 mouse.

Try to turn on Level 2 cache.

3E :

Note : Some chipset may need to turn on the L2 cache in this stage. But

usually, the cache is turn on later in POST 61h.

1. Program the rest of the Chipset‘s value according to Setup. (Later Setup

BF :

Value Program).

2. If auto-configuration is enabled, programmed the chipset with pre-defined
value in the MODBINable Auto-Table.

Initialize floppy disk drive controller.

41 :

Initialize Hard drive controller.

42 :

If it is a PnP BIOS, initialize serial & parallel ports.

43 :

Initialize math coprocessor.

45 :

PC-410 USER‘S MANUAL

Page: C-7

Appendix C Trouble Shooting

If there is any error detected (such as video, kb....), show all the error

4E :

messages the screen & wait for user to press <F1> key.

1. If password is needed, ask for password.

4F :

2. Clear the Energy Star Logo (Green BIOS only).

Write all CMOS values currently in the BIOS stack area back into the CMOS.

50 :

1.Initialize all ISA ROMs.

52 :

2. Later PCI initializations (PCI BIOS only).

-assign IRQ to PCI devices.

-initialize all PCI ROMs.

3.PnP Initializations (PnP BIOS only).

-assign I/O, Memory, IRQ & DMA TO PnP ISA devices.

-initialize all PnP ISA ROMs.

4. Program shadows RAM according to Setup settings.

5. Program parity according to Setup setting.

6. Power Management Initialization.

-Enable/Disable global PM.

-APM interface initialization.

1.If it is NOT a PnP BIOS, initialize serial & parallel ports.

53 :

2. Initialize time value in BIOS data area by translate the RTC time value into a

timer tick value.

Setup Virus Protection (Boot Sector Protection) functionality according to

60 :

Setup setting.

1. Try to turn on Level 2 cache.

61 :

Note : if L2 cache is already turned on in POST 3D, this part will be skipped.

2. Set the boot up speed according to Setup setting.

3. Last chance for Chipset initialization.

4. Last chance for Power Management initialization (Green BIOS only).

5. Show the system configuration table.

Page: C-8

PC-410 USER‘S MANUAL

Appendix C Trouble Shooting

1.Setup daylight saving according to Setup value.

62 :

2.Program the NumLock, typematic rate & typematic speed according to
Setup setting.

1. If there is any changes in the hardware configuration, update the ESCD

63 :

information (PnP BIOS only).

2. Clear memory that have been used.

3. Boot system via INT 19H.

System Booting. this means that the BIOS already pass the control right to the

FF :

operating system.

PC-410 USER‘S MANUAL

Page: C-9

Appendix C Trouble Shooting

PRINTED IN TAIWAN

Page: C-10

PC-410 USER‘S MANUAL
