Page 1

PROTEC GmbH & Co. KG

In den Dorfwiesen 14, D-71720 Oberstenfeld, Germany Telephone: +49-7062-9255-0 e-mail: [email protected]

Machine No.:

Type:

Installationsdatum:

Stand:

03-2017/1.0

Subject to change

English

Film Processor

Operation Manual

ID: 5870-0-0022

Page 2

1 CP - OPTI

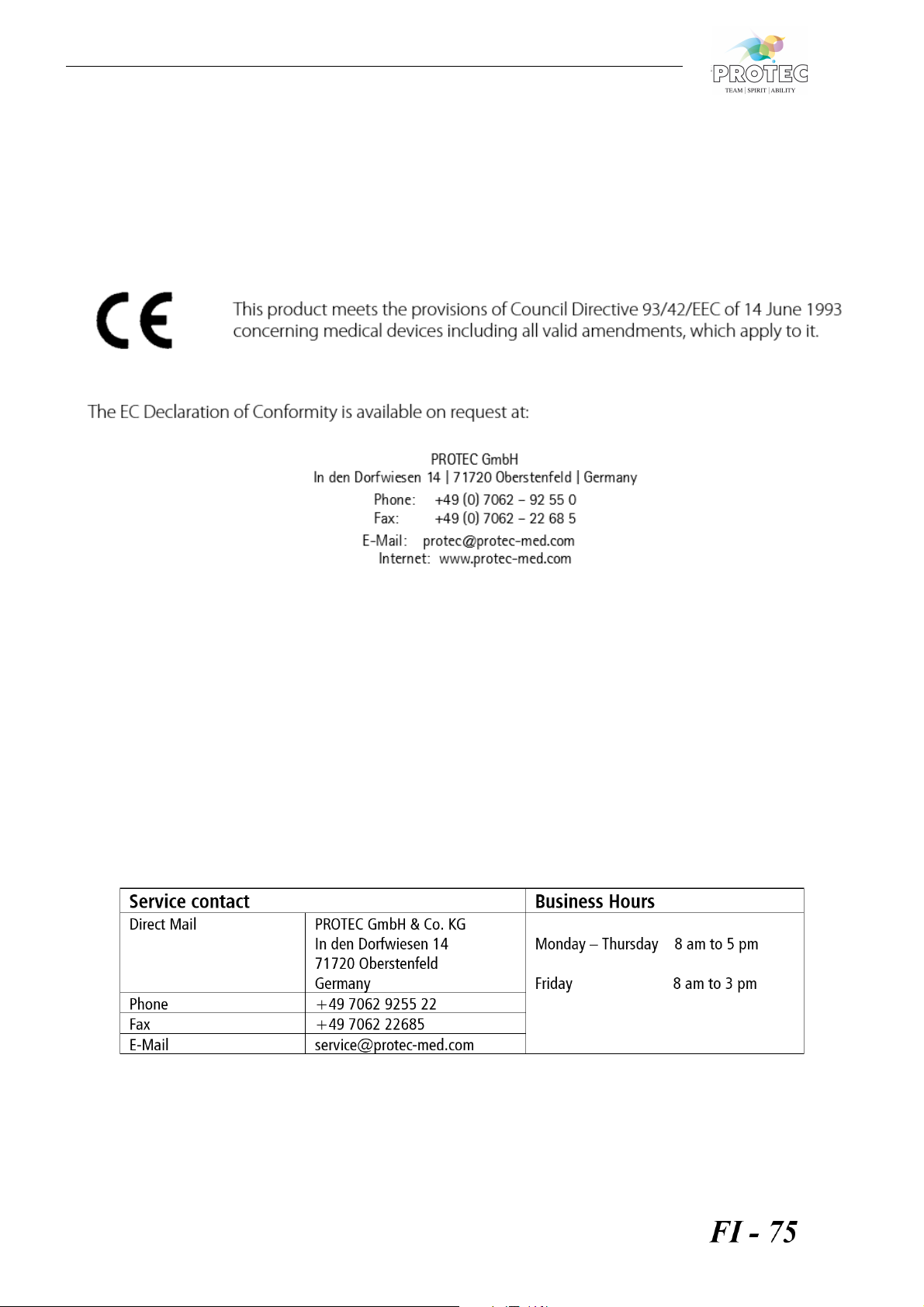

EU-Declaration of Conformity

Page 3

CP - OPTI 2

Table of Contents

English

Introduction .......................................................................................................... 2

Intended Use......................................................................................................... 2

Technical Specifications ..................................................................................... 3

Safety Instructions............................................................................................... 4

Installation .......................................................................................................... 5

Initial Operation.................................................................................................. 7

Operation

Short Overview and Control Panel .............................................................. 9

Switching on the machine............................................................................ 11

Stand-by mode ............................................................................................ 11

Bath temperature ......................................................................................... 11

Display “Infeeding film” ................................................................................ 11

Manual pumping .......................................................................................... 11

Anti-crystallisation function / Time replenishment ....................................... 11/12

Automatic replenishment ............................................................................. 12

Rollfilms and Paper Films ............................................................................ 12

Care

Daily Care.................................................................................................... 13

Weekly Care ................................................................................................ 13

Thorough Cleaning ...................................................................................... 14

Maintenance / Disposal ..................................................................................... 15

Problems and Solutions

Advice on Film Defects................................................................................ 18

Advice on Machine Errors ........................................................................... 19

Service Manual as appendix, see page 20

Additional informations for FI-75 mammo see page 3; 23; 33

tions set forth by copyright law, needs to be authorised in writing by PROTEC®.

Information on Liability

This manual has been checked for correctness. The instructions and specifications were correct at the time it was published. Future models may have modifications without prior notice. PROTEC

does not take responsibility for damage caused directly or indirectly by

error, omission or non-conformity of the manual.

Introduction

The FI-75 processor is a compact, automatic table-top processor. Due to the precision roller transport system, both sheet and roller films can be processed. The

film materials are developed, fixed, rinsed and dried. The FI-75

has been fitted with an automatic film-registration and a Stand-by mode. The developing solutions are temperature-regulated, circulated and automatically replenished.

This Operation Manual contains the most important instructions for installation, operation and servicing of this machine. Please read the provided information careful-

ly to ensure reliable and satisfactory operation of your FI-75.

Intended Use

The X-ray film processor FI-75 is intended exclusively for the purpose describe in the introduction above.

Page 4

3 CP - OPTI

Technical Specifications

X-ray film processorss (MDD class I) are employed in “medical” applications (medical products directive) and “non-medical” applications (electrical appliances and EMC directives).

Intended use includes observing the operating instructions, the installation instructions and adherence to the safety notes.

Any application differing from intended use voids the guarantee by PROTEC

The owner of the machine will be liable for damages resulting from unintended use or faulty application.

Intended use includes adherence to all statutory regulations concerning occupational safety and radiation protection applicable at the operating site.

Technical Specifications

Film transport:

Continuous roller transport system

Film formats:

In general: Sheet and roll films up to 35.8 cm (14.1 ’’) width; Roll films with leader from 70 mm (2.8 ’’) width; Smallest film format 10x10 cm (4x4 ’’). Mammography type 1171: For processing mammography films.

Processing capactiy:

111 films 24x30 cm (10x12 “) per hours (standard model, film fed in crosswise)

Process time:

Standard 105 s Mammography 135 s (*Option 90 s /167 s)

Linear speed:

Standard 48 cm/min. (19 in/min) Mammography 37 cm/min (14.5 in/min)

*Option 56 cm/min (22 in/min) / 30 cm/min (11.8 in/min)

Developer time:

Standard 29 s Mammography 37 s *Special 25 s /46 s

Tank capacities:

Developer, fixer and washing 5 litres each (1.3 gal)

Circulation system:

Developer and fixer are continiuously circulated by a circulation pump

Replenishment:

Automatic replenishment by film detection, in relation to film length

Developer temperature:

Adjustable 28 - 37 °C (82.4 - 98.6 °F)

Fixer temperature:

Adjusted to developer temperature by heat exchanger.

Water connection:

Permissible water pressure 2 - 10 bar (29 - 145 psi), permissible water temperature 5 - 30 °C (41 - 86 °F).

Water consumption:

1.9 litres per minute (0.5 gal/min) when processing.

Drain capacity:

7 litres per minute (1.85 gal/min).

Noise level:

Less than 58 dB(A).

Heat emission:

Stand-by: 0.1 kJ/s Processing: 1.4 kJ/s

Environmental conditions:

1) Temperature 18 - 40 °C (51.6 - 104 °F), ventilated room, room temperature should be lower than set bath temperature.

2) Relative humidity lower than 80% up to 31 °C (80 °F), linear decreasing to 50% at 40°C (104°F)

3) Height above sea level less than 2000 m (6666 ft.)

4) Indoor use

Page 5

CP - OPTI 4

Technical Specifications

English

* Depending on machine type and used gears processors have different speeds.

** Height incl. optional working table resp. base cabinet.

Safety Instructions

Pollution degree:

System protection:

IP 20

Electrical connections: Electrical specification are indicated on model nameplate

Type 107x-1-0000: 230 V~ ±10 %, 8.8 A, 50 Hz.

Type 107x-2-0000: 230 V~ ±10 %, 8.8 A, 60 Hz

Type 107x-3-0000: 110 / 120 V~ ±10 %, 12 A, 60Hz

Machine tested for overvoltage category II

according to IEC 1010 (EN 61010, VDE 0411)

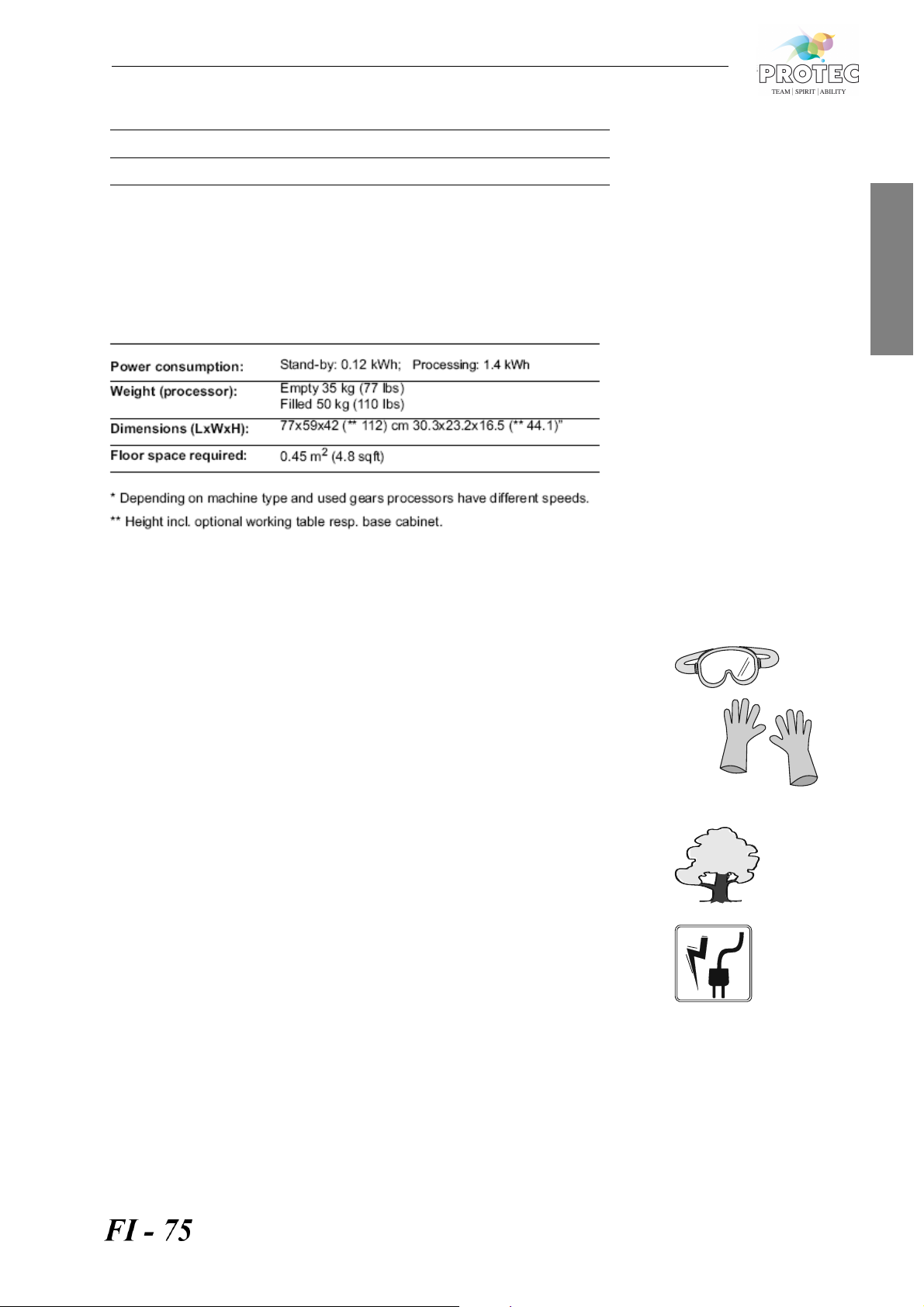

Power consumption:

Stand-by: 0.12 kWh;

Processing: 1.4 kWh

Weight (processor):

Empty 35 kg (77 lbs) Filled 50 kg (110 lbs)

Dimensions (LxWxH):

77x59x42 (** 112) cm 30.3x23.2x16.5 (** 44.1)’’

Floor space required:

0.45 m

(4.8 sqft)

To ensure the safe operation of this processor, installation and use should always conform to the instructions contained in this manual.

The developer and fixer chemicals used in the processor should be handled according to the manufacturers instructions. In general: Non-diluted chemicals are caustic. For this reason, chemicals should be handled very carefully. Avoid contact with skin, always wear protective clothing, gloves and glasses when handling the chemicals - for example, when mixing and refilling. Also when taking the racks out for cleaning or servicing. In case of chemicals getting into the eyes, rinse eyes immediately with cold, running water for approximately 15 minutes, and contact a doctor afterwards. Inhalation of chemicals can be dangerous to your health and should be avoided. For this reason, always ensure that the room in which the processor is installed is adequately ventilated.

Environmental regulations regarding the storage and disposal of waste chemicals should be obtained from the local water authorities and complied with.

Before opening the processor switch off the unit and unplug it from the electrical socket. Service and repairs must be performed by trained service technicians only. Use only manufacturers replacement parts.

Page 6

5 CP - OPTI

Installation

1. Requirements for installation

a. Fresh water connection: Stop cock with 3/4" outer-thread diameter (washing

machine connection), Water pressure 2 - 10 bar (29 - 145 psi).

b. Drainage connection: Plastic tube - inner diameter 50 mm (2”) or larger. A

ventilated syphon which serves as odour preventor should be included in the planning. The drainage tubes should be installed with a fall of minimum 5 %. Local Water Authorities regulations should be complied with.

c. Electrical connection: Fused wall socket with earth connection according to

electrical data (see technical specifications, page 9). It is also required to install an earth-leakage switch (with 25 A / 30 mA nominal error current).

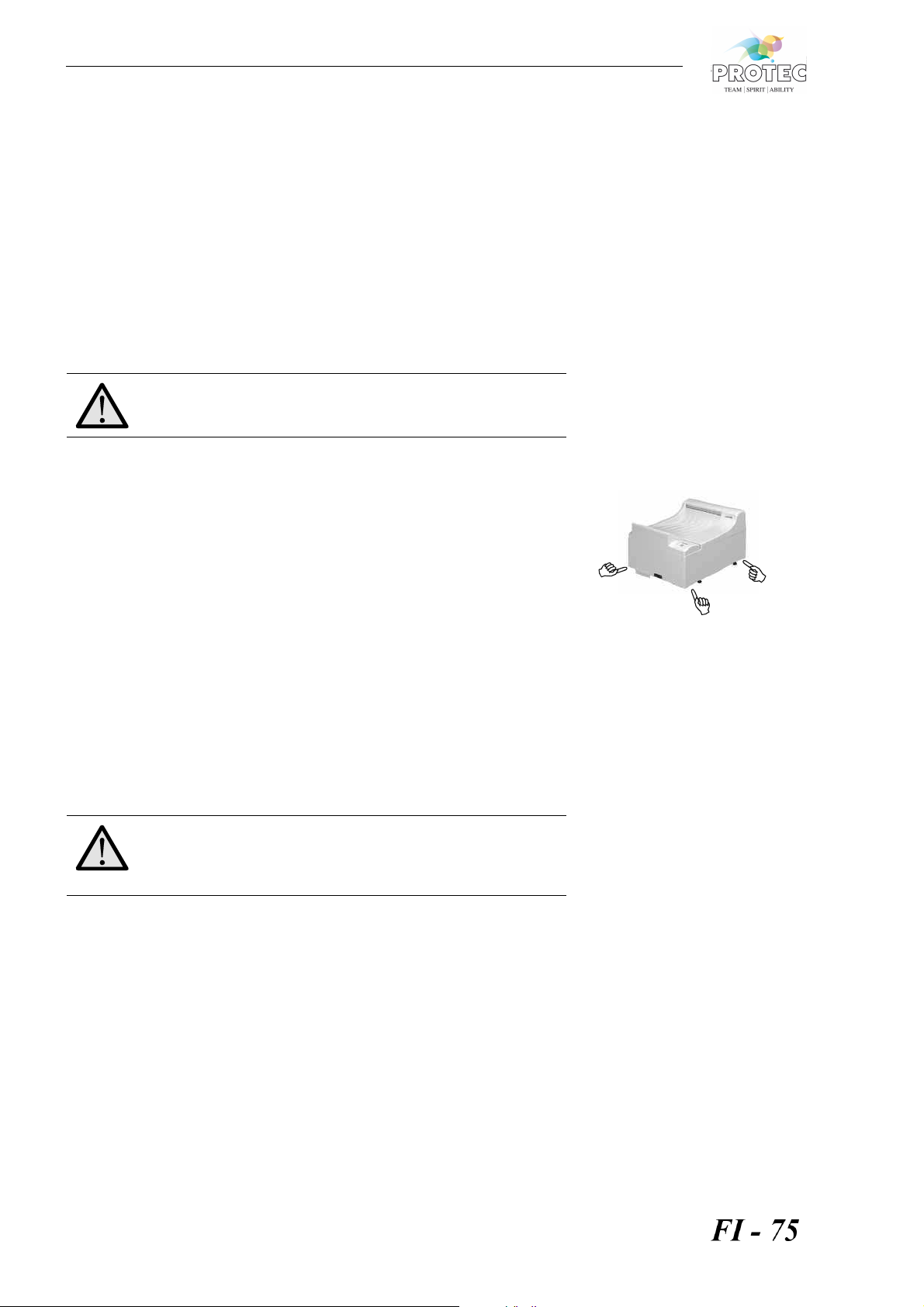

2. Transport

Due to the weight and dimensions of the film processor FI-75 should always be carried by two persons. To do so, hold the machine at the sides on the bottom

(see figure). While putting the machine down, watch the position of the levelling feet to prevent damaging these.

3. Installation of processor

Unpack the Processor. Remove cover and transport securing brackets on the sides of the roller racks. Remove roller racks - start with the dryer rack.

In 220-240 V version the FI-75 is delivered as a tabletop processor with a two part floorplate. If the machine is upgraded with the optional stand or cabinet,

the narrow plastic part has to be removed.

In 110-120 V version the FI-75

is delivered as a tabletop processor with a three part floorplate. If the machine is upgraded with the optional stand or cabinet, both small PVC-parts have to be removed and main plate must be reconnected.

Table-top installation

In the event that the processor is to be installed on a work top or table, the four adjustable feet should be screwed on.

Installing on processor stand or base cabinet

In the event that the processor is to be installed on the stand or cabinet (optional accessory), the processor will be mounted directly to it. Mount processor according to manual included with stand or cabinet (the adjustable feet inside the accessory bag are not required).

Finally the processor needs to be levelled:

Place spirit level across the sidewalls of processor and adjust the levelling feet accordingly. Replace the racks into the processor and close the latches.

Electrical connections should be carried out according to regulations by an electrician.

Attention! Machine should not be installed on table-top without adjustable feet, as this would block the ventilation openings under the machine and cause overheating.

Page 7

CP - OPTI 6

Installation

English

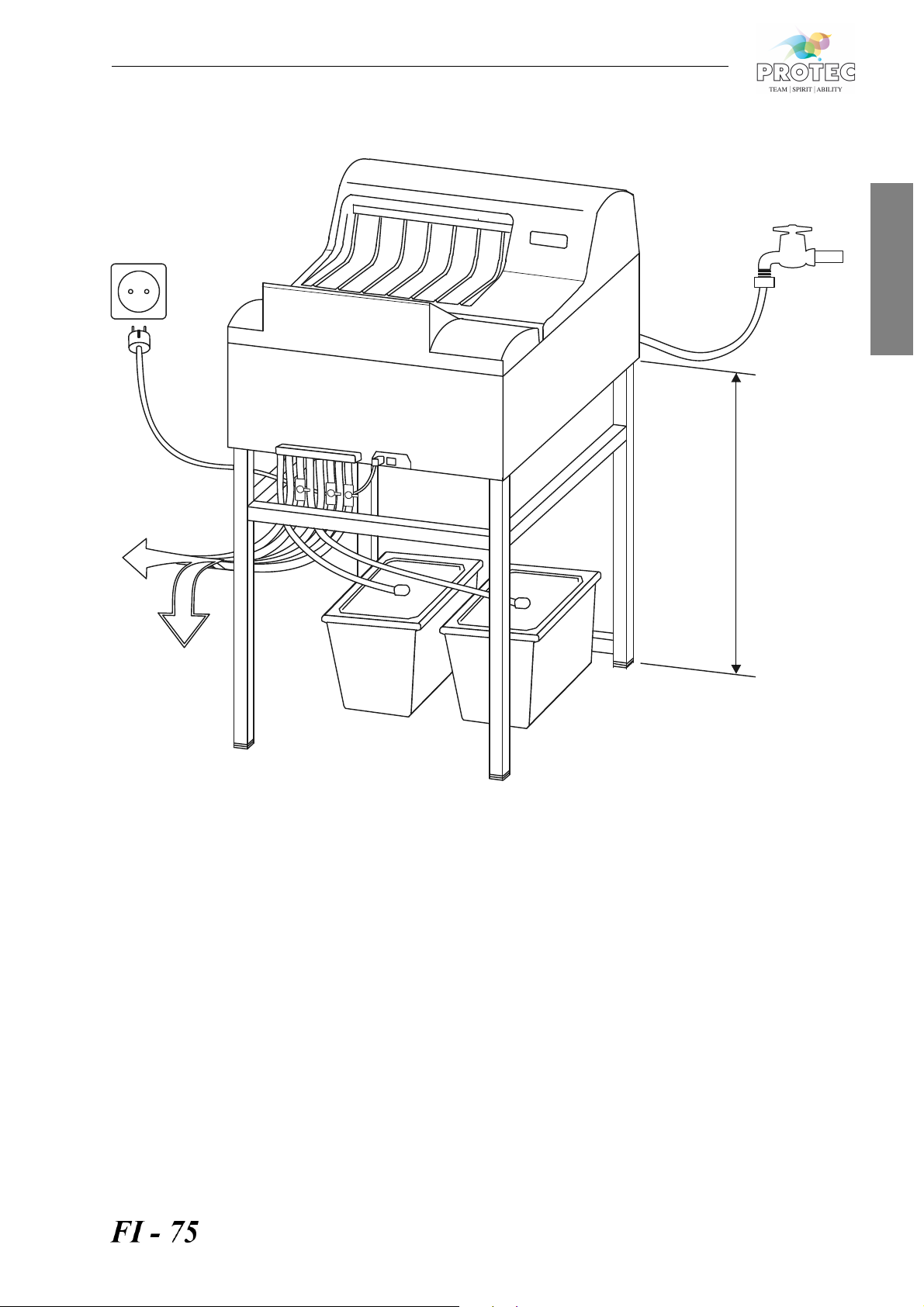

4. Connecting the processor

Water connection: Connect the water hose which comes out from the processor’s back to the fresh water supply.

All other hoses (see diagram page 7): Connect the enclosed hoses according to colour system onto the front of the machine. Put hose clip (enclosed in accessory

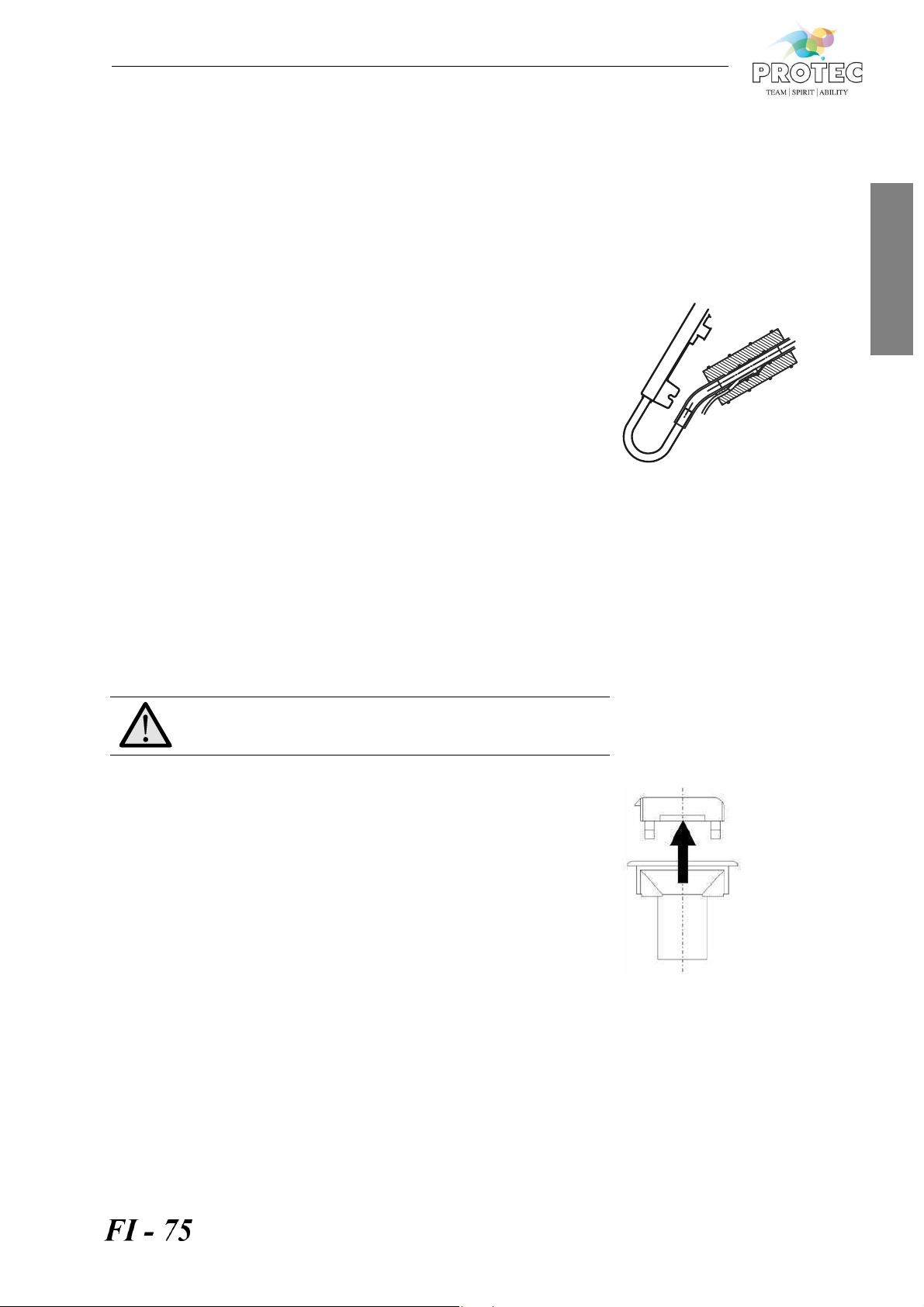

bag) over hose end, before attaching to connection. Warm up hose end (with hot water or hot-air fan) and push it onto the respective connection. Finally push clip over hose and connection.

Cut hoses to required length. Then integrate the stop cocks into the three drainage hoses in such a position, that they are easy to reach.

Connect the suction pipes to the hose ends for the replenishment tanks using hose clips. Put suction pipes through cover opening into respective replenishment tanks and snap them in.

The overflow and drainage hoses from the developer and fixer should be guided into their respective collecting containers.

The overflow and the drainage of the water can either be guided into the drainage syphon or into respective collection containers.

min. 70 cm

Drainage and collecting containers

Page 8

7 CP - OPTI

Installation

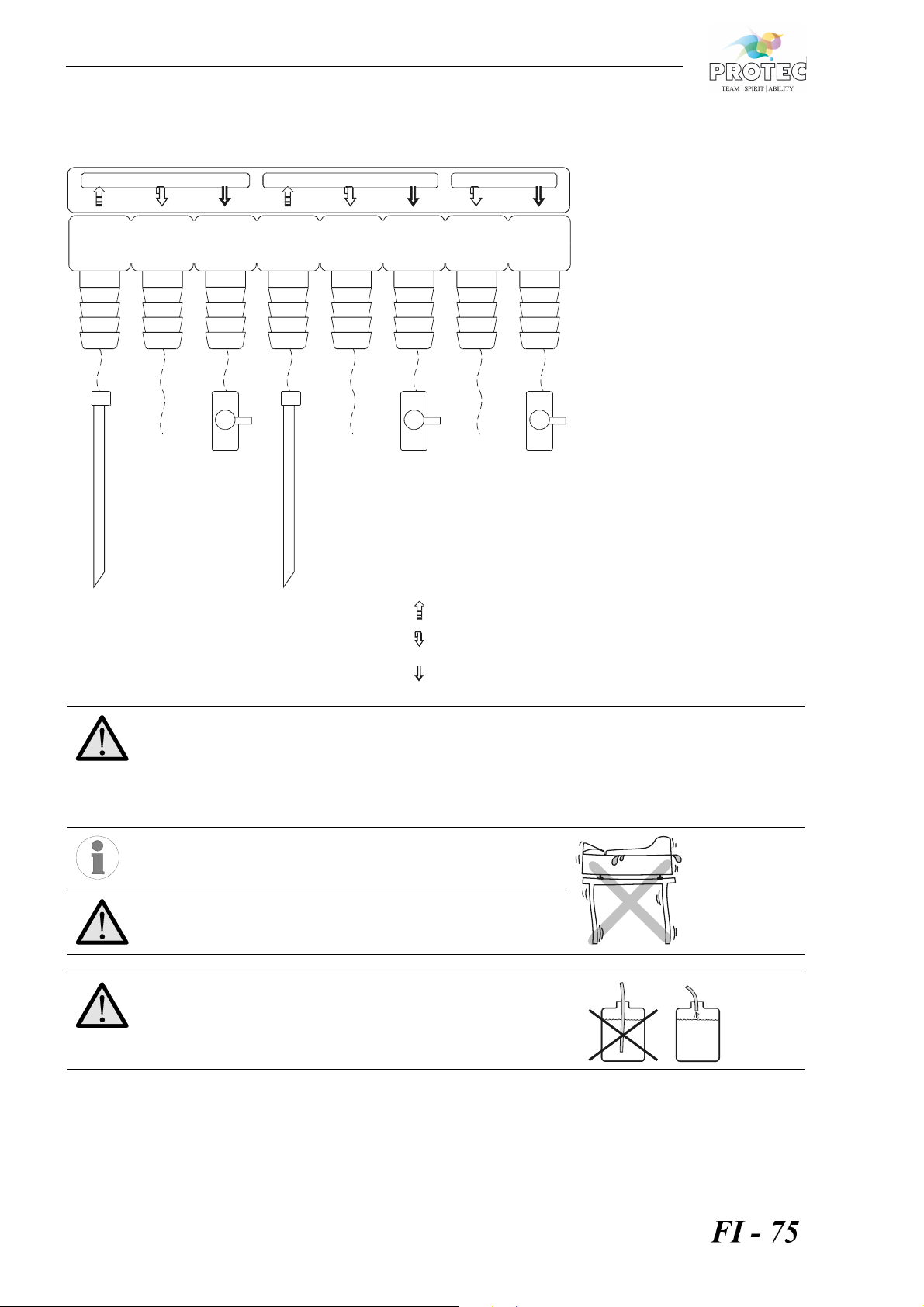

Hose Connections

Very important:

The hose piping should be straight (without the hoses going up and down) with a constant fall. The hoses should be as short as possible and without bends and kinks. This is very important for the water overflow hose. Bad piping work will cause the machine to overflow!

Inform yourself of the local water board regulations regarding drainage. These regulations may differ from information in this manual, but they should be complied with.

If the machine is installed table-top, ensure that the table is stable enough and does not wobble.

Danger of Overflow!

Use the included cable binders (accessory bag) to secure the hoses. Fix all hose ends which guide into syphon or collecting container, so that they do not drop into the liquid.

DEV FIX

H O

Pay attention to the correct colour connections:

Developer: red; Fixer: blue; Water: clear

Replenishment

Overflow

Outlet

Replenishment tanks

Overflow

Outlet

Developer (red)

Water (clear)Fixer (blue)

Page 9

CP - OPTI 8

Initial Operation

English

Initial Operation

1. Test run

a. Close the three drainage stop cocks and fill the tanks and replenishment con-

tainers with water. Open water inflow tap. Connect electrical socket and switch the machine on. Water now flows into water tank. The circulation pump activates, however the hosing of the machine must be ventilated.

b. Ventilation of the replenishment pump:

Set temperature dial to position „Manual pumping“. Keep dial to this position until no more air bubbles rise in the tanks.

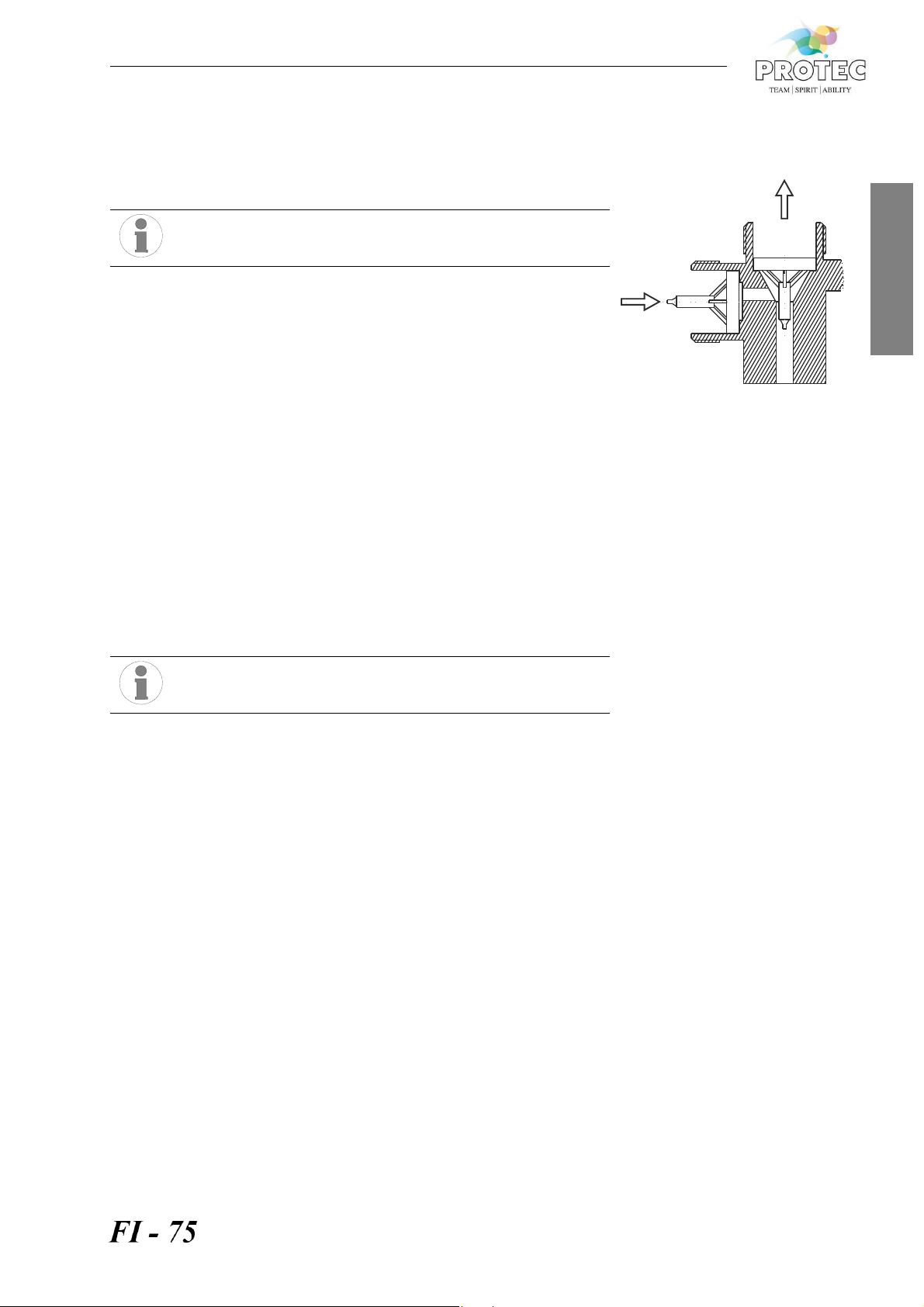

c. Ventilation of the circulation pump:

If air is in the circulation pump, a loud running noise can be heard. Switch the machine off again. Open the stop cocks of the developer and fixer for five seconds and then close them again. Then switch the machine on again. Repeat this procedure until no more air bubbles are visible in the developer and fixer baths and until the circulation pump runs quietly.

d. Check all hose connections for leakage. Switch machine off and drain water

out.

2. Fill processor with chemicals

Prepare chemicals inside the replenishment containers according to manufacturers instructions.

Fill up processor manually

By using a suitable container, pour chemicals into the respective tanks. First the fixer and then the developer. Caution: when filling, be sure that chemicals do no splash from one bath into another. When fixer solution is mixed with developer solution, the developer chemical is destroyed.

Snap each suction pipe into the respective cover of it’s replenishment container and close it carefully. Place containers under processor.

Using replenishment pump

Filling of processor can also be done by use of the replenishment pump (this takes much more time). The chemicals containers need to be filled manually with at least

1.0 litres of fresh chemicals, to ensure the pumps will not run dry. Snap each suction pipe into the respective cover of it’s replenishment container and close it carefully. Place containers under processor. Now set the temperature adjusting knob to position “Manual pumping”. Leave the knob in this position until the tanks have been filled. After 20 minutes this function stops automatically - to restart a cycle, turn dial to another position and return to „Manual pumping“. ›‹Limitation: Limitation: The function may fill up tanks of developer and fixer to different levels. This may be due to different causes. If this happens, then use a suitable container to fill up the tanks completely.

Important! Processor should not be run dry! Upon commissioning and every refilling the pumps must be vented.

Warning, hot surface!

Page 10

9 CP - OPTI

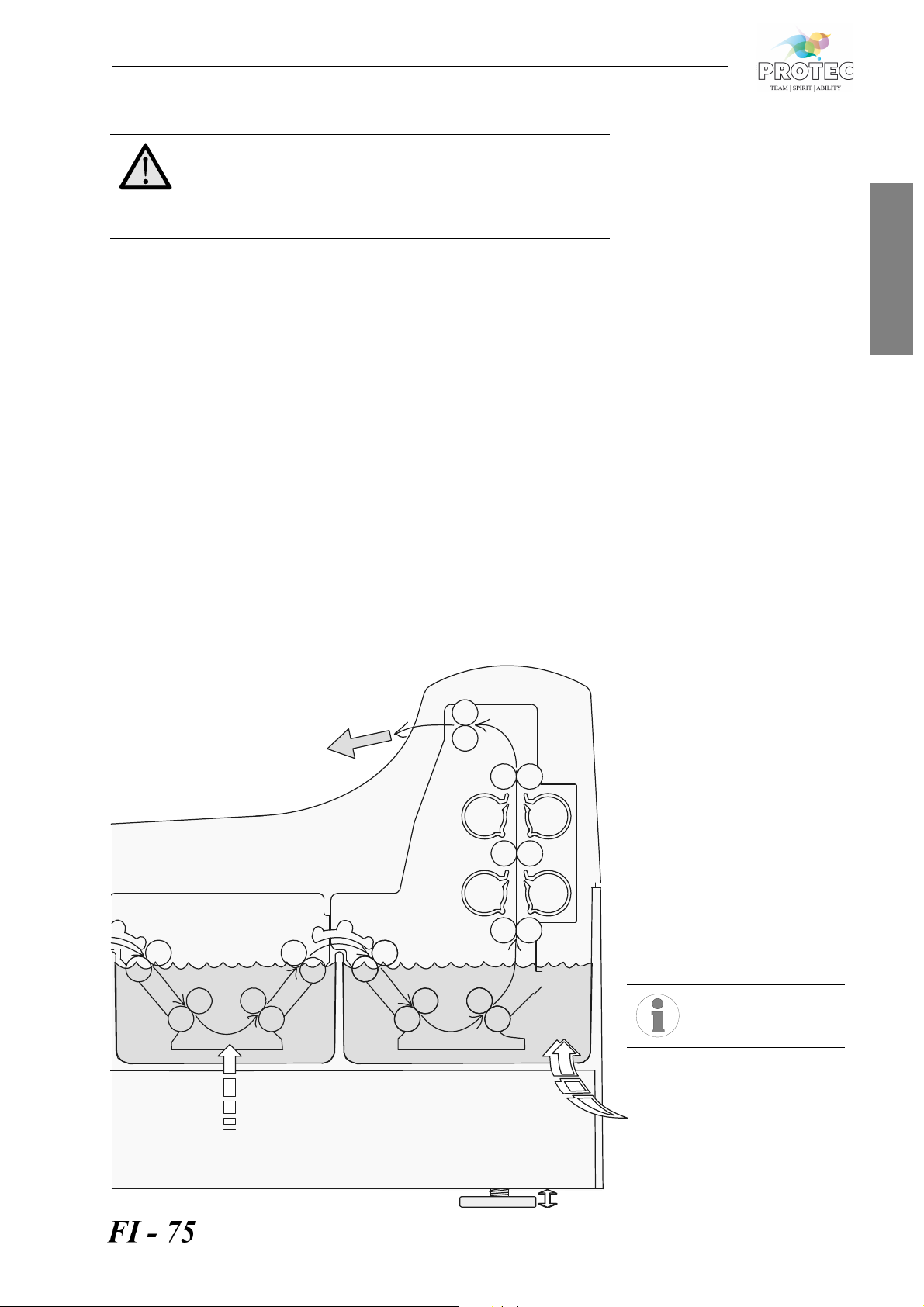

Operation

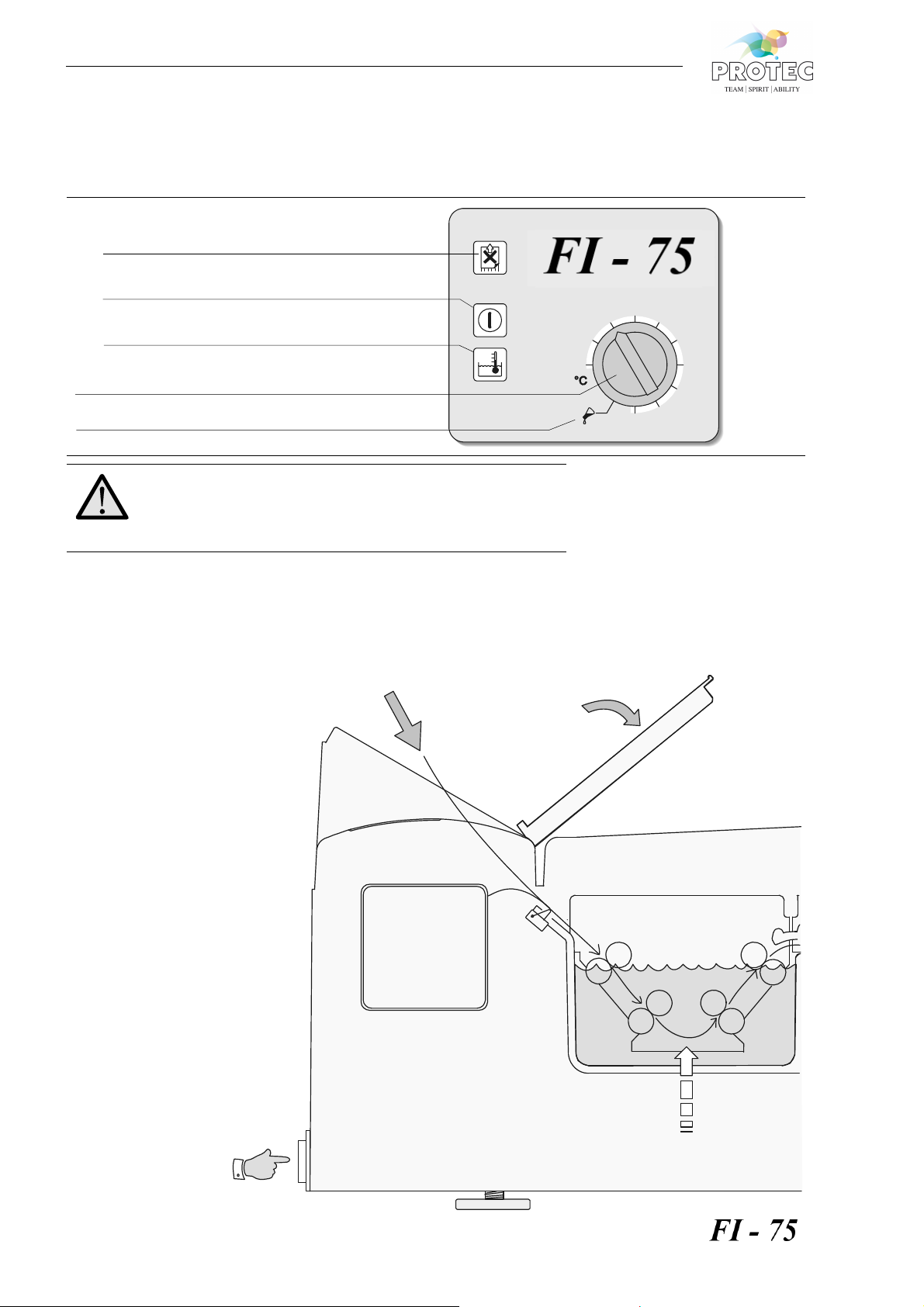

Short Overview and Control Panel

*Only machines with cassette box:

When processing roll films in cassettes, pull approx. 10 cm of film out of the cassette and fold the corners. Place cassette into cassette box and feed film into the infeed. Notice that on processors with cassette box, the film switch is located in the middle of the infeed.

LED displays

• Infeeding film

Wait with the next film until light goes off.

• Power

When power is on the LED lights up.

• Bath temperature

Flashes when temperature is not reached.

Temperature dial

Manual pumping

Important!

Safety function stops film transportation when cover is removed. Therefore keep cover placed on the machine when processing films.

Film input

Light protection cover

Power switch

Control panel

Roll film cassette

Film switch

Developing

Replenishment Developer

Page 11

CP - OPTI 10

Operation

English

Before use...

1. Close water-drainage stop cock.

2. Open water tap.

3. Switch processor on.

4. Check liquid level in replenishment and drainage collecting containers.

5. Wait until the developer temperature is reached. If the temperature has not been reached, the bath temperature light is flashing.

6. Run cleaning films through processor.

Working procedure

7. Processing films: Open light protection cover. Important: Put film first on left side of infeed tray and then feed in. During processing films please watch the display „Infeeding film“. If this is lit, wait until it goes off again and an acoustic signal can be heard, before inserting the next film.

After work...

8. Switch processor off.

9. Close water tap.

10. Open water-drainage stop cock and drain water out of the machine.

Attention:

Upon first operation and each refilling of a devleoper check

the function of the circulation pump and vent the pump if

required (see page 8)

Do not place any object on the processor.

Film exit

Fixing

Washing

Drying

Fresh water inflow

Replenishment fixer

Page 12

11 CP - OPTI

Operation

Stand-by mode

When no film is being processed, the machine switches to Stand-by. The chemicals remain at a constant temperature. The film transport and water inflow activate at intervals to avoid crystalisation of the chemicals on the transport rollers. Entry of the next film is possible at any time.

Switching on the machine

The processor is switched on at the main switch on the front side. After switching on, the water tank will be filled up and a replenishment cycle will be carried out. The developer bath will be heated up. If the temperature has not been reached, the bath temperature light is flashing. When the machine is ready and the developer temperature has been reached, a long signal sound is heard.

Bath temperature

The processor heats up the chemicals automatically to the dial-set temperature. When this temperature is reached for the first time after switching on the machine, a long signal tone can be heard. This is also the case when the temperature is changed by the dial switch.

If the difference between actual and dial-set temperature is more than 1 °C, the bath temperature LED will flash. If a film has been fed in and the temperature is not reached, a warning sound will be heard.

Display “Infeeding film”

If films are fed into the processor without clearance one after an other, then this may cause a film jam. The light „Infeeding film“ is on during infeeding a film. After the film has been fed in completely the light goes off. Additionally an acoustic signal indicates that the next film can be fed in.

Manual pumping

The function „Manual pumping“ activates the replenishment pump. and it pumps chemicals into the tanks in addition to automatic replenishment. To do so, turn the temperature dial to the position “Manual pumping”. This function is available only in standby mode (when there is no film in the unit). If the dial is left in this position, the pumping function is stopped automatically after 20 minutes. To restart a cycle turn dial to a temperature and return to “Manual pumping”.

Please note: Films cannot be processed when dial is set to “Manual pumping”. Also bath temperature is set automatically to 28 °C during “Manual pumping”. After ending the manual pumping the temperature must be set again by turning the dial. It takes some time until the temperature is reached (look at the bath temperature display).

Anti-crystalisation function

During the stand-by mode, the film transport, the dryer ventilation, the dryer heating and the water inflow are activated every 20 minutes for a period of 20 seconds. This prevents the build-up of crystals on the rollers.

Time replenishment (Anti-oxidation function)

Also during the stand-by, the developer chemicals are subject to change which causes their deterioration. By means of the time replenishment, a replenishment cycle is activated after 60 minutes without replenishment. The pump runs for 15 seconds. With this function, the quality of the developer chemicals are maintained even when standing idle for long periods.

Both chemical pumps - fixer and developer - are driven parallel by only one motor and therefore they run always together.

Page 13

CP - OPTI 12

Operation

English

Automatic replenishment

Depending on the processed amount of films the chemicals are replenished automatically. This is done by pumping chemicals from the replenishment containers. By means of the film detection switch at the film-infeed, the surface of the processed films is calculated and after approx. 0.25 m

a replenishment cycle is automatically activated for 40 seconds. The replenishment volume per cycle (with pump set at 100 %) is 150 ml. The table below shows the replenishment volume in ml per m

film surface, dependent on the film width and the pump setting.

*Setting at 50 Hz current resp. settings at 60 Hz current are in brackets

**Standard setting

Rollfilms and Paper Films

Rollfilms can be transported into the machine when a leader film (10x10 cm) is attached, that has been prepared with a chemical resistant adhesive tape.

Replenishment Rate

Film width Setting of replenishment pump*

100 % (85 %)** 75 % (62 %)

35 cm

600 ml/m

450 ml/m

24 cm

870 ml/m

650 ml/m

18 cm

1150 ml/m

875 ml/m

Rollfilms without leader films and paper should be folded on the corners as per diagram displayed on the right.

Please note: High or low room temperature may influence the function of the film processor machine.

Page 14

13 CP - OPTI

Care

Daily Care

Before use...

• Remove dirt and dust from film-infeed with soft cloth.

• Run 2 - 3 cleaner films through processor to remove all accumulated dirt and dust from the rollers.

• Check the liquid level in the replenishment containers and if necessary refill.

After use...

• When work has been completed at the end of the day, drain water out of the machine. This avoids the growth of algae in the water.

Weekly Care

The developer chemicals cause residue buildup in the machine. This residue has a negative effect on the developing process of the film material. For this reason the processor should be regularly cleaned. Proceed as follows:

1. Switch machine off and remove cover.

2. Loosen the securing latches (red, blue and beige) of the drive shafts of each roller rack at the right side.

3. Remove the roller-racks. First of all remove the large dryer-rack (beige). The racks are easier to remove and insert when they are slightly tilted. Then remove the fixer (blue) and developer (red) racks in sequence.

4. Rinse all racks thoroughly under warm running water and then leave to drain off. Use a soft sponge (do not use scouring-pad, as this would scratch the rollers!) and remove the pollution from the rollers.

5. Replace the racks: Red = Developer, Blue = Fixer. Beige = Washing/Drying. Ensure that the racks are firmly installed and do not forget to close the securing latches on the drive shafts.

6. Replace machine cover and ensure it is securely closed.

7. Clean processor outer shell with damp cloth. Do not use aggressive cleaners or solvents.

Attention: Do not let any liquid drop inside the processor or run over the control. Liquids may cause damage to the processor.

Please note: When removing the Rinsing / Drying roller-rack, ensure that no water gets into the film dryer air channel.

Page 15

CP - OPTI 14

Care

English

Thorough Cleaning

Every three months (maybe earlier) a thorough cleaning is necessary, depending on the quantity of films processed. Tank cleaners are available for developer and water baths. The fixer bath is cleaned with water. When preparing chemical tank cleaners, follow manufacturers instructions explicitly.

How to proceed:

1. Switch the machine off and empty all tanks by opening the stop cocks.

2. Remove machine cover. When all tanks are emptied, close stop cocks again. Now fill the fixer-tank with water. Prepare cleaner solutions for developer and water baths and fill into respective tanks.

3. Remove suction pipes from the replenishment containers and place them in a water filled bucket. Attention: Do not add chemical cleaners here!

4. Close machine cover and switch machine on.

5. Start film transportation and keep running for 10 to 20 minutes. Place a film in the infeed so that it activates the film switch but will not be pulled into the processor. During the operation with water, the installed roller racks will be cleaned.

6. Important: After completion of tank cleaning, the tank should be rinsed thoroughly with clean water. To do this, fill the machine with fresh water twice and each time, let the machine run for a 10 minute period. Empty the tanks and reclose the stop cocks.

7. Take out the roller-racks and rinse them thoroughly with running water. Remove remaining dirt from the rollers by using a sponge and clean thoroughly. Doing this, the rollers can be turned by turning the drive shaft. Remove the sheet metal covers from the dryer rack and clean the rack with soap (dishwashing liquid). Reinstall the roller-racks in the machine.

8. Refill the tanks with respective chemicals. Replace the suction pipes into the replenishment containers. In certain circumstances the circulation system

must be ventilated: see page 8, item 1c.

9. For quality check, process test films.

Before you go on holiday...

or in the event that your processor will not be in use for longer than two weeks, all the chemicals have to be emptied out of the tanks. In case you don't want to do a complete tank cleaning at once, then fill the tanks after emptying, with water.

Attention: Do not use alcohol containing solvents to clean the machine!

The colour changes in the baths is normal; it is caused by the properties of the chemicals!

Page 16

15 CP - OPTI

Maintenance / Disposal

Maintenance Protocol

Installation

Parameters Set

Maintenance work performed (see page 16)

Name: Machine type: Serial number: Technician: Training: by: Telephone: Date: Guarantee until:

Developer temp.: Dryer temp.: Cycle time: Dev. reg. volume: Dev. reg. volume: Anti-oxidation: Developer: Fixer: Film type: Changed by: Date:

Maintenance work performed

Maintenance work

performed Date: Date: Date: Date: Date: Name: Name: Name: Name: Name: next maintenance: next maintenance: next maintenance: next maintenance: next maintenance:

Maintenance work performed

Maintenance work

performed Date: Date: Date: Date: Date: Name: Name: Name: Name: Name: next maintenance: next maintenance: next maintenance: next maintenance: next maintenance:

Maintenance work performed

Maintenance work

performed Date: Date: Date: Date: Date: Name: Name: Name: Name: Name: next maintenance: next maintenance: next maintenance: next maintenance: next maintenance:

Page 17

CP - OPTI 16

Maintenance / Disposal

English

Recommended Maintenance Work:

1. Functional check film intake / film transport / replenishment / bath heating / dryer heating / water supply

2. Cleaning

2.1. Switch off machine, remove cover

2.2. Empty all three tanks

2.3. Close drain cocks and fill tanks with water

2.4. Install cover, switch machine on

2.5. Fill two additional vessels with water, put suction pipes into these vessels and activate replenishment for at

least two minutes (to remove residues of chemicals from replenishing hoses)

2.6. Switch machine on for a few minutes

2.7. Switch machine off

2.8. Empty all tanks

2.9. Prepare tank cleaning agent for developer and water tank according to manufacturer´s instructions

2.10. Fill developer and water tank with tank cleaning agent (do not

use the replenishment pumps to do so)

2.11. Fill fixer tank with water

2.12. Place suction pipes into empty tanks

2.13. Install cover, switch machine on

2.14. Wait until the operating temperature is reached, approx. 30 °C (observe information concerning temperature,

time, cleaning procedure contained in the datasheet of the tank cleaning agent)

2.15. Activate the transport (activate film intake switch)

2.16. After approx. 15 minutes (observe information concerning temperature, time, cleaning procedure contained in

the datasheet of the tank cleaning agent) switch film transport off

2.17. Remove cover, neutralise developer tank (observe information concerning temperature, time, cleaning proce-

dure contained in the datasheet of the tank cleaning agent)

2.18. Switch machine off

2.19. Empty all three tanks

2.20. Fill machine with water and switch it on

2.21. Put suction pipes into vessels with water

2.22. Activate regeneration pumps for at least five minutes

2.23. Check all pumps for tightness

2.24. Switch machine off

2.25. Drain tanks

2.26. Fill tanks 3/4 with water

2.27. Switch machine on

2.28. Activate replenishment pumps manually until tanks overflow

2.29. Activate film transport for a few minutes

2.30. Switch machine off and drain all three tanks

Attention:

Never start the machine up unless it is filled with liquid!

Attention:

Do not use chlorine containing cleaning agents!

Page 18

17 CP - OPTI

Maintenance / Disposal

2.31. Repeat item 2.20 to 2.30 if required (observe information e. g. concerning temperature, time and cleaning procedure outlined in tank cleaner datasheet)

2.32. Remove roller racks from the machine and remove dirt under flowing water using a soft rag or sponge

2.33. Remove risidual dirt particles from the tanks

2.34. Clean all toothed gear wheels, axles, bearings and rollers, check them for damage (replace if required)

2.35. Remove light protection flap and wipe its underside using a soft rag

2.36. Clean inlet plate using a soft rag

2.37. Reinstall light protection flap

2.38. Align roller racks and re-insert them in machine

2.39. Fill machine with chemicals

2.40. Switch machine on

2.41. Adjust bath temperature to previously adjusted value

2.42. Feed cleaning film (approx. 4 pieces)

2.43. Check function as described under item 1.

2.44. Approx. 15 minutes after reaching of the bath temperature, check it by measuring and recalibrate if required

(see operating instructions page 25)

2.45. Perform sensitometric test

3. Perform constancy tests based on the applicable national standards (e.g. IEC 61223-2-1 and DIN 6868-2).

Be sure to dipose properly of used machines.

Used machine contain valueable materials that should be recycled and turned over for proper treatment. Please be sure to turn used machines over to approved recycling centers.

Page 19

CP - OPTI 18

Problems and Solutions

English

Problems and Solutions

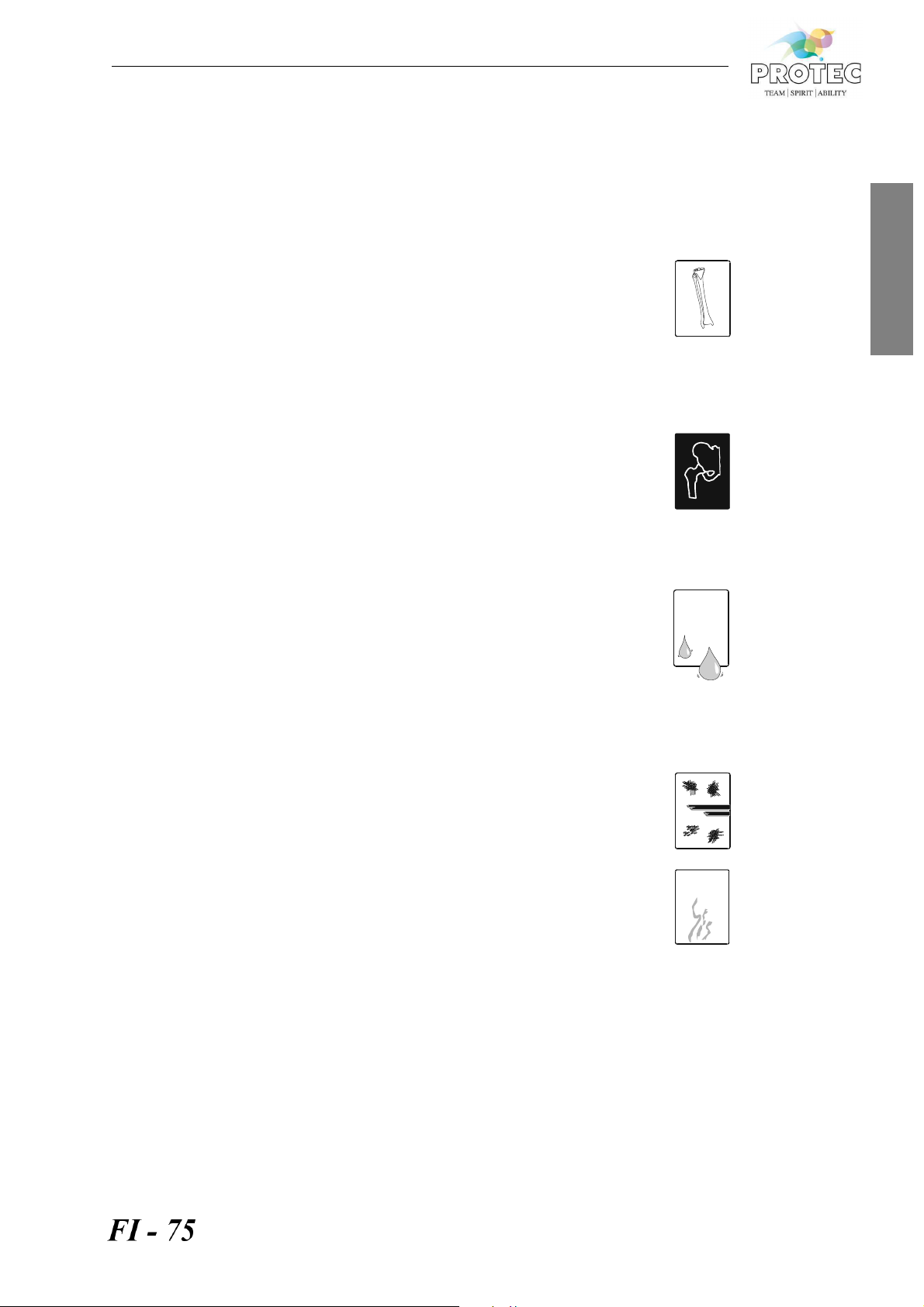

Advice on Film Defects

Your processor has been constructed for long term use. If however irregularities might occur, you will find help to locate the problem below. Please check the listed points, before calling your service-technician.

Films do not have enough density

• Bath temperature is too low.

• Developing time too short.

• Exposure time is too short.

• Replenishment rate of developer too low.

• Developer chemicals are exhausted or too strong diluted: Renew.

• Fixer solution has been mixed into developer: Renew. Clean and rinse bath well before refilling.

• Circulation is broken down.

Too high a density

• Bath temperature too high.

• Developing time too long.

• Exposure time is too long.

• Replenishment rate of developer too high.

• Developer chemicals are too high diluted: Renew.

• After renewing chemicals: Starter is missing.

• Circulation is broken down.

Films will not dry

• If warm air comes out of the air channel in the dryer, chemicals and film type should be checked.

• Fixer solution is exhausted or diluted.

Film has a yellow-green surface

• Not fixed correctly. Check the film type and fixer chemistry.

• Fixer solution is exhausted or diluted. Replenishment rate of fixer is too low.

Scratches, pressure marks, dirt on film

• Prior to processing films, run cleaner films through the processor.

• Pressure marks caused by careless handling, finger nails etc.

• Rollers are polluted. Clean tanks and roller racks.

Cloudy film

• Level in developer is too low.

• First guide bar of fixer rack is dirty (condensate or crystals). Clean rollerracks.

• Developer is old or circulation not working.

• Try processing films by infeeding them with emulsion side up.

Page 20

19 CP - OPTI

Problems and Solutions

Advice on Machine Errors

Machine does not switch on

• Ensure that electrical plug is firmly inserted into socket.

• Ensure that electrical socket has power supply by testing with an appliance (e.g. tablelight).

Film will not feed in but the dryer fan works

• Place cover firmly on machine, ensuring that the cover switch on the right front side has been activated.

Machine does not start automatically

• Film switch left side at the infeed has not been pressed down. Feed in the film to activate the switch.

Developer temperature too low

• The temperature dial is set between two positions.

Replenishment pump does not pump

• Check whether the replenishment containers are full and that the end of the suction pipe is positioned under the liquid level.

• Check whether there is air in the replenishment pipes. If this is the case, then check the pipe connections.

Rinsing water does not flow

• Open water inflow tap.

• Water pressure in the water system is too low: Minimum pressure 2 bar (29 psi).

Water tank overflows

• Water drainage hose (overflow) is bent. The hose end should be positioned

above the drainage level in the syphon (see diagram on page 7).

• Check water drainage in the tank and hose for blockage and pollution. The drainage hoses should have a constant fall.

The film does not transport correctly

• Film is fed in and gets caught in the machine: Check the positioning of the racks in the machine and make sure that the latches are closed.

Important notes:

Ensure correct seating of roller racks; keep the lock closed at all times.

Don’t operate processor with empty replenishment tanks.

After a long machine shut down check bath level and refill if necessary.

Page 21

CP - OPTI 20

English

Service Manual

Table of Contents

Installation Data ................................................................................................. 21

Trouble Shooting ............................................................................................... 23

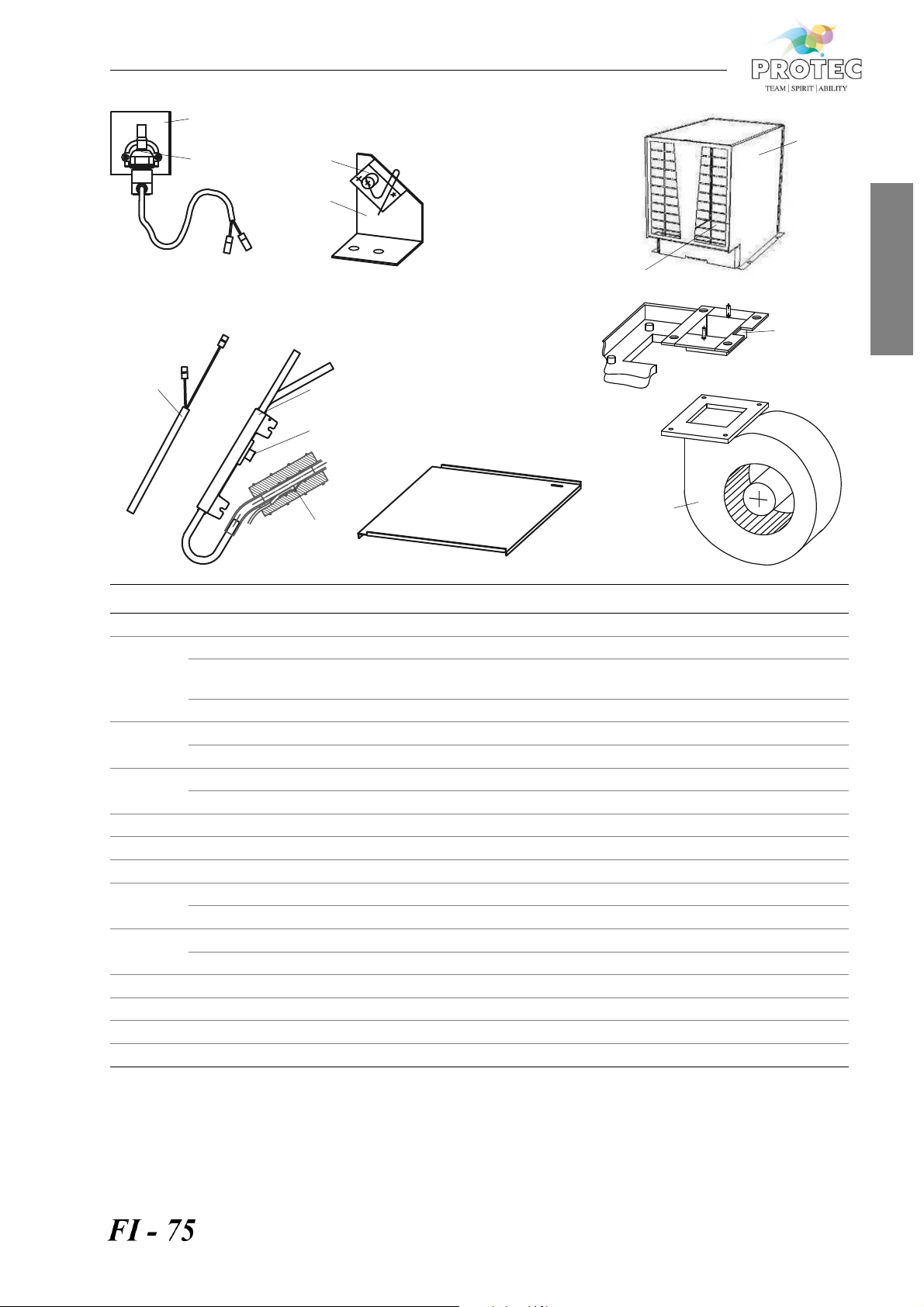

Spare Parts List.................................................................................................. 29

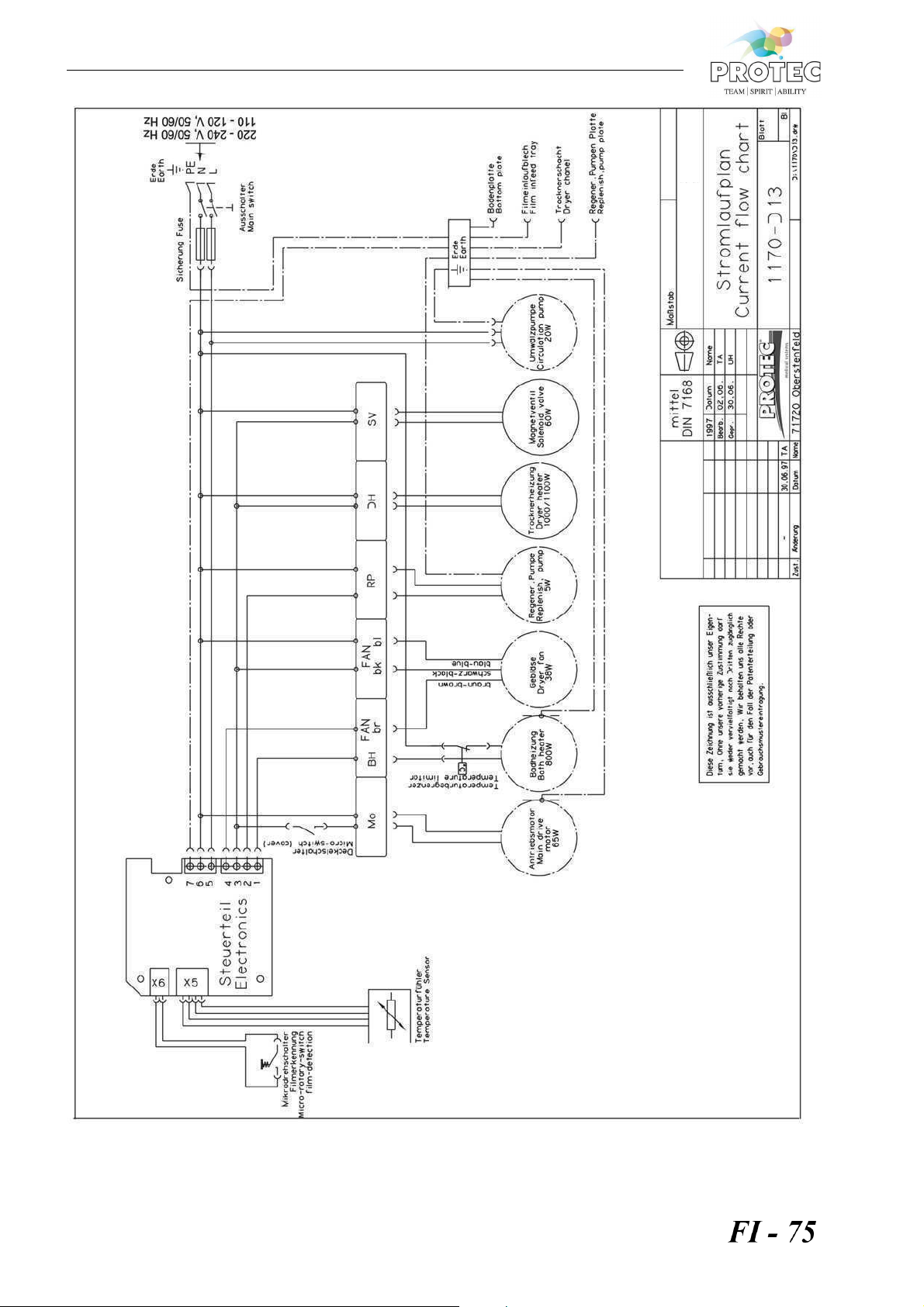

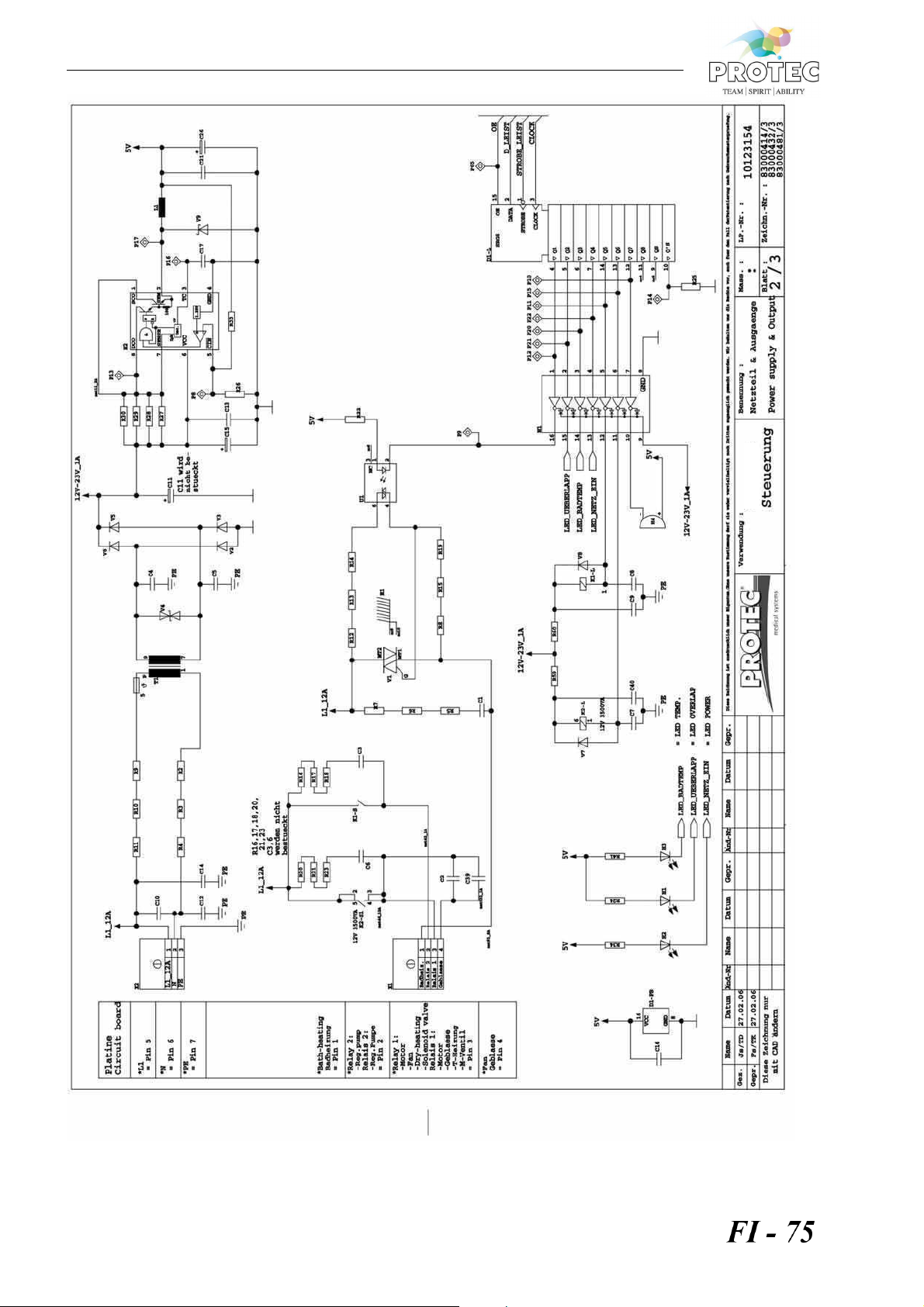

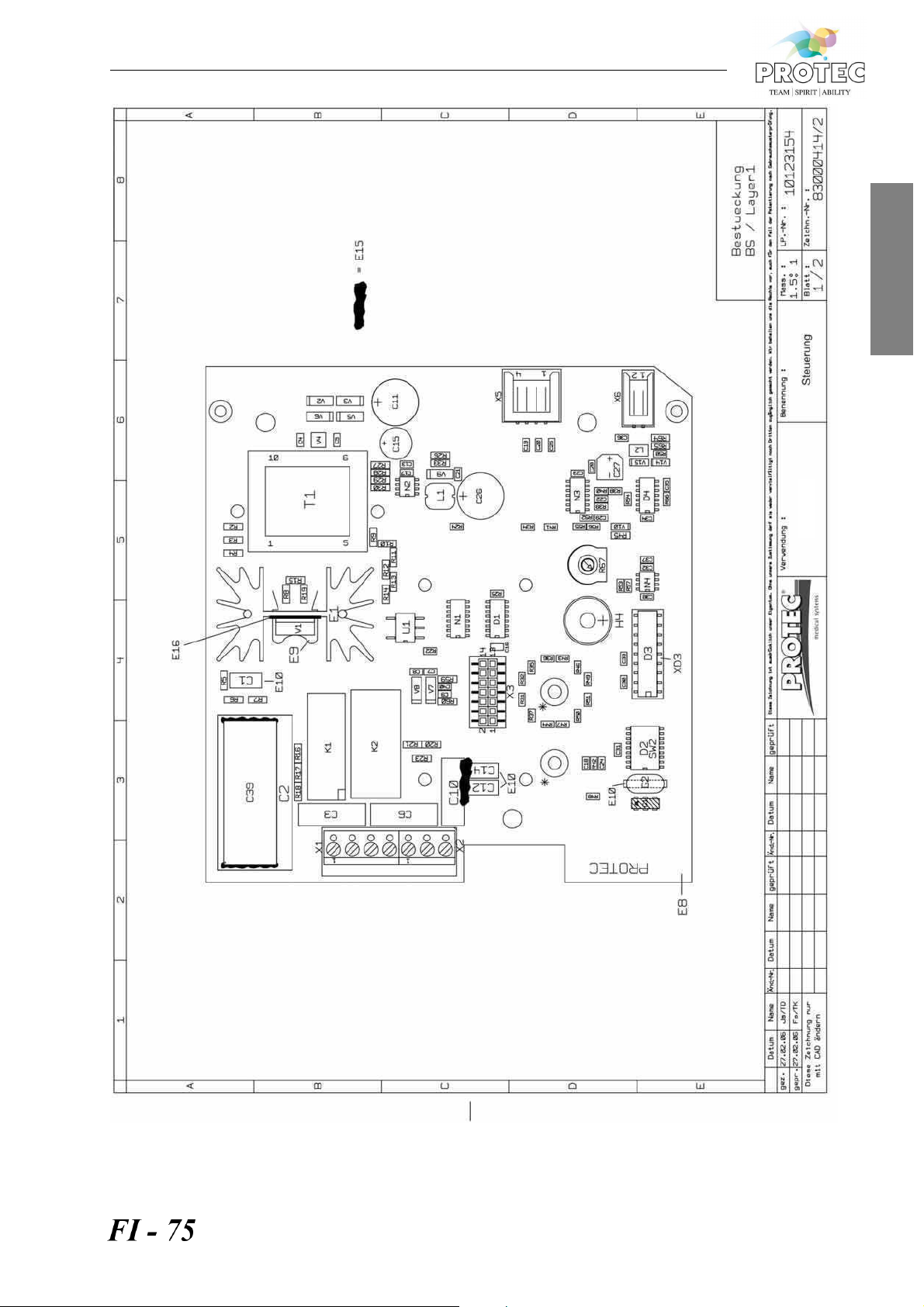

Electric Diagrams............................................................................................... 35

Page 22

21 CP - OPTI

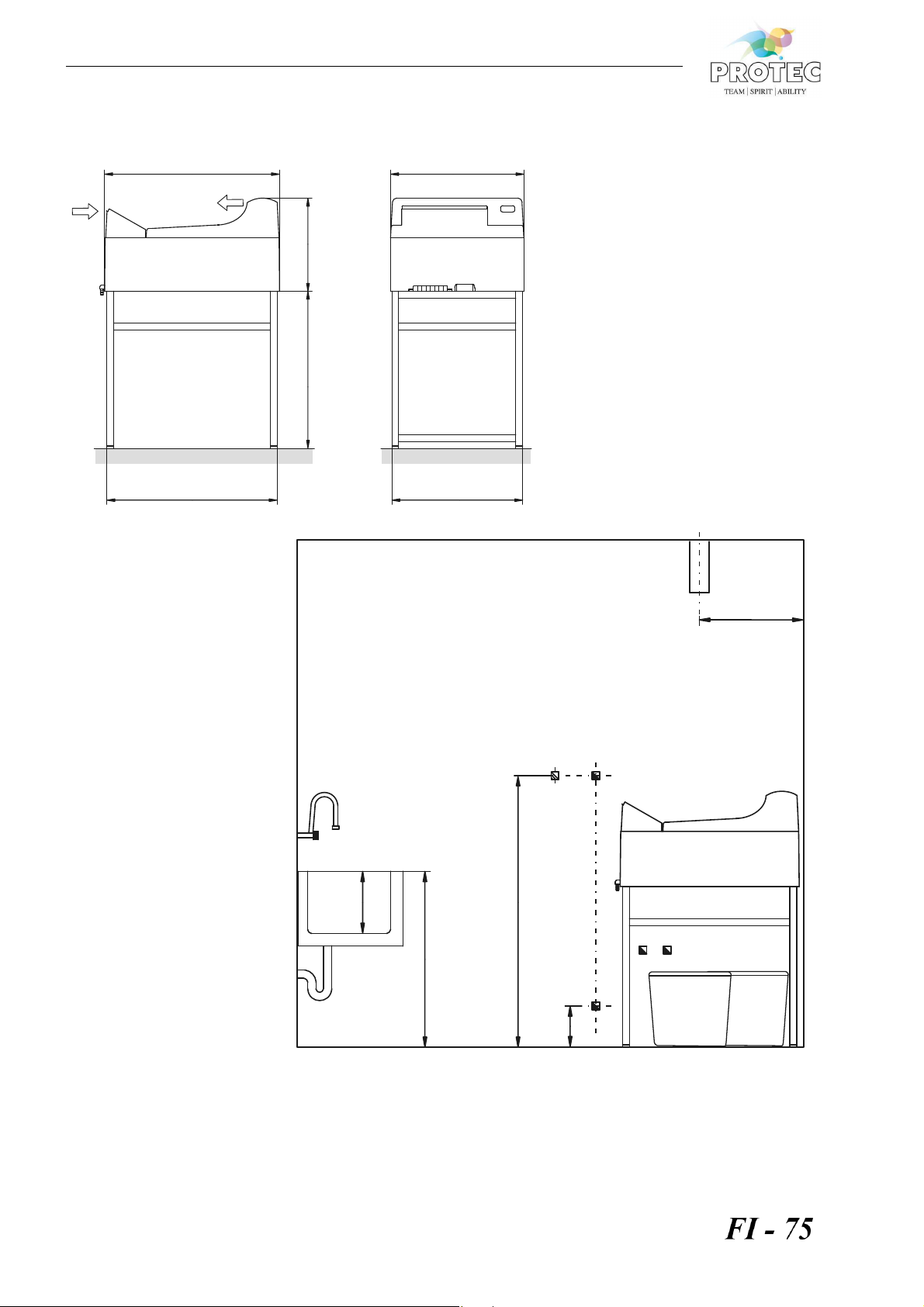

Installation Data

75cm (29.5’‘)

70cm (27.6’‘)

42cm (16.5’‘)

77cm (30.3’‘)

59cm (23.2’‘)

Optional worktable or closed cabinet (accessories)

1 2

(

’

‘

)

(

’

‘

)

(

’

‘

)

(

’

‘

)

50cm (20’‘)

60x40cm (24x16’‘)

1. Wall socket 220-240 V, 16 A resp. 110 V, 15 A (depending on machine model). Power lead should be equipped with Earth-Leakage Switch, 25 A / 30 mA nominal error-current. In addition, a power control switch can be installed.

2. Fresh water connection 3/4” with stop cock, permissible pressure 2-10 bar, water temperature 5-25 °C.

3. Wasserabfluß PVC-Rohr ∅ 50 mm (2“) mit Siphon.

4. Drainage resp. collecting containers for used developer.

5. Drainage resp. collecting containers for used fixer.

6. Storing space for replenishment tanks: Below machine or externally.

7. Ventilation of darkroom is necessary.

8. Sink with freshwater and flexible hose. Inner dimensions minimum (LxWxH) 60x40x30 cm (24x16x12“).

Sink

Darkroom

Measures and positions are recommendations

Page 23

22 CP - OPTI

Trouble Shooting

Summary

1 Algae ............................................................................................................ 30

1.1 Excessive algae growth in water tank....................................................30

2 General......................................................................................................... 31

2.1 Unit does not switch on..........................................................................31

3 Drive ............................................................................................................. 31

3.1 Film transport does not run, fan runs.....................................................31

3.2 Machine does not start automatically ....................................................31

3.3 Machine doesn't stop automatically.......................................................31

3.4 Drive motor does not run ....................................................................... 31

3.5 Machine stops before film comes out ....................................................31

3.6 Relation between processing time and developer temperature............. 32

3.7 Changing the transport speed ............................................................... 32

4 Baths ............................................................................................................ 33

4.1 No circulation in bath ............................................................................. 33

4.2 Developer temperature too high ............................................................ 33

4.3 Developer temperature too low..............................................................33

4.4 Developer temperature too low, fixer temperature too high................... 33

4.5 Removing the turning knob.................................................................... 33

4.6 Calibration of the developer temperature .............................................. 33

5 Film defects ................................................................................................. 34

5.1 Films will not dry ....................................................................................34

5.2 The film does not transport correctly ..................................................... 34

5.3 Scratches, pressure marks, dirt on film .................................................34

6 Replenishment ............................................................................................ 35

6.1 Replenishment pump does not work or works insufficiently .................. 35

6.2 Regeneriermenge zu hoch oder zu niedrig............................................35

6.3 Adjust replenishment pump ...................................................................35

7 Dryer............................................................................................................. 35

7.1 Dryer fan does not run or runs with too low speed ................................35

8 Water ............................................................................................................ 35

8.1 Rinsing water does not flow................................................................... 35

8.2 Water tank overflows ............................................................................. 35

1 Algae

1.1 Excessive algae growth in water tank

• Algae growth inside the water tank is not only anoying, it causes increased cleaning work and leaves residue on the films. When algae growth increases, countermeasures are in demand:

• When work has been completed at the end of the day, drain water out of the machine.

• Clean dryer-water rack regularly. Use soft sponge and soap to remove residue from the rollers.

• Install a particle filter system in the fresh water supply for the processor.

• If water tank overflows due to algae growth blocking the overflow hose, then the overflow hose can directly be connected to the connection at the water tank inside the machine.

• If no other solutions can be found, then usage of Anti-Algae-Agents can be a great improvement (automatic dispensers work the best). However, it is known that cleaning agents containing chlorine may corrode rubber rollers and high-grade steel in the tank area (check before use).

Page 24

CP - OPTI 23

Trouble Shooting

English

2 General

2.1 Unit does not switch on

• Ensure that electrical socket has power supply.

• Check machine fuse in main switch.

• While power switch is on, check the following components: Voltage on contact of main switch - if no voltage: - change main switch. Check input voltage at electronics. If the voltage is normal, exchange the electronics. if no voltage:

check the cable wiring harness.

3 Drive

3.1 Film transport does not run, fan runs

• When placing processor cover on, the cover switch should be activated, readjust if necessary.

• Cover switch has no current passage when activated: Replace.

• Check screwing of chain wheel on motor- and driveshaft.

3.2 Machine does not start automatically

• Film switch is not correctly positioned or operator wire is bent. Re-adjust film switch and operator wire.

• Check following parts: Film switch, wiring of film switch and electronic.

• Check wiring from electronic to the connections of components (motor, fan, dryer heating, solenoid valve). If the connections have no fault then electronic is possibly defective.

3.3 Machine doesn't stop automatically

• Display „Infeeding film“ is permanently illuminated: Wire band of film switch is jammed. Readjust wire.

• Check following parts: Film switch, wiring of film switch and electronic.

3.4 Drive motor does not run

• Check cover switch.

• Check drive motor: If voltage can be detected on motor, then motor is defective.

• Dryer fan runs but no voltage on motor: Interruption in the wiring.

3.5 Machine stops before film comes out

The cycle time is the processing time which runs off after a film has passed the film switch. Activate the switch in the infeed tray with a film and remove the film. Measure the time until the processor stops automatically.

Following times can be measured (+/- 5%):

Change cycle time if necessary. This can be accomplished by changing the position of the jumper on the upper side of the electronics.

Pleasse use as replacement fuses only the PROTEC®s. These fuses are optimized for use under existing conditions.

Standard machine: 125 s Jumper 2-3

Mammography: 155 s Jumper 1-2

Optional type: 190 s Jumper removed

Page 25

24 CP - OPTI

Trouble Shooting

3.6 Relation between processing time and developer temperature

The following chart demonstrates guide value relations between developer temperatures and processing times. Variations are possible depending on the various films and chemicals. Changing the transport speed see 3.7.

3.7 Changing the transport speed

The processing speed can be changed by changing the gear wheels. To do this the tanks need to be emptied and the machine be turned over. After removing the drive motor the chain gears can be changed. Please note that the jumper on the PCB needs to be placed to the indicated position.

Following gear combinations are available:

t = Processing time in seconds Gm = Chain gear on motor shaft Gs = Chain gear on drive shaft

Processing time “Dry to Dry” Developer temperature

105 s 32 °C - 34 °C

118 s 32 °C - 34 °C

135 s 31 °C - 33 °C

143 s 30 °C - 32 °C

167 s 30 °C - 32 °C

220-240 V, 50 Hz versions 110-120 V, 50 Hz versions

220-240 V, 60 Hz versions

t Gm Gs Jumper

position

Devel-

oper time

(s)

Infeed speed

(cm/min)

t Gm Gs Jumper

position

Devel-

oper time

(s)

Infeed speed

(in/min)

105 t=17 t=16 2-3 29 48 105 t=16 t=18 2-3 29 48

118 t=16 t=17 1-2 32 43 118 t=14 t=17 1-2 32 43

135 t=14 t=17 1-2 37 37 135 t=12 t=17 1-2 37 37

143 t=14 t=18 removed 39 35 143 t=12 t=18 removed 39 35

167 t=12 t=18 removed 46 30 167 t=10 t=18 removed 46 30

110-120 V, 60 Hz versions

t Gm Gs Jumper

position

Devel-

oper time

(s)

Infeed speed

(in/min)

105

(90)

t=14 t=16 2-3 29 18,9

113 t=14 t=17 2-3 31 17,6

124 t=12 t=16 1-2 34 16,0

132 t=12 t=17 1-2 36 15,0

139 t=12 t=18 1-2 38 14,3

Page 26

CP - OPTI 25

Trouble Shooting

English

4 Baths

4.1 No circulation in bath

• Circulation pump works but no circulation in bath: Air lock in heating and cir-

culation system. Ventilate pump (see page 8).

• Particles in the pump chamber. The pump chamber can be easily opened by removing the four clips. When closing again ensure that the rubber seal is positioned correctly and not damaged.

• Check connection of pump, circulation pump possibly defective.

4.2 Developer temperature too high

• Check attachment of temperature sensor. This should be firmly positioned on tube and completely covered with foam rubber.

• Check sensor: Check voltage between pin 3 (brown) and pin 2 (white). between 0.1 and 0.5 V.

• If the sensor has no fault then electronic is defective.

4.3 Developer temperature too low

• Check circulation pump. Air lock in the circulation pump: Ventilate pump (see page 13). If no circulationcan be detected: Check wiring of circulation pump, pump possibly defective.

• Bath is not heated: Check temperature safety switch on heat-exchanger. Check heating element: impedance across the element should reach approx. 66 W.

• Check temperature sensor (see 4.2).

• If no error can be found then electronic is possibly defective.

4.4 Developer temperature too low, fixer temperature too high

• Air lock in the circulation pump: Ventilate circulation (see page 8).

4.5 Removing the turning knob

• Using flat pliers pull the lever from the knob, while holding the bottom part (knob) down with the other hand.

• Open the screw of the collet (Attention: don’t open completely) and pull the knob out.

• When reinstalling the knob turn axis on PCB to end position counter clockwise. Fix the knob in that the pointer is at position of „Manual pumping“.

4.6 Calibration of the developer temperature

• temperature deviations of +/-1.5 °C can be compensated for by adjusting the potentiometer on the control board. It can be reached after removing the turning knob (see page on right hand side) from above. Turning clockwise decreases the temperature.

Only remove the electronics when the turning knob has been removed!

Page 27

26 CP - OPTI

Trouble Shooting

5 Film defects

5.1 Films will not dry

• No air comes out of air channel: Check wiring of dryer fan, fan is possibly defective.

• Cold air comes out of air channel: Check wiring of heating element in the air channel, heating element possibly defective.

• Hot air comes out of air channel, but the film is still not dried to satisfaction. Check chemicals and film type. If this leads to no solution then the transport speed of the machine can be reduced (see Changing the transport speed,

page 24).

5.2 The film does not transport correctly

• Check the positioning of the racks in the machine and make sure that the latches are closed.

• Check the roller racks: Position of the guide elements, rollers are in correct position and are not loose, flat springs are not bent, all gears are in place.

• Motor runs: The worm gear of the drive shaft should be secured with a splint to avoid twisting. Check the screws and positioning of the chain and chain wheel.

5.3 Scratches, pressure marks, dirt on film

• Straight scratches in the infeed direction indicate faulty guide elements. Check each rack and straighten up the guide elements. If mechanically damaged, replace the guide elements.

• Pressure marks caused due to polluted or damaged rollers. Check rollers for visible damage. Rubber rollers sometimes swell up. Exchange defective rollers.

°C

Page 28

CP - OPTI 27

Trouble Shooting

English

6 Replenishment

6.1 Replenishment pump does not work or works insufficiently

6.2 Regeneriermenge zu hoch oder zu niedrig

• The replenishment rate can be changed by adjusting the stroke of the pump. To do this, the eccentric on the replenishment pump must be adjusted. Maximum pump capacity is 240 ml/min (100 %).

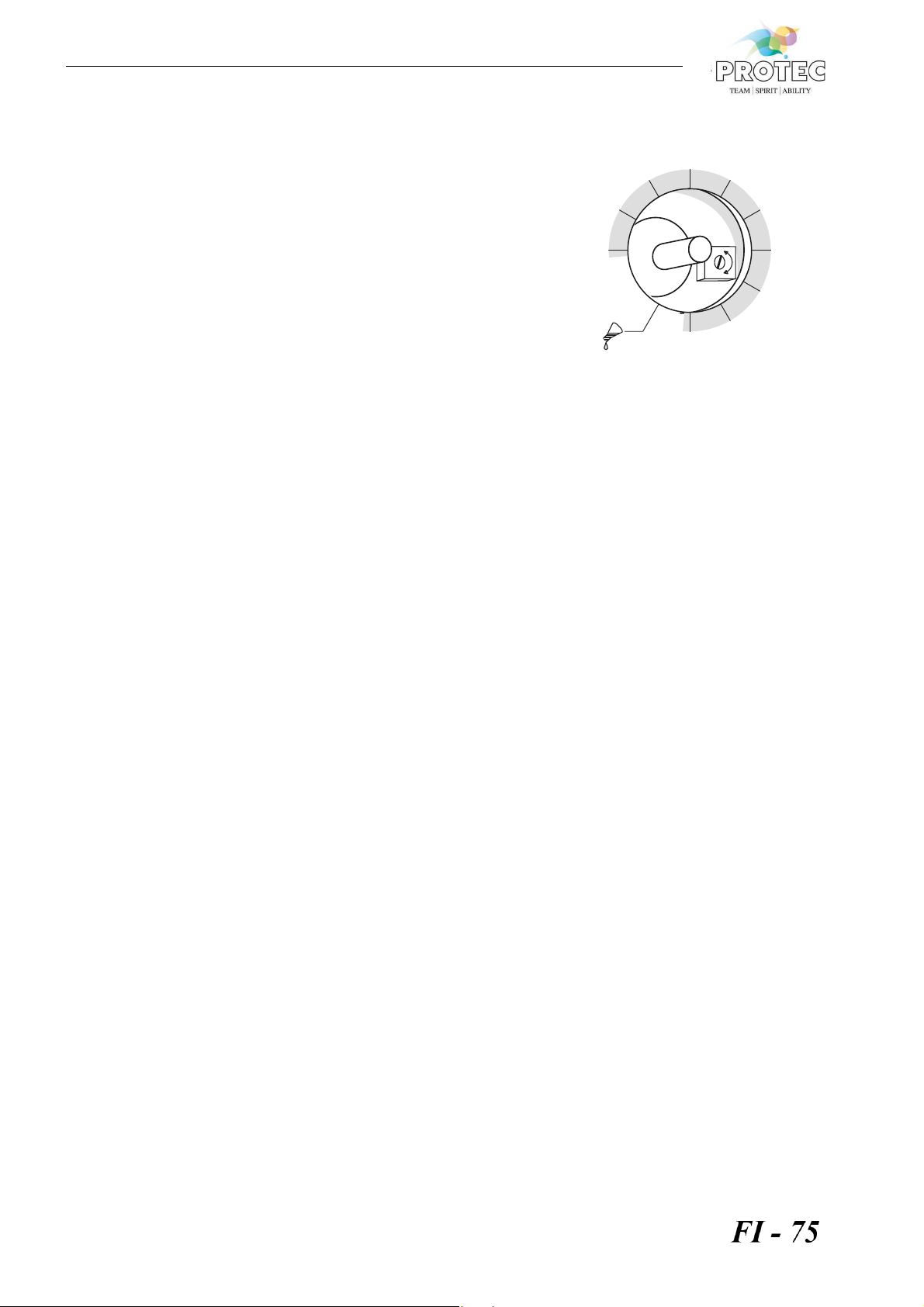

6.3 Adjust replenishment pump

• For the adjustment of the eccentric first open the allan screw on the big eccentric with the red line. If screw is not reachable, then start the „Manual pumping“ (dial switch) for a short time. If the screw is reachable fastly turn back the dial switch on a temperature position.

• Turn the eccenter so that the red line will be at the desired position and fasten again the allan screw.

7 Dryer

7.1 Dryer fan does not run or runs with too low speed

• Check the correct connecting of the fan cables: bl = blue; bk = black; br = brown.

• If the fan is connected improperly, then the fan runs only half power.

8 Water

8.1 Rinsing water does not flow

• Water pressure in the water system is too low: Minimum pressure 2 bar (29 psi).

• Valve activates, no flow passage - filter at inflow is blocked.

• Check green water inlet hose inside the machine.

8.2 Water tank overflows

• Water drainage hose (overflow) should have a constant fall. The hose end should be positioned above the drainage level in the syphon.

• Check water drainage in the tank and hose for blockage and pollution.

• When extreme algae growth is registered, the overflow can be connected directly to the fitting of the water tank.

• Check filter in the suction pipe (repl. container) and clean it if necessary.

• Replenishment pump sucks air in. Check hoses and connections.

• Check eccentric position. Flow rate reads 240 ml/min at maximum eccentric position 100%.

• (60 Hz: 240 ml/min at 85 %)

• Activate the „Manual pumping“ and while on, check the voltage of connection X2 on the power PCB. If no voltage can be registered - exchange power PCB.

Minimum setting must not be below 75 %.

• Clean valves inside connection tube of pump.

Install valve-insert correctly: Pay attention to flow-through direction!

Page 29

28 CP - OPTI

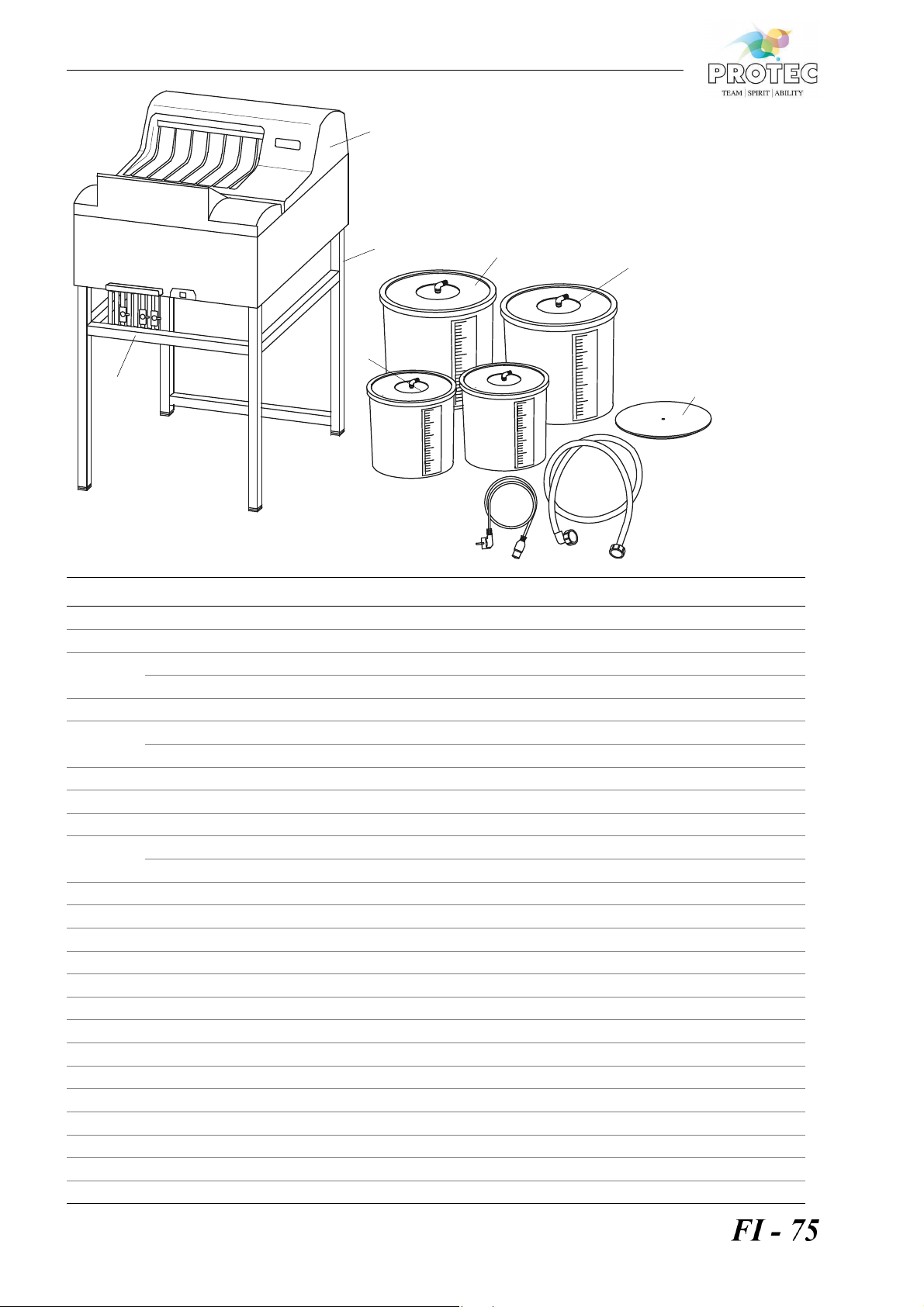

Spare Parts

Pos. Order No. Description:

1 1170-0-0200 Cover complete

2 2006-0-0005 Drain stop cock 10 mm

3 1170-0-2000 Replenishment tank 12 l dev.

1170-0-2100 Replenishment tanke 12 l fix.

4 1170-0-1760 Saugrohr m. Filter f. 12l Behälter rund

6 2004-0-0003 Electrical power lead 220-240 V

2004-0-0021 Electrical power lead 220-240 V

7 2018-0-0001 Water inlet tube

8 1267-0-0000 Processor stand

- 1267-0-0010 Closed base cabinet

9 1101-0-2000 Replenishment tank 25 l dev.

1101-0-2100 Replenishment tank 25 l fix.

10 1101-0-1700 Saugrohr m. Filter f. 25l Behälter

11 1101-0-4100 Floating cover developer

- 2018-0-0012 Hose 10 x 2 mm, celar, reinforced

- 2018-0-0009 Hose 10 x 2 mm, blue, reinforced

- 2018-0-0008 Hose 10 x 2 mm, red, reinforced

- 2018-0-0005 Hose 4 x 1 mm, green

- 2018-0-0021 Hose 9 x 2 mm, red, clear

- 2018-0-2022 Hose 9 x 2 mm, blue, clear

- 2022-0-0014 Tube clamp Snap

- 2022-0-0019 Wire tube clamp

- 2022-0-0026 Wire tube clamp

- 2022-0-0028 Wire tube clamp

- 1101-0-4600 Floating balls, 300 pcs.

- 1101-0-4800 Floating balls, 200 pcs.

Page 30

CP - OPTI 29

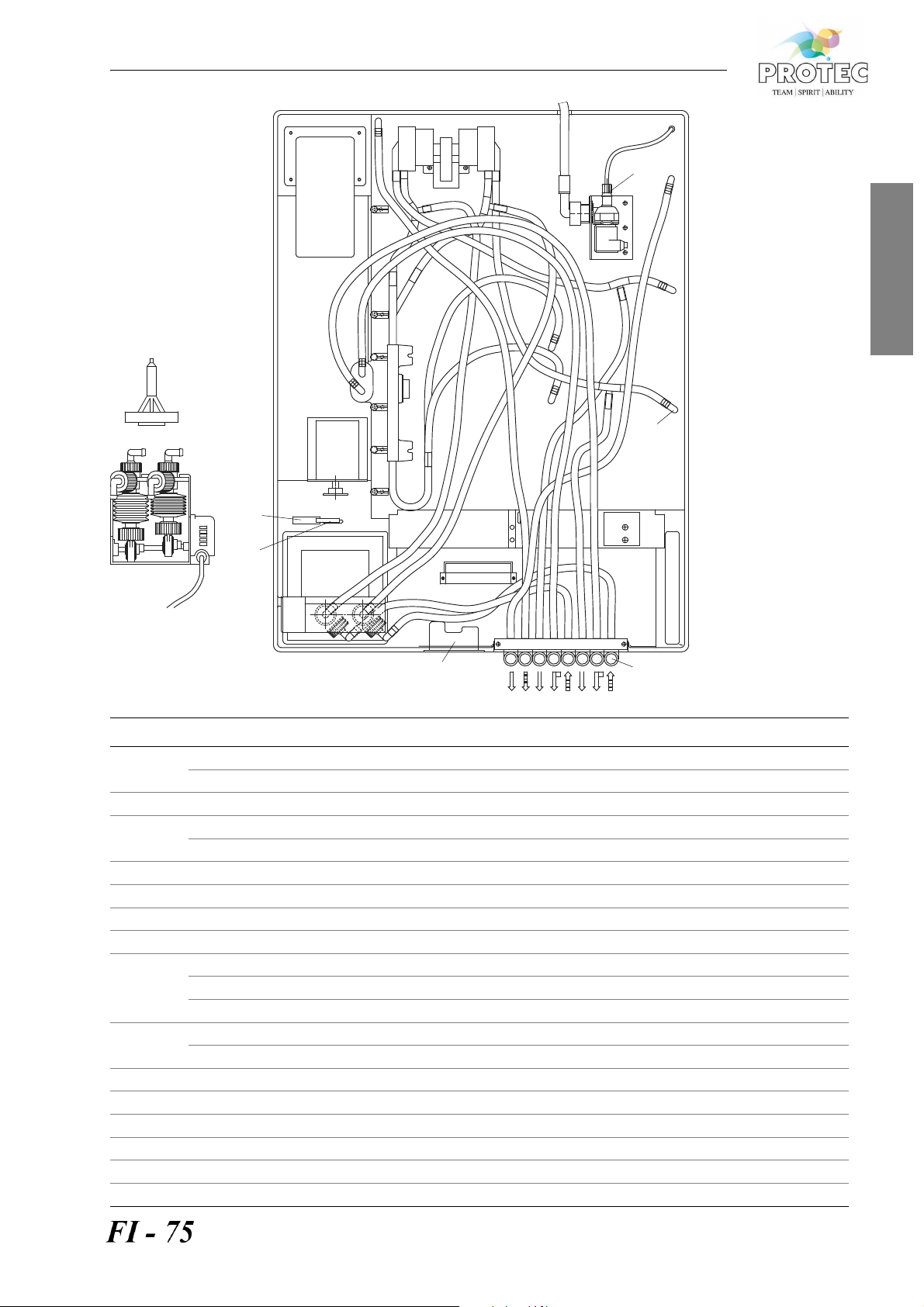

Spare Parts

English

Pos. Order No. Description:

20 0202-1-0008 Replenishment pump 2KBA 220-240 V, 50/60 Hz

0202-6-0008 Replenishment pump 2KBA 115 V, 50/60 Hz

20a 0002-1-0008 Kegelventil f. Pos 20

21 2002-1-0013 Circulation pump 220-240 V, 50/60 Hz

2002-6-0013 Circulation pump 110 V, 50/60 Hz

22 1170-0-1400 Mains plug combi 220-240 V UL

23 2010-0-0010 Fusible, gold, T 10 A / 250 V UL

22+23 2028-0-0036 Geräteschalter therm. Electronic 110-120 V

24 1170-0-0702 Angle connection (grey)

25 1170-4-1300 Control unit 110 V °F

1170-5-1300 Control unit 220-240 V

0170-6-1300 Control unit 110-120 V

26 0170-0-2400 Micro-switch with operator (cover)

0170-4-2400 Micro-switch with operator (cover) UL

27 2007-0-0010 Operator for micro-switch

28 1101-0-0704 Angle fitting

- 0016-0-0002 PU - glue kit

29 2021-0-0001 Screw-in connector

- 1170-0-1250 Wiring harness V2 230 V

- 1170-0-1251 Wiring harness V2 115 V

20a

(53)

(30)

(61)

(58)

22-23

Page 31

30 CP - OPTI

Spare Parts

Pos. Order No. Description:

30 2001-0-0003 Main drive motor 220-240 V, 50 Hz

2001-6-0003 Main drive motor 120 V, 50/60 Hz

31 1170-0-1101 Motor bracket

32 1170-0-1501 Drive shaft worm-gear

33 1170-0-1503 Worm-gear

34 1170-0-1502 Supporting bock

35 1170-0-1506 Chain wheel t=12

1170-0-1504 Chain wheel t=14

1170-0-1505 Chain wheel t=16

1170-0-1102 Chain wheel t=17

1170-0-1507 Chain wheel t=18

37 2037-0-0002 Chain 6 mm with coupler link

38 3000-9-4013 Splint pin 2.0x20 mm, inox

39 0170-0-3100 Lichtschutzdeckel kpl.

40 1170-0-3104 Sealing wedge

34 38 33 32

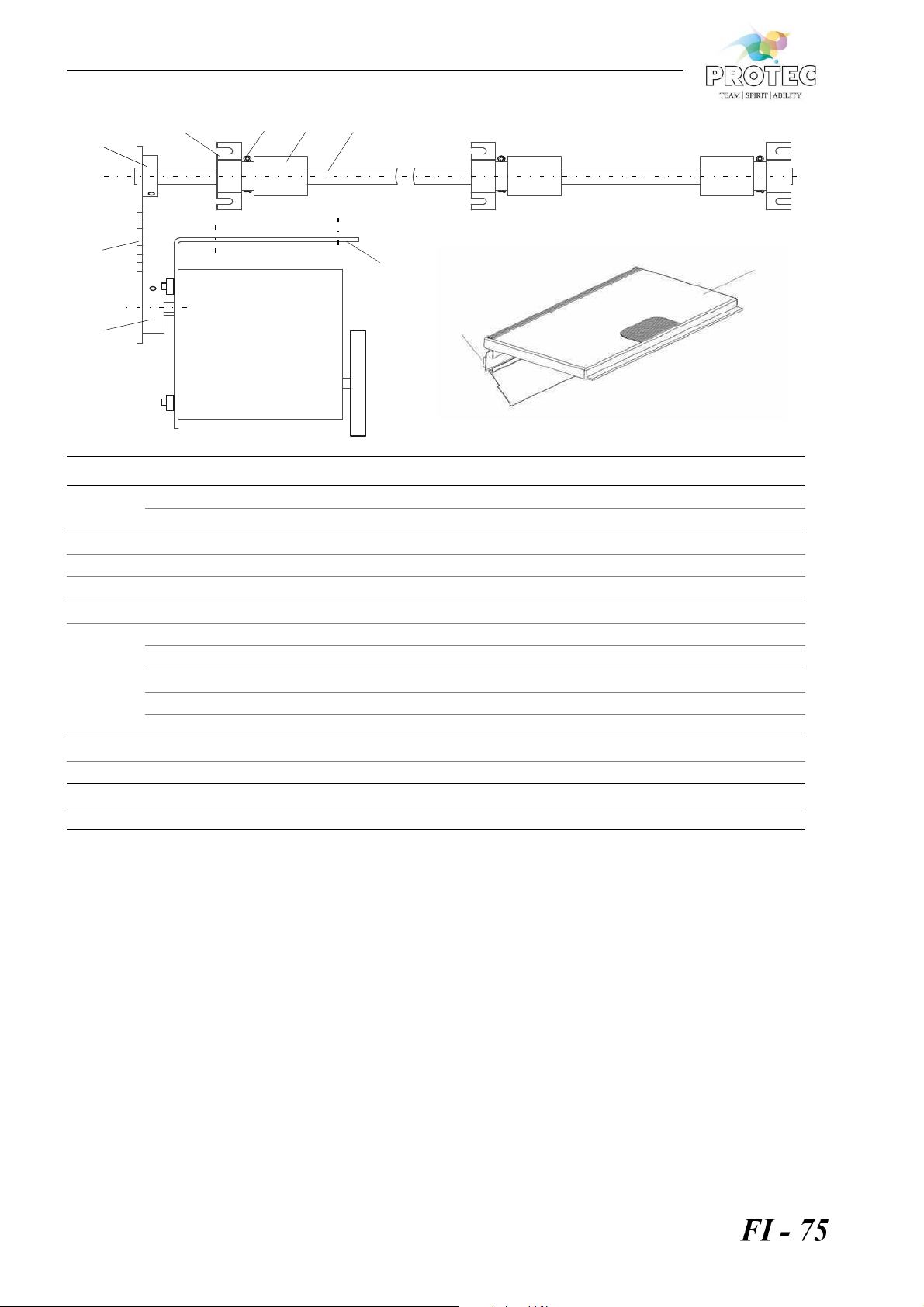

Page 32

CP - OPTI 31

Spare Parts

English

Pos. Order No. Description:

50 1170-0-1301 Air channel

51 0170-0-1300 Heating elment 230 V, 1100 W

0170-6-1310 Heating elment 110 V, 900 W

standard model

0170-5-1300 Heating element 230 V, 1000 W

53 2008-5-0007 Dryer fan 220-240 V, 50/60 Hz

2008-6-0007 Dryer fan 115 V, 50/60 Hz

54 0170-5-1900 Solenoid valve 220-240 V, 50/60 Hz

0170-6-1900 Solenoid valve 115 V, 50/60 Hz

55 1101-0-0121 Securing bracket

56 0170-0-0800 Micro-rotary-switch for film-detection with operator

58 1170-0-0804 Bracket for micro-rotary-switch

59 1170-0-0105 Film feed tray

1172-0-0105 Film feed tray graphic arts

60 2003-5-0002 Heating element 230 V, 800 W

2003-6-0002 Heating element 120 V, 400 W

61 1130-0-2101 Heat exchanger

62 2005-0-0005 Temperature safety switch mounted on heat exchanger

63 0190-0-2200 Temperature sensor

65 1170-0-1302 Channel dryer heating

Page 33

32 CP - OPTI

Spare Parts

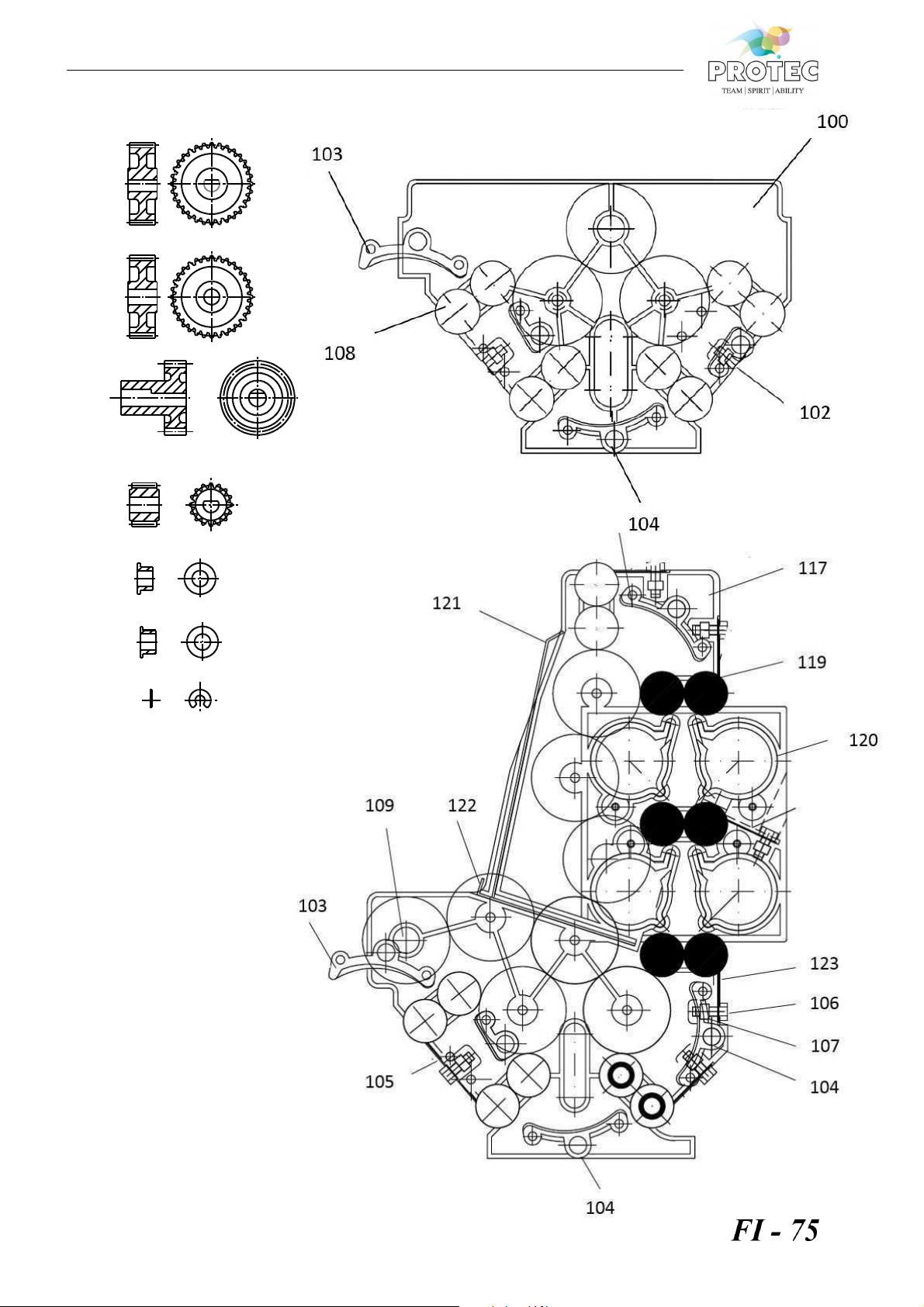

Standard roller racks

104

123

106

107

103

105

109 122

120

119

104

117

121

100

102

112

111

113

110

114

115

116

104

103

108

Page 34

CP - OPTI 33

Spare Parts

English

Pos. Order No. Description:

Mammography Processor

- 1171-0-0600 Roller rack, dryer

Standard Processor

- 1170-0-0300 Roller rack, developer

- 1170-0-0400 Roller rack, fixer

- 1170-0-0600 Roller rack, dryer

100 0170-0-0301 Dryer side plate left w. shafts

1170-0-0301 Side plate, dev. (right)

0170-0-0401 Dryer side plate left w. shafts (left)

1170-0-0401 Seitenteil F. (rechts)

102 1140-0-3800 Guide bar straight, short

103 1140-0-4500 Guide bar with nose

104 1140-0-3700 Guide bar, curved

105 1170-0-0304 Flat spring 55

106 3079-8-5013 Screw M4x10, A4

107 3009-3-4023 Hexagon nut M4, A4

108 1140-0-0301 PU-roller 35 ground

109 1170-0-0310 Drive shaft rack

110 1101-0-0302 Gear t = 16, D-hole

111 1101-0-0304 Gear t = 32, round hole

112 1101-0-0303 Gear t = 32, D-hole

113 1170-0-0302 Worm wheel

114 1101-0-0305 Bushing without clearance

115 1101-0-0317 Bushing big, black

116 2014-0-0001 Circlip

117 0170-0-0601 Dryer side plate left w. shafts

1170-0-0602 Dryer side plate right

119 1140-0-0302 Rubber roller 35

120 1140-0-0605 Air jet (35)

121 1170-0-0604 Dryer plate, large

122 1170-0-0603 Dryer plate, small

123 1170-0-0303 Flat spring 35

Page 35

34 CP - OPTI

Electric Diagrams

Page 36

CP - OPTI 35

Electric Diagrams

English

Page 37

36 CP - OPTI

Electric Diagrams
