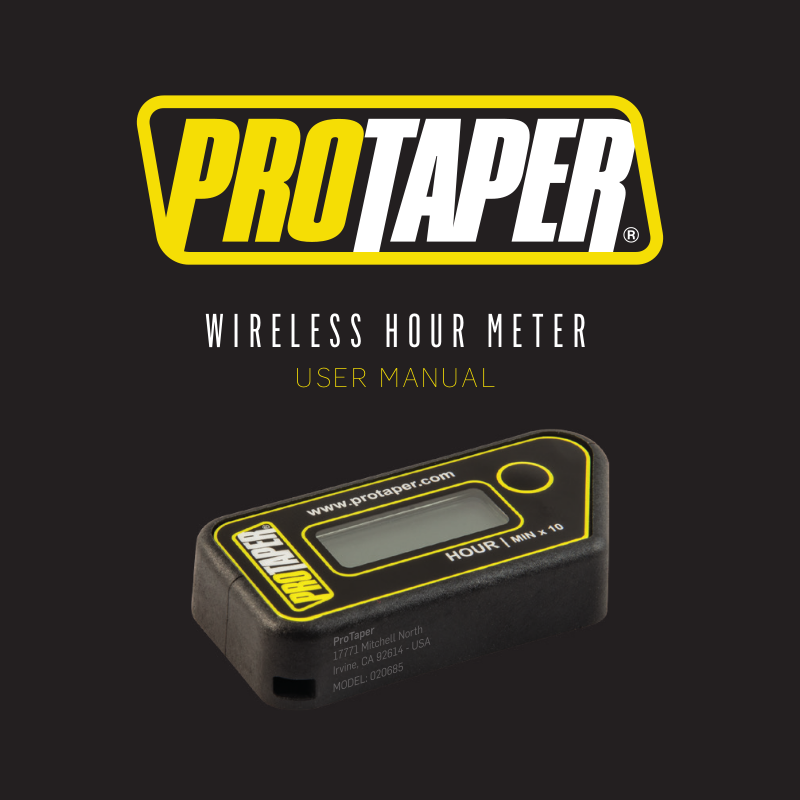

WIRELESS HOUR METER
USER MANUAL
A. INSTRUCTIONS FOR PROPER USE
Before using the ProTaper Wireless Hour Meter, please read all instructions
and warnings carefully. Failure to do so may lead to incorrect operation or
device malfunctions, resulting in damage to the product or personal injury.
1. This product is not a toy. Keep it out of reach of children and animals, as it
contains small parts that could be swallowed. Do not use the product for purposes
other than those specified in these guidelines.
2. Before use, always make sure that the ProTaper Wireless Hour Meter is properly
installed and operational.
3. Apply the ProTaper Wireless Hour Meter to the motorcycle where suggested,
ensuring that it is in a protected position so as to avoid damage in the event of falls
or bumps. We strongly suggest that contact between the device and the
motorcycle is improved through the use of cable ties. These can be inserted into
the slots on the outer case.
4. Do not expose the device to temperatures exceeding 70°C / 158°F.
5. Using the ProTaper Wireless Hour Meter while riding can be distracting and
dangerous. Do not check the display while riding or in situations where distraction
could endanger your safety and that of others.
6. Do not use a high-pressure washer.
2
B. PRODUCT LAYOUT
LCD Display
Multi-function button
HOUR |
MIN x 10
Main Features
• Exclusive vibration sensitive system to detect engine working hours
• Adjustable sensitivity
• Total hour counter (not resettable) up to 1,000 hours*
• Partial hour counter (resettable) up to 1,000 hours*
• Button to view total and partial hour counters and to reset partial hour counter
• Lock Mode stops counter (can be turned on/off)
• Internal battery (6-year lifetime)**
• IP66+IP67 dust and water resistant
*Once past 999 hours and 59 minutes, the display will show 000.0
**Average based on typical motocross use
3
C. INSTALLATION AND USE
Press the multi-function button. The display will show “Loc,” indicating that
Lock Mode is active. Press the button once more to turn Lock Mode off.
1. Test if the device works
properly before installing it
permanently on the bike.
Turn on the engine and
place the device where it
will be fitted (we suggest
the outer part of the frame),
pressing two fingers firmly
on the sides of the device
with the engine idling.
2. Clean the application
surface carefully before
installing the device. A
low-residue solvent like
acetone is recommended.
3. Recommended Positions
Frame (keep away from
spots hotter than 70°C)
4
The device will turn on
automatically after about 8
seconds. The hourglass
icon on the left side of the
display will start blinking.
This means that the device
has started to count.
WARNING: all digits will
blink if the device detects
an anomaly. Please contact
your dealer if this happens.
Upper Triple Clamp
Under Seat / Subframe
(in a protected position)
C. INSTALLATION AND USE (Continued)
5
4. Remove the protective
backing from the adhesive
on the back of the device.
Install it at a temperature
greater than 10°C / 50°F.
WARNING: We recommend
securing the device with
cable ties, which can be
inserted into the slots on
the outer case. Keep the
device away from places
where the temperature
exceeds 70°C / 158°F (e.g.
the exhaust pipe).
5. Start the engine. The
device will automatically
start after about 8 seconds.
The hourglass icon on the
left side of the display will
blink when the device has
started counting.
Hourglass Icon
Decimal point, separating
hours and tens of minutes
6. With the engine turned off, using the multi-function button
allows the following actions:
View Total Counter
Press the multi-function button once. The display will show
“tot” for about 3 seconds. Afterward, it will display the total
counter for about 8 seconds.
View Partial Counter
While viewing the total counter, press the multi-function
button once more. The display will show “Par” for about 3
seconds. Afterward, it will show the partial counter for about
8 seconds.
Reset Partial Counter
While viewing the partial counter, press and hold the
multi-function button until the display shows 4 blinking
dashes, then release. After a few seconds, the display will
turn off. The partial counter will then be reset.
Activate Lock Mode
Press the multi-function button once. When the display
shows “tot,” press and hold the multi-function button for
about 8 seconds. The display will show “Loc” and counting
will be stopped. To turn Lock Mode off and resume counting,
simply press the multi-function button once more.
Adjust Sensitivity
Press the multi-function button 3 times. The display will
show “Sen,” followed by the current sensitivity level. This will
be either “Hi” (high sensitivity) or “Lo” (low sensitivity). To
switch between the two levels, press the multi-function
button. After a few seconds, the display will turn off and the
selected sensitivity level will be active.
ProTaper • Irvine, California • 951-736-5369
www.protaper.com • @protaper
