Prima IP-8 and Prima IP-16
8-port and 16-port KVM Switches over IP
User Manual
Revision 1.51
23/08/2007
Copyright and trademarks
Copyright © 2007 PROSUM. All rights reserved
All trademarks in this manual are the properties of their respective trademark owners.
FCC Statement
This equipment has been tested and found to comply with the regulations for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this
User Guide, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case, the user will be required to correct the
interference at his/her own expense.
CE Statement
This is a Class B product. In a domestic environment, this product may cause radio interference, in which
case the user may be required to take adequate measures.
Prima IP User Manual Rev 1.5 2007
- -
i
Table of Contents
CHAPTER 1. ADVANTAGES AND FEATURES................................................................................. 1
1.1 ADVANTAGES................................................................................................................................... 1
1.2 PRIMARY FEATURES ......................................................................................................................... 3
1.2.1 General features .......................................................................................................................... 3
1.2.2 TCP/IP remote connection........................................................................................................... 3
1.2.3 Thin-client Viewer Program ........................................................................................................ 3
1.2.4 Hi-Speed PPP Connection........................................................................................................... 3
1.2.5 Video server ................................................................................................................................. 3
1.2.6 Power ON-OFF Control Support ................................................................................................ 3
1.2.7 Security ........................................................................................................................................ 4
1.2.8 Alarms and Notifications ............................................................................................................. 4
1.2.9 User Management........................................................................................................................ 4
1.2.10 Global Time Zone Support ...................................................................................................... 4
1.2.11 Maintenance and KVM management ...................................................................................... 4
1.3 SYSTEM ARCHITECTURE .................................................................................................................. 5

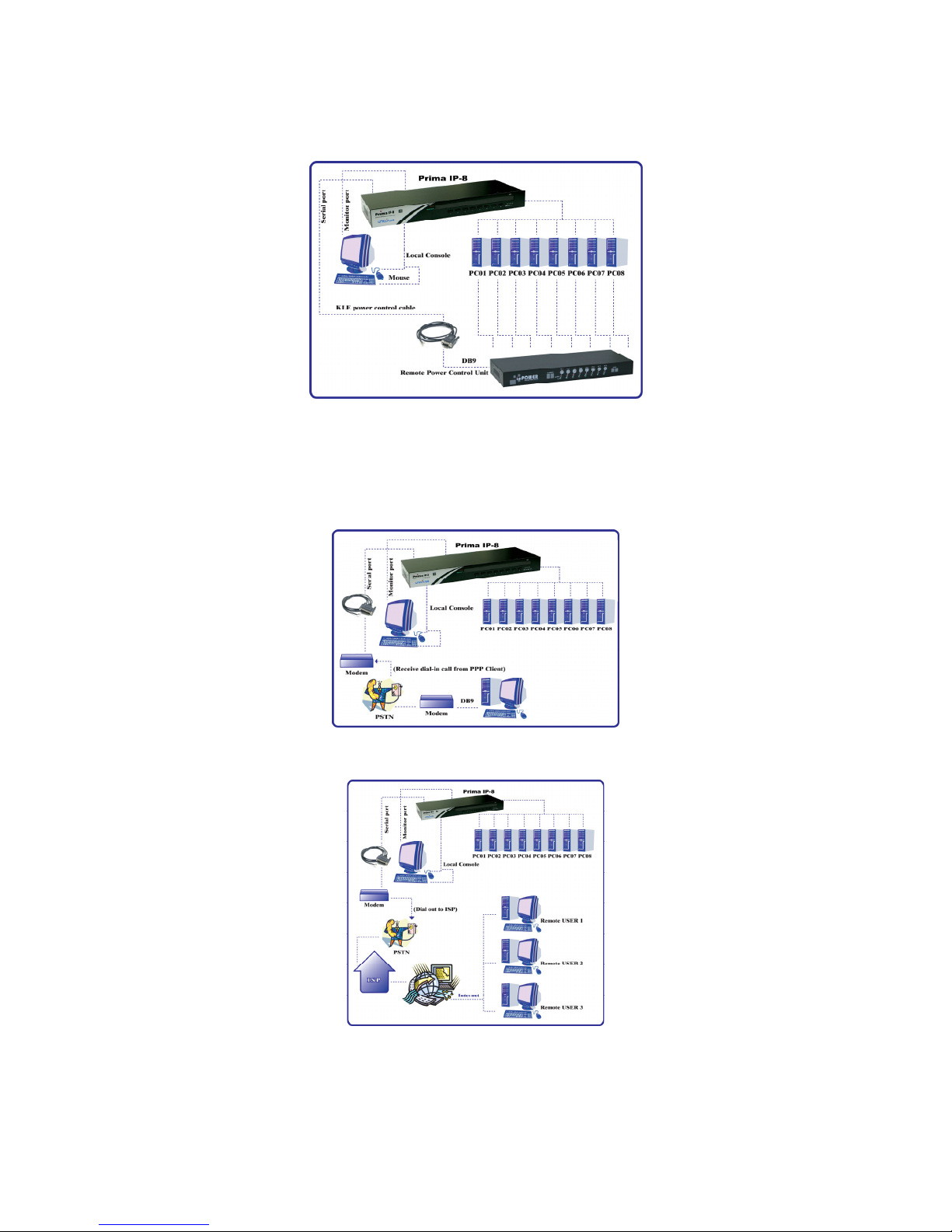

1.3.1 LAN/WAN Configurations ........................................................................................................... 5
1.3.2 Power Control Configuration...................................................................................................... 6
1.3.3 PPP connections.......................................................................................................................... 6

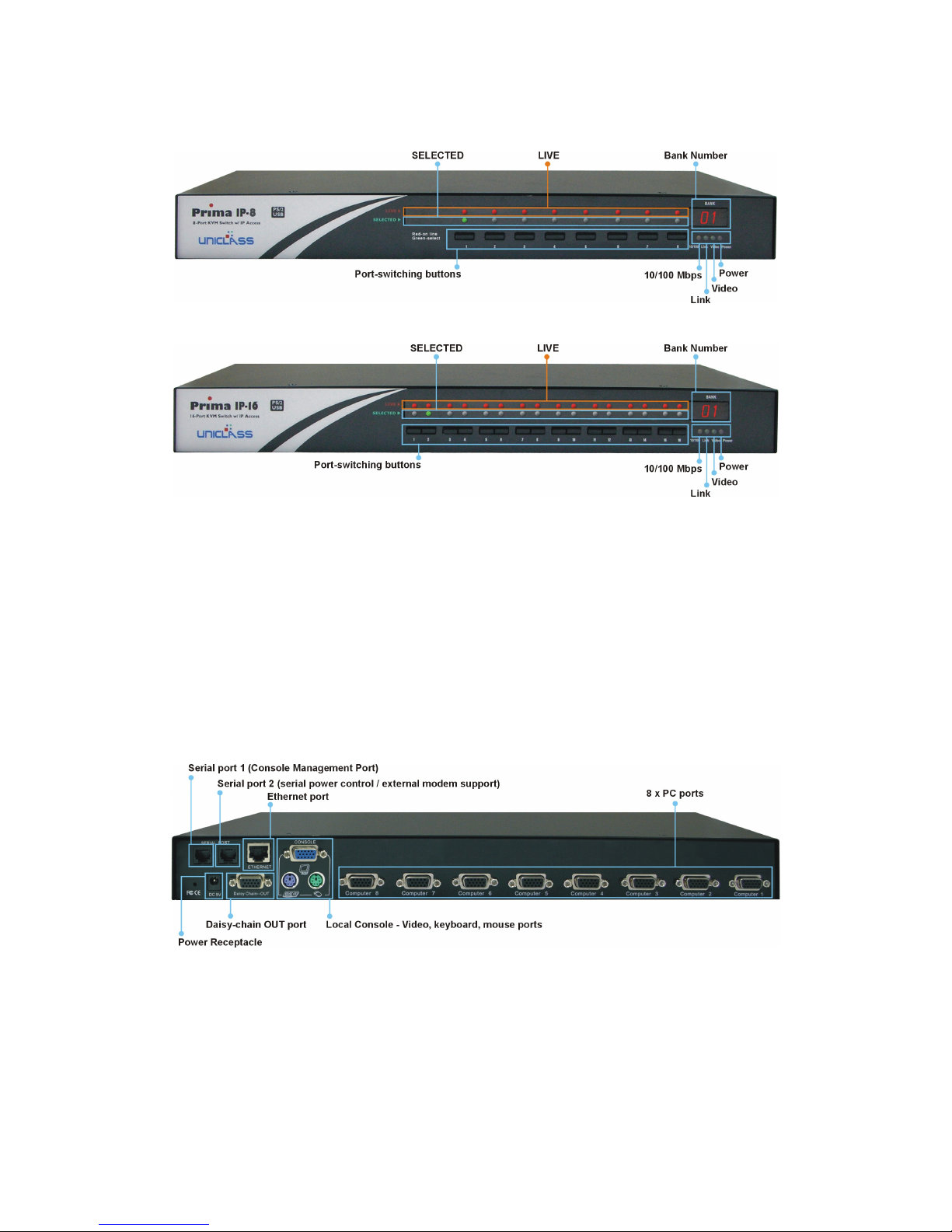

1.4 PRIMA IP EXTERNAL VIEWS ............................................................................................................ 7
1.4.1 Prima IP Front View ................................................................................................................... 7
1.4.2 Prima IP 8 - Front-panel............................................................................................................. 7
1.4.3 Prima IP 16 - Front-panel........................................................................................................... 7
1.4.4 Prima IP Rear View..................................................................................................................... 7
CHAPTER 2. INSTALLING PRIMA IP ................................................................................................ 9
2.1 CHECKLIST BEFORE INSTALLATION ................................................................................................. 9

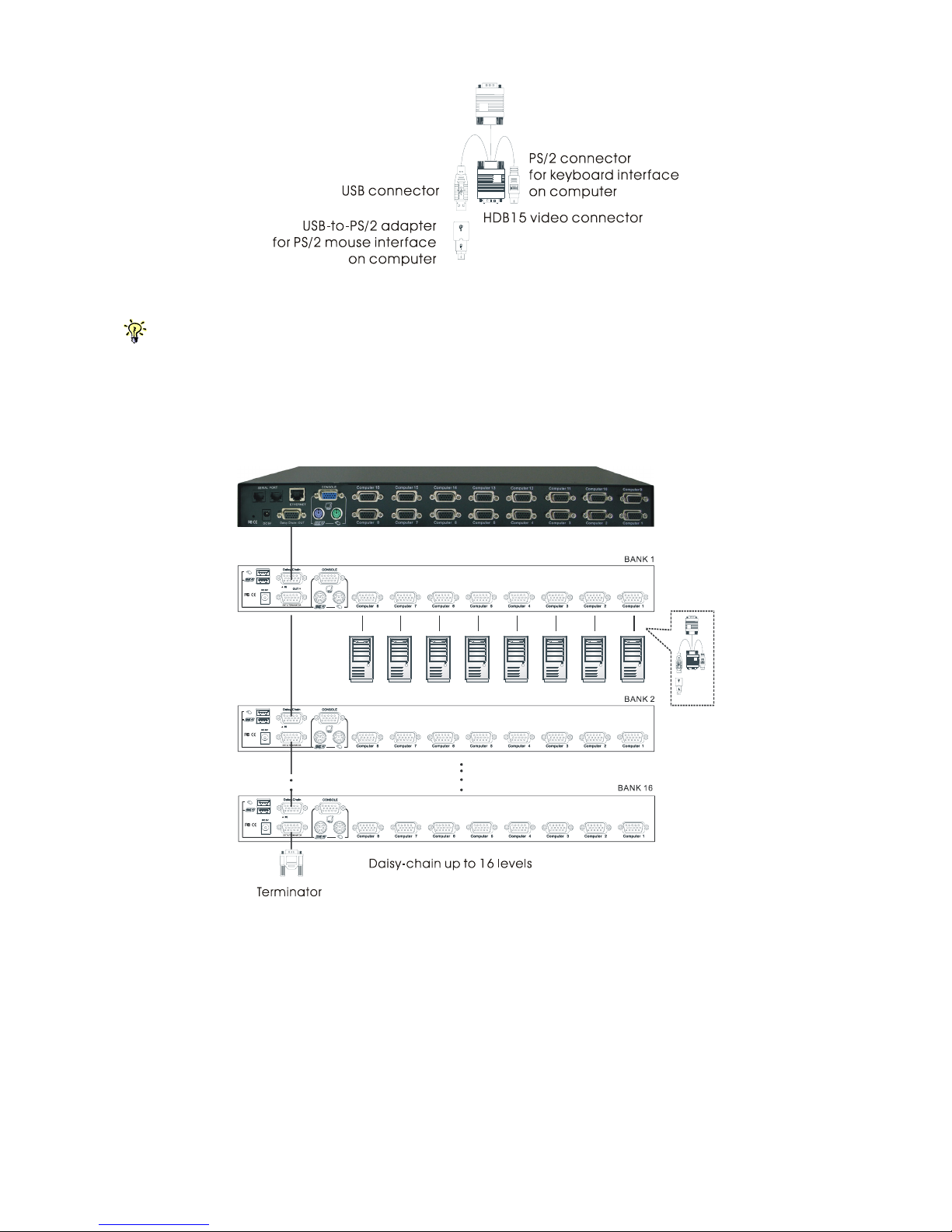

2.2 SETTING UP THE PHYSICAL CONNECTIONS .................................................................................... 11
2.3 CONFIGURING YOUR SERVERS FOR CONNECTIONS TO PRIMA IP................................................... 13
2.3.1 Turn off mouse acceleration and “Snap to” option................................................................... 13
2.4 MORE TIPS FOR SERVER DESKTOP CONFIGURATION..................................................................... 15
2.4.1 Configure Display Resolution on your Server........................................................................... 15
2.4.2 Turn off the Special Transition Effects ...................................................................................... 15
2.4.3 Choose Plain and Solid Server Desktop Backgrounds for your Connected Servers ................. 16
2.5 PRIMA IP NETWORK SETTINGS ...................................................................................................... 17
2.5.1 IP Settings.................................................................................................................................. 17
2.5.2 Port Base ................................................................................................................................... 18
2.6 CONFIGURING YOUR FIREWALL/ROUTER FOR ACCESSING PRIMA IP ACROSS INTERNET ............... 19
2.7 SECURITY SETTINGS....................................................................................................................... 20
2.7.1 Select a User Password Policy .................................................................................................. 20
2.7.2 Select a Security Level for Viewer Connection.......................................................................... 20
2.7.3 Installing Certificates and Key on PRIMA IP for Security level 3 ............................................ 21
2.7.4 Remote Clients ........................................................................................................................... 23
CHAPTER 3. VIEWER CONNECTION ............................................................................................. 25
3.1 INSTALLING THE VIEWERS ON THE CLIENT COMPUTER ................................................................ 25
3.1.1 Win32 Viewer............................................................................................................................. 25
3.1.2 Java Viewer ............................................................................................................................... 25
3.2 INSTALLING CERTIFICATES ON THE CLIENT COMPUTER ............................................................... 26

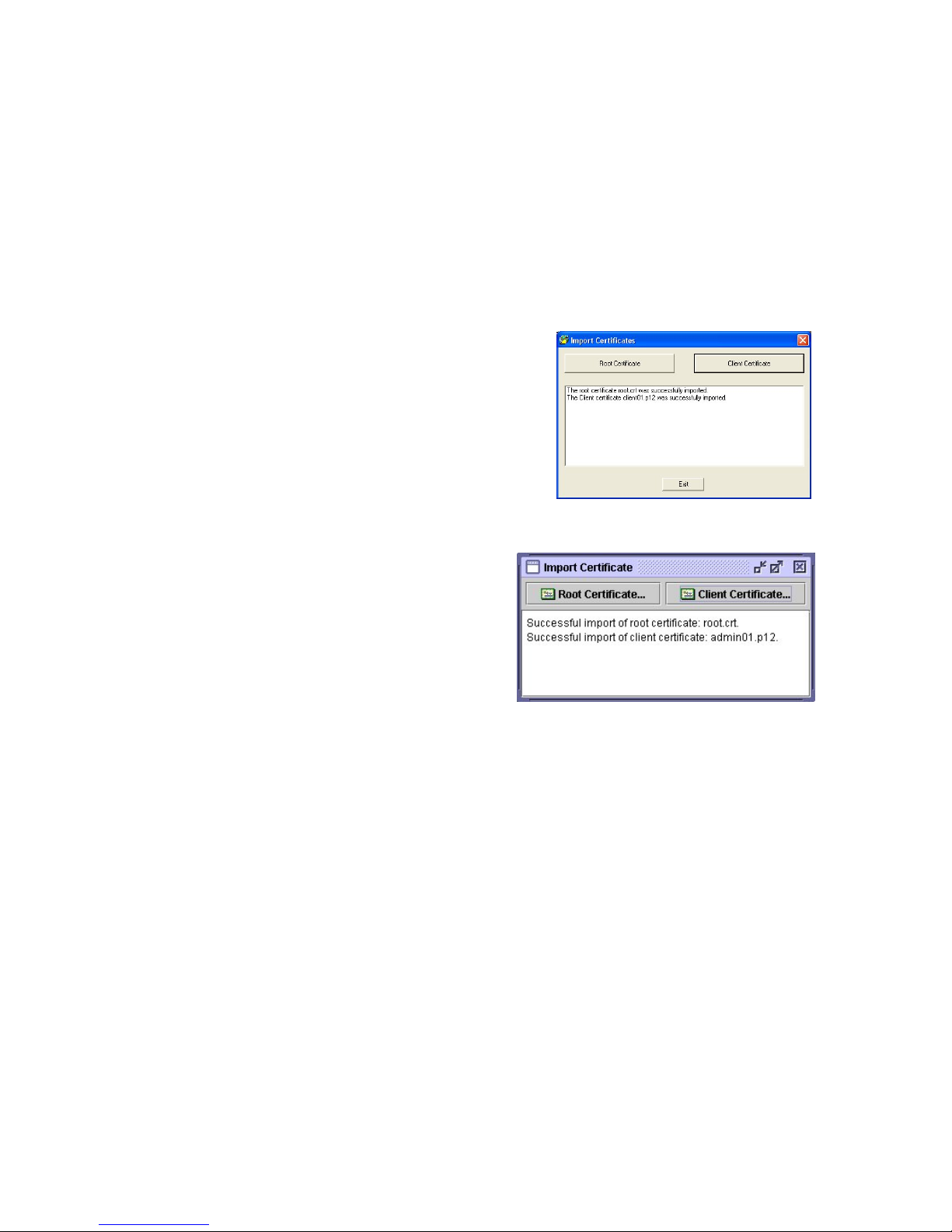

3.2.1 Win32 Import Certificate.......................................................................................................... 26
3.2.2 Java-based Import Certificate ................................................................................................... 26
3.3 STARTING THE VIEWER CONNECTION ........................................................................................... 27
3.3.1 Specifying the Viewer Connection Options ............................................................................... 27
3.3.2 User Name and Password.......................................................................................................... 28
3.4 SOME TIPS ABOUT VIEWER CONNECTIONS.................................................................................... 29

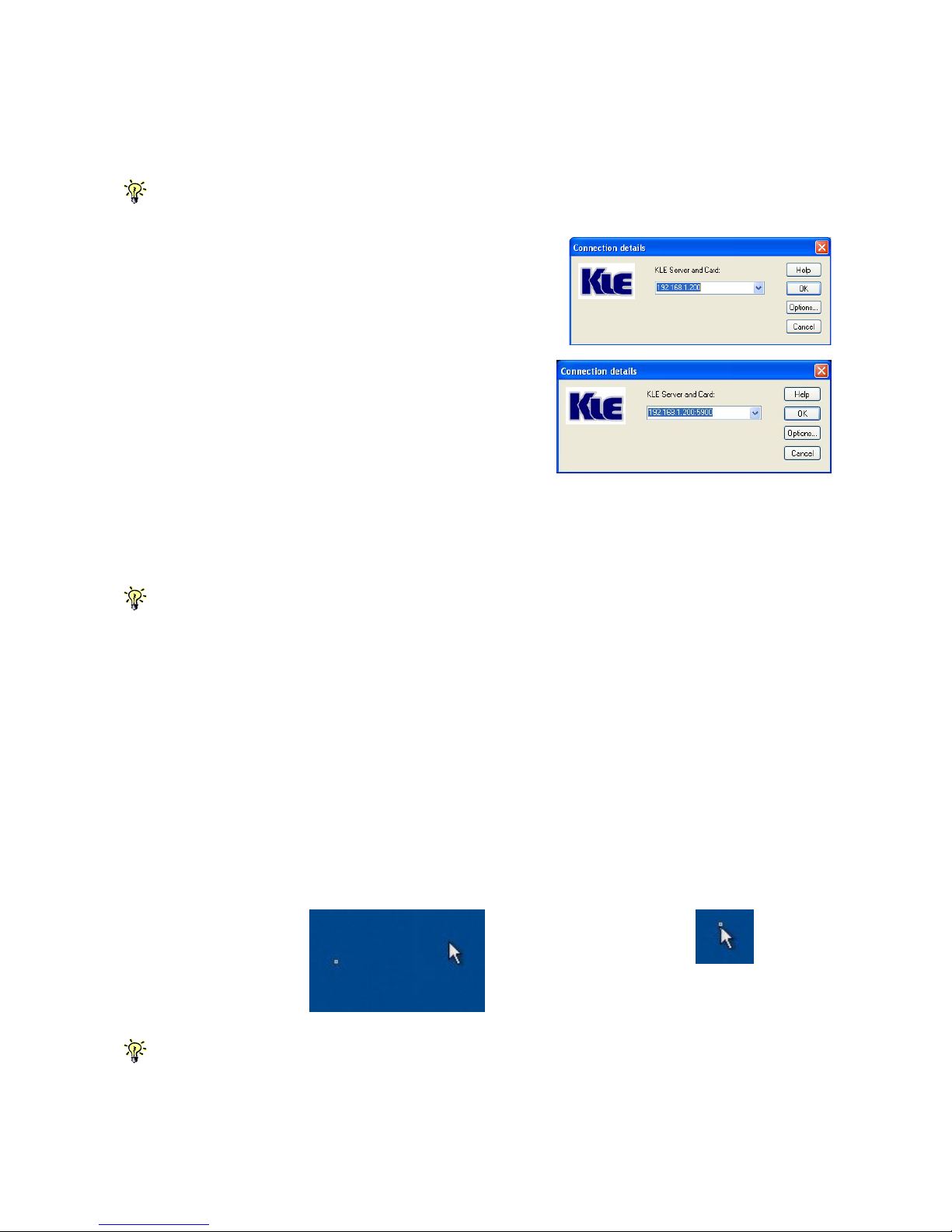

3.4.1 Typing the PRIMA IP IP Address .............................................................................................. 29
3.4.2 Connection Performance Tuning............................................................................................... 29
3.4.3 Local and Remote Mouse Cursor Synchronization ................................................................... 29
3.5 SAVING THE CONNECTION OPTIONS .............................................................................................. 30
3.6 ADJUSTING THE VIEWER WINDOW SIZE ........................................................................................ 31
3.6.1 Changing the Viewer Size to Full Screen (Win32 Viewer only) ................................................ 31

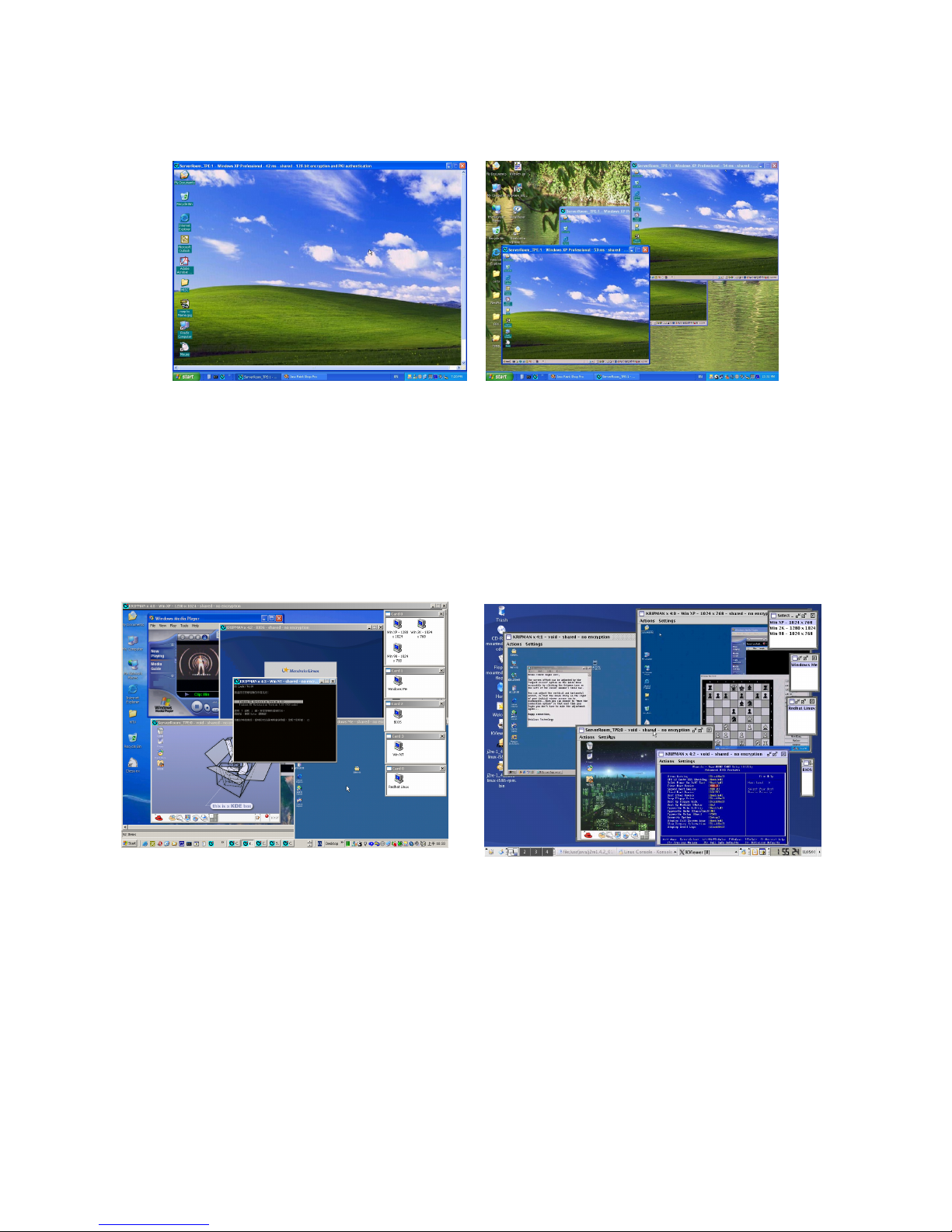

3.6.2 Scaling the Viewer Window ....................................................................................................... 32
3.6.3 Centralizing the control of your remote servers ........................................................................ 32

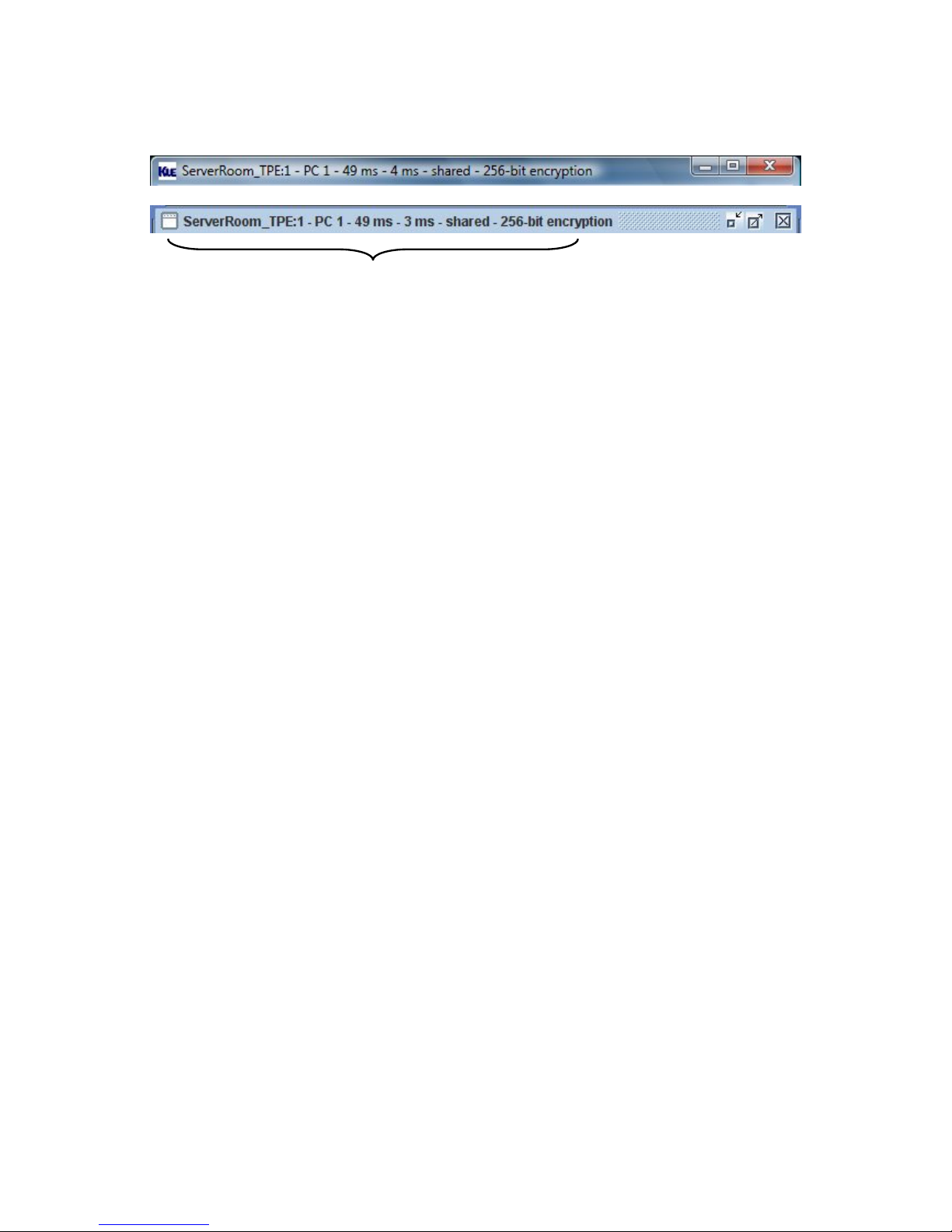

3.7 VIEWER TITLE BAR INFORMATION ................................................................................................ 33
3.8 THE SELECT COMPUTER BOX ........................................................................................................ 34
3.8.1 Win32 Viewer............................................................................................................................. 34
3.8.2 Java Viewer ............................................................................................................................... 34

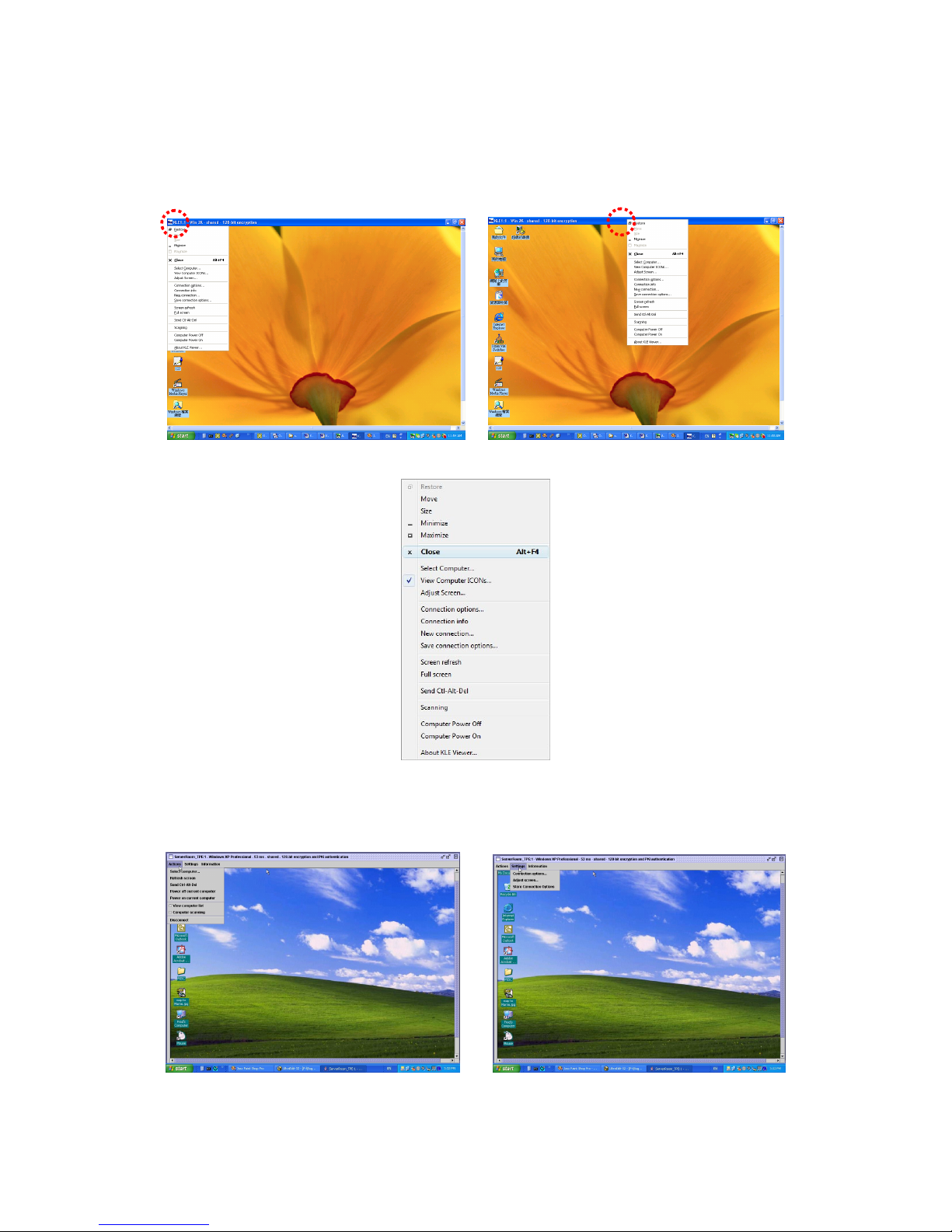

3.9 VIEWER QUICK MENU.................................................................................................................... 35
3.9.1 Opening the Viewer Menu ......................................................................................................... 35
3.9.2 Menu Items................................................................................................................................. 36
3.10 VIDEO DISPLAY PROBLEM TROUBLESHOOTING ............................................................................ 38
CHAPTER 4. PRIMA IP UNIT MANAGEMENT .............................................................................. 41
4.1 WEB-BASED MANAGEMENT INTERFACE........................................................................................ 41
4.2 USER PRIVILEGES – SUPERADMIN, ADMIN, USER .................................................................. 42
4.3 VIEWERS......................................................................................................................................... 43
4.4 MAIN/DATE & TIME – DATE, TIME, ZONE SUPPORT AND NTP SERVER SYNCHRONIZATION ....... 44

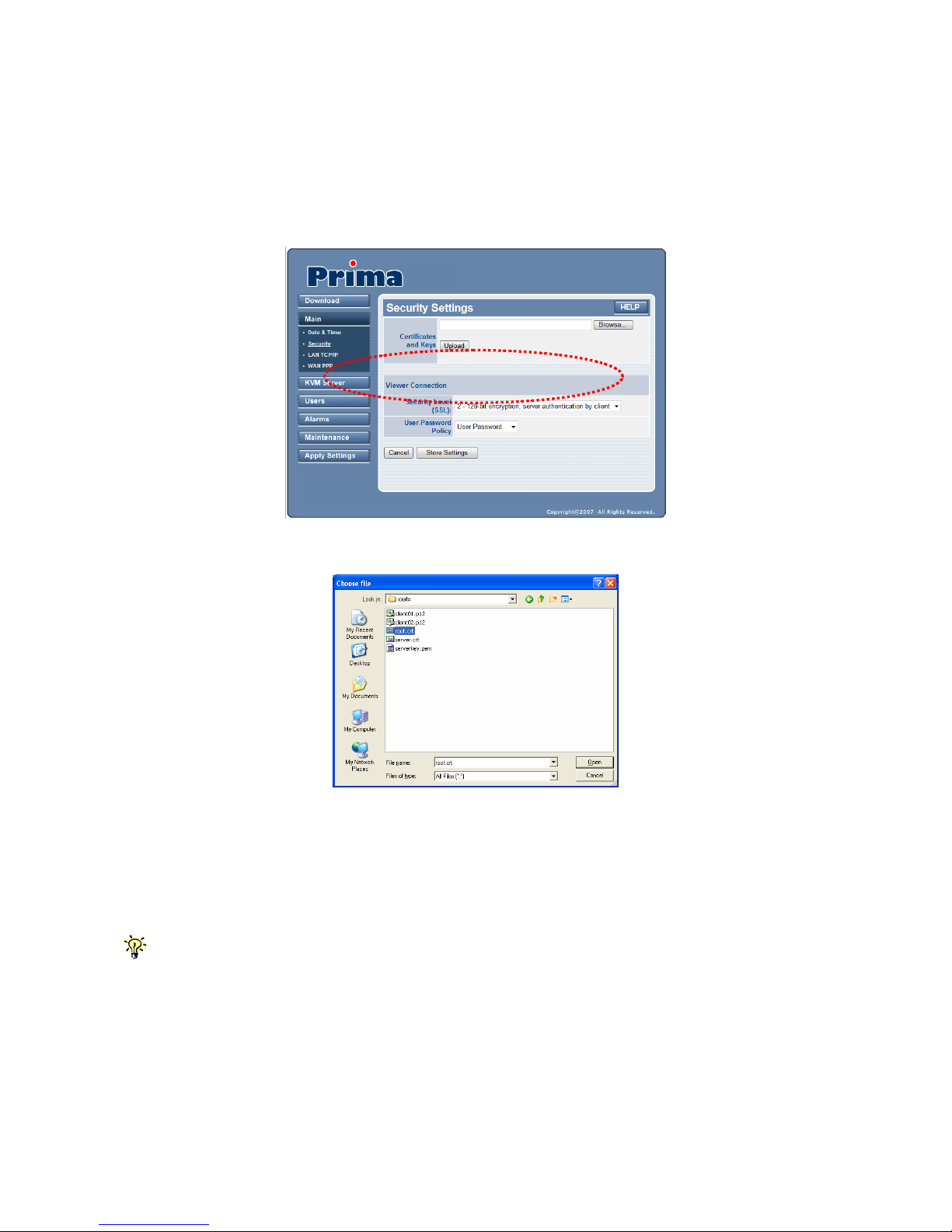

4.5 MAIN/SECURITY – CERTIFICATES, VIEWER ENCRYPTION AND PASSWORD POLICIES ................. 45
4.5.1 Certificates and Keys................................................................................................................. 45
4.5.2 Security Level of Viewer Connections ....................................................................................... 45
4.5.3 User Password........................................................................................................................... 46
4.6 MAIN/TCP/IP SETTINGS – PORT AND IP SETTINGS ...................................................................... 47
4.7 MAIN/WAN PPP........................................................................................................................... 48
4.7.1 PPP Modes ................................................................................................................................ 48
4.7.2 PPP Server Settings................................................................................................................... 49
4.7.3 PPP Client Settings.................................................................................................................... 50
4.8 KVM SERVER/LOG – LOGGING SERVER EVENTS .......................................................................... 51
4.9 KVM SERVER/MAIN SETTING – KVM SERVER MAIN SETTINGS .................................................. 52
4.9.1 Video Quality............................................................................................................................. 52
4.9.2 Scanning .................................................................................................................................... 53
4.10 KVM SERVER/VIEWER CONNECTION – VIDEO SERVER NAME AND KEYBOARD TYPE SETTINGS 54
4.11 KVM SERVER/COMPUTERS – PORT AND IP SETTINGS................................................................... 56
4.12 KVM SERVER/POWER CONTROL – ENABLE THE POWER CONTROL .............................................. 58
4.13 KVM SERVER/LOCAL CONSOLE –USER AUTHENTICATION AND MOUSE ACCELERATION ........... 60

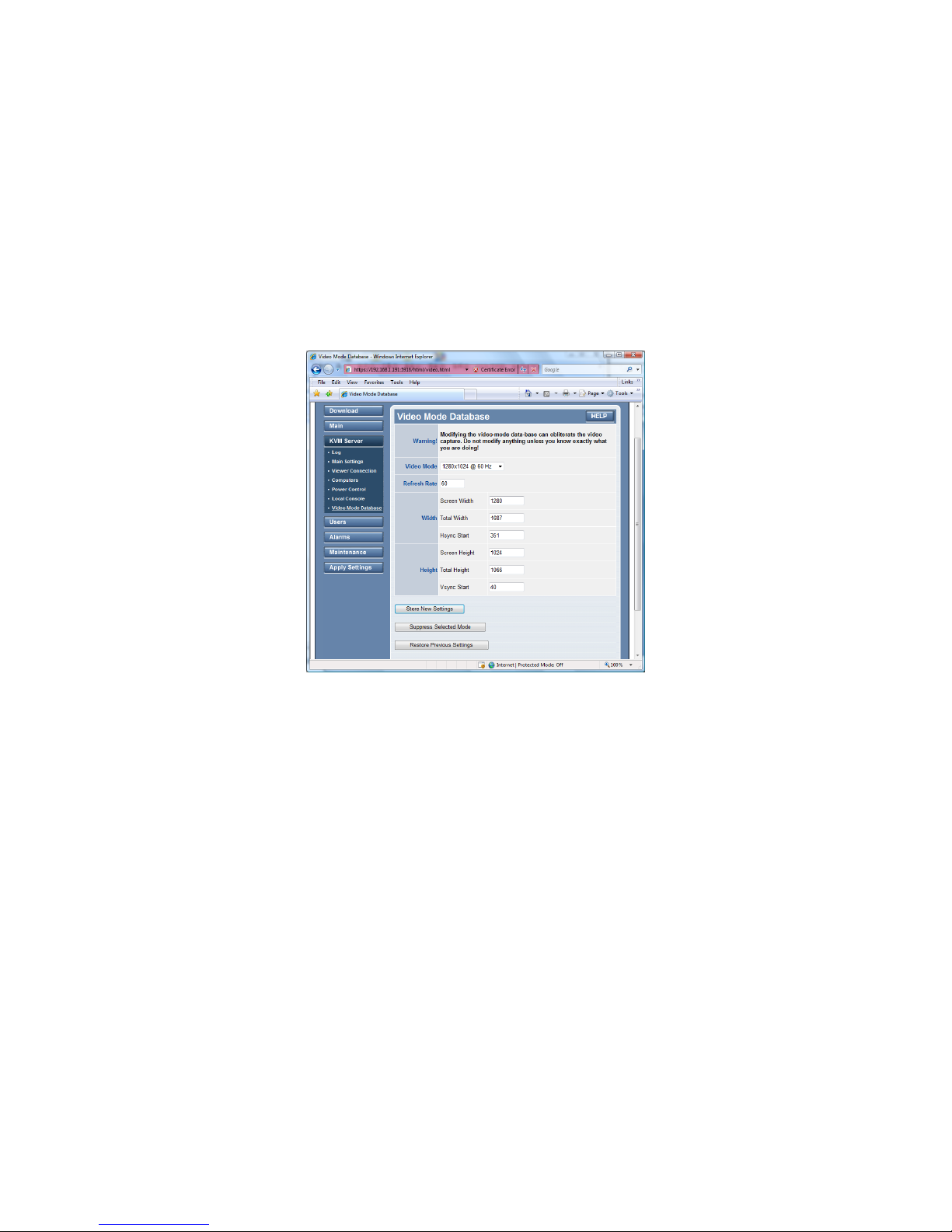

4.14 KVM SERVER/VIDEO MODE DATABASE – MODIFYING THE VIDEO DISPLAY DATABASE............ 61
4.15 USERS/LOCAL DATABASE - MANAGING THE USER ACCOUNTS ................................................... 63
4.16 USERS/USER GROUPS – TUNING IN WITH THE REMOTE AUTHENTICATION SERVERS ................... 65
4.17 USERS/REMOTE SERVERS – TUNING IN WITH THE REMOTE AUTHENTICATION SERVERS............. 67
4.17.1 Directory Server Using LDAP............................................................................................... 67
4.17.2 RADIUS Server...................................................................................................................... 68

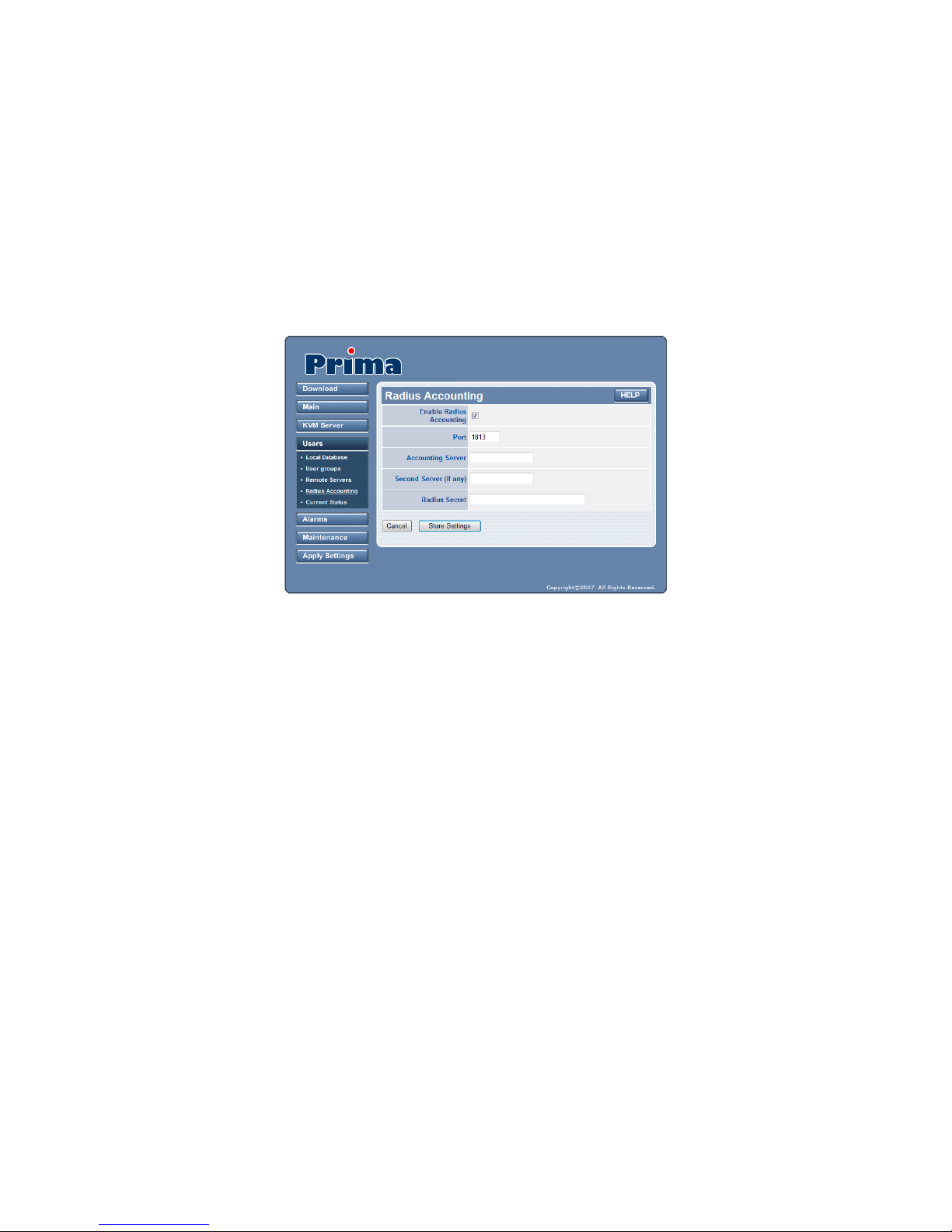

4.18 USERS/RADIUS ACCOUNTING –SETTINGS FOR RADIUS ACCOUNTING .......................................... 69

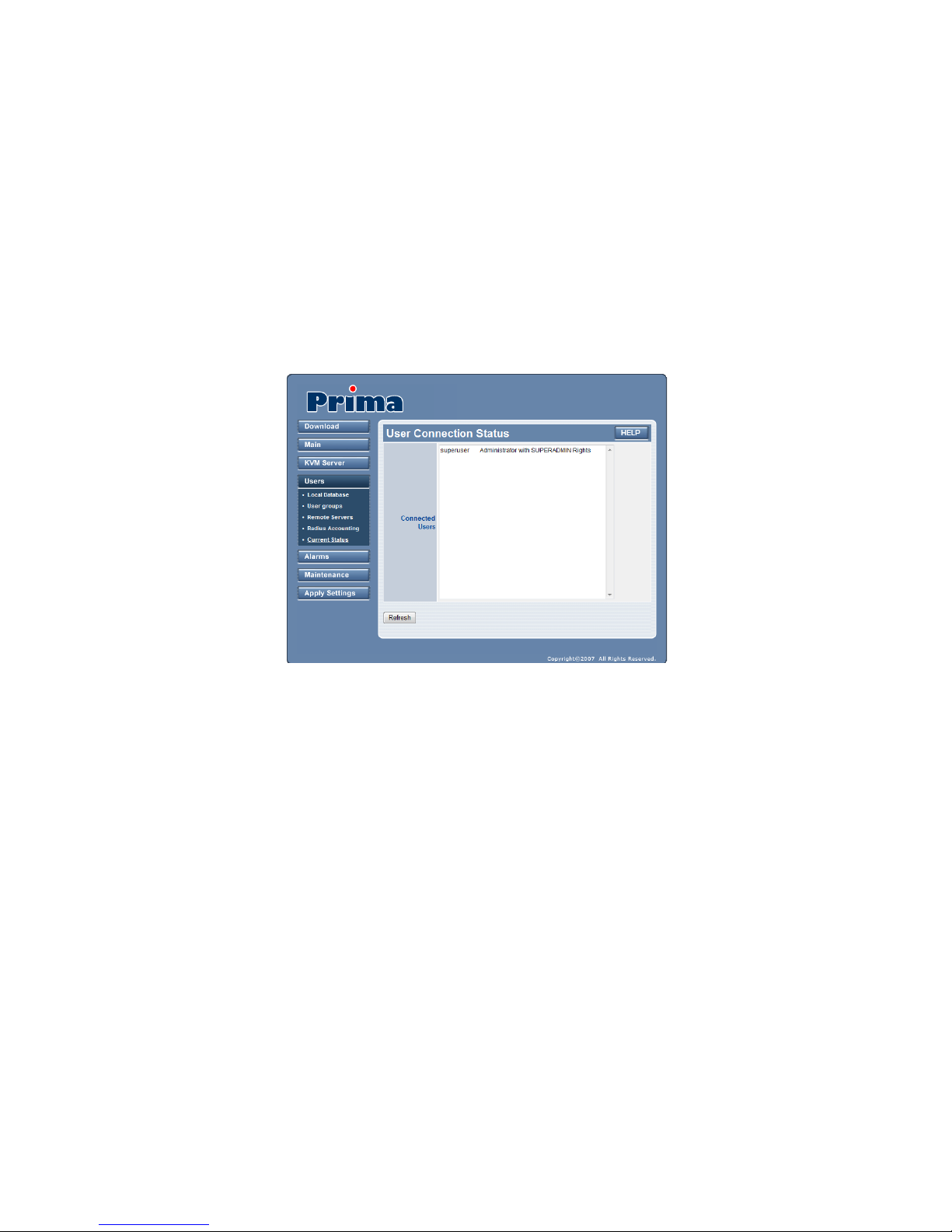

4.19 USERS/CURRENT STATUS – SHOWING THE CURRENTLY CONNECTED USERS............................... 70
4.20 ALARMS/EMAILS – SENDING EMAIL NOTIFICATIONS FOR CRITICAL SERVER EVENTS................. 71
4.21 ALARMS/SNMP – SENDING SNMP MESSAGES FOR CRITICAL SERVER EVENTS .......................... 72
4.22 ALARMS/SELECTIONS – SELECT THE ALARM-TRIGGERING EVENTS ............................................. 73
4.23 MAINTENANCE/SOFTWARE VERSION – SOFTWARE VERSION INFORMATION................................ 75
4.24 MAINTENANCE/SOFTWARE UPGRADE –UPGRADING THE SOFTWARE VIA WEB ........................... 76
4.25 MAINTENANCE/FIRMWARE UPGRADE – UPGRADING THE FIRMWARE VIA WEB........................... 77
4.26 MAINTENANCE/CONFIGURATION SAVE AND RESTORE ................................................................. 78
4.27 MAINTENANCE/REBOOT – CONFIGURATION BACKUP AND UPLOAD ............................................. 79
4.28 APPLY SETTINGS/RESTART SERVERS – VALIDATE NEW SETTINGS & RESTART VIDEO SERVERS 80
Prima IP User Manual Rev 1.5 2007
- -
iii
CHAPTER 5. LOCAL CONSOLE OPERATION............................................................................... 81
5.1 FRONT-PANEL BUTTONS ................................................................................................................ 81
5.2 KEYBOARD HOTKEYS .................................................................................................................... 81
5.3 ON SCREEN DISPLAY...................................................................................................................... 82
5.3.1 OSD Main Menu ........................................................................................................................ 82
5.3.2 OSD Setup Menu........................................................................................................................ 83
5.4 LOCAL CONSOLE OPERATIONS ...................................................................................................... 84
5.4.1 Select PC.................................................................................................................................... 84
5.4.2 Next Lower Channel .................................................................................................................. 85
5.4.3 Next Higher Channel ................................................................................................................. 85
5.4.4 Next Lower Bank (when daisy-chained) ................................................................................... 85
5.4.5 Next Higher Bank (when daisy-chained) ................................................................................... 85
5.4.6 Beep Sound On/Off .................................................................................................................... 86
5.4.7 Show OSD Menu........................................................................................................................ 86
5.4.8 OSD Title Bar ON/OFF............................................................................................................. 86
5.4.9 OSD Title Bar Position.............................................................................................................. 86
5.4.10 Auto Logout ........................................................................................................................... 86
Prima IP User Manual Rev 1.5 2007
- -
1
Chapter 1.
Advantages and Features
1.1 Advantages
The Prima IP 8 / Prima IP 16 is a 16-port IP-based KVM Switch with single-port KVM Link Extender over
IP. In addition to the traditional local console, it provides a remote access over the LAN/Internet IP network.
It is functionally versatile, robust and ultra-secure. It supports full 1024-bit PKI authentication, 256-bit SSL
data encryption, LDAP, RADIUS as well Active Directory authentication and RADIUS accounting.

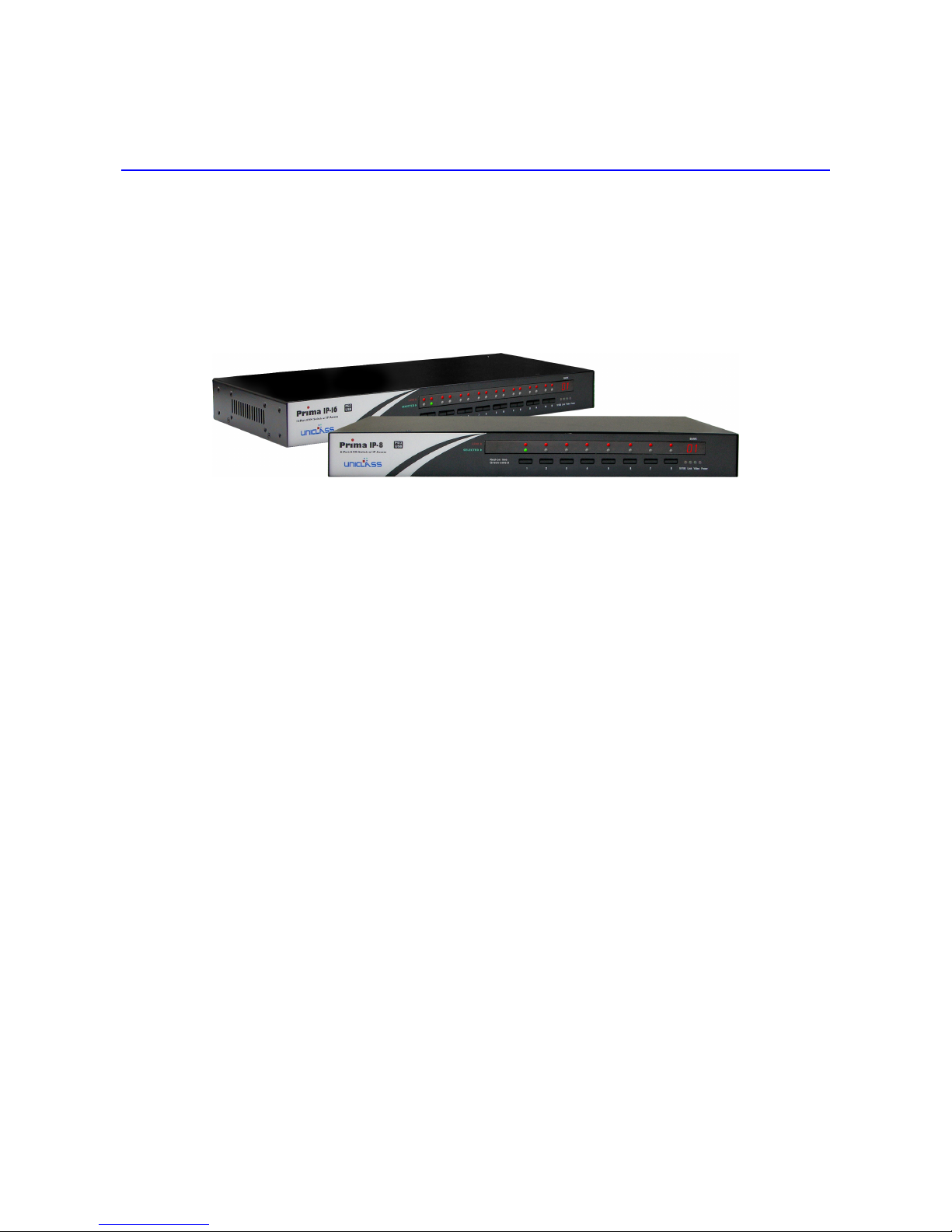

Figure 1: Prima IP KVM Switches
Today, the IP-based KVM Switch with multi-port capacity has been regarded as a reliable solution to address
the critical issue of server rack management with administrator’s ready access anytime anywhere. Prima IP 8
and Prima IP 16 are designed with a view to offer a cost-effective yet full-featured functionality under these
scenarios.
Total server control from BIOS level up anytime anywhere
The Prima IP 8 / Prima IP 16 gives users total control over its total 16 server ports, from boot stage such as
the BIOS-level CMOS setting up to the GUI applications and daily maintenance routines such as power
cycling (power control unit required). All these could be nicely done either on local console or using a thinclient software viewer on any computer. All you need for accessing your computer remotely is to login,
download the viewer, and get yourself connected to a whole bunch of servers in seconds.
Total Control Anytime Anywhere
With Prima IP 8 / Prima IP 16, the server administrator can access enterprise server room or data center on
his own seat without toils and troubles of going anywhere from across the street to oversea. Organizations
can enjoy a centralized and cost-effective control over its dispersed servers in different branch offices around
the world, saving money for outsourcing costs.
Rack mount Cascadable with OSD Menu Control
In addition to keyboard hotkeys and front-panel buttons, Prima IP 8 / Prima IP 16 also provides OSD menu
for intuitive KVM switching operations. Its cascadable feature can upscale the server number to 128 by
cascading with other PRIMA-4, PRIMA-8 or PRIMA-16 KVM Switch. Both USB and PS/2 interface
support on PC side offers maximum convenience in a computing environment that accommodates both
newer USB-enabled computers and older computers with only PS/2 interfaces.
- 2 -
Versatile backup connection featuring a PPP Server or PPP Client
To provide a redundancy of a backup connection system while network might no longer function in critical
situation, Prima IP also allows an easy and convenient PPP connection over the dial-in modem phone line. It
could serve as a PPP server to accept a peer computer to make PPP connection request over a dial-in modem
phone line. On the other hand, Prima IP could also serve as a PPP client to dial-in to your ISP or enterprise
PPP server to connect to internet. Thus, the PPP server/client feature allows users a second backup system,
which offers a direct cable/modem dial-in access to your connected servers via PSTN while your network is
down.
Critical advantage over other remote server management solution
The advantages of using Prima IP KVM Switch, as compared to the conventional software remote control
solution is that: The hardware-based remote control solution such as Prima IP is capable of accessing the
connected servers regardless of the server states while software remote control solution cannot be functional
while the server is still in the POST or boot stage or in a “blue screen of death”. The Prima IP offers a server
management capacity of up to 128 connected servers by cascading with Prima KVM switches. There is no
need to install any software utility on the server side. Prima IP also offers power on/off alternatives if used
with a remote power control unit.
KVM Switch Management
Prima IP 8 / Prima IP 16 not only provide remote user access, but also play the role of KVM management. It
manages the software version of all KVM switches connected in the daisy-chain, and upgrades automatically
any KVM switches whose software is not the latest. It displays the KVM error and information messages
into its server log. It permits to setup remotely the name of computers that are displayed in the OSD, the
local user name and password.
Stability and ultra-security with flexibility and convenience
The Prima IP distinguishes itself among its peer products not only in its stability and durable performance,
but also in its industry-standard security features such as full 1024-bit PKI Authentication and 256-bit SSL
data encryption. Together with 3 levels of viewer connection security levels in combination with 3 types of
password policies plus three categories of user privileges, all these make Prima IP a ultra-powerful IP KVM
Switch with ultra-flexibility for a customized balance between data safety and user convenience. On the
other hand, the robustness and the ease of maintenance of the embedded systems involve zero costs for the
unit management and maintenance.
Global Time Zone and Time Servers Support
To make Prima IP really comfortable with all the global time zones it will be deployed in, it is vital to
provide a convenient Global Time Zone support for a correct time stamp to all logging events, alert e-mail
notifications. This will not leave server administrators in troubles with calculating time differences.
Additionally, the Prima IP also supports NTP time server and keep its time always sync with the timer server
you specify. The Prima IP is even sophisticated enough to take care of the daylight saving time in each and
every Time Zone/Region, thus saving troubles for updating time frame with daylight saving specifics every
six months.
Upgrade and Configuration Backup is just a breeze
Prima IP is fully Web-enabled to allow software upgrade and configuration upload/backup over the Web
Management Interface. All you need to do is to upload the files to Prima IP over Web interface and it is
freshly restarted and begins working with those latest update functionalities and features. Web update can be
easily performed across internet-by a remote SUPERADMIN!
Advantages Galore
With Prima IP, the server administrator can access enterprise server room or data center on his own seat
without toils and troubles of going anywhere from across the street to oversea. Organizations can enjoy a
uniquely centralized and cost-effective control over its dispersed servers in different branch offices around
the world, saving money for outsourcing costs.
Prima IP User Manual Rev 1.5 2007
- -
3
1.2 Primary features
1.2.1 General features
• 8/16-port IP-based Cascadable 19” Rack mount USB PS/2 KVM Switch with OSD
• Provides 1 digital port for remote control over IP
• Port capacity scalable up to a maximum of 128 computers with cascaded configuration of other Prima
KVM Switches (Prima 4/Prima 8/Prima 16)
• PS/2 local [analog] console for local rack server management
• USB and PS/2 Dual Interface Support on PC side
• Operation and channel selection by front-panel buttons, keyboard hotkeys, OSD menu and Viewer
interface
• Dual numerical LED displays and LED port indicators for easy bank/port status monitoring
• Autoscan mode for quick browsing of all connected computers
• Serial port for external modem/remote power control device
• Multiple users can login in a same remote server desktop
• Total control over the remote server from BIOS level up to GUI applications
• Remote Power On/Off support
• Ultra-security using full 1024-bit PKI Authentication / 256-bit SSL encryption
• Work with LDAP / RADIUS / Active Directory Servers
• Ethernet 10/100 and serial PPP server and client connections
1.2.2 TCP/IP remote connection
• SSL-encrypted Web Management Interface for all settings and upgrade/backup features
• Support Telnet session and FTP service (disabled by default for more security)
1.2.3 Thin-client Viewer Program
• Win-32 viewer and Java viewer for cross-platform compatibility
• Connection options configurable for optimized performance
• Shared, Non-Shared and View Only sessions
• Easy download and installation
• Multiple viewer instances can be run on a same client computer
• Options for Automatic video centering and optimization
1.2.4 Hi-Speed PPP Connection
• PPP Connection support over serial interface [RJ12] up to 1 Mbps
• PPP server enabling for PPP connection across a pair of modems for secure or backup direct access
• PPP client enabling for PPP connection to the internet with a modem
1.2.5 Video server
• Support up to 1600 x 1200 @ 60 Hz resolution
•
8/16-bit color
• 3 Video Quality settings
• 4 Video Compression schemes
• 8-bit color reduction
• Configurable database to set up new or unknown VGA modes
• Virtually compatible to any KVM Switch through automatic video quality optimization
1.2.6 Power ON-OFF Control Support
• Remote power ON-OFF control over serial interface
• Serial commands configurable to fit serial power control devices
• Power ON-OFF privilege only for the SUPERADMIN users
- 4 -
1.2.7 Security
• 1024-bit Public key Authentication using certificates generated by an external CA
• 256-bit SSL Encryption for keyboard, mouse and video signal transmissions
• Remote authentication support for LDAP or RADIUS servers
• RADIUS accounting support
• 3 SSL security levels :
• No authentication – No encryption
• Server Authentication – SSL encryption
• Server & Client authentication – SSL encryption
• 3 password policies :
• No Password
• One global password for all users
• One different password for each user
1.2.8 Alarms and Notifications
Alert e-mail notification and SNMP trap messages for critical server events such as No Video, Blue Screen
and NumLock Test Failure
1.2.9 User Management
• User login either by querying the local user database or by connection to remote LDAP or RADIUS
server
• 3 user privileges :
• SUPERADMIN – to access complete set of management features and user features, including Power
ON-OFF remote servers
• ADMIN – partial set of management and all user features
• USER – only user features
• User Group management
• Create specific user groups, each of which is assigned with privilege to access only those computers that
are within that group
1.2.10 Global Time Zone Support
• Time support for all continents and major cities
• Time synchronization by connection to any NTP time servers
• Automatic Daylight Saving management
1.2.11 Maintenance and KVM management
• Manages the software version of all KVM switches connected in the daisy-chain
• Upgrades automatically any KVM switch whose software is not the latest
• Record the error and information messages of all KVM switches in the daisy-chain within its server log
• Setup remotely the name of computers that are displayed in the OSD, the local user name and password
Prima IP User Manual Rev 1.5 2007
- -
5
1.3 System Architecture
Prima IP is based on an embedded Linux platform for computing power and rugged stability. The Prima IP
employs a High speed Processor to ensure excellent video quality and fast keyboard / mouse response across
the Internet, even when bandwidth availability is limited.
1.3.1 LAN/WAN Configurations
The Prima IP KVM switch enables local and remote access of the connected computers/servers behind
anytime anywhere.
Figure 2: Prima IP KVM Switch - Basic Configuration
The Prima IP KVM switch can be daisy-chained with multiple Prima KVM switches (up to 8 units) to
upscale port capacity up to hundred computers/servers.
Figure 3: Prima IP KVM switch daisy-chained with other Prima KVM Switches
- 6 -
1.3.2 Power Control Configuration
The Prima IP KVM switch supports Serial Power Control device to facilitate the remote Power ON/OFF and
power cycling of the connected computers/servers.
Figure 4: Prima IP connected to a Remote Power Control Device
1.3.3 PPP connections
The Prima IP KVM switch can serve as either a PPP client or a PPP server to support PPP connection. The
Prima IP offers a second backup connection over modem phone line in case the network is down.
Figure 5: Prima IP as PPP server to accept dial-in request from a remote PPP client via modem line
Figure 6: Prima IP as PPP client to dial-out to ISP for remote clients to access via internet
Prima IP User Manual Rev 1.5 2007
- -
7
1.4 Prima IP External Views
1.4.1 Prima IP Front View
1.4.2 Prima IP 8 - Front-panel
1.4.3 Prima IP 16 - Front-panel
The Dual Numerical LED shows bank number of the Prima IP KVM Switch within a Daisy-chain
The 10/100Mbps LED is lit as solid orange when the current digital link is running on 100Mbps speed.
The Link/Act LED gives off solid green light when a network link is established and flashes whenever
network transmission are perceived on the digital port.
The Power LED indicates the Power On status when it is lit as solid red.
The Video LED indicates the normal functioning of video server when it is blinking orange.
1.4.4 Prima IP Rear View
Figure 7: Prima IP 8 - Rear-panel
- 8 -
Figure 8: Prima IP 16 - Rear-panel
8 x 16 PC ports: The PC port is where you connect to your computer. The PC port is a HDB 15 connector
integrated with USB and PS/2 keyboard, mouse and video. To connect PC port to one of your computer, you
may use either USB KVM Combo Cable, or PS/2 KVM Combo Cable, or Combo-free USB PS/2 KVM
Cable, depending on your package option.
Local Console - PS/2 Keyboard port: This is where you connect the PS/2 keyboard for local console.
Local Console - PS/2 Mouse port: This is where you connect the PS/2 mouse for local console.
Local Console - Monitor port (HDB-15): This is where you should plug in the Monitor for your local
console on Prima IP.
Ethernet Port (RJ-45): The Ethernet port, or digital port, offers anytime anywhere access of Prima IP and
subsequently the conventional KVM Switch(es) and servers/computers connected behind it to the remote
login clients lover LAN/Internet.
The Daisy chain OUT Port (RJ-45): The Daisy chain OUT port is of a HDB 15 female connector, where
you can daisy-chain downstream to a Prima KVM switch.
Serial Port 1 (RJ-12): This is the so-called Console Management port, and it is where you connect the serial
console cable for advanced console management of Prima IP unit via a serial terminal emulation utility such
as Windows HyperTerminal or Minicom on Linux/Unix.
Serial Port 2 (RJ-12): The serial control port allows you to connect to either an external modem or a power
control unit or to a cascaded chain of power control units. When added with an external modem to its serial
control port, Prima IP could serve either as a PPP server to allow direct cable connection or dial-in
connection from its peer computers, or as a PPP client to dial-in to the ISP or an enterprise PPP server.
Furthermore, through serial commands sent over its serial control port, Prima IP can perform remote power
on/off and power cycling task via the (cascaded) power control module(s).
Prima IP Power Receptacle: You must use the DC9V 4A adapter provided within the package. The center
pin is of a positive polarity. Use of any other adapter will nullify the warranty.
Restore-to-Default Button: The Restore-to-Default button is a tiny recessed button located to the left of the
Power Receptacle, and can only be accessed by prying down with a pointed needle tip. To depress the
recessed button for over 5 seconds, and upon release, it will restore Prima IP to factory default – the default
IP settings and user account settings that come with factory default.
Prima IP User Manual Rev 1.5 2007
- -
9
Chapter 2.
Installing Prima IP
2.1 Checklist before Installation
Before installing the KVM switch, you should run through the following peripheral checklist to ensure a
proper setup of your KVM Switch….
1. Suitable KVM cables to connect the Prima IP KVM Switch to the keyboard, video and mouse ports of
each of your PC. For each USB style (or PS/2 style) computer connected, you should have the USB (or
PS/2) KVM combo cable (all male), or the Combo-free USB PS/2 KVM cable. The Combo-free USB
PS/2 KVM cable is highly recommended for your convenience.
2. A monitor with a standard D-sub 15-pin video connector (HDB-15) that you have verified to be working
when connected directly to each of your PCs.
3. A standard PS/2 style Microsoft or Logitech keyboard.
4. A standard PS/2 style Microsoft or Logitech compatible 5-key mouse
5. Daisy-chain cable(s), necessary only if you need to connect to other Prima KVM Switch (Prima 4/8/16).
6. Terminator, necessary only if you need to daisy-chain multiple Prima KVM Switches.
Figure 9: The 3-1 USB Combo KVM cable
Figure 10: The 3-1 PS/2 combo KVM cable
- 10 -
Figure 11: The Combo-free USB PS/2 KVM cable
Figure 12: The Daisy-chain Cable [M-HDB15-to-HDB15-F]
Figure 13: The [Daisy-chain] Terminator
Prima IP User Manual Rev 1.5 2007
- -
11
2.2 Setting up the Physical Connections
Step 1. Power on the Prima IP.
Step 2. If a local console is required, connect a keyboard, mouse and monitor to the Prima IP local console
ports
Step 3. If you have no intention to daisy-chain your Prima IP KVM switch with either of the Prima KVM
switches (Prima 4/Prima 8/Prima 16), connect your computers to the PC ports using the USB KVM cable, or
PS/2 KVM cable, or the Combo-free USB PS/2 KVM cable that come with Prima IP packing box.
If you are using any PS/2 computer: Please make sure all of your PS/2 computers are powered off
before connecting to the KVM Switch. Otherwise, the non-PnP PS/2 interfaces might not recognize
the PS/2 keyboard and mouse later. USB computers do not have this limitation.
Figure 14: Prima IP configuration – Single server mode
Step 4. Make sure (at least the PS/2) computers that are to be connected to the KVM switch are powered off.
If not, power them off before you proceed with the following steps. If you use only one single Prima IP
KVM switch in non-cascaded application, ignore steps 5 and jump directly to step 6.
Step 5. Use the daisy-chain cable (M-HDB15-HDB15-F) to connect the Daisy Chain Port (HDB 15 female)
of the [master] Prima IP to the Daisy Chain IN Port (HDB 15 male) of the second Prima KVM switch. Then
power it on.
If you have other switches to be daisy-chained, repeat Step 5 to connect them. You can daisy-chain up to 8
units.
You must plug a Terminator onto the Daisy-chain Out Port of the last Prima KVM switch unit.
- 12 -
Figure 15: Combo-free USB PS/2 KVM Cable
The special Combo-free KVM cable provides a PS/2 keyboard connector, a USB connector and a
HDB video connector for the computer connection. When connecting with a USB computer, plug
the USB connector to it and leave the PS/2 connector free. When connecting with a PS/2 computer,
add one USB-to-PS/2 adapter to the USB connector and you’ll have a PS/2 connector for mouse.
DO NOT try to connect both USB connector and PS/2 keyboard connector to a computer at
the same time.
Step 6. Boot up connected computers. After the computers has booted, go forth to verify the connections
with each of the connected computers. On the Prima local console you should switch to every computer and
verify that the keyboard, mouse and monitor are all working on each of the connected server(s).
Prima IP User Manual Rev 1.5 2007
- -
13
2.3 Configuring your Servers for Connections to
Prima IP
Now that you have set up your local console on Prima IP, you can now configure your connected servers just
by using the access provided by Prima IP’s local console.
Mouse acceleration is NOT supported by Prima IP. Therefore, you must turn off the mouse acceleration on
all your connected servers.
2.3.1 Turn off mouse acceleration and “Snap to” option
Windows XP Platform
Access Control Panel->Mouse. On the Mouse Properties tab, select the Pointer Options page
Adjust the pointer speed slide bar to the exact middle.
Uncheck the Enhance pointer precision option.
Uncheck Automatically move pointer to the default button in a dialog box
Click OK.
Windows 2000 Platform
Access Control Panel->Mouse. On the Mouse Properties tab, select the Pointer Options page :
Adjust the pointer speed slide bar to the exact middle
Select the Acceleration as None
Uncheck Move pointer to the default button in dialog box
Click OK.
- 14 -
Windows 98
Access Control Panel->Mouse. Click the Mouse Properties tab and select the Motion page. In the Pointer
speed box, adjust the pointer speed slide bar to the slowest (leftmost) position and click OK.
The mouse setting page on different Windows platforms might be quite different, some gives
mouse acceleration option and some do not. If you see any mouse acceleration option, please
uncheck it. If there is no mouse acceleration available on the setting page, you can adjust the mouse
speed slide bar to either x1 or the slowest position (such as on Linux platforms). Sometimes, it
requires a middle position on the speed slide bar to make mouse synchronization on the viewer side,
for example, Windows XP requires a middle position on mouse speed. Anyway, the worst case is
that you have to make some trial and error to make your mouse acceleration off and the speed as x 1
(could be at the slowest position or the middle position).
Prima IP User Manual Rev 1.5 2007
- -
15
2.4 More Tips for Server Desktop Configuration
Several aspects have to be taken into consideration and maybe configured on your computers or servers for
best performance:
(1) Resolution modes should refrain from too much peculiarity and better adopt ones that are within PRIMA
IP’s standard support.
(2) Turn off the Menu special transition effects on your operating system (especially on Windows XP, if
you are using any) such as fade for best video refreshing effect, especially when you are using Medium
or Low Video Quality as your video filter setting on PRIMA IP.
(3) Adjust the server desktop backgrounds as containing preferably plain, solid colors with simple designs
(only for improving video refreshing speed when bandwidth is critically limited. No need to do so when
bandwidth is ample)
2.4.1 Configure Display Resolution on your Server
Prima IP supports most display modes up to 1600 x 1200. However, you might encounter some display
problems when your display card is outputting an unusual display mode. These possible problems are either
no video or abnormal display on viewer screen.
To simplify the display factor before connection to Prima IP, we suggest you use more standard display
modes such as: 800 x 600 @ 60Hz, 1024 x 768 @ 60Hz, etc. For the suggested display modes, please refer
to the following table.
640 x
400
640 x
480
800 x
600
1024 x
768
1152 x
864
1280 x
1024
1600 x
1200
56Hz
60Hz
D D D D
D
D
61Hz
64Hz
70Hz
D
D D
D
D
72Hz
D D
74Hz
75Hz
D D D
76Hz
D
78Hz
D
84Hz
85Hz
D D D D
100Hz
D D D
Note: These are suggested display modes for server desktop-connected Prima IP. However, the actual
display modes for as specific server desktop will be dependent on its display card. Some display modes listed
here might not be feasible with some display card. Try to do some trials to determine the best display mode
for your desktop on Prima IP viewer.
2.4.2 Turn off the Special Transition Effects
On Windows platforms such as XP, 2003 Server, Vista, some transition effects might yield undesirable video
refreshing artifacts, especially when you are using Medium or Low Video Quality as your video filter
settings. To avoid undesirable artifacts from appearing on your screen, please turn off the special transition
effects. Go to Control Panel/ Display / Appearance / Effects. Then uncheck the option to disable transition
effects such as Fade for the menus and tool tips. You should perform the same check on each of your
connected servers.
- 16 -
2.4.3 Choose Plain and Solid Server Desktop Backgrounds for your Connected Servers
To optimize the bandwidth efficiency and speed up video performance across bandwidth-limited
environment, one should preferably adopt a server desktop which should be as plain as a color background
with a solid and light-colored graphics. Complex patterns or color gradients should be avoided, if bandwidth
is critical in your application, since they will create more bandwidth demands for their transmission across
internet.
Prima IP User Manual Rev 1.5 2007
- -
17
2.5 Prima IP Network Settings
2.5.1 IP Settings
The factory network settings for PRIMA IP are as follows:
IP address: 192.168.1.200
Net mask: 255.255.255.0
Gateway: 192.168.1.254
DNS: 192.168.1.254
Step 1. Connect your Prima IP to the Ethernet LAN.
Step 2. Access the Prima IP web management interface by typing the following in the address bar of your
browser window on a remote client:
https://192.168.1.200:5908
Step 3. Then a login prompt will ask you for the account name the password. Use the default account and
password:
User Name: superuser
Password: superu
After logging in, you will see the Prima IP Web Browser Management Interface.
Step 4. Go to the LAN TCP/IP page on the Prima IP Management Interface and modify your IP settings.
Refer to Section
4.6, Main/TCP/IP Settings – Port and IP Settings.
Step 5. Apply the new setting by clicking Apply Settings.
To verify the Prima IP network connection, try to open the web management Interface using the new IP
address. Note that the IP address should be followed immediately by a colon and the port base +8 for port
number,
https://<IP_address>:<PortBase+8>.
For example, if the IP address is 192.168.1.7 and the port base number is 5900, then you should enter
https://192.168.1.7:5908
Remember that it’s a secure SSL encrypted connection, so you should type “https” instead of the
usual “http”. Otherwise, the connection will not be established.
- 18 -
2.5.2 Port Base
If you are satisfied with the default port base setting as 5900, you can leave the port base unmodified.
The default port base for Prima IP connection is set at 5900. This means it will use port 5900 (port base) for
viewer connection and port 5908 (port base + 8) for https web browser connection.
<Port base> – used for viewer connection
<Port base + 8> – used for secure browser connection
However, if you intend to use your own port base setting, access the Web Management interface and
configure the port base.
For example, if you choose 5970 as your port base, then you have:
5970 – used for viewer connection
5978 – used for secure browser connection
Click Submit and Apply Settings to validate your new setting.
Now you have installed Prima IP within your Local Area Network environment, and can try to establish a
remote viewer connection…
Prima IP User Manual Rev 1.5 2007
- -
19
2.6 Configuring your firewall/router for accessing
Prima IP across internet
To allow access to the Prima IP behind a corporate firewall/router, please set up the firewall/router (not your
Prima IP) as following:
Step 1. Configure a virtual server on your router: you should configure (or ask your net admin to configure
for you!) a virtual server as mapped to the Prima IP local IP address.
Step 2. Open a port range: (<port_base> ~ <port_base_+_9>) both inbound and outbound for the virtual
server: you should open a port range according to what you have configured as port base for Prima IP
previously.
Taking previous example, if we configure Prima IP as having a port base of 5970, then we should open port
range 5970~5979 ( that is, <port_base> ~ <port_base +9>) both for inbound and outbound, in which,
<port_base> = 5970 is the Prima IP viewer connection port
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
<port_base + 8> = 5978 is the browser SSL connection port
<port_base + 9> = 5979 is for viewer internal communication, etc.
For example:
Router internet IP ÅÆ virtual server (port range open) ÅÆ Prima IP local IP
61.232.134.120 ÅÆ virtual server (port 5970~5979 open) ÅÆ 192.168.1.7
Once you haved configure a virtual server with appropriate port range open (<port_base> ~
<port_base_+_9>), you can then try to access your Prima IP across internet by using in the public IP address
and designated port number. For example, in this case, we have:
Browser access: https:// 61.232.134.120:5978
Viewer access: 61.232.134.120:5970
If you have domain name mapping to the public IP address, you can also use the domain name, for example:
Browser access: https:// www.mycompany.com:5978
Viewer access: www.mycompany.com:5970
Once you have changed the port base of your Prima IP, you should also modify the open port range
on your router accordingly, if you want the Internet access to come across.
- 20 -
2.7 Security Settings
There are altogether nine (3 x 3) possible combinations of Viewer Security Levels + Password Policies that
are available for a flexible adaptation to your security needs. The administrator can choose an optimized
combination of user password policy and SSL/PKI Authentication according to his security and convenience
concerns.
User Password Policy
No password
Global
Password
User-specific
Password
No SSL-No PKI N – N – N G – N – N U – N - N
SSL – No PKI N – S – N G – S – N U – S - N
SSL / PKI
Authentication
SSL - PKI N – S – P G – S – P U – S - P
G – Global Password U – User-specific Password
S – 256-bit SSL Encryption
P – 1024-bit PKI Authentication
N – Not available
Open the Security page of the PRIMA IP web management interface.
2.7.1 Select a User Password Policy
PRIMA IP offers three types of password policies.
1. No Password
2. Global Password
3. User Password
No Password: the viewer does not prompt you for any password. Anyone who has a viewer and passes the
security level check of the viewer can establish the connection.
Global Password: the viewer prompts you for a global password, which is used by all who want to make
viewer connections to PRIMA IP.
User Password: the viewer prompts you with user-specific password. With this setting, each login user is
checked against his or her corresponding password before allowing viewer connection.
Click Store Settings to validate your selection. Go to the Apply Setting page and click the Restart Server
button to apply your settings.
2.7.2 Select a Security Level for Viewer Connection
There are three security levels for choice:
• Level 1: No encryption (No SSL)
• Level 2: 256-bit encryption, no user certificate required for user authentication
• Level 3: 256-bit encryption, user certificate required for authentication (PKI)
Security level 1: provides no security and must be reserved for internal LAN connections.
Security level 2: provides usual secure SSL connection with encryption for mouse, keyboard, and video, but
uses no PKI-authentication. The viewer identifies that PRIMA IP is a PRIMA IP device and everything is
encrypted with an ephemeral 256-bit key. The user authentication is based on a user name and password. It is
the recommended default security level. It is flexible because you can connect to PRIMA IP from any
computer, provided you know your user name and password.
Prima IP User Manual Rev 1.5 2007
- -
21
Security level 3: offers a secure SSL connection with encryption for mouse, keyboard, and video, and uses
1024-bit PKI-authentication. It should be reserved for very high security applications. It is based on
certificates and 1024-bit RSA keys. The individual keys are protected by passphrases that come in addition
to user passwords. The viewer identifies the PRIMA IP certificate and PRIMA IP identifies each user
certificate. Special sets of PKI certificates and keys must be installed into PRIMA IP and into each computer
that wants to connect to PRIMA IP. Normally, each user is given a proprietary certificate and he is the only
one who knows the passphrase. This mode is highly secure but a little bit constraining for users. As a user,
you must install your certificate into the computer(s) you will use to access PRIMA IP. You must type you
passphrase each time you login. This passphrase cannot be filled out automatically by the viewer or the
browser.
The choice of a security level to be implemented for the PRIMA IP viewer connection is of most importance,
especially when your remote server connections require high security to keep your servers safe from
unauthorized entries and/or network sniffers.
If you choose to implement the PKI authentication feature, select Level 3 viewer security connection on the
Security page.
Into KVM Server Password, enter the password for the server private key serverkey.pem (serverpwd for
the set of certificates provided on the Support CDROM). Refer to next section for more information about
PRIMA IP certificates.
Click Store Settings to save your settings and go to the Apply Settings page to make them active.
2.7.3 Installing Certificates and Key on PRIMA IP for Security level 3
You do not need to install any certificate unless you plan to use the security level 3 (refer to previous section).
You can skip this section if you plan to use the security level 1 or 2.
You can use the default set of certificates (provided on the CD-ROM) for training. However, it is
not recommended to work with these certificates because anybody who has got a copy of them
might establish a connection to your servers. Therefore, we recommend you obtain your own
certificates from a public Certificate Authority or you generate a private set by using some CA
software such as XCA.
For certificate generation and certificate characteristics, please refer to "How to Generate PRIMA IP
Certificates using XCA" (can be found on the PRIMA IP support CD-ROM)
.
- 22 -
Certificate and key files to be installed on PRIMA IP:
(1) The root certificate: root.crt
(2) The server certificate: server.crt
(3) The server private key: serverkey.pem
Open the Security Settings page of the PRIMA IP Management Interface.
Step 2: Click the Browse button and use the Choose File dialog box to browse to your certificate files.
Step 3. Click Upload to upload the root certificate to PRIMA IP. After the uploading is completed, you can
see the prompt page for reboot.
Click Reboot and wait until PRIMA IP has booted up. Then try to import the server.crt and the
serverkey.pem files.
You do not have to reboot after each certificate. You can do one complete reboot at the end when
you finish uploading all of them. To return to the Security page instead of rebooting, click the
Security page hyperlink on the left frame.
Prima IP User Manual Rev 1.5 2007
- -
23
2.7.4 Remote Clients
Depending on your security settings, you have to distribute some files and/or pieces of information to the
remote clients:
1. Certificates: as you have obtained from your CA (Certification Authority). They are required only if you
select level 3 viewer security
• root.crt
• client_name.p12. (client_name is freely chosen)
2. Client Certificate Password: as you have obtained from your CA. It is required only if you select level 3
viewer security. (clientpwd if you use the default set of certificates provided on PRIMA IP CD-ROM)
3. User Name and Password: as you have specified in the User Management page. It is required only if you
choose User Password Policy. By default, there are three users into PRIMA IP user database:
Name Password Privileges
1
superuser superu Super administrator
2
admin 123456 Administrator
3
user 123456 Simple user
4. Global Password: as you have specified in the Security Page. It is required only if you use the Global
Password Policy.
Prima IP User Manual Rev 1.5 2007
- -
25
Chapter 3.
Viewer Connection
PRIMA IP provides a win32 viewer for Windows clients and a Java viewer for cross-platform on any major
operating systems.
3.1 Installing the Viewers on the Client Computer
3.1.1 Win32 Viewer
Go to the Download page to download the Win32 viewer, Kripview_install.exe. Install the viewer program
on the client computer that will connect to PRIMA IP. After installation, a desktop icon will be created on
your client desktop.
Figure 16: Download Page
3.1.2 Java Viewer
Before you can use the java viewer, you should first install the Java Runtime Environment, JRE 1.5.0 or
higher, which is downloadable from http://www.java.com.
To open the Java viewer, go to the Download page of the
web management and click Download.
If the .jar file association is correctly done on your computer,
choose to open it directly.
Otherwise save the KViewer.jar file to your local hard disk
and then type "java -jar KViewer.jar".
- 26 -
3.2 Installing Certificates on the Client Computer
Skip this section if you are not using the security level 3 (refer to section 2.7.2).
To make full PKI authenticated viewer connection with PRIMA IP, you need to import client certificates
in .p12 format to the client computer. You can use the default client certificates provided on CD ROM or
(recommended) your own set of certificates. Each viewer provides a utility for certificate importation.
Note: the win32 viewer and the java viewer require separate certificate importation to get the job done. If
you plan to use both viewers on the same machine, you will have to import the certificate twice, once with
each viewer certificate utility.
3.2.1 Win32 Import Certificate
Run the importation utility by accessing
Start/Programs/PROSUM /PRIMA IP Viewer/Import
Certificates. Click on Root Certificate to import the root
certificate, and then click on Client Certificate to import the
client certificate.
3.2.2 Java-based Import Certificate
Run the Java importation utility Impcert.jar by typing
java -jar Impert.jar
Click on Root Certificate to import the root certificate, and
then click on Client Certificate to import the client
certificate.
Prima IP User Manual Rev 1.5 2007
- -
27
3.3 Starting the Viewer Connection
3.3.1 Specifying the Viewer Connection Options
The viewer Connection Options interface provides several alternative options to optimize your viewer
connection.
Click the Options button on the Connection Details dialog box.
Encoding
Slow Internet: Video quality is optimized for viewer connection with slower Internet bandwidth
Fast Internet: Video quality is optimized for viewer connection with better Internet bandwidth
LAN: High video quality for viewer connection over LAN
No Compression: Best Video Quality with no compression, but poor performances
Local Cursor Shape
No cursor: Local cursor invisible on PRIMA IP Viewer
Dot: Dot shape for local cursor on PRIMA IP Viewer
Normal: Arrow shape for local cursor on PRIMA IP Viewer
Misc
Shared Session: Multiple users access same server desktop
View Only: Keyboard and mouse inputs are ignored (not restricting keyboard and mouse access
on other users).
Display
Restrict to 8-bit: Color reduction to 256 colors for slow connections
Scale x/y: Scale the display output on viewer (not affecting the actual transmission bandwidth)
Figure 18: Win32 Viewer Figure 17: Java Viewer
- 28 -
3.3.2 User Name and Password
First, run the viewer program, enter the access IP and port number for PRIMA IP.
Default IP address: 192.168.1.200
Figure 19: Login dialog box (Win32 Viewer)
At the password or private path phrase prompt, just enter the user name and password as required:
Default user & specific password:
User: superuser
Password: superu
If you are using the Global Password policy setting …
Default global password: 123456
If you are using the Level 3 security setting that requires installation of certificates for PKI authentication
(For details, please refer to Section Error! Reference source not found., Main/Security –Certificates
Installation, Viewer Encryption and Password Policies.)
Default private path phrase: clientpwd
After you have entered the global password, user name and password, or private path phrase as its security
and password policy require, a viewer connection will be established successfully.
Prima IP User Manual Rev 1.5 2007
- -
29
3.4 Some Tips about Viewer Connections
3.4.1 Typing the PRIMA IP IP Address
If you want to specify the type of connection rather than using the default one, click the Options
button and optimize your connection parameters. Please refer to previous section for details.
Note that you can simply type in the access IP address of PRIMA
IP server without specifying the port number when the port
number is 5900 (default value).
IP_address [only if port number is 5900]
192.168.1.200
Of course, you can always type
IP_address:port_number
192.168.1.200:5900
However, if the port setting on PRIMA IP is already changed to
another port number, you have to specify its specific port
number following the IP address. For example, if you want to connect to port 5910 on the PRIMA IP server,
type:
192.168.1.8:5910
To configure the port base number, please refer to Section,
4.6., Main/LAN TCP/IP – Port and IP
Settings.
3.4.2 Connection Performance Tuning
If you are using a dial-up modem line and experiencing slow keyboard mouse movement and response, you
might check whether you are using the default LAN encoding scheme or even the No Compression scheme,
which requires much more bandwidth; or there is a network bottleneck somewhere in between PRIMA IP
and your client desktop. For more details, please refer to Section
3.10, Video Display Problem
Troubleshooting.
3.4.3 Local and Remote Mouse Cursor Synchronization
Normally, you will see both the local cursor and the remote cursor on the view area. You can specify the
shape of the local cursor as seen within the viewer window as either a dot, an arrow or none (not showing
any local cursor within the viewer area). If these two cursors become out of sync, all you need to do is to hit
the mouse synchronization hotkey - by default (right) Ctrl / (right) Ctrl / Home - to synchronize the two
cursors.
While operating your mouse, it is not necessary to wait until the remote cursor has actually caught
up with the local one before you can click on the target in the view area. Actually, you can click the
target just using the local cursor without waiting for the remote cursor, because the click point is
recorded and the click will always take place at the right location. Therefore, if both cursors are
synchronized, the important one is the local cursor. You need not care about the remote cursor. That
Mouse
cursors
in Sync
Mouse cursors out of sync
Local/remote cursor
resynchronization default
hotkey: RCtrl-RCtrl-Home
- 30 -
is why we recommend you always choose the biggest local cursor in viewer settings.
3.5 Saving the Connection Options
After you have optimized your connection options, you might want to save them. Next time when you log in
with the viewer to the PRIMA IP server, the viewer on that specific client computer will use the saved
connection parameters as well as the password (but not the private path phrase, which is not saved since it is
used by secured/PKI-authenticated connection) for connection with PRIMA IP.
To save connection options, click the PRIMA IP icon on the Viewer title bar to open the viewer Quick Menu
and select Save the connection options.
Figure 20: PRIMA IP Viewer Quick Menu (Win32 viewer)
Prima IP User Manual Rev 1.5 2007
- -
31
3.6 Adjusting the Viewer Window Size
Viewer Window with scroll bars (Win32 viewer)
The size of the PRIMA IP viewer window can be adjusted by dragging the border of the viewer windows.

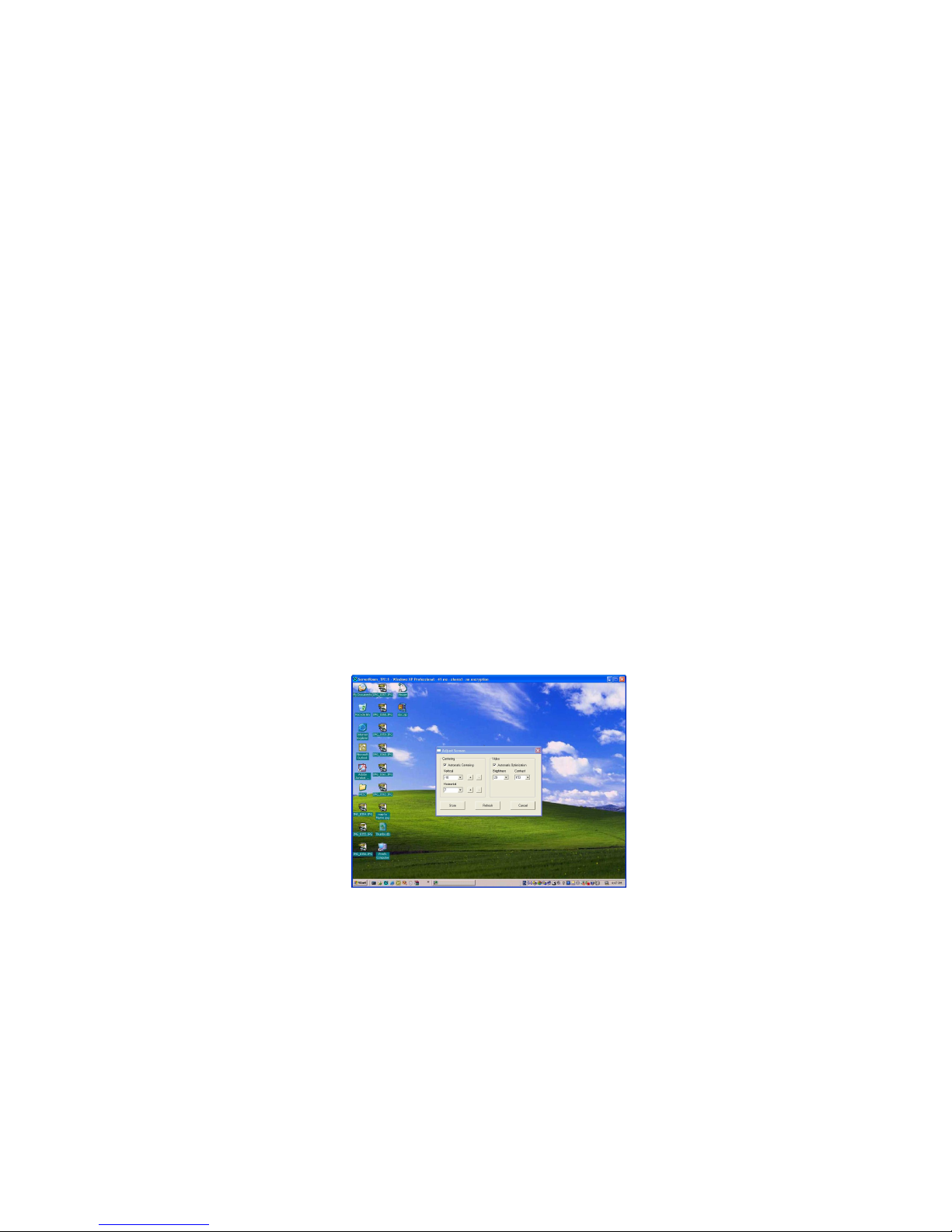

3.6.1 Changing the Viewer Size to Full Screen (Win32 Viewer only)
3. A message box appears to remind you
how to exit the full screen mode
To exit the full-screen mode, hit Ctrl-Esc to bring up the local task
bar. Right click the viewer taskbar icon to bring up Quick Menu,
and then uncheck full screen
1. Select the Full
Screen option on
the Quick Menu
2. Click OK, and the viewer goes
to full screen mode.
- 32 -
3.6.2 Scaling the Viewer Window
Click the PRIMA IP viewer icon on the title bar of the viewer window to evoke the Quick Menu. Select
Connection options on the Quick Menu
Scale the viewer window to ½ size
On the Connection Options dialog box, specify the preferred proportions of the viewer window, for example:
½, and then check the option. Click OK to scale the window to half size.
3.6.3 Centralizing the control of your remote servers
If you have multiple PRIMA IP units installed in a distributed manner among your global branch offices, you
can then simultaneously monitor different remote servers distributed over this IP KVM Link Extender
infrastructure on a single client desktop.
Five Win32 viewers on a Windows client desktop
(each showing one different remote server desktop)
Four Java Viewers on a Linux client desktop
(each showing one different remote server desktop)
Prima IP User Manual Rev 1.5 2007
- -
33
3.7 Viewer Title Bar Information
ServerRoom_TPE: This is the name you specified for your Video Server.
PC 1: This is the name you specified for this connected computer
49 ms: This is the capture time that is used for capturing the video image
4 ms: This is the transmit time that is used to transmit a video refresh
Shared: This is a shared session that allows other authorized users to login
Not shared: This indicates a non-shared session that blocks others from subsequent logins
No Encryption: This indicates no encryption for signal transmission (Level 1)
256-bit encryption: The current viewer session is using 256-bit SSL connection (Level 2 and 3)
PKI Authentication: The current viewer session is PKI-authenticated (Level 3)
Connection Information shown on the Title Bar
- 34 -
3.8 The Select Computer Box
3.8.1 Win32 Viewer
The Select Computer box allows the user to perform intuitive Click-and-Switch operation without
memorizing the varying port-switching hotkey commands of all kinds of KVM switches possibly installed
behind PRIMA IP. However, to use the click-and-switch feature provided by it, you must first configure the
KVM switching hotkey commands for that KVM switch model via the web management Interface. Please
refer to Section Error! Reference source not found., KVM Server/KVM Switch Database – Keeping and
adding your KVM Data Base
The Select Computer box shows always on top of your screen once the PRIMA IP viewer connection is
successfully made. On the box, you can see the computer icons together with the computer names you have
already specified for each of them using the web management interface.
Click-and-Switch : To switch to a computer, just click a computer icon on the box.
Note that those computer icons represents only the computer names you have already
registered using PRIMA IP Web management interface, not indicating any status of its
connection such as whether it is in powered-on or powered-off state.
3.8.2 Java Viewer
To bring up the Select Computer box, click the View Computer List option on
the Quick Menu. For the java viewer, the Select Computer box will not appear
by default.
To switch to specific computer, just click any item on the listing …
Prima IP User Manual Rev 1.5 2007
- -
35
3.9 Viewer Quick Menu
3.9.1 Opening the Viewer Menu
The Quick Menu of PRIMA IP’s Win32 viewer can be evoked by clicking the program icon on the leftmost
of the title bar, or right-clicking anywhere on the title bar.
To open the Java viewer Quick Menu, click the menu options under the title bar.
- 36 -
3.9.2 Menu Items
Select computer: Select the remote computer by a drop-down
combo box
View Computer ICONs : Open the Select Computer box for
computer selection by clicking icons
Adjust Screen: Fine-tune the screen area by pixel shifts.
Connection options: Open the Connection Options dialog
box
Connection info: Show the Connection information of the
viewer session.
Prima IP User Manual Rev 1.5 2007
- -
37
New connection: Make another new connection by the viewer.
Save connection options: Save the connection options settings such as those connection parameters
specified within the Connection Options Box and also the password within the registry of the client computer.
By selecting this option, you can save your session password as well as other connection parameters in the
registry of your client computer, so that next time when you log in the viewer for a new session, you will not
be prompted for session password again. However the client path phrase required in the connection of Level
3 security (256-bit SSL encryption and PKI Authentication) will not be saved and will be asked for every
time when you login under Level 3 security setting.
Screen Refresh: Force updating of the viewer screen output
Full Screen: Change the viewer screen to Full Screen mode (Only the Win32 Viewer supports this Full
Screen option).
Send Ctrl-Alt-Del: Send a Log On (Log Off) key sequence to the remote end.
Scanning: Start scanning through computers by issuing a programmable port switching commands with a
delay time to a conventional KVM Switch behind PRIMA IP.
Computer Power Off: Send a Power Off serial port command to the
remote power control unit (Only SUPERADMIN or ADMIN is allowed).
Computer Power On: Send a Power On serial port command to the
remote power unit (Only SUPERADMIN or ADMIN is allowed)
Power-on/off options grayed-out (unavailable for User privilege)
Now you have got yourself well familiar with PRIMA IP viewer interface, so go ahead to use and enjoy the
remote viewer connection!
- 38 -
3.10 Video Display Problem Troubleshooting
PRIMA IP video server supports most major display modes up to 1600 x 1200. However, some display
problems will occurs, when either there is abnormal or unusual display output from your server or the
display resolution is over the biggest support of 1600 x 1200, or the display vertical frequency is beyond the
support range in that pixel dimension.
To yield best video results on the viewer screen display on remote login client, you should also refer to
Section
2.3, Configure your Servers for Connections to PRIMA IP, and Section, 3.4, Some Tips about Viewer
Connections for more details about how to prepare your servers/computers before getting them connected to
your PRIMA IP.
The followings are some common video display problems and their troubleshooting….
Q. There seems to be many artifacts or residuals not getting refreshed on the viewer screen. Is there
any way to improve the video display quality on viewer screen?
A: The causes of these artifacts or residuals could be:
(1) The video filter currently active on PRIMA IP is set either at Medium Quality or Low Quality Level.
These two video filter levels are for faster response than the High Quality Level as to increase the
response speed over limited bandwidth condition. If your bandwidth allows or you need higher video
quality instead of higher speed, just change the video filter from Low to Medium or even to High to
increase the video display quality on viewer screen on the remote login client. To raise the Video Filter
Level, please go to the Video Server Page in PRIMA IP web management Interface, and select the filter
as either Medium or High Quality according to your requirements. Note that High Quality video filter
gives high quality always on the expense of video response speed on the viewer screen.
(2) The transitional effect of Windows XP is enabled. The transition effects of menu will cause refreshing
problems in Low/Medium Video Filter settings. Thus, if you are using a Low/Medium Quality Level of
video filter, either try to raise the video filter level to High Quality (at the expense of response speed) or
just turn off the transitional effects of Windows XP. To turn off the transitional effects of menu on
Windows XP, please refer to Section
2.3, Configure your Computers for Connections to PRIMA IP
Note that PRIMA IP local console is not affected at all by the Video Filter settings or by the transitional
effects on Windows XP.
Q. The PRIMA IP booting time has become unduly longer over several minutes. What’s wrong?
A. Please make sure that the external authentication, PPP server/client, time server as well as power control
settings are correct. If you don’t use all these features or the authentication/time servers are not available, just
try to disable them to save booting time since if you don’t have all these servers present, the PRIMA IP will
try to look for them until timeout. That will waste PRIMA IP booting time considerably.
Q: Video response seems slower in limited bandwidth condition, are there ways to increase the
response speed?
A: There are several ways to increase the response speed on the viewer screen:
(1) Under bandwidth-limited condition, you should select a more economical encoding scheme such as Slow
Internet or Fast Internet Encoding scheme instead of the LAN or No Compression encoding scheme
from the viewer connection menu. However, if the connection is made only within LAN with plenty
connection bandwidth, LAN or No Compression encoding scheme should be (paradoxically) quicker
than Internet scheme – since your client computer won’t dissipate extra computing power for decoding
the more-compressed Internet scheme.
Prima IP User Manual Rev 1.5 2007
- -
39
(2) Use 8-bit color reduction (with only 256 colors instead of the 65K colors in 16-bit settings).
(3) You can enable Automatic Filter Adjustment (web management/Video Server page) for automatic video
optimization according to different bandwidth condition.
(4) On the other hand, if you do not want to use Automatic Filter Adjustment, you could always select either
Medium Quality/Low Quality level for more speed as your Video Filter setting (web management/
Video Server Page). You could also do something to increase the response speed: use a server desktop of
small resolution (such as 800 x 600) and use a solid plain color background for server desktop.
(5) Finally, you should check the networking environment. Try to find bottlenecks that can be improved or
eliminated for more bandwidth throughput.

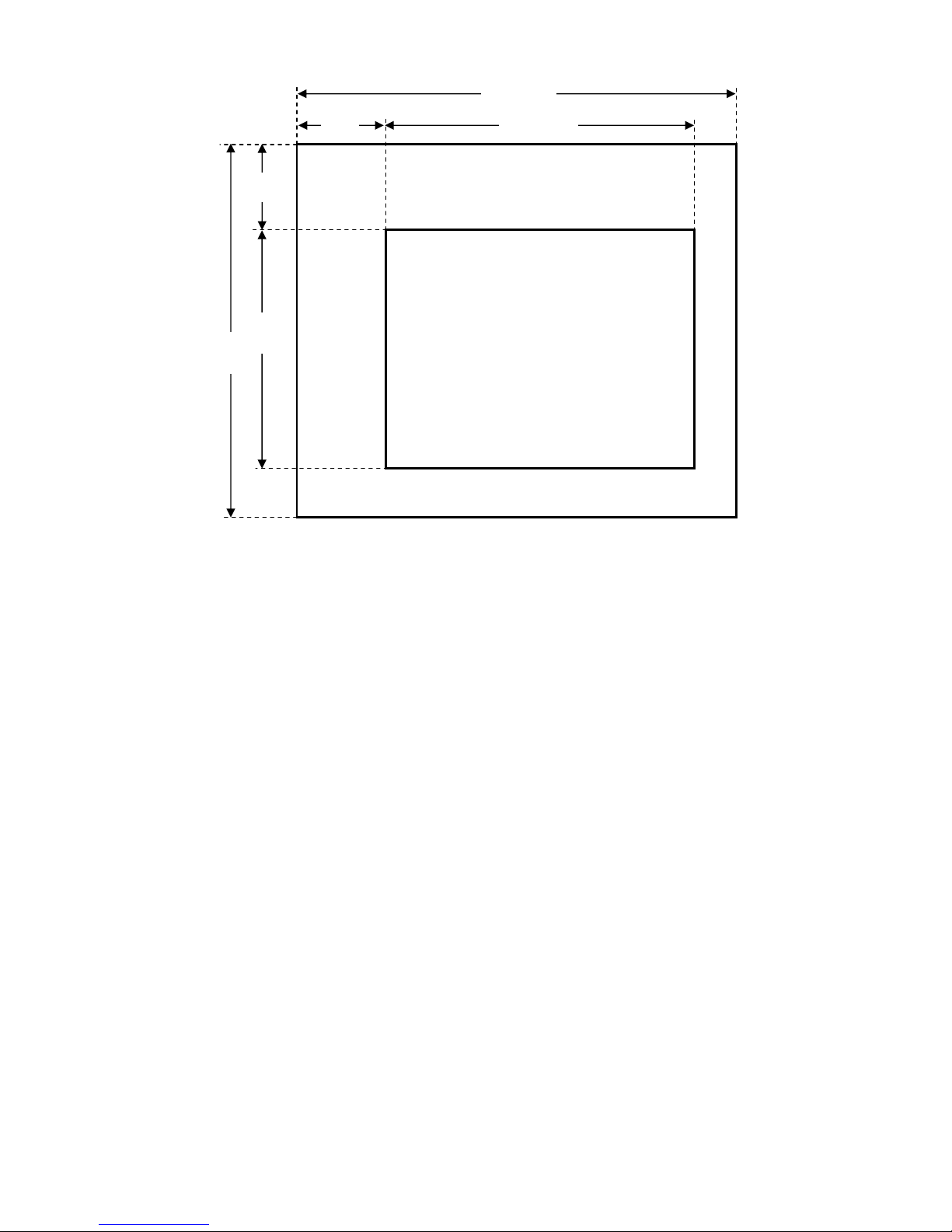

Q. When connection is first made, the display on the viewer screen seems not centered correctly and
there is black margin on the edge of the viewer screen. How could I eliminate the black strip?
A. The black strip is the offset that will be seen when the display on viewer screen is not centered corrected.
Probably you have not enabled automatic centering option on PRIMA IP, so please check the followings:
(1) Go to the Video Server page on PRIMA IP web management Interface to check whether the Automatic
Screen Alignment option is enabled. If it is not yet enabled, please check the option, click Submit button
and then go to Apply Settings page to click the Apply Settings button to restart PRIMA IP with new
setting.
(2) When the viewer connection is made, select the Adjust Screen option on Viewer’s Quick Menu, and the
Adjust Screen dialog box appears. On it, check whether you have Automatic Centering enabled. If it is
not yet enabled, please check this option to enable it. If it is already checked, please uncheck it and then
wait for at least 15 seconds. Then check the option again to force the video server to align (center) the
display in the viewer screen.
Q: I can log in and make successful browser connection with PRIMA IP. However, I cannot make a
valid viewer connection or the PRIMA IP does not respond to my viewer connection request.
A: The PRIMA IP video server might not function properly. First, make sure your account have the
SUPERADMIN privilege. If not, you should request one that has the SUPERADMIN privilege to do the
troubleshooting job for you.
First, go to the Apply Settings page on the web management interface and then click the Apply Settings
button to restart PRIMA IP. Then wait for at least 10 more seconds for it to start completely. Try to make the
viewer connection again to see if it is back to normal.
Second, If the Apply settings button could not bring back the PRIMA IP video server to normal working
condition, try to hit the Emergency Reboot button (could be found on the Maintenance page of the web
management Interface) for a complete start from ground level. An Emergency Reboot is a clean reboot, and it
- 40 -
takes longer time for PRIMA IP system and video server to load, thus you have to wait at least one minute
for the system to be up and running.
Then try to make the viewer connection again to see if it is brought back to normal function again. A cold
boot of PRIMA IP is always a last resort to bring the PRIMA IP back – just try to disconnect the power
adapter form PRIMA IP and wait for sometime (30 seconds) before plugging in again for a cold start over.
Prima IP User Manual Rev 1.5 2007
- -
41
Chapter 4.
Prima IP Unit Management
4.1 Web-based Management Interface
Type in the correct IP address and port number:
https://<IP_address>:<port_number>
https://61.222.144.195:5908
Remember that it is a secure SSL encrypted connection, so you should type “https” instead of the
usual “http”. Otherwise, the connection will not be established. The port number might vary
according to its setting on the Prima IP server. By default, the browser connection uses port 5908.
Both user name and password are case-sensitive.
- 42 -
4.2 User Privileges – SUPERADMIN, ADMIN, USER
Prima IP offers three categories of user privileges for web management: SUPERADMIN, ADMIN and
USER.
User Group Management Viewer
SUPERADMIN Full access All functions
ADMIN Partial access (see table below) All functions
USER
No access except the Download
page
No power on/off feature
Note: Only SUPERADMIN users can manage user accounts.
PRIMA IP Browser Management Access Privilege
Feature Page SUPERADMIN ADMIN USER
Download
√
√
√
Main
√ √ ×
KVM Servers
√ √ ×
Users
√ × ×
Alarms
√ √ ×
Maintenance
√ × ×
Apply Settings
√ √
×
Full access – SUPERADMIN
–
Prima IP User Manual Rev 1.5 2007
- -
43
4.3 Viewers
The download page allows you to download both Windows and Java (TM) Viewers.
Prima IP Download Viewers Page
Windows
The viewer for Windows can run on most of Windows platforms: 98/Me/NT/2000/2000 Server/XP/2003
Server/Vista. Click Download and follow the installation instructions.
Note: If you wish to use the secure full SSL connection (security level 3), get a set of certificates from your
administrator. Install the certificates on your computer by running the ImportCertificate utility provided with
this viewer. Refer to the Security page.
Java
™
The viewer for Java is truly cross-platform for all major Operating Systems including Windows, Linux, Mac
OS, etc. However, before you can run the Java viewer on any computer, you must first install the Java
Runtime Environment (JRE), which is freely available from Sun at http://www.java.com/. It is recommended
to get JRE 5.0 or higher.
On Windows machines, a simple double mouse click should permit to start the viewer for Java. If the viewer
does not start automatically, check the .JAR file association on your computer. It must be javaw.exe (and
NOT javaws.exe). On other machines, download the KViewer.jar file into a folder and type:
java -jar KViewer.jar
Note: Some Browser will automatically change the file extension from .jar to .zip while you are
downloading the file. If this is the case, please change the file extension back to .jar, so that you can run it
properly.
Note: If you wish to use the secure full SSL connection (security level 3) with the Java Viewer, get a set of
certificates from your administrator, download the Import Certificate Utility Impcert.jar file into a folder and
type: java -jar Impcert.jar. Refer to the Security page.
- 44 -
4.4 Main/Date & Time – Date, Time, Zone Support
and NTP server Synchronization
The Date and Time page allows you to configure time-related settings of your Prima IP, including Time
Zone settings, Local Time and Internet Time.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Time Zone: Select the Time Zone/Region and City/Town from the available list as seen in the drop down
combo boxes.
Local Time: Enter the correct date (dd-mm-yyyy) and time (hh:mm) here and click Change Local Time
button to set current system time on Prima IP. Note that if you check the option to automatically
synchronize with an Internet Time Server (NTP), the time setting will be periodically synchronized to the
time of NTP server specified on each restart of the Prima IP and every hour.
Internet Time: This option, Synchronize with an Internet Time Server (NTP), is for the automatic time
synchronization of Prima IP with an available timeserver on the Internet. You can check the option and then
specify the timeservers you prefer. The Prima IP will try to synchronize with the timer servers every time it
starts or restarts and will continue to synchronize every hour thereafter.
Note: if you choose this option the original Current Date and Time settings you manually entered
will be refreshed with the time provided by the Internet timeserver.
NTP Server1: is the server, with which the Prima IP will first try to synchronize, and the NTP Server2 is
the backup timeserver, with which the Prima IP will synchronize when the first timeserver is not available.
Enter the domain name of the timeserver.
Note: There are many Internet timeservers available. You can search in the Internet for ones that are
nearer to the location where you install the Prima IP. You should choose your Internet timeservers
based on the principle that a timeserver nearer to you will reduce time latency in synchronization.
Prima IP User Manual Rev 1.5 2007
- -
45
4.5 MAIN/Security – Certificates, Viewer Encryption
and Password Policies
The Security page enables you to configure and implement security-related settings of your Prima IP, such as
uploading your certificates for the Prima IP server side, selecting the security level of the viewer connections,
and the password policy for the viewer and browser connections.
Security settings should be taken very seriously. If Prima IP security settings are set to No
Password, no SSL, and no PKI authentication (Viewer connection security - Level 1), almost
anyone can establish a remote connection. With these settings, you probably will not "survive"
longer than 15mn on the Internet without someone is trying to access your computers.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
4.5.1 Certificates and Keys
Certificates are only needed if you intend to implement full PKI authentication for the viewer connections. If
an SSL-encrypted session is already enough for your security requirements, you can just ignore this aspect of
PKI authentication.
Where can you get the certificates? There is a default set of certificates in your support CD ROM. You can
use them to practice the certificates uploads. In real world scenario, you can either generate the certificates
by yourself, since there are some freeware or shareware such as XCA for this purpose. You can also buy
certificates from companies that provide authentication service.
The valid file names and formats of the certificates and Keys to be uploaded to the Prima IP should be
exactly as below:
• root.crt
• server.crt.
• serverkey.pem
• ldapcert.crt
• ldapkey.pem
4.5.2 Security Level of Viewer Connections
The browser connections to the web management are always using SSL connections. The viewer
connections can use different levels of security.
- 46 -
Security Level (SSL): The Prima IP offers three levels of security for viewer connections. On the drop-
down combo box, you can just choose either one of the three viewer security levels as appropriate to your
real demands on viewer connection security:
Level 1 uses No SSL data encryption and No authentication. This is the most straightforward setting that
opens most convenience if there are no security concerns at all. Anyone who have a viewer and an
Internet connection can easily connect to Prima IP as long as the user passes the password policy
requests.
Level 2 uses SSL encryption for viewer connection, but only requires server authentication by viewer
client. Remote users do not need to install any certificate on their client computers. However, the viewer
connection is encrypted with 256-bit SSL technology to ensure that all data contents transmitted via the
viewer connection are protected, including keyboard, mouse and video signals.
Level 3 uses 256-bit encryption and a bi-directional PKI authentication between Prima IP server and
viewer client. With this level of security, all remote users who want to make viewer connections must
install a proper client certificate on their computer. This client certificate must come from the same CA
that issued the root.crt certificate of Prima IP.
KVM Server Password: This item will only appear if you choose to implement Level 3 security. Here you
should enter the password that has been used to protect the server private key serverkey.pem. If you use the
standard set of certificates provided by default on the Support CD ROM disc, the server password is
serverpwd. However, if you use your own set of certificates (as you should do for a real secure installation),
you must set the correct server certificate password you got from the Certificate Authority that issued those
certificates.
First, you should get a set of certificates from your administrator. If your certificates files have different
names, change them to the valid names before uploading.
To upload the certificates, click the Browse button to go to the location where your certificates reside. Select
a certificate file and then click Upload to upload your certificates, one at a time, to the Prima IP. After the
uploading is completed, you should see the prompt page for reboot. However, you do not have to reboot
before you have uploaded all the necessary certificates. Just reboot once after you have uploaded all the
necessary certificates: root.crt ; server.crt ; serverkey.pem
You must upload two extra certificates if you need to SSL-encrypt the LDAP connection for user remote
authentication: ldapcert.crt; ldapkey.pem
4.5.3 User Password
User-Password Policy: The Prima IP offers three types of password policies for selection. You can select
here your password policy for viewer connections:
• No Password: the viewer will not prompt you for any user password - the door is open unless you are
using security level 3.
• Global Password: the viewer will prompt you for a global user password, which is used by all users - a
sort of building door code.
• User Password: the viewer will prompt you for your user-specific password - a sort of apartment door
code.
Note: The viewer can also prompt you for the client certificate password if you are using the security
level 3.
Global User-Password: This item only appears if you select Global Password as password policy. Enter
the common password used by all users here.
Prima IP User Manual Rev 1.5 2007
- -
47
4.6 MAIN/TCP/IP Settings – Port and IP settings
The LAN TCP/IP page is where you can set up the TCP/IP settings of your Prima IP. Here you can specify
the IP address, net mask, gateway address, DNS address and access port base for viewer and for browser
(port base +8), or whether you want to use DHCP.
However, before you go on with the various settings on this page, you might need to check first with your
network administrator for proper settings. If you do not configure those TCP/IP settings properly, you will
not be able to make valid connections to the Prima IP.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
TCP Port Base: You can freely specify the port base for viewer connection with the Prima IP server. You
can choose any available port base, starting form the lowest alternative of port 5900 with an increment of 10
right up to port 6090. The port base you choose is exactly the port number that Prima IP uses for viewer
connection. “port base + 8” is the exact port number you will use for secure http connection for the browser.
After you have made the port base modification, remember to hit the Store Settings button, and then hit the
Apply Setting/Restart Servers to validate your changes.
Host Name: The host name is the name that the Prima IP will assume on your Local Area Network.
Domain Name: Specify here the domain name for your Prima IP as it appears on your LAN. (Leave it
empty if you don’t know).
Use DHCP: This option allows the Prima IP to get all TCP/IP settings automatically from a DHCP server.
IP Address: Enter a fixed IP address (in dotted decimal format such as 192.168.1.200) that will be used by
the Prima IP in your LAN.
Network Mask: Enter a net mask value (in dotted decimal format such as 255.255.255.0) that will be used
by Prima IP in your LAN.
Gateway: Enter the fixed IP address (in dotted decimal format such as 192.168.1.254) of the gateway (i.e.
router) to access the Internet.
DNS: Enter the IP address (in dotted decimal format such as 80.10.246.30) of the DNS server that will be
used by Prima IP for domain name resolution. Ask your network administrator if you don’t know.
Note: You must enter a valid DNS server IP address to allow the email alert of Prima IP to be
effective.
- 48 -
4.7 MAIN/WAN PPP
The WAN PPP page is where you can set up the PPP server/client mode of your Prima IP. Here you can
enable either the PPP server mode, or the PPP client mode, or you can disable the PPP modes altogether.
The Prima IP can serve either as a PPP server for the remote computers to dial-in for connection, or as a
PPP client to dial in a PPP server to connect to a network or the Internet. The PPP connection can serve as a
backup connection mode when direct network connection is not available or just broken down. The Prima
IP’s high-speed serial interface can offer excellent bandwidth to PPP connections either when the Prima IP
is connected as PPP server or PPP client.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
4.7.1 PPP Modes
There are three PPP options for selection:
• PPP Disabled: by default.
• PPP Server mode: for connection request from a peer computer.
• PPP Client mode: for dial-in connection to a PPP server (your ISP or an Enterprise PPP Server)
The PPP Server mode allows users to connect to your servers without the Internet understructure. It can be
used as a backup access in case of Internet failure or an ultra-secure access by the use of private lines and
modems.
The PPP Client mode can be used when there is no LAN or router available for a direct Internet access by
using a modem.
Note: The PPP connection can work simultaneously with the LAN connection.
Note: The PPP connection uses the same serial interface as the Power management. These two
features are mutually exclusive. By enabling the PPP you automatically disable the power
management and vice versa.
If you have a LAN connection, normally you do not have to choose the PPP connection as your
connection mode. However, if no LAN connection is available or if you want to use, you could
choose to enable either the PPP server mode or the PPP client mode according to the real connection
scenarios.
Prima IP User Manual Rev 1.5 2007
- -
49
4.7.2 PPP Server Settings
Current Local IP Address: This is where you can check up the IP address of the Prima IP when a PPP
connection is established. However, if the PPP connection is not yet established, the IP address will be
shown as Unknown. This address is normally which one is set into Local IP Address.
Note: This IP address must be distinct from the one that is used by the Prima IP on the LAN.
Local IP Address: Enter here the IP address (default = 192.168.2.200) to be used by the Prima IP in the
PPP connection. This IP address will be used only in PPP connection by Prima IP alone, and should be
distinct from the IP address (default = 192.168.1.200) that is specified in the LAN TCP/IP page and used for
connection via direct local area network.
Peer IP Address: Enter the IP address (default= 192.168.2.201) that will be assigned by Prima IP to the
peer client at connection time.
Maximum Speed: Specify the modem connection speed. The Prima IP supports a high-speed serial
connection up to 1 Mbps (Megabits per second).
Note: the modem connection speed is NOT the PPP connection speed, which depends on the modem
technology. For example, even if the modem connection speed is 115 200 bps, a 56K modem will
provide only a 56 000 bps PPP connection.
User Name: Specify the user name that must be used for the PPP connection login by the peer computer on
the other side of the phone line/serial connection.
Password: Specify the password that must be used by the peer computer, then type in the same password in
the next entry field to confirm the password.
Note: Prima IP can support only one User Name / Password and one PPP connection at a time.
Modem Initialization (chat script): The modem initialization script is a chat script that will initialize the
modem to be ready for connection. The standard script provided by default permits to connect a Windows
client to Prima IP in server mode over a direct serial cable (Null Modem).
TIMEOUT 3600
CLIENT CLIENTSERVER\c
In other words, wait for "CLIENT" one hour, and respond CLIENTSERVER without carriage return.
- 50 -
Note: Refer to
Power Management page for more details about the chat program. Refer also to your
modem documentation. We also strongly recommend you refer to the standard man pages of pppd
and chat programs on Linux. In server mode, the modem should be set to await and automatically
connect when receiving remote calls.
4.7.3 PPP Client Settings
Current Local IP Address: This is where you can check up the IP address assigned to Prima IP by the PPP
server at connection time, for example, 62.147.111.39. However, if the PPP connection is not yet established,
the IP address will be shown as Unknown.
Note: This IP address is used by the Prima IP either as a PPP client, and thus is distinct from the one
that is used by the Prima IP on the LAN.
Maximum Speed: Specify the modem connection speed. The Prima IP supports a high-speed serial
connection up to 1Mbps (Megabits per second).
Note: the modem connection speed is NOT the PPP connection speed, which depends on the modem
technology. For example, even if the modem connection speed is 115 200 bps, a 56K modem will
provide only a 56 000 bps PPP connection.
User Name: Specify the user name that will be used by the Prima IP to connect to the PPP server.
Password: Specify the password that will be used by the Prima IP to connect to the PPP server.
Note
: The user Name and Password are normally provided by the ISP at subscription time.
Modem Initialization (chat script): The modem initialization script is a chat script that will initialize the
modem to be ready for connection. The standard script provided here by default cannot work for a client
connection. Replace it with your own initialization script depending on your modem.
Note: Refer to
Power Management page for more details about the chat program. Refer also to your
modem documentation. We also strongly recommend you refer to the standard man pages of pppd
and chat programs on Linux. In client mode, the modem should be set to dial automatically at start
time.
Prima IP User Manual Rev 1.5 2007
- -
51
4.8 KVM Server/Log – Logging Server Events
This Server Log Page keeps a detailed record of events, beginning from each restart, of each user’s login,
port switching actions, and video modes therewith. It also records each login attempt and the IP address from
which the login attempt has originated, even the attempt is not successful. It will show certain technical
details such as the compression ratio, encoding scheme and bytes transmitted in each successful viewer
session. This is the place where you should go check first if you want to know the usage/health conditions of
your PRIMA IP.
Enable Log: check this option to enable the logging of PRIMA IP server events. If you choose not to enable
this option, no logging will be done.
Print Statistics: If you need to know more about the PRIMA IP server statistics such as the compression
ratio, bytes transmitted, rectangles drawn, frame buffer updates, and key events received, etc., you can check
this option so that you can have quantified data for the profile of each session. To record the statistics of the
video server and port switching activity by PRIMA IP remote users, you should check this option to print
statistics to the server log file.
Each log entry is preceded by date code, time stamp and then the description of the specific log event. You
can check here for the IP address that is assumed by the login user when they made the login attempt, and
you can also check the statistics of each session as a useful reference for the quantified data of each viewer
connection. Note that the log file is of a definite size, older log entries will be erased when the log file has
reached its maximum size while newer logging events keep coming in.
Click the Refresh button to refresh the screen output of the log file. Since newer server log events may have
happened and being logged to the database after your previous access of this server log page, you need to
click the Refresh button to reload the log messages.
Click the Clear button to erase the log file contents in the database.
Note: The server log is erased each time you perform a complete reboot remotely by hitting the Reboot
button in the Maintenance/Reboot page or when PRIMA IP suffers a power loss.
- 52 -
4.9 KVM Server/Main Setting – KVM Server Main
Settings
This page allows you to set up the KVM server operation: video quality and optimization, KVM switch
model, auto-scanning function.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
4.9.1 Video Quality
Filter Level: Specify here the Video Filter Level for the PRIMA IP video server. Based on the bandwidth
availability, you can select one of the three modes of video filter levels:
• High Quality, Low Video
• Medium Quality, Medium Speed
• Low Quality, High Speed
Each of the three video filter levels is adapted to different combination of video quality and bandwidth
requirements. Users can select their preference according to their actual video quality preference and
network bandwidth availability. However, there is always a trade off between video quality and response
speed when under limited network bandwidth availability.
High Quality, Low Speed (Light Filter): This level is recommended for high bandwidth networks such as
LAN or broadband internet. It requires more bandwidth than the other two filter levels and video refresh
speed is slower (however, only noticeable when bandwidth is very limited). This filter provides the best
image quality.
Medium Quality, Medium Speed (Medium Filter): This level is recommended for internet connections. It
requires more bandwidth than the Low Quality High Speed, option. This is most often the best speed /
bandwidth compromise.
Low Quality, High Speed (Strong Filter): This level is recommended for very limited bandwidth
conditions, such as a dial-up modem line to the Internet. With this setting, the viewer screen is updated only
on big video changes. Most of time there will be no transmission at all.
Automatic Filter Adjustment: When this option is checked, PRIMA IP can tune the video filter
automatically for optimized performance according to the current bandwidth availability.
Prima IP User Manual Rev 1.5 2007
- -
53
Automatic Screen Alignment: When this option is checked, PRIMA IP tries to center the view screen
automatically to eliminate the offsets sometimes seen in the viewer screen as black gaps.
Automatic Image Optimization for Speed: When this option is checked, PRIMA IP tries to optimize the
video settings (phase, light and contrast) to produce images of better quality with higher compression.
Automatic Image Optimization for Speed: When this option is checked, Prima IP tries to optimize the
video settings (phase, light and contrast) to produce images of better quality with higher compression.
4.9.2 Scanning
Scanning Period: The scanning period is the default scanning duration for each connected PC, if no KVM
(Keyboard - Video - Mouse) event happens to interrupt the scanning. If there is a KVM event such as
keyboard/mouse movement or video resolution change, the scanning will be temporarily held until it reaches
the timeout of the scanning delay, and then go scanning to the next. Here you can specify the scanning
period in seconds.
Scanning Delay: The scanning delay is the time that Prima IP will wait after it last perceives a KVM
(Keyboard - Video - Mouse) event before it switches to the next connected PC.
Performing the NumLock Test While Scanning: The NumLock test is a way to detect whether a computer
is still responding to keyboard action. If you check this option, Prima IP will send a NumLock signal to the
PC while scanning. If the PC returns a response, then he NumLock LED will be lit. The NumLock test can
serve as a test to see if the connected PC is still responsive to keyboard event. The NumLock signal will
serve as a “wake up” signal if the PC is in sleep mode. If the NumLock test has failed, it most likely
indicates that your computer is in trouble. Check this option if you want to use auto scanning to monitor
whether each of your computers has stayed alive or not.
You can also specify which computer will be included and which computer will not be included within the
auto scanning process. For more information on how to add or remove computers from the auto-scanning list,
please refer to the Computers page.
If combined with the Alarm options, auto scanning can detect critical server problems such as No Video,
Blue Screen, NumLock Test failure on first timing basis, and send either an alert email or SNMP message, or
power cycling commands to a Serial Power Control device to power cycle the server in problem. For more
information on how to configure the alarm features of Prima IP, please refer to the Alarms pages.
- 54 -
4.10 KVM Server/Viewer Connection – Video Server
Name and Keyboard Type Settings
This page allows you to configure settings proper to the viewer, including the name as it appears on the title
bar of the viewer window. The keyboard layout that Prima IP will assume must be consistent with the one
you use on the client side. Set the biggest resolution support, the mouse re-sync hotkey sequence, and the
Hot-Keys Transparent Mode - very convenient and useful feature for anyone who uses double-byte language
such as Chinese, Japanese or Korean (the CJK languages) and some other languages.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings. No change you have made on this page will apply
until you hit Apply Settings/Restart Servers!
Server name for Viewers: Enter here the server name you chose for the Video Server on Prima IP and it
will appear on the title bar of your Prima IP Viewer window.
Keyboard Layout: Choose the keyboard layout for the Prima IP according to the real keyboard you are
using on the remote login client. Choosing the correct keyboard layout for your keyboard is very important
since some key codes are represented by different key locations in different keyboard layout. A correct
keyboard layout setting ensures that you will have a matching key code output on the server side as what you
have input on the physical keyboard from the client computer side. The default keyboard layout is the US
keyboard (US). The Prima IP supports more than 60 types of keyboards all over the world.
Largest Possible Screen: The Prima IP supports a maximum resolution up to 1600 x 1200 pixel dimension.
Normally, if you select the biggest resolution support of 1600 x 1200, it will be most accommodating to all
display resolution requirements. However, you can still select a smaller workable resolution for your display
device. If you choose a smaller resolution, you have to be aware that any screen larger than what you specify
here will not be shown on the viewer. The Prima IP supports resolutions as follows:
• 640 x 400
• 640 x 480
• 800 x 600
• 1024 x 768
• 1152 x 864
• 1280 x 1024
• 1600 x 1200
Refer to the Video Mode Database page for more detailed information about the refresh rate support.
Prima IP User Manual Rev 1.5 2007
- -
55
Hot Keys: Prima IP can detect a special sequence of keystrokes when you type on your remote keyboard.
This special sequence is used to ask Prima IP to resynchronize the local and the remote mouse cursors in a
fast and convenient way. For example, it is faster to type CTLR–CTLR–Home on the keyboard than to use
the mouse and select a command into a menu. For compatibility with higher devices, this command is
divided in two parts called Viewer Hot Keys and Mouse Resynchronization Key.
Please be aware that the Viewer Hot Keys are transmitted to the KVM or server attached to the Prima IP. On
the contrary, the Mouse Resynchronization Key is eaten by the Prima IP. Thus, because the Viewer Hot Keys
are transmitted, they must be as harmless as possible. Viewer Hot Keys such as NumLock-NumLock, ScrlkScrlk or Ctrl-Ctrl can work because they produce generally no effect. On the contrary, the Mouse
Resynchronization Key can be anything since it is not transmitted by TKIP-101.
The Hot Keys can be configured to fit your needs. To find out the key positions on a standard keyboard,
please refer to the Keyboard Drawing.
Note 1: The Viewer Hot Keys are transmitted to the KVM attached. Thus, they must be chosen so that they
don't interfere with the KVM hot keys.
Note 2: If you are running the Java viewer on Mac OS, you might find that the default mouse
resynchronization sequence – CTLR-CTLR-Home - does not work. That is because the Right Control key on
Mac keyboard sends out a different key code as the PC keyboard. If that is the case, you might consider
configuring your Hot Keys as for example, CTLL-CTLL and S.
Viewer Hot Keys: Enter here your preferred keystroke sequence that will serve as Viewer Hot Keys. By
default, this is CTLR–CTLR, in other words, two consecutive keystrokes of the Right Ctrl key (CTLR).
Please note that this is NOT the Left Control key (CTLL).
Mouse Resynchronize Key: This is the only command supported by TKIP-101. It permits to synchronize
the local and the remote mouse cursors. By default, this is the HOME key. Thus, by default you have to hit
CTLR–CTLR–HOME to synchronize the remote and the local mouse cursors.
Double-Byte Languages: This feature makes Prima IP compatible with double-byte languages such as
Chinese, Japanese or Korean. When using the viewer, if the remote computer and/ or your local computer is
running a double-byte system, just type Alt and then Shift or Ctrl and then Shift
sequentially instead of
simultaneously
to produce the same effects as usually.
Enable Hot-Keys Transparent Mode: Check this option if you are using double-byte language inputs on
the local and/or the remote computer to facilitate switching between single-byte and double-byte inputs.
Leave this option disabled if you do not use any double-byte language.
- 56 -
4.11 KVM Server/Computers – Port and IP settings
This page permits to provide PRIMA IP with information about all KVM-attached computers. This
information is used by PRIMA IP to do some actions automatically in order to simplify your job:
• Select a specific KVM Switch in the Daisy-chain and show the information of each, concerning
model name, port number and software version
• Work with computer names instead of KVM port numbers
• Generate automatically the KVM switch hot keys to select computers. This allows you to select a
computer with a simple mouse click or by using the computer name
• Generate automatically (or on request) the power down and power on cycling if a power control unit
is connected
• Exclude some computers from the auto scanning process
• Not generate alarms for some computers
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Select the KVM switch in the Daisy-chain: The various settings on this page are KVM-switch-specific as
well as KVM-port-specific because a computer is first identified by the KVM Switch and the KVM port it is
attached to. Before configure any port specific settings, you have to choose the KVM switch in the DaisyChain on which you will configure the port-specific settings.
Select the Port Number: Select the KVM port on which your subsequent settings on this page are directed.
You can use the drop-down combo box as well as use the Previous and the Next button to navigate to a
specific port.
Computer Name: Enter a character string of 32 characters maximum to identify the computer attached to
the selected port.
Prima IP User Manual Rev 1.5 2007
- -
57
Note: The computer names you specify here for each port will appear in the Windows and Java
viewers.
Scanning: If you do not want this computer be included in the auto-scanning, check Do not include in
scanning process. Thus, you can put a specific computer out of your radar screen if it is of no monitoring
value.
Alarms: If you do not want the scanning process to generate alarm or SNMP messages for this specific
computer, check Do not generate alarm to exclude it.
If you require power control for your connected computers, you can connect a serial power control (SPC)
device to the serial port on the back side of the PRIMA IP, and then enable the power control feature on the
PRIMA IP. Hence, remote users can then perform power on/off and power cycling either via the viewer
interface, or by pre-defined alarm-triggered action. The PRIMA IP can support most of standard serial power
control device via its serial port (RJ12) on back panel (Do not mix it up with the serial console port). To
enable the PRIMA IP power control feature, please refer to the Power Control page.
Important Note: when using a power control device, please note that some newer computers will
require some BIOS option adjustment to restart when power is coming back. Otherwise, they will
not restart without a push of the computer power button. Usually, you should enable the Power Loss
Restart option on your computer BIOS (or similar option depending on the BIOS vendor), so that
your computer can boot up when the power control device is feeding power again.
Power Management: Power Down Command: Specify here the command that must be sent to the power
control unit to power down the computer. Refer to your power control unit documentation.
Note: To remotely power-down this computer from the Windows or the Java Viewers, switch to this
computer and then click Power off in the Viewer menu. The command specified here will be sent
automatically by PRIMA IP to the power control unit.
Delay: Here you should specify the delay time between the sending of power-down and power-on
commands to complete a power cycling. A power cycling is processed only if you have selected Restart
Computer into the Alarm page. By default this delay is 5 seconds.
Power On Command: Specify here the command that must be sent to the power control unit to power on
the computer. Refer your the power control unit documentation.
Note: To remotely power-on this computer from the Windows or the Java Viewers, switch to this
computer and then click Power off in the Viewer menu. PRIMA IP will send the command specified
here automatically to the power control unit.
- 58 -
4.12 KVM Server/Power Control – Enable the power
control
The Power Control page allows you to enable or disable the power control feature via the serial port on the
back panel of your PRIMA IP. You can also specify the login script of your power control device, if it
requires a login script.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Enable Power Control through the Serial Interface: Check the Enabled option to activate the remote
power control support feature via the back panel serial port of the PRIMA IP. Once this option is checked, a
subsequent Power Device Login option will appear for you to decide whether to enter the login script.
Simple Users Can Control Power: Check this box if you want that simple users be able to power on and
power off the computers.
Power Device Login: Depending on the Serial Power control device you used behind PRIMA IP, sometimes
you will need a login script to login or initialize your power control device. If that is the case, just check the
Power Device Needs a Login option, and a Login Dialog field will appear for you to enter your login script.
Login Dialog (chat style): This editable field is where you should enter the login script for your power
control device, if it is required by your power control device. You should refer to the user guide of your
power control device for correct information. A script consists of one or more "expect-send" pairs of strings,
separated by spaces as in the following example:
login: myid
password: mypass
This script indicates that the Prima IP should expect the string "login:". Once it received "login:" , Prima IP
sends the string "myid" and then expects "password:". When it receives the prompt for the password, it sends
Prima IP User Manual Rev 1.5 2007
- -
59
the password "mypass". A carriage return is normally sent following the reply strings. It is not expected in
the expect strings unless it is specifically requested by using the \r character sequence.
If the script must start by sending something instead of waiting for a string, use the null sequence '' (two
quotes with no space in between) as expect string:
'' restart
login: myid
password: mypass
In other words send "restart", expect "login:", send "myid", expect "password", send "mypass".
The expected sequence should contain only what is needed to identify the string. For example, to help correct
for characters that may be corrupted during the initial sequence, look for the string "ogin:" rather than
"login:". It is possible that the leading "l" character may be received in error and you may never find the
string even though it was sent by the power device. For this reason, the script should look for "ogin:" rather
than "login:" and "ssword:" rather than "password:" like this:
ogin: myid
ssword: mypass
In other words, expect "ogin:", send "myid", expect "ssword:", send "mypass".
A comment is a line which starts with the # (hash) character in column 1. Such comment lines are just
ignored. If a '#' character is to be expected as the first character of the expect sequence, you should quote the
expect string. If you want to wait for a prompt that starts with a # (hash) character, you would have to write
something like this:
# Now wait for the prompt and send "logout"
'# ' logout
ESCAPE SEQUENCES
The expect and reply strings may contain escape sequences. All of the sequences are legal in the reply string.
Many are legal in the expect string. Those which are not valid in the expect sequence are so indicated.
'' Expects or sends a null string. If you send a null string then it will still send the return character. This
sequence may either be a pair of apostrophe or quote characters.
\b represents a backspace character.
\c Suppresses the newline at the end of the reply string. This is the only method to send a string without a
trailing return character. It must be at the end of the send string. For example, the sequence hello\c will
simply send the characters h, e, l, l, o. (not valid in expect.)
\d Delay for one second. (not valid in expect.)
\n Send a newline or linefeed character.
\N Send a null character. The same sequence may be represented by \0. (not valid in expect.)
\p Pause for a fraction of a second. The delay is 1/10th of a second. (not valid in expect.)
\r Send or expect a carriage return.
\s Represents a space character in the string. This may be used when it is not desirable to quote the strings
which contains spaces. The sequence 'HI TIM' and HI\sTIM are the same.
\t Send or expect a tab character.
\\ Send or expect a backslash character.
Refer to the Linux chat program man page (man 8 chat) to get more details.
- 60 -
4.13 KVM Server/Local Console –User Authentication
and Mouse Acceleration
The Local Console page allows you to enable or disable the user-password authentication feature, and to
adjust the mouse acceleration on the local console.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Local User Needs Authentication: Here you can enable/disable the password authentication on the local
console.
Acceleration Rate: This option allows you to select the mouse acceleration factor for the local console. The
mouse acceleration factor range is from 1 x to 20 x for your selection. When you move your mouse slowly,
PRIMA IP does not apply any acceleration. When you move your mouse quickly, PRIMA IP multiplies the
mouse movements per Acceleration Rate.
Acceleration threshold: This option allows you to select the mouse acceleration threshold in pixels.
The mouse acceleration threshold is the mouse movement value (in pixels) beyond which PRIMA IP applies
the acceleration rate.
Note: In order for the mouse resynchronization to work fine on the viewer, the mouse acceleration
on each connected servers or computers has to disabled. A zero acceleration mouse on a remote
server will not reflect on the viewer since the mouse cursor on the remote server should catch up
with the mouse on the viewer side, which can use any acceleration factor. However, on the local
console, without the acceleration generated by Prima, you would experience low efficiency when
trying to move your mouse.
Prima IP User Manual Rev 1.5 2007
- -
61
4.14 KVM Server/Video Mode Database – Modifying
the Video Display Database
The Video Mode Database page allows you to modify, create and suppress the VGA modes supported by the
device.
Important Note: Carelessly modifying a video mode on this video database might obliterate the video capture,
thus DO NOT MODIFY anything unless you know exactly what you are doing.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Use the drop down box to select a video mode from the video mode database. Each video mode is indicated
by the pixel dimension (length by width) at a certain refresh frequency:
Width_in_pixels x Height_in_pixels @ Refresh_Rate_in_Hz
For example, 1024 x 768@60Hz is a video mode and 1024 X 768@72 Hz is another video mode. Together
with the refresh rate and the pixel dimensions, a video mode can be adjusted with those parameters such as
screen width, total width, Hsync start, as well as screen height, total height, and Vsync start.
The following diagram explains the geometric relations between the VGA parameters.
- 62 -
Refresh Rate: Here you can modify the refresh rate of the target VGA mode.
Width: Here you can modify the various width parameters of the target VGA mode:
• Screen Width: specify the width of the visible part of the screen.
• Total Width: specify the total width of the screen (active + hidden)
• Hsync Start: specify where the VGA horizontal synchronization should start with reference to the
beginning of the line.
Height: Here you can modify the various height parameters of the target VGA mode:
• Screen Height: specify the height of the visible part of the screen.
• Total Height: specify the total height of the screen (active + hidden).
• Vsync Start: specify where the vertical synchronization should start with reference to the top of the
page.
Store New Settings: Click this button to save your modification/addition to the video mode database.
Suppress Selected Mode: Click this button to remove the selected video mode from the video mode
database. Normally, one does not have to suppress a video mode from the existing database for no particular
purpose.
Restore Previous Settings: Click to undo the previous addition or elimination of a video mode.
Note that
you can only undo
one move.
Total
Screen
Hsync
Start
DISPLAYED AREA
Screen
Height
Total
Height
Vsync
Start
Prima IP User Manual Rev 1.5 2007
- -
63
4.15 Users/Local Database - Managing the User
Accounts
The User Local Database page is for the purpose of user account management for the Prima IP. You can see
the listing of existing user entries, together with the user group the specific user belongs to and the
description for the user.
You can use the buttons on the top row – First Page/ Next Page/ Previous Page/Last Page to navigate
through the first/next/previous/last page of the user database listing.
To modify, add or delete an entry, click the target user name on the listing and a User Edit screen will appear
for you to make further modifications or to create a new user entry.
After you have made necessary modifications, remember to hit the Store User button to save it into the user
account database.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
PRIMA IP offers three categories of user groups for selection: SUPERADMIN, ADMIN and all user groups
that you have created by use of the User Group page. Let us call them “Custom Groups”.
SUPERADMIN and ADMIN are predefined and cannot be deleted.
Each of these user groups are with different rights into the Web Management Interface and into the viewers:
User Group Management Viewer
SUPERADMIN Full access All functions
ADMIN Partial access (see table below) All functions
Custom No access except the Download page No power on/off feature
Note: Only SUPERADMIN users can manage user accounts.
- 64 -
Refer to the table below for detailed list of Web Management rights:
Management Page SUPERADMIN ADMIN Custom
Download/Viewer
x x x
Main/Date & Time
x x -
Main/Security
x - -
Main/LAN TCP-IP
x - -
Main/WAN PPP
x - -
KVM Server/Log
x x -
KVM Server/Main Settings
x x -
KVM Server/Viewer Connection
x x -
KVM Server/Computers
x x -
KVM Server/Power Control
x x -
KVM Server/Local Console
x x -
KVM Server/Video Mode database
x x -
Users/local database
x - -
Users/User Groups
Users/Remote [Authent] Servers
x - -
Users/Radius Accounting
x - -
Users/Current Status
x - -
Alarms/Emails
x x -
Alarms/SNMP
x x -
Alarms/Selection
x x -
Maintenance/Software Version
x - -
Maintenance/Software Upgrade
x - -
Maintenance/Firmware Upgrade
Maintenance/Config. Save/Restore
x - -
Maintenance/Reboot
x - -
Apply Settings/Restart Servers
x x -
Prima IP User Manual Rev 1.5 2007
- -
65
4.16 Users/User Groups – Tuning in with the Remote
Authentication Servers
This page allows you to modify, to create or to suppress custom-made user groups in addition to ADMIN
and SUPERADMIN. It is possible to define up to 62 custom-made user groups.
Each user group has a name and a set of properties specifying which computers its users can access, and
whether its users can power on and power off the computers they can access.
There are two preset user groups: ADMIN and SUPERADMIN that cannot be changed. Users belonging to
one of these two groups can access ALL computers with no restrictions.
When modifying or creating a new user, you must tell which user group he belongs to (see User Edit page).
When working with user-password policy (see Security page), Prima IP identifies users at connection time,
retrieves their group and applies the group properties.
Note: The user at local-console is slightly different. When the local-user authentication applies (see
Local Console page), the local-user cannot select the forbidden ports, but he can still access a
computer that has been selected by a remote authorized user.
Important Note: User groups have NO effect if the password policy is NOT set to User Password.
If you are using other password policies such as No Password or Global Password, users will not
have any access restriction, since when adopting these policies you imply that the distinction of user
identities is not necessary. For more information on password policies, please refer to the Security
page.
After you have made all modifications, click Store the (new) User Group to save your settings and then hit
Apply Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
- 66 -
Select: Select a user group from the local database.
Group Name: Modify this field if you want to create a new user group. Do not touch this field if you want
only to change the port list of the current user group.
Power Control: Check this box to allow users belonging to this group to "manually" power on and power
off the computers they can access through the viewers. Note that you must use a power control device for
that. (See the Power Control page).
Ports: For each KVM switch into the daisy chain, select which ports this user group can access. Check Set
all Ports to select all KVM ports, check Clear all Ports to remove all KVM ports, or check each KVM port
individually.
Prima IP User Manual Rev 1.5 2007
- -
67
4.17 Users/Remote Servers – Tuning in with the
Remote Authentication Servers
The User Remote Authentication page allows you to authenticate the users that try to connect to PRIMA IP,
from centralized servers running a Radius service or hosting a directory that can be accessed through the
LDAP protocol (Active Directory for example). This feature permits to integrate the PRIMA IP into your
global enterprise user management.
By default, the Remote Authentication is configured as NONE, i.e., all remote authentications are disabled.
In this case, the authentication is all done locally by using the database on PRIMA IP only.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Authentication Server Type: Here you can select whether you want to disable, or enable the remote server
authentication by LDAP or RADIUS server. Before you go forth with subsequent settings on this page, you
should check with your network administrator for the availability of either a LDAP server or a RADIUS
server.
• To disable the remote authentication support: Select None for the Authentication Server Type.
• To enable LDAP authentication support: Select LDAP for the Authentication Server Type.
• To enable RADIUS authentication support: Select RADIUS for the Authentication Server Type.
4.17.1 Directory Server Using LDAP
Using LDAP SSL Access: Check this option if you want to enable SSL access of the LDAP authentication
server. However, to use this option, you should make sure your LDAP server support SSL, and you have to
install a distinct set of certificates – ldapcert.crt and ldapkey.pem – onto Prima IP by uploading them through
the Security page. Normally the directory server itself generates these certificates.
- 68 -
Port: Enter here the port number used in LDAP authentication. By default, it is set to 389.
LDAP Server: IP address of the directory server.
Second Server (if any): IP address of the second LDAP server (if any).
User Base Search DN: Here you should enter the User Base Search DN, which is typical to the LDAP
server you use for authentication. By default, the User Base Search DN is:
cn=users, dc=abc, dc=Prima IP, dc=com
However, you should enter your own appropriate one. If you do not know, you should contact your LDAP
server administrator.
4.17.2 RADIUS Server
Port: Enter here the port number used in RADIUS authentication. By default, it is set to port 1812.
RADIUS Server: IP address of the RADIUS server.
RADIUS server authentication: IP address of the second RADIUS server for authentication (if any).
Password Authentication Protocol: Select the password authentication protocol to be either CHAP or PAP.
RADIUS secret: Specify here the RADIUS secret (or Shared Secret), between the PRIMA IP and the
RADIUS server. Note that the RADIUS secret is a text string that is used as a password between the
RADIUS client and the RADIUS server. Ask the RADIUS secret to your server administrator.
Prima IP User Manual Rev 1.5 2007
- -
69
4.18 Users/Radius Accounting –Settings for Radius
Accounting
There is no relation between RADIUS Accounting and LDAP or RADIUS authentication. The RADIUS
Accounting permits to record the connection events into a RADIUS accounting server. It can record all sorts
of events, not only RADIUS authentication events. Enable this option if you have such a server.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Enable RADIUS Accounting: Check this box to make PRIMA IP send RADIUS accounting messages to
the accounting server.
Accounting Server: Enter the IP address of the server that will receive RADIUS accounting messages.
Port: Specify the port that is used for Radius accounting. By default, it is set to 1813.
Secondary Accounting Server (if any): Enter the IP address of the secondary RADIUS accounting server
(if any).
RADIUS secret: Specify the RADIUS secret, or Shared Secret, between the RADIUS client (i.e. PRIMA IP)
and the RADIUS server. Note that the RADIUS secret, or the Shared Secret, is a shared text string that is
used as a password between the RADIUS client and RADIUS server.
- 70 -
4.19 Users/Current Status – Showing the Currently
Connected Users
This page shows the remote users that are connected at the time you access this status page. However, this
status page will not refresh itself. In order to know whether there is any change to the connection status, you
should refresh this page by clicking the Refresh button for current information on connected users.
Important Note: Only when you have selected your password policy to be User Password policy,
will the currently connected users be registered and shown on this page. If you are using other
password policies such as No Password or Global Password, you will not have any connected users
shown on this page, since when adopting these policies you imply that the distinction of user
identities is not necessary. For more information on password policies, please refer to the Security
page.
Prima IP User Manual Rev 1.5 2007
- -
71
4.20 Alarms/Emails – Sending Email Notifications for
Critical Server Events
This page allows you to set up the email notification for alarm events.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Email from: Sender email address used by the Prima IP for alarm emails, for example:
myemail@myaddress.any.
It must be accepted by the SMTP server. This email address can help identify which Prima IP is the sender.
Email to: e-mail address of Prima IP alarm email addressee.
Note: You can use commas for multiple recipients: support@myaddress.net, emma@international.com,
joe@netview.co.jp
Copy to: e-mail address of addressees who should get a “carbon copy” of alarm emails.
SMTP Server: Enter the name or IP address of the SMTP server (mail server) that will route the Prima IP
email alarms to recipients
- 72 -
4.21 Alarms/SNMP – Sending SNMP Messages for
Critical Server Events
Here you can set up the SNMP traps sent by Prima IP, provided you selected the SNMP traps somewhere
into the Alarm page.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Primary Manager: Specify here the IP address of the Primary SNMP manager device on your network.
Secondary Manager: Specify here the IP address of the Secondary SNMP manager device on your network
(if any).
SNMP Community: Specify here the name of the SNMP Community to which your SNMP Management
host and SNMP agent should belong.
Note: the SNMP manager and agents must belong to an SNMP community identified by its name,
which is a collection of hosts grouped together for administrative purposes.
Prima IP User Manual Rev 1.5 2007
- -
73
4.22 Alarms/Selections – Select the Alarm-triggering
Events
Prima IP is capable of sending immediate alerts, as emails or SNMP traps, and/or performing automatically a
power cycling when there is blue screen, no video, or NumLock test failure from a remote computer. This
feature should be used in conjunction with the autoscanning function, so that Prima IP will help carry on a
constant surveillance on the health conditions of your connected servers.
Note: This Alarm Selection page is where you can select which action Prima IP must do when it
detects an event. This page is NOT the place where you can specify how the action is to be
implemented. To do so, refer to SNMP Traps, Email Alarms and Computers.
After you have made all modifications, click Store Settings to save your settings and then hit Apply
Settings/Restart Servers to validate these new settings.
No change you have made on this page will apply until you hit Apply Settings/Restart Servers!
Prima IP can respond to three types of alarm-triggering events:
• No Video
• Blue Screen
• NumLock test failure.
Each one of these events can be configured to trigger any one of these three types of actions:
• Send an email,
• Send an SNMP trap message,
• Restart the computer (Power cycling).
- 74 -
No Video Alarm (Blank Screen): No Video could be a result from power failure or an unsupported video
mode, i.e., an out-of-range video mode or most often a video mode not yet set up into the video database.
If you want the PRIMA IP to respond immediately to this sort of events, just check the Enable Alarm option,
then specify what type(s) of action you would like to do: Restart Computer, Send an Email, or Send an
SNMP trap.
Blue Screen Alarm (Text mode): Blue screen is a result of Windows Operating System fatal error. A blue
screen can be detected by its low-resolution video mode.
If you want the PRIMA IP to respond immediately to this event, just check the Enable Alarm option. Next,
specify what type(s) of screen resolution you will regard as Blue Screen: 600 x 400 or 600 x 480, and
subsequently select Restart Computer, Send an Email, or Send an SNMP trap as action to do.
NumLock Test Alarm (Frozen Keyboard): The NumLock test is to send a NumLock signal to the
computer, and the computer normally should return a response immediately so that the NumLock LED
indicator on the keyboard will be lit to indicate the success of the test. The failure of a NumLock test
indicates at least a keyboard failure to respond to this NumLock signal, or it might be due to bigger problem
such as system failure, or simply a powered-off state.
If you want the PRIMA IP to respond to this alarm-triggering event, just check the Enable Alarm option.
Next specify what type(s) of action you would like to do: Restart Computer, Send an Email, or Send an
SNMP trap.
Prima IP User Manual Rev 1.5 2007
- -
75
4.23 Maintenance/Software Version – Software
Version Information
The Software version page shows the current resident software and firmware version information. Here you
can check the Linux kernel version, the time it is built, together with the software application and KVM
firmware.
Linux Kernel 2.6.17 built on 04/21/07-15:12:55
Applications Built on 05/16/07-09:04:37
KVM Firmware 17-11-06
- 76 -
4.24 Maintenance/Software Upgrade –Upgrading the
Software via Web
The Software Upgrade page is where you can browse to the path location of the software upgrade file, and
upload it to PRIMA IP across your LAN or across the Internet.
Note: The PRIMA IP upgrade file must have a name starting with "ikmod" followed by the date,
such as ikmod-yy-mm-dd (for example ikmod-07-03-29).
Note: The upgrade file is of an accumulative nature, which means that normally you only have to
apply the single latest upgrade patch to keep your PRIMA IP most up-to-date.
When you receive the upgrade file, you must first copy it to a local computer. Then use the PRIMA IP’s web
management interface to perform the update across your LAN or across the Internet.
Performing a Software Upgrade
Click the Browse button, go to the location of the update file and then click Upload. A progress indicator bar
will be running to indicate the on-going upload process. Depending on the upgrade file size and the
bandwidth availability across the network, file upload time could vary from 1 minute to 20 minutes. When
the upload process is complete, PRIMA IP reboot by itself. After the reboot is completed, it should be
working right away.
Prima IP User Manual Rev 1.5 2007
- -
77
4.25 Maintenance/Firmware Upgrade – Upgrading
the Firmware via Web
The Firmware Upgrade page is where you can browse to the path location of the KVM firmware upgrade
file, and upload it to PRIMA IP across your LAN or across the Internet.
The KVM firmware file contains the firmware of the KVM card, which is associated with the KLE-like IP
module inside PRIMA IP. It contains also the firmware of all PRIMA KVM switch models that can be daisy
chained with PRIMA-IP. PRIMA IP will update automatically any KVM switch into the daisy chain that is
not running the latest firmware version.
Note: The Prima IP upgrade file must have a name such as kvmfirm-xx-xx-xx, for example,
kvmfirm-06-07-29.
Note: The Prima IP upgrade file is of an accumulative nature, which means that you only have to
apply the single latest upgrade file to keep your PRIMA IP KVM firmware most up-to-date
Performing a firmware upgrade for Prima IP
File Path: Browse to the location of the update file and click Upload.
A progress indicator bar will be running to indicate the on-going upload process. Depending on the upgrade
file size and the bandwidth availability across the network, file upload time can vary from 1 minute to 20
minutes.
When the upload process is complete, Prima IP will reboot by itself and the KVM switches into the daisy
chain will upgrade their firmware automatically.
- 78 -
4.26 Maintenance/Configuration Save and Restore
This page allows you to save your current Prima IP settings to a single .tgz file for more portability and
usability. It is wise to backup your configuration after any change. You can use it also to set up several Prima
IP with same configuration.
To back up the configuration file
Click the Backup button. It creates automatically a configuration file named kconfig-yyyymmdd.tgz, with a
timestamp in it. Choose the location for saving your configuration file, and then click Save.
To upload the configuration file
Click the Browse button to browse to the location of the update file (kconfig-yyyymmdd.tgz) and then click
Upload. You will be prompted for a reboot when the upload process is complete. Reboot to validate the new
configuration.
Prima IP User Manual Rev 1.5 2007
- -
79
4.27 Maintenance/Reboot – Configuration Backup
and upload
In case your Prima IP has crashed and beyond restoration simply by clicking the Apply Settings/Restart
Servers button, you can always have the last resort to completely reboot the Prima IP from ground level up
by clicking the Reboot Device button into the Reboot page.
In most of the cases, you do not need to use this Reboot button to restart your Prima IP from ground level up.
Normally, you should use the Apply Settings button on the Apply Settings page for almost all the cases of
restarting/rebooting Prima IP with new settings.
However, if you find the Apply Setting/Restart Servers button could not bring the Prima IP to a restart that
works properly with the viewer, you can then try to use the Reboot button here. However, as a rule of thumb,
you should try the Apply Settings/Restart Servers button first, before you try the Reboot button here on this
page.
- 80 -
4.28 Apply Settings/Restart Servers – Validate New
Settings & Restart Video Servers
All the new settings you have made could only be committed to the Prima IP’s database by clicking the Store
Settings/Store/Store User button on each setting page. However, just clicking any of these buttons will not
have these new settings immediately validated. You should hit the Restart Servers button so that new settings
can be put into use at once.
Note: The Restart Servers button will disconnect all current viewer connections.
Note: In addition to the Restart Servers button, the Prima IP also provides a Reboot button (on
Maintenance/Reboot page). You can use this Reboot button only when the Restart Servers button
cannot work any longer to bring Prima IP to normal restart for a proper viewer connection.
If you find the Restart Servers button no longer works, you can click the Reboot button on the
Maintenance/Reboot Page. Only bear in mind that the reboot brought about by hitting the Reboot
button is a total reboot and takes longer time to boot up completely, while Restart Servers is much
quicker (just a few seconds) since it restarts only the server programs on the Prima IP.
Prima IP User Manual Rev 1.5 2007
- -
81
Chapter 5.
Local Console Operation
This chapter provides general guidelines for Prima IP local console operations. Before you begin operation
of the local console, we strongly recommend that you read this chapter in advance. The Quick Reference
Sheet in the Quick Installation Guide can also serve as an equal reference.
There are three ways to operate your Prima IP KVM switch: by front-panel buttons, by keyboard hotkeys
and by OSD menu options.
5.1 Front-panel Buttons
Use the front panel push buttons to select directly the active. Pressing the push button during normal
operation will select the corresponding port.
5.2 Keyboard Hotkeys
Most of the hotkey control commands start with two consecutive Scroll Lock keystrokes (done within 2
seconds), followed by one or several command keys:
Hotkey Control Command = ScrLk + ScrLk + Command keys
In most cases, it will take at least three keystrokes to complete a command. In certain case, you will need six
strokes (such as in selecting specific bank and port number for active channel) to complete one.
The following table summarizes all available hotkey for your convenience.
Command Hotkeys / OSD menu option
Select PC
ScrLk + ScrLk + (a) + (b) + (y) + (z)
(1)
(a)+(b) = 2-digit bank number
(y)+(z)= 2-digit channel number
Next lower channel ScrLk + ScrLk + ↑ (arrow up)
Next higher channel ScrLk + ScrLk + ↓ (arrow down)
Next lower bank ScrLk + ScrLk + PgUp
Next higher bank ScrLk + ScrLk + PgDn
Beep Sound On/Off ScrLk + ScrLk + B
Show OSD menu ScrLk + ScrLk + (Space Bar)
OSD Title Bar ON/OFF ScrLk + ScrLk + T
(1) (a), (b), (y) and (z) are number keys. (a) + (b) = 01 ~ 16; (y) + (z) = 01 ~ 08 or 01 ~ 16.
Within 2 seconds
- 82 -
5.3 On Screen Display
While the OSD is activated, all front-panel buttons and mouse are inactive.
To activate the OSD menu, use the following hotkey sequence:
Show OSD menu =
The OSD (On Screen Display) is a menu that is superimposed on your screen display. In the OSD menu, you
can see a listing of the available banks and channels for selection and the currently online status of each
channel. You can use the OSD to control Prima IP with more convenient and intuitive menu-driven operation.
The OSD menu allows you to rename your computer (up to 8 characters), and to find a specific computer by
its name. It also allows you to password-protect your Prima IP switch system.
OSD limitations: We recommend you use the web management interface to name the computers instead of
the OSD because computer names can be 32-character wide when using the web management.
The computer names that have been defined in the web management are displayed by the OSD with some
limitations due to the small size and the limited set of OSD characters:
• Names longer than eight characters are truncated.
• Names are displayed in capital characters.
5.3.1 OSD Main Menu
Figure 21: OSD Main Menu
The OSD displays the computer names with following rules:
• The computer whose name is followed by a human symbol
is currently the active one, and you
can access it with the local console.
• Computers whose names are followed by a little solar symbol
are connected to Prima IP via a
PS/2 interface.
• Computers whose names are followed by a USB symbol
are connected to Prima IP via a USB
interface.
Scr
Lk
Scr
Lk
space bar
Prima IP User Manual Rev 1.5 2007
- -
83
• Computers whose names do not exhibit any symbol are currently not connected, or powered down.
• You can modify the settings of the computer whose name is highlighted.
<F1>: Go to the Setup Page
<F2>: Logout
<Enter>: Select
<Esc>: Quit
<PgDn> / <PgUp> : KVM Select
Use the ← ↑ → ↓ cursor keys to navigate. Hit the <Enter> key to select and the <Insert> key to
edit. There are OSD operation tips for your reference on the bottom part of the OSD menu.
5.3.2 OSD Setup Menu
Figure 22: OSD Main Menu
Auto Logout: Specify time for auto logout (00~99 min)
Title Bar: Specify the position of the OSD title bar.
Hotkey: Specify the hotkey preceding sequence
IP: specify the local IP address for the Prima IP KVM Switch
Submask: Specify the submask for the Prima IP KVM Switch
Firmware Version: show forth the firmware version of the KVM switch
- 84 -
5.4 Local Console Operations
This section describes each local console command operation of Prima IP and available ways to execute the
command, either by front-panel button, keyboard hotkey sequence or OSD menu option.
Note: In this section, we call “bank” a KVM switch into the daisy chain. For example, Prima IP is
always bank 1, the next KVM is bank 2 and so on. There are 8 banks at the maximum into the daisy
chain.
Note: In this section, we call “channel” a computer port of a KVM into the daisy chain.
5.4.1 Select PC
5.4.1.1 Front-Panel Button
Press the button corresponding to the computer you want to select.
5.4.1.2 Hotkeys
Select PC =
For example, when with a configuration of multiple daisy-chained Prima KVM switches, to select bank 3
port 7, you must press the following keystrokes:
Select PC =
Even when using Prima IP alone, to select port 7, you must first press its bank number 01 and then the port
number 07:
Select PC =
Use the ← ↑ → ↓ cursor keys to navigate. Hit the <Enter> key to select and the <Insert> key to
edit. There are OSD operation tips for your reference on the bottom part of the OSD menu.
5.4.1.3 OSD
To switch to a specific PC using the OSD menu, you have to activate the OSD menu first, Hit <ScrLk> +
<ScrLk> + <Space> to activate the OSD menu. Then use the cursor keys to navigate to the channel you
want and then hit <Enter> to select the PC channel.
Scr
Lk
Scr
Lk
(a)
(b) (y) (z)
bank
number
(01 ~ 08)
(01 ~ 16)
port
number
(01 ~ 08)
(01 ~ 16)
Scr
Lk
Scr
Lk
0
3 0 7
bank
number
(03)
port
number
(07)
Scr
Lk
Scr
Lk
0
1 0 7
bank
number
(01)
port
number
(07)
Prima IP User Manual Rev 1.5 2007
- -
85
In a daisy-chained configuration, you may want to select specific channel on a specific bank (when you have
daisy-chained multiple KVM switch units), just use the Page up/Page Down key for bank selection and
navigate the OSD menu by cursors key to the channel you want and hit Enter to make it your active channel.
5.4.2 Next Lower Channel
5.4.2.1 Front Panel Button
Press the corresponding push button.
5.4.2.2 Hotkeys
Next lower channel =
(Yes, ↑ makes go to lower
channel!)
5.4.3 Next Higher Channel
5.4.3.1 Hotkeys
Next higher channel =
(Yes, ↓ makes go to higher
channel!)
5.4.3.2 OSD
Select the corresponding OSD menu option.
5.4.4 Next Lower Bank (when daisy-chained)
5.4.4.1 Front Panel Button
Press the corresponding button.
5.4.4.2 Hotkeys
Previous bank =
5.4.4.3 OSD
While the OSD is activated on the console screen, press the Page Up key to rotate through the bank
selections upwards.
5.4.5 Next Higher Bank (when daisy-chained)
5.4.5.1 Front Panel Button
Press the corresponding button.
Hotkeys
Next bank =
5.4.5.2 OSD
While the OSD is activated on the console screen, press the Page Down key to rotate through the bank
selection backwards.
Scr
Lk
Scr
Lk
↑
Scr
Lk
Scr
Lk
↓
Scr
Lk
Scr
Lk
Pg
Dn
Scr
Lk
Scr
Lk
Pg
Up
- 86 -
5.4.6 Beep Sound On/Off
While autoscanning, port-switching or issuing a hotkey command, a beep sound will be heard. If you want to
turn on/off this beeping, try the following hotkey sequence.
5.4.6.1 Hotkey
Beep sound on/off =
5.4.7 Show OSD Menu
5.4.7.1 Hotkey
Show OSD menu =
5.4.8 OSD Title Bar ON/OFF
5.4.8.1 Hotkey
The OSD Title Bar will show the computer name on the screen. You can toggle the OSD Title bar ON/Off
just by the hotkey:
OST Title Bar on/off =
5.4.9 OSD Title Bar Position
5.4.9.1 OSD
You can select the OSD Title Bar Position to be on either the left or right side of the screen. Use cursor keys
to navigate to the OSD Title Bar option on the OSD Setup Menu, and then hit <Enter> to select and cursor
key to toggle the Left/Right option. The OSD menu Timeout is default to 60 seconds. The OSD Title Bar
position is default to the left side of the screen.
5.4.10 Auto Logout
5.4.10.1 OSD
Use cursor keys to navigate to the Auto Logout option on the OSD Setup Menu, and then hit <Enter> to
select and edit the Auto Logout timeout value. The OSD menu Timeout is disabled by default. You can
specify a timeout value between 0 and 99 min. [00 means disabled]
Scr
Lk
Scr
Lk
B
Scr
Lk
Scr
Lk
(space bar)
Scr
Lk
Scr
Lk
T
Loading...
