ProStalk PC5000
Nature Camera
User Manual
2
Index
1. Introduction ....................................................................................................................... 3
2. Digital Nature Camera Specifications ................................................................................ 3
3. Parts Identification ............................................................................................................ 5
4. Packing Contents ............................................................................................................... 6
5. Battery and SD Card Installation ....................................................................................... 6
6. Setup Your Camera ............................................................................................................ 7
6.1 Set Camera Delay ....................................................................................................... 8
6.2 Set Camera State and Photo Resolution .................................................................... 9
6.3 Set Date, Year and Time ............................................................................................. 9
6.4 Setup or Clear Password .......................................................................................... 10
6.5 Display How Many Pictures and Video Taken .......................................................... 11
7. Using the Camera ............................................................................................................ 11
7.1 Mounting the Camera ................................................................................................... 11
7.2 Turn on the Camera ....................................................................................................... 12
7.3 PIR Sensitivity Adjustor .................................................................................................. 12
7.4 Testing the camera coverage area ................................................................................ 12
7.5 Secure Your Camera ...................................................................................................... 13
7.6 Replacing the Battery .................................................................................................... 13
8. Viewing the Images and Movies ...................................................................................... 14
9. PC Camera and TV Out .................................................................................................... 14
10. Glossary ........................................................................................................................ 15
3
1. Introduction
Congratulations on your purchase of the ProStalk PC5000 Digital Nature Camera. This Nature
Camera is designed to record the activity of wildlife in the outdoors with its still image and movie
modes and weatherproof, rugged construction.
The Nature Camera is ultra small and portable with an extra longer surveillance time.
Main Features:
5.0MP Effective Pixel
Ultra Portable Size (147mm x 94mm x 46mm)
Ultra Long Working Time
One Second Fast Trigger Time
Full Automatic IR Filter
LCD Display
55 Degree Wide Angle PIR Sensor
30 Night Vision LEDs
Battery/working Indicator and Lighting Sensor
PIR Sensitivity Adjustor (2m~20m)
Photo Taken Delay: 1 second ~ 60mins (default 1 min)
3P Multiple Frame
640 x 480 at 30 Frame per Second High Resolution Video recording
Support to 32 GB SD Card
Temperature, Date Time, Moon Phase Imprint
Auto Exposure
Auto White Balance
Password Protection
Power Supply: 8 x AA Cell batteries
TV Output
Standard Socket for Camera Tripod
Water Resistant
2. Digital Nature Camera Specifications
Product Name
Trail (Game) Camera
Model Number
PC5000
4
Image Sensor Type
1/2.5 Inch CMOS
Effective Pixels
5.0 Megapixels
Effective Focal Length
7.6 mm
Lens Aperture
F/3.0
Camera Lens Sight Angle
55 Degrees
IR Filter
Full Automatic IR Filter
Display
LCD
PIR Sensor
Yes
PIR Distance Adjustor
Yes (2m ~ 20m)
PIR Sensor Sight Angle
55 Degrees
Trigger Speed
1 second
Number of IR LED
30 LEDs
Max Night Vision Lighting Distance
15 metres
Storage
SD Card up to 32 GB Capacity
Low Battery Indicator
Yes
Photo Taken Delay
1 second ~ 60mins (default 1 min)
Selectable Image Resolution
5.0MP; 3.1MP
Multiple Frame (Take 3 photos)
Yes
Video Resolution
Movie: AVI 640 x 480 pixels @ 30 fps (15 seconds).
File Format (Image/Video)
JPEG/AVI
Date Time Imprint
Yes
Moon Phase Imprint
Yes
Temperature Imprint
Yes
Exposure
Auto
White Balance Mode
Auto
4 Digits User Password
Yes, available range: 0000 to 9999
Menu Languages
English
TV Output
Yes
Power Supply
8 x AA Cell batteries
Camera Socket
Yes
Water Resistant
Yes
5

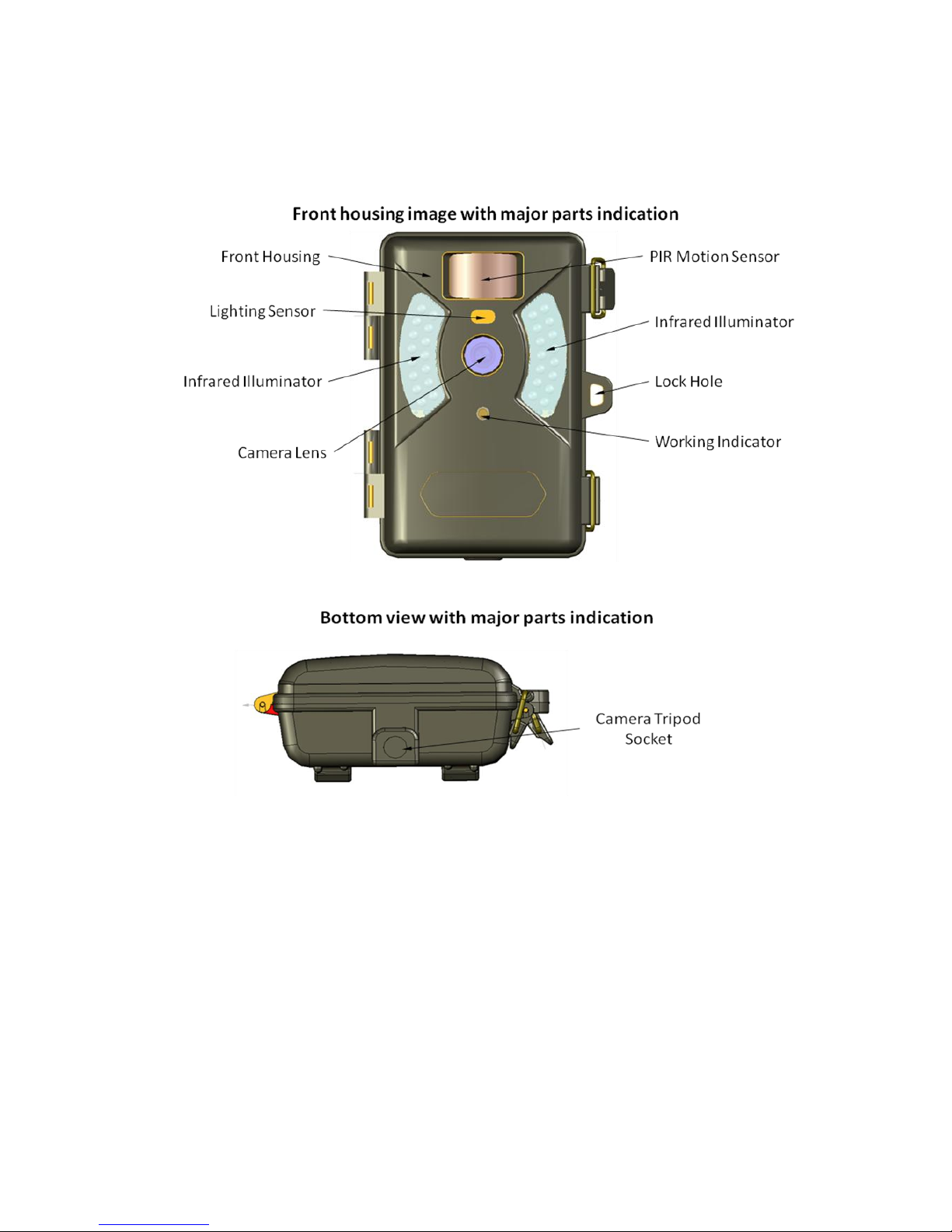

3. Parts Identification
6
4. Packing Contents
Model ProStalk PC5000 Digital Nature Camera
• User Manual
• USB cable
• Mounting Kit
5. Battery and SD Card Installation
The ProStalk PC5000 Digital Nature Camera is designed to operate using 8 x AA Cell Batteries. We
recommend using alkaline batteries.
NOTE: Always have the camera switched OFF when installing or removing batteries.
▲ Please make sure the voltage and polarity (+/-) are correct before connection. Incorrect
7
voltage or polarity (+/-) will damage the camera.
Memory
The ProStalk PC5000 Digital Nature Camera saves images to an SD memory card (accepting up to
a 32GB SD card - sold separately).
Inserting SD card
Make sure the camera is in the OFF position whenever adding or removing a memory card.
• Insert the SD memory card in to the SD card slot completely and in the correct direction as
shown by the sticker located at the side of the housing.
• To remove the SD memory card, depress the SD card and pull out the card gently.
▲ SD cards must be clean (no images from other sources), if you are using the SD card from
other cameras, please make sure to format the SD card prior to use in the camera. New cards
are can be used straight away.
6. Setup Your Camera
Menu Items
Date
MM/DD
Time
HH:MM(24 Hours System)
Image/Video
Mode
1P
3.0MP(LO)
5.0MP(HI)
3P
3.0MP(LO)
5.0MP(HI)
Movie
640 x 480
Camera delay
Camera delay: (0s—60min)
Password
0000-9999
Photo number
Only display
LCD Menu
8
1. Date
2. Time
3. 4 Digit Display
4. Image Resolution Select
5. Movie Recording
6. Camera Delay Setting
7. Password
8. SD Card
It is very easy to setup this camera. Turn on the unit and then press the “SETUP” button, the
“DATE” icon will start to blink, press “UP” or “DOWN” to navigate the setup menu. Press the “OK”
button to enter the specific menu item which is blinking. Use the “UP” or “DOWN” buttons to
make adjustments. After the setting is done, press “SETUP” to save and exit the menu setting
status.
6.1 Set Camera Delay
Camera Delay is to set the amount of preset time in minutes and seconds the camera will sleep
between PIR triggering. This setting ranges from 1 second to 60 minutes 59 seconds. The default
delay is 1 minute.
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 6 “Camera Delay
Setting” is blinking, press “OK” to enter.
c) Then the LCD will display “0100”, first two digits represent minutes and the last two digits
represent seconds.
d) When the cursor stays at minutes, press “UP” and “DOWN” to change the value (Range from
00-60, step 1), press “OK” to confirm.
e) Then it enters the second setting. press “UP” and “DOWN” to change the value (Range from
00-59, step 1), press “OK” to confirm.
f) Then it comes to the next setting item. If the setting is done, press “SETUP” to save and exit
the setting.
9
6.2 Set Camera State and Photo Resolution
To set the number of pictures or movie the camera will take per PIR triggering. The user can
choose 1P, 3P or movie mode.
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 4 (still image) or
5 (movie mode) is blinking, press “OK” to enter.
c) Press the “UP” or “DOWN” button to select picture or movie.
d) If selecting the “Picture” mode, press “OK”, the LCD will display “1P” (shot 1 photo a time) or
“3P” (shot 3 photos a time), press “UP” or “DOWN” to select and press “OK” to confirm.
e) Then the LCD will display “LoHi” which comes to setting the image resolution. “Lo”
represents 3.0MP and “Hi” represents is 5.0MP. Press “UP” or “DOWN” to select and press
“OK” to confirm. Default is “Hi”.
Model
Lo
Hi
PC5000
2048x1536 (3.1M)
2560*1920 (5.0M)
f) If selecting the “Movie” mode, press “OK” to confirm.
▲ The movie length default is set to 15 seconds..
g) Press “SETUP” to save and exit the setting.
6.3 Set Date, Year and Time
Setting the Date, Year and Time to make them stamp in the picture.
1) Set Date
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 1“DATE” is
blinking, press “OK” to enter.
c) Then the LCD first two digits represents month (MM) and last two digits represents
day(DD).
d) Press “UP” or “DOWN” to select month between 01-12, Press “OK” to confirm. Then it
comes to day setting.
e) Press “UP” or “DOWN” to select month between 01-31, Press “OK” to confirm. Then it
comes to year setting.
f) Press “UP” or “DOWN” to select year between 00-99 (2000-2099), Press “OK” to confirm.
g) If the setting is done, press “SETUP” to save and exit the setting.
10
2) Set Time
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 2 “TIME” is
blinking, press “OK” to enter.
c) Then the LCD first two digits represent hour (HH) and last two digits represents minutes
(MM).
d) Press “UP” or “DOWN” to select hour between 00-23, Press “OK” to confirm. Then it
comes to minutes setting.
e) Press “UP” or “DOWN” to select minute between 00-59, Press “OK” to confirm.
f) If the setting is done, press “SETUP” to save and exit the setting.
▲ Don’t forget to reset the Date & Time stamp after you replace the batteries.
6.4 Setup or Clear Password
The camera system will always require you to input a password to get into the system. The
system default password is “0000”. For the first time you use the camera, you just press “OK” for
4 times to go though the security check.
1) Setup the Password
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 7
“Password” is blinking, press “OK” to enter.
c) Press “UP” or “DOWN” to select 0-9 and press “OK” for the next digit till finish all 4 digits
password.
d) If the setting is done, press “SETUP” to save and exit the setting.
2) Clear the Password (reset the password to default “0000”)
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 7
“Password” is blinking, press “OK” to enter.
c) Press “UP” or “DOWN” to select 0, press “OK” and repeat for 4 times till the password is
set to default “0000”.
d) Press “SETUP” to save and exit the setting.
▲ Note: If you forget the password, please feel free to contact your dealer or shop with your
buying receipt. They will help you to reset the password to system default password “0000”.
11
6.5 Display How Many Pictures and Video Taken
a) Turn on the unit and then press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 8 “SD Card” is
blinking.
c) Then the LCD will display the total number of the picture and video taken in this SD card.
7. Using the Camera
7.1 Mounting the Camera
It is recommended that you mount the camera 1.2~1.5 metres off the ground with the camera
pointed at a slight downward angle. Be sure to avoid mounting the camera facing east or west as
the rising and setting of the sun could produce false triggers and overexposed images. Clear
branches and other debris away from the front of the camera so as not to block the camera lens
or PIR sensor.
a) Insert the strap through the strap slots on the rear housing.
b) Wrap the strap around the mounting surface. Secure the strap and tighten the buckle in
order to secure the camera.
▲ In order to obtain proper weather resistance, please make sure that both door latches are
securely locked in place.
12
7.2 Turn on the Camera
The default password for the camera is “0000”. When using the camera for the first time, just
turn on the power switch and press “OK” for 4 times (this inputs the password of “0000” ) to get
into the system.
If you setup a private password, when turning on the power switch, the LCD will display “HHHH”
which means you need to input your chosen 4 digit password which you set before.
Once the password has been entered correctly the camera will enter ‘Sleep Mode’. When the PIR
sensor is trigged, it will start to take photos right after the delay time is passed.
7.3 PIR Sensitivity Adjustor
The user can adjust the PIR sensitivity to control the distance of the sensing range. This controller
can adjust from 2 metres to 20 meters. The real distance can vary, depending on the environment,
temperature, object size etc. Turning the knob to the bigger value to make the PIR more sensitive
(longer distance) or to a smaller value to make the PIR less sensitive (shorter distance).
7.4 Testing the camera coverage area
One of the ProStalk PC5000 Nature Camera’s features is the ability to test the coverage area.
• After mounting the camera, open the front housing and slide the “Power” switch to the “ON”
position and press the "SETUP" button.
• A red indicator light on the front will blink when you have intruded the coverage area.
• Adjust the camera position as needed and repeat testing until the desired coverage area is
achieved.
13
▲ Make sure to switch the “Power” to “On” and press the "SETUP" button again after setting is
complete. Otherwise the camera will not take any pictures or movies.
7.5 Secure Your Camera
The ProStalk PC5000 Nature Camera has a lock hole to secure the device using a padlock.
7.6 Replacing the Battery
If the battery is low, the red light indicator will flash 3 times and then turn off. This indicates that
the user should replace a new set of battery.
14
8. Viewing the Images and Movies
Connect the Camera directly to a PC
1. Sliding the “Power” toggle switch to “on” position
2. Press “SETUP” button
3. Connect your camera to the PC by the USB cable, the PC will recognize the new device and
enter into “mass storage” model. It will display a new disk symbol in your “file explorer”. The
CD will display “STO” means the camera is in mass storage mode.
4. Then the user can copy, move or delete the photos and videos that inside the SD card.
Read Images by Card Reader
1. Depress the SD card and pull out the card gently.
2. Put the SD card into the card reader available in the market.
3. Read images and movies from the card reader.
9. PC Camera and TV Out
Turning the camera into a webcam
The Nature Camera can be used for video conference such as skype, msn and yahoo.
1. Sliding the “Power” toggle switch to “on” position
2. Press “SETUP” button
3. Connect your camera to the PC by the USB cable, the PC will recognize the new device and
enter into “mass storage” model.
4. Press “OK” then the camera will enter the “PC camera” mode. The LCD will display “PC”.
TV Out
The user can also connect the camera to a TV for live surveillance.
15
1. Sliding the “Power” toggle switch to “on” position
2. Press “SETUP” button
3. Connect the TV cable to the camera and TV
4. Then the LCD will display “TV”
5. Then the real time image will be transfer to the TV
10. Glossary
PIR: Passive Infrared Sensor. Senses motion like a typical security motion detector. Requires
infrared energy (heat) in addition to motion to trip the sensor and assure detection of live
animals.
Camera Delay: Time elapsed between photos while events are sensed and recorded. This is
user-set based on wildlife activity in area.
Resolution: The resolution selection that you have selected. MP = Mega Pixels = 1 million pixels
HI (2560 x 1920): 5.0M pixels image. (High image quality, big file size)
LO (2048 x 1536): 3.1M pixels image. (Medium image quality, medium file size)
Video resolution (640 x 480@30fps): This is the resolution during video capturing.
FPS: Frame per second. This is the measurement of the frequency (rate) at which an imaging
device produces unique consecutive images. 30 fps means that the camera produces video at 30
frames per second. The higher the fps, the smoother and more fluent the video.
Movie Length: This camera takes all movies at 15 seconds’ length.
Password: It controls the permission of using this camera. Password length is 4 digits.
Moon Phase Imprint: Enables the imprinting of the moons cycle on your photos.
Temperature Imprint: This camera equips the temperature sensor which will imprint the
temperature data on each photo.
IR Flash: Also called IR LED Array. Infrared LED Night Vision feature Emits a burst of infrared light
which is invisible to the human eye. Especially useful for night photos when a visible flash is
undesirable.
SD Card: Memory card used to store images and events. The camera is compatible SD memory
cards up to 32GB capacity.
Battery Life: Time that camera will function in the field. Dependent on temperature, number of
16
images and number of flashes during that time. Based on our new advanced power system, this
camera can support 30 pictures/day for one year surveillance.
Burst: To set the number of pictures the camera will take per PIR triggering
1P: Single image capturing per PIR triggering
3P: Three images continuous capturing per PIR triggering
FULL: When memory capacity is full, this LCD screen will show “FULL”
Loading...
