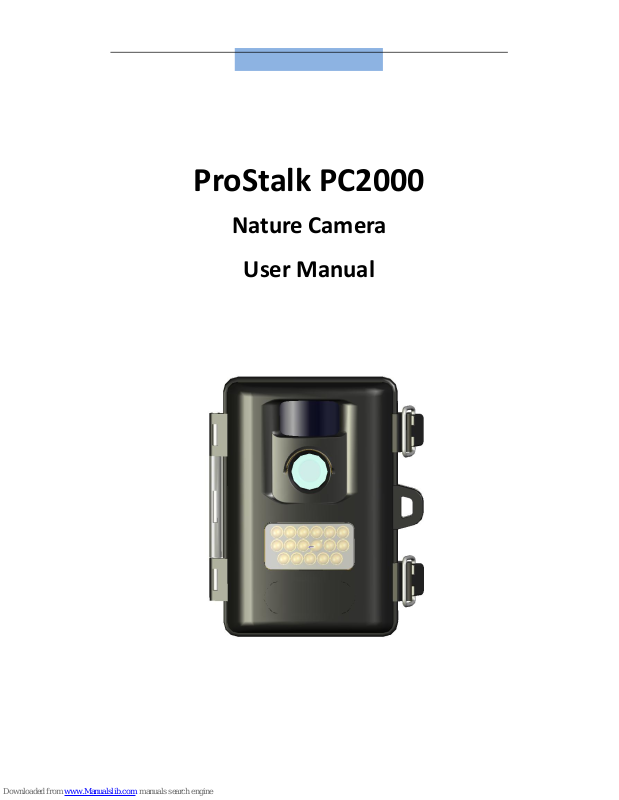

ProStalk PC2000
Nature Camera
User Manual
ES
ES-2
Index
1. Introduction ....................................................................................................................... 3
2. Camera Specifications ........................................................................................................ 4
3. Parts Identification ............................................................................................................. 5
4. Packing Contents................................................................................................................ 6
5. Battery and SD Card Installation ........................................................................................ 6
6. Setup Your Camera ............................................................................................................ 7
6.1 Set Camera Delay ....................................................................................................... 8
6.2 Set Camera State and Photo Resolution .................................................................... 8
6.3 Set Date, Year and Time ............................................................................................. 9
6.4 Display How Many Pictures and Video Taken .......................................................... 10
7. Using the Camera ............................................................................................................. 10
7.1 Mounting the Camera ................................................................................................... 10
7.2 Turn on the Camera ....................................................................................................... 11
7.3 Testing the camera coverage area ................................................................................ 11
7.4 Secure Your Camera ...................................................................................................... 11
7.5 Replacing the Battery .................................................................................................... 12
8. Viewing the Images and Movies ...................................................................................... 12
9. PC Camera ........................................................................................................................ 13
10. Glossary ............................................................................................................................ 13
1. Introduction
Congratulations on your purchase of the ProStalk PC2000 Digital Nature Camera. This nature
camera is designed to record the activity of wildlife game in the outdoors with its still image and
movie modes and weatherproof, rugged construction.
The advantages of the PC2000 camera are its ultra small and portable size with extra longer
surveillance time. Users do not need to carry traditional big cameras out to remote areas, or even
have to worry about trying to find replacement batteries while out in the field.
ES
ES-3
Main Features:
2.0MP Effective Pixel
Ultra Portable Size (82mm x 122mm x 41 mm)
Ultra Long Working Time
Less Than Second Fast Trigger Time
Full Automatic IR Filter
LCD Display
45 Degree Wide Angle PIR Sensor
15 Night Vision LEDs
Battery/working Indicator and Lighting Sensor
Photo Taken Delay: 5 second ~ 60mins (default 1 min)
3P Multiple Frame
640 x 480 at 30 Frame per Second High Resolution Video recording
Support to 32 GB SD Card
Date Time, Moon Phase Imprint
Auto Exposure
Auto White Balance
Power Supply: 4 x AA Cell batteries
Standard Socket for Camera Tripod
Water Resistant
2. Camera Specifications
Model Number
ProStalk PC2000
Image Sensor Type
1/2 Inch CMOS
Effective Pixels
2.0 Megapixels
Effective Focal Length
7.6 mm
Lens Aperture
F/3.0
Camera Lens Sight Angle
55 Degrees
IR Filter
Full Automatic IR Filter
Display
LCD
PIR Sensor
Yes
PIR Sensor Sight Angle
55 Degrees
Trigger Speed
Less Than One second
Number of IR LED
15 LEDs
Max Night Vision Lighting Distance
10 meters
Storage
SD Card up to 32 GB Capacity
(Recommend SanDisk SD Card)
Low Battery Indicator
Yes
ES
ES-4
Photo Taken Delay
5 second ~ 60mins (default 1 min)
Selectable Image Resolution
2.0MP; 0.8MP
Multiple Frame (Take 3 photos)
Yes
Video Resolution
Movie: AVI 640 x 480 pixels @ 30 fps (15 seconds).
File Format (Image/Video)
JPEG/AVI
Date Time Imprint
Yes
Moon Phase Imprint
Yes
Exposure
Auto
White Balance Mode
Auto
Menu Languages
English
Power Supply
4 x AA Cell batteries
Camera Socket
Yes
Water Resistant
Yes
3. Parts Identification
ES
ES-5
4. Packing Contents
Model ProStalk Digital Scouting Camera
• User Manual
• USB cable
• Mounting Kit
5. Battery and SD Card Installation
The ProStalk Digital Nature Camera is designed to operate using 4 x AA Cell Battery. We
recommend using alkaline batteries.
NOTE: Always have camera in OFF position when installing or removing batteries.
▲ Please make sure the voltage and polarity (+/-) are correct before connection. Incorrect
voltage or polarity (+/-) will damage the camera.
ES
ES-6
Memory
The ProStalk PC2000 Digital Nature Camera saves images to an SD memory card (accepting up to
a 32GB SD card - sold separately).
Inserting SD card
Make sure camera is in the OFF position whenever adding or removing memory.
• Insert SD memory card in to the SD card slot entirely and in the correct direction as shown by
the sticker located at the side of the housing.
• To remove the SD memory card, depress the SD card and pull out the card gently.
▲ SD cards must be clean (no images from other sources), if you are using the SD card from
other cameras, please make sure to format the SD card prior use in the camera. New cards
are good to use straight from the package.
6. Setup Your Camera
Menu Items
Date
MM/DD
Time
HH:MM(24 Hours System)
Image/Video
Mode
1P
0.8MP(LO)
2.0MP(HI)
3P
0.8MP(LO)
2.0MP(HI)
Movie
640 x 480
Camera delay
Camera delay: (5s—60min, 1min default)
Photo number
Only display
LCD Menu
ES
ES-7
1. Date
2. Time
3. 4 Digits Display
4. Image Resolution Select
5. Movie Recording
6. Camera Delay Setting
7. SD Card
It is very easy to setup this camera. Turn on the unit and then press the “SETUP” button, the
“DATE” icon will start to blink, press “UP” or “DOWN” to navigate the setup menu. Press the “OK”
button to enter the specific menu item which is blinking. Use the “UP” or “DOWN” buttons to
make adjustments. After the setting is done, press “SETUP” to save and exit the menu setting
status.
6.1 Set Camera Delay
Camera Delay is to set the amount of preset time in minutes and seconds the camera will sleep
between PIR triggering. This setting ranges from 1 second to 59 seconds, 1 minute to 60 minutes.
Default delay is 1 minute.
a) Turn on the unit and then press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button until icon 6 “Camera
Delay Setting” is blinking, press “OK” to enter.
c) Then the LCD will display “0100”, first two digits represent minutes and last two digits
represent seconds.
d) When the cursor stays at minutes, press “UP” and “DOWN” to change the value (Range from
00-60, step 1), press “OK” to confirm.
e) Then it enters the second setting. Press “UP” and “DOWN” to change the value (Range from
05-59, step 1), press “OK” to confirm.
f) Then it comes to the next setting item. If the setting is done, press “SETUP” to save and exit
the setting.
ES
ES-8
6.2 Set Camera State and Photo Resolution
To set the number of pictures or movie the camera will take per PIR triggering, the user can
choose 1P, 3P or movie mode.
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button till icon 4,5 is blinking,
press “OK” to enter.
c) Press the “UP” or “DOWN” button to select picture or movie.
d) If selecting the “Picture” mode, press “OK”, the LCD will display “1P” (shot 1 photo a time) or
“3P” (shot 3 photos a time), press “UP” or “DOWN” to select and press “OK” to confirm.
e) Then the LCD will display “LoHi” which comes to setting the image resolution. “Lo”
represents 0.8MP and “Hi” represents is 2.0MP. Press “UP” or “DOWN” to select and press
“OK” to confirm. Default is “Hi”.
Model
Lo
Hi
ProStalk
1028*768 (0.8M)
1600 x 1200 (2.0M)
f) If selecting the “Movie” mode, press “OK” to confirm.
▲ The movie length is default set by 15 seconds.
g) Then it comes to the next setting item. If the setting is done, press “SETUP” to save and exit
the setting.
6.3 Set Date, Year and Time
Setting the Date, Year and Time to make them stamp on the picture.
1) Set Date
a) Turn on the unit and press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button until icon 1“DATE” is
blinking, press “OK” to enter.
c) Then the LCD first two digits represents month (MM) and last two digits represent day
(DD).
d) Press “UP” or “DOWN” to select month between 01-12, Press “OK” to confirm. Then it
comes to day setting.
e) Press “UP” or “DOWN” to select month between 01-31, Press “OK” to confirm. Then it
comes to year setting.
f) Press “UP” or “DOWN” to select year between 00-99 (2000-2099), Press “OK” to confirm.
g) If the setting is done, press “SETUP” to save and exit the setting.
ES
ES-9
2) Set Time
a) Turn on the unit and then press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button until icon 2 “TIME”
is blinking, press “OK” to enter.
c) Then the LCD first two digits represent hour (HH) and last two digits represents minutes
(MM).
d) Press “UP” or “DOWN” to select hour between 00-23, Press “OK” to confirm. Then it
comes to minutes setting.
e) Press “UP” or “DOWN” to select minute between 00-59, Press “OK” to confirm.
f) If the setting is done, press “SETUP” to save and exit the setting.
▲ Don’t forget to reset the Date & Time stamp after you replace the batteries.
6.4 Display How Many Pictures and Video Taken
a) Turn on the unit and then press the “SETUP” button
b) The menu icon will start to blink, press the “UP” or “DOWN” button until icon 8 “SD Card” is
blinking.
c) Then the LCD will display the total number of the picture and video taken in this SD card.
7. Using the Camera
7.1 Mounting the Camera
It is recommended that you mount the camera 1.2~1.5 meters off the ground with the camera
pointed at a slight downward angle. Be sure to avoid mounting the camera facing east or west as
the rising and setting of the sun could produce false triggers and overexposed images. Make sure
the camera is clear of any tree branches or debris so that the camera lens and/or PIR sensor are
not obstructed.
ES
ES-10
a) Insert the strap through the strap slots on the rear housing.
b) Wrap the strap around the mounting surface. Secure the strap and tighten the buckle in
order to secure the camera.
▲ In order to obtain proper weather resistance, please make sure that both door latches are
securely locked in place.
7.2 Turn on the Camera
Then, just turn on the power switch and the camera is ready to take pictures. When the PIR
sensor is trigged, it will start to take photos right after the delay time is passed.
7.3 Testing the camera coverage area
One of ProStalk Nature Camera’s features is the ability to test the coverage area.
• After mounting the camera, open the front housing and slide the “Power” switch to “ON”
position and press the "SETUP" button.
• A red indicator light on the front will blink when you have intruded the coverage area.
• Adjust the camera position as needed and repeat testing until the desired coverage area is
achieved.
ES
ES-11
▲ Make sure to switch the “Power” to “On” and press the "SETUP" button again after setting is
over. Otherwise the camera will not take any pictures or movies.
7.4 Secure Your Camera
The ProStalk PC2000 Nature Camera has a lock hole to secure the device using a padlock.
7.5 Replacing the Battery
If the battery is low, the red light indicator will flash 3 times and then turn off. This indicates that
the user should replace a new set of batteries.
ES
ES-12
8. Viewing the Images and Movies
Connect the Camera to PC directly
1. Sliding the “Power” toggle switch to “on” position
2. Press “SETUP” button
3. Connect your camera to the PC by the USB cable, the PC will recognize the new device and
enter into “mass storage” mode. It will display a new disk symbol in your “file explorer”. The
CD will display “STO” means the camera is in mass storage mode.
4. Then the user can copy, move or delete the photos and videos that are on the SD card.
Read Images by Card Reader
1. Depress the SD card and pull out the card gently.
2. Put the SD card into the card reader available in the market.
3. Read images and movies from the card reader.
9. PC Camera
Turn into PC Camera
The Nature Camera can be used for video conference such as skype, msn and yahoo.
1. Sliding the “Power” toggle switch to “on” position
2. Press “SETUP” button
3. Connect your camera to the PC by the USB cable, the PC will recognize the new device and
enter into “mass storage” mode.
4. Press “OK” then the camera will enter the “PC camera” mode. The LCD will display “PC”.
ES
ES-13
10. Glossary
PIR: Passive Infrared Sensor. Senses motion like typical security motion detector. Requires
infrared energy (heat) in addition to motion to trip the sensor to assure detection of live animals.
Camera Delay: Time elapsed between photos while events are sensed and recorded. This is
user-set based on wildlife activity in area.
Resolution: The resolution selection that you have selected. MP = Mega Pixels = 1 million pixels
HI (1600 x 1200): 2.0M pixels image. (High image quality, big file size)
LO (1024 x 768): 0.8M pixels image. (Medium image quality, medium file size)
Video resolution (640 x 480@30fps): This is the resolution during video capturing.
FPS: Frame per second. This is the measurement of the frequency (rate) at which an imaging
device produces unique consecutive images. 30 fps means that the camera produces video at 30
frames per second. The higher value of the FPS, the more fluent the video.
Movie Length: This camera takes all movies at 15 seconds’ length.
Moon Phase Imprint: Our unit features an imprint of the moon phase stamp on each photo to
provide more information to the user.
IR Flash: Also called IR LED Array. Infrared LED Night Vision feature, emits a burst of infrared light
which is invisible to the human eye. Especially useful for night photos when a visible flash is
undesirable.
SD Card: Memory card used to store images and events. The camera is compatible with up to
32GB capacity SD cards. We recommend using SanDisk SD card.
Battery Life: Time that camera will function in the field. Dependent on temperature, number of
images and number of flashes during that time. Based on our new advanced power system, this
camera can support 30 pictures/day for one year surveillance.
Burst: To set the number of pictures the camera will take per PIR triggering
1P: Single image capturing per PIR triggering
3P: Three images continuous capturing per PIR triggering
FULL: When memory capacity is full, this LCD screen will show “FULL”
Loading...
