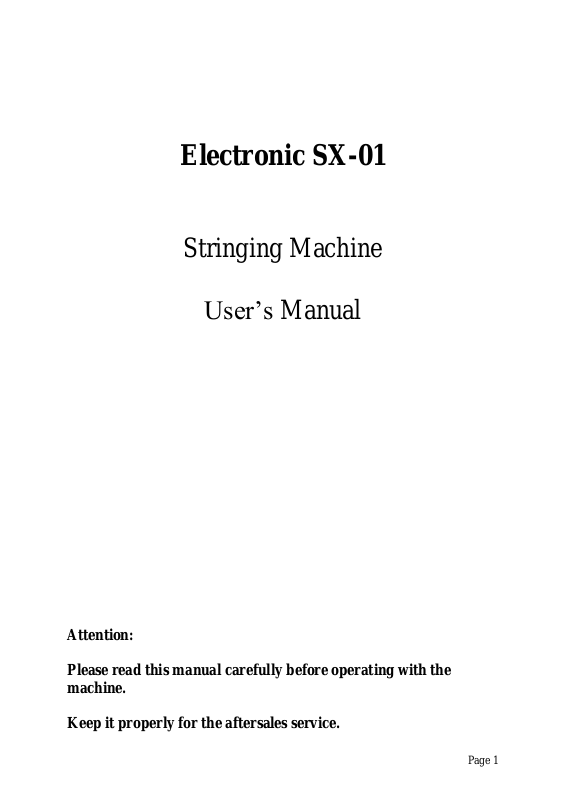

Pro's Pro Electronic SX-01 User Manual

Electronic SX-01

Stringing Machine

User’s Manual

Attention:

Please read this manual carefully before operating with the
machine.

Keep it properly for the aftersales service.

Page 1

Catalogue

1. Attentions

1.1 Operating attentions 3

1.2 Safe using attentions 3

2. Unpacking and inspection

2.1 Components 4

2.2 Inspection 4

3. Operating Instructions 5

4. Mounting a racket 6

5. Insert a string 7

6. Adjusting the base of the swivel clamp 7

7. Maintance 8

8. Troubleshooting 8

9. Service Guide 9

10. Calibration 10

Page 2

Safety precautions

Following are fatal informations for your safety, please observe strictly.

“ ” Warning mark – Any information in this manual with a warning mark must be
abided by strictly, otherwise there will be danger of the personal safety or could lead to a
significant accident.
“ ” Forbidden mark – Any information in this manual with a forbidden mark must be
abided by strictly, otherwise there will be danger of the personal safety or could lead to
damage of the machine.

1.1 Warning

Do use 220v AC power and the provided cable and plug. Please make sure the power

match the machine in the play court.

Do not disassemble or change the machine voluntarily, otherwise it will damage the

machine or cause serious accidents.

Do not use the machine close to volatile or flammable gas.
Do keep away from heat, prevent putting the machine under the sun for long time

avoiding the plastic and rubber parts become aged.

Do contact with local service provider or manufacturer. If the machine has an unusual
situation, for example: big noise, strong smog and leakage, please cut the power
immediately.

Do unplug the power plus when the machine is not in use or renew parts.

1.2 Forbidden

Do not let the kids play with the machine or power equipment.

Do not touch the inner parts when the machine is operating or it will cause an accident.

Do not let the kids operate the machine when cleaning up interior of the machine, in
order to avoid damaging the machine or causing any danger.

Do not operate the power or machine switch with barefoot or wet hands.

Do not move it during working.
Do not clean the surface of the machine with volatile wet cloth.
Do not putting it aside in moist or other bad environment.
Do not pressing the ascending and descending pounds function in the same time,

otherwise it will cause damage to the machine.

Do not placing the cable in high temperature or beside the heating.

Page 3

Unpacking and inspection

The machine is delivered ready assembled.

2.1 Components:

4x T054 racket frame support

2x T071 clamp

1x AC power cable

Set of Allen wrench

2.2 Unpack the machine carefully and inspect the Electronic SX-01 stringing
machine for any obvious damage. Check if all parts are included in the carton.
If any item is missing or damaged, contact your delivery agent and your sales
representative. Retain the original packaging materials for the event that
reshipping is required.

Page 4
