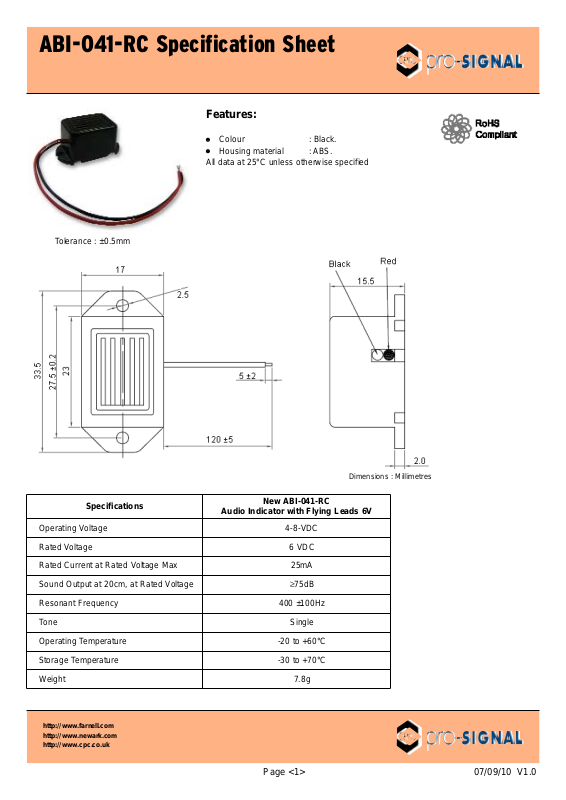

Pro-Signal ABI-041-RC Specification Sheet

ABI-041-RC Specification Sheet

Page <1> 07/09/10 V1.0

http://www.farnell.com
http://www.newark.com
http://www.cpc.co.uk

Features:

••

Colour : Black.

••

Housing material : ABS.

All data at 25°C unless otherwise specified

Dimensions : Millimetres

Tolerance : ±0.5mm

Specifications

New ABI-041-RC

Audio Indicator with Flying Leads 6V

Operating Voltage 4-8-VDC
Rated Voltage 6 VDC
Rated Current at Rated Voltage Max 25mA
Sound Output at 20cm, at Rated Voltage

≥75dB
Resonant Frequency 400 ±100Hz
Tone Single
Operating Temperature -20 to +60°C
Storage Temperature -30 to +70°C
Weight 7.8g

ABT-431-RC Piezo Transducer

Page <2> 07/09/10 V1.0

http://www.farnell.com
http://www.newark.com
http://www.cpc.co.uk

Part Number Table

Description Part Number

Indicator, Audio ABI-041-RC
