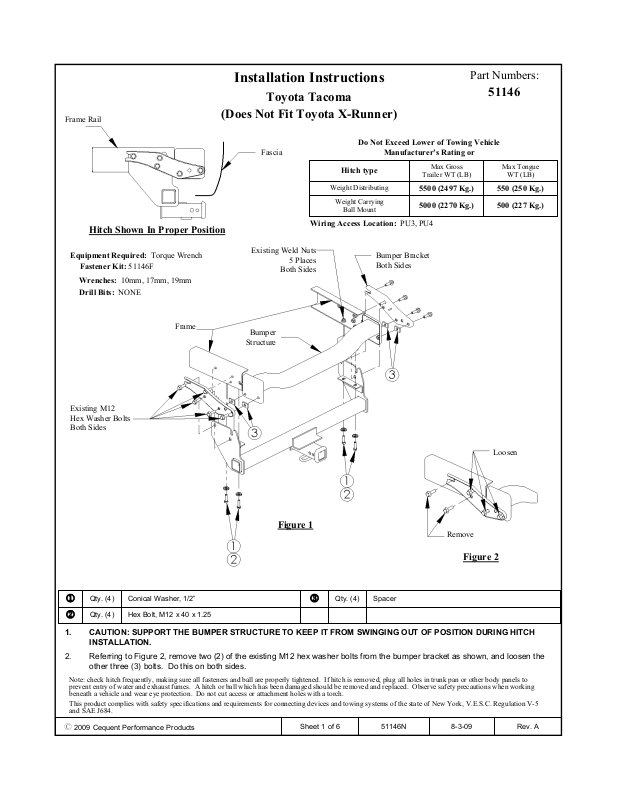

Pro Series 51146 User Manual [en, es, fr]
Frame Rail
Installation Instructions
Toyota Tacoma
(Does Not Fit Toyota X-Runner)
Part Numbers:
51146
Hitch Shown In Proper Position
Equipment Required: Torque Wrench
Fastener Kit: 51146F
Wrenches: 10mm, 17mm, 19mm
Drill Bits: NONE
Frame
Existing M12
Hex Washer Bolts
Both Sides
Fascia
Existing Weld Nuts
5 Places
Both Sides
Bumper
Structure
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Weight Distributing
Weight Carrying
Ball Mount
Wiring Access Location: PU3, PU4
Bumper Bracket
Both Sides
Trailer WT (LB)
Max Gross
Max Tongue
WT (LB)
550 (250 Kg.)5500 (2497 Kg.)
500 (227 Kg.)5000 (2270 Kg.)
Loosen

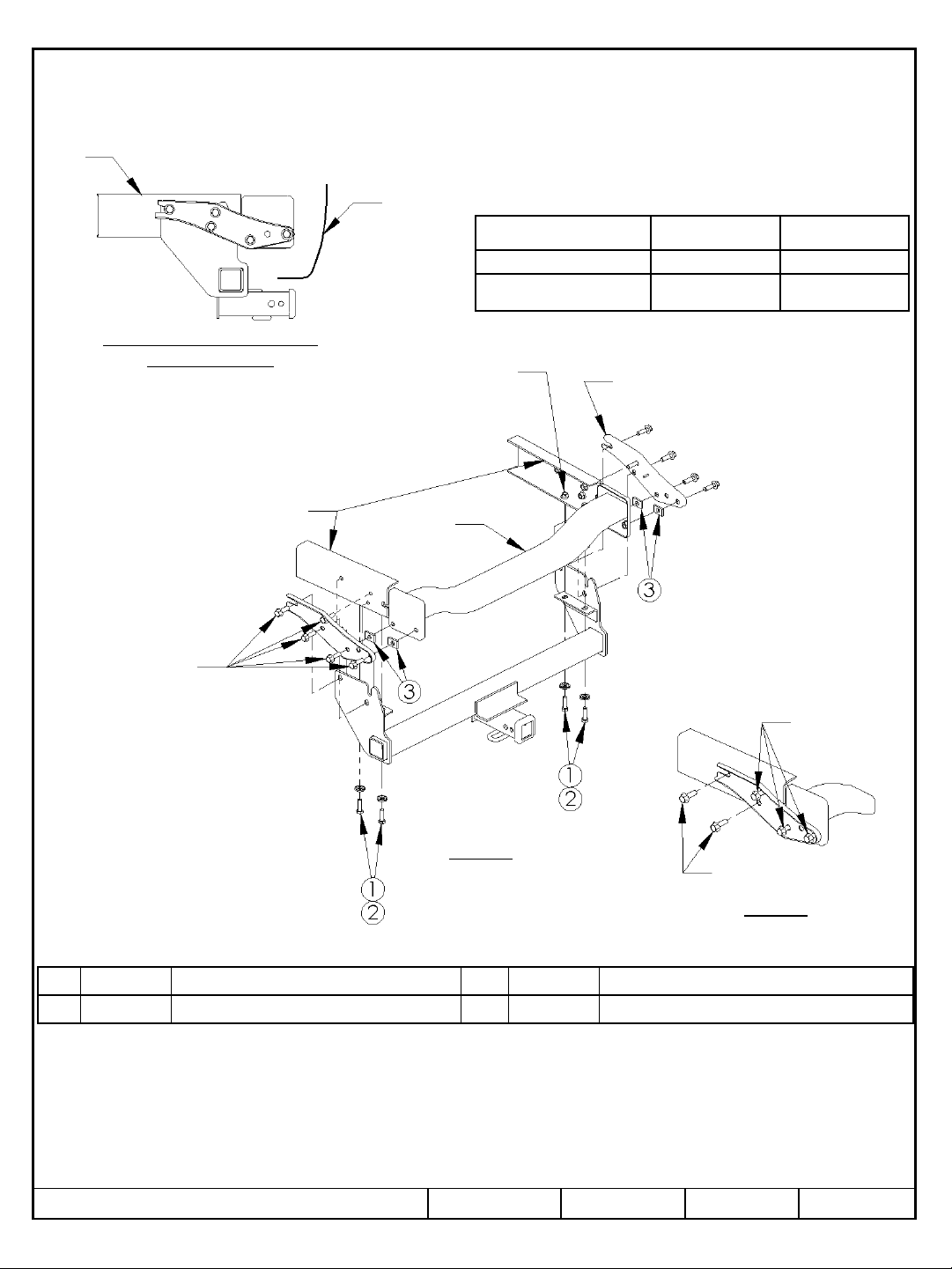

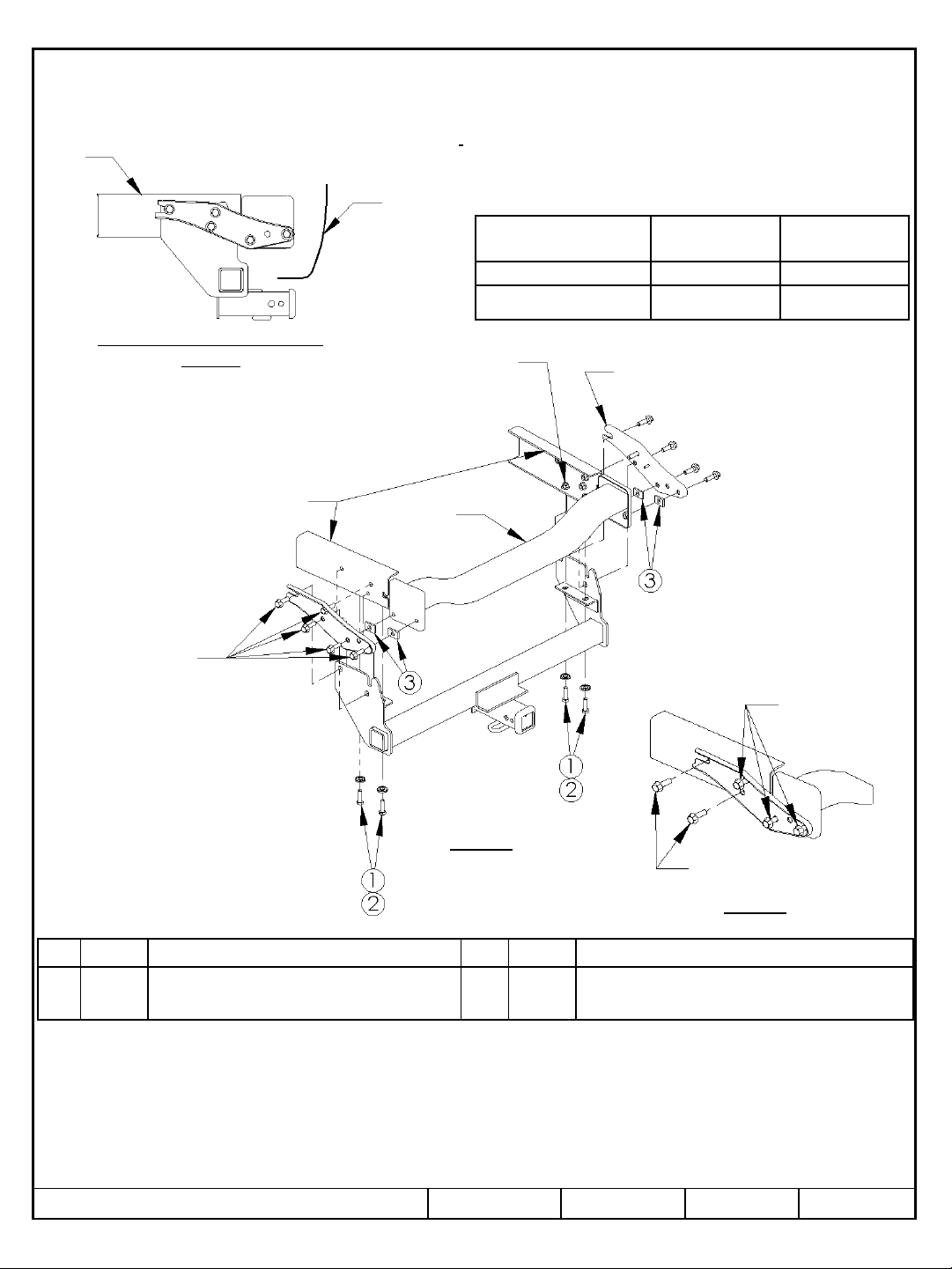

Figure 1
Remove
Remove
Figure 2
1
2
1. CAUTION: SUPPORT THE BUMPER STRUCTURE TO KEEP IT FROM SWINGING OUT OF POSITION DURING HITCH
INSTALLATION.
2. Referring to Figure 2, remove two (2) of the existing M12 hex washer bolts from the bumper bracket as shown, and loosen the
other three (3) bolts. Do this on both sides.
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Conical Washer, 1/2”Qty. (4)
Hex Bolt, M12 x 40 x 1.25Qty. (4)
3
z 2009 Cequent Performance Products
SpacerQty. (4)
Rev. A8-3-0951146NSheet 1 of 6
Installation Instructions
(Does Not Fit Toyota X-Runner)
Existing M12
Hex Washer Bolts
Both Sides
Toyota Tacoma
Existing M12
Hex Washer Bolts
Both Sides
Part Numbers:
51146

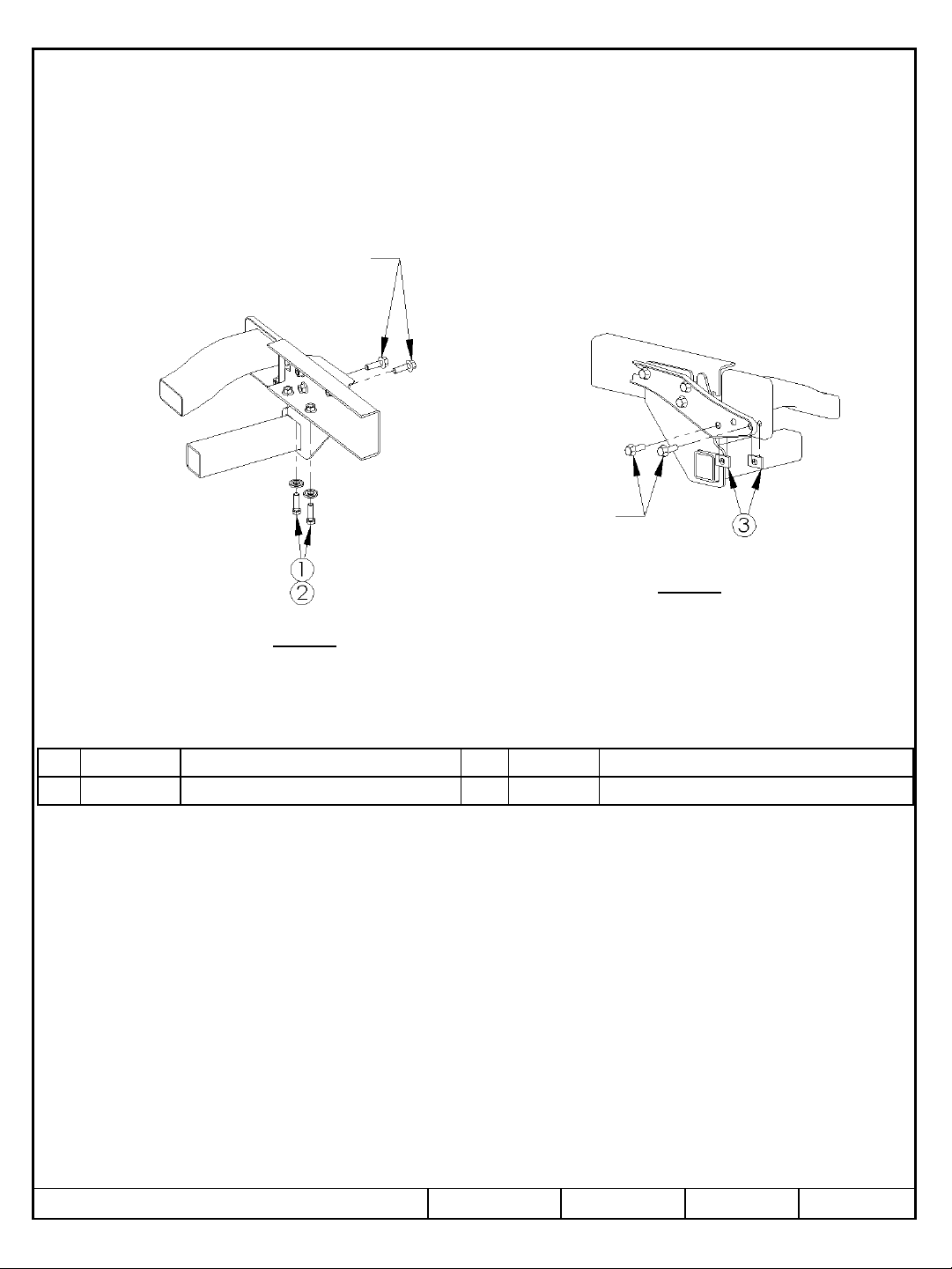

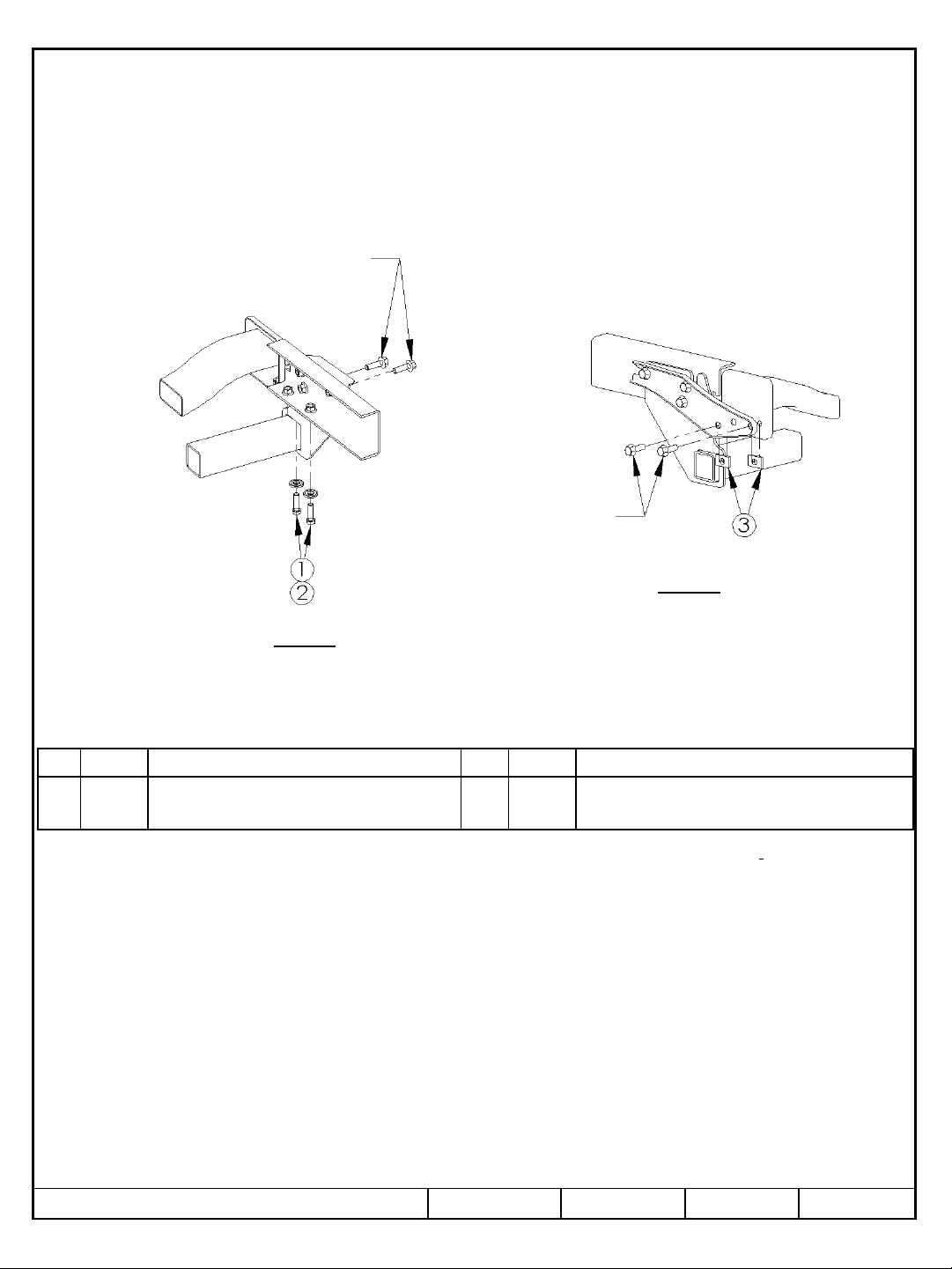

Figure 4
Figure 3
1
2
3. Raise the hitch into position so that the side brackets on the hitch are sandwiched between the bumper brackets and frame
rails. Install the M12 x 1.25 x 40 bolts and washers and finger tighten. See Figure 3.
4. Loosely reinstall the four (4) hex washer bolts that were removed in Step 2. See Figure 3.
5. Be careful to support the bumper in place during this step. Remove two (2) existing hex washer bolts from one side of bumper
bracket and bumper structure as shown in Figure 4.
6. Insert two (2) spacers between bumper bracket and side of bumper structure as shown in Figure 4. Reinsert the hex washer
bolts into the bumper bracket, the holes in the spacers, and the holes in the side of the bumper structure. Finger tighten the
bolts.
7. Repeat Steps 5 and 6 for the other side of the bumper and tighten the fasteners.
Conical Washer, 1/2”Qty. (4)
Hex Bolt, M12 x 40 x 1.25Qty. (4)
Tighten all M12 fasteners with torque wrench to 105 Lb.-Ft.
3
SpacerQty. (4)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
z 2009 Cequent Performance Products
Rev. A8-3-0951146NSheet 2 of 6
