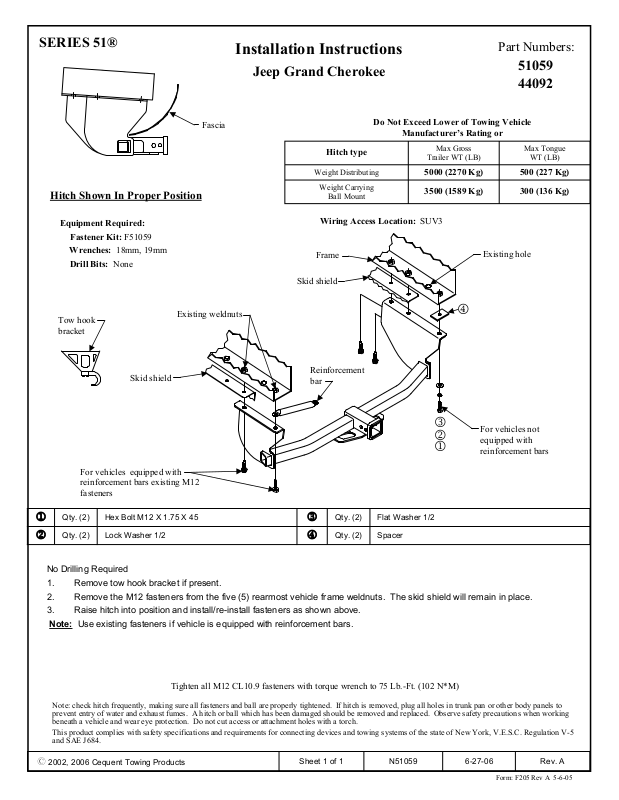

SERIES 51®

Installation Instructions

Jeep Grand Cherokee

Part Numbers:

51059 44092

Hitch Shown In Proper Position

Equipment Required:

Fastener Kit: F51059

Wrenches: 18mm, 19mm

Drill Bits: None

Tow hook bracket

Skid shield

Existing weldnuts

Fascia

Do Not Exceed Lower of Towing Vehicle

Hitch type

Weight Distributing

Weight Carrying

Ball Mount

Wiring Access Location: SUV3

Frame

Skid shield

Reinforcement bar

Manufacturer’s Rating or

Max Gross

Trailer WT (LB)

Existing hole

Max Tongue

WT (LB)

500 (227 Kg)5000 (2270 Kg)

300 (136 Kg)3500 (1589 Kg)

3 2 1

For vehicles equipped with reinforcement bars existing M12 fasteners

No Drilling Required

1. Remove tow hook bracket if present.

2. Remove the M12 fasteners from the five (5) rearmost vehicle frame weldnuts. The skid shield will remain in place.

3. Raise hitch into position and install/re-install fasteners as shown above.

Note: Use existing fasteners if vehicle is equipped with reinforcement bars.

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.

This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.

Hex Bolt M12 X 1.75 X 45Qty. (2)

Lock Washer 1/2Qty. (2)

Tighten all M12 CL10.9 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

Flat Washer 1/2Qty. (2)

SpacerQty. (2)

For vehicles not equipped with reinforcement bars

z 2002, 2006 Cequent Towing Products

Rev. A6-27-06N51059Sheet 1 of 1

Form: F205 Rev A 5-6-05
