ProScan PSB379 Instruction Manual

INSTRUCTION MANUAL

MODEL:PSB379

PLEASE READ CAREFULLY BEFORE OPERATING

AND KEEP FOR FUTURE REFERENCE

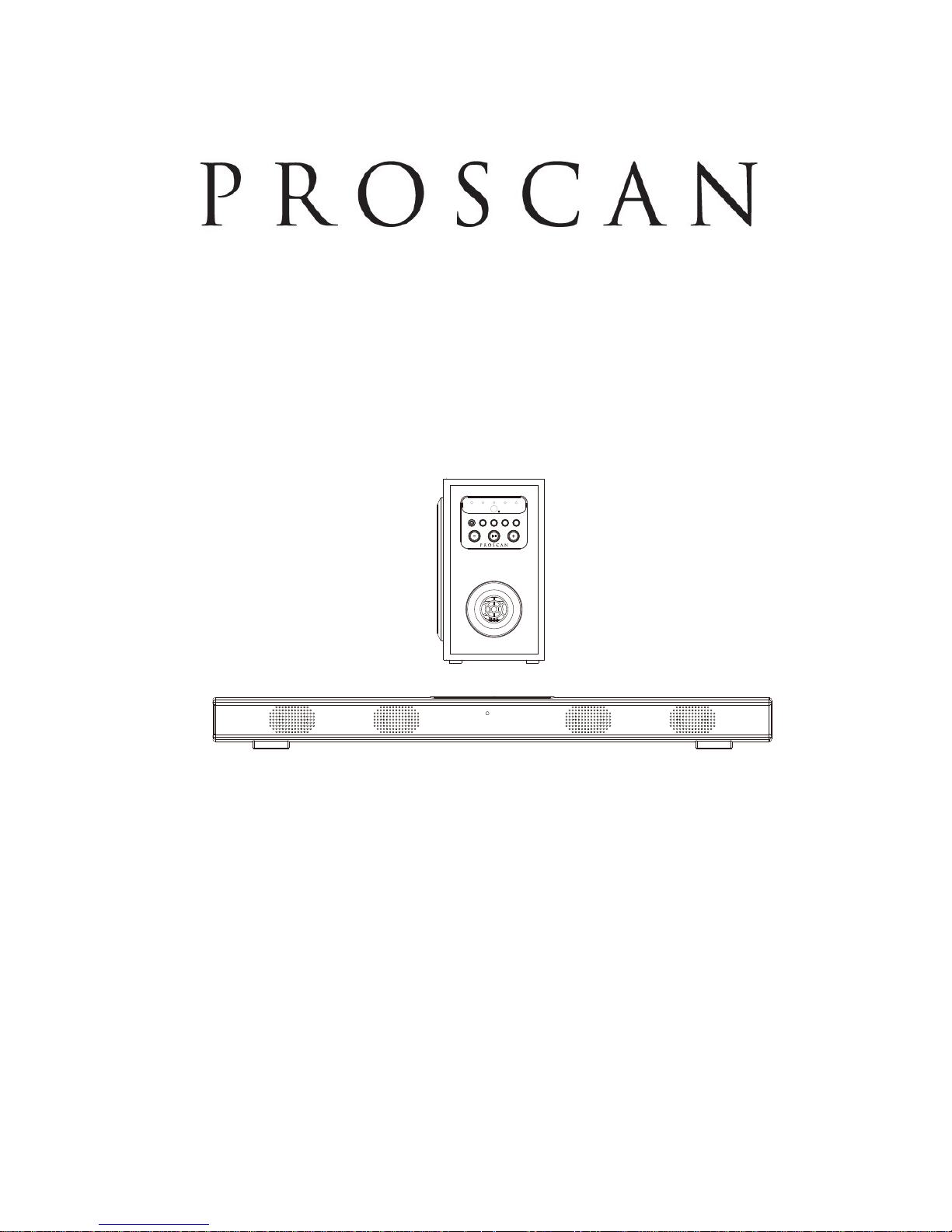

39 INCHES BLUETOOTH SOUND BAR SPEAKER WITH WIRELESS SUBWOOFER

BT

AUX IN 1 AUX IN 2

OPTICAL

AUX IN 1

POWER SOURCE

SCAN PAIR

POWER/FM

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, AND ANNOYING INTERFERENCE, USE THE
RECOMMENDED ACCESSORIES ONLY.

FCC NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not Installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.

FCC WARNING:
To assure continued compliance, follow the attached
installation instructions and use only shielded cables
when connecting to other devices. Modifications not
authorized by the manufacturer may void user`s authority
to operate this device.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.

WARNING:

To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. The apparatus shall
not be exposed to dripping or splashing

and that objects

filled with liquids, such as

vases shall not be placed on

apparatus.

The lighting flash with arrowhead symbol within an

equilateral triangle is intended to alert the user to
the presence of uninsulated “dangerous voltage
within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric
shock to persons.

The exclamation point within an equilateral triangle

is intended to alert the user to the presence of

important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.

IMPORTANT SAFETY INSTRUCTION

1

Before using the unit, be sure to read all operating instructions carefully. Please note that these
are general precautions and may not pertain to your unit.

1) Read these instructions.
All the safety and operating instructions should be read before the product is operated.

2) Keep these instructions.
The safety

and operating instructions should be retained for future reference.

3) Heed all warnings.
All warnings on the product and in the operating instructions should be adhered to.

4) Follow all instructions.
All operating and use instructions should be followed.

5) Do not use this apparatus near water.
Do not

use this product near water and moisture, for example: near a bathtub, washbowl, kitchen

sink or laundry tub; in a wet basement; or near a swimming pool.

6) Clean only with dry cloth.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners

. Use a dry cloth for cleaning.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
Slots and openings in the cabinet and in the back or bottom are provided for ventilation, to ensure
reliable operation of the product and to protect it from overheating

. These openings must not be
blocked or covered. The openings should never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should never be placed near or over a radiator or heat
source. This product should not be placed in a built

-in installation such as a bookcase or rack

unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus(including amplifiers) that produce heat.

9) Do not defeat the safety

purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit

into your outlet, consult an electrician for replacement of the

obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.

11)Only use attachments/accessories specified by the manufacturer.

12)Use only with

the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
An appliance and cart combination should be moved with care.
Quick stop, excessive force and

uneven surfaces may cause the

appliance and cart combination to overturn.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
To protect your product from a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from

the wall outlet and disconnect the antenna or cable system. This

will prevent damage to the product due to lightning and power-line surges.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or

plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture does not operate normally, or has been dropped.

15) Power source
This product should be operated only from the type of power source indicated on the marking label

.
If you are not sure of the type of power supply to your home, consult your appliance dealer or local
power company. For products intended to operate from battery power, or other source, refer to the
operation instructions.

For example, this unit may not have the capability to be connected to an outdoor antenna.

IMPORTANT SAFETY INSTRUCTION

2

Ventilation
When placing the Sound Bar on an entertainment center, bookshelf, or any type of
enclosed space, be sure to allow space around the Sound Bar

oduce a potential heat hazard.

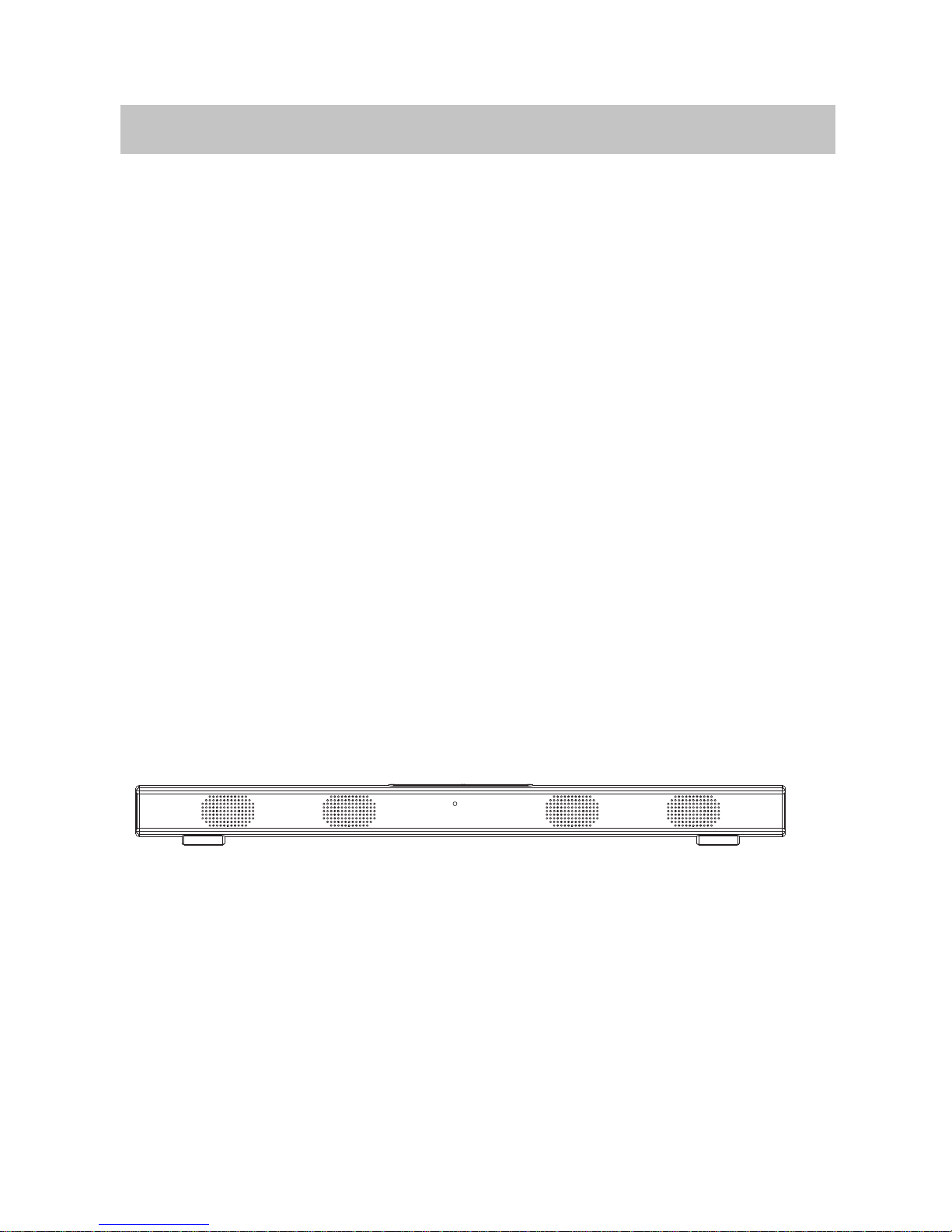

1. Placing the device on table

2.1 Mounting to the wooden wall

for ventilation.

If the Sound Bar is enclosed in a tight space, without ventilation, heat

generated from

the Sound Bar could pr

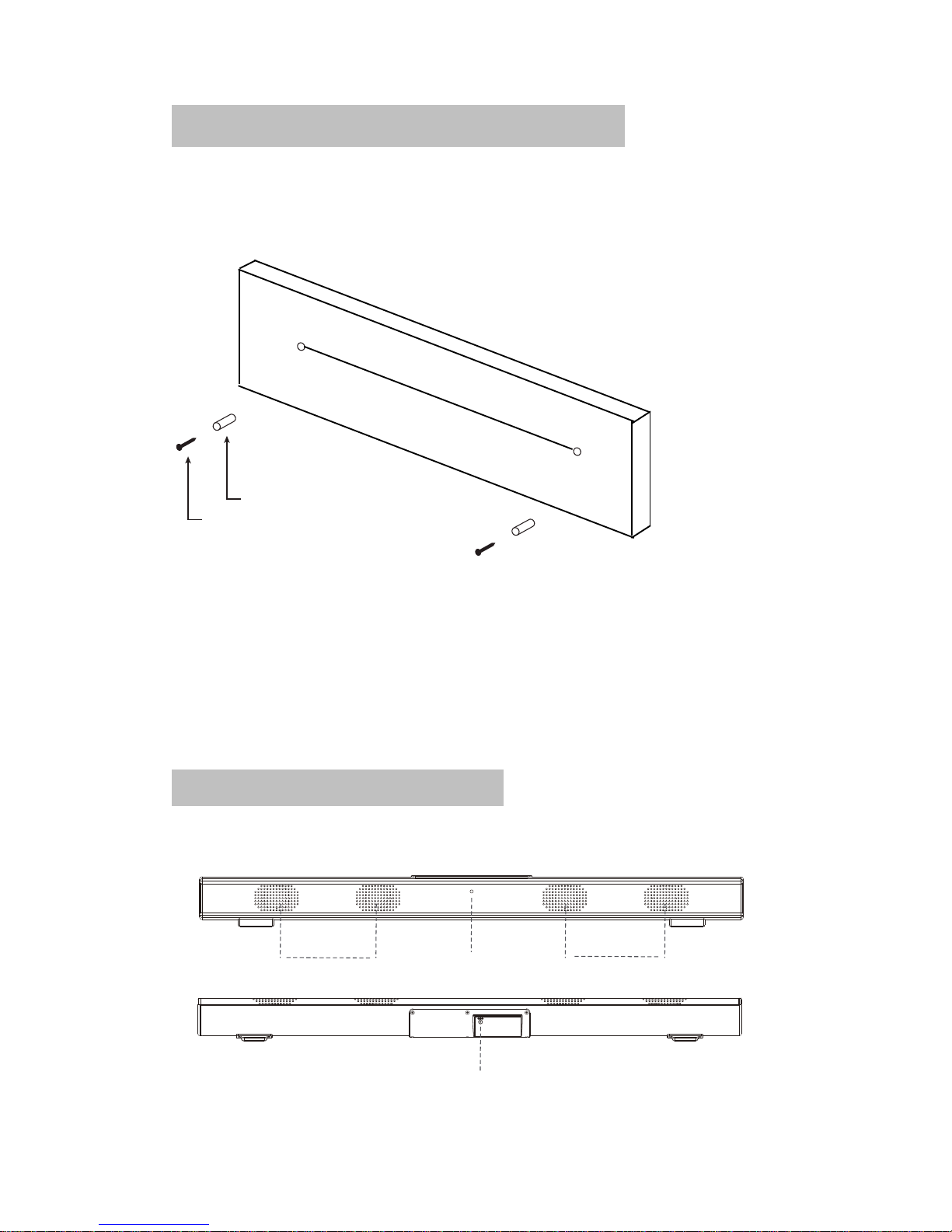

A. Mark the position of the mounting holes on the wall using a pencil.

B. Drill appropriate holes by powerful electric drill on wall.
C. Mounted the supplied Metallic Brackets to the holes with supplied screws.
D. Put the unit to the Metallic Brackets and make it firm.

PLACING AND MOUNTING

3

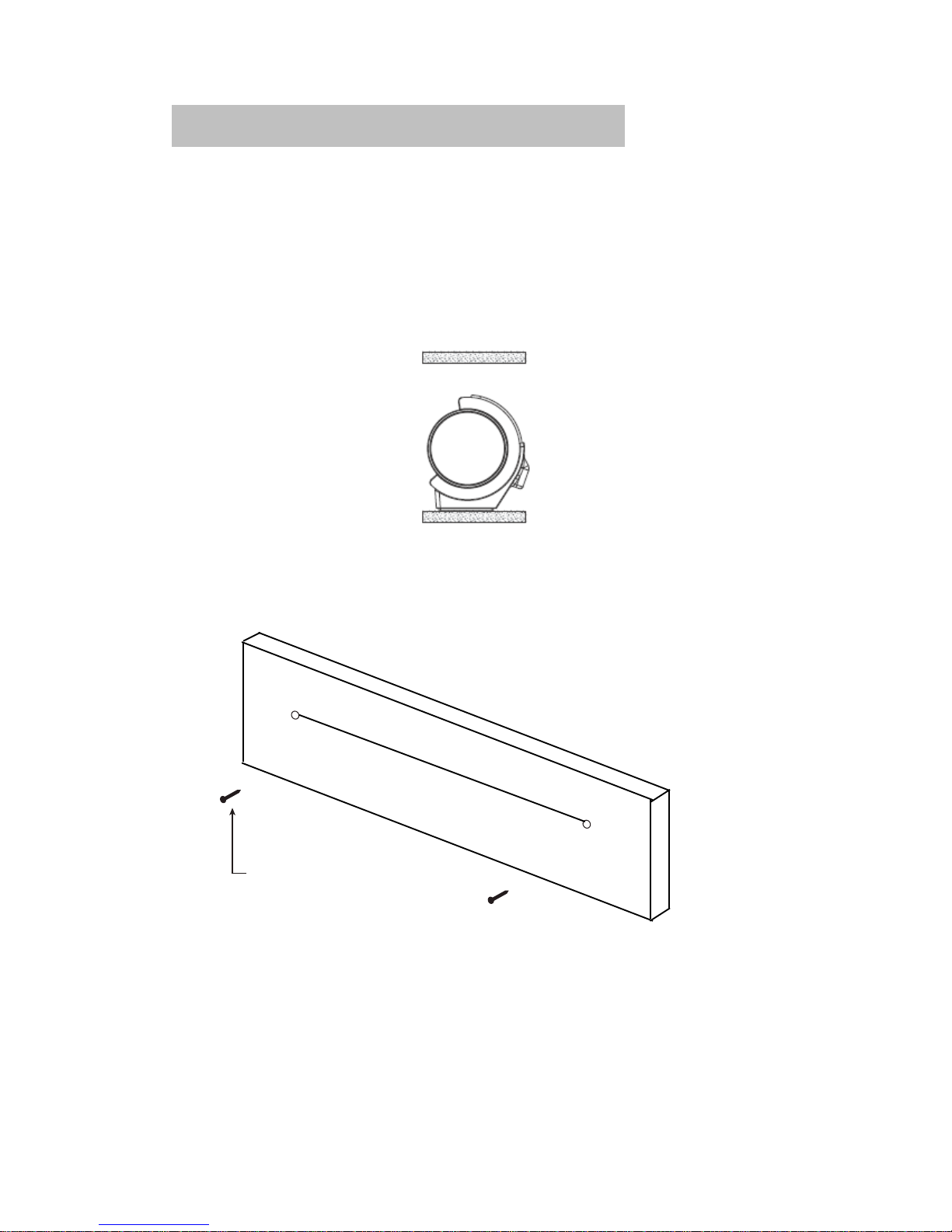

Mark and drill 2 holes with 30.9 inches distance

in same horizontal level.

supplied screw

A. Mark the position of the mounting holes on the wall using a pencil.

B. Drill appropriate holes by powerful electric drill on wall.

C. Insert the supplied plastic inserts into the holes by hammer.

D. Mounted the supplied Metallic Brackets to the holes with supplied screws.
E. Put the unit to the Metallic Brackets and make it firm.

Mark and drill 2 holes with 30.9 inches distance

in same horizontal level.

2.2 Mounting to the brick wall

PLACING AND MOUNTING

4

supplied screw

supplied plastic insert

1

3

5

6

8

9

10

2

4

1. INDICATORS

2. REMOTE SENSOR

3. AUX IN 1 JACK

6. PLAY/PAUSE BUTTON

4. VOLUME-

9. VOLUME+

8. SCAN BUTTON

10. PAIR BUTTON

BT

AUX IN 1 AUX IN 2

OPTICAL

AUX IN 1

POWER SOURCE

SCAN PAIR

BT

AUX I N 1 AUX I N 2

OPT ICAL

AUX I N 1

POW ER SOU RCE

SCA N PAIR

7

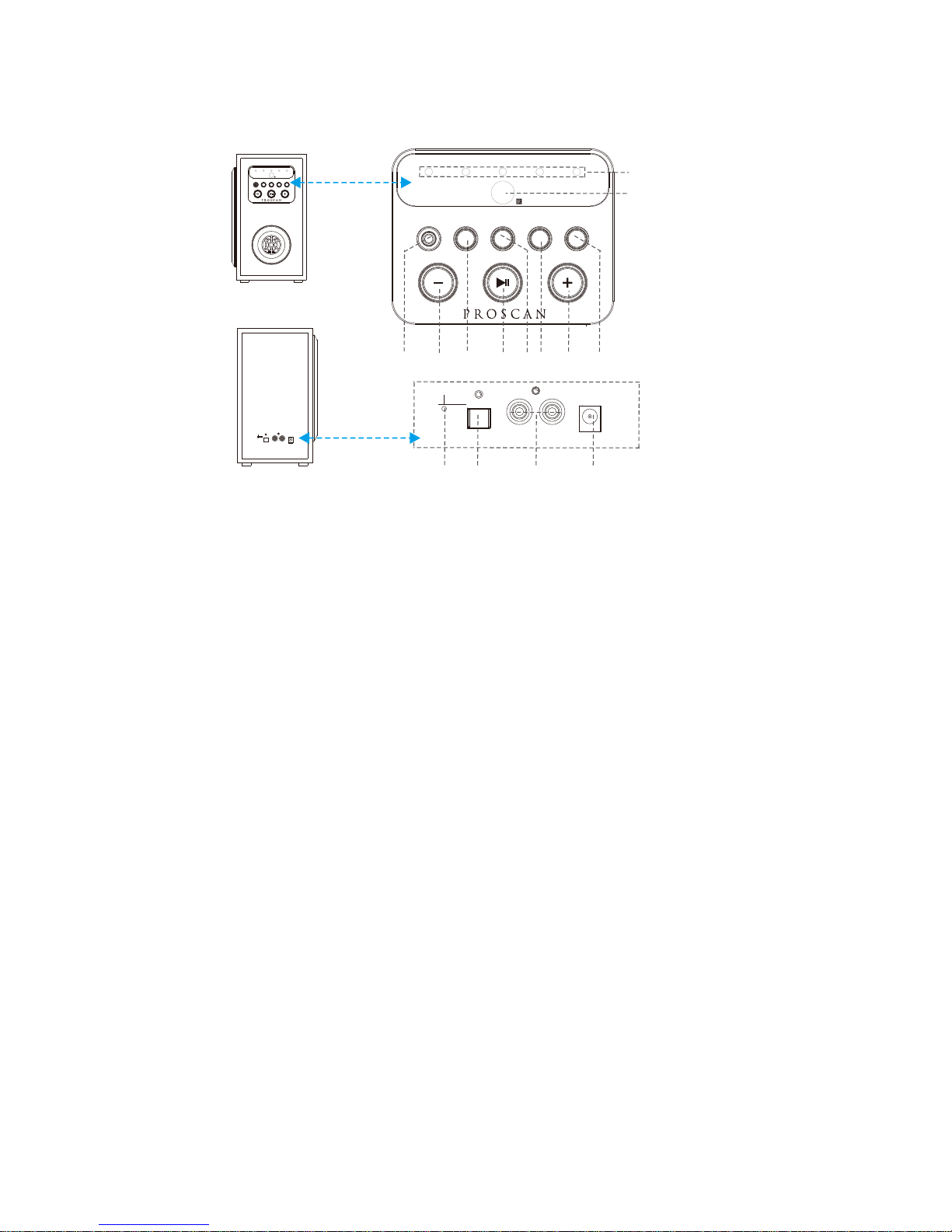

PRODUCT OVERVIEW

SOUND BAR

WIRELESS SUBWOOFER

Speakers

DC IN ( 13V ) Jack

5. POWER BUTTON

7. SOURCE BUTTON

AUX IN 2

R L

DC INOPTICAL IN

ANT

AUX I N 2

R L

DC INOPT ICAL IN

ANT

11. ANTENNA

14. DC IN ( 18V )JACK

13. AUX IN 2 JACK

12. OPTICAL IN JACK

11 12 13 14

5

POWER/FM

POWER/FM

Speakers

Indicator

18V

DC IN 13 V

1. SOURCE Butto

2. Standby Button

3.

6.

7. ST/MO(Stereo/Mono) Button

8. EQ(Equalizer)

Mute Button

lay/Pause Button

BATTERY INSTALLATION

- Before installation
Remove and discard the insulation tab. Out of the box the Remote Control
has a battery and will be usable after the tab is removed.

-Replace battery for the remote control

1. Push and slide out the battery holder as Figure 1 below.

2. Replace the battery with a new CR2025 button cell with the polarity (+)
side upward.

3. Slide into the battery holder.

Battery precautions

• Never recharge the batteries, apply heat to them or take them apart.

• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

• Do not throw the batteries in fire!

• Attention should be drawn to the environmental aspects of battery disposal.

• If the remote control is not going to be used for a long time, remove the battery
to avoid damage caused by battery leakage corrosion.

POWER CONTROL

- To turn the unit on

• Connect the supplied AC/DC adapter.

• Press STANDBY button to turn on the unit.

- To turn the unit off

• Press STANDBY button on the remote control.

NOTE:
If the unit is not used for a long period of time, disconnect the power adapter.

SOU RCE

EQ

1

2

3

4

5

6

7

8

l

5.

(Previous)

(Next)

P

n

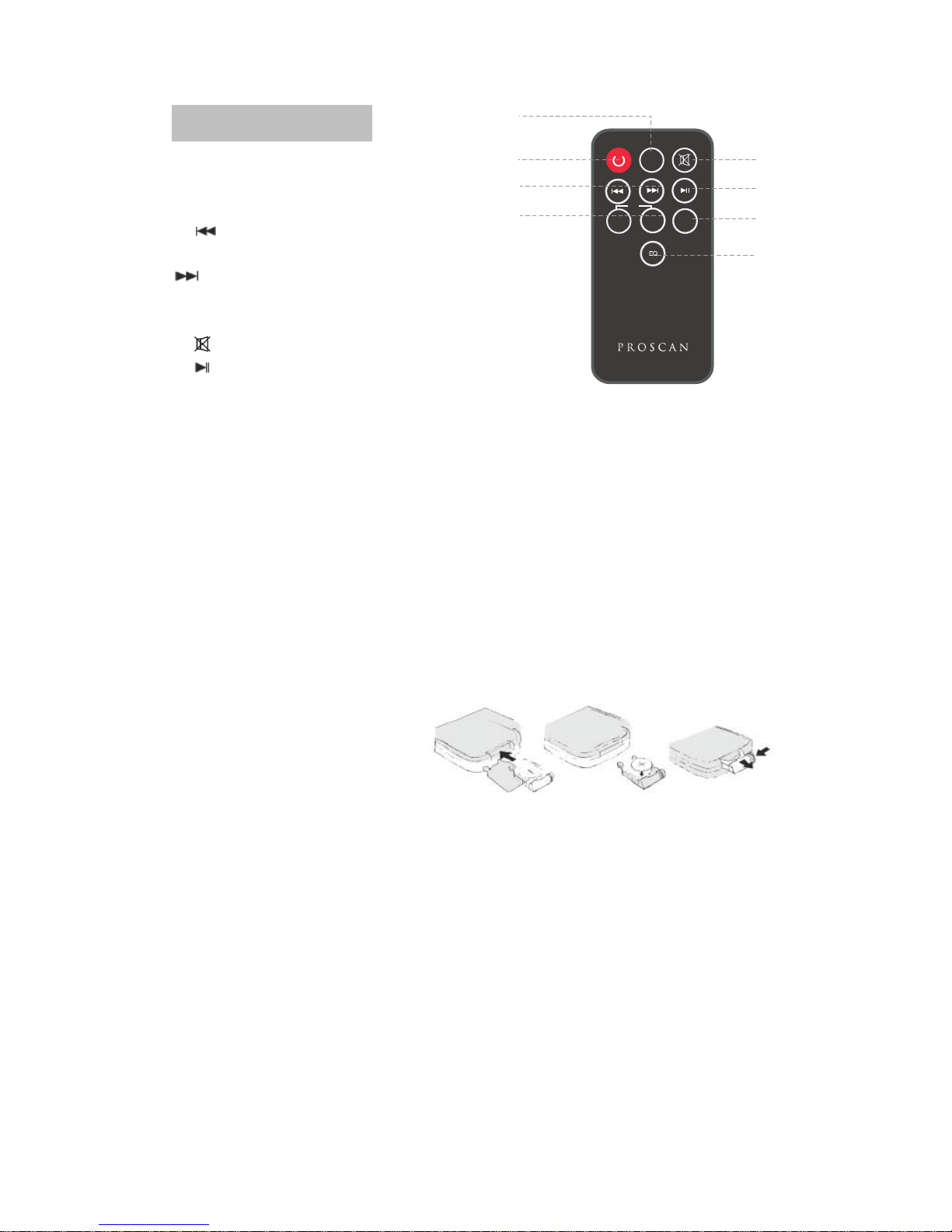

REMOTE CONTROL

-

+

ST/MO

TUNE-

TUNE+

POWER

VOL

TUNE-(Tune Down)
TUNE+(Tune Up)

6

4. VOL-/+(Volume Down/Up)

4. During Playback:
~ Press the VOL-/+ buttons to adjust volume level as desired.
~ Press the EQ button on remote control repeatedly to select and set equalizer mode.
~ Press (Mute) button on the Remote Control to turn off the sound. Press again to resume.

to shut off the unit if no using for long period of time.

NOTE:
Pull out the AC/DC Adapter plug

2. Press the Power button on the subwoofer or remote control to power on the unit.

corresponding color as below:

3. Press the SOURCE button repeatedly to switch to desired mode.The color of Indicator turns
to

~ Press the or button to skip track.
~ Press the (Play/Pause) button to pause. Press again to resume normal playback.

~ Red........................................................................AUX IN 1

~ Press the ST/MO(Stereo/Mono) button to select stereo or mono mode.

~ Blue.......................................................................Bluetooth

GENERAL OPERATION

1. Insert both AC/DC Adapter plug of the wireless subwoofer and the sound bar into a conveniently

located AC outlet having 100-240V~50/60Hz.

~ Red........................................................................AUX IN 2

7

~ Red....................................................................POWER/FM

~ Red........................................................................OPTICAL

NOTE:

B. Make the main unit to standby mode and then power on, the indicator light will stay at

the position of last set mode.

C. Unplug the adaptor, the indicator will be back to POWER/FM position.

NOTE:

B. Make the main unit to standby mode and then power on, the indicator light will stay at

the position of last set mode.

C. Unplug the adaptor, the indicator will be back to POWER/FM position.

on main unit or remote control, the POWER/FM indicator will stay lighting up.

on main unit or remote control, the POWER/FM indicator will stay lighting up.

A. Plug the Adaptor to the AC outlet, the POWER/FM indicator will blink, press POWER Button A. Plug the Adaptor to the AC outlet, the POWER/FM indicator will blink, press POWER Button

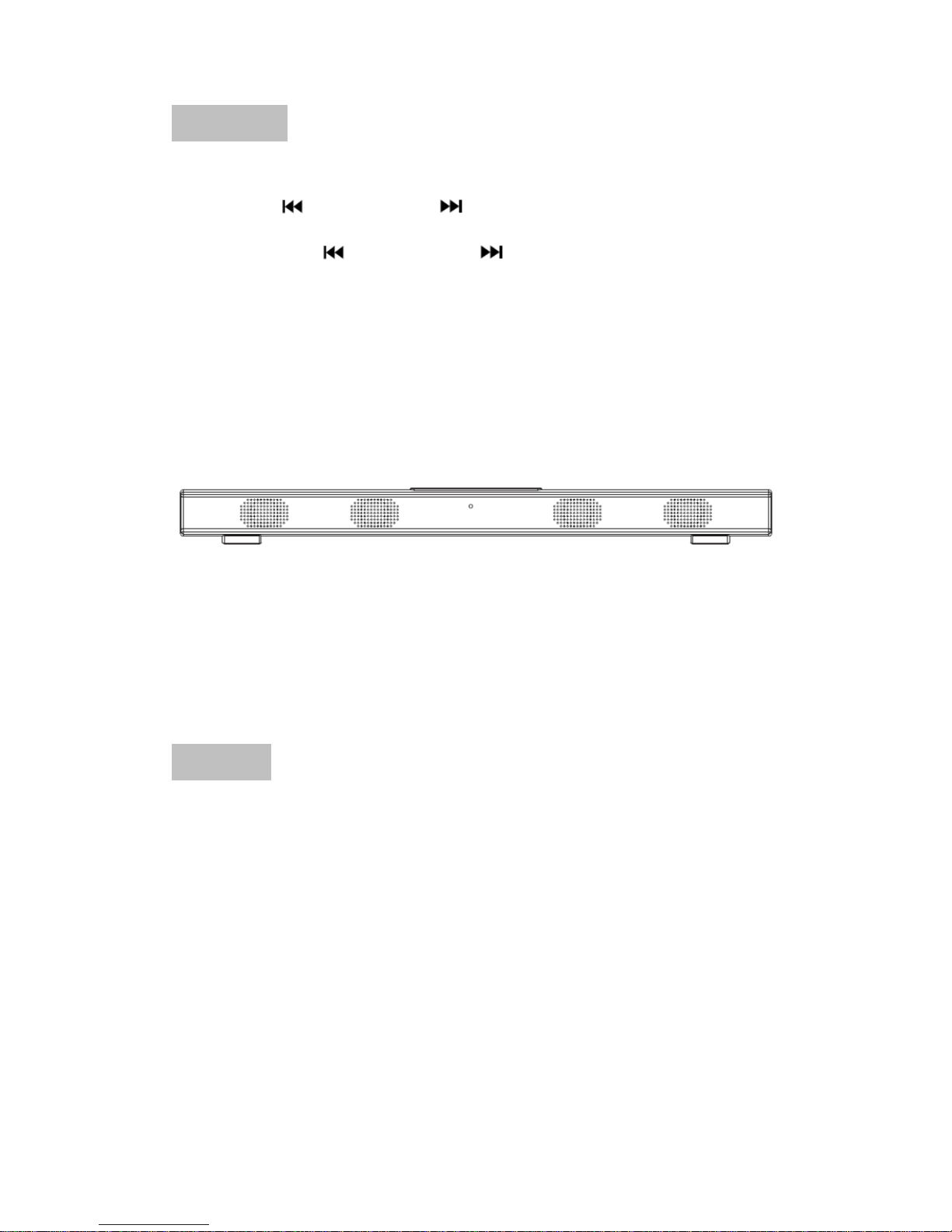

FM RADIO

mode until the POWER/FM indicator color turns Red.

2. Press and hold

/TUNE- or

/TUNE+ on remote control to search station automatically

until a station is found and it will play automatically.

1. Press /TUNE- or TUNE+ button on remote control to search manually to play the
searched station.

Power on the unit and external sound bar, press the SOURCE Button repeatedly to turn to FM

4. Press and hold the SCAN button on the unit to search the station automatically until a station

is found, and it will play automatically.

3. Press the SCAN button on the unit to search the station manually.

8

NOTE:

If the reception is not good, please extend or relocate the antenna to get better reception. If the reception is not good, please extend or relocate the antenna to get better reception.

NOTE:

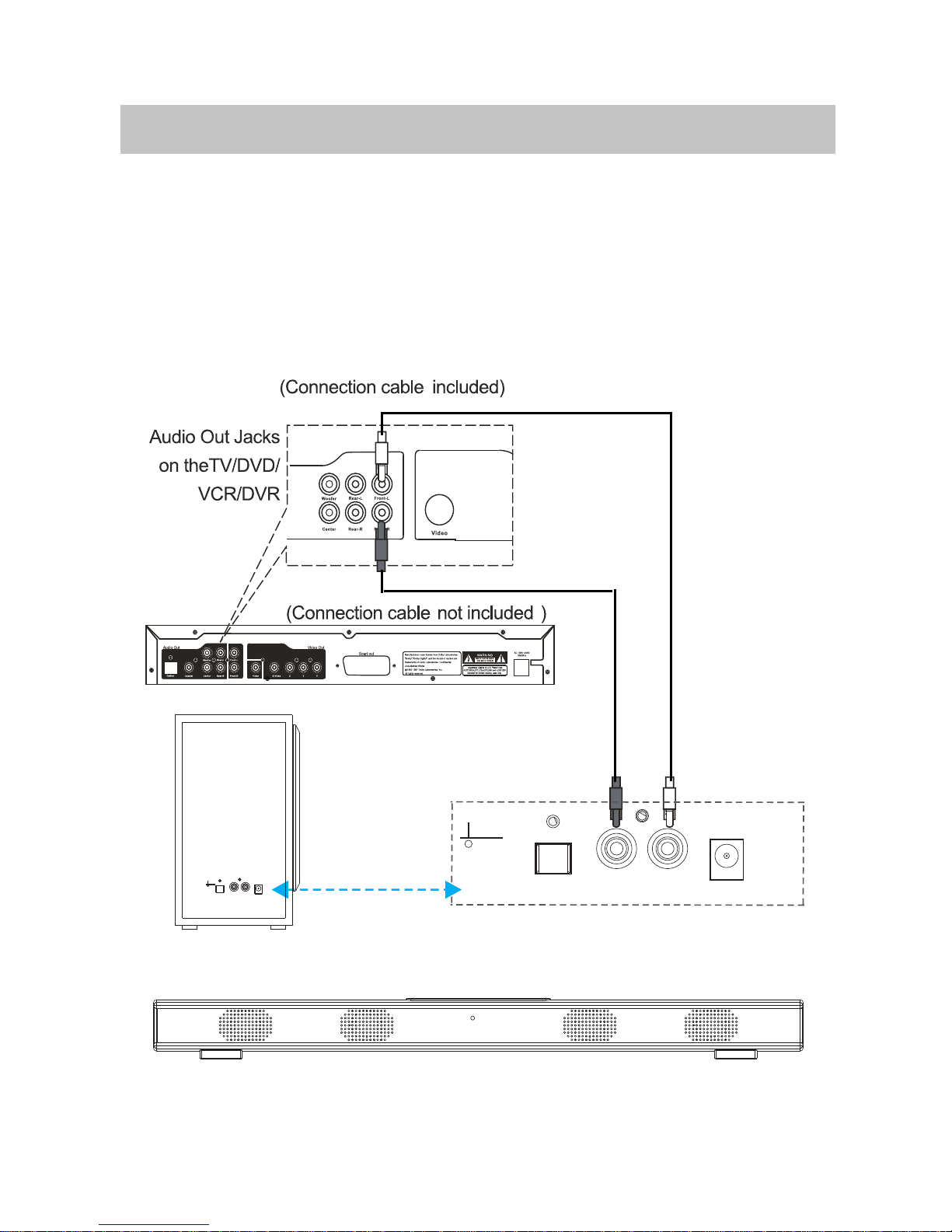

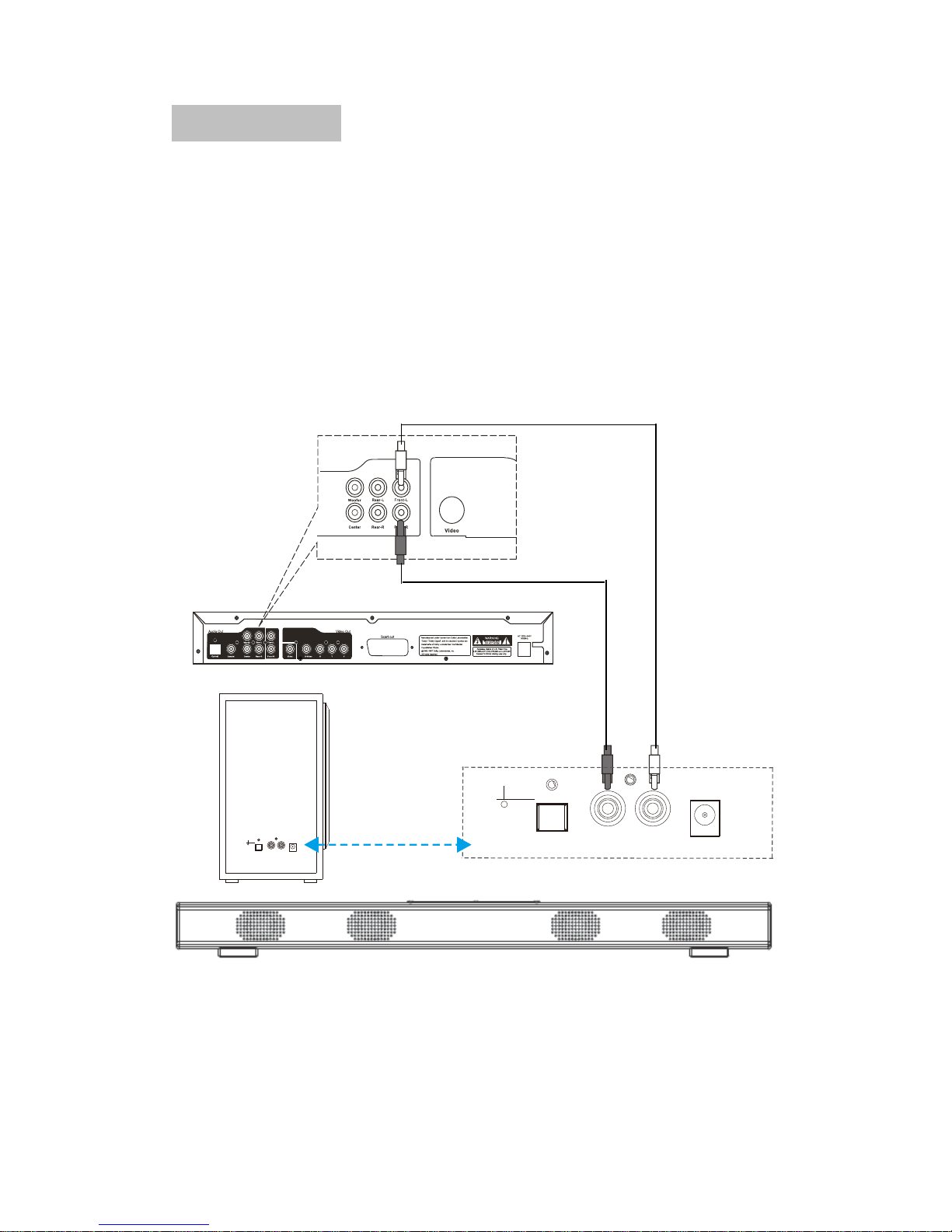

EXTERNAL SOUND BAR

NOTE:
If there is no signal received, the indicator of the sound bar will blink.

If there is signal received, the indicator of the sound bar will stay lighting up.

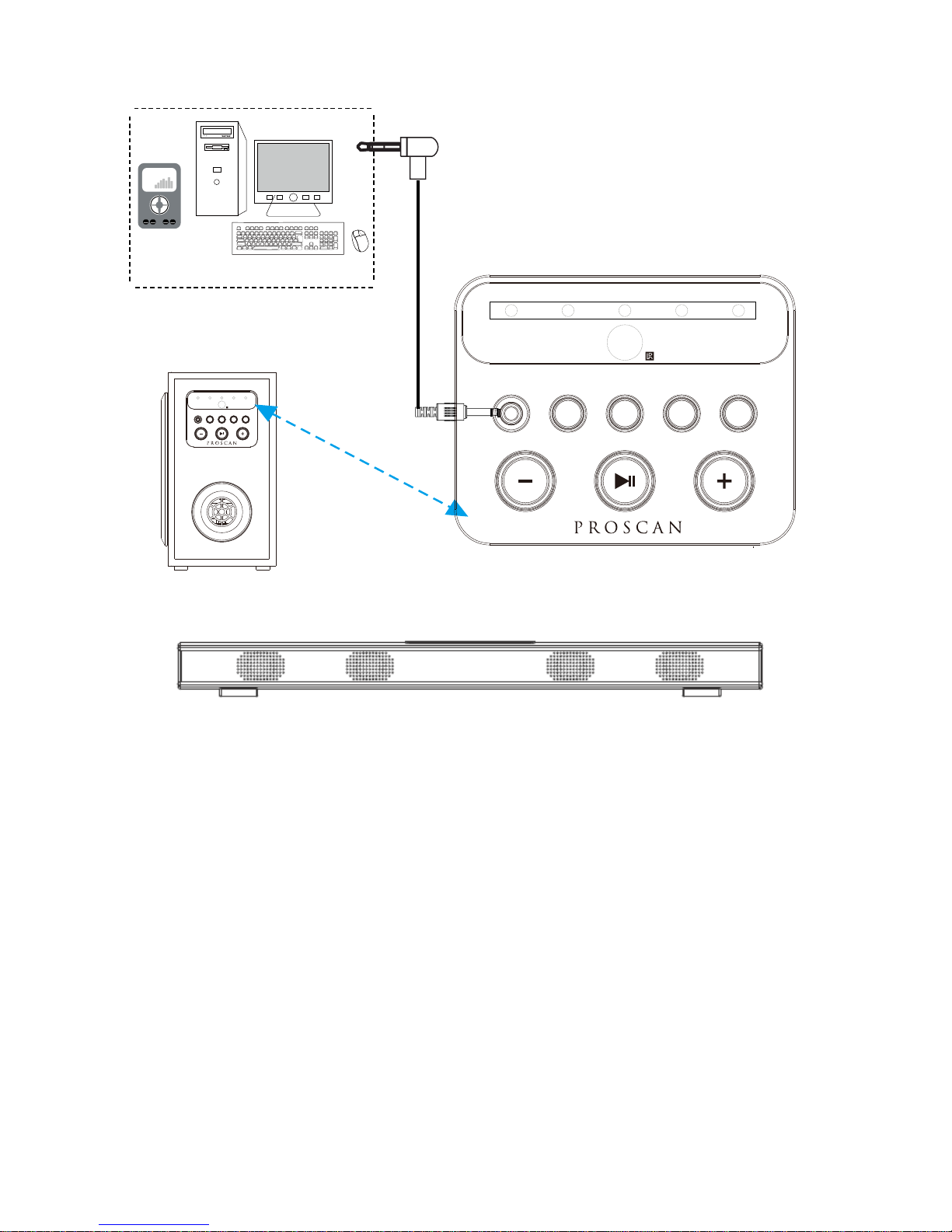

AUX IN 1 sources may include:

·

Personal audio players
Personal computers or laptops

·

Connect a stereo 3.5mm jack cable between the headphone or LINE/
Audio output of the personal audio player and the AUX IN 1 jack on the unit.

color turns Red. Set your personal audio player/computer to play.

NOTE: If ther is no sound or if the volume is not loud enough, you may adjust the

volume level.

POWER

RESET

Computer

MP3

Connect to the output

socket of external

audio devices (MP3,
Computer,ext.)

AUX IN 1 connection

1.

2.

AUX IN 1

BT

AUX I N 1 AUX I N 2

OPT ICAL

AUX I N 1

POW ER SOU RCE

SCA N PAIR

Power on the unit and external sound bar press SOURCE button repeatedly until the

AUX IN 1 indicator

EXTERNAL SOUND BAR

9

not supplied

POWER/FM

NOTE:
If there is signal received, the indicator of the sound bar will stay lighting up.

If there is no signal received, the indicator of the sound bar will blink.

BT

AUX IN 1 AUX IN 2

OPTICAL

AUX IN 1

POWER SOURCE

SCAN PAIR

POWER/FM
