ProScan PSB3713-B User Manual
37" SOUND BAR SPEAKER
USER MANUAL
MODEL:PSB3713-B
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
1
SAFETY INSTRUCTIONS
1.Read these instructions.
2.Keep these instructions.
3.Heed all warnings.
4.Follow all instructions.
5.Do not use this apparatus near water.
6.Clean only with a slightly damp cloth.
7.Do not block any ventilation openings.
8.Install in accordance with the manufacturer’s instructions.
9.Do not install or operate near any heat sources such as radiators,stoves,or other apparatus
that produce heat
10.Unplug this apparatus during lightning storms or when unused for long periods of time.
11.Servicing is required when the apparatus has been damaged in any way, such as the
power-supply cord or plug is damaged,liquid hasbeenspilledorobjectshavefallenintotheapparatus,
the apparatus has normally, or has been
dropped.
Warning:
D o not expo
se this product to rain or moisture. The product must not be exposed to dripping
splashing and no object filled with liquids should be placed on the product.
Caution:
Changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate this device.
Caution:
Usage of controls or adjustments or herein may result in hazardous exposure.
Refer all servicing to qualified service personnel.
Caution:
To reduce the risk of fire or electrical shock .No fire sources such as candles should be
placed on the products.
MOUNTING

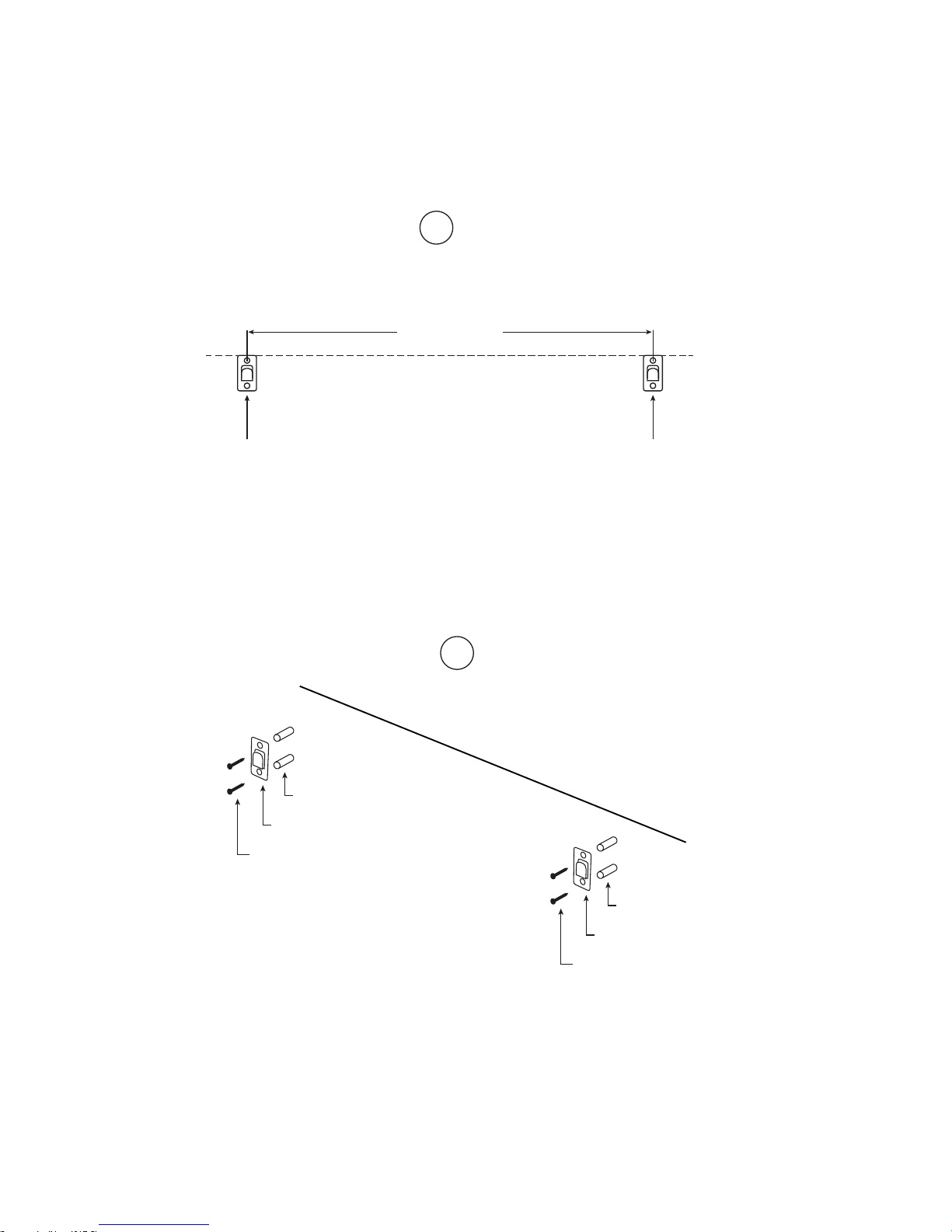

1. Follow the figure 1 above to determine the positions where the screws should be mounted.
Make sure the two brackets are mounted in the same level.
2. Insert the fixing plugs into the screw holes and insert screws to fix the metal bracket onto the
wall.
2
1
734 mm
+/- 3 mm
Metal Bracket Metal Bracket
2
Metal Bracket
Metal Bracket
Fixing Plug
Screw
Wall
Fixing Plug
Screw

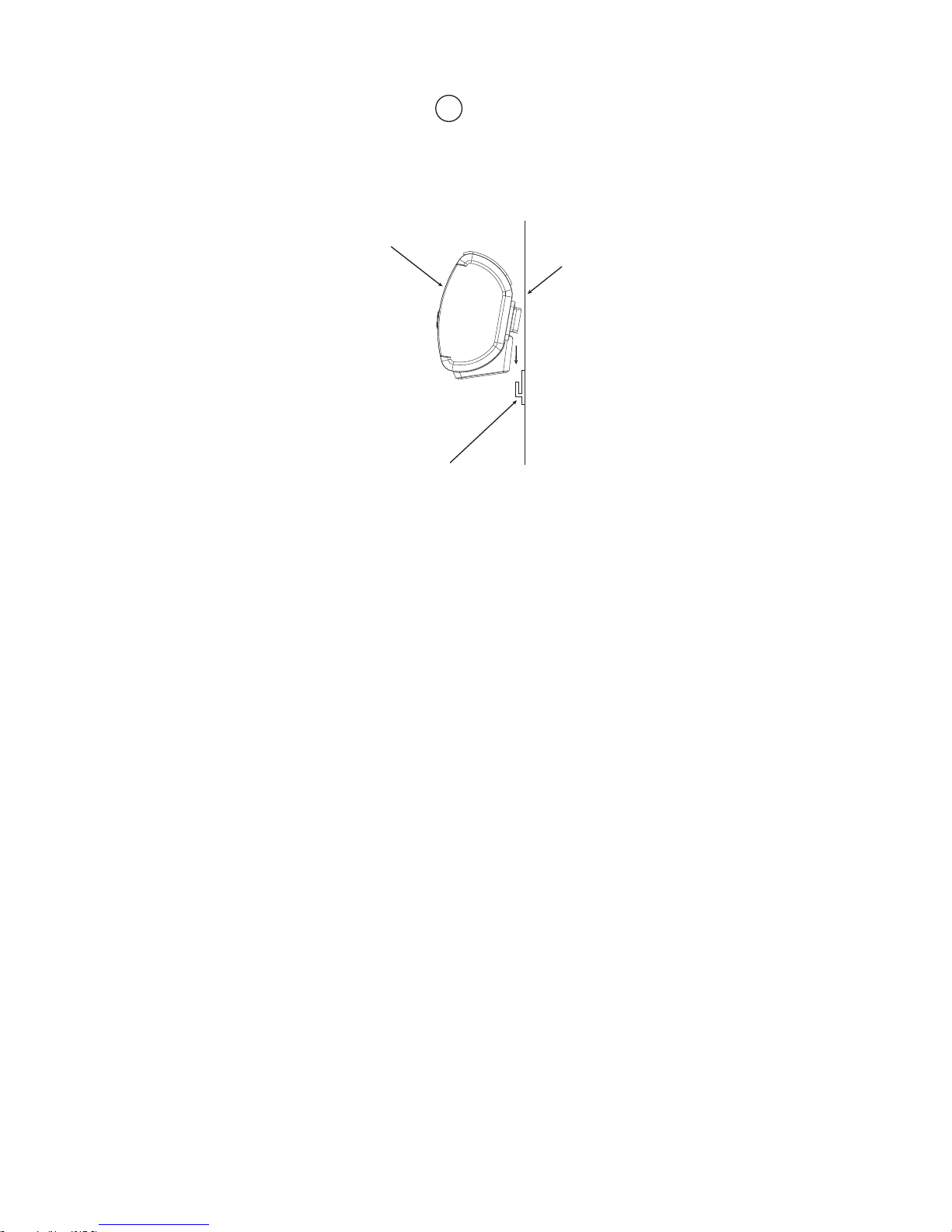

3. Hang the unit on the wall
Note:
The gap between the metal bracket and plastic mounting holder on the rear of the unit is designed
for simple mounting, which will make the unit movable.
3
3
Unit
Wall
Metal Bracket

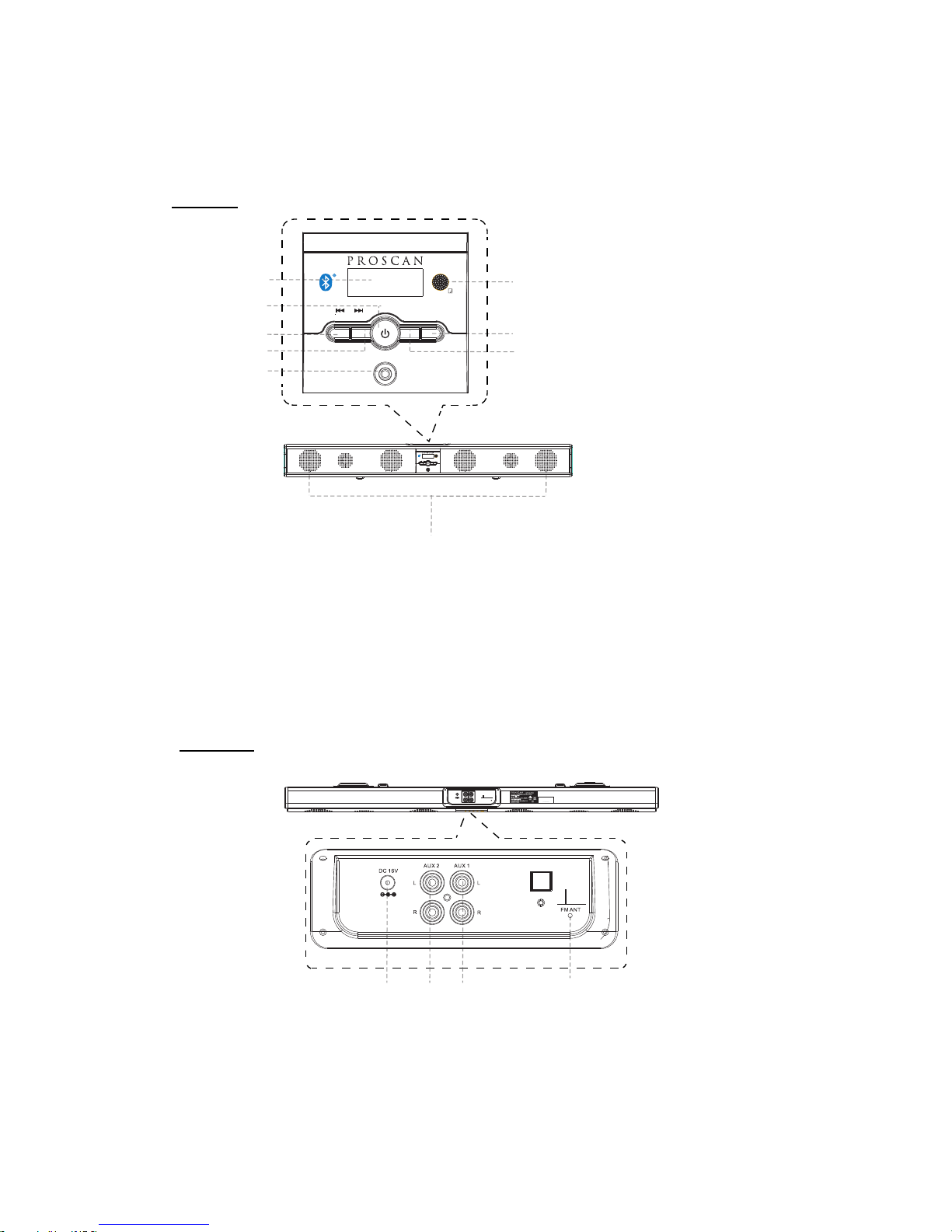

PRODUCT OVERVIEW
Front View
1. LCD Display 6. Remote Sensor
3. Tune- Button 8. Volume- Button
4. Tune+ Button 9. Speakers
Rear View
4
1
2
3
4
6
7
8
9
TUN- TUN+
VOL- V OL+
AUX IN 1
MODE
TUN- TUN+
VOL- VOL+
AUX IN 1
MODE
5
2. Standby/MODE Button

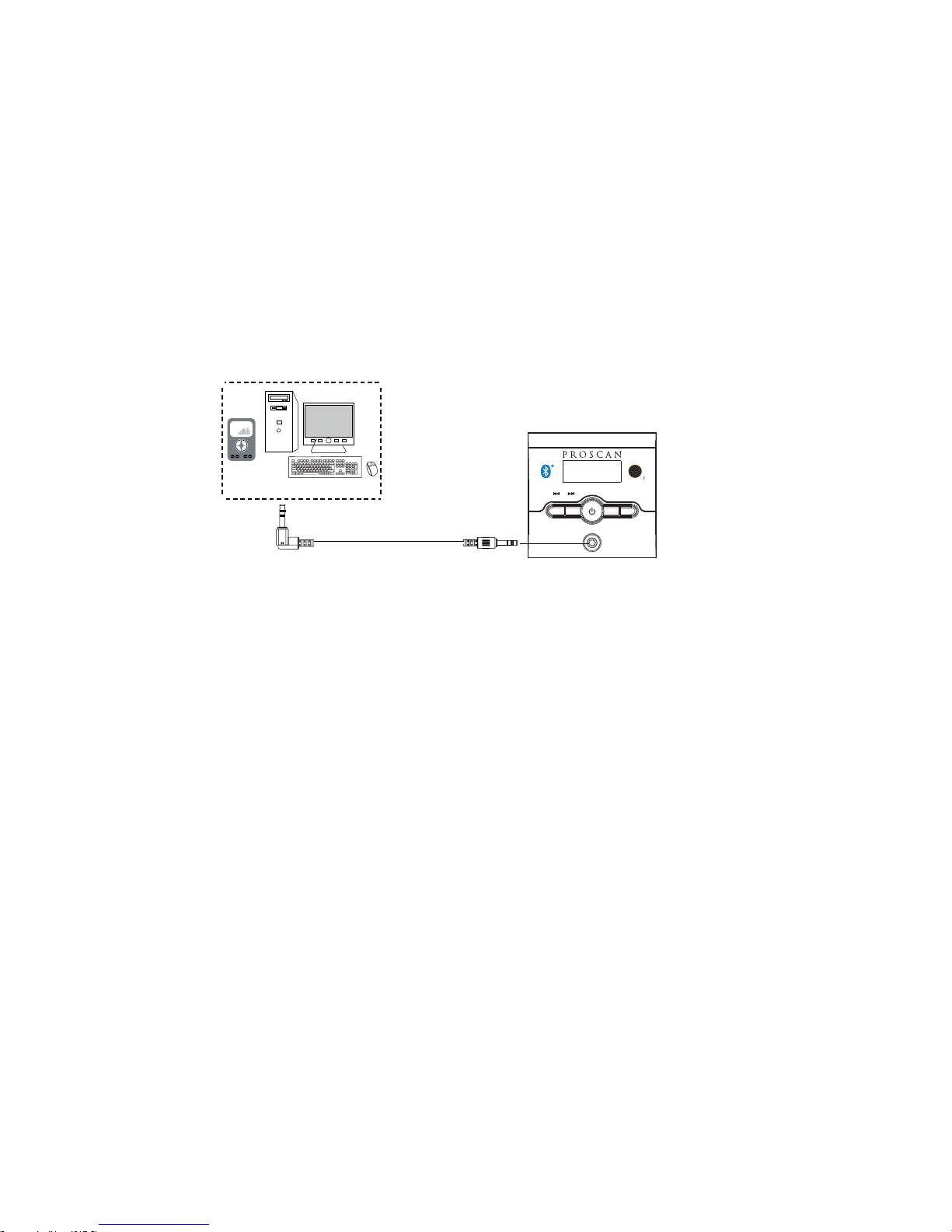

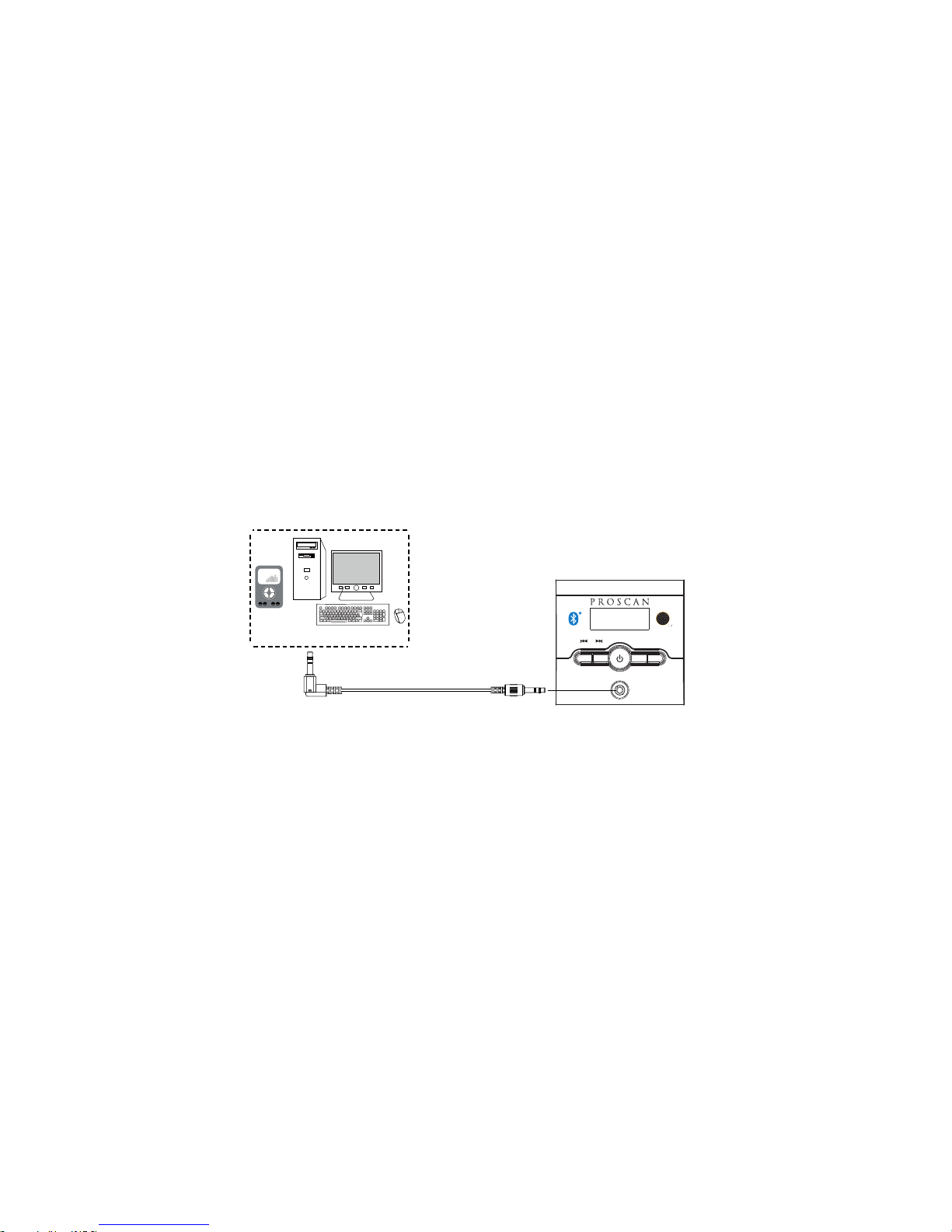

JackIN1
ANT
R
L
AUX 2
R
L
AUX IN2
DC IN
10 11 11 12

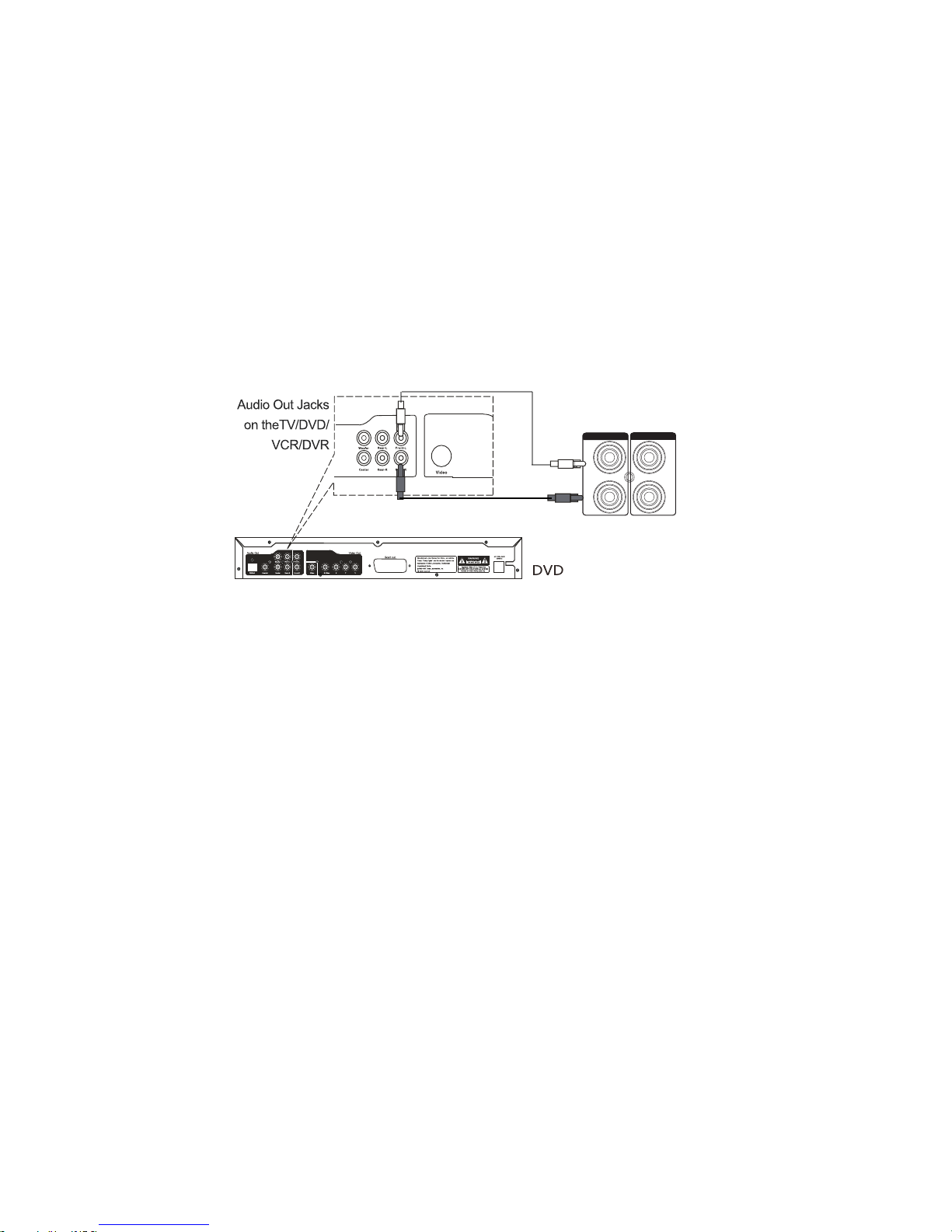

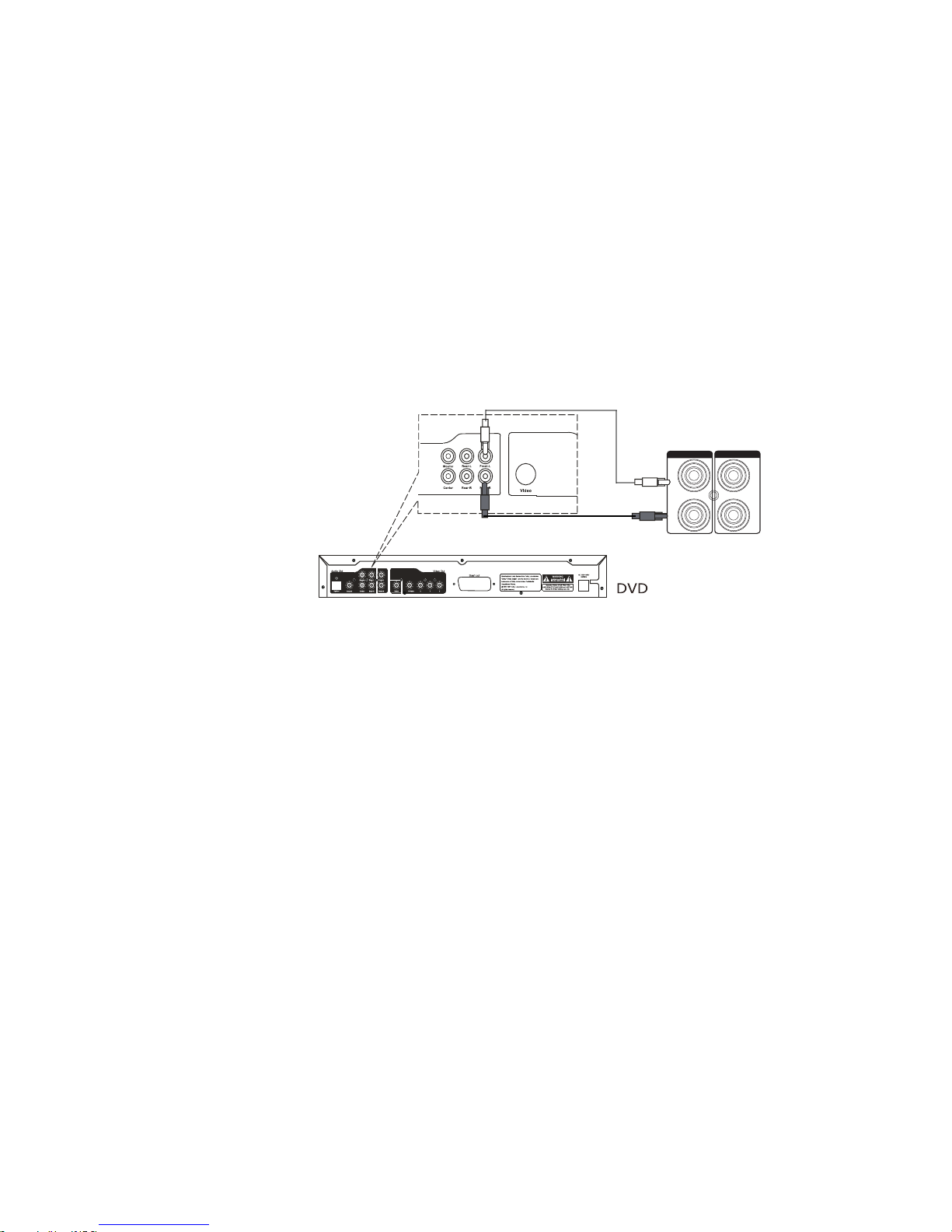

12.FM Antenna11.RCA Audio Input Jacks
10.DC IN Jack
5. AUX
Button7. Volume+

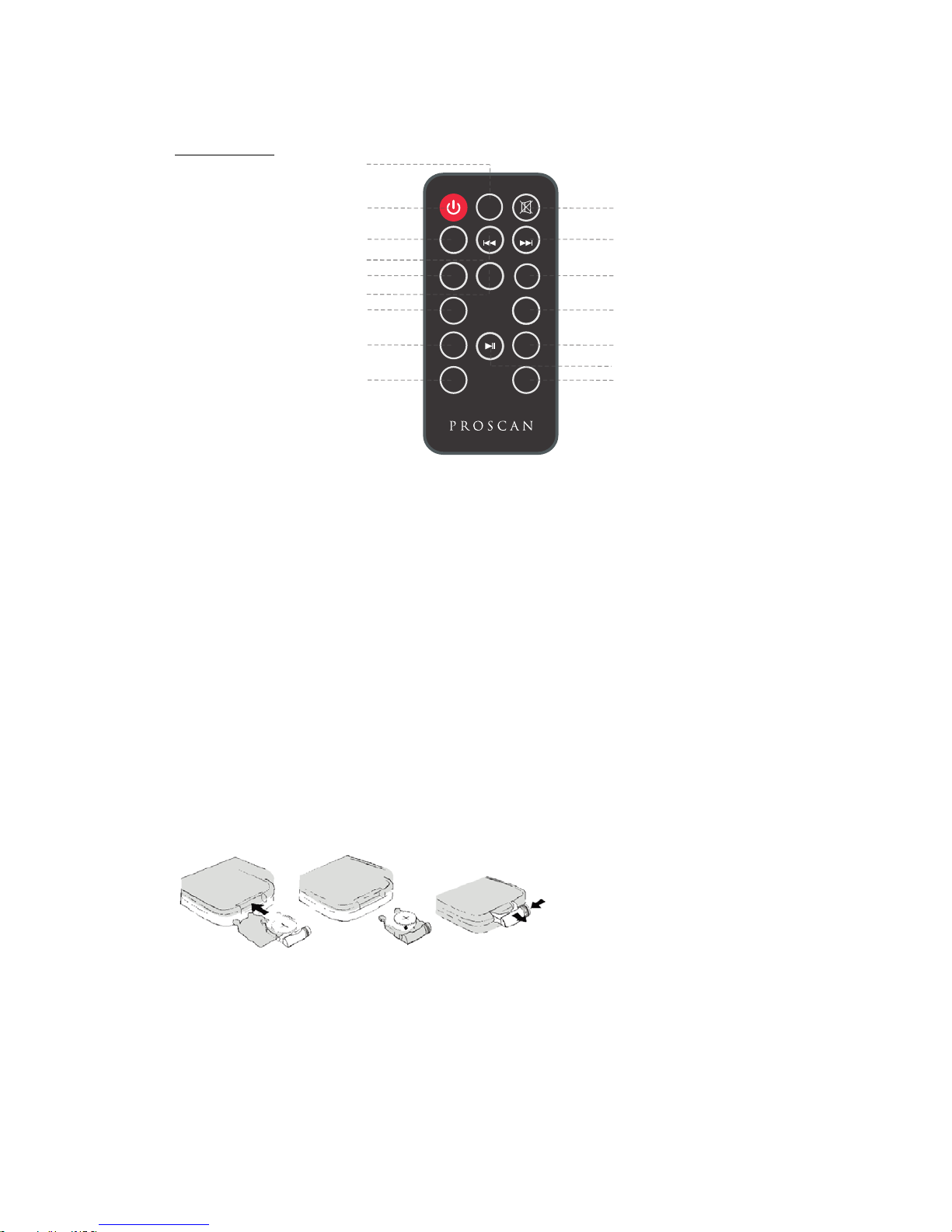

Remote Control
4. TUNE-Button 9. TREBLE- Button 15. Play/Pause Button
BATTERY INSTALLATION
- Before installation
Remove and discard the insulation tab.
-Replace battery for the remote control
1. Push and slide out the battery holder as Figure 1 below.
2. Replace the battery with a new CR2025 button cell with the polarity (+) side upward.
3. Slide into the battery holder.
Battery precautions
• Never recharge the batteries, apply heat to them or take them apart.
• Battery shall not be exposed to excessive heat such as sunshine, ire or the like.
• Do not throw the batteries in ire!
• Attention should be drawn to the environmental aspects of battery disposal.
• If the remote control is not going to be used for a long time, remove the battery
to avoid damage caused by battery leakage corrosion.
5
2
3
5
7
VOL+
FM SCAN
TUN-
M+
EQ
VOL-
BASS- BASS+
TREBLE-
TREBLE+
TUN+
8
9
4
6
1
10
11
12
13
14
16
15
CLOC K
MO/S T
MODE
Button on Button6. EQ Butt1.MODE
2. Standby Button 7. VOL-(Volume-) Button 13. VOL+ (Volume+) Button
5. M+(Memory+) Button 10. Mute Button 16. TREBLE+ Button
11. TUNE+ Button
12. CLOCK/MO/ST
3. FM SCAN Button 8. BASS- Button 14. BASS+ Button
POWER CONTROL
- To turn the unit on
·
· Press STANDBY button to turn on the unit.
- To turn the unit off
· Press STANDBY button on the remote control or hold STANDBY button in the front of the unit.
NOTE:
If the unit is not used for a long period of time, disconnect the power adapter.
TIME SETTING
1. Place the unit to standby mode.
2. Hold CLOCK/MO/ST button on the remote control u ntil the hour digit flashes.
3.Then press TUNE+ or TUNE- button on the unit or remote control to adjust the hour.
4. Press CLOCK/MO/ST button on the remote control to confirm the hour setting and the minute
digit will flash.
5. Then press TUNE+ or TUNE- button on the unit or remote control to adjust the minute.
6. Press CLOCK/MO/ST button on the remote control to confirm the minute setting.
FM RADIO
display.
- Search and store the stations
1. Hold TUNE+ or TUNE- button to search stations forward or backward. The unit will stop if a
station is found. Then press FM SCAN button, “CH XX” will flash and then use M+ button to
select the place you want the station stored to. Press FM SCAN button to confirm. Or
2. Hold FM SCAN button then release the unit will search and store the stations automatically.
- Listen to the preset stations
PressM+buttonrepeatedlytoselectthedesiredpresetstationstolistento.
NOTE:
If the received FM stations are in stereo mode, the unit will play in stereo mode automatically.If
reception is weak, press the CLOCK/MO/ST button t o turn the unit to mono mode. Press again to
turn to stereo mode again.
6
MODE
Power on the unit and press button repeatedly until the FM frequency appears on the
Connect the supplied power adapter.
