ProScan PSB271 User Manual

Pl
ease read this instruction manual carefully and keep it for future reference

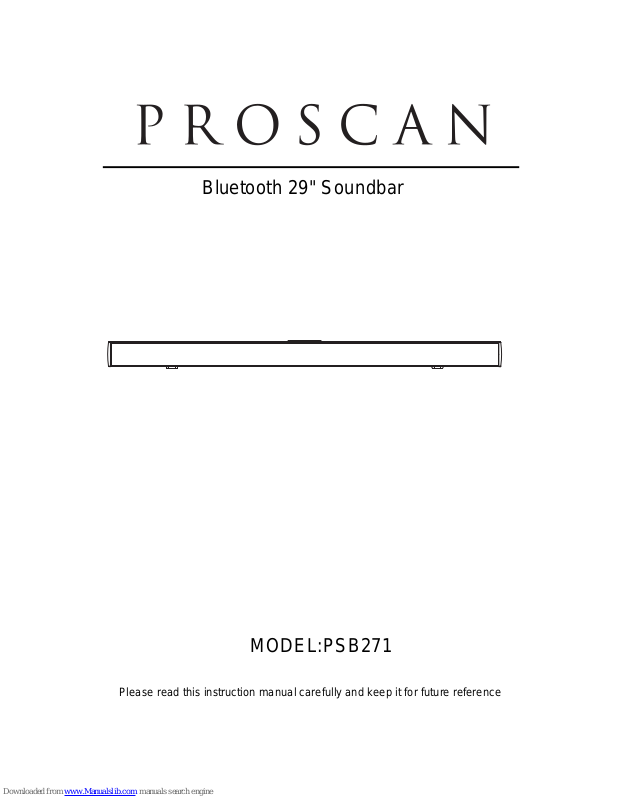

Bluetooth 29'' Soundbar
MODEL:PSB271
IMPORTANT SAFETY INSTRUCTIONS
DANGEROUS VOLTAGE: The lighting flash with arrowhead symbol within an
ATTENTION: The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
FCC STATEMENT:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 8 ft. from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter.
FCC NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
CAUTION: TO REDUCE THE ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIE D SERV ICE PERS ONNEL.
2
CAUTION
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
To assure continued operation, follow the attached installation instructions and use only shielded cables when connecting to other devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
WARNING:TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
WARNING: USE UNDER SUPERVISION OF AN ADULT DUE TO LONG CORD. This
unit has a long cord that can be easily tripped on or pulled on, causing injury.Please make sure it is arranged so that it will not drape over a tabletop, etc., where it can be pulled on by children or tripped over accidentally.
IMPORTANT SAFETY INSTRUCTIONS
Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
1. Read these instructions – All the safety and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for
future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water;
for example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
6. Clean only with dry cloth – The appliance should be cleaned only as recommended
by the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades and a third grounding prong. The wide or the third prong are
-- Reorient or relocate the receiving antenna.
3
CAN ICES-3 (B)/NMB-3(B)
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of
time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This appliance should not be exposed to dripping or splashing water and no object
filled with liquids such as vases should be placed on the apparatus.
16. Power Sources – The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance. Do not overload wall outlet.
17. Battery should not be exposed to excessive heat such as sunshine, fire, etc.
18. Replace remote control battery only with the same or equivalent type.
19. Do not attempt to dismantle, open or repair this product yourself. If a problem occurs,
seek advice from your local qualified service technician or contact the distributor at the telephone number at the back of this instruction manual.
20. Caution marking and nameplate are located on back or bottom of product.
4
CALIFORNIA PROP 65 WARNING
This product contains chemicals known to the State of California to cause birth defect or other reproductive harm. For more information on these regulations and a list of chemicals, log on the following website address: http://www.oehha.ca.gov/prop65.html
PLACEMENT AND MOUNTING
1. Placing the device on table - Ventilation

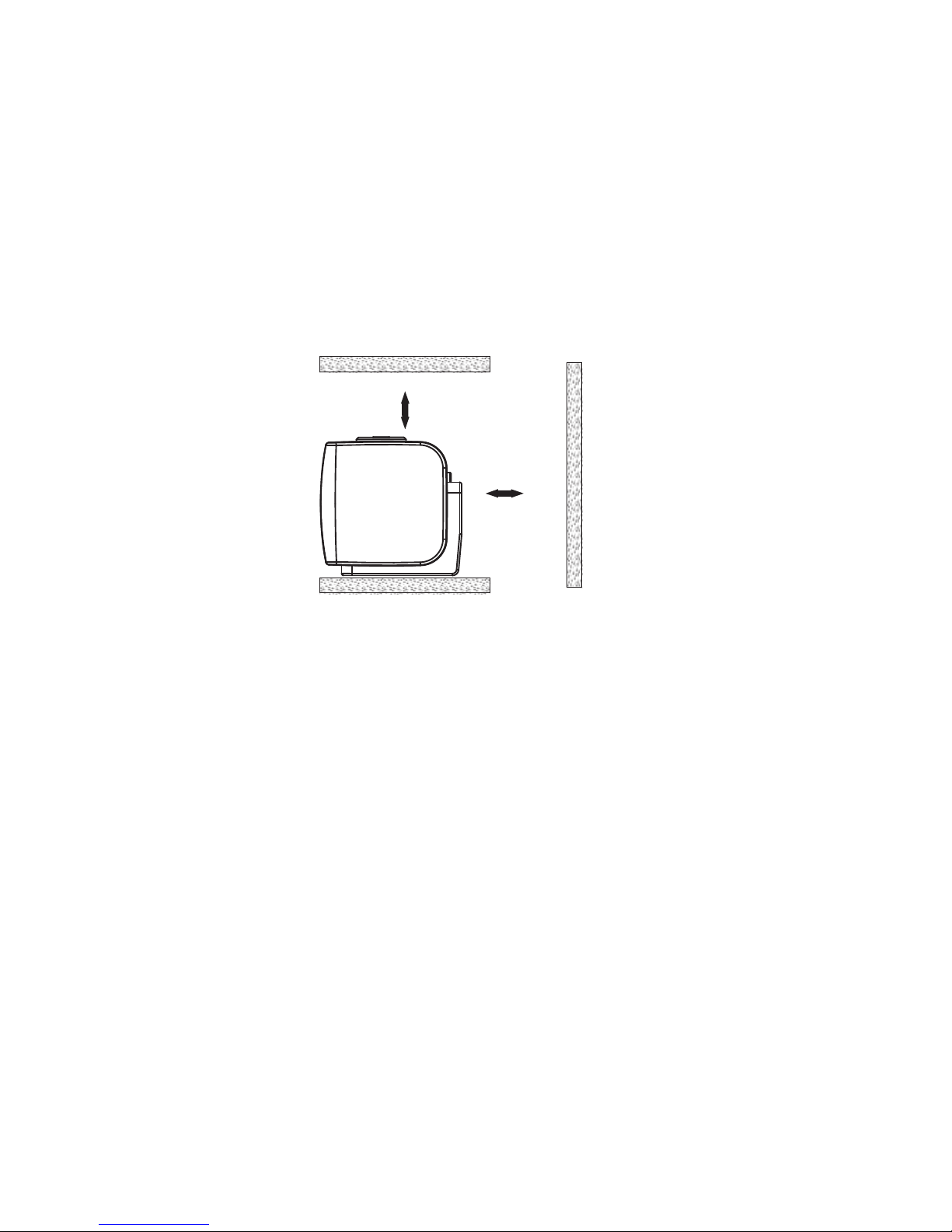

When placing the Sound Bar on an entertainment center, bookshelf, or any type of enclosed space, be sure to allow at least 2-3 inches of space around the Sound Bar for ventilation. If the Sound Bar is enclosed in a tight space, without ventilation, heat generated from the Sound Bar could produce a potential heat hazard.
5
Mounting to a wall
2.1 Mounting to a wooden wall

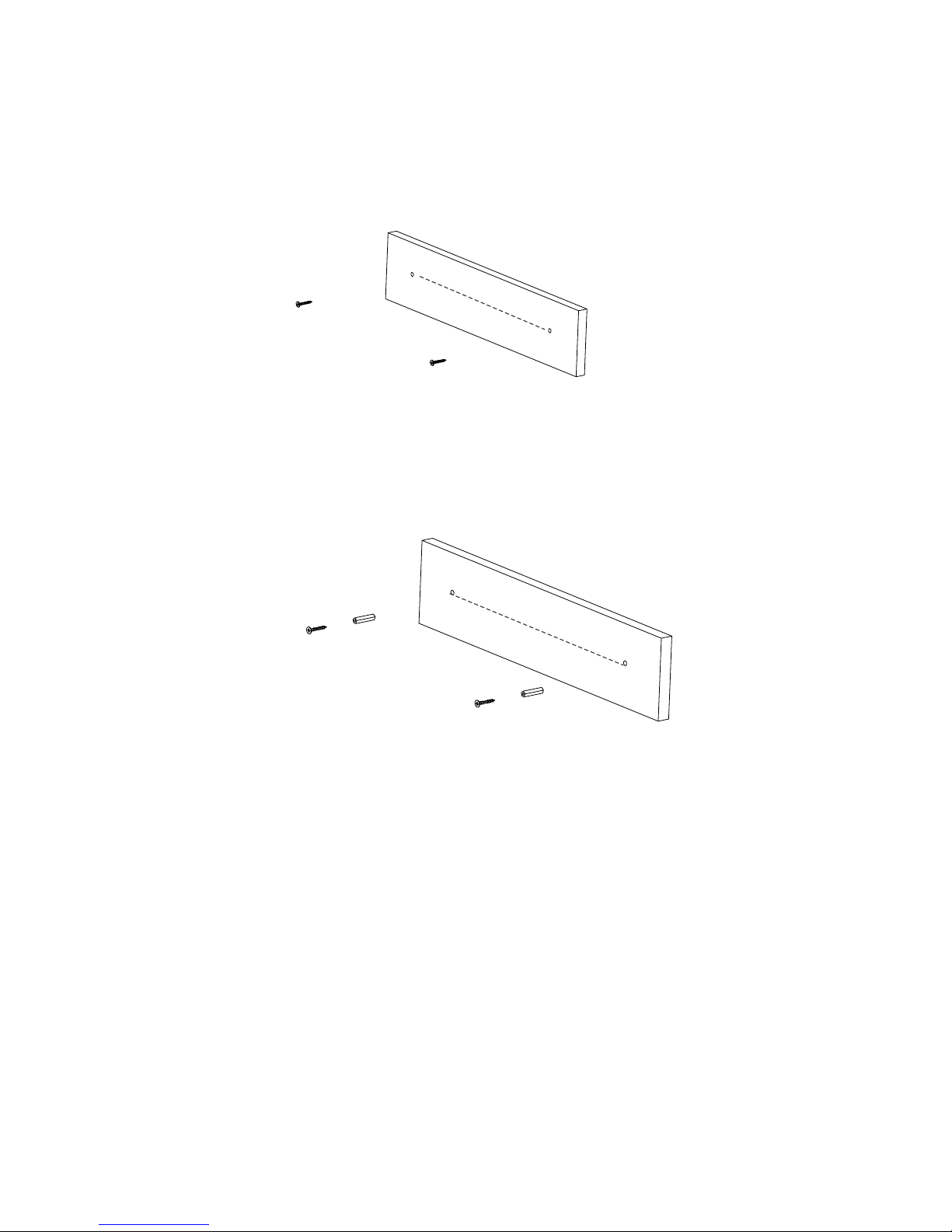

A. Mark the position of the mounting screws on the wall using a pencil. B. Drill the supplied screws directly into the marks that you have made on the wall and
leave approx. 0.3 inch length to hook the sound bar.
C. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
2.2 Mounting to a brick wall
A. Mark the position of the mounting screws on the wall using a pencil. B. Drill 2 holes on wall with a powerful electric drill. C. Insert the supplied fixing plug and hammer into the holes. D. Secure the supplied screws into the fixing plugs and leave approx. 0.3 inch length to
hook the sound bar.
E. Put the sound bar onto the mounting screws. Make sure they are firm and stable.
6
18.5 inches
18.5 inches
Vol+Vol-
Standby /Source

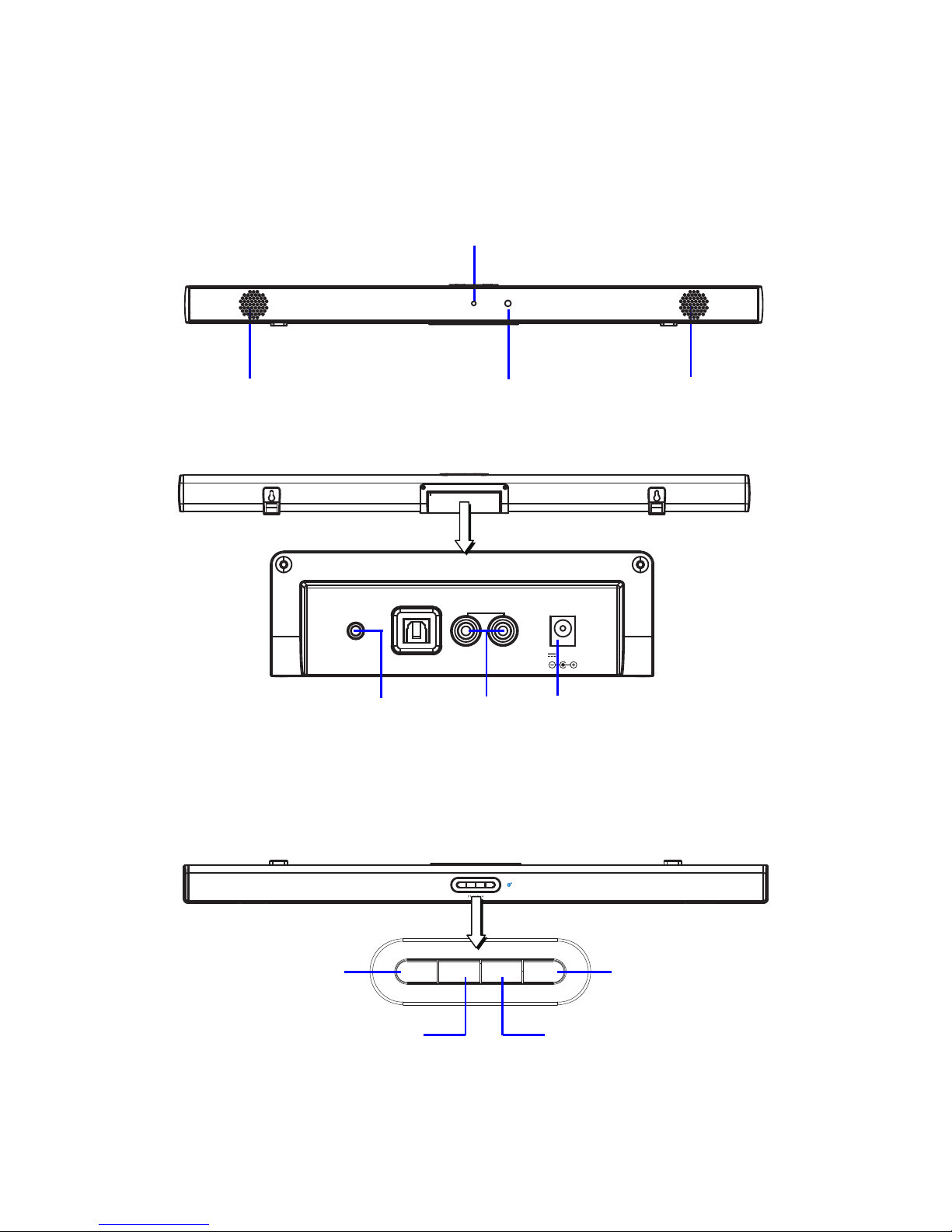

LOCATION OF CONTROLS: Front View
7
Top View
Standby /Source
Vol-
Vol+

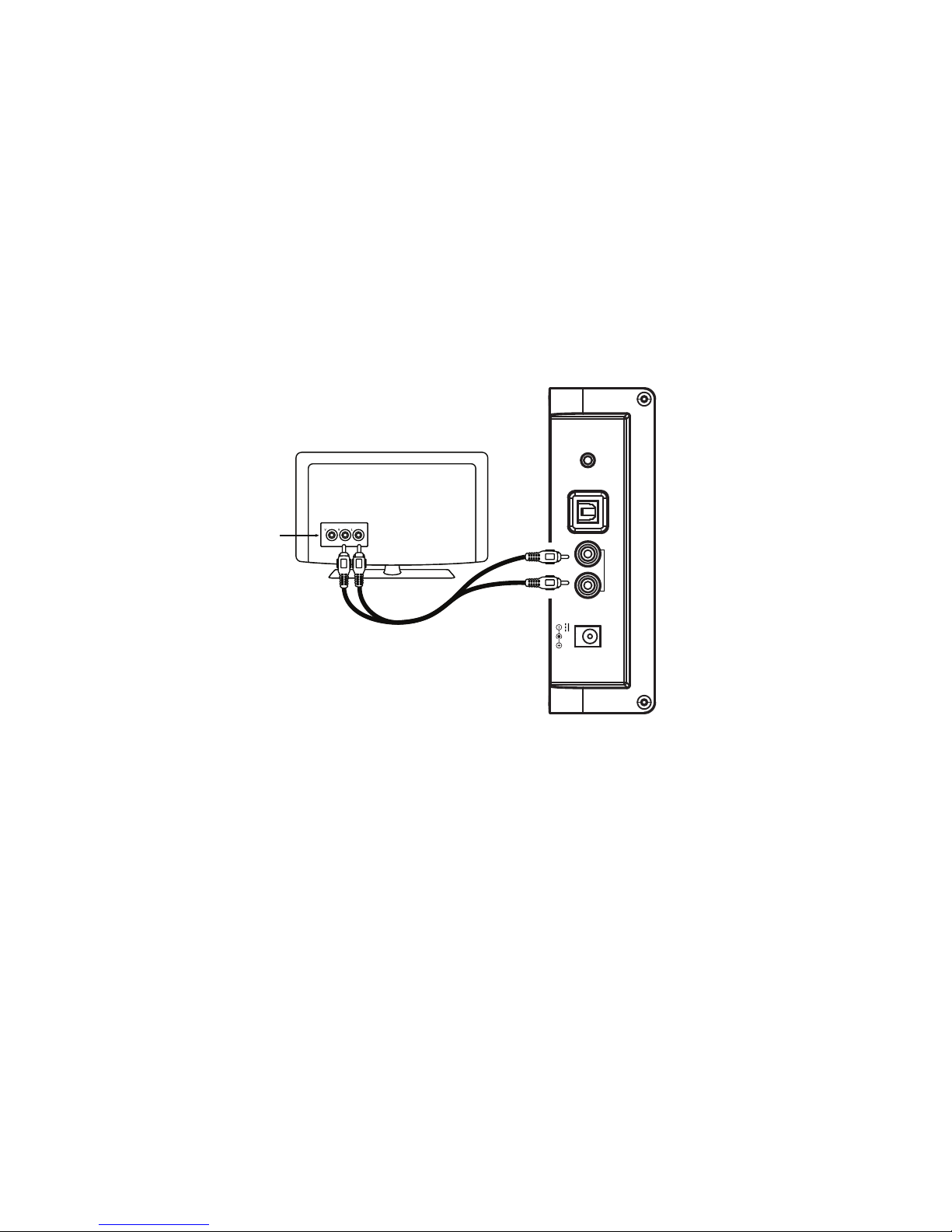

AUX 2
AUX 1
L R
DC 12V, 2. A
1. Indicator
2. Remote sensor
3. Speaker
3. Speaker
4. AUX 2
5. AUX 1
6. DC IN jack
7. Standby/Source button
8. Mute button
9. Volume down button
10. Volume up button

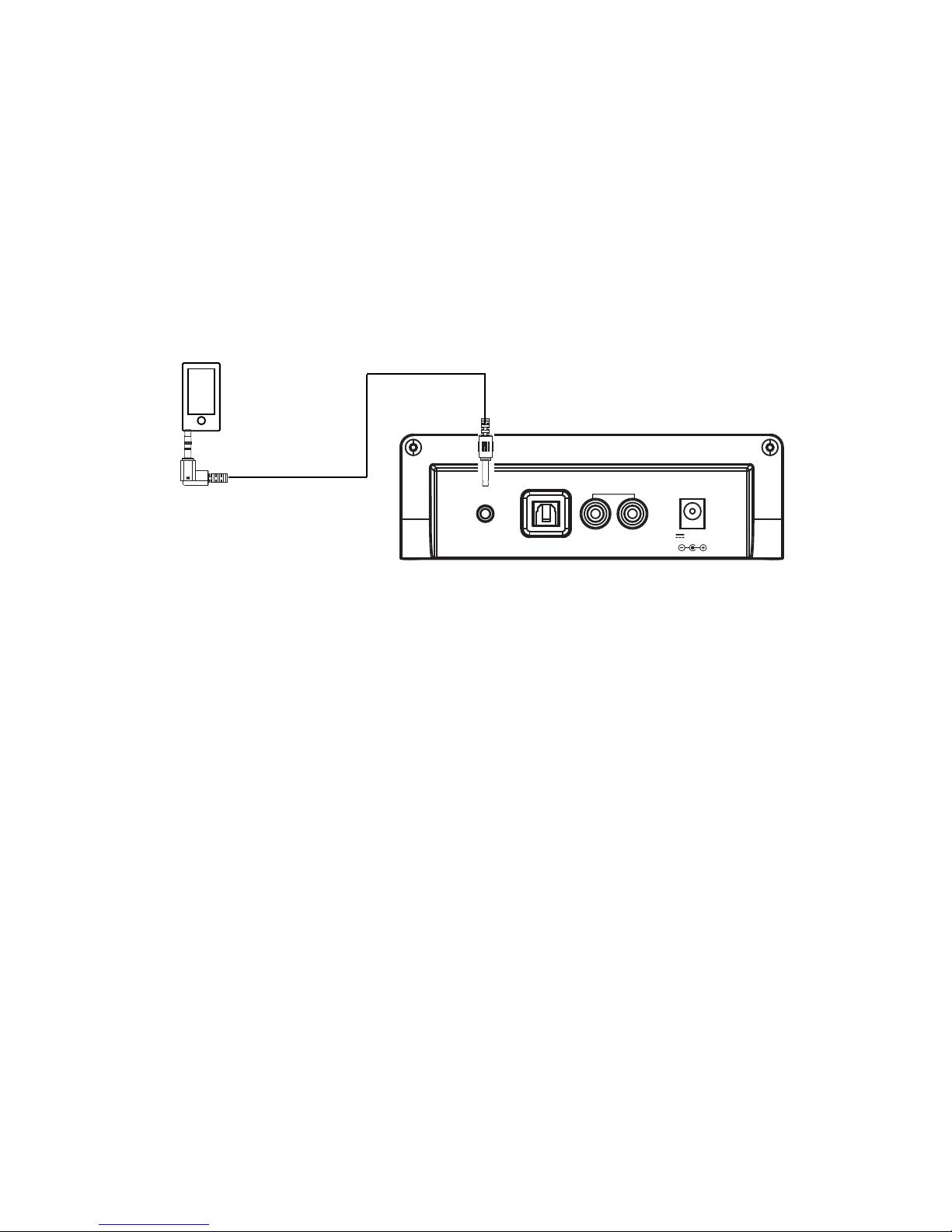

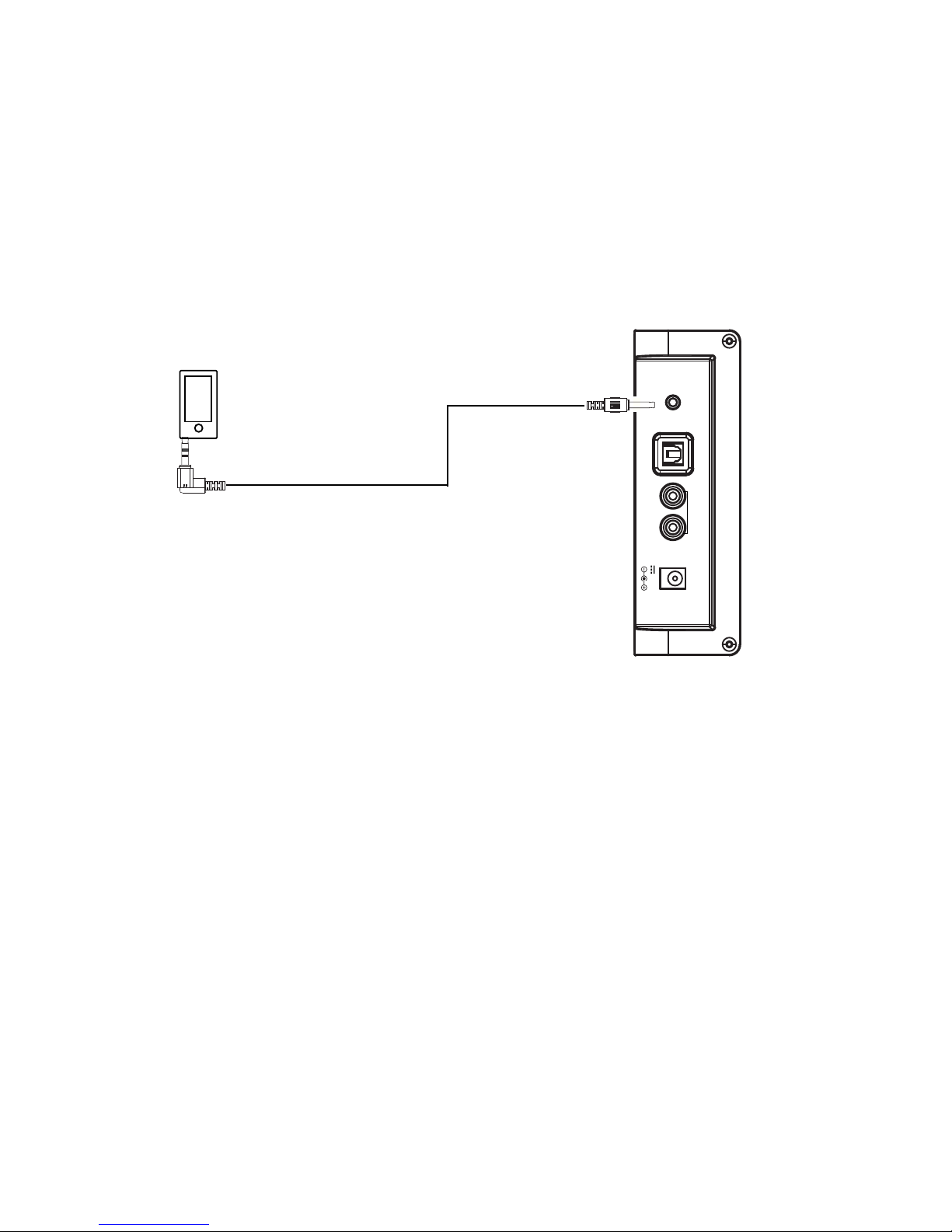

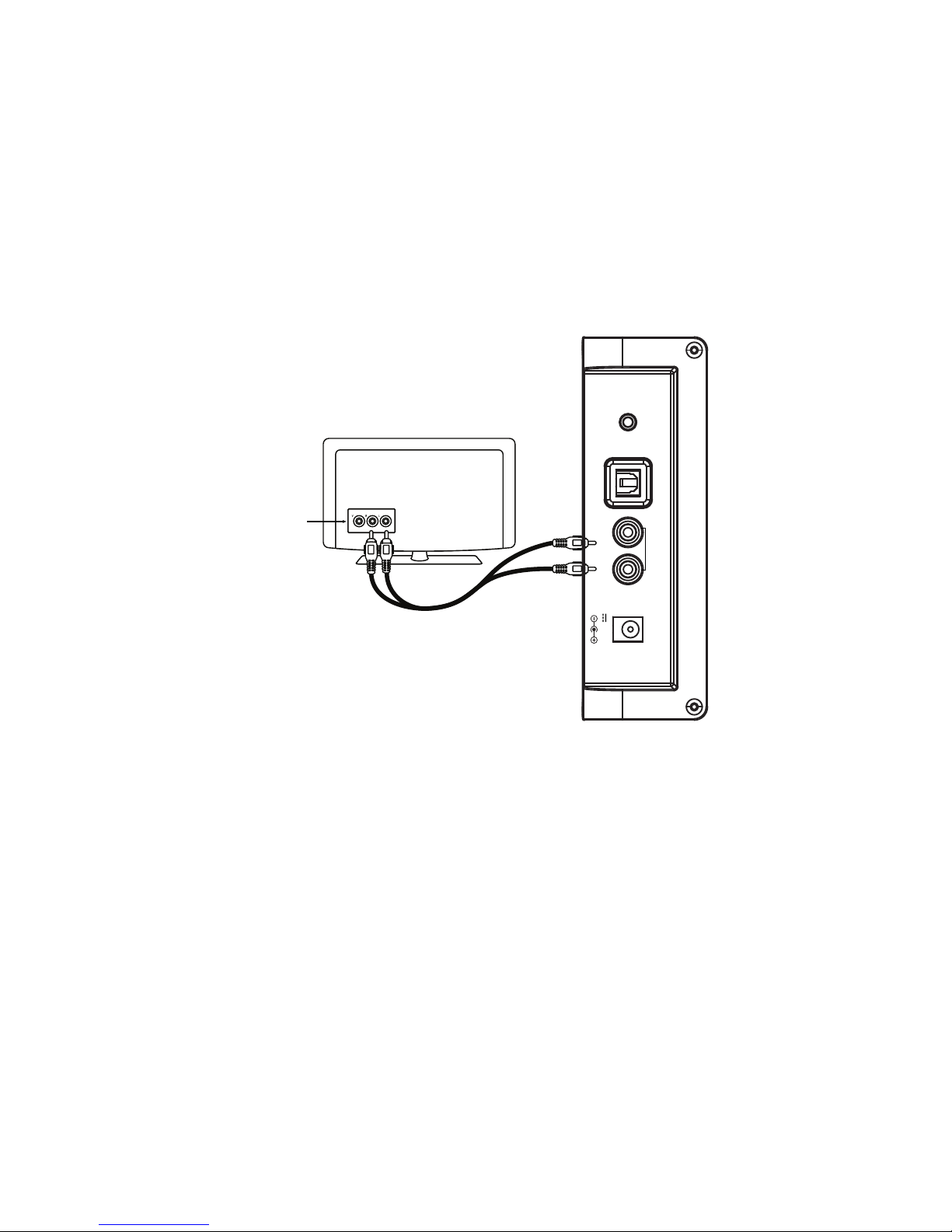

Rear View
1
Mute
Mute

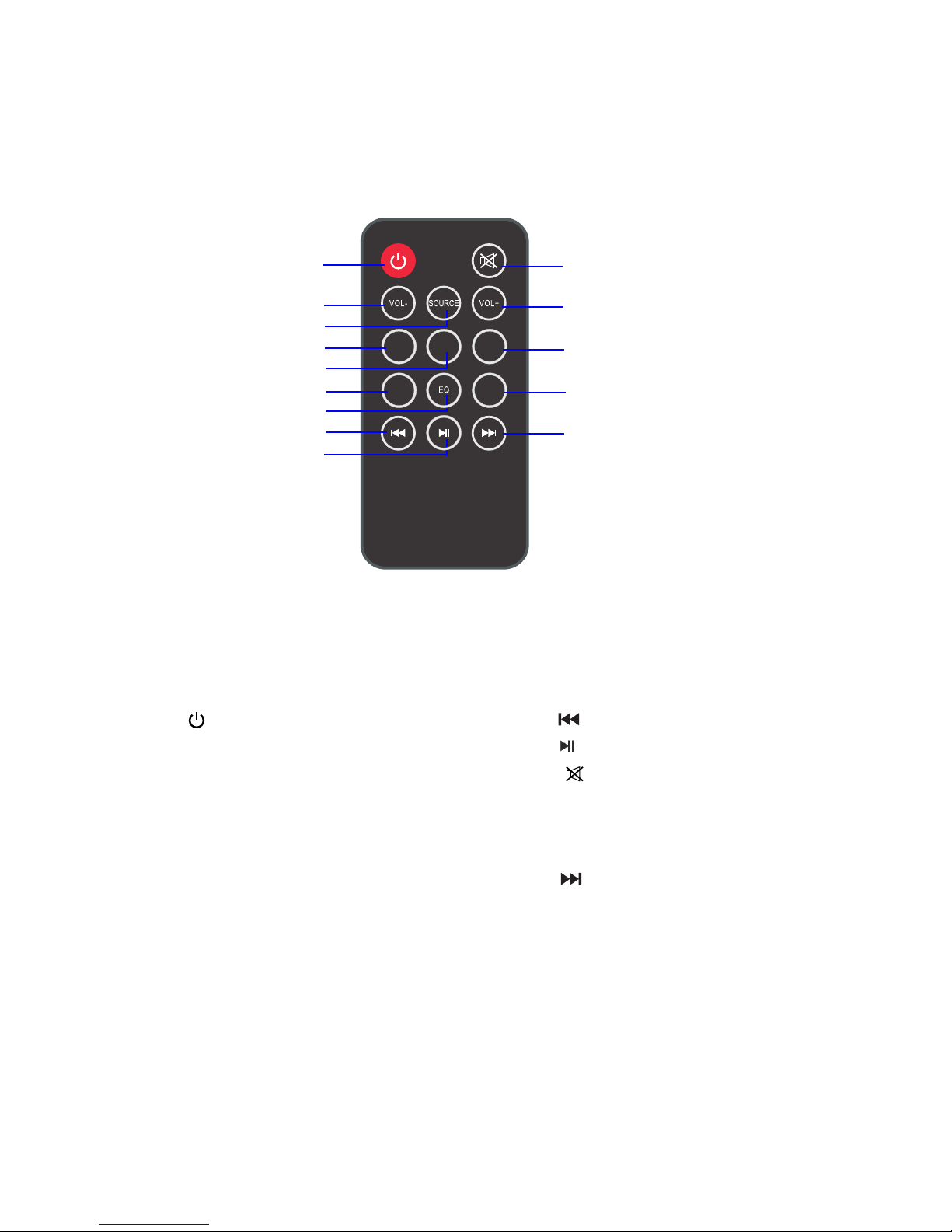

REMOTE CONTROL
8
STAN DBY
PAIR
1
2 3 4
5
8 9
10
11
14
BASS -
BASS +
TREBLE -
TREBLE +
6 7
12
13
1. STANDBY button
2. VOL(Volume) - button
3. SOURCE button
8.
(Previous) button
9.
button
10.
(Mute) button
14.
(Next) button
7. EQ (Equalizer) button
11. VOL (Volume) + button
4. BASS down button
12. BASS up button
13. TREBLE up button
6. TREBLE down button
5. PAIR button
BATTERY INSTALLATION ( REMOTE CONTROL)

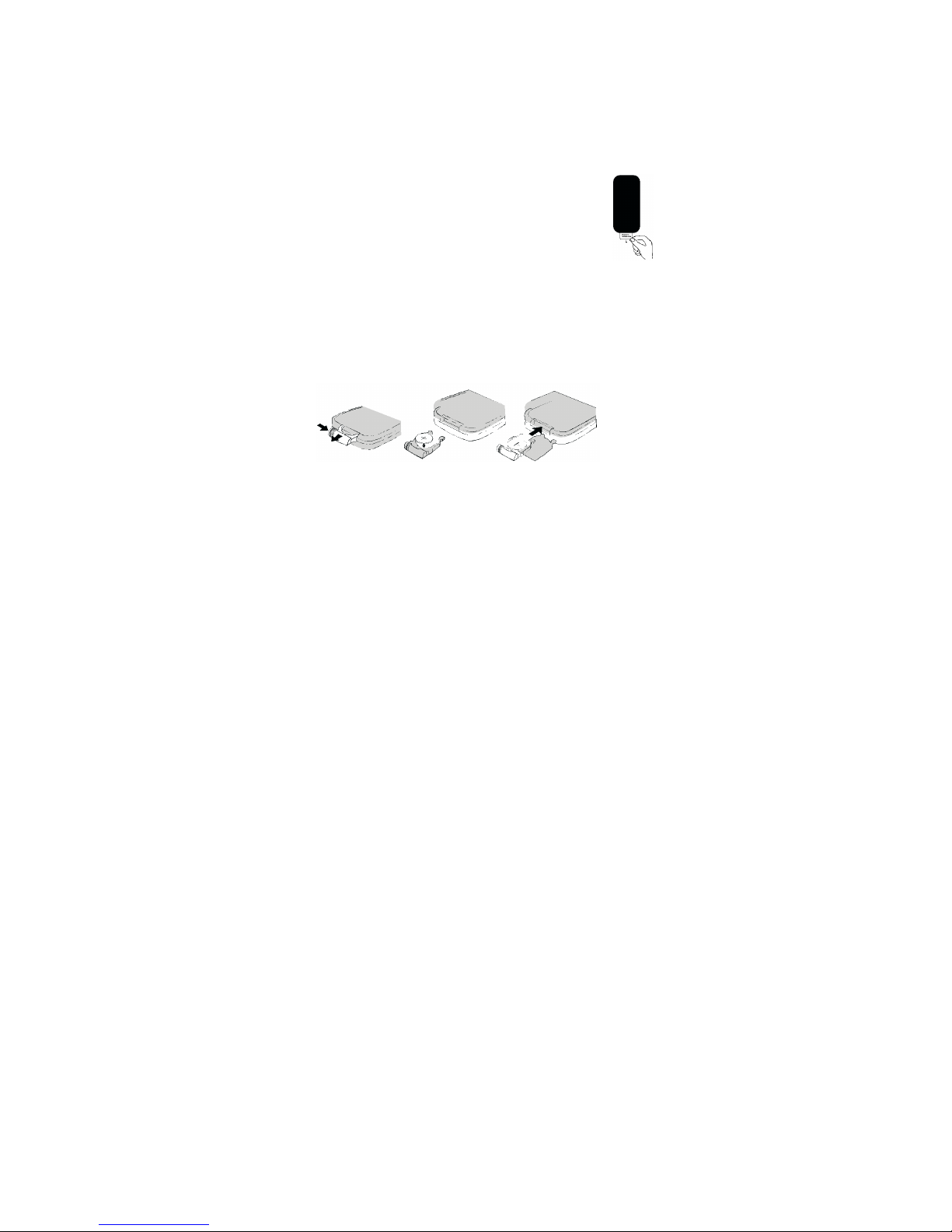

------First time using Remove and discard the insulation tab as the figure on right.
-------Replacing battery for remote control
1. Push and slide out the battery trap as the figure below and the rear of the remote control.
2. Replace the battery by a new CR2025 button cell with the polarity “+” facing up as the figure below and the rear of remote control.
3. Close the battery tray.
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated in the battery compartment, a reserved battery may cause damage to the device.
3. Do not mix different types of batteries together ( e.g: Alkaline and Carbon-zinc ) or old batteries with fresh ones.
4. If the batteries in the device are consumed or the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible leakage.
5. Do not try to recharge the battery not intended to be recharged; it can overheat and rupture. ( Follow battery manufacturer’s instructions.)
6. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
7. Clean the battery contacts and also those of the device prior to battery installation.
WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD. The remote control supplied with a coin/button cell battery. If the coin button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used battery away from children. If the battery compartment does not close securely,stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
CAUTION
Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type.
9
GENERAL OPERATION
1. Connect the AC/DC adapter to the unit and wall outlet. The red indicator will light but unit is OFF and in standby mode.
the remote control repeatedly to switch to desired mode. The color of the
Indicator will turn to:
~ Press the VOL ( Volume ) + or - buttons on the unit or Remote Control to
adjust volume level as desired.
~ Press the EQ button on the Remote Control repeatedly to select and set
equalizer mode as desired.
~ Press the
( Mute ) button on the Remote Control to turn off the sound. Press
again to resume.
unit or press the
button on the Remote Control to power OFF the unit and
put in standby mode.
10
Violet...............................................................................AUX 1
Orange............................................................................AUX 2
Blue............................................................................Bluetooth
2. Press the Standby/Source button on the unit or press the SOURCE button on
3. During Playback:
4. When finished listening, press and hold the Standby/Source button on the
~ Press the BASS +/- buttons on the Remote Control to adjust the sound
level of bass.
~ Press the TREBLE +/- buttons on the Remote Control to adjust the sound
level of treble.
