ProScan PS38000 User Manual

HDTV

MODEL #:

, PS38000

15474210

_JO _

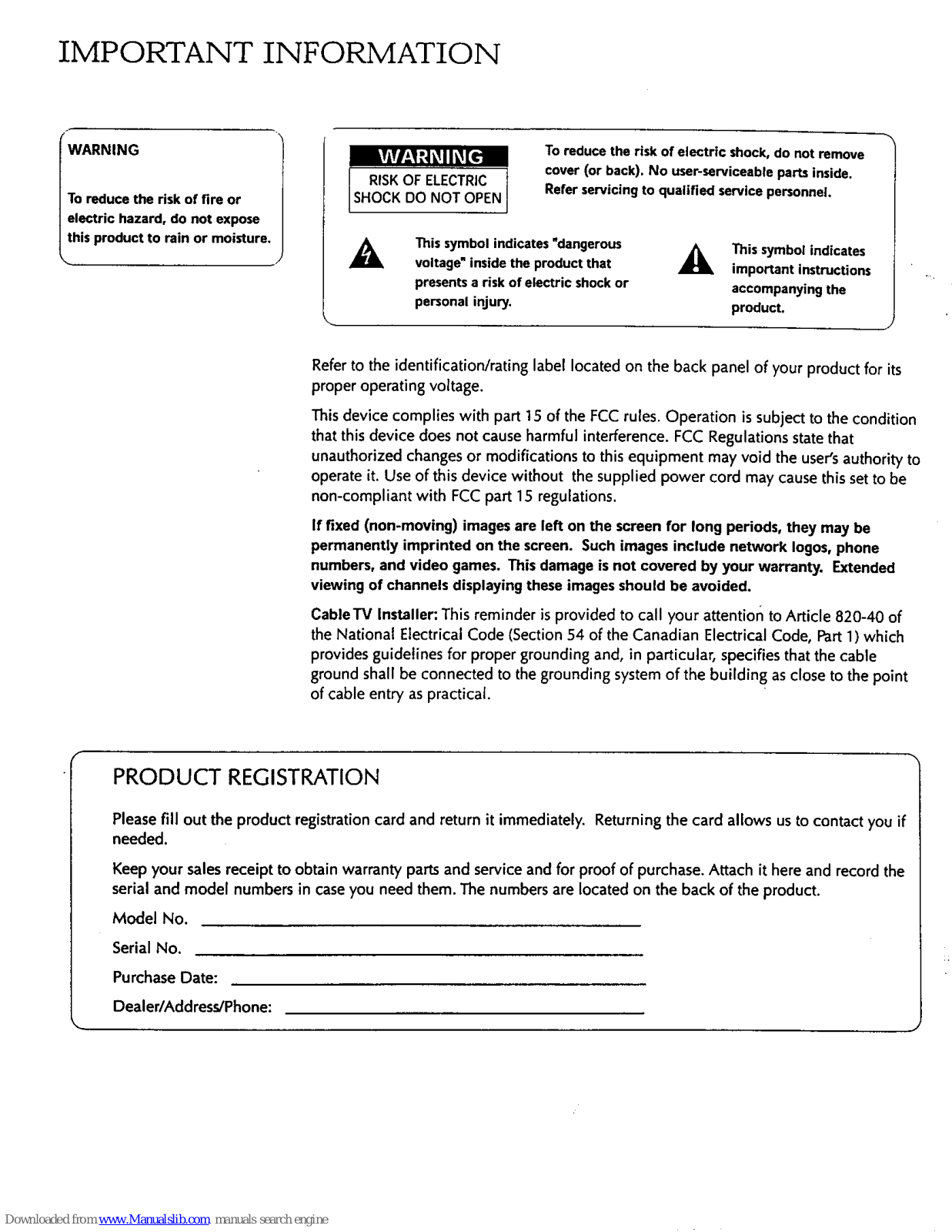

IMPORTANT INFORMATION

WARNING

To reduce the risk of fire or

electric hazard, do not expose

this product to rein or moisture,

RISKOF ELECTRIC

SHOCKDO NOT OPEN

To reduce the risk of electric shock, do not remove

cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

_1_ "Ntissymbol indicates "dangerous _ Thissymbol indicates

voltage" inside the product that _a_ important instructions presents a risk of electric shock or accompanying the

personal injury, product.

Refer to the identification/rating label located on the back panel of your product for its

proper operating voltage. This device complies with part 15 of the FCC rules. Operation is subject to the condition

that this device does not cause harmful interference. FCC Regulations state that unauthorized changes or modifications to this equipment may void the user's authority to

operate it. Use of this device without the supplied power cord may cause this set to be

non-compliant with FCC part 15 regulations.

If fixed (non-moving) imagesare left on the screen for long periods, they may be

permanently imprinted on the screen. Such images include network Iogos, phone numbers, and video games. This damage isnot covered by your warranty. Extended

viewing of channels displaying these images should be avoided.

CableTV Installer: This reminder is provided to call your attention to Article 820-40 of

the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which

provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

PRODUCT REGISTRATION

Please fill out the product registration card and return it immediately. Returning the card allows usto contact you if needed.

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. The numbers are located on the back of the product.

Model No. Serial No.

Purchase Date: Dealer/Address/Phone:

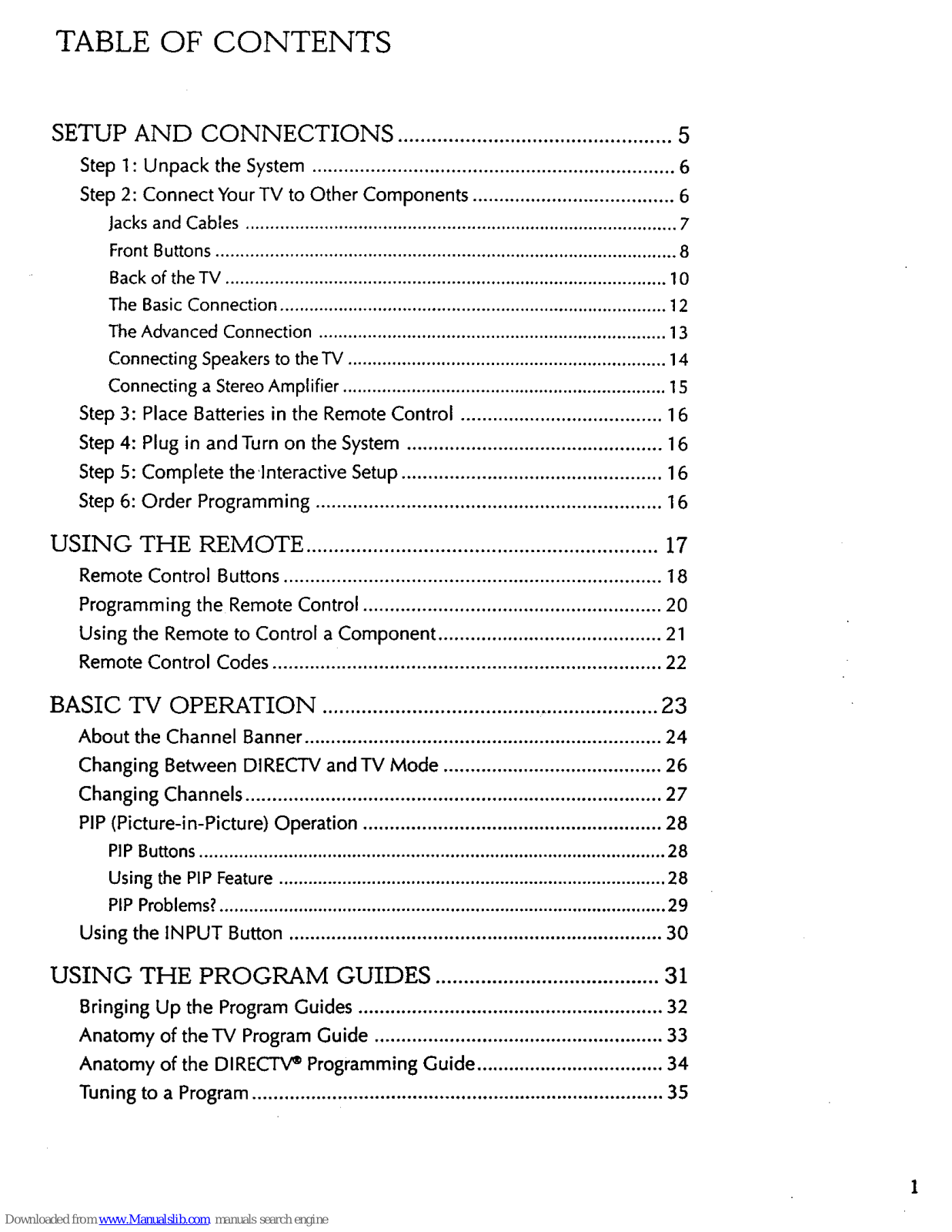

TABLE OF CONTENTS

SETUP AND CONNECTIONS ................................................. 5

Step 1: Unpack the System .................................................................... 6

Step 2: Connect Your TV to Other Components ...................................... 6

Jacks and Cables ........................................................................................ 7

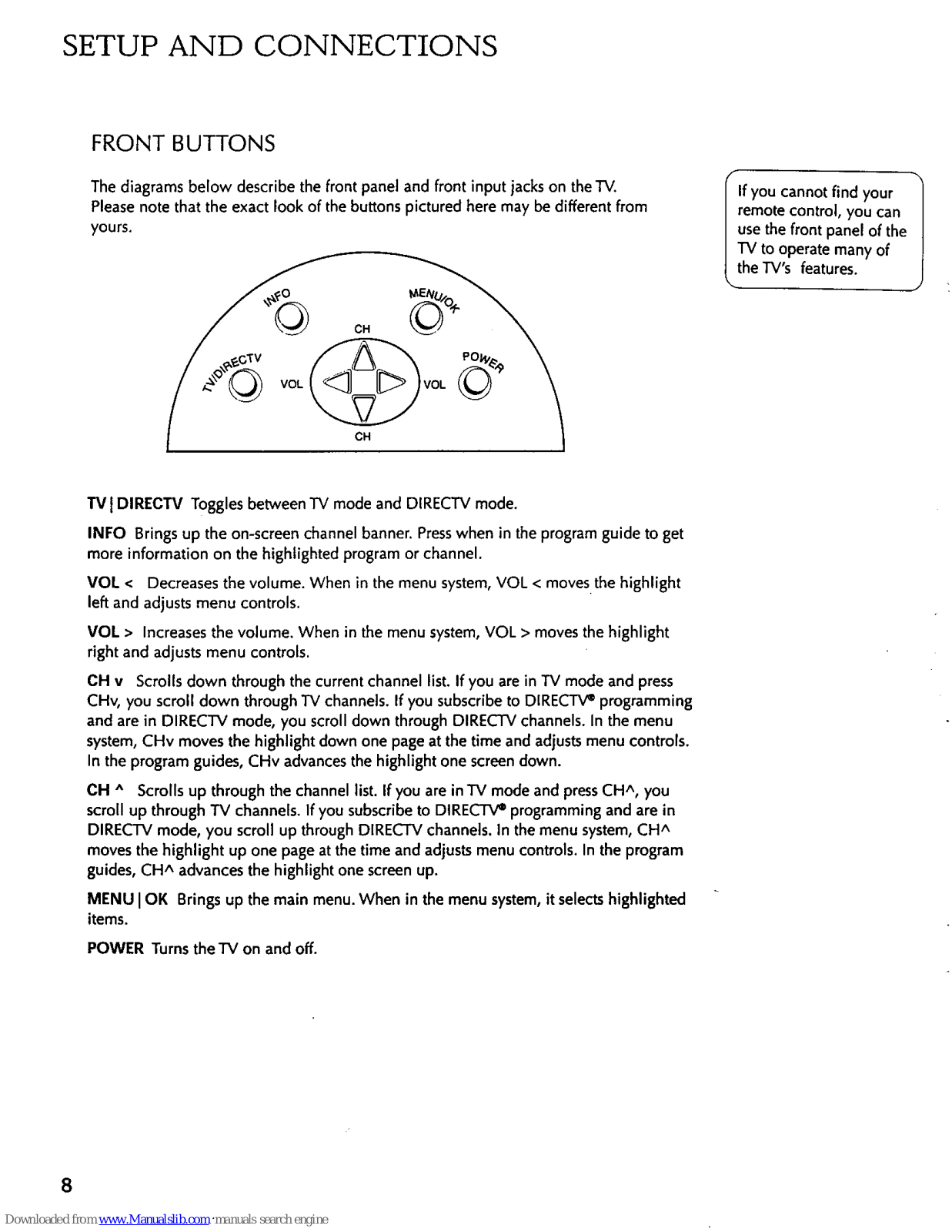

Front Buttons .............................................................................................. 8

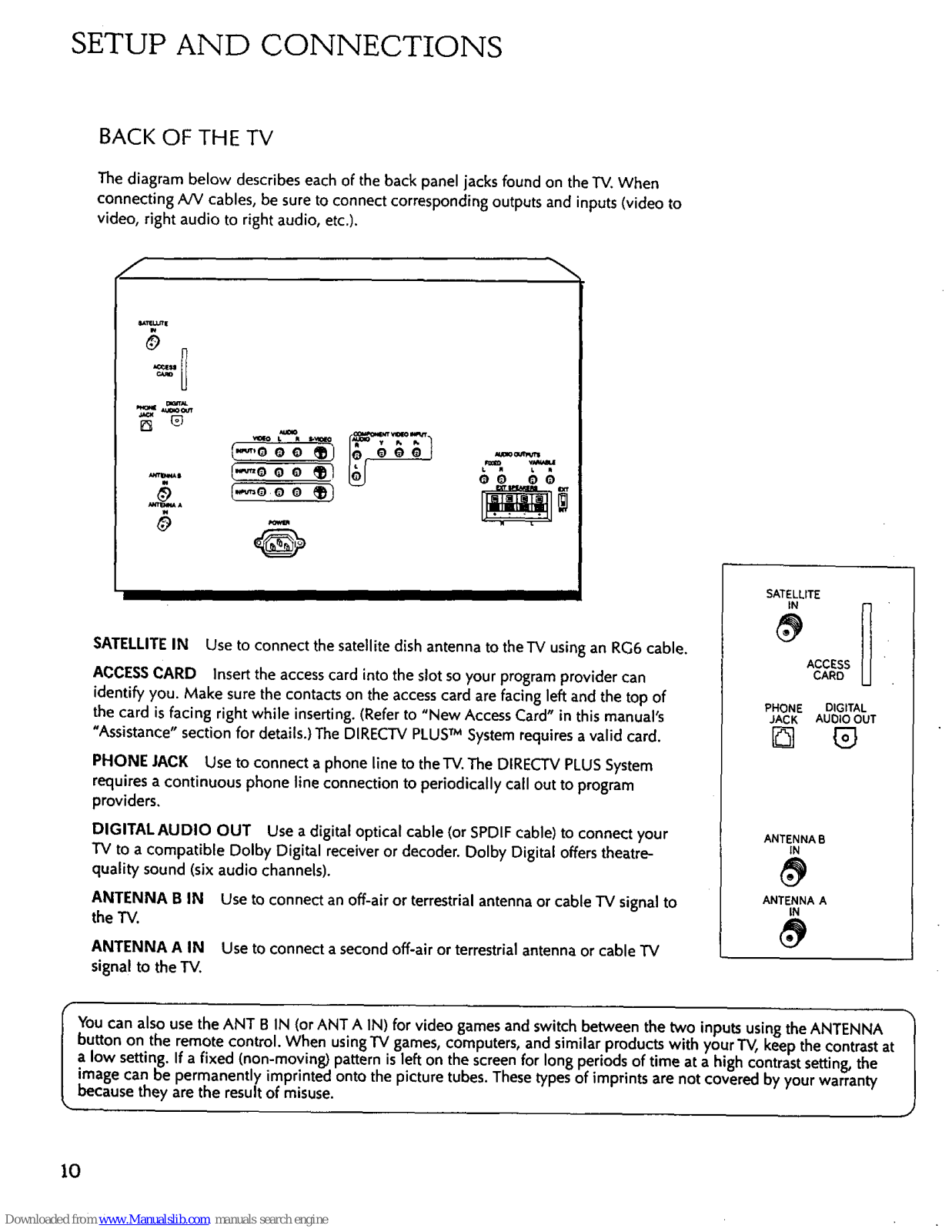

Back of the TV .......................................................................................... I 0

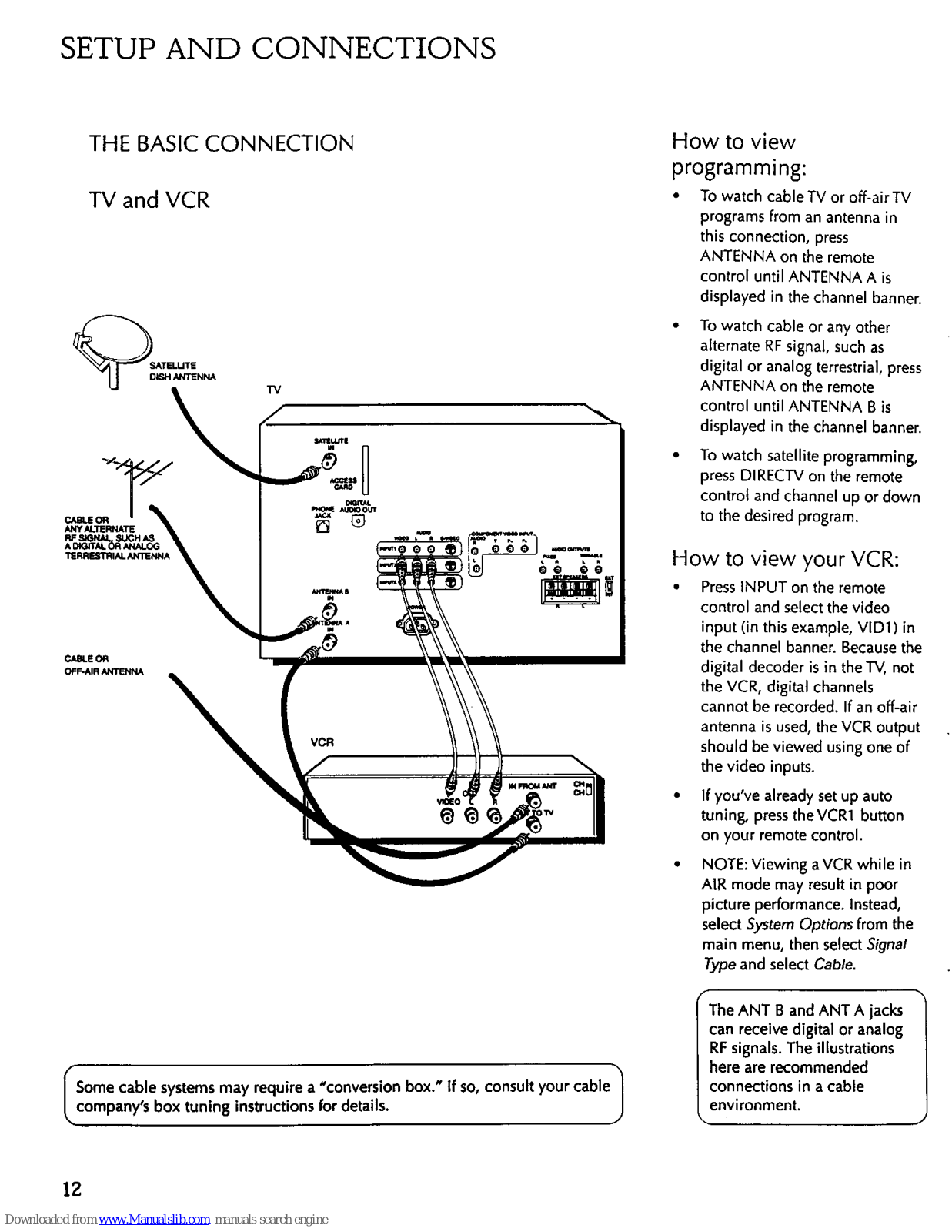

The Basic Connection ............................................................................... 12

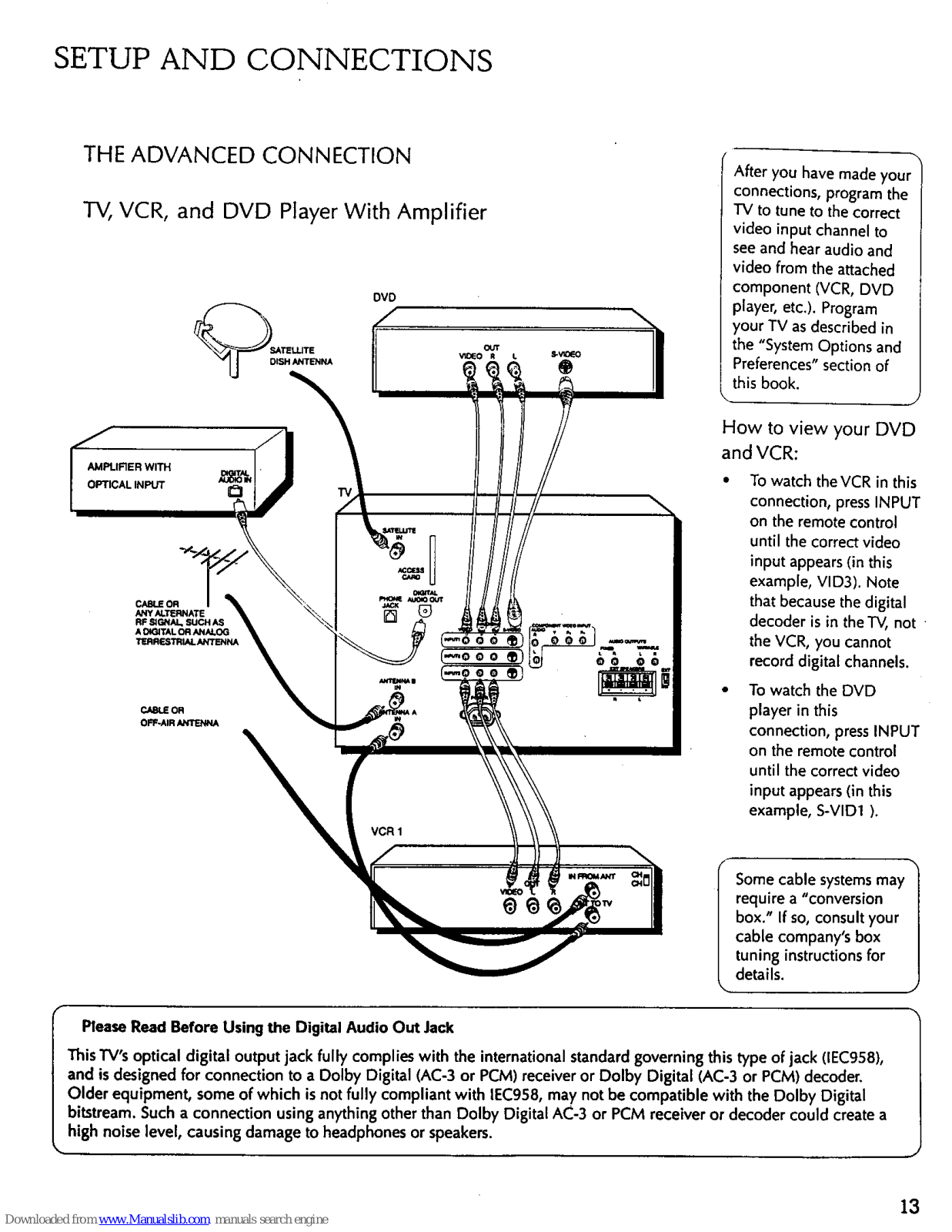

The Advanced Connection ....................................................................... 13

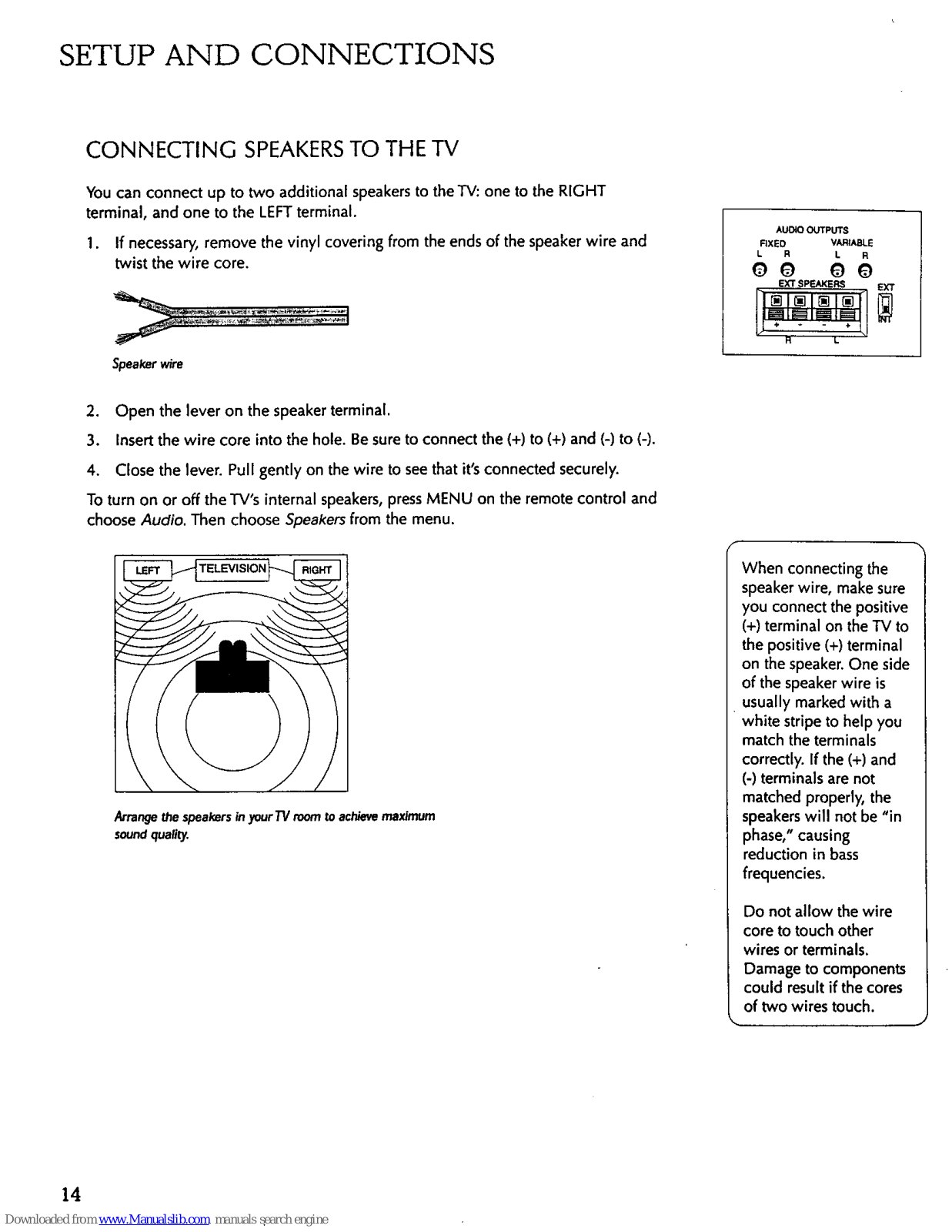

Connecting Speakers to the TV ................................................................. 14

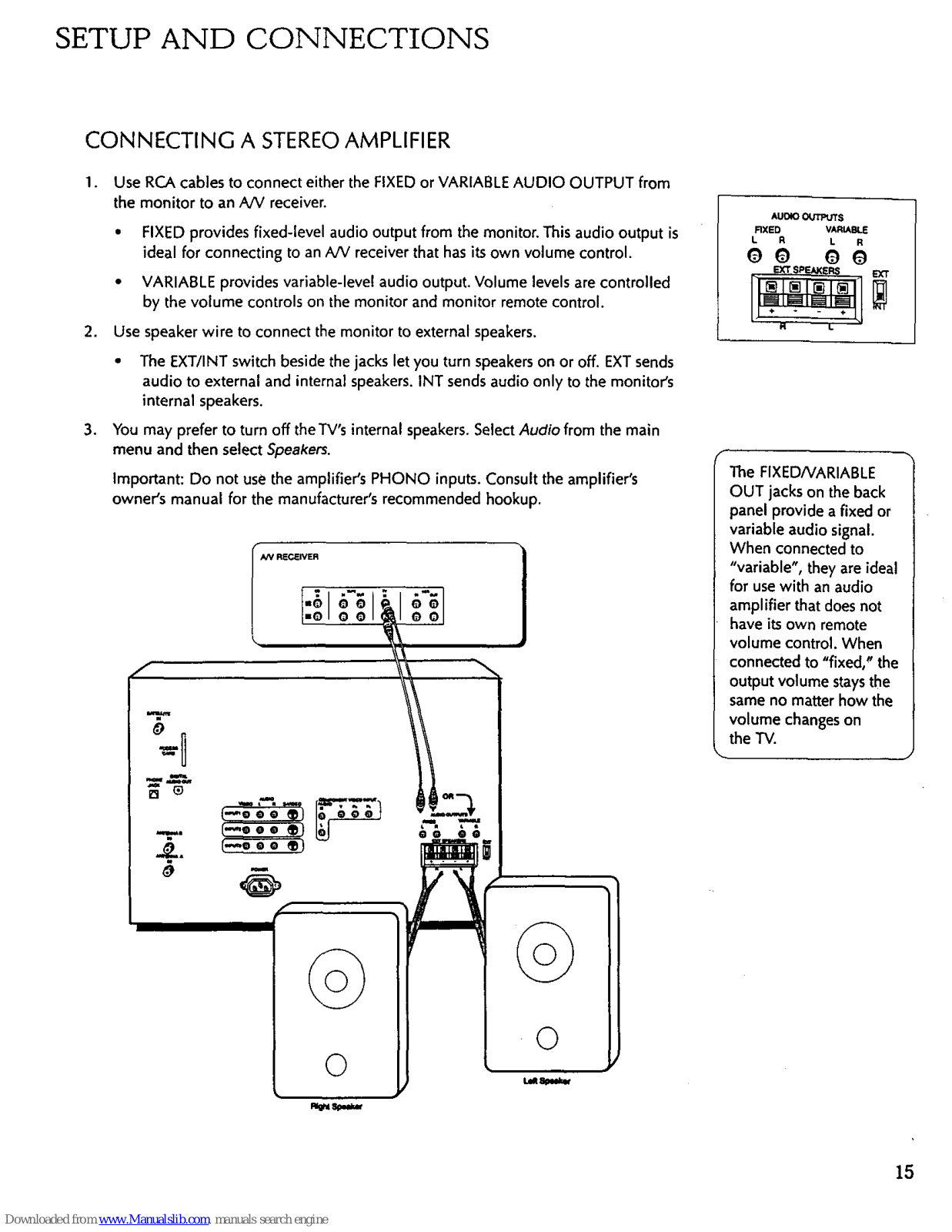

Connecting a Stereo Amplifier .................................................................. I S

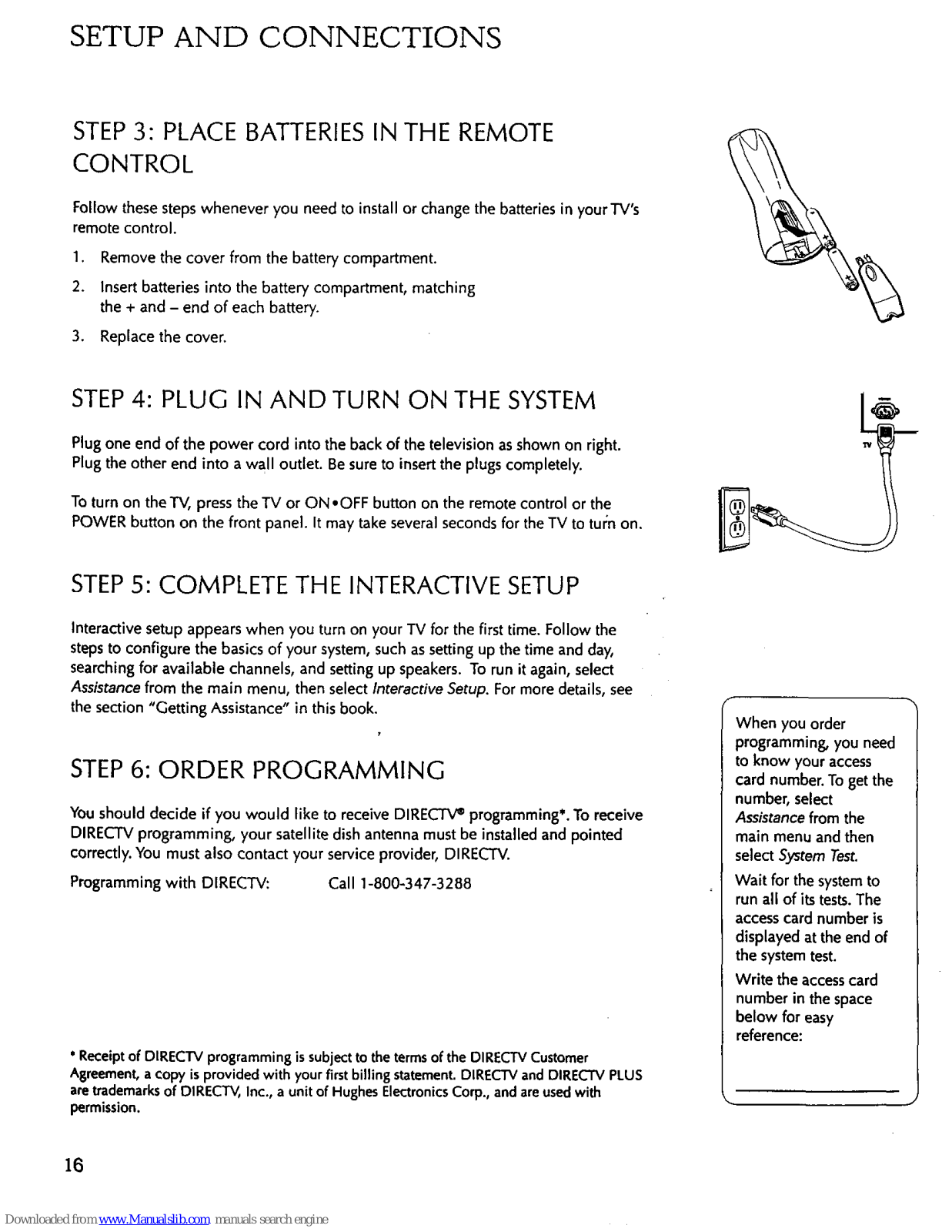

Step 3: Place Batteries in the Remote Control ...................................... 16

Step 4: Plug in and Turn on the System ................................................ 16

Step 5: Complete the'Interactive Setup ................................................. 16

Step 6: Order Programming ................................................................. 16

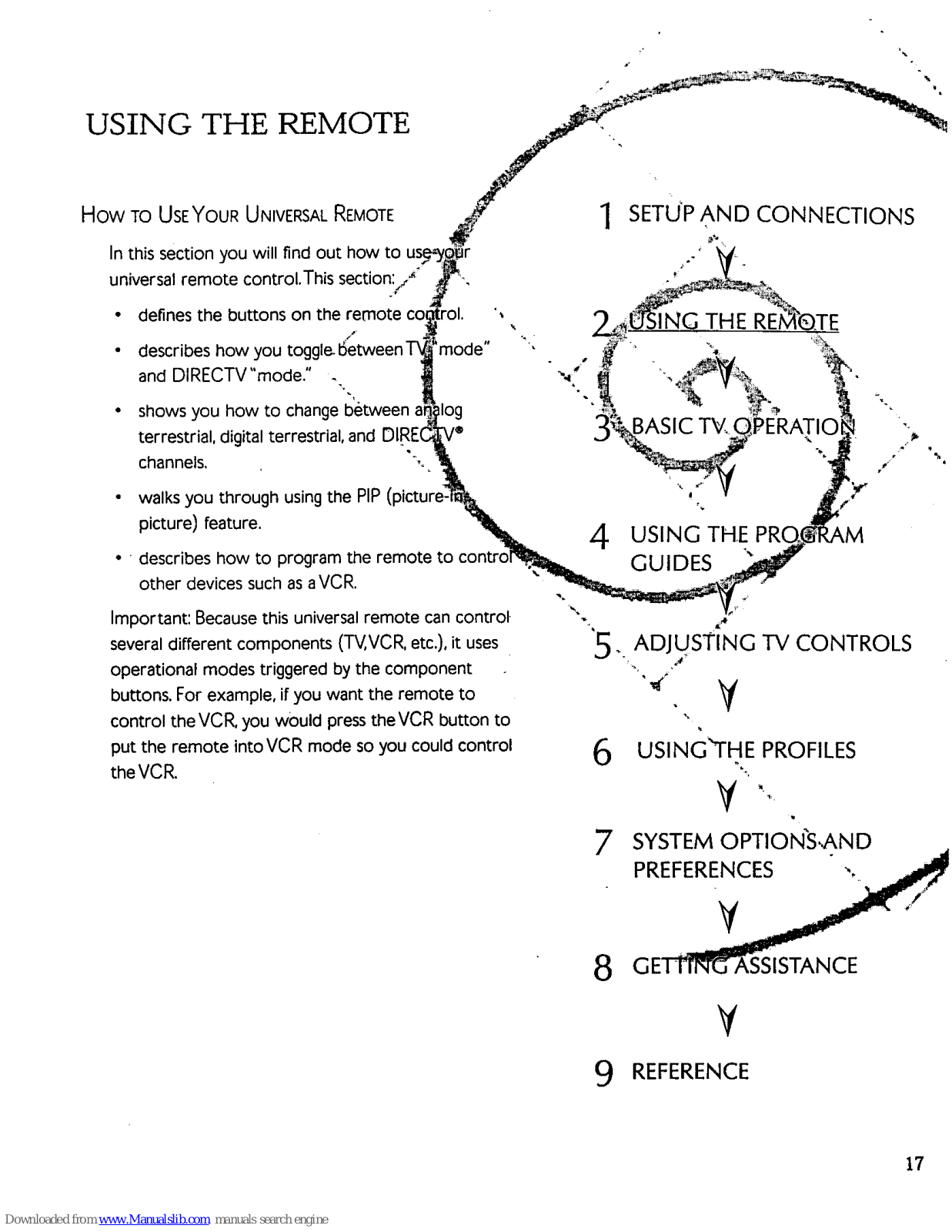

USING THE REMOTE ............................................................... 17

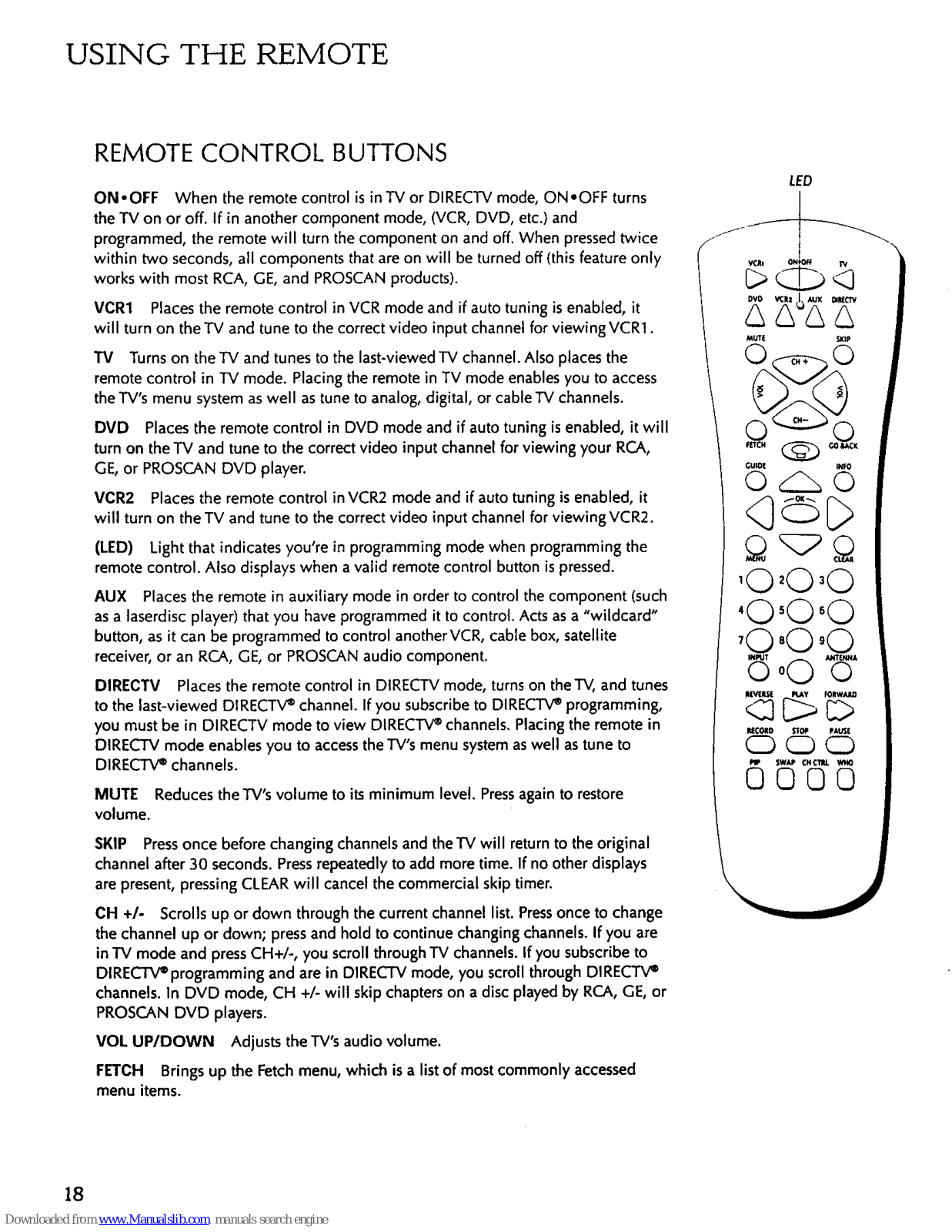

Remote Control Buttons ....................................................................... 18

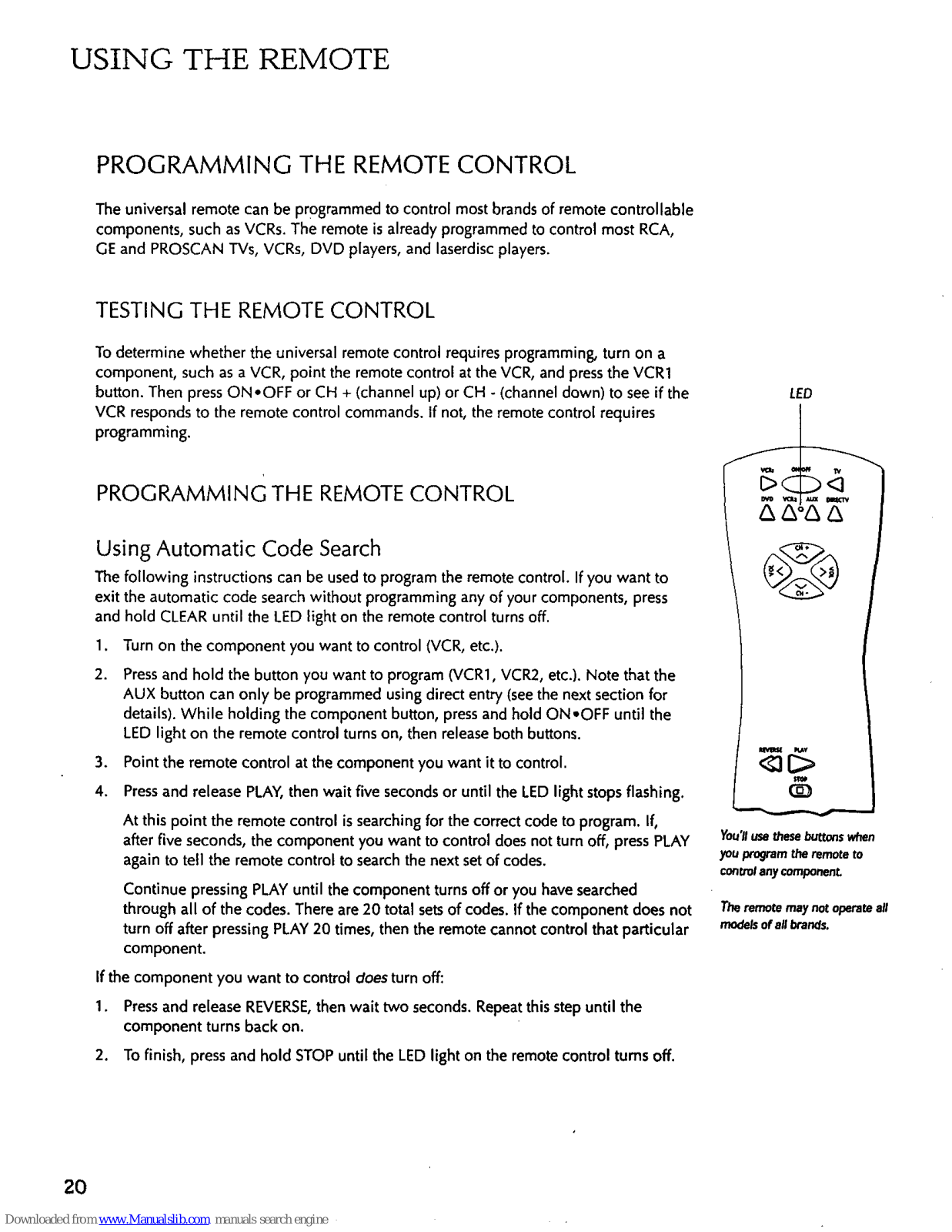

Programming the Remote Control ........................................................ 20

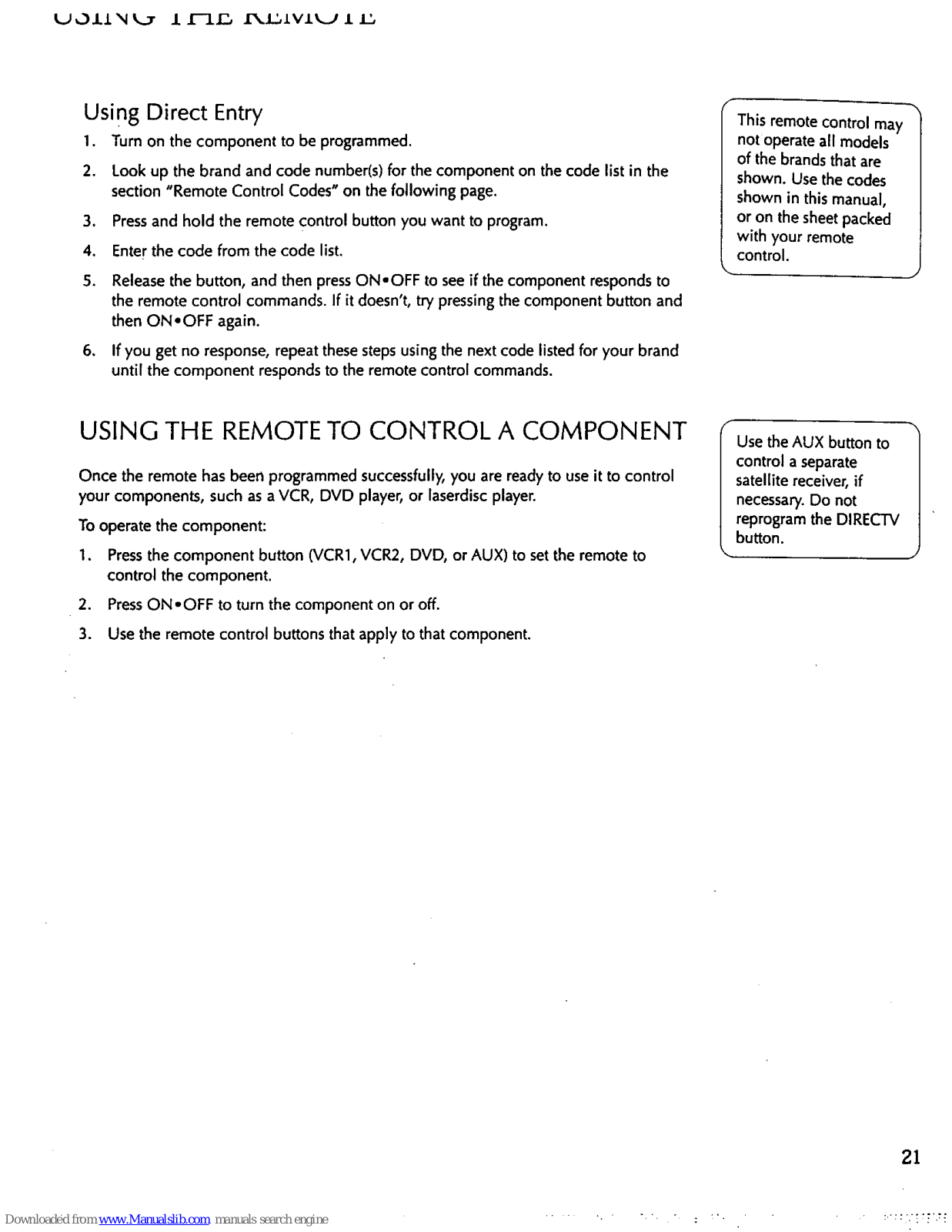

Using the Remote to Control a Component .......................................... 21

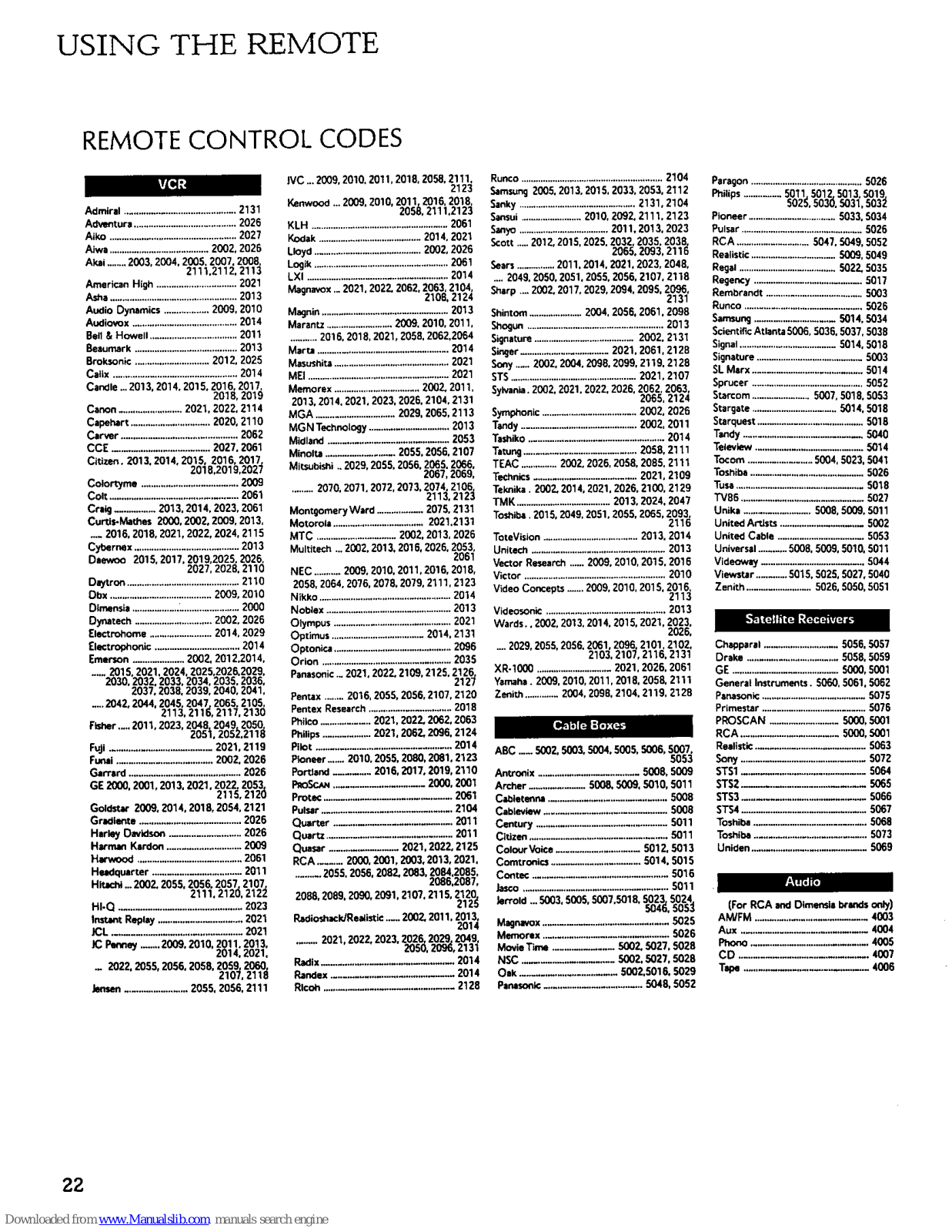

Remote Control Codes ......................................................................... 22

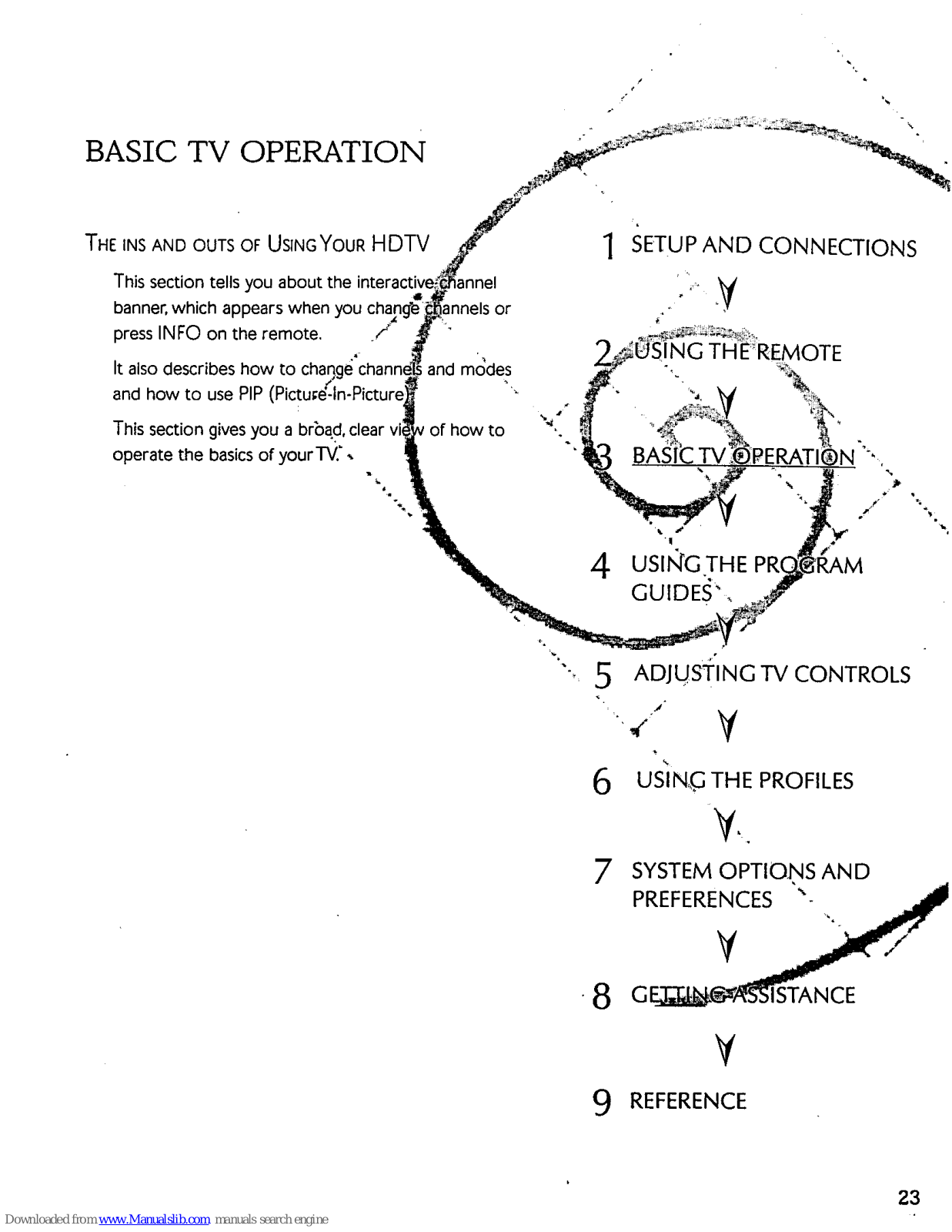

BASIC TV OPERATION ............................................................ 23

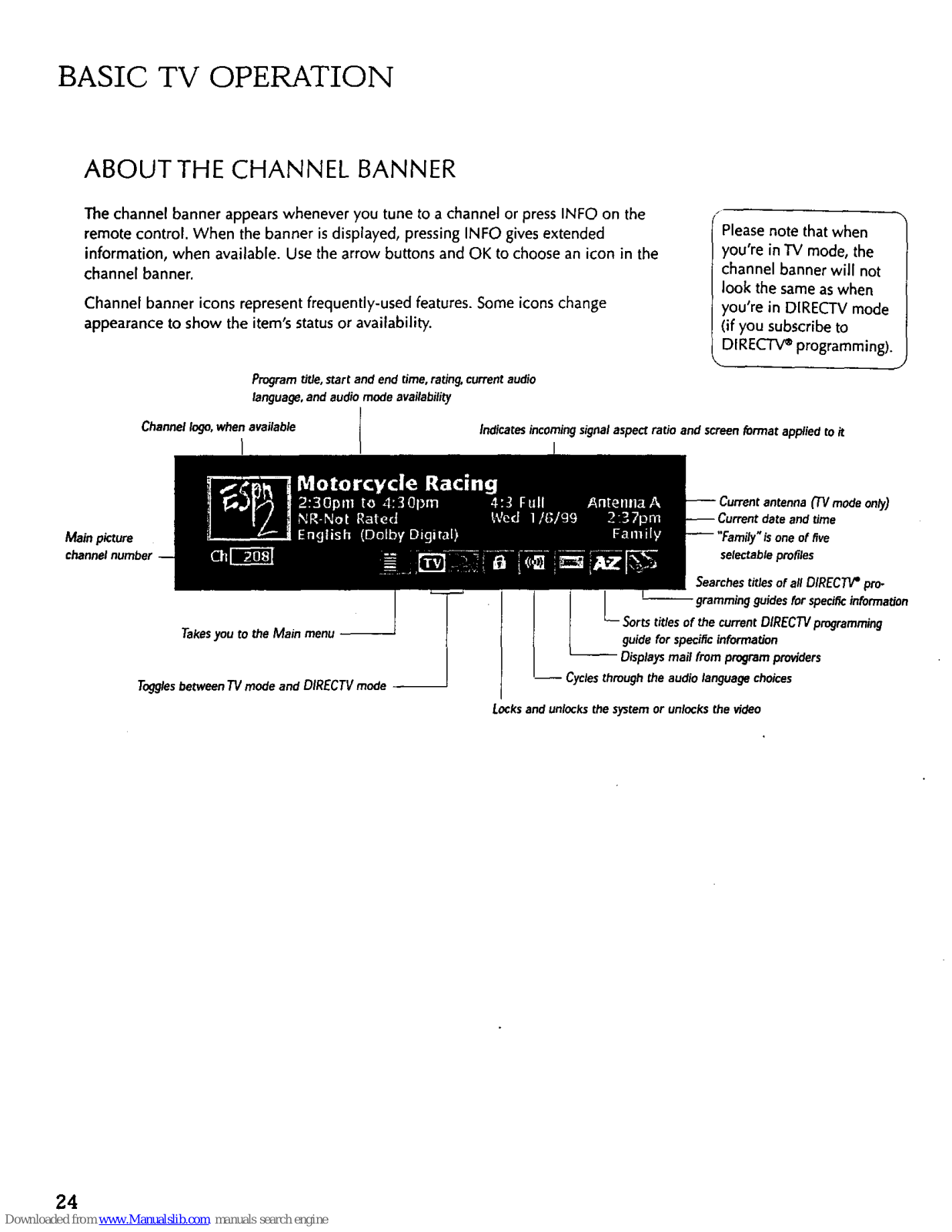

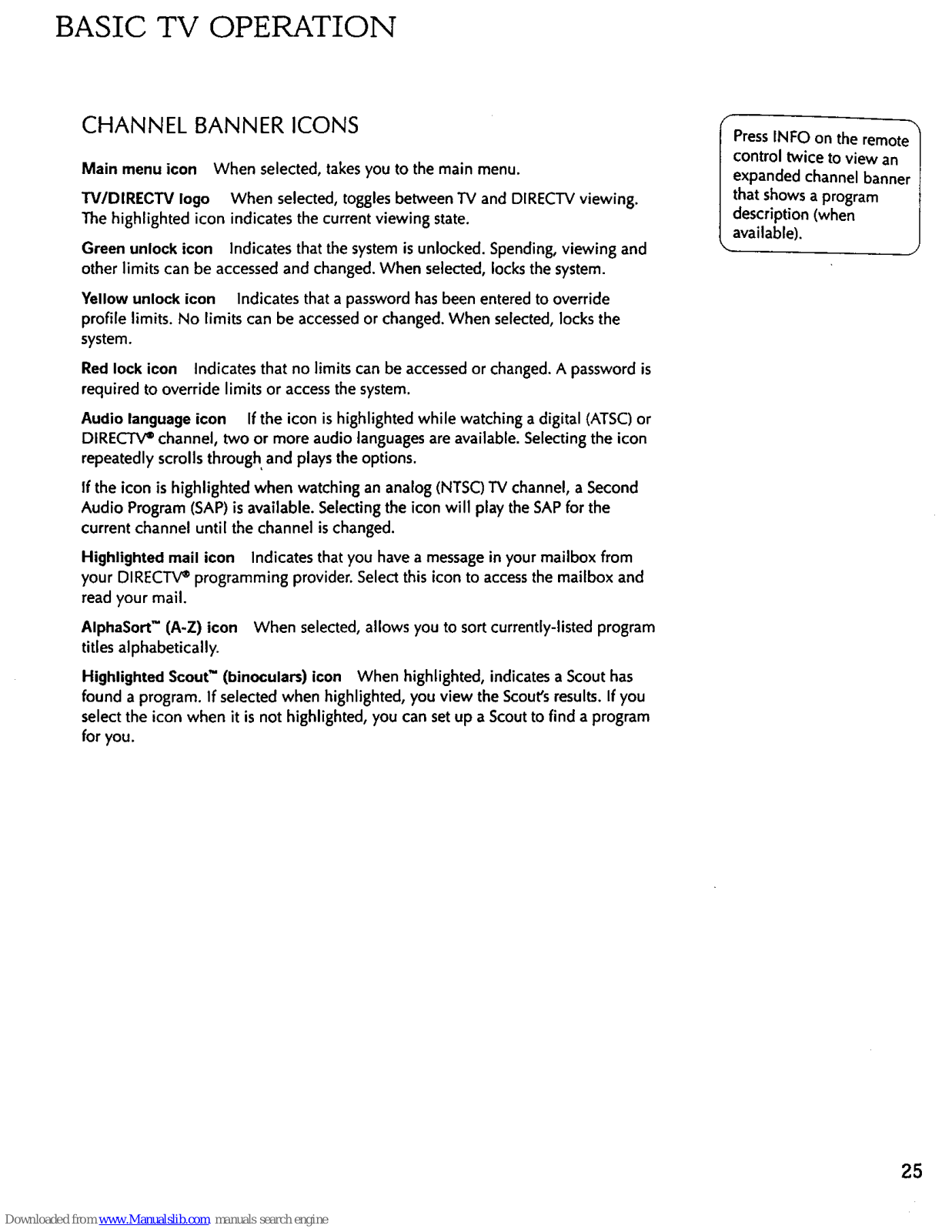

About the Channel Banner ................................................................... 24

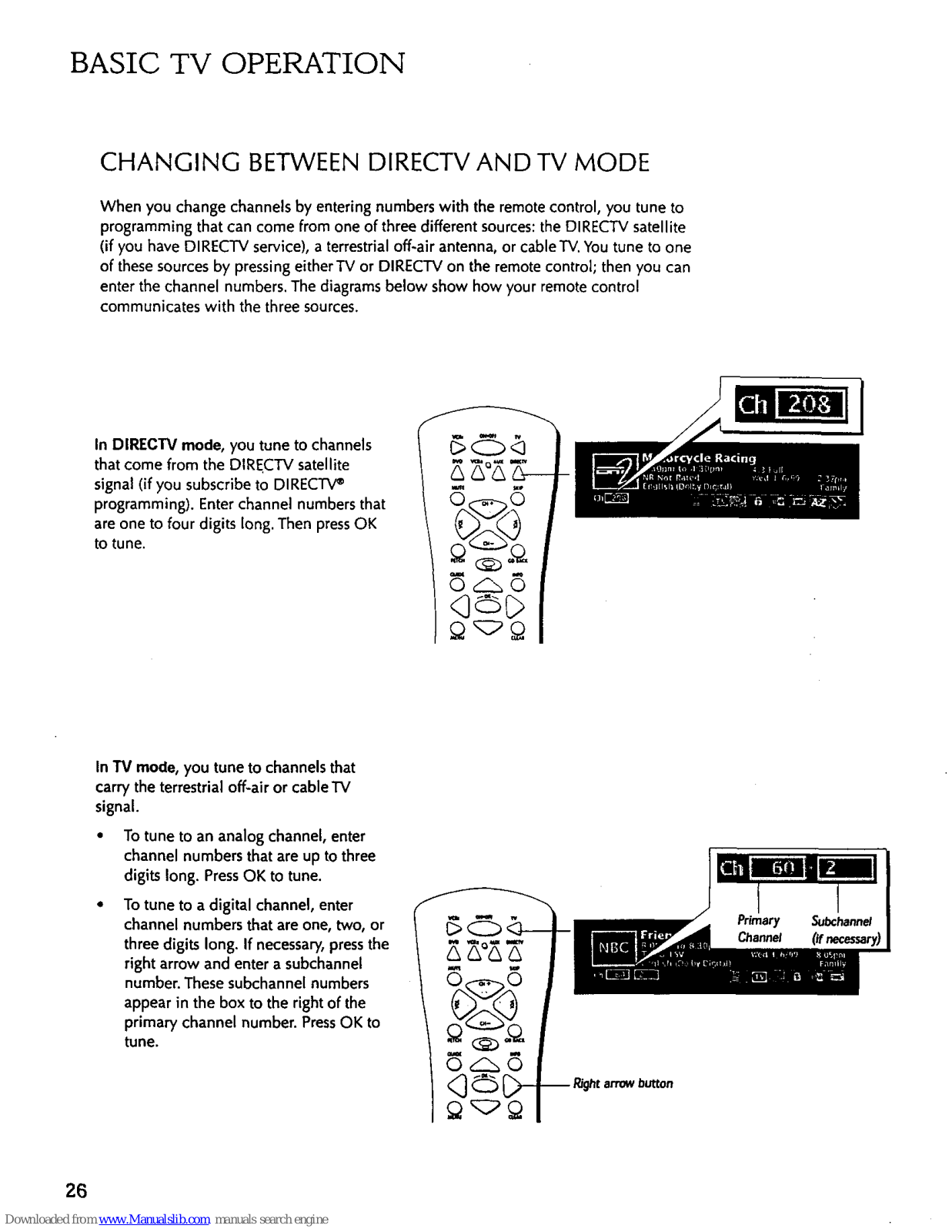

Changing Between DIRECTV and TV Mode ......................................... 26

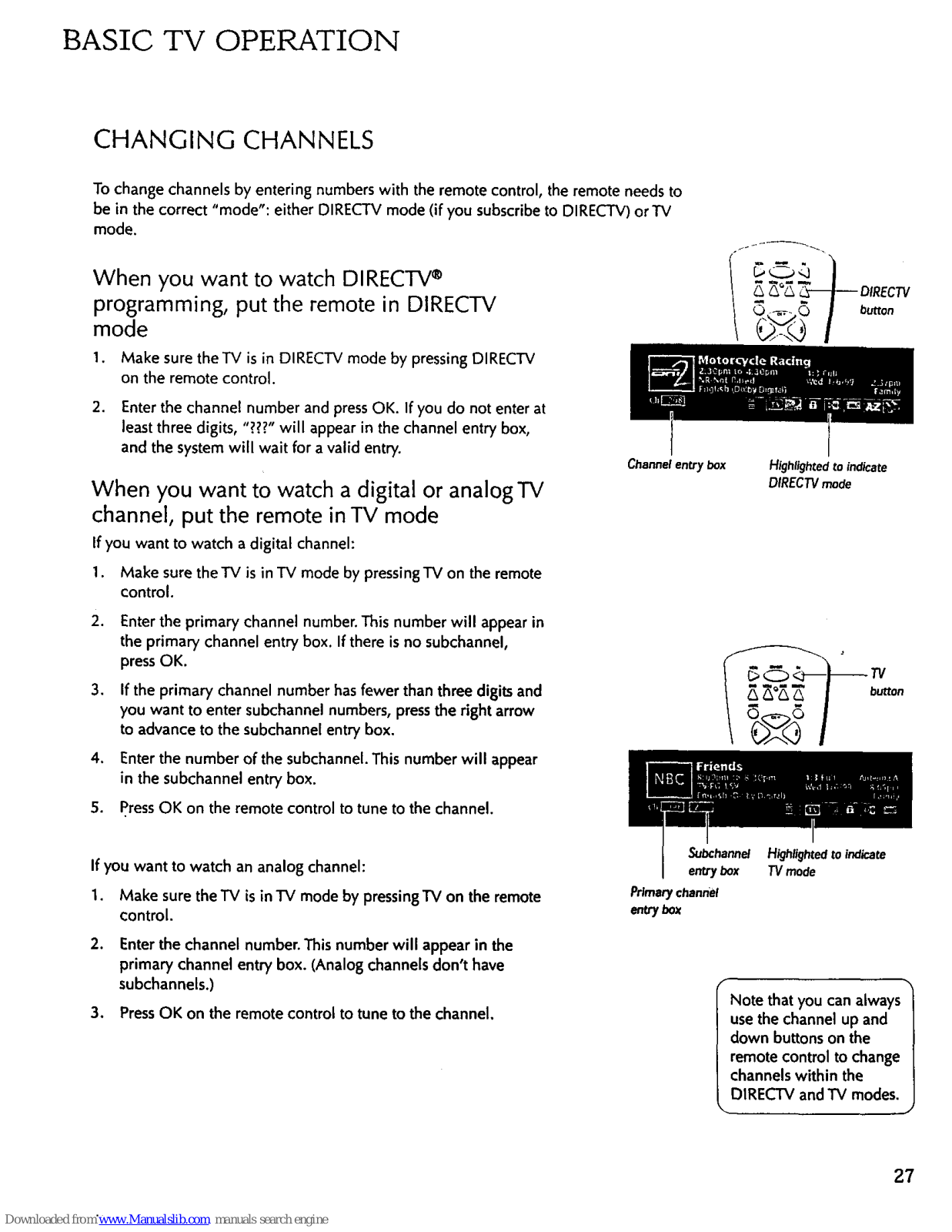

Changing Channels .............................................................................. 27

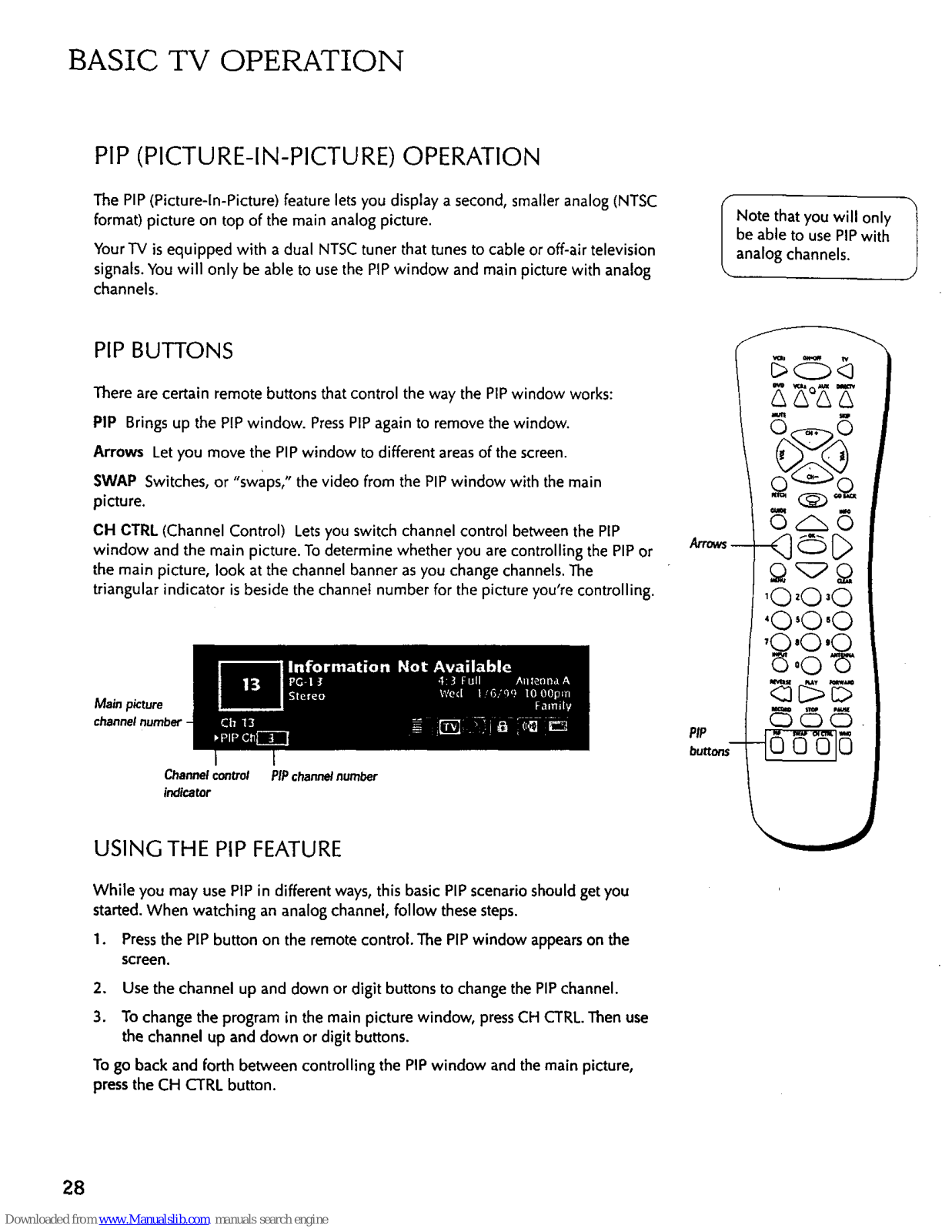

PiP (Picture-in-Picture) Operation ........................................................ 28

PIP Buttons ............................................................................................... 28

Using the PIP Feature ............................................................................... 28

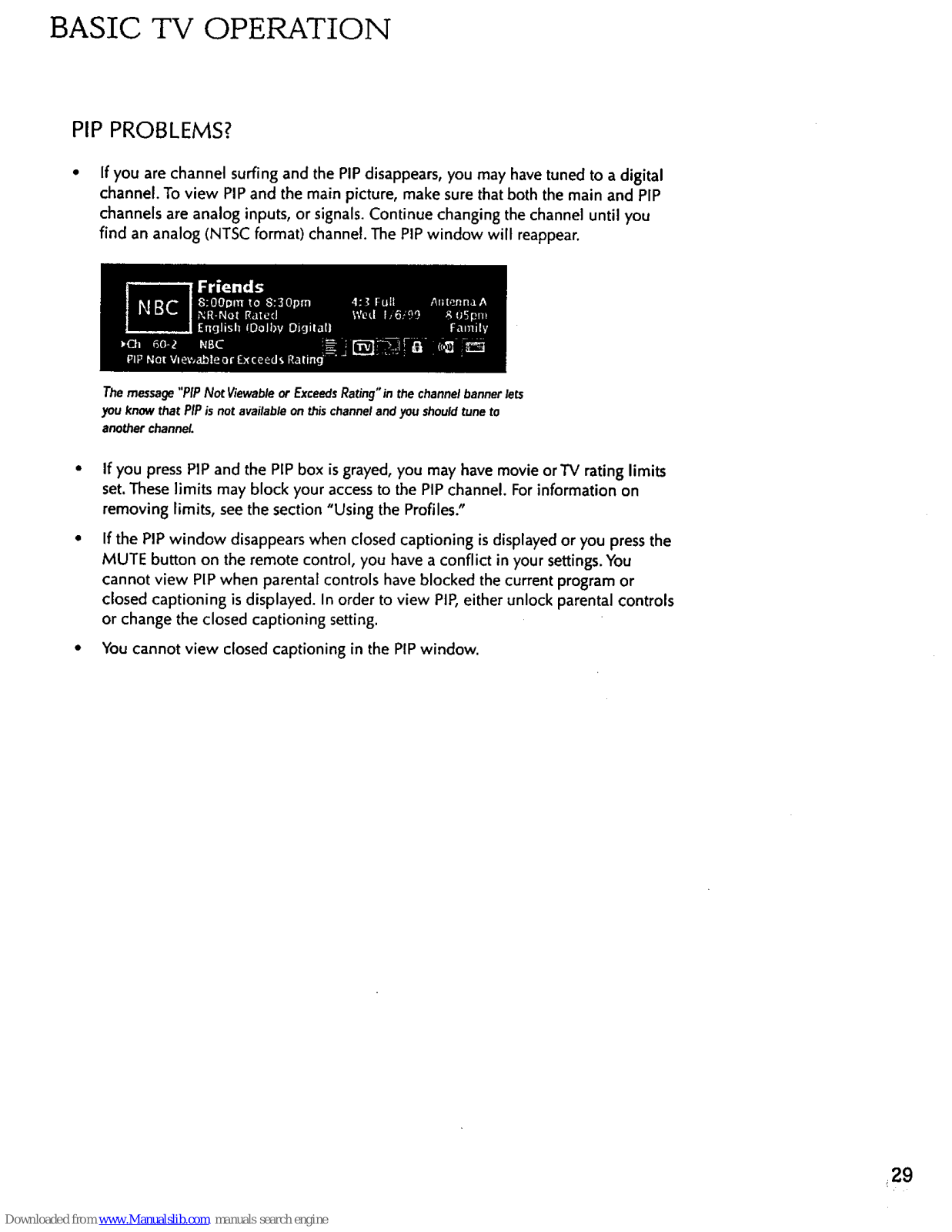

PiP Problems? ........................................................................................... 29

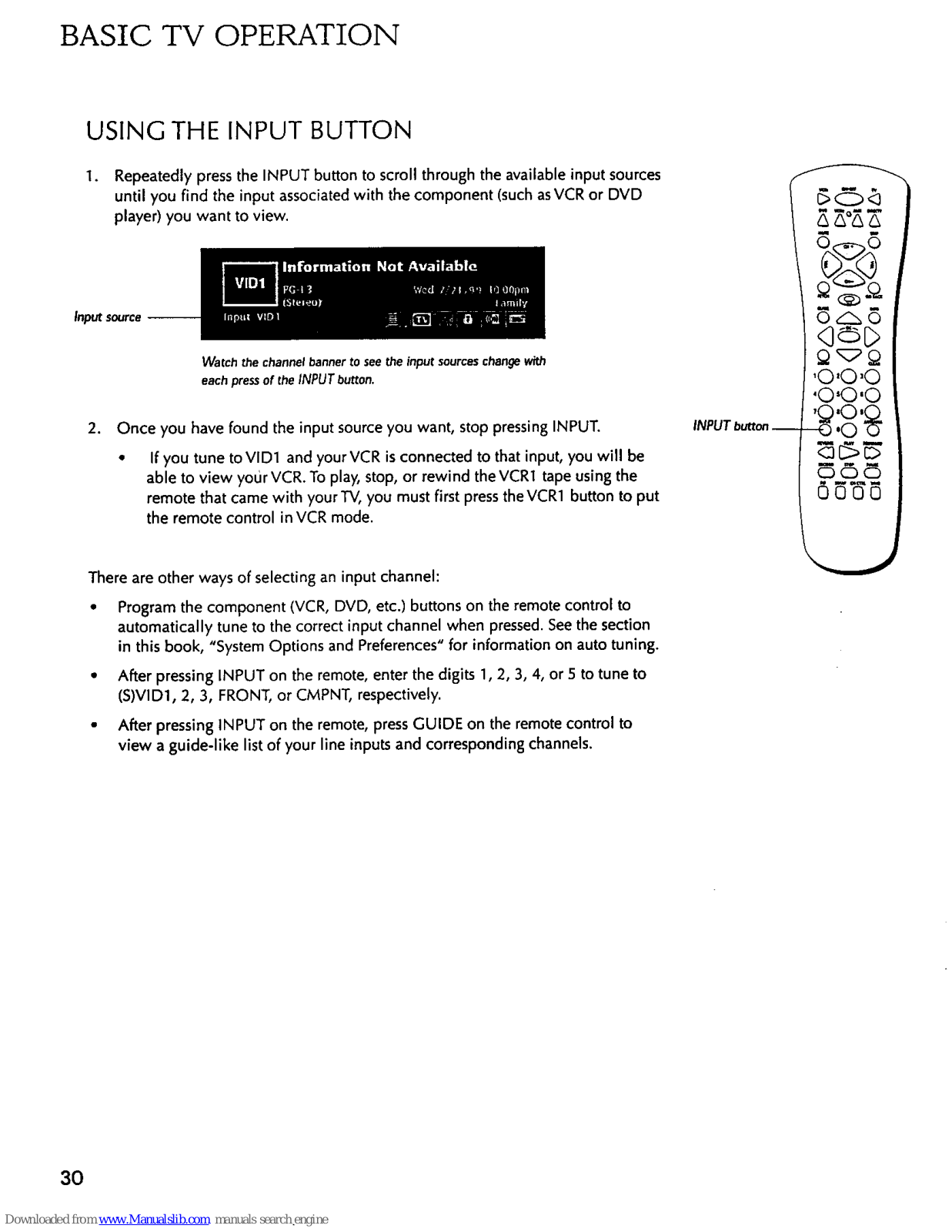

Using the iNPUT Button ...................................................................... 30

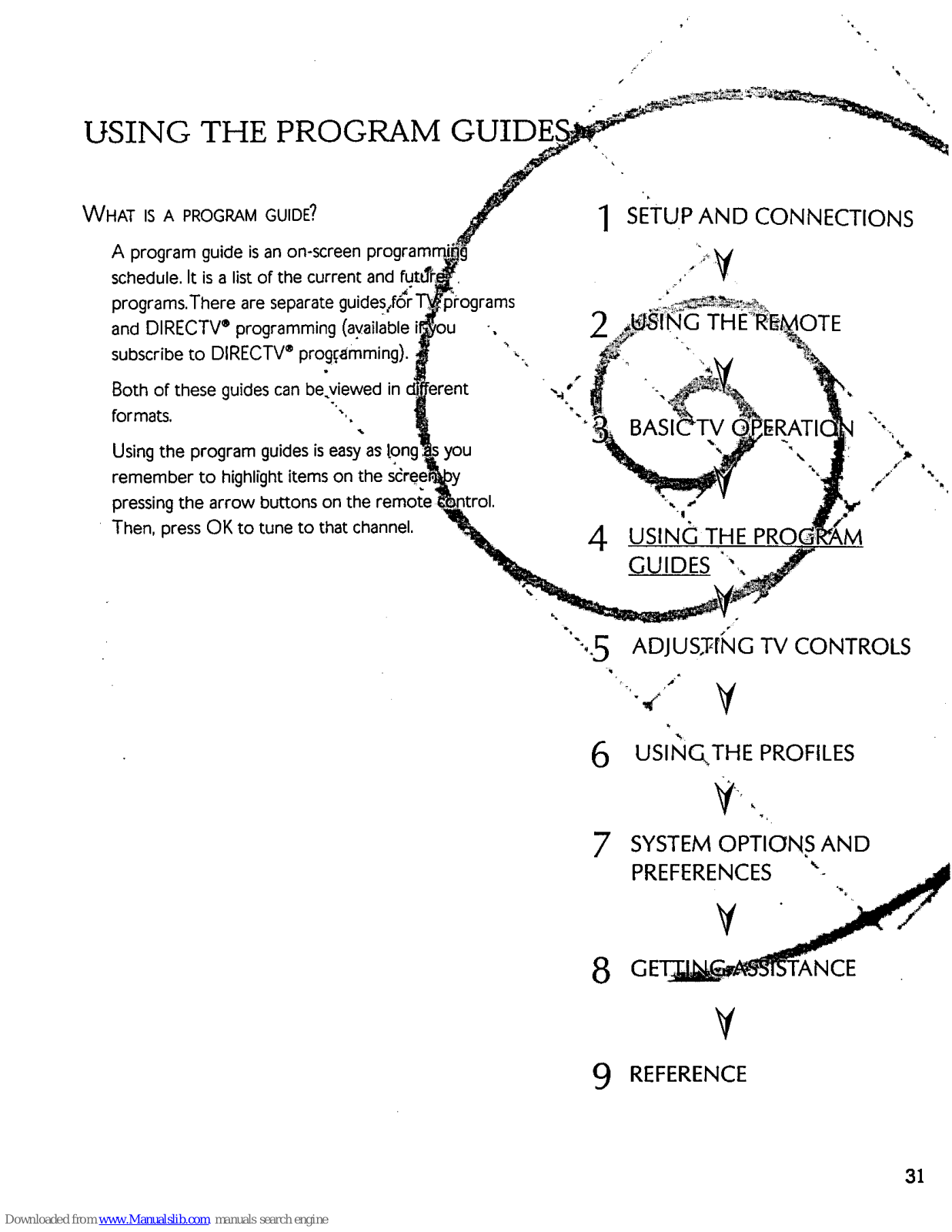

USING THE PROGRAM GUIDES ........................................ 31

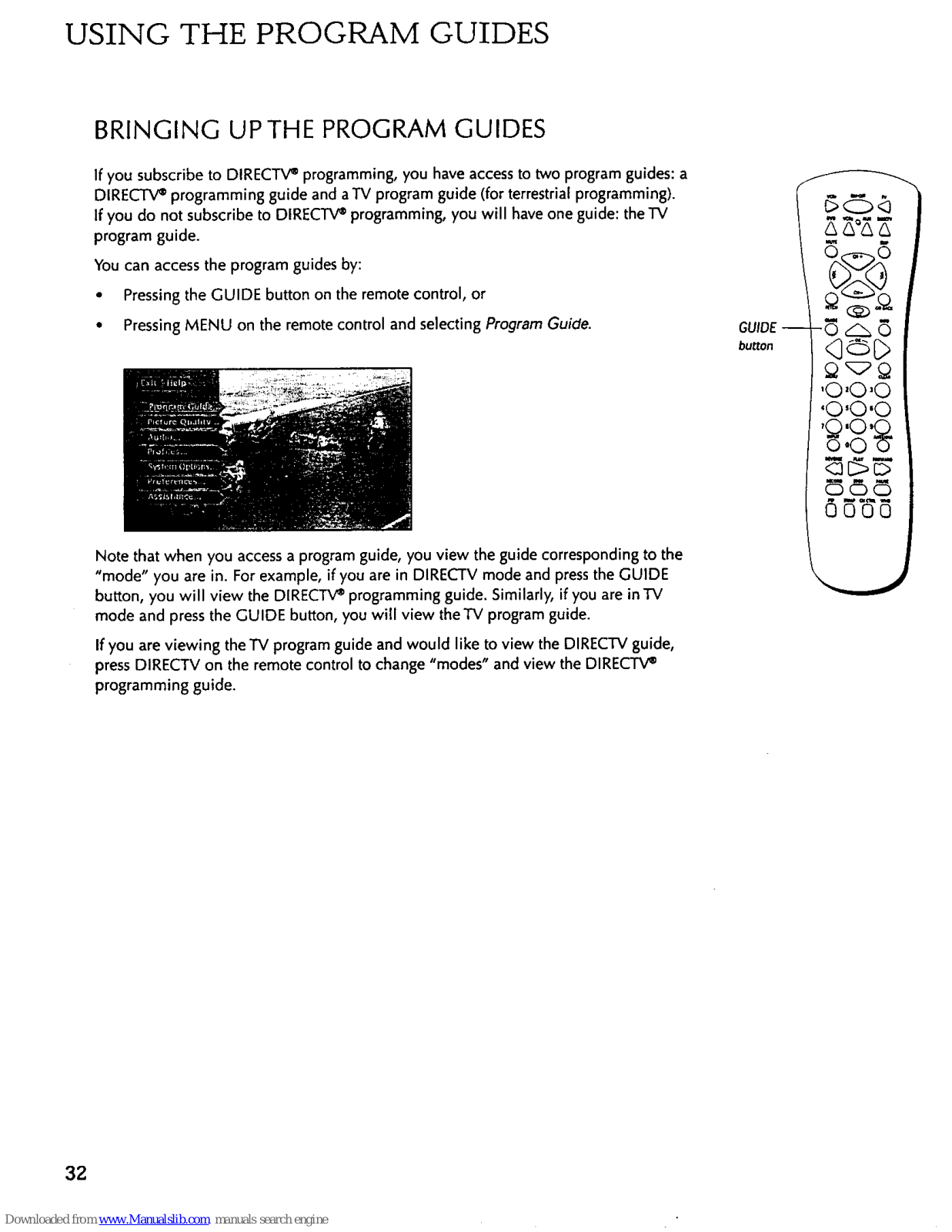

Bringing Up the Program Guides ......................................................... 32

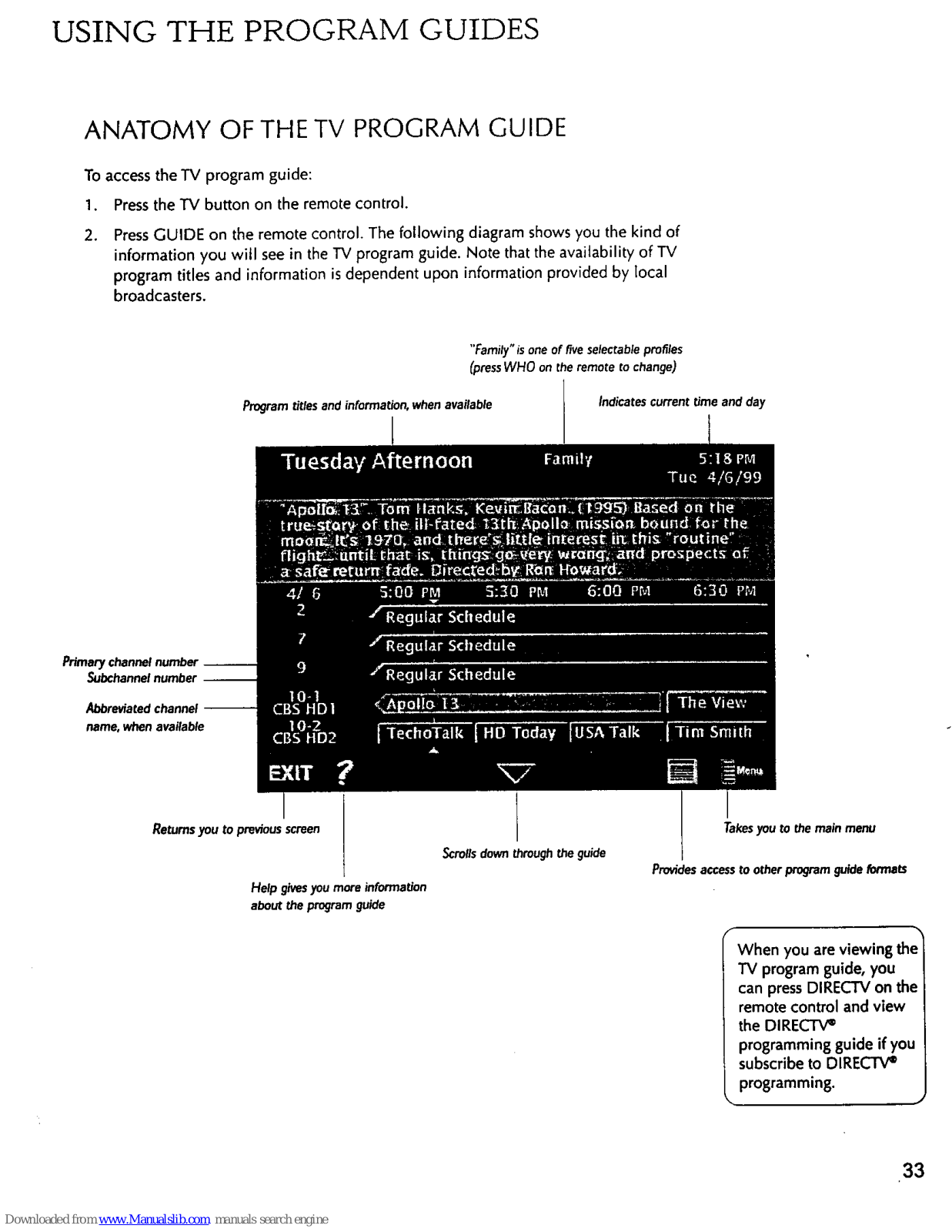

Anatomy of theTV Program Guide ...................................................... 33

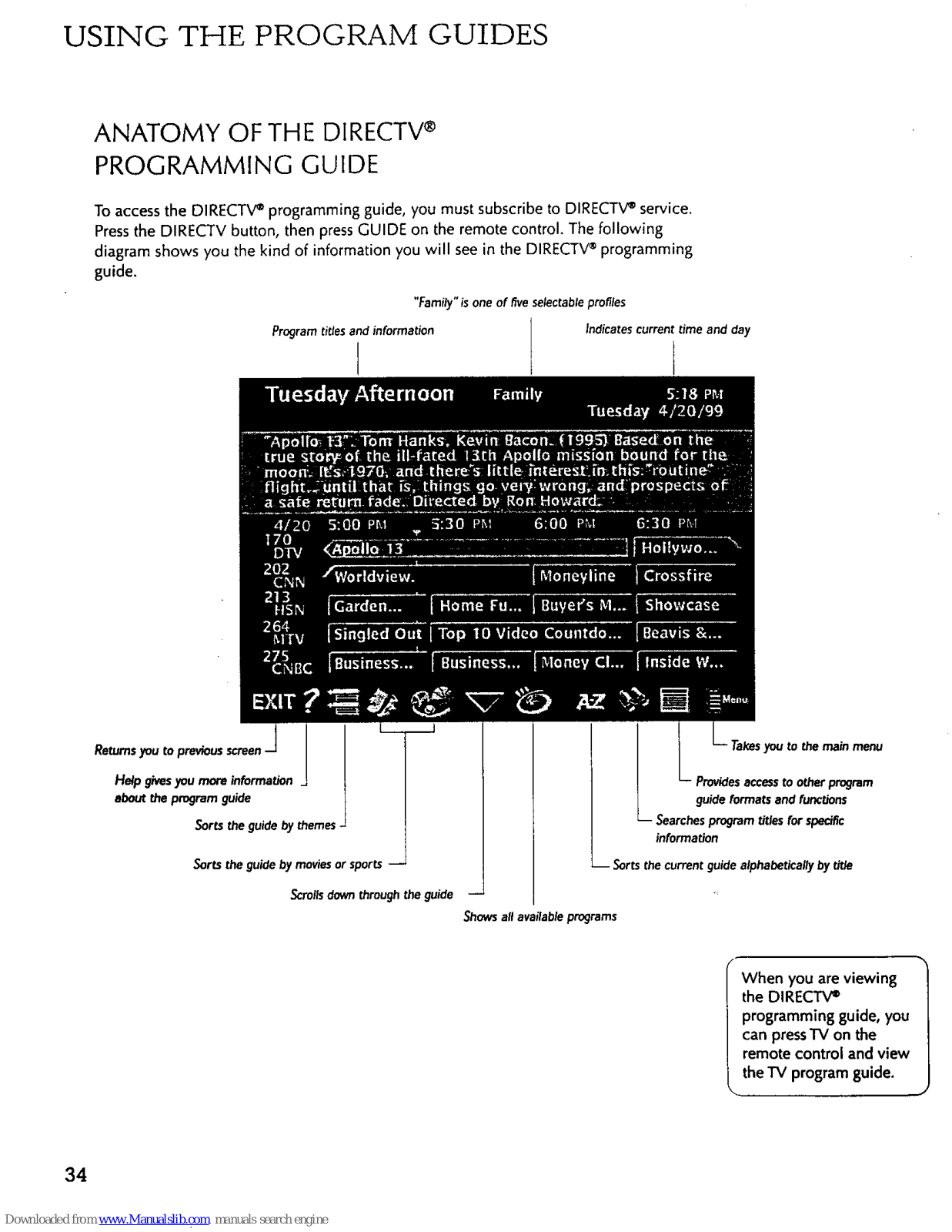

Anatomy of the DIRECT%_ Programming Guide ................................... 34

Tuning to a Program ............................................................................. 35

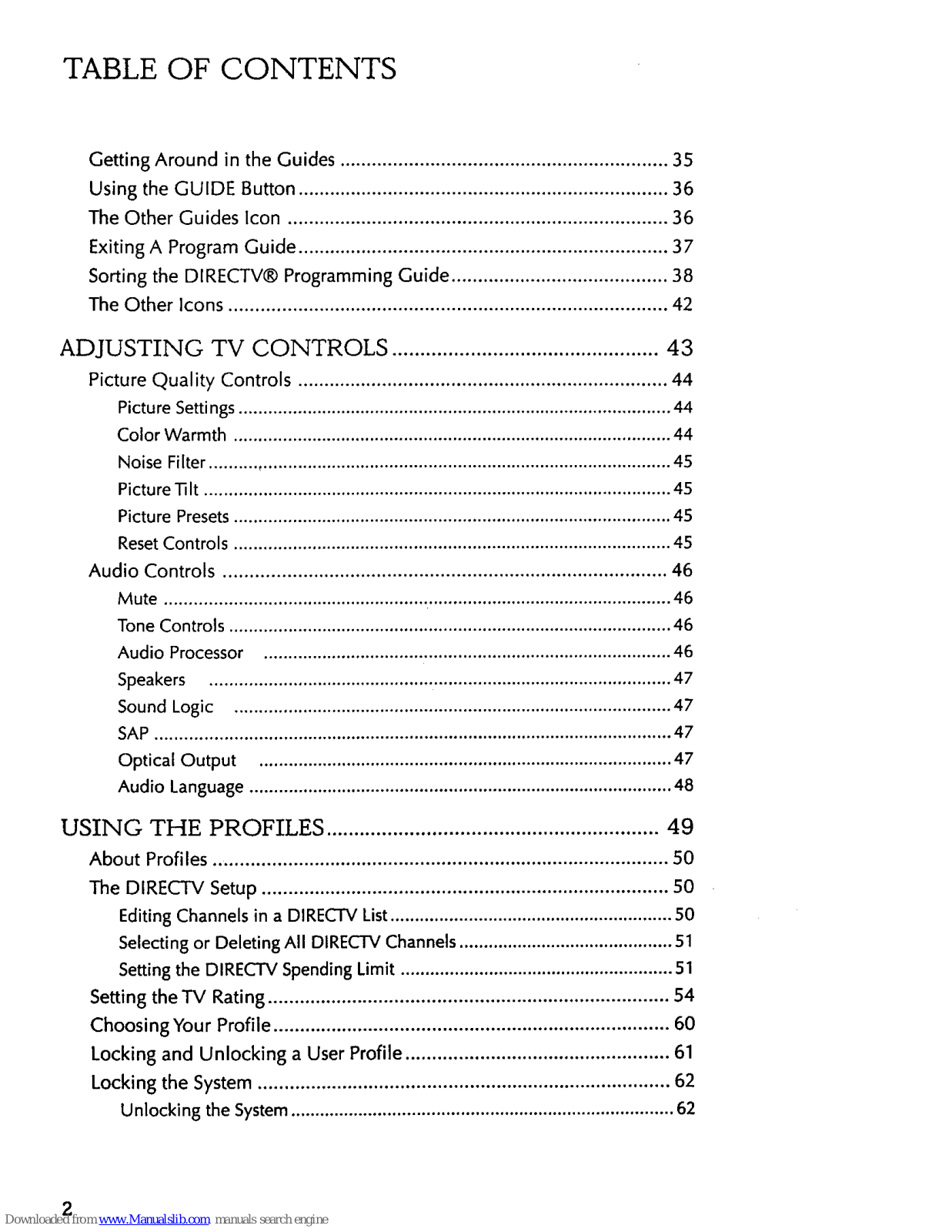

TABLE OF CONTENTS

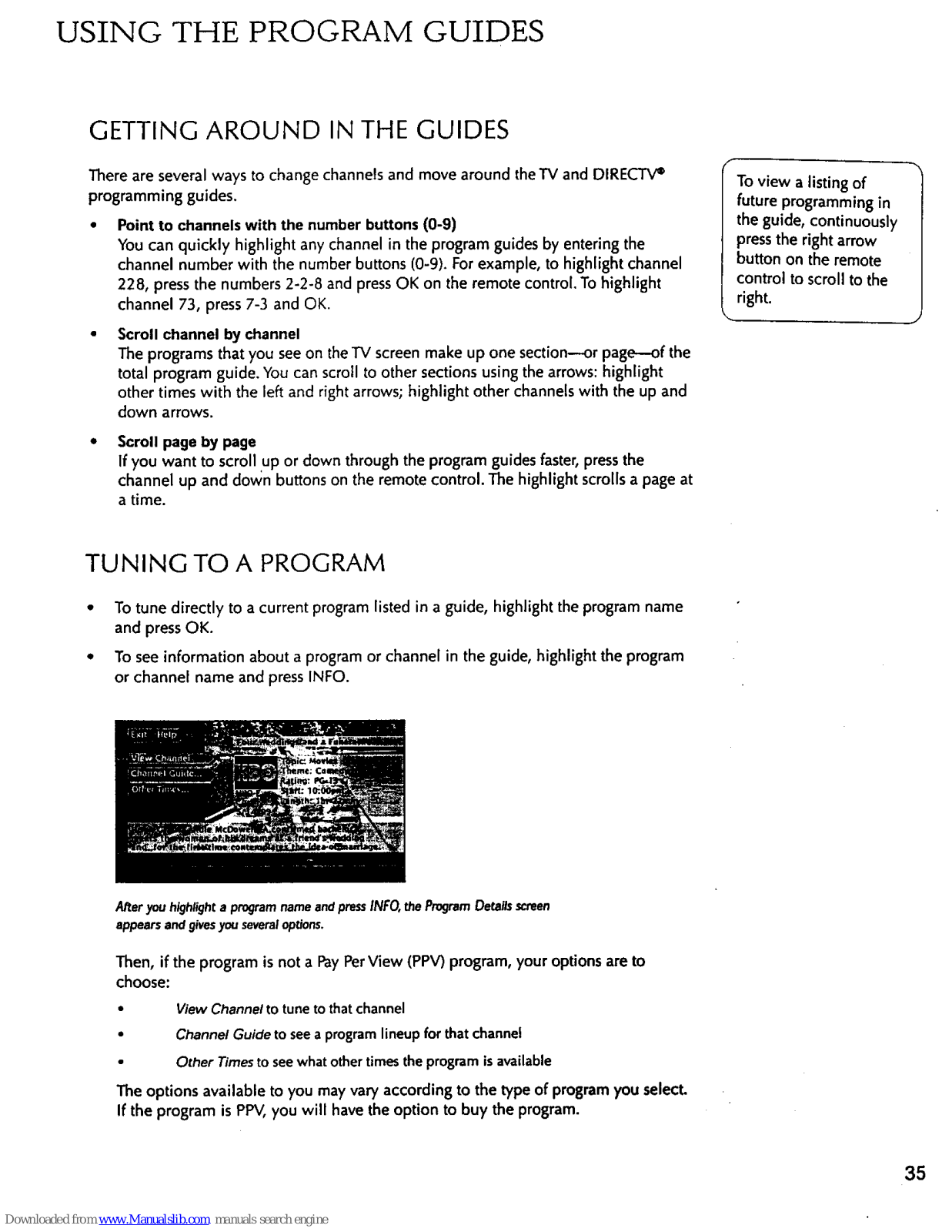

Getting Around in the Guides .............................................................. 35

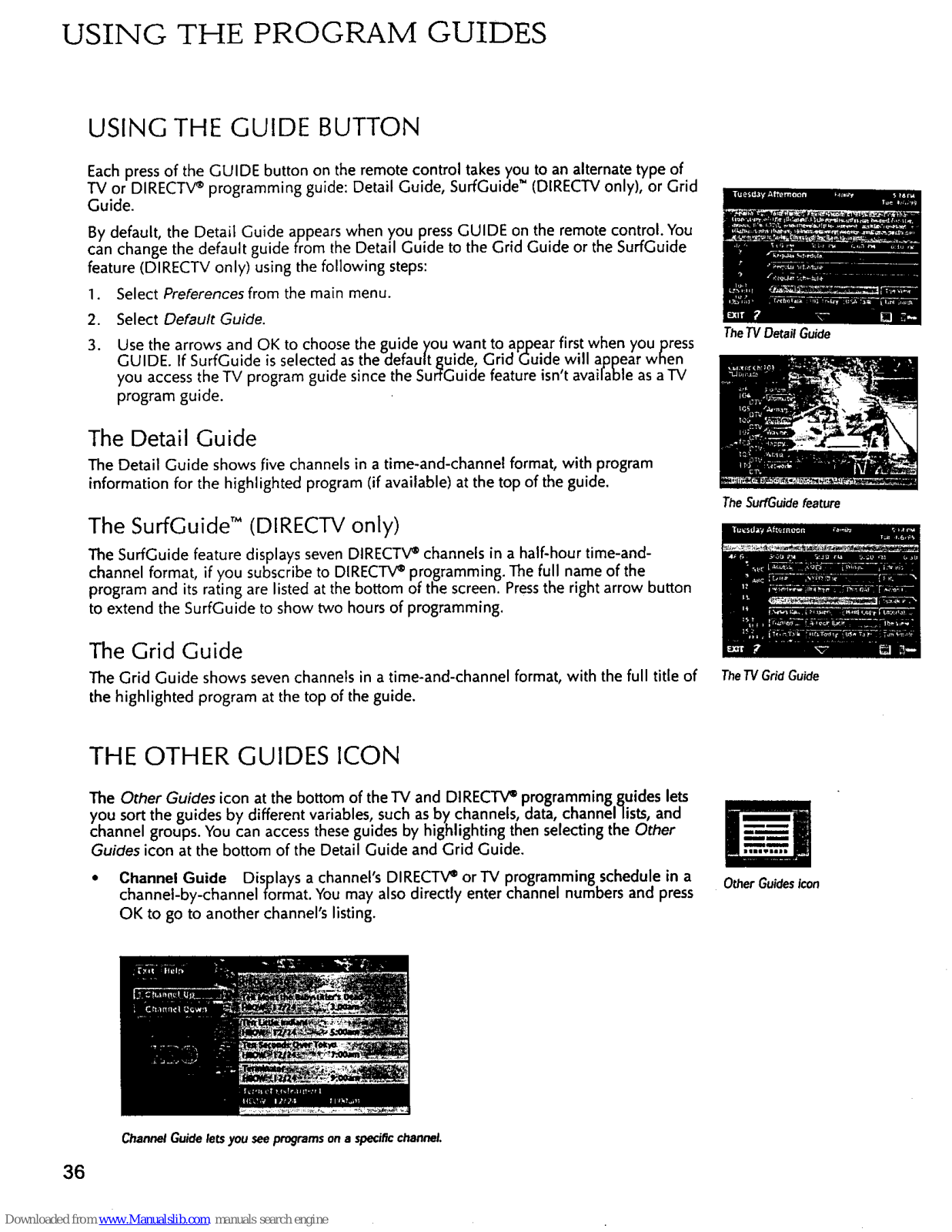

Using the GUIDE Button ...................................................................... 36

The Other Guides Icon ........................................................................ 36

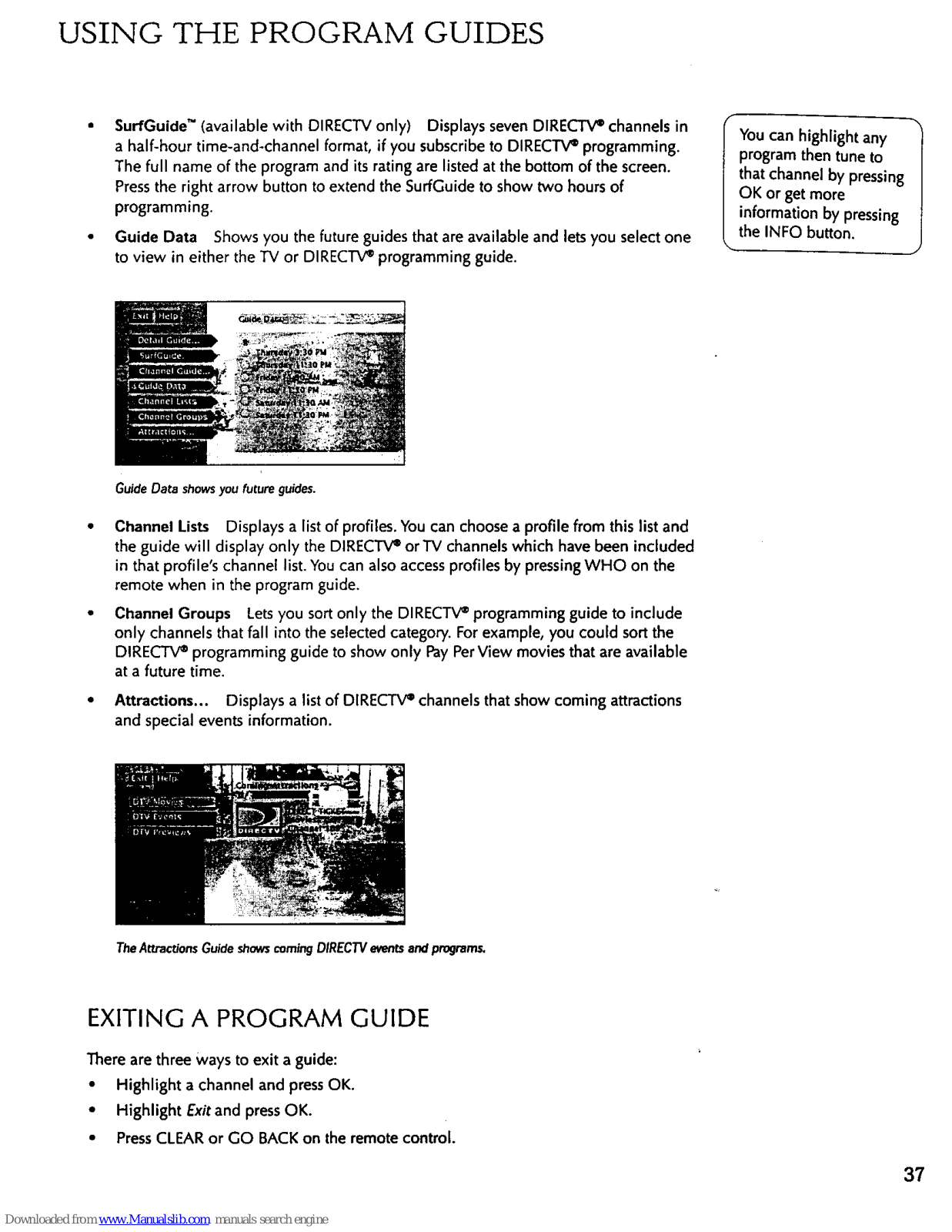

Exiting A Program Guide ...................................................................... 37

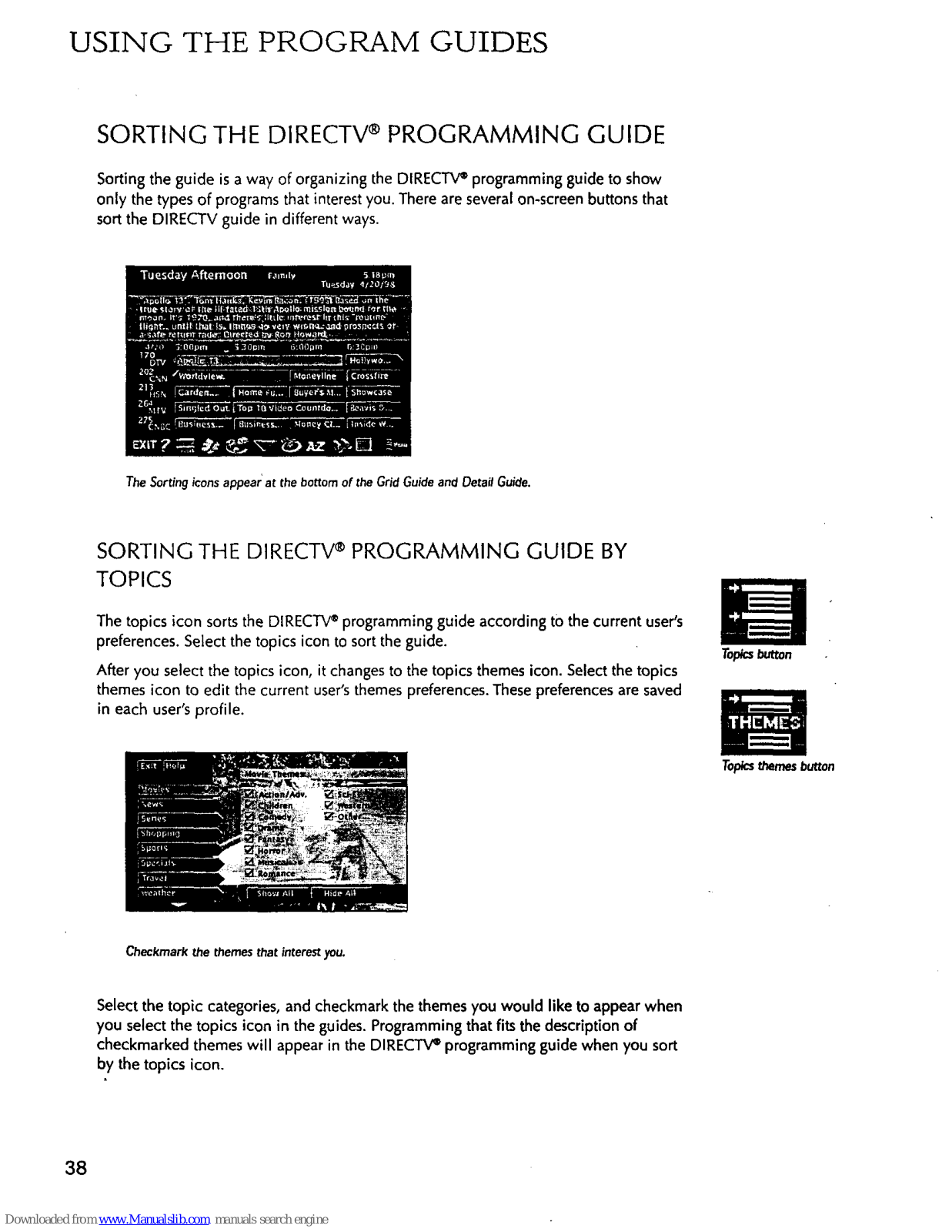

Sorting the DIRECTV® Programming Guide ......................................... 38

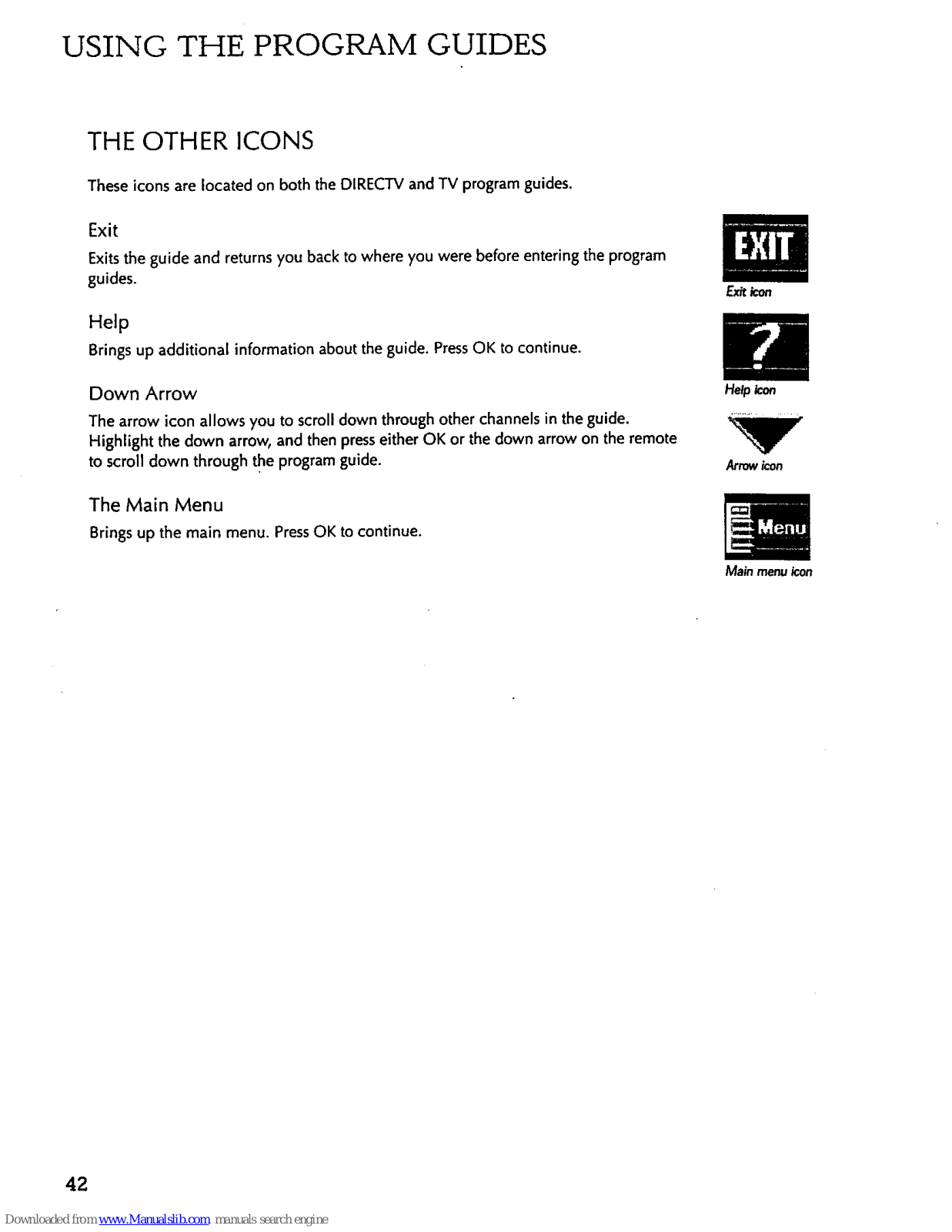

The Other Icons ................................................................................... 42

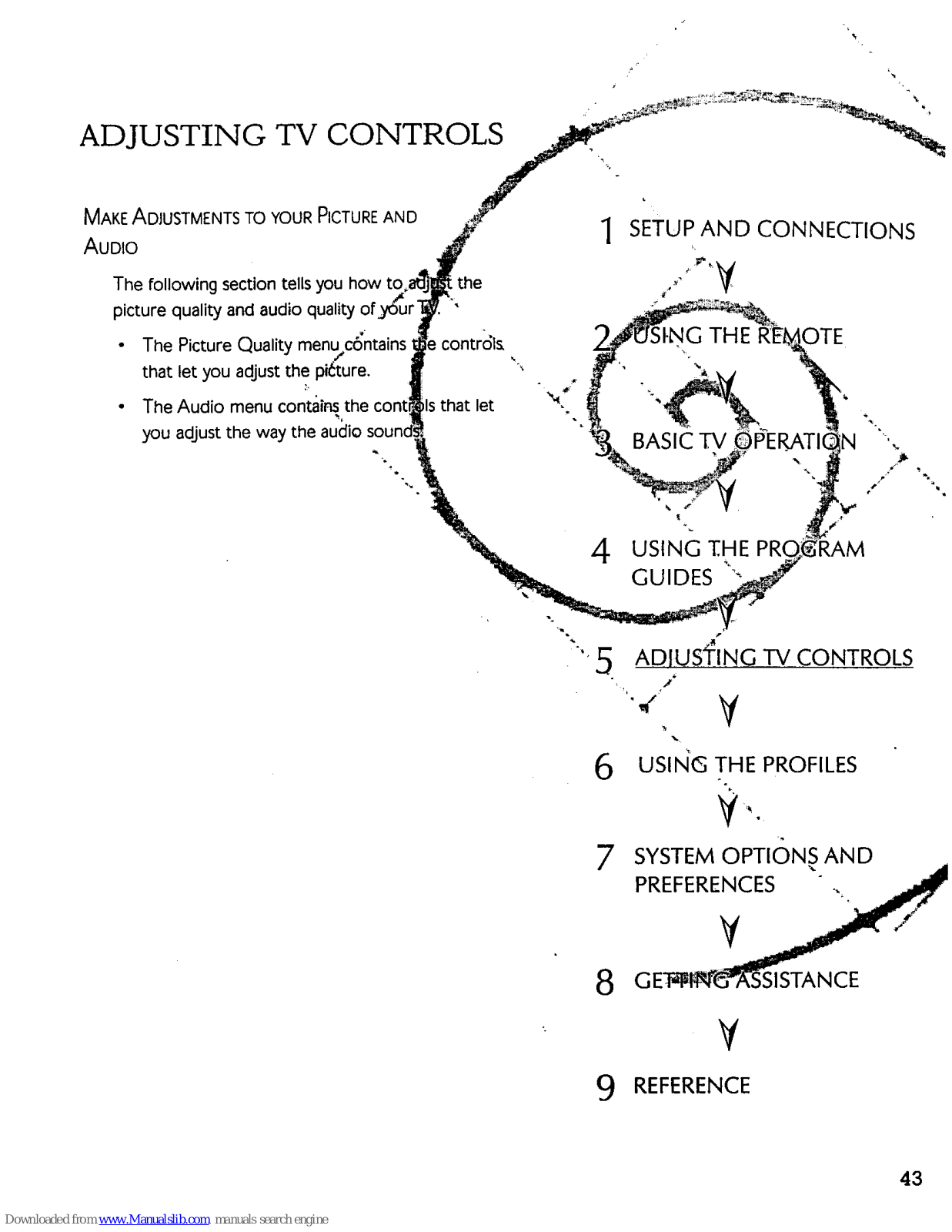

ADJUSTING TV CONTROLS ................................................ 43

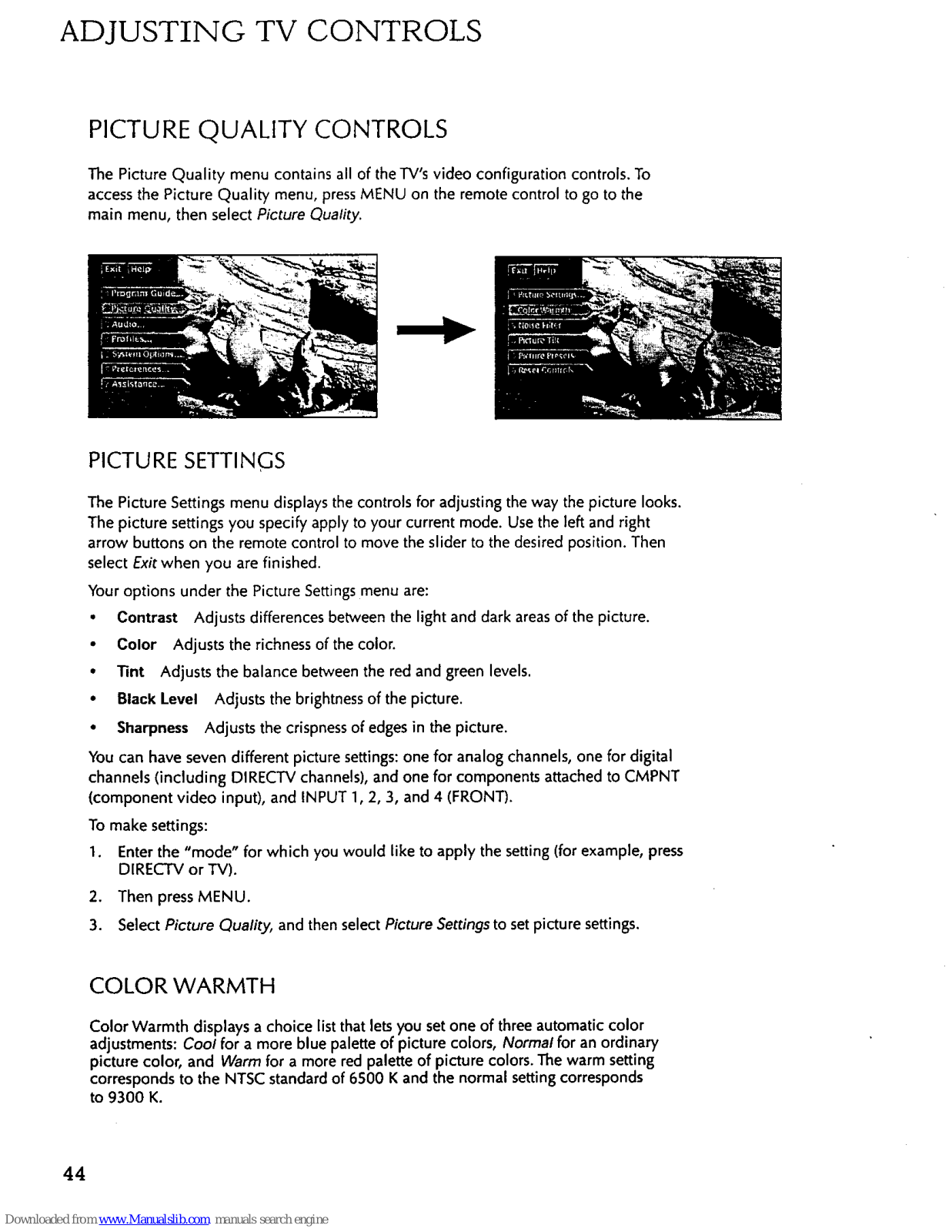

Picture Quality Controls ...................................................................... 44

Picture Settings ......................................................................................... 44

Color Warmth .......................................................................................... 44

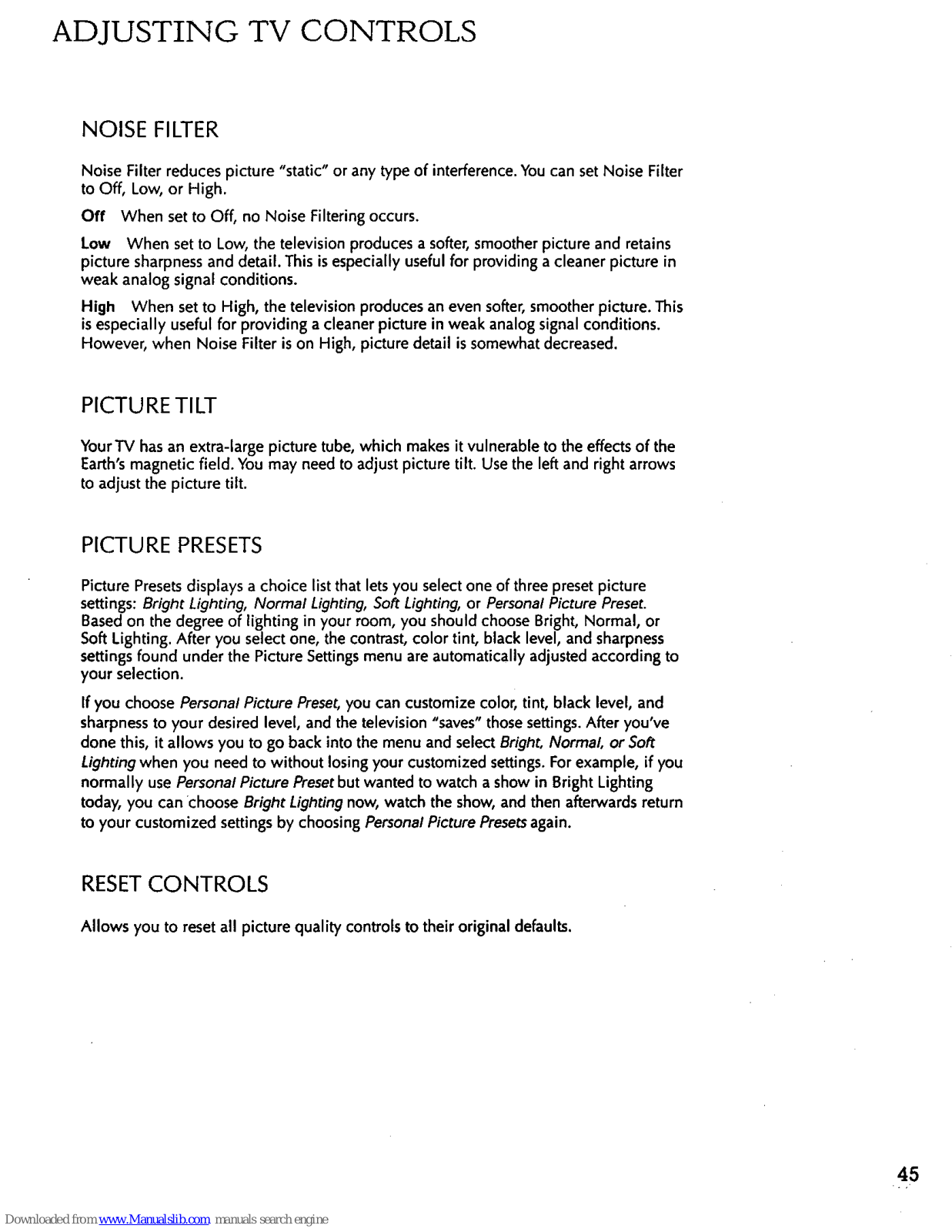

Noise Filter ............................................................................................... 45

Picture li It ................................................................................................ 45

Picture Presets .......................................................................................... 45

Reset Controls .......................................................................................... 45

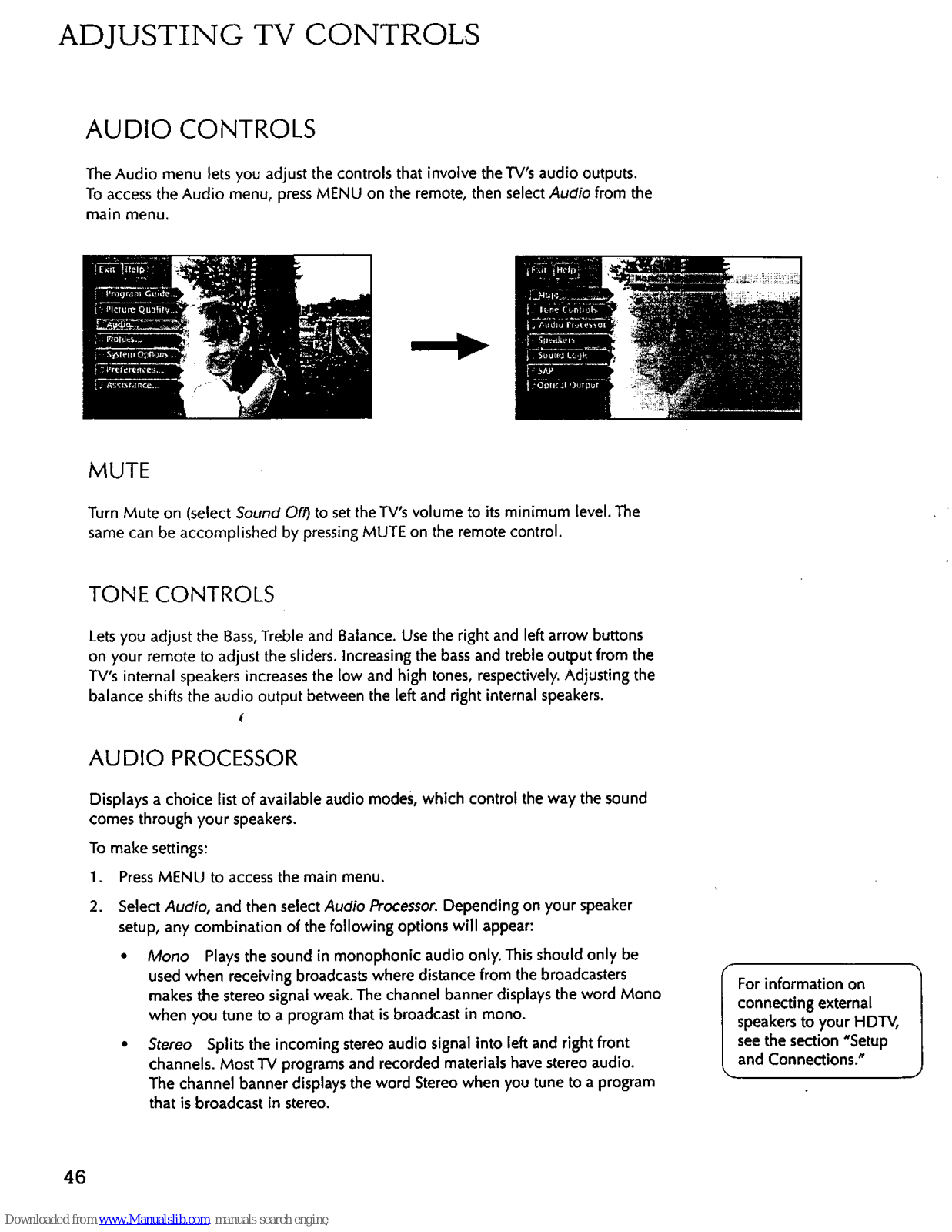

Audio Controls .................................................................................... 46

Mute ........................................................................................................ 46

Tone Controls ........................................................................................... 46

Audio Processor .................................................................................... 46

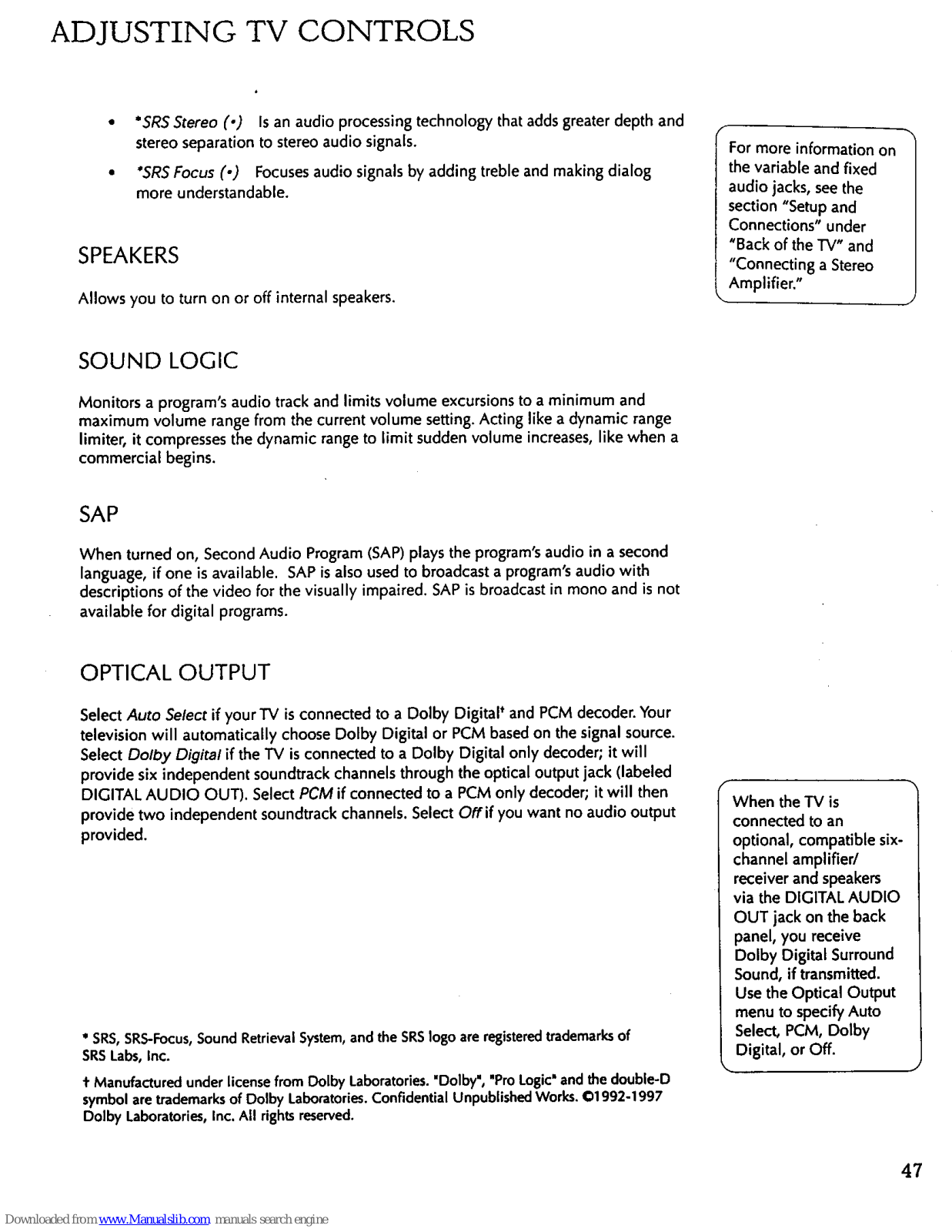

Speakers ............................................................................................... 47

Sound Logic .......................................................................................... 47

SAP .......................................................................................................... 47

Optical Output ..................................................................................... 47

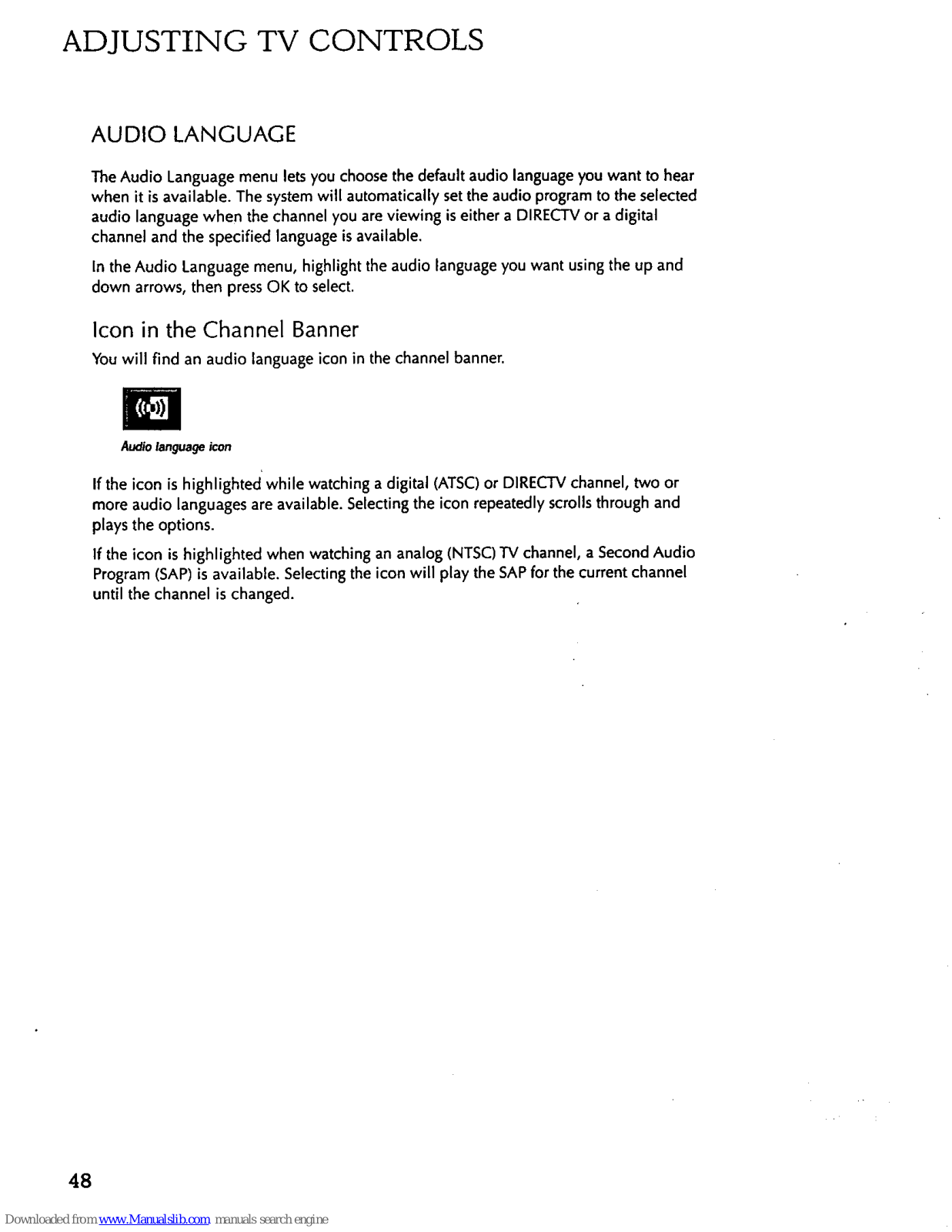

Audio Language ....................................................................................... 48

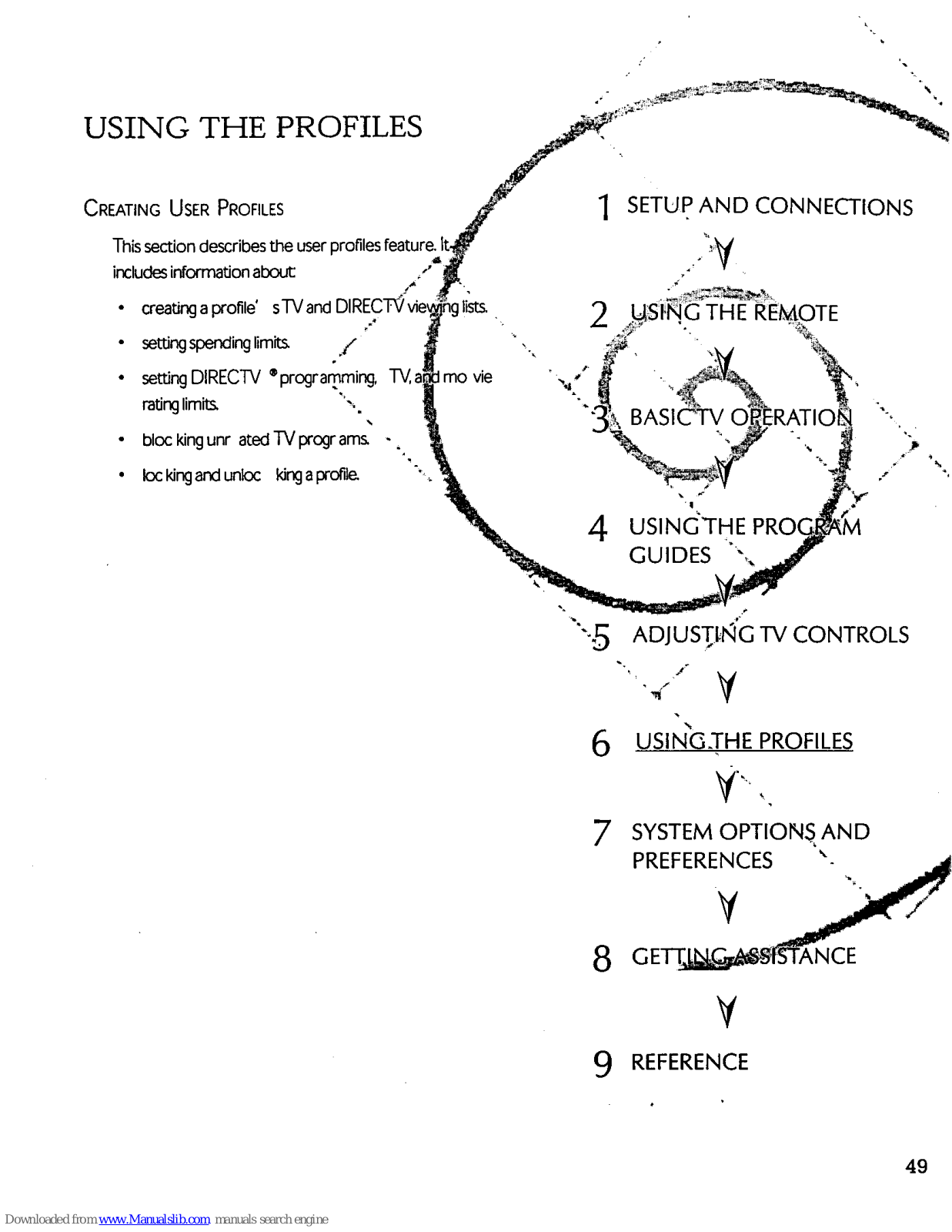

USING THE PROFILES ............................................................ 49

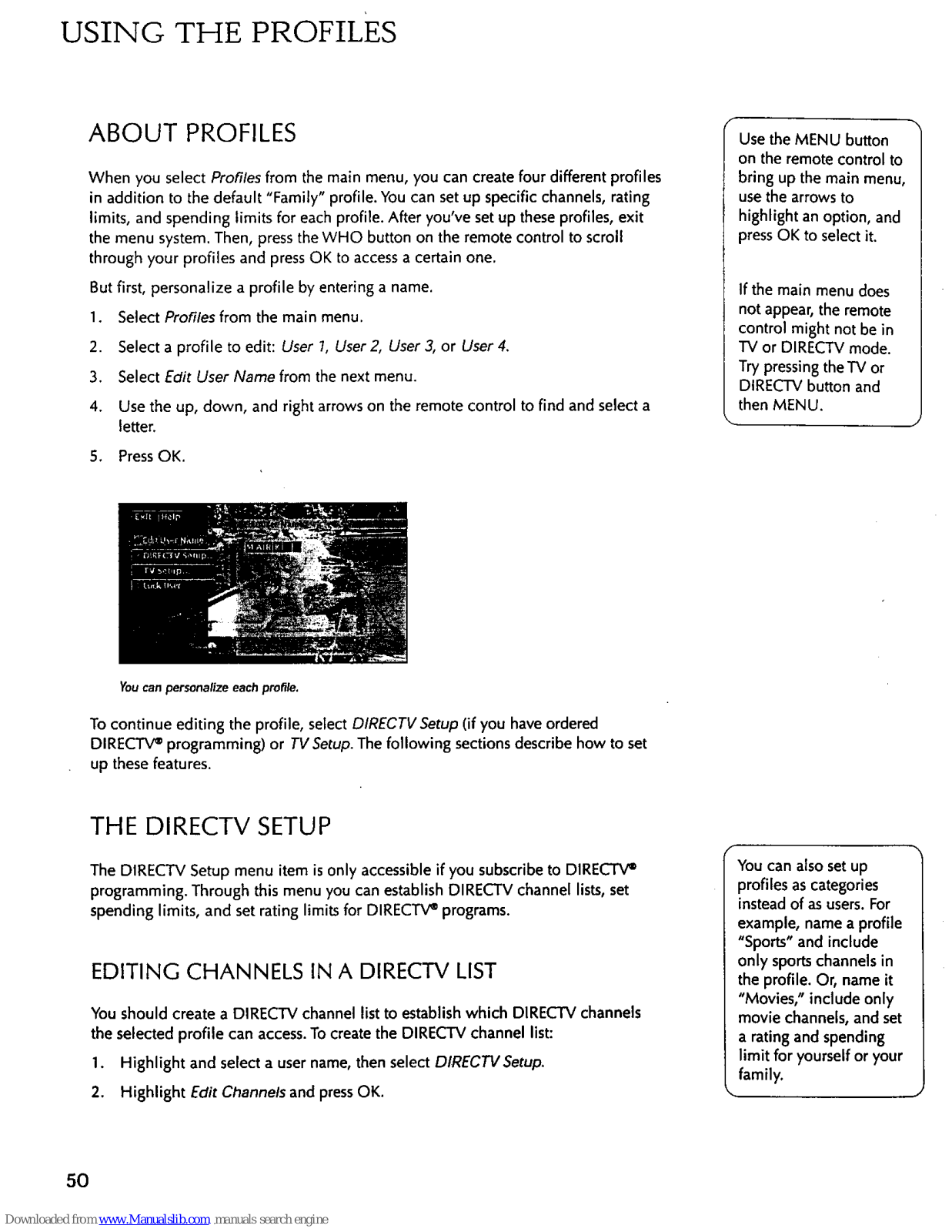

About Profiles ...................................................................................... 50

The DIRECTV Setup ............................................................................. 50

Editing Channels in a DIRECTV List .......................................................... S0

Selecting or Deleting All DIRECTV Channels ............................................ 51

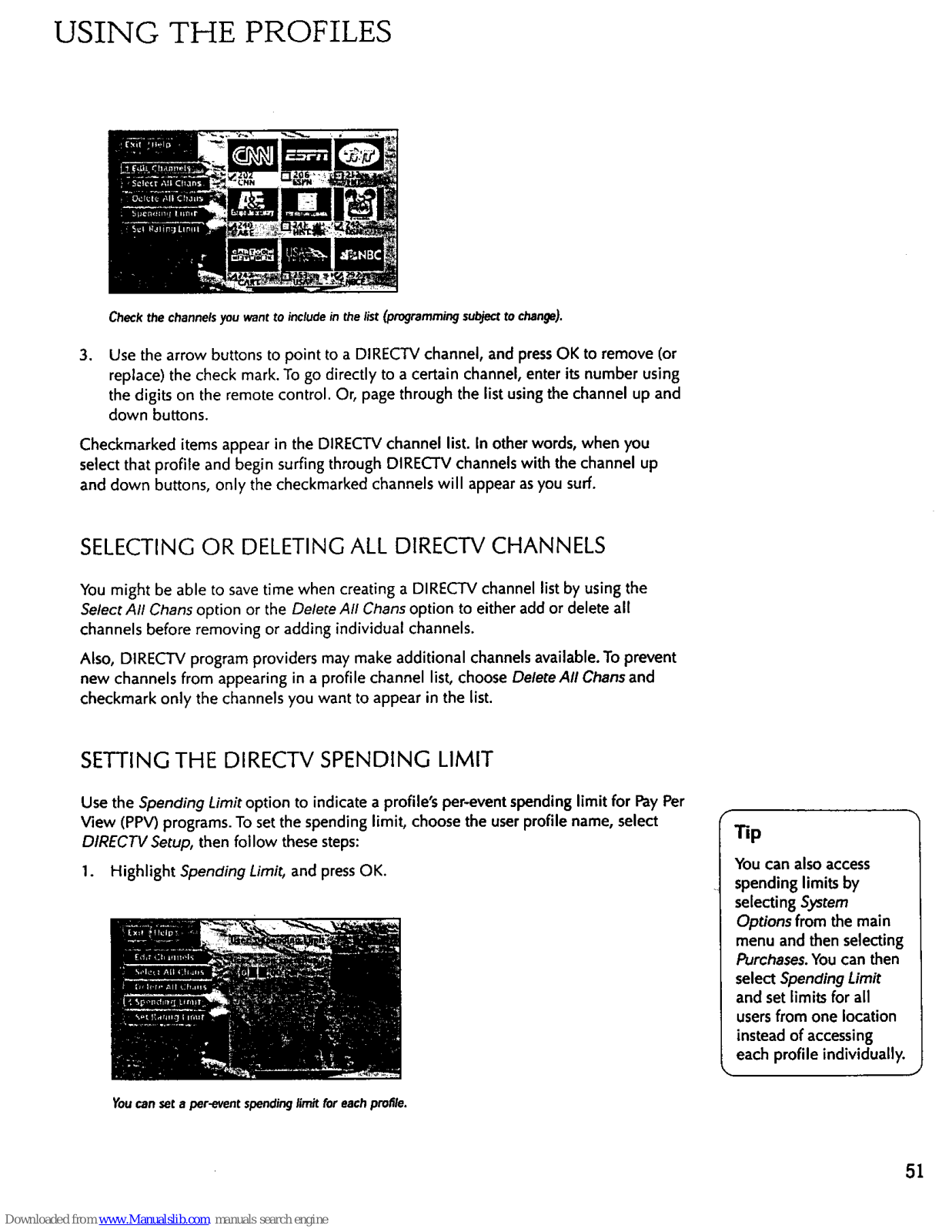

Setting the DIRECTV Spending Limit ........................................................ 51

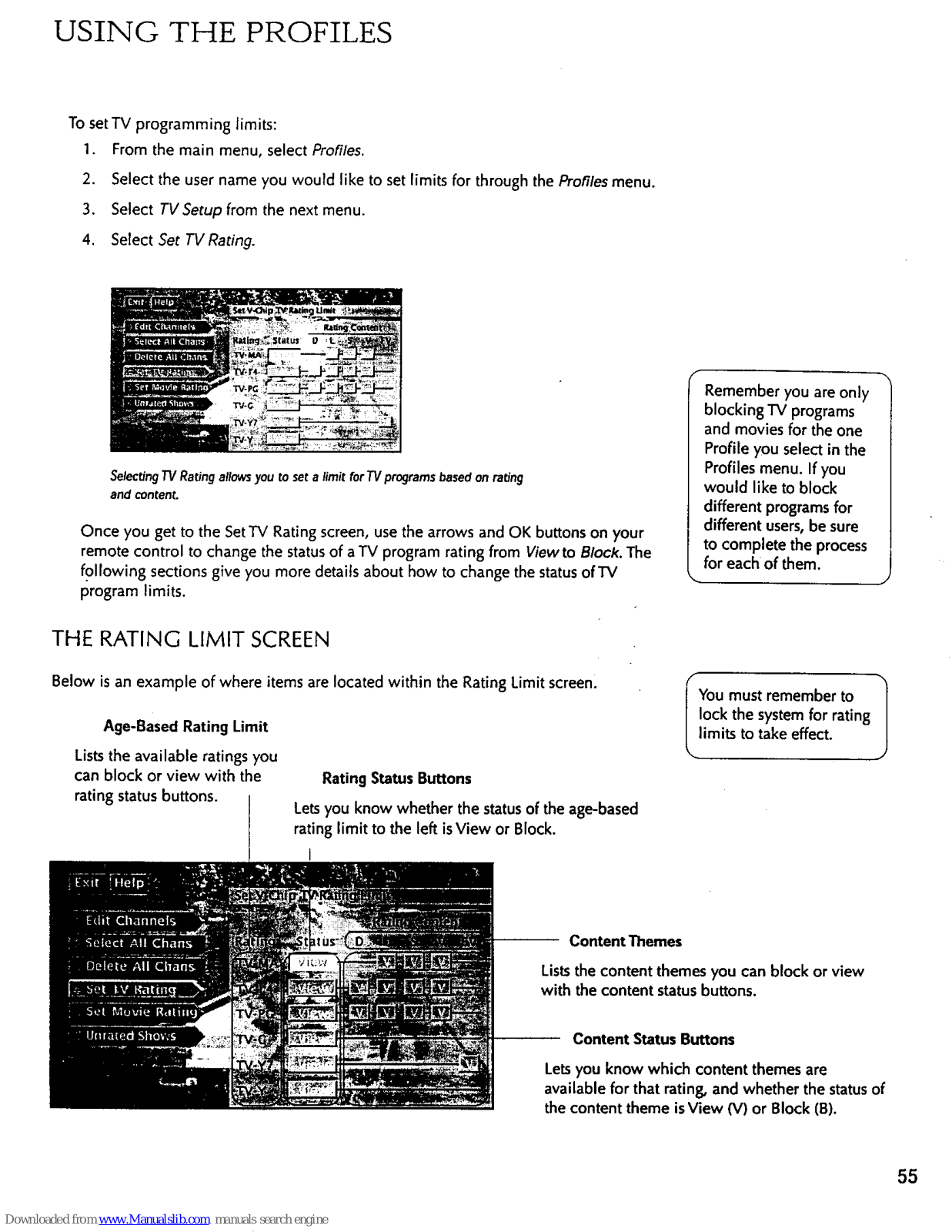

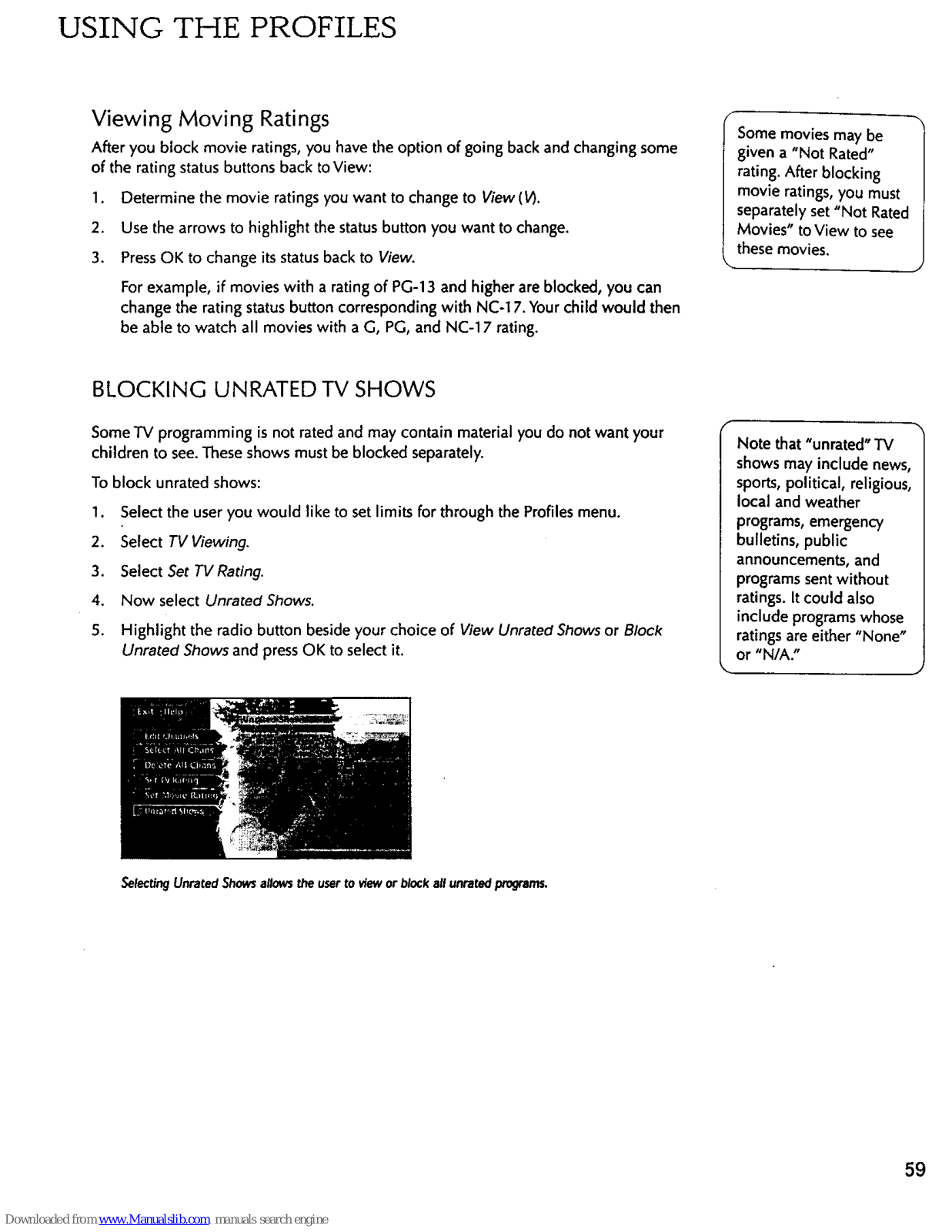

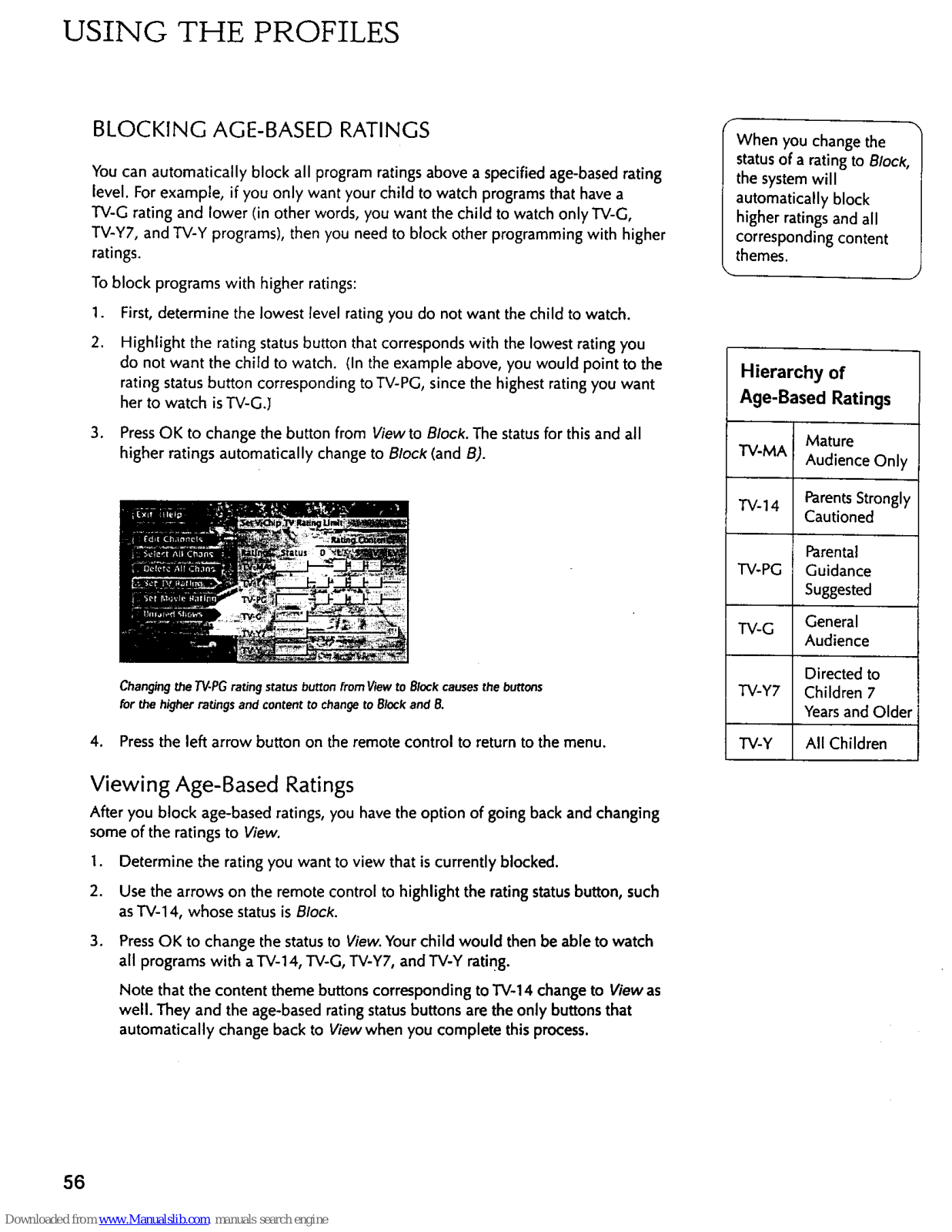

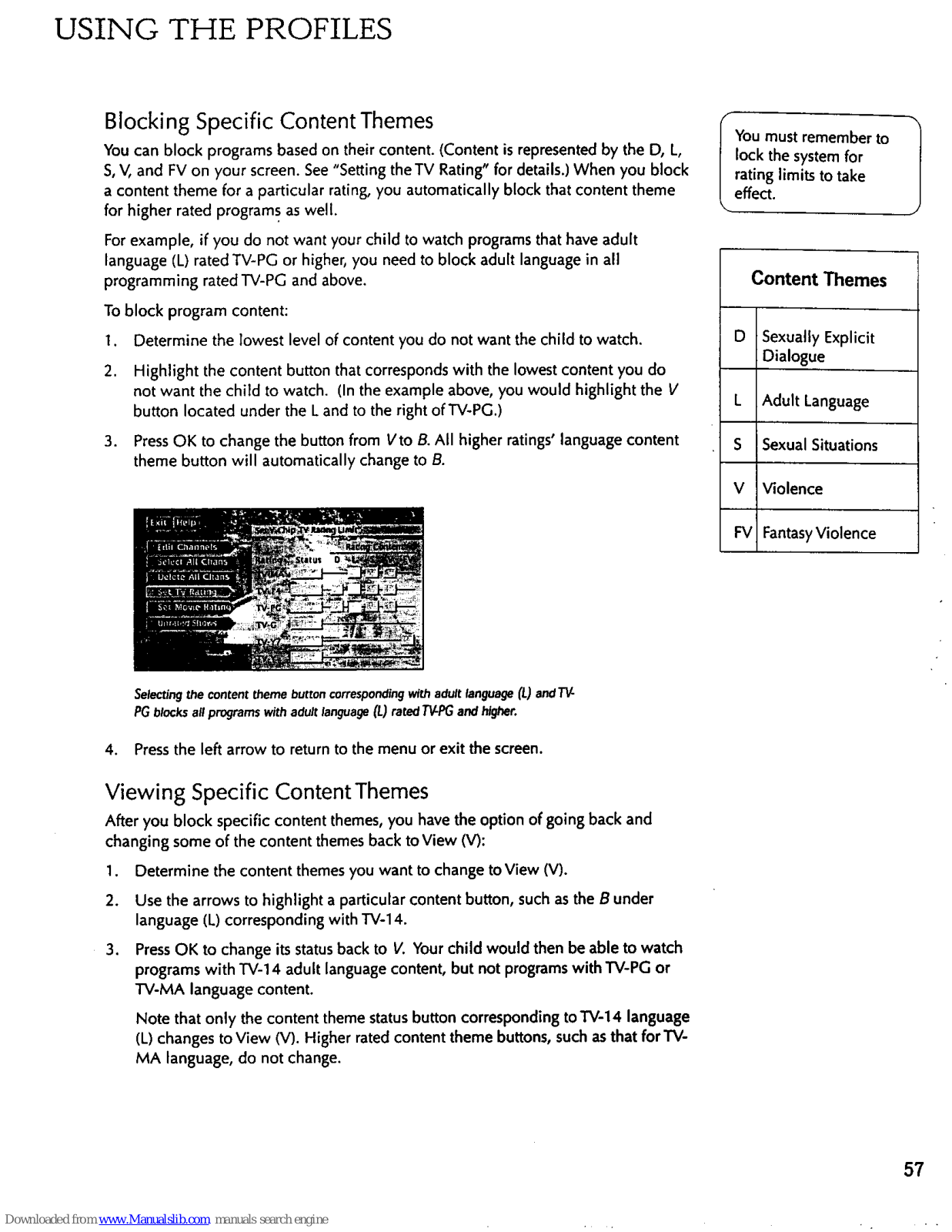

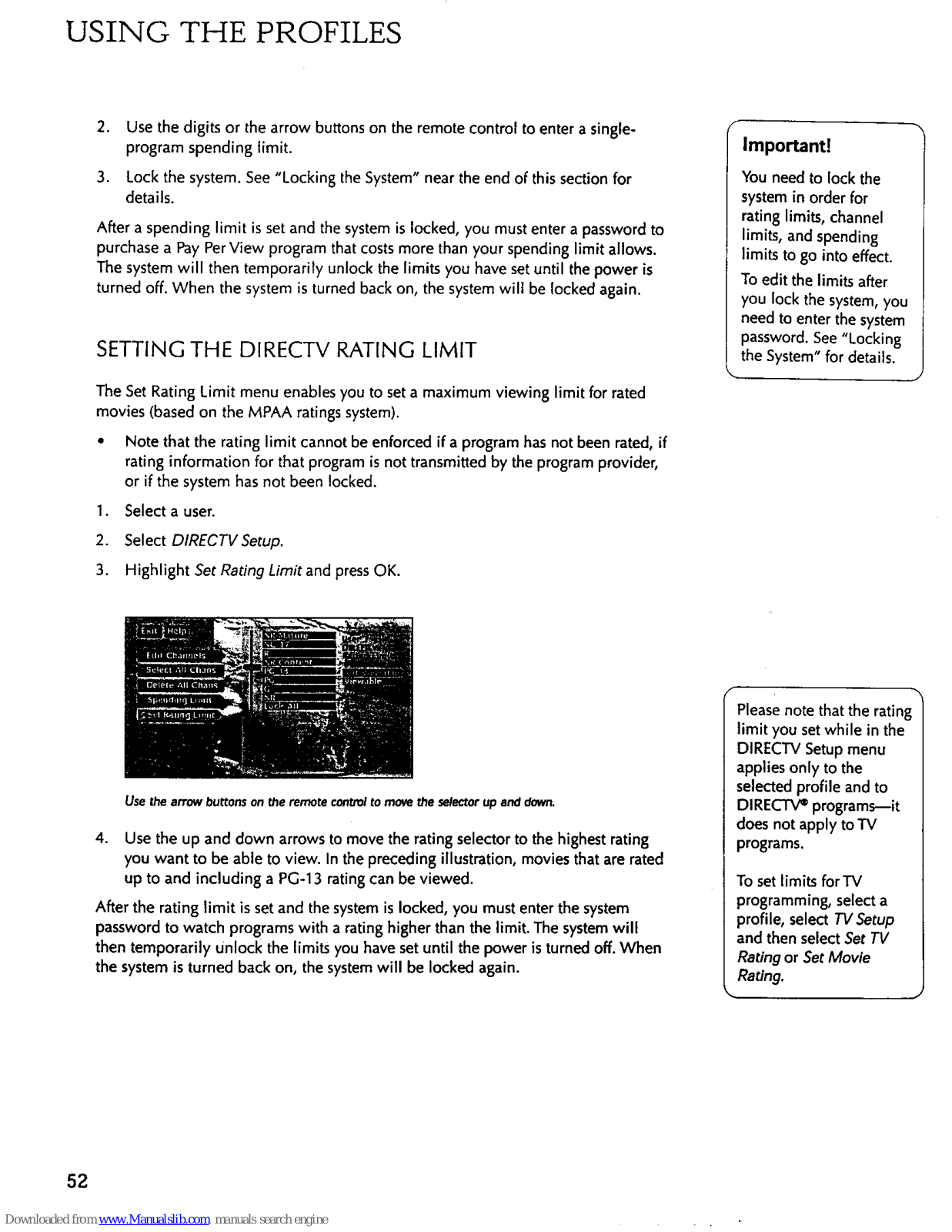

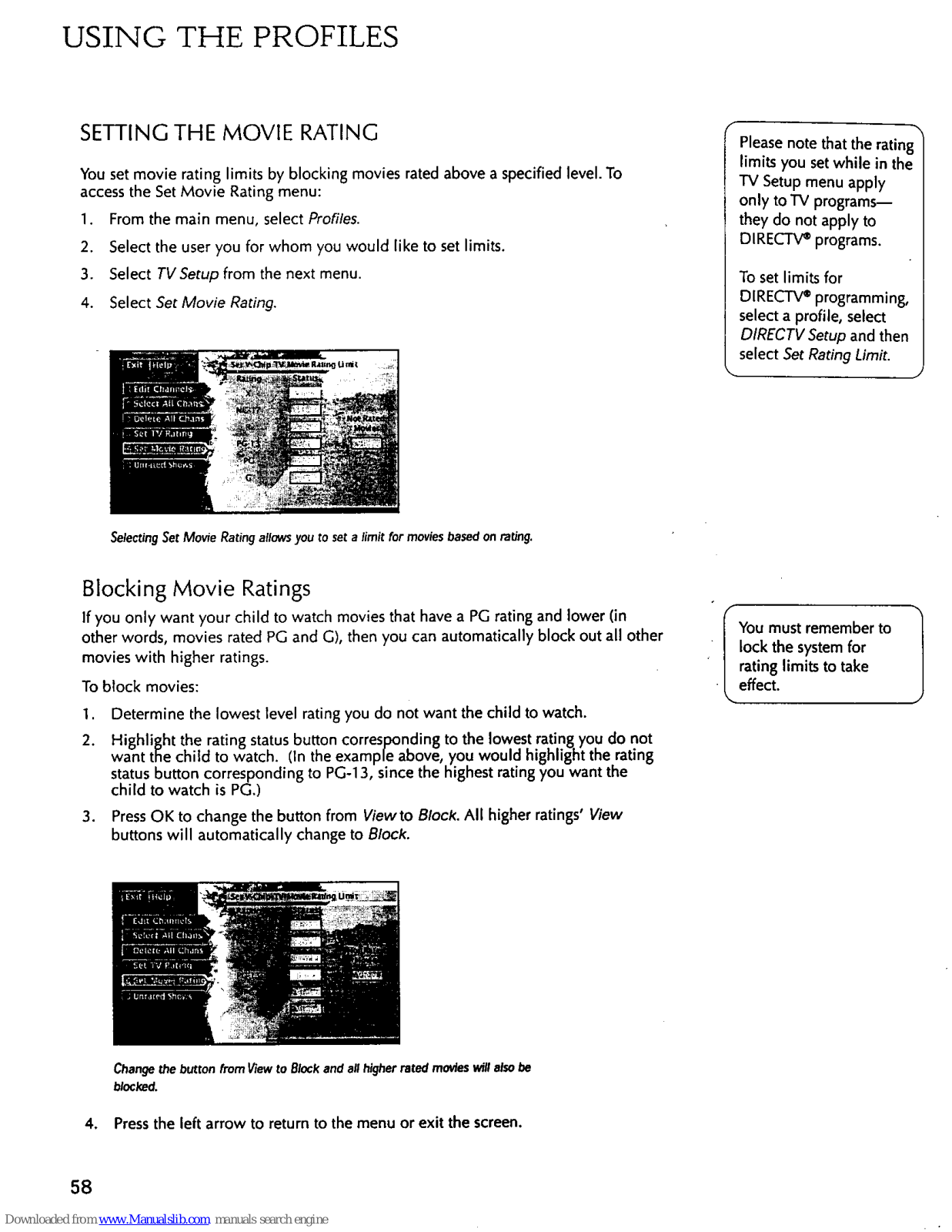

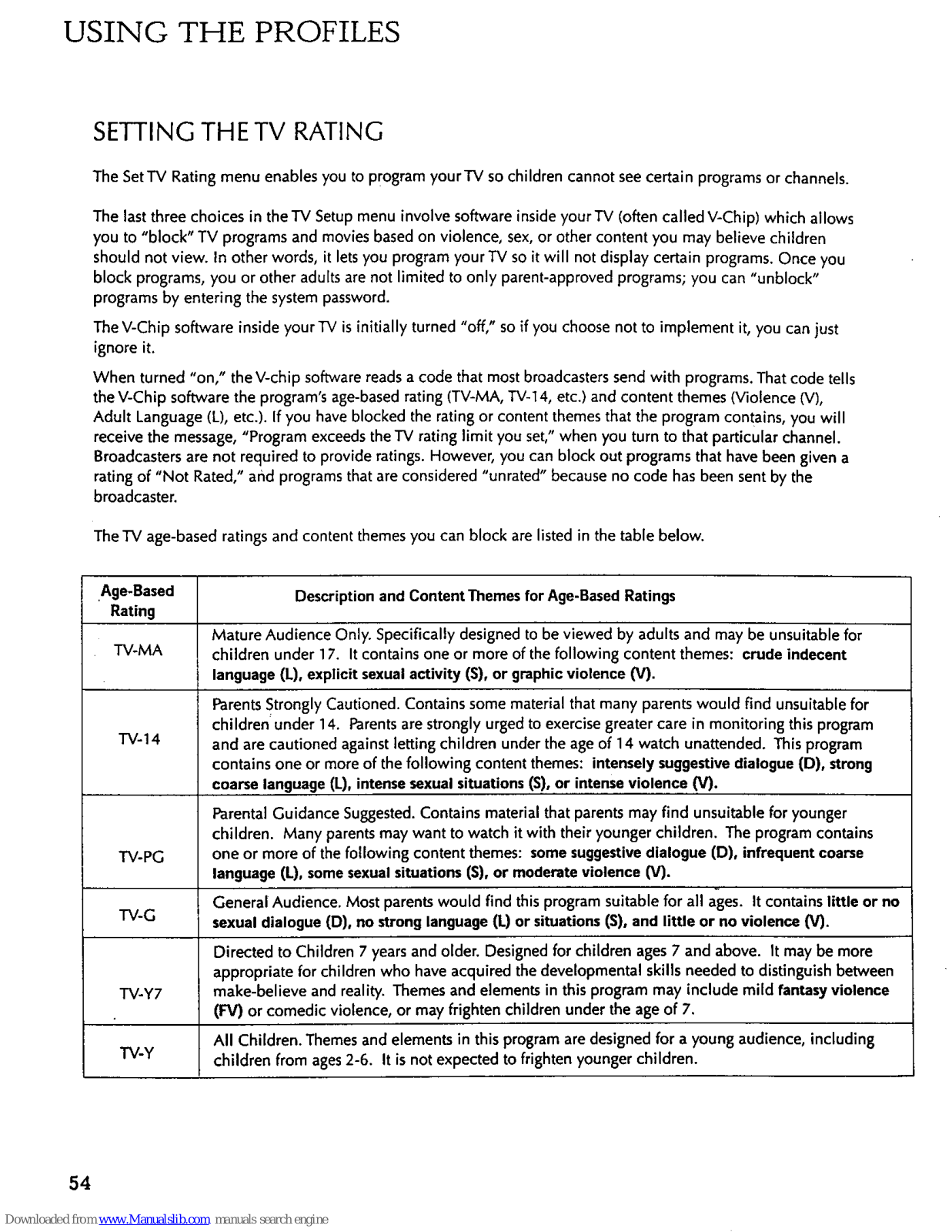

Setting theTV Rating ............................................................................ 54

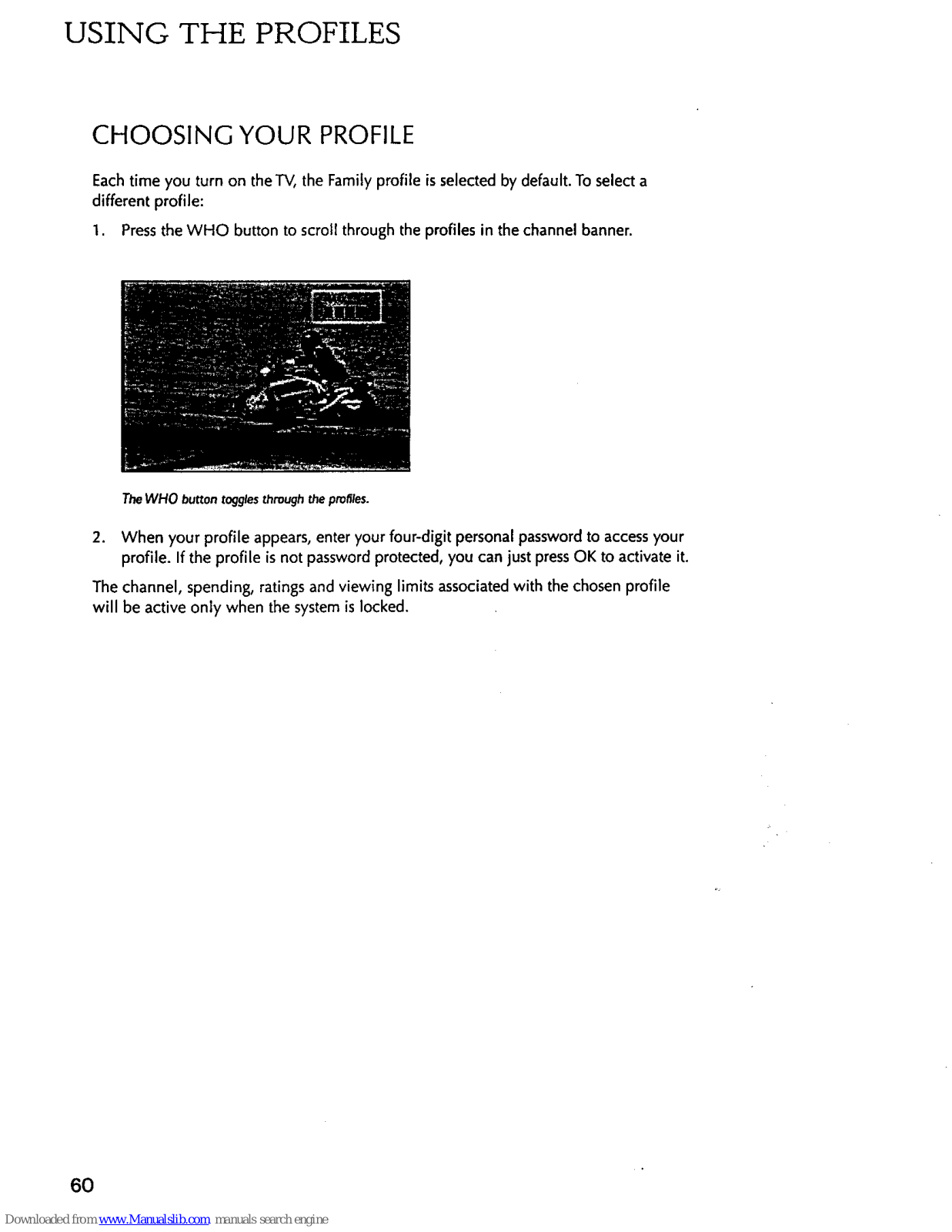

Choosing Your Profile ........................................................................... 60

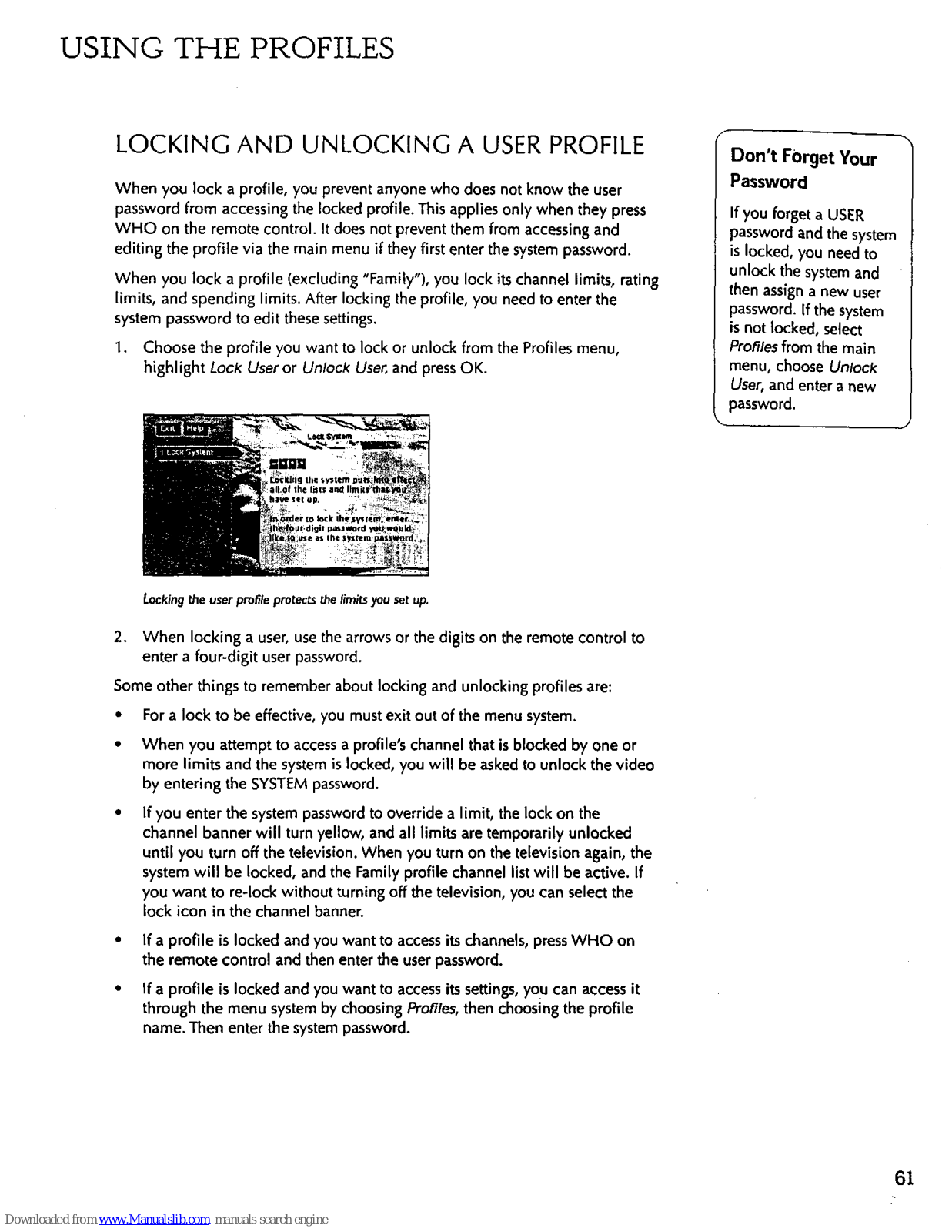

Locking and Unlocking a User Profile .................................................. 61

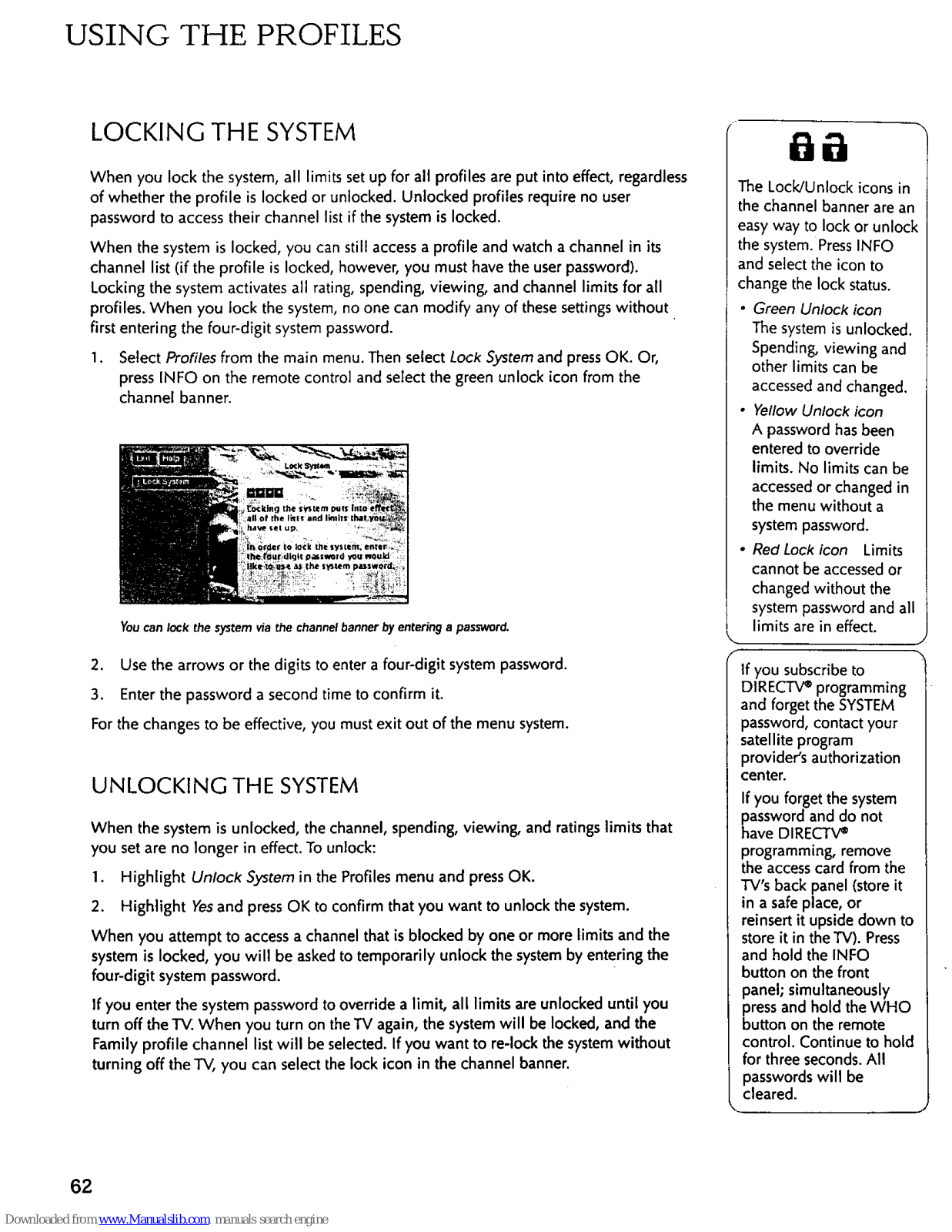

Locking the System .............................................................................. 62

Unlocking the System ............................................................................... 62

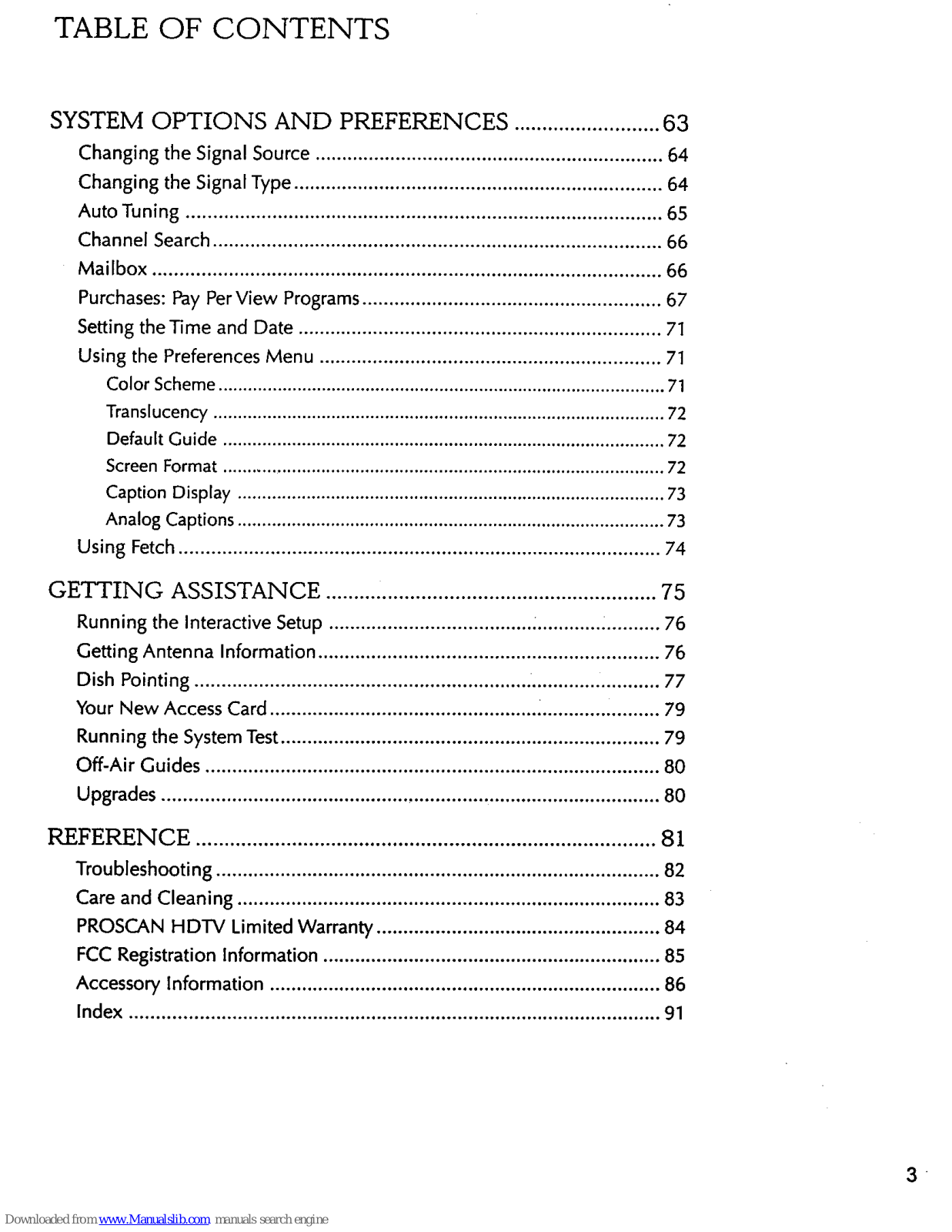

TABLE OF CONTENTS

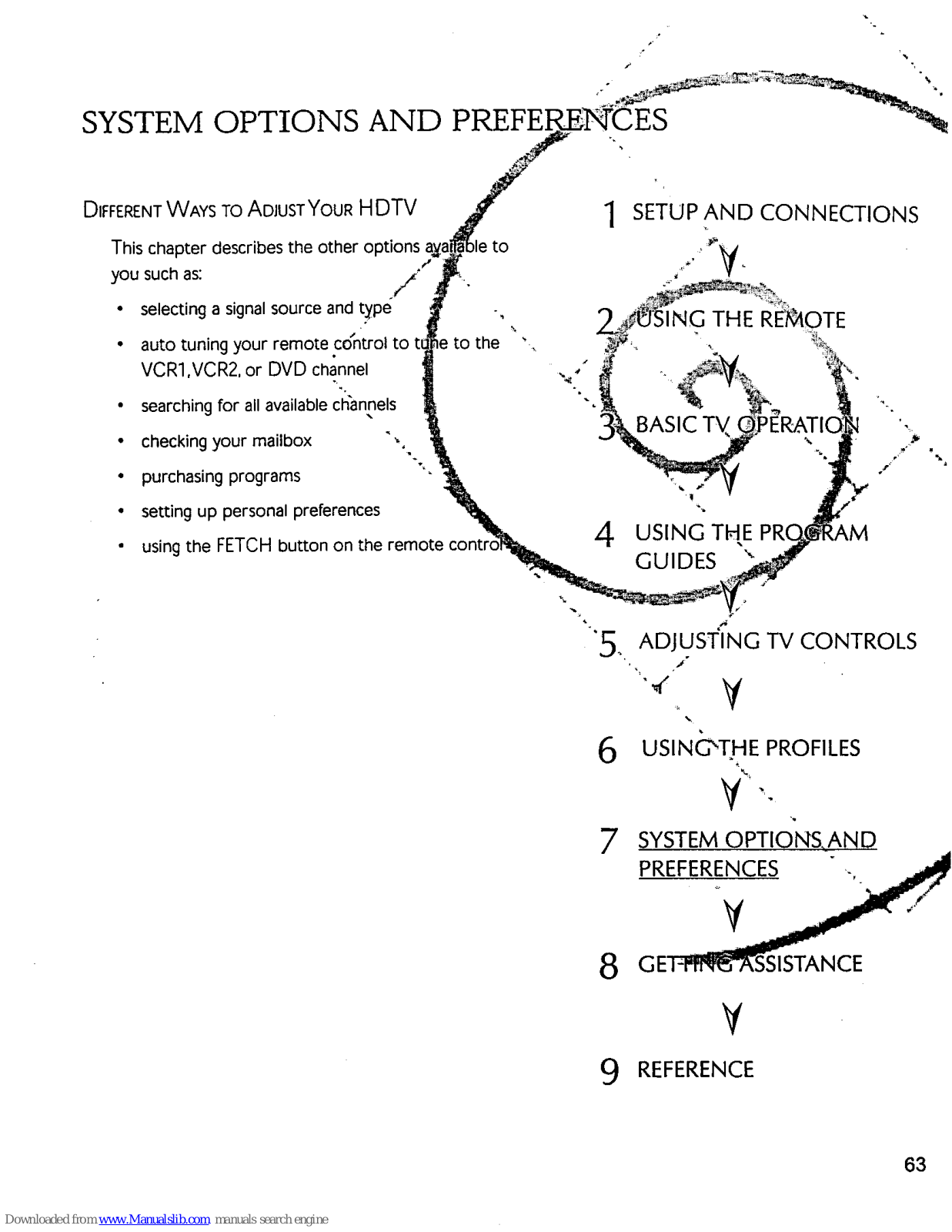

SYSTEM OPTIONS AND PREFERENCES .......................... 63

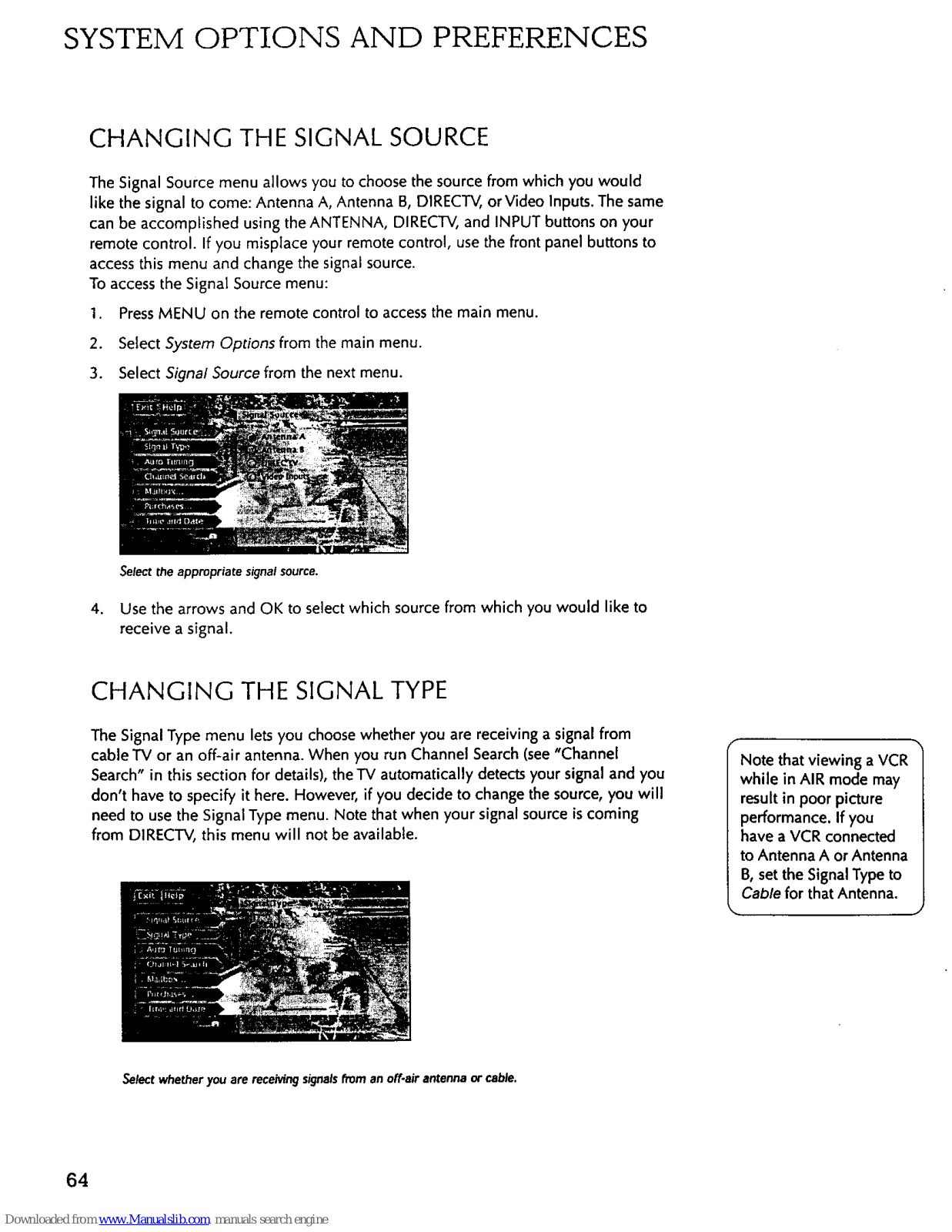

Changing the Signal Source ................................................................. 64

Changing the Signal Type ..................................................................... 64

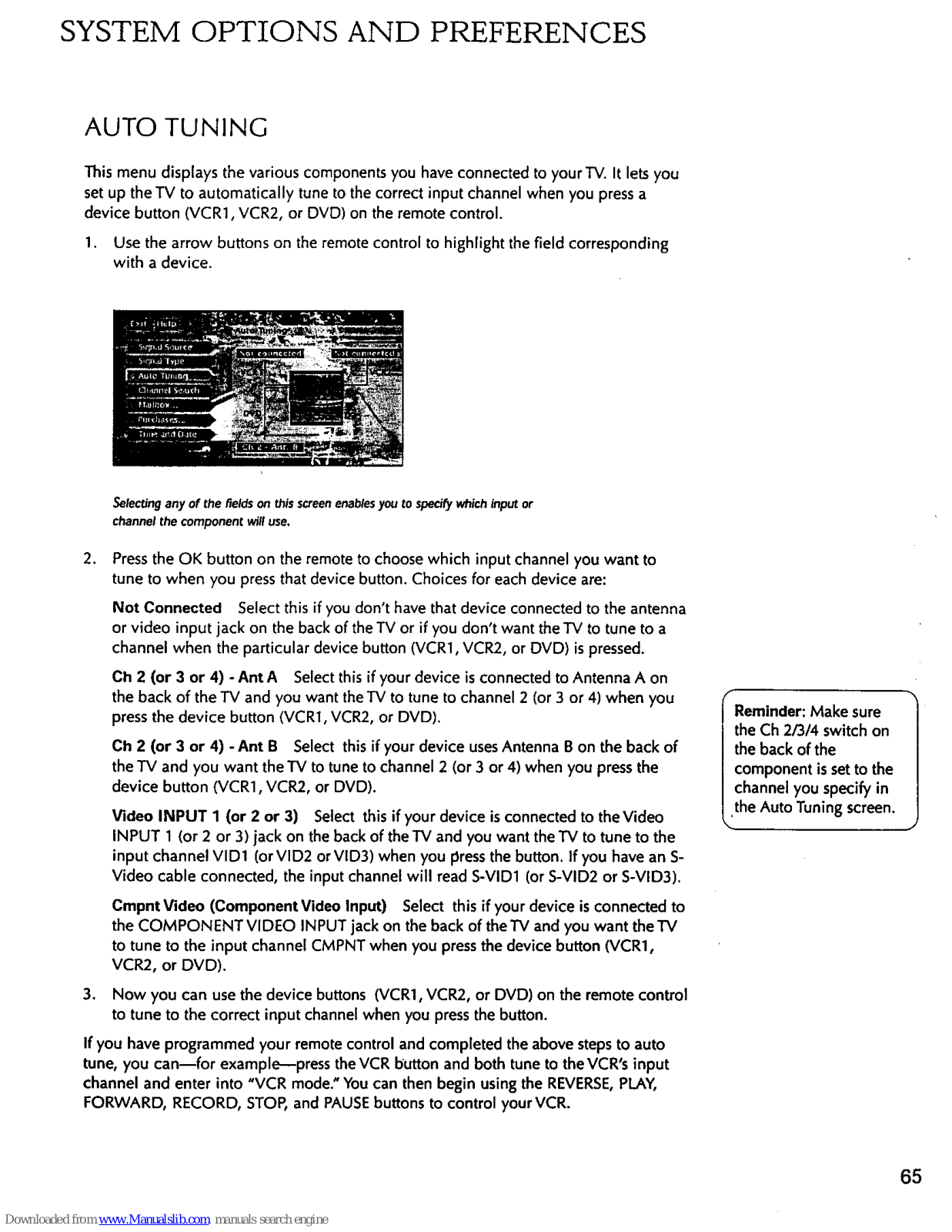

Auto Tuning ......................................................................................... 65

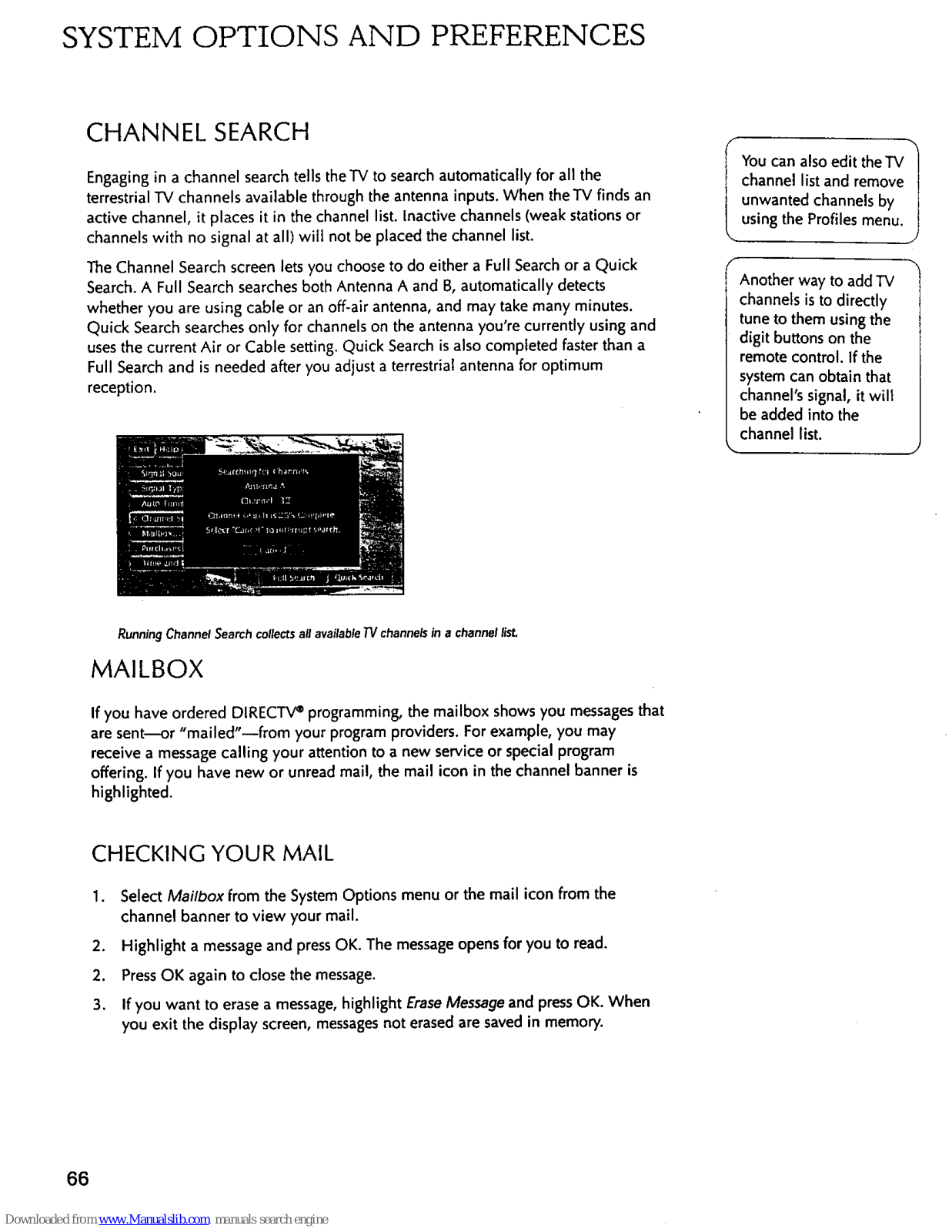

Channel Search .................................................................................... 66

Mailbox ............................................................................................... 66

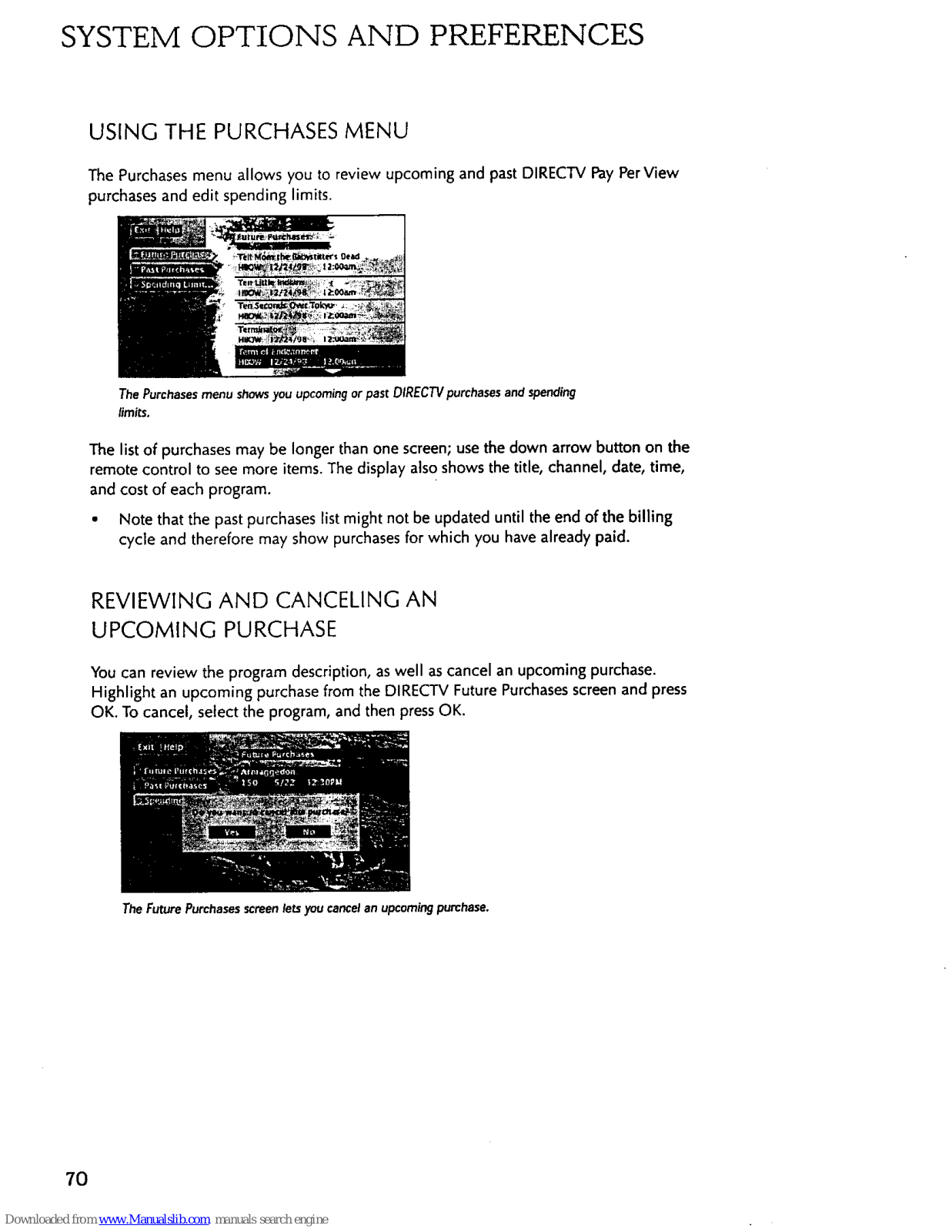

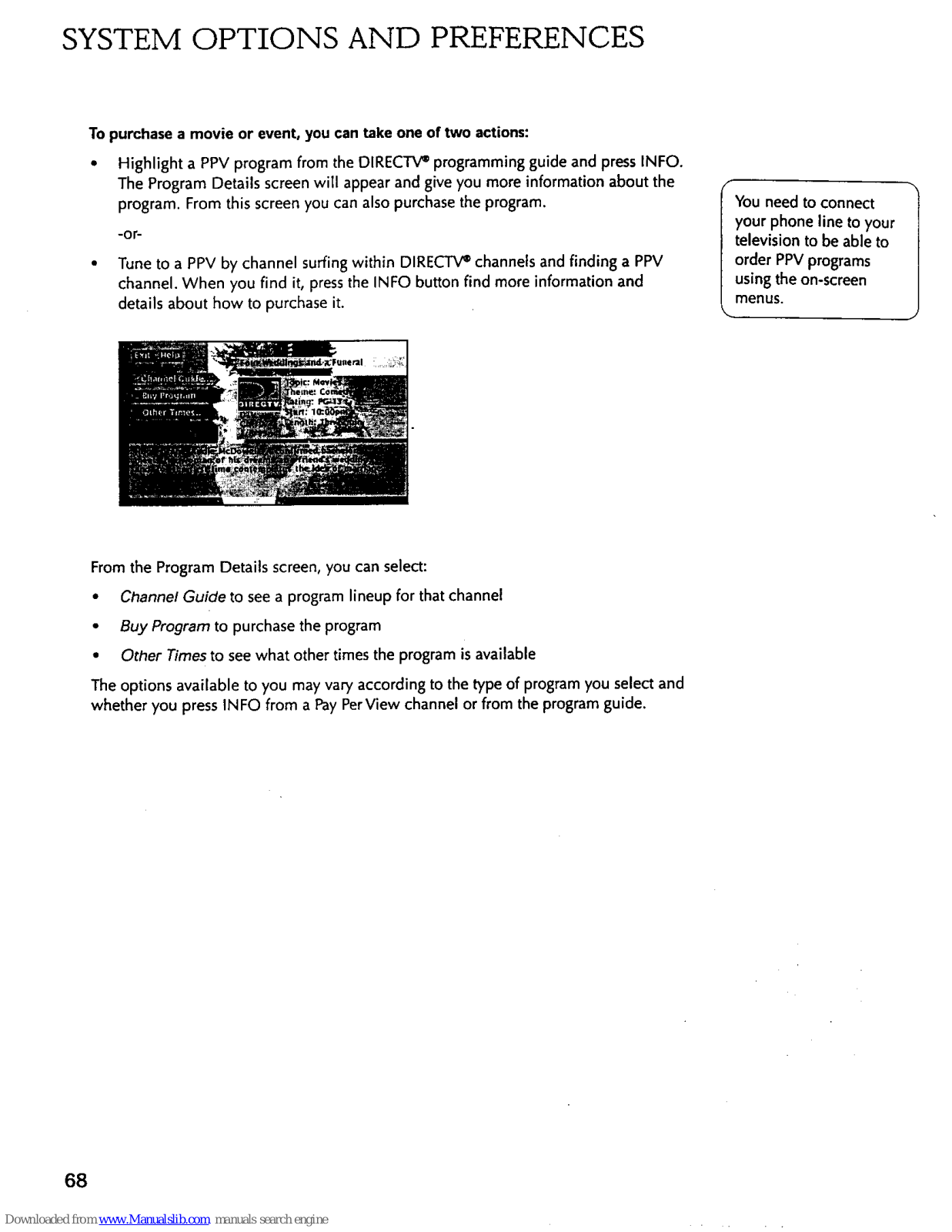

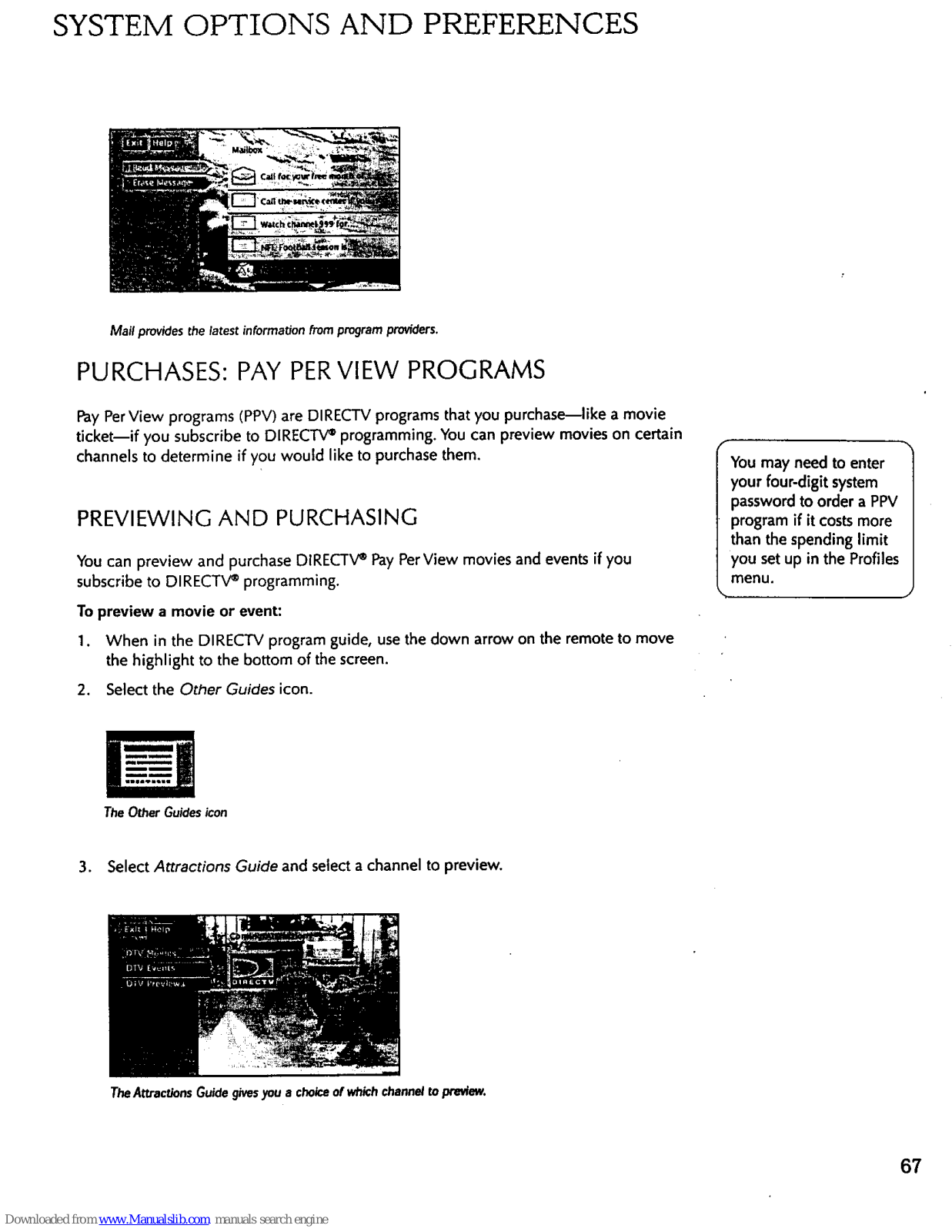

Purchases: Pay Per View Programs ........................................................ 67

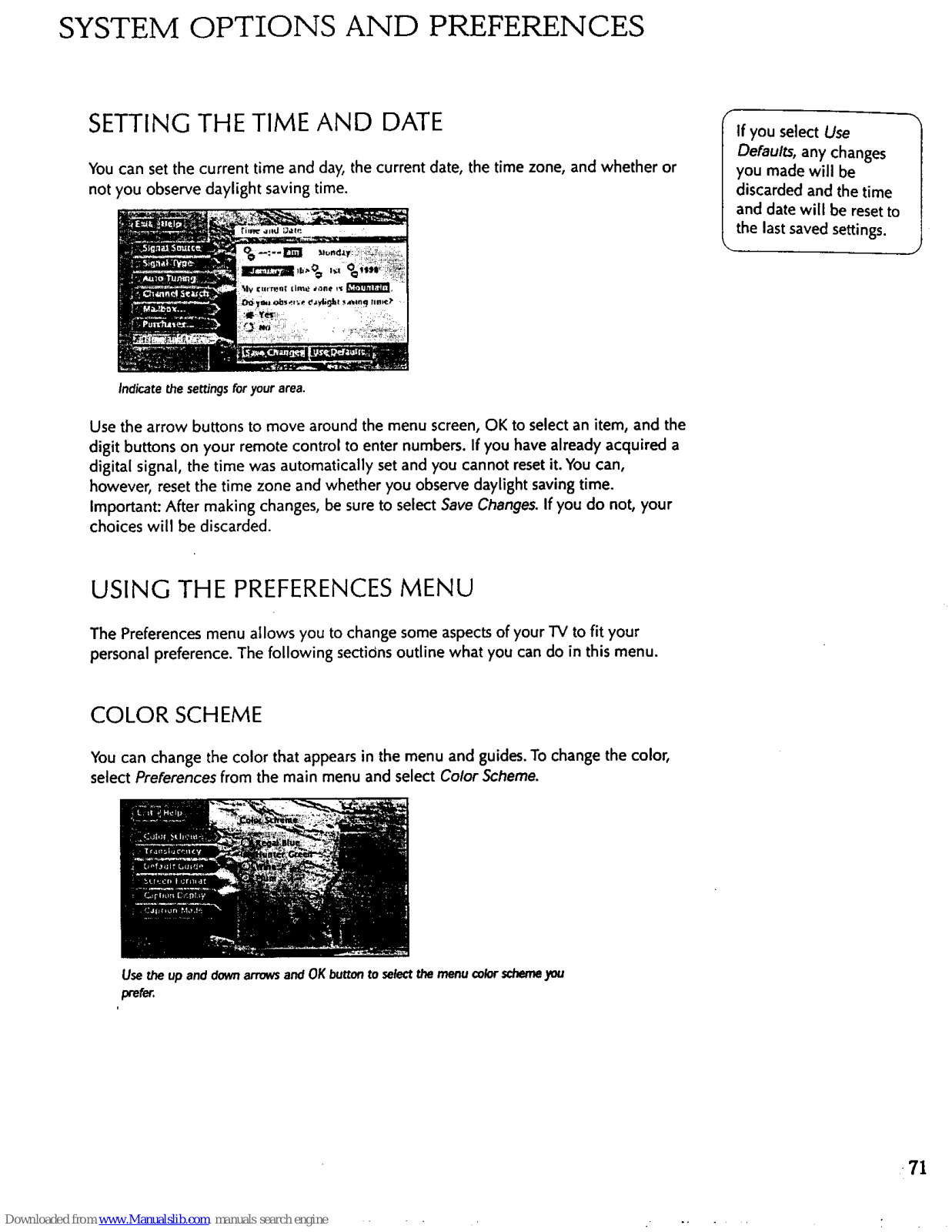

Setting therime and Date .................................................................... 71

Using the Preferences Menu ................................................................ 71

Color Scheme ........................................................................................... 71

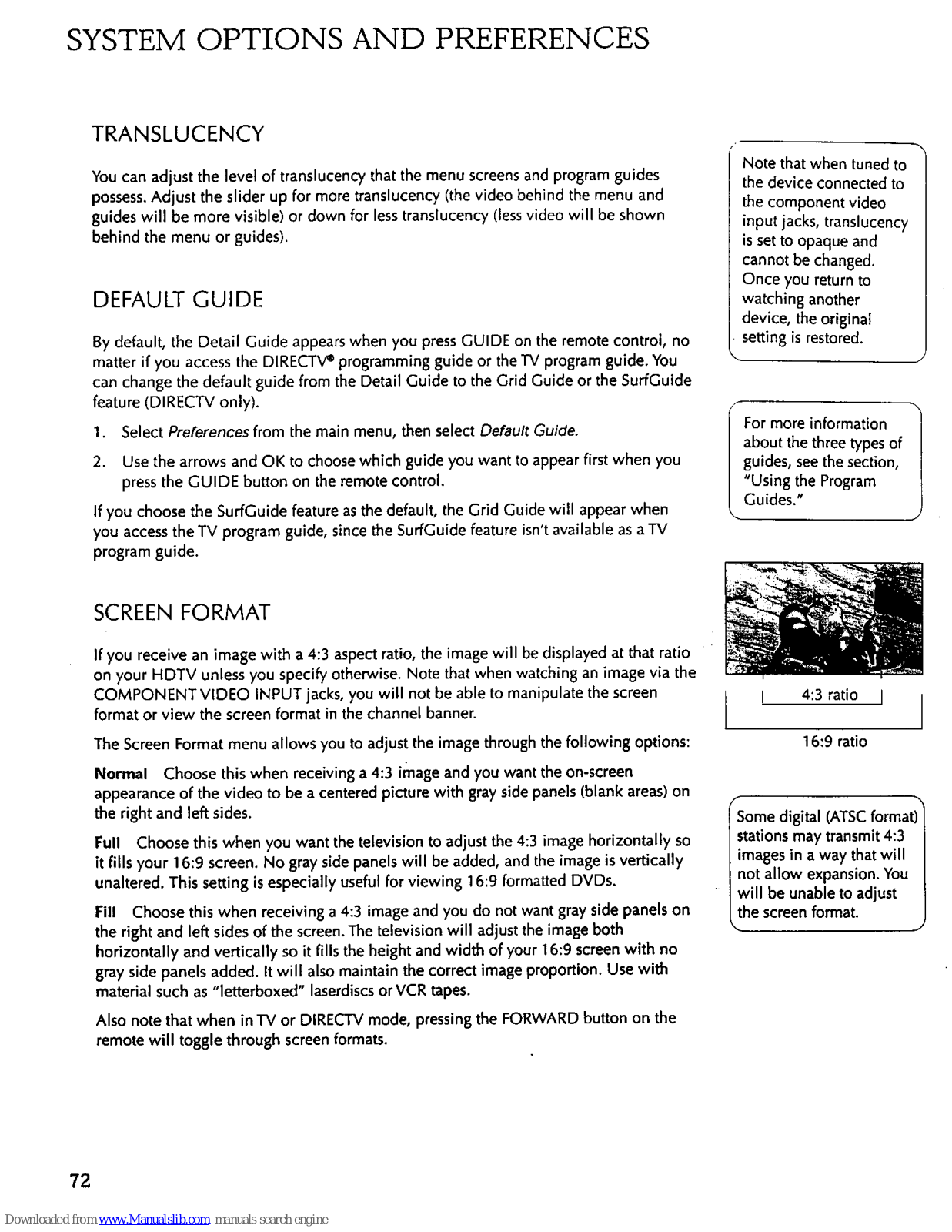

Translucency ............................................................................................ 72

Default Guide .......................................................................................... 72

Screen Format .......................................................................................... 72

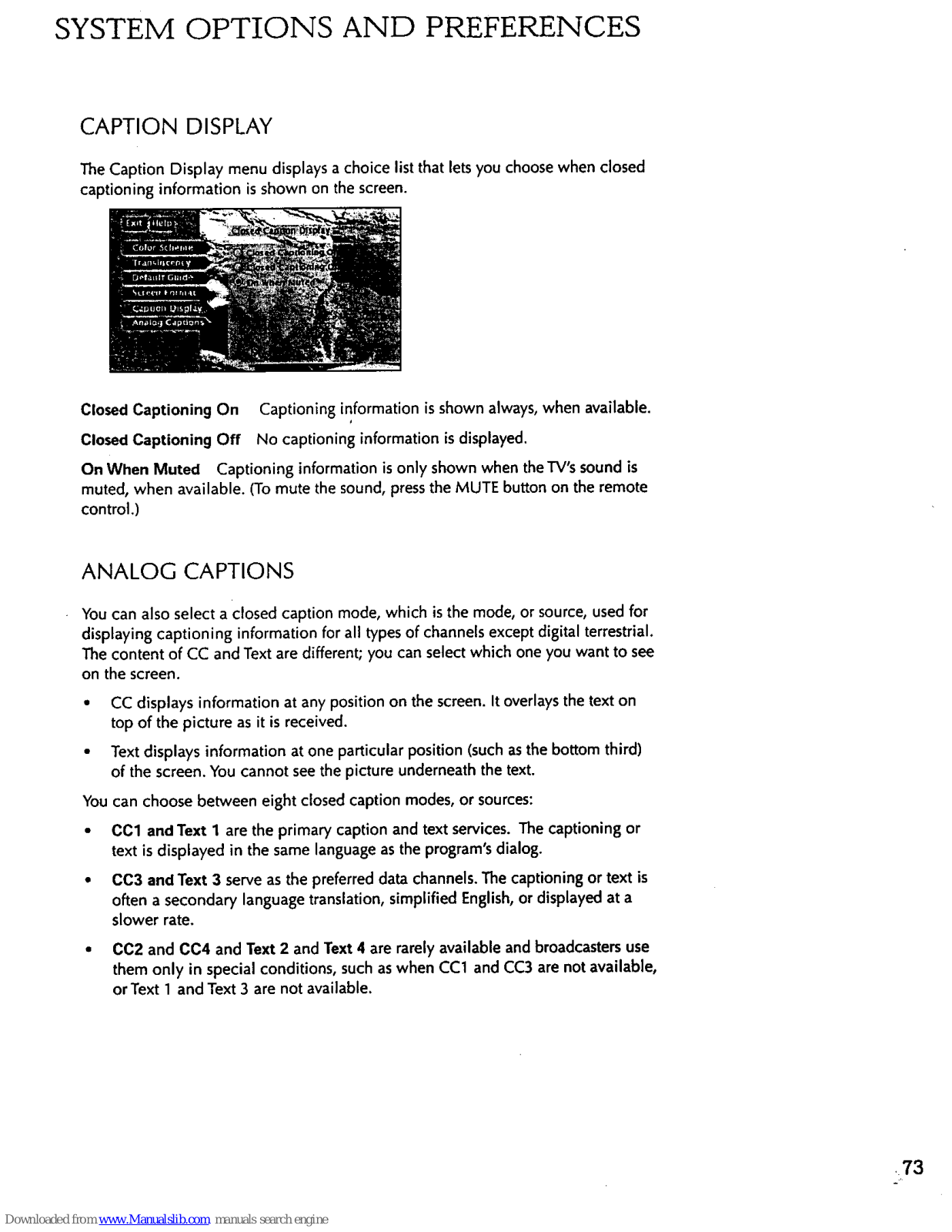

Caption Display ....................................................................................... 73

Analog Captions ....................................................................................... 73

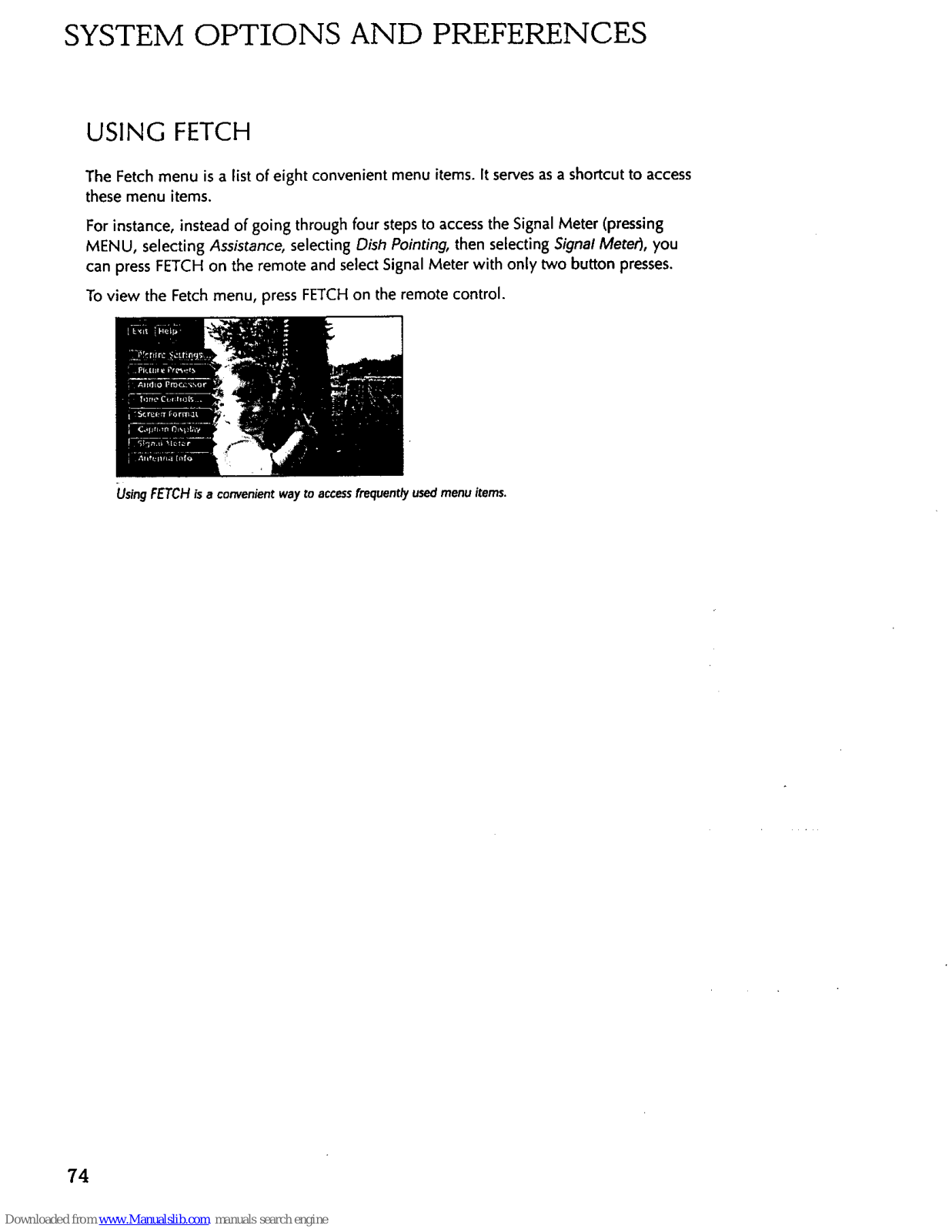

Using Fetch .......................................................................................... 74

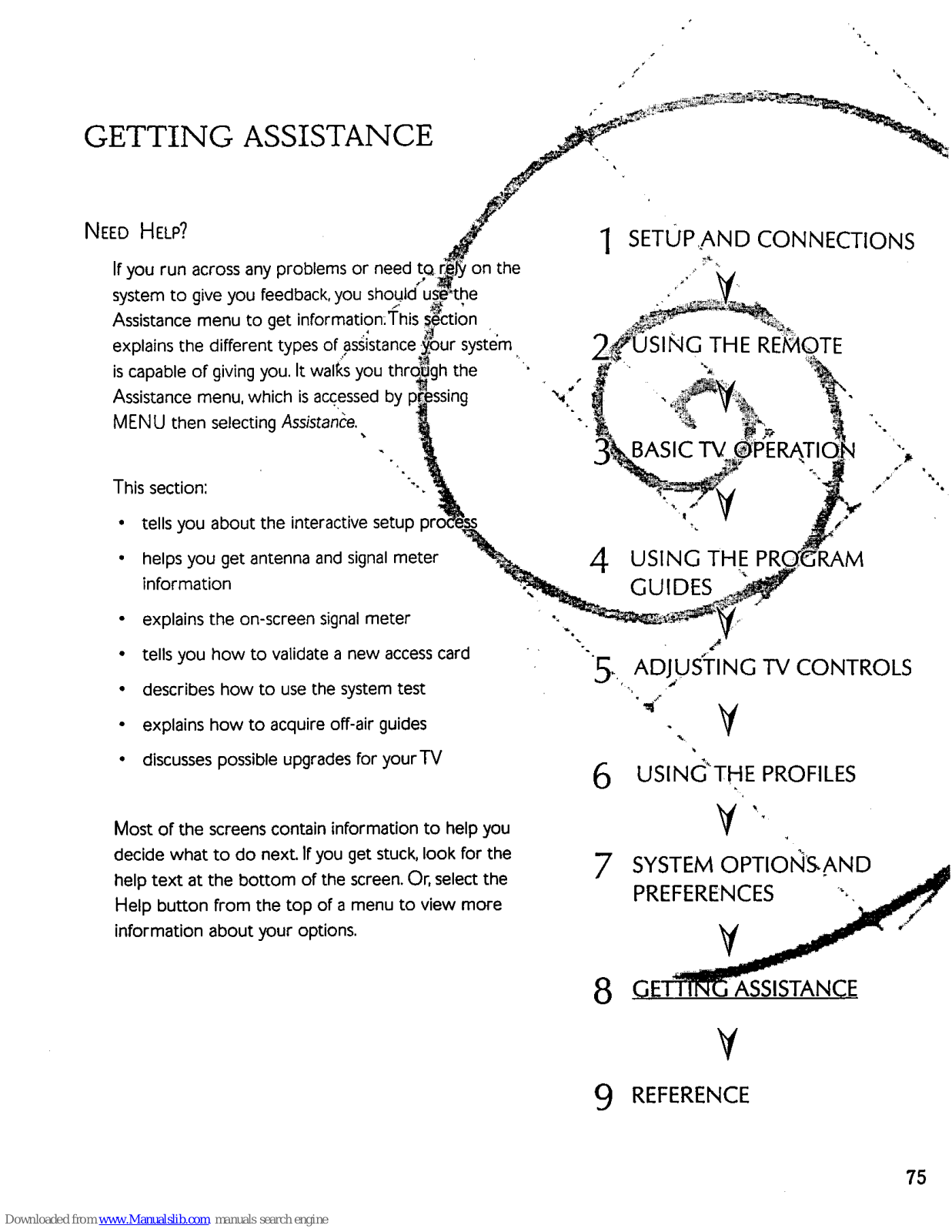

GETTING ASSISTANCE ........................................................... 75

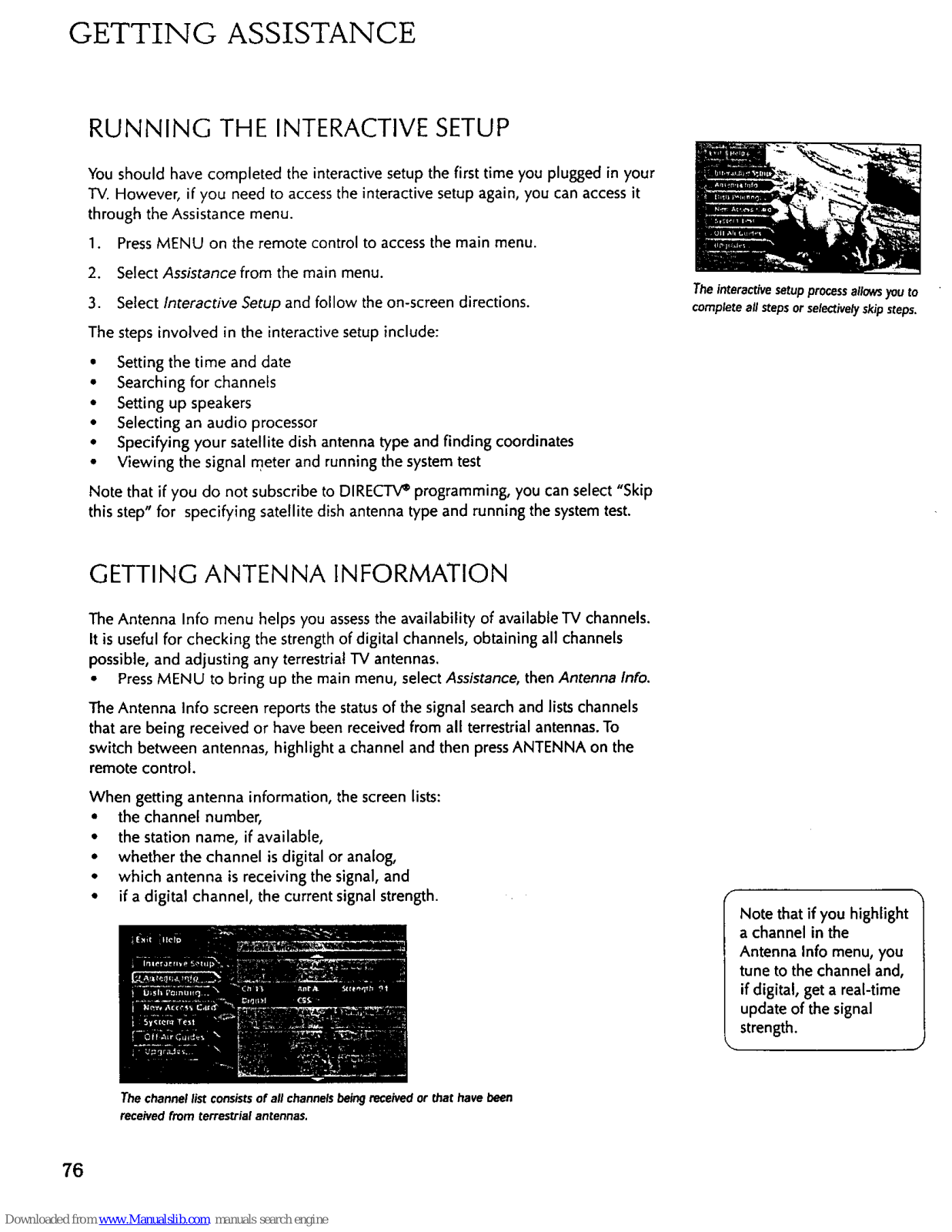

Running the Interactive Setup ...................................... i............ _.......... 76

Getting Antenna Information ................................................................ 76

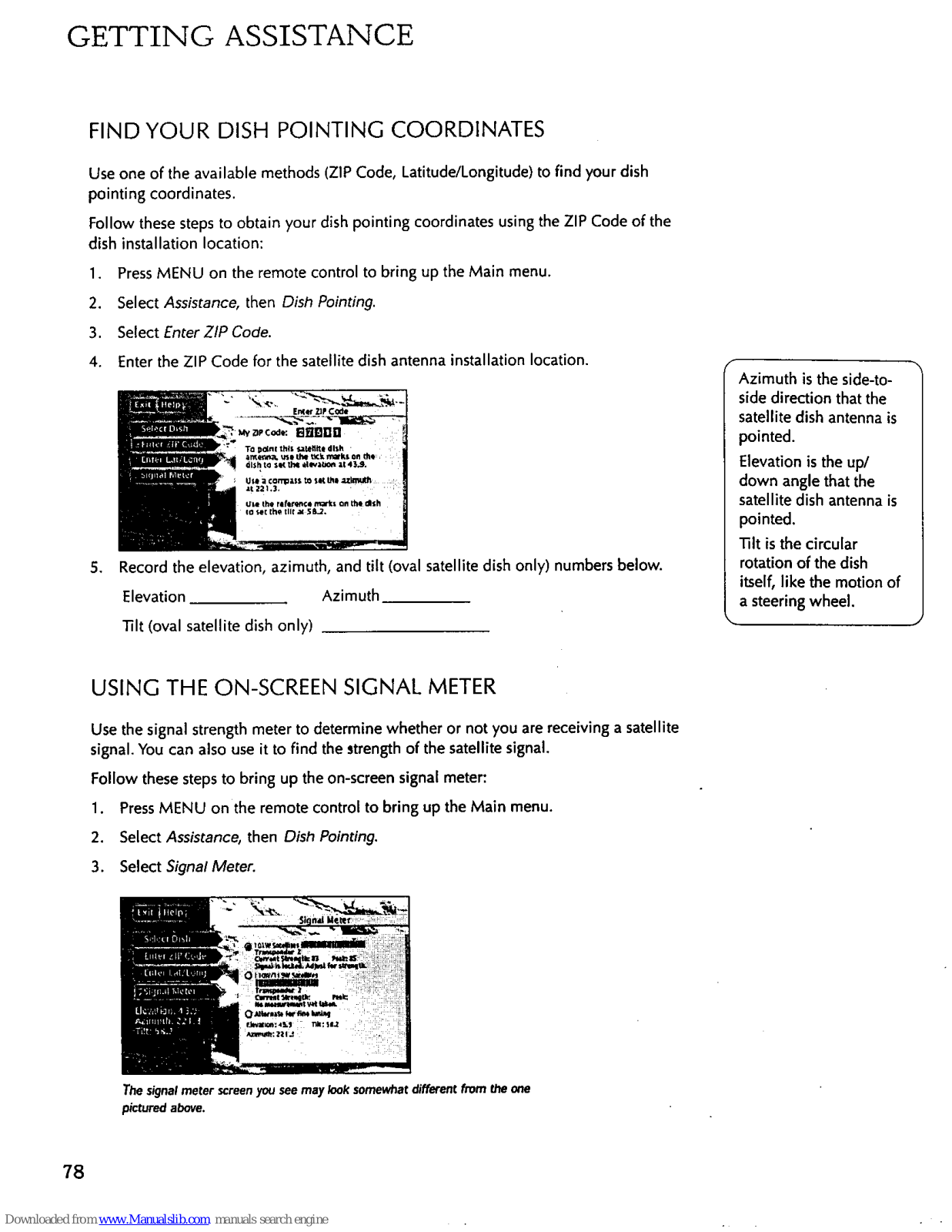

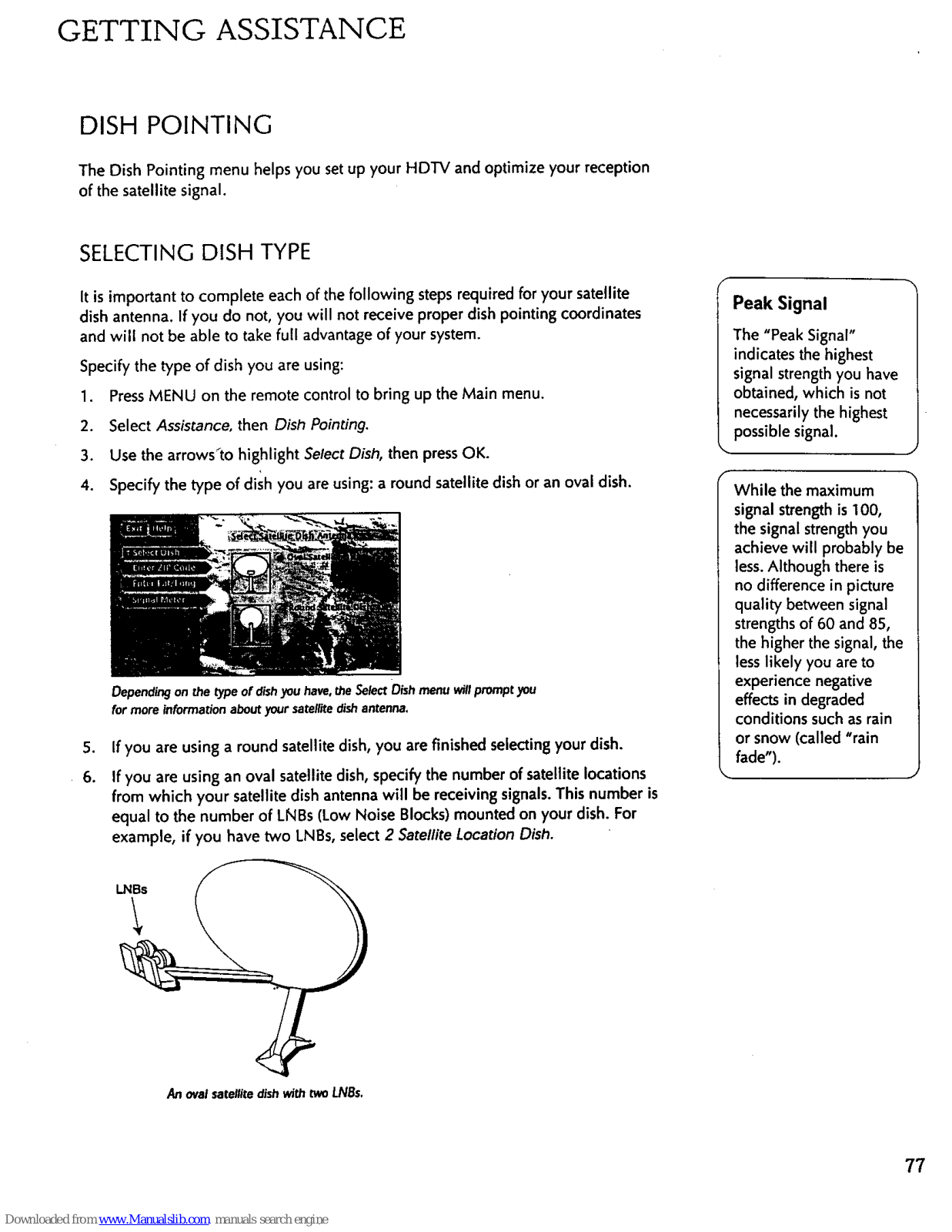

Dish Pointing ....................................................................................... 77

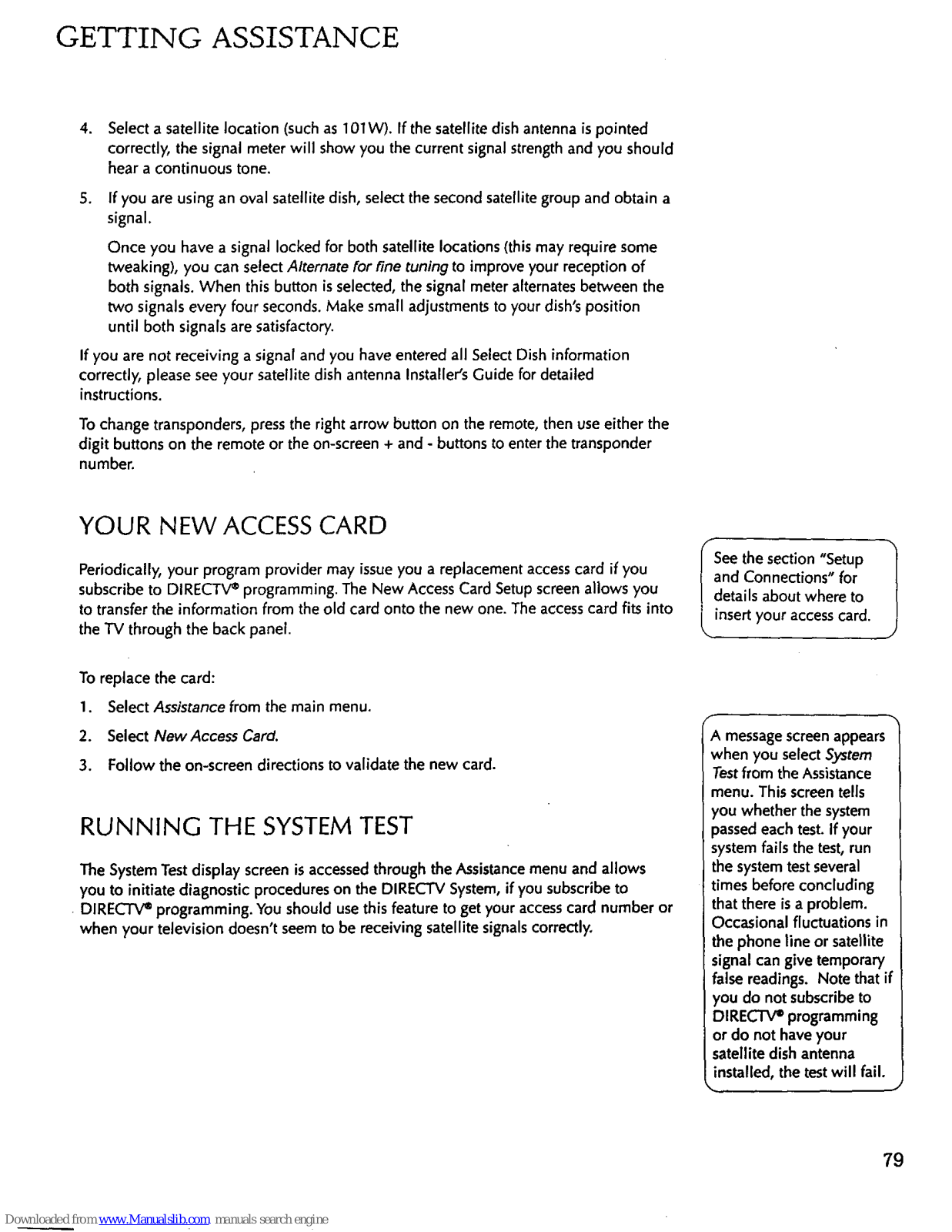

Your New Access Card .................................................. ....................... 79

Running the System Test ....................................................................... 79

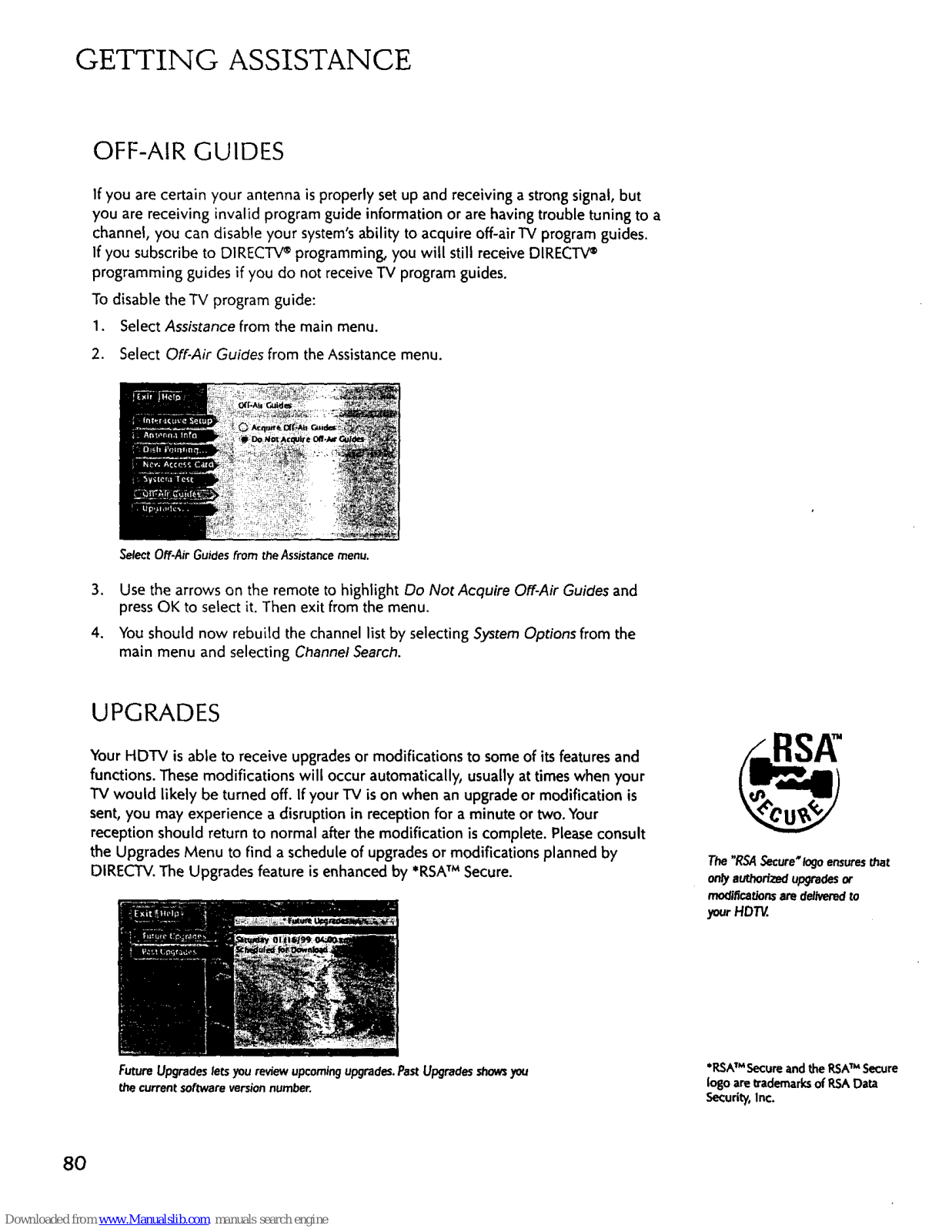

Off-Air Guides ..................................................................................... 80

Upgrades ............................................................................................. 80

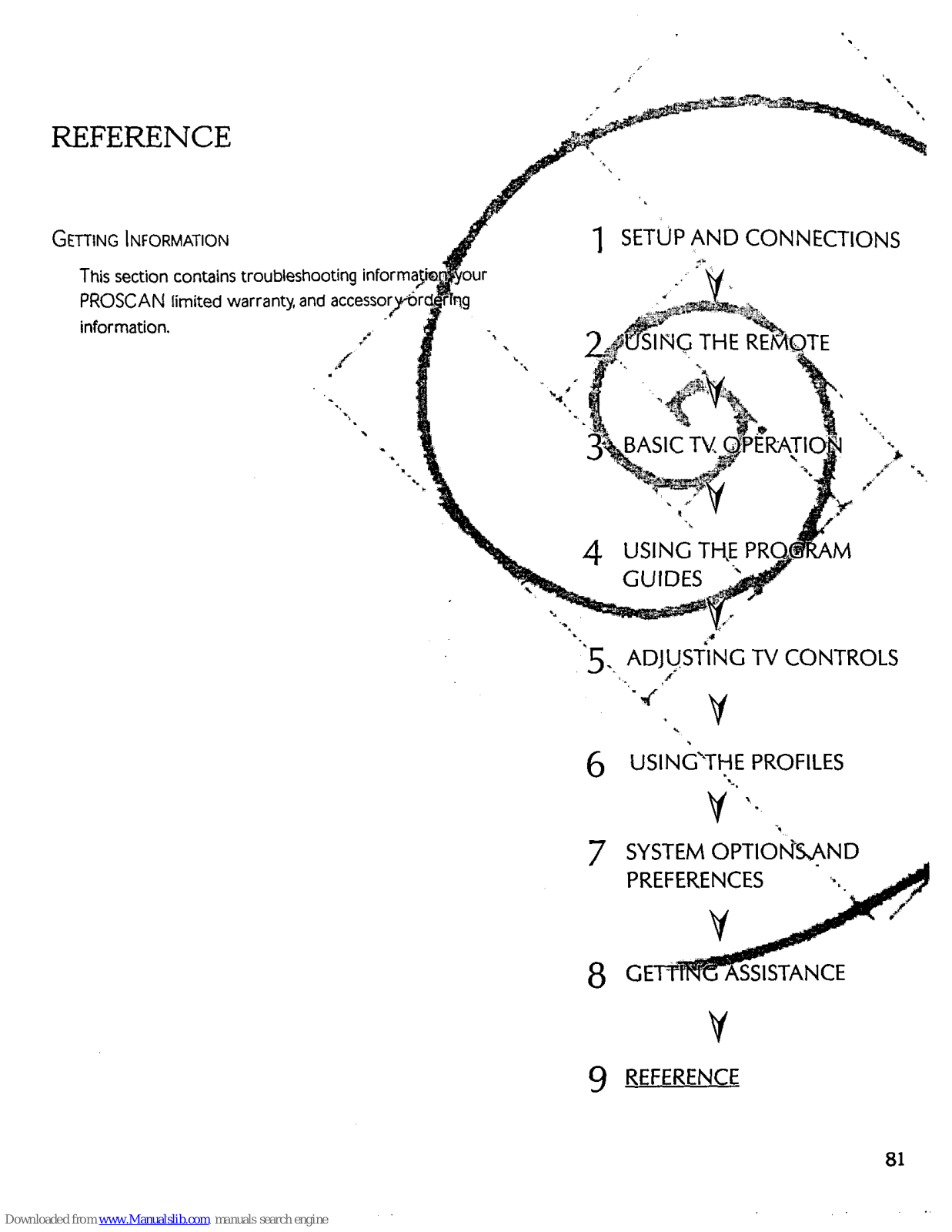

REFERENCE .................................................................................. 81

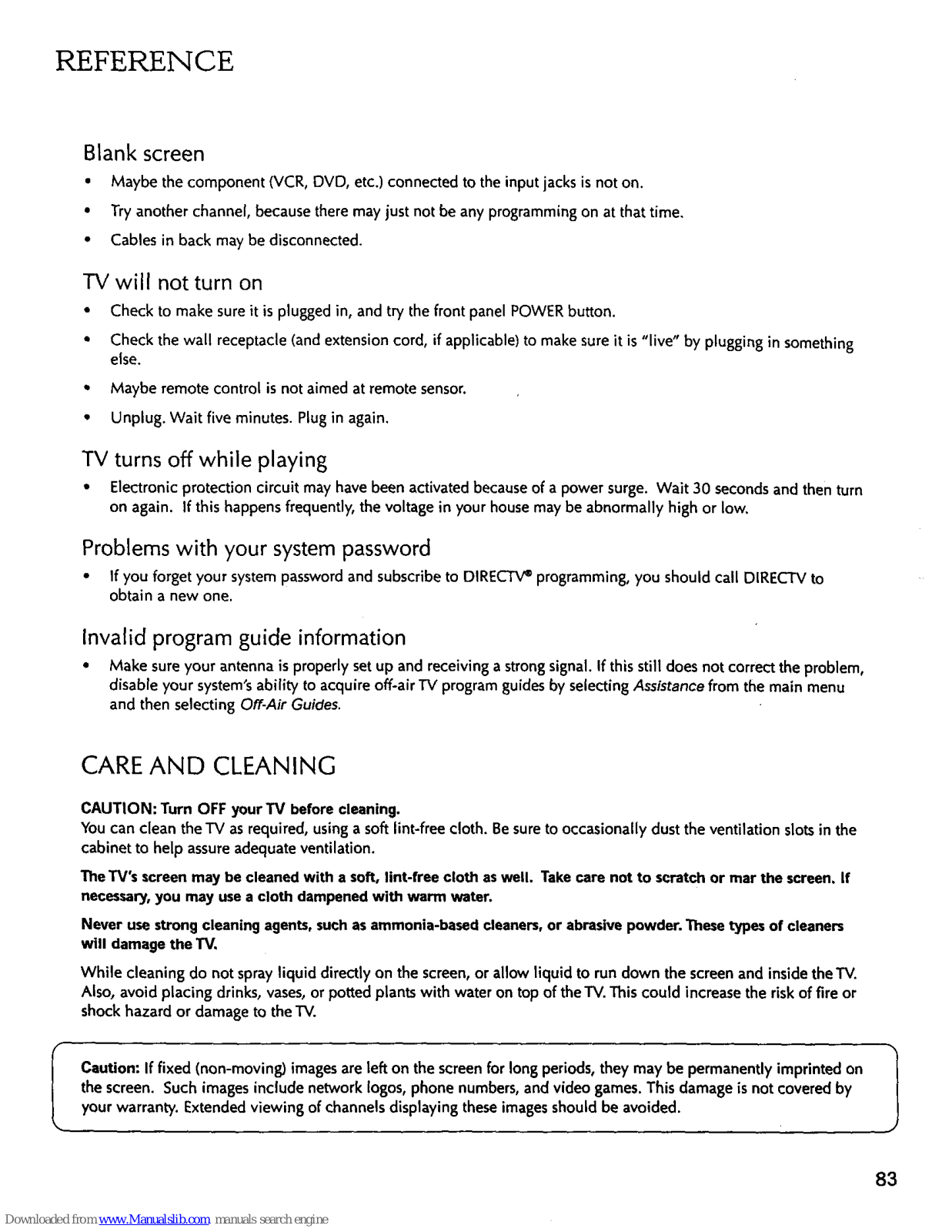

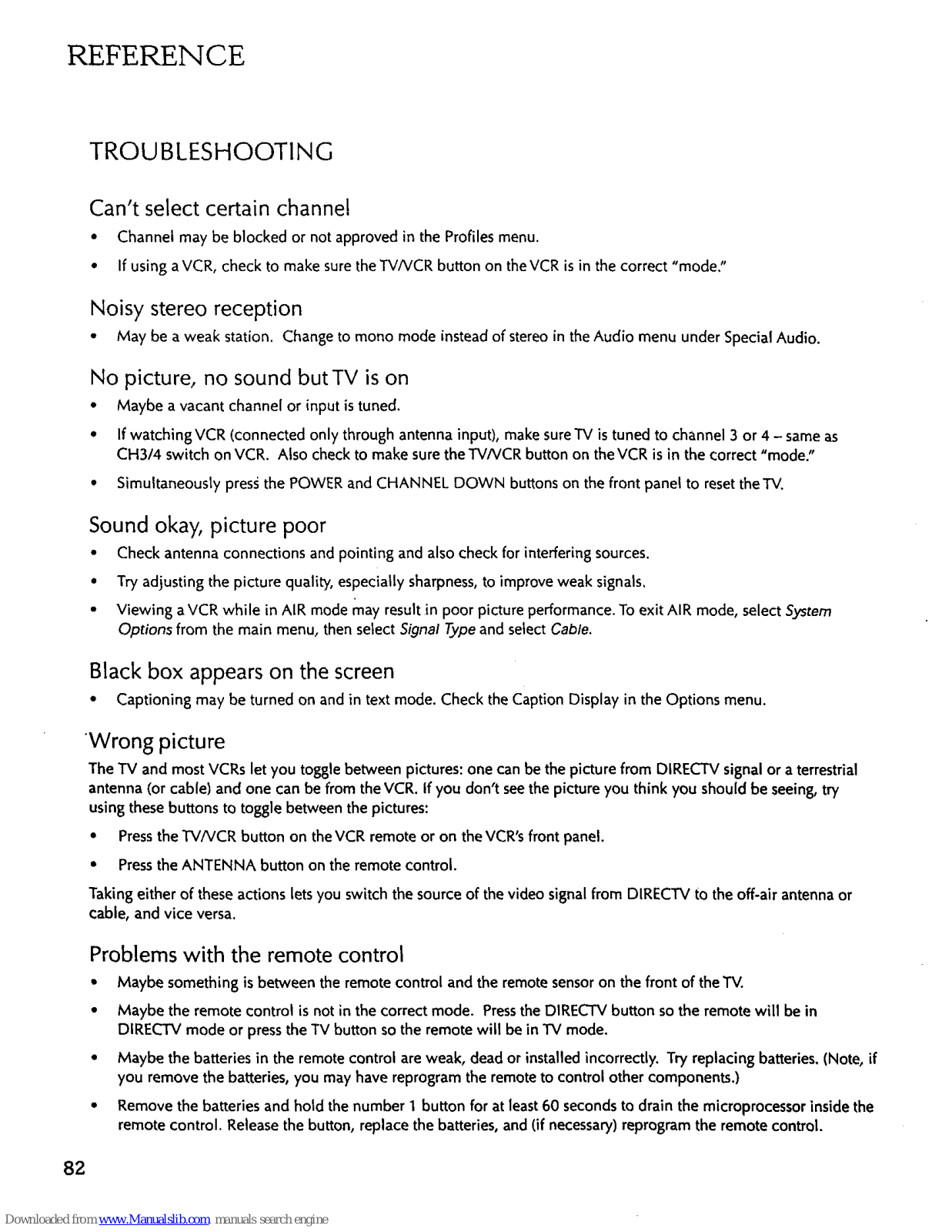

Troubleshooting ................................................................................... 82

Care and Cleaning ............................................................................... 83

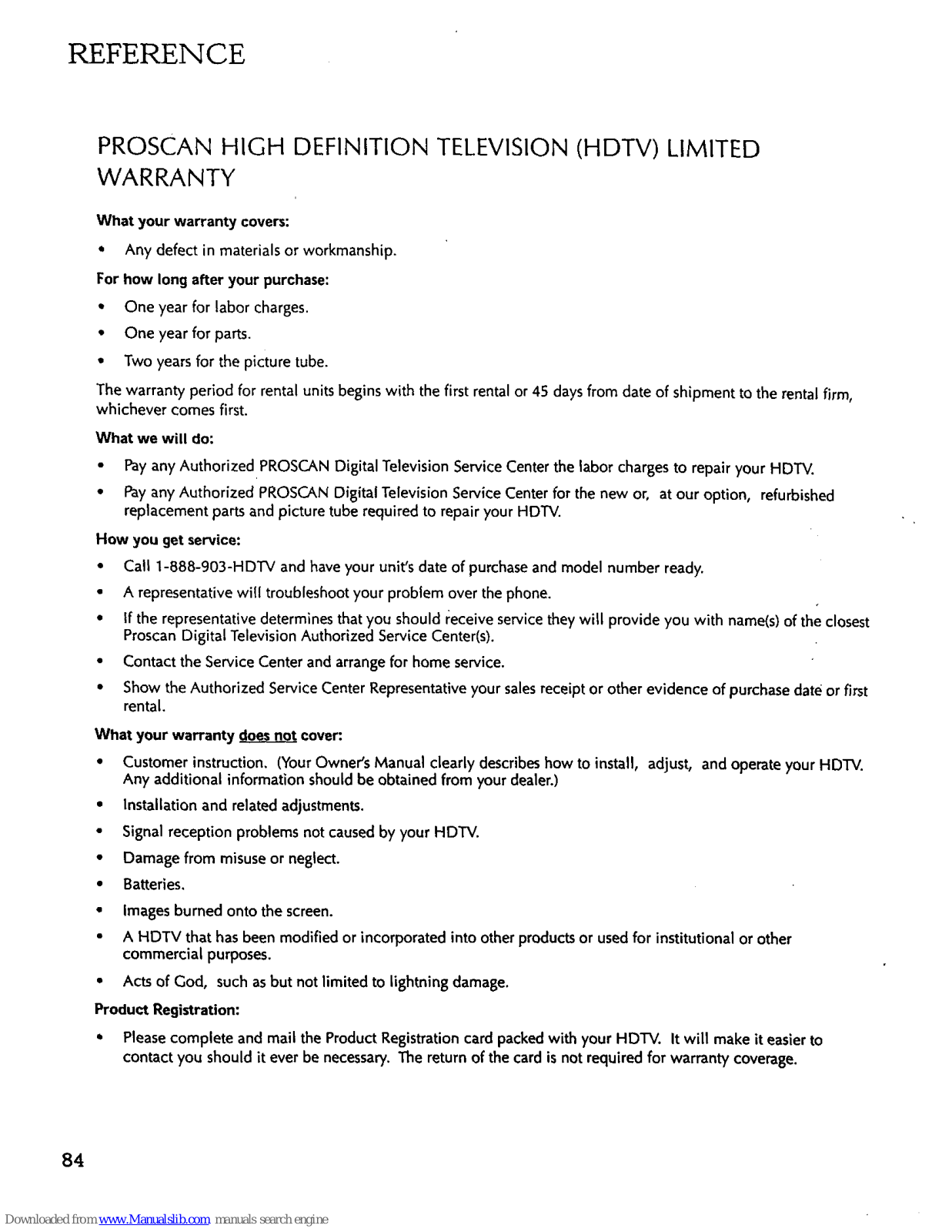

PROSCAN HD-I-V Limited Warranty ..................................................... 84

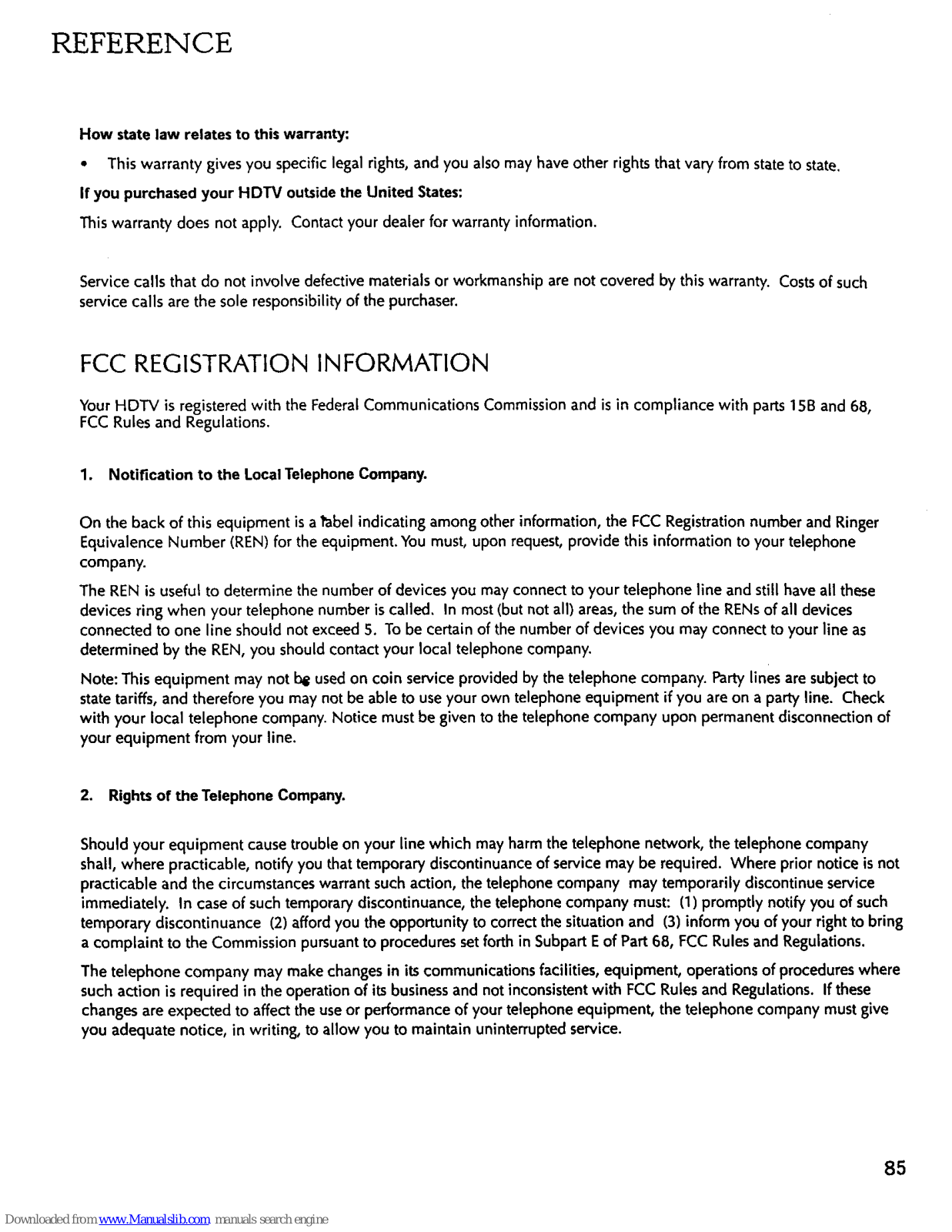

FCC Registration Information ............................................................... 85

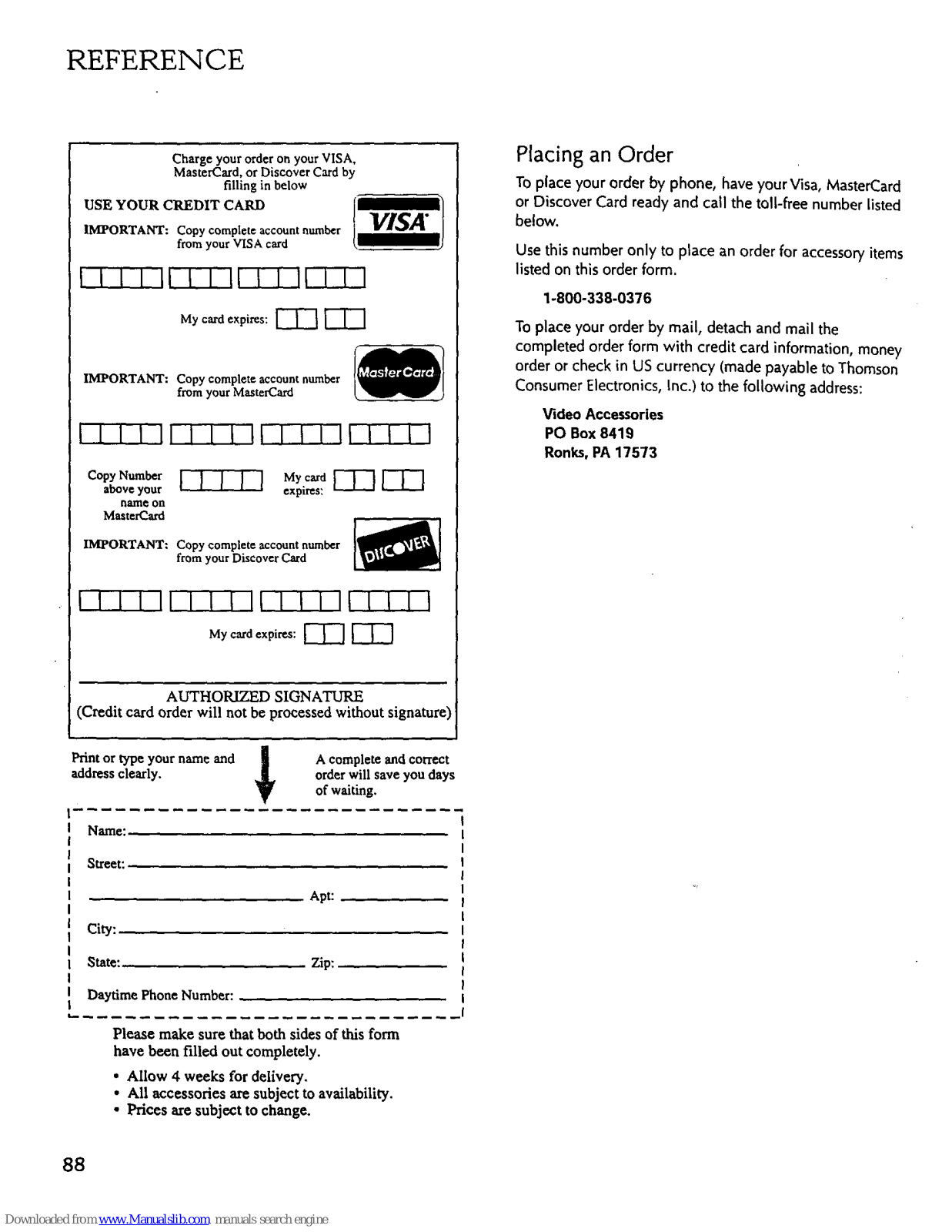

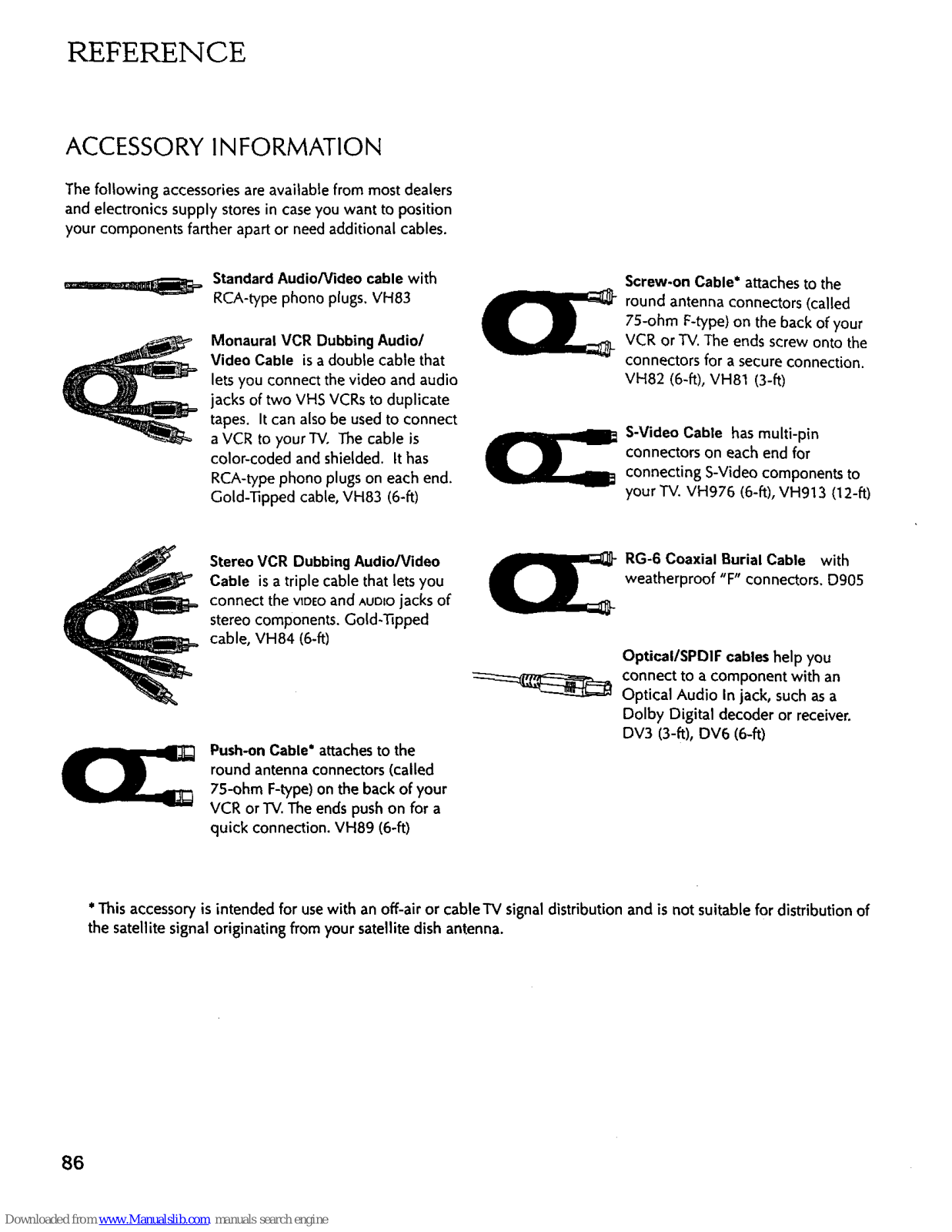

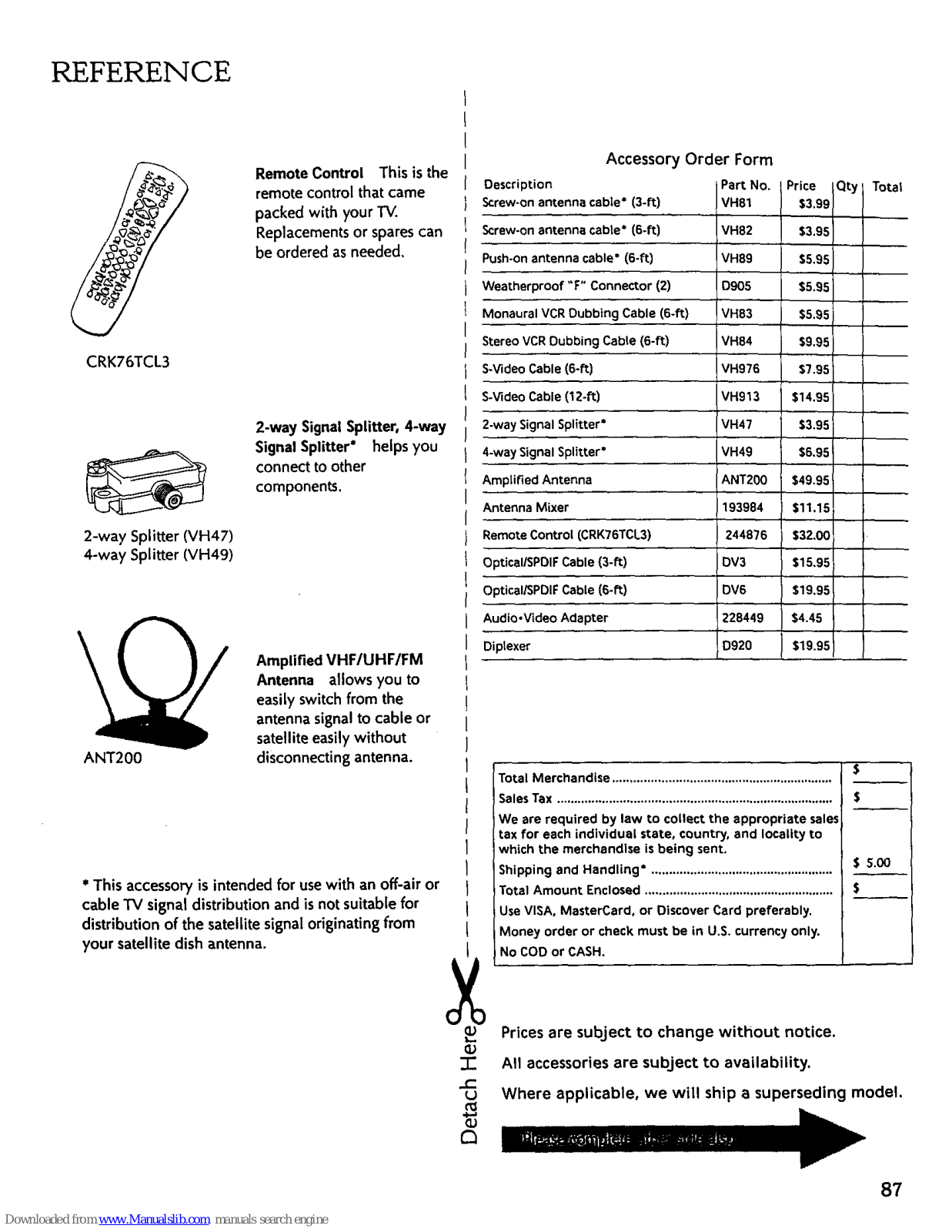

Accessory Information ......................................................................... 86

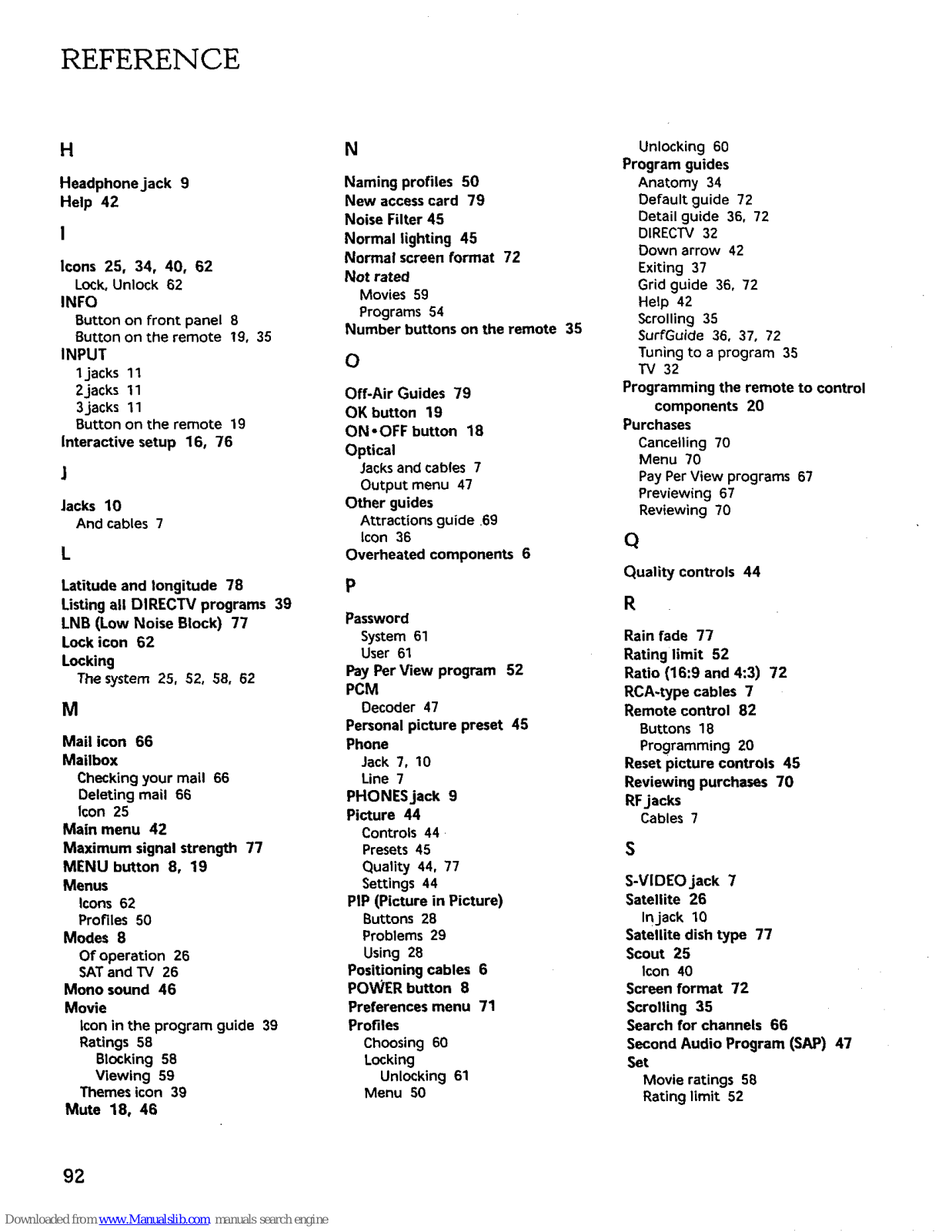

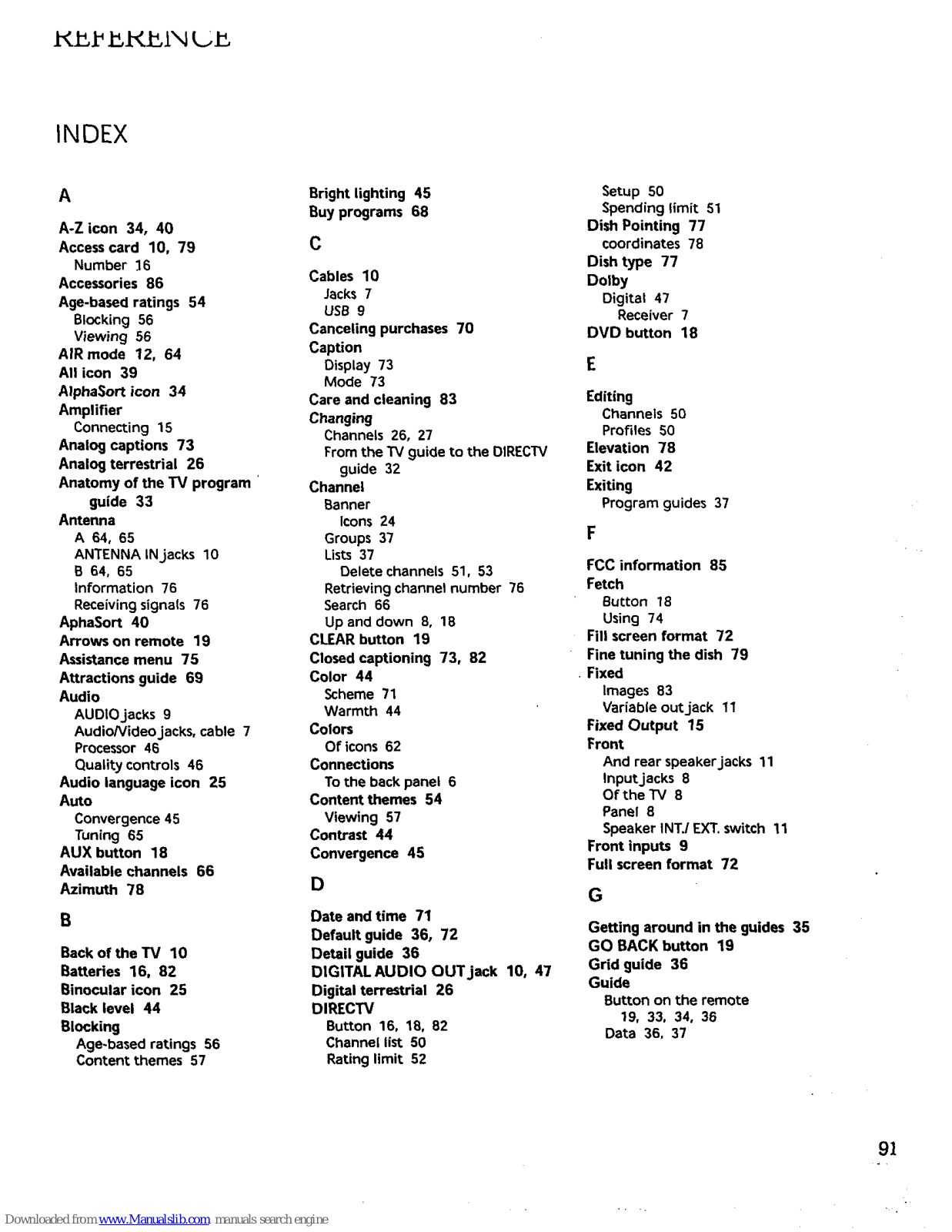

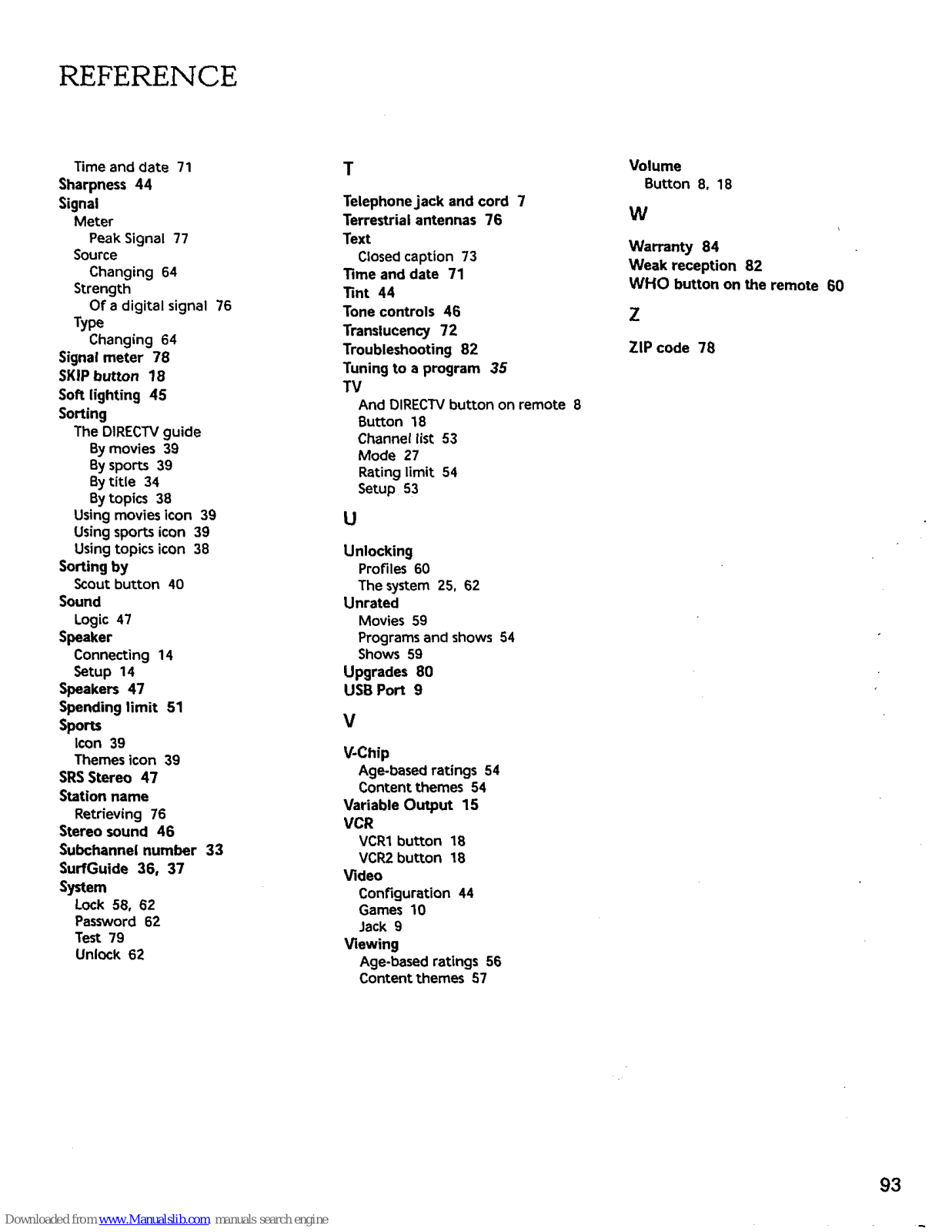

Index ................................................................................................... 91

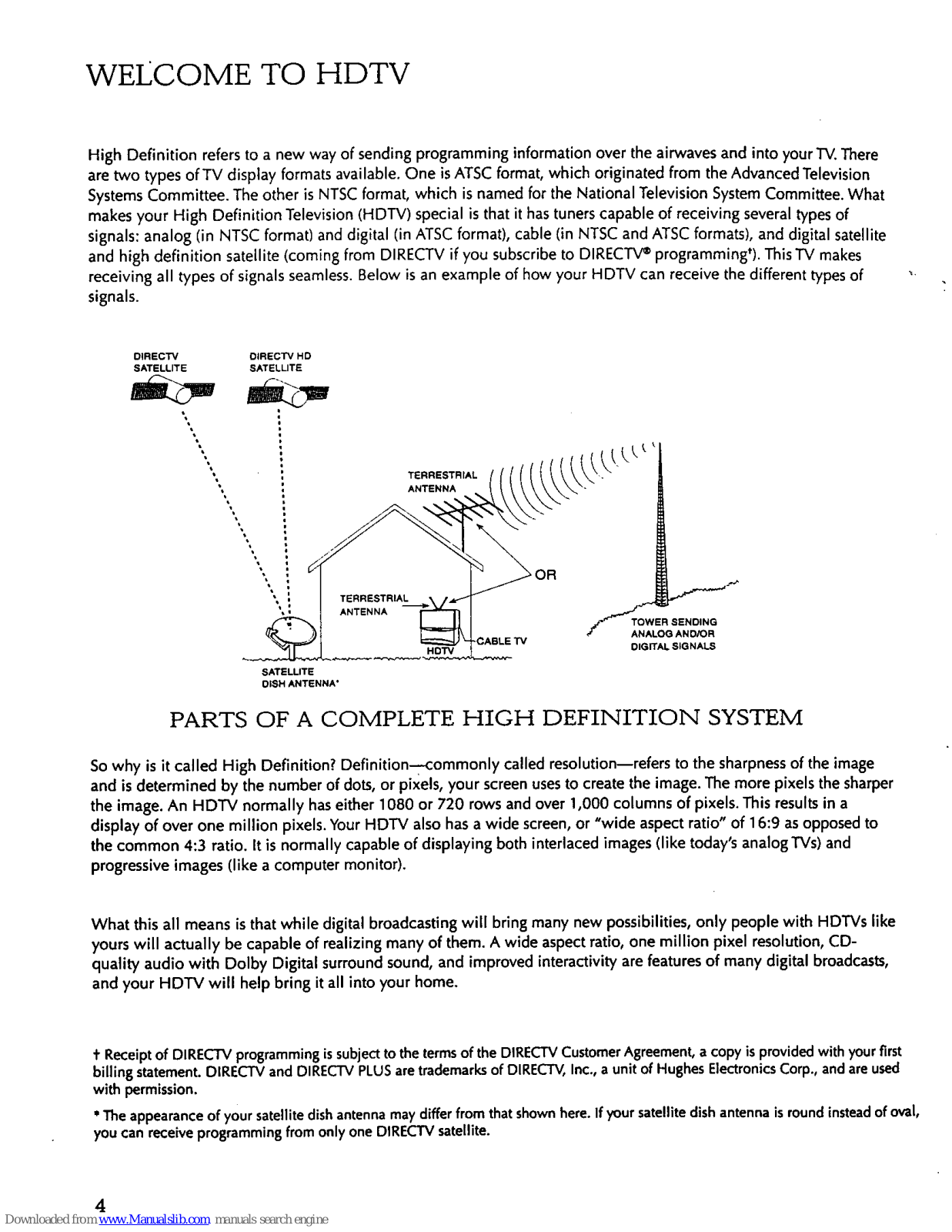

WELCOME TO HDTV

High Definition refers to a new way of sending programming information over the airwaves and into your TV. There are two types of TV display formats available. One is ATSC format, which originated from the Advanced Television

Systems Committee. The other is NTSC format, which is named for the National Television System Committee. What makes your High Definition Television (HDTV) special is that it has tuners capable of receiving several types of signals: analog (in NTSC format) and digital (in ATSC format), cable (in NTSC and ATSC formats), and digital satellite and high definition satellite (coming from DIRECTV if you subscribe to DIREC'I'V_ programming*). This TV makes receiving all types of signals seamless. Below is an example of how your HDTV can receive the different types of signals.

DIRECTV DIRECTV HD SATELLITE SATELUTE

TOWER SENDING ANALOG AND/OR DIGITAL SIGNALS

SATELLITE DISH ANTENNA'

PARTS OF A COMPLETE HIGH DEFINITION SYSTEM

So why is it called High Definition? Definition---commonly called resolution--refers to the sharpness of the image and is determined by the number of dots, or pixels, your screen usesto create the image. The more pixels the sharper

the image. An HDTV normally has either 1080 or 720 rows and over 1,000 columns of pixels. This results in a display of over one million pixels. Your HDTV also has a wide screen, or "wide aspect ratio" of 16:9 as opposed to

the common 4:3 ratio. It is normally capable of displaying both interlaced images (like today's analog TVs) and

progressive images (like a computer monitor).

What this all means is that while digital broadcasting will bring many new possibilities, only people with HDTVs like

yours will actually be capable of realizing many of them. A wide aspect ratio, one million pixel resolution, CD- quality audio with Dolby Digital surround sound, and improved interactivity are features of many digital broadcasts,

and your HDTV will help bring it all into your home.

•1"Receipt of DIRECTV programming issubject to the terms of the DIRECTV Customer Agreement, a copy is provided with your first billing statement. DIRECTV and DIRECTV PLUS are trademarks of DIRECTV, Inc., a unit of Hughes Electronics Corp., and are used

with permission.

• The appearance of your satellite dishantenna may differ from that shown here. If your satellite dish antenna isround instead of oval, you can receive programming from only one DIRECTV satellite.

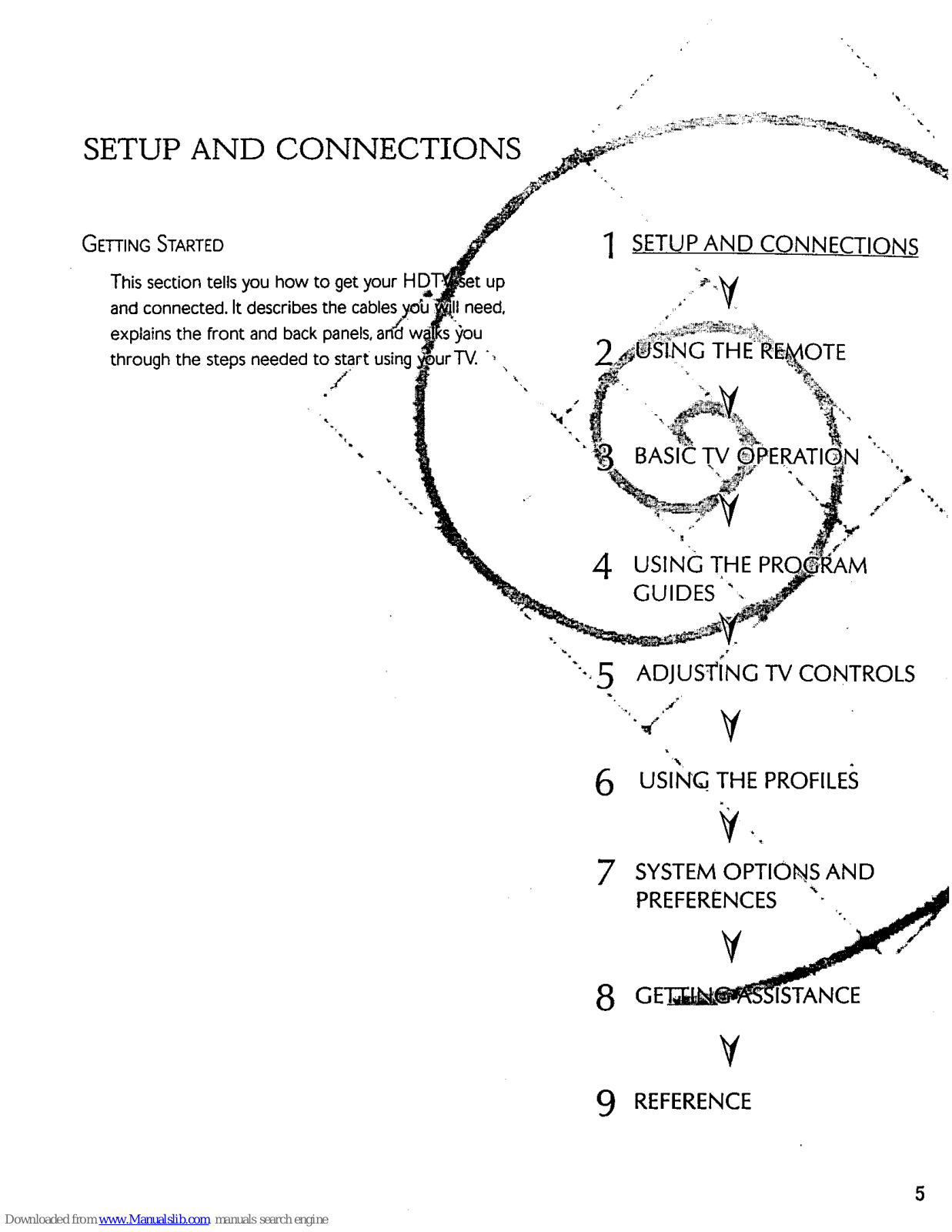

SETUP AND CONNECTIONS

GETTING STARTED

This section tells you how to get ),our _ up and connected. It describes the cables, need,

explains the front and back panels, _ou through the steps needed to start usin( urTV. _

1 SETUPAND CONNECTIONS

USING THE

GUIDES ".

ADJUSTING TV CONTROLS

USING THE PROFILES

7 SYSTEM OPTIONSAND

PREFERENCES "

9 REFERENCE

SETUP AND CONNECTIONS

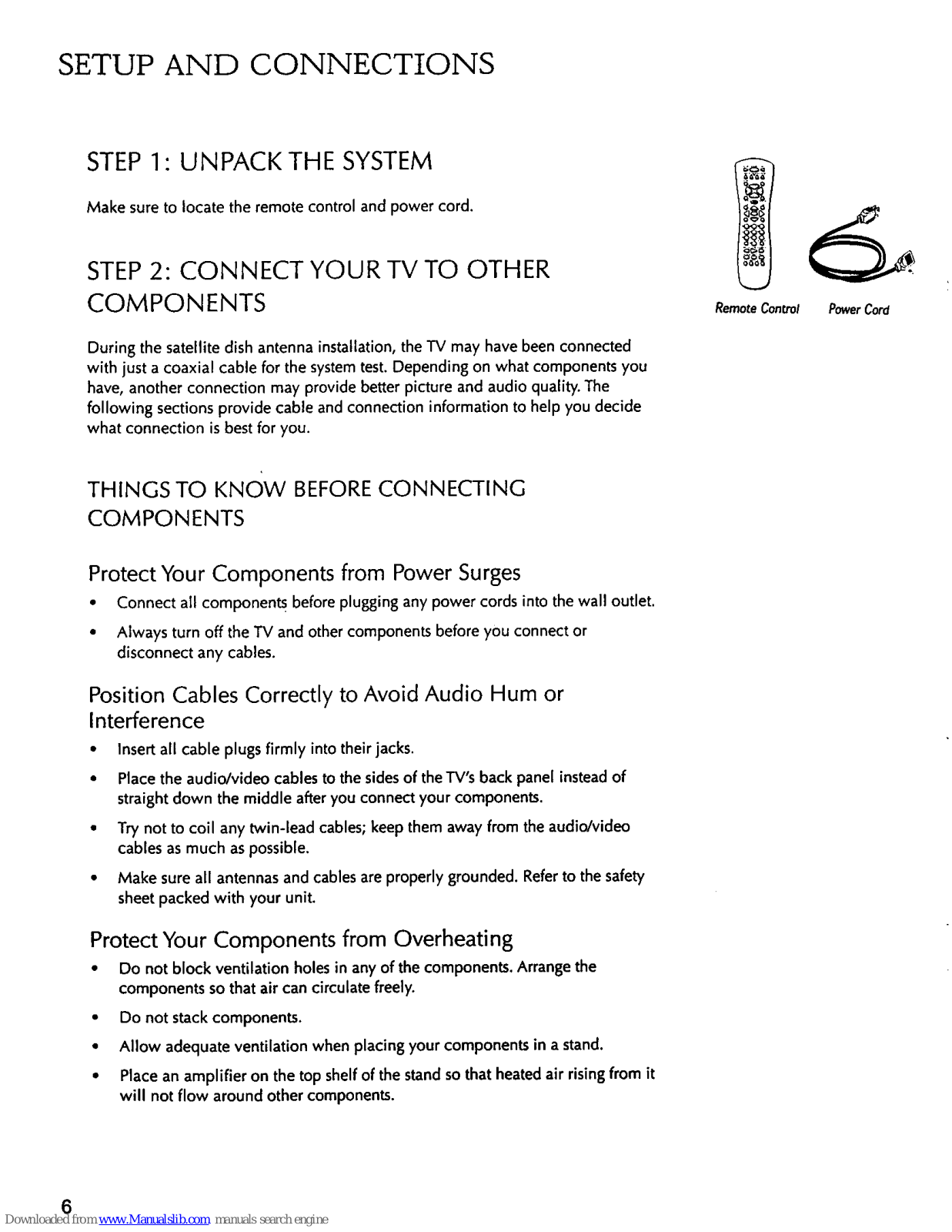

STEP 1: UNPACK THE SYSTEM

Make sure to locate the remote control and power cord.

STEP2: CONNECT YOUR TV TO OTHER COMPONENTS

During the satellite dish antenna installation, the TV may have been connected

with just a coaxial cable for the system test. Depending on what components you have, another connection may provide better picture and audio quality. The following sections provide cable and connection information to help you decide what connection is best for you.

RemoteControl PowerCord

THINGS TO KNOW BEFORE CONNECTING

COMPONENTS

Protect Your Components from Power Surges

• Connect all component_ before plugging any power cords into the wall outlet.

• Always turn off the "iV and other components before you connect or disconnect any cables.

Position Cables Correctly to Avoid Audio Hum or Interference

• Insert all cable plugs firmly into their jacks.

• Place the audio/video cables to the sides of the TV's back panel insteadof

straight down the middle after you connect your components,

• Try not to coil any twin-lead cables;keep them away from the audio/video

cables asmuch aspossible.

• Make sure all antennas and cablesare properly grounded. Refer to the safety

sheet packed with your unit.

Protect Your Components from Overheating

• Do not block ventilation holes in any of the components. Arrange the components so that air can circulate freely.

• Do not stackcomponents.

• Allow adequate ventilation when placing your components in a stand.

• Place an amplifier on the top shelf of the standso that heated air rising from it

will not flow around other components.

SETUP AND CONNECTIONS

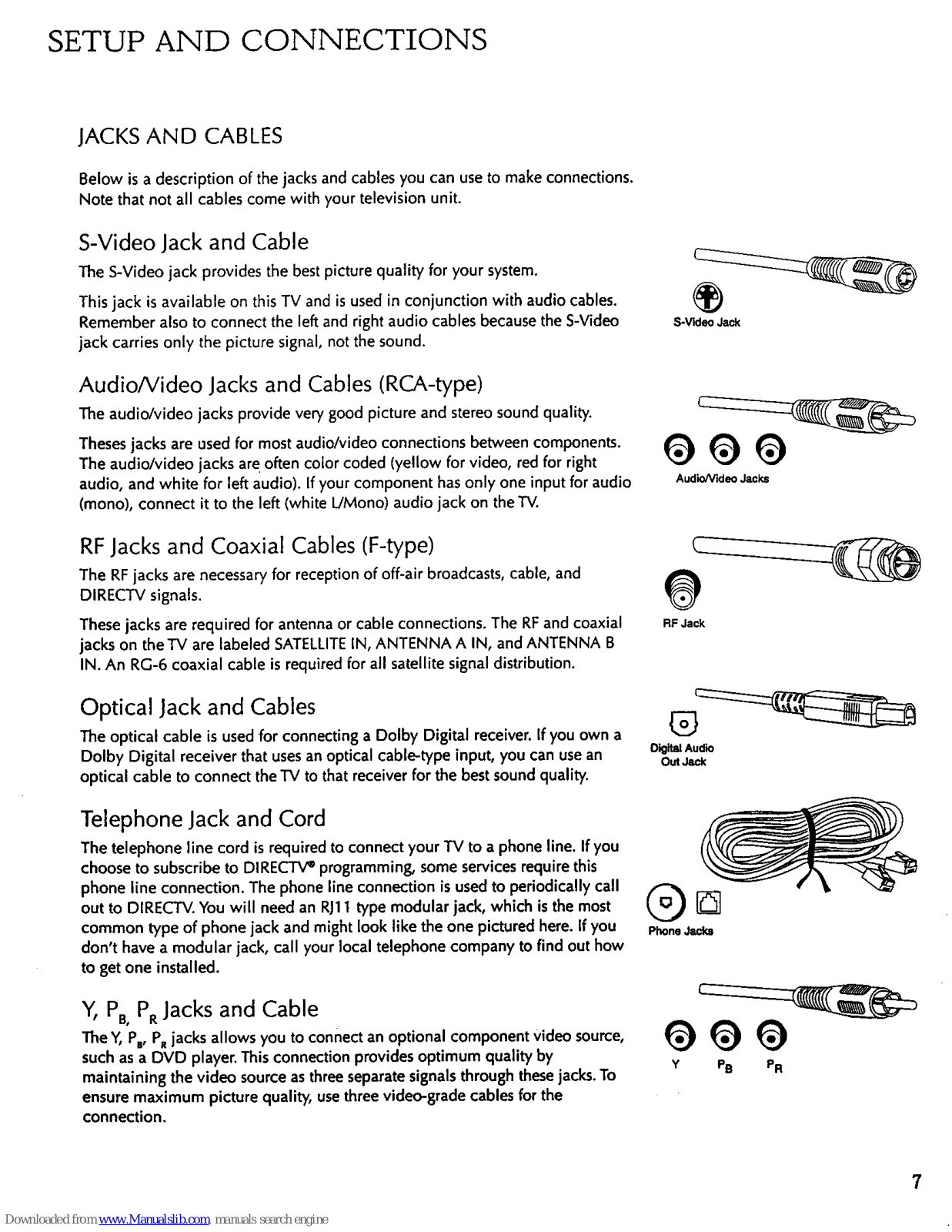

JACKS AND CABLES

Below is a description of the jacks and cables you can use to make connections. Note that not all cables come with your television unit.

S-Video Jack and Cable

The S-Video jack provides the best picture quality for your system.

This jack is available on this TV and is used in conjunction with audio cables. Remember also to connect the left and right audio cables because the S-Video

jack carries only the picture signal, not the sound.

Audio/Video Jacks and Cables (RCA-type)

The audio/video jacks provide very good picture and stereo sound quality. Theses jacks are used for most audio/video connections between components.

The audio/video jacks are often color coded (yellow for video, red for right audio, and white for left audio). If your component has only one input for audio

(mono), connect it to the left (white L/Mono) audio jack on the TV.

RF Jacks and Coaxial Cables (F-type)

The RF jacks are necessary for reception of off-air broadcasts, cable, and

DIRECTV signals.

These jacks are required for antenna or cable connections. The RF and coaxial jacks on the'IV are labeled SATELLITEIN, ANTENNA A IN, and ANTENNA B

IN. An RG-6 coaxial cable is required for all satellite signal distribution.

Optical Jack and Cables

The optical cable is used for connecting a Dolby Digital receiver. If you own a

Dolby Digital receiver that uses an optical cable-type input, you can use an optical cable to connect the TV to that receiver for the best sound quality.

Telephone Jack and Cord

The telephone line cord is required to connect your TV to a phone line. Ifyou

choose to subscribe to DIRECTVe programming, some services require this phone line connection. The phone line connection is usedto periodically call

out to DIRECTV. You will need an RJl 1 type modular jack, which isthe most common type of phone jack and might look like the one pictured here. If you

don't have a modular jack, call your local telephone company to find out how

to get one installed.

Y, PB,PRJacks and Cable

The Y, P_, Pejacks allows you to connect an optional component Video source,

such as a OVD player. This connection provides optimum quality by maintaining the video source as three separate signals through these jacks.To ensure maximum picture quality, use three video-grade cables for the

connection.

S-VideoJack

000

AudioNideo Jacks

RF Jack

Oigi_l Audio

Om_k

PhoneJacks

Y PB PR

SETUP AND CONNECTIONS

FRONT BUTTONS

The diagrams below describe the front panel and front input jacks on the'IV.

Please note that the exact look of the buttons pictured here may be different from

yours.

VOL

If you cannot find your remote control, you can use the front panel of the

TV to operate many of the TV's features.

"IV IDIRECTV Toggles between TV mode and DIRECTV mode.

INFO Brings up the on-screen channel banner. Presswhen in the program guide to get

more information on the highlighted program or channel. VOL < Decreases the volume. When in the menu system, VOL < movesthe highlight

left and adjusts menu controls.

VOL • Increases the volume. When in the menu system, VOL > moves the highlight right and adjusts menu controls.

CH v Scrolls down through the current channel list. If you are in TV mode and press CHv, you scroll down through TV channels. If you subscribe to DIRECTV_ programming and are in DIRECTV mode, you scroll down through DIRECTV channels. In the menu system, CHv moves the highlight down one page at the time and adjusts menu controls.

In the program guides, CHv advances the highlight one screen down.

CH ^ Scrolls up through the channel list. If you are inTV mode and press CH A, you scroll up through TV channels. If you subscribe to DIREC-I'V° programming and are in

DIRECTV mode, you scroll up through DIRECTV channels. In the menu system, CH ^ moves the highlight up one page at the time and adjusts menu controls. In the program guides, CHA advances the highlight one screen up.

MENU IOK Brings up the main menu. When in the menu system, it selects highlighted

items. POWER Turns theTV on and off.

SETUP AND CONNECTIONS

FRONT INPUTS

The monitor has front inputs for convenience; one set of audio/video inputs and a

headphone jack. These jacks let you connect a baseband NTSC (analog) component such as a VCR, Internet access device, game, or camcorder. Look for a hinged door and

gently lift the cover open. Please note that the exact look of the jacks or the I"V pictured

here may be different from yours.

PHONES Provides a connection for headphones. VIDEO IN Provides video connection. The video connector is usually yellow.

AUDIO IN

L Provides left audio connection. The left audio connector is

usually white. When connecting devices that use arnonaural cable, such assome camcorders, use the left input jack to get

sound from both speakers. R Provides right audio connection. The right audio connector is usually red.

•

SETUP AND CONNECTIONS

BACK OF THE TV

The diagram below describes each of the back panel jacks found on the TV. When connecting A/V cables, be sure to connect corresponding outputs and inputs (video to

video, right audio to right audio, etc.).

_3 r3

A V _ P.

SATELLITEIN Use to connect the satellite dish antenna to the TV using an RG6 cable.

ACCESSCARD Insert the access card into the slot so your program provider can

identify you. Make surethe contactson the accesscard are facing left and the top of

the card is facing right while inserting. (Refer to "New Access Card" in this manual's

"Assistance" section for details.)The DIRECTV PLUSTM System requiresa valid card.

PHONE JACK Use to connect a phone line to the'iV. The DIRECTV PLUS System requires a continuous phone line connection to periodically call out to program

providers. DIGITAL AUDIO OUT Use a digital optical cable (or SPDIF cable) to connect your

TV to a compatible Dolby Digital receiver or decoder. Dolby Digital offerstheatre-

quality sound (six audio channels).

ANTENNA B IN Use to connect an off-air or terrestrial antenna or cable TV signal to

the TV. ANTENNA A IN Use to connect a second off-air or terrestrial antenna or cable TV

signal to the TV.

SATELLITE

ACCESS

CARD

PHONE DIGITAL

JACK AUDIO OUT

ANTENNAB

ANTENNA A

You can also use the ANT B IN (or ANT A IN) for video games and switch between the two inputsusing the ANTENNA button on the remote control. When using'IV games, computers, and similar products with your TV, keep the contrastat

a low setting. If a fixed (non-moving) pattern isleft on the screenfor long periods of time at a h gh contrast sett ng, the

image can 6e permanently imprinted onto the picture tubes. These typesof imprints are not covered by your warranty

because they are the resultof misuse.

SETUP AND CONNECTIONS

INPUT 1 Letsyou connect a baseband NTSC (analog) component such as a VCR, laserdisc player, Internet access device, or DVD player.

• VIDEO provides composite video connection. The video connector is usually yellow.

• L AUDIO provides left audio connection. The left audio connector is usually white.

• RAUDIO provides right audio connection. The right audio connector is usually red.

• S-VIDEO lets you connect an S-Video cable for better video quality picture to a

component with S-Video capability, such as aVCR or DVD player. When using S-

Video, make sure to connect the two audio cables as well as the S-Video connector.

INPUT 2 Provides connection to a second NTSC (analog) video component such as a

VCR or laserdisc player. Its jacks are the same as described for INPUT 1, above.

INPUT 3 Provides connection to a third NTSC (analog) video component, such as a

VCR or laserdisc. Its jacks are the same asdescribed for INPUTS 1 and 2.

AUDIO

VIDEO L R S-_OO (3

/'"°'=e e e

/'"E°'°° o

COMPONENT VIDEO INPUT Use to connect an optional component video source, such as a DVD player. This connection provides optimum quality. Note that it is

essential to match the color coded connectors between a compatible device and the

monitor. Grey side panels protecting against screen burn-in are not always generated when

watching a 4:3 image via the COMPONENTVIDEO INPUT jacks. Therefore,limited

viewing of a 4:3 image is recommended when no side panel arepresent. Also note that

when watching an image via the COMPONENTVIDEO INPUT jacks, you will not be able to manipulate the screen format.

• AUDIO R/L The audio jacks provide stereo sound. When connected, audio volume from the main front and rear speakers is variable audio.

• Y PBP. Unlike a single video input, component video maintains the video signal as three separate signals through these three jacks. To ensure maximum picture quality, use three video-grade cables for theY, Ps,and PRConnections.

AUDIO OUTPUTS

FIXED L/R Provides fixed-level audio output from the television. This audio output is ideal for audio recording or for connecting to an AN receiver amplifier (an auxiliary baseband component) when you want to control the volume through the A/V receiver instead of the"IV.

VARIABLE L/R Use to connect an A/V receiver or amplifier (an auxiliary

baseband component) for variably-controlled stereo output.

RIGHT and LEFTSpeaker Terminals Use to connect external speakersfor right

and left surround sound.

• INT. / EXT.(switch) INT sendsaudio only to the monitor's internal speakers. EXTsends audio to only external speakers.

,-ACOMPONENT VIDEO INPUT_

UDIO y p= p.

oool

AUDIO OUTPUTS

FI_ED VARIABLE

L R L R

R t.

To turn the TV's internal speakers on and off,

pressMENU on the remote control and

choose Audio. Then choose Speakers from

the menu.

SETUP AND CONNECTIONS

THE BASIC CONNECTION

TV and VCR

CABLEOR OFF-AIRANTENNA

VCR

Some cable systemsmay require a "conversion box." if so, consult your cable I

company's box tuning instructions for details.

How to view

programming:

• To watch cableTV or off-airTV programs from an antenna in

this connection, press

ANTENNA on the remote

control until ANTENNA A is displayed in the channel banner.

To watch cable or any other

alternate RFsignal, such as

digital or analog terrestrial, press ANTENNA on the remote

control until ANTENNA B is displayed in the channel banner.

To watch satellite programming,

press DIRECTV on the remote control and channel up or down to the desired program.

How to view your VCR:

PresstNPUT on the remote

control and select the video

input (in this example, VlD1) in

the channel banner. Because the digital decoder is in the TV, not

the VCR, digital channels cannot be recorded. If an off-air

antenna is used, the VCR output should be viewed using one of the video inputs.

• If you've already setup auto tuning,, press theVCR1 button

on your remote control.

NOTE: Viewing aVCR while in

AIR mode may result in poor

picture performance. Instead, select System Options from the

main menu, then select Signal

Type and select Cable.

The ANT B and ANT A jacks can receive digital or analog

RF signals. The illustrations here are recommended

connections in a cable environment.

SETUP AND CONNECTIONS

THE ADVANCED CONNECTION

TV, VCR, and DVD Player With Amplifier

OVD

DISH ANTENNA

AMPLIFIER WITH OPTICAL INPUT _

CABLEOR

ANYALTERNATE

A OtGITAL OR ANALC_

TERRESTRIAL ANTENNA

CABLEOR O_-AIR

[]

VCR 1

After you have made your connections, program the

TV to tuneto the correct video input channel to see and hear audio and

video from the attached component (VCR, DVD

player, etc.). Program your TV as described in the "System Options and

Preferences" section of

this book.

How to view your DVD

and VCR:

• To watch theVCR in this connection, press INPUT

on the remote control

until the correct video input appears (in this

example, VID3). Note that because the digital

decoder is in the TV, not the VCR, you cannot

record digital channels.

• To watch the DVD player in this connection, press INPUT

on the remote control until the correct video

input appears (in this example, S-VID1 ).

Some cable systems may require a "conversion

box." If so, consult your cable company's box tuning instructions for

details.

Please Read Before Using the Digital Audio Out Jack

This TV's optical digital output jack fully complies with the international standardgoverning this type of jack (IEC958),

and is designed for connection to a Oolby Digital (AC-3 or PCM) receiver or Dolby Digital (AC-3 or PCM) decoder. Older equipment, some of which is notfully compliant with IEC958, may not be compatible with the Dolby Digital

bit.stream.Such a connection using anything other than Dolby Digital AC-3 or PCM receiver or decoder could create a high noise level, causing damage to headphones or speakers.

SETUP AND CONNECTIONS

CONNECTING SPEAKERSTO THE TV

You can connect up to two additional speakers to the TV: one to the RIGHT terminal, and one to the LEFTterminal.

1. If necessary, remove the vinyl covering from the ends of the speaker wire and twist the wire core.

Speaker wire

AUO_OOUTPUTS

FIXED VARIABLE

L R L R

OO OO

Ft L

2. Open the lever on the speaker terminal.

3. Insert the wire core into the hole. Be sure to connect the (+) to (+) and (-) to (-).

4. Close the lever. Pull gently on the wire to seethat it's connected securely.

To turn on or off the TV's internal speakers, press MENU on the remote control and choose Audio. Then choose Speakers from the menu.

Arrangethe speakersinyour TVroomto achievemaximum

soundquality,

When connecting the speaker wire, make sure

you connect the positive (+) terminal on the TV to

the positive (+) terminal on the speaker. One side of the speaker wire is usually marked with a white stripe to help you

match the terminals correctly. If the (+) and

(-) terminals are not matched properly, the

speakers will not be "in

phase," causing reduction in bass

frequencies.

Do not allow the wire

core to touch other wires or terminals.

Damage to components could result if the cores

of two wires touch.

SETUP AND CONNECTIONS

CONNECTING A STEREO AMPLIFIER

Use RCA cables to connect either the FIXED or VARIABLE AUDIO OUTPUT from

the monitor to an A/V receiver.

FIXED provides fixed-level audio output from the monitor. This audio output is ideal for connecting to an A/V receiver that has its own volume control.

VARIABLE provides variable-level audio output. Volume levels are controlled by the volume controls on the monitor and monitor remote control.

2. Use speaker wire to connect the monitor to external speakers.

• The EXT/INT switch beside the jacks let you turn speakers on or off. EXTsends audio to external and internal speakers. INT sends audio only to the monitor's

internal speakers.

You may prefer to turn off the TV's internal speakers. Select Audio from the main

menu and then select Speakers. Important: Do not use the amplifier's PHONO inputs. Consult the amplifier's

owner's manual for the manufacturer's recommended hookup.

AUOIOOUTP_S

RXED VARIABLE

L R L R

e@ @@

H L

The FIXEDNARIABLE OUT jacks on the back

panel provide a fixed or variable audio signal.

When connected to "variable", they are ideal

for use with an audio amplifier that does not

have its own remote volume control. When

connected to "fixed," the output volume stays the

same no matter how the volume changes on

the TV.

SETUP AND CONNECTIONS

STEP3: PLACE BATTERIESIN THE REMOTE

CONTROL

Follow these steps whenever you need to install or change the batteries in your TV's remote control.

1. Remove the cover from the battery compartment.

2. Insert batteries into the battery compartment, matching the + and - end of each battery.

3. Replace the cover.

STEP4: PLUG IN AND TURN ON THE SYSTEM

Plug one end of the power cord into the back of the television asshown on right. Plug the other end into a wall outlet. Be sure to insert the plugs completely.

To turn on the TV, press theTV or ON.OFF button on the remote control or the

POWER button on the front panel. It may take several seconds for the TV to tul:n on.

STEP5: COMPLETE THE INTERACTIVE SETUP

Interactive setup appears when you turn on your TV for the first time. Follow the steps to configure the basics of your system, such as setting up the time and day, searching for available channels, and setting up speakers. To run it again, select

Assistance from the main menu, then select Interactive Setup. For more details, see

the section "Getting Assistance" in this book.

STEP6: ORDER PROGRAMMING

YOushould decide if you would like to receive DIRECTV_ programming*. To receive

DIRECTV programming, your satellite dish antenna must be installed and pointed correctly.You must also contact your service provider, DIRECTV.

Programming with DIRECTV:

Call 1-800-347-3288

* Receipt of DIRECTV programming is subject to the termsof the OlREC"TVCustomer Agreement, a copy is provided with your first billing statement. DIRECTV and DIRECTV PLUS

are trademarks of DIRECTV, Inc., a unit of Hughes Electronics Corp., and are used with permission.

When you order programming, you need to know your access

card number. Toget the number, select Assistance from the

main menu and then select System Test.

Wait for the system to

run all of its tests.The accesscard number is displayed at the end of

the systemtest. Write the accesscard

number in the space

below for easy

reference:

USING THE REMOTE

How TO USEYOUR UNIVERSAL REMOTE

In this section you will

universal remote control,This section:i /

• defines the buttons on the

describes how you and DIRECTV"mode." .

shows you how to change between terrestrial, digital terrestrial, and

channels.

walks you through using the PIP picture) feature.

• describes how to program the remote to other devices such as aVCR.

Important: Because this universal remote can control • several different components (-i-_,VCR, etc.), it uses

operational modes triggered by the component buttons. For example, if you want the remote to control the VCIK you would press the VCR button to

put the remote into VCR mode so you could control the VCR.

4 USING THE

GUIDES

ADJUSTING TV CONTROLS

6 USING'THE PROFILES

7 SYSTEM OPTIONS,AND

PREFERENCES " -, ._

8 GE STANCE

9 REFERENCE

USING THE REMOTE

REMOTE CONTROL BUTTONS

ON-OFF When the remote control is in TV or DIRECTV mode, ON.OFF turns

the TV on or off. If in another component mode, (VCR, DVD, etc.) and

programmed, the remote will turn the component on and off. When pressed twice

within two seconds, all components that are on will be turned off (this feature only works with most RCA, GE, and PROSCAN products).

VCR1 Places the remote control in VCR mode and if auto tuning is enabled, it

will turn on the TV and tune to the correct video input channel for viewing VCR1. TV Turns on the'IV and tunes to the last-viewedrV channel. Also places the

remote control in TV mode. Placing the remote in TV mode enables you to access the TV's menu system as well as tune to analog, digital, or cable'IV channels.

DVD Places the remote control in DVD mode and if auto tuning is enabled, it will turn on the TV and tune to the correct video input channel for viewing your RCA,

GE, or PROSCAN DVD player. VCR2 Places the remote control in VCR2 mode and if auto tuning is enabled, it

will turn on theTV and tune to the correct video input channel for viewingVCR2. (LED) Light that indicates you're in programming mode when programming the

remote control. Also displays when a valid remote control button is pressed. AUX Places the remote in auxiliary mode in order to control the component (such

as a laserdisc player) that you have programmed it to control. Acts asa "wildcard" button, as it can be programmed to control anotherVCR, cable box, satellite

receiver, or an RCA, GE, or PROSCAN audio component. DIRECTV Places the remote control in DiRECTV mode, turns on the TV, and tunes

to the last-viewed DIRECTV_ channel. If you subscribe to DIRECTV_ programming, you must be in DIRECTV mode to view DIRECTV_ channels. Placing the remote in DIRECTV mode enables you to access the TV's menu system as well as tune to

DIRECTV®channels.

MUTE Reduces theTV's volume to its minimum level. Pressagain to restore volume.

SKIP Press once before changing channels and the TV will return to the original

channel after 30 seconds. Pressrepeatedly to add more time. If no other displays are present, pressing CLEAR will cancel the commercial skip timer.

CH +/- Scrolls up or down through the current channel list. Pressonce to change the channel up or down; press and hold to continue changing channels. If you are

in TV mode and press CH+/-, you scroll through TV channels. If you subscribe to DIRECTV_programming and are in DIRECTV mode, you scroll through DIRECTVe

channels. In DVD mode, CH +/- will skip chapters on a disc played by RCA, GE, or PROSCAN DVD players.

VOL UP/DOWN Adjusts theTV's audio volume. FETCH Brings up the Fetch menu, which isa list of most commonly accessed

menu items.

LED

USING THE REMOTE

GO BACK Moves you back and forth between the lasttwo channels selected in either

DIRECTV mode orTV mode. For example, if you have been viewing both DIRECTMm

and TV channels (and thus using both the DIRECTV and TV "modes"), pressingGO

BACK while watching a DIREC-rv ° channel moves you back to the last DIRECTVe channel you viewed. Pressing it while watching a TV channel moves you to the last TV

channel you viewed. In the menu system, pressing GO BACK returns you to the

previous menu screen. (Light Bulb Button) Pressto illuminate some of the remote control's buttons. To

conserve battery power, the light turns off after several seconds. GUIDE When in TV mode, brings up theTV program guide. In DIRECTV mode,

brings up the DIRECTM° programming guide. Subsequent pressesof the GUIDE button scroll through the different types of guides. Press GUIDE after pressing INPUT to get a

guide-like list of available video input channels. INFO Brings up channel and viewing information via the channel banner. Quickly

press again to bring up an extended channel banner and press a third time to remove the banner. Presswhen in the program guides to get more information on the

highlighted program or channel. ARROWS Used to point to different items in the menu system and adjust the menu

controls. Also move the PIPwindow when no menus are on the screen. OK When in the menu system and other on-screen displays, selects highlighted items.

MENU Brings up the main menu and selects highlighted items. When in using an RCA, GE, or PROSCAN VCR and in VCR mode, it functions as a PROGRAM button.

CLEAR Removes on screen displays and returns to normal viewing. If no displays are present and the skip timer is set, CLEAR will cancel the commercial timer.

DIGIT BUTTONS (0 - 9) Enters channel numbers and time settingsdirectly though the remote control. Formore information on entering digits to change channels, seethe

section "Basic "IV Operation." When in the menus, the digit buttons can be used to directly select items without usingthe arrows. 0 can be used to return to the previous

menu screen. INPUT Toggles through the available external input sources.

ANTENNA Switches the source of the off-air signal between the HDTV's ANTENNA A and B. When in VCR mode, the ANTENNA button also functions asaTV/VCR button.

REVERSE,PLAY, FORWARD, RECORD, STOP, PAUSE If programmed, provides

transport control for some remote-controllable VCRs, DVD players, laserdisc players, tape decks, and CD players when the remote is in that mode. When in "IV or DIRECTV

mode, FORWARD will toggle through screen formats. PIP (Picture-in-Picture) When viewing an analog signal, brings up the small PIP

window. Pressagain to hide PIP. SWAP Exchanges the main analog picture with the analog PIPwindow. CH CTRL (Channel Control) Selects the picture window (either the main or PIP

window) that will change when you press the CH +, CH -, INPUT, or digit buttons on

the remote control. WHO Toggles through user profiles.

Don't worry about getting stuckinside a menu.

Pressing the CLEAR

button on the remote control takes you out of

the menu system.

USING THE REMOTE

PROGRAMMING THE REMOTE CONTROL

The universal remote can be programmed to control most brands of remote controllable components, such asVCRs. The remote is already programmed to control most RCA, GE and PROSCAN TVs, VCRs, DVD players, and laserdisc players.

TESTING THE REMOTE CONTROL

To determine whether the universal remote control requires programming, turn on a

component, such as a VCR, point the remote control at the VCR, and press the VCR1 button. Then press ON*OFF or CH + (channel up) or CH - (channel down) to see if the

VCR responds to the remote control commands. If not, the remote control requires

programming.

PROGRAMMING THE REMOTE CONTROL

Using Automatic Code Search

The following instructions can be used to program the remote control. If you want to exit the automatic code search without programming any of your components, press

and hold CLEAR until the LED light on the remote control turns off.

Turn on the component you want to control (VCR, etc.).

Pressand hold the button you want to program (VCR1, VCR2, etc.). Note that the

AUX button can only be programmed using direct entry (see the next section for

details). While holding the component button, press and hold ON.OFF until the LED light on the remote control turns on, then release both buttons.

Point the remote control at the component you want it to control. Pressand release PLAY, then wait five seconds or until the LED light stops flashing.

At this point the remote control is searching for the correct code to program. If, after five seconds, the component you want to control does not turn off, press PLAY

again to tell the remote control to search the next set of codes. Continue pressing PLAY until the component turns off or you have searched

through all of the codes. There are20 total setsof codes. If the component does not turn off after pressing PLAY 20 times, then the remote cannot control that particular

component.

If the component you want to control does turn off:

1. Pressand release REVERSE,then wait two seconds. Repeat this step until the component turns back on.

2. To finish, press and hold STOP until the LED light on the remote control turns off.

LED

g ba

& &

You'llusethesebu_.onswhen youprogramthe remoteto

con_o#anycomponent

Theremotemayt_t operateall modelsofallbrands.

UOllNk_x II-IF__ l_ISIVlk.2i]L

Using Direct Entry

1. Turn on the component to be programmed.

2. Look up the brand and code number(s) for the component on the code list in the section "Remote Control Codes" on the following page.

3. Pressand hold the remote control button you want to program.

4. Enter the code from the code list.

Release the button, and then pressON-OFF to see if the component responds to the remote control commands. If it doesn't, try pressing the component button and then ON.OFF again.

If you get no response, repeat these steps using the next code listed for your brand until the component respondsto the remote control commands.

This remote control may

not operate all models

of the brandsthat are shown. Use the codes

shown in this manual, or on the sheetpacked

with your remote control.

USING THE REMOTE TO CONTROL A COMPONENT

Once the remote has been programmed successfully, you are ready to use it to control

your components, such as a VCR, DVD player, or laserdisc player. To operate the component:

1. Pressthe component button (VCR1, VCR2, DVD, or AUX) to set the remote to control the component.

2. PressON-OFF to turn the component on or off.

3. Use the remote control buttons that apply to that component.

Use the AUX button to | control a separate

]

satellite receiver, if necessary. Do not

reprogram the DIRECTV " button.

USING THE REMOTE

REMOTE CONTROL CODES

kV£qd

Admiral .......................................... 2131

Adventura ........................................2026

Aiko ...................................................2027

Aiwa .......................................2002, 2026

Akal ,.,.., 2003 2004, 2005, 2007. 2008,

2111.21 2,21 3

American High ................................ 2021

Asha ...................................................2013

Audio Dynamics .................. 2009, 2010

Audiovox .........................................2014

Bell& Howell ...................................2011

Beaurrmrk.........................................2013

Broksonic..............................2012, 2025

Callx ................................................ 2014

Candle.. 2013. 2014, 2015, 2016, 2017,

2018,2019

Canon ......................... 2021, 2022, 2114

Capehart .............................. 2026. 2110

Carver .......................................... 2062

CCE ................................ 2027, 2061

Citizen. 2013. 2014, 2015. 2016, 2017

2018,2019,202t

Colortyme ......................................2009

Colt ............................................... 2061

CrakJ.............. 2013. 2014, 2023, 2061

Curtis-Mathes 2(X)O,2002, 2009, 2013,

.... 2016, 2018, 2021, 2022, 2024. 2115

Cybernex .........................................2013

Cae_oo 2015, 2017, 2019,2025. 2026,

2027, 2029, 2110

Daytron ............................................2110

Obx .........................................2009, 2010

Dknensia ..........................................2C00

Dynatech ...............................2002. 2026

[lectrohome .........................2014. 2029

[lectrophonic .................................2014

Emerson .................... 2002, 2012.2014,

.... 2015, 2021. 2024, 2025,202_2029.

2030. 2032, 2033, 2034, 2035.2036. 2037, 2038. 2039, 2040, 2041,

... 2042, 2044, 2045, 2047, 2065. 2105,

2113,2116,2117.2130

Ftsher... 2011, 2023. 2048 2049 2050

205_i.205;_.211_

Fuji ..................................... 2021. 2119

Funai................................... 2002. 2026

Gan*ard ........................................ 2026

GE 2000 2001 2013, 2021. 2022. 2053

2 16. 212_

Goldst_ Z0Gg.2014. 2016, 2054. 2121

GrKilente ....................................... 2026

Harley Oavidson ........................ 2026

Hatman K=rdon ............................ 2009

Ha'wood ........................................ 2061

Headquarter ................................. 2011

HPJ_hi...2002. 2055, 2056. 2057 2107,

2111, 212_, 2122

HI-Q ............................................. 2023

Ir_t Replay ............................2021

JCL......................................... 2021

JC Penney .__. 2(X_9,2010, 2011. 2013.

2014. 2021,

_ 2022,2056, 2056. 2059. 2059 2060

210Y,Zllii

......................2o55.2056.2111

IVC ...2009, 2010, 2011,2018, 2058. 2111,

2123

Kenwood ...2009. 2010, 2011 2016. 2018,

2054, 2111,2123

KLH .......................................................2061

Kodak .........................................2014. 2021

Lloyd ...........................................2002, 2029

Logik.....................................................2061

LXI ..................................................... 2014

Megna_x .. 2021, 2022. 2062. 2063, 2104,

2108, 2124

Megnlo.................................................2013

Marantz ...........................2009, 2010, 2011,

........... 2016. 2018, 2021, 2058, 2062,2064

Mart= ................................................ 2014

MasuShita..............................................2021

MEI ..........................................................2021

Memorex ................................. 2002, 2011,

2013. 3014. 2021, 2023, 2026. 2104,2131

MGA .............................. 2029, 2065,2113

MGN TechnOlogy.............................. 2013

Midland ........................................ 2053

Minolta ....................... 2055. 2056. 2107

Mirsubishi.. 2029, 2055. 2056. 2065. 2066.

2067, 2069,

.........2070. 2071. 2072, 20/3. 2074. 2106

2113.212_

Montgomery Ward ................. 2075. 2131

Motorola .................................. 2021,2131

MTC ................................2002. 2013, 2026

Mu tech. 2002 2013 2016 2026.2053,

2061

NEC ...........2009, 2010. 2011,2016, 2018,

2058, 2064,2076, 2078, 2079, 2111, 2123

Nikko .................................................. 2014

Noblex .................................................2013

Olympus ..............................................2021

Optimus .....................................2014, 2131

Optonica..............................................2096

(Orion ................................................. 2035

Panasonic.. 2021, 2022, 2109, 2125.21126/ Pentax ,...,.. 2016, 2055, 2056. 2107, 2120

Pentex Research ................................2018

Philco................. 2021, 2022, 2062. 2063

Philips................ 2021, 2062, 2096. 2124

Pilot ............................................. 2014

Pioneer..... 2010. 2055, 2080, 20_1, 2123

Poland ........ 2016. 2017. 2019, 2110

......................... 2000. 2001

Prote¢ ................................. 2061

Pulsar........................................ 2104

Quarter ............................. 2011

Quartz ......................................... 2011

Quasar ................... 2021, 2022, 2125

RCA ....... 20GO,2001, 2003, 2013, 2021,

2055 2056. 2082, 20e3, 2084,2085,

.......... 2086.2087,

2088, 2089. 2090,2091, 2107, 2115, _1120_

RadioshzckJRealisti¢..-.. 2002, 2011. 2013.

2014

• .2021,2022,2023,202 2029 2049

.... 20_, 2_J_. 2137

Radix................................... 2014

Randex ................................... 2014

Rlcoh .................................... 2128

Runco ..........................................................2104

5amsung 2005, 2013. 2015, 2033, 2053, 2112

5anky ..............................................2131, 2104

5amui ........................2010, 2092, 2111.2123

Sanyo .....................................2011. 2013, 2023

Scott .....2012,2015, 2025. 2032, 2035. 2038

2065. 2093, 211

Sears...............2011. 2014. 2021. 2023, 2046.

.... 2049. Z050, 2051. 2055, 2056. 2107, 2118

Sharp ....2CO2,2017. 2029,2094, 2095, 2096,

2131

Shintom......................2004, 2056. 2061, 2098

Shogu_ ........................................................2013

Signature .........................................2002, 2131

Singer................................ 2021, 2061, 2128

,... 2002, 2004, 2098, 2099, 2119, 2128

5T5 ...................................................2021, 2107

5yh_anm.2002, 2021. 2022, 2026. 2062, 2063,

2065, 2124

Symphonic.....................................2002, 2026

T=ndy........................................... 2002, 2011

Tashiko................................................... 2014

Tatung..................................... 2058, 2111

TEAC ...............2002,2026, 2058, 2085. 2111

Te_nics ................................... 2021, 2109

Teknika, 2002, 2014, 2021, 2026, 2100, 2129

TMK ....................................2013, 2024, 2047

To_lba, 2015, 2049. 2051, 3055, 2065, 2093,

2116

ToteVision ......................................2013• 2014

Unitecfl .................................................. 2013

Vector Research ...... 2009, 2010, 2015. 2016

Victor ........................................................2010

Video Concept_ ****,..2009, 2010, 2015, 2016,

2113

Videosonk: ............................................. 2013

Wards. 2002,2013,2014,2015,2021,2023,

• 2026.

.... 2029, 2055, 2066, 2061. 2096 2101, 2102,

2103.210_, 2116. 2131

XR-1000 .......................... 2021, 2026, 2061

Yamaha. 2609, 2010, 2011,2018, 2058, 2111

Zenith............. 2004, 2098, 2104. 2119, 2128

ABC ..- 5002, 5003, 5004. 5005, 5006, 5007,

5053

Antro_ix ............................... 5008, 5009

Archer ................. 5008. 5009, 5010, 5011

Cabletenna ...................................... 5006

Cableview ....................................... 6008

Century .............................................. 5011

Citizen .............................................. 5011

Colour_,_ice.......................... 5012. 5013

Comtroni= .............................. 5014. 5015

Co_tec ........................................... 5016

Jasco................................................... 5011

brrold ,.. 5003. 5Q05,5007.5018, .- .- ----_c.n2_, 50N_4_

Magna_ox...................................... 5025

Memorex ........................................ 5026

Movie Throe............... 5002. 5027, 5028

N5C ....................... 5002. 5027, 5028

Oak ......................... 5002,5016. 5029

P=naso_lo.............................. 5048, 5052

Paragon..............................................5026

Philips.............. 5011 5012 5013 5019

so2_,5o_. so3_,so3_

Pioneer................................. 5033. S034

Pulsar.................................................5026

RCA ............................5047, 5049, 5052

Realistic..................................50_, 5049

Regal ......................................5022, 5035

Regency ..........................................5017

Rembrandt ..................................... 5003

Runco .......................................... 5026

Sa_ueg ............................ 5014, 5034

ScientificAtlanta5006, 5036.5037, 5038

Signal..................................... 5014. 5018

Signature..........................................5003

SL Merx ........................................ 5014

Sprucer ..............................................5052

Starcom.......................5007, S018, S053

Stargate................................ 5014. 5018

Starquest......................................... 5019

Tandy ..................................5040

Televbew..................................... 5014

Tc¢om ....................... 5004,5023. 5041

Toshiba........................................ 5026

Tusa..................................................5018

TV86 ........................................... 5027

Unik= ......................... 5008,5009. 5011

United A_Jsts ........................ 5002

United Cable ................................ 5053

Universal......... 5008. 5009,5010, 5011

Videoway ................................ 5044

Viewstar .......... 5015, 5025, 5027, 5040

Zenith ........................ 5026, 5050,5051

Chapparal ........................... 5056, 5057

Drake ................................. 5058. 5059

GE ....................................... 5000, S001

General Instruments. 5060,$061,5062

Panasonic........................................ 5075

Primestar ...................................... 5076

PROSCAN ......................... 5(X)O,5001

RCA .................................. 5000,5001

Reegstic................................... 5063

Sony ......................................... 5072

6T51 .................................. 5064

STS2......................... 5065

STS3.................................. 5066

STS4.......................................... 5067

Toshiba ..................................... 5068

Toshiba...................................... 5073

Uniden..................................... 5069

(For RCA and OImende brmd_ o_ly)

AM/FM ............................. 4003

Aux ................................. 4004

Pho_lO .................................. 4005

CD ............................... 4007

T=pe ........................... 4Q06

BASIC TV OPERATION

THE INS AND OUTS OF USINGYOUR HDTV

This section tells you about banner, which

press INFO on the remote. It also describes how to char

and how to use PIP

This section gives you a brbad

operate the basics of yourTV.".

knnel

]nd modes

' of how to

I SETUPAND CONNECTIONS

• .,,o 1

4 USIt_GTHE

GUIDES',

•i

"" 5 ADJL_STINGTV CONTROLS

6 USIN,GTHEPROFILES

7 SYSTEM OPTIONS AND

PREFERENCES ""- ', _J.,_r'1

•8 G__rg-TANCE

9 REFERENCE

BASIC TV OPERATION

ABOUTTHE CHANNEL BANNER

The channel banner appears whenever you tune to a channel or press INFO on the remote control. When the banner isdisplayed, pressing INFO gives extended

information, when available. Use the arrow buttons and OK to choose an icon in the

channel banner. Channel banner icons represent frequently-used features. Some icons change

appearance to show the item's status or availability.

Program ride,start and end time, rating, current audio

language,and audio mode availability

' Please note that when "

you're in TV mode, the channel banner will not look the sameas when

you're in DIRECTV mode (if you subscribe to

DIRFCTM_ programming).

Channel logo,when available

Indicates incoming signalaspect ratio and screen format applied to it

Mainpicture

Takesyou to the Main menu --

Toggles between TV mode and DIRECTV mode --

07/mode only)

andUme

selectable profiles

Searches titles of all DIRECTI_ pro-

1 - gramming guides for specificinformation

_-- Sorts titles of the current DIRECTVpnxJramming

guide for specific information Displays mail from program providers

cycles

through the audio language choices

Locks and unlocks the system or unlocks the video

BASIC TV OPERATION

CHANNEL BANNER ICONS

Main menu icon When selected, takes you to the main menu.

TV/DIRECTV logo When selected, toggles between "IV and DIRECTV viewing. The highlighted icon indicates the current viewing state.

Green unlock icon Indicates that the systemis unlocked. Spending, viewing and other limits can be accessed and changed. When selected, locksthe system.

Yellow unlock icon Indicates that a password has been entered to override

profile limits. No limits can be accessedor changed. When selected, locks the

system.

Red lock icon Indicates that no limits can be accessed or changed. A password is required to override limits or accessthe system.

Audio language icon If the icon is highlighted while watching a digital (ATSC) or

DIRECTVe channel, two or more audio languagesare available. Selectingthe icon repeatedly scrolls through, and plays the options.

If the icon is highlighted when watching an analog (NTSC) TV channel, a Second Audio Program (SAP) isavailable. Selecting the icon will playthe SAPfor the current channel until the channel is changed.

Highlighted mail icon Indicates that you have a messagein your mailbox from your DIREC'I'V_ programming provider. Select this icon to accessthe mailbox and

read your mail. AlphaSort- (A-Z) icon When selected, allows you to sort currently-listed program

titles alphabetically.

Highlighted Scout" (binoculars) icon When highlighted, indicates a Scout has

found a program. If selected when highlighted, you view the Scout'sresults.If you

selectthe icon when it is not highlighted, you can set up a Scout to find a program

for you.

Press INFO on the remote'

control twice to view an

expanded channel banner

that shows a program description (when

available).

BASIC TV OPERATION

CHANGING BETWEEN DIRECTV AND TV MODE

When you change channels by entering numbers with the remote control, you tune to programming that can come from one of three different sources: the DIRECTV satellite

(if you have DIRECTV service), a terrestrial off-air antenna, or cable TV. You tune to one of these sources by pressing either TV or DIRECTV on the remote control; then you can enter the channel numbers. The diagrams below show how your remote control

communicates with the three sources.

In DIRECTV mode, you tune to channels

that come from the DIRf_CTV satellite signal (if you subscribeto DIRECTV_ programming). Enterchannel numbers that are one to four digits long. Then pressOK

to tune.

In TV mode, you tune to channels that carry the terrestrial off-air or cable TV

signal.

• To tune to an analog channel, enter channel numbers that are up to three

digits long. Press OK to tune.

To tune to a digital channel, enter channel numbers that are one, two, or

three digits long. If necessary,pressthe right arrow and enter a subchannel

number. These subchannel numbers

appear in the box to the right of the primary channel number. PressOK to

tune.

-- R_h[ arrow button

BASIC TV OPERATION

CHANGING CHANNELS

To change channels by entering numbers with the remote control, the remote needs to be in the correct "mode": either DIRECTV mode (if you subscribe to DIRECTV) or TV

mode.

When you want to watch DIRECTV ® programming, put the remote in DIRECTV

mode

1. Make sure the TV is in DIRECTV mode by pressing DIRECTV on the remote control.

2. Enter the channel number and press OK. If you do not enter at least three digits, "???" will appear in the channel entry box, and the system will wait for a valid entry.

When you want to watch a digital or analogTV

channel, put the remote in TV mode

If you want to watch a digital channel:

1. Make sure the"IV is in TV mode by pressing TV on the remote control.

2. Enter the primary channel number. This number will appear in the primary channel entry box. If there is no subchannel,

press OK.

If the primary channel number has fewer than three digits and

you want to enter subchannel numbers, press the right arrow to advance to the subchannel entry box.

Enter the number of the subchannel. This number will appear in the subchannel entry box.

I_ressOK on the remote control to tune to the channel.

Channel entry box

If you want to watch an analog channel:

1. Make sure the'IV isin'IV mode by pressing TV on the remote

control,

2. Enter the channel number. This number will appear in the primary channel entry box. (Analog channels don't have

subchannels.)

3. PressOK on the remote control to tune to the channel,

O,RECTV

Highlightedto indicate DIRECTVmode

Subohannel Highlightedto indicate entrybox TVmode

Primarychannel entrybox

Note that you can always use the channel up and

down buttons on the

remote control to change channels within the

DIRECTV and TV modes.

+ 67 hidden pages

ProScan PS38000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
