ProScan PLCD3992A User Manual
PROSCAN
39" 1080p LCD Television
PLCD3992A
Contents
Contents
Caution
Safety Information
Unit and Accessories
Product Feature
Introduction
1. Front View
2. Rear View

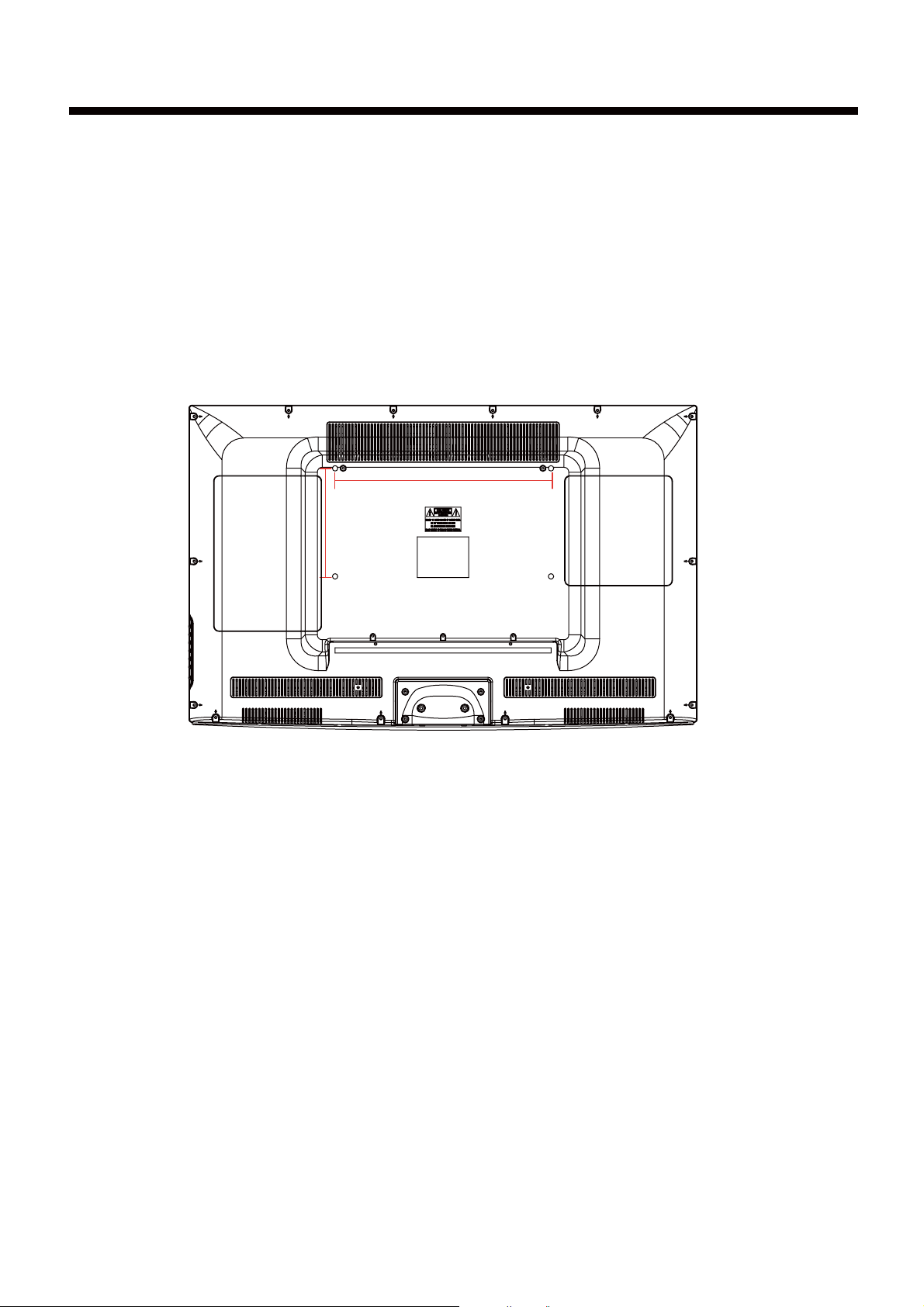

3. Instruction for Wall Mount 7

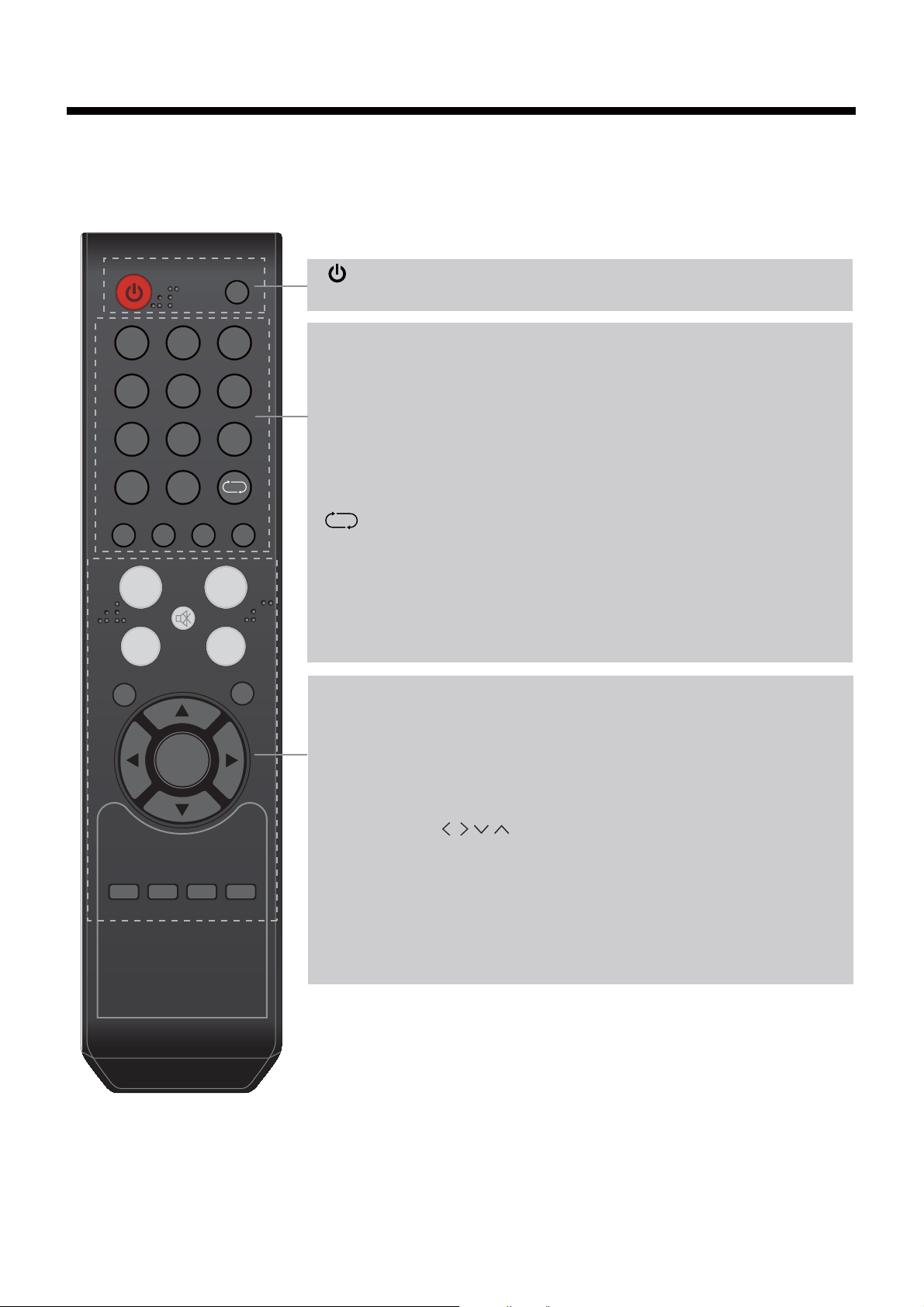

4. Remote Control
Basic Operation
OSD Menu

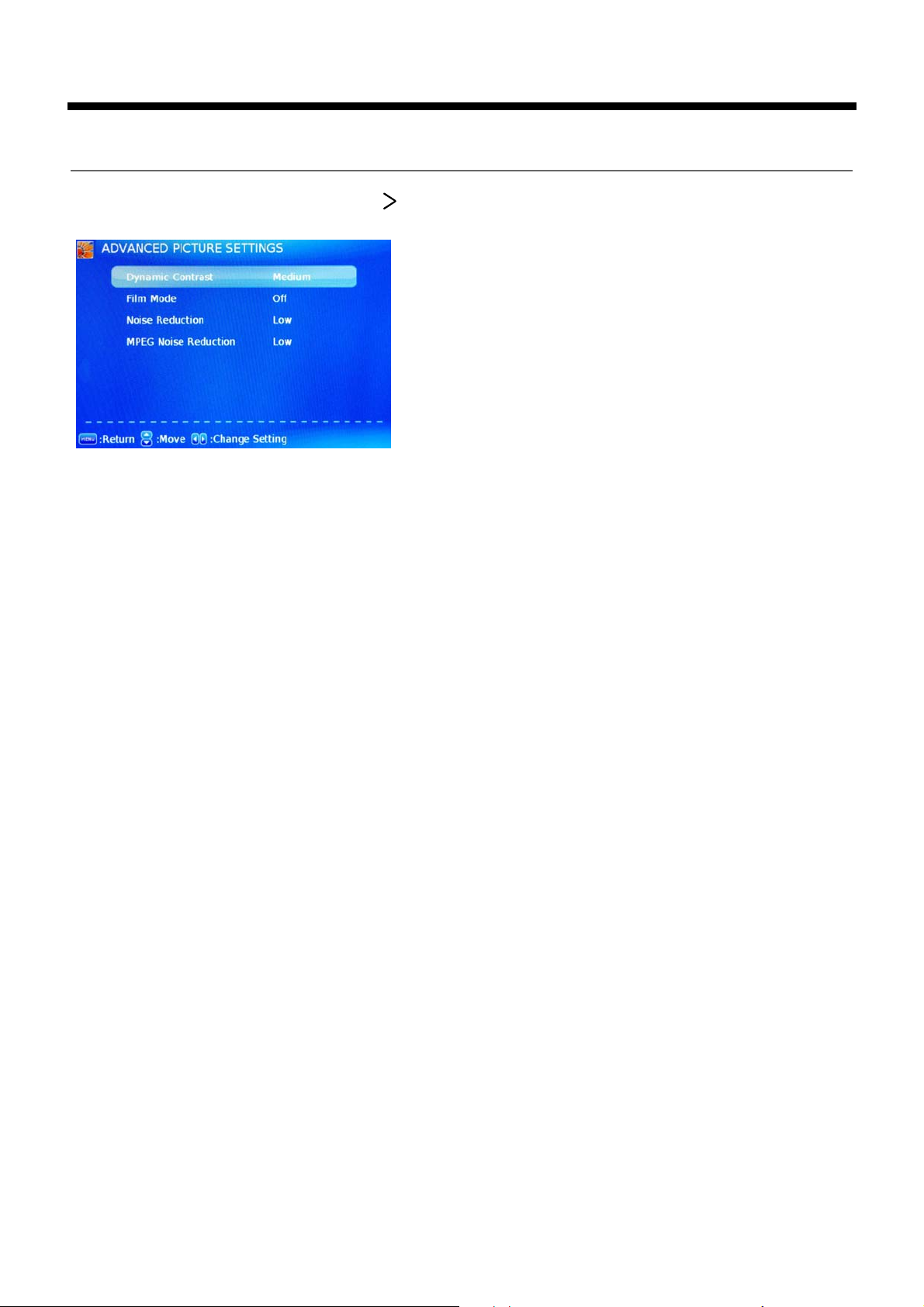

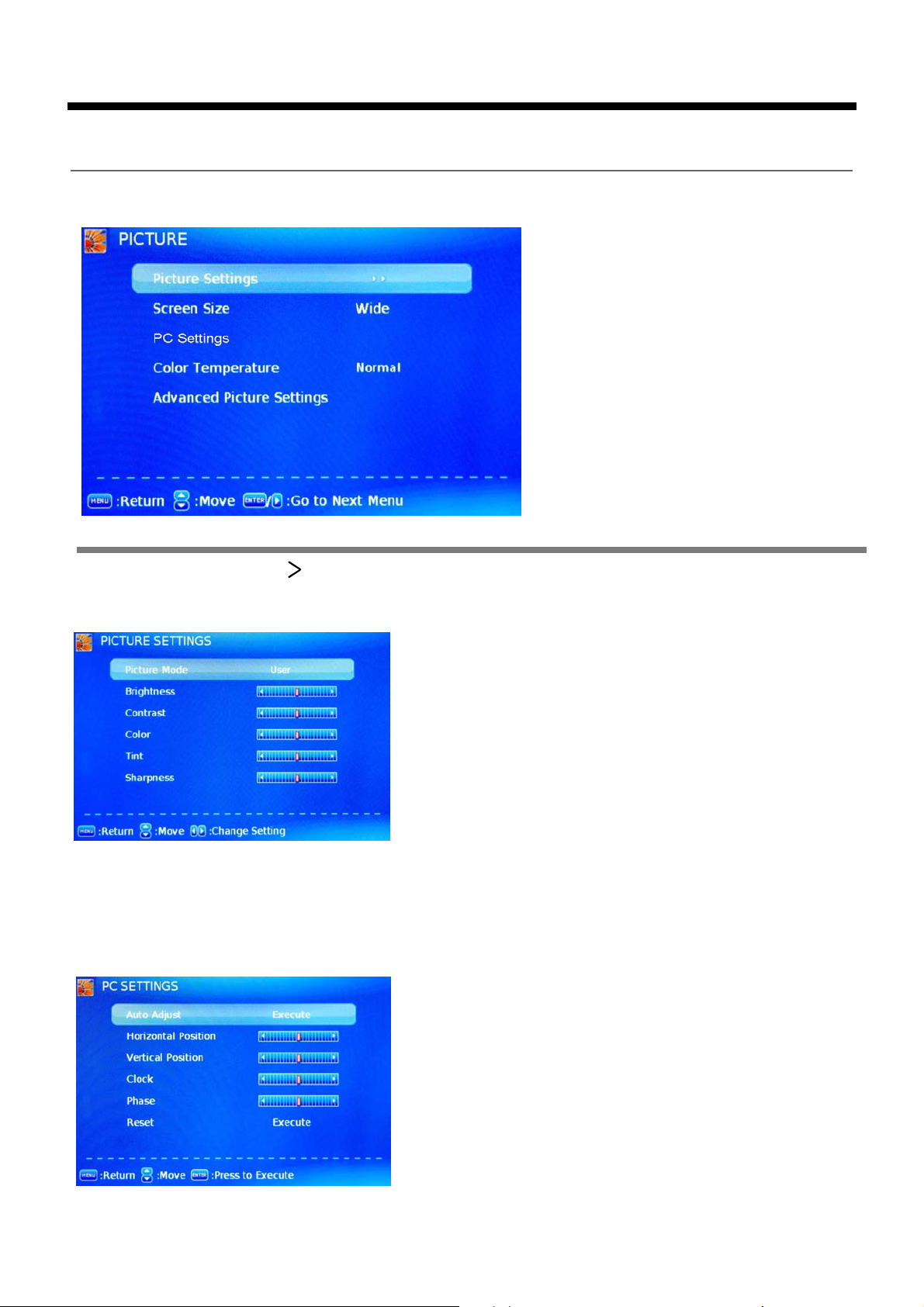

1. Picture menu

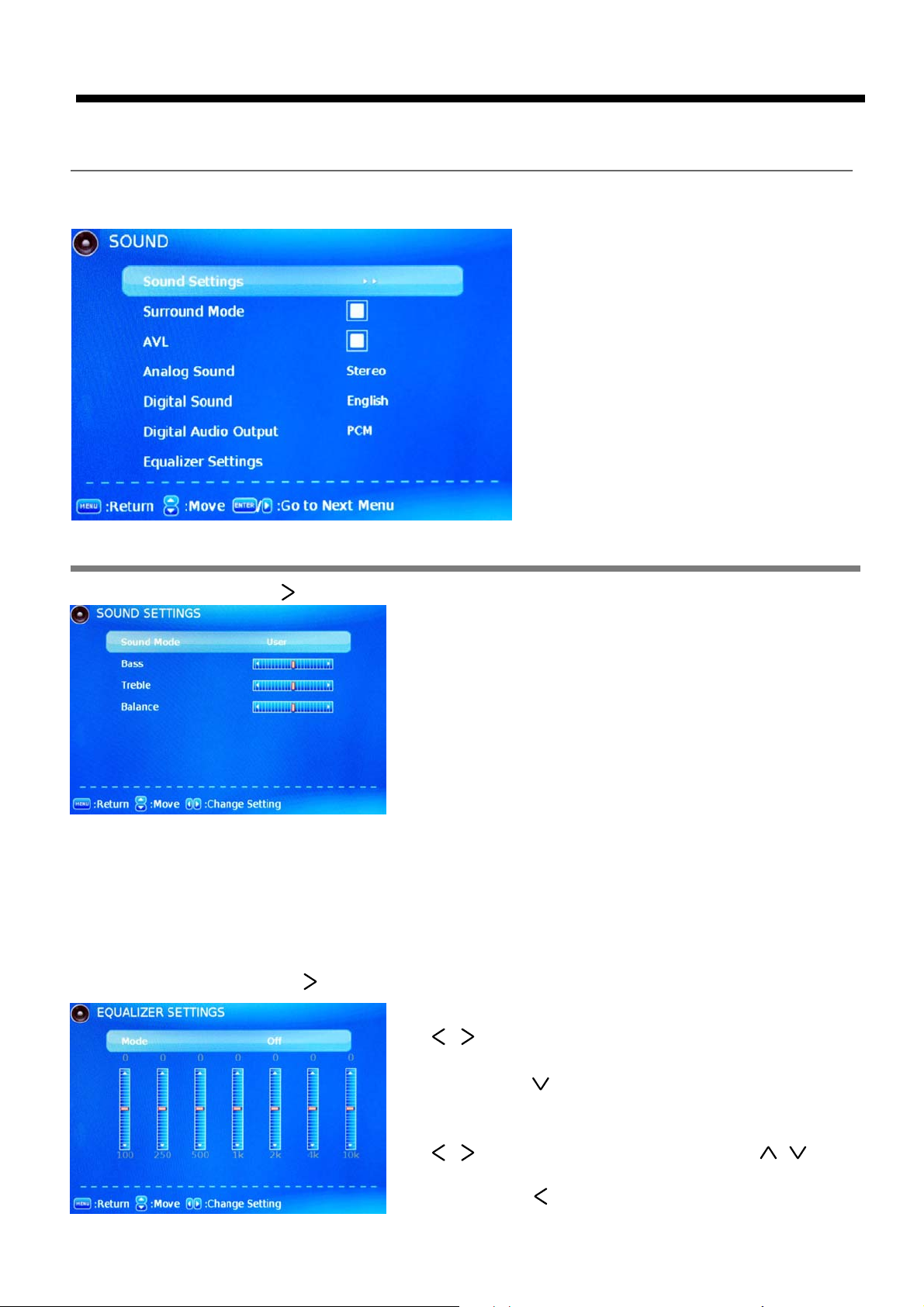

2. Sound menu

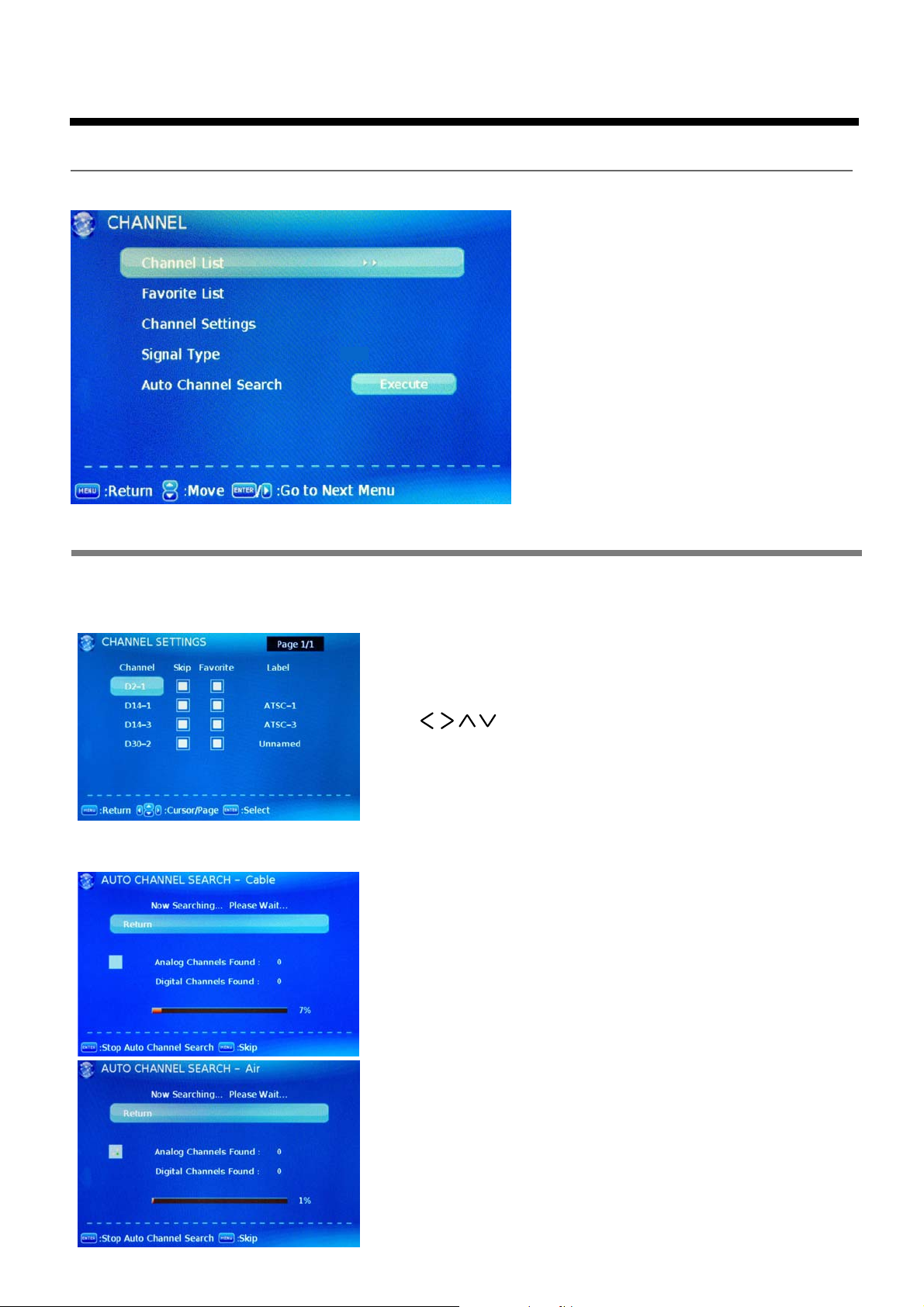

3. Channel menu

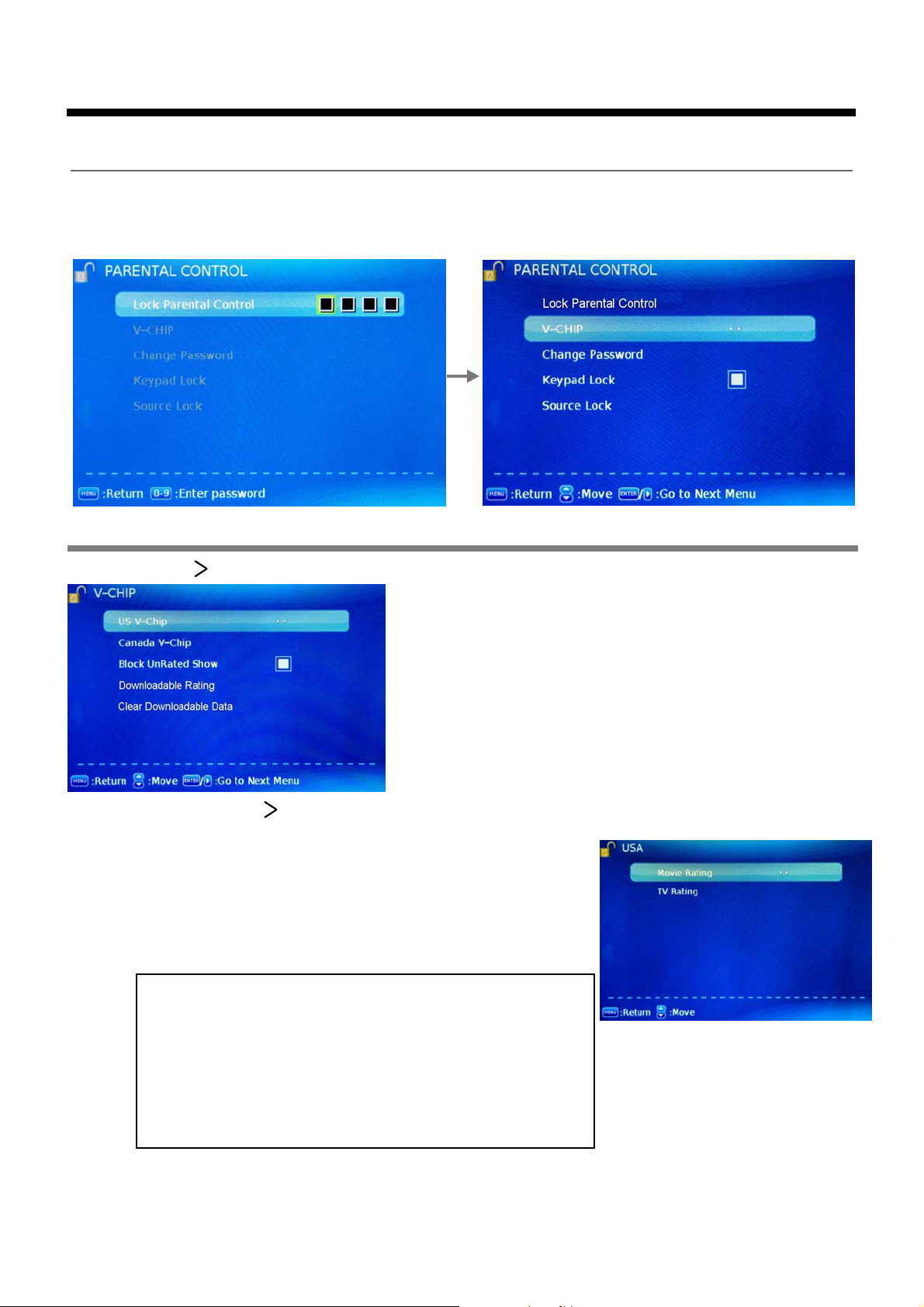

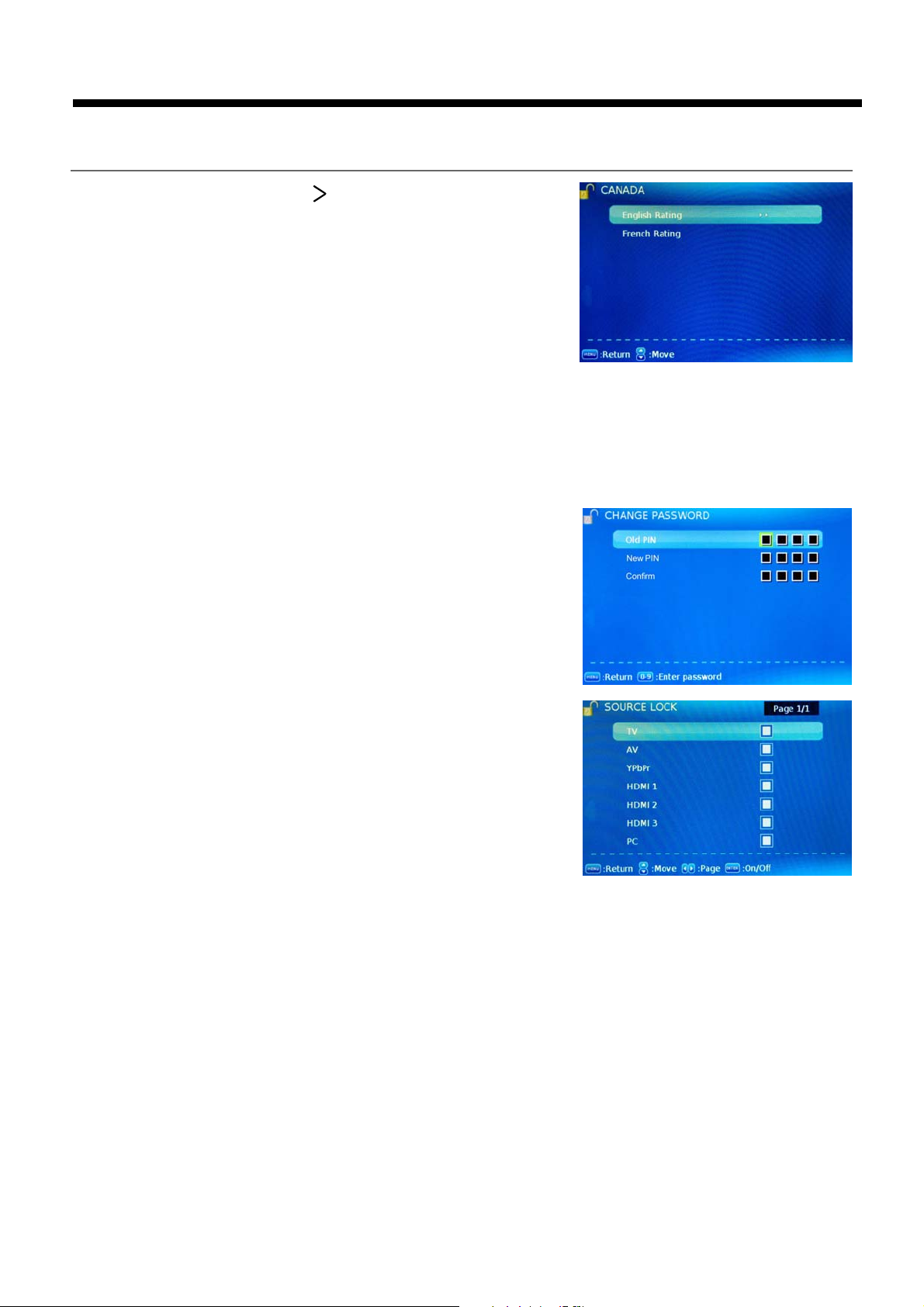

4. Parental Control menu

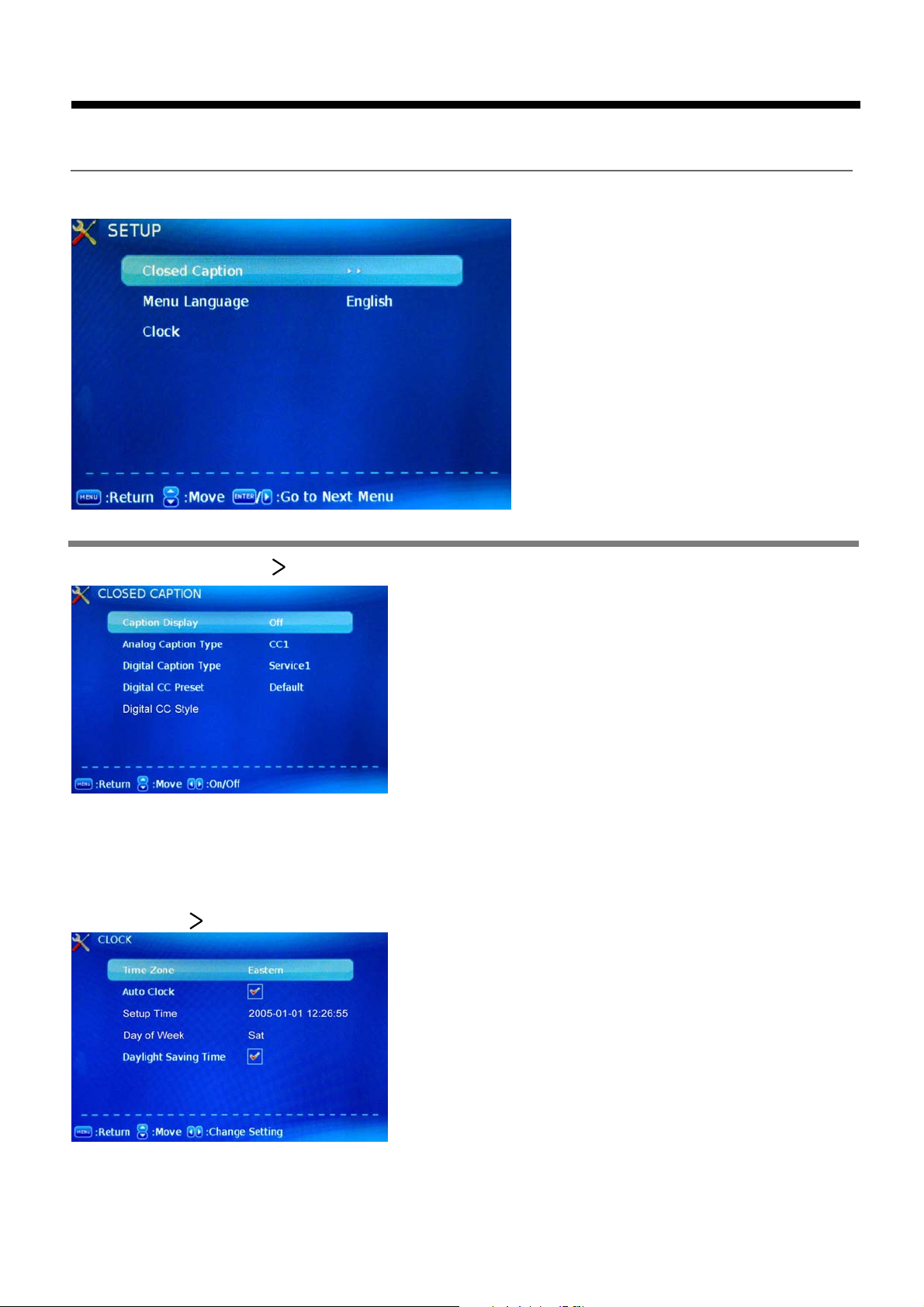

5. Setup menu

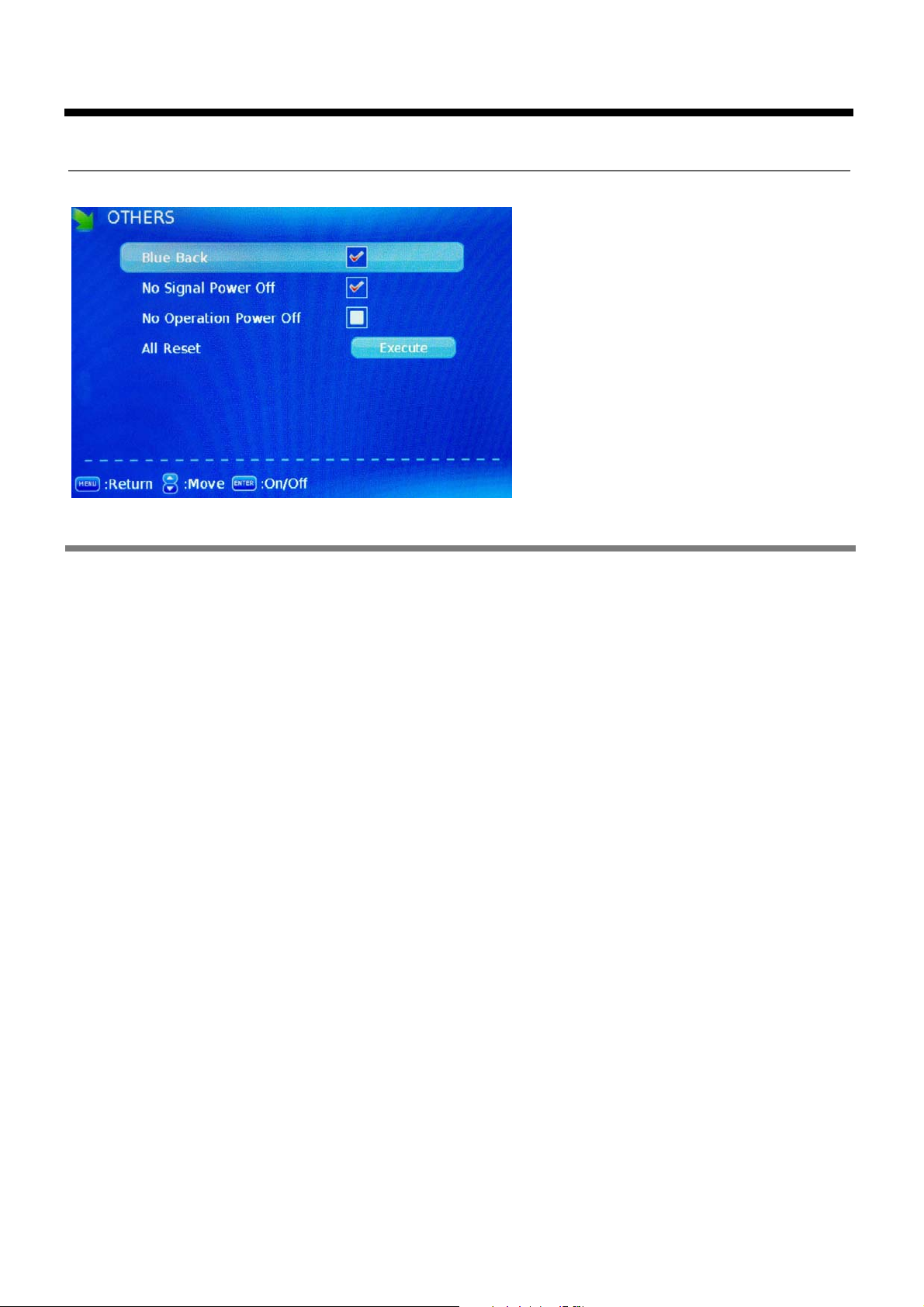

6. Others menu
2
3
4
4
5-9
5
6
8-9
10
11-18
11-12
13
14
15-16
17
18
Simple Troubleshooting
19
20
1
Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their endof-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
2
Safety Information
Electrical safety
the power cable
Safety Information
Physical safety
3
Unit and Accessories
Instructions for fixing TV stand
The parts
(There are three parts for installing stand)
1.TV
Note: the pictures below are only for reference
Installation
Put stand on the stand rear cabinet, fix the
stand with four pieces of screws(B4*18F)
Unit and Accessories and Product Feature
TV set
INPUT
123
456
789
0 -/--
PICTURE SOUND SLEEP DISPLAY
VOL+
VOL-
CH+
MUTE
CH-
MENU
EXIT
2.stand base
3.Screws
4×B4×18F
Stand Installation Guide
3. Fix with 4 pieces of screws,
2. The two longer stand
legs are downwards,
1.The panel is facing
downwards
User's Manual
CC EPG
Remote Control and

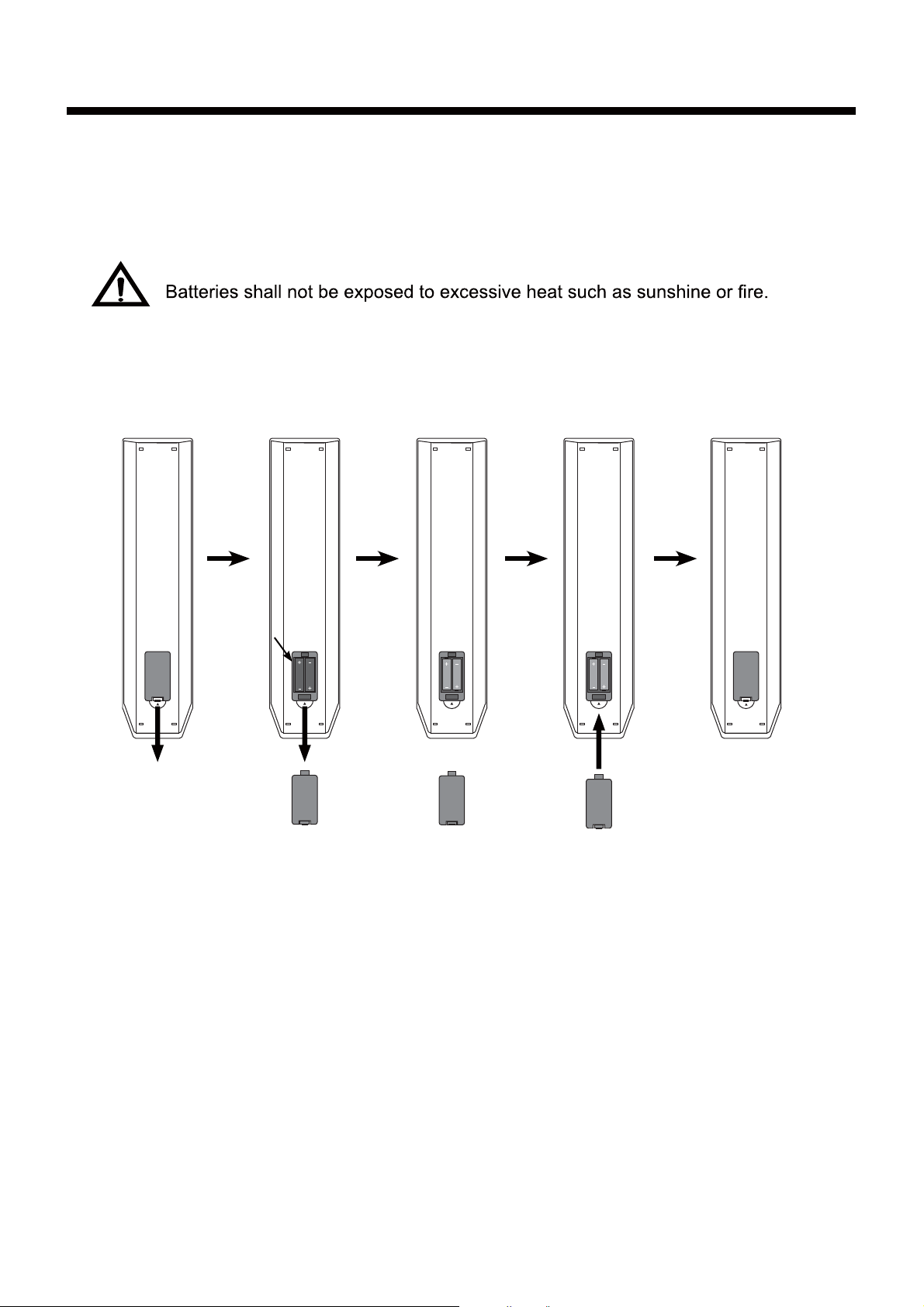

Batteries (AAA x2)

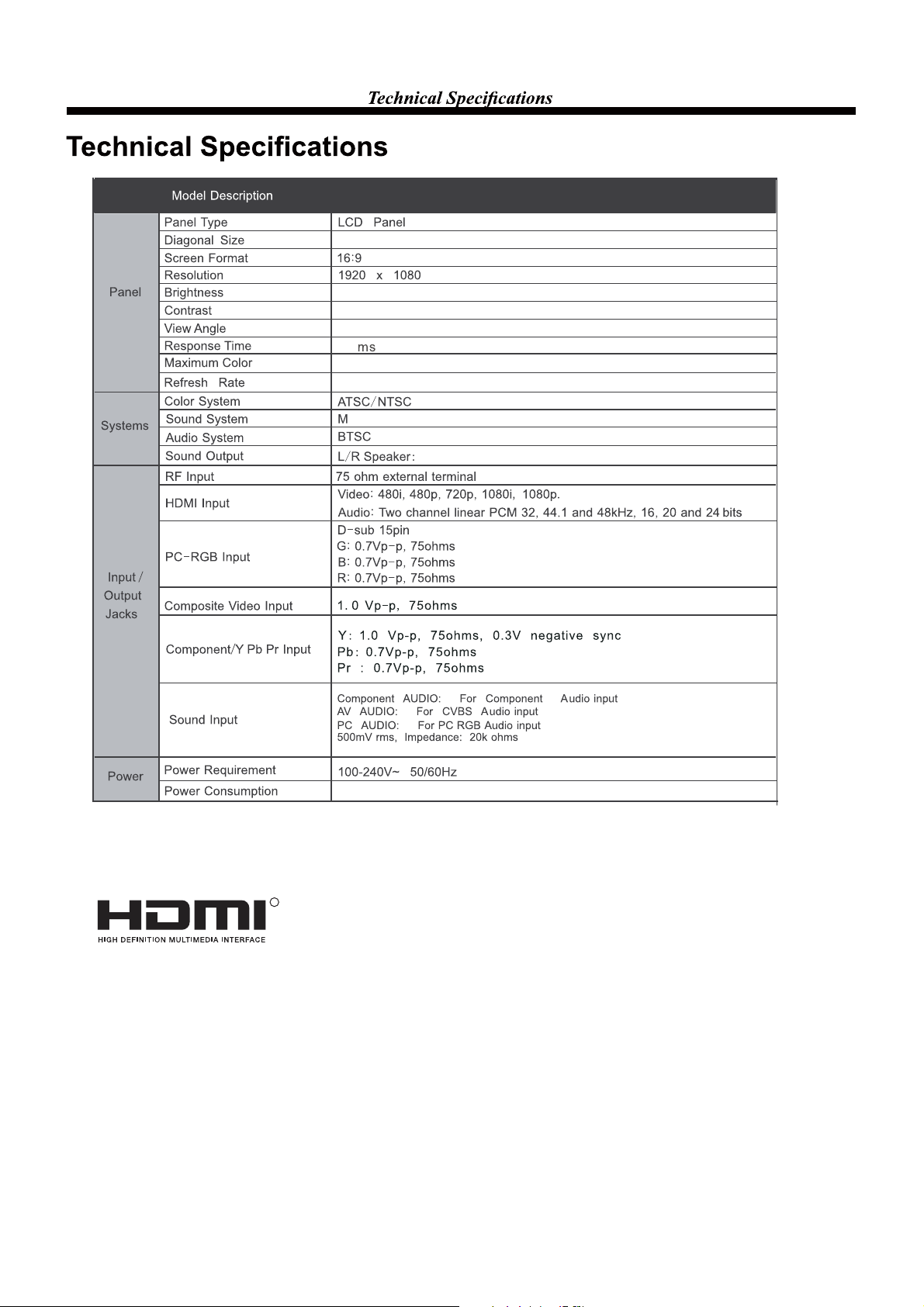

Product Feature
39
1920 x 1080 native resolution for Full-HD(1080p) performance
Three HDMI inputs for true digital connections
®
OK
FAV
MTS
Power Cord
HDMI is a trademark of HDMI Licensing LLC in the United States and other countries.
4
Introduction
1. Front View
Introduction
INPUT MENU CH+ CH- VOL+ VOL - POWER
Power Indicator
Remote Control window
(Keep clear)
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
The effective receiving range for the signal is 5-8 metres from the front of the remote
0
control window, and 30
to the left or right side and 200 above or below the remote control
window.
2). The functions of the buttons:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.

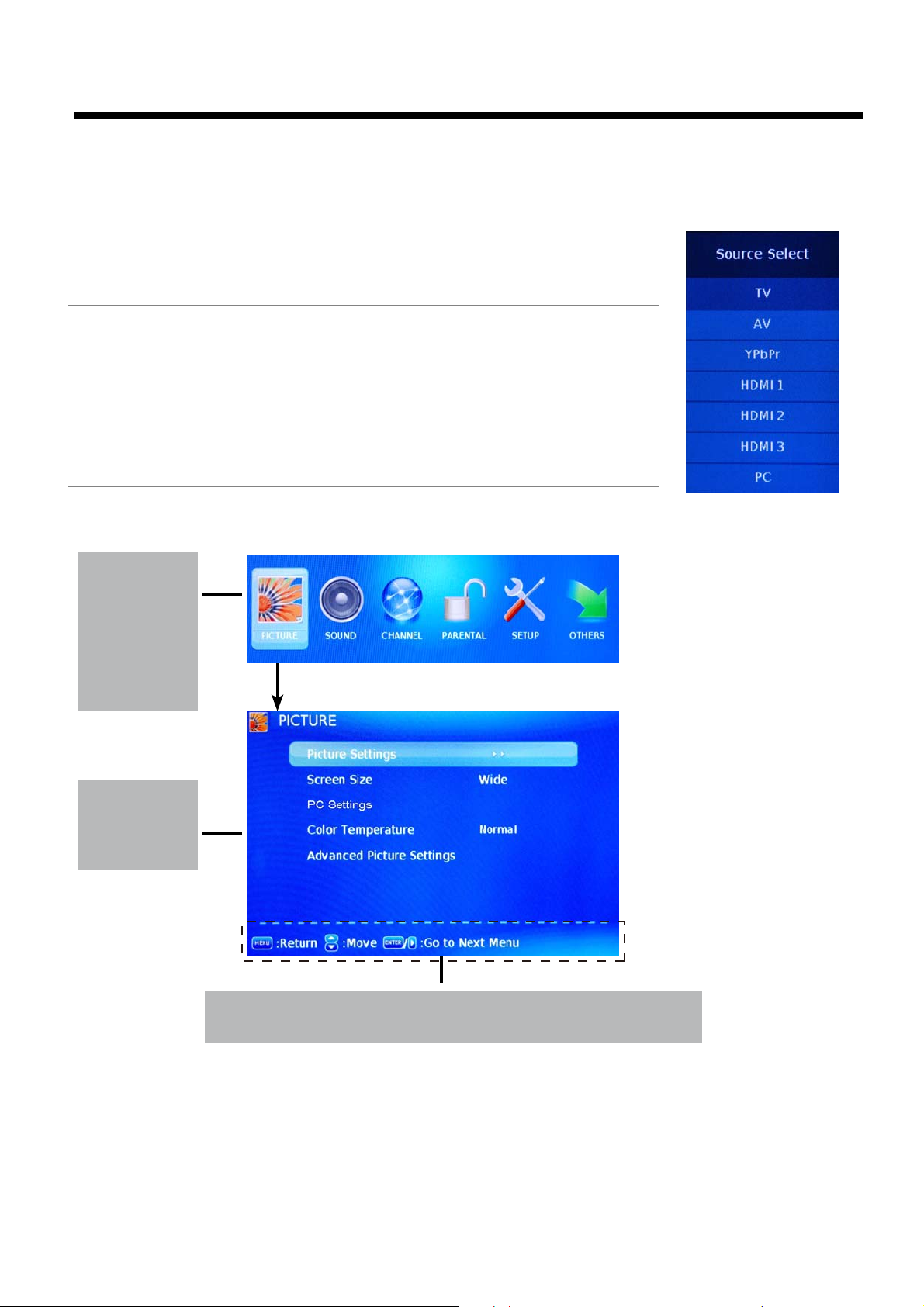

Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or
/ button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
5
2. Rear View
Introduction
COAX RF VGA HDMI 1 HDMI 2 HDMI 3
PC-IN
USB
(SERVICE)
YPbPrR L
VIDEO R in L in
RL
AUDIO OUT
HEADPHONE OUT
AC POWER IN
1 2 3 4 5 6 8 97 10 11
COAX : Digital audio output.
1).
2).
3).
4).
5).
6). Service
7).
8).
9).
10). Headphone out
: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
RF
HDMI1/2/3
: Connect it to the HDMI output of video device.
: For service use only.
YPbPr : Connect them to the component video output of video device.
L/R in
: Connect them to audio output of video device.
VIDEO : Connect it to video output of video device.
L/R in
: Connect them to audio output of video device.
L/R out
: Connect them to audio equipments.
: Connect it to your headphone or audio equipments.
11).
AC POWER IN:
Connect to an earth 100-240V~ 50/60Hz outlet with the power cable.
6
