PROPHON MF10(A) User Manual

High End Sound Systems designed, and manufactured in Sweden

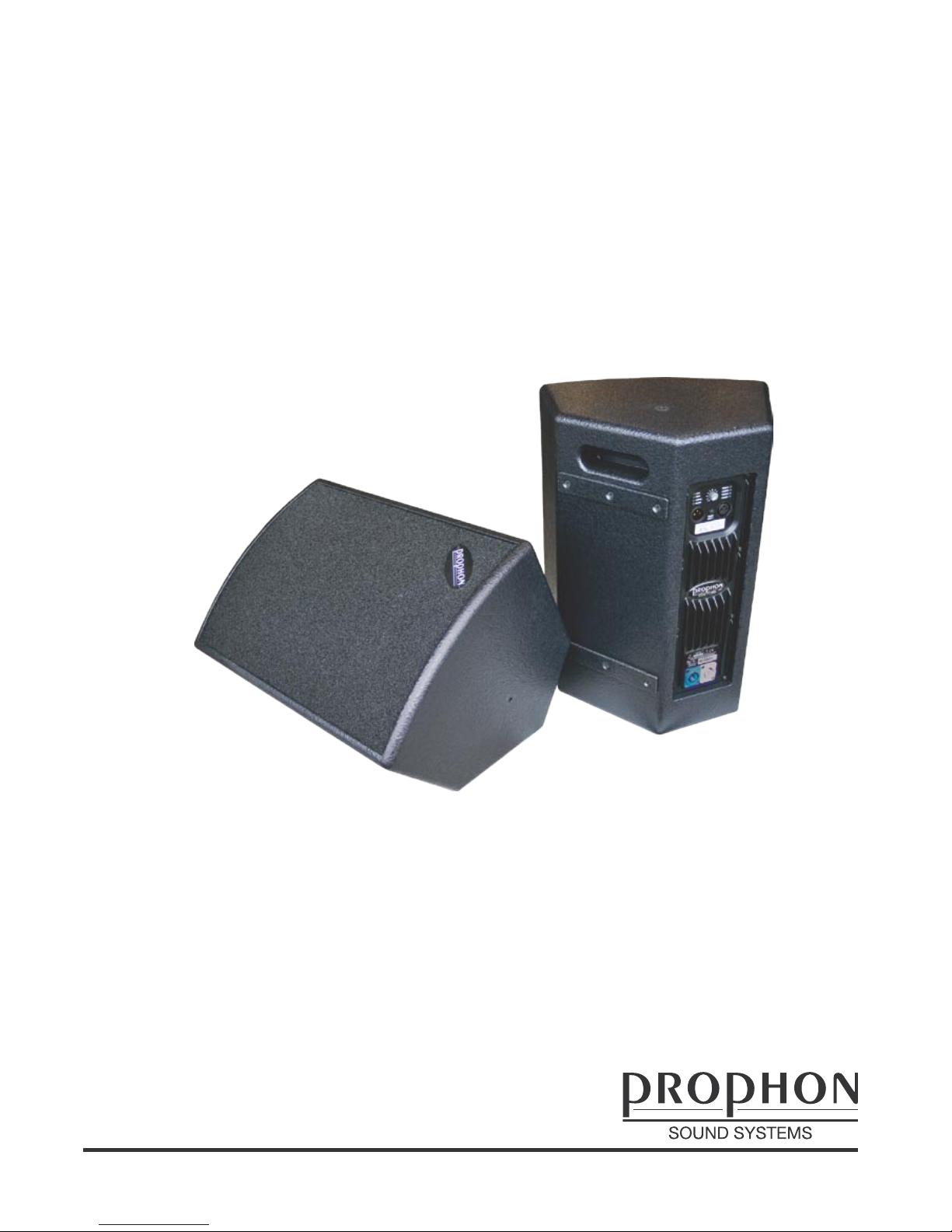

MF10(A)

2-way 10” / 1”- (Self-Powered / Bi-amped ) Multi Purpose speaker

The PROPHON MF10 is a lightweight, two-way Bi-amped or self-powered Multi Purpose speaker with a 10”-Neodymium
woofer, and a 1”-compression driver mounted on an exponential turnable horn with a 60o 90o dispersion.
MF10 is one of the most versatile speakers on the market, with an abundance of features.
The MF10 was designed to be a true companion on the road, and can be used as a monitor, frontll, sidell,
downll, delay, stand alone unit, mid/high with a Self-powered subwoofer in an active system
(Prophon B18HPA, B2A, B1HPA), please see separate datasheet for our self-powered range of subwoofers.
The frequency responce was carefully designed to be neutral and ”open” to ensure an uncolored sound reproduction.
So wether using for recorded music, live applications or speach, the MF10 will reproduce the sound as it sounds without adding or
subtracting vital information.

In short, the MF10 is all you need in a multi purpose, fullrange speaker!

MF10A are avaliable in passive version, bi-amplied with external amplier or self-powered with built in 700W class-D amplier.
The self-powered version have a huga advantage with a built in 700W amplier with on board DSP.

Active, self-powered version

TheMF10A houses a 700W Amplier with on-board DSP.
Neutrik XLR in / out for signal
Neutrik Powercon in / out for power
Four presets with different setting depending on application (push the ”preset select” for changing setup)

Preset4) High-Pass lter2 @ 95Hz, the same frequency responce as preset2, but cut at 95Hz,
for use as a stage monitor or as a top in an active sound system with subwoofers.
Preset3) High-Pass lter1 @ 95Hz, for use as a stage monitor
or as a topp speaker in an active system with subwoofers.
Preset2) Extended fullrange, for use as ”stand-alone” sound system,
with extended fullrange frequency responce.
Preset1) Fullrange, using this preset the active version has the same frequency responce
as the passive / bi-amped.

FEATURES

- Volume control (self-powered)

- Built in limiter (self-powered)

- Top Hat for use eith speaker stand or wall mount bracket.
The top hat can be changed to a M10 plate for using ightare or installation bracket (see picture)

- Monitor angle for use as a high power stage monitor

- The handle is hidden when using as a monitor, for best visual experience.

- fully covering, protective perfored steel grille, with minimum air ow resistance

- fully covering protective speaker foam.

- Painted with a specially developed 2-component hardened paint.

- Rails for protecting against damage when using as a stage monitor.

MF10 / MF10A

Manual / User guide / Technical data sheet

Technical data MF10(A):

Model MF10, Passive Bi-amped

MF10A, active, self-powered

Low frequency driver 1 x 10” Neodymium woofer, 2,5”-

voice coil,

High frequency driver 1 x 1”- throat exit driver,

with 1,7”- voice coil mounted on an
exponential horn.

Construction Bi-amped, passive crossover,

Tuned bassreex

Sensitivity 99 dB@1W/1m.

Nominal impedance 8 ohm

Power handling R.M.S. 300W

Power Handling cont. 600W

Max SPL, open space (calc.) 127 @ 600W

frequency responce +/- 6dB 50Hz - 19kHz

Vertical dispersion -6dB 60

o

Horisontal dispersion -6dB 90

o

Measurements H x W x D mm. 460 x 335 x 295

Weight passive: 11,5 kg. Active: 12,6

Recommended crossover
in an active system with
subwoofers

HP@100Hz, 48dB/oct

Recommended Amplier PROPHON P3000, P1300,

P3000DSP

Recommended pre­programmed DSP processors

PROPHON DSP260,
PROPHON DSP480

Recommended Powerage 300W - 600W

Connections
(bi-amped version)

2 x Neutrik Speakon
1+ /1- Input / through
2+ / 2- Link

Applications - Fixed Installations.

- Live performances.

- Monitor.

- Fullrange speaker

- Mid/high in a PA- system with
subwoofer

Accessories - Transportation case

- Flightware for rigging

Extended Technical data
Active version:

Built in amplier 700W @ 8 ohm

Input Neutrik XLR female

Out / Through Neutrik XLR male

Power chord in Neutrik Powercon

blue in / grey out, (Max 7A, 1600W)

volume control mute to +6dB

DSP PRESETS Four DSP PRESETS

4) TOP / MONITOR 2 (HP-FILTER2)

3) TOP / MONITOR 1 (HP-FILTER1)

2) EXTENDED FULLRANGE

1) FULLRANGE

Power 115V-230V +/- 15%, 50-60Hz

H

D

W

Dimensions

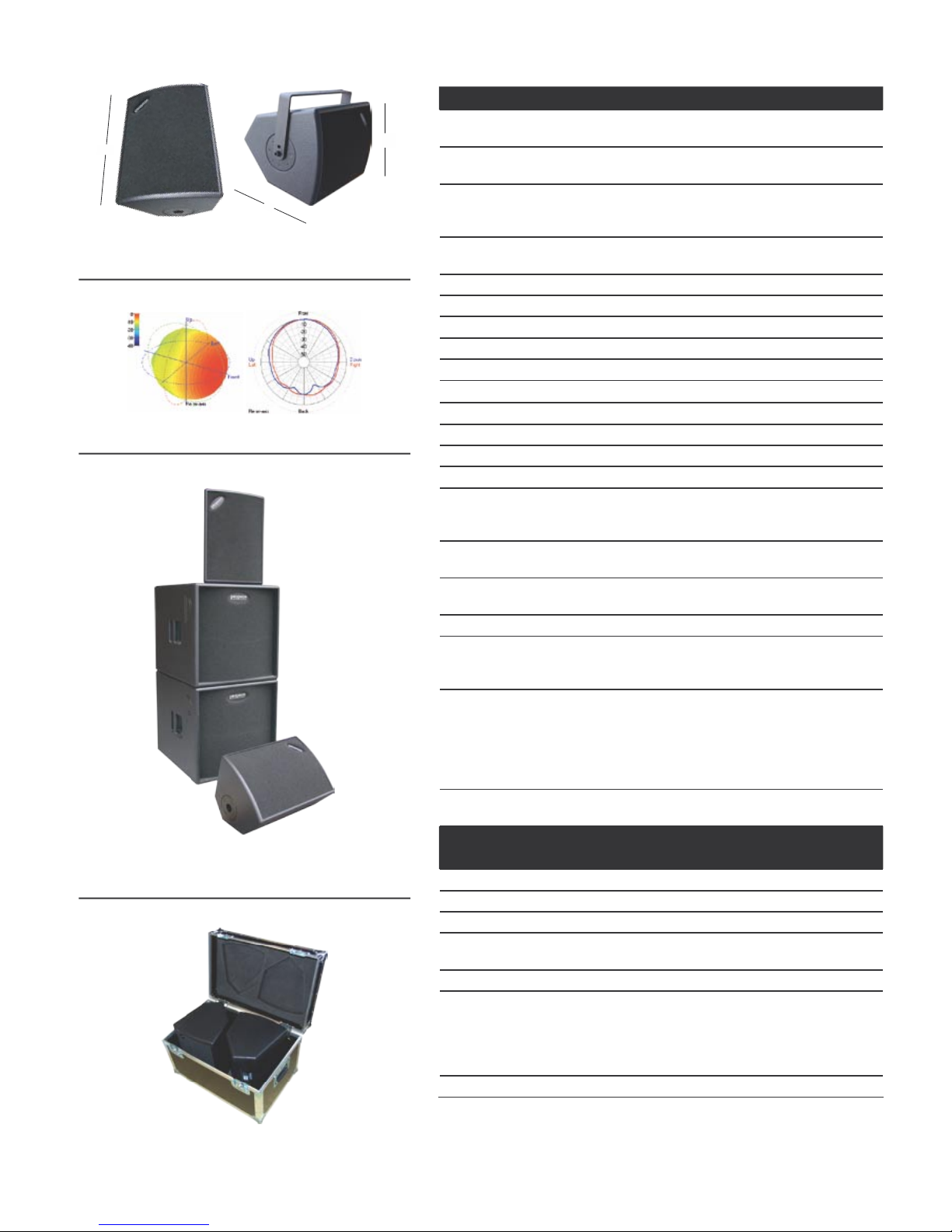

Dispersion pattern, 3D and 2D

2 x MF10 in an active sound system,

with 2 x B1HPA self-powered subwoofers.

Transportation case for 2 x MF10

(case for 4 x MF10 are also avaliable)

Prophon Audio & Teknik AB,

Stockholm, Sweden,

All data subjects to change without prior notice

Tel: [phone], Fax: [phone], Mail: [email protected], web: www.prophon.com
