Pro-Pen P5000PN User Manual

OPERATING AND MAINTENANCE MANUAL

P5000 PN

MICRO-PERCUSSION MARKING MACHINE

PNEUMATIC VERSION

Ref. 92074 - P5000 PN_en_D - Last updated: 06/2009

Pro-Pen reserv es all rights to modify i ts products.
This document is non contractual.

www.pro-pen.com

Table of conten ts

A - Introduction ................................................... ......... .... .... .... ........... .... .... .... ......... .... ........4

1. Forewa rd ............. .. ............ .. ............ .. ........... ... .. ........... ... ........... .. ............ .. ... ........... ..............................4

2. Unpack in g ......... .. ............ .. ........... ... ........... .. ... ........... .. ............ .. ............ .. .. ............ .. ..............................5



Storage .............................................................................................................................................. 5



Handling the machine .......................... .. .. ................................. .. .................. .. ..................................6



Installa tion ........ ................. ................ ............. ................ ................ .............. ..................................... 6

3. Identification of the marking equi pment ................................ ................ ................ ................ ..................6

4. Power .............. .. ........... ... ........... .. ... ........... .. ............ .. ............ .. .. ............ .. ........... ... ................................ 6

5. Regulat io n ob s e rv a n c e . ............ .. ............ .. .. ............ .. ........... ... ........... .. ............ .. .. ............ .. .....................6



Declar a tio n o f com p liance CE ...... ........... ... ........... .. ... ........... .. ............ .. ............ .. ........... ... .. ..............6



Declaration of compliance to other directives ...................................................................................7



Declar a tio n o f com p liance to nor ms .. .. .. ............ .. ........... ... ........... .. ... ........... .. ............ .. ............ .. . ......7

6. Work sta tio n sa fety .......... .. ........... ... ........... .. ... ........... .. ............ .. ............ .. ........... ... ................................8

7. Warranty conditions and operating instructions .....................................................................................9

B - Operating instructions for the machine ........................................................................1 0

1. Descr ip tio n o f th e mac h in e ..... .. .. ............ .. ........... ... ........... .. ... ........... .. ............ .. ............ .. .....................10

2. Technic a l S pe c if ic a tions .. ........... .. ............ .. ............ .. .. ............ .. ........... ... ........... .. ... ..............................11

3. Physica l ch a racterist ic s ..................... .. ............ .. .. ............ .. ........... ... ........... ... ........... .. ... .......................11

4. Dimensional drawings ..........................................................................................................................12



Dimensional drawings of the machine ............................................................................................12



Dimensional drawings of the table ..................................................................................................13

5. List of accessories available upon request ........... .............. .............. .............. .. .............. ......................14

C - Functional definitions ...................................................................................................1 7

1. Circuit connections for the unit ...................................... .............. ............................ .............................17

2. Inside view of the marking head .............................. .. .............. .. .............. .. .............. .............. ...............17

3. Connec ti o ns fo r a cc e s s o rie s .. .. .. ............ .. ........... ... ........... .. ............ .. .. ............ .. ............ .. .....................18

D - Installation ...................................................................................................................19

1. Install at io n .. .. ... ........... .. ............ .. ............ .. .. ............ .. ........... ... ........... .. ............ .. .. .................................19

2. Connec ti o ns ........ .. ............ .. ............ .. ........... ... .. ........... ... ........... .. ............ .. ... ........... .. . .........................19



Safety precautions ..........................................................................................................................19



View of connectors ..........................................................................................................................19



Keyboard connection ...................................... ................ ................ .............................. ..................20



Compressed air connection ............................................................................................................20



Power supply connection ....................... .............. .............. .............. ............................. ..................20



Grounding connection .............. ................ .......................................................................................21

3. Coordin a te sy s te m ....... ... ........... .. ............ .. ............ .. .. ............ .. ........... ... ........... .. .................................21

4. Hold the p a rt to be m a rk e d ..... .. .. ............ .. ........... ... ........... .. ... ........... .. ............ .. ............ .. .. . ..................22

5. Adjusting the height of the stylus ..........................................................................................................22

6. Definition of operating distances of a stylus ............................................ .. .............. .. ...........................23

7. Using the P 05 p ro g ra m ....... ... ........... .. ............ .. .. ............ .. ........... ... ........... ... ........... .. ... .......................23

E - Marking depth ....... ............................................................................................... ........24

1. Factors influencing marking depth ..................... .. .............. .............. ....................................................24



Choosing the stylus .............................................................. .............. .. .............. .. ...........................24



Distance between the stylus and the part .......................................................................................25



Selecting solenoid valves ................................ ................ ................................................................25



Choosing the marking speed ............................................................. .. ............................ .. .............26

2. Marking depth .......................................................................................................................................26

F - Preventive maintenance ..............................................................................................27

1. Every we e k ...... .. ........... ... ........... .. ... ........... .. ............ .. ............ .. ........... ... ........... .. .................................27

2. Every three months .... ............ .. ........... ... ........... .. ............ .. ........... ... .. ............ .. ........... ... .......................27

3. Every two y ea r s ..... ... ........... ... ........... .. ............ .. .. ............ .. ........... ... ........... ... ........... .. .. ........................28

Ref. 92074 - P5000 PN_en_D

2/35

G - General maintenance .................................................................................................. 29

1. Genera l in fo rmation .................. .. ............ .. ........... ... ........... .. ... ........... .. ............ .. ............ .......................29

2. Detaching the point of the stylus for sharpening ......... .............. .............. .............. ...............................29

3. Changin g th e fu se ............. .. ............ .. ........... ... ........... .. ... ........... .. ............ .. ............ .. ............................30

4. Cleaning the sensors ............................................................................................................................30

H - Resolution of the problems ..........................................................................................31

1. Possible marking problems and problem resolution .............................................................................31

2. What to do if... ....... ............ .. ............ .. .. ............ .. ........... ... ........... .. ............ .. ... ........... ............................32

I - Wearing and spare parts .......................... .... .. ....... .... .... .. .... .. ......... .. .... .. .... ....... .... .. .... ..33

1. Spare pa rt s ...... .. .. ............ .. ........... ... ........... .. ............ .. .. ............ .. ............ .. ........... ... ..............................33

2. Consuma b l e s ........ ... .. ............ .. ........... ... ........... .. ... ........... .. ............ .. ............ .. ........... ... .......................33

J - Noise emission of the machin e ....................... .................................... .........................34

1. Test code .. .. ........... ... ........... ... ........... .. ............ .. .. ............ .. ........... ... ........... ... ........... ............................34



Measurement method .....................................................................................................................34



Definition of the microphone position ............ ................ .. ................................ ................................34



Test cond itions . ............ .. ............ .. ........... ... .. ........... ... ........... .. ............ .. ............ .. .. ..........................34

2. Noise emission information .... .. ........... ... .. ........... ... ........... .. ............ .. .. ............ .. ............ .. .....................34

K - Appendix ......................................................................................................................3 5

Ref. 92074 - P5000 PN_en_D

3/35

AIntroduction

1. Foreward

Before reading this manual, view th e star t-up CD ROM and try to execut e the test ma rking sug gested. The n, read
through the whole manual.

The P5000 PN is designed for marking applications. If used for other purposes, Pro-Pen cannot guarantee the
quality of the result. Pro-Pen is not responsible for damage caused by inappropriate use of the machine.

Four icons indicate important points:

Work station safety
Indicates differe nt safet y pr ecautions to be t aken d uring i nst all ation and oper ation of

the machine.

Instructions for use and warranty lim itations
Indicates different operati ng procedures which respect warranty condit ions.

A

Operating instructions
These tips help optimize the machine’s perfor ma nce.

What to do if...
This icon refers to t he last chapter which describes the acti ons to be carried out in the

event of a problem or breakdown on the marking equipment.

Ref. 9207 4 - P5000 PN_en_D

4/35

2. Unpacking

AIntroduction

A

P5000PN : weight: 34 kg (74.957 lb)
If it is necessary to unpack the machine without the aid of a mechanical lift, it is
recommended to use two persons wearing safety shoes.

1 : Cover
2 : Wedge
3 : Wedge
4 : Wedge
5 : P5000
6 : Option
7 : Contents of the box: keyboard
8 : Box + pallet
9 : Contents of the box: accessories provided: 1 technical document on CD ROM, stylus...



Storage

Keep the packing in case the machine has to be retur ned.

Ref. 92074 - P5000 PN_en_D

5/35

AIntroduction



Handling the machine

Take the machine out of its package before hooking it to a mechanica l lift. Unpack the
machine with 2 operators.

There is an M10x20 handling hole on the top of the P5000. Use a lifting ri ng capable of sustaining 230 DaN
(517.061 lb) to conform with standard NFX35-109. Pro-Pen can provide an M10x20 ring as an opti on (Ref.
MCM08/3140).



Installation

• Unpack the machine with 2 operators. Put the machine on its feet.

• The hand crank must not cover the M10x20 hole located on the top of the column (Z axis).

• Screw the lifting ring fi rmly and completely into the column.

• Use the lifting ring to carry the machine to its installation location.

3. Identification of the marking equipment

The marking equipment is identified by:

A

• 1 identifcation plate on the marking head
Have the model and serial number of the equipment available when contacting Pro-Pen.

4. Power

• power supply: 115 V / 230 V

• pow er: 120 W

• frequency: 50 -60 Hz

• compressed air supply: operat ing pr essure 5.5 Bar (79.771 PSI) nominal, 6 Bar (87.023 PSI) maximum

• pneumatic cylindrical female connection 1/4

• compressed air consumption: 0.4 to 0.7 Nl/char acter 3 mm (0.118 in) high

" gas

5. Regulation observan ce

Manufacturer, GravoTech Marking SAS - 56 avenue Jean Jaurès BP 80015 - 10604 LA CHAPELLE SAINT LUC ­France (head office) declares:



Declaration of compliance

CE marking on the equipment attests the observance of the following European directives:

• Directive 98/37/EC of the Europe an Parl iament and of the Council of 22 June 1998, concerning the consolida­tion of the laws of member states relating to the machines.

• Directive 2006/95/EC of the European Parliament and of the Council of 12 December 2006 on the harmonisa­tion of the laws of the Member States relating to electrical equipment designed for use within certain voltage
limits.

• Directive 2004/108/EC of the European Parl iament and of the Council of 15 December 2004 on the harmonisa­tion of the laws of the Member S tates relating to electromagnetic compatibility.

Ref. 92074 - P5000 PN_en_D

6/35

AIntroduction



Declaration of compliance to other directives

Equipment is compliant with the following European directives:

• amended Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 restricting
the use of some dangerous substanc es present in electrical and electronical equipment (RoHS).

• amended Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003 on waste
electrical and electroni c equipment (WEEE).

Waste Electronic and Electrical Equipment

This symbol indicates that once this equipment has reached the end of it s useful life, it must not be
disposed of with non-sorted municipal waste, in accordance with European Directive 2002/96/EC.

The equipment must be disposed of at an appropriate collection point for process ing, sorting, and
recycling of W aste Electronic and Electrical Equipment (WEEE).

The elements which compose Waste Electronic and El ectri cal Equi pment (WEEE) may con tai n subst ance s which
have harmful effects on the environment or on human health.

By following these instruction s, you are helping the environment, contribut ing to the preservation of our natural
resources, and protecti ng human h ealt h.



Declaration of compliance to norms

A

The equipment is compliant with the following norms:

• St andard NF EN 61 000-6 -2 of January 2006 c oncerni ng elect romag netic compati bil ity (EMC) - Part 6-2 : generi c
standards- Immunity for industrial environments.

• St andard NF EN 61000-6-4 of March 2007 concerning el ectromagnetic compatibility (EMC) - Part 6-4: generic
standards- Standard on emissions for industrial environme nts.

The modification or transformat ion of this equipment, adapt ation and accessory
installation unre commended by Pro-Pen modify this equip ment’ s characteri stics and
therefore void the compliance with the applicable EU direct ives. These modificatio ns
void Pro-Pen’s liability. In this case, the machine and equipment installer is
responsible for the final work st ation’s compliance.

Ref. 92074 - P5000 PN_en_D

7/35

AIntroduction

6. Work station safety

To ensure security and productivity, read this manual before starting-up the equipment.

A

• This marking equipment is designed to functi on at a room temperature between 5

0

F) to 45 0C (113 0F).

• Do not use this marking equipment in an explosive environment.

• Grounding must be done according t o the regulations in ef fect to ensure the safety of the
personnel. The connection to the single phase power supply is made with a standard, 3
pin plug with grounding. It must be equipped with an adequately calibrated 30 mA
differential cut-off and protection device.

• This marking equipment is not designed to operate in damp premises.

• During marking, do not place fingers or object s in the area reserved for sty lus movement.
Keep hands away from the marking zone. Disregard for this recommendation may result
in the operator being light ly pinched by the point of the stylus.

• Depending on the application (tooling or heavy parts), it is re comme nded to wear safety
shoes and work gloves.

• Do not remove the power supply cover: electrification risk.

• The air exhaust from the stylus can project metal dust or chips, if necessary wear safety glasses.

At the time of disposal, wearing personal protective equipment (PPE) is
recommended to dismantle the mechanical elements of the machine. Some guiding
elements (pinions, bearings, bars) are dismantled while hot and may release toxic
fumes.

0

C (41

Ref. 92074 - P5000 PN_en_D

8/35

AIntroduction

7. Warranty conditions and oper atin g instructions

This equipment is designed to mark material using Pro-Pen pneumat ic styl i only. Any other use, or the use of styli
other than those provided by Pro-Pen is not recommended. Pro-Pen will not be held responsible for the results.

• The compressed air system must meet all standards.

• Use only clean, dry, non-lubricated air.

• Never lubricate any part of the stylus or carriage guide bars.

Pro-Pen will not be held responsible for injuries resulting from disregard for the above operating instructions or
other general safety rules applicable to the use of this equipment. Furthermore, di sregard for the instructi ons wil l
void the warranty.

When marking or doing test marking, the styl us must always have a p art under it wi th
which to make contact.

If it strikes only air, these are the risks:

• mechanical deterioration of moving parts

• void of the manufacturer’s guarantee

For more information, please refer to the warranty details delivered with the machine.

A

Ref. 92074 - P5000 PN_en_D

9/35

BOperating instructions for the machine

1. Description of the machine

The P5000 PN is a digitally controlled micro-percussion marking machine.
The marking head is attached to a column stand wit h a Z axis. The Z axis is adjusted manually using the crank

handle and the ruler along the frame for positioning.
This machine works by moving the stylus along the X and Y axes of a grid.
The control electronics and the screen are integrated.
This combination of technologies all ows for rapid marking of alphanumeric characters and logos.
The LCD screen is located on the front of the machine. The same keyboard used for a PC connects to the top of

the marking head.
As an option, a PC linked to the control board by an RS232 connecti on, can be used to manage marking thank s to

the program developed in a Windows® environment.

1

B

2

3
4

5

6

7

1 : Z axis crank handle
2 : Ruler
3 : Marking head
4 : Standard air filter
5 : LCD screen
6 : Pneumatic stylus
7 : Keyboard

Ref. 9207 4 - P5000 PN_en_D

10/35

AOperating instructions for the machine

2. Technical Specifications

• marking area: 100 mm (3.937 in) x 120 mm (4.724 in)

• styli: PN22

• fonts available:

- continuous action, dot by dot : norme 5x7

- size: from 0.5 mm (0.02 in) to 100 mm (3.937 in) mm with increments of 0.1 mm (5/1000 in)

- characters: those on the multilingual DOS codes page # 850 (Latin 1)

• dates, counters, bat ch numbers, shift codes, logos...

• maximum movement speed : 300 mm (11.811 in) per second

• max height of the part to be marked : 310 mm (12.205 in)

3. Physical characteristic s

• dimensions (L x w x h): 601 mm (23.661 in) x 327.5 mm (12.894 in) x 734 mm (28.898 in)

• weight: 34 kg (74.957 lb)

B

Ref. 92074 - P5000 PN_en_D

11/35

AOperating instructions for the machine

4. Dimensional drawings



Dimensional drawings of the machine

B

1 : Marking area: 100 mm (3.937 in) x 120 mm (4.724 in)
2 : CAN plug
3 : Pneumatic stylus
4 : Air filter

Ref. 92074 - P5000 PN_en_D

12/35

AOperating instructions for the machine



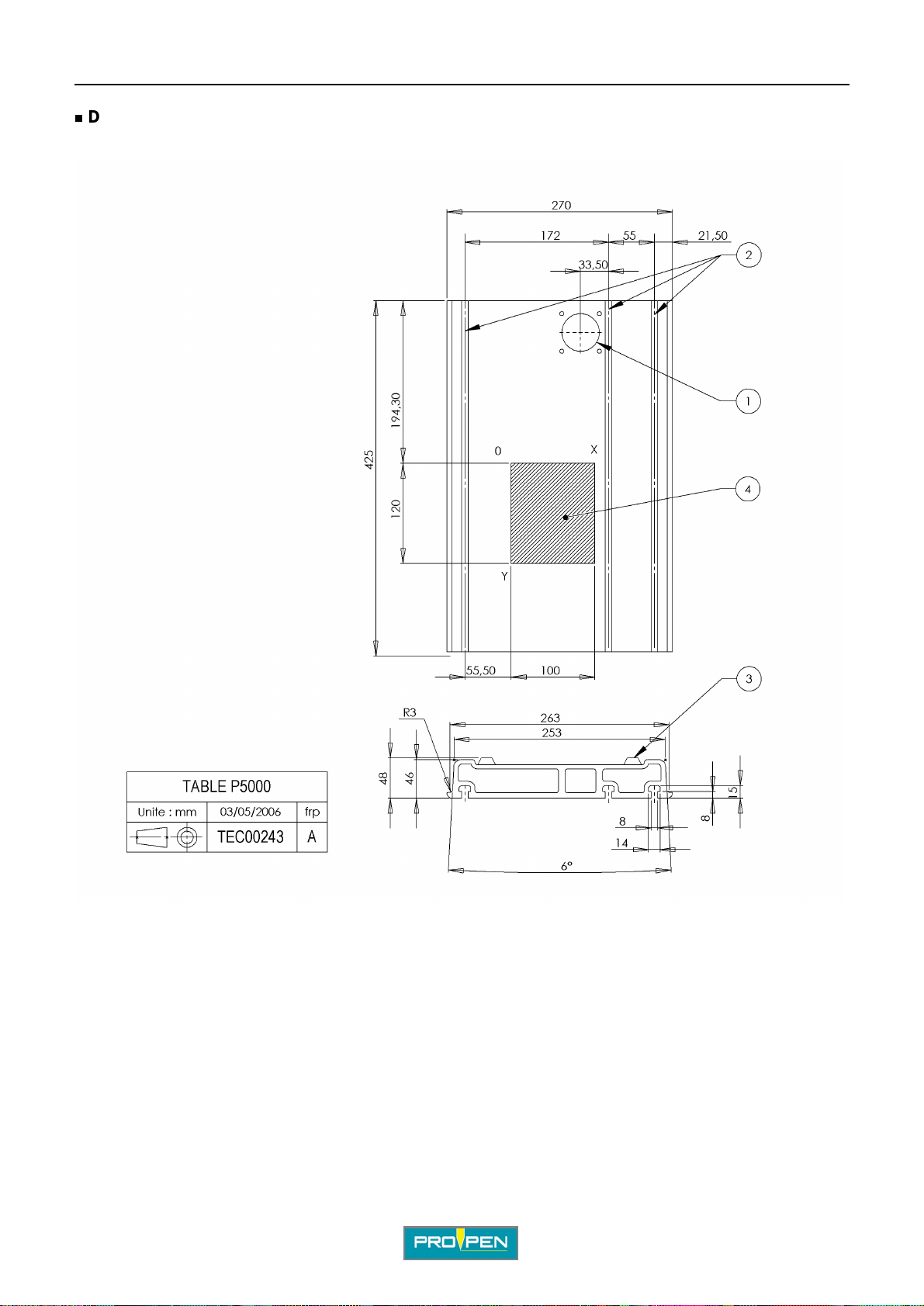

Dimensional drawings of the table

B

1 : Column axis
2 : T-slot
3 : Anti-skid pads
4 : Marking area: 100 mm (3.937 in) x 120 mm (4.724 in)

Ref. 92074 - P5000 PN_en_D

13/35

AOperating instructions for the machine

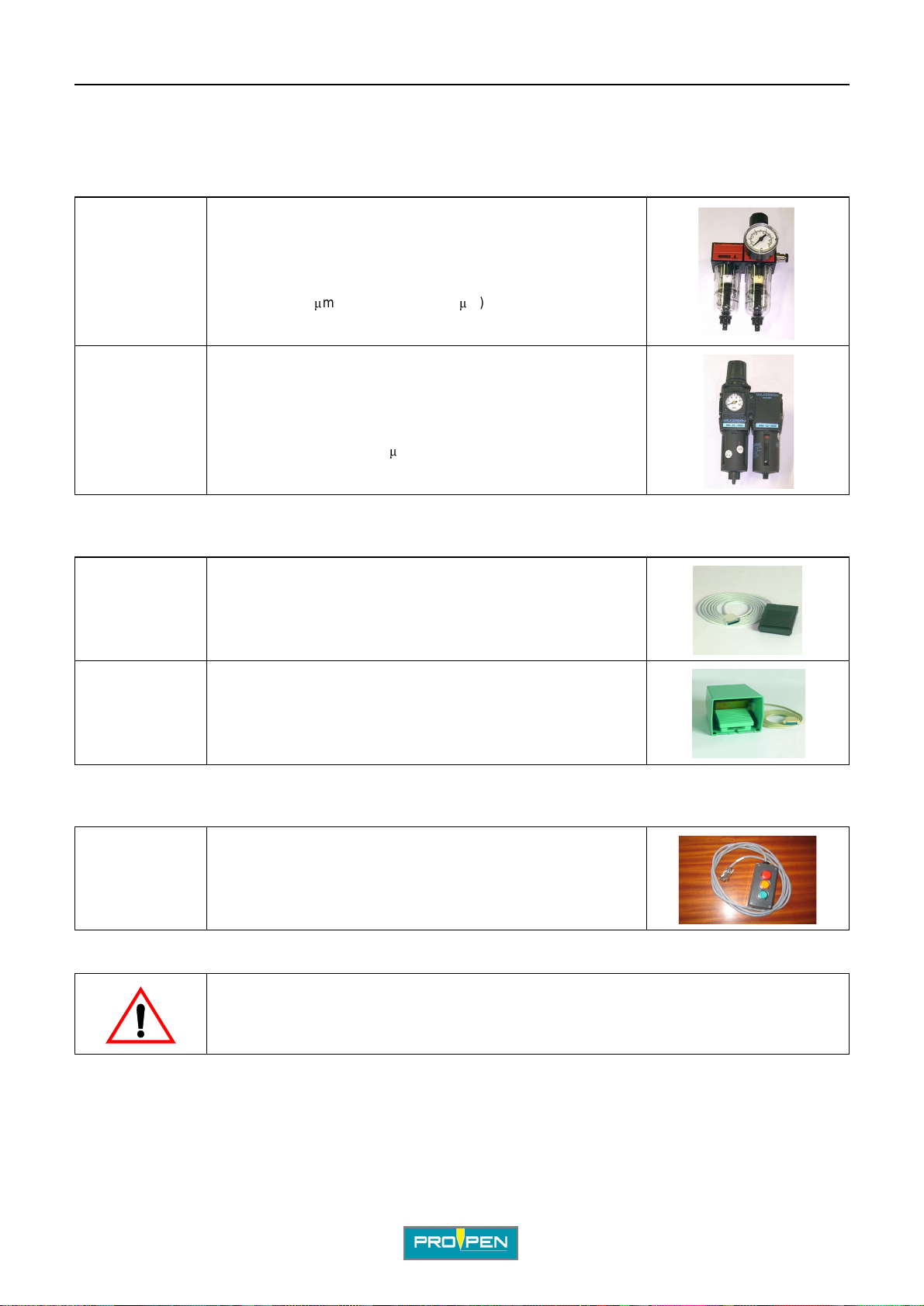

5. List of accessories avai la bl e up on request

Air filter

Ref. 2515

• Double air filter :

This filter comes equipped with a pressure gauge for regulating air
pressure. It eliminates impurities in the compressed air system and
reduces soiling of the solenoid valves and stylus.
Use of this filter is mandatory if the air contains particles (dust...) of
greater than 30 µm (second filtration: 5 µm)

B

Ref. 2540

• Oil remo v a l fil te r :

This filter comes equipped with a pressure gauge for regulating air
pressure. It eliminates impurities in the compressed air system and
reduces soiling of the solenoid valves and stylus.
Use of this filter is mandatory for air systems containing a high oil
level (second filtration: 0.01 µm)

Start cycle foot pedal

Ref. 25053

Ref. 25054

• Office footswit ch :

A simple touch of the pedal will launch a marking "n" times, leaving
the operator with both hands free. The foot pedal is not designed to
stop marking.

• Industrial footswitc h :

Same use as described above. This foot pedal is especially
designed for industrial wor k environments or for high rate production .
Unlike the office footswitch, a double action avoids untimely
triggering.

Button box for start cycle/emergency stop

Ref. 25055

• The green button is used to launch marking (same function as the foot pedal).

• The red button is used to stop either a single marking in
progress or a series of markings before it reaches the end.

After pushing the emergency stop button, the gree n button cannot be used to restart
marking. In this case, use the keyboard.

Ref. 92074 - P5000 PN_en_D

14/35

AOperating instructions for the machine

Plate holder

Ref. 2509

B

• Sound-proof plate holder :

This accessory reduces the noise level during marking.

Ref. 25153

• Raised plate holder :

This accessory is used to be able to mark plates without having to
take down the DP3500/TAG3500 accessory.

Magnetic plate clamp

Ref. 2508

• As a complement to the sound-proof plate hold er, it is used to clamp parts on a steel suppor t.

Circular marking device

Ref.
25170 LXX

• DP3500 :

This accessory is used to rotate a part under the marking head in
order to mark the circumference.
Maximum moment of inertia of the part:

• without chuck : 65 kg.cm

• with chuck : 50 kg.cm

Ref. TBC

• DP4500 :

This accessory is used to rotate a part under the marking head in
order to mark the circumference.

2

2

Program PW05

Ref. 25158
Ref. 25159 (USB)

TAG 3500

Ref. TBC

Ref. 92074 - P5000 PN_en_D

• Developed in a Windows environment, this program
combines all the capabilities and user-friendl iness of a PC.

• An unlimited number of files can be seen on the screen.

• Exists with a USB or parallel prot ecti on key.

• This accessory is used to automatically feed identification plates to the machine.

15/35

AOperating instructions for the machine

Protective cover

Ref. 2743

Marking zone lighting

Ref. 25154

Other accessories

Ref. 2411 Pneumatic stylus PN12

• This accessory is used to protect the machine from dust.

• This accessory is used to light the marking area using a
high power LED lodged under the marking head.

B

Ref. 2503 Pneumatic stylus PN22
Ref. 2633 Points for PN12 stylus : 120°
Ref. 2634 Points for PN22 stylus : 120°
Ref. 92101 Instructions card for pneumatic machine
Ref. 92074 Operating and maintenance manual
Ref. 2620 Stainless steel plates in credit card format, pack of 50
Ref. 25121 Bar code reader Scanplus 1800SR [reads 10 cm (3.937 in)]
Ref. 25122 230 V power supply for bar code reader
Ref. 25124 115 V power supply for bar code reader

Ref. 92074 - P5000 PN_en_D

16/35

CFunctional definitions

1. Circuit connections for the unit

1

2

C

3

1 : Keyboard connection
2 : Bus CAN
3 : CPU card
4 : LCD screen

2. Inside view of the marking head

1

2

4

3

1 : X motor
2 : Y motor
3 : Solenoid valves

Ref. 9207 4 - P5000 PN_en_D

17/35

AFunctional definitions

3. Connections for acces sories

1

C

2

6

3

4

5

1 : Accessory connection (start cycle/emergency stop but ton box or start cycle foot pedal...) or 1 bridge d male SubD9 connector ,

for the reset function
2 : RS232 connection for communication with PC
3 : USB_B connection DEVICE (PC link)
4 : USB_A connection HOST (marking file on key)
5 : Ethernet connection
6 : Connection for circular marking device

Ref. 92074 - P5000 PN_en_D

18/35

DInstallation

1. Installation

Unpack the machine and install it at the work station.
The machine must be inst alled in a works p ace allo wing the operator easy acces s t o the adj ustment han dle for the

Z-axis and clear visibilit y of the marking area where the stylus is moving. The marking area must be easily
accessible.

It is possible to counter-sink the table of the machine into the work table in order to
prevent it tipping if too much force is applied to the vert ical adjustment handle. See
the table drawings for the dimension of the requi red rectangular cut-out.

2. Connect io ns



Safety precautions

The different elements of the equipme nt must be connecte d with the power off. The
power supply should be connected last.

D



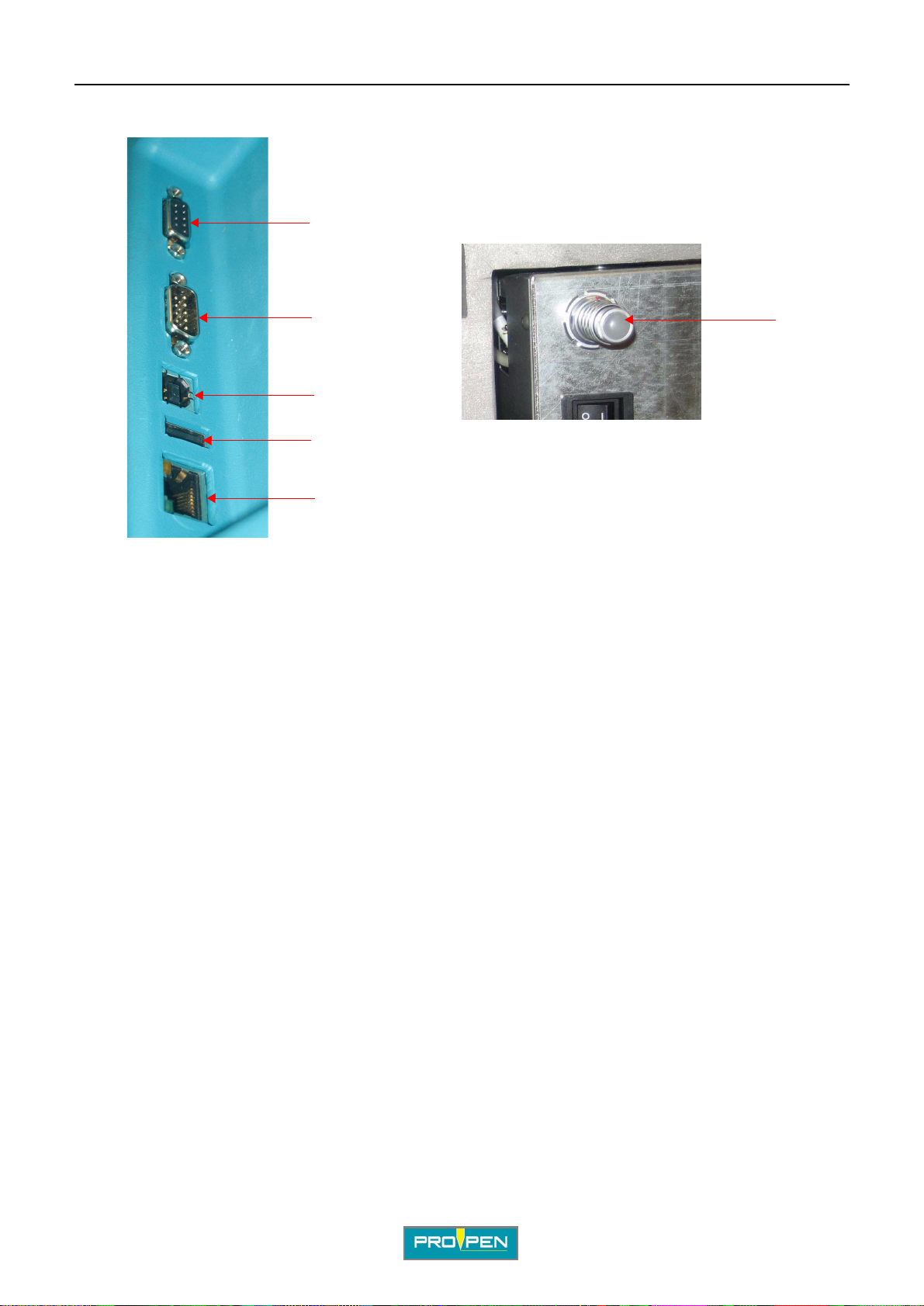

View of connectors

To start up the machine, 3 connections are necessary:

1

2

3

1 : Compressed air
2 : Keyboard
3 : Power supply

Ref. 9207 4 - P5000 PN_en_D

19/35

AInstallation



Keyboard connection

Connect the keyboard connector socket to the machine.
There is a female connector, type DIN, on the electronics board.



Compressed air connection

The ideal air pressure is 5.5 Bar (79.771 PSI).
For a character 3 mm (0.118 in) high, marked with a PN12 stylus using 2 solenoid

valves, the air consumption is 0.4 - 0.7 Nl (Normolitre).

Connect the compressed air net work, situated near the work station, to the air i nlet of the machine. The diameter
of this cylindrical female input is 1/4

• The compressed air system must meet all standards.

• The regulator pressure must not be set higher than 6 Bar (87.023 PSI) or lower t han 5 Bar
(72.519 PSI).

• Use only clean, dry, non-lubricated air.

" gas.

D



Power supply connection

This machine comes equipped with an SMPS (switch mode power supply). No power supp ly vol tage adjustment
is necessary.

However, if the machine doesn’t start (screen off, power supply vent il ator not running...):

• Check that the power cord is correctly plugged in to both the machine and the power supply.

• Check that the switch is in the "I" position (On).

• Check the condition of the fuse.

- Unplug the power supply cord. Put the On/Off switch in the "O" (Off) position.

- Remove the fuse carrier (1) located below the power filter.

- If necessary, replace the fuse (2) with a new one (4 A TT) and plug the machine back in.

1

2

1 : Fuse carrier
2 : Fuse

Ref. 92074 - P5000 PN_en_D

20/35

AInstallation



Grounding connection

The marking equipment must be grounded in order to provide:

- a safety feature for personnel

- a set electrical potential which serves as a reference

- a means of protection against radiated parasites

High quality grounding is necessary on-site. If thi s is not the case, put in place
grounding specifically for the equipment.

3. Coordinate system

The coordinate system used in our machines is shown in the following diagram.

1 : Axis origin
2 : X axis
3 : Y axis
4 : Z axis
5 : Column
6 : Marking zone

D

• X axis: horizontal axi s going from left to right

• Y axis: horizontal axis going from the column to the operator

• Z axis: vertical axi s
When a marking cycle is launched, the stylus al ways begins at t he origin point and retu rns to the origin at the end

of the cycle.
The coordinates are given as an absolute val ue in rel ation to this point.
The Z axis is the v ertical position. Thi s axis is used to manually adjust the height of the stylu s for marking parts of

different sizes.
A vertical positioning indi cator can be found on the right side of the machine.

Ref. 92074 - P5000 PN_en_D

21/35

AInstallation

4. Hold the part to be marked

Situation 1

Used with Pro-Pen plate-holder (optional)
To mark plates or small par ts with a thickness of less than 2 mm (0.079 in), use the pl ate holder to position the

parts and prevent them from vibr ati ng when the stylus taps.

Situation 2

No plate-holder used
To mark small or large parts, create the necessar y tool ing to position and clamp the part s un der the machine. If

the part is flexible, thi s tool ing must provide firm support under the p art to be marked. It must be held on the
worktable using the three T grooves . The position of the marking zone with relation to the T groov es is i ndicated
on the dimensional drawing of the worktable.

A poorly clamped piece c an g enerate high sound l evels, t hus becom ing har mful after long periods.

D

5. Adjusting the height of the stylus

Determining the optimum operating di stance of the stylus according to th e part to be marked.
This distance is between 1 mm (0.039 in) and 5 mm (0.197 in).
Using feeler gauges, position t he point of the stylus 2 mm (0.079 in) above the part to be marked.
Execute a marking.
The whole marking line should be legible.
Depending on the results, increase or decrease the distance between the stylus and the marking surface.

• If a stylus is set too high, it doesn’t mark because the poi nt doesn’t touch the plate
consistently while traci ng the characters.

• If the stylus is set too low, it doesn’t mark because it cannot vibr ate. The point withdraws
inside the stylus and remains in permanent contact with the plate.

Ref. 92074 - P5000 PN_en_D

22/35

AInstallation

000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

00000

000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

6. Definition of operating di stances of a stylus

D

Max. distance
DM

Min. distance
Dm

Amplitude
A

Reference distance
Do

Maximum adjustment distance

Carry out a series of markings while progressively lowering the head until a
uniform marking is obtai ned. With the help of feeler gauges, measure the
distance between the point of the st ylus at rest and the marked surface. Make a
note of this distance.

Minimum adjustment distance

Lower the head until the stylus i s barely touching the part to be marked. Raise
the head and set the distance from the point of the stylus to the surface to be
marked at Do (optimal distance), betwee n 0.5 mm (0.02 in) and 1 mm (0.039 in).

Amplitude of a stylus

Subtract the min. dist ance (Dm) from the max. distance (DM) to obtain the
operating amplitu de of the st ylus. This distance corr esponds to its operating
range, or its capacity to absorb variations in flatness.

Optimum adjustment distance

Take the average of the DM and Dm. Position the stylus at this distance (Do).





DM

A

2

A

A

Dm

2

0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Do



1 : Z axis
2 : Stylus
3 : Surface to be marked

The max. distance ( DM) and min. dist ance (Dm) may va ry slightly from o ne stylus to another (pro duction
tolerances for stylus components, pressure and compressed air flow through the system).

To mark curved parts using the maximum amplitude (A), set the styl us at the minimum distance (Dm)
above the highest point of the part .

7. Using the P05 program

Refer to the user manual for the P05 program.

Ref. 92074 - P5000 PN_en_D

23/35

EMarking depth

1. Factors influencing marking depth

The principle factors are:

• choosing the stylus

• distance between the stylus and the part

• selecting solenoid valves (m arking force)

• choosing the marking speed

To avoid creating stress on fragile part s, choose the following marking parameters:

• stylus PN12 is the preferable choice.

• choose a point with the largest possib le radius.

• select marking force 25% for the marking file.

For very fragile parts, validate marking with mechanical resistance tests.



Choosing the stylus

E

Two pneumatic styli, each with a different force are available: PN12 and PN22. The force varies according to the
diameter of the tip of the point.

The points come sharpened to a r adius of 0.2 mm (0.00 8 in). Depen ding on the nee d, points can be shar pened to
different radii ranging from 0.1 mm (0.004 in) to 0.5 mm (0.02 in).

Stylus PN12 Stylus PN22

A PN22 stylus with a po int radius sharpened to 0.2 mm (0.008 in) comes standard with the mac hine. This point is
suitable for most common marking needs. A PN12 stylus is available upon request.

Ref. 9207 4 - P5000 PN_en_D

24/35

AMarking depth



Distance between the stylus and the part

The optimum distance (Do) of the stylus in relation to the surface to be marked decreas es as the marking force
decreases.

Using a stylus which is positioned too low, or which is too powerful i n rel ati on to the
hardness of the material, will result in distorted characters.

If the stylus is set too high, the marking will be lighter but there will be portions of the
characters marked which will be missing. In this case, choose a less powerful stylus .

The max. distance (DM) and min. distance (Dm) may vary slightly from one stylus to another (production
tolerances for stylus components, pressure and comp ressed air flow through the system). To mark curved parts
using the maximum amplitude (A), set the stylus at the minimum dist ance (Dm) above the highest point of the
part.



Selecting solenoid valves

The number of solenoid valves, selected from the marking program, will determine the width of the mark. Choose
a marking force according to the amount of compressed air required. The table below shows the number of
solenoid valves activated depending on the marking force, and the appropriate stylus to use with each force.

E

Marking force

25% Activated PN12
50% Activated Activated PN12 / PN22
75% Activated Activated PN12 / PN22
100% Activated Activated Activated PN12 / PN22

Solenoid
valve(s) 1

Solenoid
valve(s) 2

Solenoid
valve(s) 3

Stylus to be used

Ref. 92074 - P5000 PN_en_D

25/35

AMarking depth



Choosing the marking speed

There are 10 speeds:
The choice of speeds influences the marking quality.

Marking speed Result Speed Marking cycle

1 to 3 Very high quality Slow Long

4 to 7 High quality Fast Standard

8 to 10 Average quality Very fast Short

2. Marking depth

A metallographic test i s perf ormed t o measure mar king dep th. This pr ocess i s use d to di ssuade att empts to falsify
the marking.

E

P1 = depth of marking
P2 = depth of penetration
P3 = depth of warping

1 : Solid material
2 : Thin sheet metal
3 : Embossing

Ref. 92074 - P5000 PN_en_D

Different definitions concerning marking depth

26/35

FPreventive maintenance

The maintenance operations listed here are intended as a guideline, and should be implemented upon reception
of the material. In a highly polluted environment, these operations may need to be performed more frequent ly.

Unplug the power supply plug before beginning any cleaning or maintenance operation.

This maintenance list was established based on a marking frequency of:

• 520 000 cycles per year (7 800 000 characters per year)

• 15 characters 3 mm (0.118 in) high per cycle

2

• 8 continuous working hours on steel strength 50 DaN/mm

(72518.869 lb/in2)

1. Every week

• Clean the guide bars inside the marking head with a dry cloth (no solvent, oil, or grease).

• Dismantle the stylus. Remove the point.

• Check the condition of the styl us, then clean it thoroughly.

• Clean the point with a dry cloth.

• Empty the air filter in ord er to el iminate dust or liquid
which may be present in the system. Clean, dry, non­lubricated air will reduc e the bui ld-up of grease in the
solenoid valves. This will ensu re optimal functioning
and reliability of the stylus.

1

F

1 : Y carriage guide bars
2 : X carriage guide bars

2. Every three months

• Have the stylus serviced by Pro-Pen. Check the belt tension.

2

Ref. 9207 4 - P5000 PN_en_D

27/35

APreventive maintenance

3. Every two years

Have the marking head serviced by Pro-Pen.
This operation includes:

• complete dismantling of the machine

• cleaning of the mechanical elements

• standard replacement of X and Y carriages

• replacement of the guide bars and belts

• replacement of the solenoid valves

• verification of the condition of X and Y motors and belts

• reassembly and adjustment of mechanic al el ements

• debugging of the head in an enclosure

• marking tests

F

Ref. 92074 - P5000 PN_en_D

28/35

GGeneral maintenance

1. General information

Maintenance consists of regul ar monitoring of marking quality. Intensive use of the equipment can impact the
guiding systems of the carriage or the styl us point, and may result in distortion of th e characters.

Contact your distributor to schedule an appointment for servicing. This "tune-up" does not take a long time.
Check the compressed air system regularly. Based on the level of soiling, establish a schedule for cleaning or

replacement.
Never lubricate any part of the stylus or carriage guide bars.
If the machine is equipped with a pressure regulator filter, empty it regularly.

• Never lubricate any element s of the stylus.

• Never use pliers to tighten the styl us.

• Never lubricate any element of the marking head.

• Purge the filter of the pressure regulator regularly.

• The air pressure should be at 5.5 Bar (79.771 PSI) nominal, 6 Bar (87.023 PSI)
maximum, and must not go below 5 Bar (72.519 PSI).

• The air must be clean and dry.

G

Unplug the power supply plug before beginning any cleaning or maintenance operation.

2. Detaching the point of the stylus for sharpening

The tip of the point is made from a grade of carbide suitable for creati ng impacts. The point should be rounded in
order to hold up well on hard material.

To remove the point of the stylus, moisten the seal very slightly with a drop of oil, then push up on the stylus from
the pointed end.

12345

1 : Point
2 : Carbide insert for stylus PN12

Carbide monoblock for stylus PN22
3 : Spring
4 : O-ring
5 : Body

Ref. 9207 4 - P5000 PN_en_D

29/35

AGeneral maintenance

3. Changing the fuse

Disassemble the power filter located on the side of the machine.
Use a screwdriver to change the fuse. Remove the fuse from its housing and replace it with the new one.

Choosing the fuse

Delay fuse Nominal voltage Frequency

G

4 A TT 250 V AC 50 - 60 Hz

1 : Fuse carrier
2 : Fuse

4. Cleaning the sensors

1

2

The machine is equipped with 2 optoelect ron ic fork senso rs which det ect the end of trav el in X and Y and indi cate
the presence of the 2 car ri ages at the origin. Certain exteri or elements (chips, shavings...) can get stuck between
the sensors and disrupt their functi oning: the setting of the origin will not be accurate. To remove these foreign
objects, use an air blower to direct a blast of air between the sensors.

1

2

1 : Y Sensor
2 : X Sensor

Ref. 92074 - P5000 PN_en_D

30/35

HResolution of the problems

1. Possible marking problems and problem resolution

Situation Description Diagnosis Action

H

1 The stylus is not vibrating

sufficiently and the part is not
marked.

2 The point of the stylus doesn’t

mark the part.

3 Intermittent characters The point of the stylus was oil ed

4 Only the upper, or lower, par t of

the characters is marked.

5 Only the left, or ri gh t, p ar t of the

characters is marked.

6 There is a constant air leak

coming from the stylus.

The stylus is too close to the
surface to be marked.

The stylus is too far from the
surface to be marked.

or lubricated.

The part doesn’t have a
constant thickness in the Y
direction.

The part doesn’t have a
constant thickness in the X
direction.

The pressure is set ab ove 6 Bar
(87.023 PSI).

Raise the marking head, then try
marking again.

Lower the marking head, then try
marking again.

Dismantle the stylus.
Remove the point.
Clean the point with a dry cloth.
Reassemble the stylus.

Use feeler gauges to reposition the
part so that it is level.

Use feeler gauges to reposition the
part so that it is level.

Set the pressure at 5.5 Bar (79.771
PSI).

Ref. 9207 4 - P5000 PN_en_D

31/35

AResolution of the problems

2. What to do if...

Situation Description Things to check Action

H

1 The screen on the front of the

machine is blank.

2 One of the carriages, X or Y,

does not return to the origin
when the start marking
command is given.

3 Lost in the program? Refer to the manual. Press Esc and answer "no" to the

Is the power supply switched
on?
Is the cable properly
connected?
Is the On/Off switch in the On
position?
Is the fuse on the back of the
machine in good condition?

• The sensors are dirty.

• The machine’s mecha nics are
obstructed.

See: Power supply connection
See: Changing the fuse

• Clean the sensor by directing a
blast of air inside the fork with an air
gun.

• Turn off the machine and move
both carriages until the stylus is in
the middle of its travel. Try to
execute another marking.

questions from the program until
you’re back to the main menu.

Ref. 92074 - P5000 PN_en_D

32/35

IWearing and spare parts

Please give the item codes with your order to speed processing.

1. Spare parts

These parts may present a risk for breakdown under normal operating conditions of the machine. Mechanical
parts are excluded since in theory they are not considered a potential cause for breakdown.

Reference Description

92067 LCD screen

I

2757 (USA), 2755
(UK)

2742 Head casing with decals
3157 Column casing with decals
90020 Z axis crank handle
4020 Aluminum work table
90012 Rubber pads (4)
92061 Solenoid valves
2501 Standard air filter

Keyboard and functions strip

2. Consumables

Reference Description

2630 Points for RPN12 stylus
2631 Points for RPN22 stylus
2640 Repair kit (o-ring /spring) for PN12 stylus
2641 Repair kit (o-ring /spring) for PN22 stylus
4225 Fuse 4 A TT
90054 Air filtration cartridges

Ref. 9207 4 - P5000 PN_en_D

33/35

JNoise emission of the machine

1. Test code



Measurement method

The measurements were taken according to the regulations of standard NF EN ISO 11201:1996.

Measurement equipment used:

• 01dB - stell integrated sonometer, SIP 95 S, # 20394

• Cal 01 calibrator, # 40141

Material used for marking:

• type P5000 PN machine mounted on a column stand
The unit is placed on a wood workbench in a workshop where t he background noise level is negligible compared

with the noise emitted by the machine. The work station, situated more than 2 m (6.562 ft) f rom any separator, is
designed for a standing operator.

The marking is carried out using a PN12 stylus on a steel plate with dimensions of 110 mm (4.331 in) x 100 mm
(3.937 in) x 3 mm (0.118 in) clamped to a base support. A new plate is used for each test .

J



Definition of the microphone position

The microphone is positioned 1 m (3.281 ft) in fro nt of the machine and 1.4 m (4.593 ft) from the floor.



Test conditions

• marking speed : 100%

• compressed air system pressur e: 5.5 Bar (79.771 PSI)

• stroke force : 50%

• marking of 3 lines of 18 characters 5 mm (0.197 in) high

• steel plate with dimensions 110 mm (4.331 in) x 100 mm (3.937 in) x 3 mm (0.118 in)

2. Nois e emiss ion information

The values given bel ow represent the noise emitted by the machine during marking. When the machine is in us e,
the values mentioned ar e i ndependent from t he tot al noi se le vel t o which th e operat or is ex posed, s ince t he a ctual
noise level will vary depending on the operator’s environment.

• average le v e l: L
(L

= "equivalent" average sound level mea sured using the A-weighting)

Aeq

= 81.4 dB(A)

Aeq

• peak level: L
(Lpc = peak acoustic pressure level)

Ref. 9207 4 - P5000 PN_en_D

< 98 dB(C)

pc

When marking resonant parts (metallic, hollow, thin), wear hearing protection for
sound levels L

> 85 dB(A) or Lpc > 137 dB(C).

Aeq

34/35

To contact the GravoTech Group

KAppendix

K

www.pro-pen.com

GravoTech Marking SAS

114, quai du Rh

01708 MIRIBEL Cedex Tel. : [phone] Fax : [phone]

E-mail: [e-mail]

ENGLAND

Gravograph UK Ltd

Unit 3 Tro jan Business Cent re

Tachbrook Pa r k Esta te

LEAMINGTON SPA

CV34V 6RH Warwickshire

Tel. : [phone]

Fax : [phone]

E-mail: [e-mail]

SPAIN

Technifor Marc adores Industriales SL

C/ Sant Iscle, 29 bajos B

08031 BARCELON A Tel. : [phone] Fax : [phone]

E-mail: [e-mail]

BENELUX

Gravograph Benelux

Molenberglei 28

2627 SCHELLE Tel. : [phone] Fax : [phone]

E-mail: [e-mail]

FRANCE

ô

ne

GERMANY
GravoTech GmbH
Am Gansacker 3a

79224 UMKIRCH

Tel. : (49) 76 65 / 50 07-0

Fax : (49) 76 65 / 61 36

E-mail: [e-mail]

AUSTRIA

GravoTech GmbH

Porschestra

3106 ST PÖLTEN

Tel. : [phone]

Fax : [phone]

SWEDEN

GravoTech Nordrad AB

Vretenborgsv

SE-126 30 H

Tel. : [phone]
Fax : [phone]

E-mail: [e-mail]

ß

ä

gen, 28

Ä

GERSTEN

U.S.A.

Technifor Inc.

9800-J Southern Pine Boulevard

CHARLOTTE, NC 28273

Tel. : [phone]
Fax : [phone]

E-mail: [e-mail]

e

E-mail: sales@gr avograph.com.ch

Ul. Gen. Grota Roweckiego 168

ITALY

GravoTech Italia Srl

Via Rivera, 13 8

10040 ALMESE (TO) Tel. : [phone] Fax : [phone]

E-mail: info@technifor .it

SWITZERLAND

Gravograph Switzerland

Champ Olivier 2

Ch 3280 MORAT
Tel. : [phone]
Fax : [phone]

POLAND

GravoTech Sp zoo

PL 52-214 WROCLAW
Tel. : [phone]

Fax : [phone]

E-mail: infopl @pro-pen.com

CHINA

GravoTech Engraving Equipment Co. Ltd

N. 3388 Humin Road, Minhang District

SHANGHAI 201108
Tel. : (86) 21 / 51 59 18 28
Fax : (86) 21 / 51 59 18 23

E-mail: sales-c [e-mail]

SINGAPORE

Gravograph Si ngapore Pte Ltd

#06-09 8 @ Tradehub 21

8 Boon Lay Way 609964 SINGAPORE Tel. : ((65) 6316 1512 Fax : [phone]

E-mail: [e-mail]

AUSTRALIA

Gravograph Aus tralia

Unit 3, 7-11 South Street

RYDALMERE N.S.W. 2116

Tel. : [phone]
Fax : [phone]

E-mail: sales@gr avograph.com.au

MALAYSIA

GravoTech Sdn Bhd

No. 29, Jalan Puteri 5/10

Bandar Puteri

47100 PUCHONG, SELANGOR

Tel. : [phone] & 80 683512

Fax : [phone]

E-mail: sales@grav ograph.com.my

INDIA

GravoTech Engineering PVT Ltd

Gat No 2323/1, "Reality Warehousing"

Nagar Road

PUNE WAGHOLI 412 207

Tel. : (91) 20 / 41030000

Fax : (91) 20 / 41030010

E-mail: gravot [e-mail]

MEXICO

GravoTech S. DE R.L DE C.V

Av. 16 de Septiemb re # 46 Int Q y 20

Fracc. Alce Bl anco

Naucalpan, Estado de México

C.P. 53370 MEXICO

Tel. : [phone] / 67

Fax : [phone]

E-mail: npari zon@gravogra ph-newhe rmes.com

JAPAN

GravoTech KK
1-25 Takahata-Cho
NISHINOMIYA-SHI

HYOGO 663-8202

Tel. : [phone]

Fax : [phone]

E-mail: [e-mail]

TURKEY

GravoTech STI Turkey

Atiye Hanım Sokak No. 13

34752

İ

ÇERENKÖY / İSTANBUL

Tel: [phone]

Fax: [phone]

E-mail: [e-mail] ech.com

BRAZIL

Technifor Pictor Ltda

Av. Dr. Luis Arrobas Mar tins, 98

04781-000 - SAO PAULO SP

Tel. : [phone]
Fax : [phone]

E-mail: brasil @pro-pen.com

Ref. 9207 4 - P5000 PN_en_D

35/35
