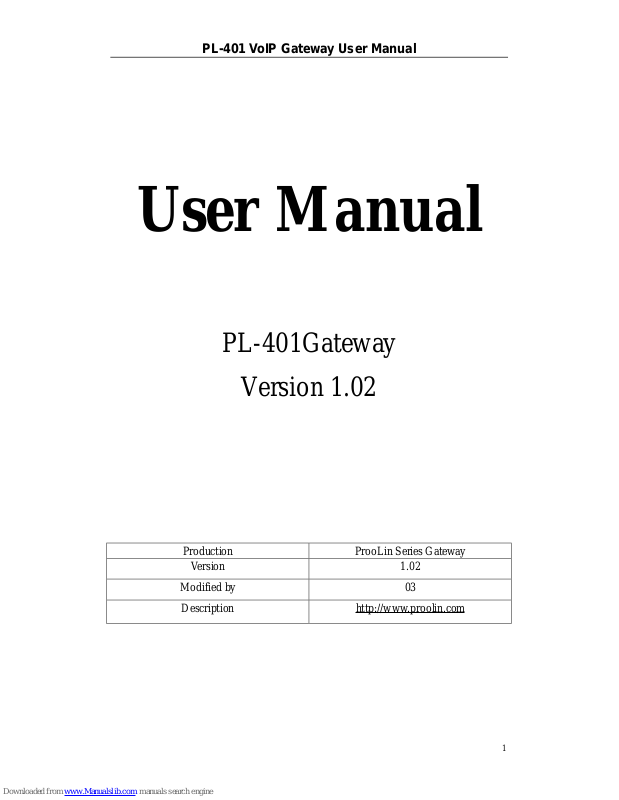

PL-401 VoIP Gateway User Manual
1
User Manual
PL-401Gateway
Version 1.02
Production ProoLin Series Gateway
Version 1.02
Modified by 03
Description http://www.proolin.com
Page 2
PL-401 VoIP Gateway User Manual
2
CONTENT
1 WELCOME................................................................................................................................3
2 INSTALLATION........................................................................................................................3
2.1 Package List........................................................................................................................3
2.2 Safety Compliances............................................................................................................3
3 PRODUCT OVERVIEW............................................................................................................3
4 CONFIGURATION WITH WEB..............................................................................................6
4.1 User verification..................................................................................................................7
4.2 Current state........................................................................................................................7
4.3 Network configuration........................................................................................................8
4.3.1 Wide area network（WAN） ..................................................................................8
4.3.2 Local area network (LAN).....................................................................................11
4.4 VOIP configuration...........................................................................................................12
4.4.1 SIP configuration...................................................................................................12
4.5 Advance configuration......................................................................................................15

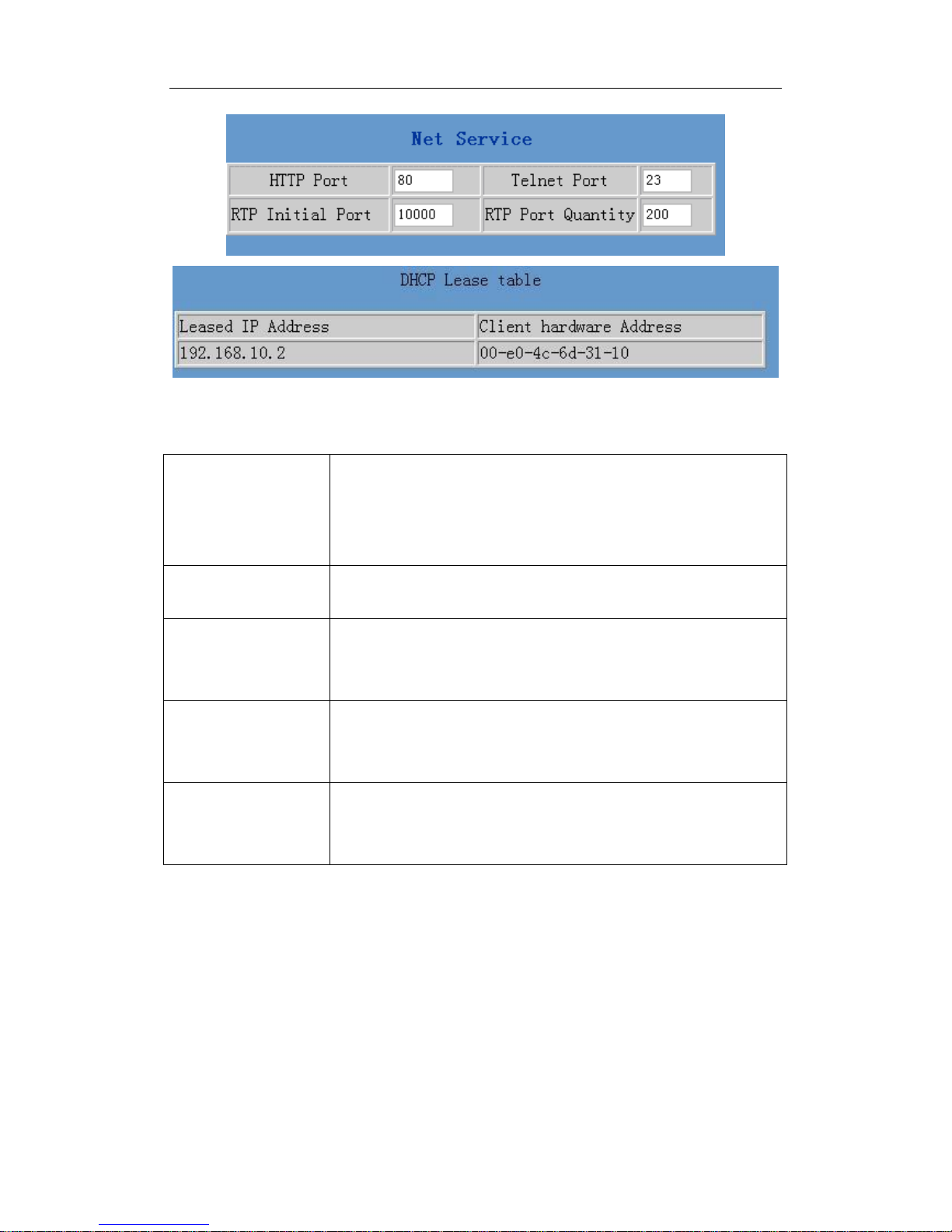

4.5.1 Net Service configuration......................................................................................15
4.5.2 SIP advanced configuration...................................................................................17

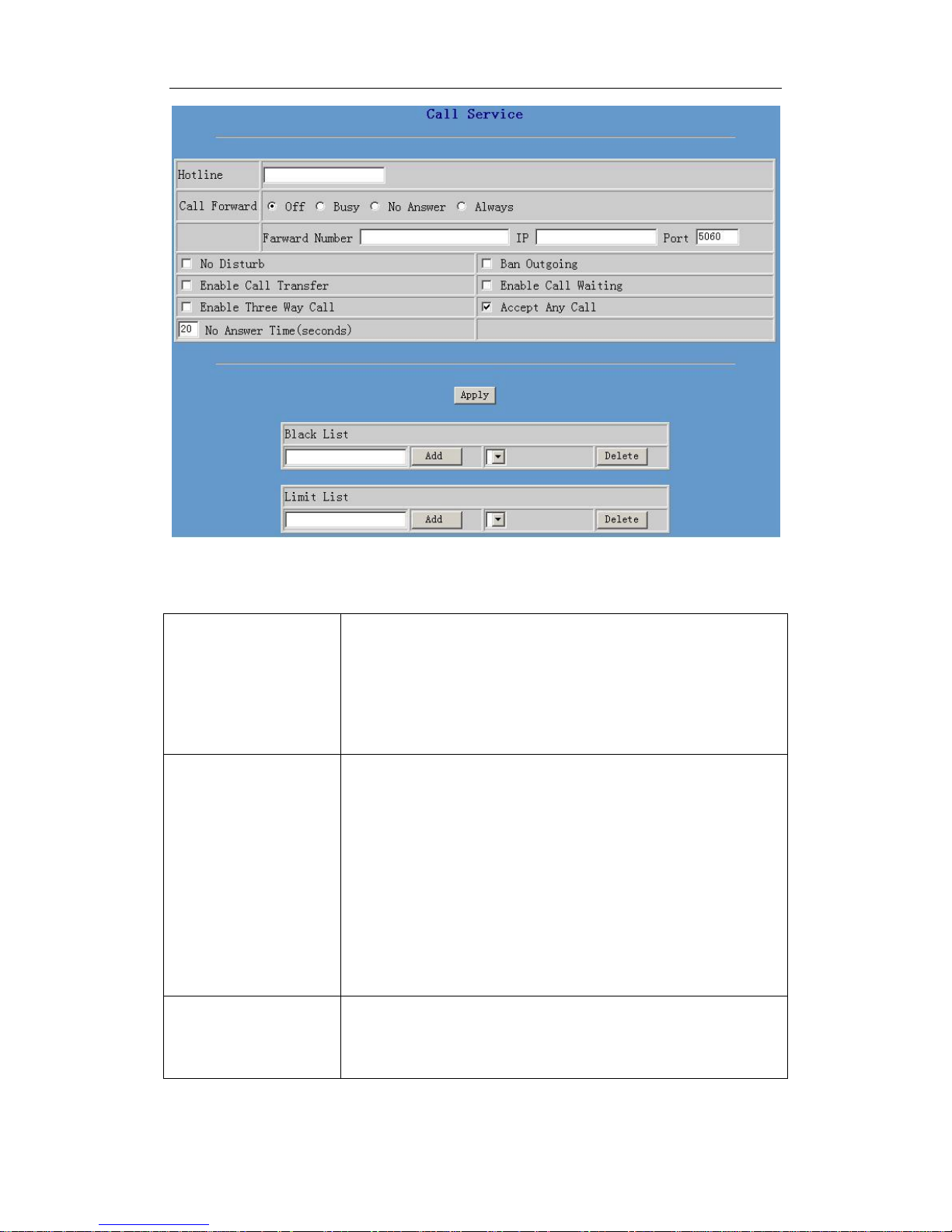

4.5.3 Value- added service configuration........................................................................20

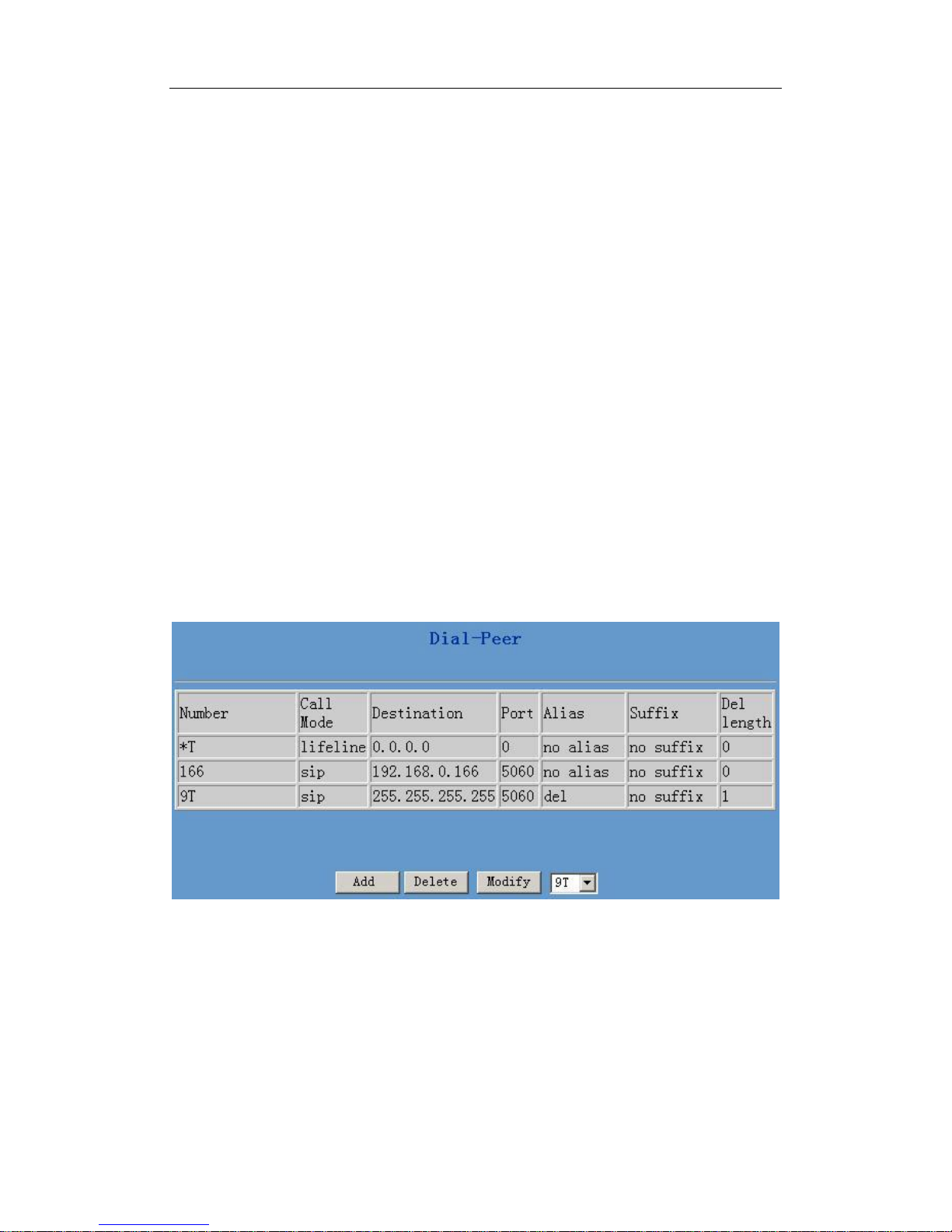

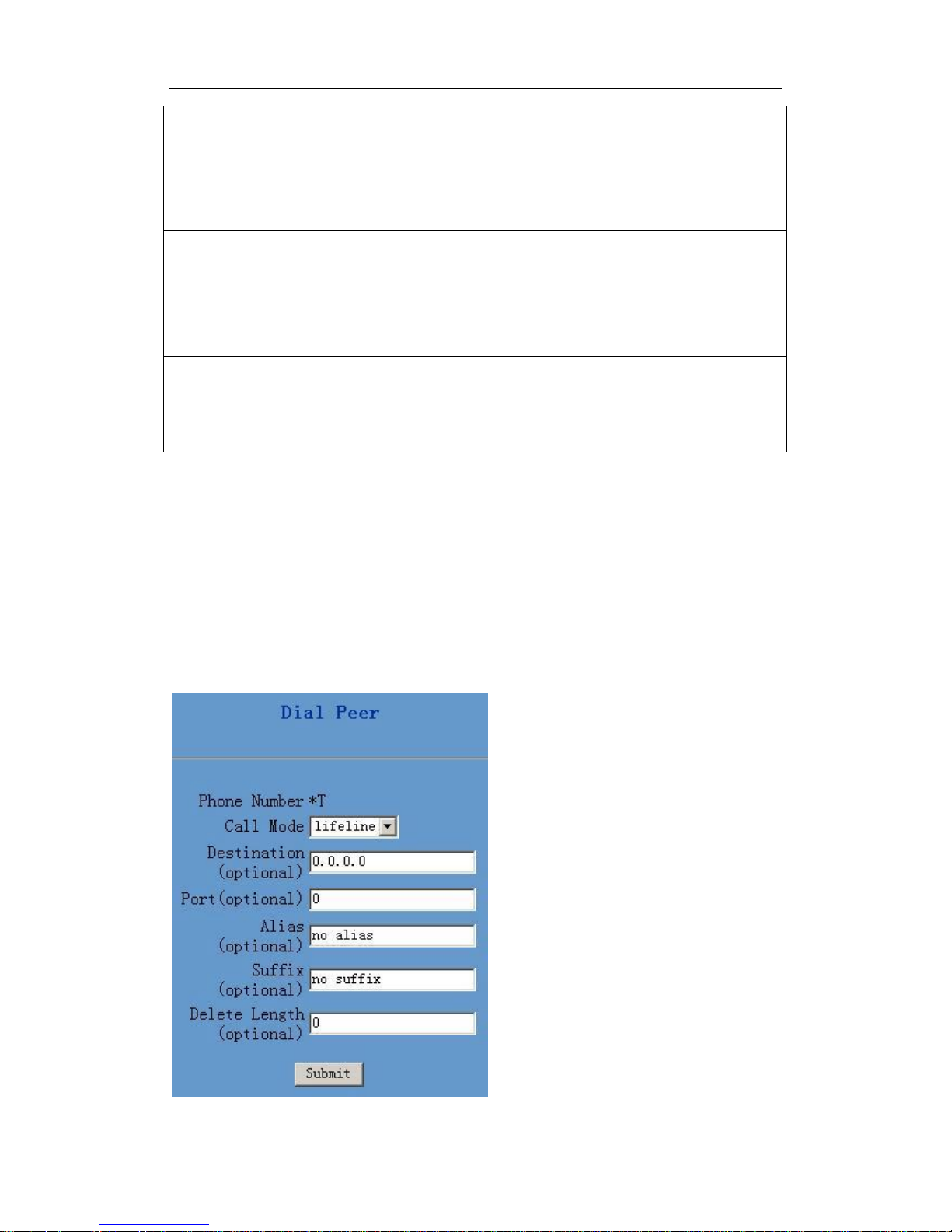

4.6 Number binding configuration..........................................................................................23
4.7 Save and Clear configuration............................................................................................29
4.8 Upgrade on-line................................................................................................................30
4.8.1 Upload WEB page..................................................................................................30
4.8.2 FTP download........................................................................................................30
4.9 System management.........................................................................................................31

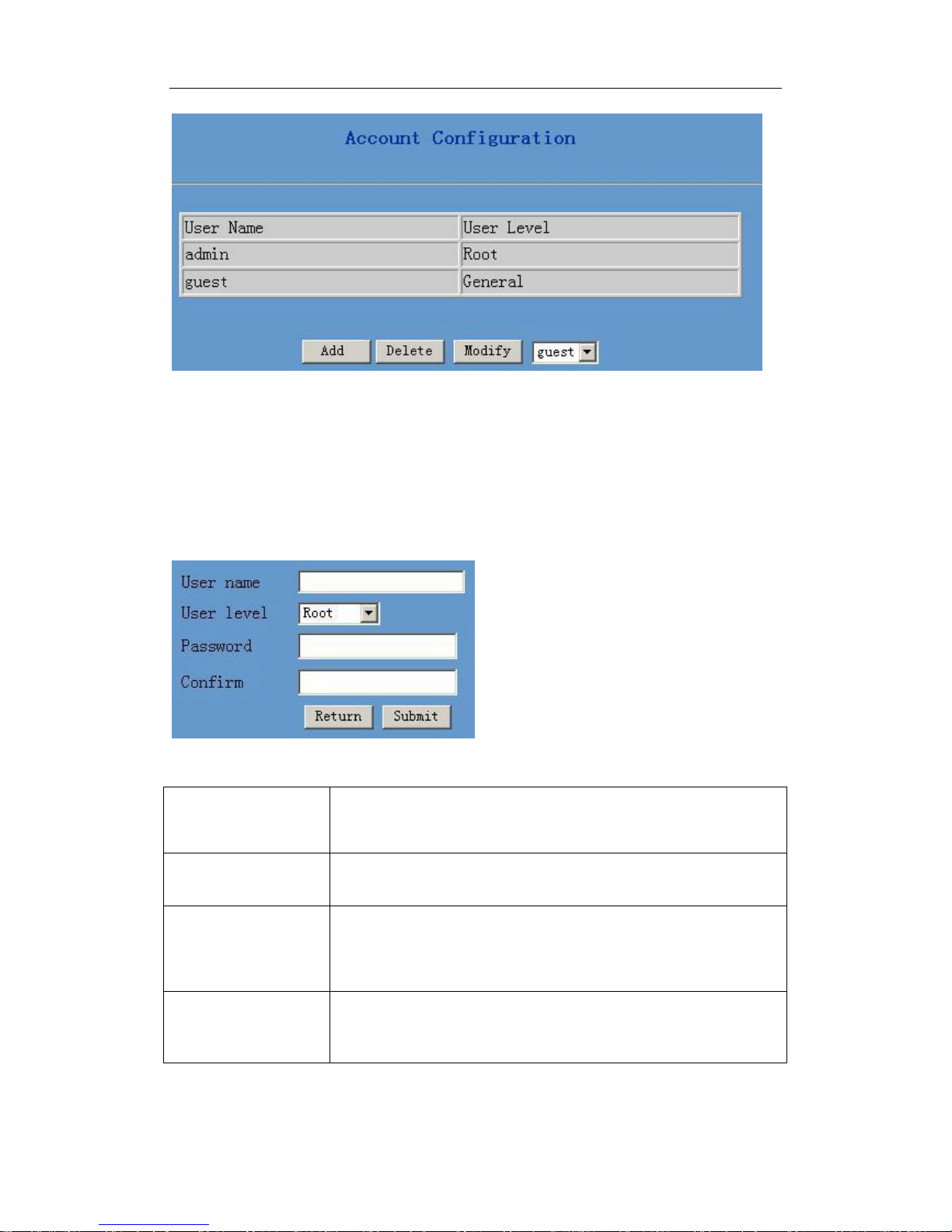

4.9.1 Account management.............................................................................................31
5 CONFIGURATION WITH PHONE...........................................................................................34
Page 3
PL-401 VoIP Gateway User Manual
3
1 Welcome
PL-401 series of gateways are innovative gateways that offer a rich set of
functionality and superb sound quality. They are fully compatible with
SIP industry standard and can interoperate with many other SIP
compliant devices and software on the market.
2 Installation
2.1 Package List
The PL-401 gateway package contains:
1) One PL-401 gateway
2) One universal power adapter
3) One Straight Ethernet cable
2.2 Safety Compliances
The gateway should only be operated with the universal power adapter
provided with the package. Damages to the gateway caused by using
other unsupported power adapters would not be covered by the
manufacturer’s warranty.

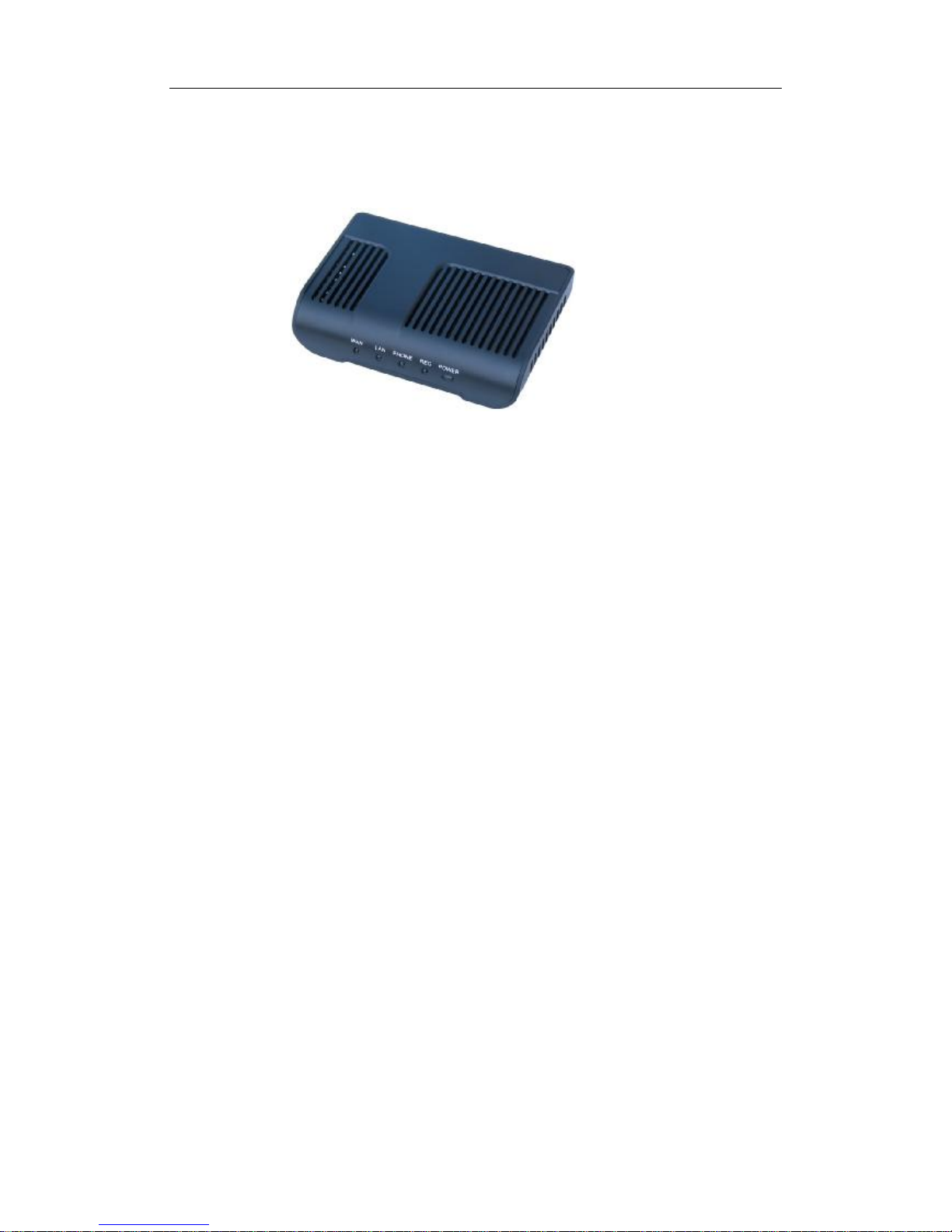

3 Product Overview
PL-401 IP Gateway is a next generation IP network facility based on
industry open standard SIP (Session Initiation Protocol) . Built on
Page 4
PL-401 VoIP Gateway User Manual
4
innovative technology, PL-401 IP Gateway features market leading
superb sound quality and rich functionalities.
3.1 key Features
l Support two models: Bridge and Router(NAT&NAPT)
l Network Protocols: TCP/UDP/IP, ICMP, HTTP, DHCP Client（WAN
Interface）, DHCP Server（LAN Interface）, DNS Client, DNS Relay,
SNTP, PPPoE, FTP, TFTP
l VoIP Protocols: SIP (RFC2976,RFC3261, RFC3262, RFC3264,
RFC3265,RFC3515,RFC3581)
l Voice Codecs: G.711（A-law/U-law, G.729A/B, G.726
l Redundancy SIP server (or Gate Keeper): Can auto swap address
between two servers address
l NAT transversal: Support STUN client. Can modify SIP register port,
HTTP server port, Telnet server port and RTP port
l Support two SIP server synchronously: Can register two different SIP
server, and can make a call by either proxy
l Support standard voice features such as numeric Caller ID Display,
Page 5
PL-401 VoIP Gateway User Manual
5
Call Waiting, Hold, Transfer, Do-Not-disturb, Call Forward, in-band
and out-of-band DTMF, Hotline (off hook autodial), ban outgoing
l Support standard encryption and authentication (DIGEST using MD5,
MD5-sess)
l Support Silence Suppression, VAD (Voice Activity Detection), CNG
(Comfort Noise Generation), Line Echo Cancellation (G.168), and
AGC (Automatic Gain Control)
l Provide easy configuration thru manual operation (Web interface or
Telnet) or automated centralized configuration file via TFTP or
HTTP.
l Support firmware upgrade via TFTP/FTP and HTTP
3.2 Hardware Specification
The table below describes the hardware specification.
Item Specification
Input 110-220V AC Power Adapter
Output 12V DC 2A
WAN 1 10/100Base T RJ-45
LAN 1 10/100Base T RJ-45
Phone 1 RJ11 for phone
Port
Lifeline 1 RJ11 for Lifeline (PSTN)
Power Consumption 3.5W/1.8W
Operating Temperature
0～40℃
Page 6
PL-401 VoIP Gateway User Manual
6
Relative Humidity
5～95%
Volume 180mm*120mm*60mm
Weight 520g

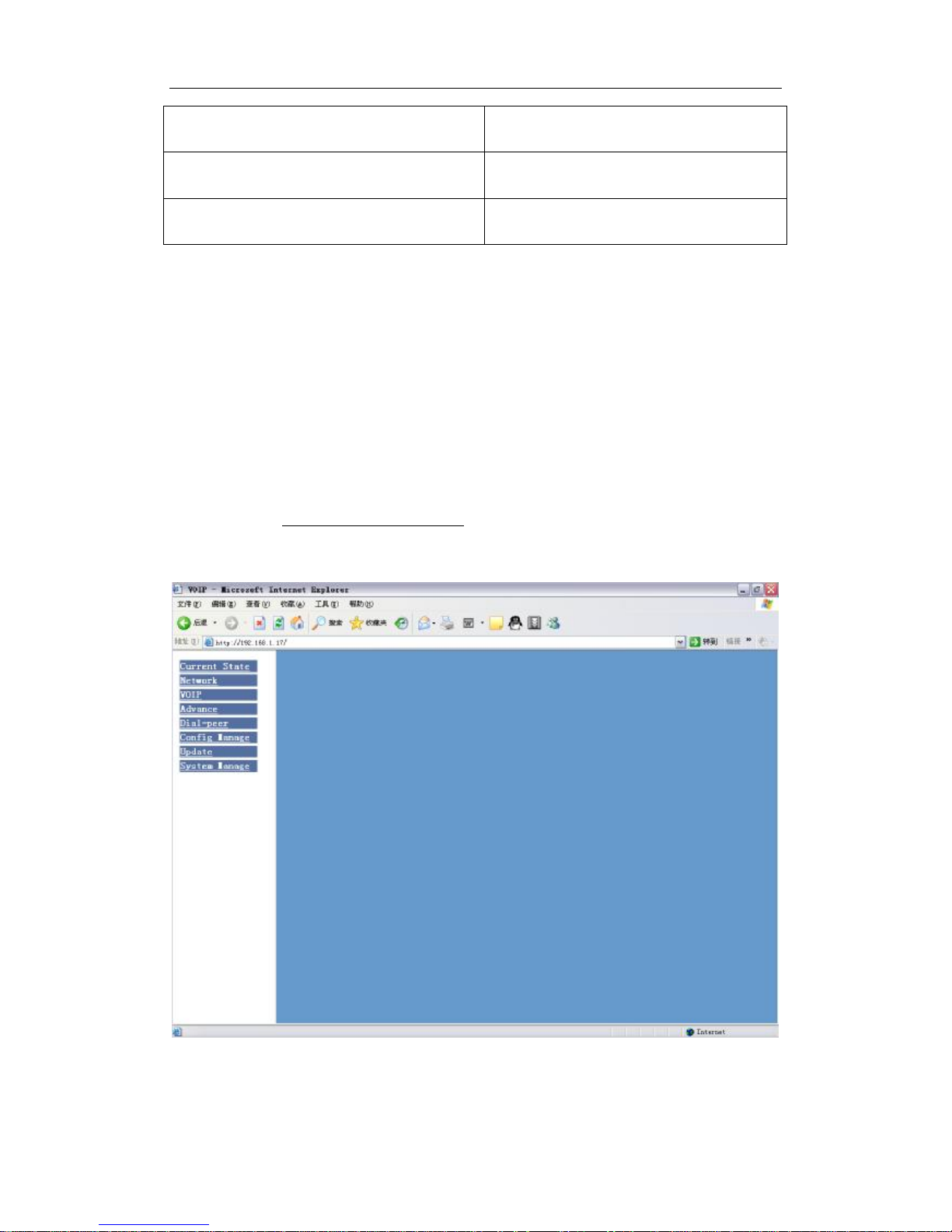

4 Configuration with WEB
The IP Gateway Web Configuration Menu can be accessed by the
following URL: http://Gateway-IP-Address. The default LAN IP address
is “192.168.10.1” and WAN IP address is “192.168.1.179”. If the web
login port of the gateway is configured as non-80 standard port, then user
need to input http://xxx.xxx.xxx.xxx: xxxx/, otherwise the web will show
that no server has been found. It will be shown as follows:
Page 7
PL-401 VoIP Gateway User Manual
7
4.1 User verification
User should login before configurating dialogue machine.
Guest account: the default username and password are all “guest”, user
can have a browse of system and configure the most of item of system
exclude SIP.
Administrator account: the default username and password are all
“admin”, this user can configure the system.
Note: after inputting username and password, user press carriage
return directly to enter the page.

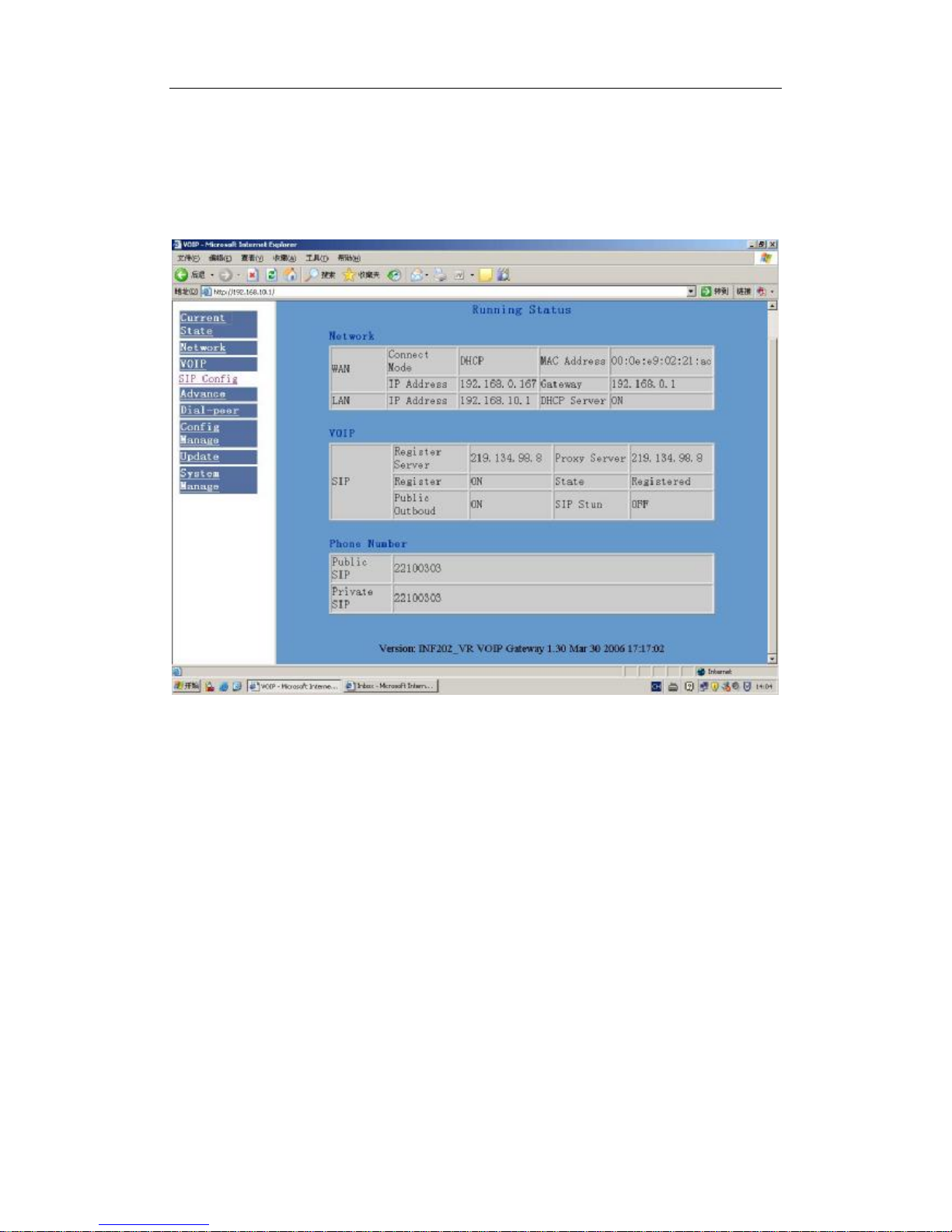

4.2 Current state
On this page user can gather information of each commonly-used
parameter of the gateway, it is shown as the following figure: the network
section shows the current WAN, LAN configurations of the gateway:
including gaining way of WAN IP and IP address（static state, DHCP,
PPPoE), MAC address, WAN IP address of the gateway, LAN IP address
of the gateway, opening state of LAN DHCP server.
The VoIP section shows the current protocol in use, and server parameters
in use of each protocol: including Register server IP of SIP, proxy server
IP address, whether enables register, whether has registered on register
server, whether enables outbound proxy, whether enables STUN server.
The Phone Number section shows corresponding phone number of each
Page 8
PL-401 VoIP Gateway User Manual
8
protocol.
The version number and date of issue have been shown at the end of the
page.
4.3 Network configuration

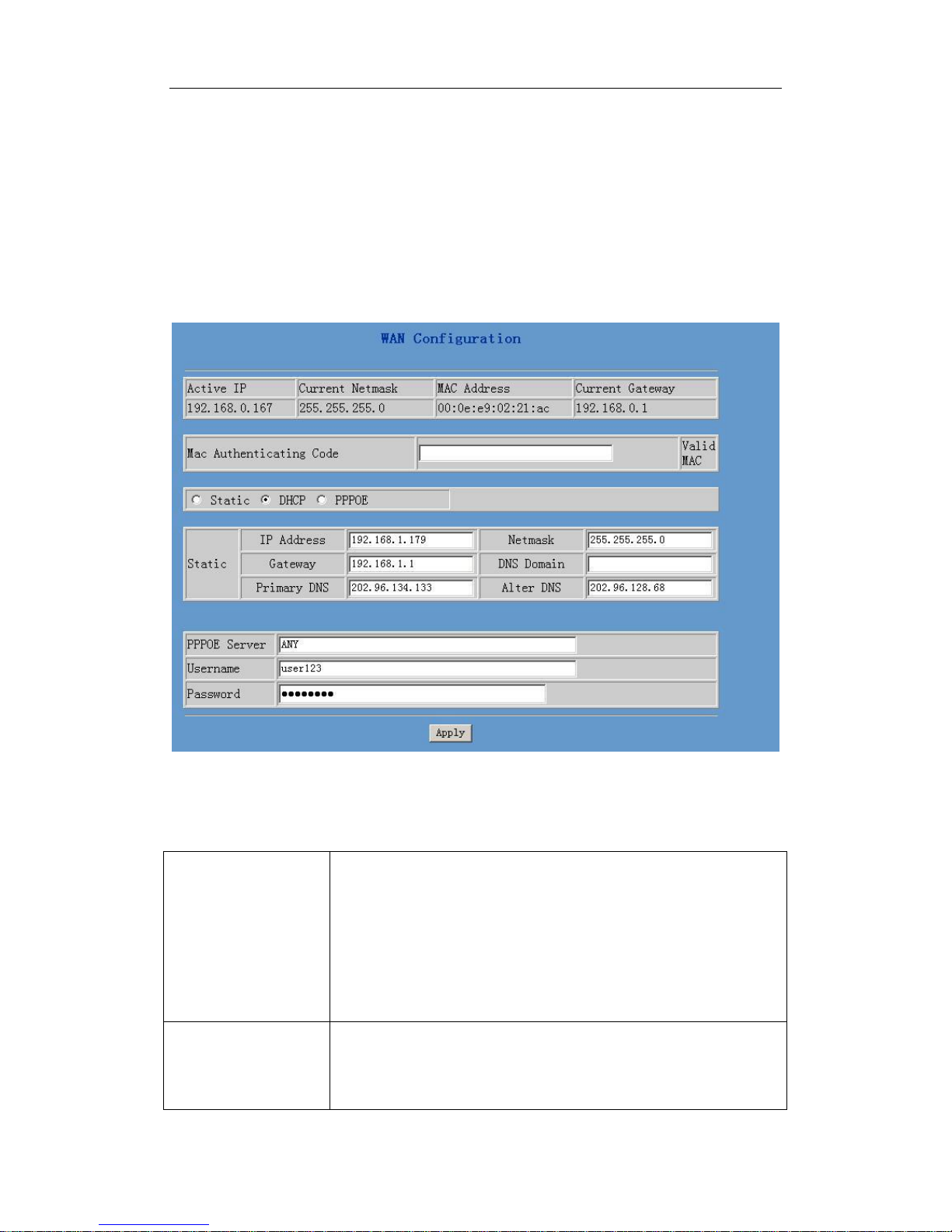

4.3.1 Wide area network（WAN）
User can view the current network IP linking mode of the system on this
page.
User will be authorized to set the network IP, Gateway and DNS if the
system adopts the static linking mode.
If the system selects DHCP service in the network which is using DHCP
service, IP address will be gained dynamically.
If the system selects PPPOE service in the network which is using the
Page 9
PL-401 VoIP Gateway User Manual
9
PPPOE service, then the IP address will be gained by the set PPPOE ISP
internet and password of the account.
Note: if IP address has been modified, the web page will no longer
respond owing to the modification, so new IP address should be input
in the address field now.
Configuration Explanation:
First Table:
Active IP /
Current Netmask/
MAC Address/
Current Gateway
Current gateway IP, subnet mask, mac address and
current gateway IP;
Mac
Authenticating
Code
To confirm if the MAC Address is legal. If legal, it
displays Valid MAC, the device works normally; if
illegal, the gateway has no dialling tone and can not
Page 10
PL-401 VoIP Gateway User Manual
10
Code make a call, but other functions still work.
When illegal, ask the device provider to get MAC
check digit, then submit and restart, the gateway
will be recovered.
Static/DHCP/
PPPOE
Select acquisition way of IP for WAN; This is single
option; Configure static IP parameter for WAN;
Static Parameter Configuration:
IP Address Configure static IP address;
Netmask Configure subnet mask;
Gateway Configure IP address of the gateway;
DNS Domain Configure “dns domain” suffix; if user input
“domain” and it can’t be resolved, the gateway will
add and resolve the “domain” after user input.
Primary DNS Main DNS server IP address.
Alter DNS The second DNS server IP address.
PPPoE Configuration:
Server Service name, if PPPoE ISP has no special
requirement for this name, generally use the default.
User PPPoE account.
Password PPPoE password.
Configure the parameter and then click "apply" to go into effect.
Page 11
PL-401 VoIP Gateway User Manual
11

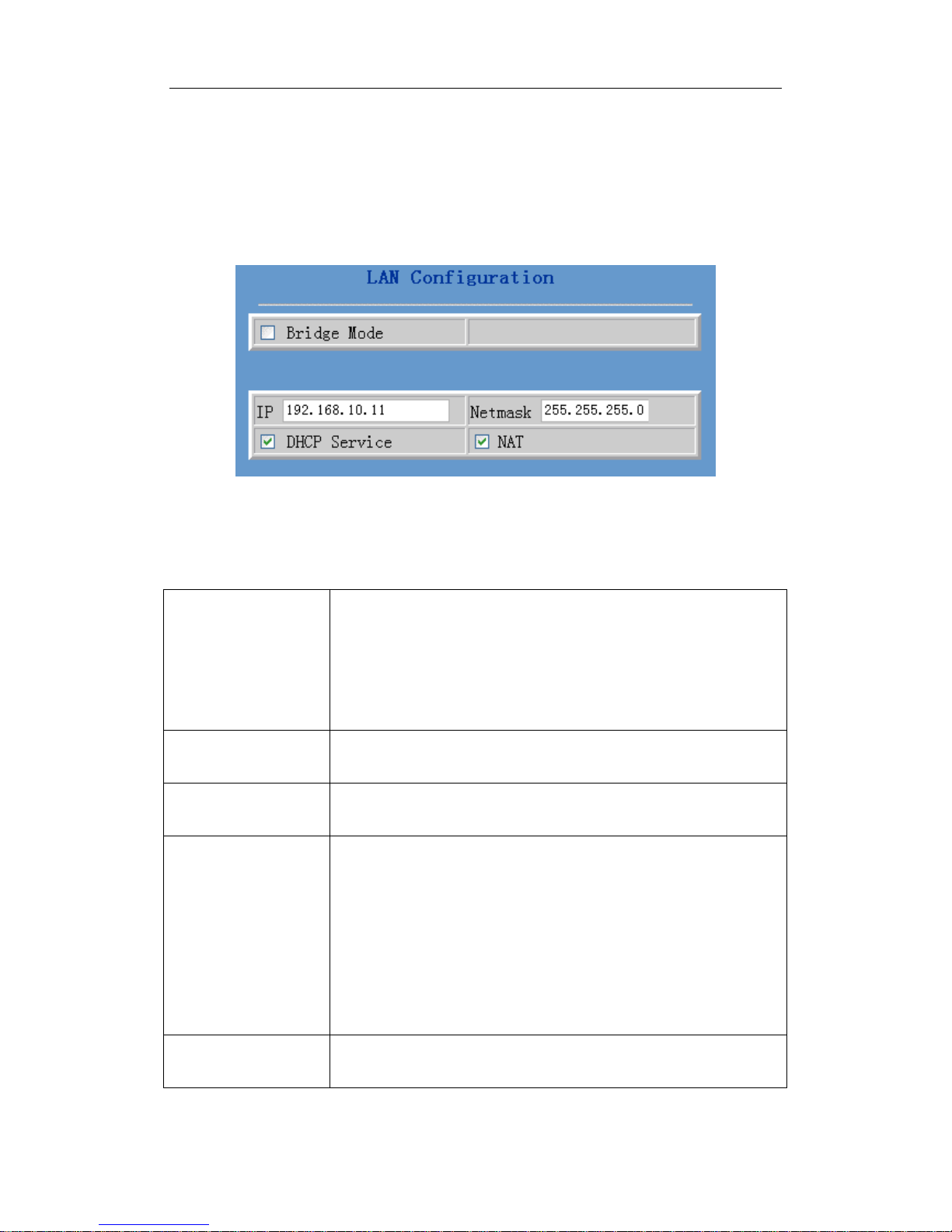

4.3.2 Local area network (LAN)
User can make local area network (LAN) configuration on this page,
when bridging mode is selected, the local area network (LAN)
configuration will no longer go into effect.
Configuration Explanation:
Bridge Mode Use bridge mode (transparent mode): bridge mode
will make the gateway no longer set IP address for
LAN physical port, LAN and WAN will join in the
same network.
IP Configure LAN static IP.
Netmask Configure LAN subnet mask.
DHCP Service Enable LAN port DHCP server; after user modify
LAN IP, the gateway will automatically modify the
adjustment and save the configuration according to IP
and subnet mask team DHCP Lease Table, user need
to restart the gateway to make DHCP server
configuration go into effect.
NAT Enable NAT.
Page 12
PL-401 VoIP Gateway User Manual
12
4.4 VOIP configuration

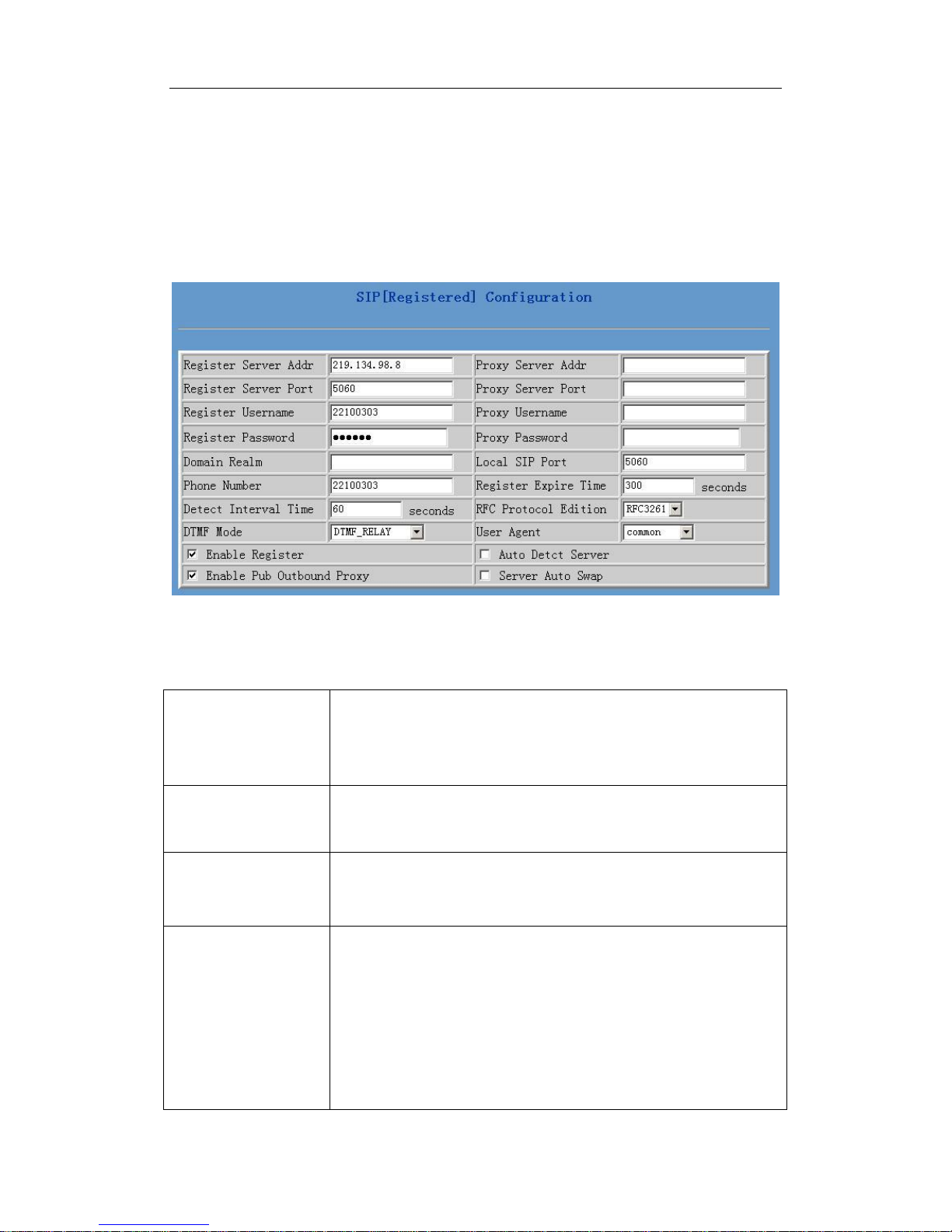

4.4.1 SIP configuration
User can configure specific parameter of SIP signaling protocol on this
page.
Configuration Explanation:
SIP[Registered]
Configuration
show SIP register state; if register successfully, there
will show Registered in the square bracket, otherwise
show Unregistered.
Register Server
Addr
Configure SIP register server IP address.
Register Server
Port
Configure SIP register server signal port.
Register
Username
Configure SIP register account（usually it is the same
with the port number that configured, some special
SIP servers will have different port configurations,
then the port configuration needs to be configured to
be numbers, here the configuration account can be
arbitrary character string）.
Page 13
PL-401 VoIP Gateway User Manual
13
Register
Password
Configure password of SIP register account.
Proxy Server
Addr
Configure proxy server IP address（usually SIP will
provide user with service of proxy server and register
server which have the same configuration, so the
configuration of proxy server is usually the same
with that of register server, but if the configurations
of them are different(such as different IP addresses),
then each server's configuration should be modified
separately.
Proxy Server Port Configure SIP proxy server signal port.
Proxy Username Configure proxy server account.
Proxy Password Configure proxy server password.
Domain Realm Configure SIP domain, which is provided by SIP
Server. It can be the server IP (e.g. 202.112.10.12 );
or the domain name of the server(e.g. sipconcet.net);
or other identifier provided by the server(e.g. sip).
If SIP domain is same with server address, it does’t
display.
Local SIP Port Configure local signal port, the default is 5060（this
port will go into effect immediately, the SIP call will
use the modified port for communication after
modification）.
Phone Number Configure the phone number. If the accounts
provided by ISP have no separate number, set the
number to the same with server user name.
Page 14
PL-401 VoIP Gateway User Manual
14
Register Expire
Time
Configure expire time of SIP server register, the
default is 600 seconds. If the expire time that server
requires is more or less than that configured by the
gateway, the gateway can automatically modify it to
the recommended time limit and register.
Detect Interval
Time
Configure detection interval time of the server, if the
gateway enables SIP detection server function, the
gateway will detect once for whether the server has
response every other detection interval time.
RFC Protocol
Edition
Enable the gateway to use protocol edition. When the
gateway need to communicate with gateways which
is using SIP1.0 such as CISCO5300 and so on, then it
should be configured into RFC2543 to communicate
normally. the default is to enable RFC3261.

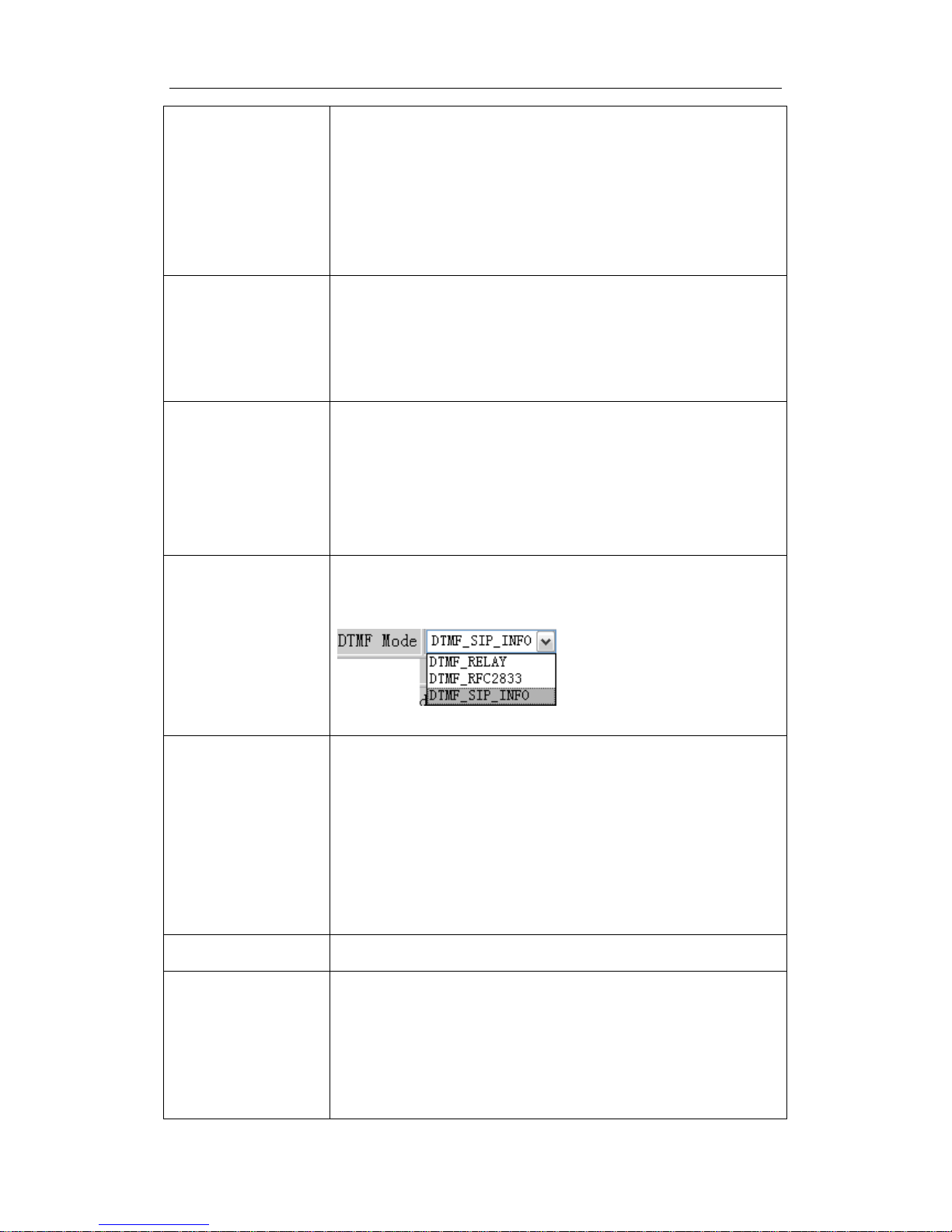

DTMF Mode
DTMF sending mode configuration; three kinds: the
above are basic configurations of SIP.
User Agent To be compatible with some special SIP Servers, the
gateway has made some changes:
net3phone: server demands to use the MAC address
as user agent;
shengji: walkersun and ipgw use special encrypt;
japan050: use the default value “common”.
Enable Register Configure enable/disable register.
Enable Pub
Outbound Proxy
Configure to enable public outbound proxy. If proxy
server has been enabled, the gateway will consider
the user as using outbound proxy automatically. If the
configuration has been disabled, the gateway can still
be registered to the server, but can't make SIP call;
Page 15
PL-401 VoIP Gateway User Manual
15
configuration of registered call by the gateway will
not have impacts on SIP point-to-point call.
Auto Detect
Server
Configure automatic detection server of the gateway.
Server Auto Swap Configure main and backup auto-swap server; if the
gateway enables main and backup server function,
the automatic detection and auto-swap functions
should both be chosen.
Note: if you want to register and call through server, you must
configure corresponding numbers（which are usually SIP accounts）
to local port, otherwise the gateway will reject for sending out
register message when it considers that there is no number.
4.5 Advance configuration
4.5.1 Net Service configuration
User can set up Telnet, HTTP, RTP port on this page and view DHCP
table.
After the aforesaid network and VoIP configuration, if the netw
ork can
communicate correctly, the user should be able to make VOIP calls
through the register and proxy.
After submitting the configuration, if the status is still incorrect
, click
the menu in the left to renovate. Please do not click the “apply
”
continuously
, since some ISP may inhibit the gateway to register or
cancel continuously. If users click “apply” continuously
, or register
and cancel frequently, the server may stop response, this will make the
gateway can not receive the certifications of register
/cancel request
and show error register status!
Page 16
PL-401 VoIP Gateway User Manual
16
Configuration Explanation:
HTTP Port Configure web browse port, the default is 80 port, if
you want to enhance system safety, you'd better
change it into non-80 standard port.
Telnet Port Configure telnet port, the default is 23 port.
RTP Initial Port Enable RTP initial port configuration. It is dynamic
allocation.
RTP Port Quality Configure the maximum quantity of RTP port. The
default is 200.
Leased IP
Address
Leased IP-MAC correspondence table of DHCP.
Note:
1) The configuration on this page needs to be saved after modified
and will go into effect after restarting.
2) If the Telnet, HTTP port will be modified, the port is better to be
set as greater than 1024,because the 1024 port system will save
Page 17
PL-401 VoIP Gateway User Manual
17
ports.
3) Set the HTTP port as 0, then the http service will be disabled.

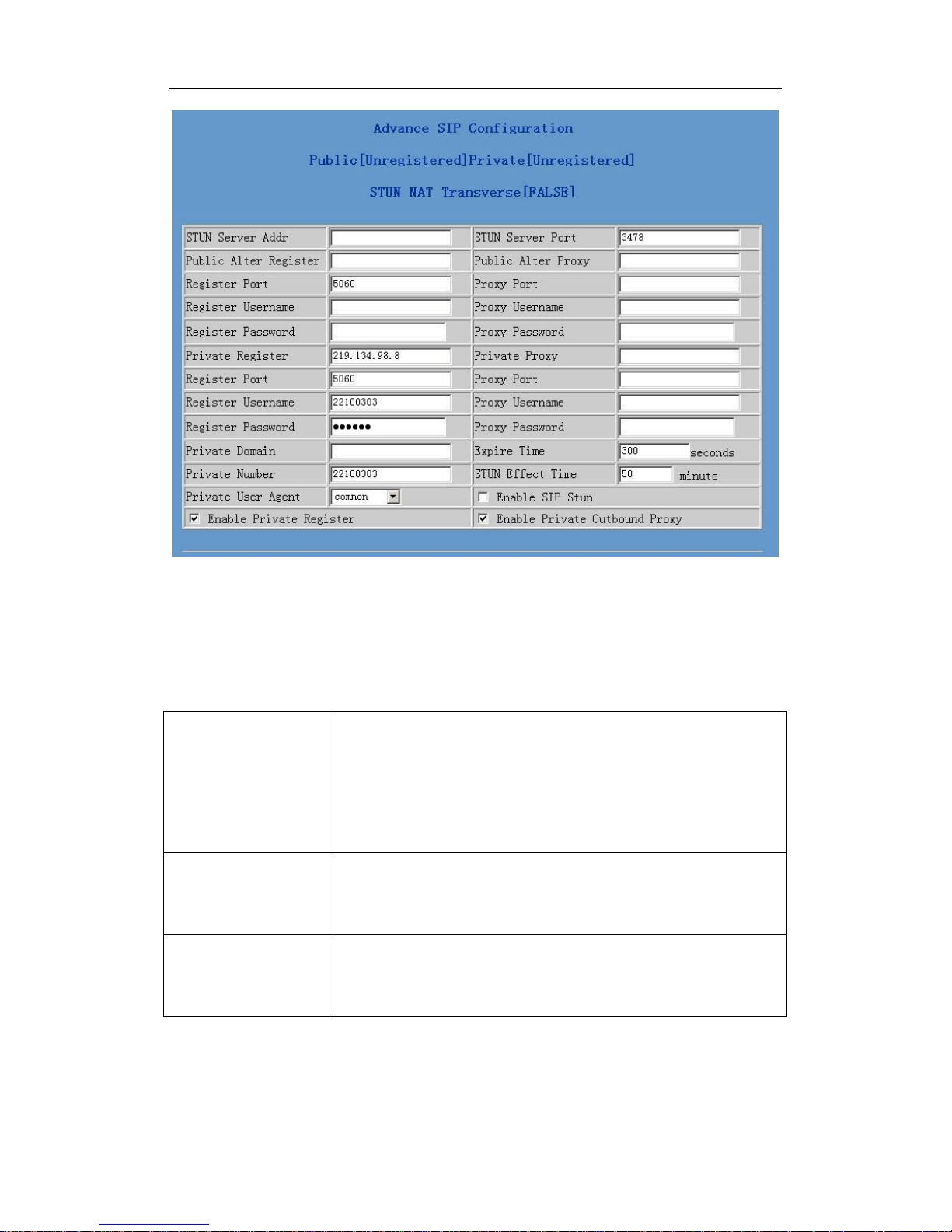

4.5.2 SIP advanced configuration
Set SIP STUN, private and backup server, user password and so on.
SIP STUN is a kind of server that used to realize the SIP’s enablement of
NAT, when the STUN server IP of the gateway has been configured
（generally the default is 3478）and Enable SIP Stun has been selected,
conventional SIP server can be used to realize the gateway's penetration
of NAT.
Public backup server can implement the proxy of the dialogue machine
through auto-swap function when no response to public server. When the
gateway detect response of public server, it will auto-swap to public
server. Public backup server is redundancy backup of public server, it
should have the same account with public server.
The gateway’s supports to two different kinds of SIP server concurrently
can be implemented on private server. In this way user can register and
use two different kinds of services concurrently.
Page 18
PL-401 VoIP Gateway User Manual
18
Configure explanation:
1) Configure of private server:
Public
[unregistered]
Private
[Unregistered]
To show the gateway whether has been registered on
public server or private server.
STUN Server
Addr
Configure IP address of SIP STUN server.
STUN Server
Port
Configure port of SIP STUN.
Page 19
PL-401 VoIP Gateway User Manual
19
STUN can support SIP terminal's penetration to NAT
in the inner-net. In this way, as long as there is
conventional SIP proxy and a STUN server placed in
the public net, it will do; but STUN only supports
three NAT modes: FULL CONE, restricted, port
restricted.

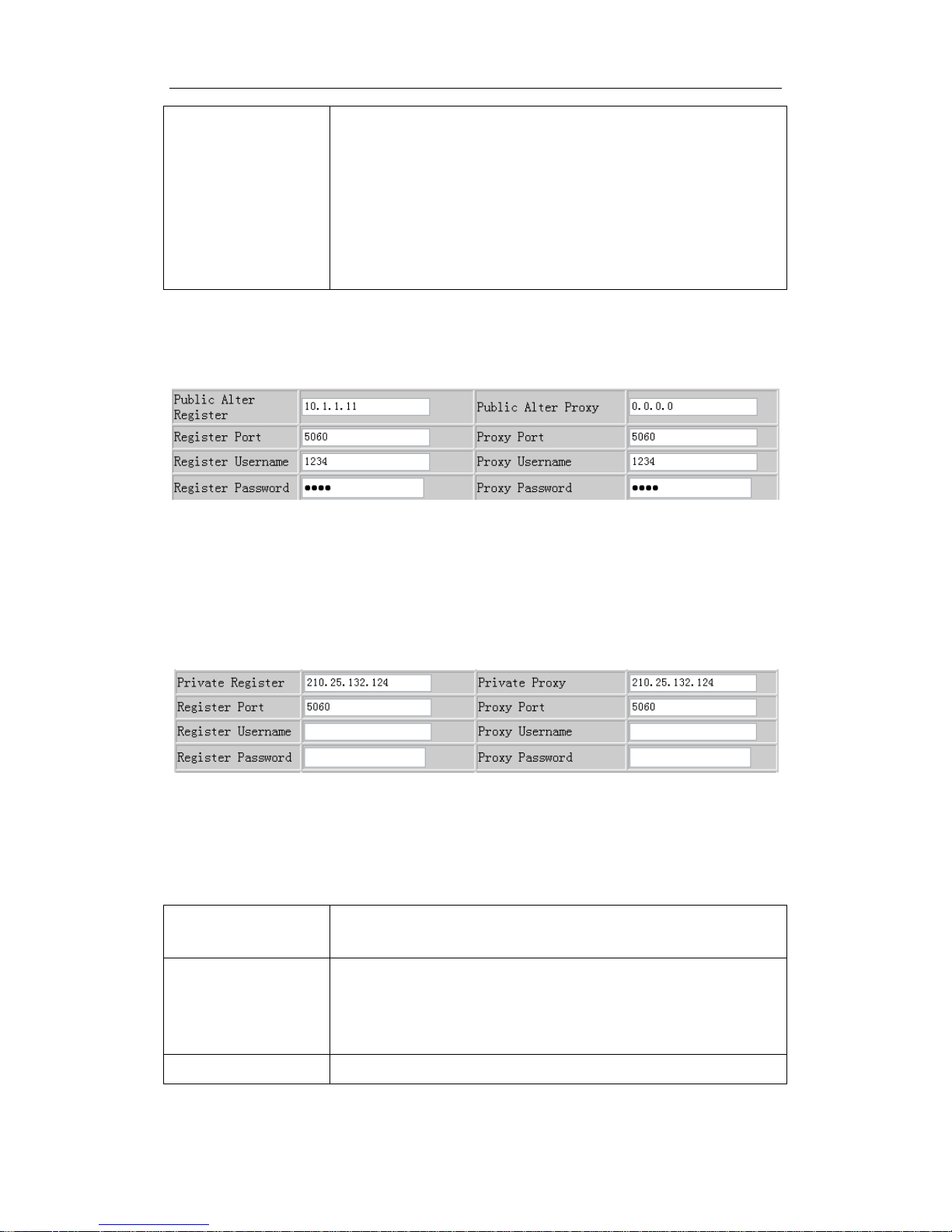

2) Public backup server configuration:
the specific configuration parameter has the same meaning with public
server. It should be noted that the username and password should be the
same with the public main server;
3) Private server configuration.
specific configuration parameter has the same meaning with public
server;
4) Others
Private Domain Configure SIP Domian of SIP private server
Private Number The port number of private server. When no special
requirement, it is the same with user name of the
server.
Private User Configurate User Agent of private server, the default
Page 20
PL-401 VoIP Gateway User Manual
20
Agent is common.
Expire Time Configurate the register expire time of private server.
STUN Effect
Time
Interval time for STUN’s detection on NAT type, the
unit is minute.
Enable SIP Stun Configure enable/disable SIP STUN.
Enable Private
Register
Configure permit/deny private server register.
Enable Private
Outbound Proxy
Configure enable/disable private outbound proxy.
After the aforesaid configuration has been done, click apply to make them
go into effect.
4.5.3 Value- added service configuration
On this page, user can set value-added services such as hot-line, call
forwarding, call transfer (CT), call-waiting service, three way call,
blacklist, out-limit list and so on.
Page 21
PL-401 VoIP Gateway User Manual
21
Configuration Explanation:
Hotline Configure hot-line number of the port. With this
number of the port, this hot-line number will be
dialed automatically as soon as off-hook and user
can's dial any other number.
Call Forward Call forwarding. The default is Disable. when busy
is selected, if the number dialed is engaged after the
gateway has received a call, then it will
automatically transfer to the configured number
according to the following configuration; when
always is selected, then the gateway will directly
transfer all the numbers that dial to this port to the
configured numbers.
Forward Number/
IP/Port
Number, IP, Port configuration of call forward
（CWD）.
Page 22
PL-401 VoIP Gateway User Manual
22
Enable Call
Waiting
Configure enable/disable call waiting service. After
it is enabled, user can hold calls of the other party
by hooking, with hooking again, the hold call can
go on.
Enable Call
Transfer
Configure enable/disable call transfer (CT). After it
is enabled, user accept calls, with hooking and dial
directly, the gateway will transfer the calls
according to the above configurations of the port
number IP images.
Enable Three Way
Call
Configure enable/disable three way call. user can
call the other part as the call origination, after
talking, make hooking to hold this part and then
press * key to hear the dialing tone, after call
completion to the third party, hooking again to
recover the talk with the second part, then the three
way call concurrently.
After the aforesaid configuration has been done, click “apply” to make
them go into effect.
Black List Configure add/delete blacklist. If user don't want to
answer a certain number, please add this number to
the list, and then this number will be unable to get
through the gateway.
Limit List Configure out-limit list. for example, if user don't
want the gateway to dial a certain number, please
add the number to this table, and the user will be
unable to get through this number.

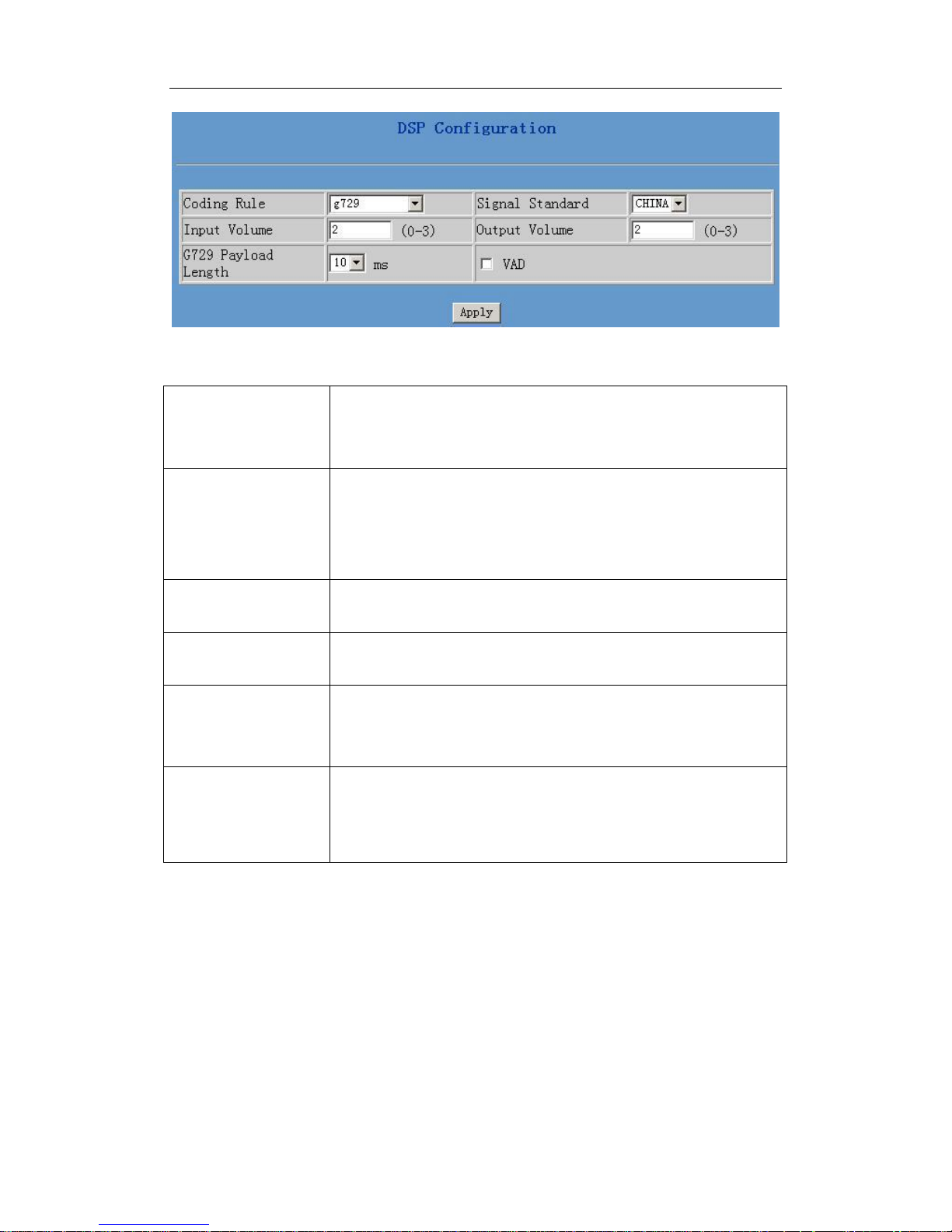

4.5.4 DSP configuration
On this page, user can set speech coding, IO volume control, cue tone
standard, caller ID standard and so on.
Page 23
PL-401 VoIP Gateway User Manual
23
Configuration Explanation:
Coding Rule Configure DSP Speech coding, choose the method to
process.
Signal Standard Configure the signal tone standard. For example, dial
tone, ringback tone, busy tone and so on. It contains
standards of China, United States, German, etc.
Input Volume Configure input volume.
Output Volume Configure output volume.
G729 Payload
Length
Configure G729 Payload Length according to the
requirement.
VAD Voice Activity Detection. When the telephone has no
input voice, for saving bandwidth, use VAD to
inform DSP to transfer silent frames.
After the configuration has been done, click “apply” to make them go into
effect.
4.6 Number binding configuration

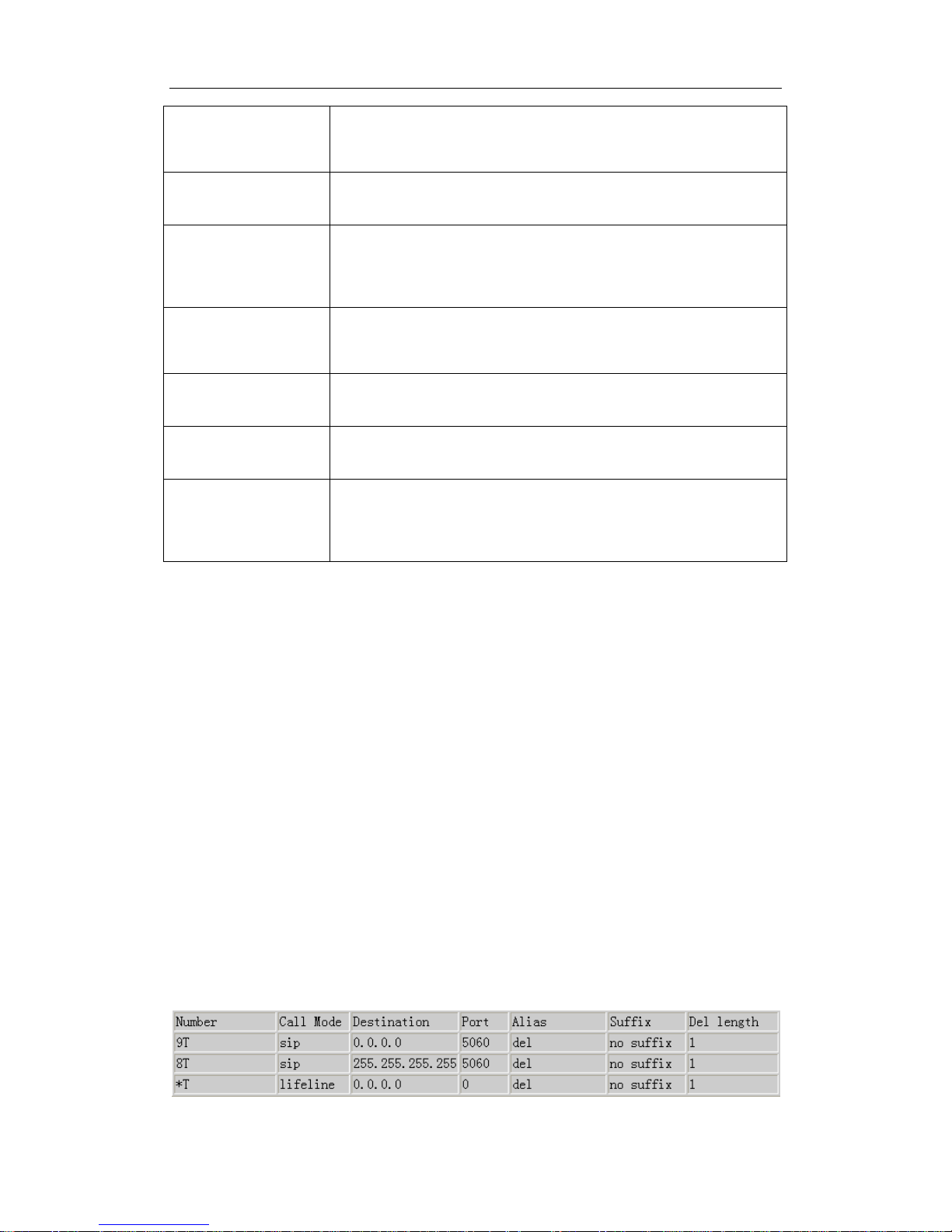

Number IP table configuration:
Page 24
PL-401 VoIP Gateway User Manual
24
Function of number IP table is one way to implement the gateway's
calling online, and the calling of the gateway will be more flexible by
configurating the number IP table. For example, user know the other
party's number and IP and want to make direct call to the party by
point-to-point mode: the other party's number is 1234, make a
configuration of 1234 directly ,then the gateway will send the called
number1234 to the corresponding IP address; Or set numbers with prefix
matching pattern, for example, user want to make a call to a number in a
certain region（010）, user can configure the corresponding number IP as
010T--protocol--IP, after that, whenever user dial numbers with 010
prefix（ such as 010－62201234), the call will be made by this rule.
Bases on this configuration, we can also make the gateway use different
accounts and run speed calling without swap.
When making deletion or modification, select the number first, then click
Modify and complete the operation.
Configuration explanation and basic application of the number IP
table:
1) The above table displays calling number IP image list. The table shows
different configuration cases when use different protocols.
ü Outgoing call through lifeline, dial an extra “*”;
Page 25
PL-401 VoIP Gateway User Manual
25
ü To call directly through point-to-point, the number is 166;
ü For the terminal with ip 192.168.0.166, dial an extra “9” when call
through private SIP server.
By configure different prefixes, protocols and IP formats, a outgoing call
can be made by different accounts or platforms.
2) Click “Add”, a figure will be shown at the lower part of the page, of
which:
Phone Number It is to add outgoing call number, there are two kinds
of outgoing call number setup: One is exactitude
matching, after this configuration has been done,
when the number is totally the same with the user’s
calling number, the gateway will make the call with
this number's IP address image or configuration;
Another is prefix matching （be equivalent to PSTN’s
district number prefix function）, if the previous N
bits of this number are the same with that of the
user's calling number (the prefix number length),
then the gateway will use this number's IP address
image or configuration to make the call. When
configurating the prefix matching, letter "T" should
be added behind the prefix number to be
distinguished from the exactitude matching; the
longest length is 30 bits.
Call Mode Configure the calling mode: SIP and lifeline;
Destination Configure destination address, if it is point-to-point
call, then input the opposite terminal's IP address, it
can also be set as domain name and resolved the
specific IP address by DNS server of the gateway. If
no configuration has been made, then the IP will be
considered as 0.0.0.0. This is an optional
Page 26
PL-401 VoIP Gateway User Manual
26
configuration item;
Port Configure the other party's protocol signal port, this
is optional configuration item: when nothing is input,
then the default of h323 protocol is 1720, the default
of sip protocol is 5060; lifeline required no
configuration of this item, shown as 0;
Alias Configure alias, this is optional configuration item: it
is the number to be used when the other party's
number has prefix; when no configuration has been
made, shown as no alias;
alias can be divided into four types, it should be
combined with replacing length to make the setup:
Add: xxx, add xxx before number. in this way it can
help user save the dialing length;
All: xxx, the number is all replaced by xxx; speed
dialing can be implemented, for example, user
configure the dialing number as 1, with the
configuration "all" , the actual calling number will
be replaced;
Del, delete n bit in the front part of the number can
be decided by the replacing length; this configuration
can decide the protocol for appointed number;
Rep: xxx, n bit in the front part of the number will be
replaced. n is decided by the replacing length. For
example, user want to dial PSTN（010－62281493）
by VoIP’s voice over service, while actually the
called number should be 8610－62281493, then we
can configure called number as 010T,then rep: 8610,
and then set the replacing length as 3. So that when
Page 27
PL-401 VoIP Gateway User Manual
27
user make a call with 010 prefix, the number will be
replaced as 8610 plus the number and then sent out.
It is a convenient thinking mode for user to make a
call.
Suffix Configure suffix, this is optional configuration item:
it is the additive dial-out number behind the number;
when no configuration has been made, shown as no
suffix.
Delete Length
(optional)
Configure the replacing length, replace the number
that user input according to this length; this is
optional configuration item.
3) Click “Delete”: Delete selective number IP image;
4) Click “Modify”: Choose a corresponding phone number image in the
drop-down menu and then click “modify” to make modification. Then the
page changes to the following chart. After modification, click “Submit” to
go into effect.
Page 28
PL-401 VoIP Gateway User Manual
28
Phone Number This i
s the selected number( to be modified),
read-only;
Call Mode To modify call mode, can be sip or lifeline;
Destination
(optional)
To modify destination address, this is optional
configuration item;
Port(optional) To modify destination gateway port; this is optional
configuration item;
Alias(optional) To modify alias, this is optional configuration item;
Suffix(optional) To modify suffix; this is optional configuration item;
Delete Length
(optional)
To modify replacing length（if rep and del of alias
have been configured）
Click submit to go into effect.
How to configure IP table of number to implement configuration of
using multi-accounts concurrently:
For example, now user has two SIP accounts, then under the default
condition, user can only make calls by the public SIP server. Configure
the number IP table to select the call protocol, and user could select
different accounts to make calls freely.
The configuration process will not be repeated, now I will mainly
introduce what kind of number IP image can implement this function.
By configuration, image table as follows will be gained:
Page 29
PL-401 VoIP Gateway User Manual
29
Image of 9T means when user configure public SIP server and register,
then user just need to add a “9” before the calling number whenever
making a call by public SIP;
Image of 8T means when user configure private SIP server and register,
then user just need to add a “8” before the calling number whenever
making a call by private SIP;
Image of *T means when user connect PSTN line to the lifeline port, user
could make PSTN call by add a “*” before the calling number.

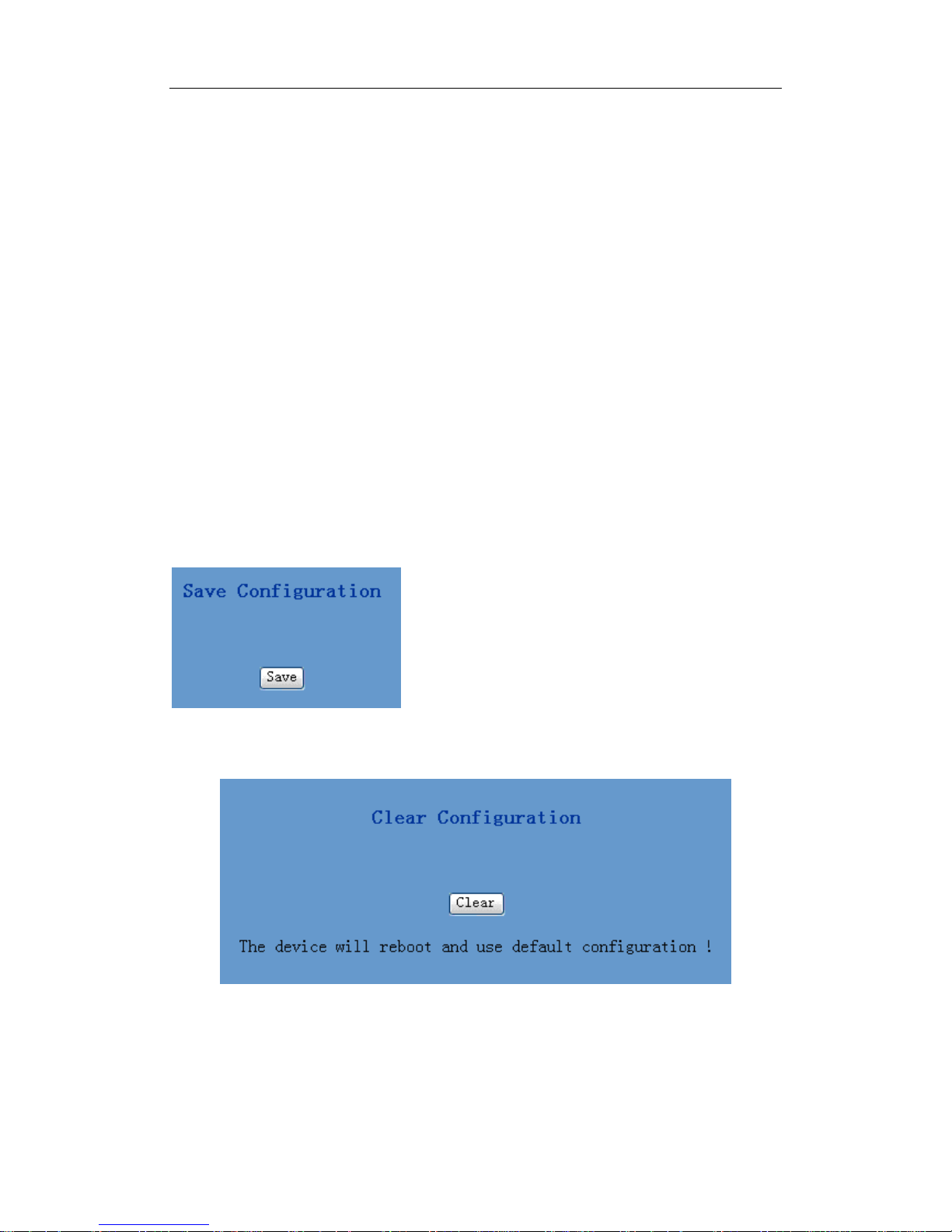

4.7 Save and Clear configuration
User can save the current configuration on this page.
The system configuration can be set as
factory default configuration on clear
configuration page and the gateway will
restart automatically. Only user who is
administrator could clear configuration as
factory default configuration. Guest can
only clear configuration excluding SIP.
Page 30
PL-401 VoIP Gateway User Manual
30

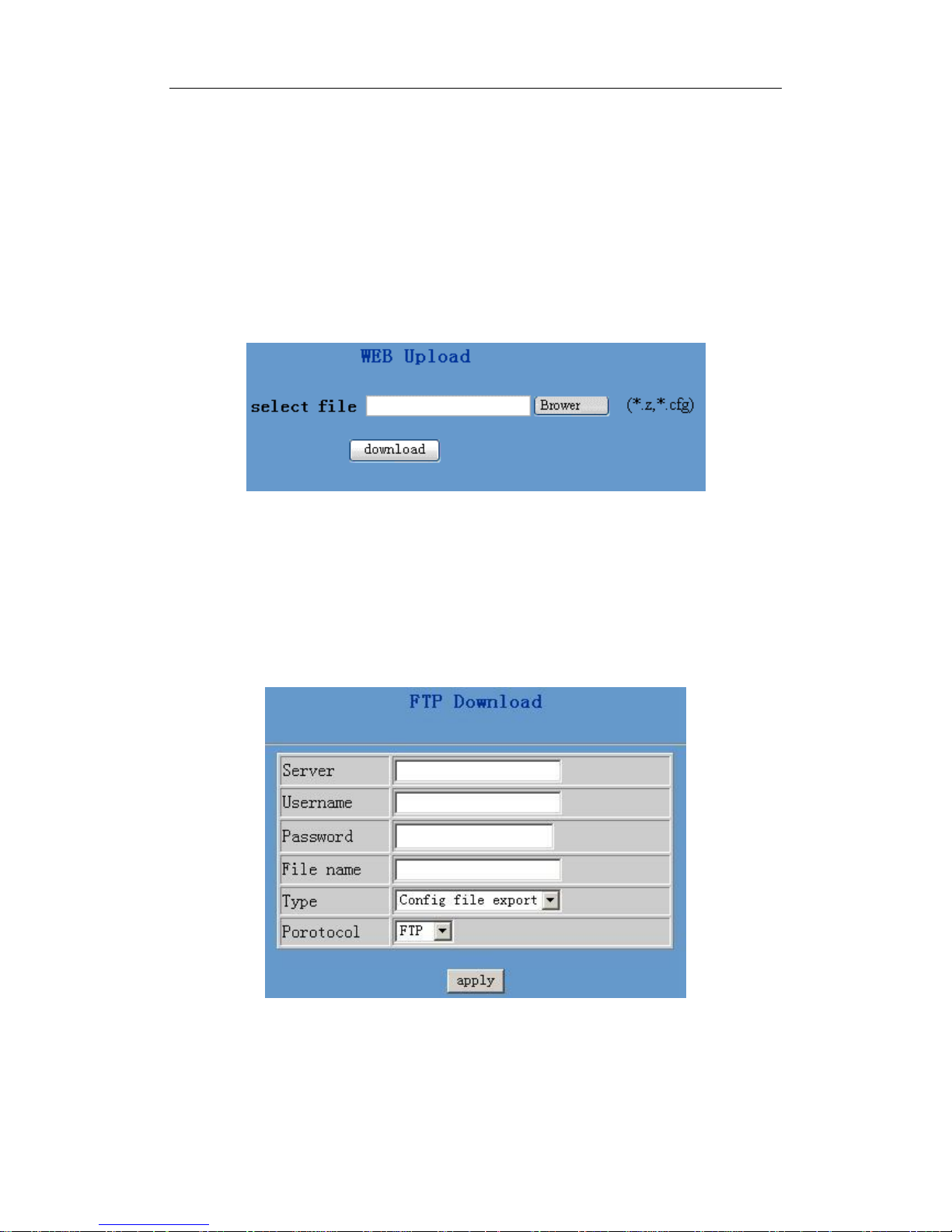

4.8 Upgrade on-line
4.8.1 Upload WEB page
On this page, user can select the upgrade documents (firmware or config
file) on hard disk of the computer directly to run the system upgrade.
After the upgrade has been completed, restart the gateway and it will be
usable at once.
4.8.2 FTP download
On this page, user can upgrade system and configure files by FTP or
TFTP mode.
Configuration Explanation:
Page 31
PL-401 VoIP Gateway User Manual
31
Server Configure upload or download FTP/ TFTP server IP
address;
Username Configure username of the upload or download FTP
server. If user select TFTP mode, username and
password are not required to be configured;
Password Configure upload or download of FTP server
password;
File name Configure upload or download system upgrade
document or system layout file name. It should be
noted that system file take .dlf as suffix,
configuration files take .cfg as suffix;
Type Configure the operation type. There are 3 types:
ü “application update”: update the system through
ftp or tftp;
ü “config file export”
: Upload the gateway
configuration file to the remote server through ftp
or tftp protocols;
ü “config file import”: Download the configuration
file from remote server and import to local
gateway
Protocol Select server type;
4.9 System management
4.9.1 Account management
On this page, user can add and delete users according to own needs and
can modify user's authorities there have been.
Page 32
PL-401 VoIP Gateway User Manual
32
Configuration Explanation:
1) The table in the page displays the gateway user account list;
2) Click “Add” to add gateway account; it will be shown at lower part of
page as the following figure, of which:
User Level As account level; root possesses authorities to modify
configuration, general possesses read-only authority;
Password As corresponding password of the additive account;
Confirm As second confirmation of password, to ensure
correct setup of password;
Return/Submit Click “Submit” to go into effect; click “Return” to
cancel configuration.
Page 33
PL-401 VoIP Gateway User Manual
33
3) Click “Delete” to delete the selected account from the drop-down
menu.

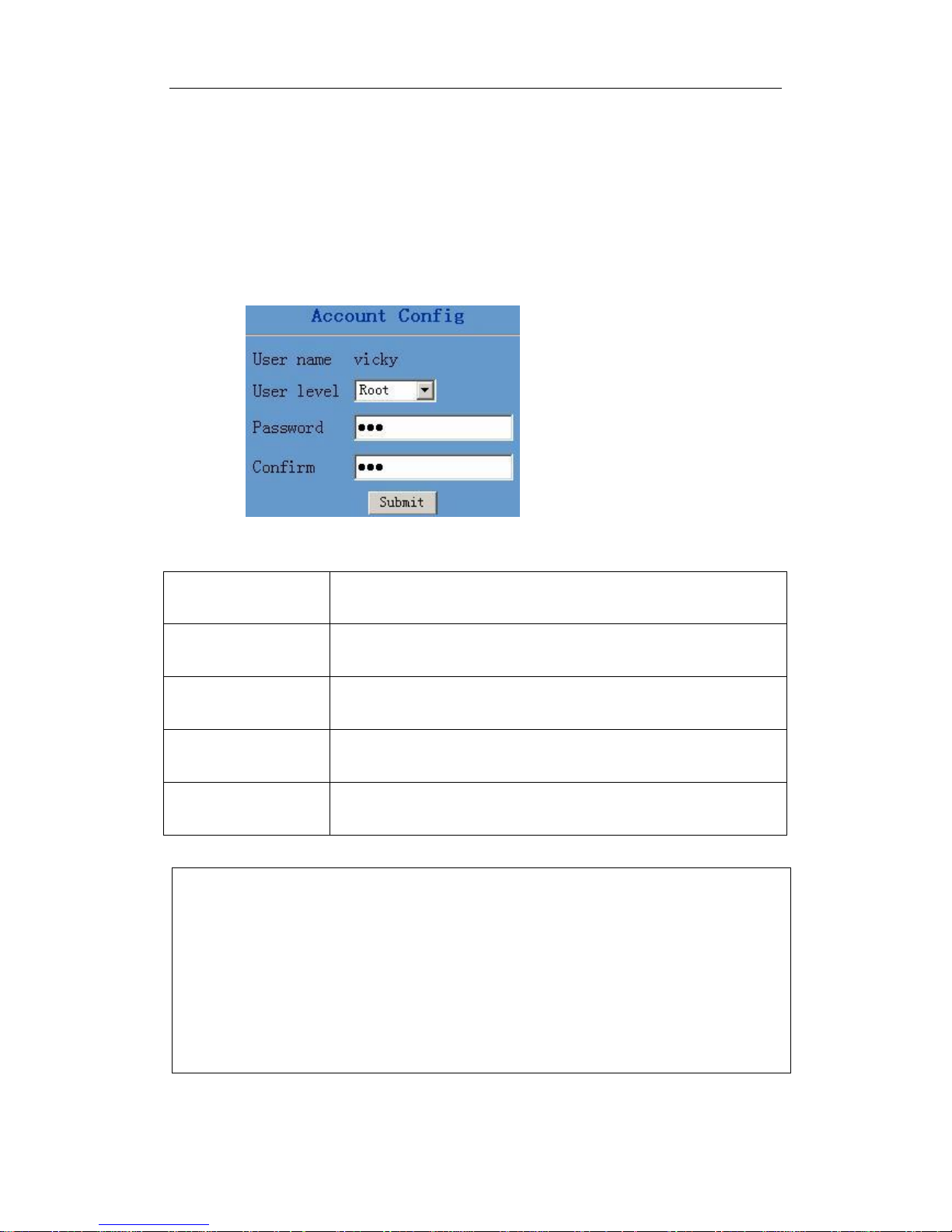

4) Click “Modify” to modify the chosen account, need to select account
first, click load again and then click modify, it will be shown at lower part
of page as the following figure, of which:
User name The modified username;
User level Modify user authorities;
Password
Modify user password;
Confirm Make confirmation of the modified user password;
Submit Click “Submit” to submit the modification .
Owing to the phone's default account: accounts of the administrator level-
admin and the
ordinary level－
guest are all weak account and weak password, the username and password will
be easily to be guessed on public network, so the user had better modify the
administrator and
ordinary user.
Enter with manager level when making modification，create a administrator
account and a
browse account（you'd better not set the name as admin, administrator, guest, etc.），
set
password and then save configuration，
entering with new manager account, delete default
manager and browse account and save configuration，security will be enhanced!
Page 34
PL-401 VoIP Gateway User Manual
34
5 Configuration with Phone
We have provide some command to config PL--401 by phone. We can
connect one analog phone to “Phone” interface. We can input following
command by Handfree or Handset.
Input #**** # Reboot Device;
Input #*000 # Clear configuration;
Input #*100 # Gateway work at Static mode
Input #*101 # Gateway work at DHCP mode
Input #*102 # Gateway work at PPPoE mode
Input #*103 # Gateway work at Bridge mode
Input #*104 # Gateway work at Router mode
Input #*111 # Get the IP address of Gateway by voice message
Input #*222 # Get the Number of Gateway by voice message
Shenzhen Proolin VoIP Tech.Co.,Ltd
http://www.proolin.com
0086-755-26341713 81795455
Loading...
